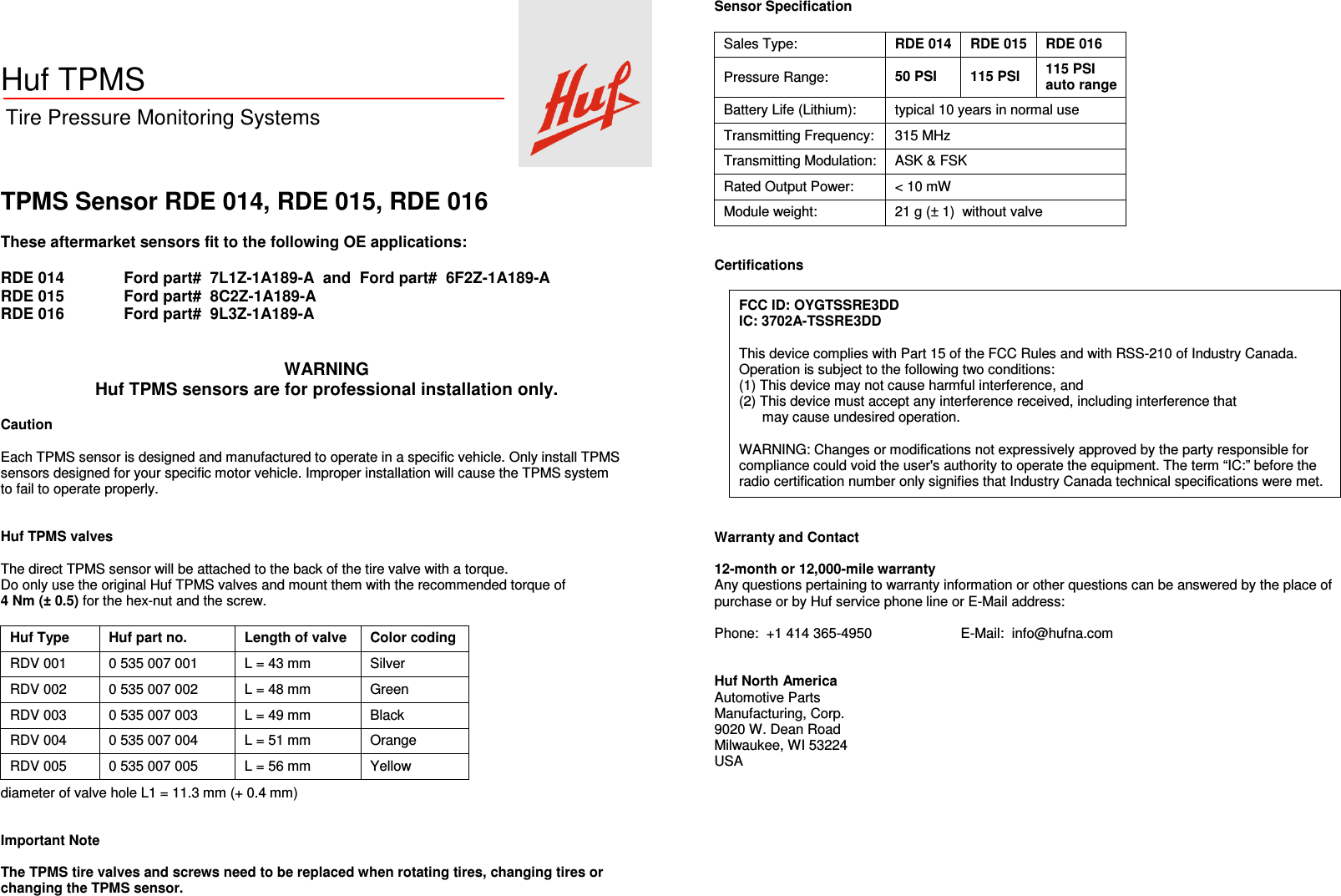

Huf TPMS  Tire Pressure Monitoring Systems    TPMS Sensor RDE 014, RDE 015, RDE 016  These aftermarket sensors fit to the following OE applications:  RDE 014  Ford part#  7L1Z-1A189-A  and  Ford part#  6F2Z-1A189-A RDE 015  Ford part#  8C2Z-1A189-A RDE 016  Ford part#  9L3Z-1A189-A   WARNING Huf TPMS sensors are for professional installation only.  Caution  Each TPMS sensor is designed and manufactured to operate in a specific vehicle. Only install TPMS sensors designed for your specific motor vehicle. Improper installation will cause the TPMS system to fail to operate properly.   Huf TPMS valves  The direct TPMS sensor will be attached to the back of the tire valve with a torque. Do only use the original Huf TPMS valves and mount them with the recommended torque of 4 Nm (± 0.5) for the hex-nut and the screw.  Huf Type  Huf part no.  Length of valve  Color coding RDV 001  0 535 007 001  L = 43 mm  Silver RDV 002  0 535 007 002  L = 48 mm  Green RDV 003  0 535 007 003  L = 49 mm  Black RDV 004  0 535 007 004  L = 51 mm  Orange RDV 005  0 535 007 005  L = 56 mm  Yellow diameter of valve hole L1 = 11.3 mm (+ 0.4 mm)   Important Note  The TPMS tire valves and screws need to be replaced when rotating tires, changing tires or changing the TPMS sensor.  Sensor Specification  Sales Type: RDE 014  RDE 015  RDE 016 Pressure Range:  50 PSI  115 PSI  115 PSI auto range Battery Life (Lithium):  typical 10 years in normal use Transmitting Frequency:  315 MHz Transmitting Modulation:  ASK & FSK Rated Output Power:  < 10 mW Module weight:  21 g (± 1)  without valve   Certifications  FCC ID: OYGTSSRE3DD IC: 3702A-TSSRE3DD  This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that       may cause undesired operation.  WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.   Warranty and Contact  12-month or 12,000-mile warranty Any questions pertaining to warranty information or other questions can be answered by the place of purchase or by Huf service phone line or E-Mail address:  Phone:  +1 414 365-4950    E-Mail:  info@hufna.com   Huf North America Automotive Parts Manufacturing, Corp. 9020 W. Dean Road Milwaukee, WI 53224 USA
