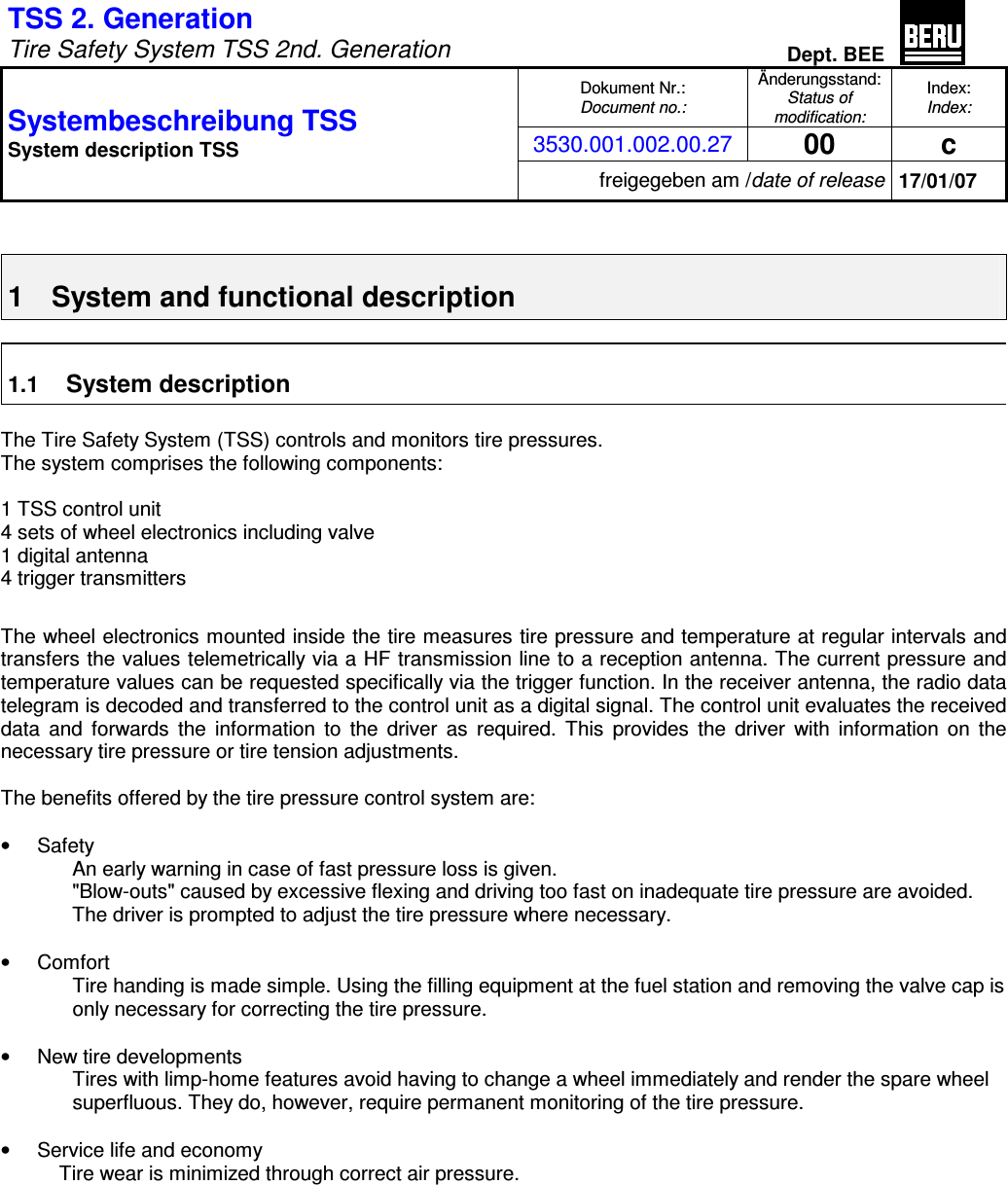

TSS 2. Generation Tire Safety System TSS 2nd. Generation Dept. BEE Dokument Nr.: Document no.: Änderungsstand: Status of modification: Index: Index: 3530.001.002.00.27 00 c Systembeschreibung TSS System description TSS freigegeben am /date of release 17/01/07 1 System and functional description 1.1 System description The Tire Safety System (TSS) controls and monitors tire pressures. The system comprises the following components: 1 TSS control unit 4 sets of wheel electronics including valve 1 digital antenna 4 trigger transmitters The wheel electronics mounted inside the tire measures tire pressure and temperature at regular intervals and transfers the values telemetrically via a HF transmission line to a reception antenna. The current pressure and temperature values can be requested specifically via the trigger function. In the receiver antenna, the radio data telegram is decoded and transferred to the control unit as a digital signal. The control unit evaluates the received data and forwards the information to the driver as required. This provides the driver with information on the necessary tire pressure or tire tension adjustments. The benefits offered by the tire pressure control system are: • Safety An early warning in case of fast pressure loss is given. "Blow-outs" caused by excessive flexing and driving too fast on inadequate tire pressure are avoided. The driver is prompted to adjust the tire pressure where necessary. • Comfort Tire handing is made simple. Using the filling equipment at the fuel station and removing the valve cap is only necessary for correcting the tire pressure. • New tire developments Tires with limp-home features avoid having to change a wheel immediately and render the spare wheel superfluous. They do, however, require permanent monitoring of the tire pressure. • Service life and economy Tire wear is minimized through correct air pressure.

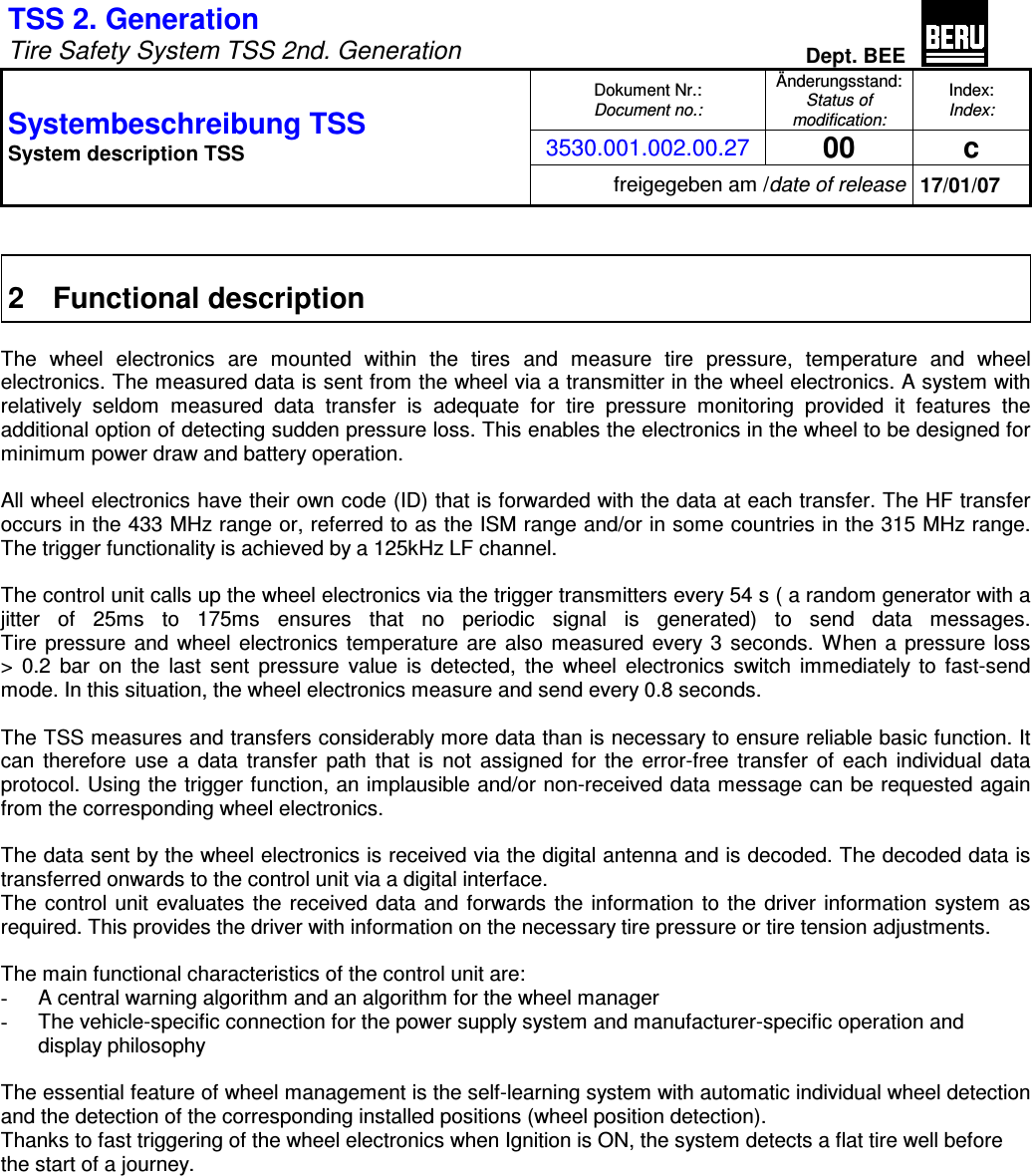

TSS 2. Generation Tire Safety System TSS 2nd. Generation Dept. BEE Dokument Nr.: Document no.: Änderungsstand: Status of modification: Index: Index: 3530.001.002.00.27 00 c Systembeschreibung TSS System description TSS freigegeben am /date of release 17/01/07 2 Functional description The wheel electronics are mounted within the tires and measure tire pressure, temperature and wheel electronics. The measured data is sent from the wheel via a transmitter in the wheel electronics. A system with relatively seldom measured data transfer is adequate for tire pressure monitoring provided it features the additional option of detecting sudden pressure loss. This enables the electronics in the wheel to be designed for minimum power draw and battery operation. All wheel electronics have their own code (ID) that is forwarded with the data at each transfer. The HF transfer occurs in the 433 MHz range or, referred to as the ISM range and/or in some countries in the 315 MHz range. The trigger functionality is achieved by a 125kHz LF channel. The control unit calls up the wheel electronics via the trigger transmitters every 54 s ( a random generator with a jitter of 25ms to 175ms ensures that no periodic signal is generated) to send data messages. Tire pressure and wheel electronics temperature are also measured every 3 seconds. When a pressure loss > 0.2 bar on the last sent pressure value is detected, the wheel electronics switch immediately to fast-send mode. In this situation, the wheel electronics measure and send every 0.8 seconds. The TSS measures and transfers considerably more data than is necessary to ensure reliable basic function. It can therefore use a data transfer path that is not assigned for the error-free transfer of each individual data protocol. Using the trigger function, an implausible and/or non-received data message can be requested again from the corresponding wheel electronics. The data sent by the wheel electronics is received via the digital antenna and is decoded. The decoded data is transferred onwards to the control unit via a digital interface. The control unit evaluates the received data and forwards the information to the driver information system as required. This provides the driver with information on the necessary tire pressure or tire tension adjustments. The main functional characteristics of the control unit are: - A central warning algorithm and an algorithm for the wheel manager - The vehicle-specific connection for the power supply system and manufacturer-specific operation and display philosophy The essential feature of wheel management is the self-learning system with automatic individual wheel detection and the detection of the corresponding installed positions (wheel position detection). Thanks to fast triggering of the wheel electronics when Ignition is ON, the system detects a flat tire well before the start of a journey.

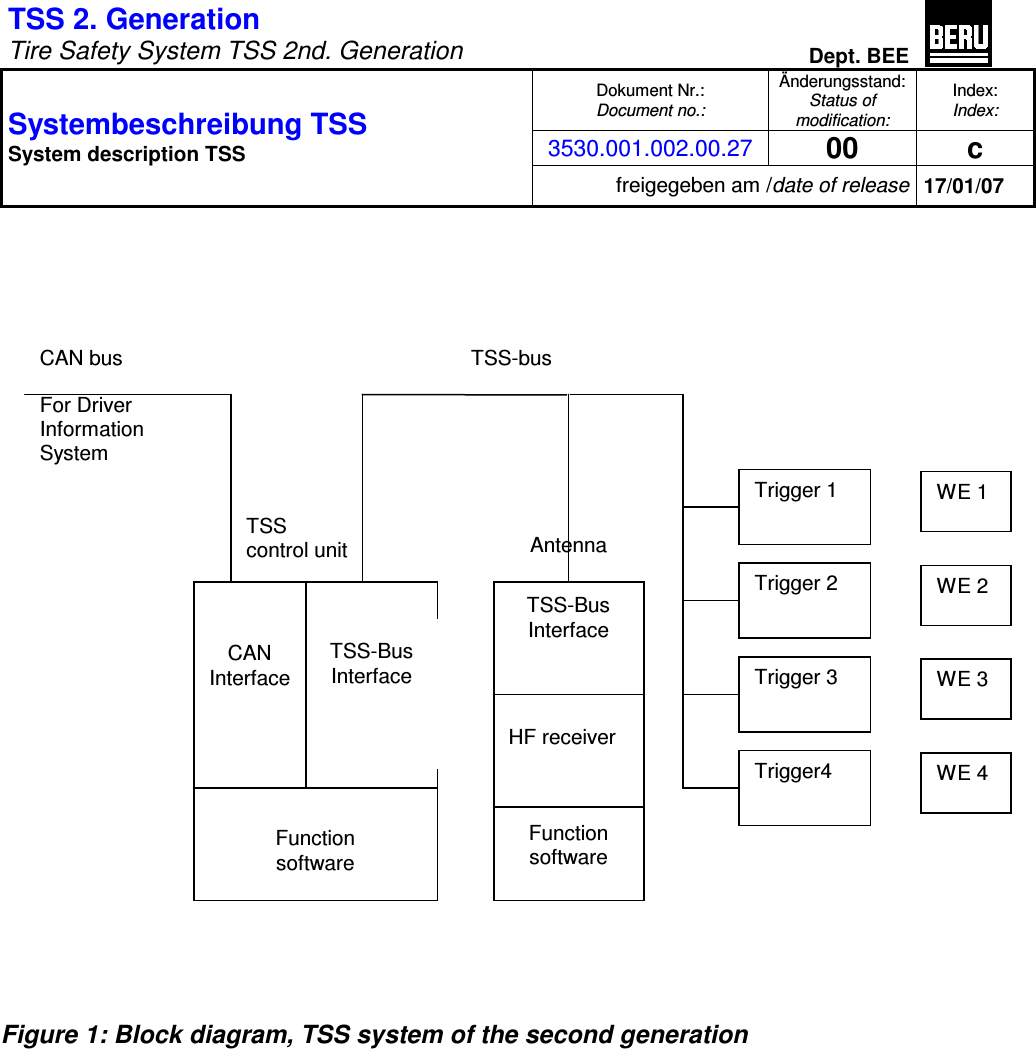

TSS 2. Generation Tire Safety System TSS 2nd. Generation Dept. BEE Dokument Nr.: Document no.: Änderungsstand: Status of modification: Index: Index: 3530.001.002.00.27 00 c Systembeschreibung TSS System description TSS freigegeben am /date of release 17/01/07 Figure 1: Block diagram, TSS system of the second generation CAN bus For Driver Information System CAN Interface TSS-Bus Interface Function software TSS-Bus Interface Function software HF receiver TSS control unit TSS-bus Antenna WE 1 WE 2 WE 3 WE 4 Trigger 1 Trigger 2 Trigger 3 Trigger4

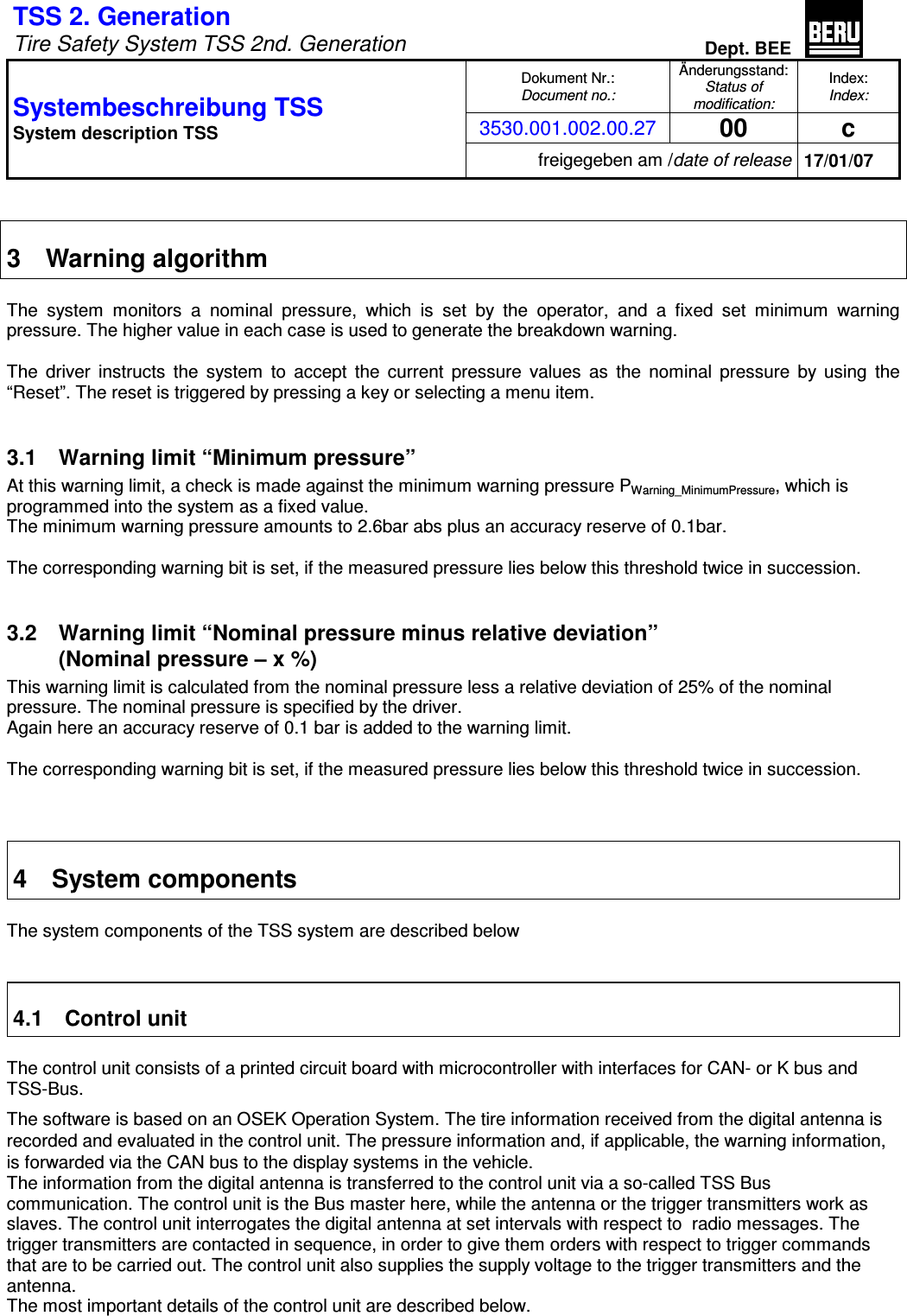

TSS 2. Generation Tire Safety System TSS 2nd. Generation Dept. BEE Dokument Nr.: Document no.: Änderungsstand: Status of modification: Index: Index: 3530.001.002.00.27 00 c Systembeschreibung TSS System description TSS freigegeben am /date of release 17/01/07 3 Warning algorithm The system monitors a nominal pressure, which is set by the operator, and a fixed set minimum warning pressure. The higher value in each case is used to generate the breakdown warning. The driver instructs the system to accept the current pressure values as the nominal pressure by using the “Reset”. The reset is triggered by pressing a key or selecting a menu item. 3.1 Warning limit “Minimum pressure” At this warning limit, a check is made against the minimum warning pressure PWarning_MinimumPressure, which is programmed into the system as a fixed value. The minimum warning pressure amounts to 2.6bar abs plus an accuracy reserve of 0.1bar. The corresponding warning bit is set, if the measured pressure lies below this threshold twice in succession. 3.2 Warning limit “Nominal pressure minus relative deviation” (Nominal pressure – x %) This warning limit is calculated from the nominal pressure less a relative deviation of 25% of the nominal pressure. The nominal pressure is specified by the driver. Again here an accuracy reserve of 0.1 bar is added to the warning limit. The corresponding warning bit is set, if the measured pressure lies below this threshold twice in succession. 4 System components The system components of the TSS system are described below 4.1 Control unit The control unit consists of a printed circuit board with microcontroller with interfaces for CAN- or K bus and TSS-Bus. The software is based on an OSEK Operation System. The tire information received from the digital antenna is recorded and evaluated in the control unit. The pressure information and, if applicable, the warning information, is forwarded via the CAN bus to the display systems in the vehicle. The information from the digital antenna is transferred to the control unit via a so-called TSS Bus communication. The control unit is the Bus master here, while the antenna or the trigger transmitters work as slaves. The control unit interrogates the digital antenna at set intervals with respect to radio messages. The trigger transmitters are contacted in sequence, in order to give them orders with respect to trigger commands that are to be carried out. The control unit also supplies the supply voltage to the trigger transmitters and the antenna. The most important details of the control unit are described below.
