DIB-R5 advancedDigital Integrated Base StationOperation ManualACCESSNET®-T IP90DIBR5advancedOM02 - 1.0© 2014 Hytera Mobilfunk GmbH

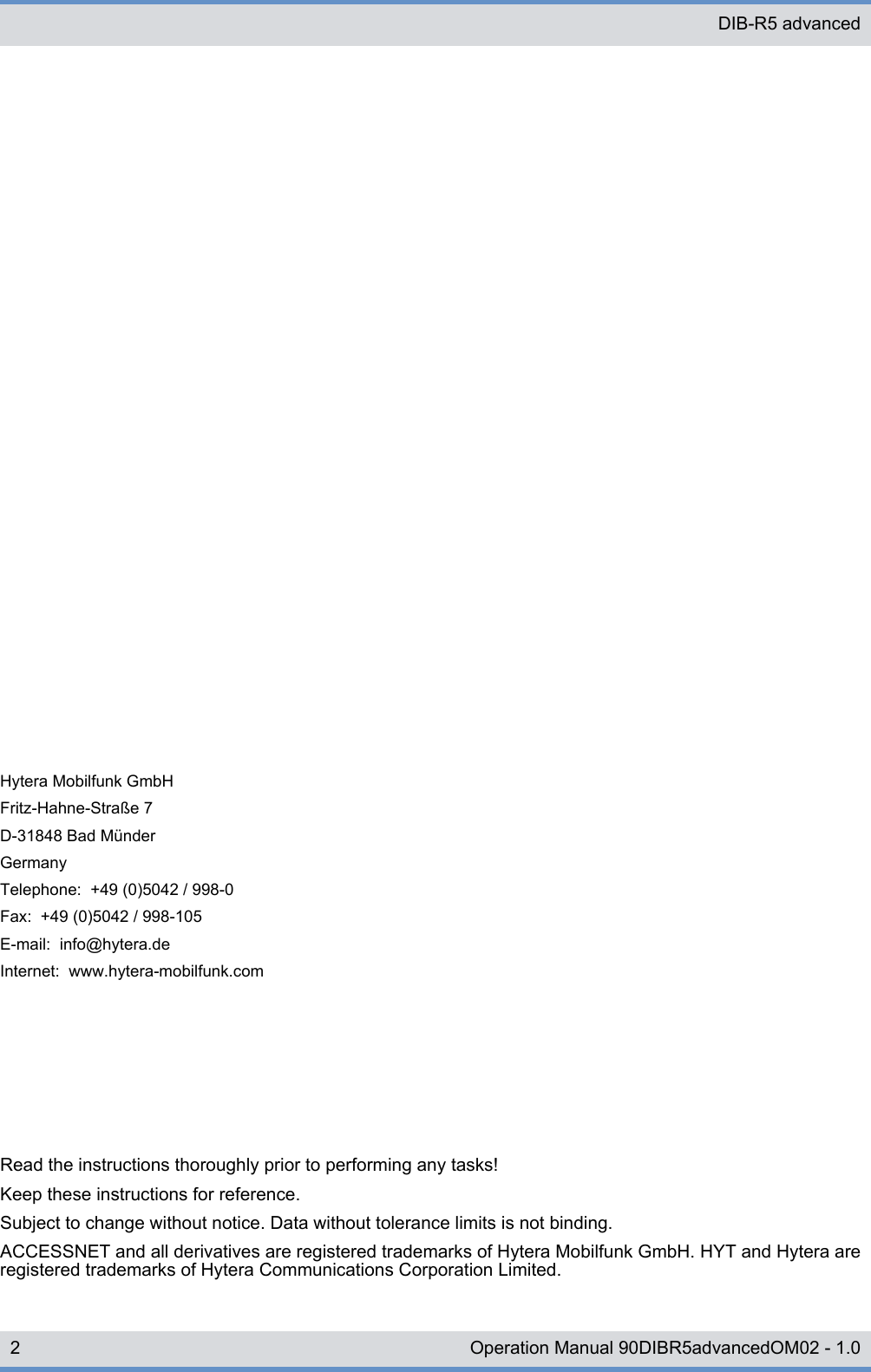

Read the instructions thoroughly prior to performing any tasks!Keep these instructions for reference.Subject to change without notice. Data without tolerance limits is not binding.ACCESSNET and all derivatives are registered trademarks of Hytera Mobilfunk GmbH. HYT and Hytera areregistered trademarks of Hytera Communications Corporation Limited.Hytera Mobilfunk GmbHFritz-Hahne-Straße 7D-31848 Bad MünderGermanyTelephone: +49 (0)5042 / 998-0Fax: +49 (0)5042 / 998-105E-mail: info@hytera.deInternet: www.hytera-mobilfunk.comDIB-R5 advanced2 Operation Manual 90DIBR5advancedOM02 - 1.0

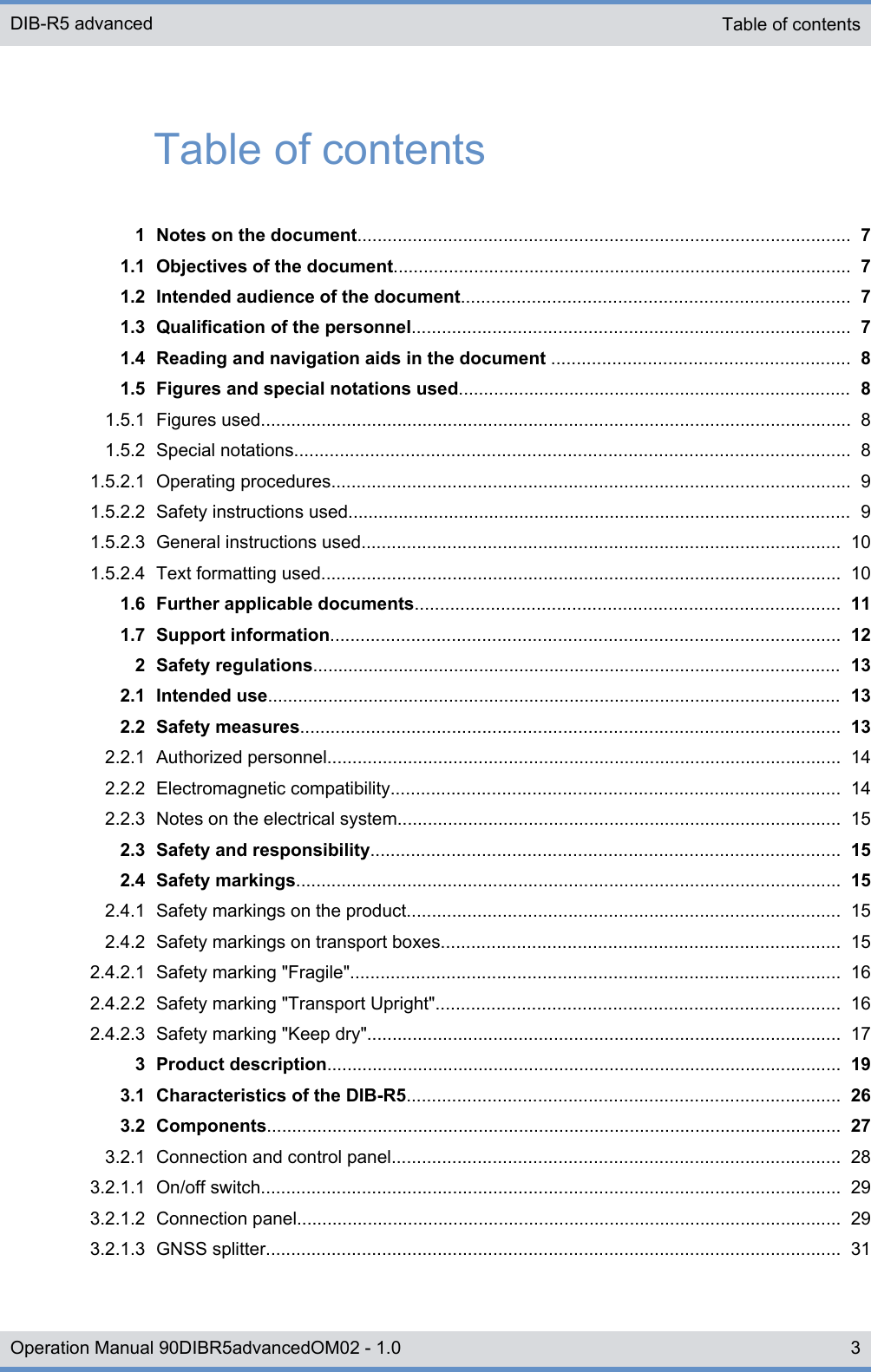

Table of contents1 Notes on the document.................................................................................................. 71.1 Objectives of the document........................................................................................... 71.2 Intended audience of the document............................................................................. 71.3 Qualification of the personnel....................................................................................... 71.4 Reading and navigation aids in the document ........................................................... 81.5 Figures and special notations used.............................................................................. 81.5.1 Figures used..................................................................................................................... 81.5.2 Special notations.............................................................................................................. 81.5.2.1 Operating procedures....................................................................................................... 91.5.2.2 Safety instructions used.................................................................................................... 91.5.2.3 General instructions used............................................................................................... 101.5.2.4 Text formatting used....................................................................................................... 101.6 Further applicable documents.................................................................................... 111.7 Support information..................................................................................................... 122 Safety regulations......................................................................................................... 132.1 Intended use.................................................................................................................. 132.2 Safety measures........................................................................................................... 132.2.1 Authorized personnel...................................................................................................... 142.2.2 Electromagnetic compatibility......................................................................................... 142.2.3 Notes on the electrical system........................................................................................ 152.3 Safety and responsibility............................................................................................. 152.4 Safety markings............................................................................................................ 152.4.1 Safety markings on the product...................................................................................... 152.4.2 Safety markings on transport boxes............................................................................... 152.4.2.1 Safety marking "Fragile"................................................................................................. 162.4.2.2 Safety marking "Transport Upright"................................................................................ 162.4.2.3 Safety marking "Keep dry".............................................................................................. 173 Product description...................................................................................................... 193.1 Characteristics of the DIB-R5...................................................................................... 263.2 Components.................................................................................................................. 273.2.1 Connection and control panel......................................................................................... 283.2.1.1 On/off switch................................................................................................................... 293.2.1.2 Connection panel............................................................................................................ 293.2.1.3 GNSS splitter.................................................................................................................. 31Table of contentsDIB-R5 advanced3Operation Manual 90DIBR5advancedOM02 - 1.0
3.2.2 VAC voltage supply.......................................................................................................... 313.2.2.1 AC Power Distribution Module (APDM).......................................................................... 313.2.2.2 Power Supply Unit (PSU) including Power Supply Module (PSM)................................. 333.2.3 VDC voltage supply.......................................................................................................... 353.2.4 Divider Unit (DIU)............................................................................................................ 373.2.4.1 RX FILTER..................................................................................................................... 383.2.4.2 Passive Divider Unit (PDU) ‒ only in case of a CHU expansion.................................... 393.2.5 Transmitting filter............................................................................................................ 403.2.5.1 DUPLEXER.................................................................................................................... 403.2.5.2 TX FILTER...................................................................................................................... 413.2.6 TETRA Channel Unit (CHU)........................................................................................... 423.2.7 Base Station Controller Unit (BSCU).............................................................................. 443.2.8 Interconnection Relay Unit (IRU) ‒ only in the case of a CHU expansion...................... 483.2.9 Fan unit........................................................................................................................... 503.2.10 Cavity combiner.............................................................................................................. 513.2.11 Backplane....................................................................................................................... 523.3 Interfaces....................................................................................................................... 543.4 Wiring diagrams............................................................................................................ 553.4.1 Internal wiring................................................................................................................. 563.4.1.1 Internal wiring with four CHUs and DUPLEXER............................................................. 563.4.1.2 Internal wiring with four CHUs and TX FILTER.............................................................. 573.4.2 Wiring of two equipment racks ‒ only in the case of a CHU expansion......................... 583.4.3 Antenna configurations................................................................................................... 593.4.3.1 Antenna configuration with four CHUs and DUPLEXER................................................ 593.4.3.2 Antenna configuration with four CHUs and TX FILTER.................................................. 593.5 Redundancy options.................................................................................................... 603.5.1 Redundant main control channel (MCCH)...................................................................... 613.5.2 Transceiver redundancy................................................................................................. 613.5.3 Controller redundancy.................................................................................................... 613.5.4 Fallback operation.......................................................................................................... 613.5.5 Stand-alone operation.................................................................................................... 623.5.6 Redundant VAC voltage supply....................................................................................... 623.5.6.1 Redundant rectifier modules (Power Supply Module, PSM)........................................... 633.5.6.2 Redundant voltage supply feeds.................................................................................... 633.5.7 Redundant connection to the transport network............................................................. 633.5.8 Redundant synchronization (GNSS, PTP)...................................................................... 633.6 Scope of delivery.......................................................................................................... 64Table of contents DIB-R5 advanced4 Operation Manual 90DIBR5advancedOM02 - 1.0
4 Operation....................................................................................................................... 654.1 Safety measures and prerequisites............................................................................ 654.2 Switching on the DIB-R5 advanced............................................................................ 664.3 Function tests and operating surveillance................................................................. 674.3.1 Work equipment for function tests.................................................................................. 684.3.2 Connecting the service computer................................................................................... 694.3.3 Checking operating states.............................................................................................. 704.3.3.1 Checking operating states (via LEDs)............................................................................ 704.3.3.2 Checking operating states (audible check)..................................................................... 704.3.3.3 Checking operating states (via the NMC-511 FaultManager)......................................... 714.3.4 Checking the availability................................................................................................. 724.3.5 Checking standby carriers ‒ optional.............................................................................. 734.3.6 Function tests and operating surveillance GNSS........................................................... 744.3.6.1 Checking the installation site of the GNSS antenna....................................................... 744.3.6.2 GNSS operational monitoring (via NMC-511 FaultManager)......................................... 755 Service interruption...................................................................................................... 775.1 Shutting down hardware components....................................................................... 775.2 Switching off the DIB-R5 advanced............................................................................ 786 Recommissioning......................................................................................................... 817 Maintenance.................................................................................................................. 837.1 Maintenance tasks........................................................................................................ 837.2 Periodical visual inspections...................................................................................... 838 Troubleshooting........................................................................................................... 85Table of contentsDIB-R5 advanced5Operation Manual 90DIBR5advancedOM02 - 1.0
Table of contents DIB-R5 advanced6 Operation Manual 90DIBR5advancedOM02 - 1.0

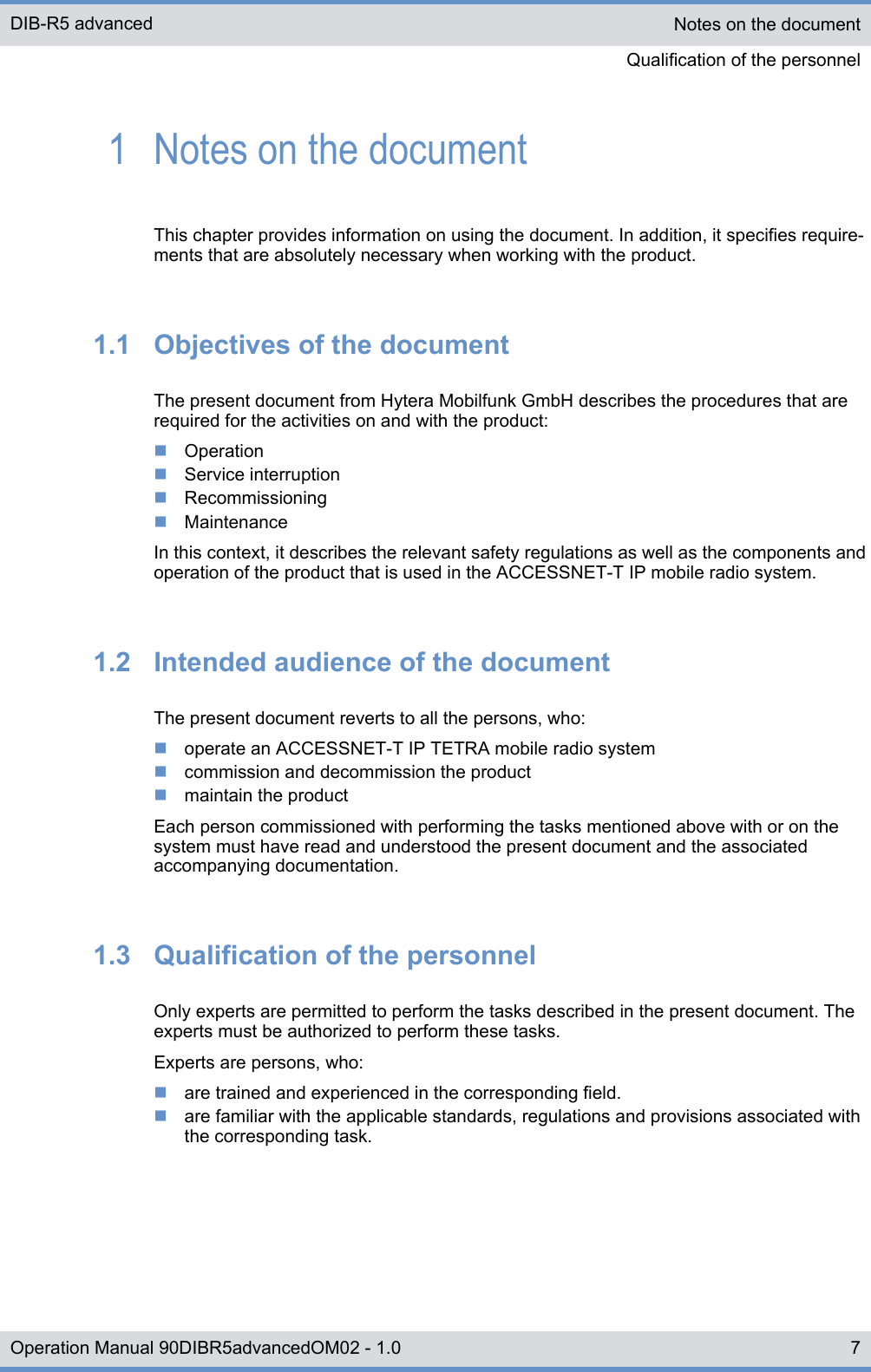

1 Notes on the documentThis chapter provides information on using the document. In addition, it specifies require-ments that are absolutely necessary when working with the product.1.1 Objectives of the documentThe present document from Hytera Mobilfunk GmbH describes the procedures that arerequired for the activities on and with the product:nOperationnService interruptionnRecommissioningnMaintenanceIn this context, it describes the relevant safety regulations as well as the components andoperation of the product that is used in the ACCESSNET-T IP mobile radio system.1.2 Intended audience of the documentThe present document reverts to all the persons, who:noperate an ACCESSNET-T IP TETRA mobile radio systemncommission and decommission the productnmaintain the productEach person commissioned with performing the tasks mentioned above with or on thesystem must have read and understood the present document and the associatedaccompanying documentation.1.3 Qualification of the personnelOnly experts are permitted to perform the tasks described in the present document. Theexperts must be authorized to perform these tasks.Experts are persons, who:nare trained and experienced in the corresponding field.nare familiar with the applicable standards, regulations and provisions associated withthe corresponding task.Notes on the documentQualification of the personnelDIB-R5 advanced7Operation Manual 90DIBR5advancedOM02 - 1.0

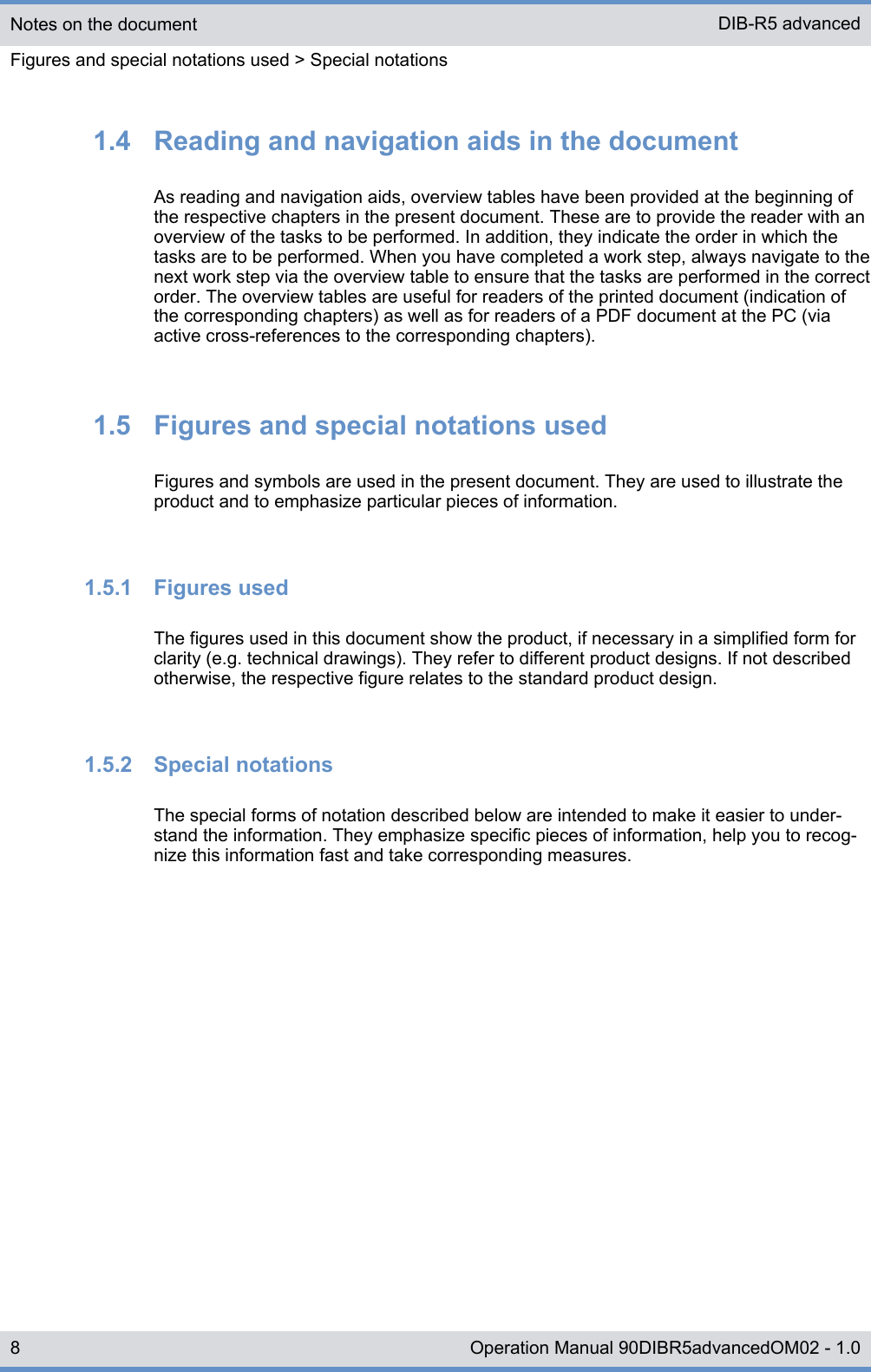

1.4 Reading and navigation aids in the documentAs reading and navigation aids, overview tables have been provided at the beginning ofthe respective chapters in the present document. These are to provide the reader with anoverview of the tasks to be performed. In addition, they indicate the order in which thetasks are to be performed. When you have completed a work step, always navigate to thenext work step via the overview table to ensure that the tasks are performed in the correctorder. The overview tables are useful for readers of the printed document (indication ofthe corresponding chapters) as well as for readers of a PDF document at the PC (viaactive cross-references to the corresponding chapters).1.5 Figures and special notations usedFigures and symbols are used in the present document. They are used to illustrate theproduct and to emphasize particular pieces of information.1.5.1 Figures usedThe figures used in this document show the product, if necessary in a simplified form forclarity (e.g. technical drawings). They refer to different product designs. If not describedotherwise, the respective figure relates to the standard product design.1.5.2 Special notationsThe special forms of notation described below are intended to make it easier to under-stand the information. They emphasize specific pieces of information, help you to recog-nize this information fast and take corresponding measures.Notes on the documentFigures and special notations used > Special notationsDIB-R5 advanced8 Operation Manual 90DIBR5advancedOM02 - 1.0

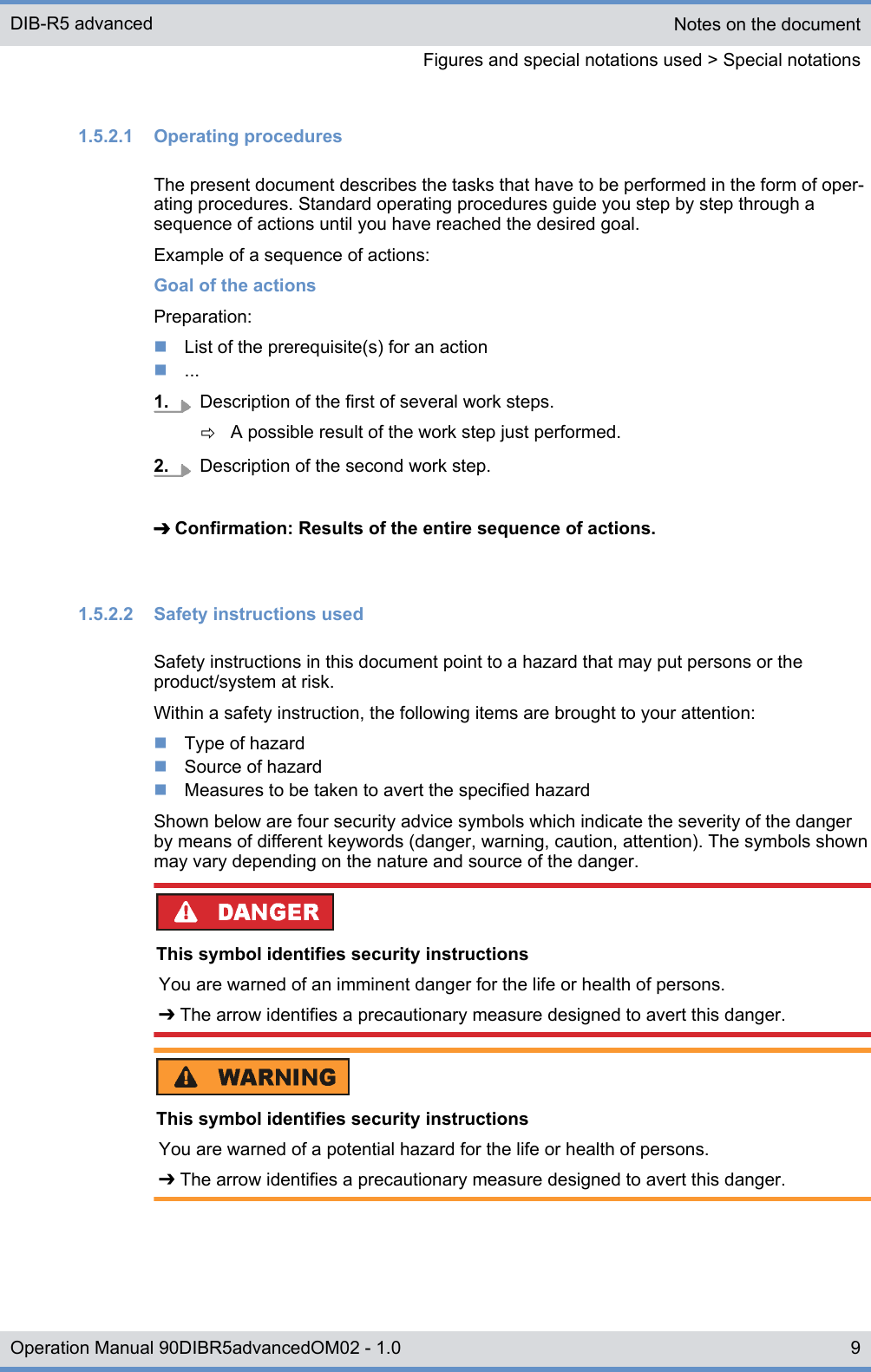

1.5.2.1 Operating proceduresThe present document describes the tasks that have to be performed in the form of oper-ating procedures. Standard operating procedures guide you step by step through asequence of actions until you have reached the desired goal.Example of a sequence of actions:Goal of the actionsPreparation:nList of the prerequisite(s) for an actionn...1. Description of the first of several work steps.ðA possible result of the work step just performed.2. Description of the second work step.➔ Confirmation: Results of the entire sequence of actions.1.5.2.2 Safety instructions usedSafety instructions in this document point to a hazard that may put persons or theproduct/system at risk.Within a safety instruction, the following items are brought to your attention:nType of hazardnSource of hazardnMeasures to be taken to avert the specified hazardShown below are four security advice symbols which indicate the severity of the dangerby means of different keywords (danger, warning, caution, attention). The symbols shownmay vary depending on the nature and source of the danger.This symbol identifies security instructionsYou are warned of an imminent danger for the life or health of persons.➔ The arrow identifies a precautionary measure designed to avert this danger.This symbol identifies security instructionsYou are warned of a potential hazard for the life or health of persons.➔ The arrow identifies a precautionary measure designed to avert this danger.Notes on the documentFigures and special notations used > Special notationsDIB-R5 advanced9Operation Manual 90DIBR5advancedOM02 - 1.0

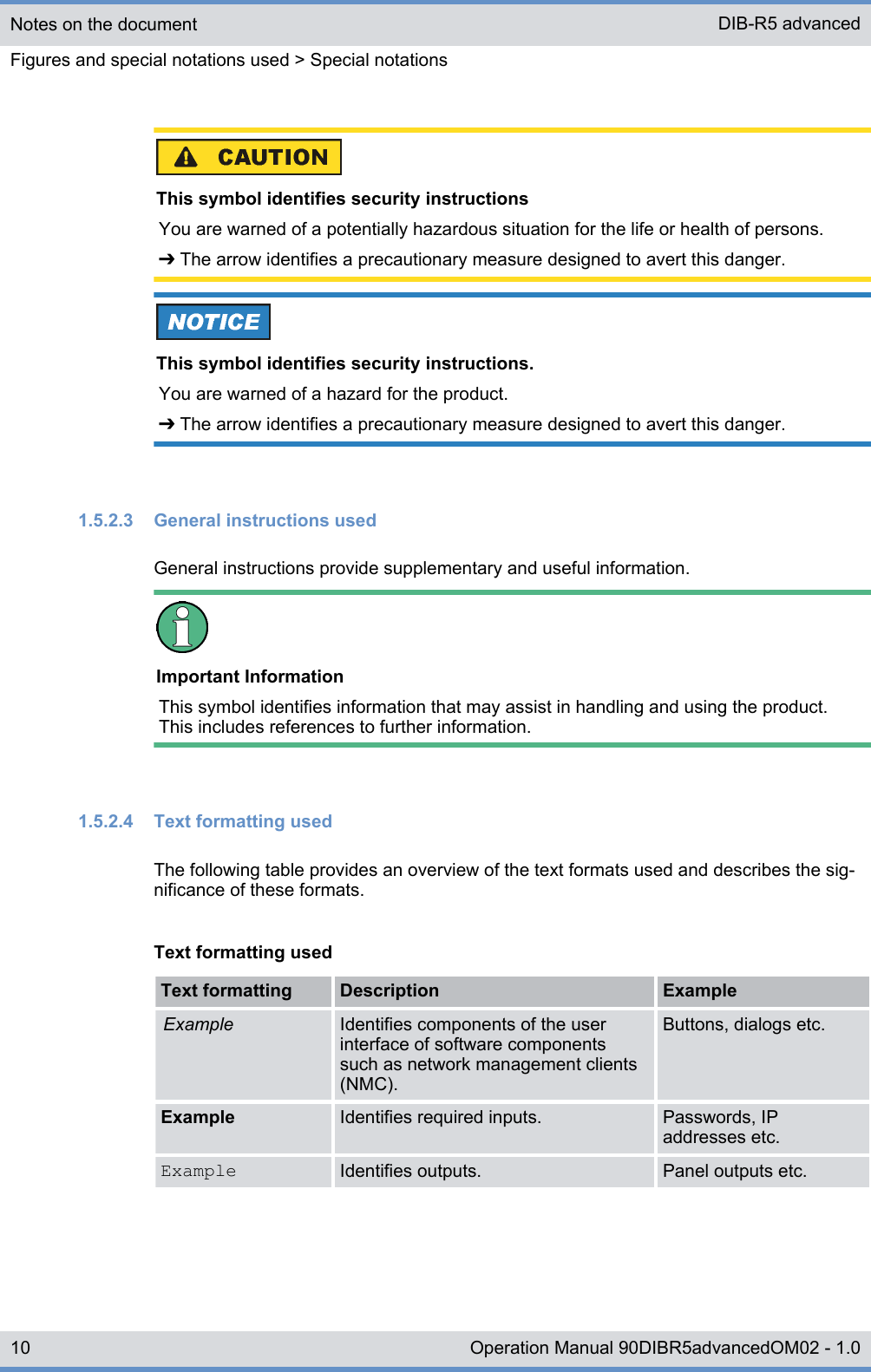

This symbol identifies security instructionsYou are warned of a potentially hazardous situation for the life or health of persons.➔ The arrow identifies a precautionary measure designed to avert this danger.This symbol identifies security instructions.You are warned of a hazard for the product.➔ The arrow identifies a precautionary measure designed to avert this danger.1.5.2.3 General instructions usedGeneral instructions provide supplementary and useful information.Important InformationThis symbol identifies information that may assist in handling and using the product.This includes references to further information.1.5.2.4 Text formatting usedThe following table provides an overview of the text formats used and describes the sig-nificance of these formats.Text formatting usedText formatting Description ExampleExample Identifies components of the userinterface of software componentssuch as network management clients(NMC).Buttons, dialogs etc.Example Identifies required inputs. Passwords, IPaddresses etc.Example Identifies outputs. Panel outputs etc.Notes on the documentFigures and special notations used > Special notationsDIB-R5 advanced10 Operation Manual 90DIBR5advancedOM02 - 1.0

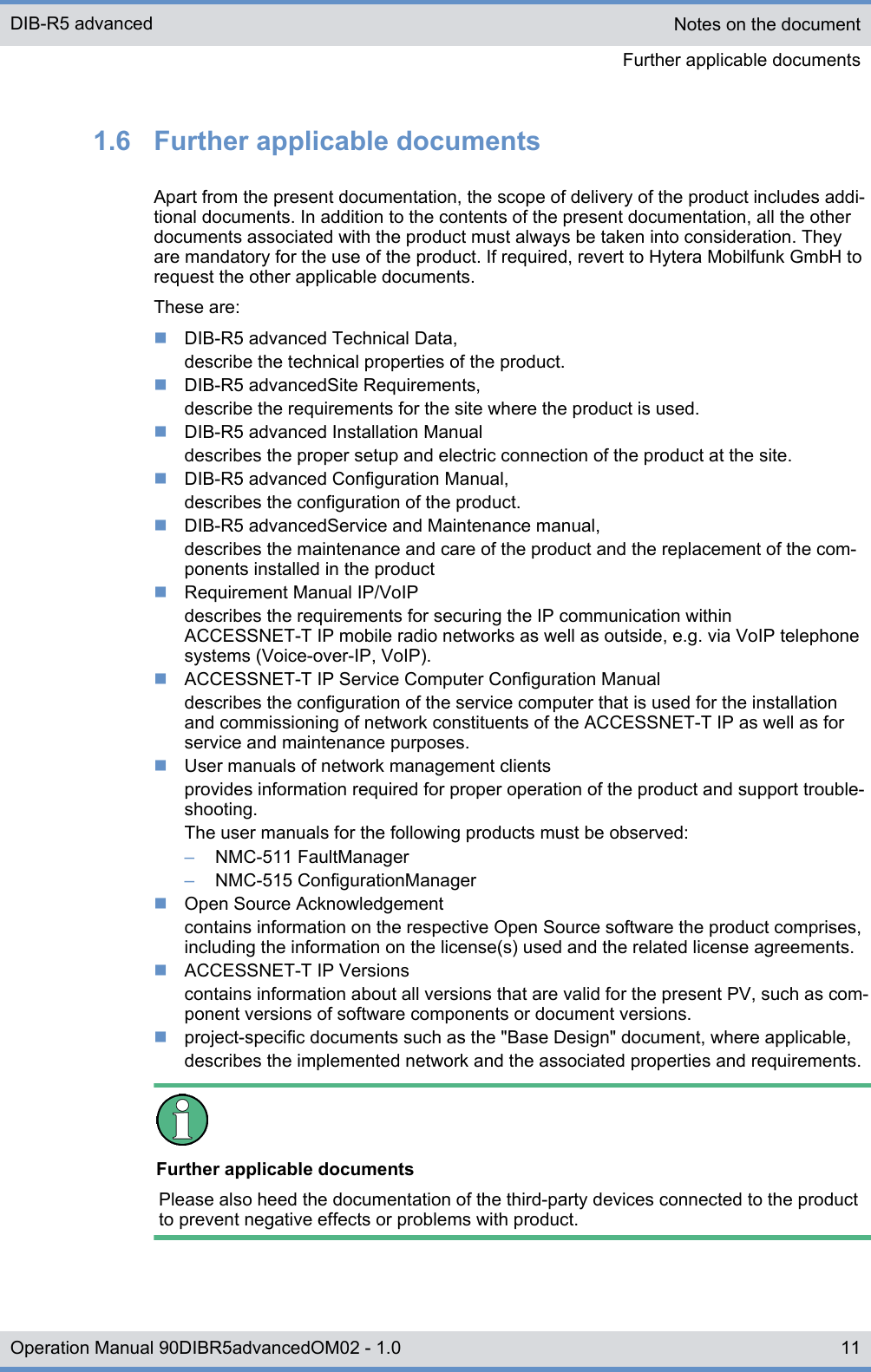

1.6 Further applicable documentsApart from the present documentation, the scope of delivery of the product includes addi-tional documents. In addition to the contents of the present documentation, all the otherdocuments associated with the product must always be taken into consideration. Theyare mandatory for the use of the product. If required, revert to Hytera Mobilfunk GmbH torequest the other applicable documents.These are:nDIB-R5 advanced Technical Data,describe the technical properties of the product.nDIB-R5 advancedSite Requirements,describe the requirements for the site where the product is used.nDIB-R5 advanced Installation Manualdescribes the proper setup and electric connection of the product at the site.nDIB-R5 advanced Configuration Manual,describes the configuration of the product.nDIB-R5 advancedService and Maintenance manual,describes the maintenance and care of the product and the replacement of the com-ponents installed in the productnRequirement Manual IP/VoIPdescribes the requirements for securing the IP communication withinACCESSNET-T IP mobile radio networks as well as outside, e.g. via VoIP telephonesystems (Voice-over-IP, VoIP).nACCESSNET-T IP Service Computer Configuration Manualdescribes the configuration of the service computer that is used for the installationand commissioning of network constituents of the ACCESSNET-T IP as well as forservice and maintenance purposes.nUser manuals of network management clientsprovides information required for proper operation of the product and support trouble-shooting.The user manuals for the following products must be observed:–NMC-511 FaultManager–NMC-515 ConfigurationManagernOpen Source Acknowledgementcontains information on the respective Open Source software the product comprises,including the information on the license(s) used and the related license agreements.nACCESSNET-T IP Versionscontains information about all versions that are valid for the present PV, such as com-ponent versions of software components or document versions.nproject-specific documents such as the "Base Design" document, where applicable,describes the implemented network and the associated properties and requirements.Further applicable documentsPlease also heed the documentation of the third-party devices connected to the productto prevent negative effects or problems with product.Notes on the documentFurther applicable documentsDIB-R5 advanced11Operation Manual 90DIBR5advancedOM02 - 1.0

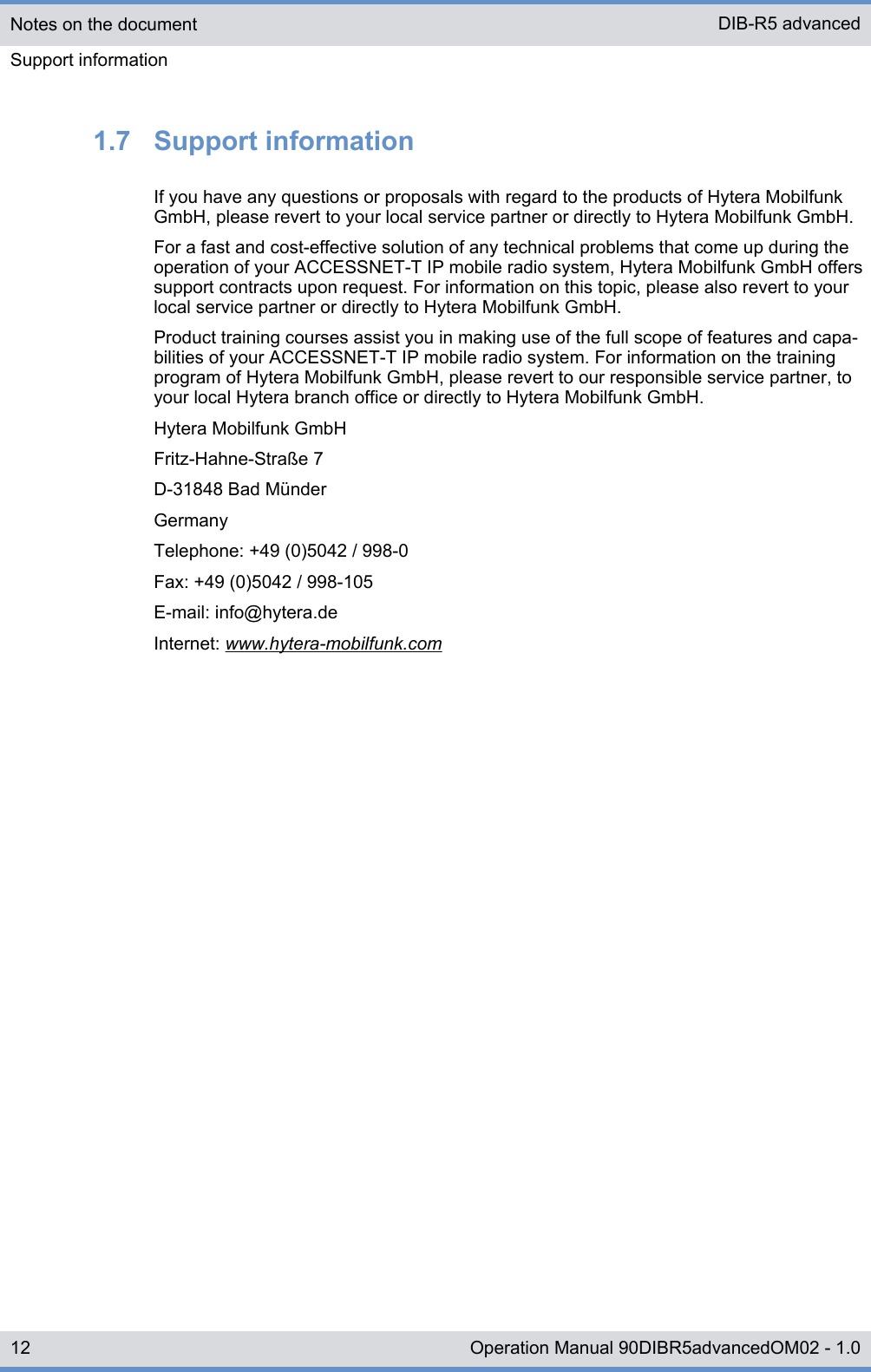

1.7 Support informationIf you have any questions or proposals with regard to the products of Hytera MobilfunkGmbH, please revert to your local service partner or directly to Hytera Mobilfunk GmbH.For a fast and cost-effective solution of any technical problems that come up during theoperation of your ACCESSNET-T IP mobile radio system, Hytera Mobilfunk GmbH offerssupport contracts upon request. For information on this topic, please also revert to yourlocal service partner or directly to Hytera Mobilfunk GmbH.Product training courses assist you in making use of the full scope of features and capa-bilities of your ACCESSNET-T IP mobile radio system. For information on the trainingprogram of Hytera Mobilfunk GmbH, please revert to our responsible service partner, toyour local Hytera branch office or directly to Hytera Mobilfunk GmbH.Hytera Mobilfunk GmbHFritz-Hahne-Straße 7D-31848 Bad MünderGermanyTelephone: +49 (0)5042 / 998-0Fax: +49 (0)5042 / 998-105E-mail: info@hytera.deInternet: www.hytera-mobilfunk.comNotes on the documentSupport informationDIB-R5 advanced12 Operation Manual 90DIBR5advancedOM02 - 1.0

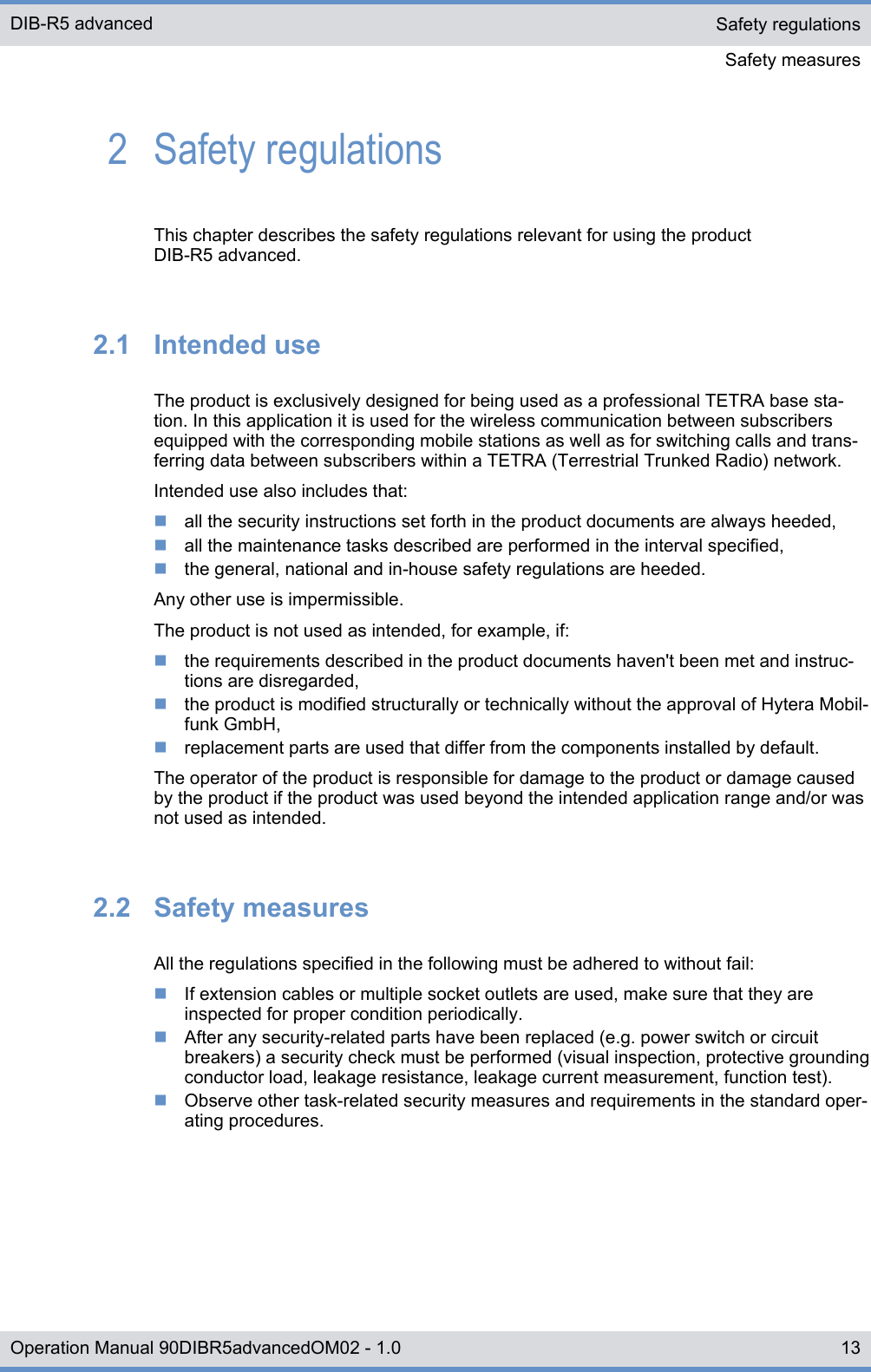

2 Safety regulationsThis chapter describes the safety regulations relevant for using the productDIB-R5 advanced.2.1 Intended useThe product is exclusively designed for being used as a professional TETRA base sta-tion. In this application it is used for the wireless communication between subscribersequipped with the corresponding mobile stations as well as for switching calls and trans-ferring data between subscribers within a TETRA (Terrestrial Trunked Radio) network.Intended use also includes that:nall the security instructions set forth in the product documents are always heeded,nall the maintenance tasks described are performed in the interval specified,nthe general, national and in-house safety regulations are heeded.Any other use is impermissible.The product is not used as intended, for example, if:nthe requirements described in the product documents haven't been met and instruc-tions are disregarded,nthe product is modified structurally or technically without the approval of Hytera Mobil-funk GmbH,nreplacement parts are used that differ from the components installed by default.The operator of the product is responsible for damage to the product or damage causedby the product if the product was used beyond the intended application range and/or wasnot used as intended.2.2 Safety measuresAll the regulations specified in the following must be adhered to without fail:nIf extension cables or multiple socket outlets are used, make sure that they areinspected for proper condition periodically.nAfter any security-related parts have been replaced (e.g. power switch or circuitbreakers) a security check must be performed (visual inspection, protective groundingconductor load, leakage resistance, leakage current measurement, function test).nObserve other task-related security measures and requirements in the standard oper-ating procedures.Safety regulationsSafety measuresDIB-R5 advanced13Operation Manual 90DIBR5advancedOM02 - 1.0

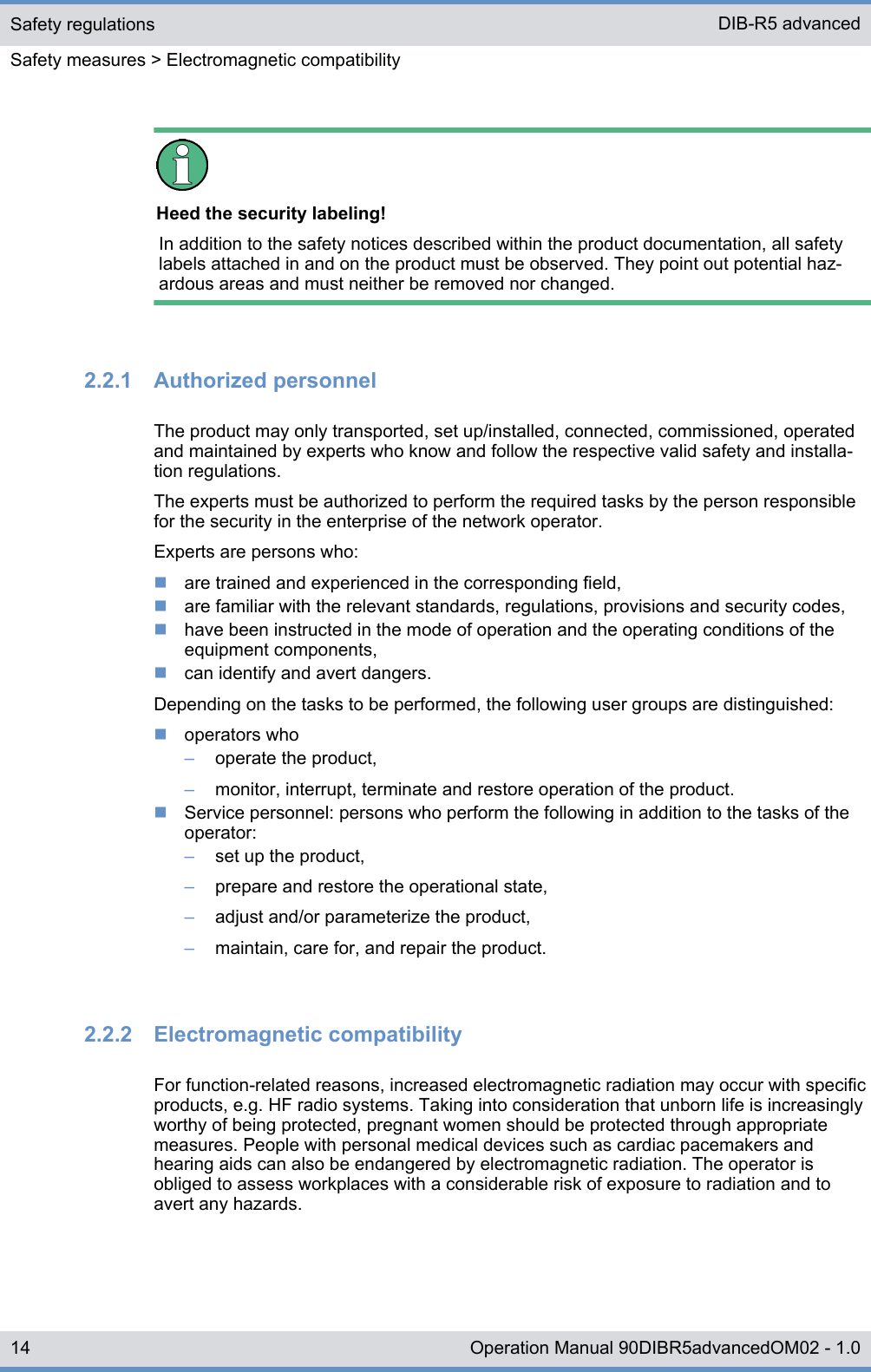

Heed the security labeling!In addition to the safety notices described within the product documentation, all safetylabels attached in and on the product must be observed. They point out potential haz-ardous areas and must neither be removed nor changed.2.2.1 Authorized personnelThe product may only transported, set up/installed, connected, commissioned, operatedand maintained by experts who know and follow the respective valid safety and installa-tion regulations.The experts must be authorized to perform the required tasks by the person responsiblefor the security in the enterprise of the network operator.Experts are persons who:nare trained and experienced in the corresponding field,nare familiar with the relevant standards, regulations, provisions and security codes,nhave been instructed in the mode of operation and the operating conditions of theequipment components,ncan identify and avert dangers.Depending on the tasks to be performed, the following user groups are distinguished:noperators who–operate the product,–monitor, interrupt, terminate and restore operation of the product.nService personnel: persons who perform the following in addition to the tasks of theoperator:–set up the product,–prepare and restore the operational state,–adjust and/or parameterize the product,–maintain, care for, and repair the product.2.2.2 Electromagnetic compatibilityFor function-related reasons, increased electromagnetic radiation may occur with specificproducts, e.g. HF radio systems. Taking into consideration that unborn life is increasinglyworthy of being protected, pregnant women should be protected through appropriatemeasures. People with personal medical devices such as cardiac pacemakers andhearing aids can also be endangered by electromagnetic radiation. The operator isobliged to assess workplaces with a considerable risk of exposure to radiation and toavert any hazards.Safety regulationsSafety measures > Electromagnetic compatibilityDIB-R5 advanced14 Operation Manual 90DIBR5advancedOM02 - 1.0

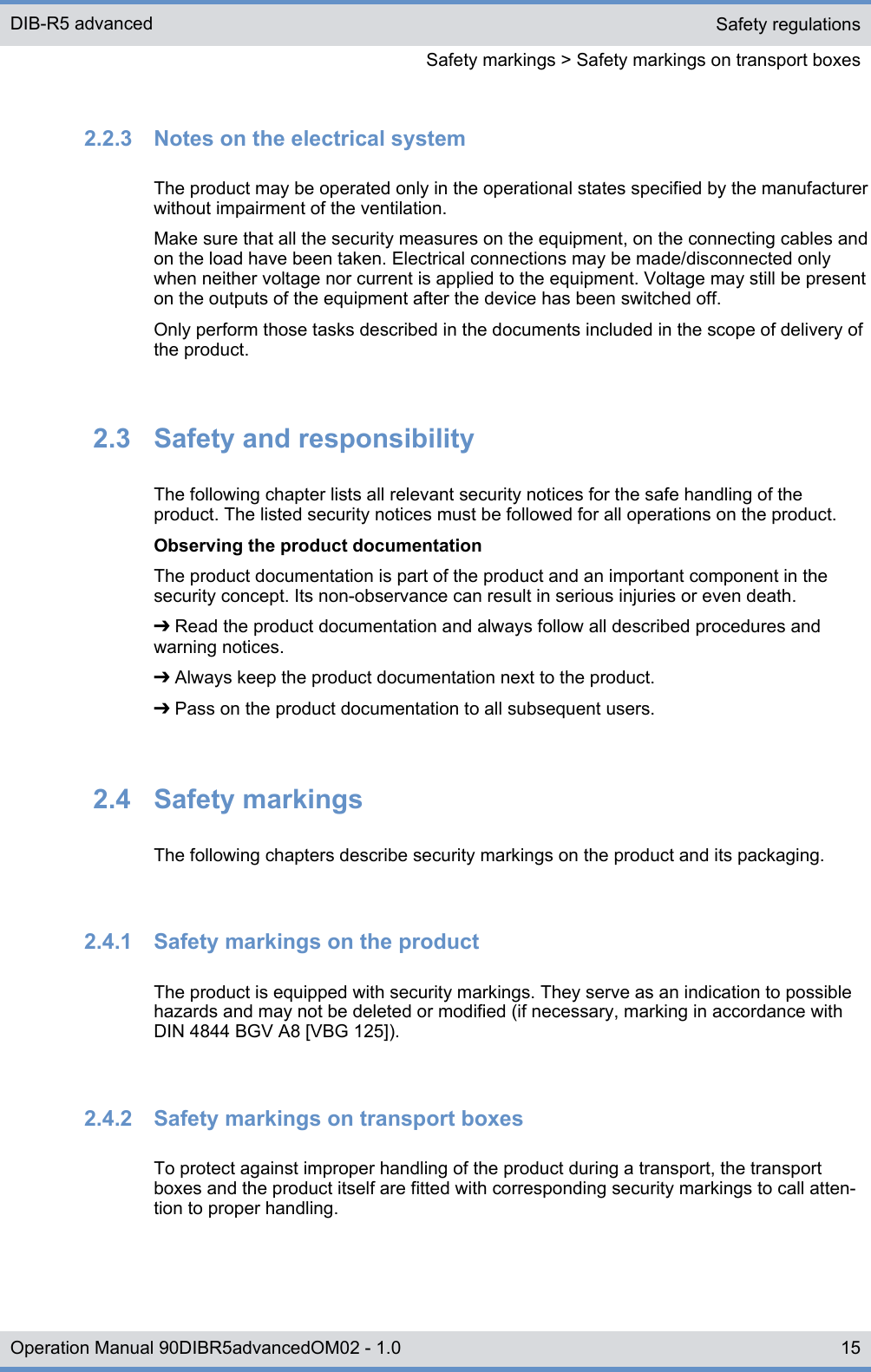

2.2.3 Notes on the electrical systemThe product may be operated only in the operational states specified by the manufacturerwithout impairment of the ventilation.Make sure that all the security measures on the equipment, on the connecting cables andon the load have been taken. Electrical connections may be made/disconnected onlywhen neither voltage nor current is applied to the equipment. Voltage may still be presenton the outputs of the equipment after the device has been switched off.Only perform those tasks described in the documents included in the scope of delivery ofthe product.2.3 Safety and responsibilityThe following chapter lists all relevant security notices for the safe handling of theproduct. The listed security notices must be followed for all operations on the product.Observing the product documentationThe product documentation is part of the product and an important component in thesecurity concept. Its non-observance can result in serious injuries or even death.➔ Read the product documentation and always follow all described procedures andwarning notices.➔ Always keep the product documentation next to the product.➔ Pass on the product documentation to all subsequent users.2.4 Safety markingsThe following chapters describe security markings on the product and its packaging.2.4.1 Safety markings on the productThe product is equipped with security markings. They serve as an indication to possiblehazards and may not be deleted or modified (if necessary, marking in accordance withDIN 4844 BGV A8 [VBG 125]).2.4.2 Safety markings on transport boxesTo protect against improper handling of the product during a transport, the transportboxes and the product itself are fitted with corresponding security markings to call atten-tion to proper handling.Safety regulationsSafety markings > Safety markings on transport boxesDIB-R5 advanced15Operation Manual 90DIBR5advancedOM02 - 1.0

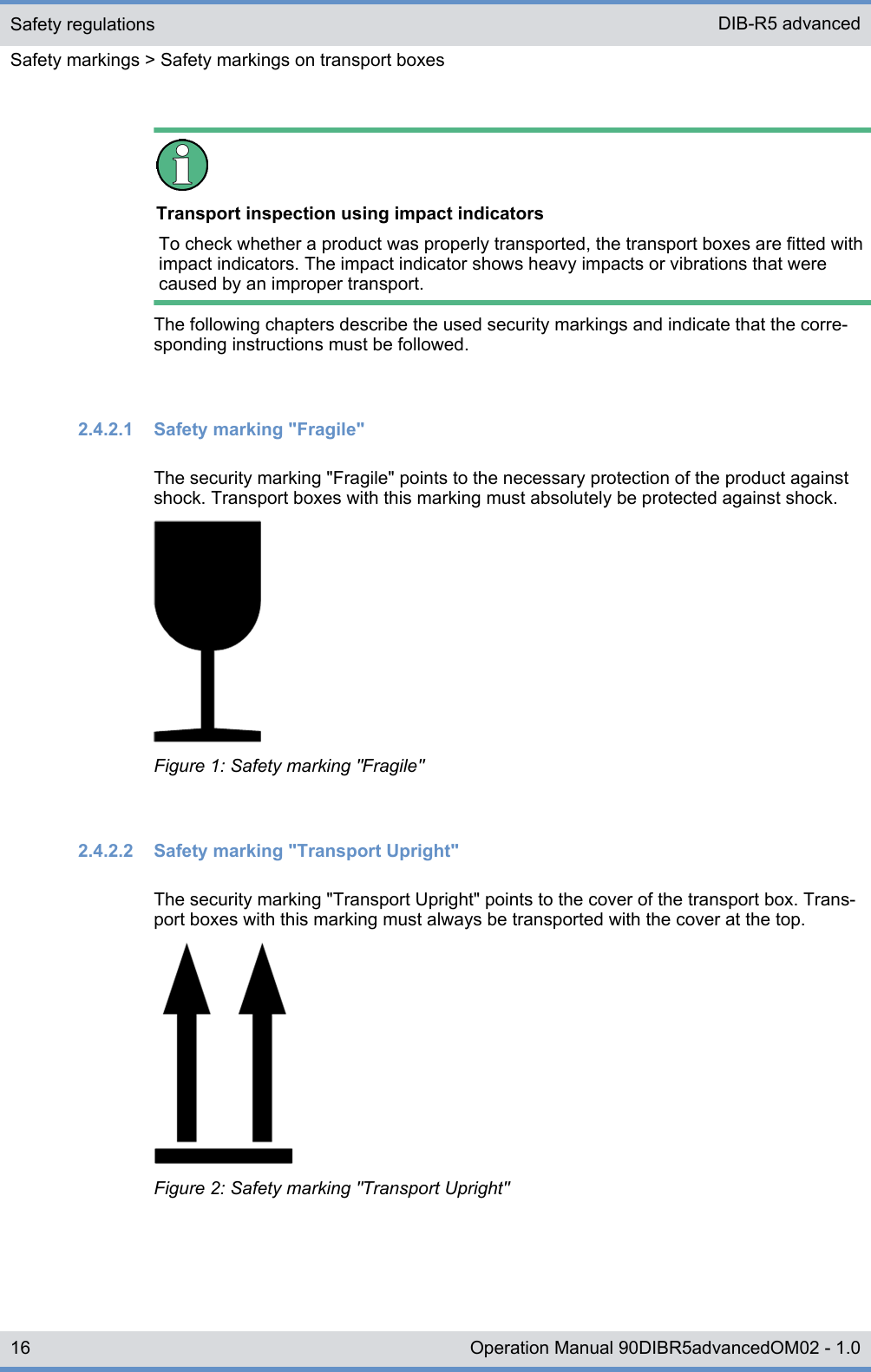

Transport inspection using impact indicatorsTo check whether a product was properly transported, the transport boxes are fitted withimpact indicators. The impact indicator shows heavy impacts or vibrations that werecaused by an improper transport.The following chapters describe the used security markings and indicate that the corre-sponding instructions must be followed.2.4.2.1 Safety marking "Fragile"The security marking "Fragile" points to the necessary protection of the product againstshock. Transport boxes with this marking must absolutely be protected against shock.Figure 1: Safety marking "Fragile"2.4.2.2 Safety marking "Transport Upright"The security marking "Transport Upright" points to the cover of the transport box. Trans-port boxes with this marking must always be transported with the cover at the top.Figure 2: Safety marking "Transport Upright"Safety regulationsSafety markings > Safety markings on transport boxesDIB-R5 advanced16 Operation Manual 90DIBR5advancedOM02 - 1.0
2.4.2.3 Safety marking "Keep dry"The security marking "Keep dry" points to the necessary protection of the product againstwetness (e.g. rain, high humidity during the transport in closed vehicles/containers and/orformation of condensate when covered with a tarpaulin). Transport boxes with thismarking must absolutely be protected against any wet influences.Figure 3: Safety marking "Keep dry"Safety regulationsSafety markings > Safety markings on transport boxesDIB-R5 advanced17Operation Manual 90DIBR5advancedOM02 - 1.0
Safety regulationsSafety markings > Safety markings on transport boxesDIB-R5 advanced18 Operation Manual 90DIBR5advancedOM02 - 1.0

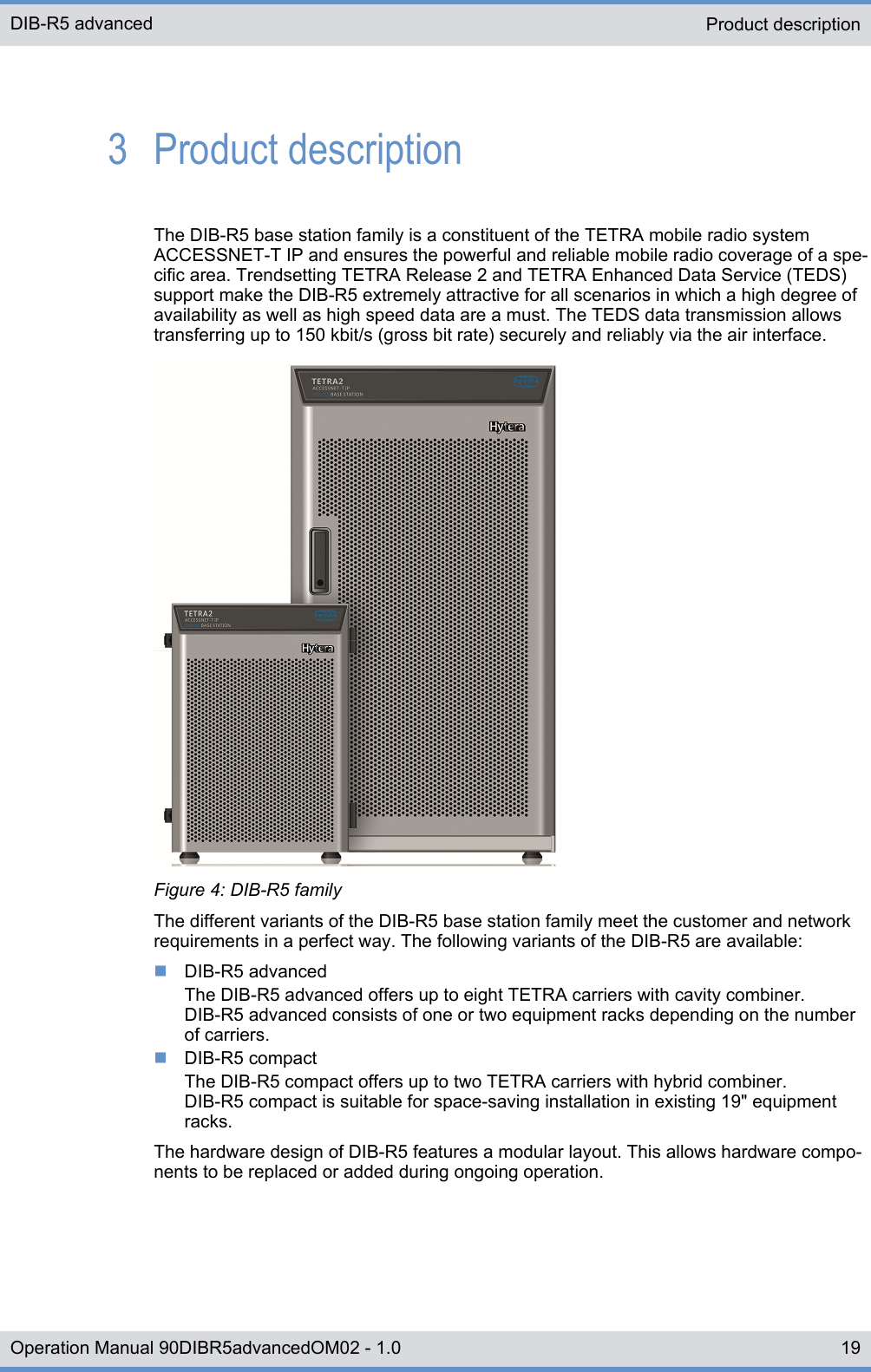

3 Product descriptionThe DIB-R5 base station family is a constituent of the TETRA mobile radio systemACCESSNET-T IP and ensures the powerful and reliable mobile radio coverage of a spe-cific area. Trendsetting TETRA Release 2 and TETRA Enhanced Data Service (TEDS)support make the DIB-R5 extremely attractive for all scenarios in which a high degree ofavailability as well as high speed data are a must. The TEDS data transmission allowstransferring up to 150 kbit/s (gross bit rate) securely and reliably via the air interface.Figure 4: DIB-R5 familyThe different variants of the DIB-R5 base station family meet the customer and networkrequirements in a perfect way. The following variants of the DIB-R5 are available:nDIB-R5 advancedThe DIB-R5 advanced offers up to eight TETRA carriers with cavity combiner.DIB-R5 advanced consists of one or two equipment racks depending on the numberof carriers.nDIB-R5 compactThe DIB-R5 compact offers up to two TETRA carriers with hybrid combiner.DIB-R5 compact is suitable for space-saving installation in existing 19" equipmentracks.The hardware design of DIB-R5 features a modular layout. This allows hardware compo-nents to be replaced or added during ongoing operation.Product descriptionDIB-R5 advanced19Operation Manual 90DIBR5advancedOM02 - 1.0

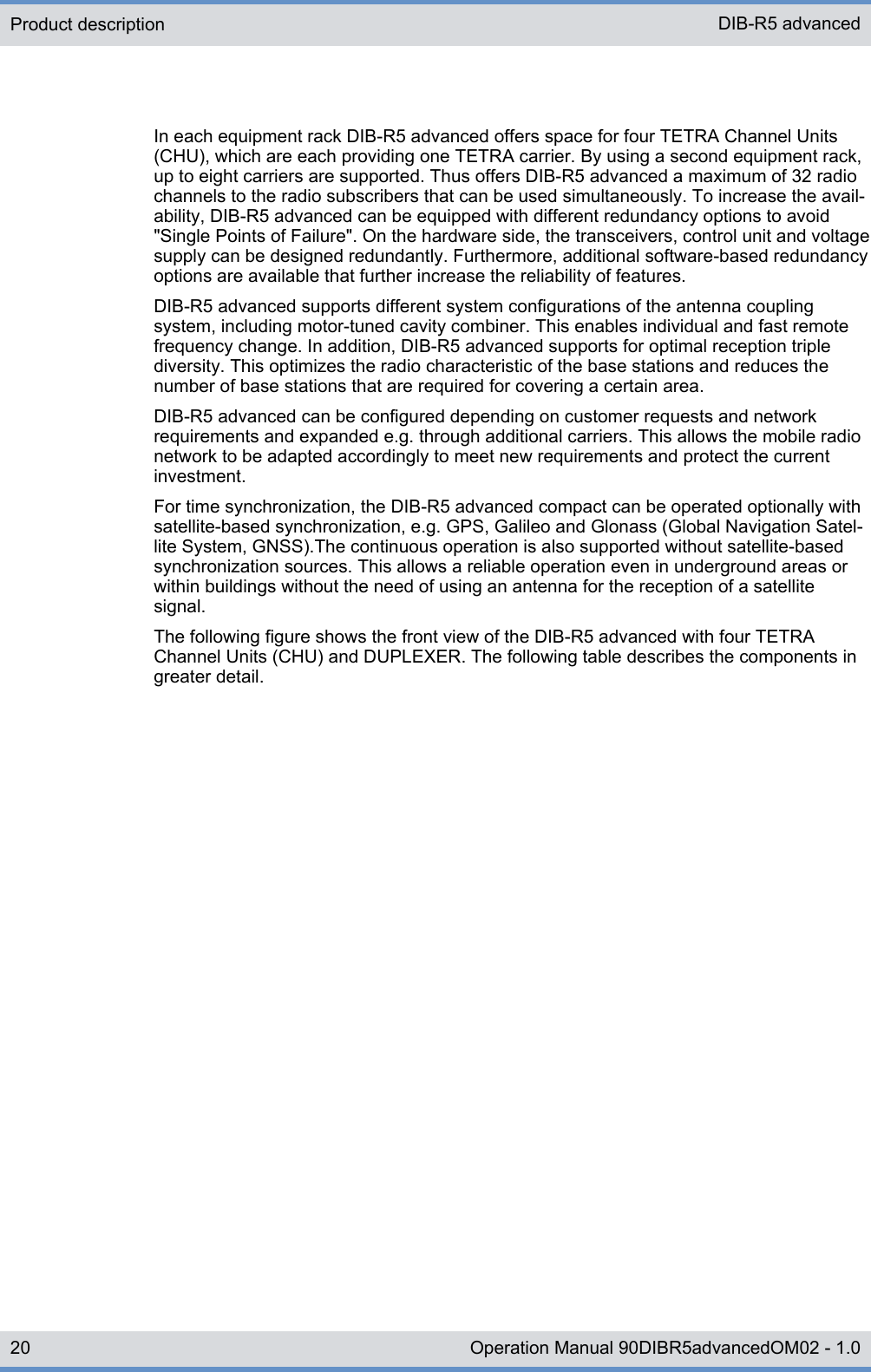

In each equipment rack DIB-R5 advanced offers space for four TETRA Channel Units(CHU), which are each providing one TETRA carrier. By using a second equipment rack,up to eight carriers are supported. Thus offers DIB-R5 advanced a maximum of 32 radiochannels to the radio subscribers that can be used simultaneously. To increase the avail-ability, DIB-R5 advanced can be equipped with different redundancy options to avoid"Single Points of Failure". On the hardware side, the transceivers, control unit and voltagesupply can be designed redundantly. Furthermore, additional software-based redundancyoptions are available that further increase the reliability of features.DIB-R5 advanced supports different system configurations of the antenna couplingsystem, including motor-tuned cavity combiner. This enables individual and fast remotefrequency change. In addition, DIB-R5 advanced supports for optimal reception triplediversity. This optimizes the radio characteristic of the base stations and reduces thenumber of base stations that are required for covering a certain area.DIB-R5 advanced can be configured depending on customer requests and networkrequirements and expanded e.g. through additional carriers. This allows the mobile radionetwork to be adapted accordingly to meet new requirements and protect the currentinvestment.For time synchronization, the DIB-R5 advanced compact can be operated optionally withsatellite-based synchronization, e.g. GPS, Galileo and Glonass (Global Navigation Satel-lite System, GNSS).The continuous operation is also supported without satellite-basedsynchronization sources. This allows a reliable operation even in underground areas orwithin buildings without the need of using an antenna for the reception of a satellitesignal.The following figure shows the front view of the DIB-R5 advanced with four TETRAChannel Units (CHU) and DUPLEXER. The following table describes the components ingreater detail.Product description DIB-R5 advanced20 Operation Manual 90DIBR5advancedOM02 - 1.0

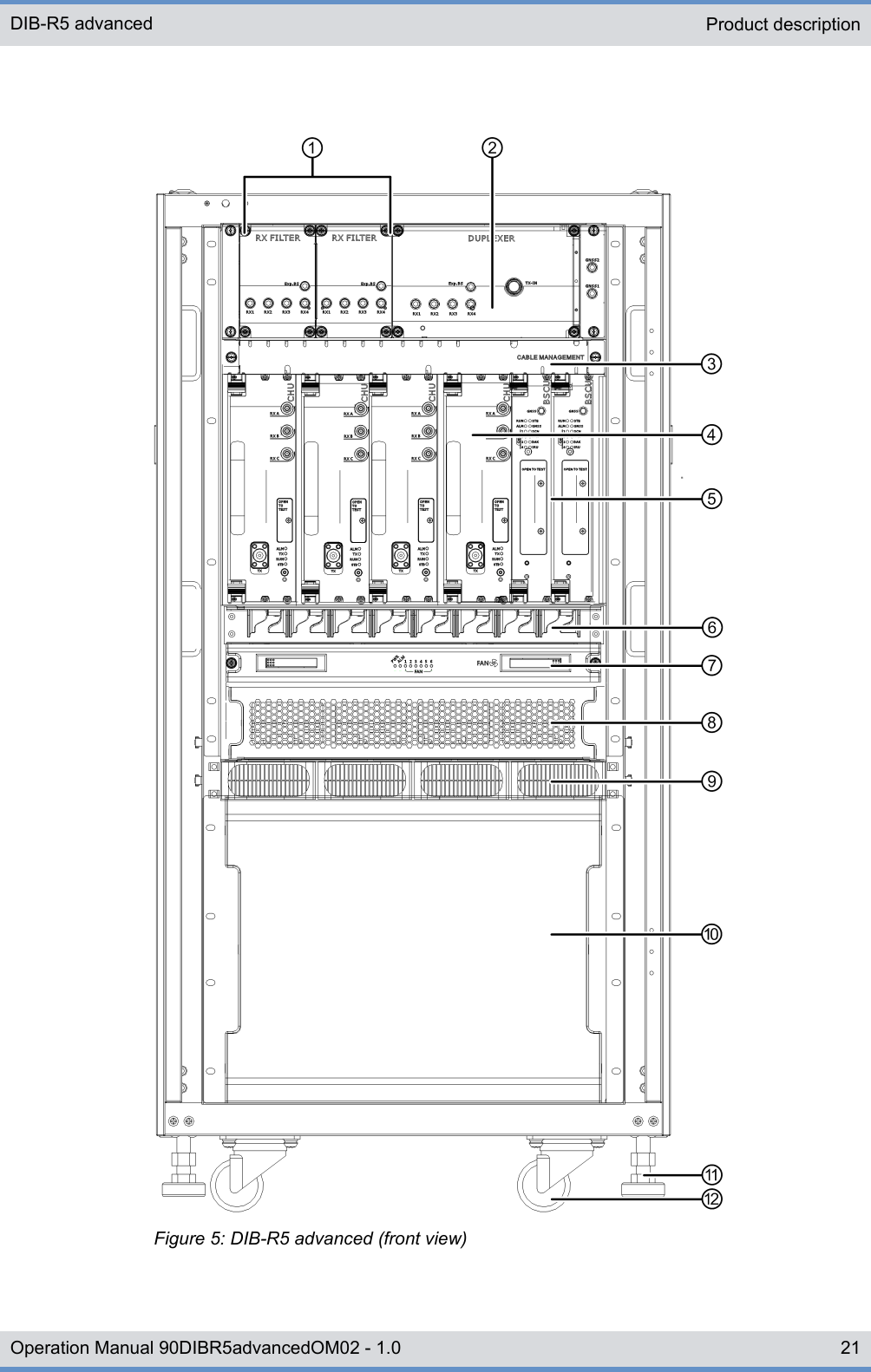

Figure 5: DIB-R5 advanced (front view)Product descriptionDIB-R5 advanced21Operation Manual 90DIBR5advancedOM02 - 1.0
Legend: DIB-R5 advanced (front view)No. Component Number Described in1 RX FILTER 1 to 3Ä Chapter 3.2.4.1 “RX FILTER”on page 382 DUPLEXER 1Ä Chapter 3.2.5.1 “DUPLEXER”on page 403 Cable routing for Rx and GNSS cable(Global Navigation Satellite System,GNSS)1 ---4 TETRA Channel Unit (CHU) 1 to 4Ä Chapter 3.2.6 “TETRA Channel Unit(CHU)” on page 425 Base Station Controller Unit (BSCU) 1 to 2Ä Chapter 3.2.7 “Base Station ControllerUnit (BSCU)” on page 446 Cable routing for Tx cable 1 ---7 Fan unit 1Ä Chapter 3.2.9 “Fan unit” on page 508 Air entry for fan unit 1 ---9 Power Supply Unit (PSU) includingPower Supply Module (PSM)Dummy plate for VDC voltage supply1 to 4Ä Chapter 3.2.2.2 “Power Supply Unit(PSU) including Power Supply Module(PSM)” on page 3310 Cavity combiner 1Ä Chapter 3.2.10 “Cavity combiner”on page 5111 Levelling feet 4 ---12 Transport rollers 4 ---The following figure shows the top view of the DIB-R5 advanced. The following tabledescribes the components in greater detail.Product description DIB-R5 advanced22 Operation Manual 90DIBR5advancedOM02 - 1.0

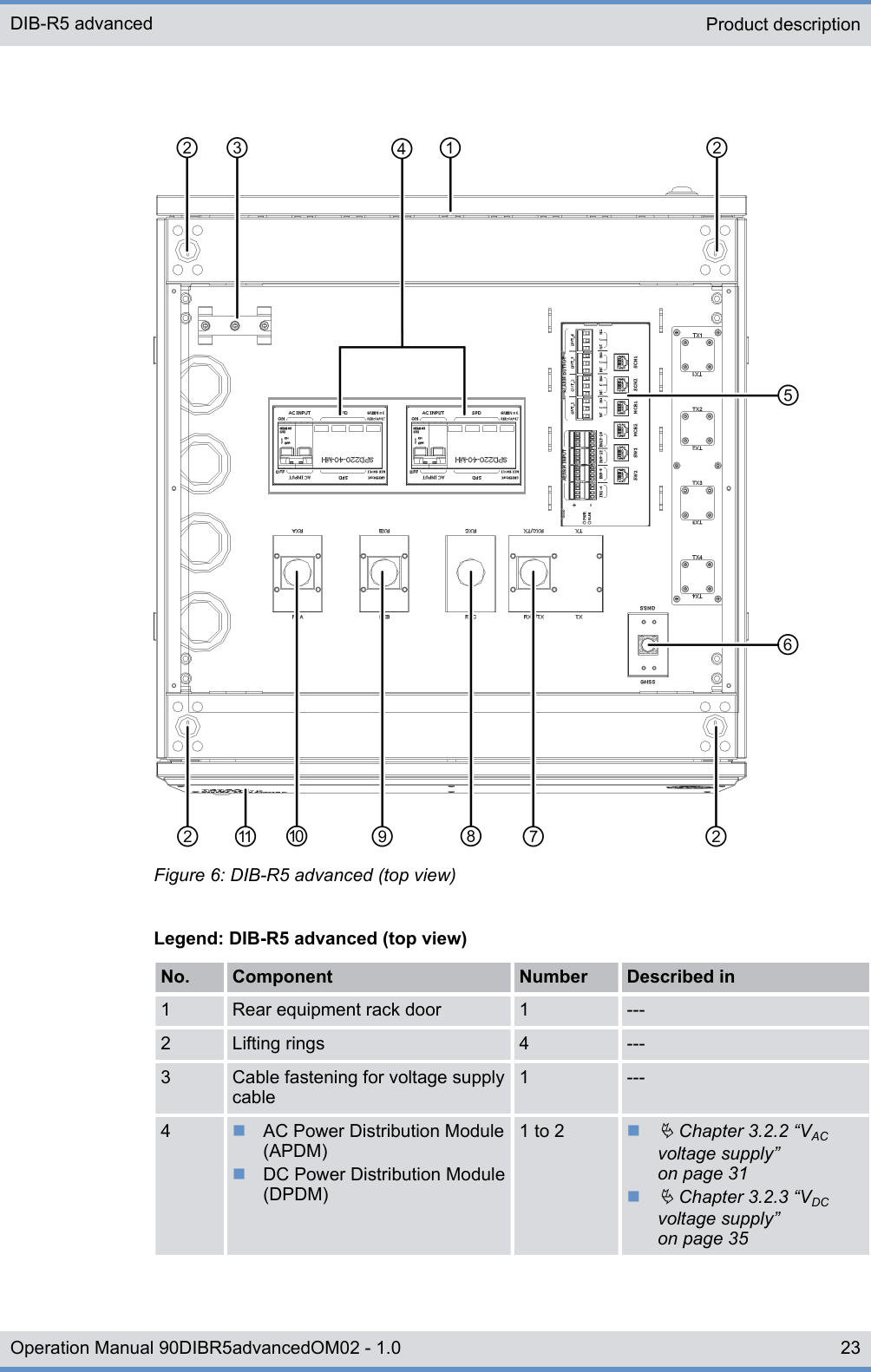

Figure 6: DIB-R5 advanced (top view)Legend: DIB-R5 advanced (top view)No. Component Number Described in1 Rear equipment rack door 1 ---2 Lifting rings 4 ---3 Cable fastening for voltage supplycable1 ---4nAC Power Distribution Module(APDM)nDC Power Distribution Module(DPDM)1 to 2 nÄ Chapter 3.2.2 “VACvoltage supply”on page 31nÄ Chapter 3.2.3 “VDCvoltage supply”on page 35Product descriptionDIB-R5 advanced23Operation Manual 90DIBR5advancedOM02 - 1.0

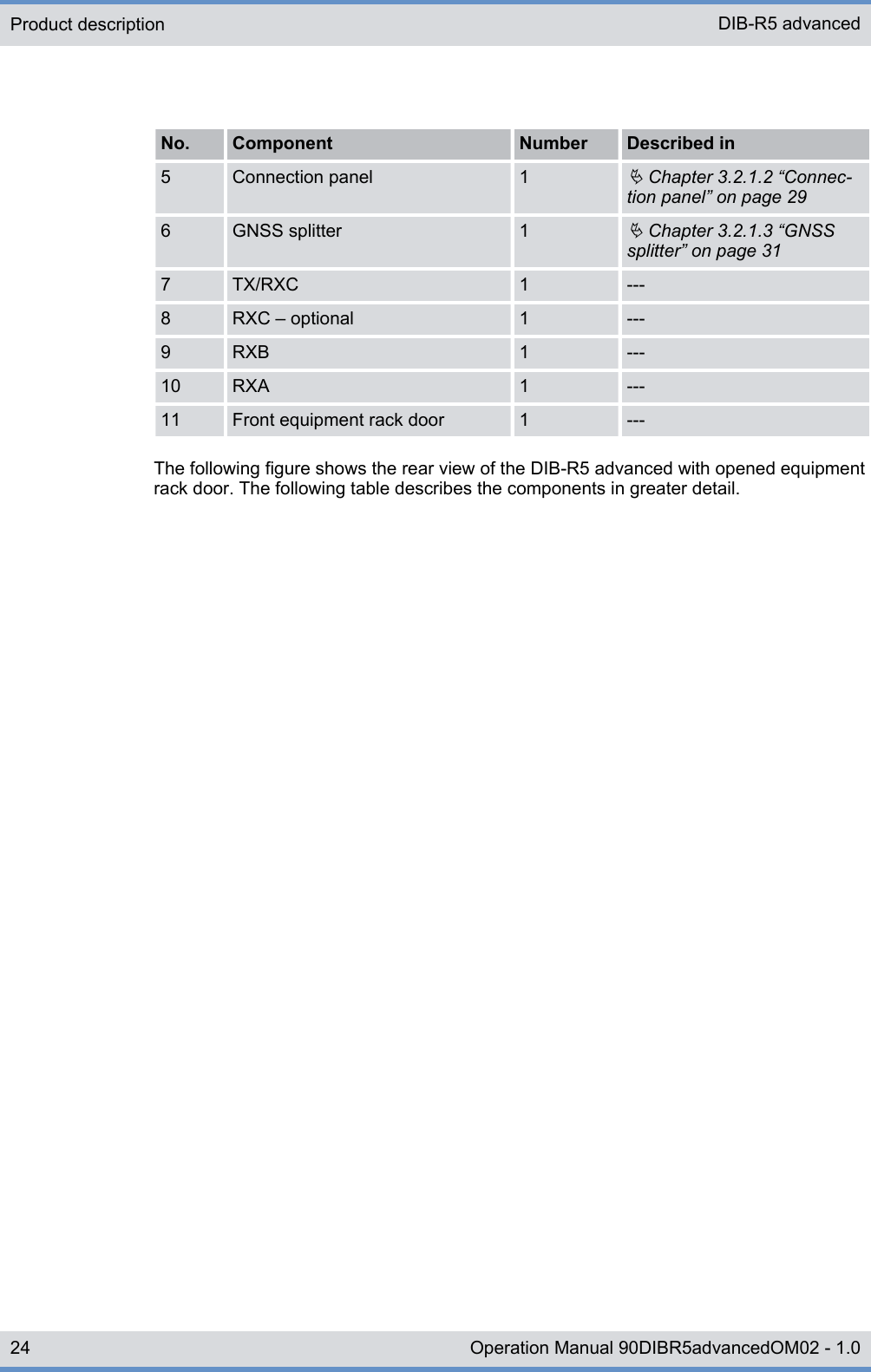

No. Component Number Described in5 Connection panel 1Ä Chapter 3.2.1.2 “Connec-tion panel” on page 296 GNSS splitter 1Ä Chapter 3.2.1.3 “GNSSsplitter” on page 317 TX/RXC 1 ---8 RXC ‒ optional 1 ---9 RXB 1 ---10 RXA 1 ---11 Front equipment rack door 1 ---The following figure shows the rear view of the DIB-R5 advanced with opened equipmentrack door. The following table describes the components in greater detail.Product description DIB-R5 advanced24 Operation Manual 90DIBR5advancedOM02 - 1.0

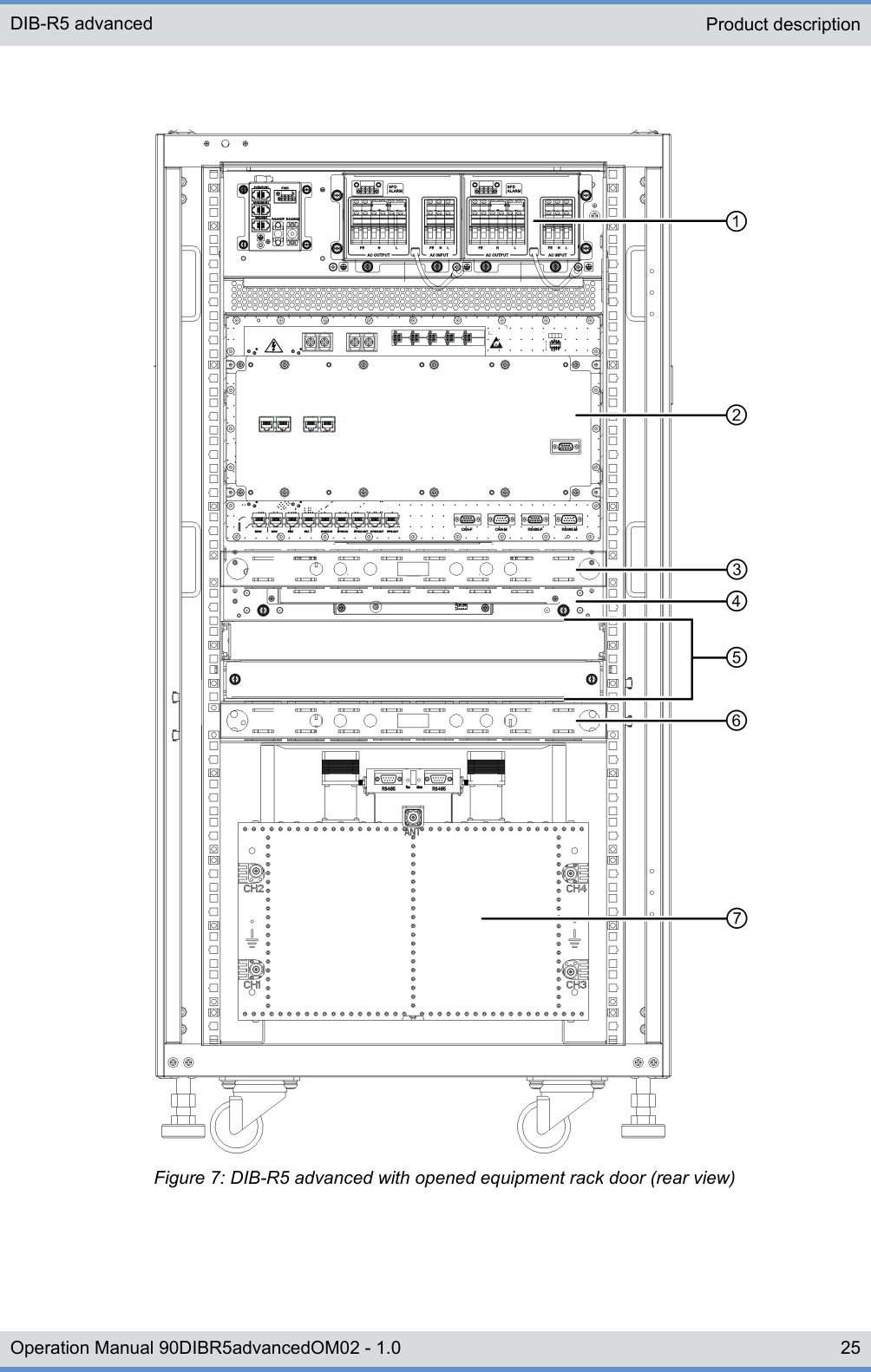

Figure 7: DIB-R5 advanced with opened equipment rack door (rear view)Product descriptionDIB-R5 advanced25Operation Manual 90DIBR5advancedOM02 - 1.0

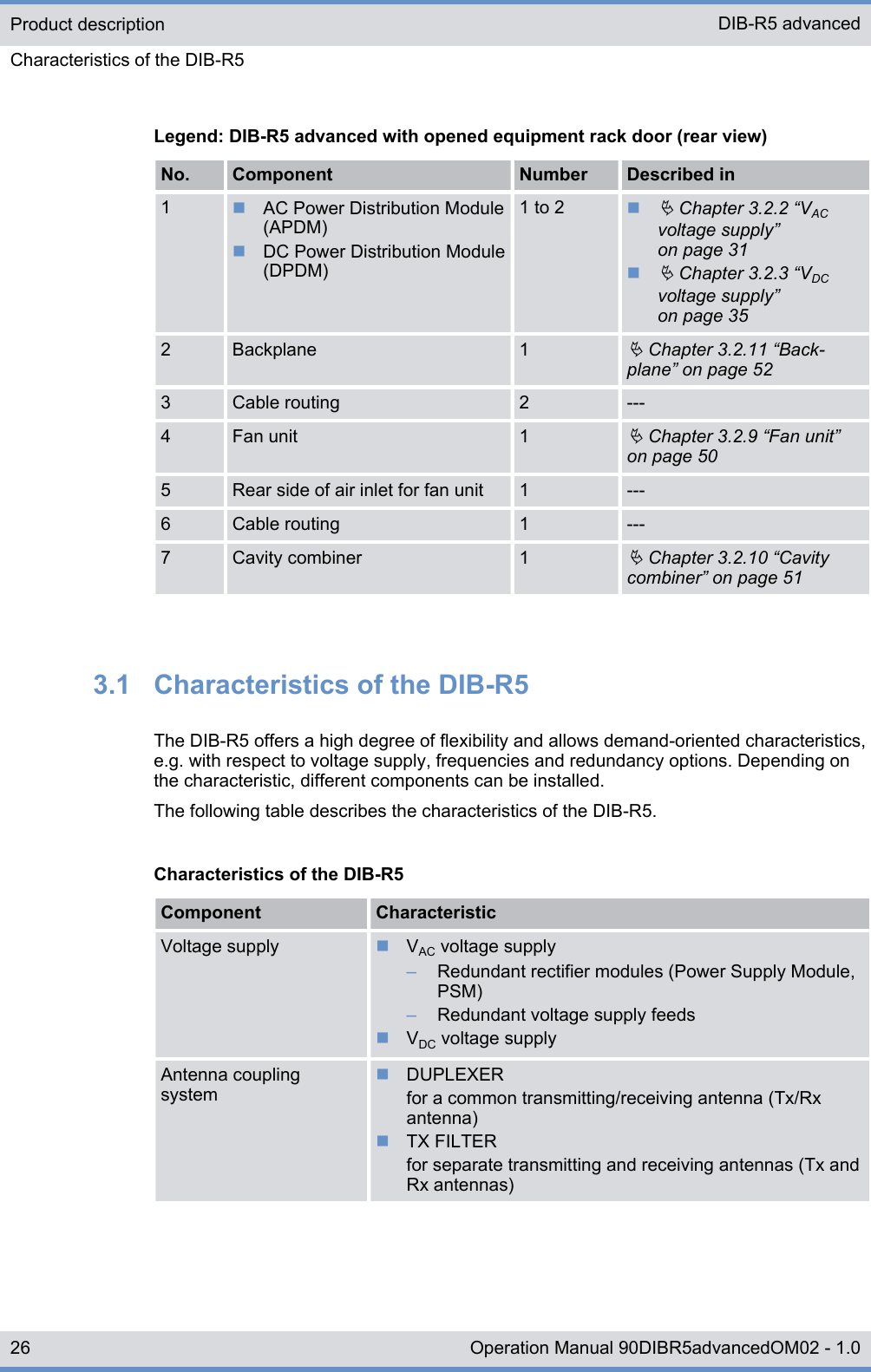

Legend: DIB-R5 advanced with opened equipment rack door (rear view)No. Component Number Described in1nAC Power Distribution Module(APDM)nDC Power Distribution Module(DPDM)1 to 2 nÄ Chapter 3.2.2 “VACvoltage supply”on page 31nÄ Chapter 3.2.3 “VDCvoltage supply”on page 352 Backplane 1Ä Chapter 3.2.11 “Back-plane” on page 523 Cable routing 2 ---4 Fan unit 1Ä Chapter 3.2.9 “Fan unit”on page 505 Rear side of air inlet for fan unit 1 ---6 Cable routing 1 ---7 Cavity combiner 1Ä Chapter 3.2.10 “Cavitycombiner” on page 513.1 Characteristics of the DIB-R5The DIB-R5 offers a high degree of flexibility and allows demand-oriented characteristics,e.g. with respect to voltage supply, frequencies and redundancy options. Depending onthe characteristic, different components can be installed.The following table describes the characteristics of the DIB-R5.Characteristics of the DIB-R5Component CharacteristicVoltage supply nVAC voltage supply–Redundant rectifier modules (Power Supply Module,PSM)–Redundant voltage supply feedsnVDC voltage supplyAntenna couplingsystemnDUPLEXERfor a common transmitting/receiving antenna (Tx/Rxantenna)nTX FILTERfor separate transmitting and receiving antennas (Tx andRx antennas)Product descriptionCharacteristics of the DIB-R5DIB-R5 advanced26 Operation Manual 90DIBR5advancedOM02 - 1.0

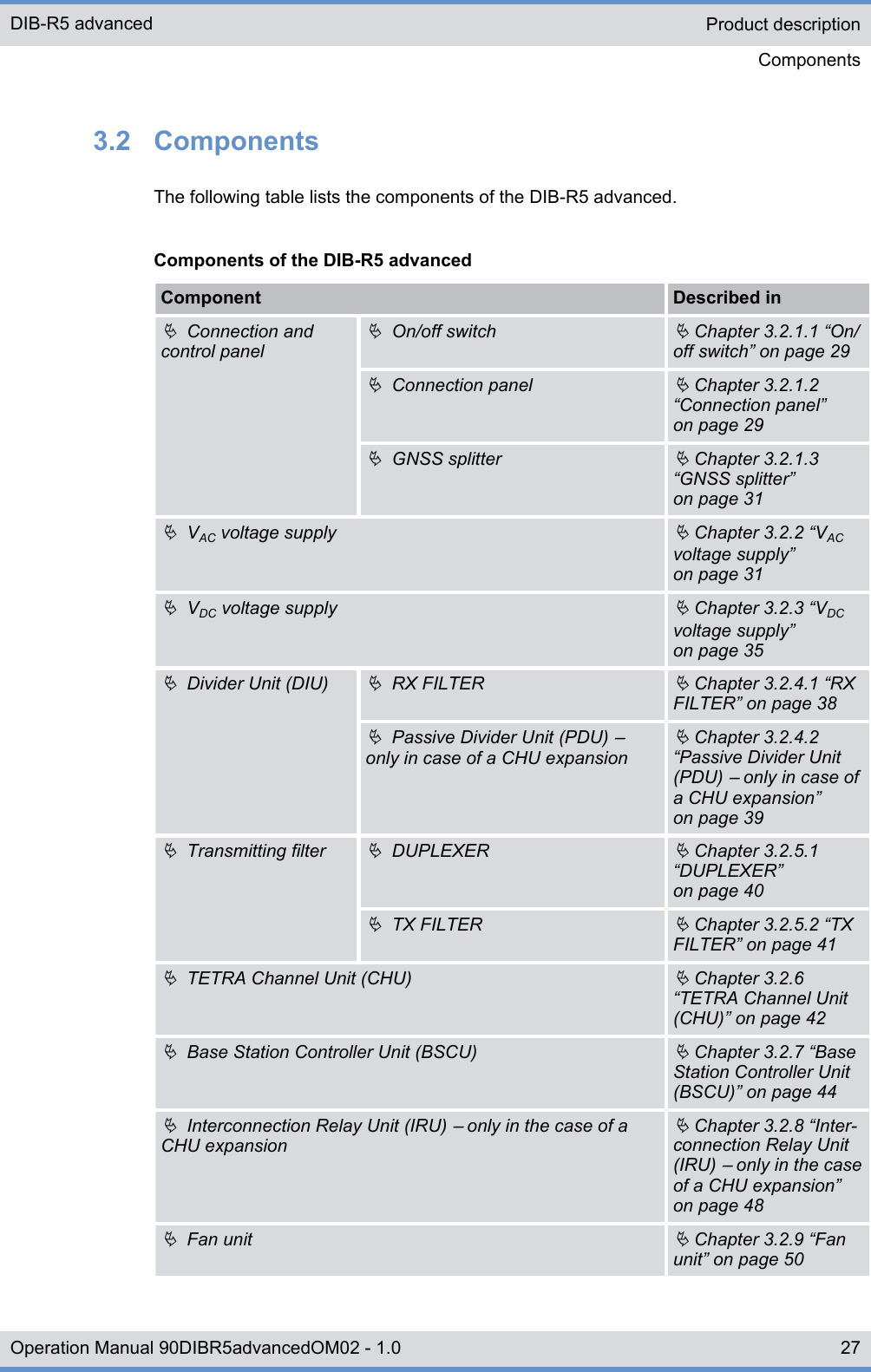

3.2 ComponentsThe following table lists the components of the DIB-R5 advanced.Components of the DIB-R5 advancedComponent Described inÄ Connection andcontrol panelÄ On/off switchÄ Chapter 3.2.1.1 “On/off switch” on page 29Ä Connection panelÄ Chapter 3.2.1.2“Connection panel”on page 29Ä GNSS splitterÄ Chapter 3.2.1.3“GNSS splitter”on page 31Ä VAC voltage supplyÄ Chapter 3.2.2 “VACvoltage supply”on page 31Ä VDC voltage supplyÄ Chapter 3.2.3 “VDCvoltage supply”on page 35Ä Divider Unit (DIU)Ä RX FILTERÄ Chapter 3.2.4.1 “RXFILTER” on page 38Ä Passive Divider Unit (PDU) ‒only in case of a CHU expansionÄ Chapter 3.2.4.2“Passive Divider Unit(PDU) ‒ only in case ofa CHU expansion”on page 39Ä Transmitting filterÄ DUPLEXERÄ Chapter 3.2.5.1“DUPLEXER”on page 40Ä TX FILTERÄ Chapter 3.2.5.2 “TXFILTER” on page 41Ä TETRA Channel Unit (CHU)Ä Chapter 3.2.6“TETRA Channel Unit(CHU)” on page 42Ä Base Station Controller Unit (BSCU)Ä Chapter 3.2.7 “BaseStation Controller Unit(BSCU)” on page 44Ä Interconnection Relay Unit (IRU) ‒ only in the case of aCHU expansionÄ Chapter 3.2.8 “Inter-connection Relay Unit(IRU) ‒ only in the caseof a CHU expansion”on page 48Ä Fan unitÄ Chapter 3.2.9 “Fanunit” on page 50Product descriptionComponentsDIB-R5 advanced27Operation Manual 90DIBR5advancedOM02 - 1.0
Component Described inÄ Cavity combinerÄ Chapter 3.2.10“Cavity combiner”on page 51Ä BackplaneÄ Chapter 3.2.11“Backplane”on page 523.2.1 Connection and control panelThe DIB-R5 advanced features a connection and control panel at the top side to whichthe antenna and voltage supply cable can be connected conveniently from the top. Fur-thermore, the connection and control panel provides access to all the elements that arerequired for additional connections and operation.The following figure shows the top view of the connection and control panel. The fol-lowing table describes it in detail.Figure 8: Connection and control panel (top view)Product descriptionComponents> Connection and control panelDIB-R5 advanced28 Operation Manual 90DIBR5advancedOM02 - 1.0

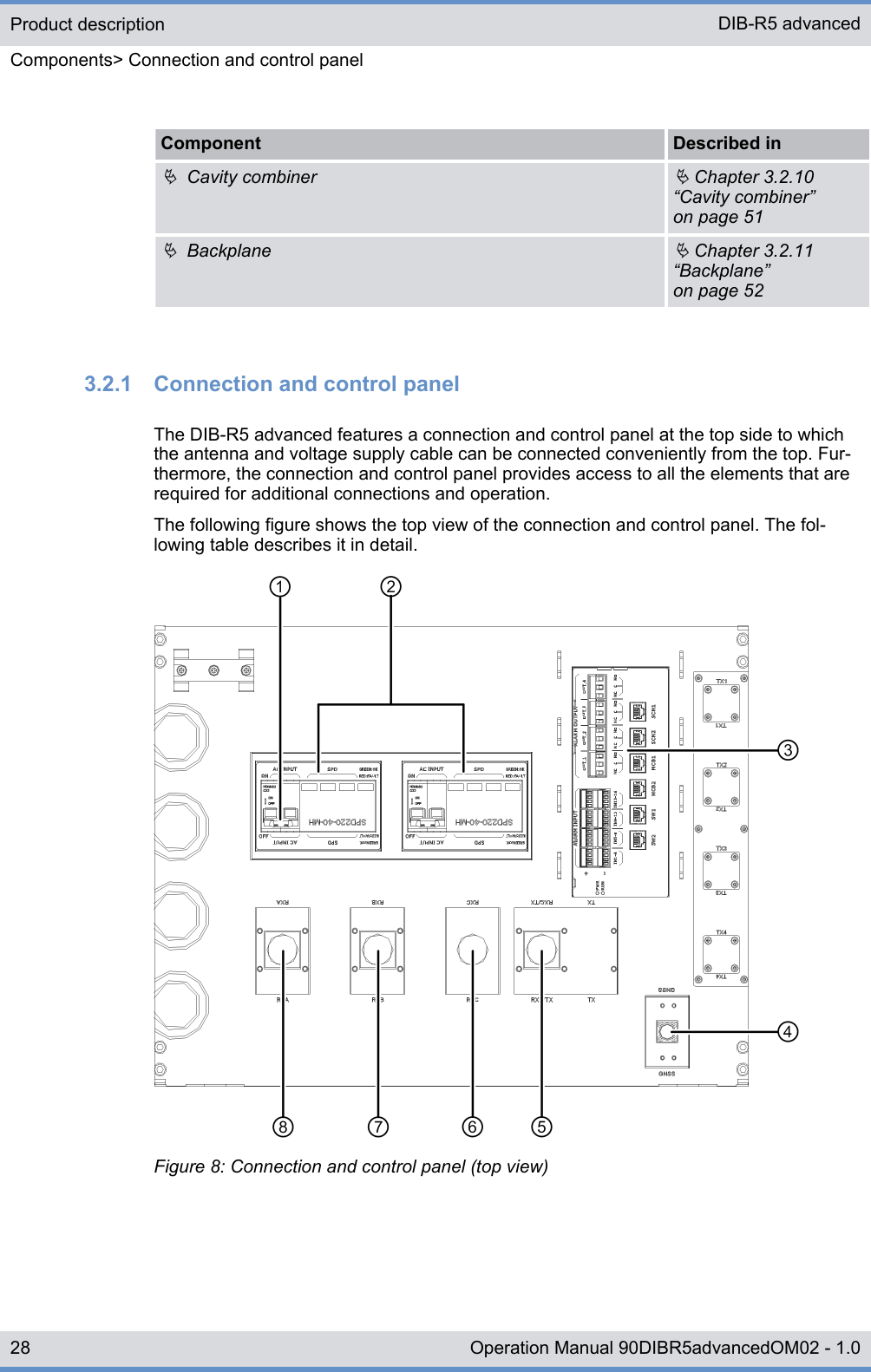

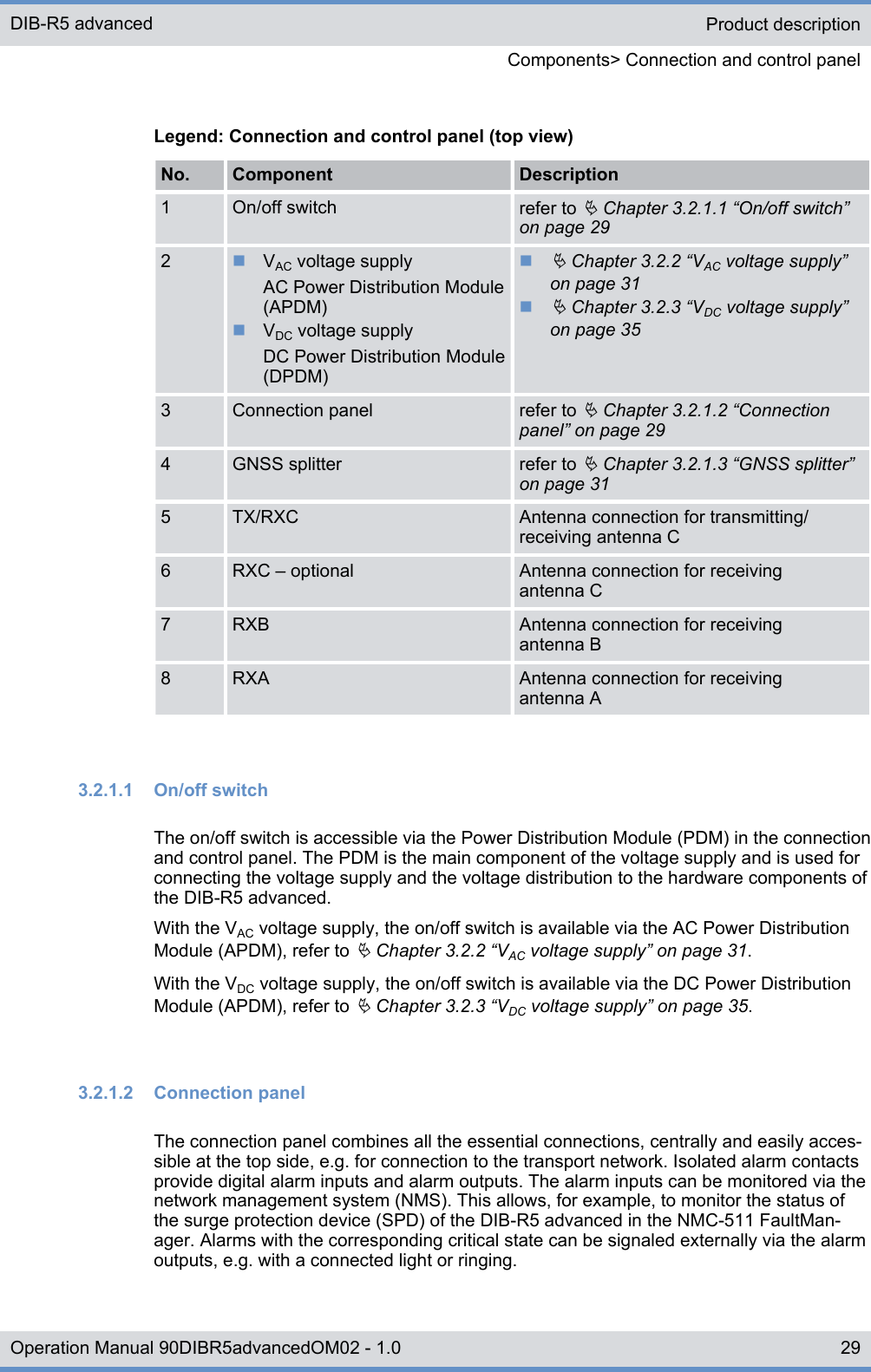

Legend: Connection and control panel (top view)No. Component Description1 On/off switch refer to Ä Chapter 3.2.1.1 “On/off switch”on page 292nVAC voltage supplyAC Power Distribution Module(APDM)nVDC voltage supplyDC Power Distribution Module(DPDM)nÄ Chapter 3.2.2 “VAC voltage supply”on page 31nÄ Chapter 3.2.3 “VDC voltage supply”on page 353 Connection panel refer to Ä Chapter 3.2.1.2 “Connectionpanel” on page 294 GNSS splitter refer to Ä Chapter 3.2.1.3 “GNSS splitter”on page 315 TX/RXC Antenna connection for transmitting/receiving antenna C6 RXC ‒ optional Antenna connection for receivingantenna C7 RXB Antenna connection for receivingantenna B8 RXA Antenna connection for receivingantenna A3.2.1.1 On/off switchThe on/off switch is accessible via the Power Distribution Module (PDM) in the connectionand control panel. The PDM is the main component of the voltage supply and is used forconnecting the voltage supply and the voltage distribution to the hardware components ofthe DIB-R5 advanced.With the VAC voltage supply, the on/off switch is available via the AC Power DistributionModule (APDM), refer to Ä Chapter 3.2.2 “VAC voltage supply” on page 31.With the VDC voltage supply, the on/off switch is available via the DC Power DistributionModule (APDM), refer to Ä Chapter 3.2.3 “VDC voltage supply” on page 35.3.2.1.2 Connection panelThe connection panel combines all the essential connections, centrally and easily acces-sible at the top side, e.g. for connection to the transport network. Isolated alarm contactsprovide digital alarm inputs and alarm outputs. The alarm inputs can be monitored via thenetwork management system (NMS). This allows, for example, to monitor the status ofthe surge protection device (SPD) of the DIB-R5 advanced in the NMC-511 FaultMan-ager. Alarms with the corresponding critical state can be signaled externally via the alarmoutputs, e.g. with a connected light or ringing.Product descriptionComponents> Connection and control panelDIB-R5 advanced29Operation Manual 90DIBR5advancedOM02 - 1.0

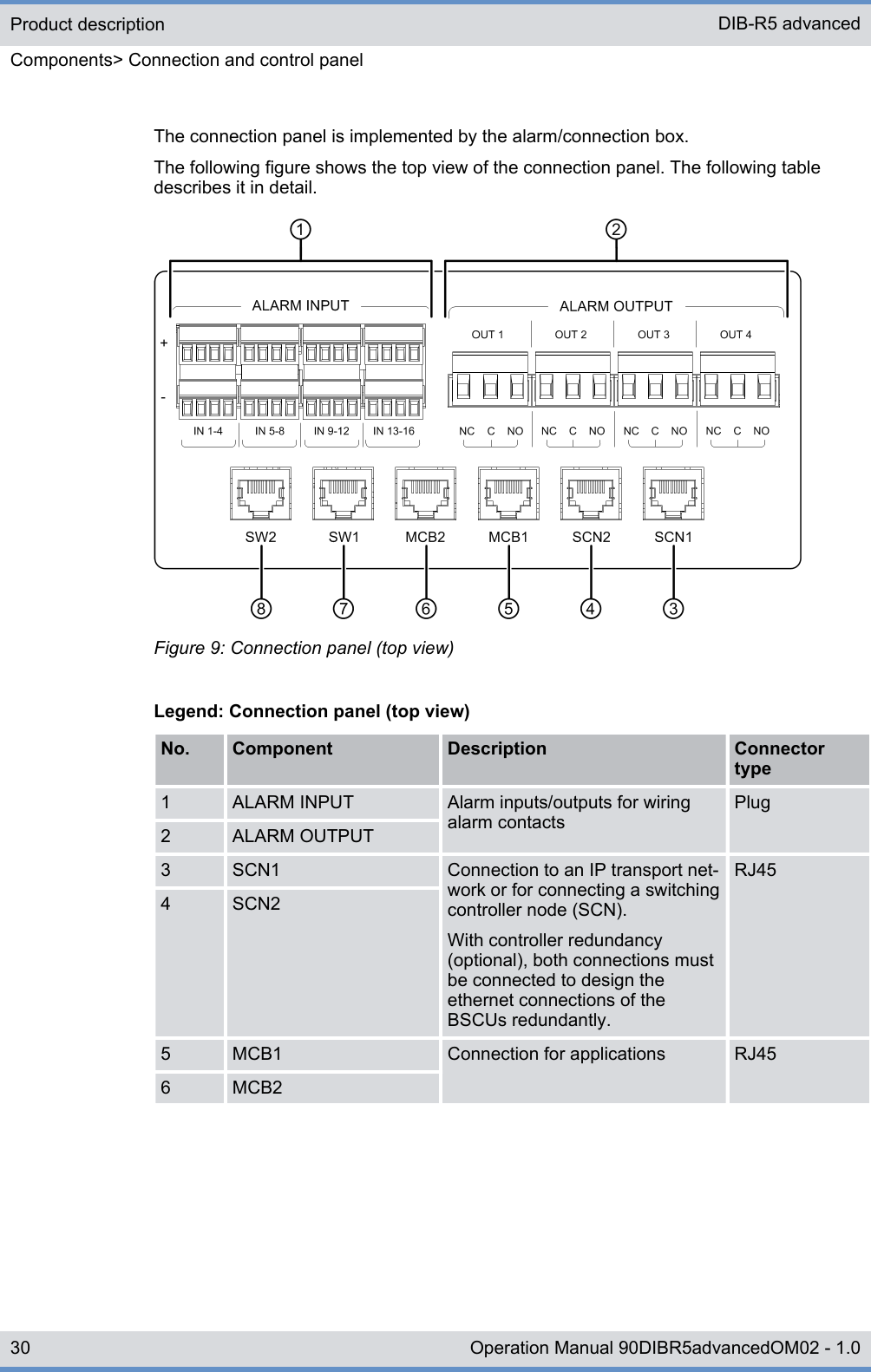

The connection panel is implemented by the alarm/connection box.The following figure shows the top view of the connection panel. The following tabledescribes it in detail.Figure 9: Connection panel (top view)Legend: Connection panel (top view)No. Component Description Connectortype1 ALARM INPUT Alarm inputs/outputs for wiringalarm contactsPlug2 ALARM OUTPUT3 SCN1 Connection to an IP transport net-work or for connecting a switchingcontroller node (SCN).With controller redundancy(optional), both connections mustbe connected to design theethernet connections of theBSCUs redundantly.RJ454 SCN25 MCB1 Connection for applications RJ456 MCB2Product descriptionComponents> Connection and control panelDIB-R5 advanced30 Operation Manual 90DIBR5advancedOM02 - 1.0
No. Component Description Connectortype7 SW1 Connection of the service com-puter (local)RJ458 SW2 Connection of service computer(local) ‒ optional for controllerredundancyThis connection is required only ifsoftware downloads should beperformed specifically for theredundant BSCU.RJ453.2.1.3 GNSS splitterThe GNSS splitter (Global Navigation Satellite System) is used for connecting the GNSSantenna and the splitting and distribution of the received GNSS signal (e.g. GPS, Galileoor Glonass) to two BSCUs. The GNSS splitter is always installed in the connection andcontrol panel, even if only one BSCU is used.3.2.2 VAC voltage supplyThe DIB-R5 advanced can be operated with an input voltage of 90 VAC to 250 VAC.The VAC voltage supply consists of the following components:nÄ AC Power Distribution Module (APDM)nÄ Power Supply Unit (PSU) including Power Supply Module (PSM)3.2.2.1 AC Power Distribution Module (APDM)The AC Power Distribution Module (APDM) is used for connecting the voltage supply andthe voltage distribution to the backplane and the installed hardware components. TheAPDM is used for the VAC voltage supply. The VAC input voltage is fed via the PowerSupply Unit (PSU), converted to the required operating voltage, and subsequently distrib-uted to the backplane and the installed hardware components.With redundant voltage supply feed, two APDMs are installed (optional). The redundancyoptions of the voltage supply are described in Ä Chapter 3.5.6 “Redundant VAC voltagesupply” on page 62.The following figure shows the top view of the APDM. The following table describes it indetail.Product descriptionComponents> VAC voltage supplyDIB-R5 advanced31Operation Manual 90DIBR5advancedOM02 - 1.0

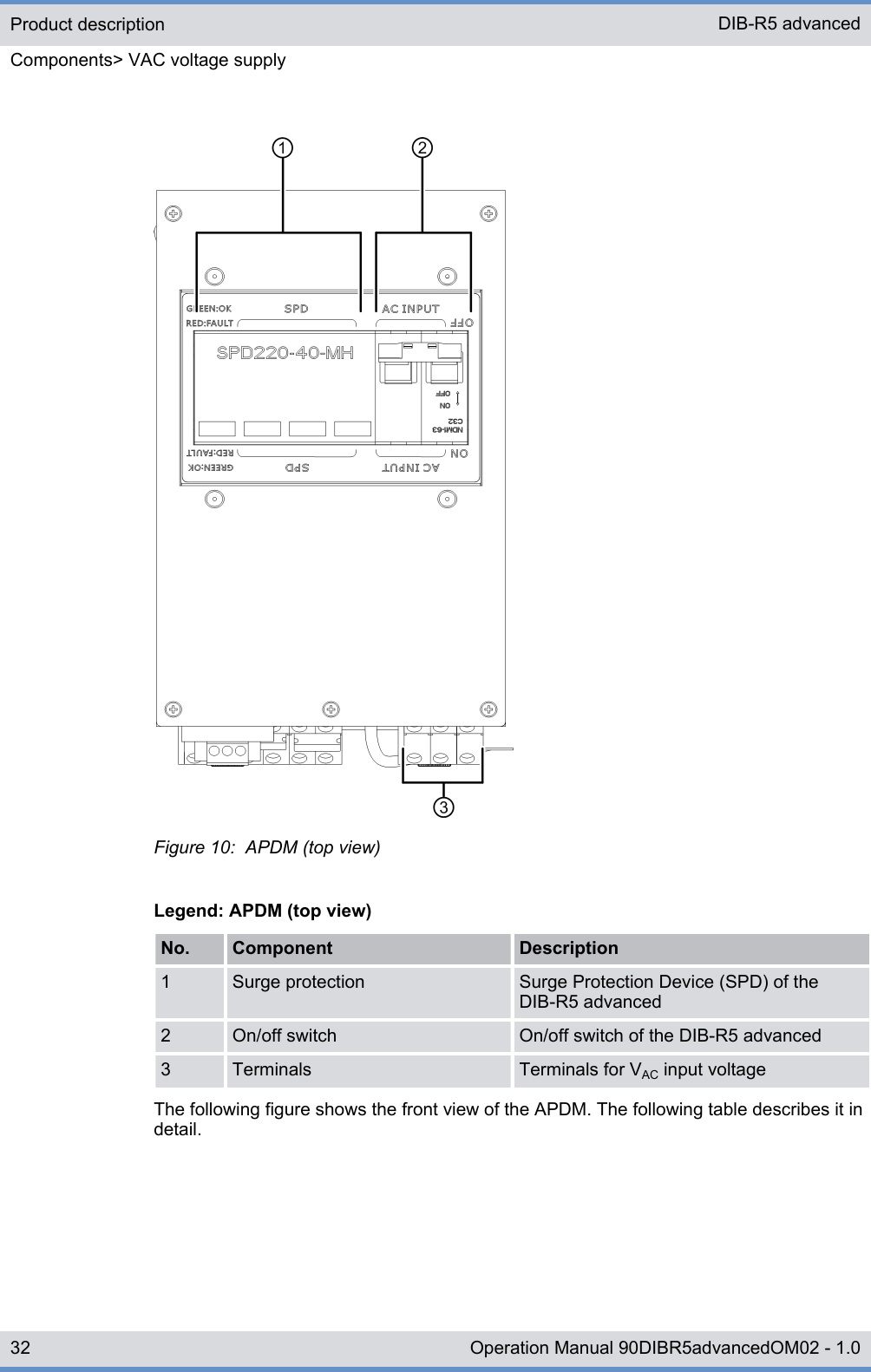

Figure 10: APDM (top view)Legend: APDM (top view)No. Component Description1 Surge protection Surge Protection Device (SPD) of theDIB-R5 advanced2 On/off switch On/off switch of the DIB-R5 advanced3 Terminals Terminals for VAC input voltageThe following figure shows the front view of the APDM. The following table describes it indetail.Product descriptionComponents> VAC voltage supplyDIB-R5 advanced32 Operation Manual 90DIBR5advancedOM02 - 1.0

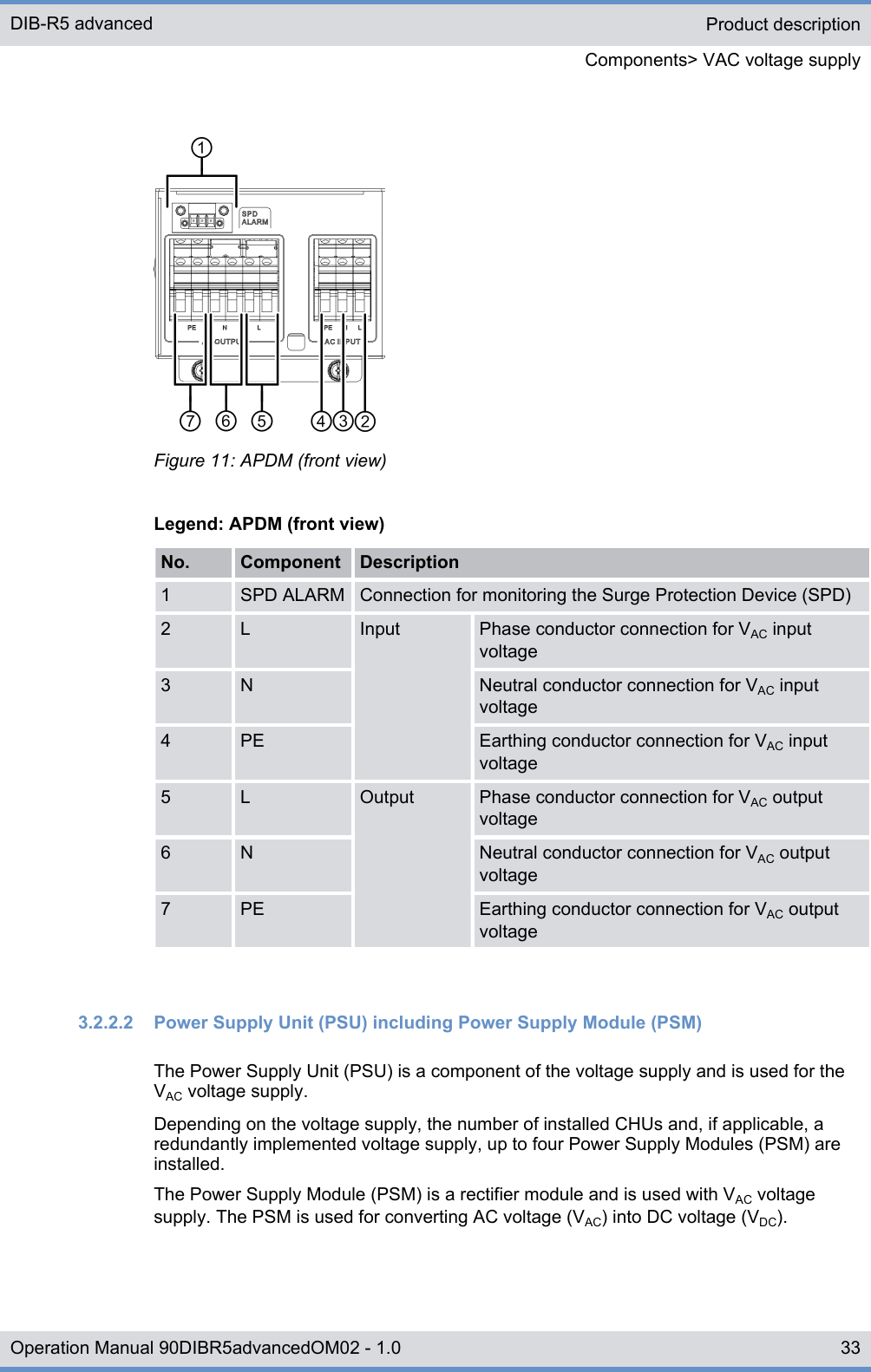

Figure 11: APDM (front view)Legend: APDM (front view)No. Component Description1 SPD ALARM Connection for monitoring the Surge Protection Device (SPD)2 L Input Phase conductor connection for VAC inputvoltage3 N Neutral conductor connection for VAC inputvoltage4 PE Earthing conductor connection for VAC inputvoltage5 L Output Phase conductor connection for VAC outputvoltage6 N Neutral conductor connection for VAC outputvoltage7 PE Earthing conductor connection for VAC outputvoltage3.2.2.2 Power Supply Unit (PSU) including Power Supply Module (PSM)The Power Supply Unit (PSU) is a component of the voltage supply and is used for theVAC voltage supply.Depending on the voltage supply, the number of installed CHUs and, if applicable, aredundantly implemented voltage supply, up to four Power Supply Modules (PSM) areinstalled.The Power Supply Module (PSM) is a rectifier module and is used with VAC voltagesupply. The PSM is used for converting AC voltage (VAC) into DC voltage (VDC).Product descriptionComponents> VAC voltage supplyDIB-R5 advanced33Operation Manual 90DIBR5advancedOM02 - 1.0

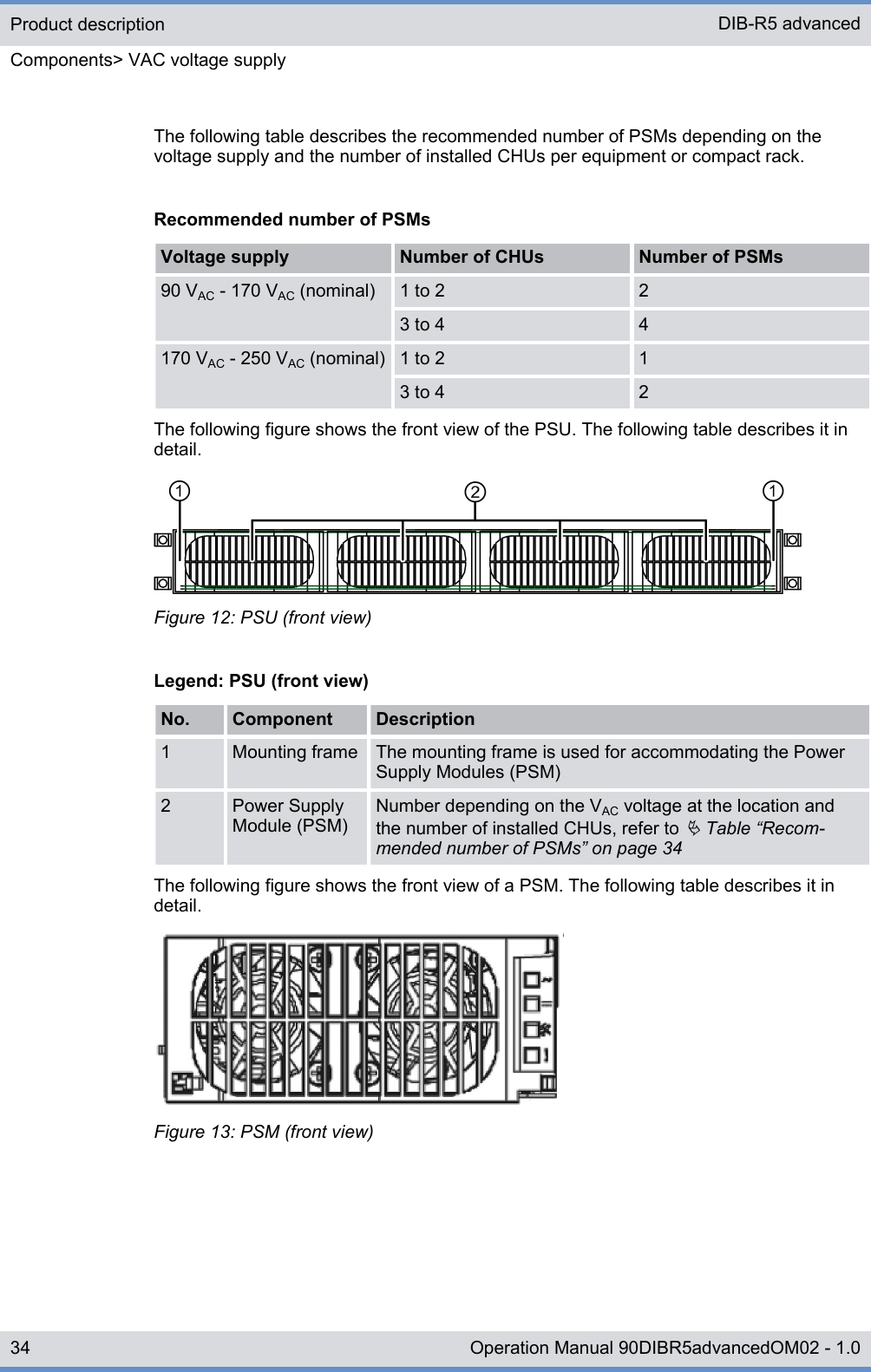

The following table describes the recommended number of PSMs depending on thevoltage supply and the number of installed CHUs per equipment or compact rack.Recommended number of PSMsVoltage supply Number of CHUs Number of PSMs90 VAC - 170 VAC (nominal) 1 to 2 23 to 4 4170 VAC - 250 VAC (nominal) 1 to 2 13 to 4 2The following figure shows the front view of the PSU. The following table describes it indetail.Figure 12: PSU (front view)Legend: PSU (front view)No. Component Description1 Mounting frame The mounting frame is used for accommodating the PowerSupply Modules (PSM)2 Power SupplyModule (PSM)Number depending on the VAC voltage at the location andthe number of installed CHUs, refer to Ä Table “Recom-mended number of PSMs” on page 34The following figure shows the front view of a PSM. The following table describes it indetail.Figure 13: PSM (front view)Product descriptionComponents> VAC voltage supplyDIB-R5 advanced34 Operation Manual 90DIBR5advancedOM02 - 1.0

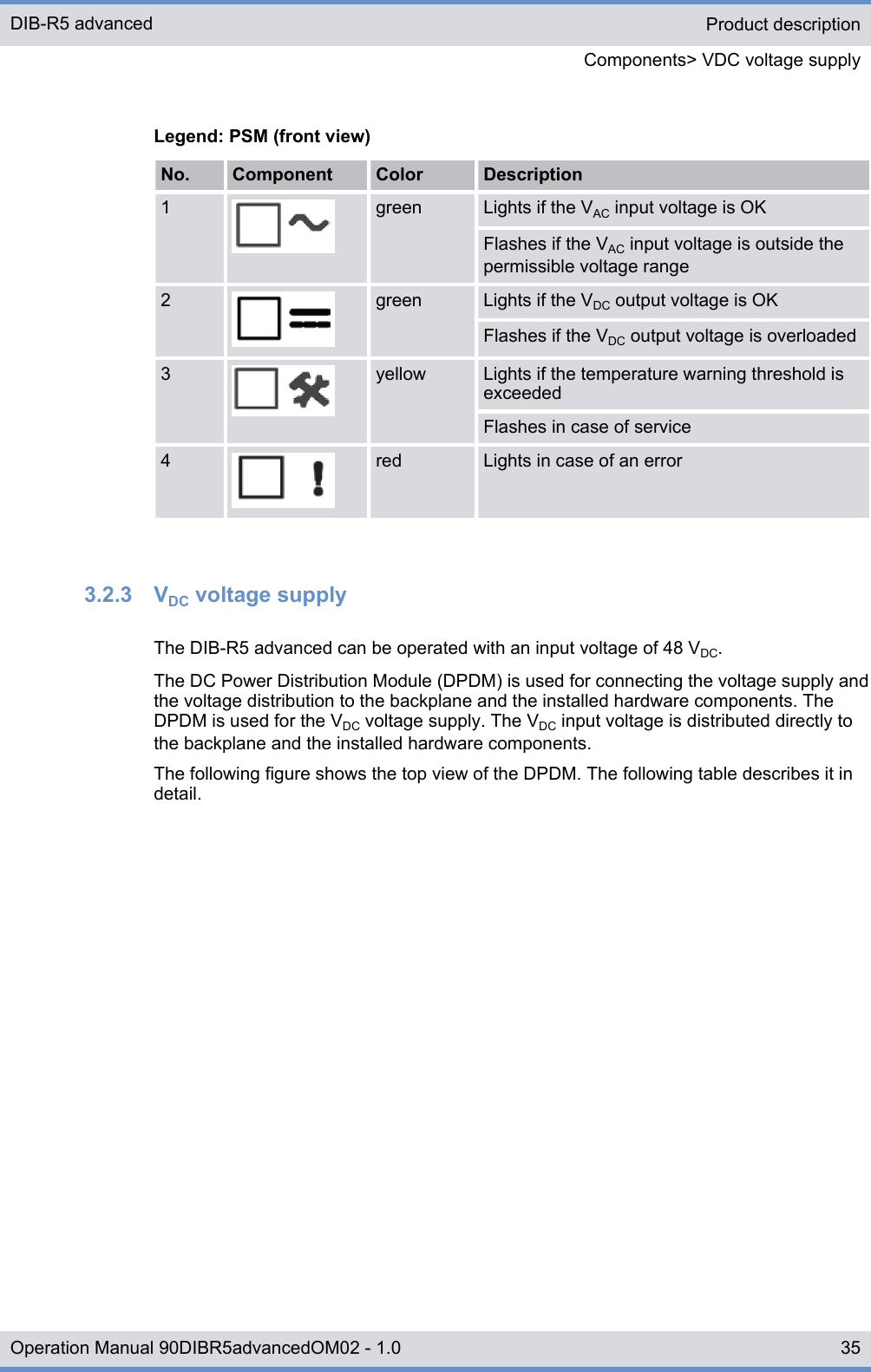

Legend: PSM (front view)No. Component Color Description1 green Lights if the VAC input voltage is OKFlashes if the VAC input voltage is outside thepermissible voltage range2 green Lights if the VDC output voltage is OKFlashes if the VDC output voltage is overloaded3 yellow Lights if the temperature warning threshold isexceededFlashes in case of service4 red Lights in case of an error3.2.3 VDC voltage supplyThe DIB-R5 advanced can be operated with an input voltage of 48 VDC.The DC Power Distribution Module (DPDM) is used for connecting the voltage supply andthe voltage distribution to the backplane and the installed hardware components. TheDPDM is used for the VDC voltage supply. The VDC input voltage is distributed directly tothe backplane and the installed hardware components.The following figure shows the top view of the DPDM. The following table describes it indetail.Product descriptionComponents> VDC voltage supplyDIB-R5 advanced35Operation Manual 90DIBR5advancedOM02 - 1.0

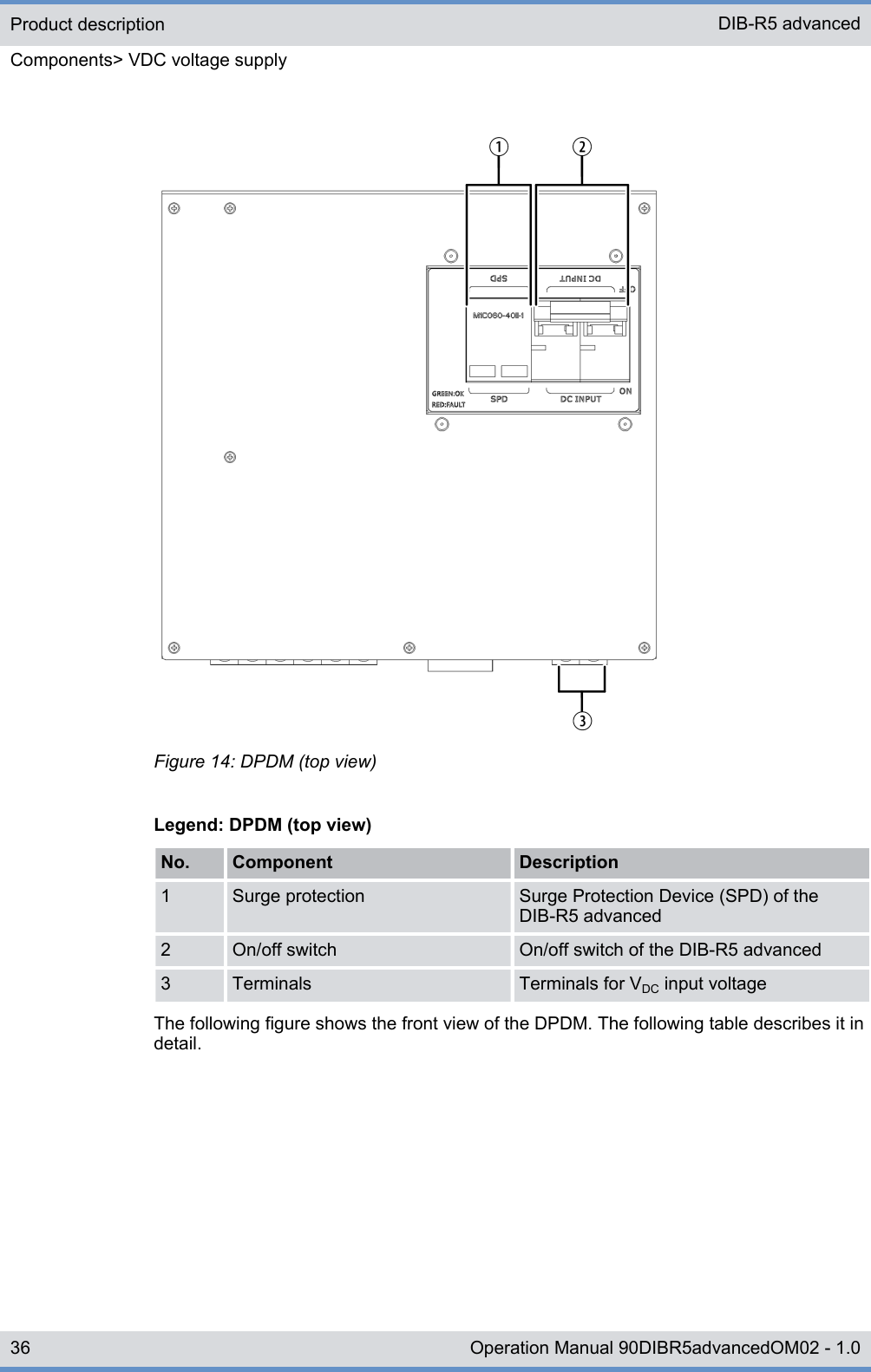

Figure 14: DPDM (top view)Legend: DPDM (top view)No. Component Description1 Surge protection Surge Protection Device (SPD) of theDIB-R5 advanced2 On/off switch On/off switch of the DIB-R5 advanced3 Terminals Terminals for VDC input voltageThe following figure shows the front view of the DPDM. The following table describes it indetail.Product descriptionComponents> VDC voltage supplyDIB-R5 advanced36 Operation Manual 90DIBR5advancedOM02 - 1.0

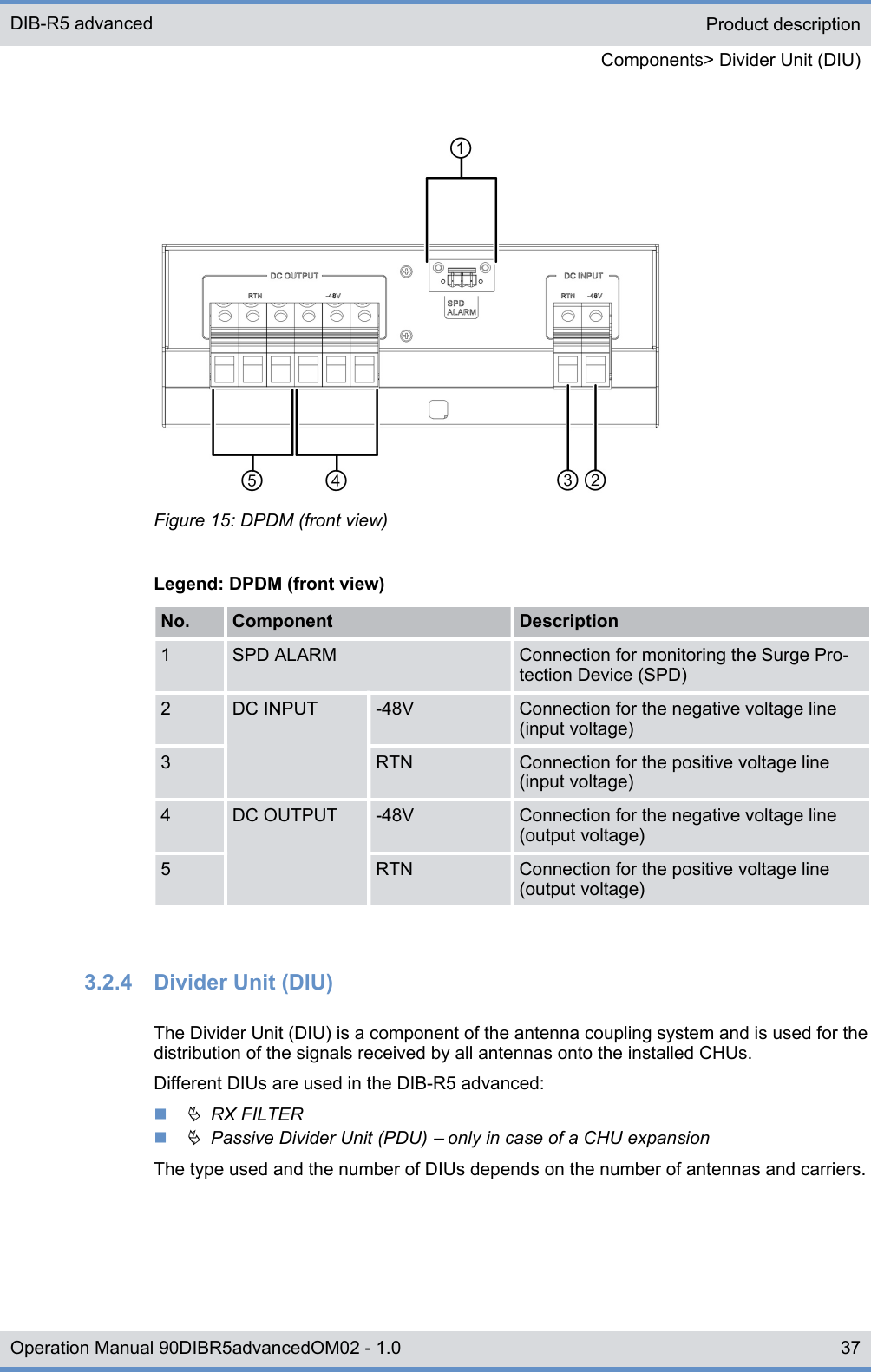

Figure 15: DPDM (front view)Legend: DPDM (front view)No. Component Description1 SPD ALARM Connection for monitoring the Surge Pro-tection Device (SPD)2 DC INPUT -48V Connection for the negative voltage line(input voltage)3 RTN Connection for the positive voltage line(input voltage)4 DC OUTPUT -48V Connection for the negative voltage line(output voltage)5 RTN Connection for the positive voltage line(output voltage)3.2.4 Divider Unit (DIU)The Divider Unit (DIU) is a component of the antenna coupling system and is used for thedistribution of the signals received by all antennas onto the installed CHUs.Different DIUs are used in the DIB-R5 advanced:nÄ RX FILTERnÄ Passive Divider Unit (PDU) ‒ only in case of a CHU expansionThe type used and the number of DIUs depends on the number of antennas and carriers.Product descriptionComponents> Divider Unit (DIU)DIB-R5 advanced37Operation Manual 90DIBR5advancedOM02 - 1.0

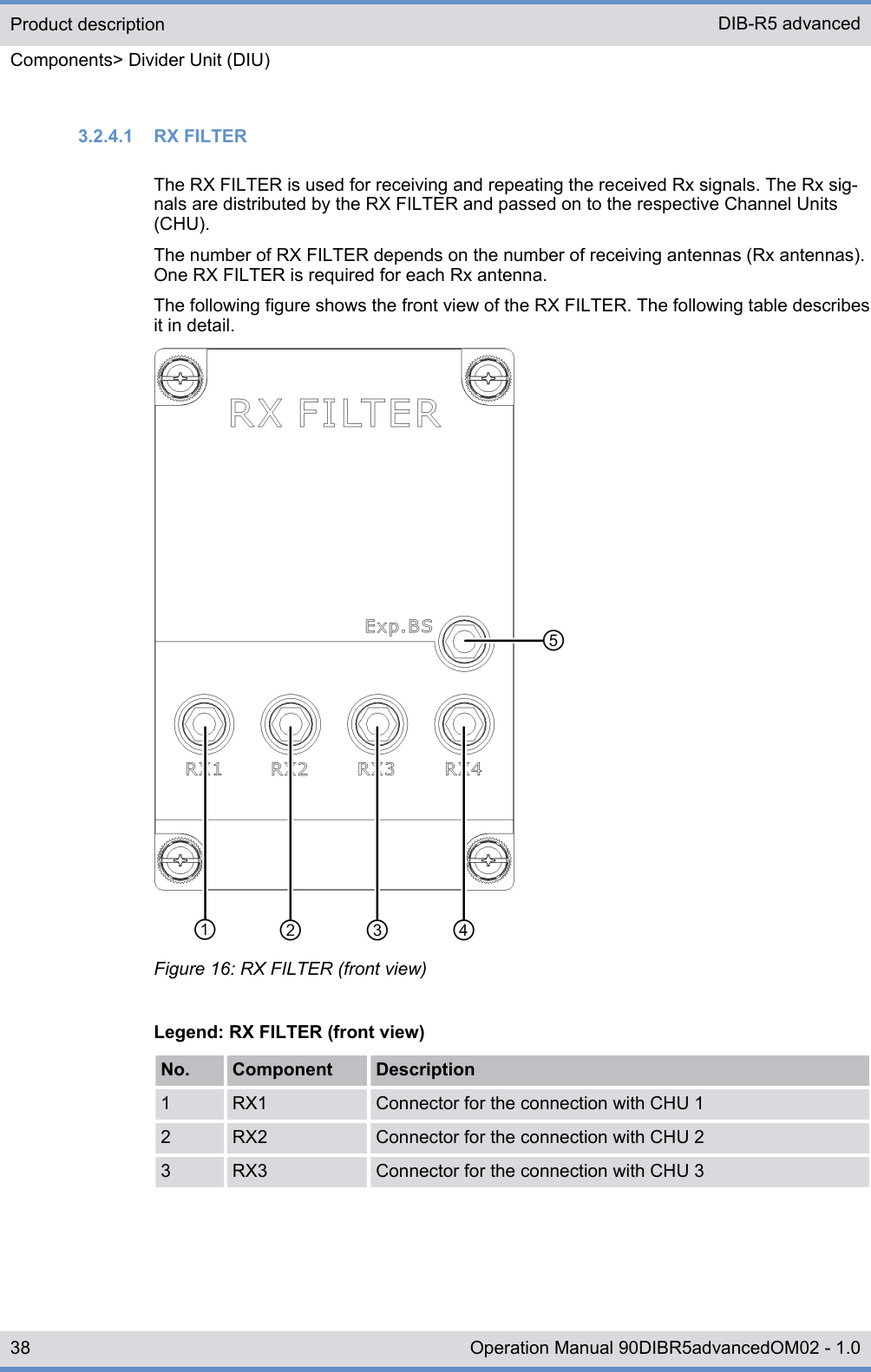

3.2.4.1 RX FILTERThe RX FILTER is used for receiving and repeating the received Rx signals. The Rx sig-nals are distributed by the RX FILTER and passed on to the respective Channel Units(CHU).The number of RX FILTER depends on the number of receiving antennas (Rx antennas).One RX FILTER is required for each Rx antenna.The following figure shows the front view of the RX FILTER. The following table describesit in detail.Figure 16: RX FILTER (front view)Legend: RX FILTER (front view)No. Component Description1 RX1 Connector for the connection with CHU 12 RX2 Connector for the connection with CHU 23 RX3 Connector for the connection with CHU 3Product descriptionComponents> Divider Unit (DIU)DIB-R5 advanced38 Operation Manual 90DIBR5advancedOM02 - 1.0

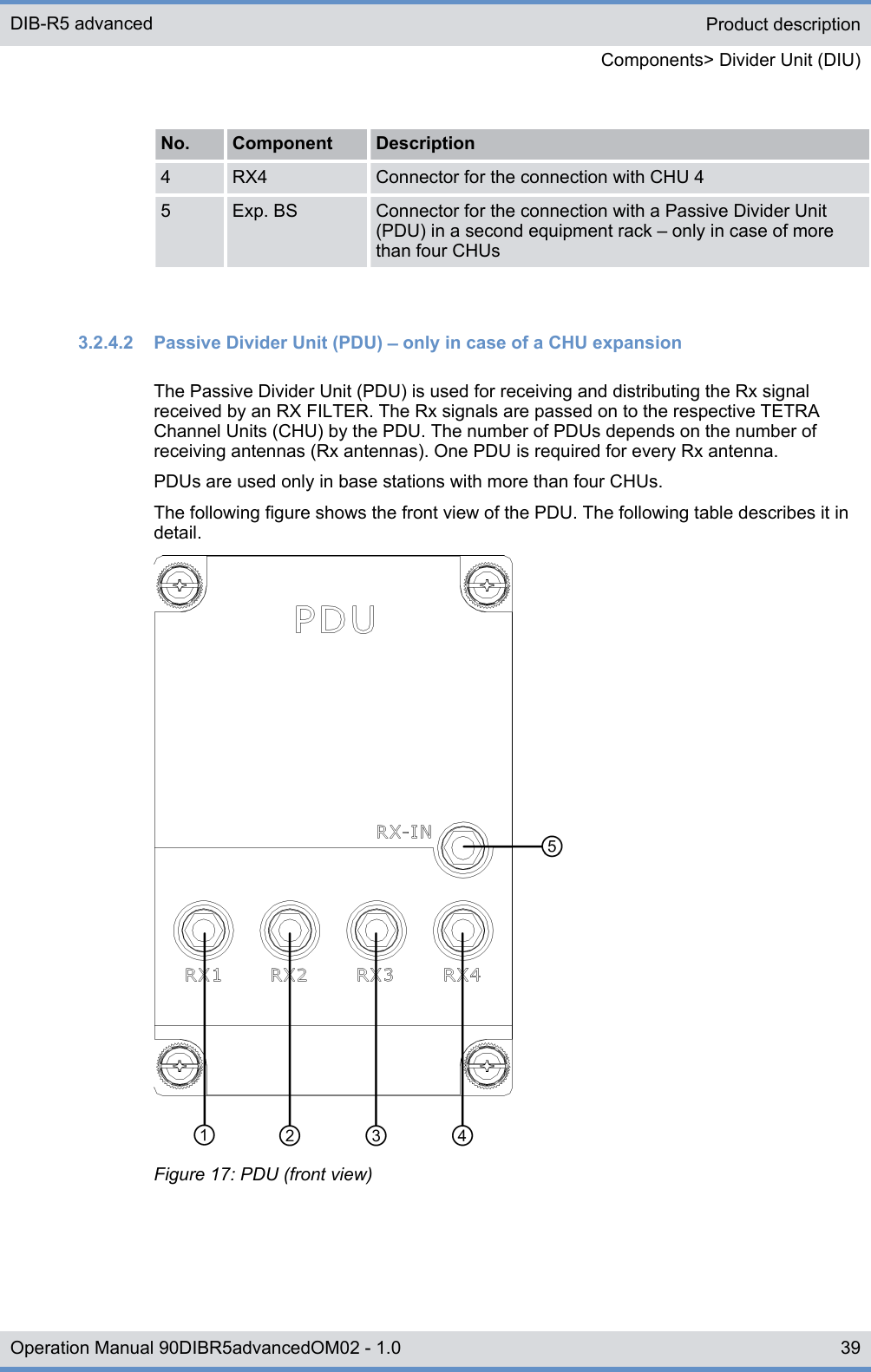

No. Component Description4 RX4 Connector for the connection with CHU 45 Exp. BS Connector for the connection with a Passive Divider Unit(PDU) in a second equipment rack ‒ only in case of morethan four CHUs3.2.4.2 Passive Divider Unit (PDU) ‒ only in case of a CHU expansionThe Passive Divider Unit (PDU) is used for receiving and distributing the Rx signalreceived by an RX FILTER. The Rx signals are passed on to the respective TETRAChannel Units (CHU) by the PDU. The number of PDUs depends on the number ofreceiving antennas (Rx antennas). One PDU is required for every Rx antenna.PDUs are used only in base stations with more than four CHUs.The following figure shows the front view of the PDU. The following table describes it indetail.Figure 17: PDU (front view)Product descriptionComponents> Divider Unit (DIU)DIB-R5 advanced39Operation Manual 90DIBR5advancedOM02 - 1.0

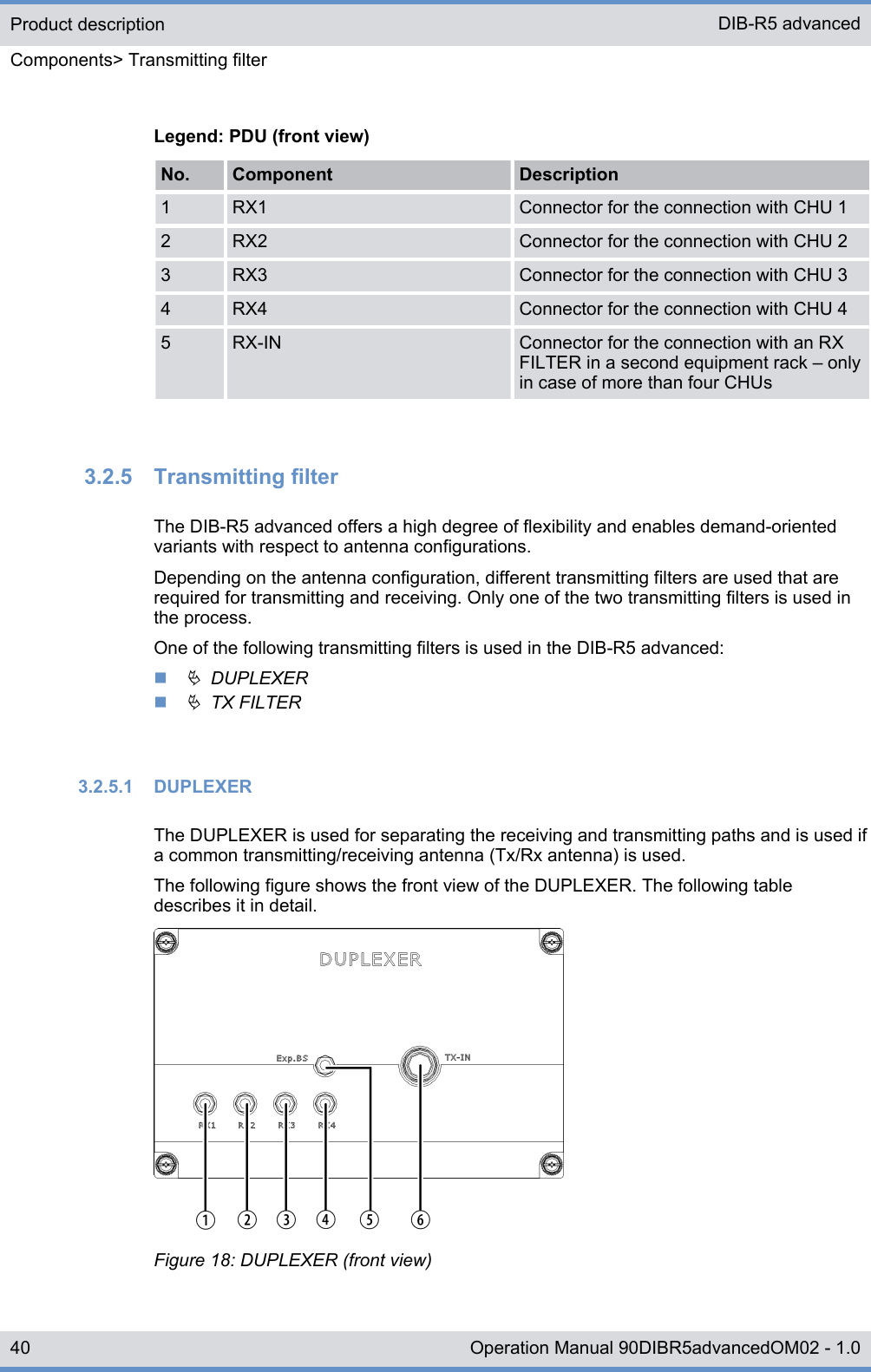

Legend: PDU (front view)No. Component Description1 RX1 Connector for the connection with CHU 12 RX2 Connector for the connection with CHU 23 RX3 Connector for the connection with CHU 34 RX4 Connector for the connection with CHU 45 RX-IN Connector for the connection with an RXFILTER in a second equipment rack ‒ onlyin case of more than four CHUs3.2.5 Transmitting filterThe DIB-R5 advanced offers a high degree of flexibility and enables demand-orientedvariants with respect to antenna configurations.Depending on the antenna configuration, different transmitting filters are used that arerequired for transmitting and receiving. Only one of the two transmitting filters is used inthe process.One of the following transmitting filters is used in the DIB-R5 advanced:nÄ DUPLEXERnÄ TX FILTER3.2.5.1 DUPLEXERThe DUPLEXER is used for separating the receiving and transmitting paths and is used ifa common transmitting/receiving antenna (Tx/Rx antenna) is used.The following figure shows the front view of the DUPLEXER. The following tabledescribes it in detail.Figure 18: DUPLEXER (front view)Product descriptionComponents> Transmitting filterDIB-R5 advanced40 Operation Manual 90DIBR5advancedOM02 - 1.0

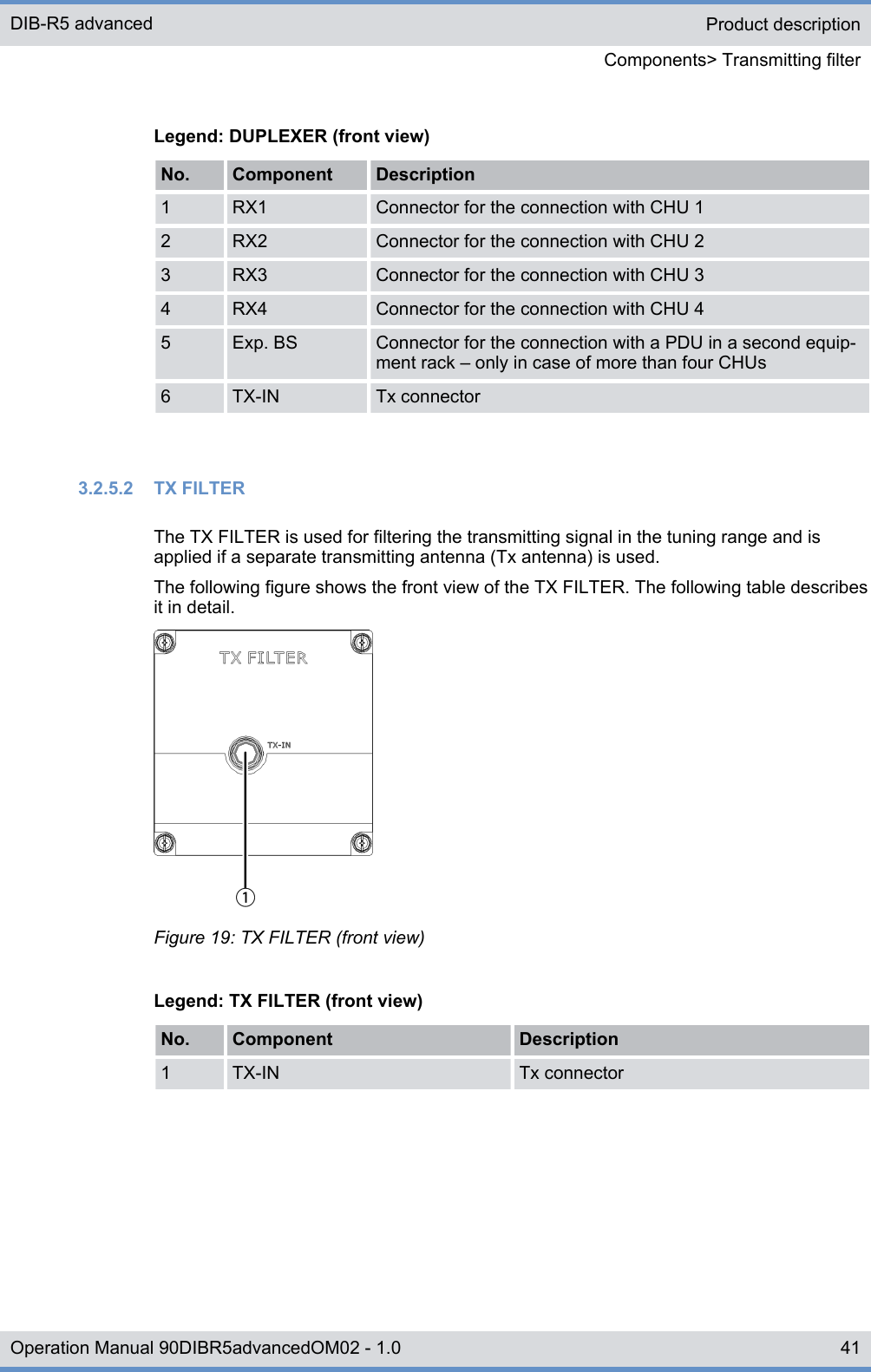

Legend: DUPLEXER (front view)No. Component Description1 RX1 Connector for the connection with CHU 12 RX2 Connector for the connection with CHU 23 RX3 Connector for the connection with CHU 34 RX4 Connector for the connection with CHU 45 Exp. BS Connector for the connection with a PDU in a second equip-ment rack ‒ only in case of more than four CHUs6 TX-IN Tx connector3.2.5.2 TX FILTERThe TX FILTER is used for filtering the transmitting signal in the tuning range and isapplied if a separate transmitting antenna (Tx antenna) is used.The following figure shows the front view of the TX FILTER. The following table describesit in detail.Figure 19: TX FILTER (front view)Legend: TX FILTER (front view)No. Component Description1 TX-IN Tx connectorProduct descriptionComponents> Transmitting filterDIB-R5 advanced41Operation Manual 90DIBR5advancedOM02 - 1.0

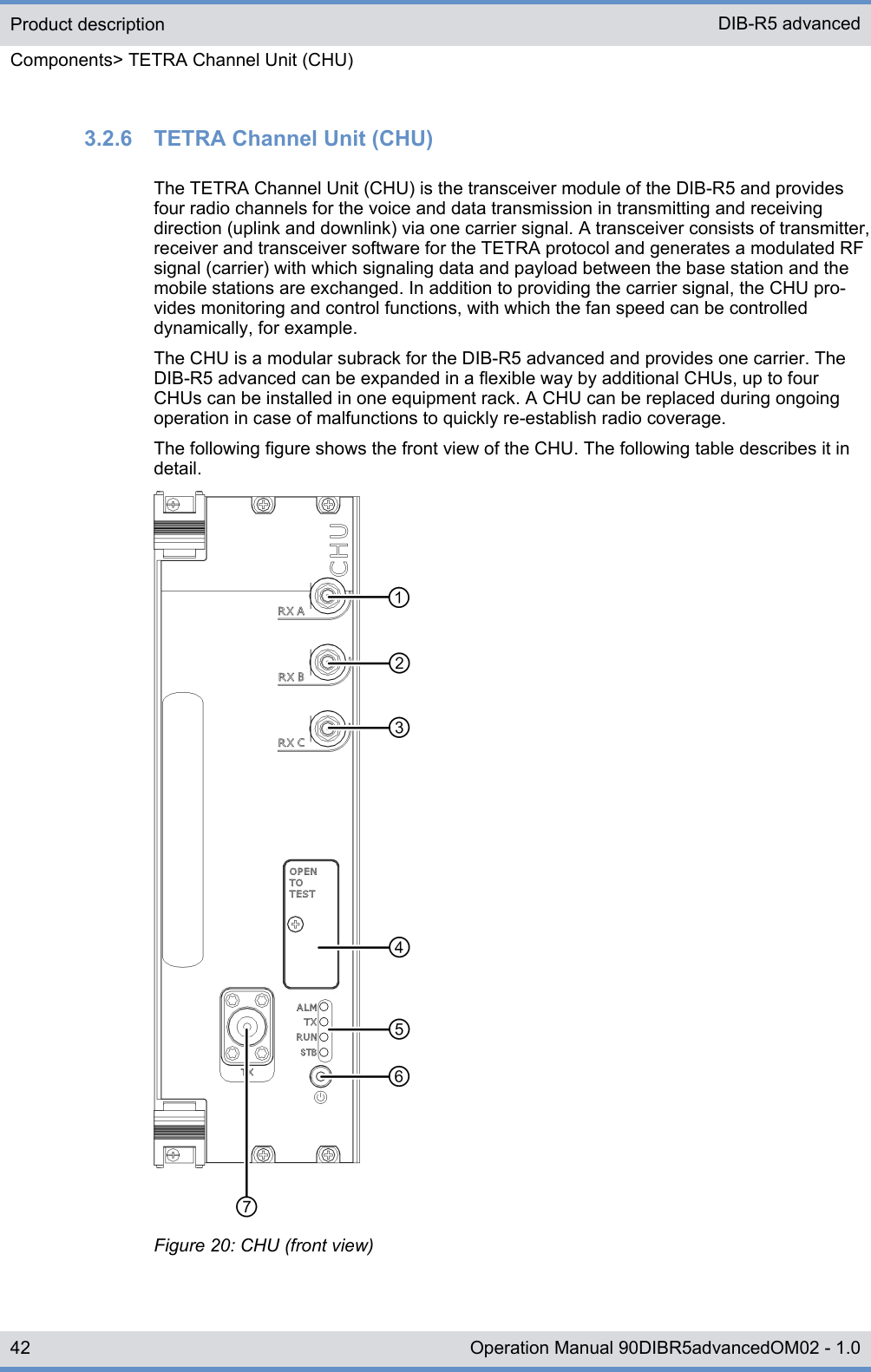

3.2.6 TETRA Channel Unit (CHU)The TETRA Channel Unit (CHU) is the transceiver module of the DIB-R5 and providesfour radio channels for the voice and data transmission in transmitting and receivingdirection (uplink and downlink) via one carrier signal. A transceiver consists of transmitter,receiver and transceiver software for the TETRA protocol and generates a modulated RFsignal (carrier) with which signaling data and payload between the base station and themobile stations are exchanged. In addition to providing the carrier signal, the CHU pro-vides monitoring and control functions, with which the fan speed can be controlleddynamically, for example.The CHU is a modular subrack for the DIB-R5 advanced and provides one carrier. TheDIB-R5 advanced can be expanded in a flexible way by additional CHUs, up to fourCHUs can be installed in one equipment rack. A CHU can be replaced during ongoingoperation in case of malfunctions to quickly re-establish radio coverage.The following figure shows the front view of the CHU. The following table describes it indetail.Figure 20: CHU (front view)Product descriptionComponents> TETRA Channel Unit (CHU)DIB-R5 advanced42 Operation Manual 90DIBR5advancedOM02 - 1.0

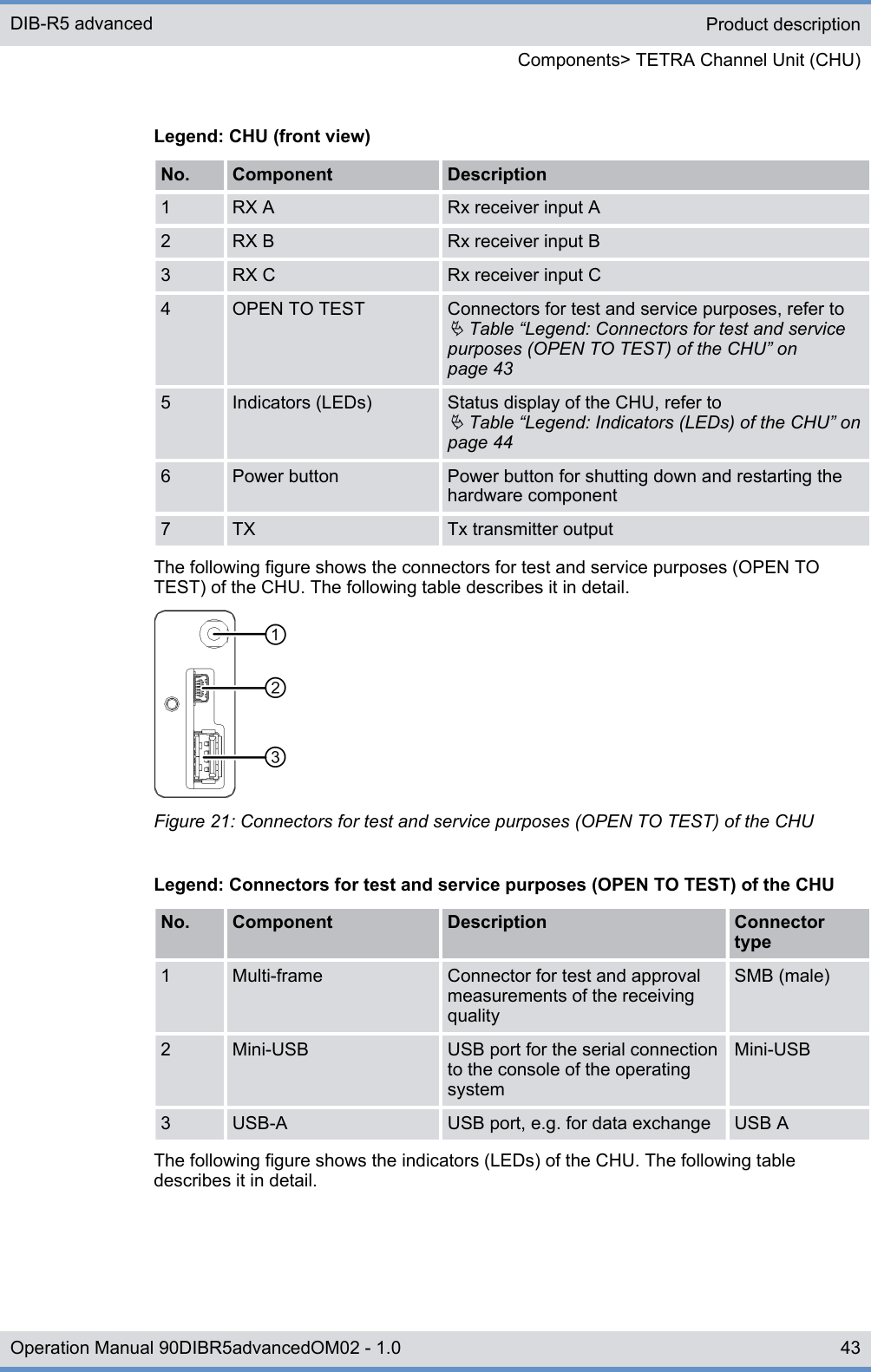

Legend: CHU (front view)No. Component Description1 RX A Rx receiver input A2 RX B Rx receiver input B3 RX C Rx receiver input C4 OPEN TO TEST Connectors for test and service purposes, refer toÄ Table “Legend: Connectors for test and servicepurposes (OPEN TO TEST) of the CHU” onpage 435 Indicators (LEDs) Status display of the CHU, refer toÄ Table “Legend: Indicators (LEDs) of the CHU” onpage 446 Power button Power button for shutting down and restarting thehardware component7 TX Tx transmitter outputThe following figure shows the connectors for test and service purposes (OPEN TOTEST) of the CHU. The following table describes it in detail.Figure 21: Connectors for test and service purposes (OPEN TO TEST) of the CHULegend: Connectors for test and service purposes (OPEN TO TEST) of the CHUNo. Component Description Connectortype1 Multi-frame Connector for test and approvalmeasurements of the receivingqualitySMB (male)2 Mini-USB USB port for the serial connectionto the console of the operatingsystemMini-USB3 USB-A USB port, e.g. for data exchange USB AThe following figure shows the indicators (LEDs) of the CHU. The following tabledescribes it in detail.Product descriptionComponents> TETRA Channel Unit (CHU)DIB-R5 advanced43Operation Manual 90DIBR5advancedOM02 - 1.0

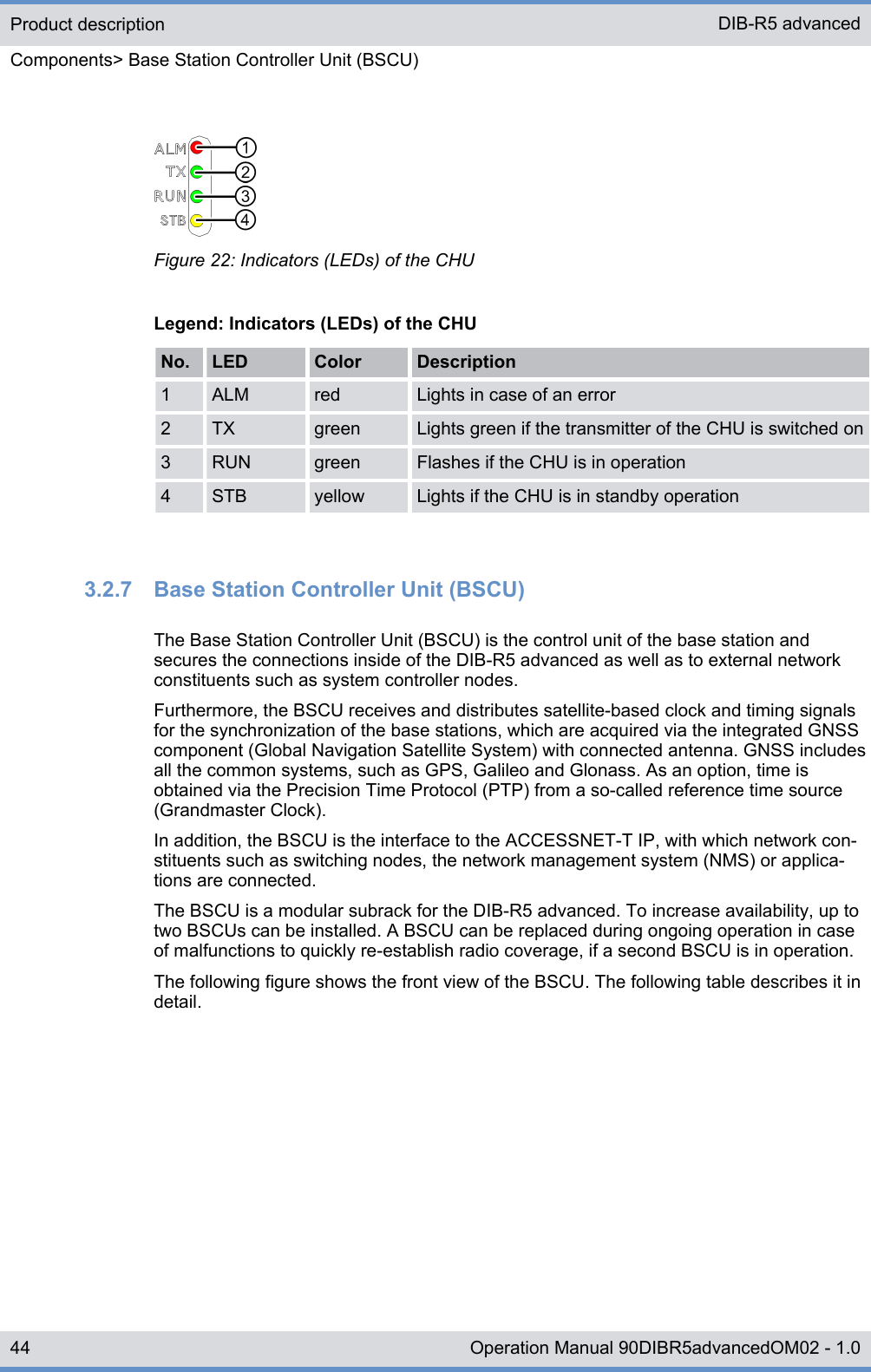

Figure 22: Indicators (LEDs) of the CHULegend: Indicators (LEDs) of the CHUNo. LED Color Description1 ALM red Lights in case of an error2 TX green Lights green if the transmitter of the CHU is switched on3 RUN green Flashes if the CHU is in operation4 STB yellow Lights if the CHU is in standby operation3.2.7 Base Station Controller Unit (BSCU)The Base Station Controller Unit (BSCU) is the control unit of the base station andsecures the connections inside of the DIB-R5 advanced as well as to external networkconstituents such as system controller nodes.Furthermore, the BSCU receives and distributes satellite-based clock and timing signalsfor the synchronization of the base stations, which are acquired via the integrated GNSScomponent (Global Navigation Satellite System) with connected antenna. GNSS includesall the common systems, such as GPS, Galileo and Glonass. As an option, time isobtained via the Precision Time Protocol (PTP) from a so-called reference time source(Grandmaster Clock).In addition, the BSCU is the interface to the ACCESSNET-T IP, with which network con-stituents such as switching nodes, the network management system (NMS) or applica-tions are connected.The BSCU is a modular subrack for the DIB-R5 advanced. To increase availability, up totwo BSCUs can be installed. A BSCU can be replaced during ongoing operation in caseof malfunctions to quickly re-establish radio coverage, if a second BSCU is in operation.The following figure shows the front view of the BSCU. The following table describes it indetail.Product descriptionComponents> Base Station Controller Unit (BSCU)DIB-R5 advanced44 Operation Manual 90DIBR5advancedOM02 - 1.0

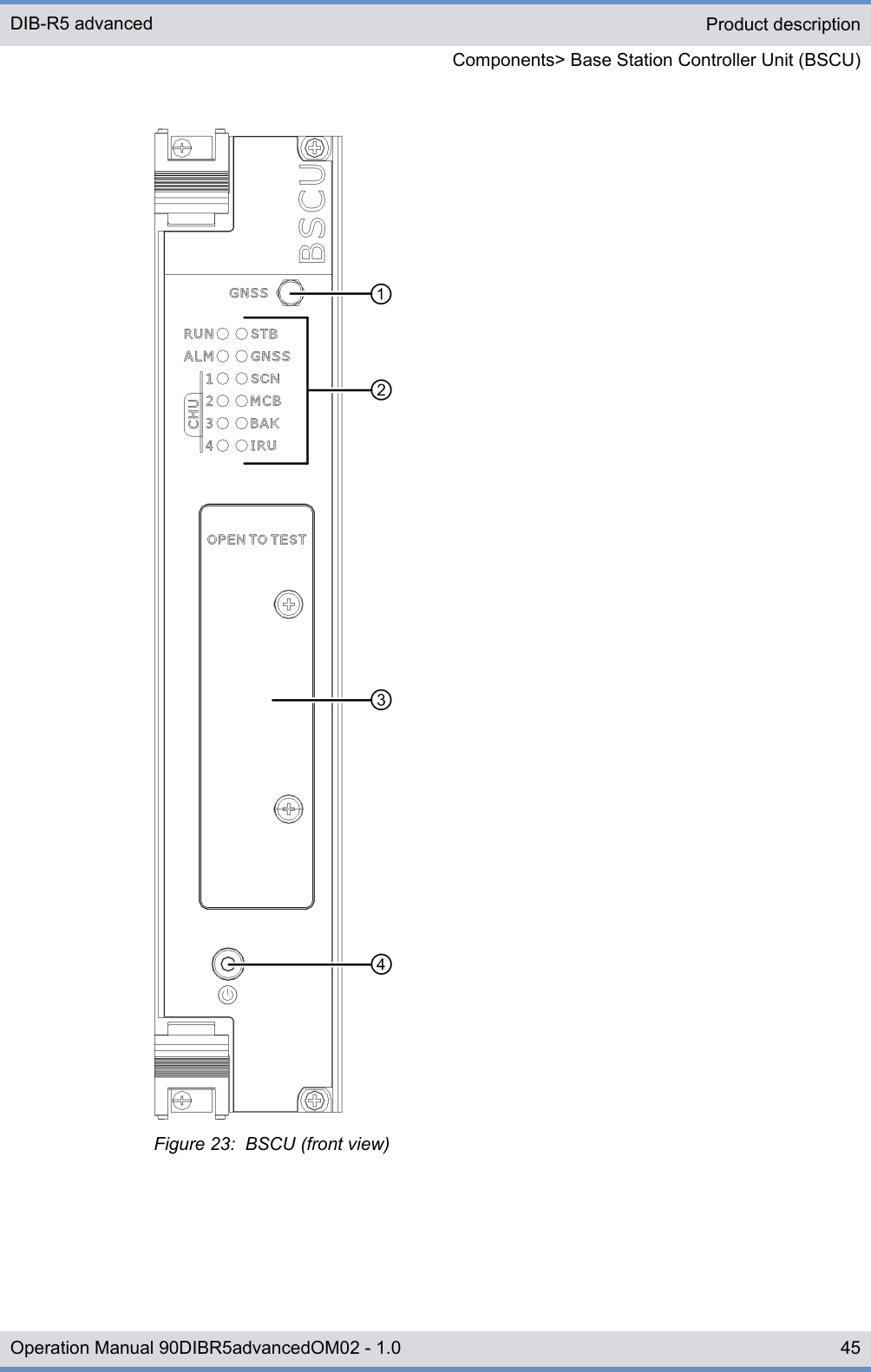

Figure 23: BSCU (front view)Product descriptionComponents> Base Station Controller Unit (BSCU)DIB-R5 advanced45Operation Manual 90DIBR5advancedOM02 - 1.0

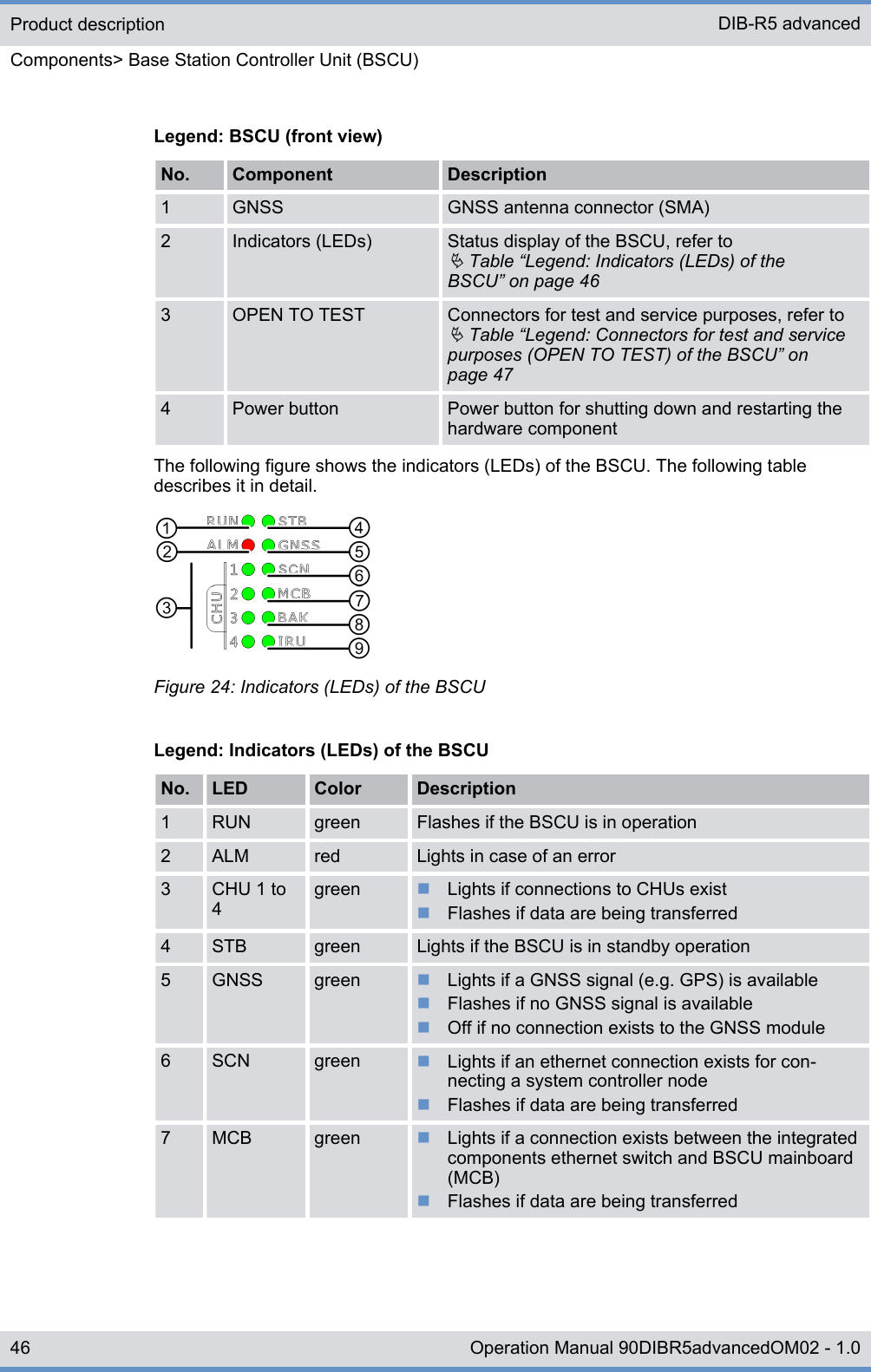

Legend: BSCU (front view)No. Component Description1 GNSS GNSS antenna connector (SMA)2 Indicators (LEDs) Status display of the BSCU, refer toÄ Table “Legend: Indicators (LEDs) of theBSCU” on page 463 OPEN TO TEST Connectors for test and service purposes, refer toÄ Table “Legend: Connectors for test and servicepurposes (OPEN TO TEST) of the BSCU” onpage 474 Power button Power button for shutting down and restarting thehardware componentThe following figure shows the indicators (LEDs) of the BSCU. The following tabledescribes it in detail.Figure 24: Indicators (LEDs) of the BSCULegend: Indicators (LEDs) of the BSCUNo. LED Color Description1 RUN green Flashes if the BSCU is in operation2 ALM red Lights in case of an error3 CHU 1 to4green nLights if connections to CHUs existnFlashes if data are being transferred4 STB green Lights if the BSCU is in standby operation5 GNSS green nLights if a GNSS signal (e.g. GPS) is availablenFlashes if no GNSS signal is availablenOff if no connection exists to the GNSS module6 SCN green nLights if an ethernet connection exists for con-necting a system controller nodenFlashes if data are being transferred7 MCB green nLights if a connection exists between the integratedcomponents ethernet switch and BSCU mainboard(MCB)nFlashes if data are being transferredProduct descriptionComponents> Base Station Controller Unit (BSCU)DIB-R5 advanced46 Operation Manual 90DIBR5advancedOM02 - 1.0

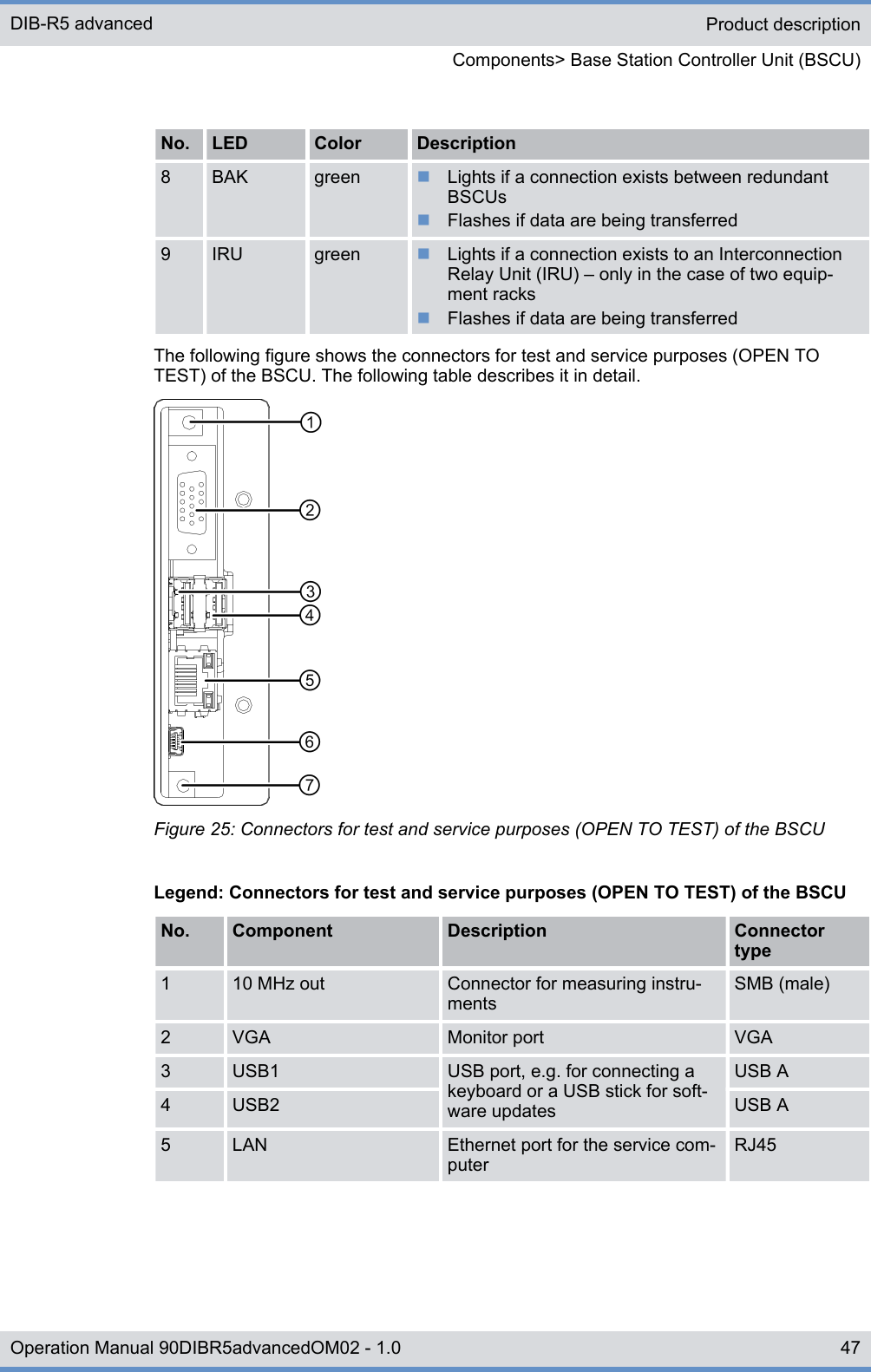

No. LED Color Description8 BAK green nLights if a connection exists between redundantBSCUsnFlashes if data are being transferred9 IRU green nLights if a connection exists to an InterconnectionRelay Unit (IRU) ‒ only in the case of two equip-ment racksnFlashes if data are being transferredThe following figure shows the connectors for test and service purposes (OPEN TOTEST) of the BSCU. The following table describes it in detail.Figure 25: Connectors for test and service purposes (OPEN TO TEST) of the BSCULegend: Connectors for test and service purposes (OPEN TO TEST) of the BSCUNo. Component Description Connectortype1 10 MHz out Connector for measuring instru-mentsSMB (male)2 VGA Monitor port VGA3 USB1 USB port, e.g. for connecting akeyboard or a USB stick for soft-ware updatesUSB A4 USB2 USB A5 LAN Ethernet port for the service com-puterRJ45Product descriptionComponents> Base Station Controller Unit (BSCU)DIB-R5 advanced47Operation Manual 90DIBR5advancedOM02 - 1.0

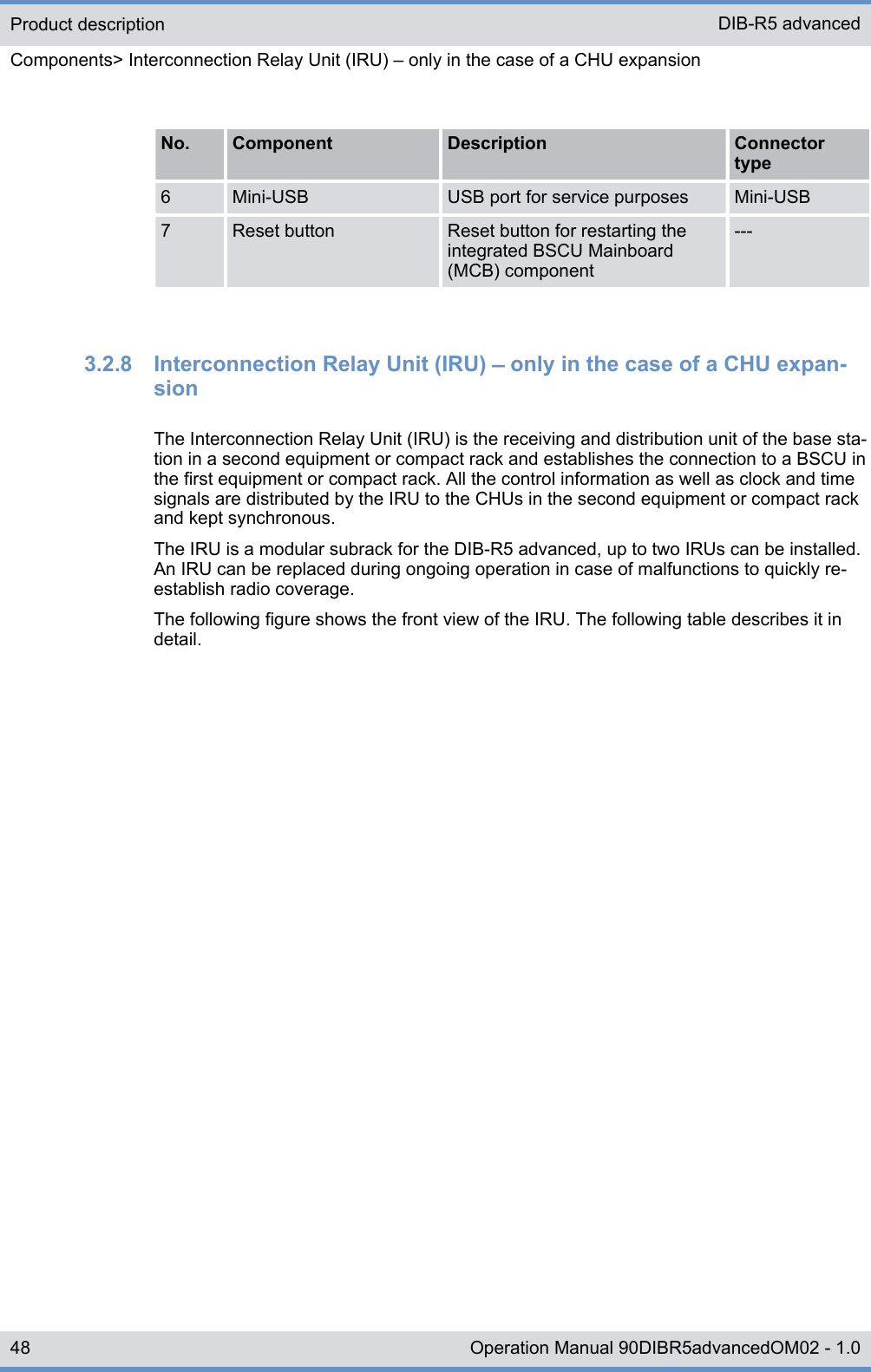

No. Component Description Connectortype6 Mini-USB USB port for service purposes Mini-USB7 Reset button Reset button for restarting theintegrated BSCU Mainboard(MCB) component---3.2.8 Interconnection Relay Unit (IRU) ‒ only in the case of a CHU expan-sionThe Interconnection Relay Unit (IRU) is the receiving and distribution unit of the base sta-tion in a second equipment or compact rack and establishes the connection to a BSCU inthe first equipment or compact rack. All the control information as well as clock and timesignals are distributed by the IRU to the CHUs in the second equipment or compact rackand kept synchronous.The IRU is a modular subrack for the DIB-R5 advanced, up to two IRUs can be installed.An IRU can be replaced during ongoing operation in case of malfunctions to quickly re-establish radio coverage.The following figure shows the front view of the IRU. The following table describes it indetail.Product descriptionComponents> Interconnection Relay Unit (IRU) ‒ only in the case of a CHU expansionDIB-R5 advanced48 Operation Manual 90DIBR5advancedOM02 - 1.0

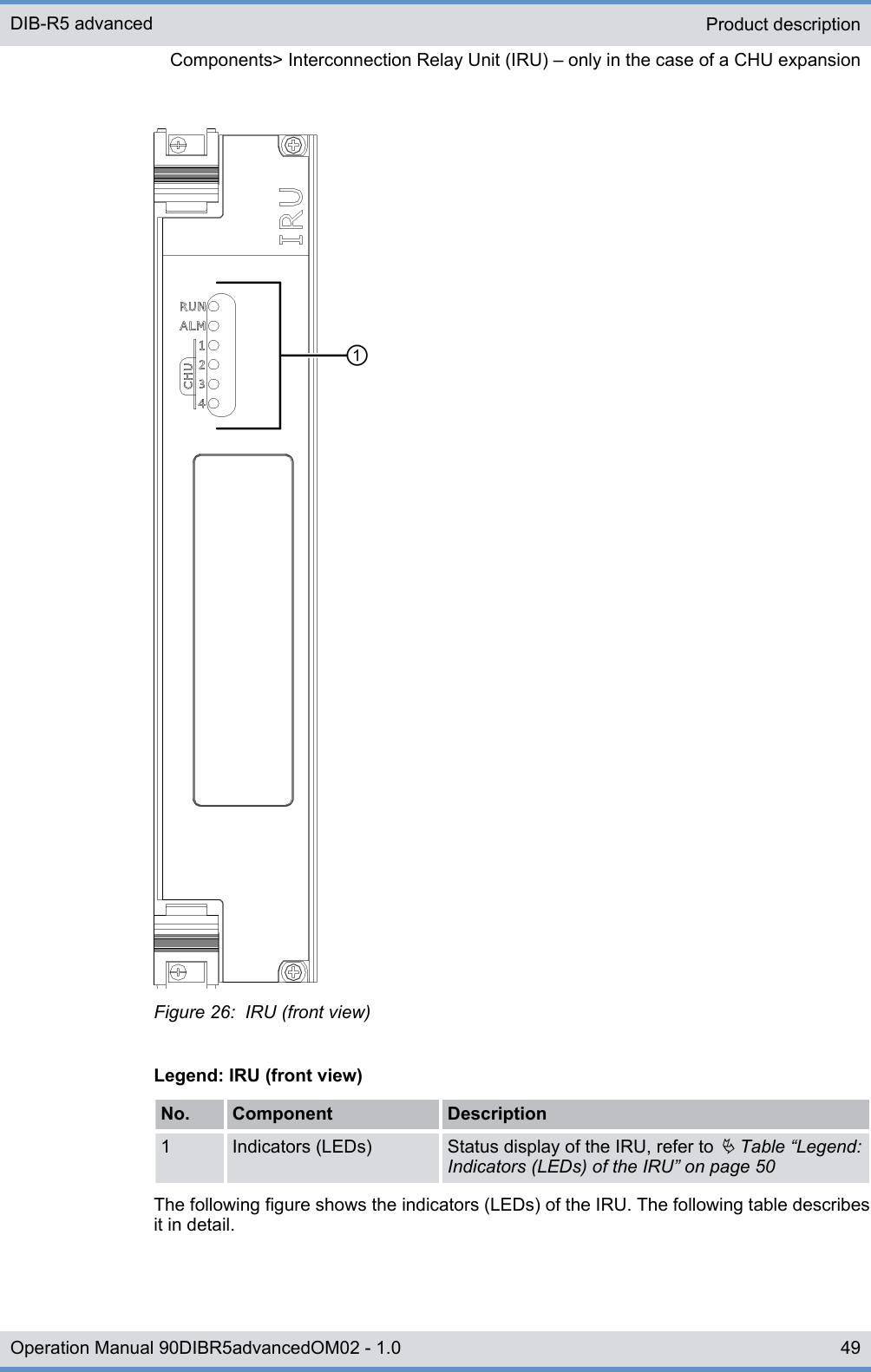

Figure 26: IRU (front view)Legend: IRU (front view)No. Component Description1 Indicators (LEDs) Status display of the IRU, refer to Ä Table “Legend:Indicators (LEDs) of the IRU” on page 50The following figure shows the indicators (LEDs) of the IRU. The following table describesit in detail.Product descriptionComponents> Interconnection Relay Unit (IRU) ‒ only in the case of a CHU expansionDIB-R5 advanced49Operation Manual 90DIBR5advancedOM02 - 1.0
Figure 27: Indicators (LEDs) of the IRULegend: Indicators (LEDs) of the IRUNo. LED Color Description1 RUN green Flashes if the IRU is in operation2 ALM red Lights in case of an error3 CHU 1 to4green nLights if connections to CHUs existnFlashes if data are being transferred3.2.9 Fan unitThe fan unit is used for cooling the installed components within the DIB-R5 advanced.The air filter pad is affixed to the inside of the front equipment rack door and filters the dirtand dust particles from the air.The fan unit is implemented in the form of a fan subrack for the DIB-R5 advanced andcontains six fans. Each fan features an LED, so that the status is visible from the outside.The temperatures of the hardware components CHU and BSCU are monitored at alltimes and the fan speed is controlled dynamically.The following figure shows the front view of the fan unit. The following table describes it indetail.Figure 28: Fan unit (front view)Legend: Fan unit (front view)No. Component Description1 Mounting screw Screw for fastening in the equipment rack2 Handle Recessed handle for pulling out the fan unit3 Indicators (LEDs) Status display of the fan unit, refer toÄ Table “Legend: Indicators (LEDs) of the fanunit” on page 51Product descriptionComponents> Fan unitDIB-R5 advanced50

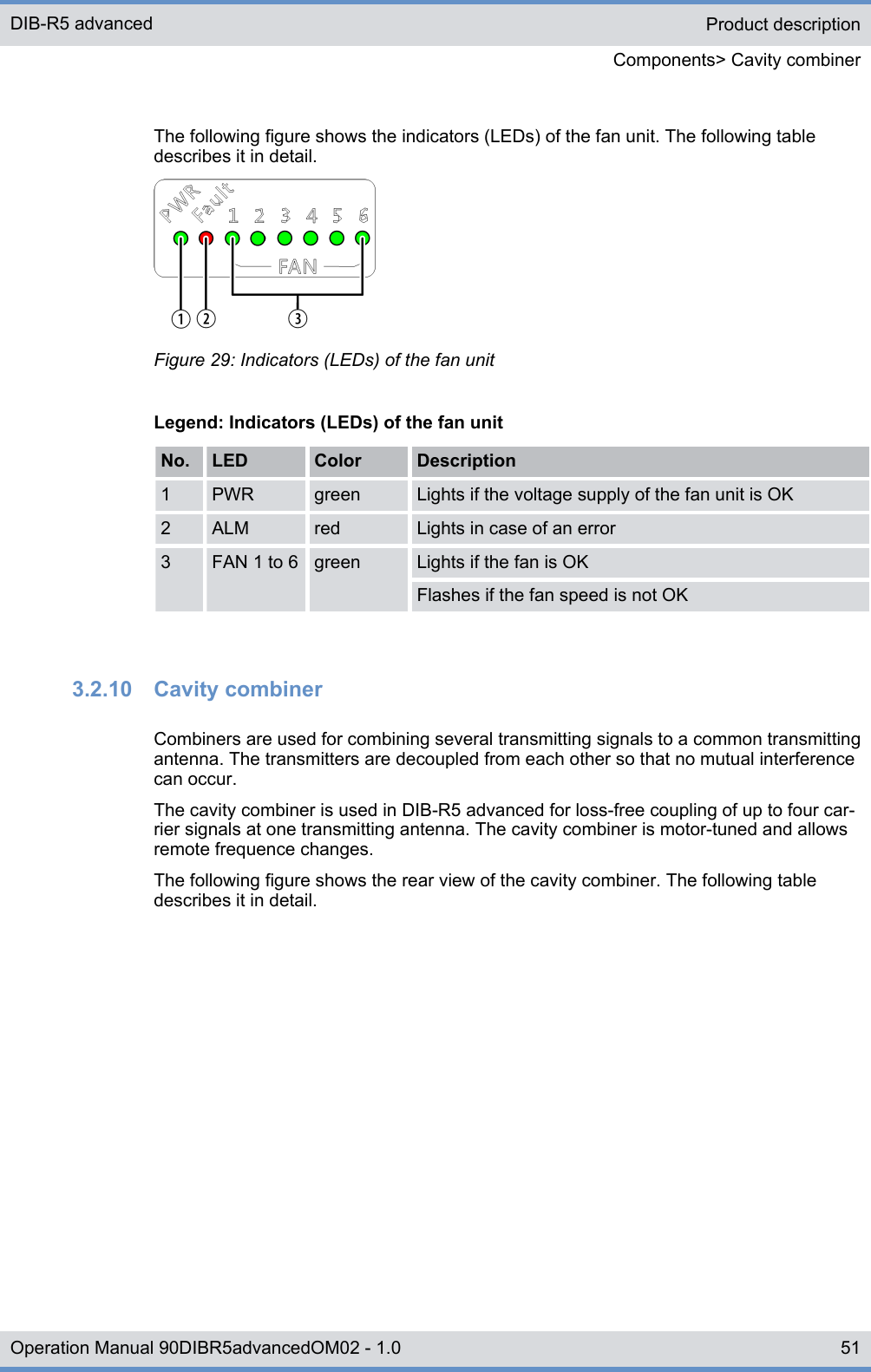

The following figure shows the indicators (LEDs) of the fan unit. The following tabledescribes it in detail.Figure 29: Indicators (LEDs) of the fan unitLegend: Indicators (LEDs) of the fan unitNo. LED Color Description1 PWR green Lights if the voltage supply of the fan unit is OK2 ALM red Lights in case of an error3 FAN 1 to 6 green Lights if the fan is OKFlashes if the fan speed is not OK3.2.10 Cavity combinerCombiners are used for combining several transmitting signals to a common transmittingantenna. The transmitters are decoupled from each other so that no mutual interferencecan occur.The cavity combiner is used in DIB-R5 advanced for loss-free coupling of up to four car-rier signals at one transmitting antenna. The cavity combiner is motor-tuned and allowsremote frequence changes.The following figure shows the rear view of the cavity combiner. The following tabledescribes it in detail.Product descriptionComponents> Cavity combinerDIB-R5 advanced51Operation Manual 90DIBR5advancedOM02 - 1.0

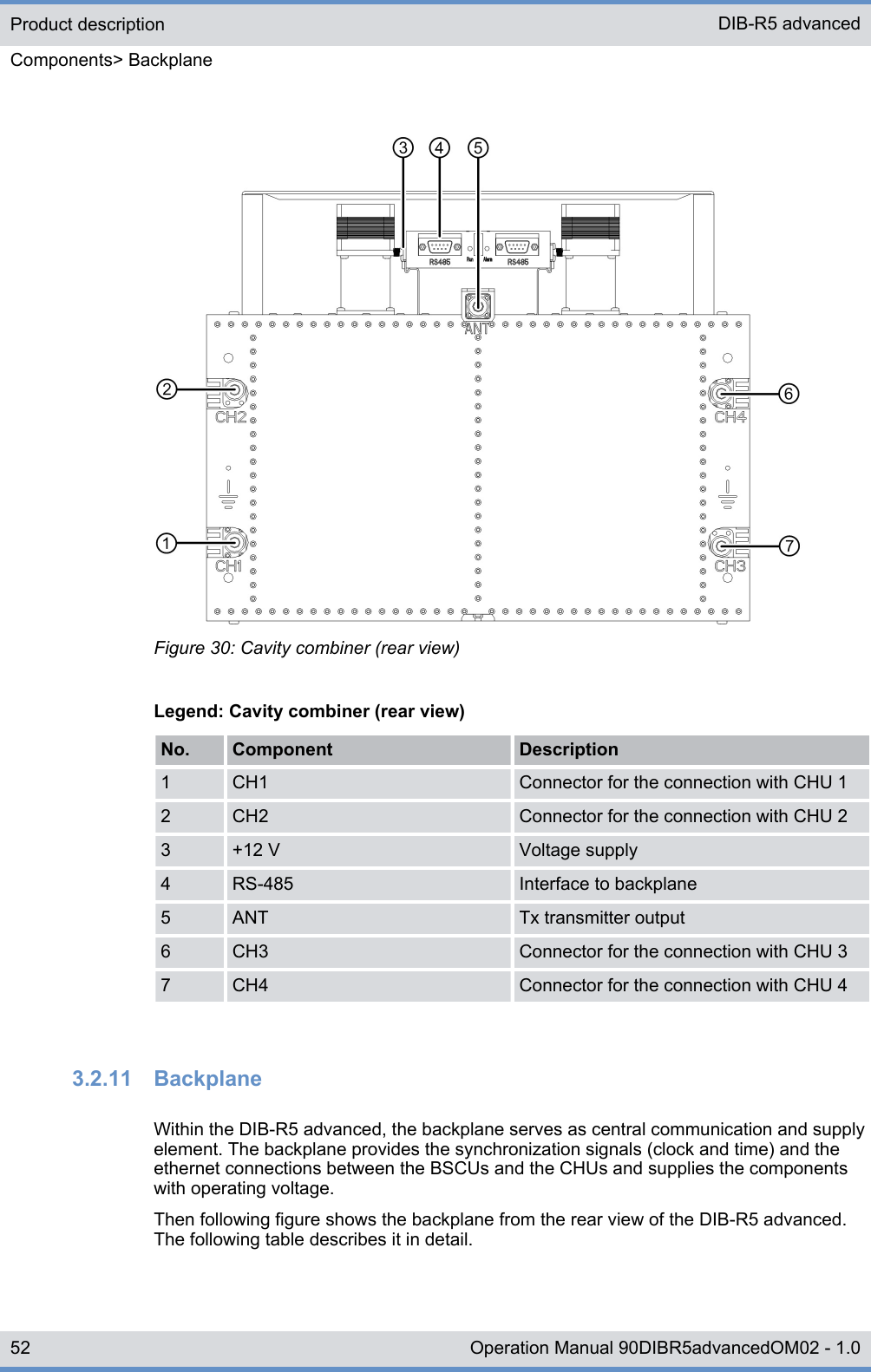

Figure 30: Cavity combiner (rear view)Legend: Cavity combiner (rear view)No. Component Description1 CH1 Connector for the connection with CHU 12 CH2 Connector for the connection with CHU 23 +12 V Voltage supply4 RS-485 Interface to backplane5 ANT Tx transmitter output6 CH3 Connector for the connection with CHU 37 CH4 Connector for the connection with CHU 43.2.11 BackplaneWithin the DIB-R5 advanced, the backplane serves as central communication and supplyelement. The backplane provides the synchronization signals (clock and time) and theethernet connections between the BSCUs and the CHUs and supplies the componentswith operating voltage.Then following figure shows the backplane from the rear view of the DIB-R5 advanced.The following table describes it in detail.Product descriptionComponents> BackplaneDIB-R5 advanced52 Operation Manual 90DIBR5advancedOM02 - 1.0

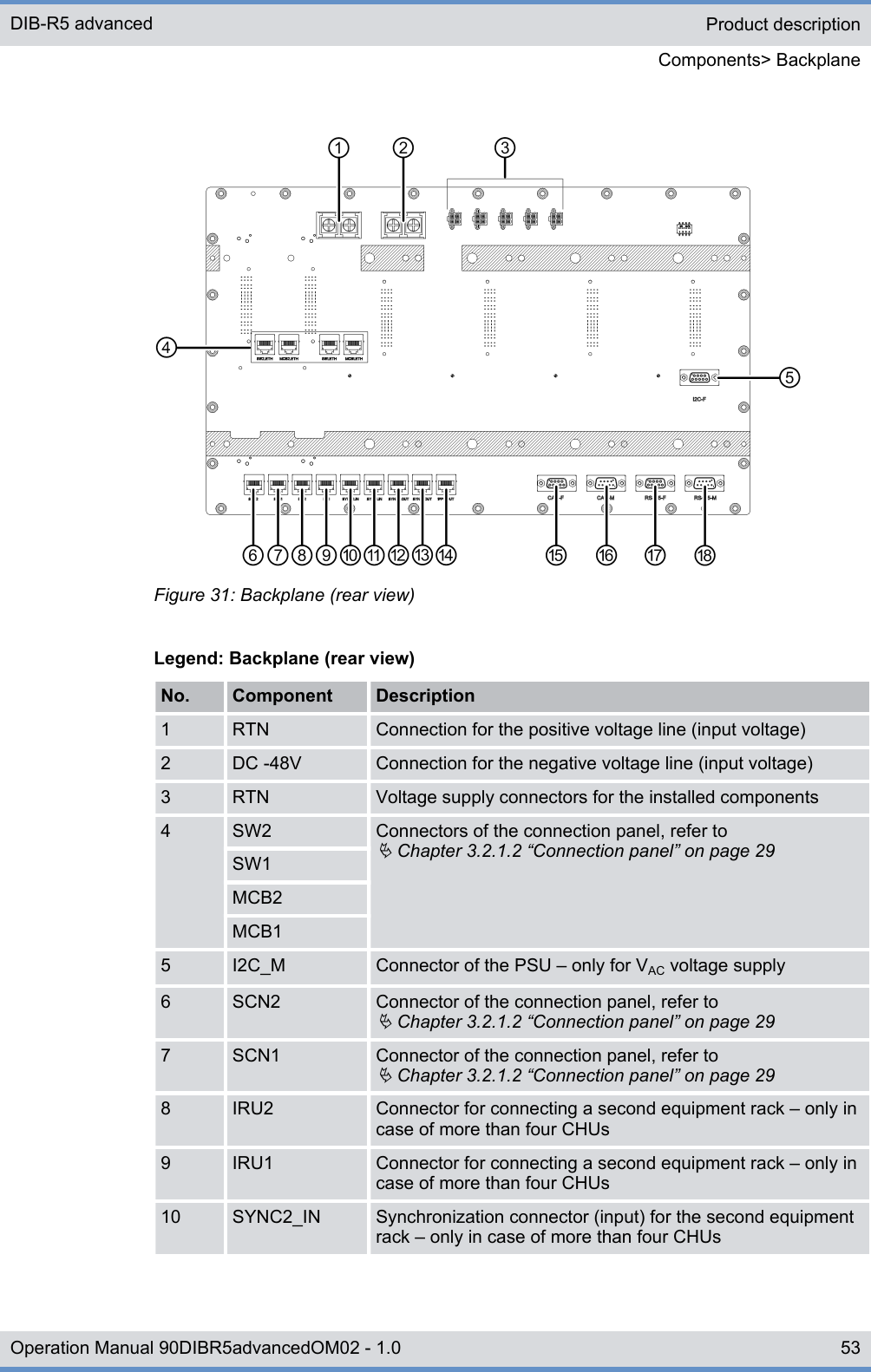

Figure 31: Backplane (rear view)Legend: Backplane (rear view)No. Component Description1 RTN Connection for the positive voltage line (input voltage)2 DC -48V Connection for the negative voltage line (input voltage)3 RTN Voltage supply connectors for the installed components4 SW2 Connectors of the connection panel, refer toÄ Chapter 3.2.1.2 “Connection panel” on page 29SW1MCB2MCB15 I2C_M Connector of the PSU ‒ only for VAC voltage supply6 SCN2 Connector of the connection panel, refer toÄ Chapter 3.2.1.2 “Connection panel” on page 297 SCN1 Connector of the connection panel, refer toÄ Chapter 3.2.1.2 “Connection panel” on page 298 IRU2 Connector for connecting a second equipment rack ‒ only incase of more than four CHUs9 IRU1 Connector for connecting a second equipment rack ‒ only incase of more than four CHUs10 SYNC2_IN Synchronization connector (input) for the second equipmentrack ‒ only in case of more than four CHUsProduct descriptionComponents> BackplaneDIB-R5 advanced53Operation Manual 90DIBR5advancedOM02 - 1.0

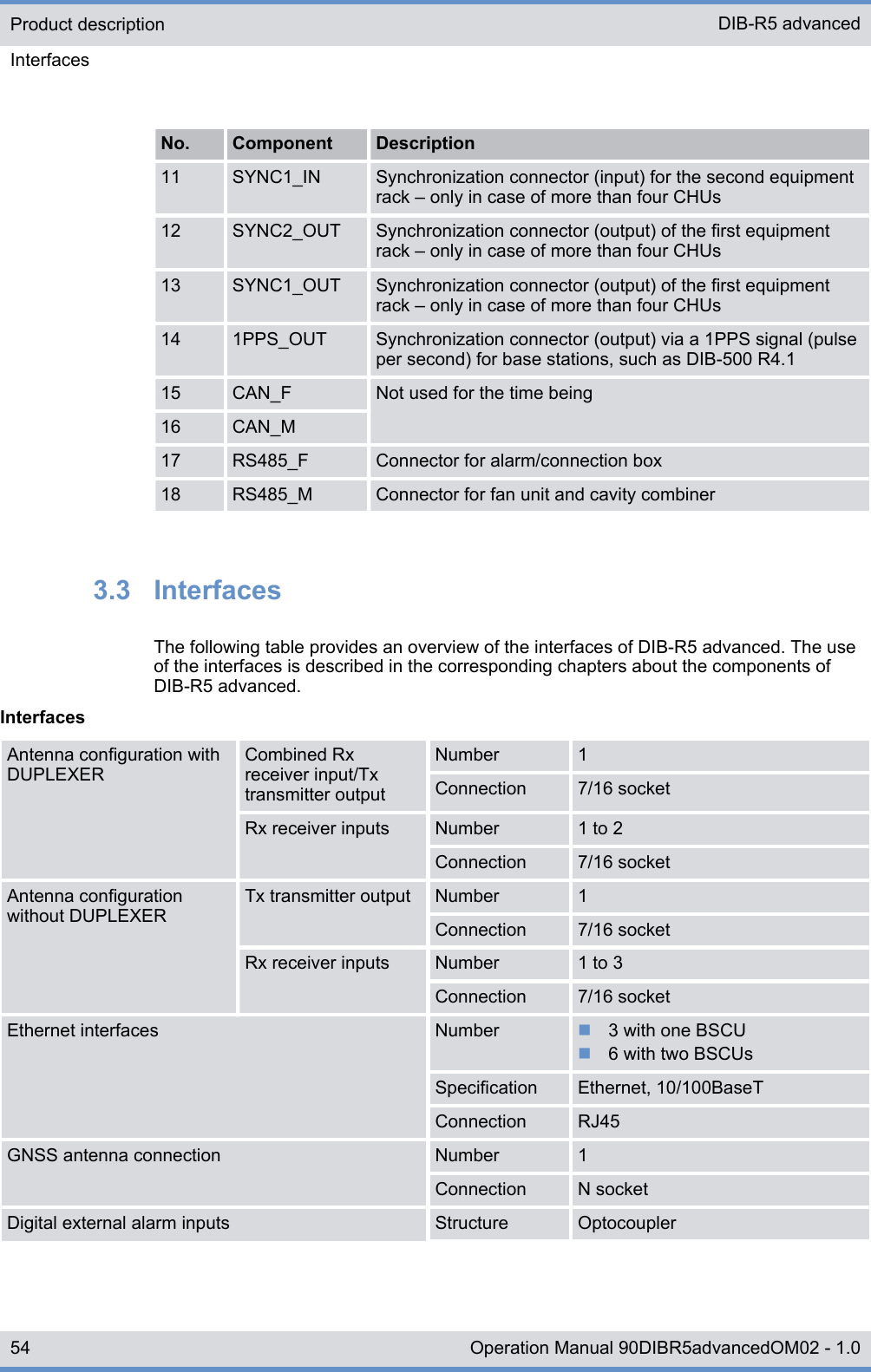

No. Component Description11 SYNC1_IN Synchronization connector (input) for the second equipmentrack ‒ only in case of more than four CHUs12 SYNC2_OUT Synchronization connector (output) of the first equipmentrack ‒ only in case of more than four CHUs13 SYNC1_OUT Synchronization connector (output) of the first equipmentrack ‒ only in case of more than four CHUs14 1PPS_OUT Synchronization connector (output) via a 1PPS signal (pulseper second) for base stations, such as DIB-500 R4.115 CAN_F Not used for the time being16 CAN_M17 RS485_F Connector for alarm/connection box18 RS485_M Connector for fan unit and cavity combiner3.3 InterfacesThe following table provides an overview of the interfaces of DIB-R5 advanced. The useof the interfaces is described in the corresponding chapters about the components ofDIB-R5 advanced.InterfacesAntenna configuration withDUPLEXERCombined Rxreceiver input/Txtransmitter outputNumber 1Connection 7/16 socketRx receiver inputs Number 1 to 2Connection 7/16 socketAntenna configurationwithout DUPLEXERTx transmitter output Number 1Connection 7/16 socketRx receiver inputs Number 1 to 3Connection 7/16 socketEthernet interfaces Number n3 with one BSCUn6 with two BSCUsSpecification Ethernet, 10/100BaseTConnection RJ45GNSS antenna connection Number 1Connection N socketDigital external alarm inputs Structure OptocouplerProduct descriptionInterfacesDIB-R5 advanced54 Operation Manual 90DIBR5advancedOM02 - 1.0

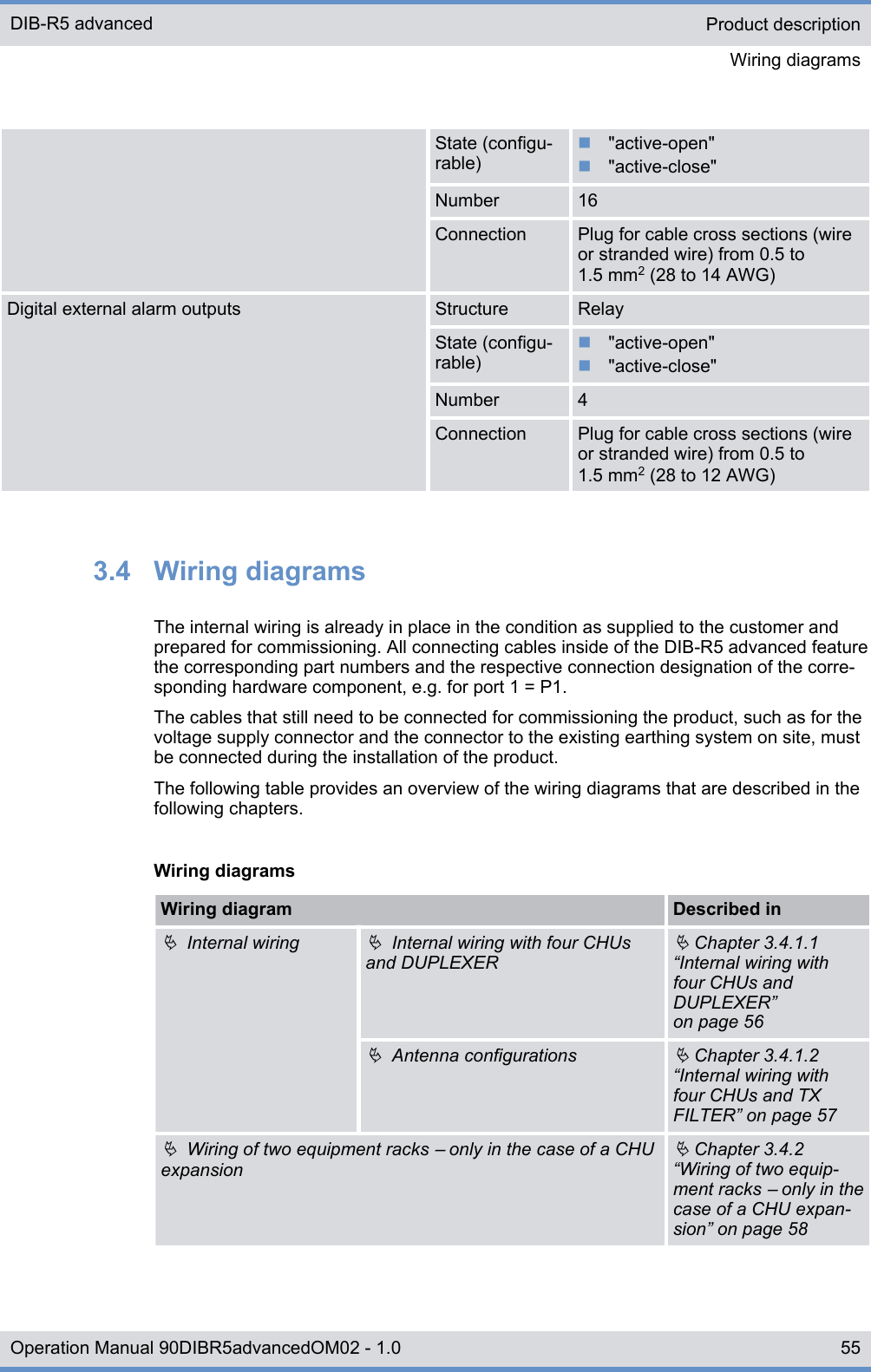

State (configu-rable)n"active-open"n"active-close"Number 16Connection Plug for cable cross sections (wireor stranded wire) from 0.5 to1.5 mm2 (28 to 14 AWG)Digital external alarm outputs Structure RelayState (configu-rable)n"active-open"n"active-close"Number 4Connection Plug for cable cross sections (wireor stranded wire) from 0.5 to1.5 mm2 (28 to 12 AWG)3.4 Wiring diagramsThe internal wiring is already in place in the condition as supplied to the customer andprepared for commissioning. All connecting cables inside of the DIB-R5 advanced featurethe corresponding part numbers and the respective connection designation of the corre-sponding hardware component, e.g. for port 1 = P1.The cables that still need to be connected for commissioning the product, such as for thevoltage supply connector and the connector to the existing earthing system on site, mustbe connected during the installation of the product.The following table provides an overview of the wiring diagrams that are described in thefollowing chapters.Wiring diagramsWiring diagram Described inÄ Internal wiringÄ Internal wiring with four CHUsand DUPLEXERÄ Chapter 3.4.1.1“Internal wiring withfour CHUs andDUPLEXER”on page 56Ä Antenna configurationsÄ Chapter 3.4.1.2“Internal wiring withfour CHUs and TXFILTER” on page 57Ä Wiring of two equipment racks ‒ only in the case of a CHUexpansionÄ Chapter 3.4.2“Wiring of two equip-ment racks ‒ only in thecase of a CHU expan-sion” on page 58Product descriptionWiring diagramsDIB-R5 advanced55Operation Manual 90DIBR5advancedOM02 - 1.0

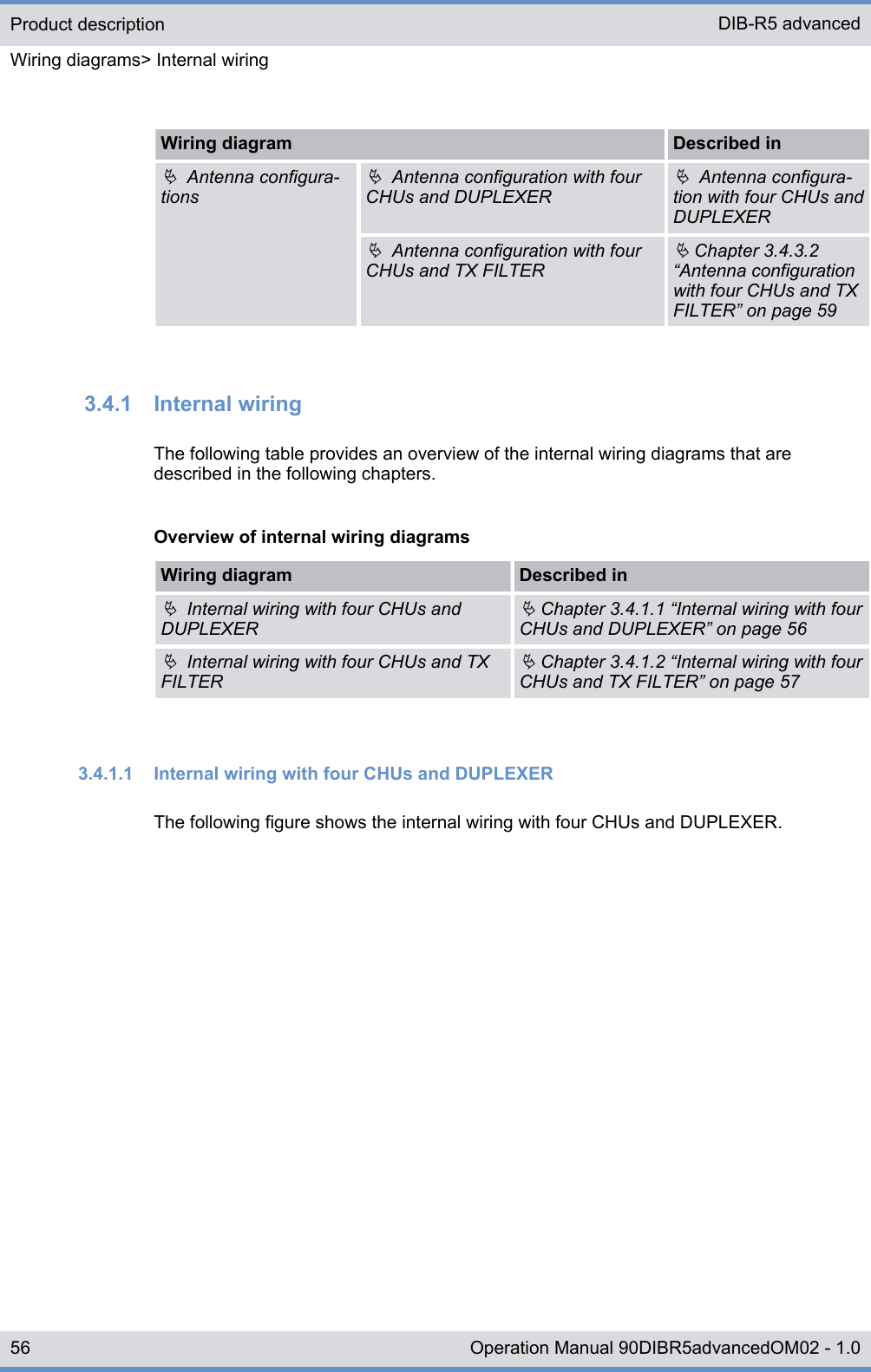

Wiring diagram Described inÄ Antenna configura-tionsÄ Antenna configuration with fourCHUs and DUPLEXERÄ Antenna configura-tion with four CHUs andDUPLEXERÄ Antenna configuration with fourCHUs and TX FILTERÄ Chapter 3.4.3.2“Antenna configurationwith four CHUs and TXFILTER” on page 593.4.1 Internal wiringThe following table provides an overview of the internal wiring diagrams that aredescribed in the following chapters.Overview of internal wiring diagramsWiring diagram Described inÄ Internal wiring with four CHUs andDUPLEXERÄ Chapter 3.4.1.1 “Internal wiring with fourCHUs and DUPLEXER” on page 56Ä Internal wiring with four CHUs and TXFILTERÄ Chapter 3.4.1.2 “Internal wiring with fourCHUs and TX FILTER” on page 573.4.1.1 Internal wiring with four CHUs and DUPLEXERThe following figure shows the internal wiring with four CHUs and DUPLEXER.Product descriptionWiring diagrams> Internal wiringDIB-R5 advanced56 Operation Manual 90DIBR5advancedOM02 - 1.0

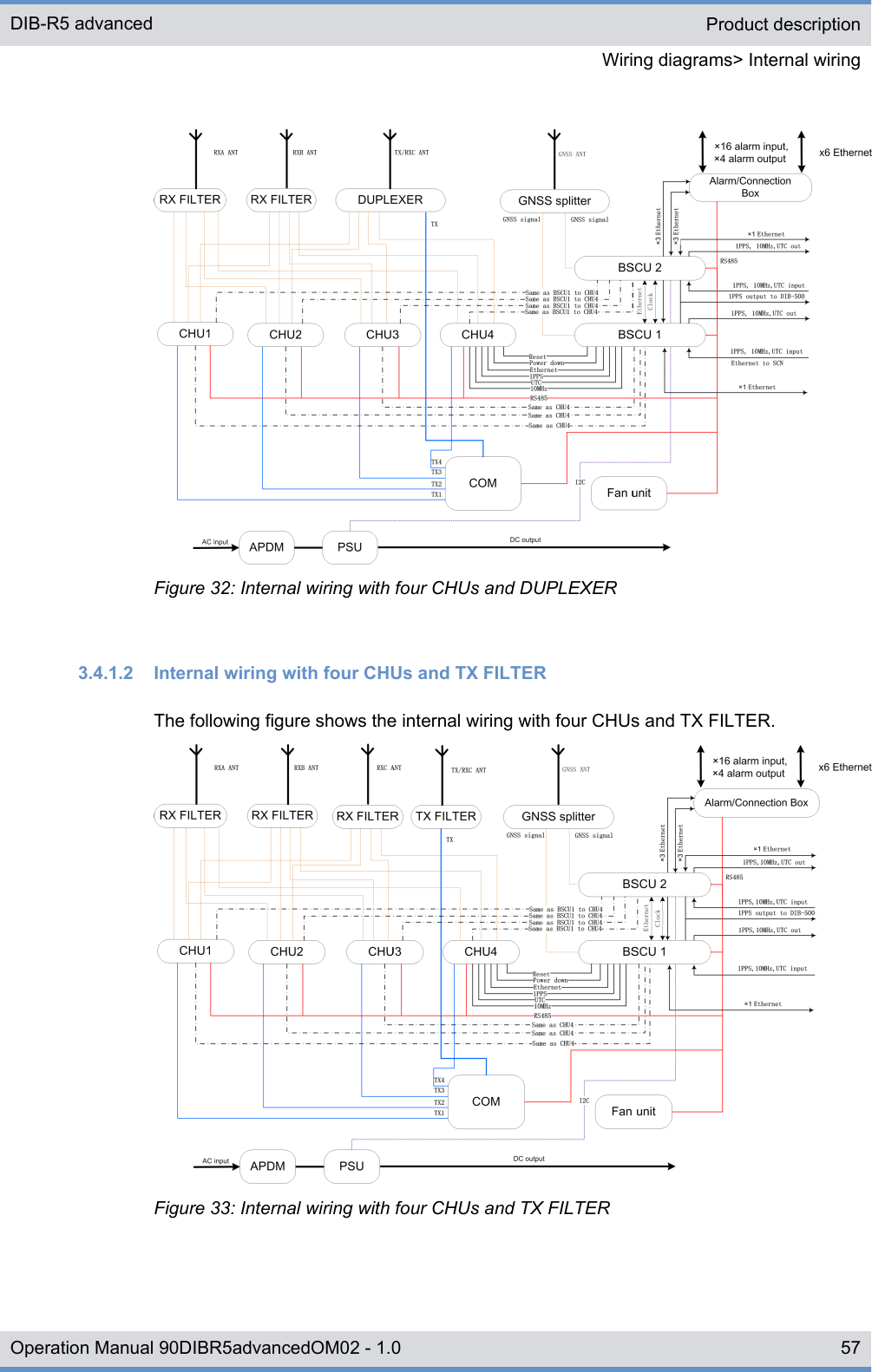

Figure 32: Internal wiring with four CHUs and DUPLEXER3.4.1.2 Internal wiring with four CHUs and TX FILTERThe following figure shows the internal wiring with four CHUs and TX FILTER.Figure 33: Internal wiring with four CHUs and TX FILTERProduct descriptionWiring diagrams> Internal wiringDIB-R5 advanced57Operation Manual 90DIBR5advancedOM02 - 1.0

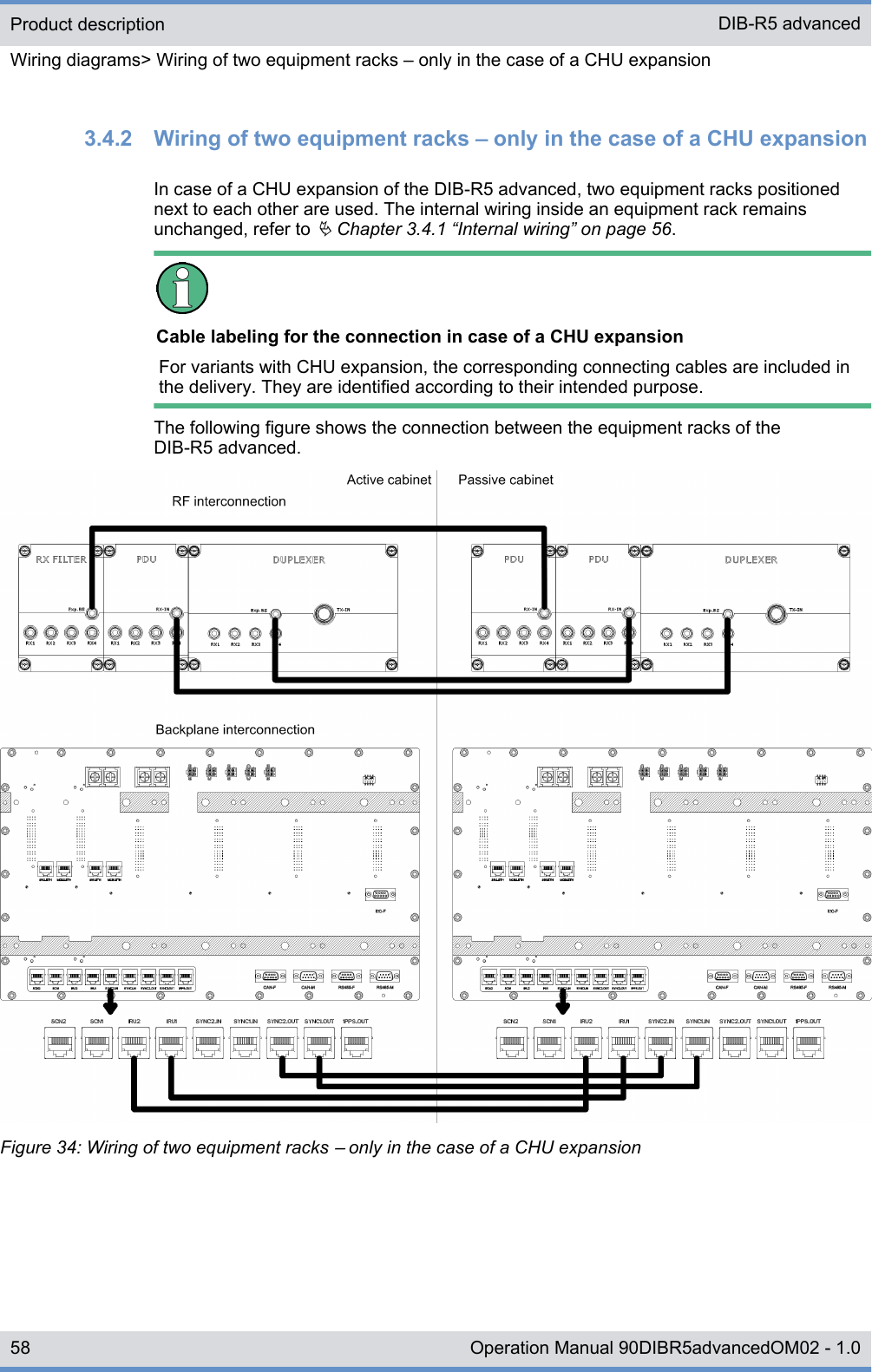

3.4.2 Wiring of two equipment racks ‒ only in the case of a CHU expansionIn case of a CHU expansion of the DIB-R5 advanced, two equipment racks positionednext to each other are used. The internal wiring inside an equipment rack remainsunchanged, refer to Ä Chapter 3.4.1 “Internal wiring” on page 56.Cable labeling for the connection in case of a CHU expansionFor variants with CHU expansion, the corresponding connecting cables are included inthe delivery. They are identified according to their intended purpose.The following figure shows the connection between the equipment racks of theDIB-R5 advanced.Figure 34: Wiring of two equipment racks ‒ only in the case of a CHU expansionProduct descriptionWiring diagrams> Wiring of two equipment racks ‒ only in the case of a CHU expansionDIB-R5 advanced58 Operation Manual 90DIBR5advancedOM02 - 1.0

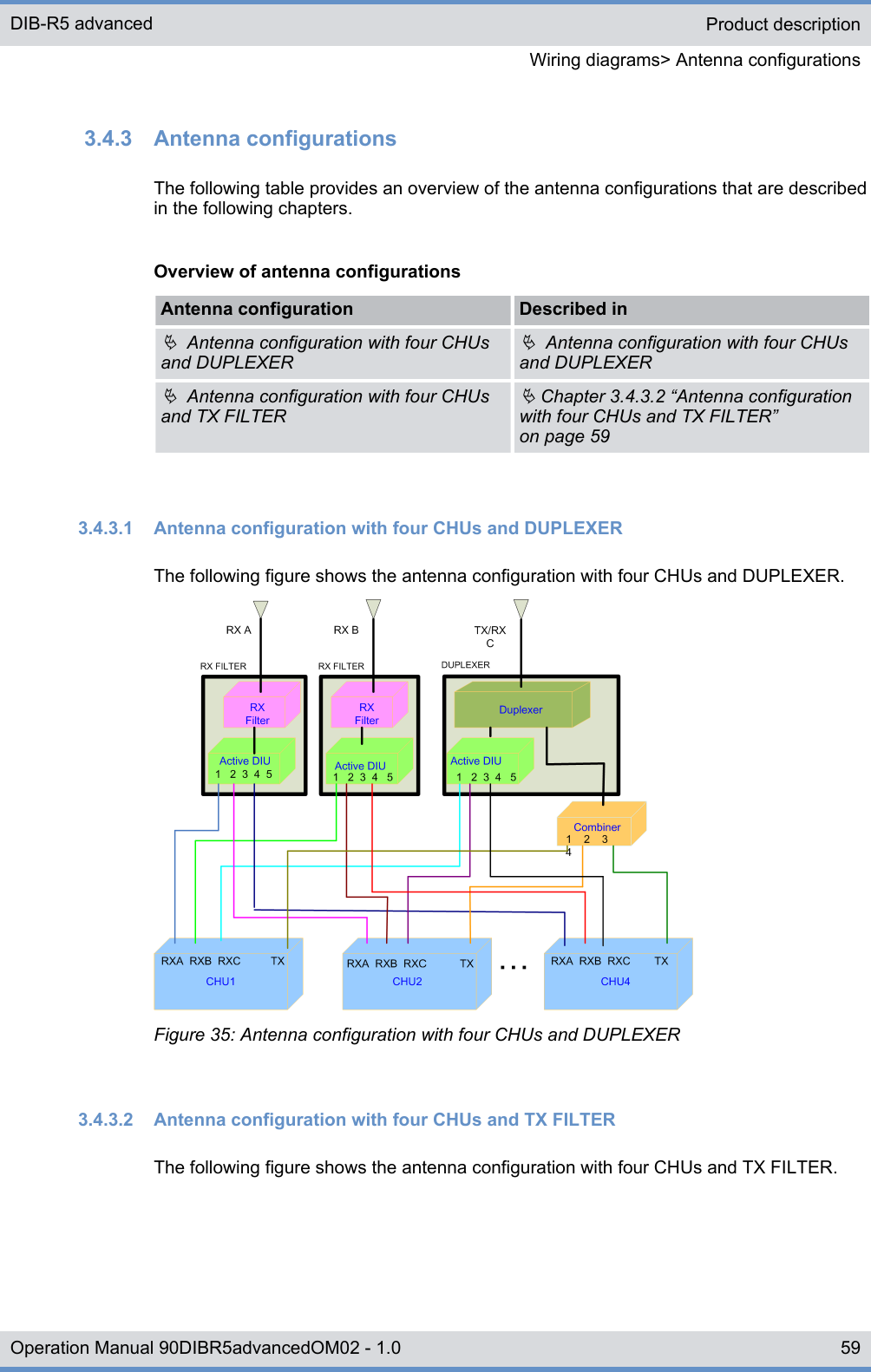

3.4.3 Antenna configurationsThe following table provides an overview of the antenna configurations that are describedin the following chapters.Overview of antenna configurationsAntenna configuration Described inÄ Antenna configuration with four CHUsand DUPLEXERÄ Antenna configuration with four CHUsand DUPLEXERÄ Antenna configuration with four CHUsand TX FILTERÄ Chapter 3.4.3.2 “Antenna configurationwith four CHUs and TX FILTER”on page 593.4.3.1 Antenna configuration with four CHUs and DUPLEXERThe following figure shows the antenna configuration with four CHUs and DUPLEXER.Figure 35: Antenna configuration with four CHUs and DUPLEXER3.4.3.2 Antenna configuration with four CHUs and TX FILTERThe following figure shows the antenna configuration with four CHUs and TX FILTER.Product descriptionWiring diagrams> Antenna configurationsDIB-R5 advanced59Operation Manual 90DIBR5advancedOM02 - 1.0
Figure 36: Antenna configuration with four CHUs and TX FILTER3.5 Redundancy optionsACCESSNET-T IP provides numerous redundancy concepts to ensure the availability ofservices and features reliably even in exceptional situations. The concept of designingsystem functions, function blocks, network elements and connection routes redundantly,may be required to ensure location reliability and system reliability. Location and systemreliability refers to the capability of the network to perpetuate the operation of the overallsystem, even if one location or route drops out completely or partially (due to technicalfailure, natural phenomena, acts of terrorism etc.).The system technology allows flexible network structures and scalable redundancy solu-tions that account for the different requirements for availability and capacity within ancomplete network.If the DIB-R5 advanced should be isolated from the rest of the network, it still providesmost of its features in local fallback operation. Especially security-related features likeauthentication and air interface encryption are supported. Hence, DIB-R5 advanced ena-bles a fully functional fallback operation and full redundancy for the important compo-nents transceiver (CHU), control unit (BSCU) and voltage supply.The following chapters describe the available redundancy options in conjunction withDIB-R5 advanced:nÄ Redundant main control channel (MCCH)nÄ Transceiver redundancynÄ Controller redundancynÄ Fallback operationnÄ Stand-alone operationnÄ Redundant VAC voltage supplynÄ Redundant connection to the transport networknÄ Redundant synchronization (GNSS, PTP)Product descriptionRedundancy optionsDIB-R5 advanced60 Operation Manual 90DIBR5advancedOM02 - 1.0
The redundancy options can be combined with each other.3.5.1 Redundant main control channel (MCCH)By redundant main control channels (MCCH) the operation of a base station is guaran-teed even if the carrier with the MCCH drops out or should be disturbed.If the carrier that provided the main control channel last drops out, an alternative carrierwill take on this task. The MCCH is thus transferred. This will maximally be repeated asoften as the number of carriers that are available at the base station. In this case, thereplacement carriers for the MCCH keep on sending on their original frequency, not onthe frequency of the failed carrier. This frequency change is useful especially when inter-fering carriers affect the MCCH frequency that was being used up to that point.Irrespective of the number of carriers, each radio cell has only one MCCH, via which themobile stations receive information, e.g. on adjacent radio cells. As a rule, the firstchannel of the first carrier of a base station is used as the MCCH, the three remainingchannels of that carrier and all the channels of all the other carriers are used as voicechannels or the Packet Data service. Redundant MCCH are enabled by default and applyto all the base stations with more than one carrier.3.5.2 Transceiver redundancyTo increase the system stability of carriers or to ensure the Base Station Function (BSF),as many as two redundant transceivers can be used in one base station. If one trans-ceiver fails, these spare transceivers ensure the radio coverage with the frequency of thefailed transceiver. Transceiver redundancy is mostly used in cases, in which only a fewfrequencies are available.3.5.3 Controller redundancyThe controller required for operating a base station can be designed redundantly. In thiscase, two BSCUs (Base Station Controller Units) are used, whereby one BSCU is inoperation and the other is kept ready for operation (standby). In case of a failure of theactive BSCU or its ethernet connection, the standby BSCU is automatically switched toactive and takes over its function. This ensures continued operation of the base station.3.5.4 Fallback operationThe radio coverage of base stations is also ensured if the base station loses the connec-tion to an IP Node (IPN) with Switching Controller Function (SCF). In this case, the basestation changes to fallback operation. In fallback operation, the base station in its radiocell still maintains the Base Station Function (BSF). Even in fallback operation, authenti-cation and authorization validation are ensured since the corresponding subscriber dataare stored in the base station.Product descriptionRedundancy options> Fallback operationDIB-R5 advanced61Operation Manual 90DIBR5advancedOM02 - 1.0

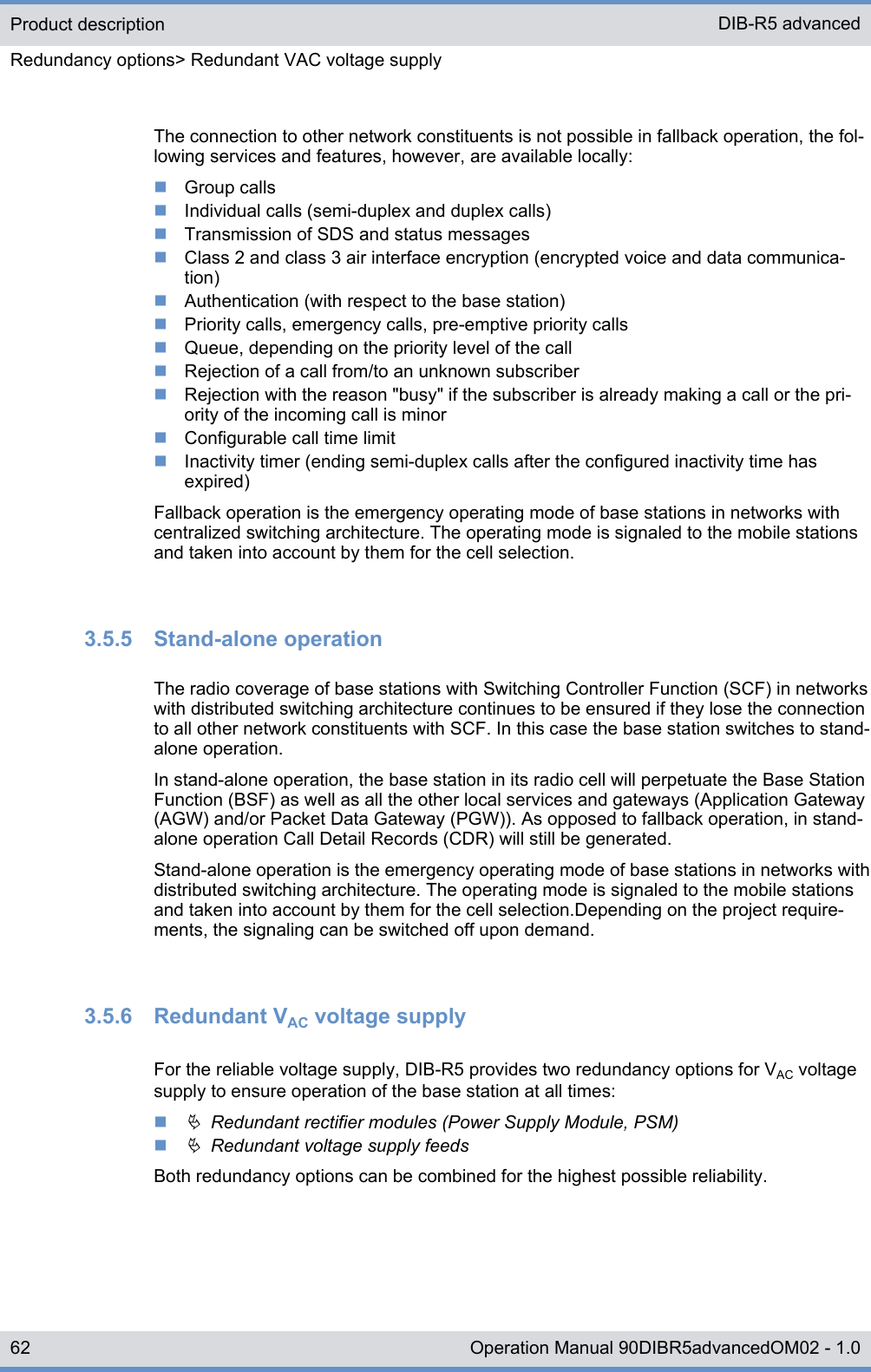

The connection to other network constituents is not possible in fallback operation, the fol-lowing services and features, however, are available locally:nGroup callsnIndividual calls (semi-duplex and duplex calls)nTransmission of SDS and status messagesnClass 2 and class 3 air interface encryption (encrypted voice and data communica-tion)nAuthentication (with respect to the base station)nPriority calls, emergency calls, pre-emptive priority callsnQueue, depending on the priority level of the callnRejection of a call from/to an unknown subscribernRejection with the reason "busy" if the subscriber is already making a call or the pri-ority of the incoming call is minornConfigurable call time limitnInactivity timer (ending semi-duplex calls after the configured inactivity time hasexpired)Fallback operation is the emergency operating mode of base stations in networks withcentralized switching architecture. The operating mode is signaled to the mobile stationsand taken into account by them for the cell selection.3.5.5 Stand-alone operationThe radio coverage of base stations with Switching Controller Function (SCF) in networkswith distributed switching architecture continues to be ensured if they lose the connectionto all other network constituents with SCF. In this case the base station switches to stand-alone operation.In stand-alone operation, the base station in its radio cell will perpetuate the Base StationFunction (BSF) as well as all the other local services and gateways (Application Gateway(AGW) and/or Packet Data Gateway (PGW)). As opposed to fallback operation, in stand-alone operation Call Detail Records (CDR) will still be generated.Stand-alone operation is the emergency operating mode of base stations in networks withdistributed switching architecture. The operating mode is signaled to the mobile stationsand taken into account by them for the cell selection.Depending on the project require-ments, the signaling can be switched off upon demand.3.5.6 Redundant VAC voltage supplyFor the reliable voltage supply, DIB-R5 provides two redundancy options for VAC voltagesupply to ensure operation of the base station at all times:nÄ Redundant rectifier modules (Power Supply Module, PSM)nÄ Redundant voltage supply feedsBoth redundancy options can be combined for the highest possible reliability.Product descriptionRedundancy options> Redundant VAC voltage supplyDIB-R5 advanced62 Operation Manual 90DIBR5advancedOM02 - 1.0

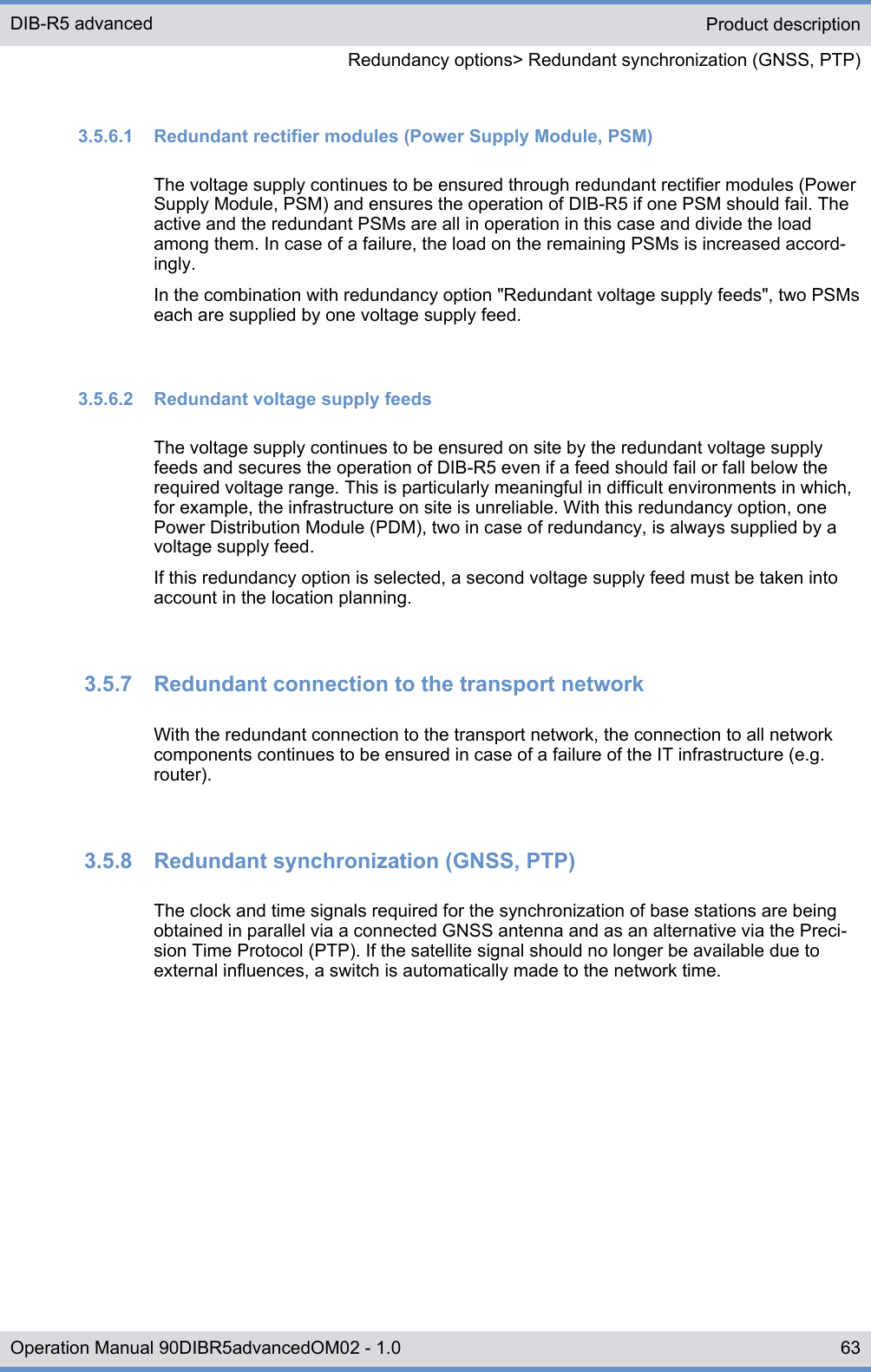

3.5.6.1 Redundant rectifier modules (Power Supply Module, PSM)The voltage supply continues to be ensured through redundant rectifier modules (PowerSupply Module, PSM) and ensures the operation of DIB-R5 if one PSM should fail. Theactive and the redundant PSMs are all in operation in this case and divide the loadamong them. In case of a failure, the load on the remaining PSMs is increased accord-ingly.In the combination with redundancy option "Redundant voltage supply feeds", two PSMseach are supplied by one voltage supply feed.3.5.6.2 Redundant voltage supply feedsThe voltage supply continues to be ensured on site by the redundant voltage supplyfeeds and secures the operation of DIB-R5 even if a feed should fail or fall below therequired voltage range. This is particularly meaningful in difficult environments in which,for example, the infrastructure on site is unreliable. With this redundancy option, onePower Distribution Module (PDM), two in case of redundancy, is always supplied by avoltage supply feed.If this redundancy option is selected, a second voltage supply feed must be taken intoaccount in the location planning.3.5.7 Redundant connection to the transport networkWith the redundant connection to the transport network, the connection to all networkcomponents continues to be ensured in case of a failure of the IT infrastructure (e.g.router).3.5.8 Redundant synchronization (GNSS, PTP)The clock and time signals required for the synchronization of base stations are beingobtained in parallel via a connected GNSS antenna and as an alternative via the Preci-sion Time Protocol (PTP). If the satellite signal should no longer be available due toexternal influences, a switch is automatically made to the network time.Product descriptionRedundancy options> Redundant synchronization (GNSS, PTP)DIB-R5 advanced63Operation Manual 90DIBR5advancedOM02 - 1.0

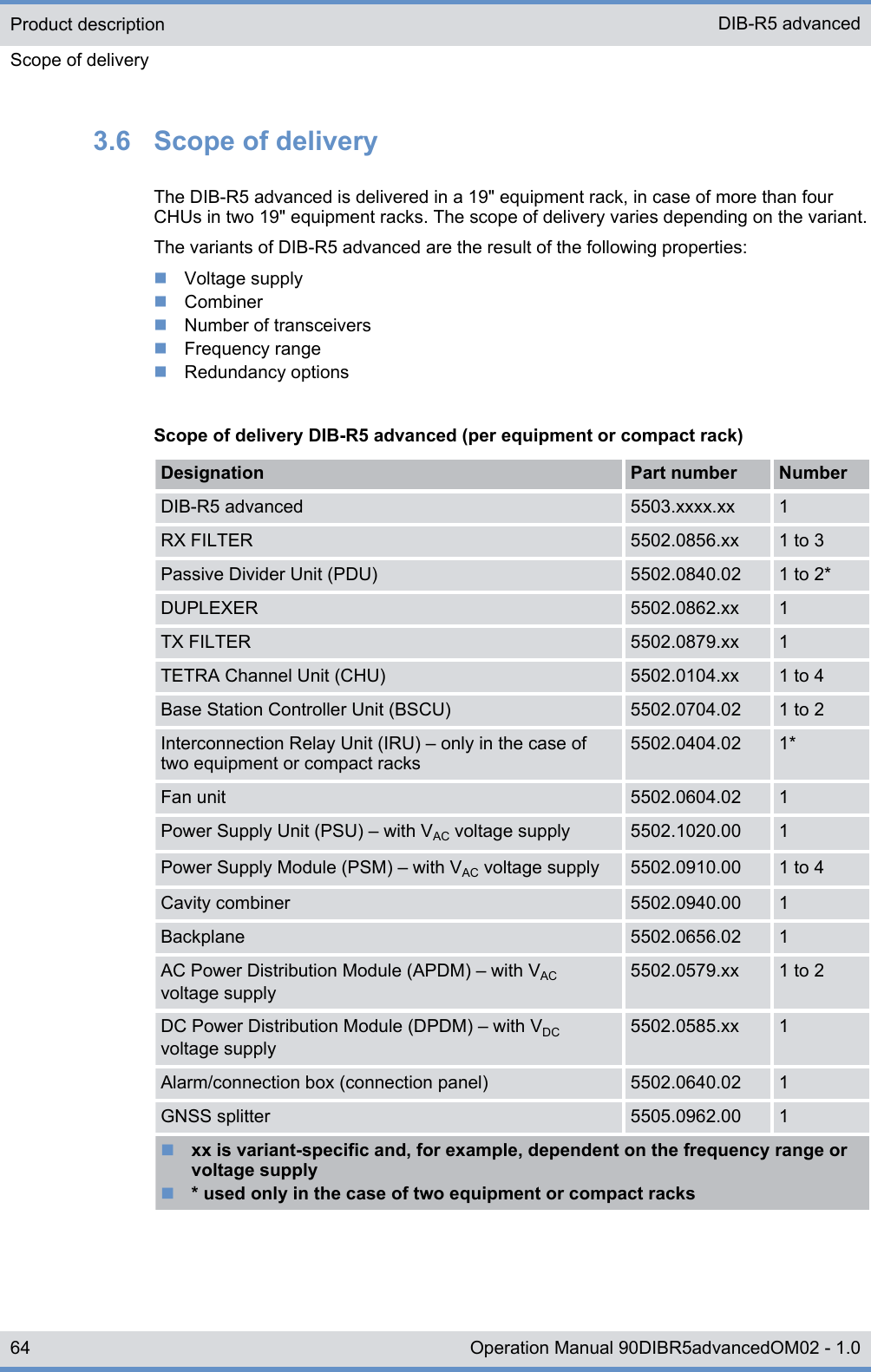

3.6 Scope of deliveryThe DIB-R5 advanced is delivered in a 19" equipment rack, in case of more than fourCHUs in two 19" equipment racks. The scope of delivery varies depending on the variant.The variants of DIB-R5 advanced are the result of the following properties:nVoltage supplynCombinernNumber of transceiversnFrequency rangenRedundancy optionsScope of delivery DIB-R5 advanced (per equipment or compact rack)Designation Part number NumberDIB-R5 advanced 5503.xxxx.xx 1RX FILTER 5502.0856.xx 1 to 3Passive Divider Unit (PDU) 5502.0840.02 1 to 2*DUPLEXER 5502.0862.xx 1TX FILTER 5502.0879.xx 1TETRA Channel Unit (CHU) 5502.0104.xx 1 to 4Base Station Controller Unit (BSCU) 5502.0704.02 1 to 2Interconnection Relay Unit (IRU) ‒ only in the case oftwo equipment or compact racks5502.0404.02 1*Fan unit 5502.0604.02 1Power Supply Unit (PSU) ‒ with VAC voltage supply 5502.1020.00 1Power Supply Module (PSM) ‒ with VAC voltage supply 5502.0910.00 1 to 4Cavity combiner 5502.0940.00 1Backplane 5502.0656.02 1AC Power Distribution Module (APDM) ‒ with VACvoltage supply5502.0579.xx 1 to 2DC Power Distribution Module (DPDM) ‒ with VDCvoltage supply5502.0585.xx 1Alarm/connection box (connection panel) 5502.0640.02 1GNSS splitter 5505.0962.00 1nxx is variant-specific and, for example, dependent on the frequency range orvoltage supplyn* used only in the case of two equipment or compact racksProduct descriptionScope of deliveryDIB-R5 advanced64 Operation Manual 90DIBR5advancedOM02 - 1.0
4 OperationThis chapter describes the procedure for the proper operation of the product at its loca-tion.The work steps listed in the following table must be performed for the operation of theproduct.Overview of work steps to be performed (operation)Work steps Described inÄ Switching on the DIB-R5 advancedÄ Chapter 4.2 “Switching onthe DIB-R5 advanced”on page 66Ä Function tests andoperating surveillanceÄ Checking operating statesÄ Chapter 4.3.3 “Checkingoperating states” on page 70Ä Checking the availabilityÄ Chapter 4.3.4 “Checkingthe availability” on page 72Ä Function tests and oper-ating surveillance GNSSÄ Chapter 4.3.6 “Functiontests and operating surveil-lance GNSS” on page 744.1 Safety measures and prerequisitesThe following security measures and prerequisites must be observed for all activities:nThe site must be prepared in compliance with the document "DIB-R5 advanced SiteRequirements".nThe product must have been set up and connected according to the document"DIB-R5 advanced Installation Manual".nThe product must have been configured according to the document"DIB-R5 advanced Configuration Manual".nThe DIB-R5 advanced may be set up and commissioned only of the required ambientconditions are met at all times, refer to Ä Table “Ambient data” on page 66.nThe safety regulations must be considered at all times, refer to chapter Ä Chapter 2“Safety regulations” on page 13.nObserve all other activity-based security measures and prerequisites in the worksteps in this chapter.Ambient dataOperation Temperature range(normal)+5 °C to +45 °C (+41 °F to+113 °F)Temperature range(extreme, as perEN 300 394)-30 °C to +55 °C (-22 °F to+131 °F)OperationSafety measures and prerequisitesDIB-R5 advanced65Operation Manual 90DIBR5advancedOM02 - 1.0

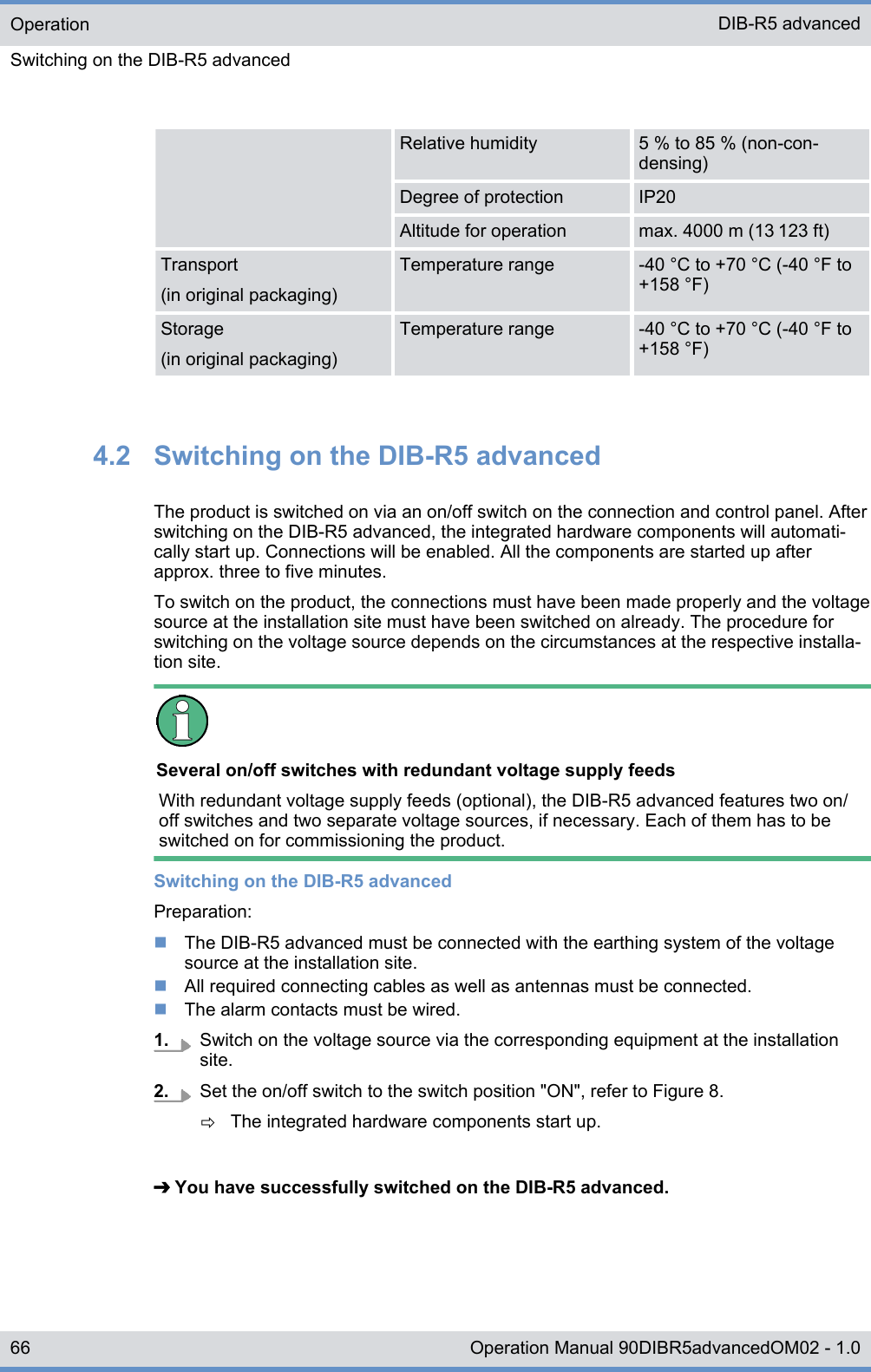

Relative humidity 5 % to 85 % (non-con-densing)Degree of protection IP20Altitude for operation max. 4000 m (13 123 ft)Transport(in original packaging)Temperature range -40 °C to +70 °C (-40 °F to+158 °F)Storage(in original packaging)Temperature range -40 °C to +70 °C (-40 °F to+158 °F)4.2 Switching on the DIB-R5 advancedThe product is switched on via an on/off switch on the connection and control panel. Afterswitching on the DIB-R5 advanced, the integrated hardware components will automati-cally start up. Connections will be enabled. All the components are started up afterapprox. three to five minutes.To switch on the product, the connections must have been made properly and the voltagesource at the installation site must have been switched on already. The procedure forswitching on the voltage source depends on the circumstances at the respective installa-tion site.Several on/off switches with redundant voltage supply feedsWith redundant voltage supply feeds (optional), the DIB-R5 advanced features two on/off switches and two separate voltage sources, if necessary. Each of them has to beswitched on for commissioning the product.Switching on the DIB-R5 advancedPreparation:nThe DIB-R5 advanced must be connected with the earthing system of the voltagesource at the installation site.nAll required connecting cables as well as antennas must be connected.nThe alarm contacts must be wired.1. Switch on the voltage source via the corresponding equipment at the installationsite.2. Set the on/off switch to the switch position "ON", refer to Figure 8.ðThe integrated hardware components start up.➔ You have successfully switched on the DIB-R5 advanced.OperationSwitching on the DIB-R5 advancedDIB-R5 advanced66 Operation Manual 90DIBR5advancedOM02 - 1.0

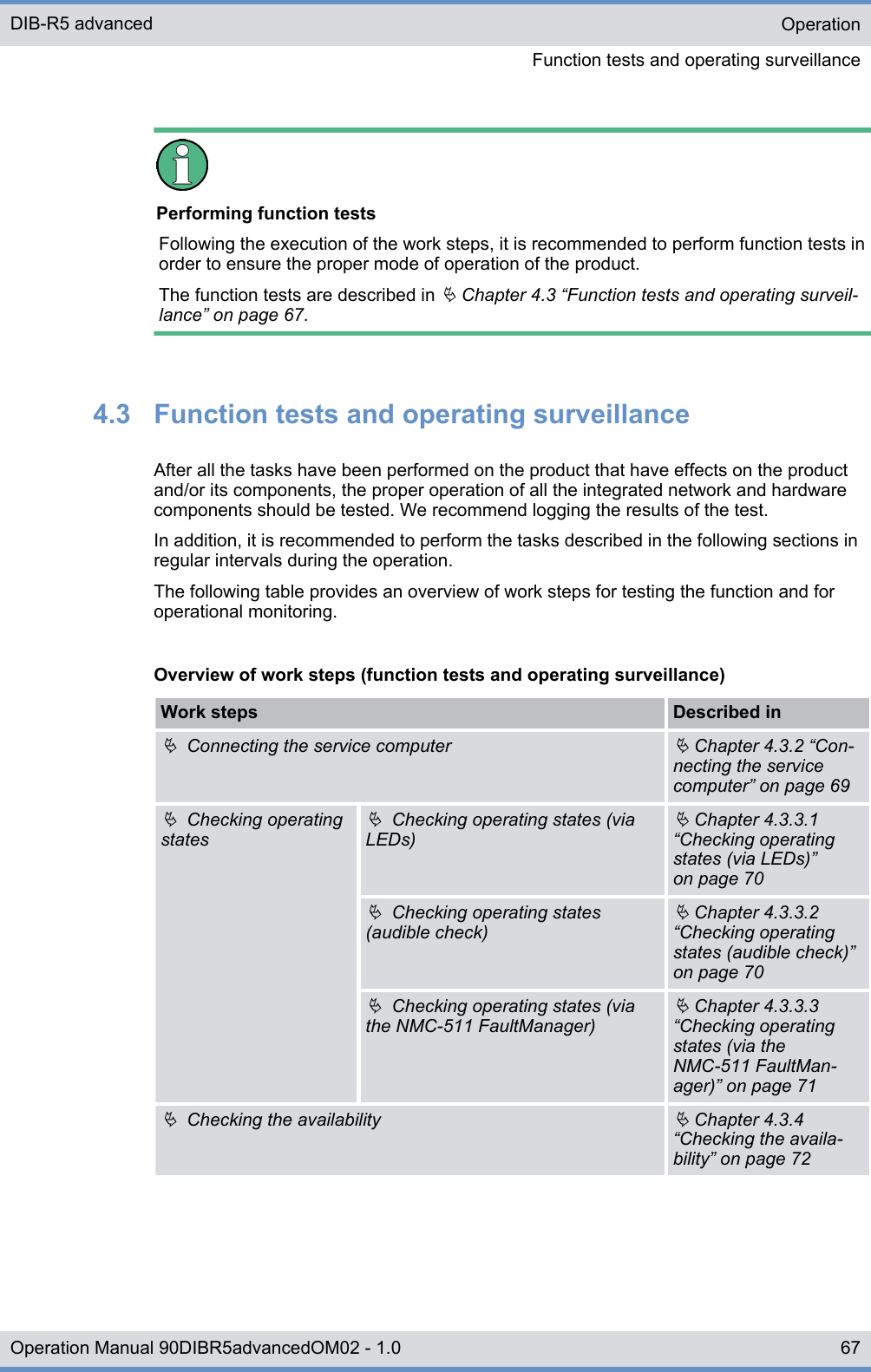

Performing function testsFollowing the execution of the work steps, it is recommended to perform function tests inorder to ensure the proper mode of operation of the product.The function tests are described in Ä Chapter 4.3 “Function tests and operating surveil-lance” on page 67.4.3 Function tests and operating surveillanceAfter all the tasks have been performed on the product that have effects on the productand/or its components, the proper operation of all the integrated network and hardwarecomponents should be tested. We recommend logging the results of the test.In addition, it is recommended to perform the tasks described in the following sections inregular intervals during the operation.The following table provides an overview of work steps for testing the function and foroperational monitoring.Overview of work steps (function tests and operating surveillance)Work steps Described inÄ Connecting the service computerÄ Chapter 4.3.2 “Con-necting the servicecomputer” on page 69Ä Checking operatingstatesÄ Checking operating states (viaLEDs)Ä Chapter 4.3.3.1“Checking operatingstates (via LEDs)”on page 70Ä Checking operating states(audible check)Ä Chapter 4.3.3.2“Checking operatingstates (audible check)”on page 70Ä Checking operating states (viathe NMC-511 FaultManager)Ä Chapter 4.3.3.3“Checking operatingstates (via theNMC-511 FaultMan-ager)” on page 71Ä Checking the availabilityÄ Chapter 4.3.4“Checking the availa-bility” on page 72OperationFunction tests and operating surveillanceDIB-R5 advanced67Operation Manual 90DIBR5advancedOM02 - 1.0
Work steps Described inÄ Checking standby carriers ‒ optionalÄ Chapter 4.3.5“Checking standby car-riers ‒ optional”on page 73Ä Function tests and operating surveillance GNSSÄ Chapter 4.3.6 “Func-tion tests and operatingsurveillance GNSS”on page 744.3.1 Work equipment for function testsThe following table provides an overview of the work equipment for function tests andoperating surveillance.Overview of work equipment (function tests and operating surveillance)Work step Work equipmentChecking operating states via the NMC-511FaultManagernconfigured NMC computernstraight through ethernet cablenNMC-511 FaultManagerChecking the reachability of network ele-mentsnconfigured NMC or service computernstraight through ethernet cableFunction tests and operating surveillanceGNSSnconfigured NMC computernNMC-511 FaultManagernGNSS antenna(s)nGNSS antenna cableChecking standby carriers NMC-511 FaultManager4.3.2 Connecting the service computerThe service computer may be any computer that meets the system requirements.The system requirements for the service computer are described in the related productdocuments, refer to the following table.Required product documentsProduct Document type Described inService computer Configuration Manual Chapter 2OperationFunction tests and operating surveillance > Connecting the service computerDIB-R5 advanced68 Operation Manual 90DIBR5advancedOM02 - 1.0

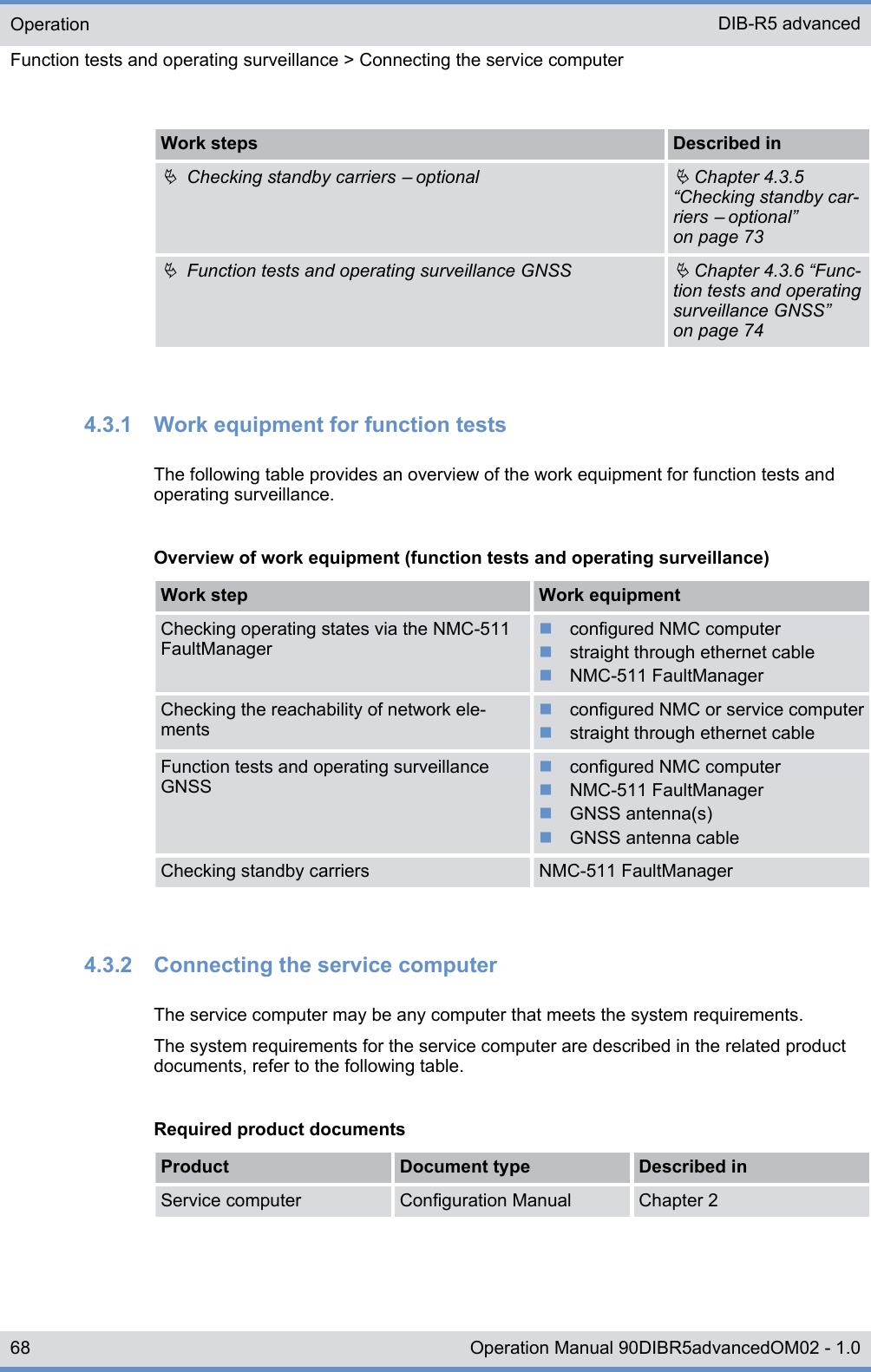

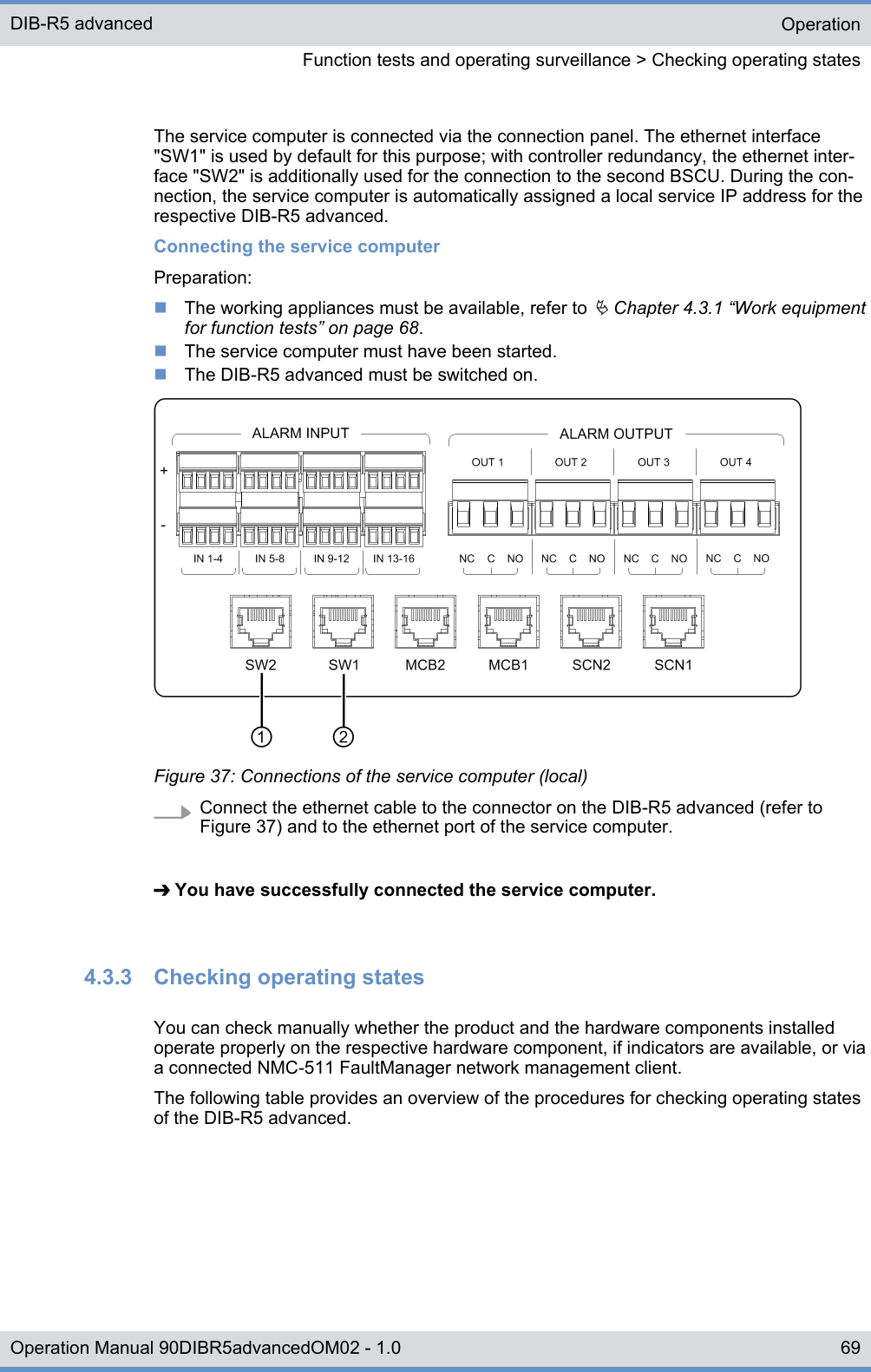

The service computer is connected via the connection panel. The ethernet interface"SW1" is used by default for this purpose; with controller redundancy, the ethernet inter-face "SW2" is additionally used for the connection to the second BSCU. During the con-nection, the service computer is automatically assigned a local service IP address for therespective DIB-R5 advanced.Connecting the service computerPreparation:nThe working appliances must be available, refer to Ä Chapter 4.3.1 “Work equipmentfor function tests” on page 68.nThe service computer must have been started.nThe DIB-R5 advanced must be switched on.Figure 37: Connections of the service computer (local)Connect the ethernet cable to the connector on the DIB-R5 advanced (refer to Figure 37) and to the ethernet port of the service computer.➔ You have successfully connected the service computer.4.3.3 Checking operating statesYou can check manually whether the product and the hardware components installedoperate properly on the respective hardware component, if indicators are available, or viaa connected NMC-511 FaultManager network management client.The following table provides an overview of the procedures for checking operating statesof the DIB-R5 advanced.OperationFunction tests and operating surveillance > Checking operating statesDIB-R5 advanced69Operation Manual 90DIBR5advancedOM02 - 1.0
Overview of the procedures for checking operating statesWork step Described inÄ Checking operating states (via LEDs)Ä Chapter 4.3.3.1 “Checking operatingstates (via LEDs)” on page 70Ä Checking operating states (audiblecheck)Ä Chapter 4.3.3.2 “Checking operatingstates (audible check)” on page 70Ä Checking operating states (via theNMC-511 FaultManager)Ä Chapter 4.3.3.3 “Checking operatingstates (via the NMC-511 FaultManager)”on page 714.3.3.1 Checking operating states (via LEDs)The following table provides an overview of hardware components whose LEDs can bechecked.Checking operating states (via LEDs)Hardware component Described inTETRA Channel Unit (CHU)Ä Table “Legend: Indicators (LEDs) of theCHU” on page 44Base Station Controller Unit (BSCU)Ä Table “Legend: Indicators (LEDs) of theBSCU” on page 46Fan unitÄ Table “Legend: Indicators (LEDs) of thefan unit” on page 51Power Supply Module (PSM) ‒ with VACvoltage supplyÄ Table “Legend: PSM (front view)” onpage 354.3.3.2 Checking operating states (audible check)Upon switching on the DIB-R5 advanced, the fans briefly rotate at high speed and arethen adjusted according to the room temperature. No grinding or rattling noise should bepresent at this time.Checking operating states (audible check)Preparation:nThe DIB-R5 advanced must be switched on.nThe front equipment rack door must be open.Check whether grinding or rattling noise can be heard.ðIf the corresponding noises can be heard, you must perform a fault analysis.➔ The function test has been completed.OperationFunction tests and operating surveillance > Checking operating statesDIB-R5 advanced70 Operation Manual 90DIBR5advancedOM02 - 1.0
4.3.3.3 Checking operating states (via the NMC-511 FaultManager)Using the NMC‑511 FaultManager network management client, faults occurring in anACCESSNET-T IP network can be detected and localized rapidly. This facilitates promptfault elimination.All network constituents and connections of an ACCESSNET-T IP are monitored via theNMC-511 FaultManager. Operating states and faults are detected by the network man-agement system and visualized via the connected workstations, on which the NMC-511FaultManager is installed and enabled.The NMC-511 FaultManager displays the operating states and faults of the network con-stituents in the respective network in an alarm status list. This makes permanent networkmonitoring possible.Checking the operating statuses via the NMC-511 FaultManager requires an NMC com-puter that is configured accordingly, with installed NMC-511 FaultManager that is con-nected with the ACCESSNET-T IP.Besides checking the respective hardware and software components, the applicationconnections between the network elements should also be checked to ensure the correctconnection.Checking the operating state (via the NMC-511 FaultManager)Preparation:nThe NMC-511 FaultManager must have been started.1. Use the Equipment view of the NMC-511 FaultManager to navigate to the corre-sponding network constituent (hardware or software component).2. Ensure that the corresponding network constituent is shown in green in theEquipment view of the NMC‑511 FaultManager.ðIf the respective network constituent is shown in red, you must perform a faultanalysis, refer to NMC-511 FaultManager User Manual.3. Check whether a predecessor alarm status is displayed for the respective networkconstituent which displays a fault that may already have existed.ðIf the predecessor alarm status is shown in red, it is recommended to generatea report via the Analysis perspective.4. Navigate to the Service perspective and check whether corresponding services areshown in green.ðIf services are shown in red, you must perform a fault analysis, refer toNMC-511 FaultManager User Manual.5. In the Equipment view, check whether all application connections are displayed ingreen.ðIf application connections are shown in red, you must perform a fault analysis,refer to NMC-511 FaultManager User Manual.➔ The function test has been completed.OperationFunction tests and operating surveillance > Checking operating statesDIB-R5 advanced71Operation Manual 90DIBR5advancedOM02 - 1.0

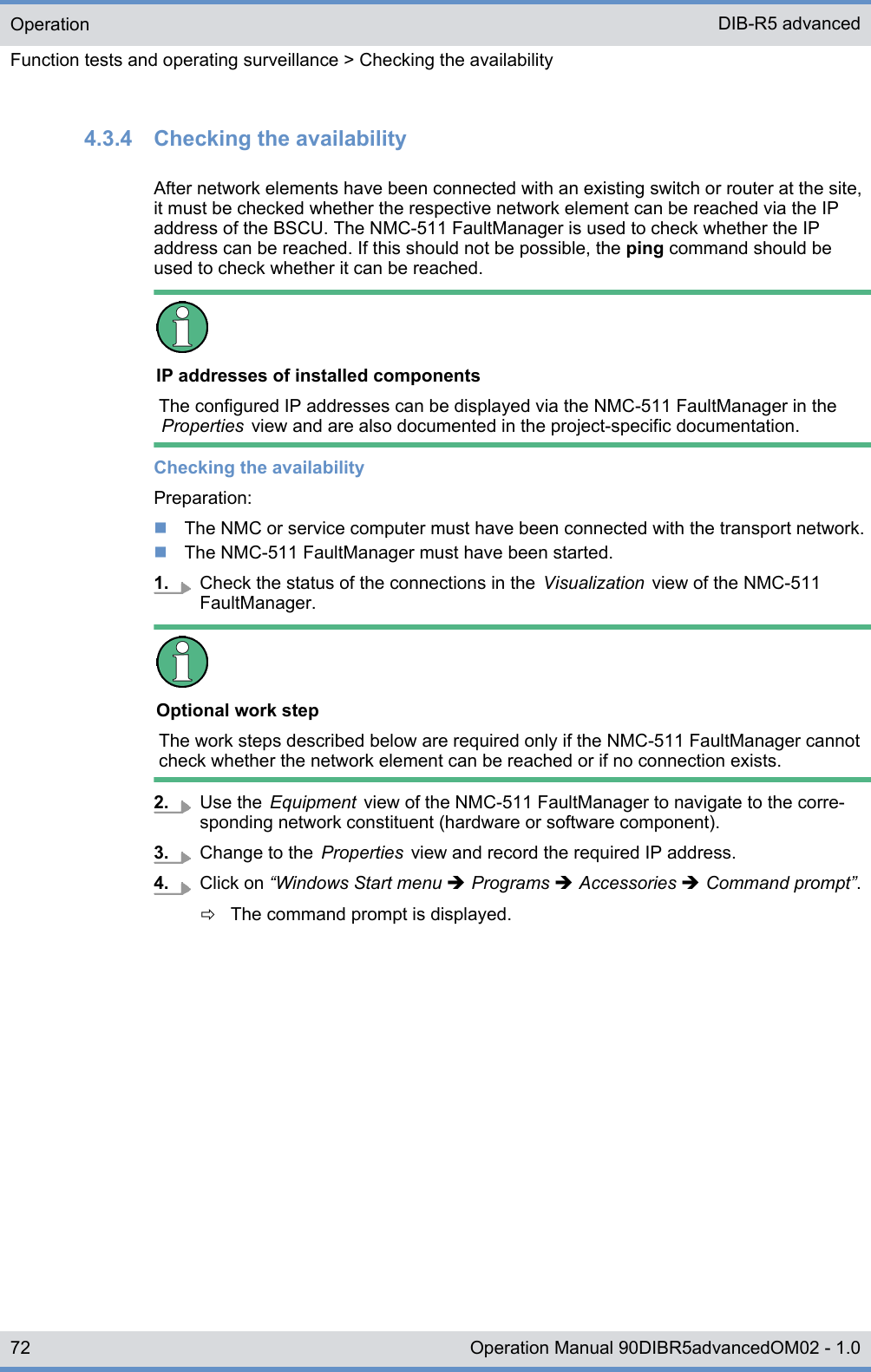

4.3.4 Checking the availabilityAfter network elements have been connected with an existing switch or router at the site,it must be checked whether the respective network element can be reached via the IPaddress of the BSCU. The NMC-511 FaultManager is used to check whether the IPaddress can be reached. If this should not be possible, the ping command should beused to check whether it can be reached.IP addresses of installed componentsThe configured IP addresses can be displayed via the NMC-511 FaultManager in theProperties view and are also documented in the project-specific documentation.Checking the availabilityPreparation:nThe NMC or service computer must have been connected with the transport network.nThe NMC-511 FaultManager must have been started.1. Check the status of the connections in the Visualization view of the NMC-511FaultManager.Optional work stepThe work steps described below are required only if the NMC-511 FaultManager cannotcheck whether the network element can be reached or if no connection exists.2. Use the Equipment view of the NMC-511 FaultManager to navigate to the corre-sponding network constituent (hardware or software component).3. Change to the Properties view and record the required IP address.4. Click on “Windows Start menu è Programs è Accessories è Command prompt”.ðThe command prompt is displayed.OperationFunction tests and operating surveillance > Checking the availabilityDIB-R5 advanced72 Operation Manual 90DIBR5advancedOM02 - 1.0

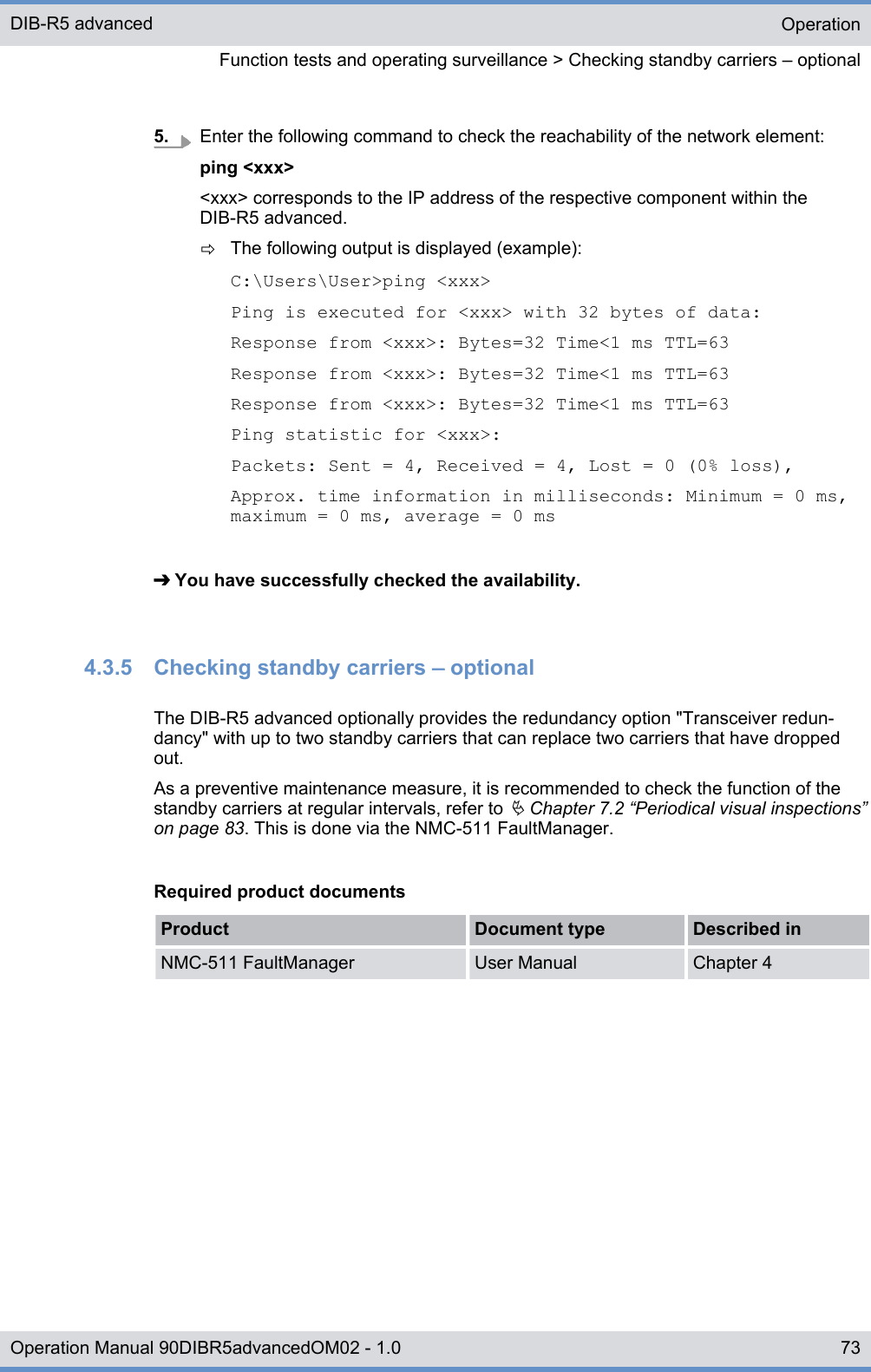

5. Enter the following command to check the reachability of the network element:ping <xxx><xxx> corresponds to the IP address of the respective component within theDIB-R5 advanced.ðThe following output is displayed (example):C:\Users\User>ping <xxx>Ping is executed for <xxx> with 32 bytes of data:Response from <xxx>: Bytes=32 Time<1 ms TTL=63Response from <xxx>: Bytes=32 Time<1 ms TTL=63Response from <xxx>: Bytes=32 Time<1 ms TTL=63Ping statistic for <xxx>:Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),Approx. time information in milliseconds: Minimum = 0 ms,maximum = 0 ms, average = 0 ms➔ You have successfully checked the availability.4.3.5 Checking standby carriers ‒ optionalThe DIB-R5 advanced optionally provides the redundancy option "Transceiver redun-dancy" with up to two standby carriers that can replace two carriers that have droppedout.As a preventive maintenance measure, it is recommended to check the function of thestandby carriers at regular intervals, refer to Ä Chapter 7.2 “Periodical visual inspections”on page 83. This is done via the NMC-511 FaultManager.Required product documentsProduct Document type Described inNMC-511 FaultManager User Manual Chapter 4OperationFunction tests and operating surveillance > Checking standby carriers ‒ optionalDIB-R5 advanced73Operation Manual 90DIBR5advancedOM02 - 1.0

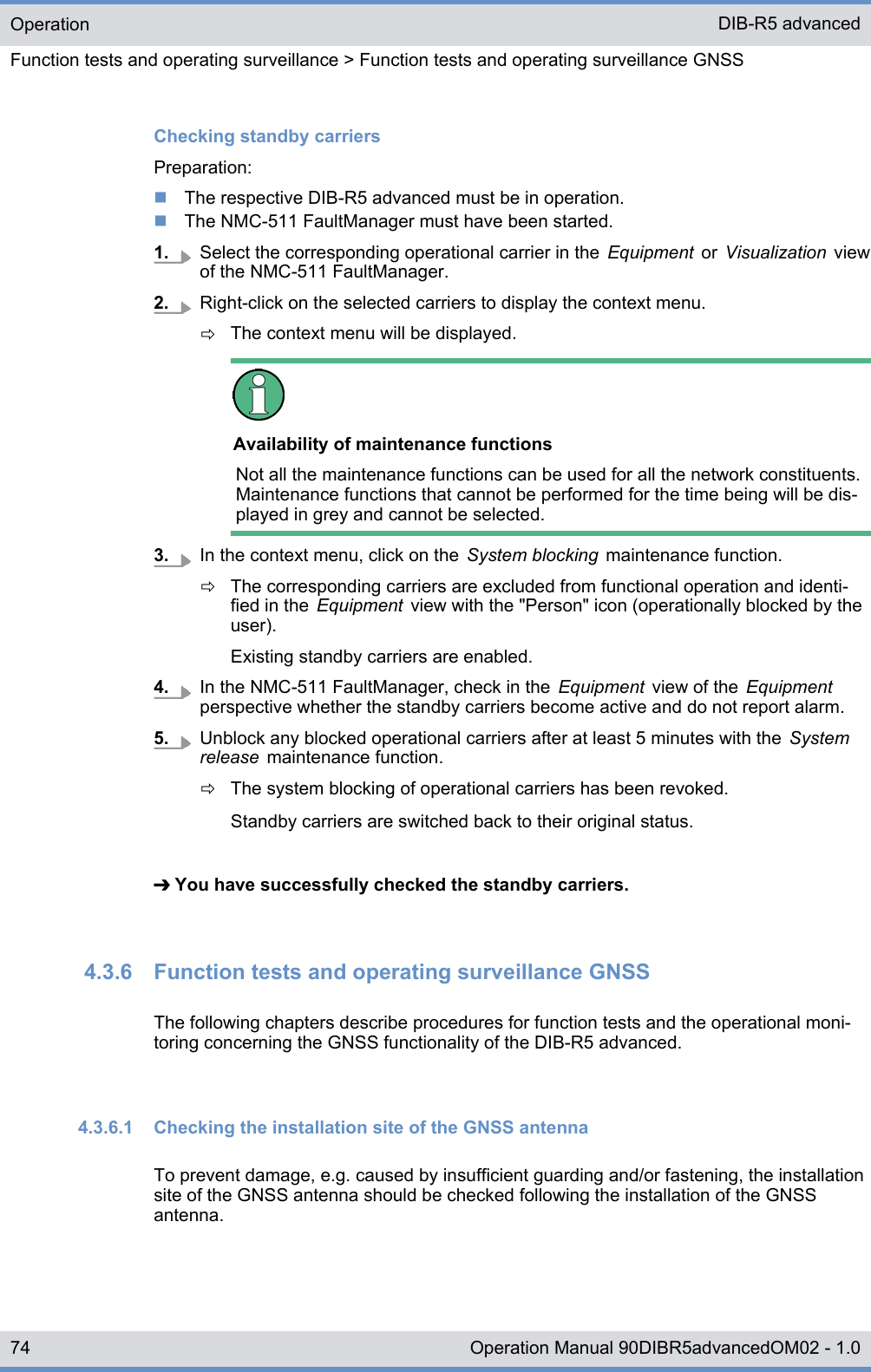

Checking standby carriersPreparation:nThe respective DIB-R5 advanced must be in operation.nThe NMC-511 FaultManager must have been started.1. Select the corresponding operational carrier in the Equipment or Visualization viewof the NMC-511 FaultManager.2. Right-click on the selected carriers to display the context menu.ðThe context menu will be displayed.Availability of maintenance functionsNot all the maintenance functions can be used for all the network constituents.Maintenance functions that cannot be performed for the time being will be dis-played in grey and cannot be selected.3. In the context menu, click on the System blocking maintenance function.ðThe corresponding carriers are excluded from functional operation and identi-fied in the Equipment view with the "Person" icon (operationally blocked by theuser).Existing standby carriers are enabled.4. In the NMC-511 FaultManager, check in the Equipment view of the Equipmentperspective whether the standby carriers become active and do not report alarm.5. Unblock any blocked operational carriers after at least 5 minutes with the Systemrelease maintenance function.ðThe system blocking of operational carriers has been revoked.Standby carriers are switched back to their original status.➔ You have successfully checked the standby carriers.4.3.6 Function tests and operating surveillance GNSSThe following chapters describe procedures for function tests and the operational moni-toring concerning the GNSS functionality of the DIB-R5 advanced.4.3.6.1 Checking the installation site of the GNSS antennaTo prevent damage, e.g. caused by insufficient guarding and/or fastening, the installationsite of the GNSS antenna should be checked following the installation of the GNSSantenna.OperationFunction tests and operating surveillance > Function tests and operating surveillance GNSSDIB-R5 advanced74 Operation Manual 90DIBR5advancedOM02 - 1.0

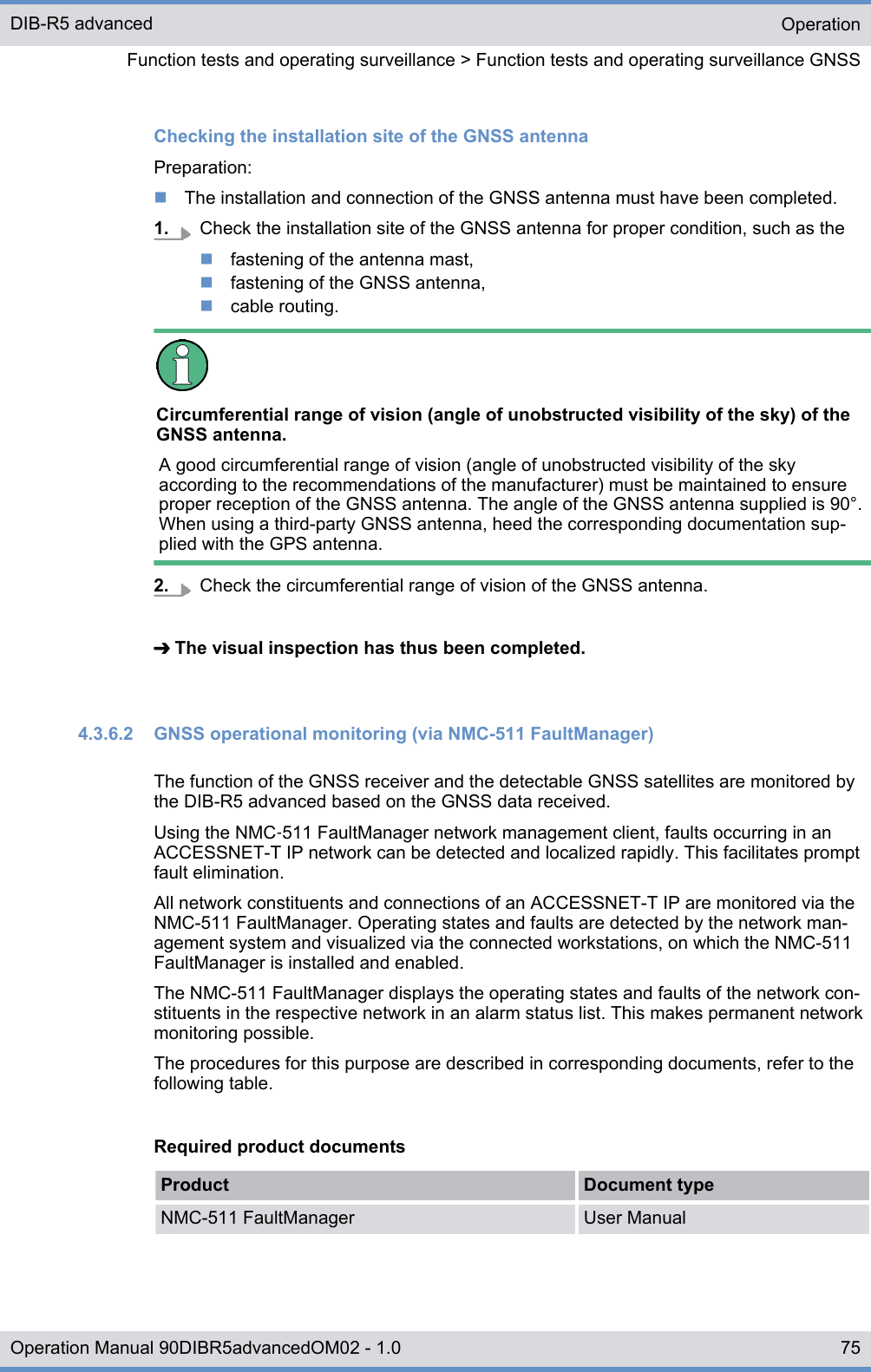

Checking the installation site of the GNSS antennaPreparation:nThe installation and connection of the GNSS antenna must have been completed.1. Check the installation site of the GNSS antenna for proper condition, such as thenfastening of the antenna mast,nfastening of the GNSS antenna,ncable routing.Circumferential range of vision (angle of unobstructed visibility of the sky) of theGNSS antenna.A good circumferential range of vision (angle of unobstructed visibility of the skyaccording to the recommendations of the manufacturer) must be maintained to ensureproper reception of the GNSS antenna. The angle of the GNSS antenna supplied is 90°.When using a third-party GNSS antenna, heed the corresponding documentation sup-plied with the GPS antenna.2. Check the circumferential range of vision of the GNSS antenna.➔ The visual inspection has thus been completed.4.3.6.2 GNSS operational monitoring (via NMC-511 FaultManager)The function of the GNSS receiver and the detectable GNSS satellites are monitored bythe DIB-R5 advanced based on the GNSS data received.Using the NMC‑511 FaultManager network management client, faults occurring in anACCESSNET-T IP network can be detected and localized rapidly. This facilitates promptfault elimination.All network constituents and connections of an ACCESSNET-T IP are monitored via theNMC-511 FaultManager. Operating states and faults are detected by the network man-agement system and visualized via the connected workstations, on which the NMC-511FaultManager is installed and enabled.The NMC-511 FaultManager displays the operating states and faults of the network con-stituents in the respective network in an alarm status list. This makes permanent networkmonitoring possible.The procedures for this purpose are described in corresponding documents, refer to thefollowing table.Required product documentsProduct Document typeNMC-511 FaultManager User ManualOperationFunction tests and operating surveillance > Function tests and operating surveillance GNSSDIB-R5 advanced75Operation Manual 90DIBR5advancedOM02 - 1.0

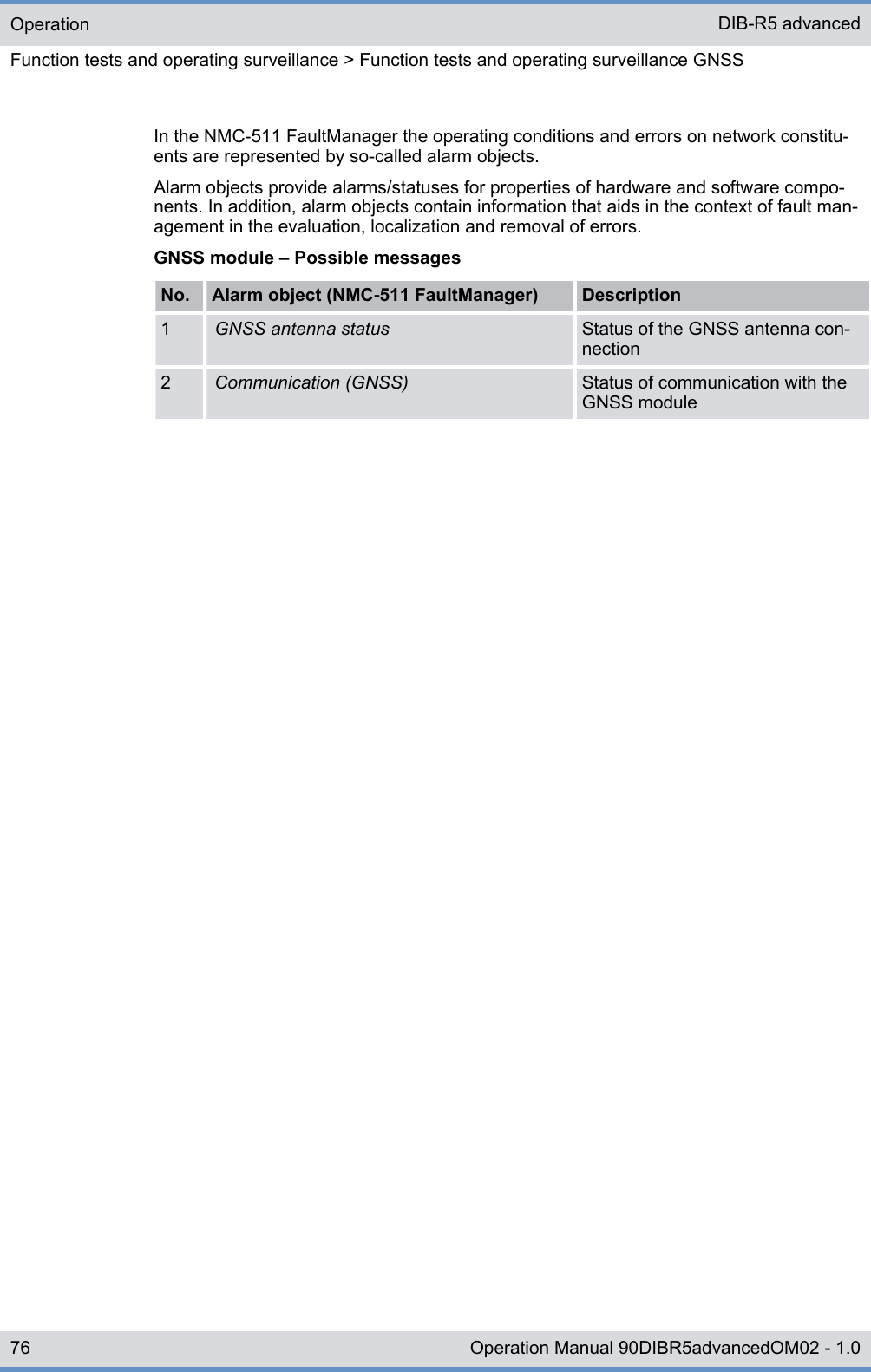

In the NMC-511 FaultManager the operating conditions and errors on network constitu-ents are represented by so-called alarm objects.Alarm objects provide alarms/statuses for properties of hardware and software compo-nents. In addition, alarm objects contain information that aids in the context of fault man-agement in the evaluation, localization and removal of errors.GNSS module – Possible messagesNo. Alarm object (NMC-511 FaultManager) Description1GNSS antenna status Status of the GNSS antenna con-nection2Communication (GNSS) Status of communication with theGNSS moduleOperationFunction tests and operating surveillance > Function tests and operating surveillance GNSSDIB-R5 advanced76 Operation Manual 90DIBR5advancedOM02 - 1.0

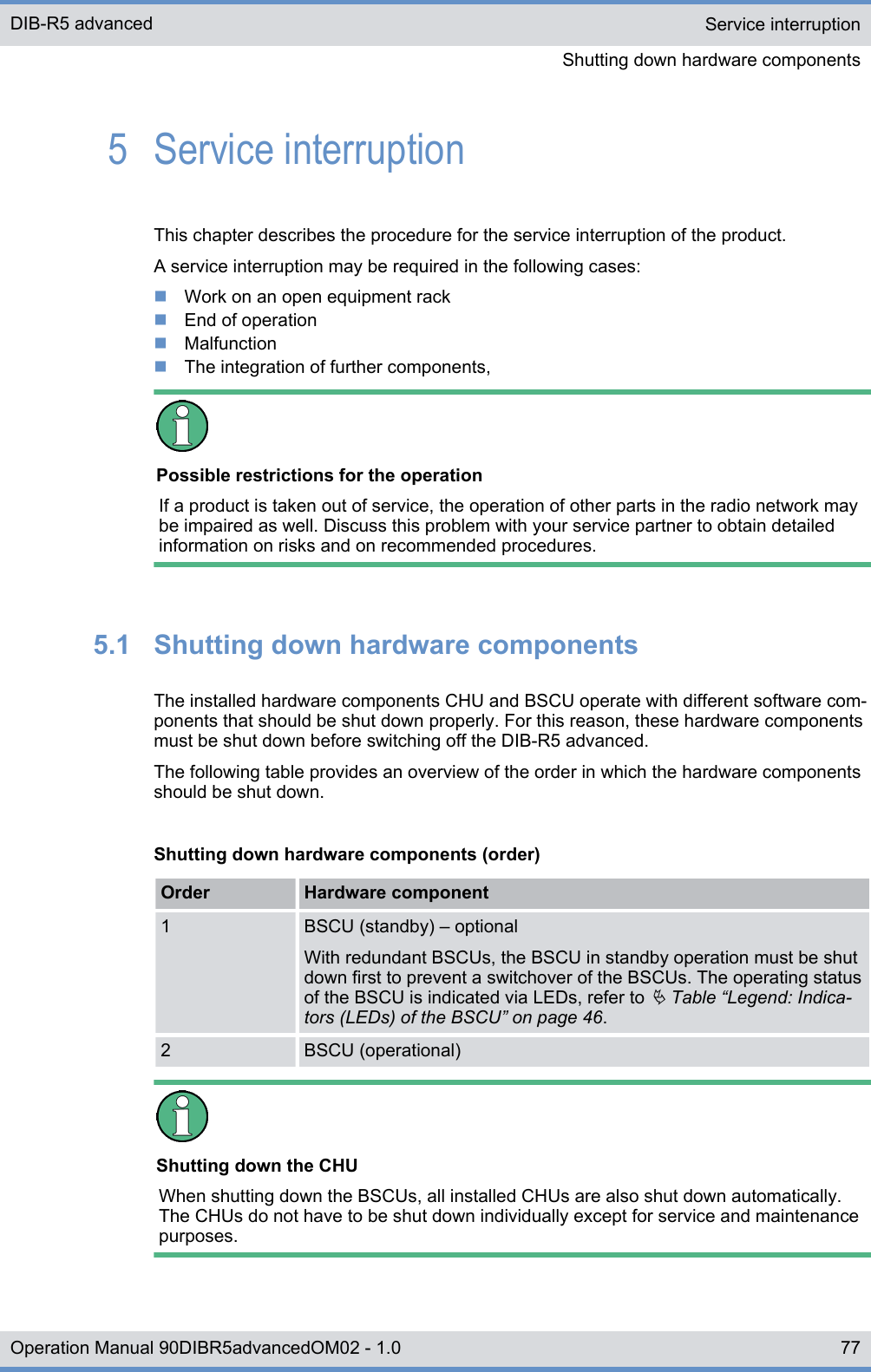

5 Service interruptionThis chapter describes the procedure for the service interruption of the product.A service interruption may be required in the following cases:nWork on an open equipment racknEnd of operationnMalfunctionnThe integration of further components,Possible restrictions for the operationIf a product is taken out of service, the operation of other parts in the radio network maybe impaired as well. Discuss this problem with your service partner to obtain detailedinformation on risks and on recommended procedures.5.1 Shutting down hardware componentsThe installed hardware components CHU and BSCU operate with different software com-ponents that should be shut down properly. For this reason, these hardware componentsmust be shut down before switching off the DIB-R5 advanced.The following table provides an overview of the order in which the hardware componentsshould be shut down.Shutting down hardware components (order)Order Hardware component1 BSCU (standby) ‒ optionalWith redundant BSCUs, the BSCU in standby operation must be shutdown first to prevent a switchover of the BSCUs. The operating statusof the BSCU is indicated via LEDs, refer to Ä Table “Legend: Indica-tors (LEDs) of the BSCU” on page 46.2 BSCU (operational)Shutting down the CHUWhen shutting down the BSCUs, all installed CHUs are also shut down automatically.The CHUs do not have to be shut down individually except for service and maintenancepurposes.Service interruptionShutting down hardware componentsDIB-R5 advanced77Operation Manual 90DIBR5advancedOM02 - 1.0

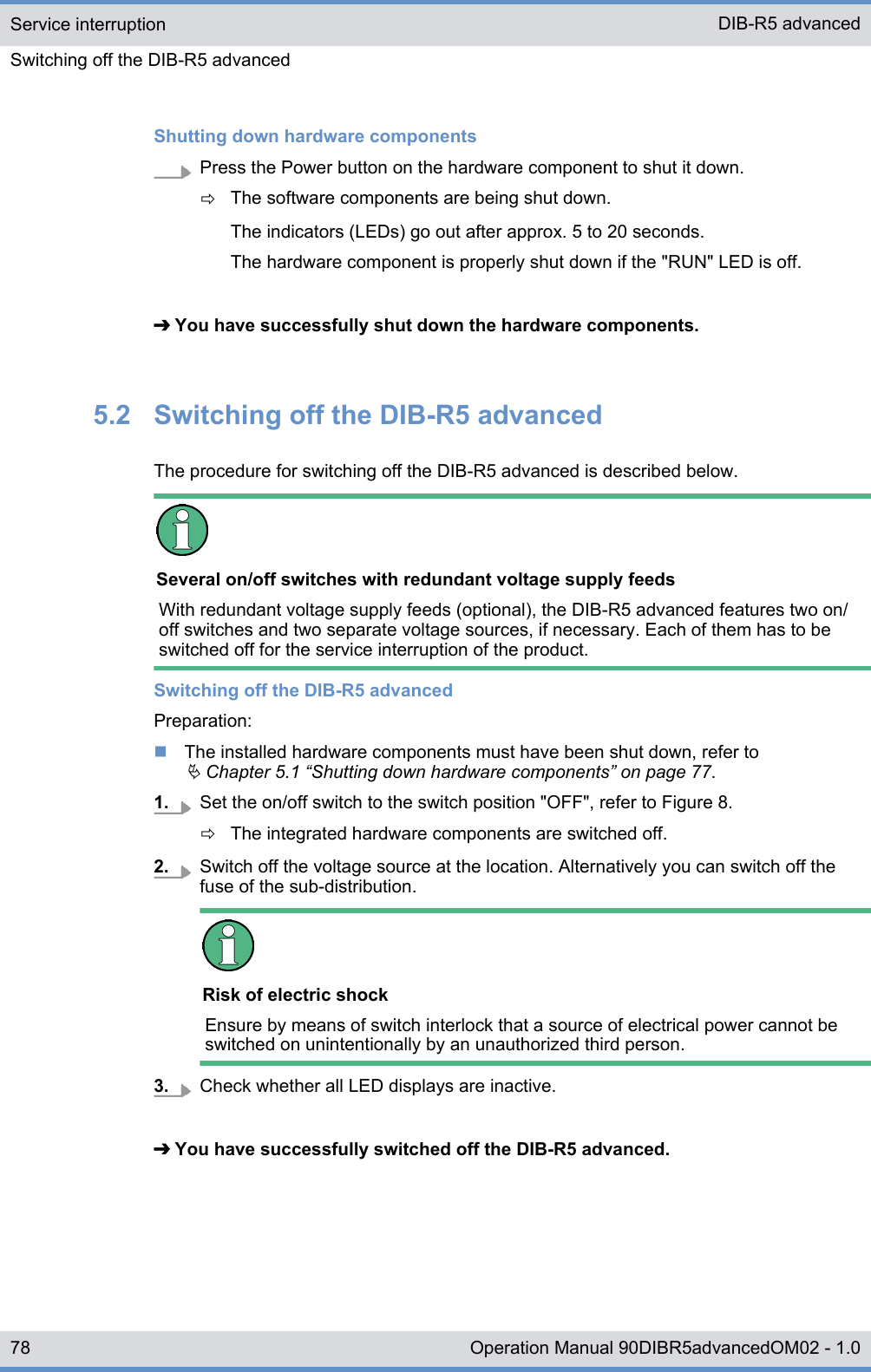

Shutting down hardware componentsPress the Power button on the hardware component to shut it down.ðThe software components are being shut down.The indicators (LEDs) go out after approx. 5 to 20 seconds.The hardware component is properly shut down if the "RUN" LED is off.➔ You have successfully shut down the hardware components.5.2 Switching off the DIB-R5 advancedThe procedure for switching off the DIB-R5 advanced is described below.Several on/off switches with redundant voltage supply feedsWith redundant voltage supply feeds (optional), the DIB-R5 advanced features two on/off switches and two separate voltage sources, if necessary. Each of them has to beswitched off for the service interruption of the product.Switching off the DIB-R5 advancedPreparation:nThe installed hardware components must have been shut down, refer toÄ Chapter 5.1 “Shutting down hardware components” on page 77.1. Set the on/off switch to the switch position "OFF", refer to Figure 8.ðThe integrated hardware components are switched off.2. Switch off the voltage source at the location. Alternatively you can switch off thefuse of the sub-distribution.Risk of electric shockEnsure by means of switch interlock that a source of electrical power cannot beswitched on unintentionally by an unauthorized third person.3. Check whether all LED displays are inactive.➔ You have successfully switched off the DIB-R5 advanced.Service interruptionSwitching off the DIB-R5 advancedDIB-R5 advanced78 Operation Manual 90DIBR5advancedOM02 - 1.0

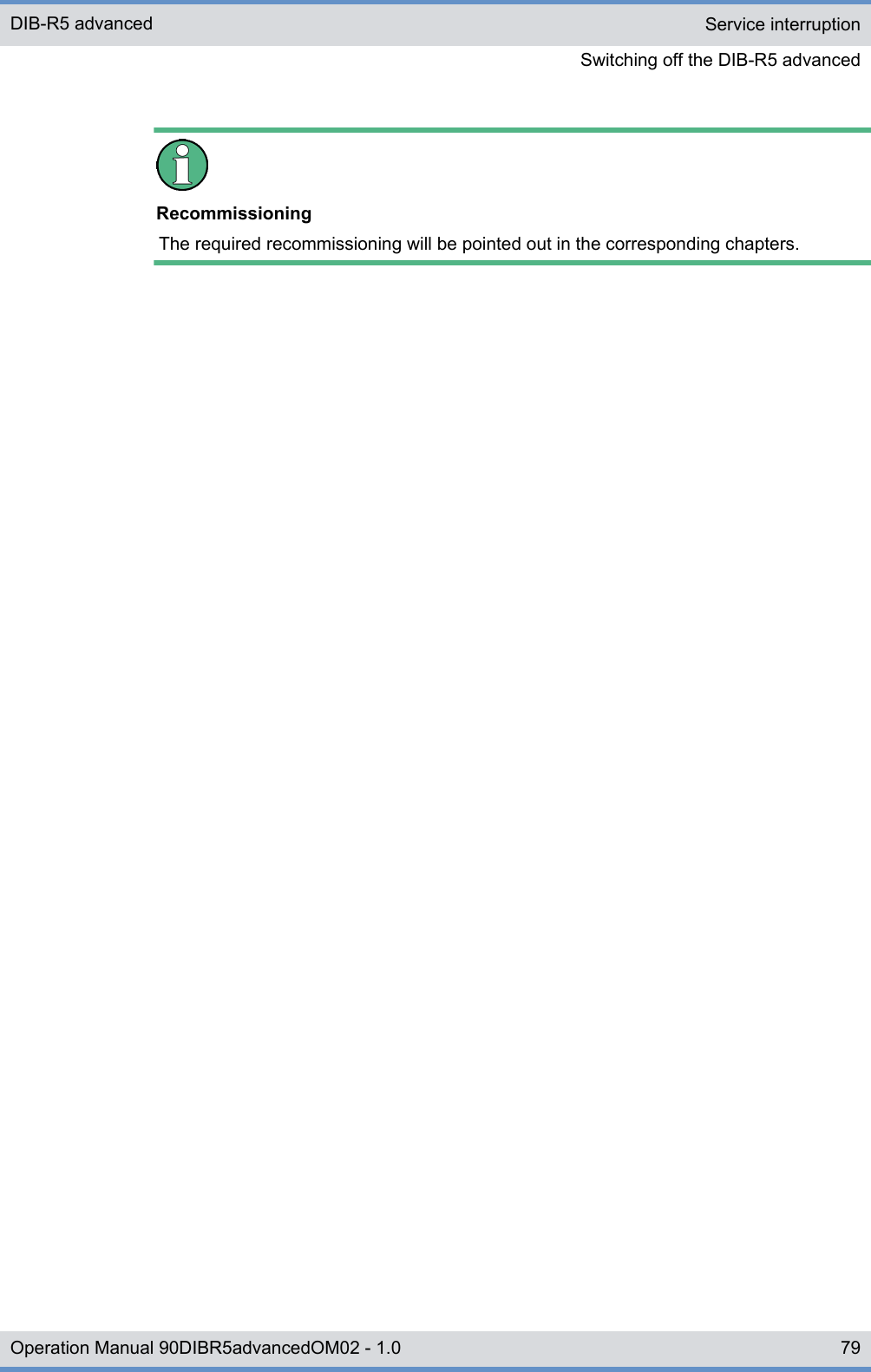

RecommissioningThe required recommissioning will be pointed out in the corresponding chapters.Service interruptionSwitching off the DIB-R5 advancedDIB-R5 advanced79Operation Manual 90DIBR5advancedOM02 - 1.0

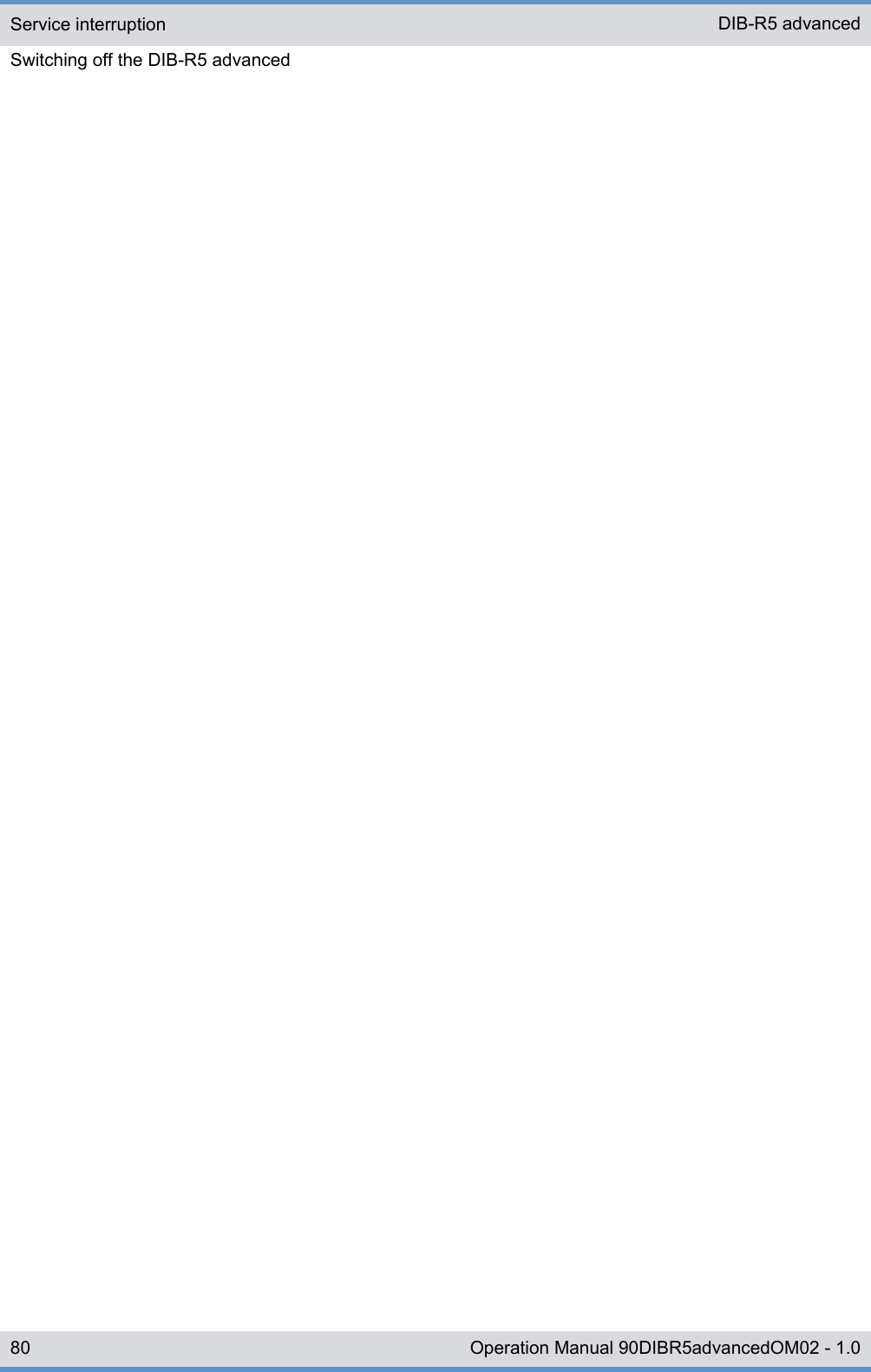

Service interruptionSwitching off the DIB-R5 advancedDIB-R5 advanced80 Operation Manual 90DIBR5advancedOM02 - 1.0
6 RecommissioningTo recommission the product, you either have to connect the equipment rack to thevoltage source or switch it on, depending on the connection variant.RecommissioningFor a new commissioning of DIB-R5 advanced, proceed as described in Ä Chapter 4.2“Switching on the DIB-R5 advanced” on page 66.RecommissioningDIB-R5 advanced81Operation Manual 90DIBR5advancedOM02 - 1.0
Recommissioning DIB-R5 advanced82 Operation Manual 90DIBR5advancedOM02 - 1.0
7 MaintenanceTo ensure the proper operation of products, maintenance tasks and periodical visualinspections are required.The products have been designed for permanent and unsupervised operation. Neverthe-less you have to perform checks every now and then. When doing so, you can detect andremove dirt in the vicinity of or within equipment racks, so the air supply and heat dissipa-tion of the products is always ensured.The current status of the hardware components can be monitored via a connectedNMC-511 FaultManager. For more information on the NMC-511 FaultManager, pleaserefer to the product documentation of the NMC-511 FaultManager.7.1 Maintenance tasksSoiling may impair the air supply and the heat dissipation and thus affect the operation.For this reason, the activities listed below should be performed in the interval specified.Maintenance tasksTask/s Interval/sReplace the fan after 30,000 operating hoursReplace the air filter pad Depends on the environmental conditionsEarly fan replacementIndependent of the ambient data at the installation site, the fan may have to be replacedearlier. For this reason, please comply with the following recommended visual inspec-tions and intervals.7.2 Periodical visual inspectionsThe table below lists the recommended tasks for maintaining the products. The visualinspections should be performed in the intervals specified to be able to respond in duetime, e.g. in the case of changes at the location that may result in improper operation.We recommend logging the results of the test.MaintenancePeriodical visual inspectionsDIB-R5 advanced83Operation Manual 90DIBR5advancedOM02 - 1.0

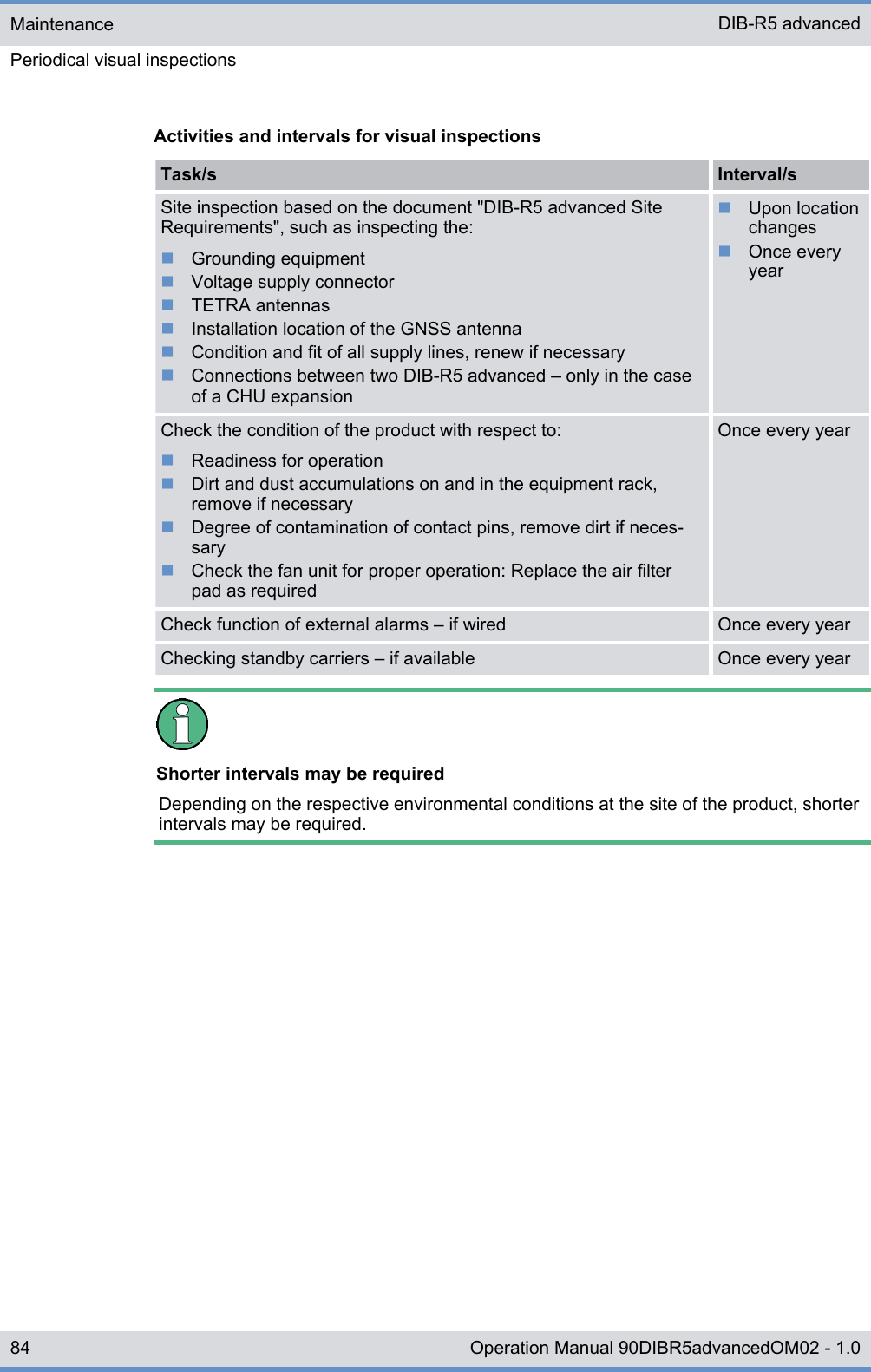

Activities and intervals for visual inspectionsTask/s Interval/sSite inspection based on the document "DIB-R5 advanced SiteRequirements", such as inspecting the:nGrounding equipmentnVoltage supply connectornTETRA antennasnInstallation location of the GNSS antennanCondition and fit of all supply lines, renew if necessarynConnections between two DIB-R5 advanced ‒ only in the caseof a CHU expansionnUpon locationchangesnOnce everyyearCheck the condition of the product with respect to:nReadiness for operationnDirt and dust accumulations on and in the equipment rack,remove if necessarynDegree of contamination of contact pins, remove dirt if neces-sarynCheck the fan unit for proper operation: Replace the air filterpad as requiredOnce every yearCheck function of external alarms – if wired Once every yearChecking standby carriers – if available Once every yearShorter intervals may be requiredDepending on the respective environmental conditions at the site of the product, shorterintervals may be required.MaintenancePeriodical visual inspectionsDIB-R5 advanced84 Operation Manual 90DIBR5advancedOM02 - 1.0

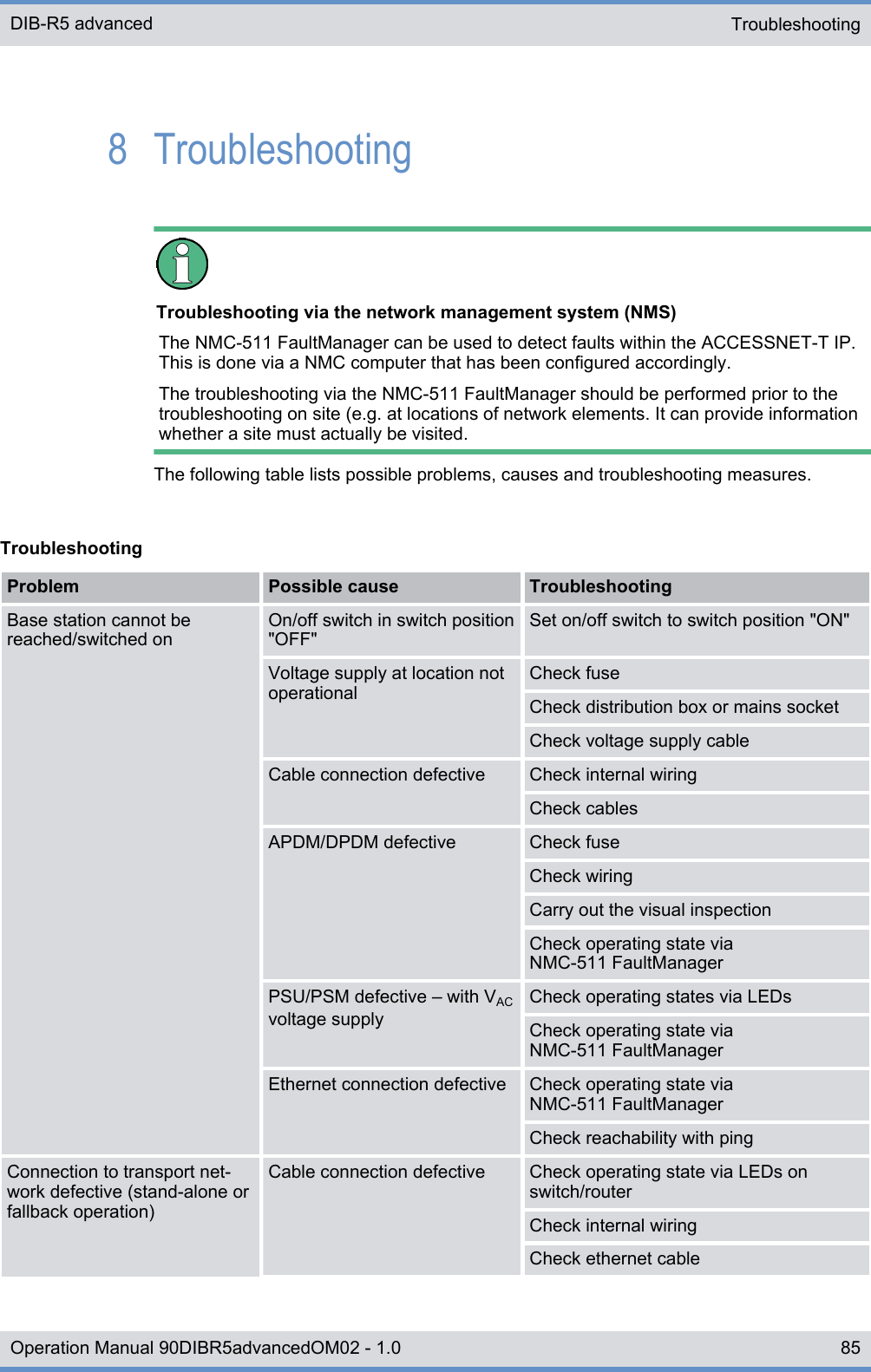

8 TroubleshootingTroubleshooting via the network management system (NMS)The NMC-511 FaultManager can be used to detect faults within the ACCESSNET-T IP.This is done via a NMC computer that has been configured accordingly.The troubleshooting via the NMC-511 FaultManager should be performed prior to thetroubleshooting on site (e.g. at locations of network elements. It can provide informationwhether a site must actually be visited.The following table lists possible problems, causes and troubleshooting measures.TroubleshootingProblem Possible cause TroubleshootingBase station cannot bereached/switched onOn/off switch in switch position"OFF"Set on/off switch to switch position "ON"Voltage supply at location notoperationalCheck fuseCheck distribution box or mains socketCheck voltage supply cableCable connection defective Check internal wiringCheck cablesAPDM/DPDM defective Check fuseCheck wiringCarry out the visual inspectionCheck operating state viaNMC-511 FaultManagerPSU/PSM defective ‒ with VACvoltage supplyCheck operating states via LEDsCheck operating state viaNMC-511 FaultManagerEthernet connection defective Check operating state viaNMC-511 FaultManagerCheck reachability with pingConnection to transport net-work defective (stand-alone orfallback operation)Cable connection defective Check operating state via LEDs onswitch/routerCheck internal wiringCheck ethernet cableTroubleshootingDIB-R5 advanced85Operation Manual 90DIBR5advancedOM02 - 1.0

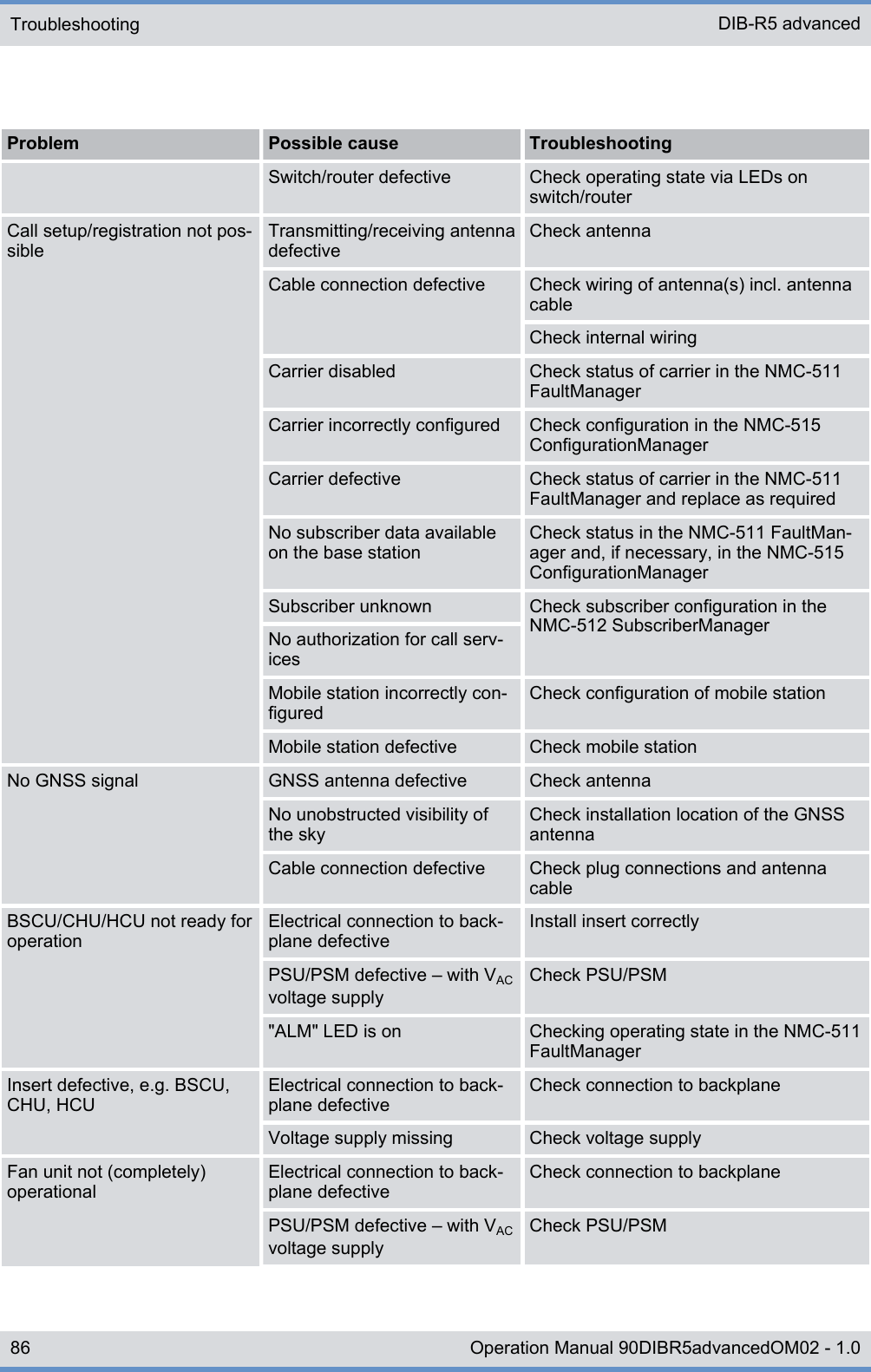

Problem Possible cause TroubleshootingSwitch/router defective Check operating state via LEDs onswitch/routerCall setup/registration not pos-sibleTransmitting/receiving antennadefectiveCheck antennaCable connection defective Check wiring of antenna(s) incl. antennacableCheck internal wiringCarrier disabled Check status of carrier in the NMC-511FaultManagerCarrier incorrectly configured Check configuration in the NMC-515ConfigurationManagerCarrier defective Check status of carrier in the NMC-511FaultManager and replace as requiredNo subscriber data availableon the base stationCheck status in the NMC-511 FaultMan-ager and, if necessary, in the NMC-515ConfigurationManagerSubscriber unknown Check subscriber configuration in theNMC-512 SubscriberManagerNo authorization for call serv-icesMobile station incorrectly con-figuredCheck configuration of mobile stationMobile station defective Check mobile stationNo GNSS signal GNSS antenna defective Check antennaNo unobstructed visibility ofthe skyCheck installation location of the GNSSantennaCable connection defective Check plug connections and antennacableBSCU/CHU/HCU not ready foroperationElectrical connection to back-plane defectiveInstall insert correctlyPSU/PSM defective ‒ with VACvoltage supplyCheck PSU/PSM"ALM" LED is on Checking operating state in the NMC-511FaultManagerInsert defective, e.g. BSCU,CHU, HCUElectrical connection to back-plane defectiveCheck connection to backplaneVoltage supply missing Check voltage supplyFan unit not (completely)operationalElectrical connection to back-plane defectiveCheck connection to backplanePSU/PSM defective ‒ with VACvoltage supplyCheck PSU/PSMTroubleshooting DIB-R5 advanced86 Operation Manual 90DIBR5advancedOM02 - 1.0

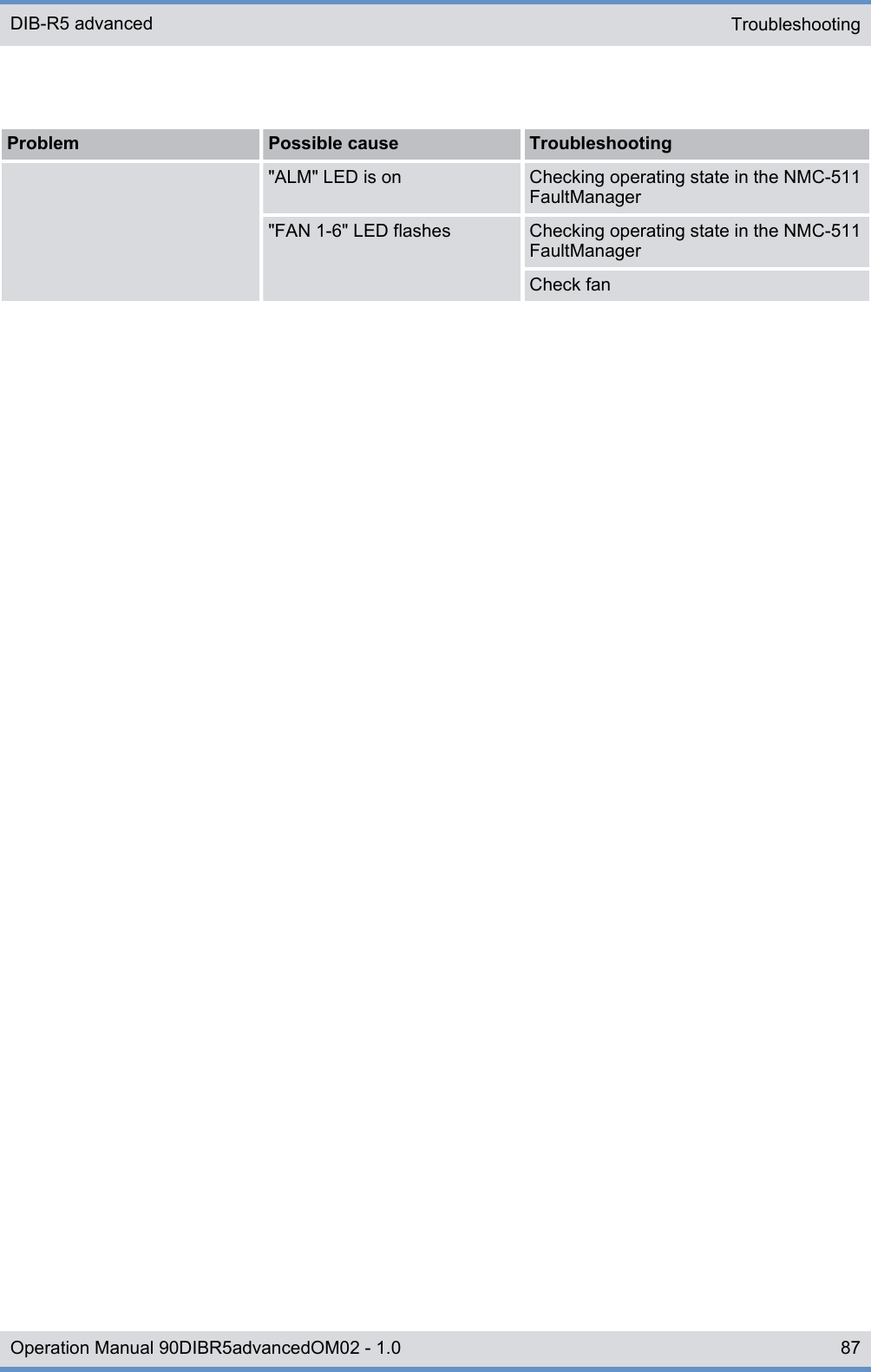

Problem Possible cause Troubleshooting"ALM" LED is on Checking operating state in the NMC-511FaultManager"FAN 1-6" LED flashes Checking operating state in the NMC-511FaultManagerCheck fanTroubleshootingDIB-R5 advanced87Operation Manual 90DIBR5advancedOM02 - 1.0
