Hytronik Electronics HFM-01 HF-MODULE User Manual HFM 01 Manual

Hytronik Electronics Co., Ltd HF-MODULE HFM 01 Manual

Users Manual

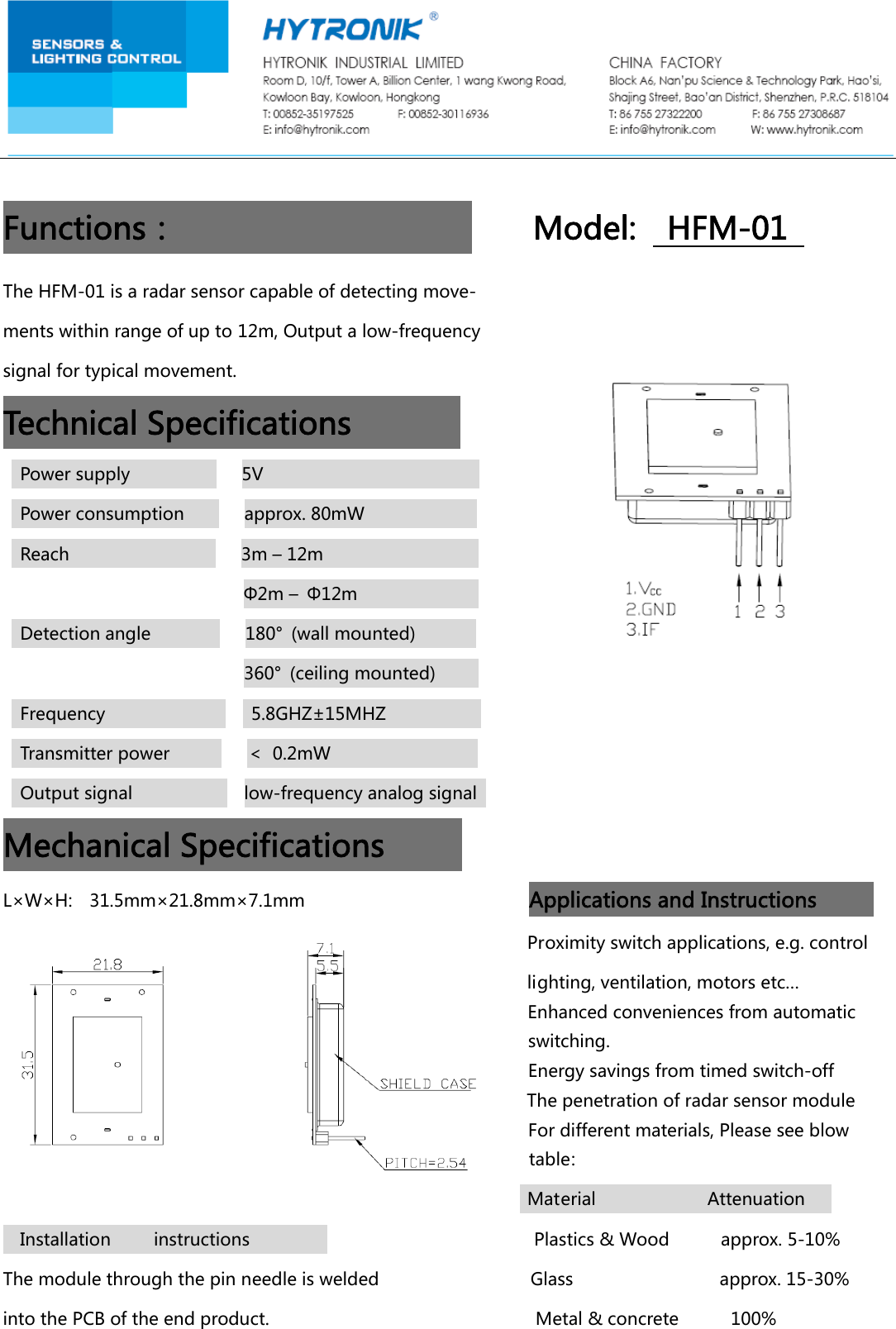

Functions：Model:HFM-01TheHFM-01isaradarsensorcapableofdetectingmove-mentswithinrangeofupto12m,Outputalow-frequencysignalfortypicalmovement.TechnicalSpecificationsPowersupply5VPowerconsumptionapprox.80mWReach3m–12mΦ2m–Φ12mDetectionangle180° (wallmounted)360° (ceilingmounted)Frequency5.8GHZ±15MHZTransmitterpower＜0.2mWOutputsignallow-frequencyanalogsignalMechanicalSpecificationsL×W×H:31.5mm×21.8mm×7.1mmApplicationsandInstructions Proximityswitchapplications,e.g.control lighting,ventilation,motorsetc… Enhancedconveniencesfromautomaticswitching.Energysavingsfromtimedswitch-off Thepenetrationofradarsensormodule Fordifferentmaterials,Pleaseseeblow  table:MaterialAttenuationInstallationinstructionsPlastics&Woodapprox.5-10%Themodulethroughthepinneedleiswelded Glass       approx.15-30%intothePCBoftheendproduct. Metal&concrete100%

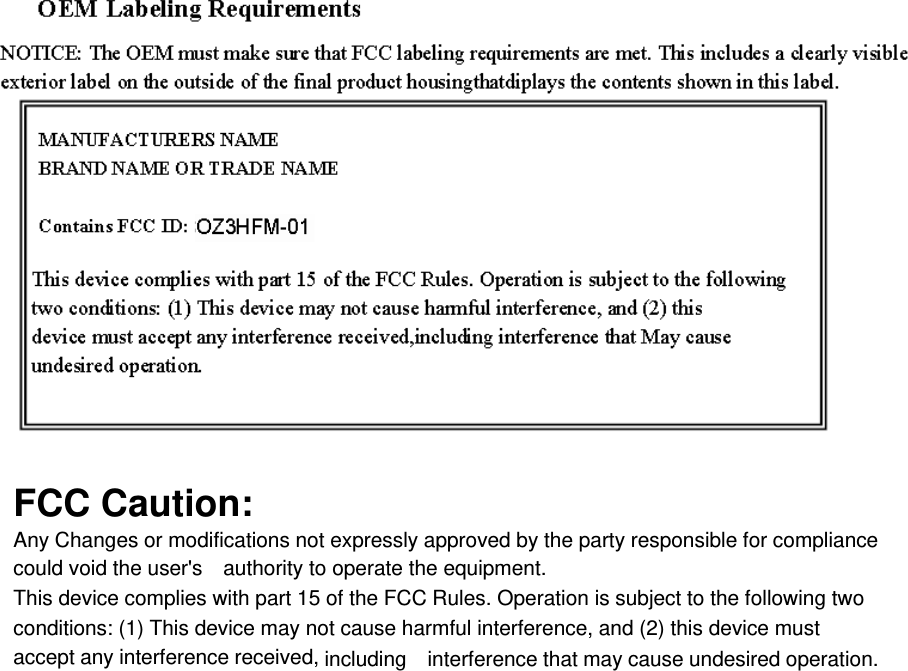

FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
