User Manual

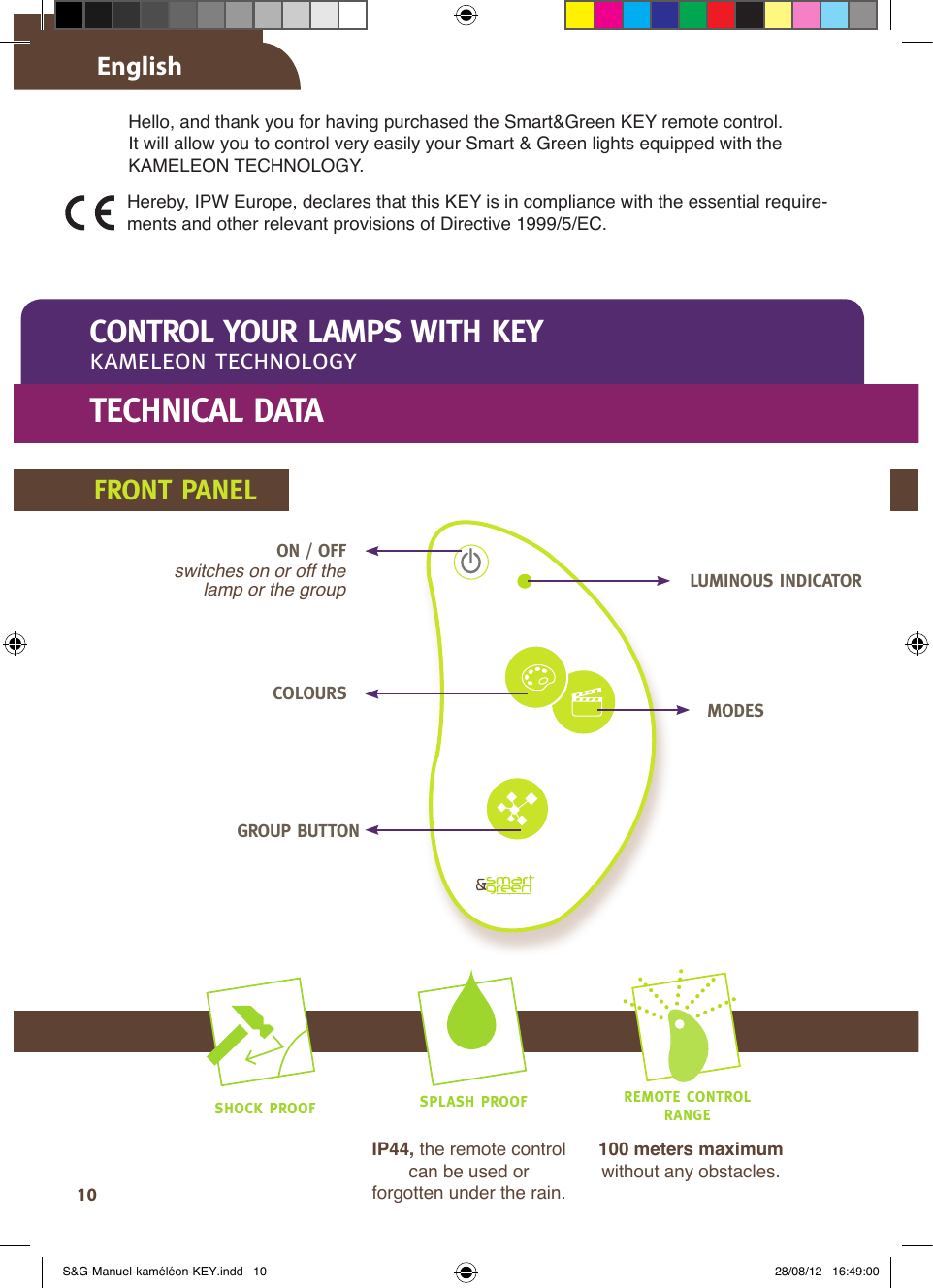

10EnglishHello, and thank you for having purchased the Smart&Green KEY remote control.It will allow you to control very easily your Smart & Green lights equipped with the KAMELEON TECHNOLOGY.CONTROL YOUR LAMPS WITH KEYkameleon technologyTECHNICAL DATABATTERYCOMPARTMENTCOVERON / OFFCOLOURS MODESLUMINOUS INDICATORswitches on or off the lamp or the groupGROUP BUTTONFRONT PANELSHOCK PROOF SPLASH PROOF100 meters maximumwithout any obstacles.REMOTE CONTROL RANGEIP44, the remote control can be used or forgotten under the rain.Hereby, IPW Europe, declares that this KEY is in compliance with the essential require-ments and other relevant provisions of Directive 1999/5/EC.S&G-Manuel-kaméléon-KEY.indd 10 28/08/12 16:49:00

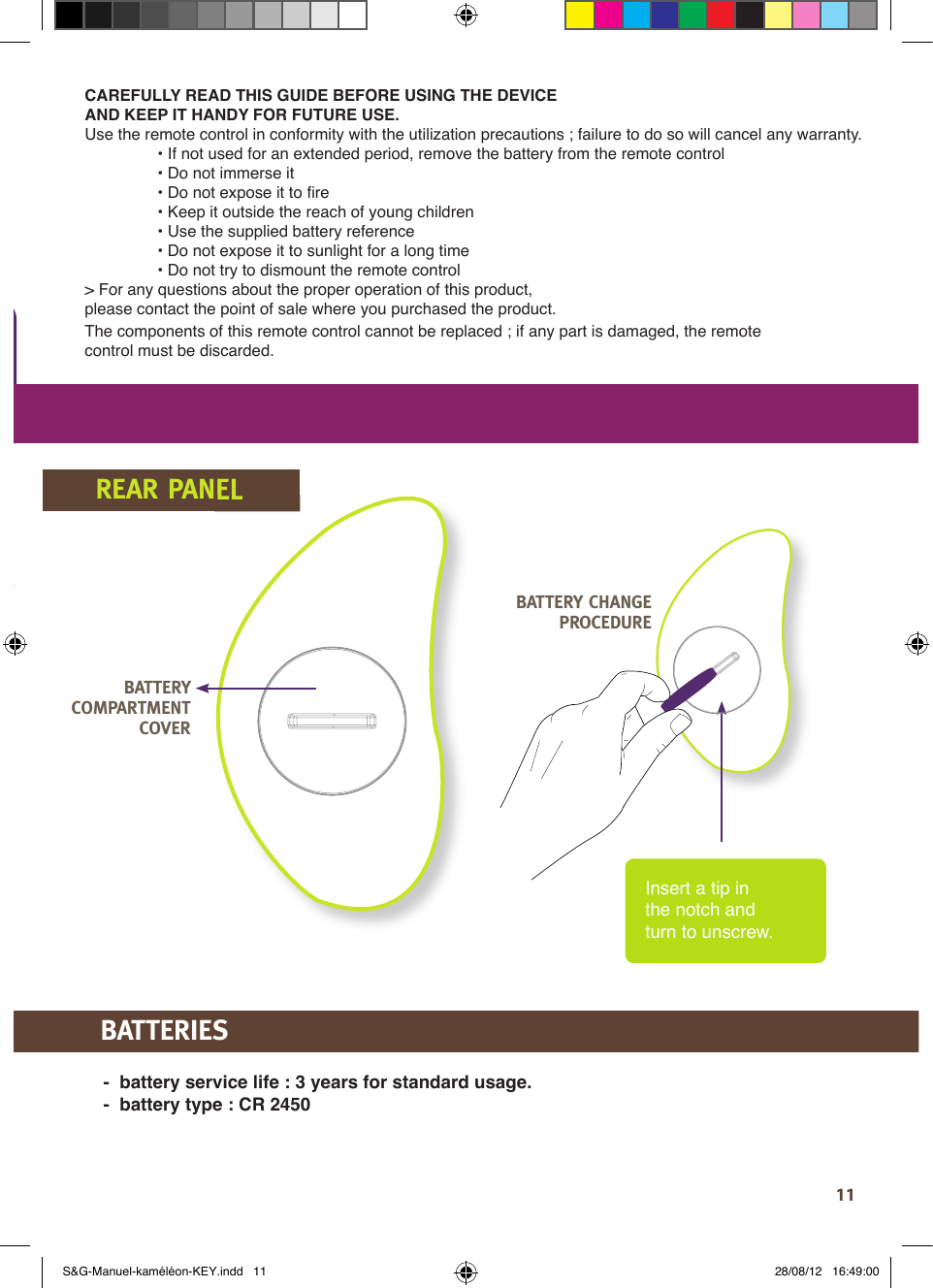

11CONTROL YOUR LAMPS WITH KEYkameleon technologyBATTERYCOMPARTMENTCOVERLUMINOUS INDICATORREAR PANELBATTERY CHANGEPROCEDURE REAR PANEL- battery service life : 3 years for standard usage.- battery type : CR 2450BATTERIESInsert a tip in the notch and turn to unscrew. CAREFULLY READ THIS GUIDE BEFORE USING THE DEVICE AND KEEP IT HANDY FOR FUTURE USE. Use the remote control in conformity with the utilization precautions ; failure to do so will cancel any warranty. • If not used for an extended period, remove the battery from the remote control • Do not immerse it • Do not expose it to fi re • Keep it outside the reach of young children • Use the supplied battery reference • Do not expose it to sunlight for a long time • Do not try to dismount the remote control> For any questions about the proper operation of this product, please contact the point of sale where you purchased the product. The components of this remote control cannot be replaced ; if any part is damaged, the remote control must be discarded.S&G-Manuel-kaméléon-KEY.indd 11 28/08/12 16:49:00

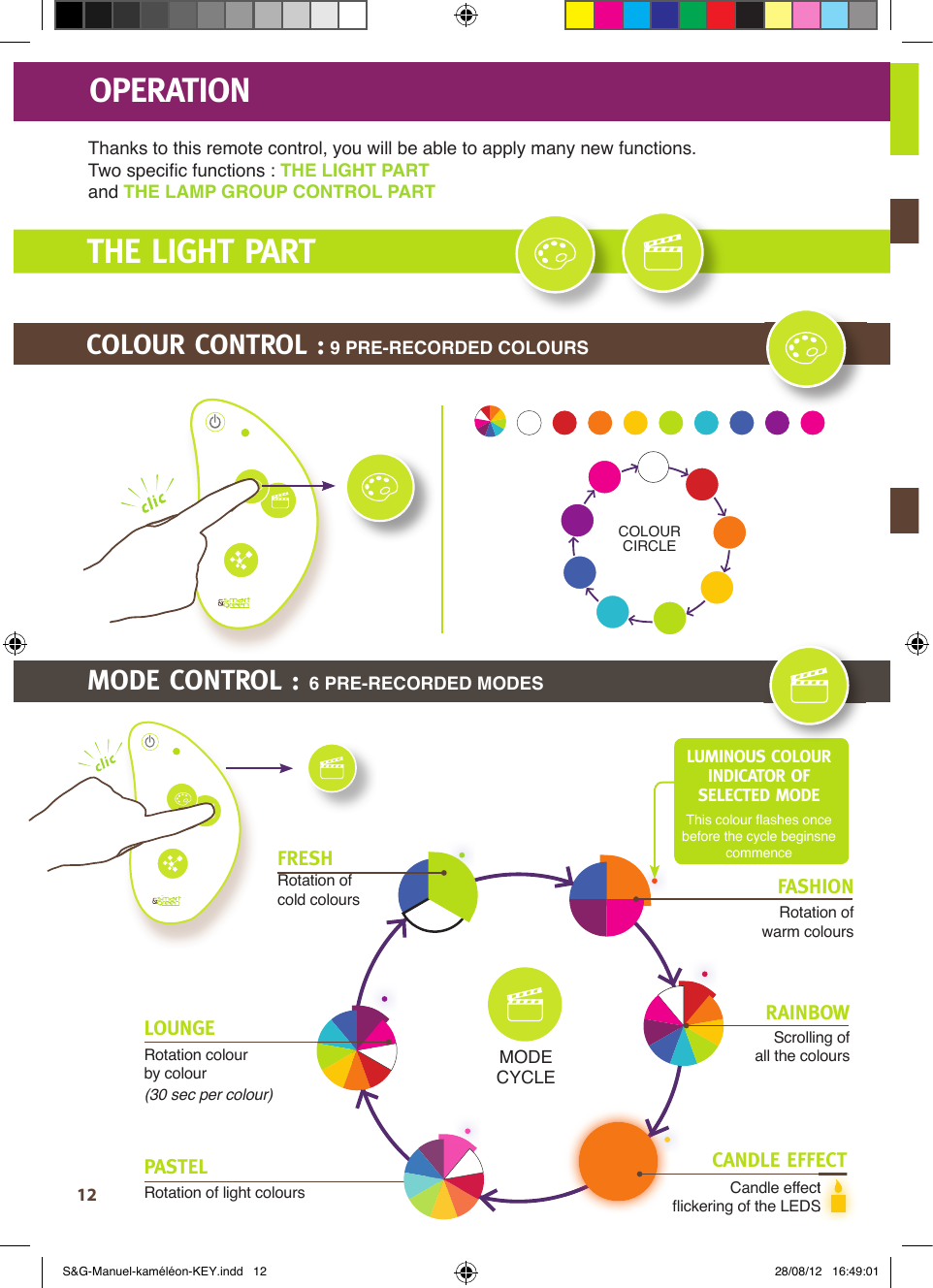

12THE LIGHT PARTOPERATIONThanks to this remote control, you will be able to apply many new functions.Two specifi c functions : THE LIGHT PARTand THE LAMP GROUP CONTROL PARTCOLOUR CONTROL : 9 PRE-RECORDED COLOURSCOLOUR CIRCLEFRESHRotation of cold coloursPASTELRotation of light coloursFASHIONRotation of warm coloursRAINBOWScrolling of all the coloursCandle effectfl ickering of the LEDSLOUNGERotation colour by colour (30 sec per colour)LUMINOUS COLOUR INDICATOR OF SELECTED MODE This colour fl ashes once before the cycle beginsne commenceMODECYCLECandle effectfl ickering of the LEDSCANDLE EFFECTMODE CONTROL : 6 PRE-RECORDED MODESS&G-Manuel-kaméléon-KEY.indd 12 28/08/12 16:49:01

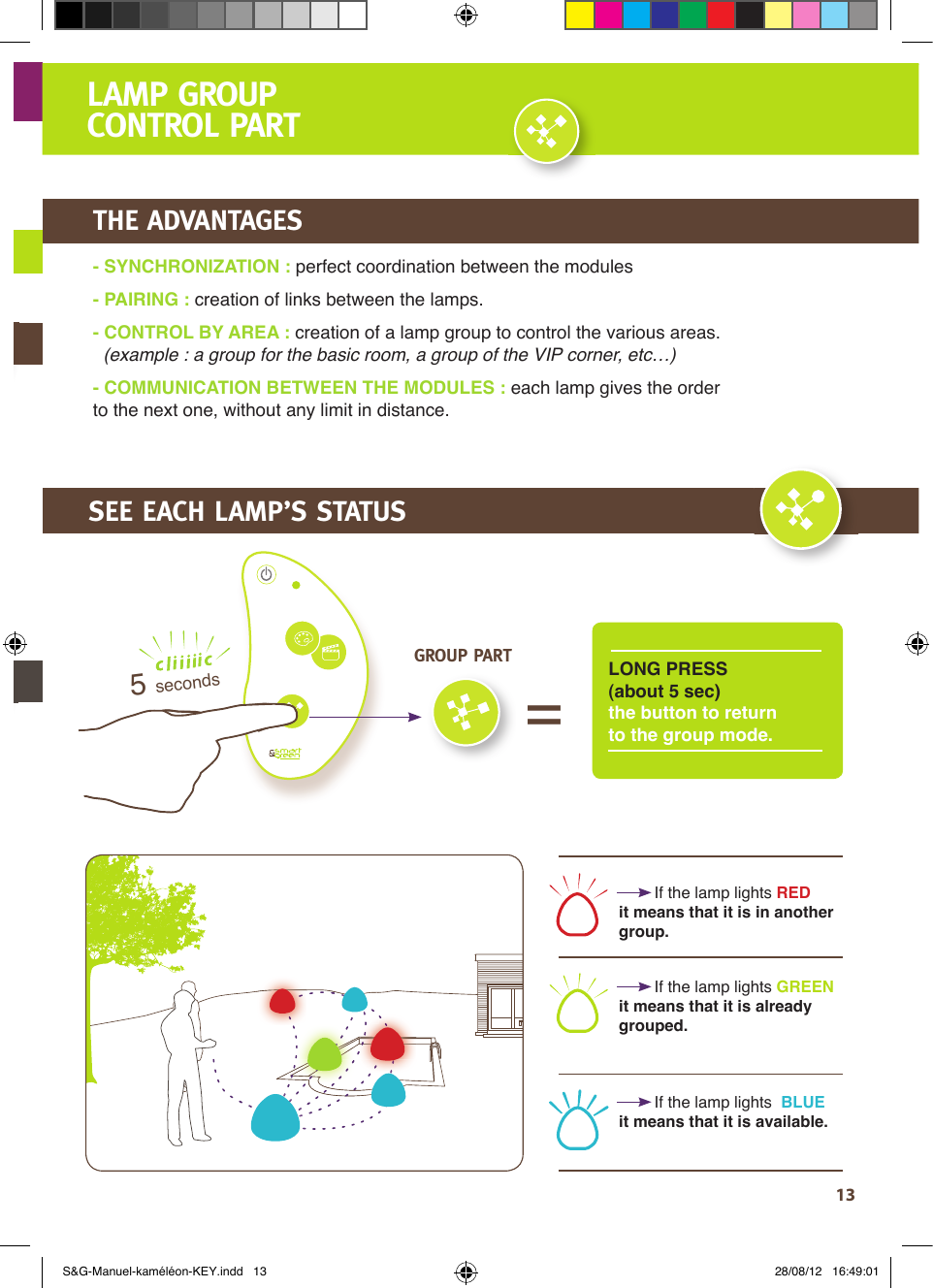

13- SYNCHRONIZATION : perfect coordination between the modules- PAIRING : creation of links between the lamps.- CONTROL BY AREA : creation of a lamp group to control the various areas. (example : a group for the basic room, a group of the VIP corner, etc…)- COMMUNICATION BETWEEN THE MODULES : each lamp gives the order to the next one, without any limit in distance.LAMP GROUP CONTROL PARTTHE ADVANTAGESSEE EACH LAMP’S STATUS5 secondsGROUP PART If the lamp lights RED it means that it is in another group. If the lamp lights GREEN it means that it is already grouped. If the lamp lights BLUEit means that it is available.LONG PRESS (about 5 sec) the button to return to the group mode.=S&G-Manuel-kaméléon-KEY.indd 13 28/08/12 16:49:01

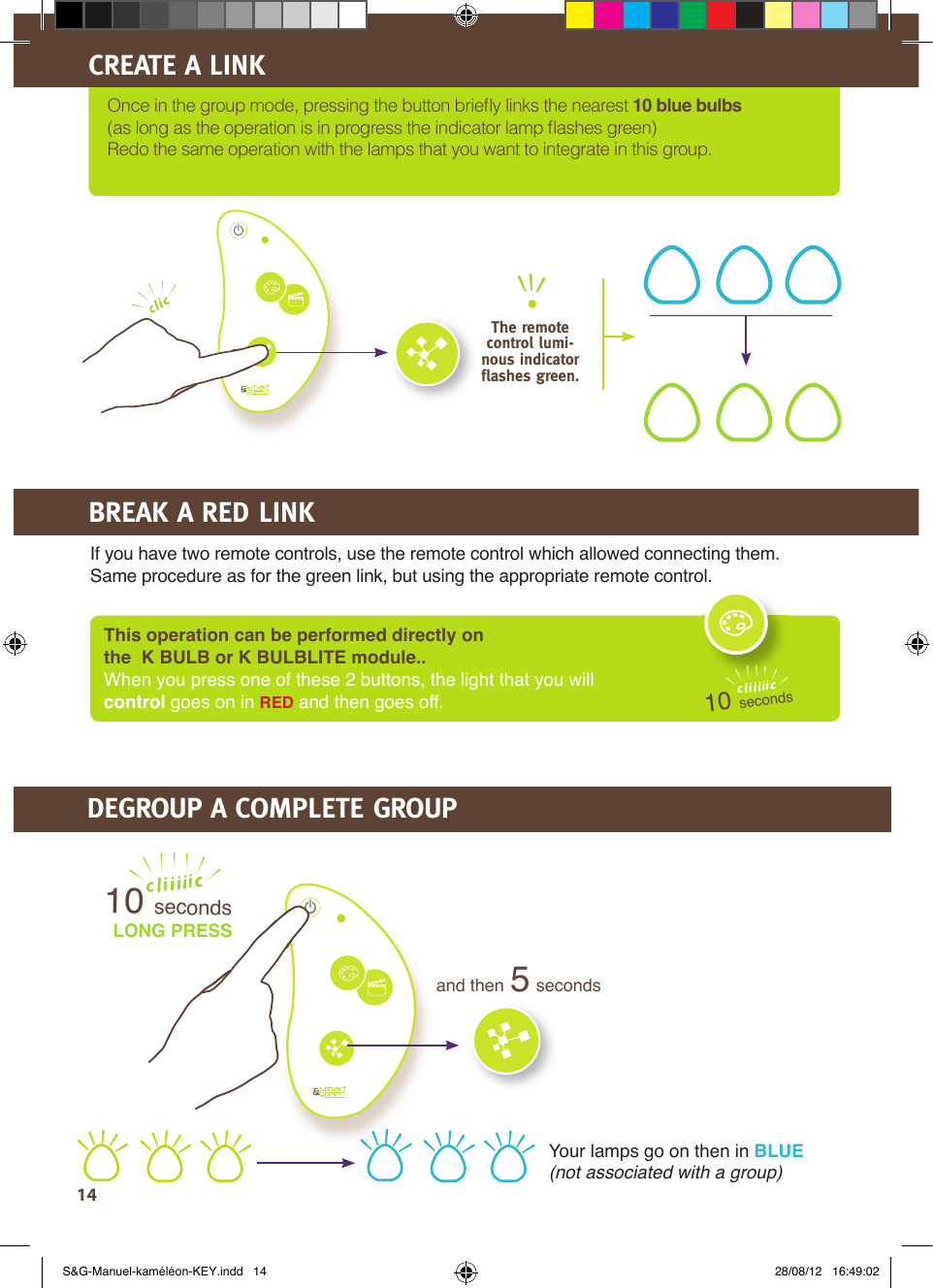

14Once in the group mode, pressing the button briefl y links the nearest 10 blue bulbs (as long as the operation is in progress the indicator lamp fl ashes green)Redo the same operation with the lamps that you want to integrate in this group.CREATE A LINKIf you have two remote controls, use the remote control which allowed connecting them. Same procedure as for the green link, but using the appropriate remote control.BREAK A RED LINKWhen you press one of these 2 buttons, the light that you will control goes on in RED and then goes off.10 secondsThis operation can be performed directly on the K BULB or K BULBLITE module.. DEGROUP A COMPLETE GROUPYour lamps go on then in BLUE (not associated with a group)LONG PRESS10 secondsand then 5 secondsThe remote control lumi-nous indicator fl ashes green.S&G-Manuel-kaméléon-KEY.indd 14 28/08/12 16:49:02
15Your lamps go on then in BLUE (not associated with a group)EXIT THE GROUP MODELONG PRESS 5 secondsYou can control all your lamps using your remote control, even those locked by the Hold mode.This function is to be enabled directly on the module 3 secondsORCONTROL THE HOLD MODULESS&G-Manuel-kaméléon-KEY.indd 15 28/08/12 16:49:02

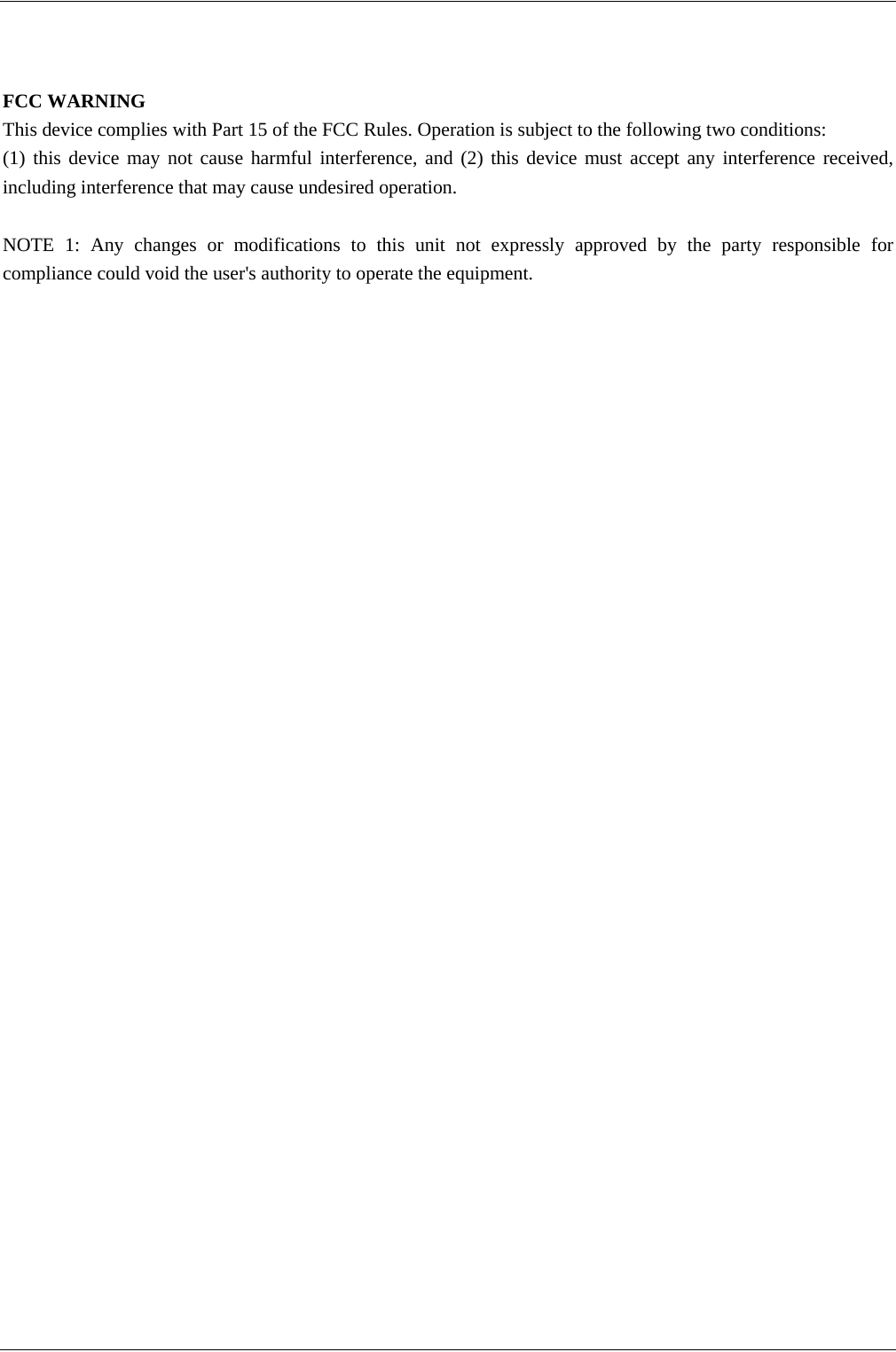

FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 
