ISV DOYAK12-T 2.4GHZ BT WIRELESS MOUSE User Manual USERS MANUAL

ISV Co., Ltd. 2.4GHZ BT WIRELESS MOUSE USERS MANUAL

USERS MANUAL

ULTRA eXo Mouse2.4GHz Bluetooth Wireless Mouse User GuideThe eXo mouse is designed for Windows OS (Window XP or higher), Mac OS and Linux OS. It features as a 2.4 GHz Bluetooth Wireless and a laser pointer which can be used for presentations.Contact and SupportULTRA Products8300 West Flagler St. Suite #121-106 Miami, FL 33144TEL : 1-888-222-5487Website : www.ultraproducts.comI. Setup Options: Depending if you have a computer with a built-in Bluetooth® transceiver, there are two methods of connecting with the eXo Mouse: Transceiver –Free (PC & Mac)This method requires a computer with built-in Bluetooth®.Using the Bluetooth® USB Dongle Adaptor (PC Only)For PCs without Bluetooth®connectivity, ULTRA includes a Bluetooth®USB dongle. II. Package Contents 1. eXo Mouse2. Charging Cable3. Pen Stand 3. User’s Manual4. Mouse Pad5. Bluetooth USB Adapter6. Installation CDPage1 Page2

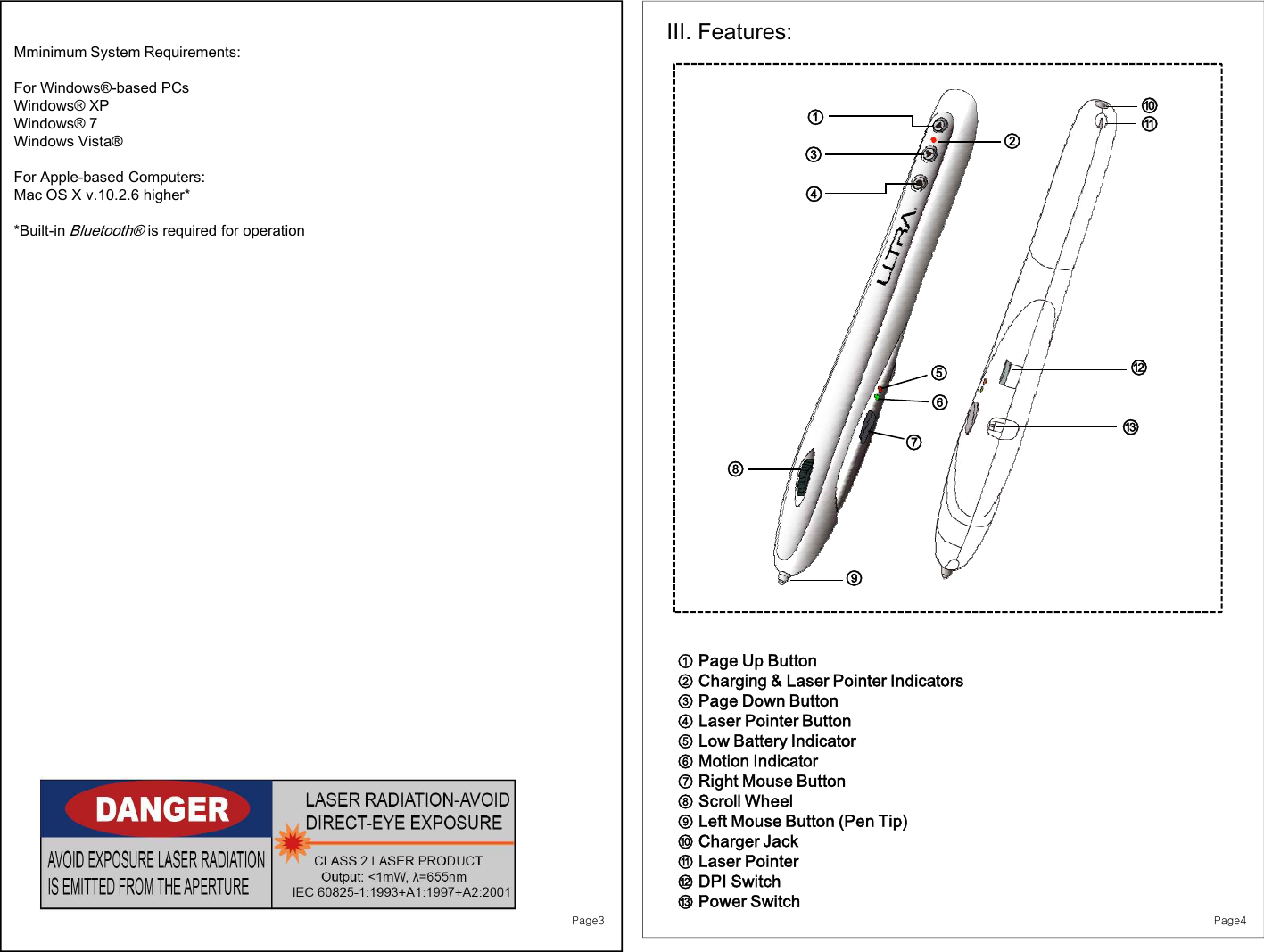

Mminimum System Requirements:For Windows®-based PCs Windows® XPWindows® 7Windows Vista®For Apple-based Computers: Mac OS X v.10.2.6 higher**Built-in Bluetooth®is required for operation⑦⑧④①②③⑤⑥⑪⑫⑬III. Features:Page3 Page4① Page Up Button ② Charging & Laser Pointer Indicators③ Page Down Button ④ Laser Pointer Button ⑤ Low Battery Indicator ⑥ Motion Indicator⑦ Right Mouse Button ⑧ Scroll Wheel⑨ Left Mouse Button (Pen Tip)⑩ Charger Jack ⑪ Laser Pointer ⑫ DPI Switch ⑬ Power Switch⑨⑩

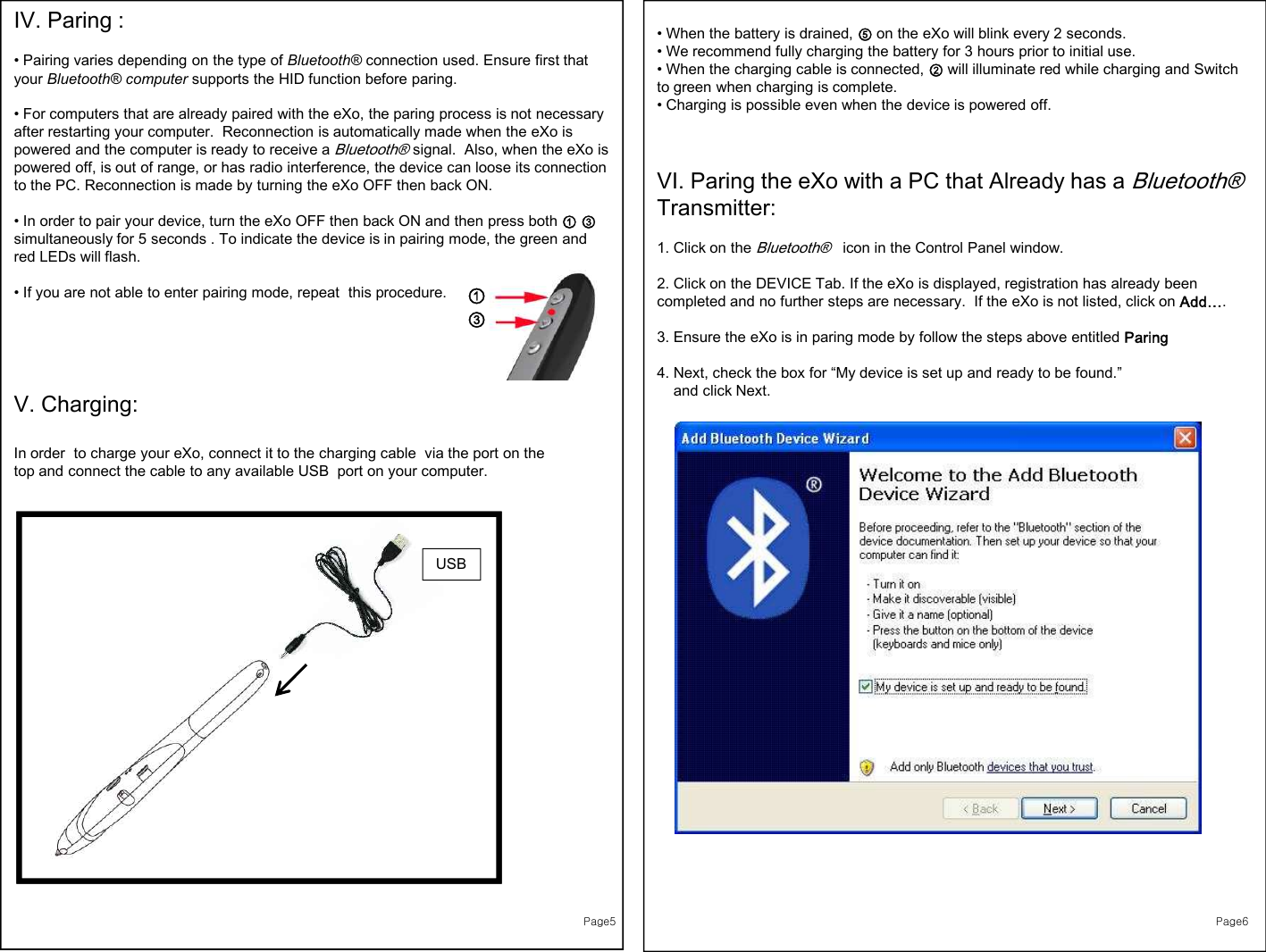

•When the battery is drained, ⑤on the eXo will blink every 2 seconds.•We recommend fully charging the battery for 3 hours prior to initial use. •When the charging cable is connected, ②will illuminate red while charging and Switch to green when charging is complete. •Charging is possible even when the device is powered off.VI. Paring the eXo with a PC that Already has a Bluetooth®Transmitter:1. Click on the Bluetooth® icon in the Control Panel window.2. Click on the DEVICE Tab. If the eXo is displayed, registration has already been completed and no further steps are necessary. If the eXo is not listed, click on Add…. 3. Ensure the eXo is in paring mode by follow the steps above entitled Paring4. Next, check the box for “My device is set up and ready to be found.” and click Next.Page5IV. Paring :• Pairing varies depending on the type of Bluetooth® connection used. Ensure first that your Bluetooth® computer supports the HID function before paring. •For computers that are already paired with the eXo, the paring process is not necessary after restarting your computer. Reconnection is automatically made when the eXo is powered and the computer is ready to receive a Bluetooth® signal. Also, when the eXo is powered off, is out of range, or has radio interference, the device can loose its connection to the PC. Reconnection is made by turning the eXo OFF then back ON.•In order to pair your device, turn the eXo OFF then back ON and then press both ① ③simultaneously for 5 seconds . To indicate the device is in pairing mode, the green and red LEDs will flash. •If you are not able to enter pairing mode, repeat this procedure.V. Charging:In order to charge your eXo, connect it to the charging cable via the port on the top and connect the cable to any available USB port on your computer. USBPage6①③

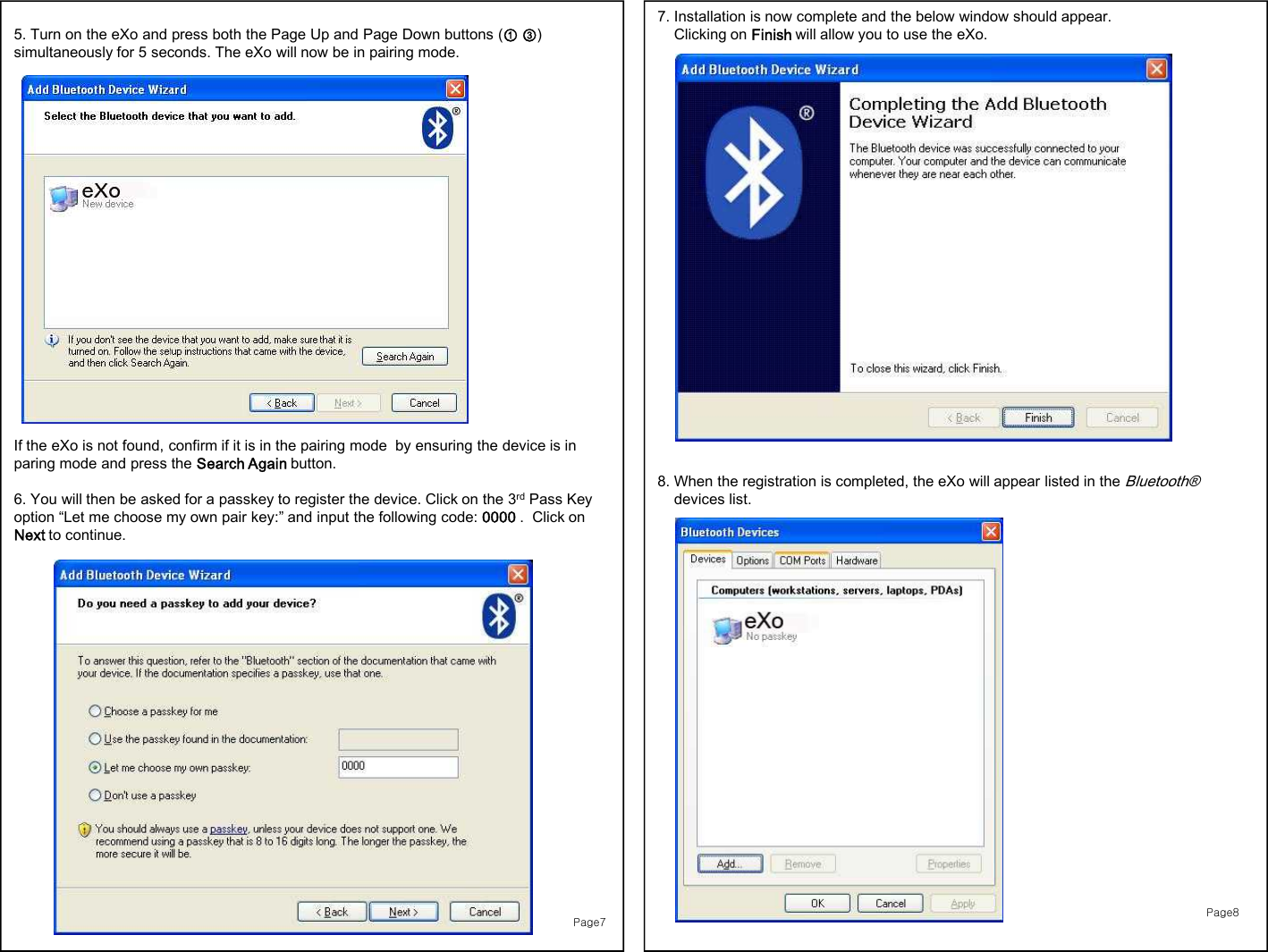

7. Installation is now complete and the below window should appear. Clicking on Finish will allow you to use the eXo.8. When the registration is completed, the eXo will appear listed in the Bluetooth®devices list. Page75. Turn on the eXo and press both the Page Up and Page Down buttons (① ③) simultaneously for 5 seconds. The eXo will now be in pairing mode. If the eXo is not found, confirm if it is in the pairing mode by ensuring the device is in paring mode and press the Search Again button.6. You will then be asked for a passkey to register the device. Click on the 3rd Pass Key option “Let me choose my own pair key:” and input the following code: 0000 . Click on Next to continue. Page8

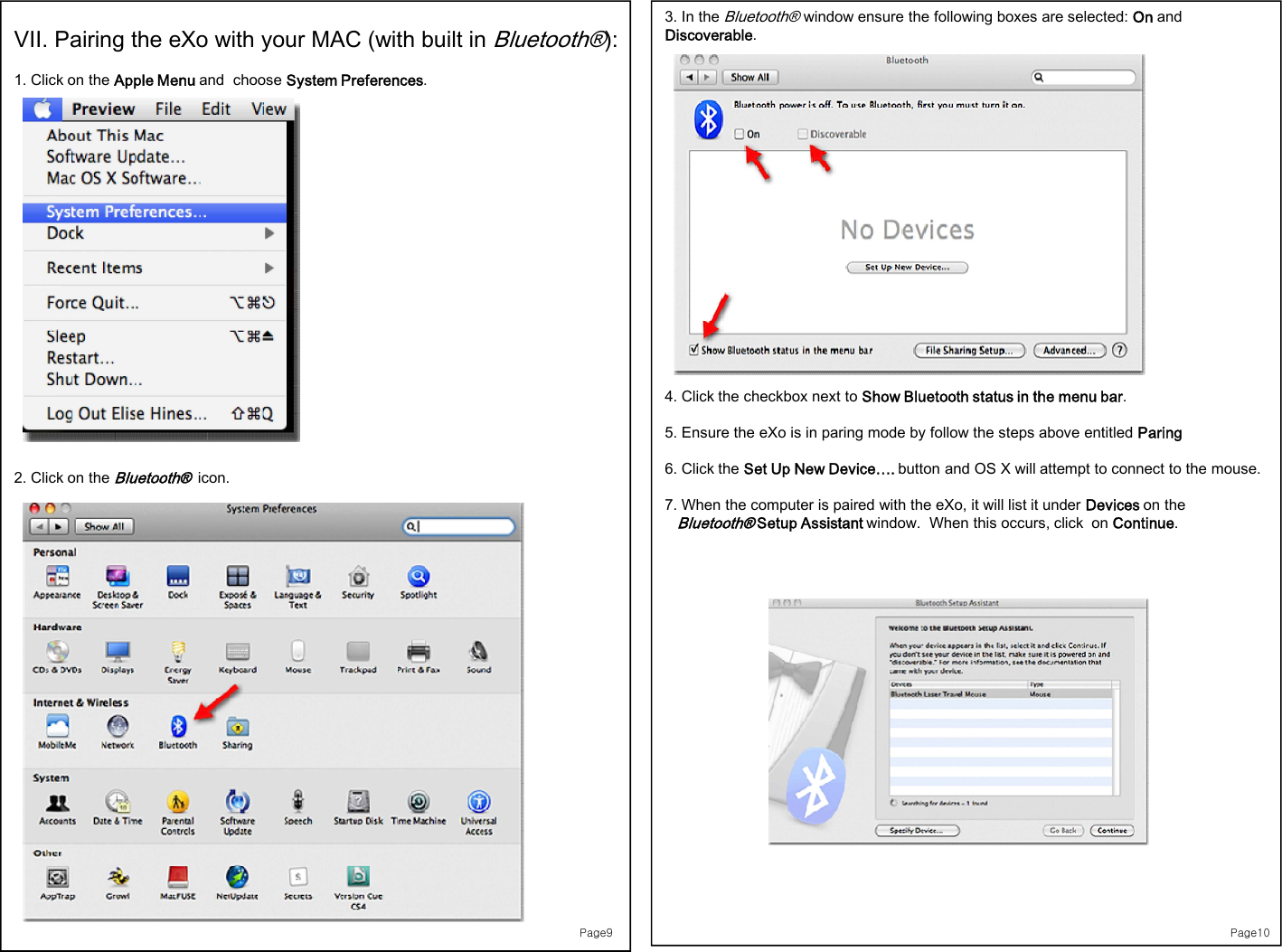

Page9VII. Pairing the eXo with your MAC (with built in Bluetooth®):1. Click on the Apple Menu and choose System Preferences.2. Click on the Bluetooth®icon.Page103. In the Bluetooth®window ensure the following boxes are selected: On and Discoverable. 4. Click the checkbox next to Show Bluetooth status in the menu bar.5. Ensure the eXo is in paring mode by follow the steps above entitled Paring6. Click the Set Up New Device…. button and OS X will attempt to connect to the mouse.7. When the computer is paired with the eXo, it will list it under Devices on the Bluetooth®Setup Assistant window. When this occurs, click on Continue.

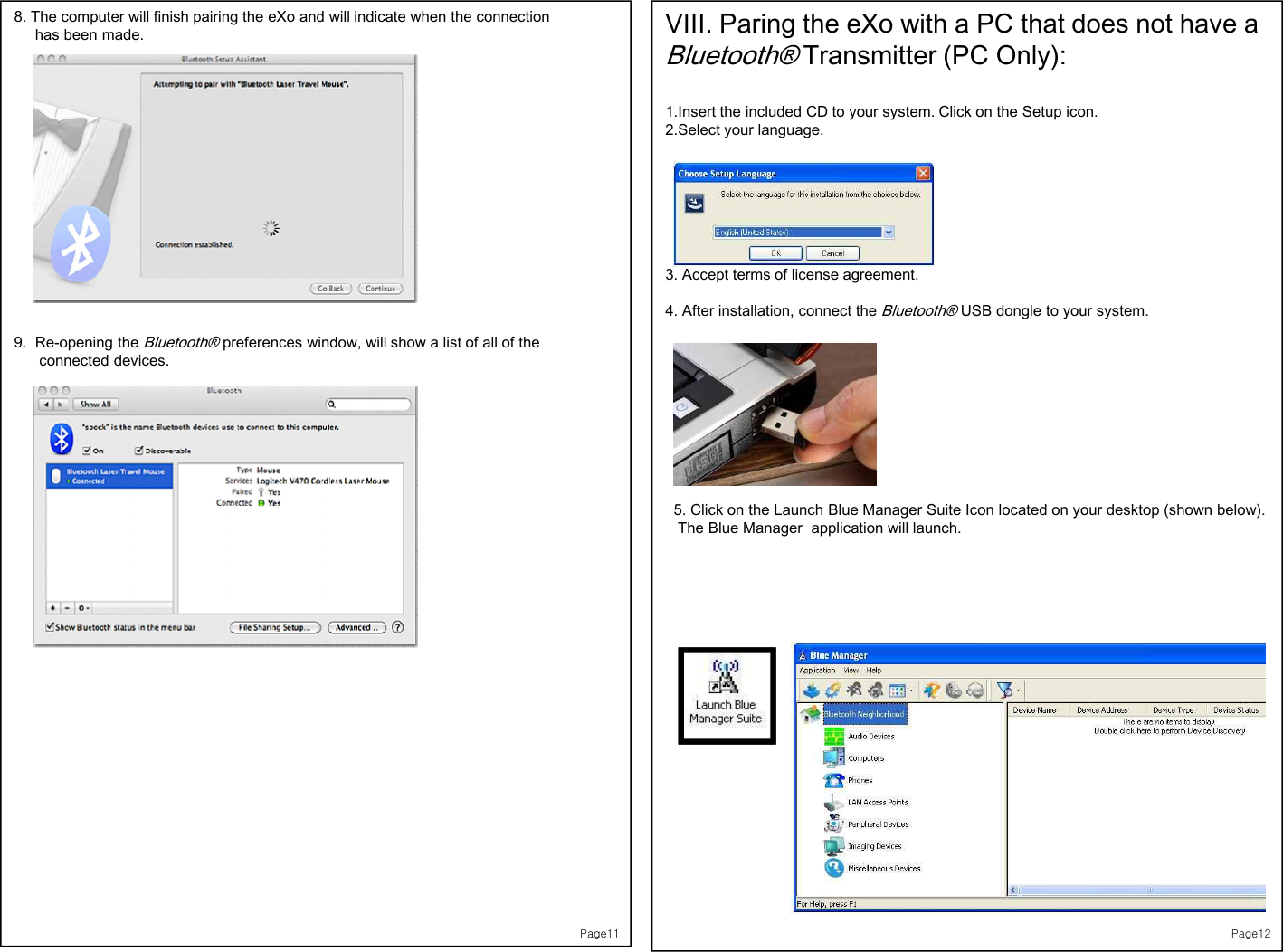

Page118. The computer will finish pairing the eXo and will indicate when the connection has been made.9. Re-opening the Bluetooth®preferences window, will show a list of all of the connected devices.Page12VIII. Paring the eXo with a PC that does not have a Bluetooth®Transmitter (PC Only):1.Insert the included CD to your system. Click on the Setup icon. 2.Select your language. 3. Accept terms of license agreement. 4. After installation, connect the Bluetooth®USB dongle to your system. 5. Click on the Launch Blue Manager Suite Icon located on your desktop (shown below). The Blue Manager application will launch.

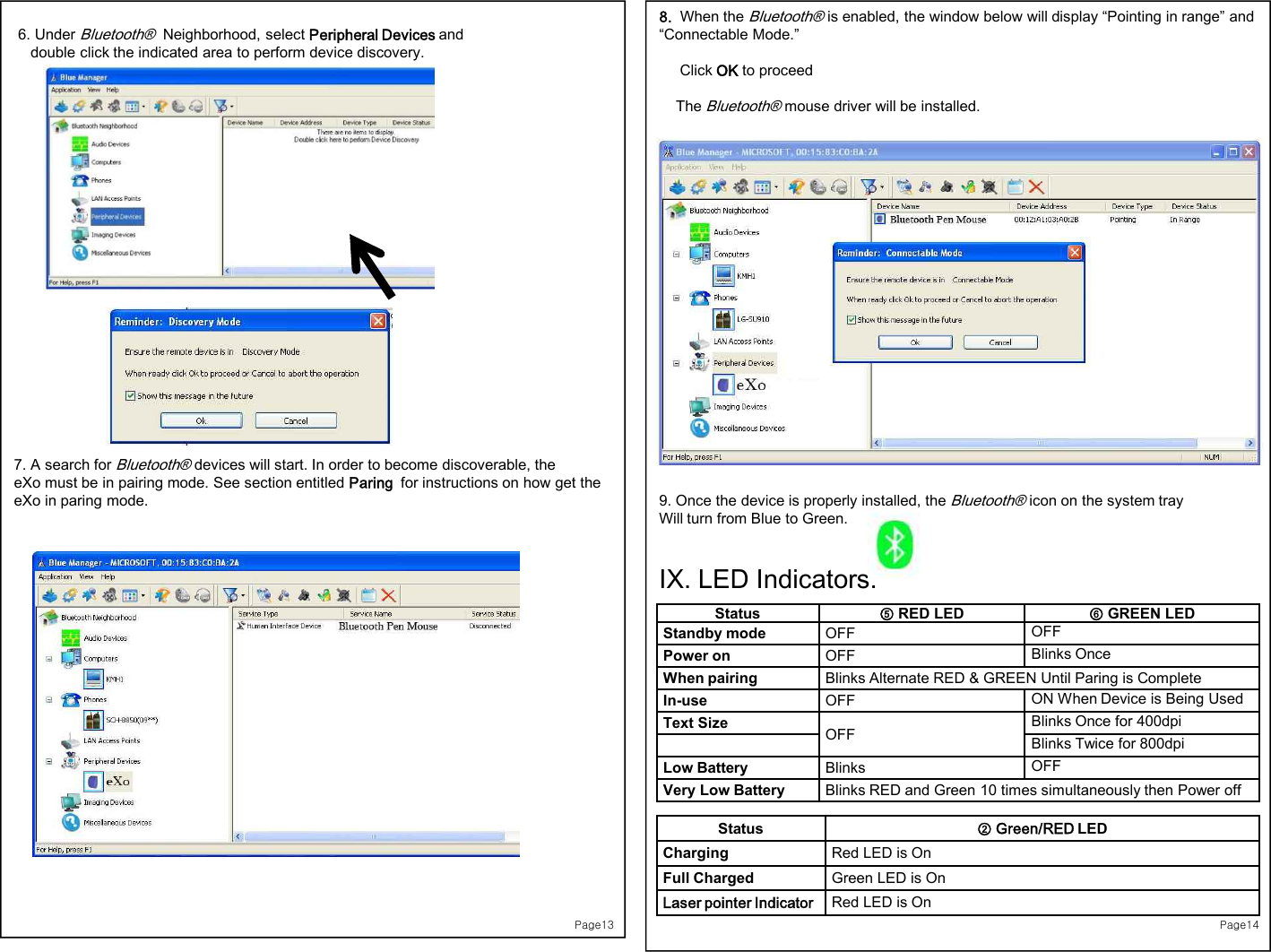

Page136. Under Bluetooth®Neighborhood, select Peripheral Devices and double click the indicated area to perform device discovery. 7. A search for Bluetooth®devices will start. In order to become discoverable, the eXo must be in pairing mode. See section entitled Paring for instructions on how get the eXo in paring mode.Page148. When the Bluetooth®is enabled, the window below will display “Pointing in range” and “Connectable Mode.”Click OK to proceedThe Bluetooth®mouse driver will be installed. 9. Once the device is properly installed, the Bluetooth®icon on the system tray Will turn from Blue to Green.IX. LED Indicators:Status ⑤RED LED ⑥GREEN LEDStandby mode OFF OFFPower on OFF Blinks OnceWhen pairing Blinks Alternate RED & GREEN Until Paring is CompleteIn-use OFF ON When Device is Being UsedText Size OFF Blinks Once for 400dpiBlinks Twice for 800dpiLow Battery Blinks OFFVery Low Battery Blinks RED and Green 10 times simultaneously then Power offStatus ② Green/RED LEDCharging Red LED is On Full Charged Green LED is On Laser pointer Indicator Red LED is On
Page15X. Product Specifications● 2.4GHz Bluetooth® Optical Pen Mouse● Bluetooth 2.0, Bluetooth HID 1.0 Profile Support● Working Distance: 30ft (maximum)● Resolution: 800/400 DPI● Battery: Li-ion 3.7V/300mAh● Full Charging Time : 3 Hours● Continuous Use: 40 Hours● Continuous Standby : 1 Week● Dimensions: 154mm(L)×19mm(W)×18mm(H)● Weight: 22g● Length of Charging Cable: 7 ftXI. TroubleshootingTrouble Reason TroubleshootingeXo Does not Work Ensure the device is powered on. By checking that the Green LED is blinking. Switch the power switch to On.Battery power is weak. Charge the battery.eXo isn’t Working After Rebooting the PCeXo Is not properly paired with the computer. Turn OFF the eXo and turn it back ON this should allow the computer to rediscover the device. Can’t Pair the eXo to the PCThe eXo is not in pairing mode. (Check LED indicator status) Get the eXo into pairing mode by depressing the Page Up button ①and Page Down Button ③at the same time for 5 seconds. Reinitiate the paring process on the PC. Laser Pointer Does Not WorkBattery on the unit is dead. Charge the battery.eXo Does Not Charge Charging cable is not properly connected.Check if the plug on the charging cable is properly inserted into the eXo and check the Adaptor LED status.XII. Safety InstructionsWhen using your equipment, the basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury , including the following:1. Read and understand all instructions.2. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.3. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool.4. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.5.To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service contract or when some service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used.6. Never point the equipment at people, especially their faces, or look directly in to theMouse’s laser beam, to avoid possible eye damage.7. Avoid pointing the Mouse’s laser beam at a mirror or other highly reflective surface.8. Keep the Mouse away from young children.9. Never view the Mouse’s laser beam using telescopic devices, such as a microscopeor binoculars.10. Any attempt to disassemble, adjust or repair the Mouse may result in exposure tolaser light or other safety hazards.11. This is Class II Laser Product.Page16

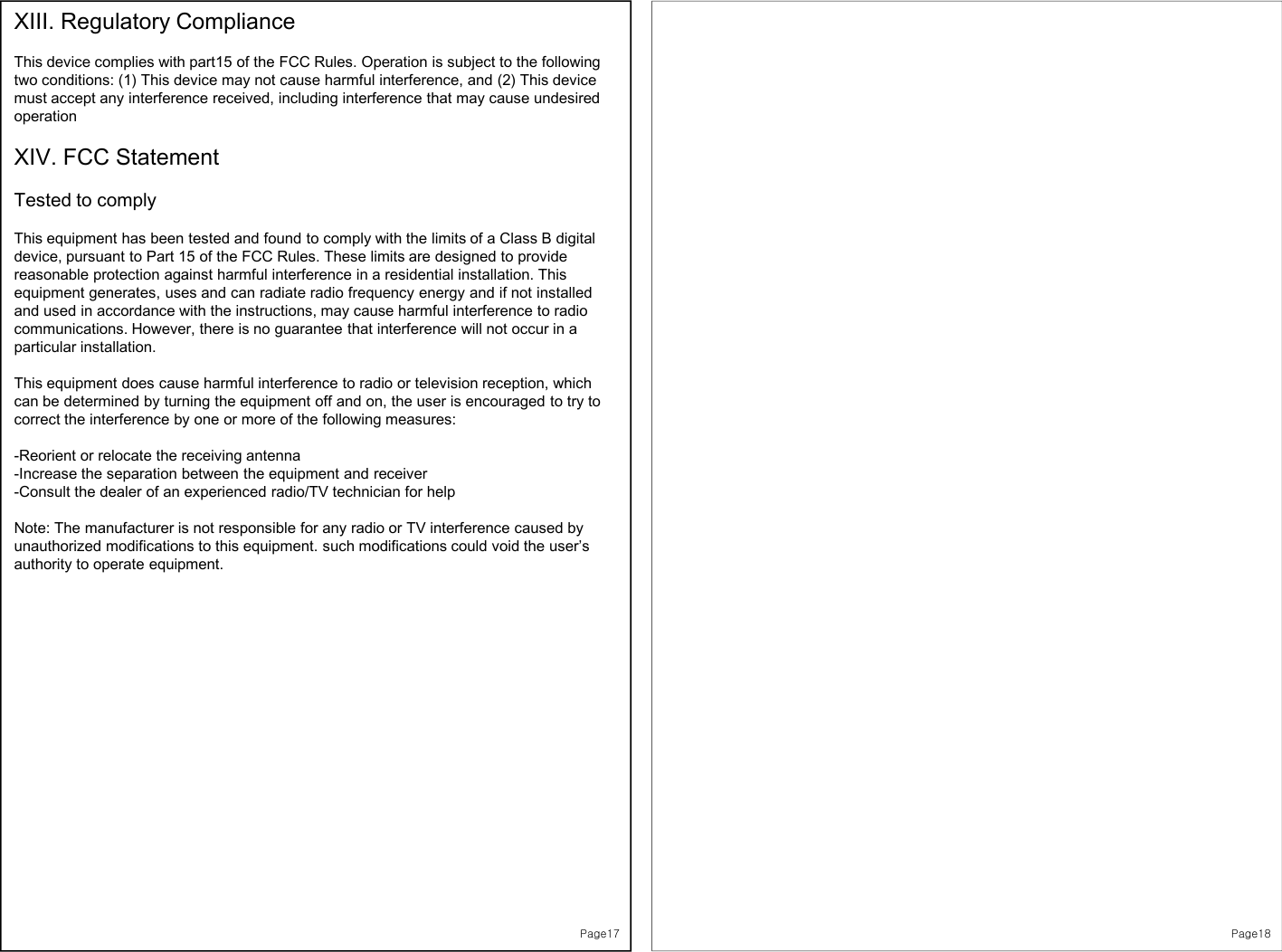

Page18XIII. Regulatory ComplianceThis device complies with part15 of the FCC Rules. Operation is subject to the followingtwo conditions: (1) This device may not cause harmful interference, and (2) This devicemust accept any interference received, including interference that may cause undesiredoperationXIV. FCC StatementTested to complyThis equipment has been tested and found to comply with the limits of a Class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installedand used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in a particular installation.This equipment does cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user is encouraged to try tocorrect the interference by one or more of the following measures:-Reorient or relocate the receiving antenna-Increase the separation between the equipment and receiver-Consult the dealer of an experienced radio/TV technician for helpNote: The manufacturer is not responsible for any radio or TV interference caused byunauthorized modifications to this equipment. such modifications could void the user’sauthority to operate equipment.Page17
