NG-001-C003-RDMS-R00B 07 January 2015 Distribution authorized to U.S. Government Agencies and their contractors due to critical technology as of 7 December 2011. Other requests for this document shall be referred to the controlling DOD office at U.S. Army PEO Simulation, Training, and Instrumentation (PEO STRI), SFAE-STRI-PM TRADE-CTIS, 12350 Research Parkway, Orlando, FL 32826-3276i RDMS IPU OPERATOR’S USER MANUAL for Combat Training Center - Instrumentation System (CTC-IS) Under: Contract No.: W900KK-09-D-0342-0002 CDRL No.: C003 Prepared for: Department of the Army Program Executive Office (PEO) SIMULATION TRAINING AND INSTRUMENTATION 12350 Research Parkway Orlando, Florida 32826-3276 Prepared by: Northrop Grumman Technical Services, Inc. (NGTSI) Training Solutions Division 2411 Dulles Corner Park South, Suite 600 Herndon, VA 20171 This document and all information therein is provided as part of the work being performed by Northrop Grumman Corporation under Task Order 0002 of Contract W900KK-09-0342 (the “Work”). The information is intended for use by the Government, and/or third parties functioning as technical advisors to the Government, in connection with the Work, and its distribution or use for any other purpose is subject to the prior review and approval of NGC.

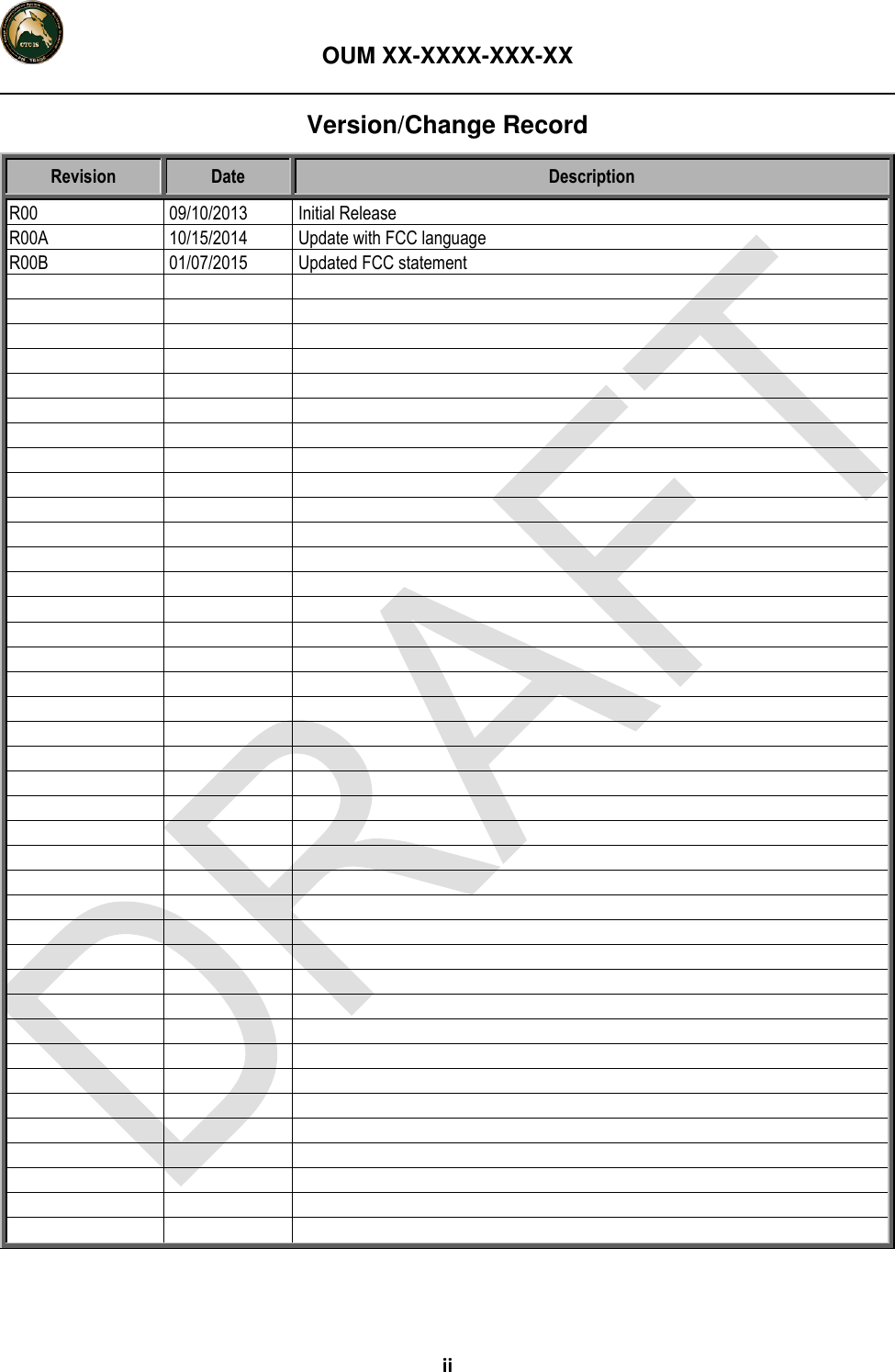

OUM XX-XXXX-XXX-XX ii Version/Change Record Revision Date Description R00 09/10/2013 Initial Release R00A 10/15/2014 Update with FCC language R00B 01/07/2015 Updated FCC statement

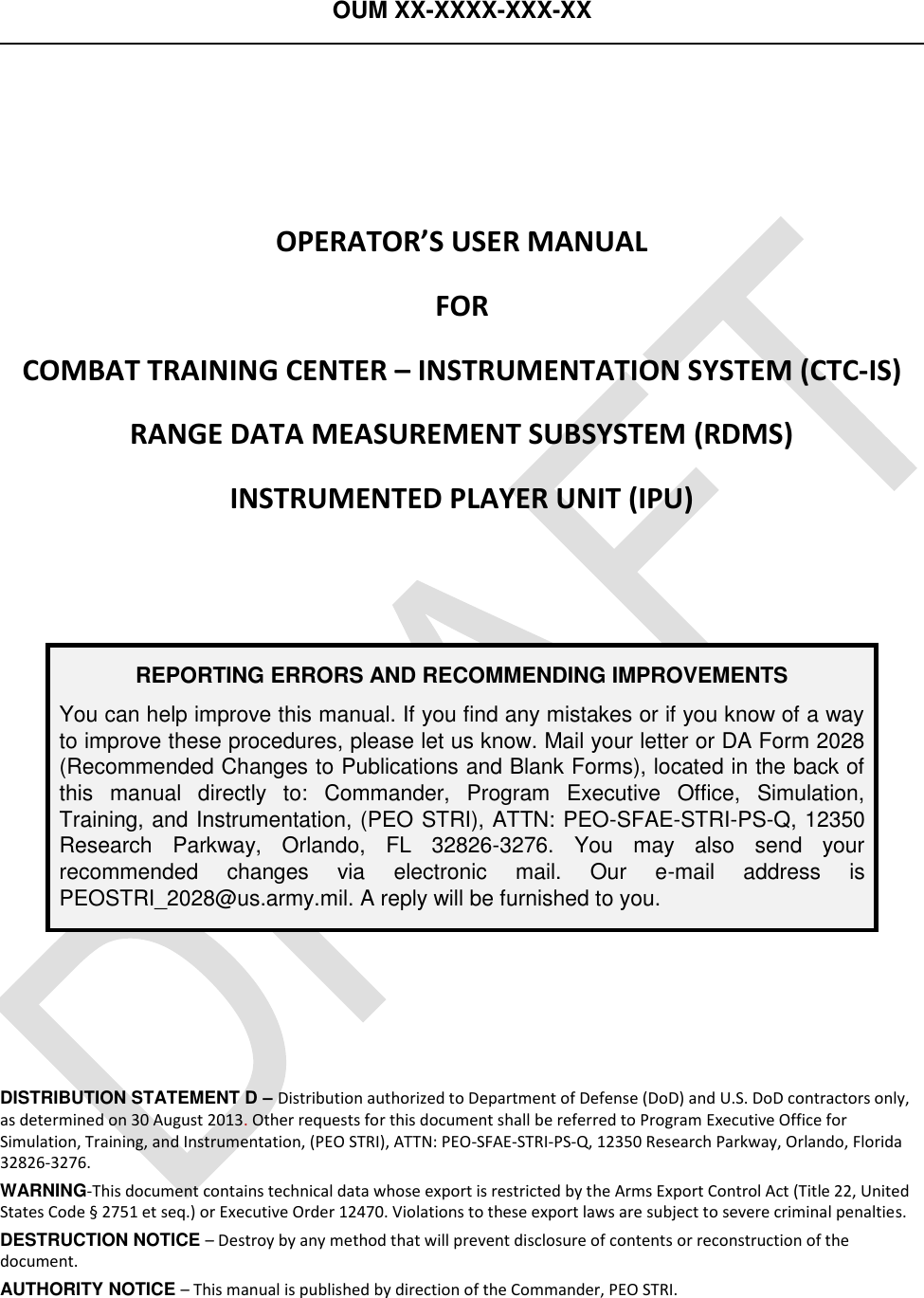

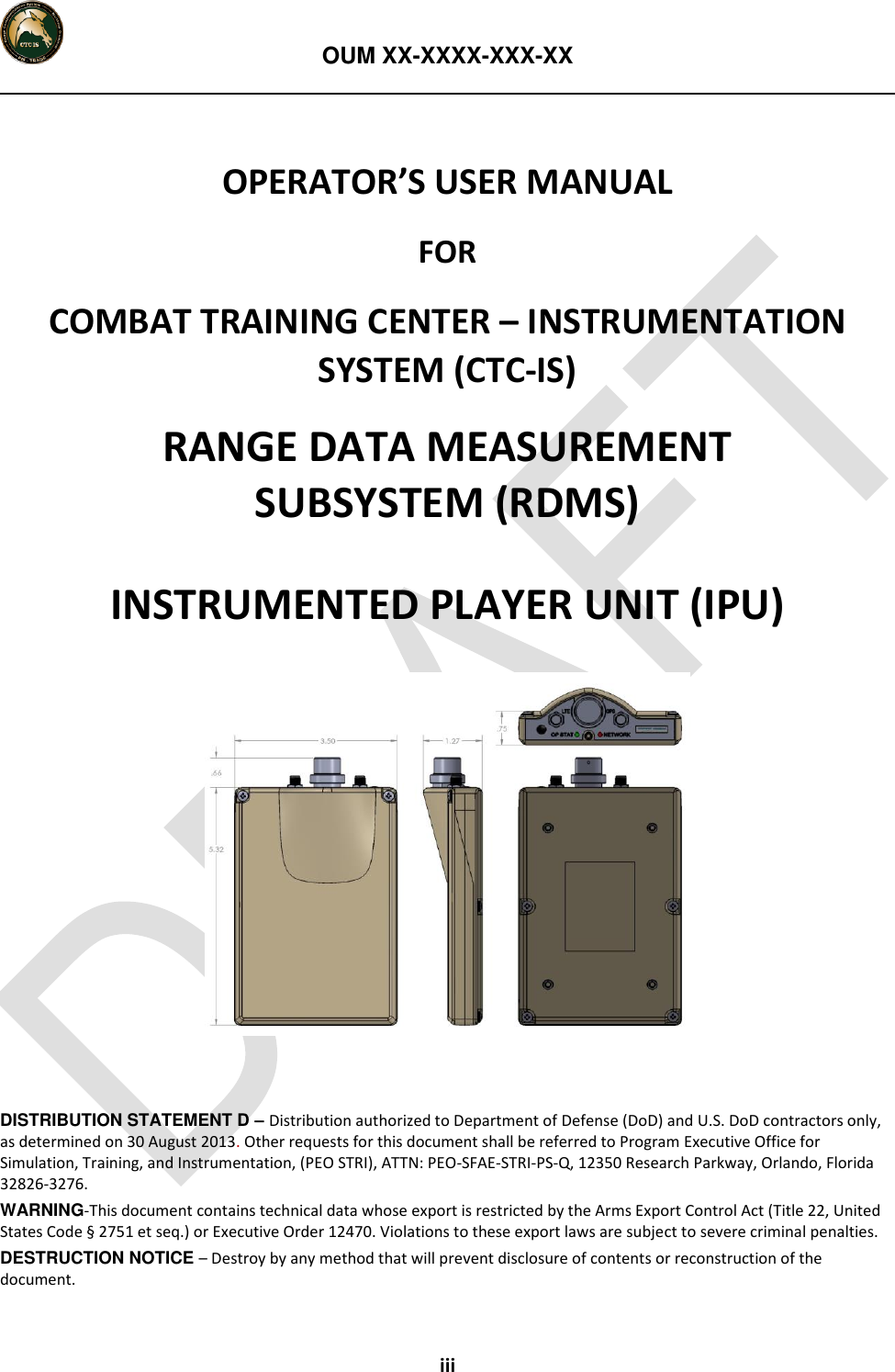

OUM XX-XXXX-XXX-XX iii OPERATOR’S USER MANUAL FOR COMBAT TRAINING CENTER – INSTRUMENTATION SYSTEM (CTC-IS) RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) DISTRIBUTION STATEMENT D – Distribution authorized to Department of Defense (DoD) and U.S. DoD contractors only, as determined on 30 August 2013. Other requests for this document shall be referred to Program Executive Office for Simulation, Training, and Instrumentation, (PEO STRI), ATTN: PEO-SFAE-STRI-PS-Q, 12350 Research Parkway, Orlando, Florida 32826-3276. WARNING-This document contains technical data whose export is restricted by the Arms Export Control Act (Title 22, United States Code § 2751 et seq.) or Executive Order 12470. Violations to these export laws are subject to severe criminal penalties. DESTRUCTION NOTICE – Destroy by any method that will prevent disclosure of contents or reconstruction of the document.

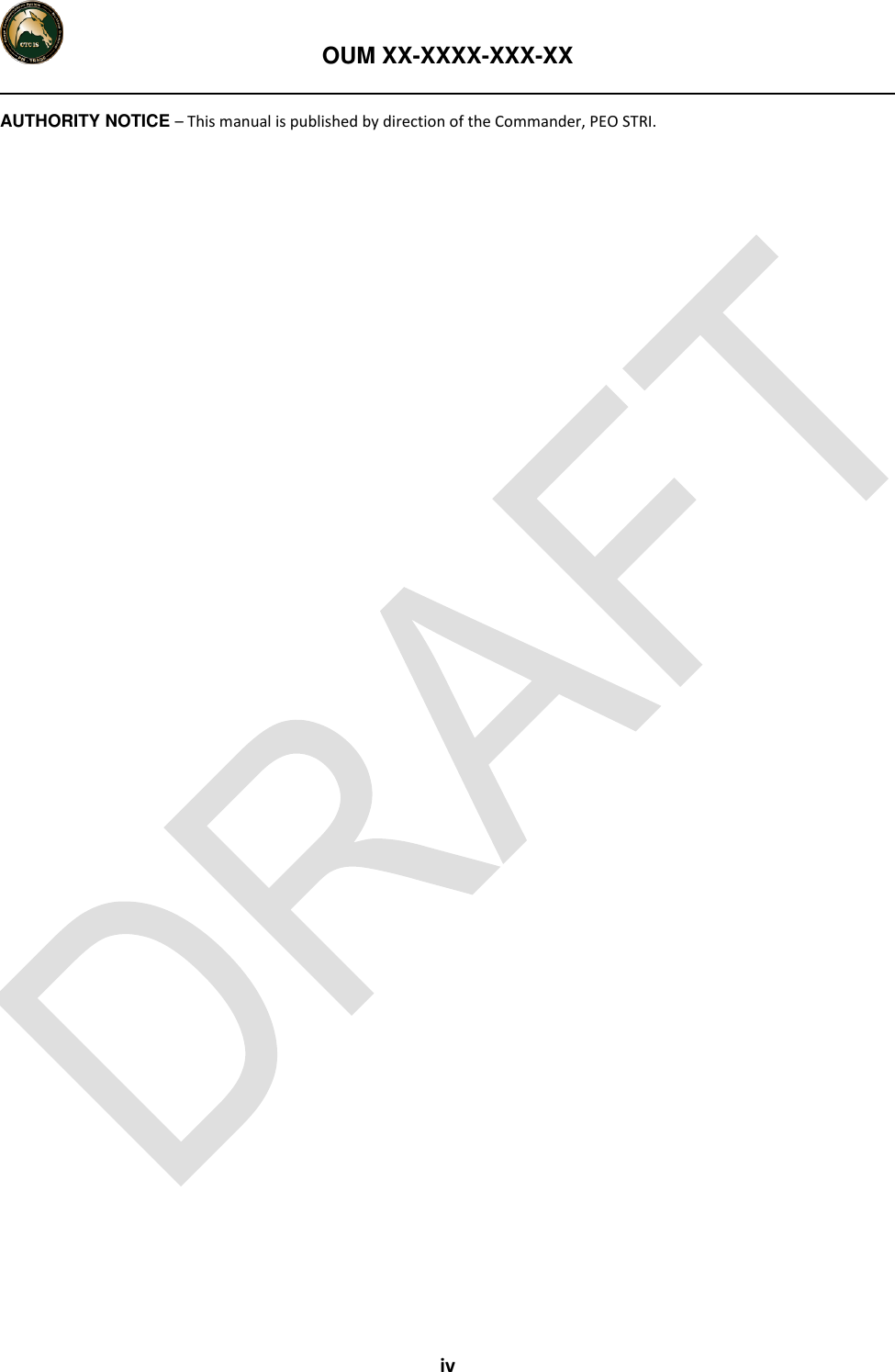

OUM XX-XXXX-XXX-XX iv AUTHORITY NOTICE – This manual is published by direction of the Commander, PEO STRI.

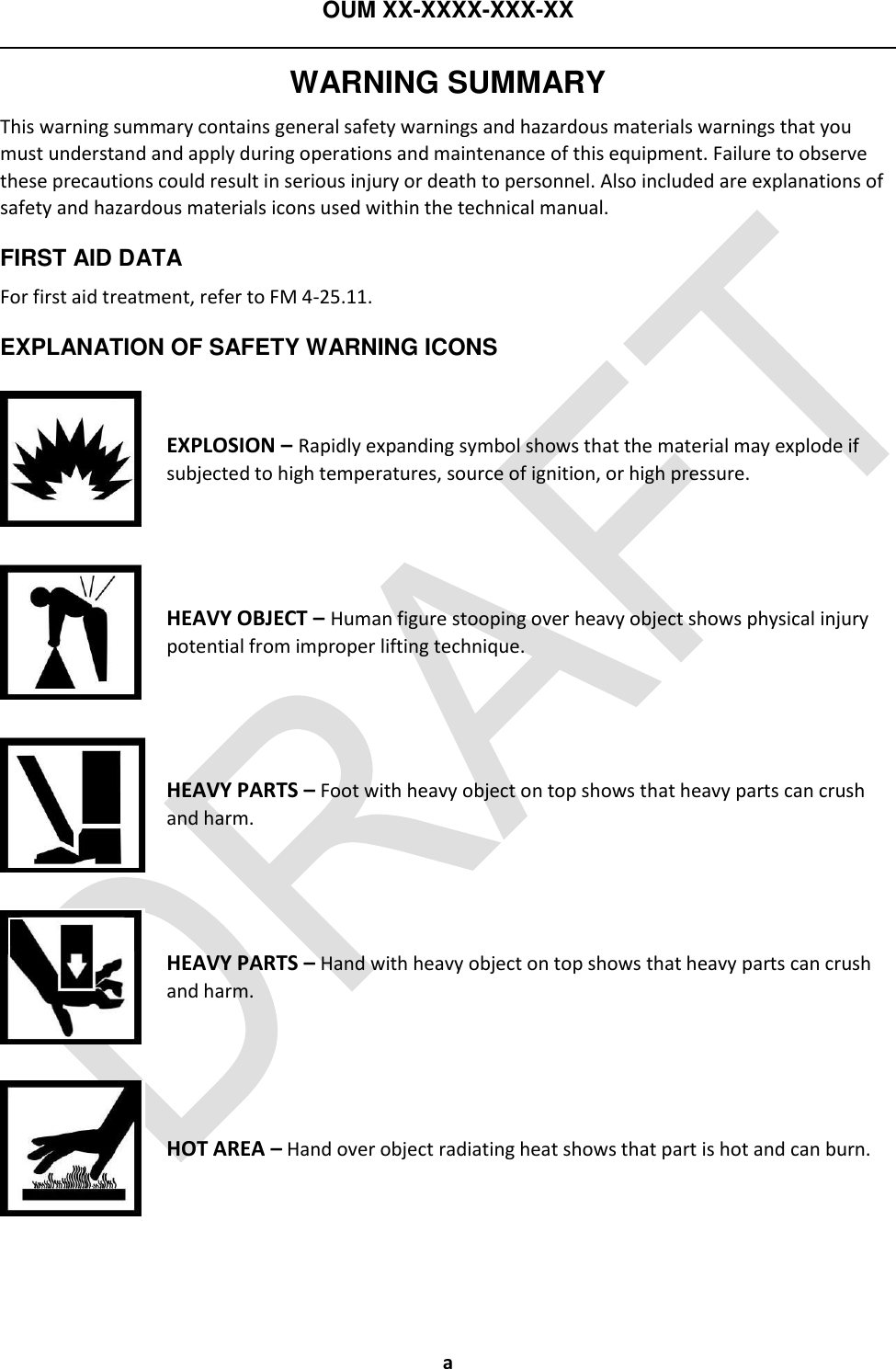

OUM XX-XXXX-XXX-XX a WARNING SUMMARY This warning summary contains general safety warnings and hazardous materials warnings that you must understand and apply during operations and maintenance of this equipment. Failure to observe these precautions could result in serious injury or death to personnel. Also included are explanations of safety and hazardous materials icons used within the technical manual. FIRST AID DATA For first aid treatment, refer to FM 4-25.11. EXPLANATION OF SAFETY WARNING ICONS EXPLOSION – Rapidly expanding symbol shows that the material may explode if subjected to high temperatures, source of ignition, or high pressure. HEAVY OBJECT – Human figure stooping over heavy object shows physical injury potential from improper lifting technique. HEAVY PARTS – Foot with heavy object on top shows that heavy parts can crush and harm. HEAVY PARTS – Hand with heavy object on top shows that heavy parts can crush and harm. HOT AREA – Hand over object radiating heat shows that part is hot and can burn.

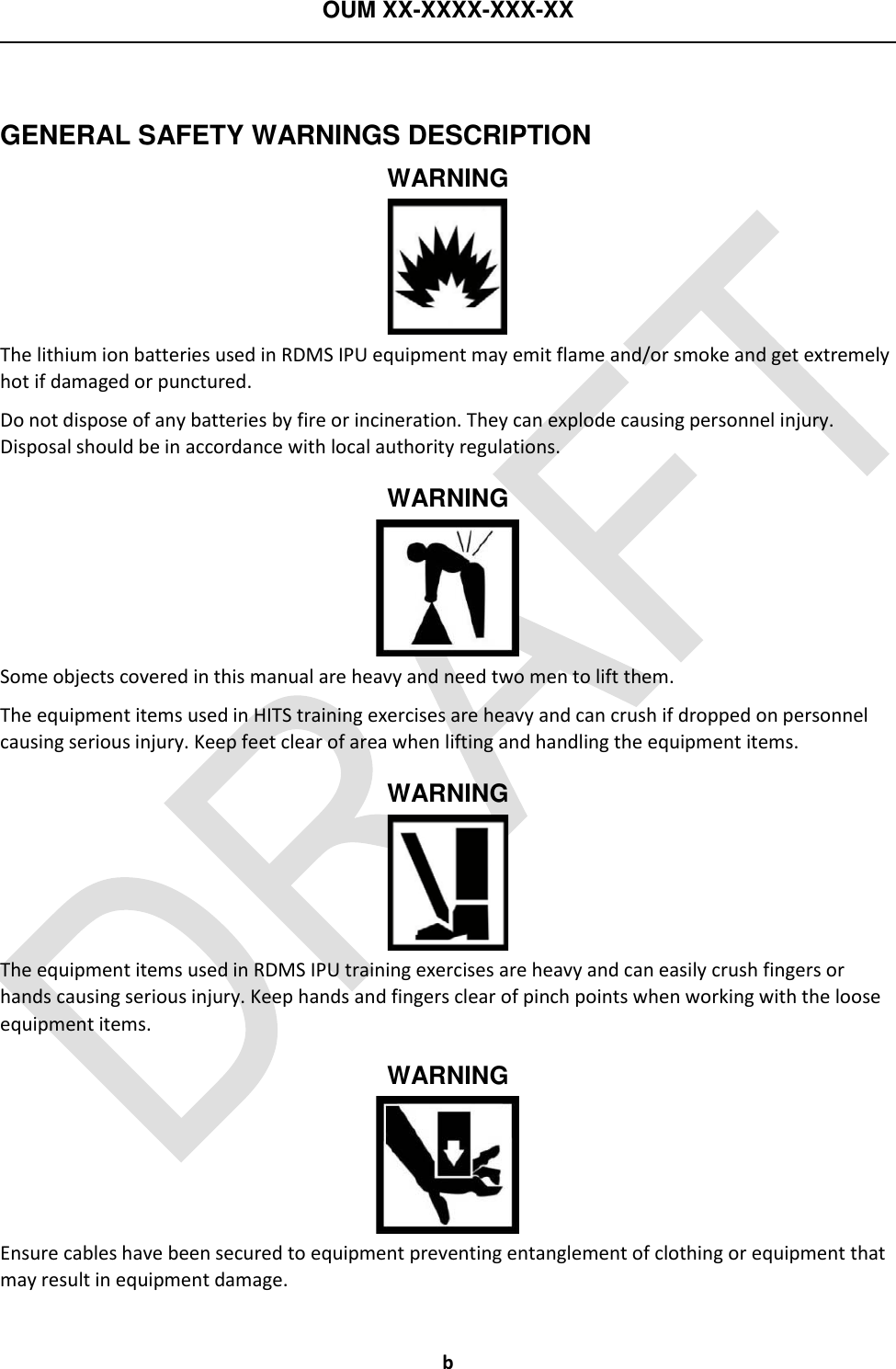

OUM XX-XXXX-XXX-XX b GENERAL SAFETY WARNINGS DESCRIPTION WARNING The lithium ion batteries used in RDMS IPU equipment may emit flame and/or smoke and get extremely hot if damaged or punctured. Do not dispose of any batteries by fire or incineration. They can explode causing personnel injury. Disposal should be in accordance with local authority regulations. WARNING Some objects covered in this manual are heavy and need two men to lift them. The equipment items used in HITS training exercises are heavy and can crush if dropped on personnel causing serious injury. Keep feet clear of area when lifting and handling the equipment items. WARNING The equipment items used in RDMS IPU training exercises are heavy and can easily crush fingers or hands causing serious injury. Keep hands and fingers clear of pinch points when working with the loose equipment items. WARNING Ensure cables have been secured to equipment preventing entanglement of clothing or equipment that may result in equipment damage.

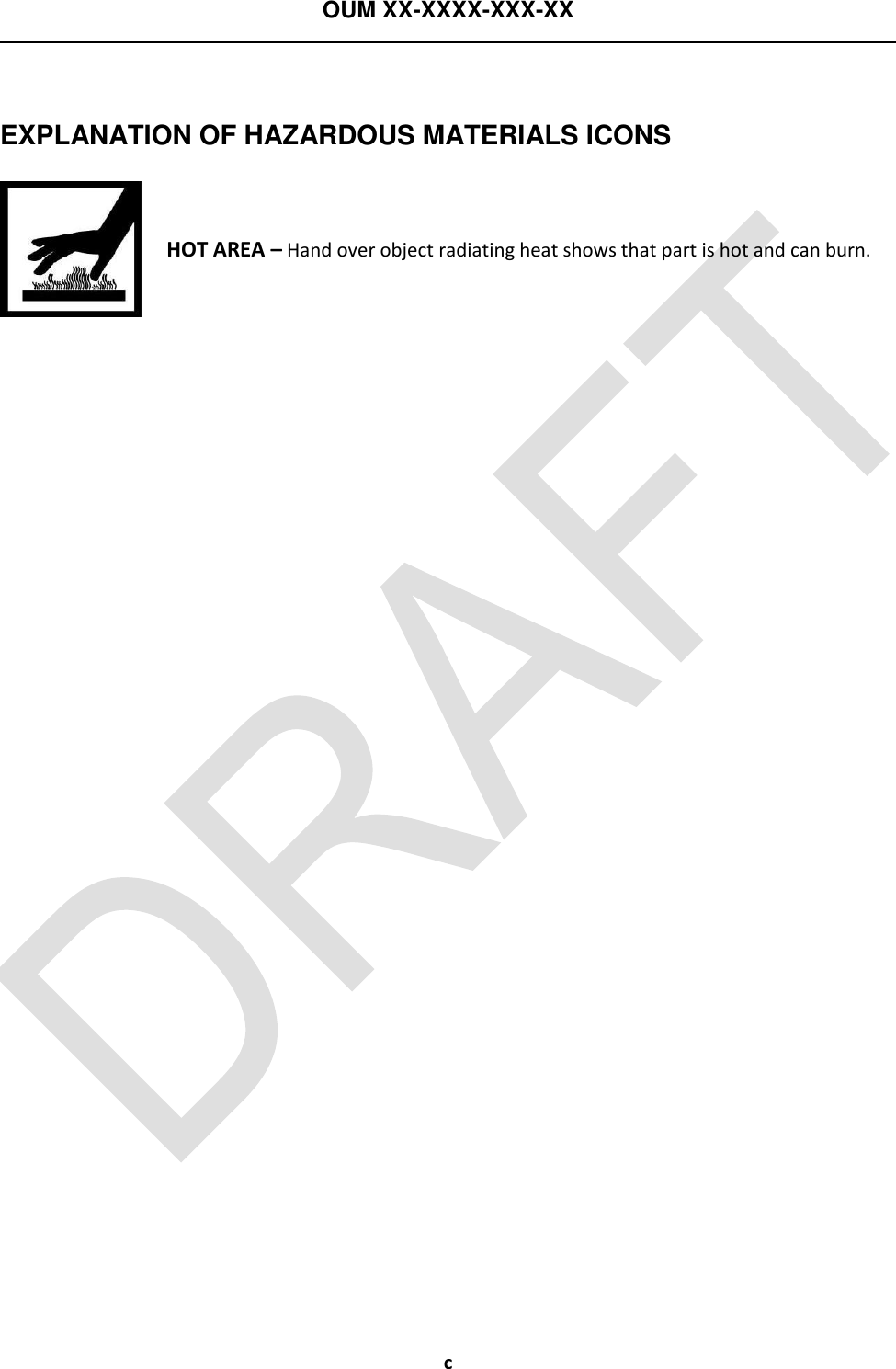

OUM XX-XXXX-XXX-XX c EXPLANATION OF HAZARDOUS MATERIALS ICONS HOT AREA – Hand over object radiating heat shows that part is hot and can burn.

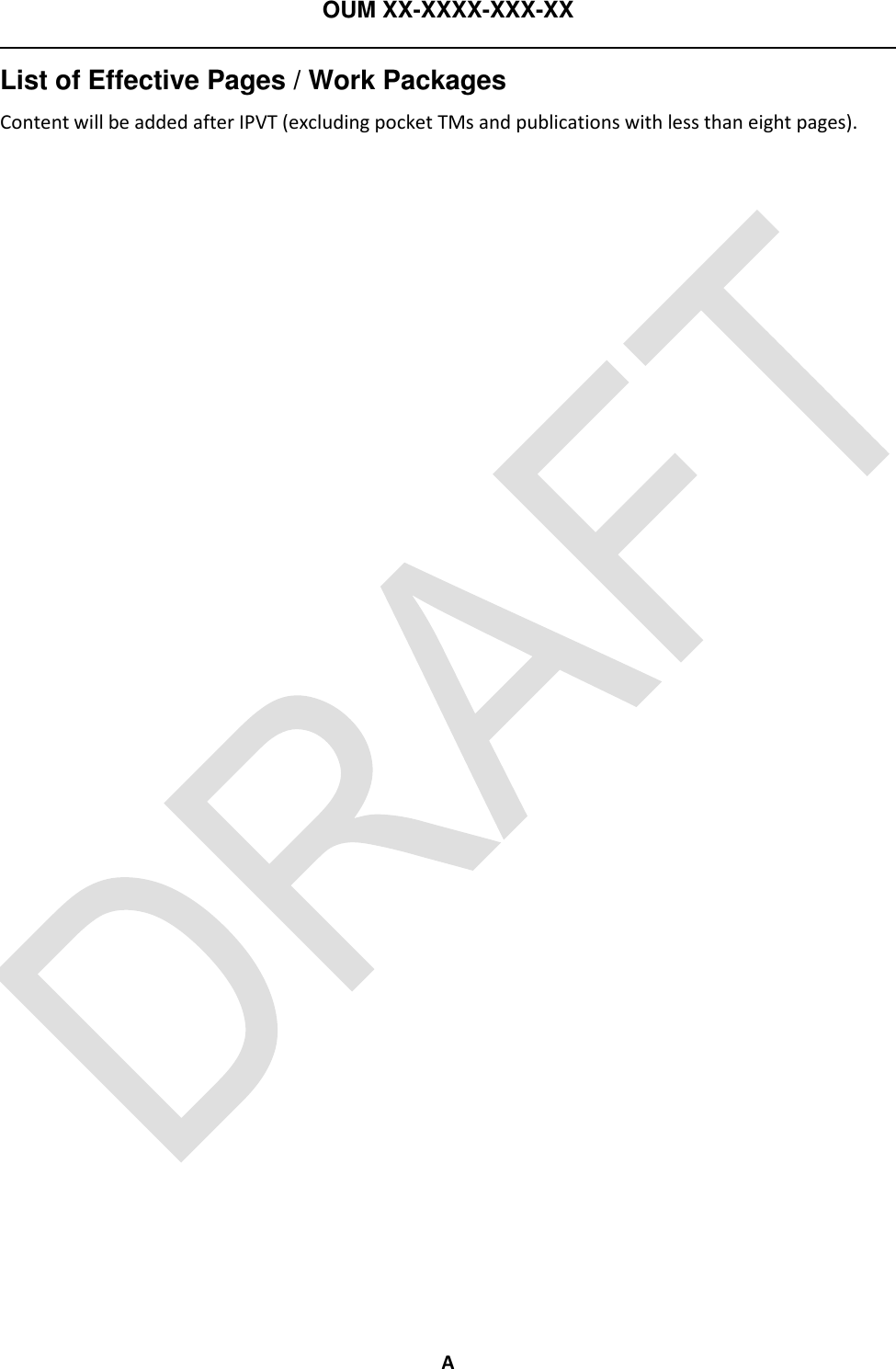

OUM XX-XXXX-XXX-XX A List of Effective Pages / Work Packages Content will be added after IPVT (excluding pocket TMs and publications with less than eight pages).
OUM XX-XXXX-XXX-XX OPERATOR’S USER MANUAL FOR COMBAT TRAINING CENTER – INSTRUMENTATION SYSTEM (CTC-IS) RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) REPORTING ERRORS AND RECOMMENDING IMPROVEMENTS You can help improve this manual. If you find any mistakes or if you know of a way to improve these procedures, please let us know. Mail your letter or DA Form 2028 (Recommended Changes to Publications and Blank Forms), located in the back of this manual directly to: Commander, Program Executive Office, Simulation, Training, and Instrumentation, (PEO STRI), ATTN: PEO-SFAE-STRI-PS-Q, 12350 Research Parkway, Orlando, FL 32826-3276. You may also send your recommended changes via electronic mail. Our e-mail address is PEOSTRI_2028@us.army.mil. A reply will be furnished to you. DISTRIBUTION STATEMENT D – Distribution authorized to Department of Defense (DoD) and U.S. DoD contractors only, as determined on 30 August 2013. Other requests for this document shall be referred to Program Executive Office for Simulation, Training, and Instrumentation, (PEO STRI), ATTN: PEO-SFAE-STRI-PS-Q, 12350 Research Parkway, Orlando, Florida 32826-3276. WARNING-This document contains technical data whose export is restricted by the Arms Export Control Act (Title 22, United States Code § 2751 et seq.) or Executive Order 12470. Violations to these export laws are subject to severe criminal penalties. DESTRUCTION NOTICE – Destroy by any method that will prevent disclosure of contents or reconstruction of the document. AUTHORITY NOTICE – This manual is published by direction of the Commander, PEO STRI.

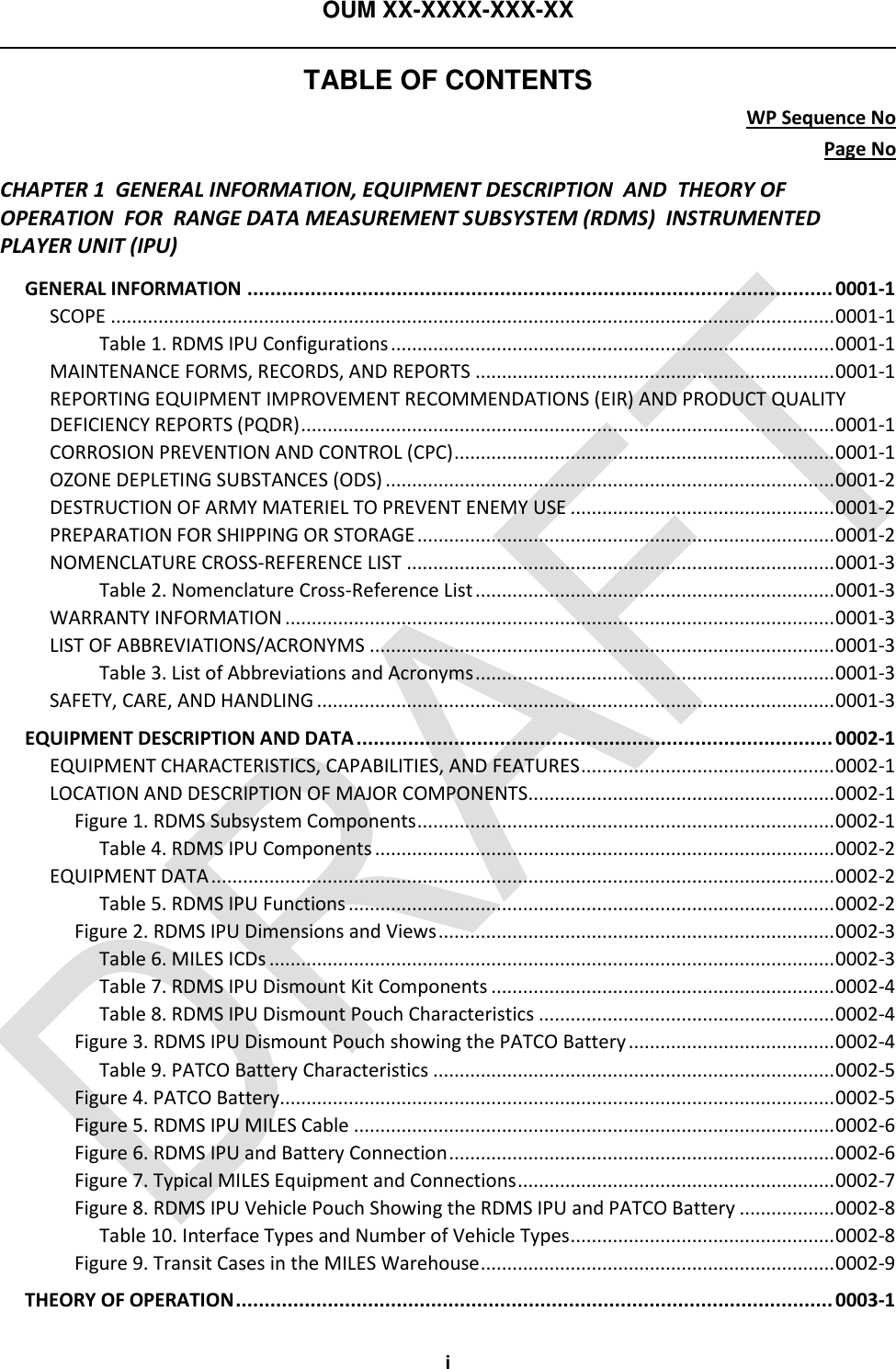

OUM XX-XXXX-XXX-XX TABLE OF CONTENTS WP Sequence No Page No i CHAPTER 1 GENERAL INFORMATION, EQUIPMENT DESCRIPTION AND THEORY OF OPERATION FOR RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) GENERAL INFORMATION ...................................................................................................... 0001-1 SCOPE ......................................................................................................................................... 0001-1 Table 1. RDMS IPU Configurations .................................................................................... 0001-1 MAINTENANCE FORMS, RECORDS, AND REPORTS .................................................................... 0001-1 REPORTING EQUIPMENT IMPROVEMENT RECOMMENDATIONS (EIR) AND PRODUCT QUALITY DEFICIENCY REPORTS (PQDR) ..................................................................................................... 0001-1 CORROSION PREVENTION AND CONTROL (CPC) ........................................................................ 0001-1 OZONE DEPLETING SUBSTANCES (ODS) ..................................................................................... 0001-2 DESTRUCTION OF ARMY MATERIEL TO PREVENT ENEMY USE .................................................. 0001-2 PREPARATION FOR SHIPPING OR STORAGE ............................................................................... 0001-2 NOMENCLATURE CROSS-REFERENCE LIST ................................................................................. 0001-3 Table 2. Nomenclature Cross-Reference List .................................................................... 0001-3 WARRANTY INFORMATION ........................................................................................................ 0001-3 LIST OF ABBREVIATIONS/ACRONYMS ........................................................................................ 0001-3 Table 3. List of Abbreviations and Acronyms .................................................................... 0001-3 SAFETY, CARE, AND HANDLING .................................................................................................. 0001-3 EQUIPMENT DESCRIPTION AND DATA ................................................................................... 0002-1 EQUIPMENT CHARACTERISTICS, CAPABILITIES, AND FEATURES ................................................ 0002-1 LOCATION AND DESCRIPTION OF MAJOR COMPONENTS .......................................................... 0002-1 Figure 1. RDMS Subsystem Components ............................................................................... 0002-1 Table 4. RDMS IPU Components ....................................................................................... 0002-2 EQUIPMENT DATA ...................................................................................................................... 0002-2 Table 5. RDMS IPU Functions ............................................................................................ 0002-2 Figure 2. RDMS IPU Dimensions and Views ........................................................................... 0002-3 Table 6. MILES ICDs ........................................................................................................... 0002-3 Table 7. RDMS IPU Dismount Kit Components ................................................................. 0002-4 Table 8. RDMS IPU Dismount Pouch Characteristics ........................................................ 0002-4 Figure 3. RDMS IPU Dismount Pouch showing the PATCO Battery ....................................... 0002-4 Table 9. PATCO Battery Characteristics ............................................................................ 0002-5 Figure 4. PATCO Battery......................................................................................................... 0002-5 Figure 5. RDMS IPU MILES Cable ........................................................................................... 0002-6 Figure 6. RDMS IPU and Battery Connection ......................................................................... 0002-6 Figure 7. Typical MILES Equipment and Connections ............................................................ 0002-7 Figure 8. RDMS IPU Vehicle Pouch Showing the RDMS IPU and PATCO Battery .................. 0002-8 Table 10. Interface Types and Number of Vehicle Types .................................................. 0002-8 Figure 9. Transit Cases in the MILES Warehouse ................................................................... 0002-9 THEORY OF OPERATION ........................................................................................................ 0003-1
OUM XX-XXXX-XXX-XX TABLE OF CONTENTS WP Sequence No Page No ii SYSTEM THEORY ......................................................................................................................... 0003-1 Figure 10. RDMS IPU Communication Configuration ............................................................ 0003-1 Table 11. MILES ICDs ......................................................................................................... 0003-2 CHAPTER 2 OPERATOR INSTRUCTIONS FOR RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) CONTROLS AND INDICATORS ................................................................................................ 0004-1 DESCRIPTION AND USE OF OPERATOR CONTROLS AND INDICATORS ....................................... 0004-1 OPERATION UNDER USUAL CONDITIONS ............................................................................... 0005-1 OPERATION UNDER USUAL CONDITIONS ................................................................................... 0005-1 Table 12. RDMS IPU Initialization State ............................................................................ 0005-2 Figure 11. RDMS IPU Initialization State ............................................................................... 0005-2 Table 13. RDMS Enters the Operational State .................................................................. 0005-3 Figure 12. RDMS IPU Operational State ................................................................................. 0005-3 Table 14. Diagnostics Mode Indicators ............................................................................. 0005-4 Figure 13. RDMS IPU Diagnostics Mode ................................................................................ 0005-4 OPERATION UNDER UNUSUAL CONDITIONS.............................................................................. 0005-4 CHAPTER 3 TROUBLESHOOTING PROCEDURES FOR RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) TROUBLESHOOTING PROCEDURES ........................................................................................ 0006-1 INTRODUCTION .......................................................................................................................... 0006-1 MALFUNCTION/SYMPTOM INDEX .............................................................................................. 0006-1 Figure 14. RDMS IPU Dismounted Configuration .................................................................. 0006-1 Table 15. RDMS IPU Dismounted Configuration Troubleshooting Chart .......................... 0006-2 Table 16. RDMS IPU Mounted Configuration Troubleshooting Chart .............................. 0006-3 Figure 15. RDMS IPU Mounted Configuration ....................................................................... 0006-5 OPERATIONAL CHECKOUT .......................................................................................................... 0006-5 CHAPTER 4 MAINTENANCE INSTRUCTIONS FOR RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) SERVICE UPON RECEIPT......................................................................................................... 0007-1 SERVICE UPON RECEIPT (FIELD LEVEL ONLY) .............................................................................. 0007-1 EQUIPMENT / USER FITTING INSTRUCTIONS ............................................................................. 0007-1 SERVICE UPON RECEIPT......................................................................................................... 0008-1 PMCS INTRODUCTION ................................................................................................................ 0008-1 PMCS, INCLUDING LUBRICATION INSTRUCTIONS ...................................................................... 0008-1 MAINTENANCE ..................................................................................................................... 0009-1 RDMS IPU DISMOUNTED CONFIGURATION MAINTENANCE ...................................................... 0009-1 Figure 16. RDMS IPU Dismounted Configuration .................................................................. 0009-1

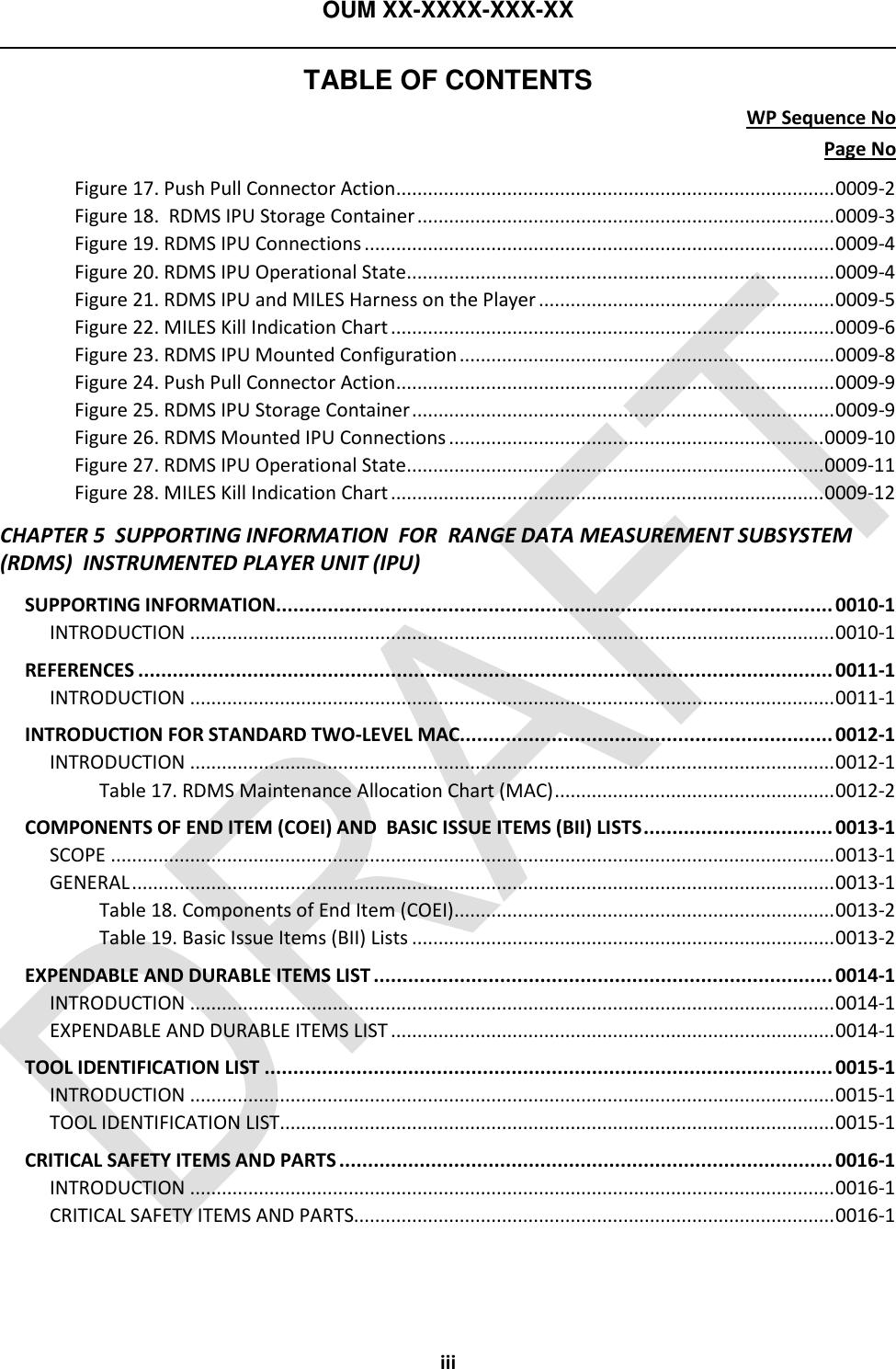

OUM XX-XXXX-XXX-XX TABLE OF CONTENTS WP Sequence No Page No iii Figure 17. Push Pull Connector Action ................................................................................... 0009-2 Figure 18. RDMS IPU Storage Container ............................................................................... 0009-3 Figure 19. RDMS IPU Connections ......................................................................................... 0009-4 Figure 20. RDMS IPU Operational State ................................................................................. 0009-4 Figure 21. RDMS IPU and MILES Harness on the Player ........................................................ 0009-5 Figure 22. MILES Kill Indication Chart .................................................................................... 0009-6 Figure 23. RDMS IPU Mounted Configuration ....................................................................... 0009-8 Figure 24. Push Pull Connector Action ................................................................................... 0009-9 Figure 25. RDMS IPU Storage Container ................................................................................ 0009-9 Figure 26. RDMS Mounted IPU Connections ....................................................................... 0009-10 Figure 27. RDMS IPU Operational State ............................................................................... 0009-11 Figure 28. MILES Kill Indication Chart .................................................................................. 0009-12 CHAPTER 5 SUPPORTING INFORMATION FOR RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) SUPPORTING INFORMATION................................................................................................. 0010-1 INTRODUCTION .......................................................................................................................... 0010-1 REFERENCES ......................................................................................................................... 0011-1 INTRODUCTION .......................................................................................................................... 0011-1 INTRODUCTION FOR STANDARD TWO-LEVEL MAC................................................................. 0012-1 INTRODUCTION .......................................................................................................................... 0012-1 Table 17. RDMS Maintenance Allocation Chart (MAC) ..................................................... 0012-2 COMPONENTS OF END ITEM (COEI) AND BASIC ISSUE ITEMS (BII) LISTS ................................. 0013-1 SCOPE ......................................................................................................................................... 0013-1 GENERAL ..................................................................................................................................... 0013-1 Table 18. Components of End Item (COEI) ........................................................................ 0013-2 Table 19. Basic Issue Items (BII) Lists ................................................................................ 0013-2 EXPENDABLE AND DURABLE ITEMS LIST ................................................................................ 0014-1 INTRODUCTION .......................................................................................................................... 0014-1 EXPENDABLE AND DURABLE ITEMS LIST .................................................................................... 0014-1 TOOL IDENTIFICATION LIST ................................................................................................... 0015-1 INTRODUCTION .......................................................................................................................... 0015-1 TOOL IDENTIFICATION LIST ......................................................................................................... 0015-1 CRITICAL SAFETY ITEMS AND PARTS ...................................................................................... 0016-1 INTRODUCTION .......................................................................................................................... 0016-1 CRITICAL SAFETY ITEMS AND PARTS........................................................................................... 0016-1

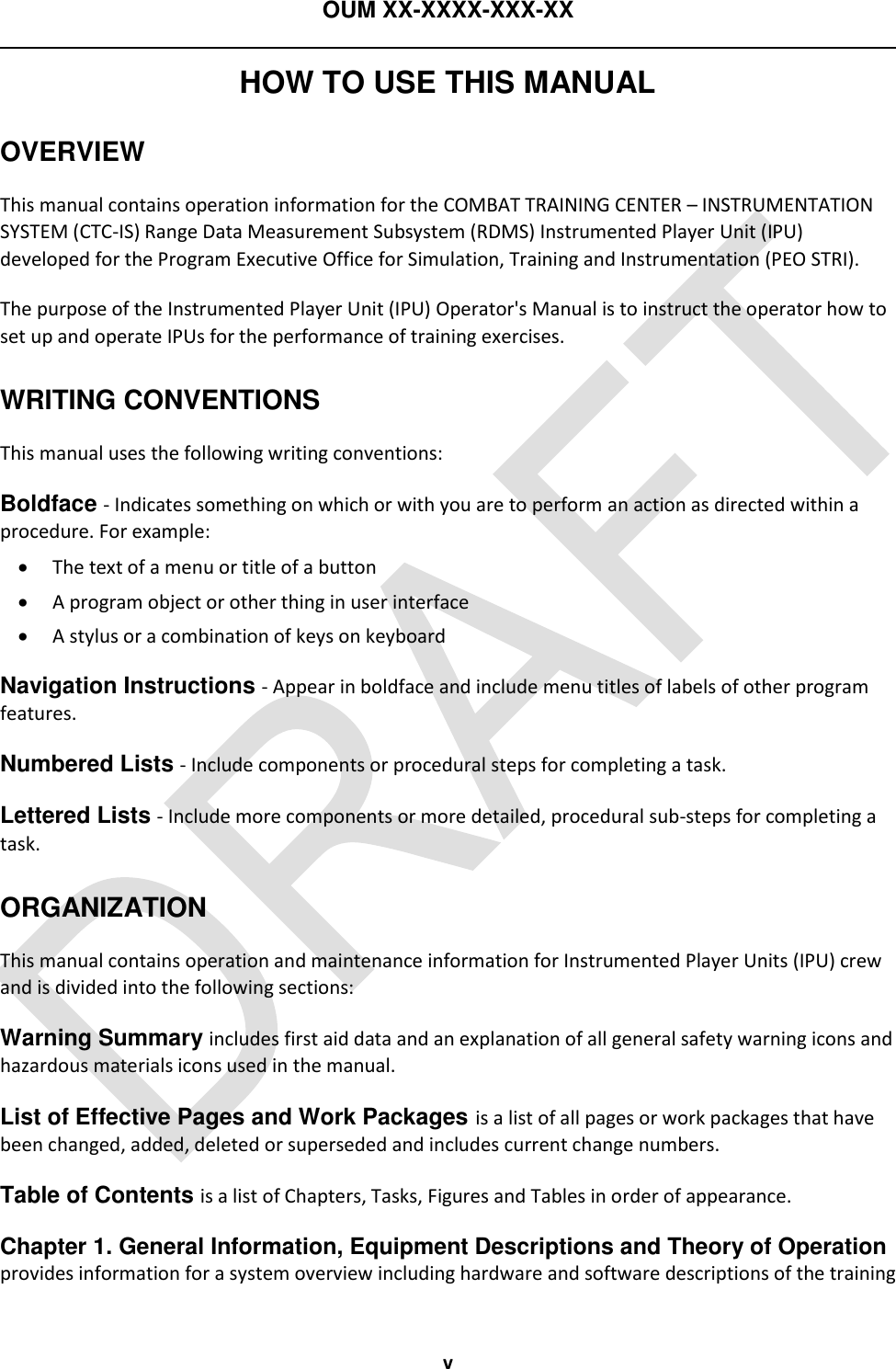

OUM XX-XXXX-XXX-XX v HOW TO USE THIS MANUAL OVERVIEW This manual contains operation information for the COMBAT TRAINING CENTER – INSTRUMENTATION SYSTEM (CTC-IS) Range Data Measurement Subsystem (RDMS) Instrumented Player Unit (IPU) developed for the Program Executive Office for Simulation, Training and Instrumentation (PEO STRI). The purpose of the Instrumented Player Unit (IPU) Operator's Manual is to instruct the operator how to set up and operate IPUs for the performance of training exercises. WRITING CONVENTIONS This manual uses the following writing conventions: Boldface - Indicates something on which or with you are to perform an action as directed within a procedure. For example:  The text of a menu or title of a button  A program object or other thing in user interface  A stylus or a combination of keys on keyboard Navigation Instructions - Appear in boldface and include menu titles of labels of other program features. Numbered Lists - Include components or procedural steps for completing a task. Lettered Lists - Include more components or more detailed, procedural sub-steps for completing a task. ORGANIZATION This manual contains operation and maintenance information for Instrumented Player Units (IPU) crew and is divided into the following sections: Warning Summary includes first aid data and an explanation of all general safety warning icons and hazardous materials icons used in the manual. List of Effective Pages and Work Packages is a list of all pages or work packages that have been changed, added, deleted or superseded and includes current change numbers. Table of Contents is a list of Chapters, Tasks, Figures and Tables in order of appearance. Chapter 1. General Information, Equipment Descriptions and Theory of Operation provides information for a system overview including hardware and software descriptions of the training

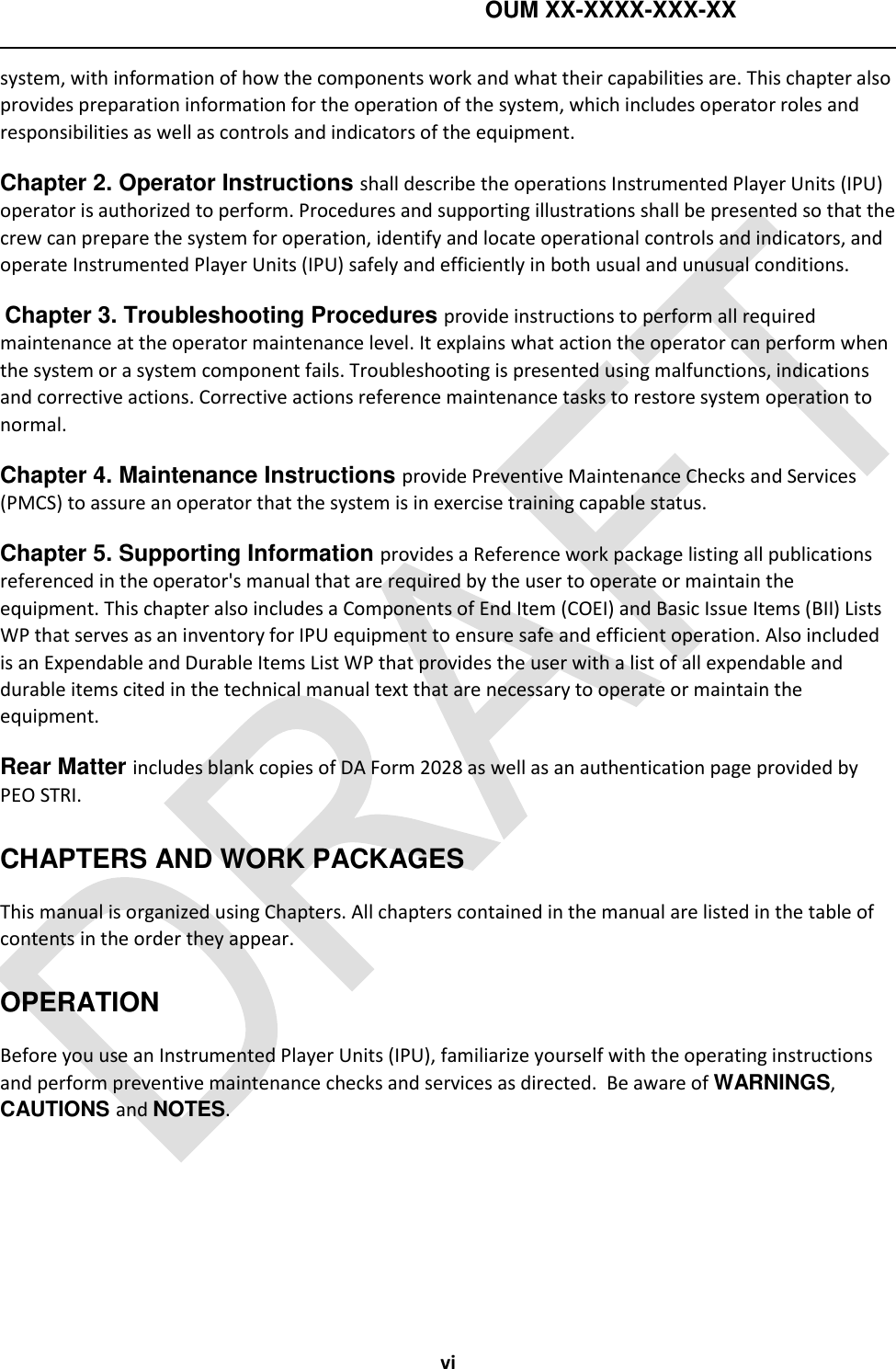

OUM XX-XXXX-XXX-XX vi system, with information of how the components work and what their capabilities are. This chapter also provides preparation information for the operation of the system, which includes operator roles and responsibilities as well as controls and indicators of the equipment. Chapter 2. Operator Instructions shall describe the operations Instrumented Player Units (IPU) operator is authorized to perform. Procedures and supporting illustrations shall be presented so that the crew can prepare the system for operation, identify and locate operational controls and indicators, and operate Instrumented Player Units (IPU) safely and efficiently in both usual and unusual conditions. Chapter 3. Troubleshooting Procedures provide instructions to perform all required maintenance at the operator maintenance level. It explains what action the operator can perform when the system or a system component fails. Troubleshooting is presented using malfunctions, indications and corrective actions. Corrective actions reference maintenance tasks to restore system operation to normal. Chapter 4. Maintenance Instructions provide Preventive Maintenance Checks and Services (PMCS) to assure an operator that the system is in exercise training capable status. Chapter 5. Supporting Information provides a Reference work package listing all publications referenced in the operator's manual that are required by the user to operate or maintain the equipment. This chapter also includes a Components of End Item (COEI) and Basic Issue Items (BII) Lists WP that serves as an inventory for IPU equipment to ensure safe and efficient operation. Also included is an Expendable and Durable Items List WP that provides the user with a list of all expendable and durable items cited in the technical manual text that are necessary to operate or maintain the equipment. Rear Matter includes blank copies of DA Form 2028 as well as an authentication page provided by PEO STRI. CHAPTERS AND WORK PACKAGES This manual is organized using Chapters. All chapters contained in the manual are listed in the table of contents in the order they appear. OPERATION Before you use an Instrumented Player Units (IPU), familiarize yourself with the operating instructions and perform preventive maintenance checks and services as directed. Be aware of WARNINGS, CAUTIONS and NOTES.

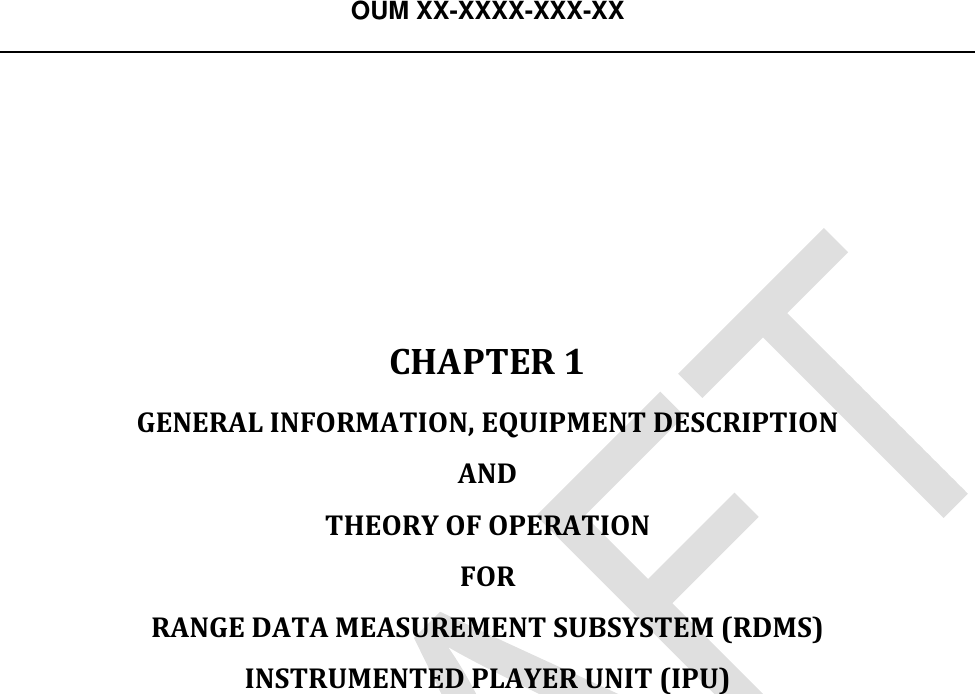

OUM XX-XXXX-XXX-XX CHAPTER 1 GENERAL INFORMATION, EQUIPMENT DESCRIPTION AND THEORY OF OPERATION FOR RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU)

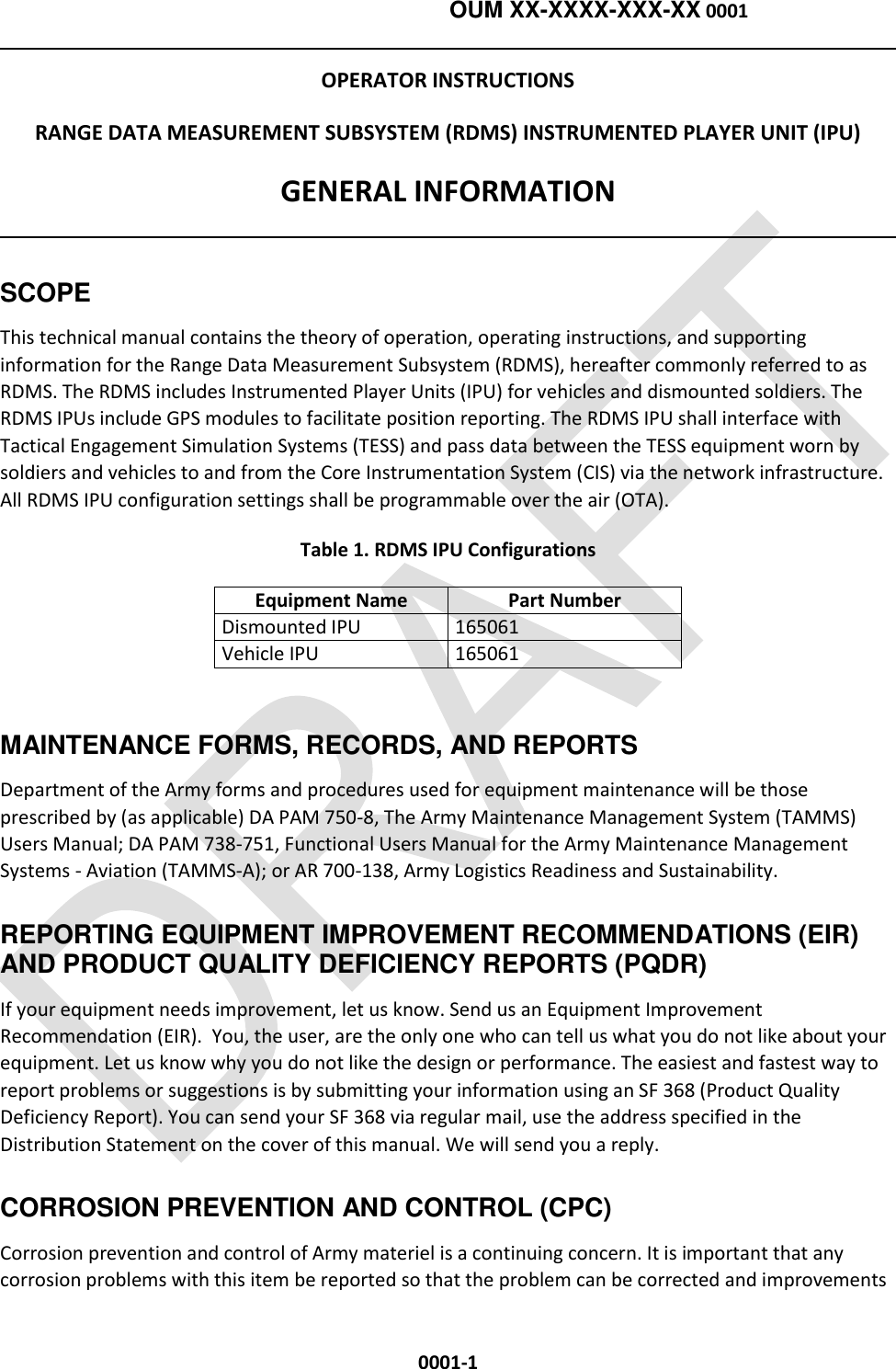

OUM XX-XXXX-XXX-XX 0001 0001-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) GENERAL INFORMATION SCOPE This technical manual contains the theory of operation, operating instructions, and supporting information for the Range Data Measurement Subsystem (RDMS), hereafter commonly referred to as RDMS. The RDMS includes Instrumented Player Units (IPU) for vehicles and dismounted soldiers. The RDMS IPUs include GPS modules to facilitate position reporting. The RDMS IPU shall interface with Tactical Engagement Simulation Systems (TESS) and pass data between the TESS equipment worn by soldiers and vehicles to and from the Core Instrumentation System (CIS) via the network infrastructure. All RDMS IPU configuration settings shall be programmable over the air (OTA). Table 1. RDMS IPU Configurations Equipment Name Part Number Dismounted IPU 165061 Vehicle IPU 165061 MAINTENANCE FORMS, RECORDS, AND REPORTS Department of the Army forms and procedures used for equipment maintenance will be those prescribed by (as applicable) DA PAM 750-8, The Army Maintenance Management System (TAMMS) Users Manual; DA PAM 738-751, Functional Users Manual for the Army Maintenance Management Systems - Aviation (TAMMS-A); or AR 700-138, Army Logistics Readiness and Sustainability. REPORTING EQUIPMENT IMPROVEMENT RECOMMENDATIONS (EIR) AND PRODUCT QUALITY DEFICIENCY REPORTS (PQDR) If your equipment needs improvement, let us know. Send us an Equipment Improvement Recommendation (EIR). You, the user, are the only one who can tell us what you do not like about your equipment. Let us know why you do not like the design or performance. The easiest and fastest way to report problems or suggestions is by submitting your information using an SF 368 (Product Quality Deficiency Report). You can send your SF 368 via regular mail, use the address specified in the Distribution Statement on the cover of this manual. We will send you a reply. CORROSION PREVENTION AND CONTROL (CPC) Corrosion prevention and control of Army materiel is a continuing concern. It is important that any corrosion problems with this item be reported so that the problem can be corrected and improvements

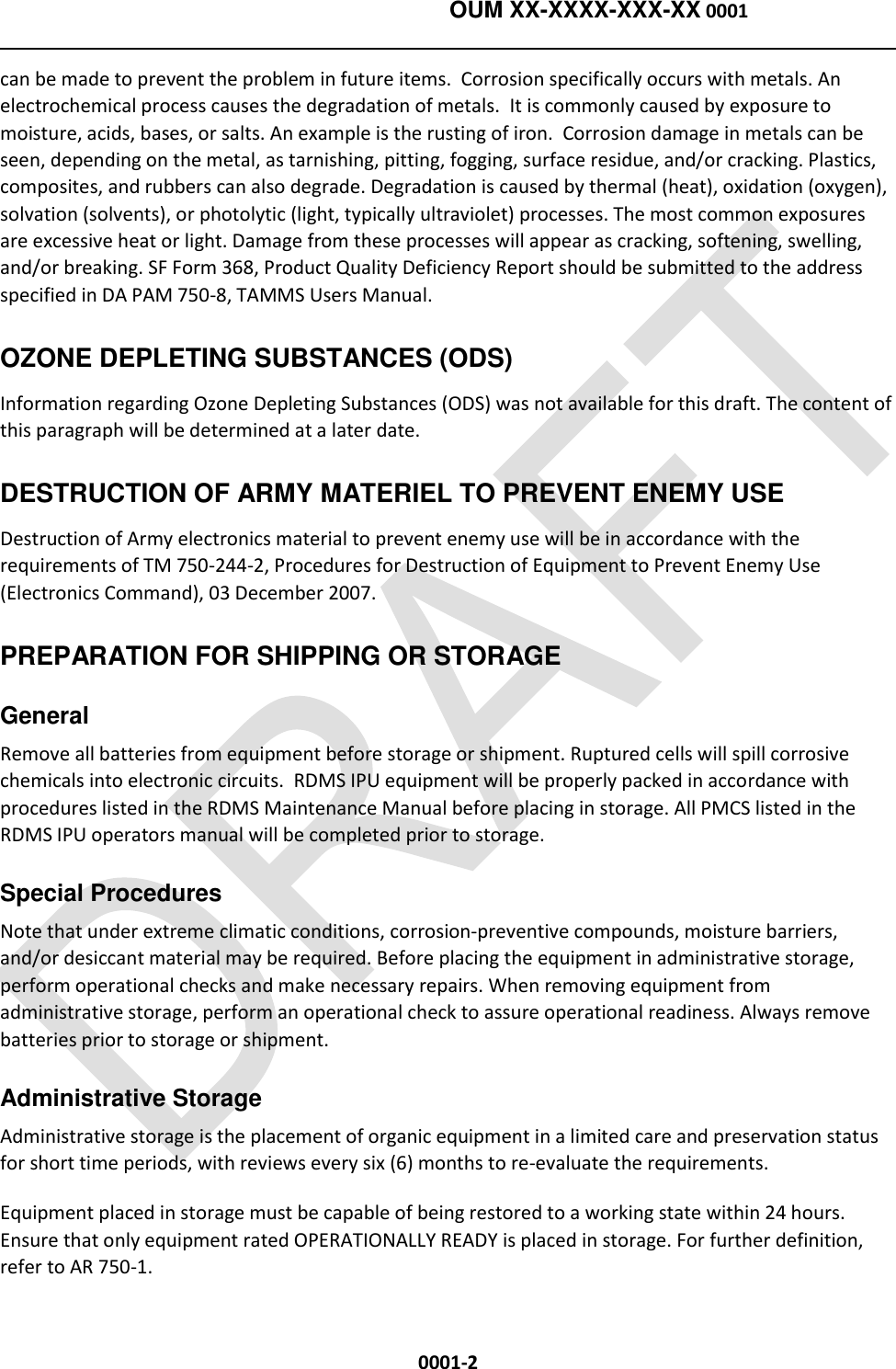

OUM XX-XXXX-XXX-XX 0001 0001-2 can be made to prevent the problem in future items. Corrosion specifically occurs with metals. An electrochemical process causes the degradation of metals. It is commonly caused by exposure to moisture, acids, bases, or salts. An example is the rusting of iron. Corrosion damage in metals can be seen, depending on the metal, as tarnishing, pitting, fogging, surface residue, and/or cracking. Plastics, composites, and rubbers can also degrade. Degradation is caused by thermal (heat), oxidation (oxygen), solvation (solvents), or photolytic (light, typically ultraviolet) processes. The most common exposures are excessive heat or light. Damage from these processes will appear as cracking, softening, swelling, and/or breaking. SF Form 368, Product Quality Deficiency Report should be submitted to the address specified in DA PAM 750-8, TAMMS Users Manual. OZONE DEPLETING SUBSTANCES (ODS) Information regarding Ozone Depleting Substances (ODS) was not available for this draft. The content of this paragraph will be determined at a later date. DESTRUCTION OF ARMY MATERIEL TO PREVENT ENEMY USE Destruction of Army electronics material to prevent enemy use will be in accordance with the requirements of TM 750-244-2, Procedures for Destruction of Equipment to Prevent Enemy Use (Electronics Command), 03 December 2007. PREPARATION FOR SHIPPING OR STORAGE General Remove all batteries from equipment before storage or shipment. Ruptured cells will spill corrosive chemicals into electronic circuits. RDMS IPU equipment will be properly packed in accordance with procedures listed in the RDMS Maintenance Manual before placing in storage. All PMCS listed in the RDMS IPU operators manual will be completed prior to storage. Special Procedures Note that under extreme climatic conditions, corrosion-preventive compounds, moisture barriers, and/or desiccant material may be required. Before placing the equipment in administrative storage, perform operational checks and make necessary repairs. When removing equipment from administrative storage, perform an operational check to assure operational readiness. Always remove batteries prior to storage or shipment. Administrative Storage Administrative storage is the placement of organic equipment in a limited care and preservation status for short time periods, with reviews every six (6) months to re-evaluate the requirements. Equipment placed in storage must be capable of being restored to a working state within 24 hours. Ensure that only equipment rated OPERATIONALLY READY is placed in storage. For further definition, refer to AR 750-1.

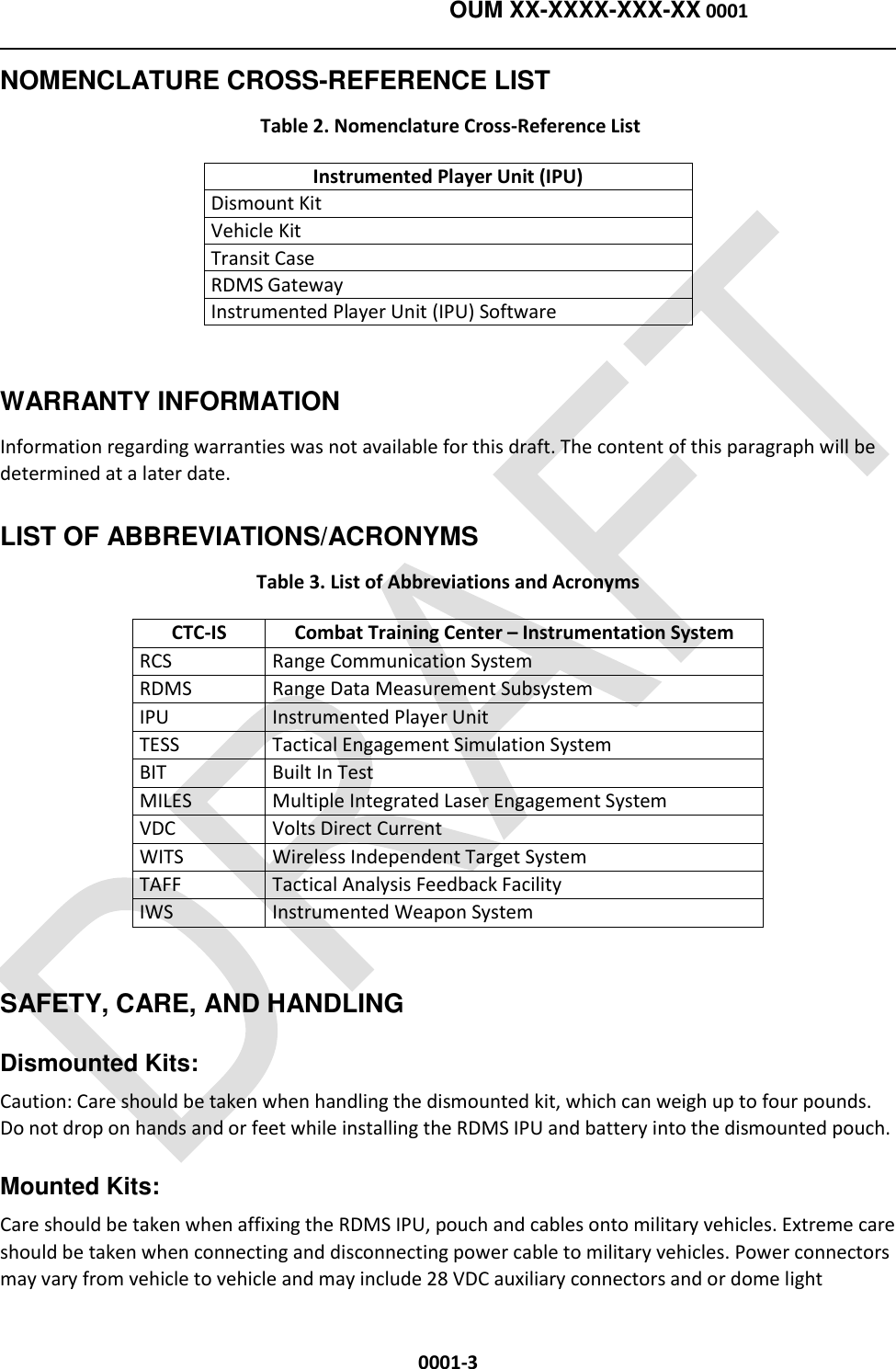

OUM XX-XXXX-XXX-XX 0001 0001-3 NOMENCLATURE CROSS-REFERENCE LIST Table 2. Nomenclature Cross-Reference List Instrumented Player Unit (IPU) Dismount Kit Vehicle Kit Transit Case RDMS Gateway Instrumented Player Unit (IPU) Software WARRANTY INFORMATION Information regarding warranties was not available for this draft. The content of this paragraph will be determined at a later date. LIST OF ABBREVIATIONS/ACRONYMS Table 3. List of Abbreviations and Acronyms CTC-IS Combat Training Center – Instrumentation System RCS Range Communication System RDMS Range Data Measurement Subsystem IPU Instrumented Player Unit TESS Tactical Engagement Simulation System BIT Built In Test MILES Multiple Integrated Laser Engagement System VDC Volts Direct Current WITS Wireless Independent Target System TAFF Tactical Analysis Feedback Facility IWS Instrumented Weapon System SAFETY, CARE, AND HANDLING Dismounted Kits: Caution: Care should be taken when handling the dismounted kit, which can weigh up to four pounds. Do not drop on hands and or feet while installing the RDMS IPU and battery into the dismounted pouch. Mounted Kits: Care should be taken when affixing the RDMS IPU, pouch and cables onto military vehicles. Extreme care should be taken when connecting and disconnecting power cable to military vehicles. Power connectors may vary from vehicle to vehicle and may include 28 VDC auxiliary connectors and or dome light

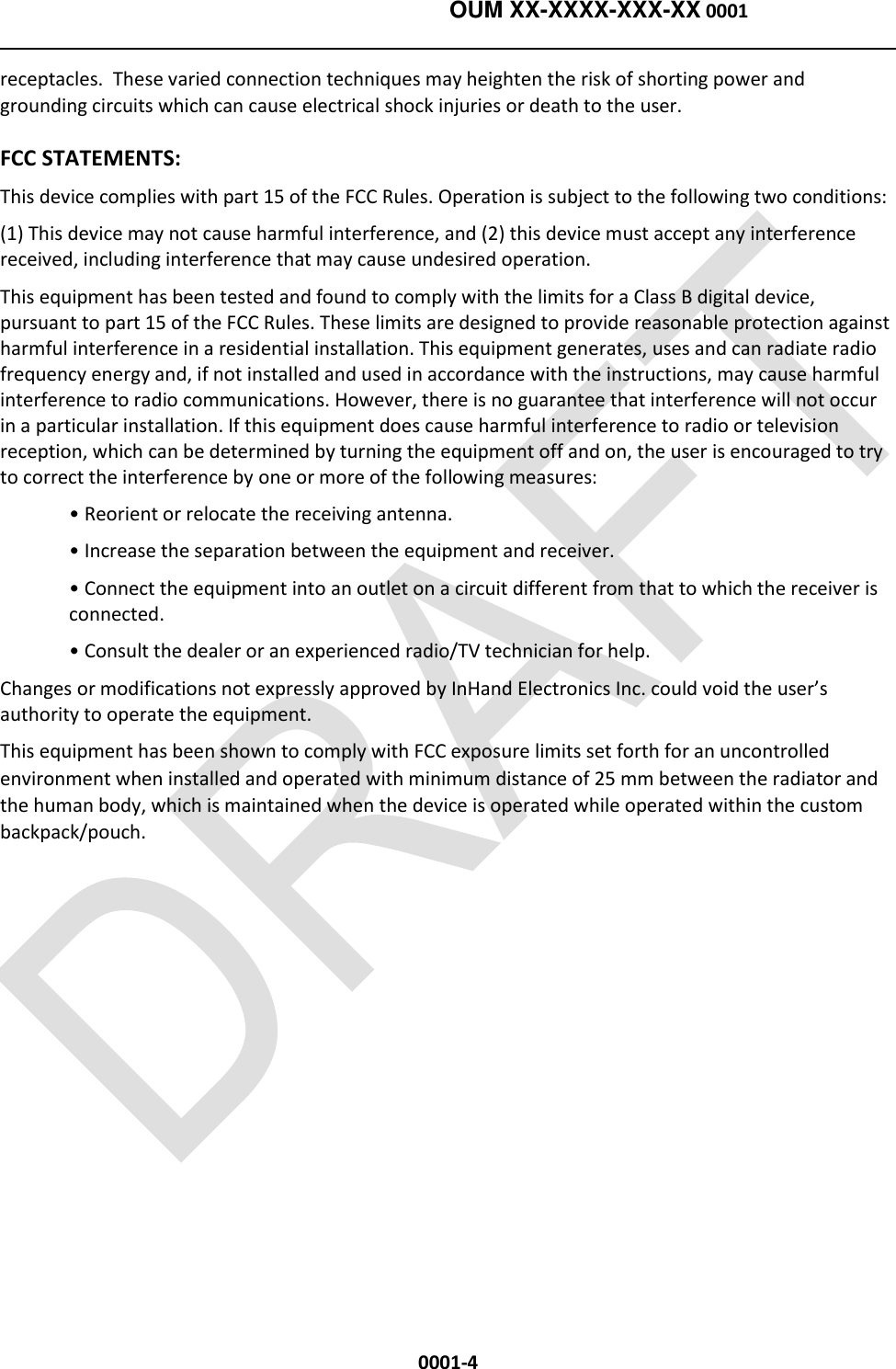

OUM XX-XXXX-XXX-XX 0001 0001-4 receptacles. These varied connection techniques may heighten the risk of shorting power and grounding circuits which can cause electrical shock injuries or death to the user. FCC STATEMENTS: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by InHand Electronics Inc. could void the user’s authority to operate the equipment. This equipment has been shown to comply with FCC exposure limits set forth for an uncontrolled environment when installed and operated with minimum distance of 25 mm between the radiator and the human body, which is maintained when the device is operated while operated within the custom backpack/pouch.

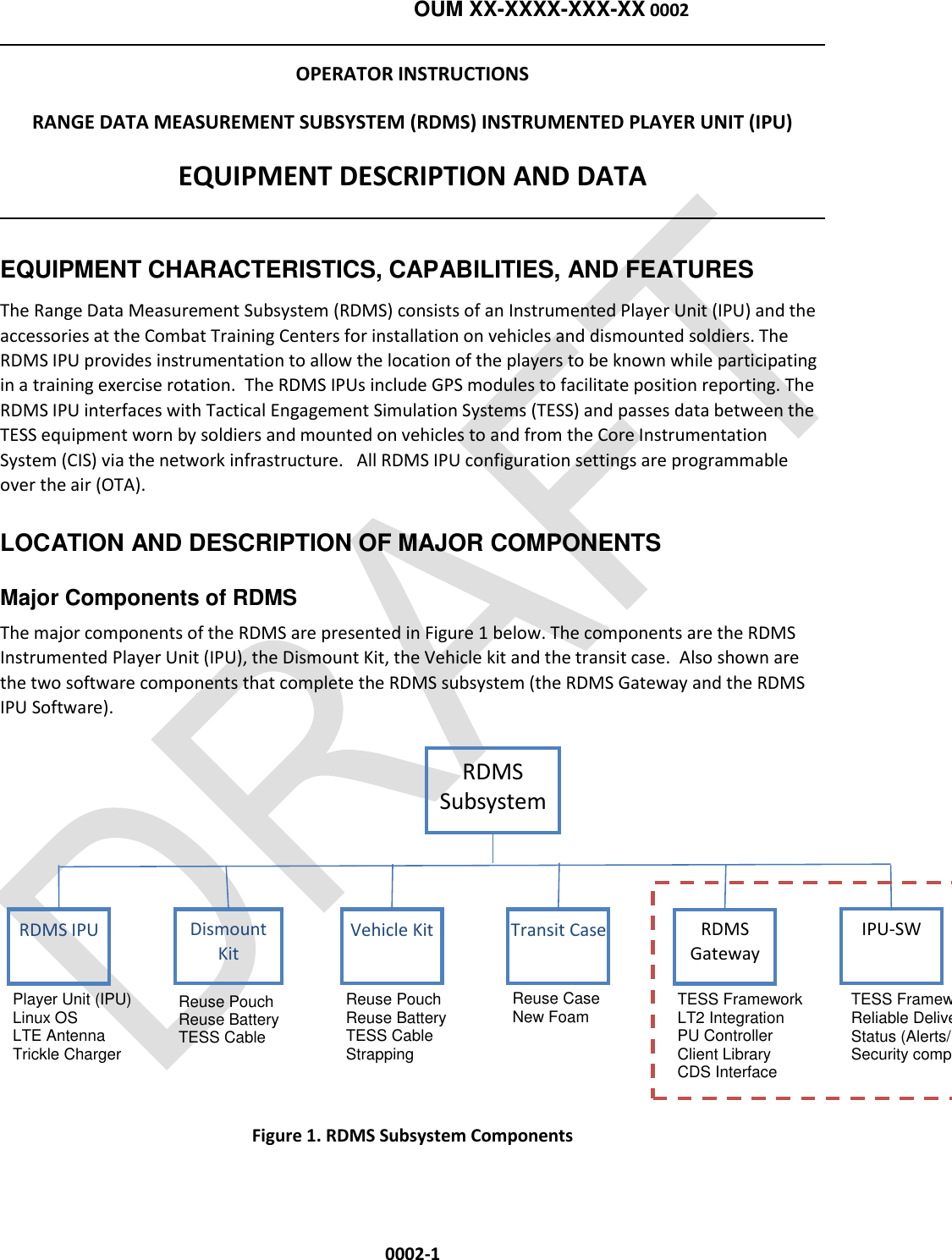

OUM XX-XXXX-XXX-XX 0002 0002-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) EQUIPMENT DESCRIPTION AND DATA EQUIPMENT CHARACTERISTICS, CAPABILITIES, AND FEATURES The Range Data Measurement Subsystem (RDMS) consists of an Instrumented Player Unit (IPU) and the accessories at the Combat Training Centers for installation on vehicles and dismounted soldiers. The RDMS IPU provides instrumentation to allow the location of the players to be known while participating in a training exercise rotation. The RDMS IPUs include GPS modules to facilitate position reporting. The RDMS IPU interfaces with Tactical Engagement Simulation Systems (TESS) and passes data between the TESS equipment worn by soldiers and mounted on vehicles to and from the Core Instrumentation System (CIS) via the network infrastructure. All RDMS IPU configuration settings are programmable over the air (OTA). LOCATION AND DESCRIPTION OF MAJOR COMPONENTS Major Components of RDMS The major components of the RDMS are presented in Figure 1 below. The components are the RDMS Instrumented Player Unit (IPU), the Dismount Kit, the Vehicle kit and the transit case. Also shown are the two software components that complete the RDMS subsystem (the RDMS Gateway and the RDMS IPU Software). Figure 1. RDMS Subsystem Components TESS Framework Reliable Delivery Status (Alerts/BITs) Security component RDMS Subsystem RDMS IPU Vehicle Kit Dismount Kit Transit Case RDMS Gateway IPU-SW Player Unit (IPU) Linux OS LTE Antenna Trickle Charger Reuse Pouch Reuse Battery TESS Cable Reuse Pouch Reuse Battery TESS Cable Strapping TESS Framework LT2 Integration PU Controller Client Library CDS Interface Reuse Case New Foam

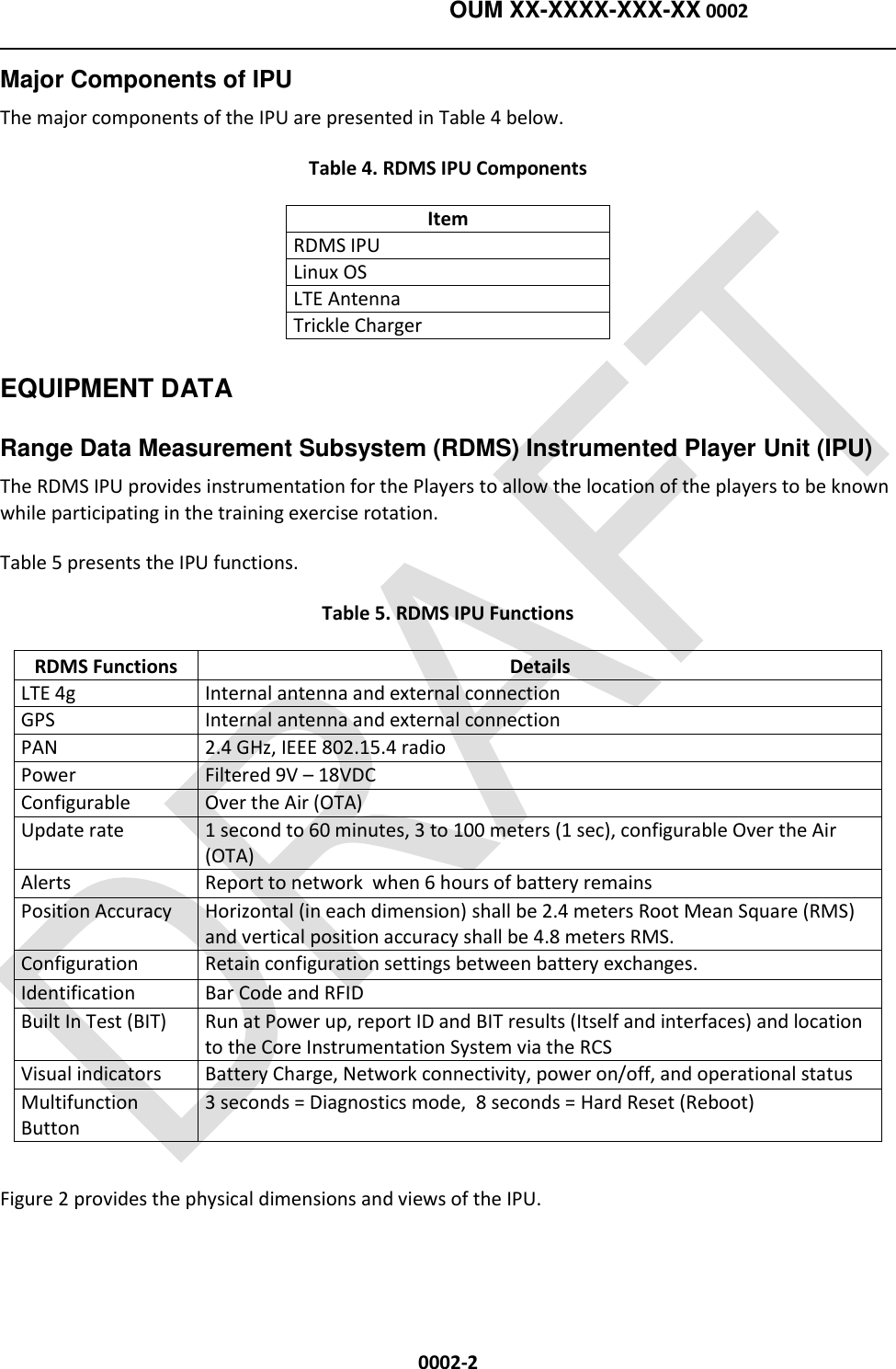

OUM XX-XXXX-XXX-XX 0002 0002-2 Major Components of IPU The major components of the IPU are presented in Table 4 below. Table 4. RDMS IPU Components Item RDMS IPU Linux OS LTE Antenna Trickle Charger EQUIPMENT DATA Range Data Measurement Subsystem (RDMS) Instrumented Player Unit (IPU) The RDMS IPU provides instrumentation for the Players to allow the location of the players to be known while participating in the training exercise rotation. Table 5 presents the IPU functions. Table 5. RDMS IPU Functions RDMS Functions Details LTE 4g Internal antenna and external connection GPS Internal antenna and external connection PAN 2.4 GHz, IEEE 802.15.4 radio Power Filtered 9V – 18VDC Configurable Over the Air (OTA) Update rate 1 second to 60 minutes, 3 to 100 meters (1 sec), configurable Over the Air (OTA) Alerts Report to network when 6 hours of battery remains Position Accuracy Horizontal (in each dimension) shall be 2.4 meters Root Mean Square (RMS) and vertical position accuracy shall be 4.8 meters RMS. Configuration Retain configuration settings between battery exchanges. Identification Bar Code and RFID Built In Test (BIT) Run at Power up, report ID and BIT results (Itself and interfaces) and location to the Core Instrumentation System via the RCS Visual indicators Battery Charge, Network connectivity, power on/off, and operational status Multifunction Button 3 seconds = Diagnostics mode, 8 seconds = Hard Reset (Reboot) Figure 2 provides the physical dimensions and views of the IPU.

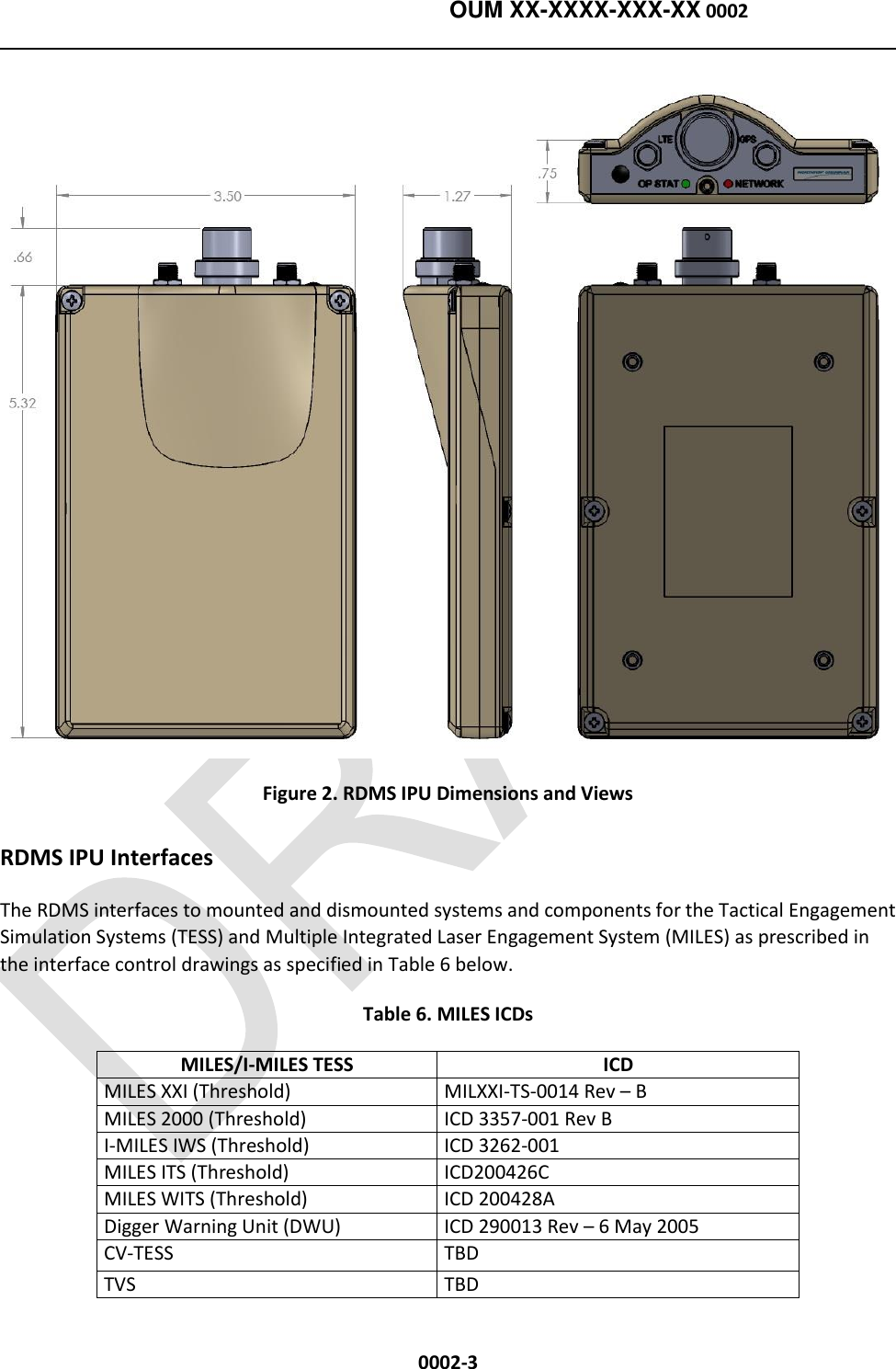

OUM XX-XXXX-XXX-XX 0002 0002-3 Figure 2. RDMS IPU Dimensions and Views RDMS IPU Interfaces The RDMS interfaces to mounted and dismounted systems and components for the Tactical Engagement Simulation Systems (TESS) and Multiple Integrated Laser Engagement System (MILES) as prescribed in the interface control drawings as specified in Table 6 below. Table 6. MILES ICDs MILES/I-MILES TESS ICD MILES XXI (Threshold) MILXXI-TS-0014 Rev – B MILES 2000 (Threshold) ICD 3357-001 Rev B I-MILES IWS (Threshold) ICD 3262-001 MILES ITS (Threshold) ICD200426C MILES WITS (Threshold) ICD 200428A Digger Warning Unit (DWU) ICD 290013 Rev – 6 May 2005 CV-TESS TBD TVS TBD

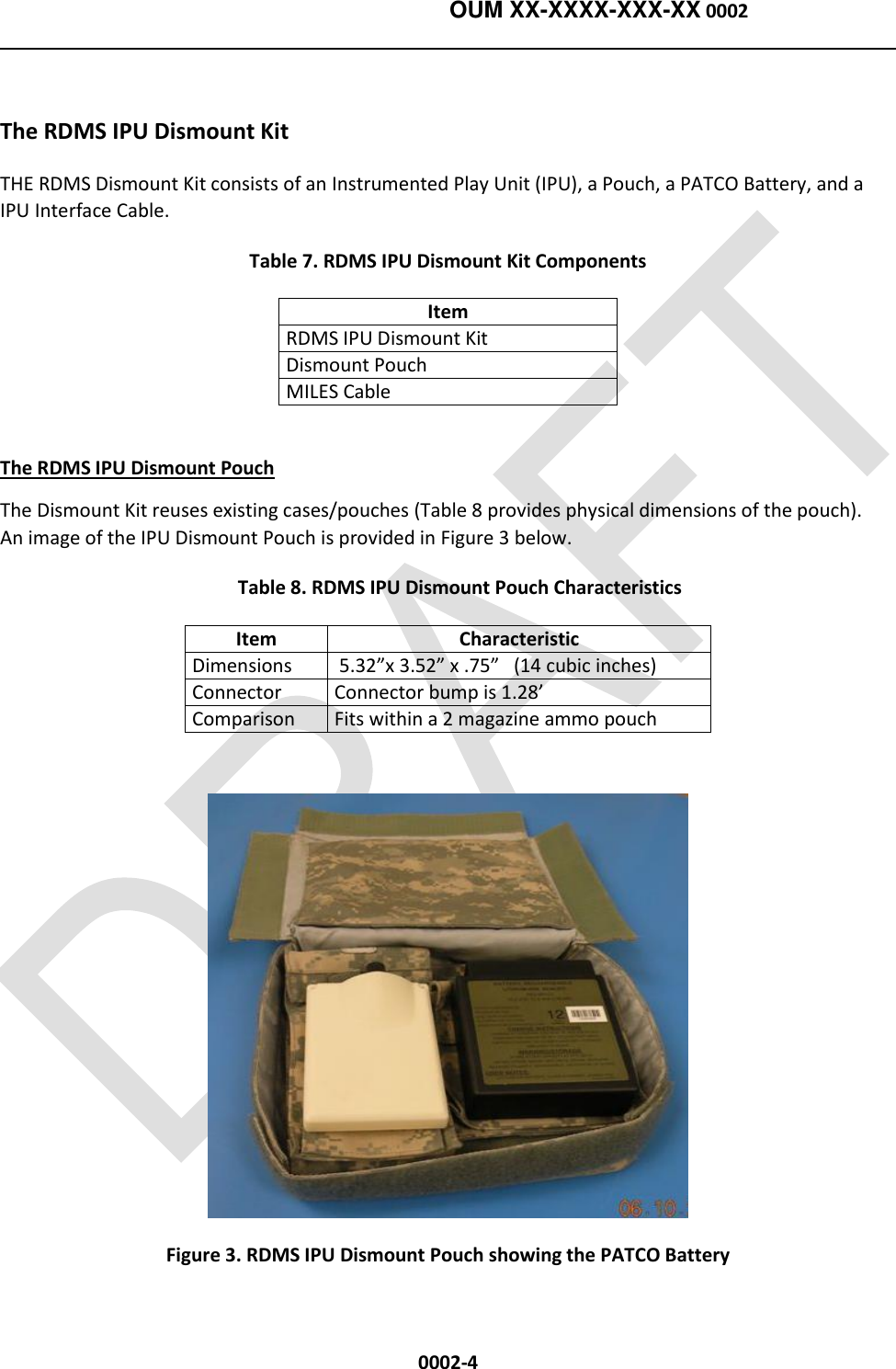

OUM XX-XXXX-XXX-XX 0002 0002-4 The RDMS IPU Dismount Kit THE RDMS Dismount Kit consists of an Instrumented Play Unit (IPU), a Pouch, a PATCO Battery, and a IPU Interface Cable. Table 7. RDMS IPU Dismount Kit Components Item RDMS IPU Dismount Kit Dismount Pouch MILES Cable The RDMS IPU Dismount Pouch The Dismount Kit reuses existing cases/pouches (Table 8 provides physical dimensions of the pouch). An image of the IPU Dismount Pouch is provided in Figure 3 below. Table 8. RDMS IPU Dismount Pouch Characteristics Item Characteristic Dimensions 5.32”x 3.52” x .75” (14 cubic inches) Connector Connector bump is 1.28’ Comparison Fits within a 2 magazine ammo pouch Figure 3. RDMS IPU Dismount Pouch showing the PATCO Battery

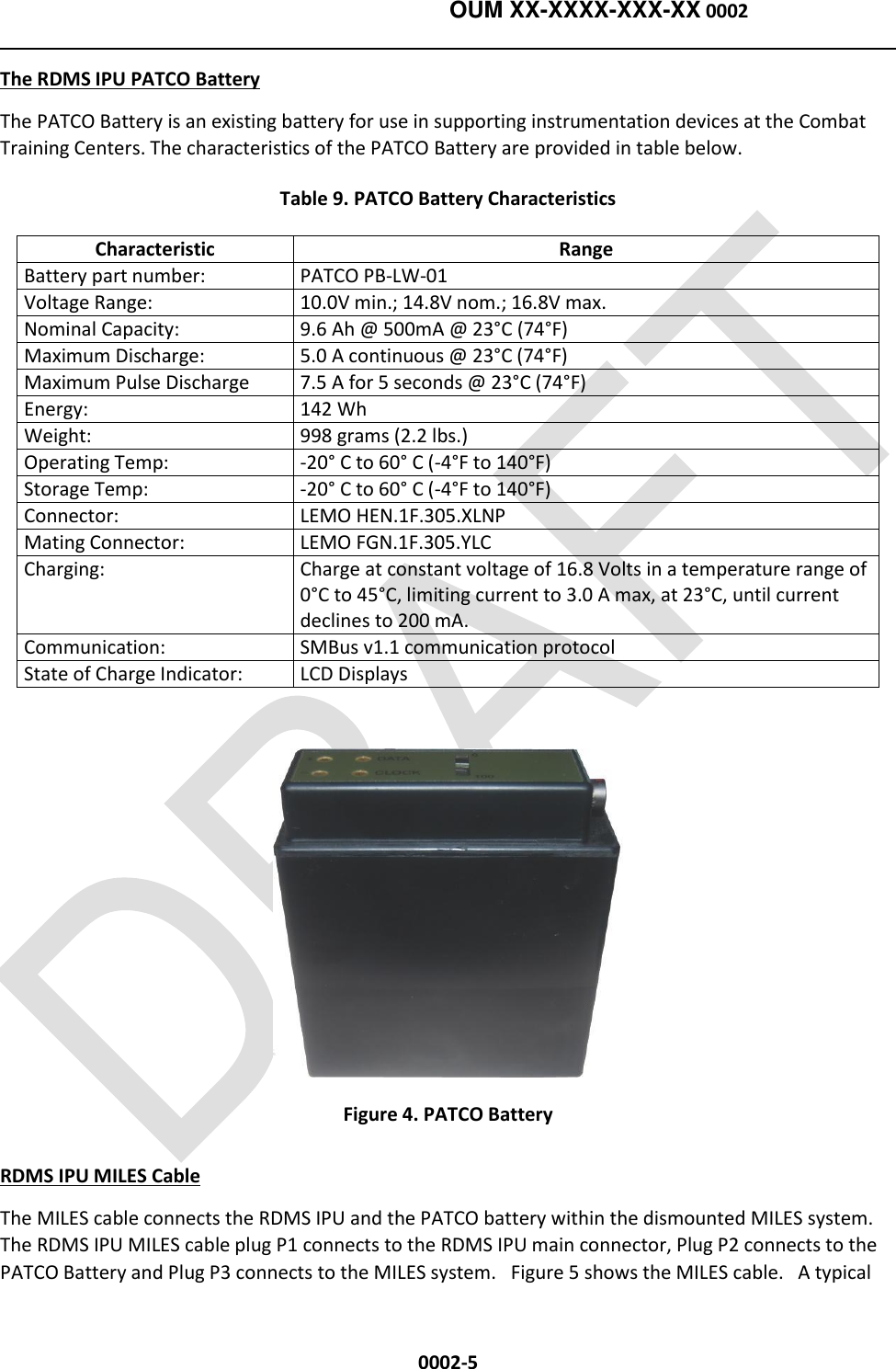

OUM XX-XXXX-XXX-XX 0002 0002-5 The RDMS IPU PATCO Battery The PATCO Battery is an existing battery for use in supporting instrumentation devices at the Combat Training Centers. The characteristics of the PATCO Battery are provided in table below. Table 9. PATCO Battery Characteristics Characteristic Range Battery part number: PATCO PB-LW-01 Voltage Range: 10.0V min.; 14.8V nom.; 16.8V max. Nominal Capacity: 9.6 Ah @ 500mA @ 23°C (74°F) Maximum Discharge: 5.0 A continuous @ 23°C (74°F) Maximum Pulse Discharge 7.5 A for 5 seconds @ 23°C (74°F) Energy: 142 Wh Weight: 998 grams (2.2 lbs.) Operating Temp: -20° C to 60° C (-4°F to 140°F) Storage Temp: -20° C to 60° C (-4°F to 140°F) Connector: LEMO HEN.1F.305.XLNP Mating Connector: LEMO FGN.1F.305.YLC Charging: Charge at constant voltage of 16.8 Volts in a temperature range of 0°C to 45°C, limiting current to 3.0 A max, at 23°C, until current declines to 200 mA. Communication: SMBus v1.1 communication protocol State of Charge Indicator: LCD Displays Figure 4. PATCO Battery RDMS IPU MILES Cable The MILES cable connects the RDMS IPU and the PATCO battery within the dismounted MILES system. The RDMS IPU MILES cable plug P1 connects to the RDMS IPU main connector, Plug P2 connects to the PATCO Battery and Plug P3 connects to the MILES system. Figure 5 shows the MILES cable. A typical

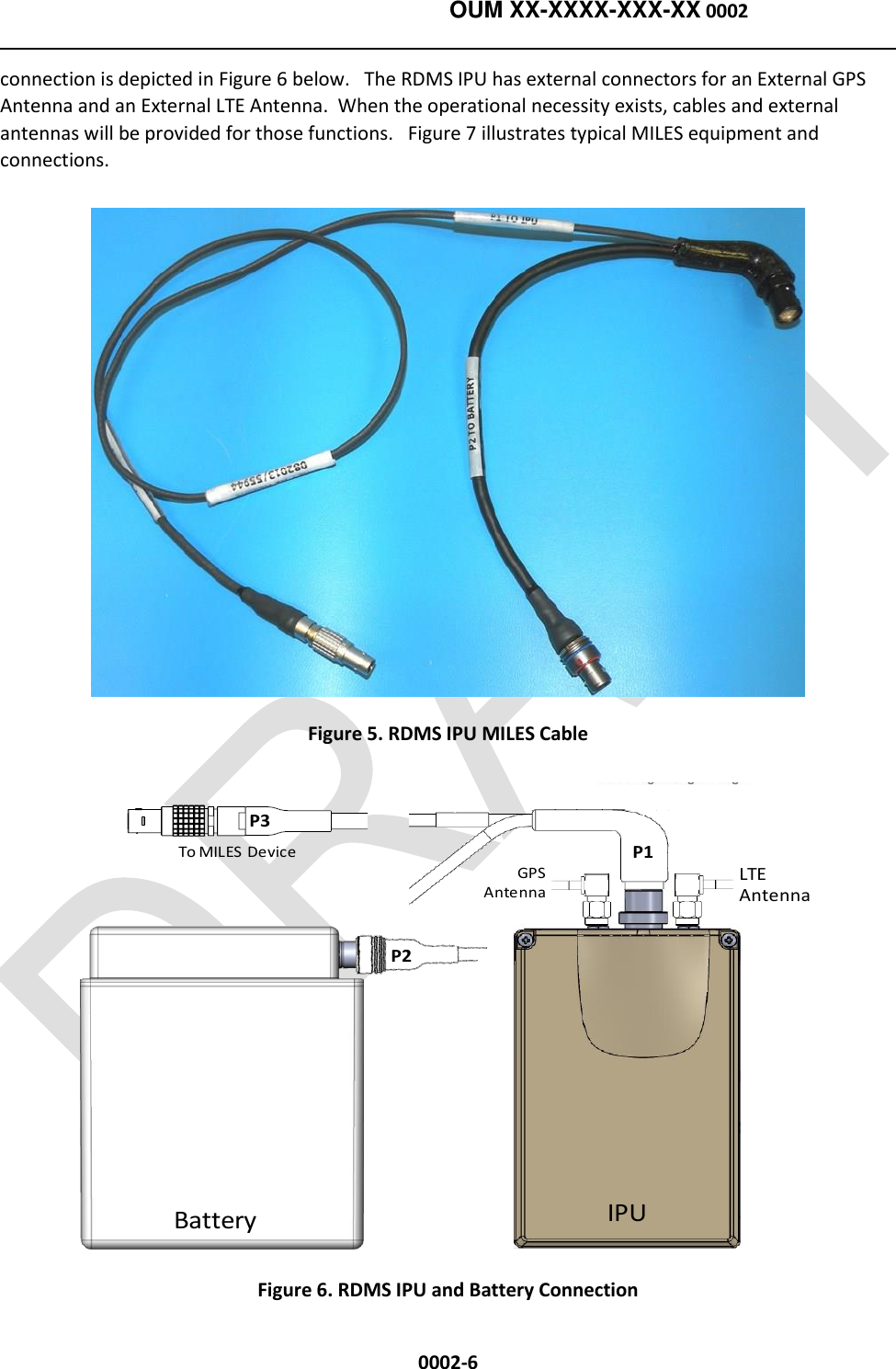

OUM XX-XXXX-XXX-XX 0002 0002-6 connection is depicted in Figure 6 below. The RDMS IPU has external connectors for an External GPS Antenna and an External LTE Antenna. When the operational necessity exists, cables and external antennas will be provided for those functions. Figure 7 illustrates typical MILES equipment and connections. Figure 5. RDMS IPU MILES Cable IPUBatteryGPSAntennaLTEAntennaP1P2P3To MILES Device Figure 6. RDMS IPU and Battery Connection

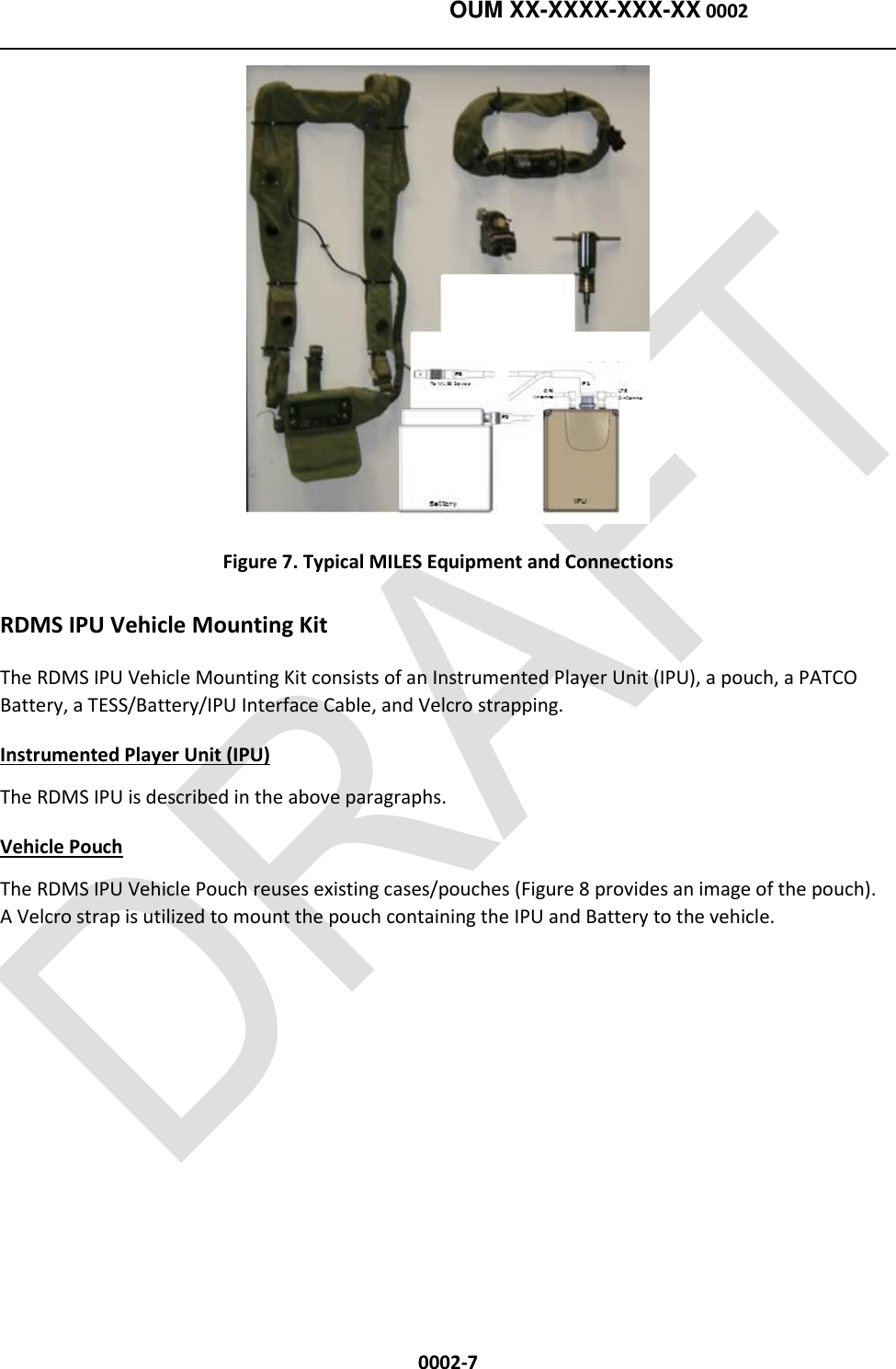

OUM XX-XXXX-XXX-XX 0002 0002-7 Figure 7. Typical MILES Equipment and Connections RDMS IPU Vehicle Mounting Kit The RDMS IPU Vehicle Mounting Kit consists of an Instrumented Player Unit (IPU), a pouch, a PATCO Battery, a TESS/Battery/IPU Interface Cable, and Velcro strapping. Instrumented Player Unit (IPU) The RDMS IPU is described in the above paragraphs. Vehicle Pouch The RDMS IPU Vehicle Pouch reuses existing cases/pouches (Figure 8 provides an image of the pouch). A Velcro strap is utilized to mount the pouch containing the IPU and Battery to the vehicle.

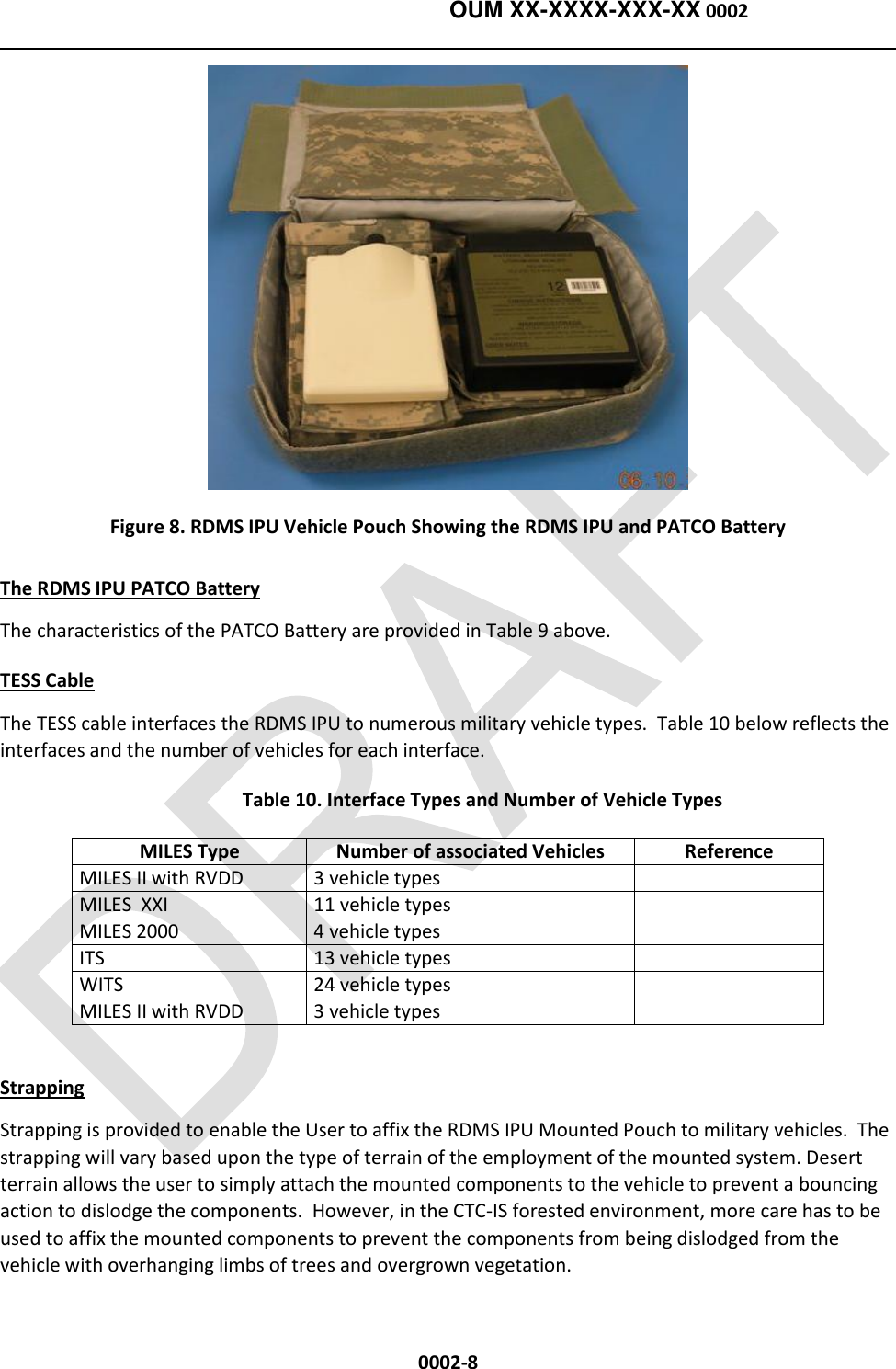

OUM XX-XXXX-XXX-XX 0002 0002-8 Figure 8. RDMS IPU Vehicle Pouch Showing the RDMS IPU and PATCO Battery The RDMS IPU PATCO Battery The characteristics of the PATCO Battery are provided in Table 9 above. TESS Cable The TESS cable interfaces the RDMS IPU to numerous military vehicle types. Table 10 below reflects the interfaces and the number of vehicles for each interface. Table 10. Interface Types and Number of Vehicle Types MILES Type Number of associated Vehicles Reference MILES II with RVDD 3 vehicle types MILES XXI 11 vehicle types MILES 2000 4 vehicle types ITS 13 vehicle types WITS 24 vehicle types MILES II with RVDD 3 vehicle types Strapping Strapping is provided to enable the User to affix the RDMS IPU Mounted Pouch to military vehicles. The strapping will vary based upon the type of terrain of the employment of the mounted system. Desert terrain allows the user to simply attach the mounted components to the vehicle to prevent a bouncing action to dislodge the components. However, in the CTC-IS forested environment, more care has to be used to affix the mounted components to prevent the components from being dislodged from the vehicle with overhanging limbs of trees and overgrown vegetation.

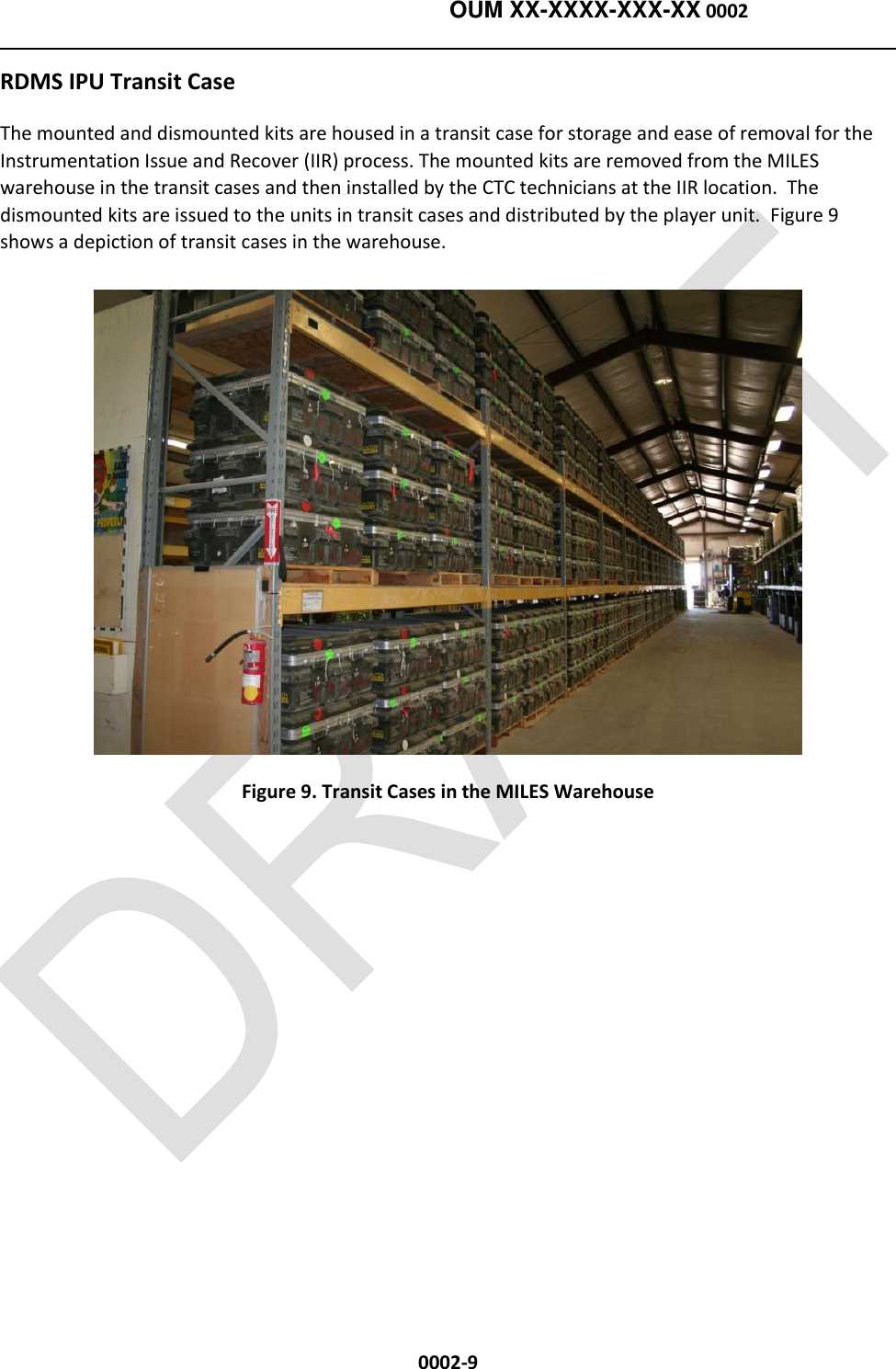

OUM XX-XXXX-XXX-XX 0002 0002-9 RDMS IPU Transit Case The mounted and dismounted kits are housed in a transit case for storage and ease of removal for the Instrumentation Issue and Recover (IIR) process. The mounted kits are removed from the MILES warehouse in the transit cases and then installed by the CTC technicians at the IIR location. The dismounted kits are issued to the units in transit cases and distributed by the player unit. Figure 9 shows a depiction of transit cases in the warehouse. Figure 9. Transit Cases in the MILES Warehouse

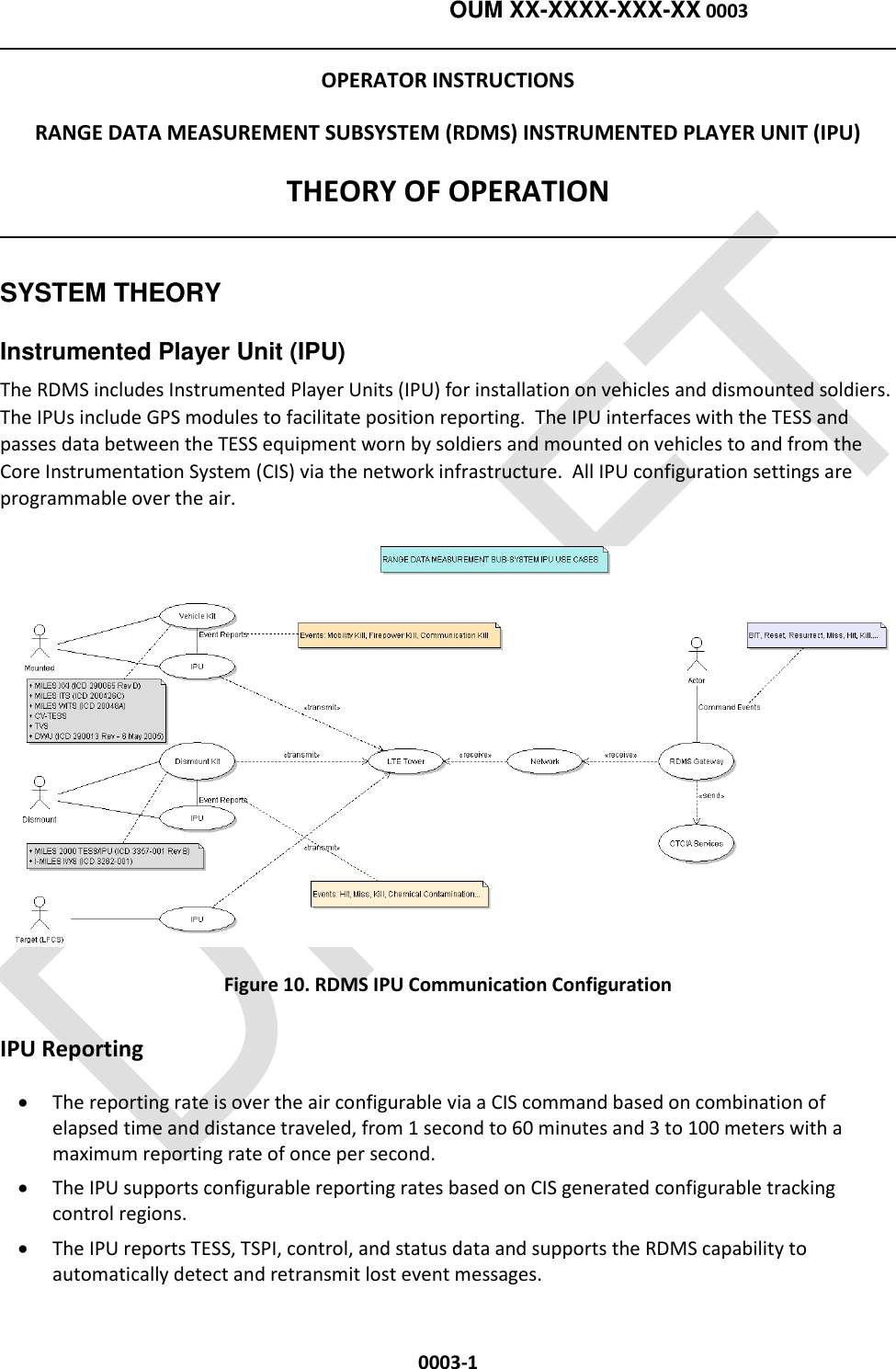

OUM XX-XXXX-XXX-XX 0003 0003-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) THEORY OF OPERATION SYSTEM THEORY Instrumented Player Unit (IPU) The RDMS includes Instrumented Player Units (IPU) for installation on vehicles and dismounted soldiers. The IPUs include GPS modules to facilitate position reporting. The IPU interfaces with the TESS and passes data between the TESS equipment worn by soldiers and mounted on vehicles to and from the Core Instrumentation System (CIS) via the network infrastructure. All IPU configuration settings are programmable over the air. Figure 10. RDMS IPU Communication Configuration IPU Reporting  The reporting rate is over the air configurable via a CIS command based on combination of elapsed time and distance traveled, from 1 second to 60 minutes and 3 to 100 meters with a maximum reporting rate of once per second.  The IPU supports configurable reporting rates based on CIS generated configurable tracking control regions.  The IPU reports TESS, TSPI, control, and status data and supports the RDMS capability to automatically detect and retransmit lost event messages.

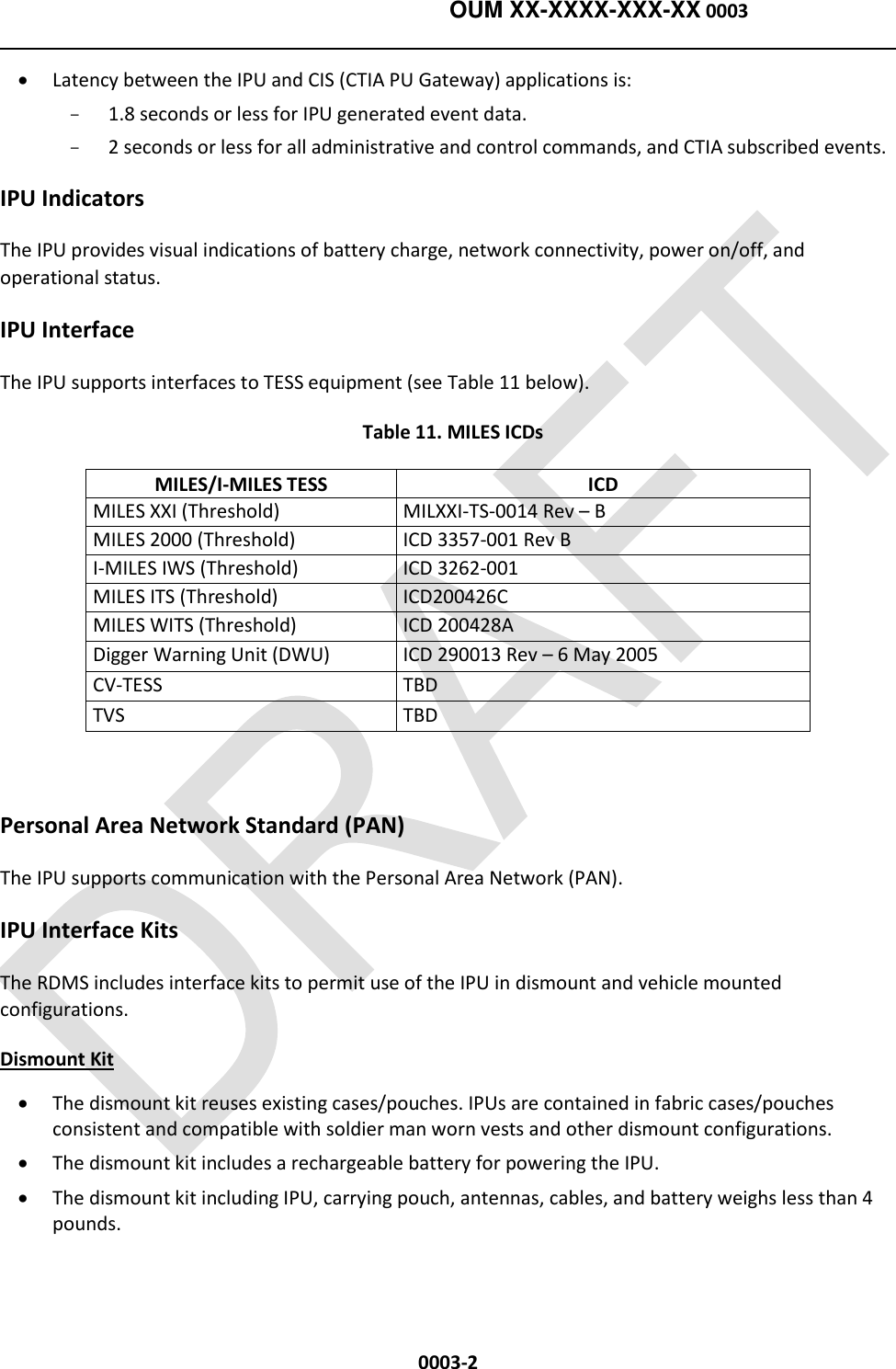

OUM XX-XXXX-XXX-XX 0003 0003-2  Latency between the IPU and CIS (CTIA PU Gateway) applications is: - 1.8 seconds or less for IPU generated event data. - 2 seconds or less for all administrative and control commands, and CTIA subscribed events. IPU Indicators The IPU provides visual indications of battery charge, network connectivity, power on/off, and operational status. IPU Interface The IPU supports interfaces to TESS equipment (see Table 11 below). Table 11. MILES ICDs MILES/I-MILES TESS ICD MILES XXI (Threshold) MILXXI-TS-0014 Rev – B MILES 2000 (Threshold) ICD 3357-001 Rev B I-MILES IWS (Threshold) ICD 3262-001 MILES ITS (Threshold) ICD200426C MILES WITS (Threshold) ICD 200428A Digger Warning Unit (DWU) ICD 290013 Rev – 6 May 2005 CV-TESS TBD TVS TBD Personal Area Network Standard (PAN) The IPU supports communication with the Personal Area Network (PAN). IPU Interface Kits The RDMS includes interface kits to permit use of the IPU in dismount and vehicle mounted configurations. Dismount Kit  The dismount kit reuses existing cases/pouches. IPUs are contained in fabric cases/pouches consistent and compatible with soldier man worn vests and other dismount configurations.  The dismount kit includes a rechargeable battery for powering the IPU.  The dismount kit including IPU, carrying pouch, antennas, cables, and battery weighs less than 4 pounds.

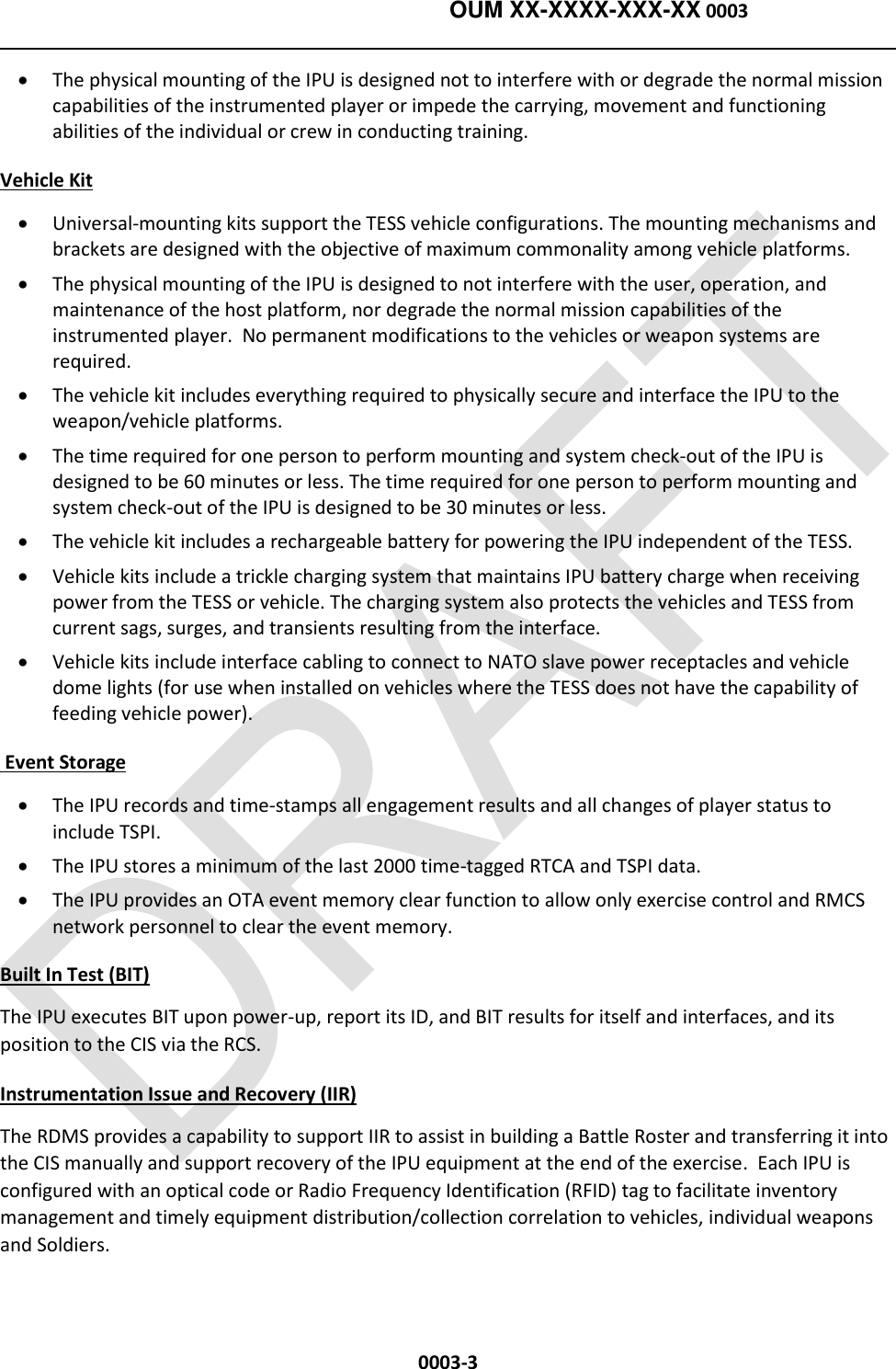

OUM XX-XXXX-XXX-XX 0003 0003-3  The physical mounting of the IPU is designed not to interfere with or degrade the normal mission capabilities of the instrumented player or impede the carrying, movement and functioning abilities of the individual or crew in conducting training. Vehicle Kit  Universal-mounting kits support the TESS vehicle configurations. The mounting mechanisms and brackets are designed with the objective of maximum commonality among vehicle platforms.  The physical mounting of the IPU is designed to not interfere with the user, operation, and maintenance of the host platform, nor degrade the normal mission capabilities of the instrumented player. No permanent modifications to the vehicles or weapon systems are required.  The vehicle kit includes everything required to physically secure and interface the IPU to the weapon/vehicle platforms.  The time required for one person to perform mounting and system check-out of the IPU is designed to be 60 minutes or less. The time required for one person to perform mounting and system check-out of the IPU is designed to be 30 minutes or less.  The vehicle kit includes a rechargeable battery for powering the IPU independent of the TESS.  Vehicle kits include a trickle charging system that maintains IPU battery charge when receiving power from the TESS or vehicle. The charging system also protects the vehicles and TESS from current sags, surges, and transients resulting from the interface.  Vehicle kits include interface cabling to connect to NATO slave power receptacles and vehicle dome lights (for use when installed on vehicles where the TESS does not have the capability of feeding vehicle power). Event Storage  The IPU records and time-stamps all engagement results and all changes of player status to include TSPI.  The IPU stores a minimum of the last 2000 time-tagged RTCA and TSPI data.  The IPU provides an OTA event memory clear function to allow only exercise control and RMCS network personnel to clear the event memory. Built In Test (BIT) The IPU executes BIT upon power-up, report its ID, and BIT results for itself and interfaces, and its position to the CIS via the RCS. Instrumentation Issue and Recovery (IIR) The RDMS provides a capability to support IIR to assist in building a Battle Roster and transferring it into the CIS manually and support recovery of the IPU equipment at the end of the exercise. Each IPU is configured with an optical code or Radio Frequency Identification (RFID) tag to facilitate inventory management and timely equipment distribution/collection correlation to vehicles, individual weapons and Soldiers.

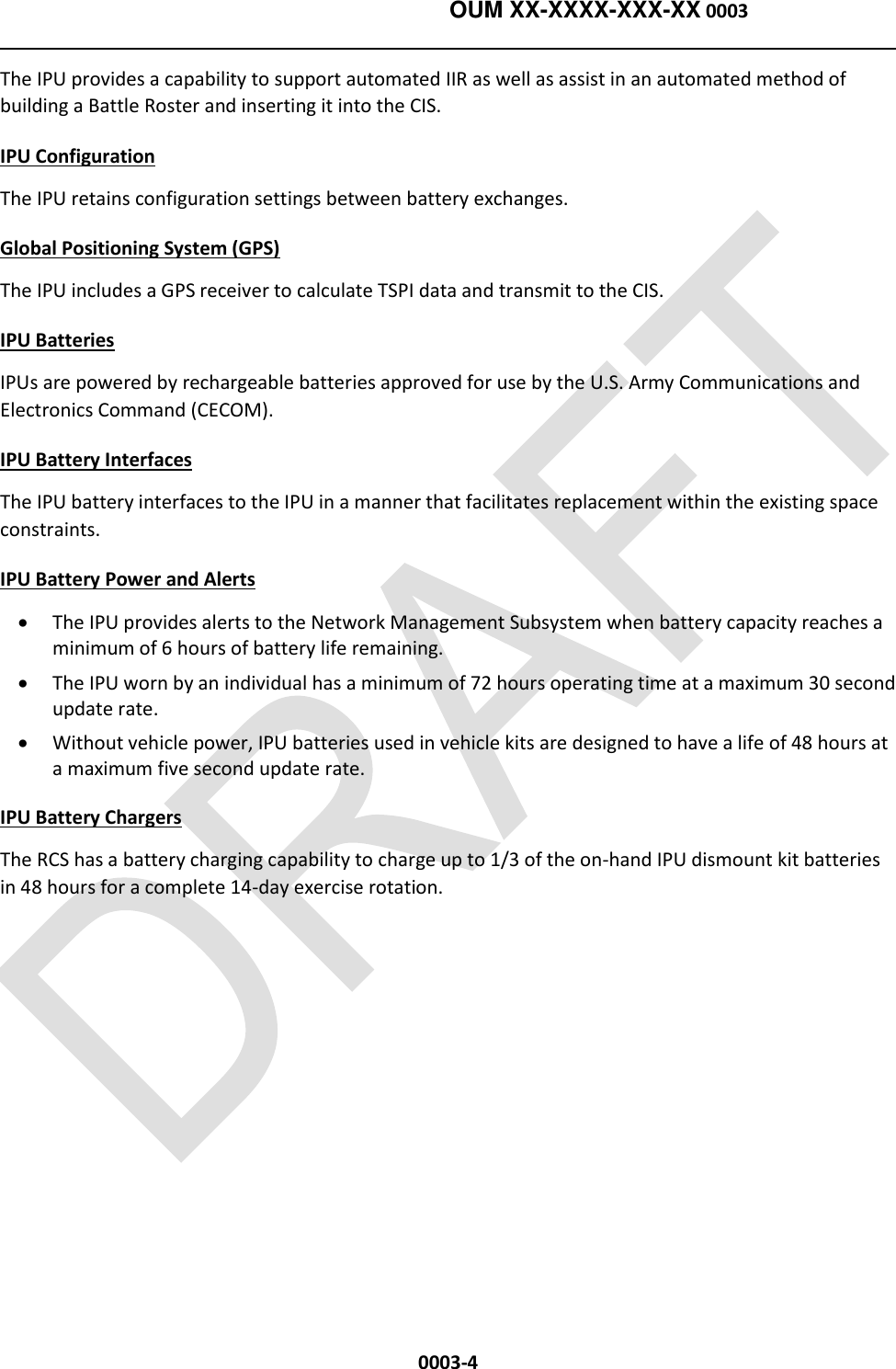

OUM XX-XXXX-XXX-XX 0003 0003-4 The IPU provides a capability to support automated IIR as well as assist in an automated method of building a Battle Roster and inserting it into the CIS. IPU Configuration The IPU retains configuration settings between battery exchanges. Global Positioning System (GPS) The IPU includes a GPS receiver to calculate TSPI data and transmit to the CIS. IPU Batteries IPUs are powered by rechargeable batteries approved for use by the U.S. Army Communications and Electronics Command (CECOM). IPU Battery Interfaces The IPU battery interfaces to the IPU in a manner that facilitates replacement within the existing space constraints. IPU Battery Power and Alerts  The IPU provides alerts to the Network Management Subsystem when battery capacity reaches a minimum of 6 hours of battery life remaining.  The IPU worn by an individual has a minimum of 72 hours operating time at a maximum 30 second update rate.  Without vehicle power, IPU batteries used in vehicle kits are designed to have a life of 48 hours at a maximum five second update rate. IPU Battery Chargers The RCS has a battery charging capability to charge up to 1/3 of the on-hand IPU dismount kit batteries in 48 hours for a complete 14-day exercise rotation.

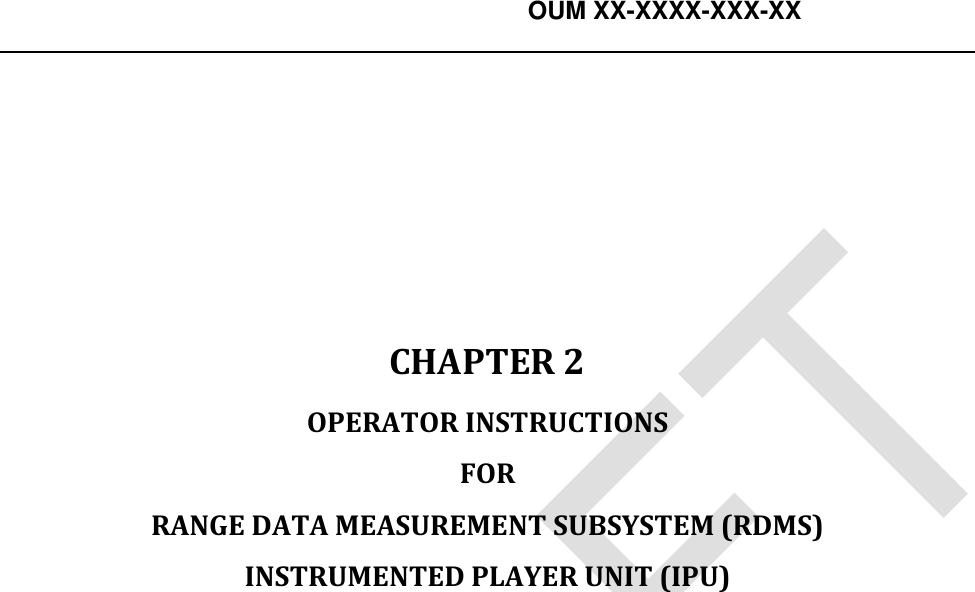

OUM XX-XXXX-XXX-XX CHAPTER 2 OPERATOR INSTRUCTIONS FOR RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU)

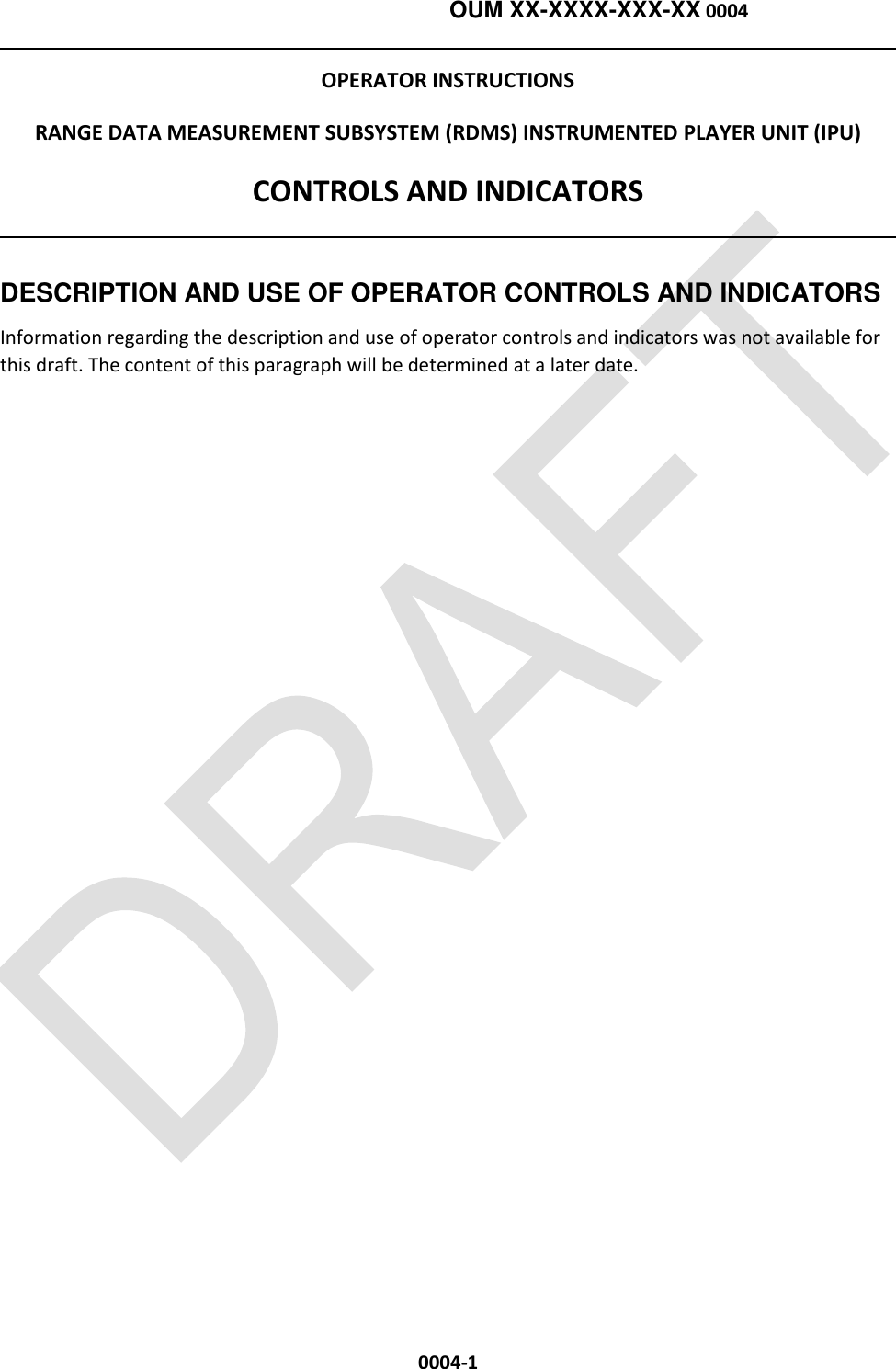

OUM XX-XXXX-XXX-XX 0004 0004-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) CONTROLS AND INDICATORS DESCRIPTION AND USE OF OPERATOR CONTROLS AND INDICATORS Information regarding the description and use of operator controls and indicators was not available for this draft. The content of this paragraph will be determined at a later date.

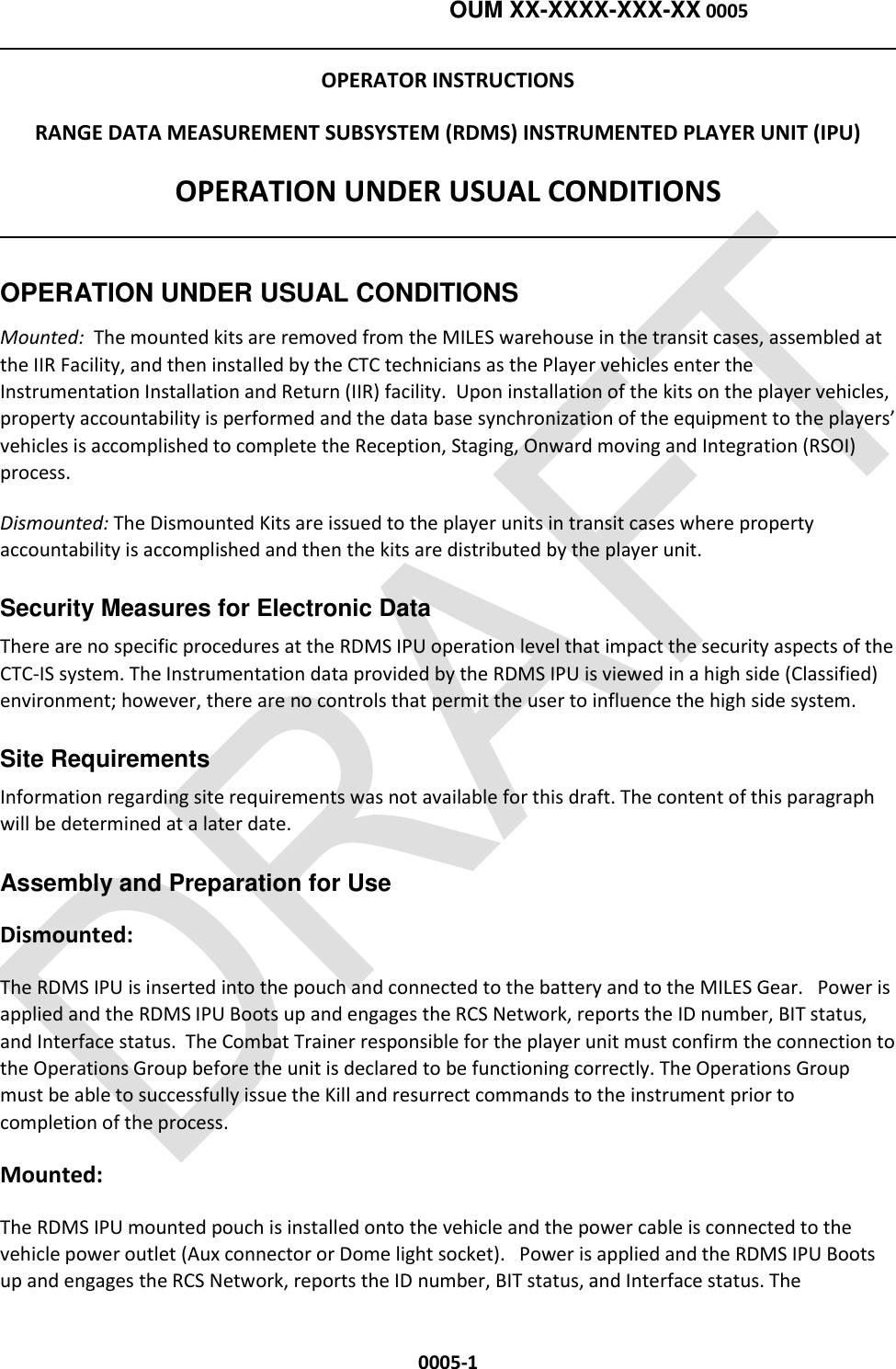

OUM XX-XXXX-XXX-XX 0005 0005-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) OPERATION UNDER USUAL CONDITIONS OPERATION UNDER USUAL CONDITIONS Mounted: The mounted kits are removed from the MILES warehouse in the transit cases, assembled at the IIR Facility, and then installed by the CTC technicians as the Player vehicles enter the Instrumentation Installation and Return (IIR) facility. Upon installation of the kits on the player vehicles, property accountability is performed and the data base synchronization of the equipment to the players’ vehicles is accomplished to complete the Reception, Staging, Onward moving and Integration (RSOI) process. Dismounted: The Dismounted Kits are issued to the player units in transit cases where property accountability is accomplished and then the kits are distributed by the player unit. Security Measures for Electronic Data There are no specific procedures at the RDMS IPU operation level that impact the security aspects of the CTC-IS system. The Instrumentation data provided by the RDMS IPU is viewed in a high side (Classified) environment; however, there are no controls that permit the user to influence the high side system. Site Requirements Information regarding site requirements was not available for this draft. The content of this paragraph will be determined at a later date. Assembly and Preparation for Use Dismounted: The RDMS IPU is inserted into the pouch and connected to the battery and to the MILES Gear. Power is applied and the RDMS IPU Boots up and engages the RCS Network, reports the ID number, BIT status, and Interface status. The Combat Trainer responsible for the player unit must confirm the connection to the Operations Group before the unit is declared to be functioning correctly. The Operations Group must be able to successfully issue the Kill and resurrect commands to the instrument prior to completion of the process. Mounted: The RDMS IPU mounted pouch is installed onto the vehicle and the power cable is connected to the vehicle power outlet (Aux connector or Dome light socket). Power is applied and the RDMS IPU Boots up and engages the RCS Network, reports the ID number, BIT status, and Interface status. The

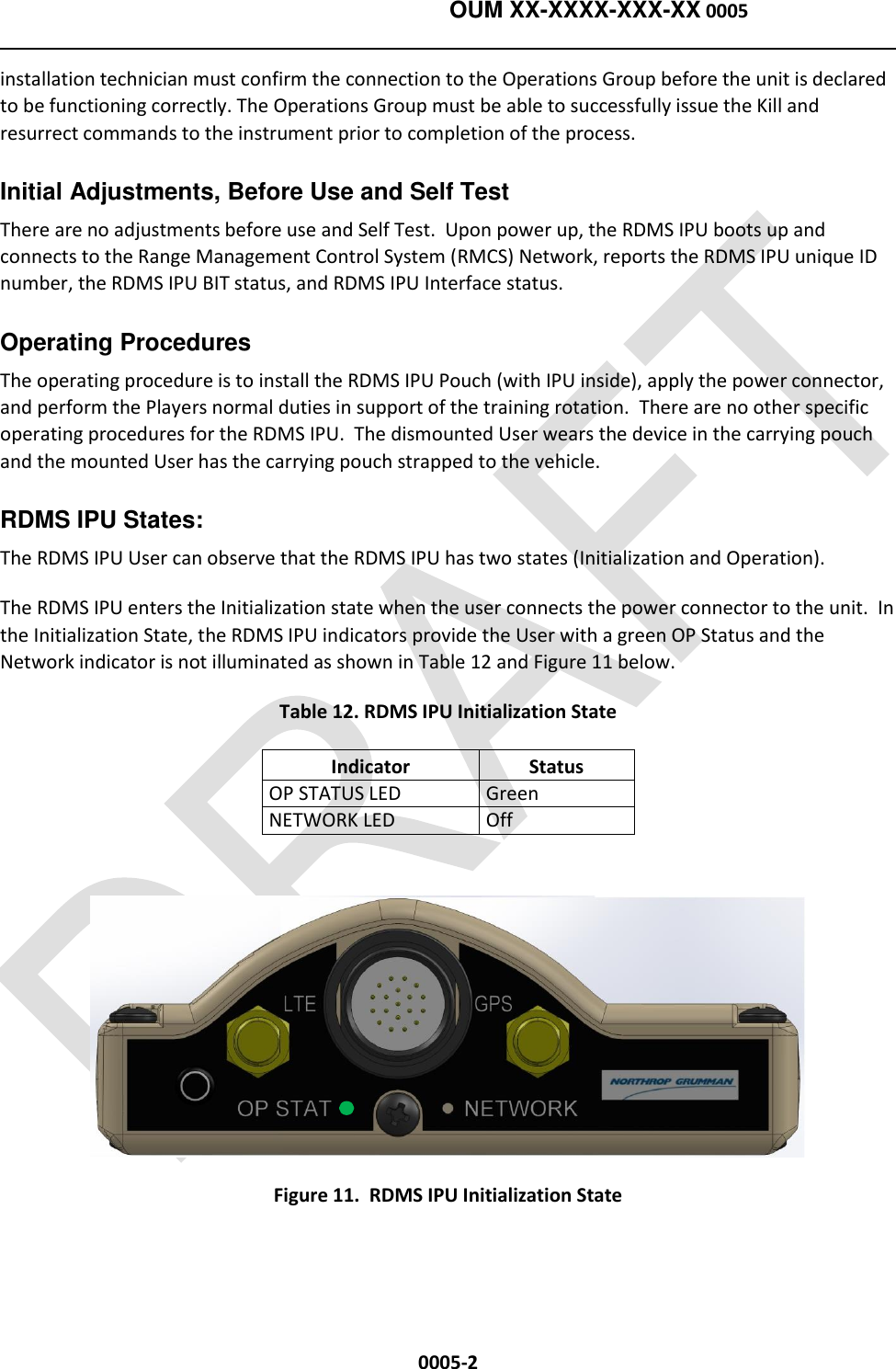

OUM XX-XXXX-XXX-XX 0005 0005-2 installation technician must confirm the connection to the Operations Group before the unit is declared to be functioning correctly. The Operations Group must be able to successfully issue the Kill and resurrect commands to the instrument prior to completion of the process. Initial Adjustments, Before Use and Self Test There are no adjustments before use and Self Test. Upon power up, the RDMS IPU boots up and connects to the Range Management Control System (RMCS) Network, reports the RDMS IPU unique ID number, the RDMS IPU BIT status, and RDMS IPU Interface status. Operating Procedures The operating procedure is to install the RDMS IPU Pouch (with IPU inside), apply the power connector, and perform the Players normal duties in support of the training rotation. There are no other specific operating procedures for the RDMS IPU. The dismounted User wears the device in the carrying pouch and the mounted User has the carrying pouch strapped to the vehicle. RDMS IPU States: The RDMS IPU User can observe that the RDMS IPU has two states (Initialization and Operation). The RDMS IPU enters the Initialization state when the user connects the power connector to the unit. In the Initialization State, the RDMS IPU indicators provide the User with a green OP Status and the Network indicator is not illuminated as shown in Table 12 and Figure 11 below. Table 12. RDMS IPU Initialization State Indicator Status OP STATUS LED Green NETWORK LED Off Figure 11. RDMS IPU Initialization State

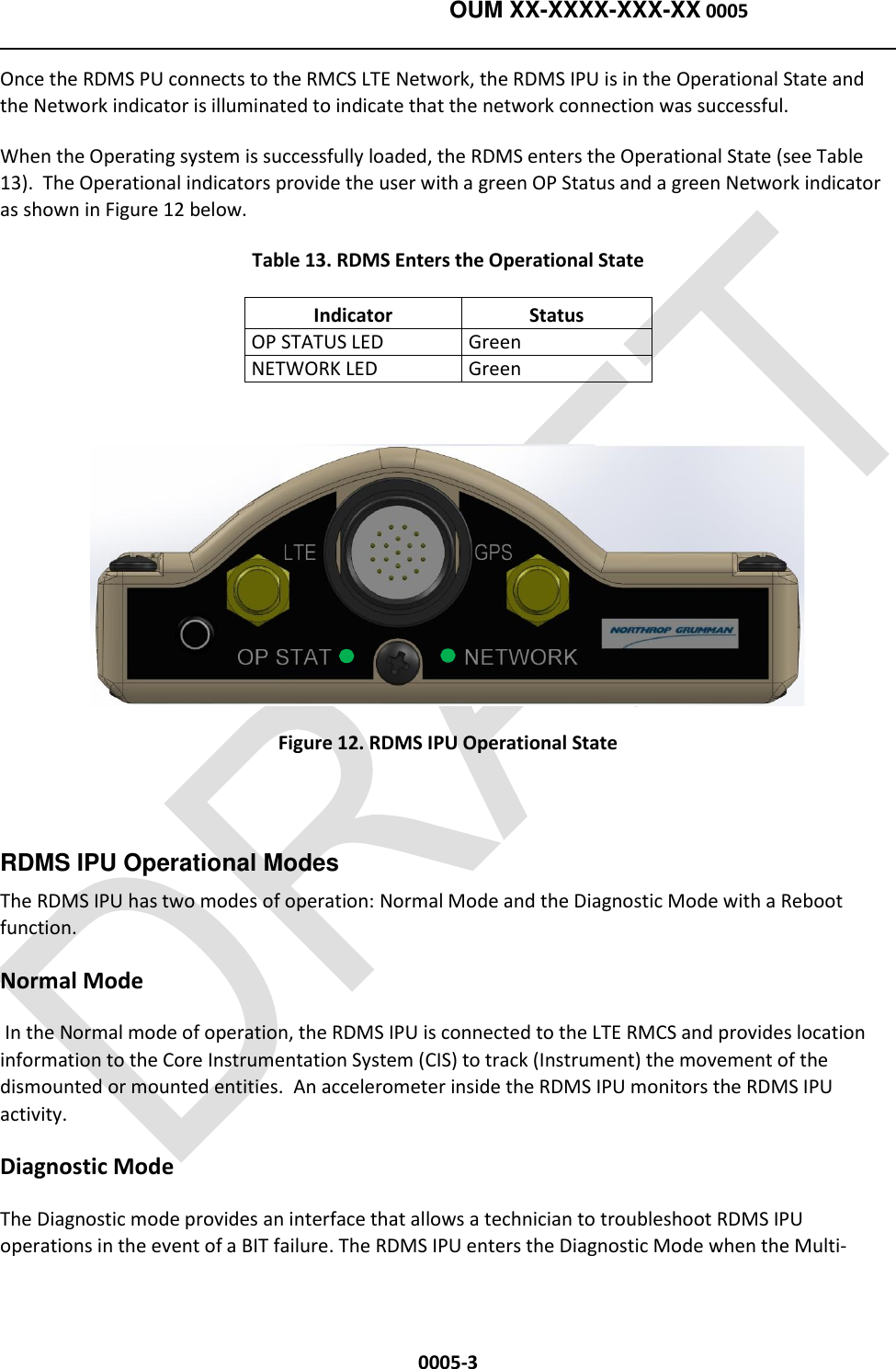

OUM XX-XXXX-XXX-XX 0005 0005-3 Once the RDMS PU connects to the RMCS LTE Network, the RDMS IPU is in the Operational State and the Network indicator is illuminated to indicate that the network connection was successful. When the Operating system is successfully loaded, the RDMS enters the Operational State (see Table 13). The Operational indicators provide the user with a green OP Status and a green Network indicator as shown in Figure 12 below. Table 13. RDMS Enters the Operational State Indicator Status OP STATUS LED Green NETWORK LED Green Figure 12. RDMS IPU Operational State RDMS IPU Operational Modes The RDMS IPU has two modes of operation: Normal Mode and the Diagnostic Mode with a Reboot function. Normal Mode In the Normal mode of operation, the RDMS IPU is connected to the LTE RMCS and provides location information to the Core Instrumentation System (CIS) to track (Instrument) the movement of the dismounted or mounted entities. An accelerometer inside the RDMS IPU monitors the RDMS IPU activity. Diagnostic Mode The Diagnostic mode provides an interface that allows a technician to troubleshoot RDMS IPU operations in the event of a BIT failure. The RDMS IPU enters the Diagnostic Mode when the Multi-

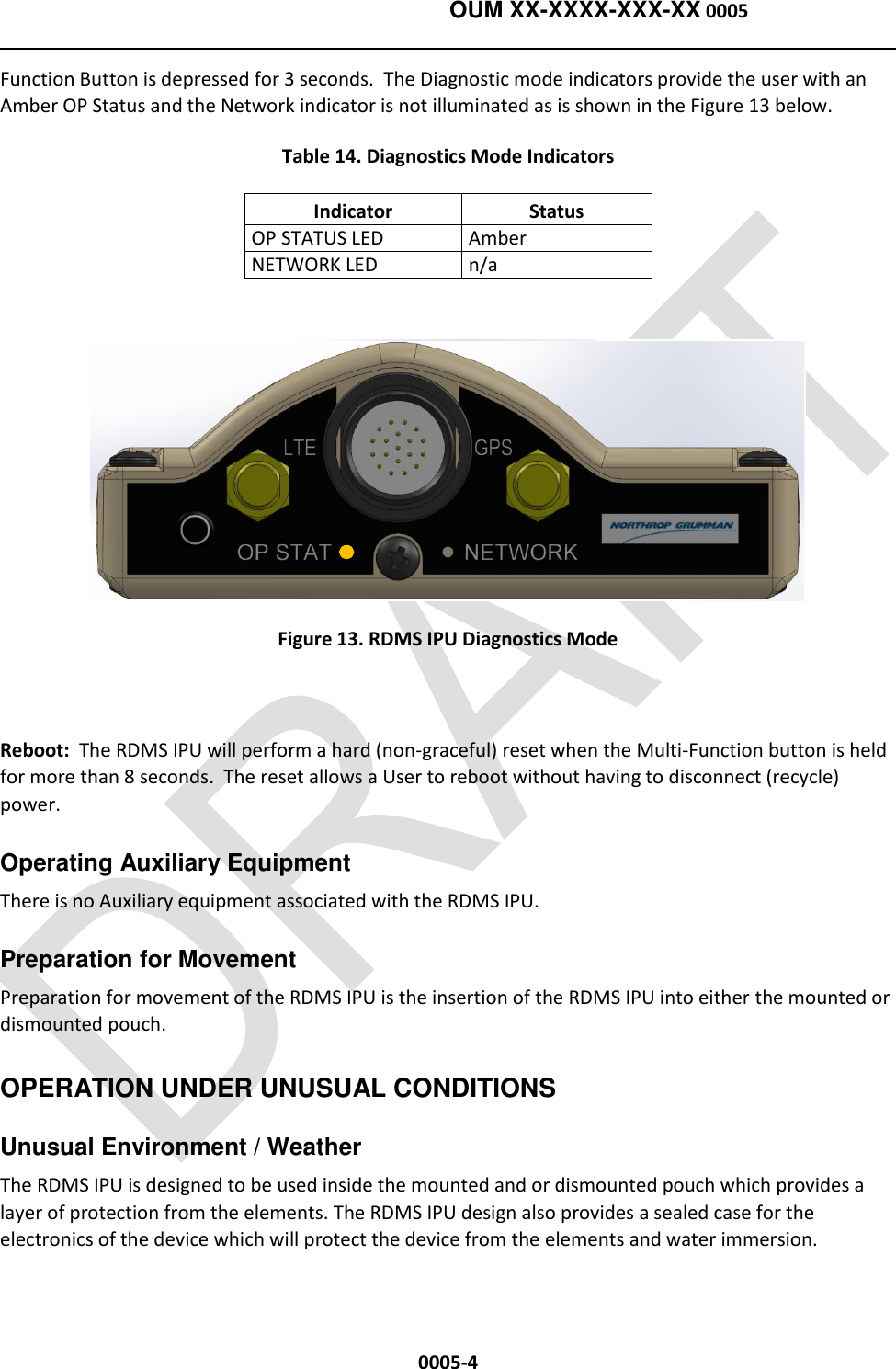

OUM XX-XXXX-XXX-XX 0005 0005-4 Function Button is depressed for 3 seconds. The Diagnostic mode indicators provide the user with an Amber OP Status and the Network indicator is not illuminated as is shown in the Figure 13 below. Table 14. Diagnostics Mode Indicators Indicator Status OP STATUS LED Amber NETWORK LED n/a Figure 13. RDMS IPU Diagnostics Mode Reboot: The RDMS IPU will perform a hard (non-graceful) reset when the Multi-Function button is held for more than 8 seconds. The reset allows a User to reboot without having to disconnect (recycle) power. Operating Auxiliary Equipment There is no Auxiliary equipment associated with the RDMS IPU. Preparation for Movement Preparation for movement of the RDMS IPU is the insertion of the RDMS IPU into either the mounted or dismounted pouch. OPERATION UNDER UNUSUAL CONDITIONS Unusual Environment / Weather The RDMS IPU is designed to be used inside the mounted and or dismounted pouch which provides a layer of protection from the elements. The RDMS IPU design also provides a sealed case for the electronics of the device which will protect the device from the elements and water immersion.

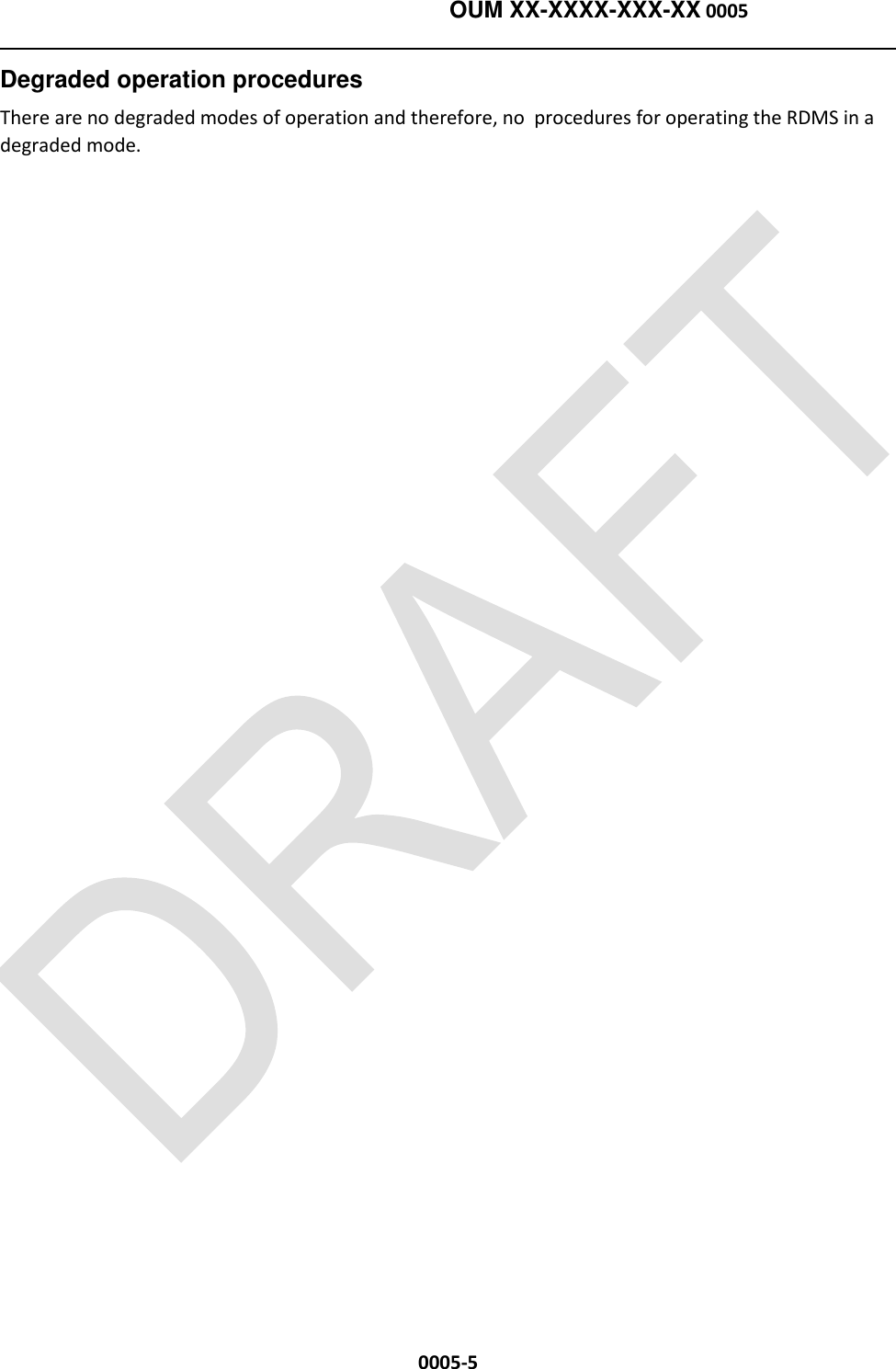

OUM XX-XXXX-XXX-XX 0005 0005-5 Degraded operation procedures There are no degraded modes of operation and therefore, no procedures for operating the RDMS in a degraded mode.

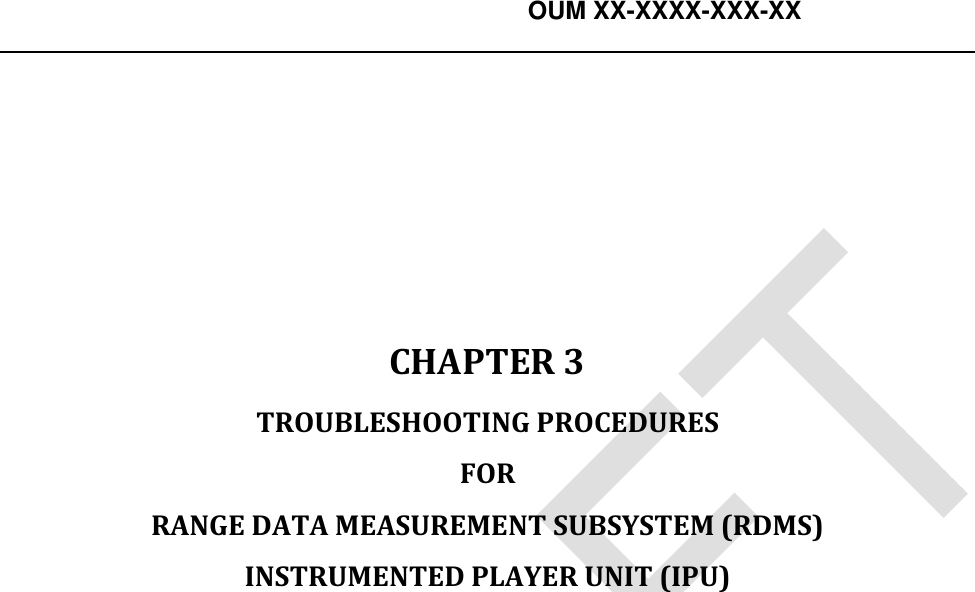

OUM XX-XXXX-XXX-XX CHAPTER 3 TROUBLESHOOTING PROCEDURES FOR RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU)

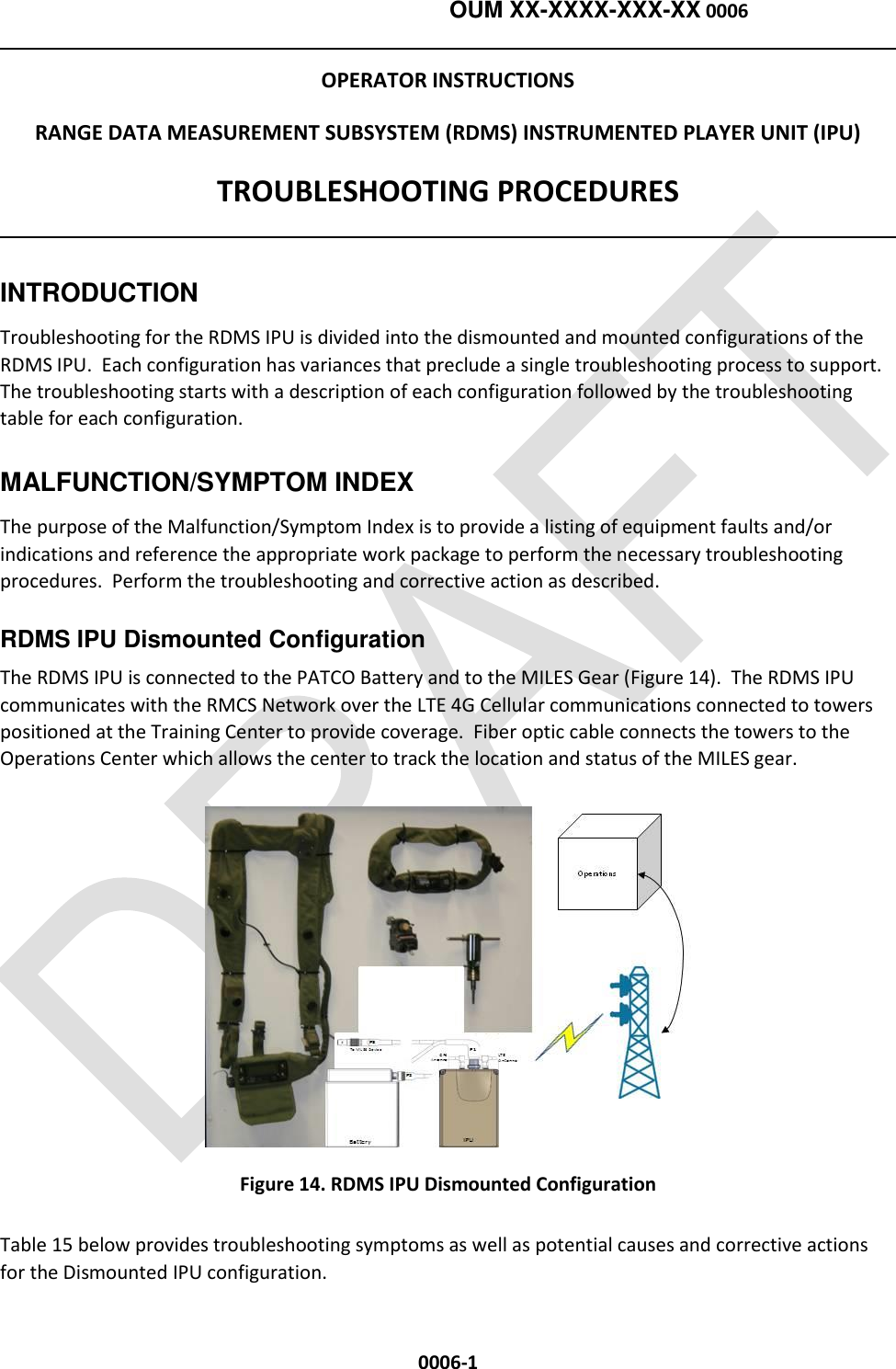

OUM XX-XXXX-XXX-XX 0006 0006-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) TROUBLESHOOTING PROCEDURES INTRODUCTION Troubleshooting for the RDMS IPU is divided into the dismounted and mounted configurations of the RDMS IPU. Each configuration has variances that preclude a single troubleshooting process to support. The troubleshooting starts with a description of each configuration followed by the troubleshooting table for each configuration. MALFUNCTION/SYMPTOM INDEX The purpose of the Malfunction/Symptom Index is to provide a listing of equipment faults and/or indications and reference the appropriate work package to perform the necessary troubleshooting procedures. Perform the troubleshooting and corrective action as described. RDMS IPU Dismounted Configuration The RDMS IPU is connected to the PATCO Battery and to the MILES Gear (Figure 14). The RDMS IPU communicates with the RMCS Network over the LTE 4G Cellular communications connected to towers positioned at the Training Center to provide coverage. Fiber optic cable connects the towers to the Operations Center which allows the center to track the location and status of the MILES gear. Figure 14. RDMS IPU Dismounted Configuration Table 15 below provides troubleshooting symptoms as well as potential causes and corrective actions for the Dismounted IPU configuration.

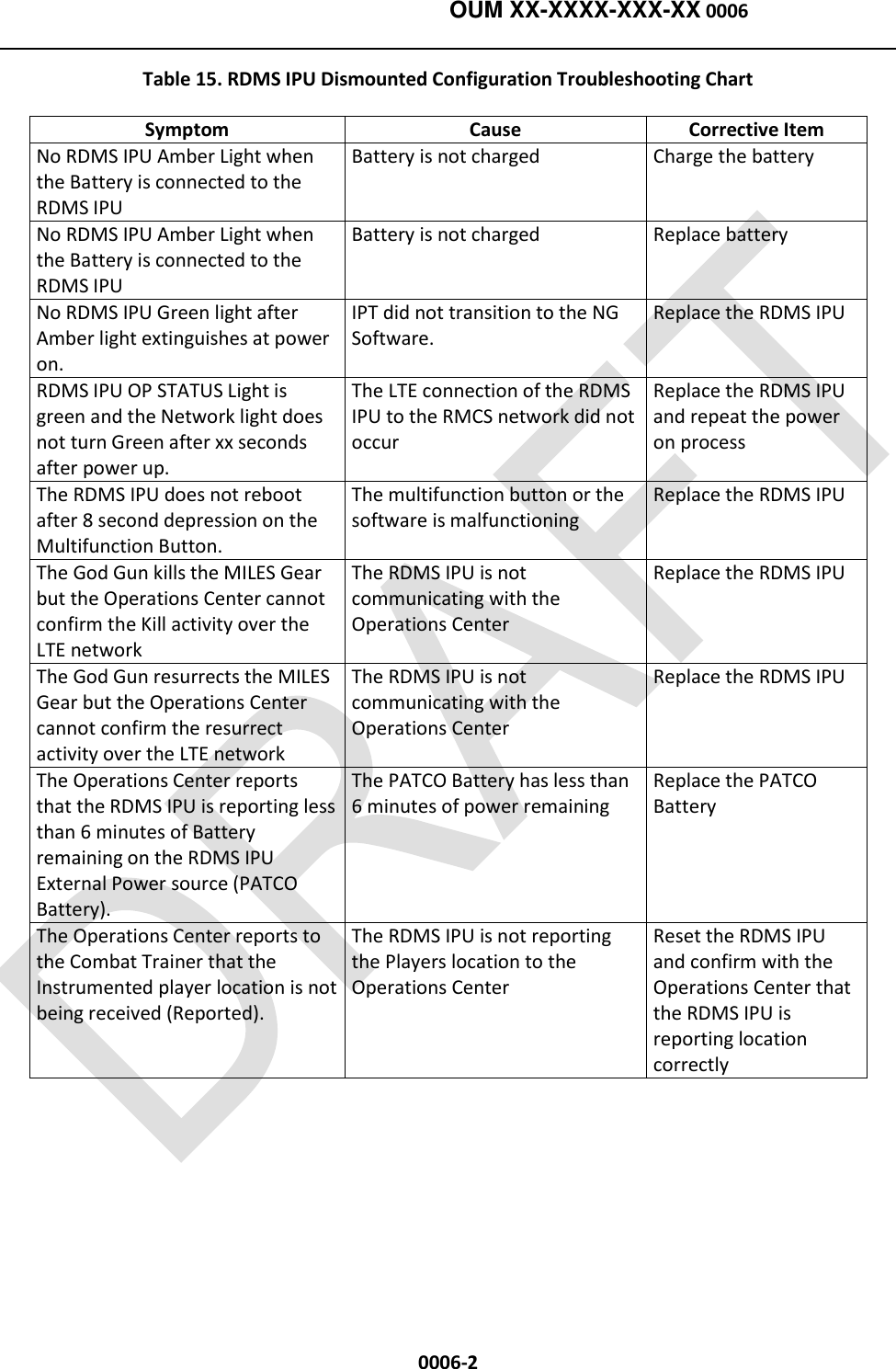

OUM XX-XXXX-XXX-XX 0006 0006-2 Table 15. RDMS IPU Dismounted Configuration Troubleshooting Chart Symptom Cause Corrective Item No RDMS IPU Amber Light when the Battery is connected to the RDMS IPU Battery is not charged Charge the battery No RDMS IPU Amber Light when the Battery is connected to the RDMS IPU Battery is not charged Replace battery No RDMS IPU Green light after Amber light extinguishes at power on. IPT did not transition to the NG Software. Replace the RDMS IPU RDMS IPU OP STATUS Light is green and the Network light does not turn Green after xx seconds after power up. The LTE connection of the RDMS IPU to the RMCS network did not occur Replace the RDMS IPU and repeat the power on process The RDMS IPU does not reboot after 8 second depression on the Multifunction Button. The multifunction button or the software is malfunctioning Replace the RDMS IPU The God Gun kills the MILES Gear but the Operations Center cannot confirm the Kill activity over the LTE network The RDMS IPU is not communicating with the Operations Center Replace the RDMS IPU The God Gun resurrects the MILES Gear but the Operations Center cannot confirm the resurrect activity over the LTE network The RDMS IPU is not communicating with the Operations Center Replace the RDMS IPU The Operations Center reports that the RDMS IPU is reporting less than 6 minutes of Battery remaining on the RDMS IPU External Power source (PATCO Battery). The PATCO Battery has less than 6 minutes of power remaining Replace the PATCO Battery The Operations Center reports to the Combat Trainer that the Instrumented player location is not being received (Reported). The RDMS IPU is not reporting the Players location to the Operations Center Reset the RDMS IPU and confirm with the Operations Center that the RDMS IPU is reporting location correctly

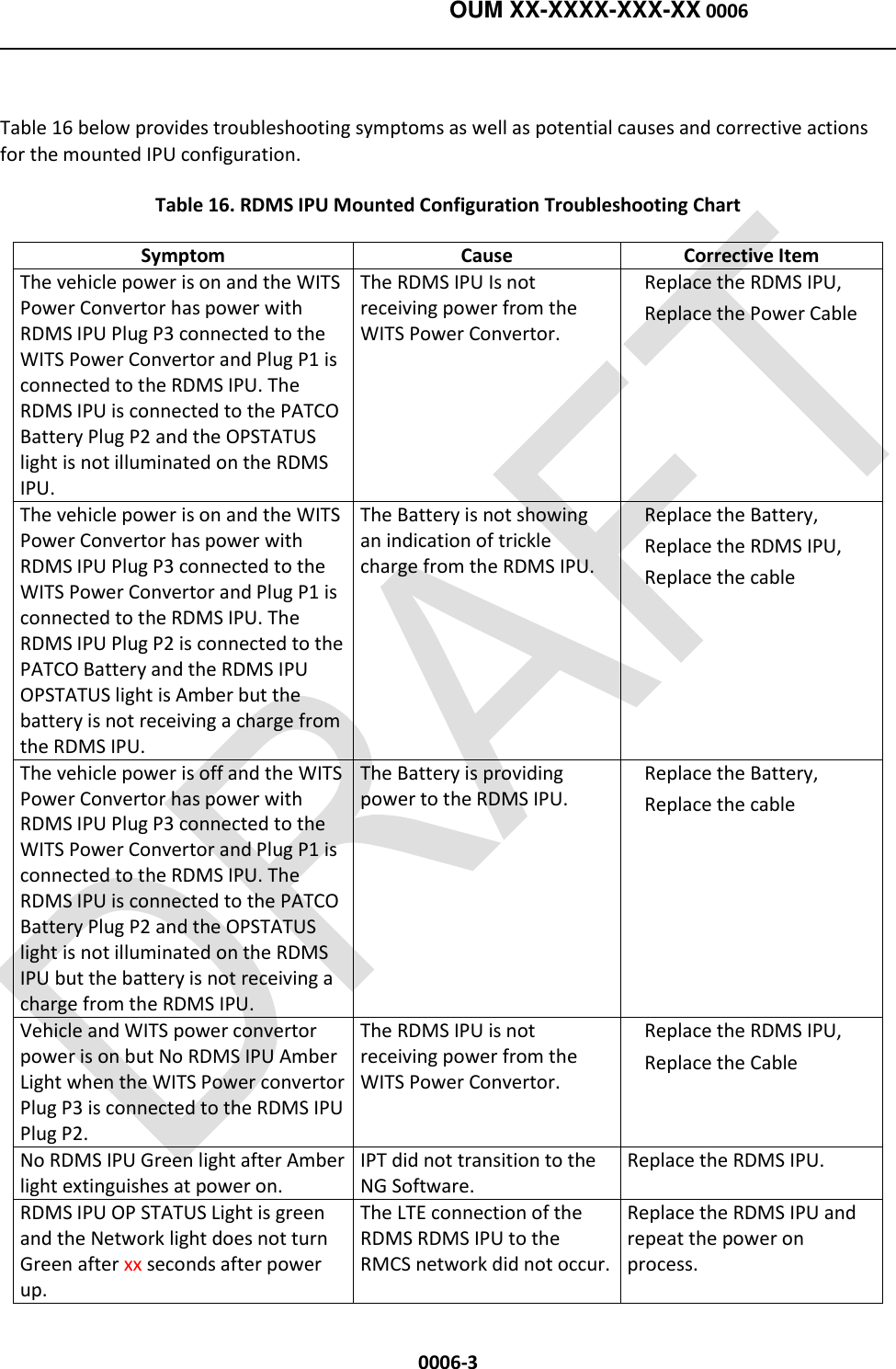

OUM XX-XXXX-XXX-XX 0006 0006-3 Table 16 below provides troubleshooting symptoms as well as potential causes and corrective actions for the mounted IPU configuration. Table 16. RDMS IPU Mounted Configuration Troubleshooting Chart Symptom Cause Corrective Item The vehicle power is on and the WITS Power Convertor has power with RDMS IPU Plug P3 connected to the WITS Power Convertor and Plug P1 is connected to the RDMS IPU. The RDMS IPU is connected to the PATCO Battery Plug P2 and the OPSTATUS light is not illuminated on the RDMS IPU. The RDMS IPU Is not receiving power from the WITS Power Convertor. Replace the RDMS IPU, Replace the Power Cable The vehicle power is on and the WITS Power Convertor has power with RDMS IPU Plug P3 connected to the WITS Power Convertor and Plug P1 is connected to the RDMS IPU. The RDMS IPU Plug P2 is connected to the PATCO Battery and the RDMS IPU OPSTATUS light is Amber but the battery is not receiving a charge from the RDMS IPU. The Battery is not showing an indication of trickle charge from the RDMS IPU. Replace the Battery, Replace the RDMS IPU, Replace the cable The vehicle power is off and the WITS Power Convertor has power with RDMS IPU Plug P3 connected to the WITS Power Convertor and Plug P1 is connected to the RDMS IPU. The RDMS IPU is connected to the PATCO Battery Plug P2 and the OPSTATUS light is not illuminated on the RDMS IPU but the battery is not receiving a charge from the RDMS IPU. The Battery is providing power to the RDMS IPU. Replace the Battery, Replace the cable Vehicle and WITS power convertor power is on but No RDMS IPU Amber Light when the WITS Power convertor Plug P3 is connected to the RDMS IPU Plug P2. The RDMS IPU is not receiving power from the WITS Power Convertor. Replace the RDMS IPU, Replace the Cable No RDMS IPU Green light after Amber light extinguishes at power on. IPT did not transition to the NG Software. Replace the RDMS IPU. RDMS IPU OP STATUS Light is green and the Network light does not turn Green after xx seconds after power up. The LTE connection of the RDMS RDMS IPU to the RMCS network did not occur. Replace the RDMS IPU and repeat the power on process.

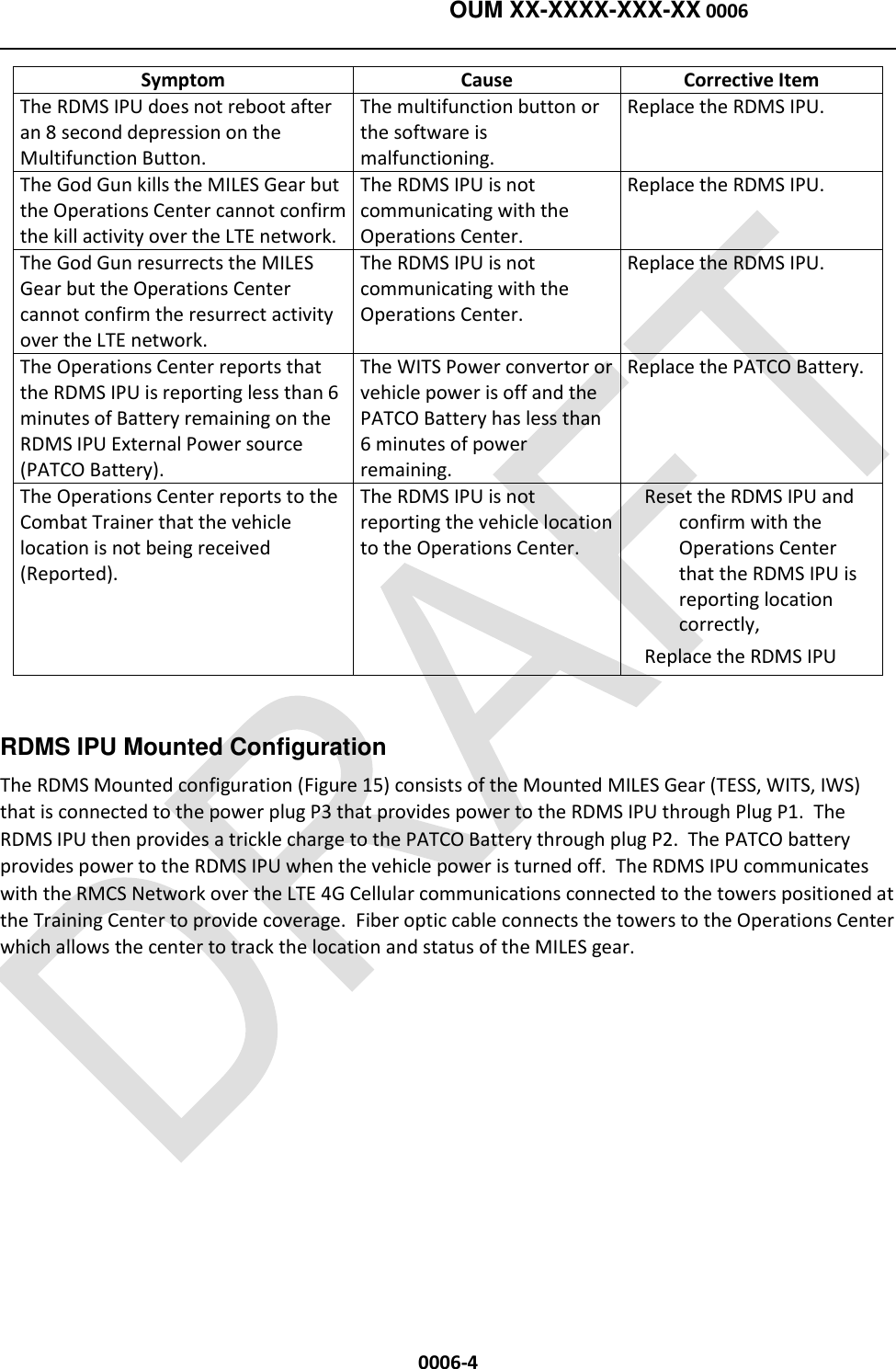

OUM XX-XXXX-XXX-XX 0006 0006-4 Symptom Cause Corrective Item The RDMS IPU does not reboot after an 8 second depression on the Multifunction Button. The multifunction button or the software is malfunctioning. Replace the RDMS IPU. The God Gun kills the MILES Gear but the Operations Center cannot confirm the kill activity over the LTE network. The RDMS IPU is not communicating with the Operations Center. Replace the RDMS IPU. The God Gun resurrects the MILES Gear but the Operations Center cannot confirm the resurrect activity over the LTE network. The RDMS IPU is not communicating with the Operations Center. Replace the RDMS IPU. The Operations Center reports that the RDMS IPU is reporting less than 6 minutes of Battery remaining on the RDMS IPU External Power source (PATCO Battery). The WITS Power convertor or vehicle power is off and the PATCO Battery has less than 6 minutes of power remaining. Replace the PATCO Battery. The Operations Center reports to the Combat Trainer that the vehicle location is not being received (Reported). The RDMS IPU is not reporting the vehicle location to the Operations Center. Reset the RDMS IPU and confirm with the Operations Center that the RDMS IPU is reporting location correctly, Replace the RDMS IPU RDMS IPU Mounted Configuration The RDMS Mounted configuration (Figure 15) consists of the Mounted MILES Gear (TESS, WITS, IWS) that is connected to the power plug P3 that provides power to the RDMS IPU through Plug P1. The RDMS IPU then provides a trickle charge to the PATCO Battery through plug P2. The PATCO battery provides power to the RDMS IPU when the vehicle power is turned off. The RDMS IPU communicates with the RMCS Network over the LTE 4G Cellular communications connected to the towers positioned at the Training Center to provide coverage. Fiber optic cable connects the towers to the Operations Center which allows the center to track the location and status of the MILES gear.

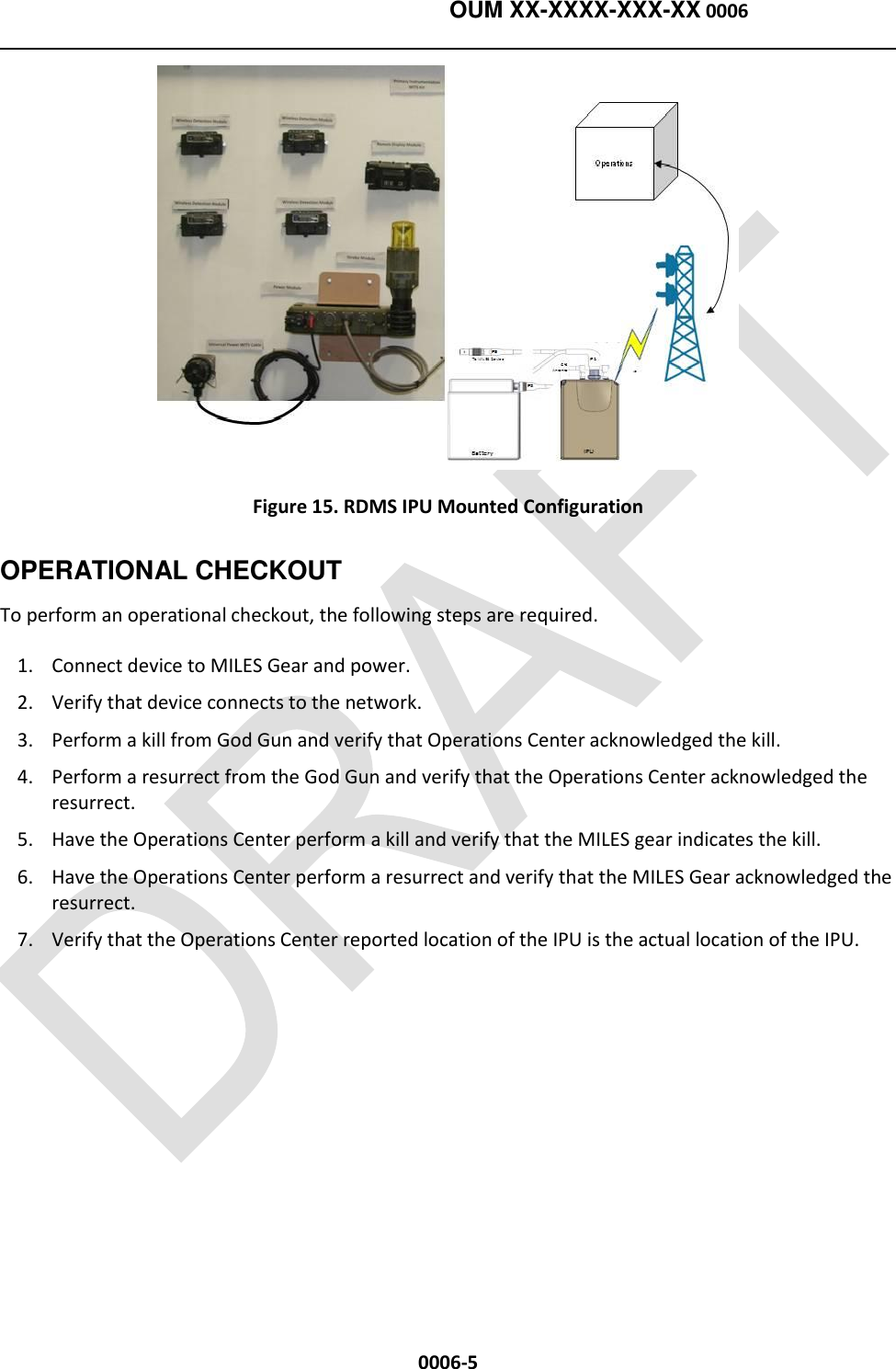

OUM XX-XXXX-XXX-XX 0006 0006-5 Figure 15. RDMS IPU Mounted Configuration OPERATIONAL CHECKOUT To perform an operational checkout, the following steps are required. 1. Connect device to MILES Gear and power. 2. Verify that device connects to the network. 3. Perform a kill from God Gun and verify that Operations Center acknowledged the kill. 4. Perform a resurrect from the God Gun and verify that the Operations Center acknowledged the resurrect. 5. Have the Operations Center perform a kill and verify that the MILES gear indicates the kill. 6. Have the Operations Center perform a resurrect and verify that the MILES Gear acknowledged the resurrect. 7. Verify that the Operations Center reported location of the IPU is the actual location of the IPU.

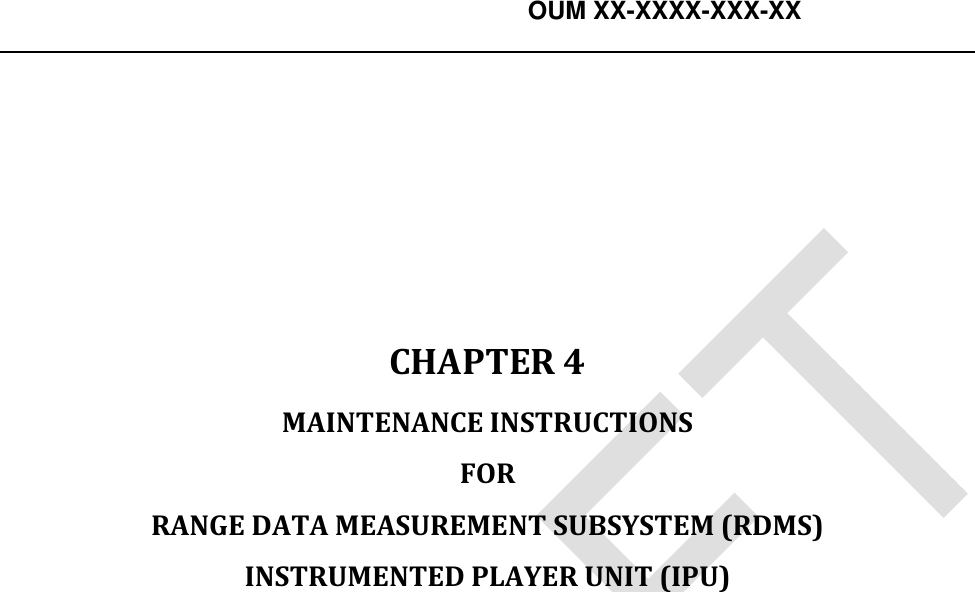

OUM XX-XXXX-XXX-XX CHAPTER 4 MAINTENANCE INSTRUCTIONS FOR RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU)

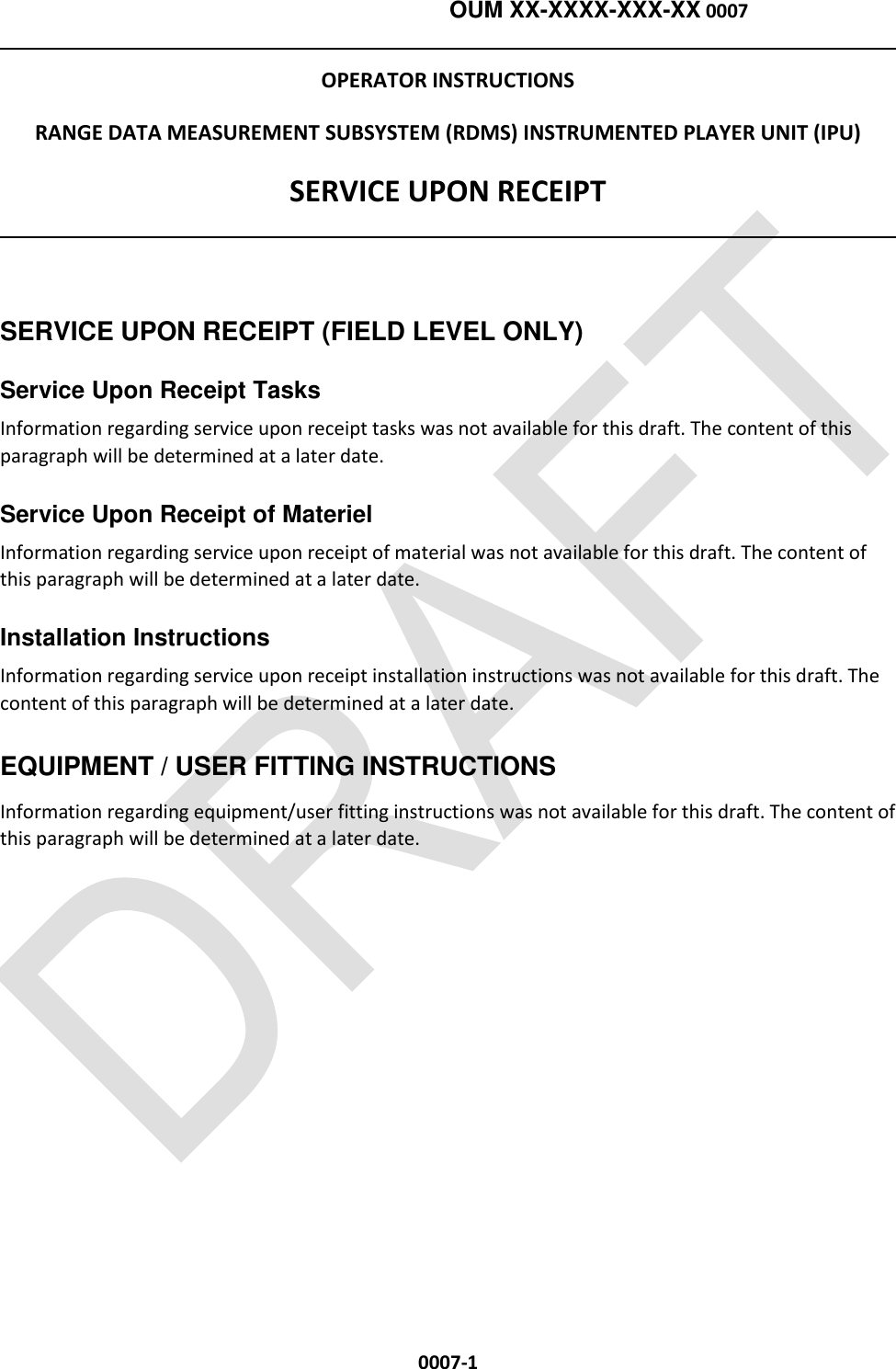

OUM XX-XXXX-XXX-XX 0007 0007-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) SERVICE UPON RECEIPT SERVICE UPON RECEIPT (FIELD LEVEL ONLY) Service Upon Receipt Tasks Information regarding service upon receipt tasks was not available for this draft. The content of this paragraph will be determined at a later date. Service Upon Receipt of Materiel Information regarding service upon receipt of material was not available for this draft. The content of this paragraph will be determined at a later date. Installation Instructions Information regarding service upon receipt installation instructions was not available for this draft. The content of this paragraph will be determined at a later date. EQUIPMENT / USER FITTING INSTRUCTIONS Information regarding equipment/user fitting instructions was not available for this draft. The content of this paragraph will be determined at a later date.

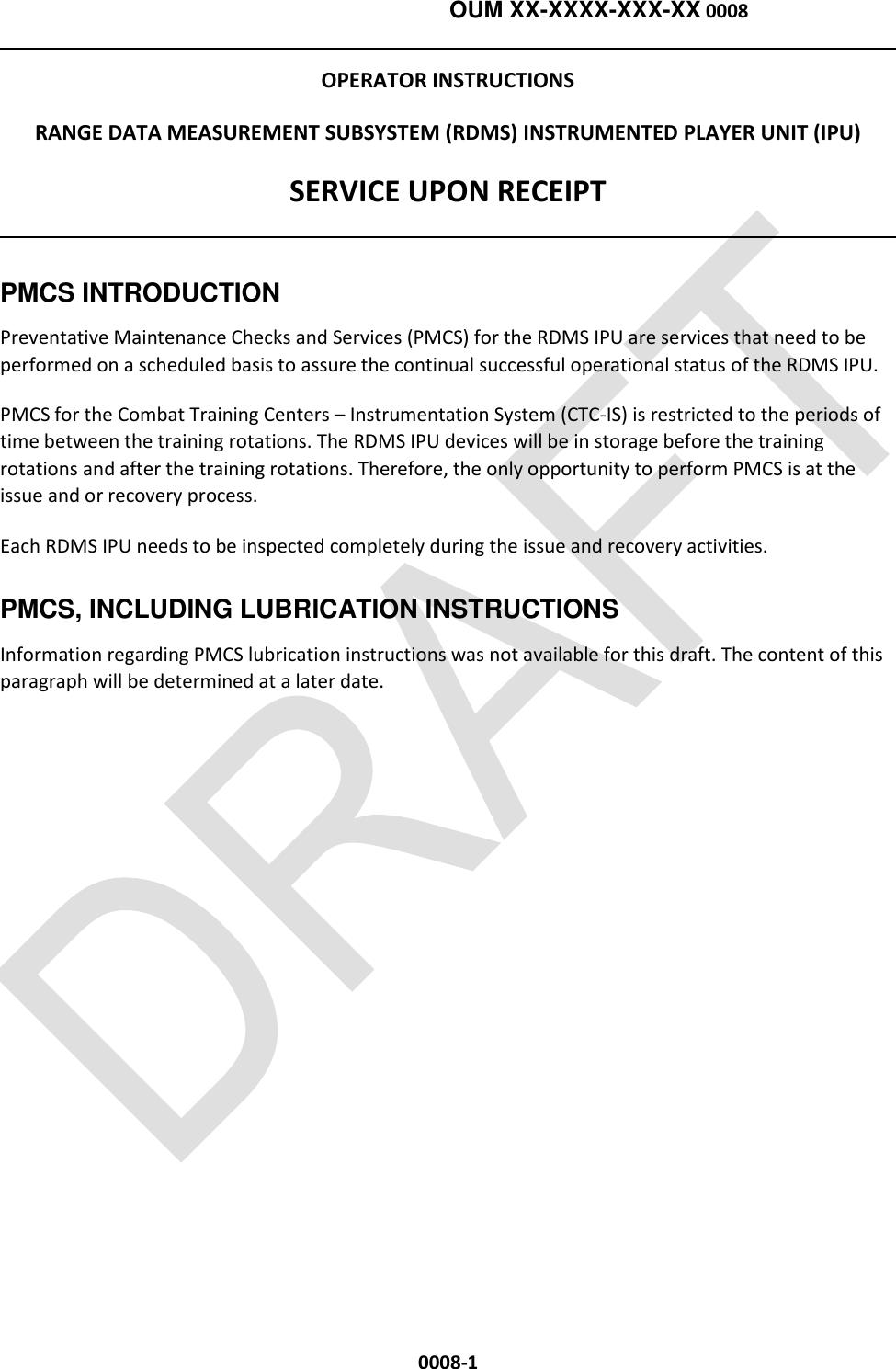

OUM XX-XXXX-XXX-XX 0008 0008-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) SERVICE UPON RECEIPT PMCS INTRODUCTION Preventative Maintenance Checks and Services (PMCS) for the RDMS IPU are services that need to be performed on a scheduled basis to assure the continual successful operational status of the RDMS IPU. PMCS for the Combat Training Centers – Instrumentation System (CTC-IS) is restricted to the periods of time between the training rotations. The RDMS IPU devices will be in storage before the training rotations and after the training rotations. Therefore, the only opportunity to perform PMCS is at the issue and or recovery process. Each RDMS IPU needs to be inspected completely during the issue and recovery activities. PMCS, INCLUDING LUBRICATION INSTRUCTIONS Information regarding PMCS lubrication instructions was not available for this draft. The content of this paragraph will be determined at a later date.

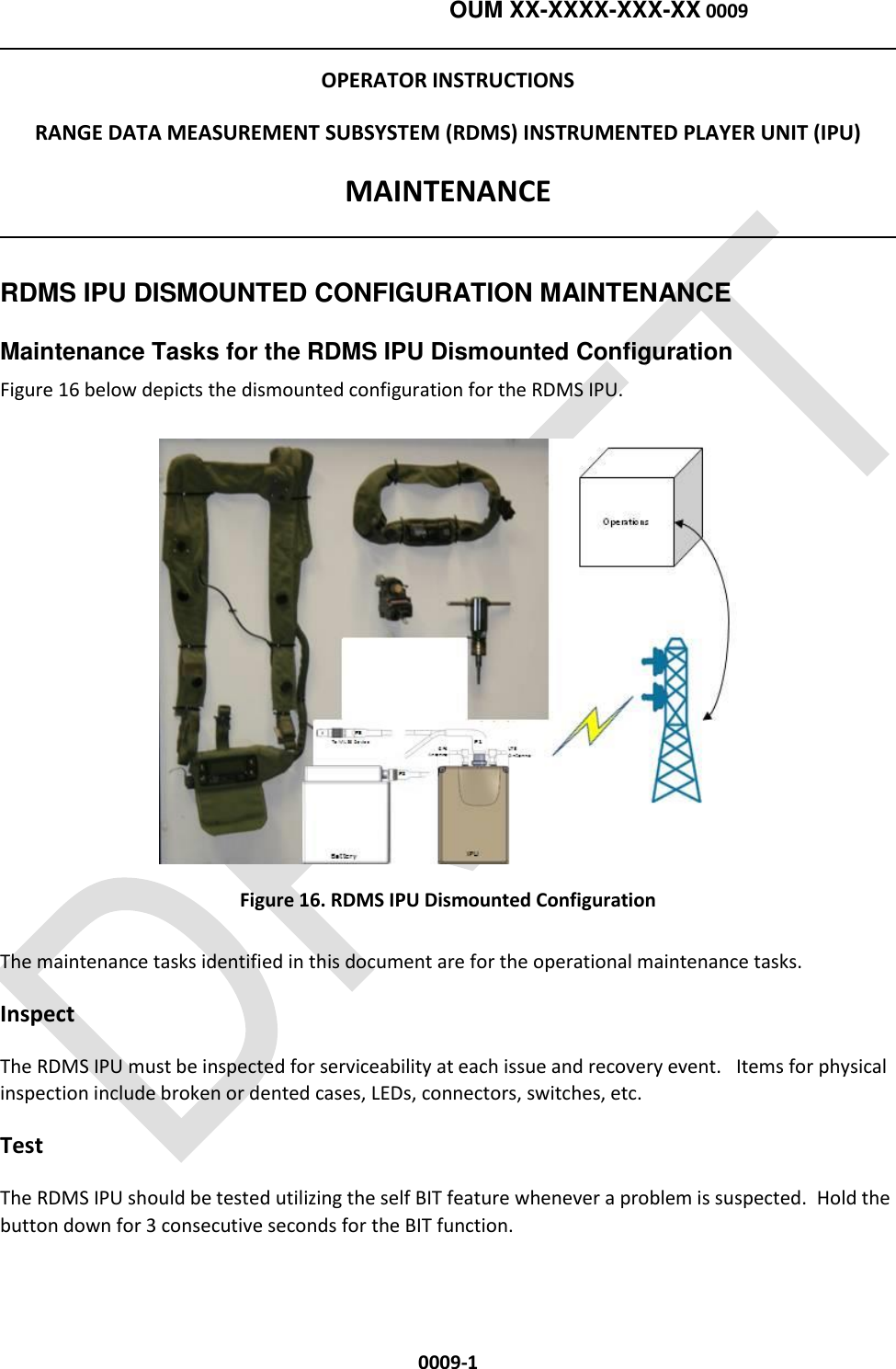

OUM XX-XXXX-XXX-XX 0009 0009-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) MAINTENANCE RDMS IPU DISMOUNTED CONFIGURATION MAINTENANCE Maintenance Tasks for the RDMS IPU Dismounted Configuration Figure 16 below depicts the dismounted configuration for the RDMS IPU. Figure 16. RDMS IPU Dismounted Configuration The maintenance tasks identified in this document are for the operational maintenance tasks. Inspect The RDMS IPU must be inspected for serviceability at each issue and recovery event. Items for physical inspection include broken or dented cases, LEDs, connectors, switches, etc. Test The RDMS IPU should be tested utilizing the self BIT feature whenever a problem is suspected. Hold the button down for 3 consecutive seconds for the BIT function.

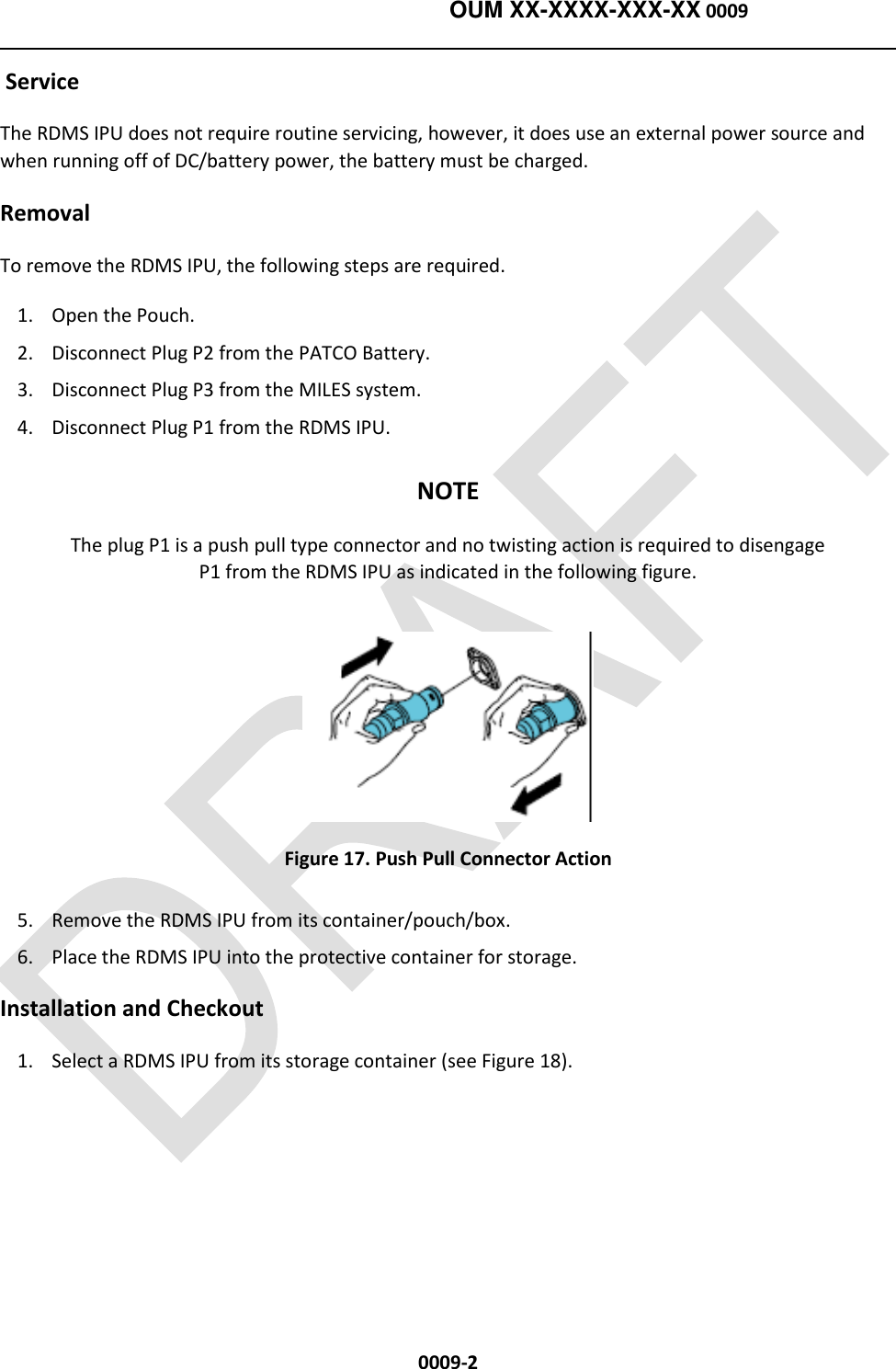

OUM XX-XXXX-XXX-XX 0009 0009-2 Service The RDMS IPU does not require routine servicing, however, it does use an external power source and when running off of DC/battery power, the battery must be charged. Removal To remove the RDMS IPU, the following steps are required. 1. Open the Pouch. 2. Disconnect Plug P2 from the PATCO Battery. 3. Disconnect Plug P3 from the MILES system. 4. Disconnect Plug P1 from the RDMS IPU. NOTE The plug P1 is a push pull type connector and no twisting action is required to disengage P1 from the RDMS IPU as indicated in the following figure. Figure 17. Push Pull Connector Action 5. Remove the RDMS IPU from its container/pouch/box. 6. Place the RDMS IPU into the protective container for storage. Installation and Checkout 1. Select a RDMS IPU from its storage container (see Figure 18).

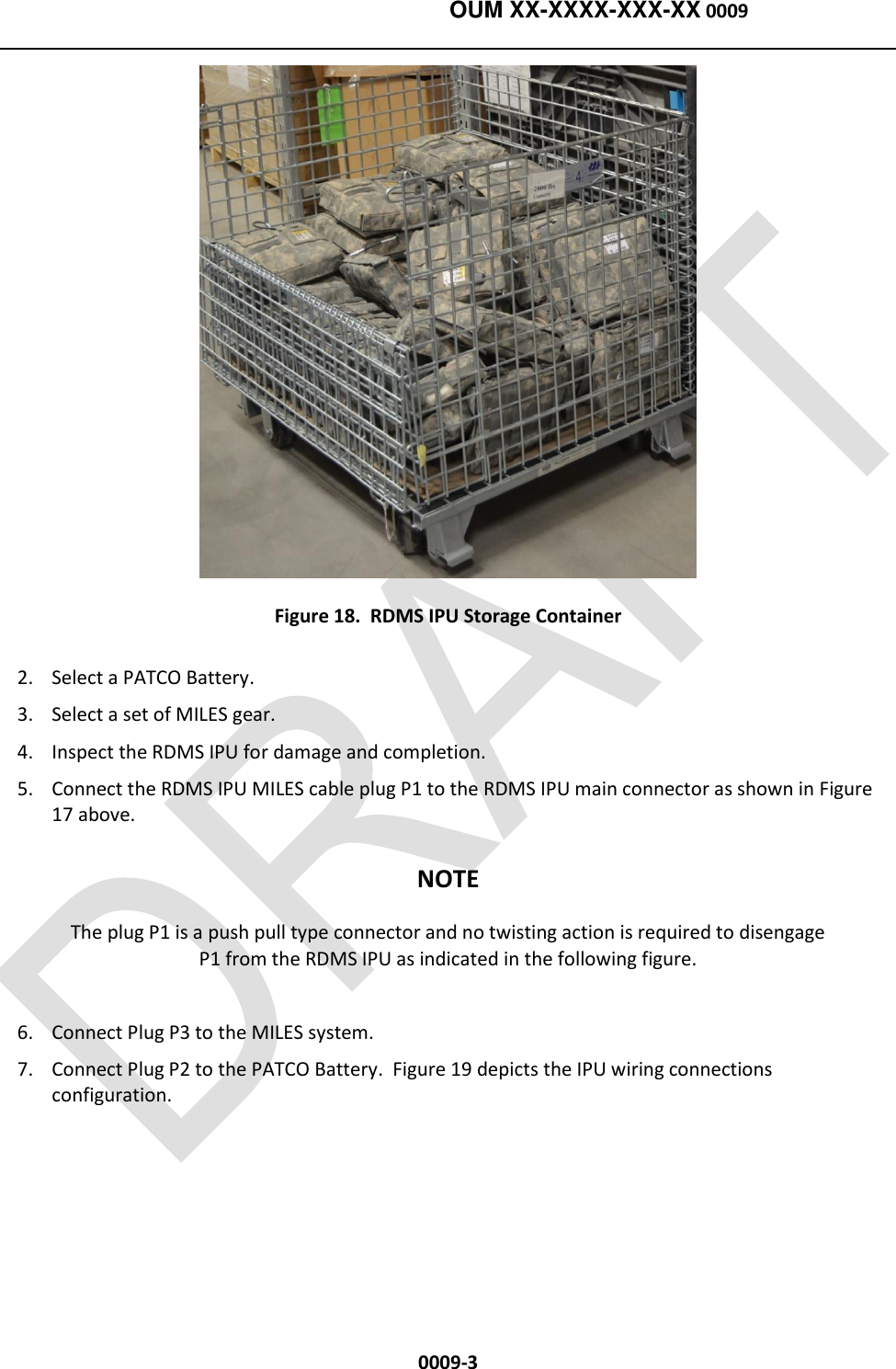

OUM XX-XXXX-XXX-XX 0009 0009-3 Figure 18. RDMS IPU Storage Container 2. Select a PATCO Battery. 3. Select a set of MILES gear. 4. Inspect the RDMS IPU for damage and completion. 5. Connect the RDMS IPU MILES cable plug P1 to the RDMS IPU main connector as shown in Figure 17 above. NOTE The plug P1 is a push pull type connector and no twisting action is required to disengage P1 from the RDMS IPU as indicated in the following figure. 6. Connect Plug P3 to the MILES system. 7. Connect Plug P2 to the PATCO Battery. Figure 19 depicts the IPU wiring connections configuration.

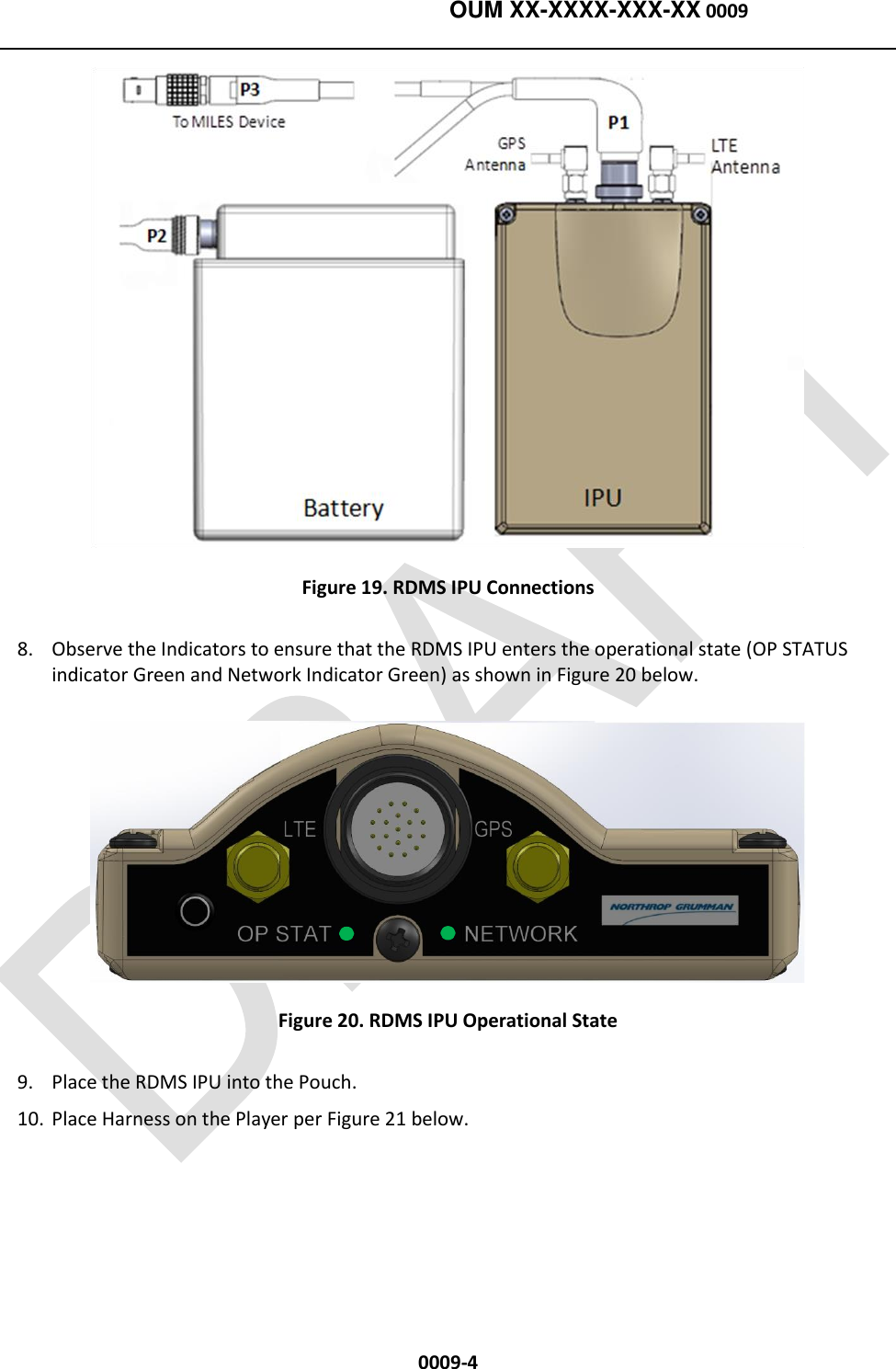

OUM XX-XXXX-XXX-XX 0009 0009-4 Figure 19. RDMS IPU Connections 8. Observe the Indicators to ensure that the RDMS IPU enters the operational state (OP STATUS indicator Green and Network Indicator Green) as shown in Figure 20 below. Figure 20. RDMS IPU Operational State 9. Place the RDMS IPU into the Pouch. 10. Place Harness on the Player per Figure 21 below.

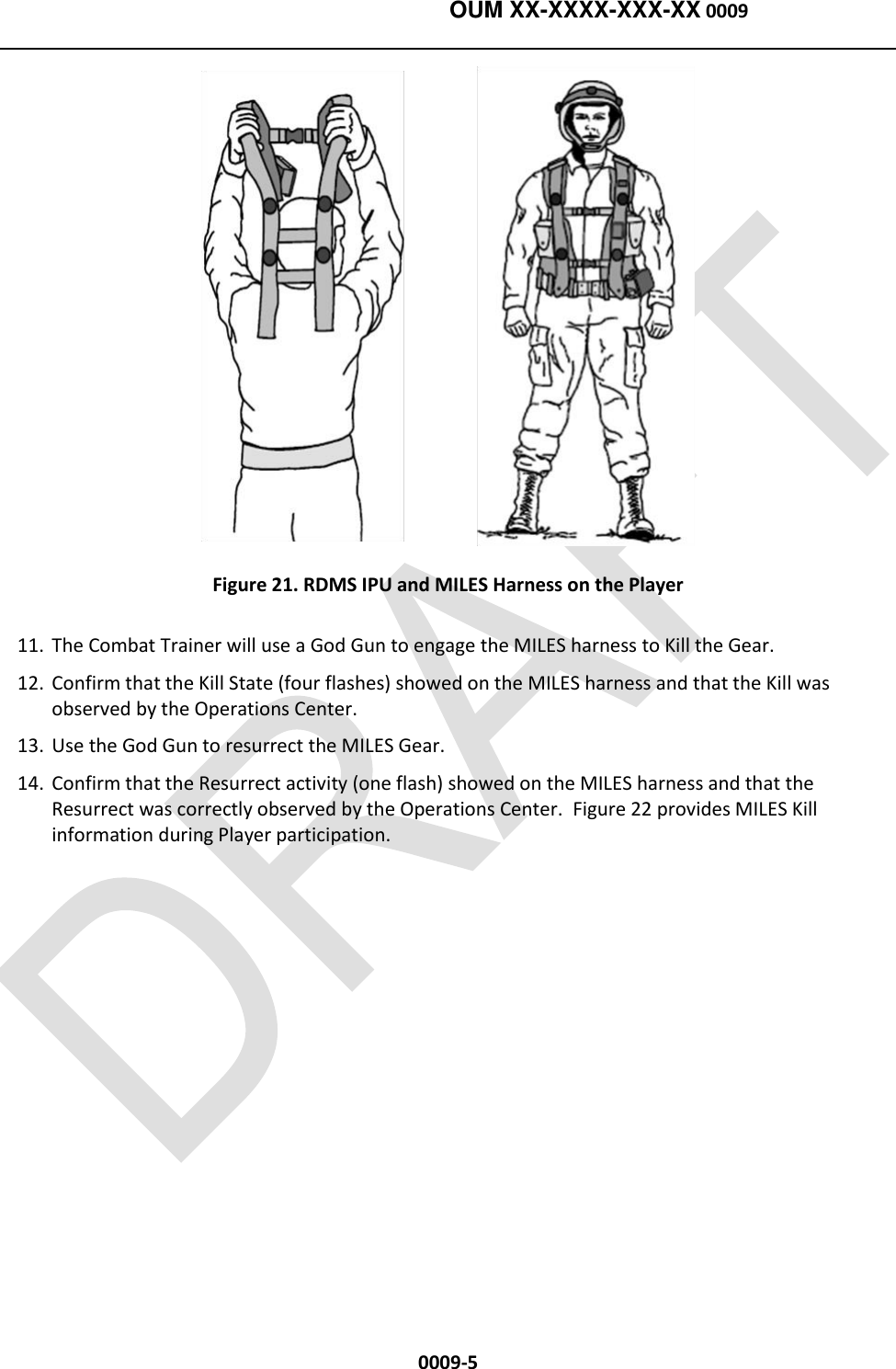

OUM XX-XXXX-XXX-XX 0009 0009-5 Figure 21. RDMS IPU and MILES Harness on the Player 11. The Combat Trainer will use a God Gun to engage the MILES harness to Kill the Gear. 12. Confirm that the Kill State (four flashes) showed on the MILES harness and that the Kill was observed by the Operations Center. 13. Use the God Gun to resurrect the MILES Gear. 14. Confirm that the Resurrect activity (one flash) showed on the MILES harness and that the Resurrect was correctly observed by the Operations Center. Figure 22 provides MILES Kill information during Player participation.

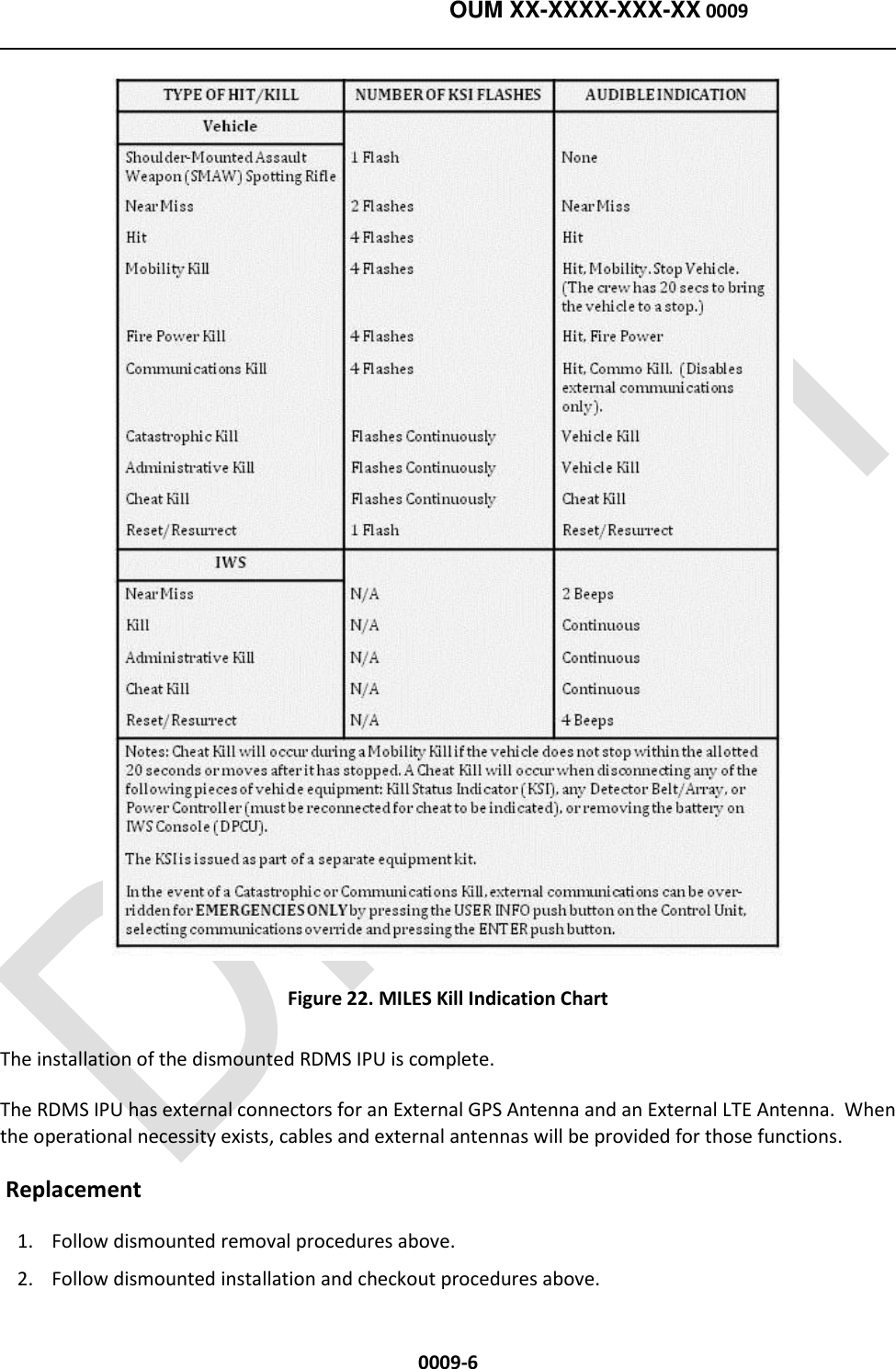

OUM XX-XXXX-XXX-XX 0009 0009-6 Figure 22. MILES Kill Indication Chart The installation of the dismounted RDMS IPU is complete. The RDMS IPU has external connectors for an External GPS Antenna and an External LTE Antenna. When the operational necessity exists, cables and external antennas will be provided for those functions. Replacement 1. Follow dismounted removal procedures above. 2. Follow dismounted installation and checkout procedures above.
OUM XX-XXXX-XXX-XX 0009 0009-7 Repair If a RDMS IPU failure is suspected, press and hold the multi-function button for 3 consecutive seconds and check to see if the LED light illuminates. If yes, then continue to troubleshoot the problem by checking the connector. If the connector is suspect, change the connector. If the RDMS IPU still does not power up, then remove and replace the RDMS IPU per procedures above. Pack The RDMS IPU should be packaged and kept in a dry, dust free container while not in use. Unpack Remove the RDMS IPU from its storage container and inspect for defects prior to installation. Prepare for use Unpack the RDMS IPU from its container and ensure that the connector pins are not bent or loose prior to installation. Assemble The RDMS IPU should not be assembled by the user (assembly is only by certified repair technicians). Disassemble The RDMS IPU should not be disassembled by the user (disassembly is only by certified repair technicians). Clean The RDMS IPU should be kept dry and dust free as much as possible. Clean the RDMS IPU with a dry/lint free cloth. Caution: Do not use corrosive cleaning solutions on the RDMS IPU. If required, use a damp cloth only and then dry the RDMS IPU with a dry/lint free cloth. Nondestructive inspection Not applicable. Place in service The RDMS IPU will be placed into service at the Combat Training Centers (CTC). The number of RDMS IPU devices placed into service for each rotation will be based upon the needs of the Training rotations and number of Player units required to support.

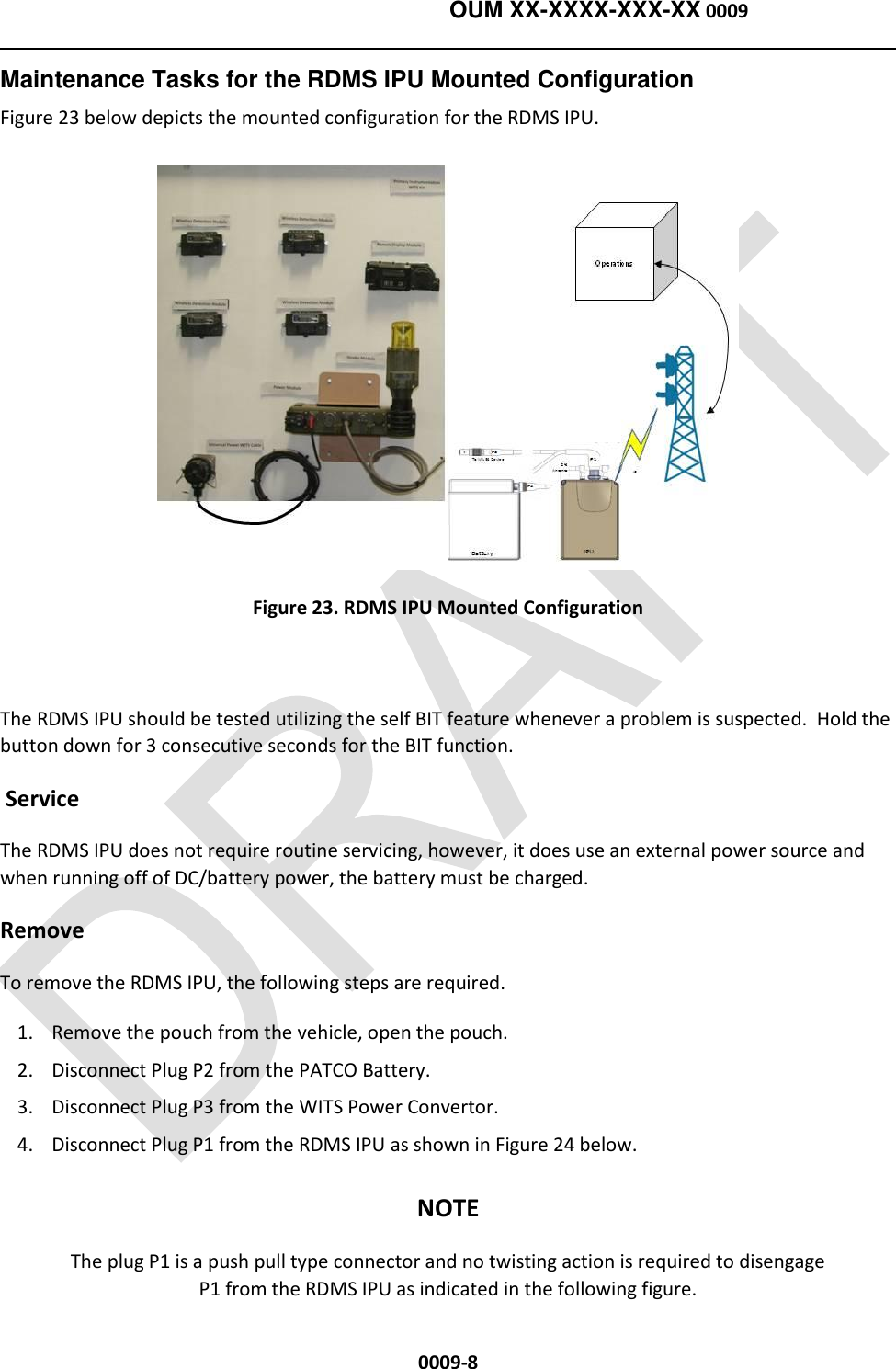

OUM XX-XXXX-XXX-XX 0009 0009-8 Maintenance Tasks for the RDMS IPU Mounted Configuration Figure 23 below depicts the mounted configuration for the RDMS IPU. Figure 23. RDMS IPU Mounted Configuration The RDMS IPU should be tested utilizing the self BIT feature whenever a problem is suspected. Hold the button down for 3 consecutive seconds for the BIT function. Service The RDMS IPU does not require routine servicing, however, it does use an external power source and when running off of DC/battery power, the battery must be charged. Remove To remove the RDMS IPU, the following steps are required. 1. Remove the pouch from the vehicle, open the pouch. 2. Disconnect Plug P2 from the PATCO Battery. 3. Disconnect Plug P3 from the WITS Power Convertor. 4. Disconnect Plug P1 from the RDMS IPU as shown in Figure 24 below. NOTE The plug P1 is a push pull type connector and no twisting action is required to disengage P1 from the RDMS IPU as indicated in the following figure.

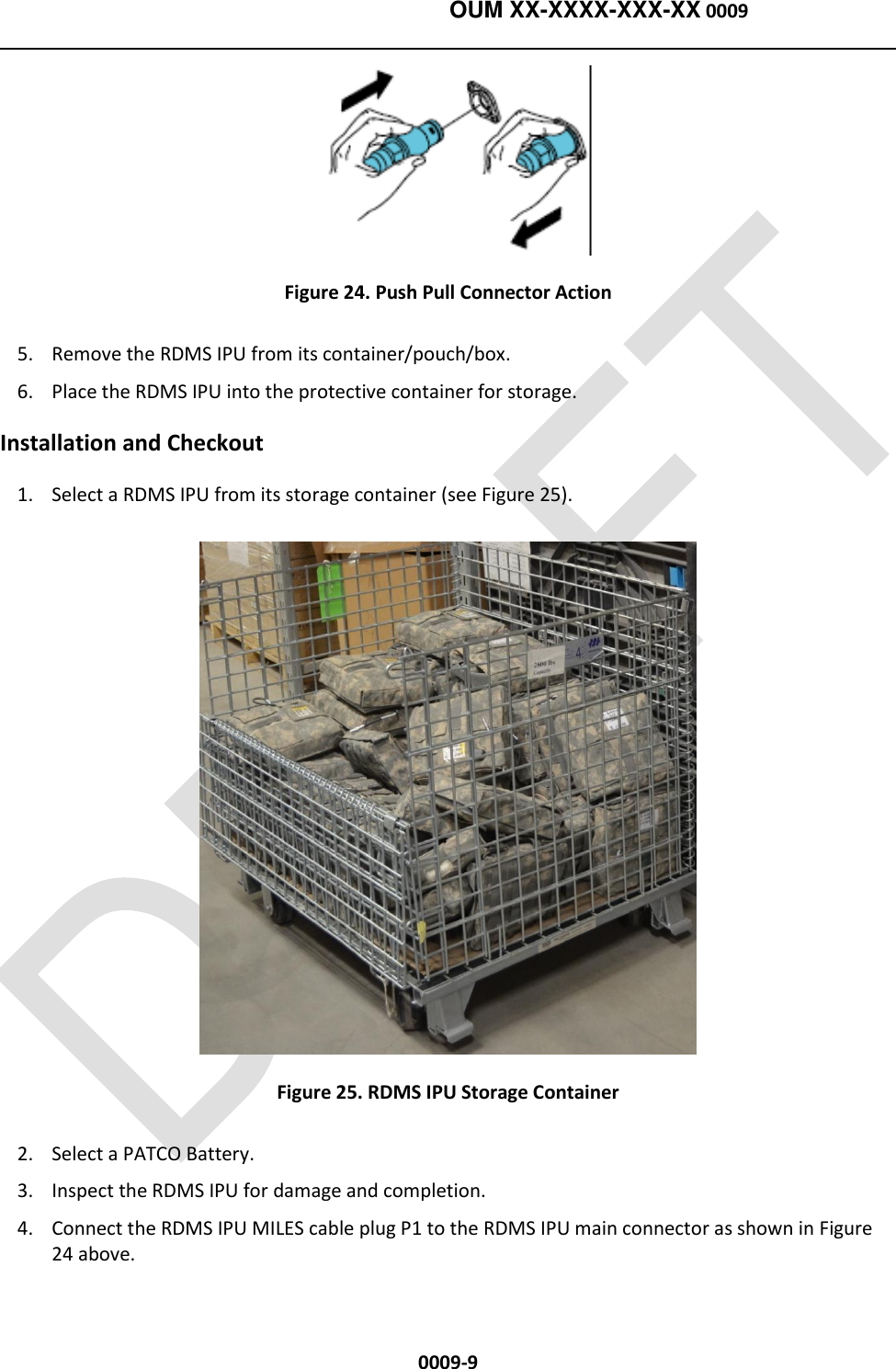

OUM XX-XXXX-XXX-XX 0009 0009-9 Figure 24. Push Pull Connector Action 5. Remove the RDMS IPU from its container/pouch/box. 6. Place the RDMS IPU into the protective container for storage. Installation and Checkout 1. Select a RDMS IPU from its storage container (see Figure 25). Figure 25. RDMS IPU Storage Container 2. Select a PATCO Battery. 3. Inspect the RDMS IPU for damage and completion. 4. Connect the RDMS IPU MILES cable plug P1 to the RDMS IPU main connector as shown in Figure 24 above.

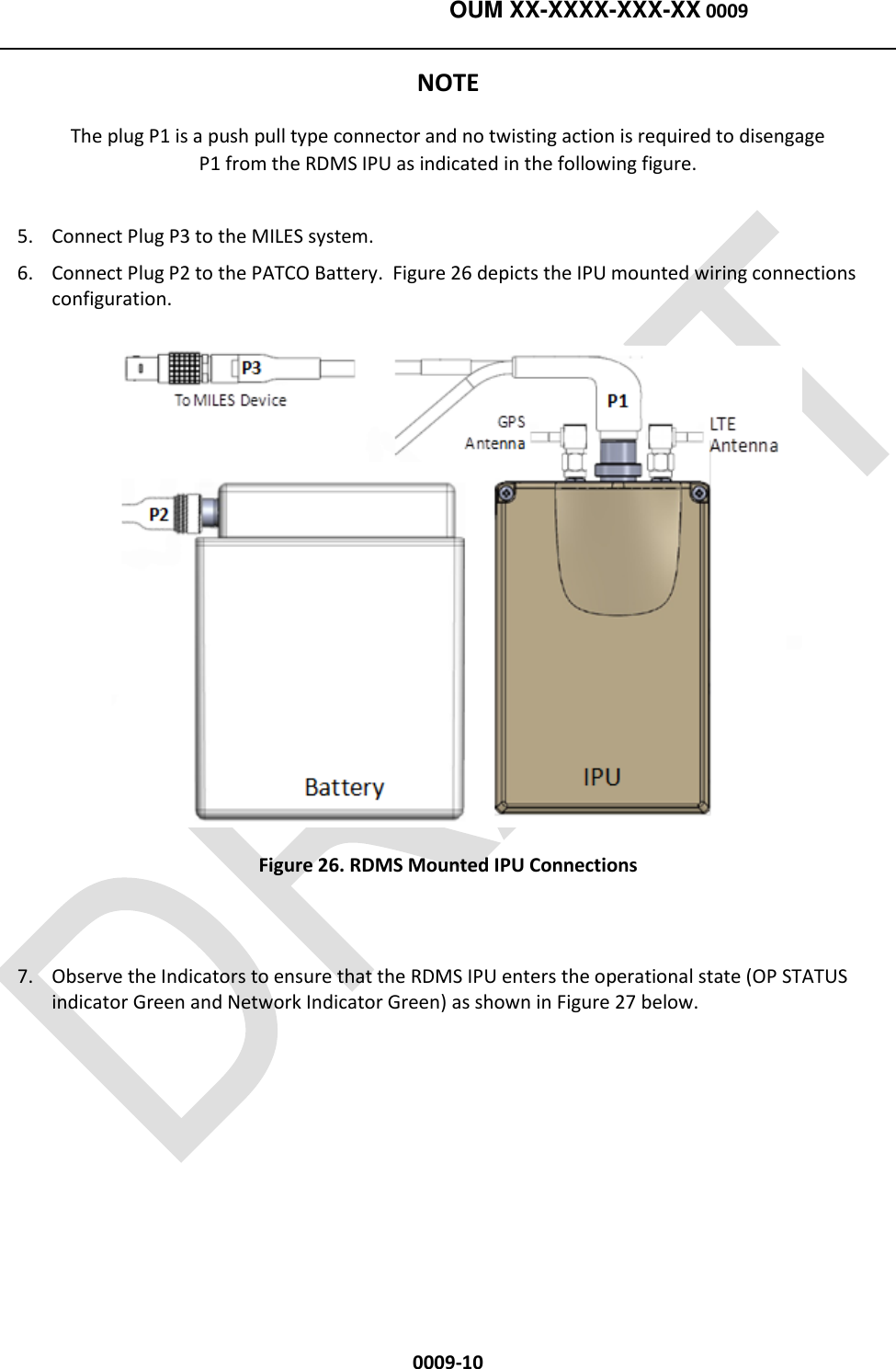

OUM XX-XXXX-XXX-XX 0009 0009-10 NOTE The plug P1 is a push pull type connector and no twisting action is required to disengage P1 from the RDMS IPU as indicated in the following figure. 5. Connect Plug P3 to the MILES system. 6. Connect Plug P2 to the PATCO Battery. Figure 26 depicts the IPU mounted wiring connections configuration. Figure 26. RDMS Mounted IPU Connections 7. Observe the Indicators to ensure that the RDMS IPU enters the operational state (OP STATUS indicator Green and Network Indicator Green) as shown in Figure 27 below.

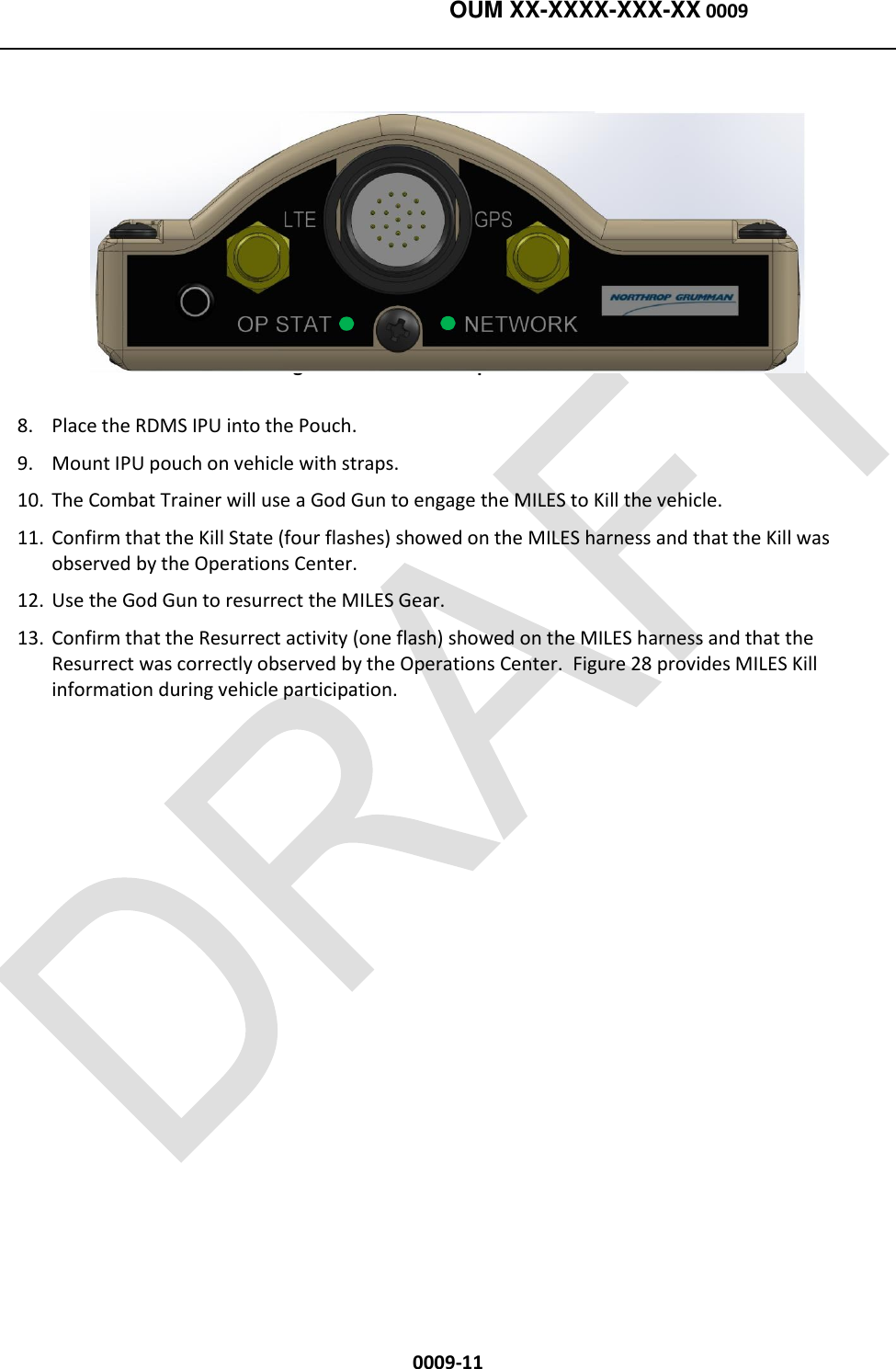

OUM XX-XXXX-XXX-XX 0009 0009-11 Figure 27. RDMS IPU Operational State 8. Place the RDMS IPU into the Pouch. 9. Mount IPU pouch on vehicle with straps. 10. The Combat Trainer will use a God Gun to engage the MILES to Kill the vehicle. 11. Confirm that the Kill State (four flashes) showed on the MILES harness and that the Kill was observed by the Operations Center. 12. Use the God Gun to resurrect the MILES Gear. 13. Confirm that the Resurrect activity (one flash) showed on the MILES harness and that the Resurrect was correctly observed by the Operations Center. Figure 28 provides MILES Kill information during vehicle participation.
OUM XX-XXXX-XXX-XX 0009 0009-12 Figure 28. MILES Kill Indication Chart The installation of the mounted RDMS IPU is complete. The RDMS IPU has external connectors for an External GPS Antenna and an External LTE Antenna. When the operational necessity exists, cables and external antennas will be provided for those functions. Replacement 1. Follow mounted removal procedures above. 2. Follow mounted installation and checkout procedures above.

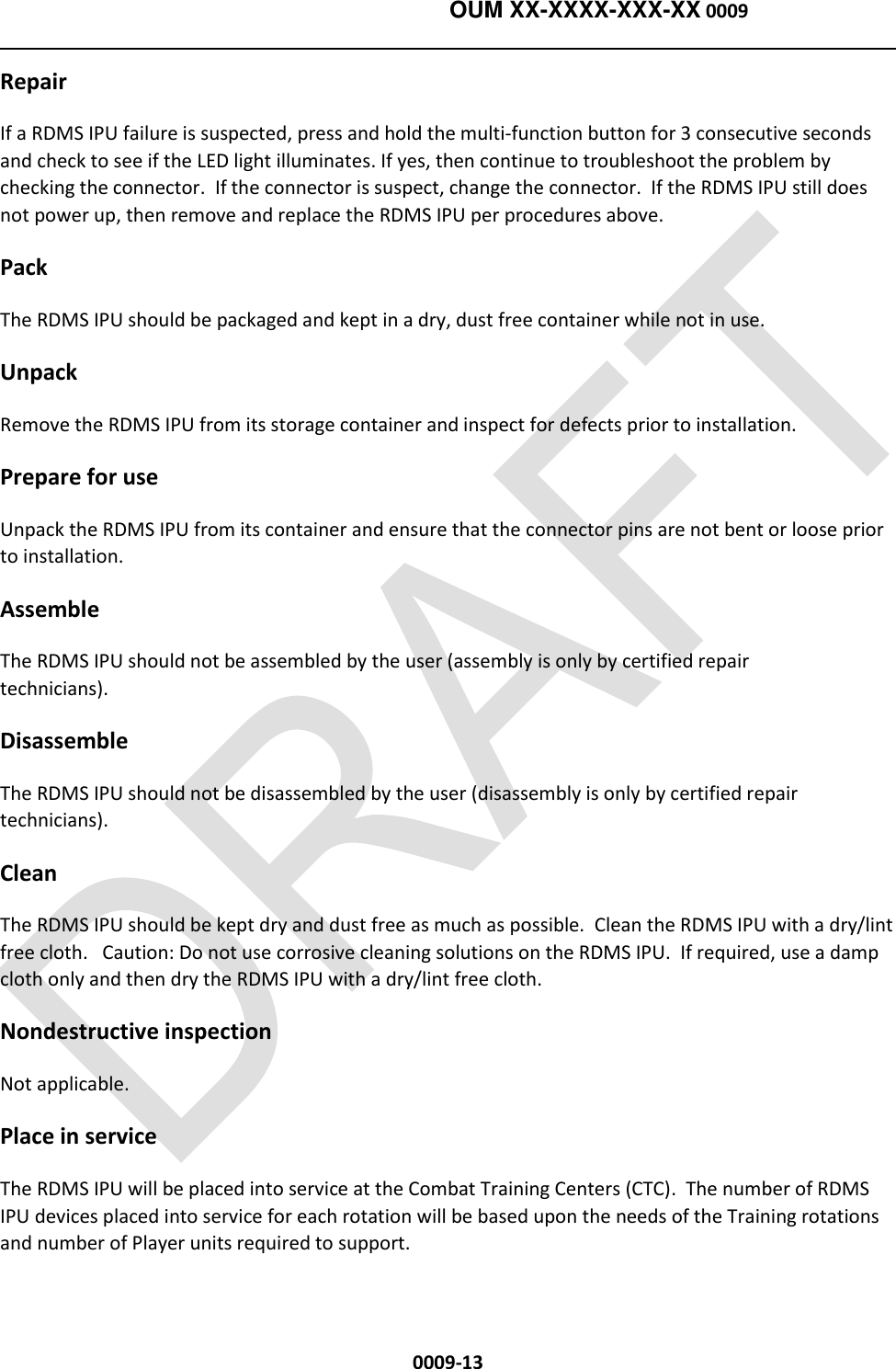

OUM XX-XXXX-XXX-XX 0009 0009-13 Repair If a RDMS IPU failure is suspected, press and hold the multi-function button for 3 consecutive seconds and check to see if the LED light illuminates. If yes, then continue to troubleshoot the problem by checking the connector. If the connector is suspect, change the connector. If the RDMS IPU still does not power up, then remove and replace the RDMS IPU per procedures above. Pack The RDMS IPU should be packaged and kept in a dry, dust free container while not in use. Unpack Remove the RDMS IPU from its storage container and inspect for defects prior to installation. Prepare for use Unpack the RDMS IPU from its container and ensure that the connector pins are not bent or loose prior to installation. Assemble The RDMS IPU should not be assembled by the user (assembly is only by certified repair technicians). Disassemble The RDMS IPU should not be disassembled by the user (disassembly is only by certified repair technicians). Clean The RDMS IPU should be kept dry and dust free as much as possible. Clean the RDMS IPU with a dry/lint free cloth. Caution: Do not use corrosive cleaning solutions on the RDMS IPU. If required, use a damp cloth only and then dry the RDMS IPU with a dry/lint free cloth. Nondestructive inspection Not applicable. Place in service The RDMS IPU will be placed into service at the Combat Training Centers (CTC). The number of RDMS IPU devices placed into service for each rotation will be based upon the needs of the Training rotations and number of Player units required to support.
OUM XX-XXXX-XXX-XX CHAPTER 5 SUPPORTING INFORMATION FOR RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU)

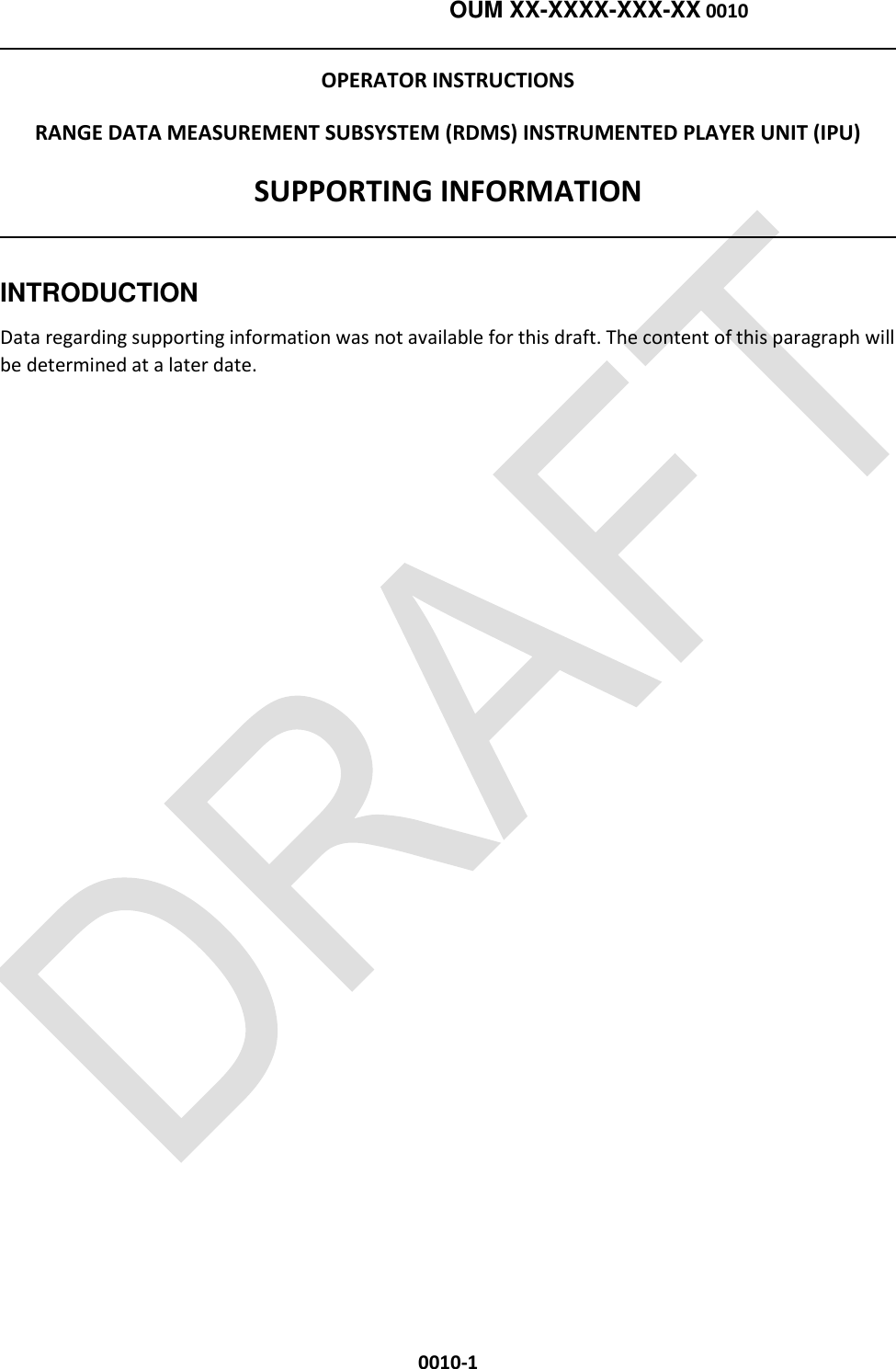

OUM XX-XXXX-XXX-XX 0010 0010-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) SUPPORTING INFORMATION INTRODUCTION Data regarding supporting information was not available for this draft. The content of this paragraph will be determined at a later date.

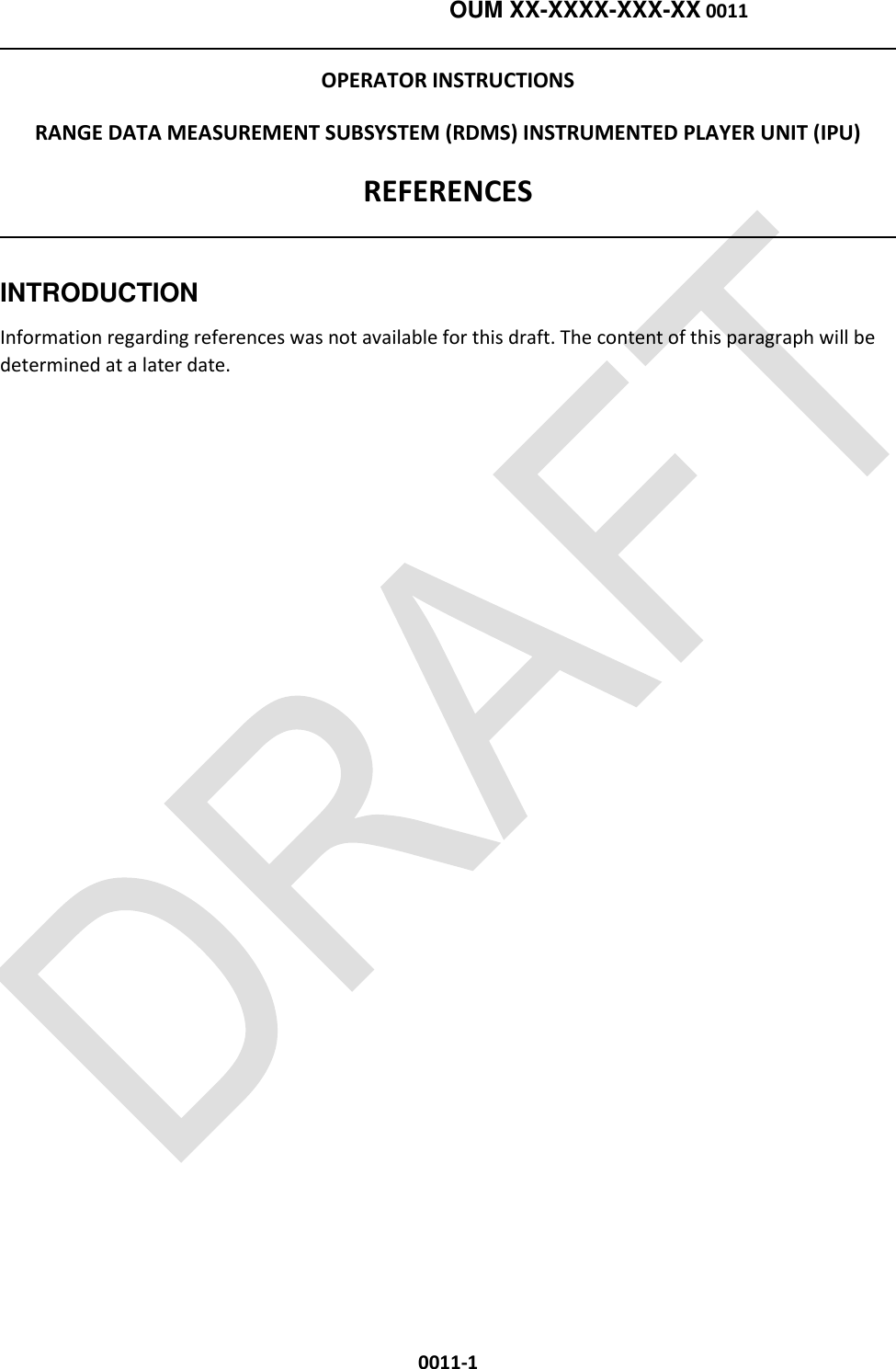

OUM XX-XXXX-XXX-XX 0011 0011-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) REFERENCES INTRODUCTION Information regarding references was not available for this draft. The content of this paragraph will be determined at a later date.

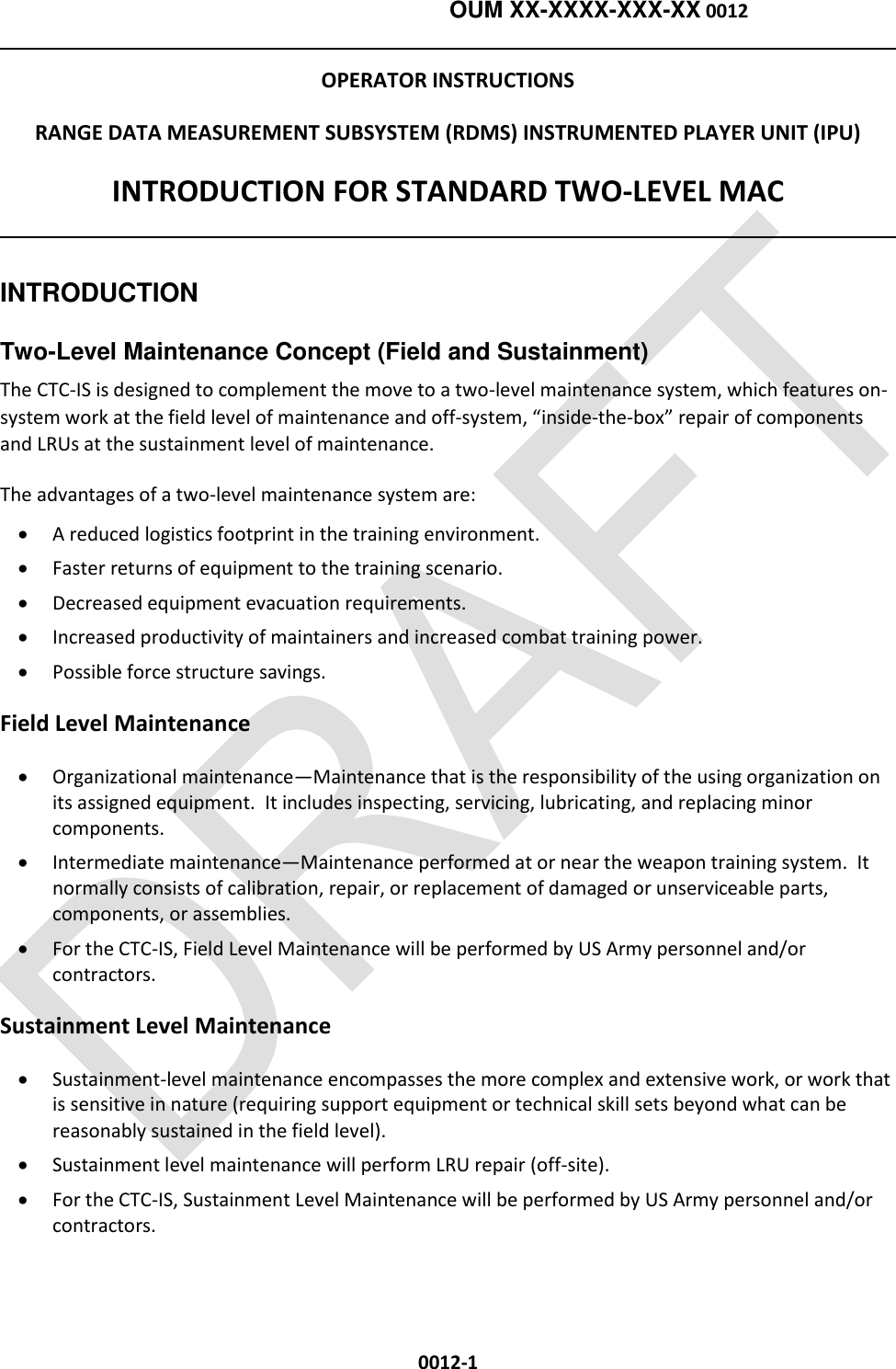

OUM XX-XXXX-XXX-XX 0012 0012-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) INTRODUCTION FOR STANDARD TWO-LEVEL MAC INTRODUCTION Two-Level Maintenance Concept (Field and Sustainment) The CTC-IS is designed to complement the move to a two-level maintenance system, which features on-system work at the field level of maintenance and off-system, “inside-the-box” repair of components and LRUs at the sustainment level of maintenance. The advantages of a two-level maintenance system are:  A reduced logistics footprint in the training environment.  Faster returns of equipment to the training scenario.  Decreased equipment evacuation requirements.  Increased productivity of maintainers and increased combat training power.  Possible force structure savings. Field Level Maintenance  Organizational maintenance—Maintenance that is the responsibility of the using organization on its assigned equipment. It includes inspecting, servicing, lubricating, and replacing minor components.  Intermediate maintenance—Maintenance performed at or near the weapon training system. It normally consists of calibration, repair, or replacement of damaged or unserviceable parts, components, or assemblies.  For the CTC-IS, Field Level Maintenance will be performed by US Army personnel and/or contractors. Sustainment Level Maintenance  Sustainment-level maintenance encompasses the more complex and extensive work, or work that is sensitive in nature (requiring support equipment or technical skill sets beyond what can be reasonably sustained in the field level).  Sustainment level maintenance will perform LRU repair (off-site).  For the CTC-IS, Sustainment Level Maintenance will be performed by US Army personnel and/or contractors.

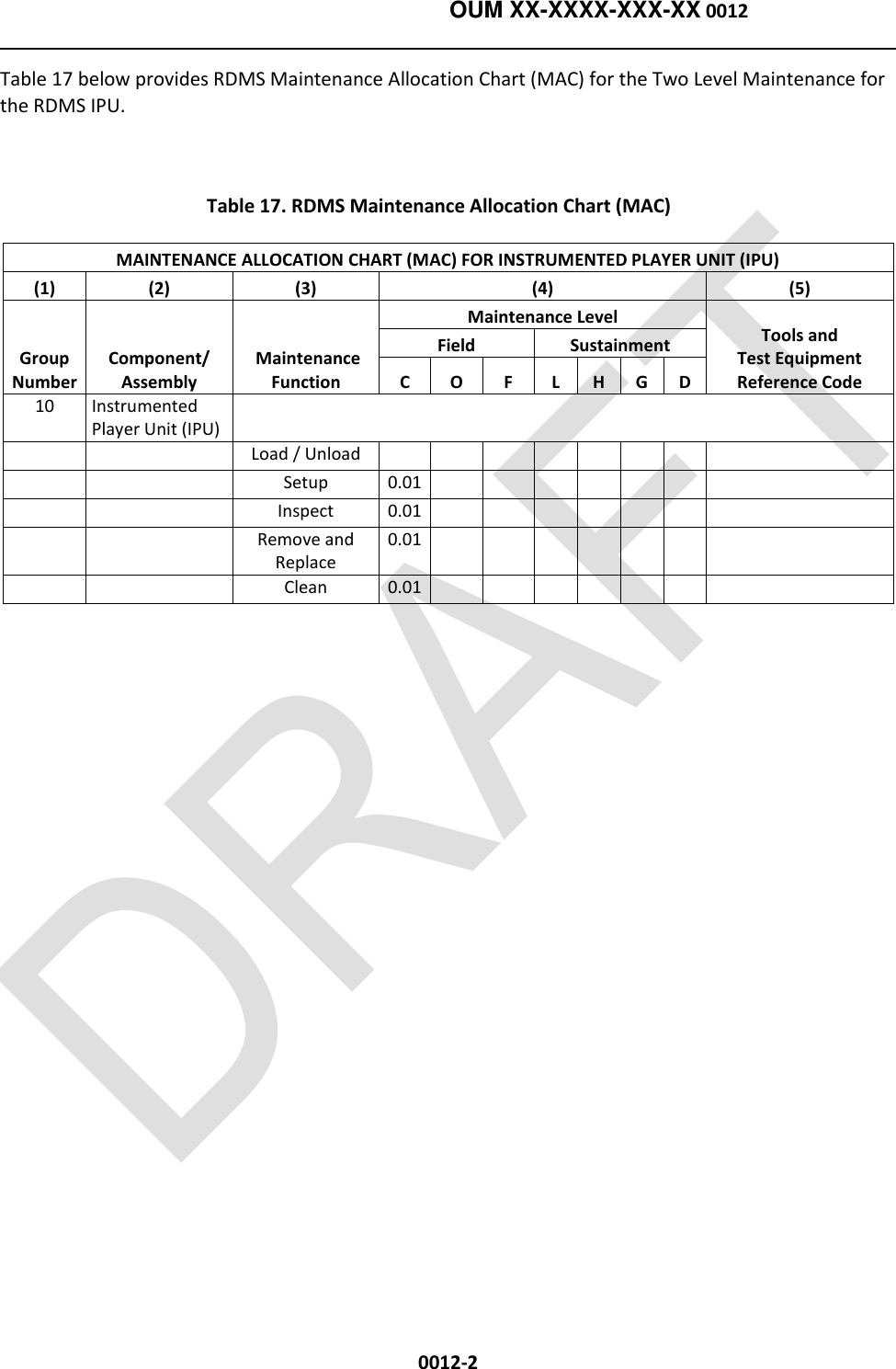

OUM XX-XXXX-XXX-XX 0012 0012-2 Table 17 below provides RDMS Maintenance Allocation Chart (MAC) for the Two Level Maintenance for the RDMS IPU. Table 17. RDMS Maintenance Allocation Chart (MAC) MAINTENANCE ALLOCATION CHART (MAC) FOR INSTRUMENTED PLAYER UNIT (IPU) (1) (2) (3) (4) (5) Group Number Component/ Assembly Maintenance Function Maintenance Level Tools and Test Equipment Reference Code Field Sustainment C O F L H G D 10 Instrumented Player Unit (IPU) Load / Unload Setup 0.01 Inspect 0.01 Remove and Replace 0.01 Clean 0.01

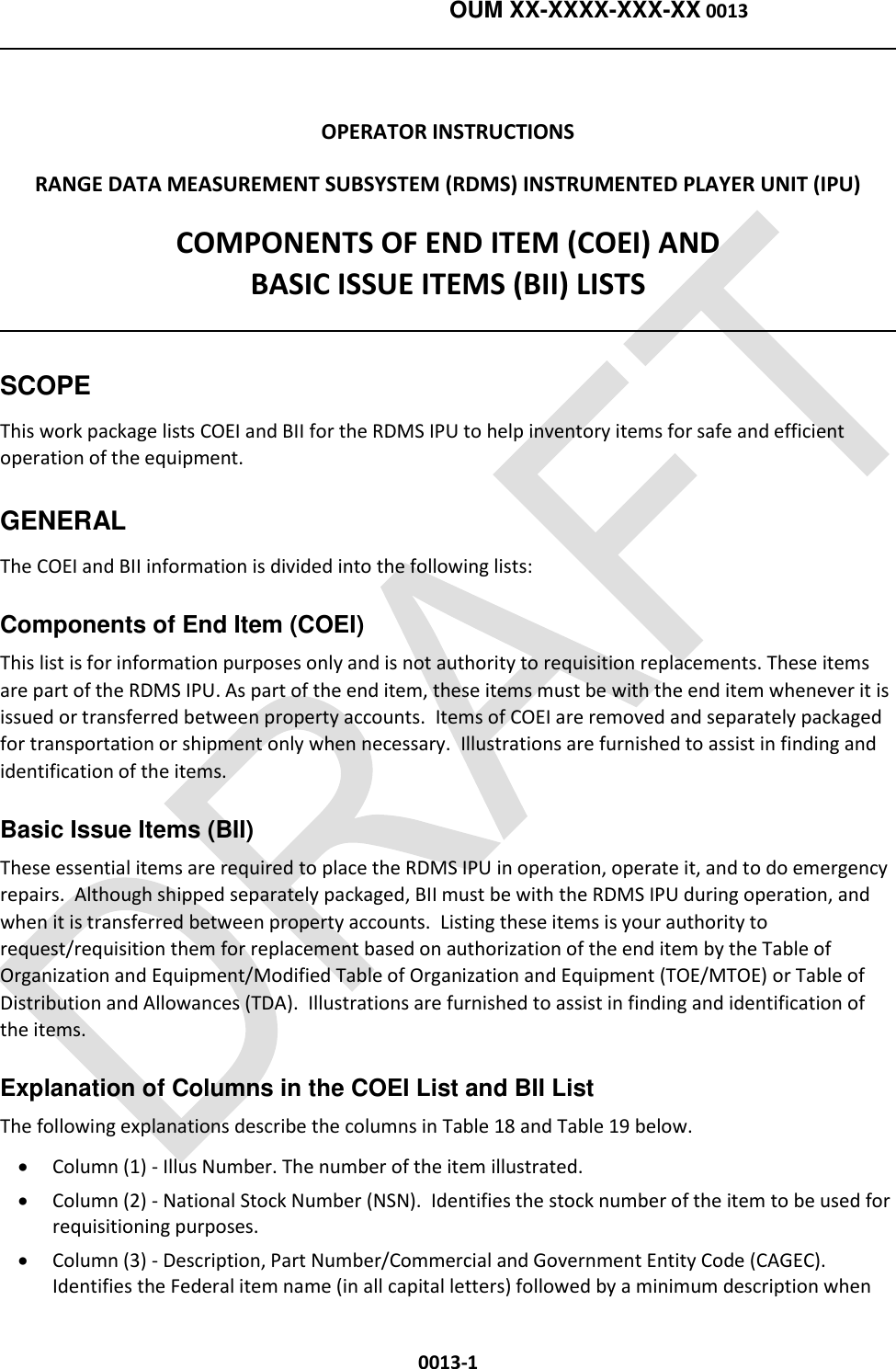

OUM XX-XXXX-XXX-XX 0013 0013-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) COMPONENTS OF END ITEM (COEI) AND BASIC ISSUE ITEMS (BII) LISTS SCOPE This work package lists COEI and BII for the RDMS IPU to help inventory items for safe and efficient operation of the equipment. GENERAL The COEI and BII information is divided into the following lists: Components of End Item (COEI) This list is for information purposes only and is not authority to requisition replacements. These items are part of the RDMS IPU. As part of the end item, these items must be with the end item whenever it is issued or transferred between property accounts. Items of COEI are removed and separately packaged for transportation or shipment only when necessary. Illustrations are furnished to assist in finding and identification of the items. Basic Issue Items (BII) These essential items are required to place the RDMS IPU in operation, operate it, and to do emergency repairs. Although shipped separately packaged, BII must be with the RDMS IPU during operation, and when it is transferred between property accounts. Listing these items is your authority to request/requisition them for replacement based on authorization of the end item by the Table of Organization and Equipment/Modified Table of Organization and Equipment (TOE/MTOE) or Table of Distribution and Allowances (TDA). Illustrations are furnished to assist in finding and identification of the items. Explanation of Columns in the COEI List and BII List The following explanations describe the columns in Table 18 and Table 19 below.  Column (1) - Illus Number. The number of the item illustrated.  Column (2) - National Stock Number (NSN). Identifies the stock number of the item to be used for requisitioning purposes.  Column (3) - Description, Part Number/Commercial and Government Entity Code (CAGEC). Identifies the Federal item name (in all capital letters) followed by a minimum description when

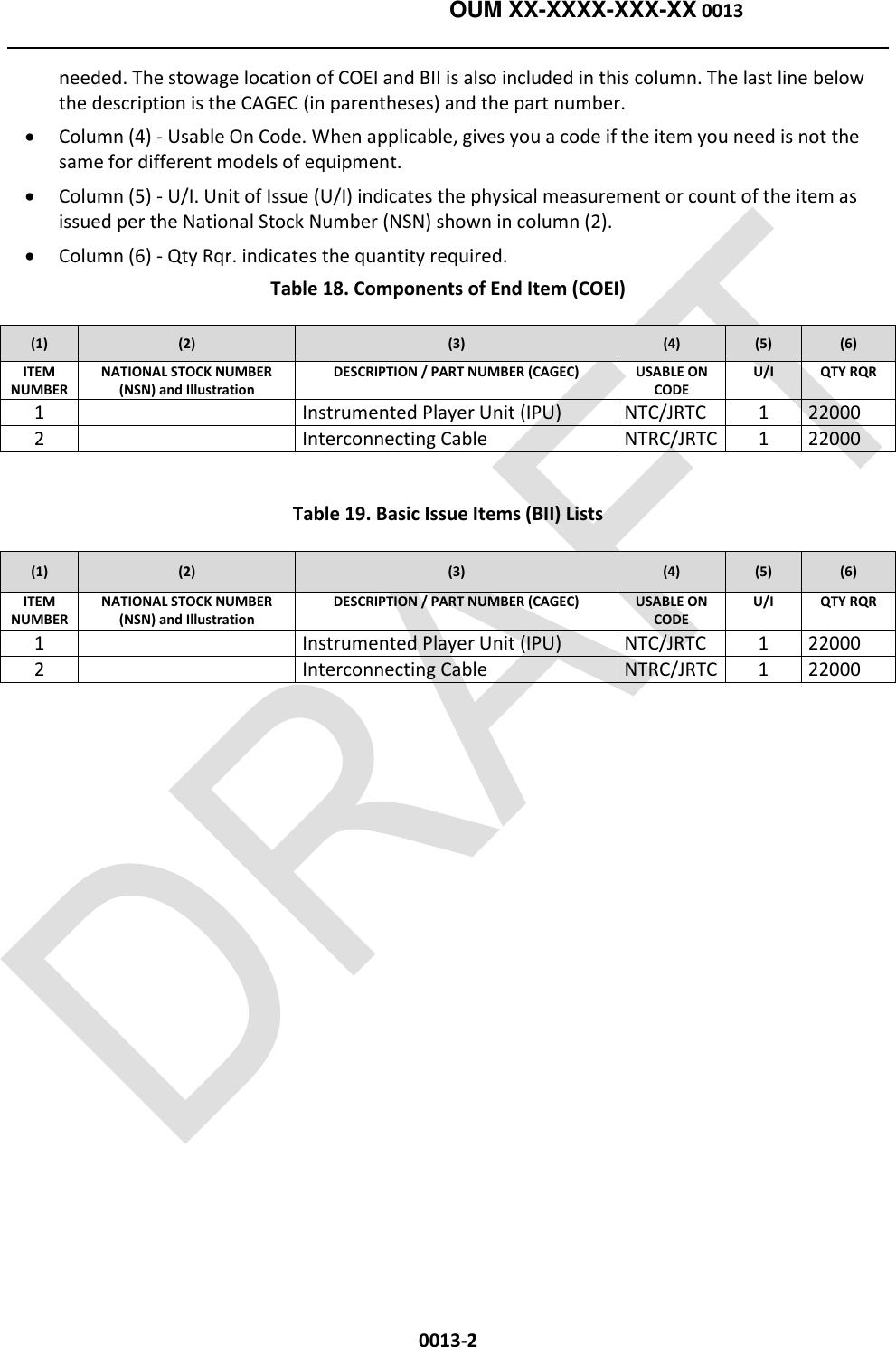

OUM XX-XXXX-XXX-XX 0013 0013-2 needed. The stowage location of COEI and BII is also included in this column. The last line below the description is the CAGEC (in parentheses) and the part number.  Column (4) - Usable On Code. When applicable, gives you a code if the item you need is not the same for different models of equipment.  Column (5) - U/I. Unit of Issue (U/I) indicates the physical measurement or count of the item as issued per the National Stock Number (NSN) shown in column (2).  Column (6) - Qty Rqr. indicates the quantity required. Table 18. Components of End Item (COEI) (1) (2) (3) (4) (5) (6) ITEM NUMBER NATIONAL STOCK NUMBER (NSN) and Illustration DESCRIPTION / PART NUMBER (CAGEC) USABLE ON CODE U/I QTY RQR 1 Instrumented Player Unit (IPU) NTC/JRTC 1 22000 2 Interconnecting Cable NTRC/JRTC 1 22000 Table 19. Basic Issue Items (BII) Lists (1) (2) (3) (4) (5) (6) ITEM NUMBER NATIONAL STOCK NUMBER (NSN) and Illustration DESCRIPTION / PART NUMBER (CAGEC) USABLE ON CODE U/I QTY RQR 1 Instrumented Player Unit (IPU) NTC/JRTC 1 22000 2 Interconnecting Cable NTRC/JRTC 1 22000
OUM XX-XXXX-XXX-XX 0014 0014-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) EXPENDABLE AND DURABLE ITEMS LIST INTRODUCTION Information regarding expendable and durable items was not available for this draft. The content of this paragraph will be determined at a later date. EXPENDABLE AND DURABLE ITEMS LIST Information regarding the expendable and durable items list was not available for this draft. The content of this paragraph will be determined at a later date.

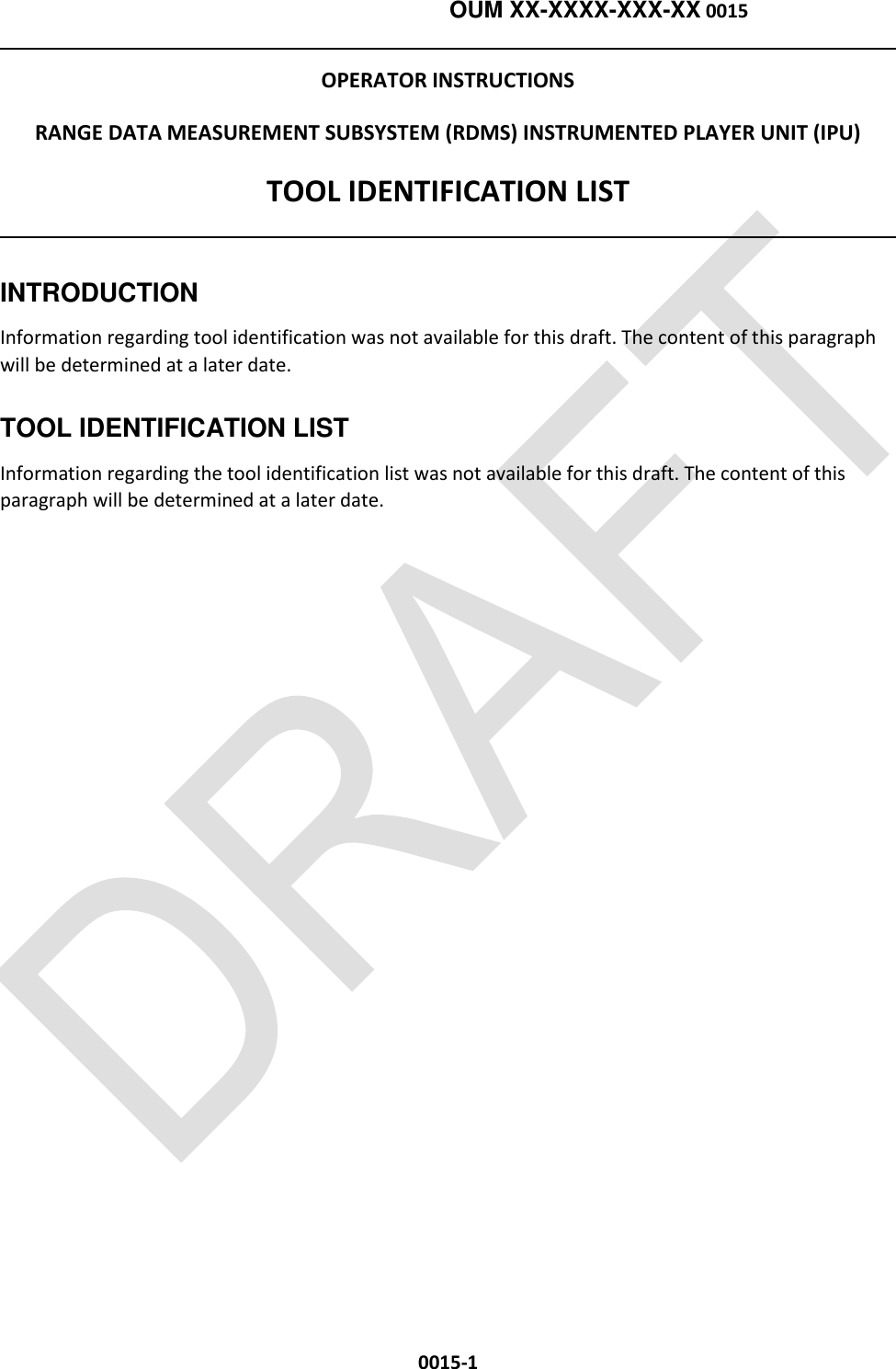

OUM XX-XXXX-XXX-XX 0015 0015-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) TOOL IDENTIFICATION LIST INTRODUCTION Information regarding tool identification was not available for this draft. The content of this paragraph will be determined at a later date. TOOL IDENTIFICATION LIST Information regarding the tool identification list was not available for this draft. The content of this paragraph will be determined at a later date.

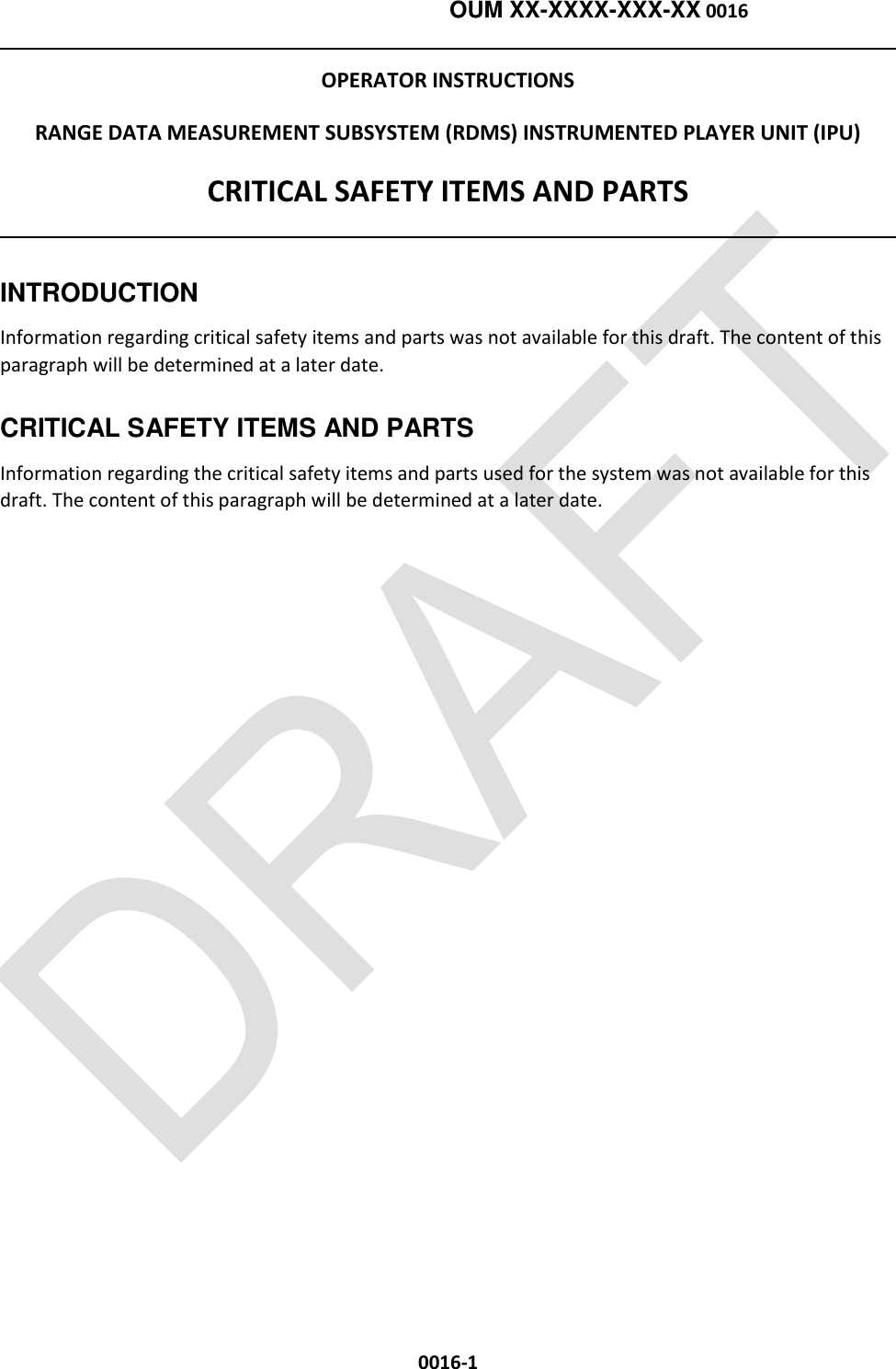

OUM XX-XXXX-XXX-XX 0016 0016-1 OPERATOR INSTRUCTIONS RANGE DATA MEASUREMENT SUBSYSTEM (RDMS) INSTRUMENTED PLAYER UNIT (IPU) CRITICAL SAFETY ITEMS AND PARTS INTRODUCTION Information regarding critical safety items and parts was not available for this draft. The content of this paragraph will be determined at a later date. CRITICAL SAFETY ITEMS AND PARTS Information regarding the critical safety items and parts used for the system was not available for this draft. The content of this paragraph will be determined at a later date.
OUM XX-XXXX-XXX-XX 0017
OUM XX-XXXX-XXX-XX 0021
OUM XX-XXXX-XXX-XX 0021

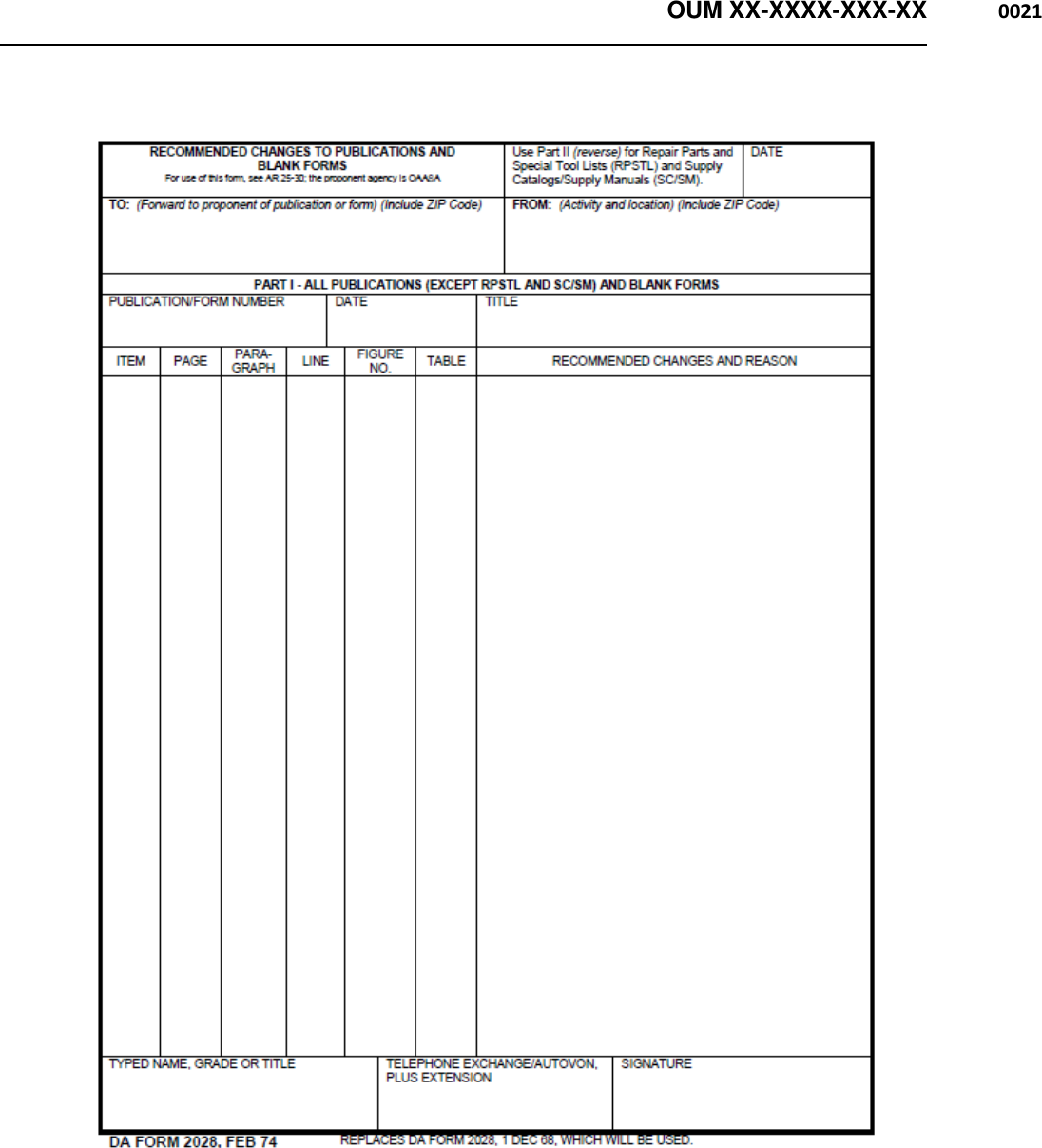

OUM XX-XXXX-XXX-XX 0021

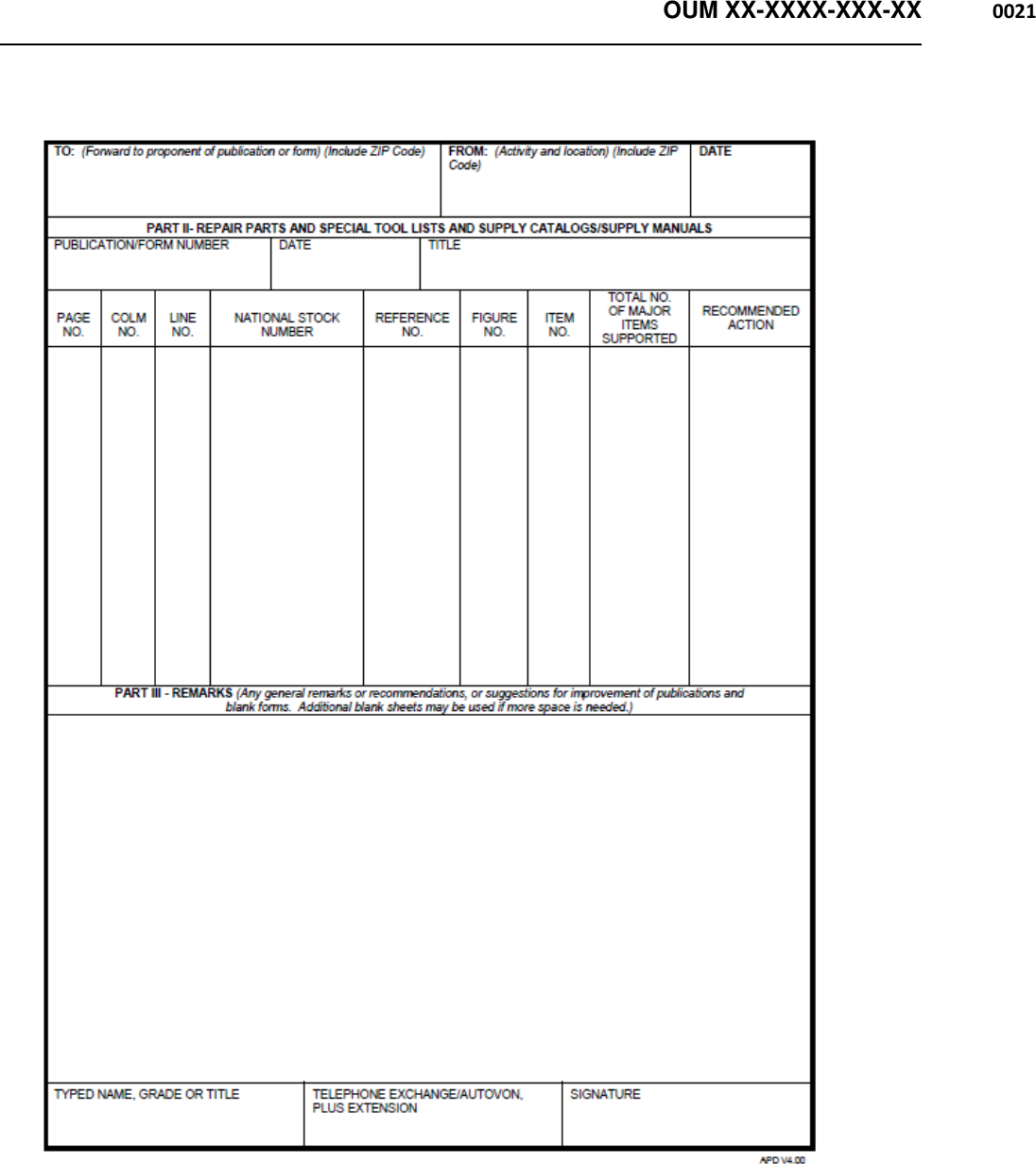

OUM XX-XXXX-XXX-XX 0021 August 11, 2013 PEO STRI The proponent agency of this publication is the U.S. Army Program Executive Office for Simulation, Training and Instrumentation (PEO STRI). Users are invited to send comments to the Chief Acquisition Logistics Manager, PEO STRI. ATTN: SFAE-STRI-PS-Q, 12350 Research Parkway Orlando, FL 32826-3276 Chief Acquisition Logistics Manager DISTRIBUTION To be distributed in accordance with the distribution statement requirements on the cover of this publication
