Inspectron WS1 WiScope User Manual

Inspectron Inc. WiScope

User Manual

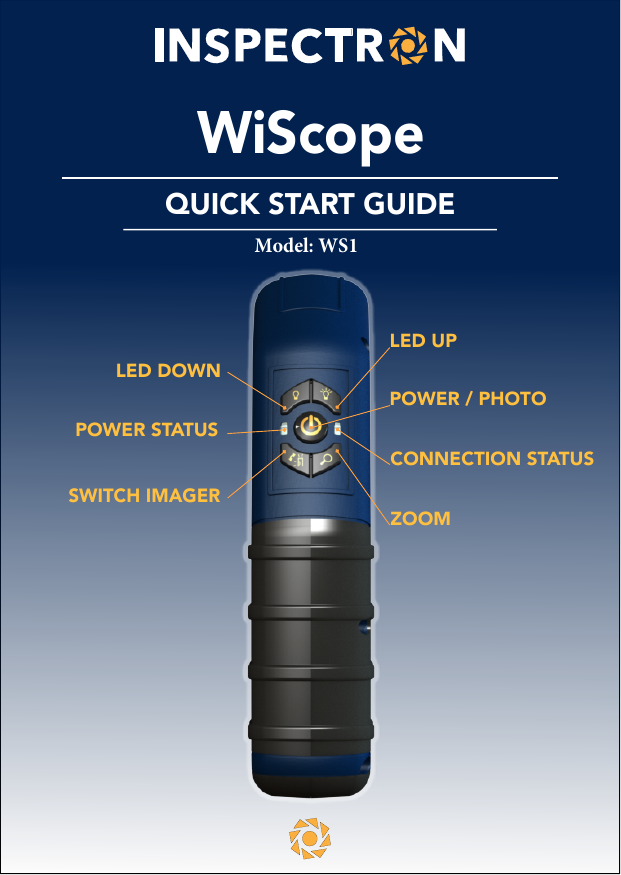

LED DOWNSWITCH IMAGERLED UPZOOMPOWER / PHOTOCONNECTION STATUSPOWER STATUSWiScopeQUICK START GUIDEModel: WS1

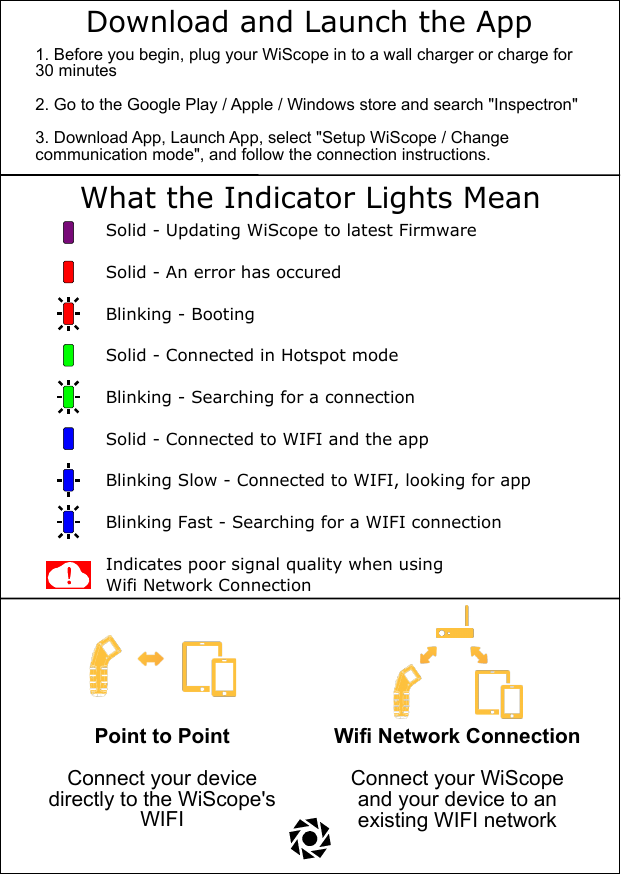

Download and Launch the App1. Before you begin, plug your WiScope in to a wall charger or charge for 30 minutes2. Go to the Google Play / Apple / Windows store and search "Inspectron"3. Download App, Launch App, select "Setup WiScope / Change communication mode", and follow the connection instructions.What the Indicator Lights MeanPoint to PointConnect your device directly to the WiScope's WIFIWifi Network ConnectionConnect your WiScope and your device to an existing WIFI networkSolid - Updating WiScope to latest FirmwareSolid - An error has occuredBlinking - BootingSolid - Connected in Hotspot modeBlinking - Searching for a connectionSolid - Connected to WIFI and the appBlinking Slow - Connected to WIFI, looking for appBlinking Fast - Searching for a WIFI connectionIndicates poor signal quality when using Wifi Network Connection

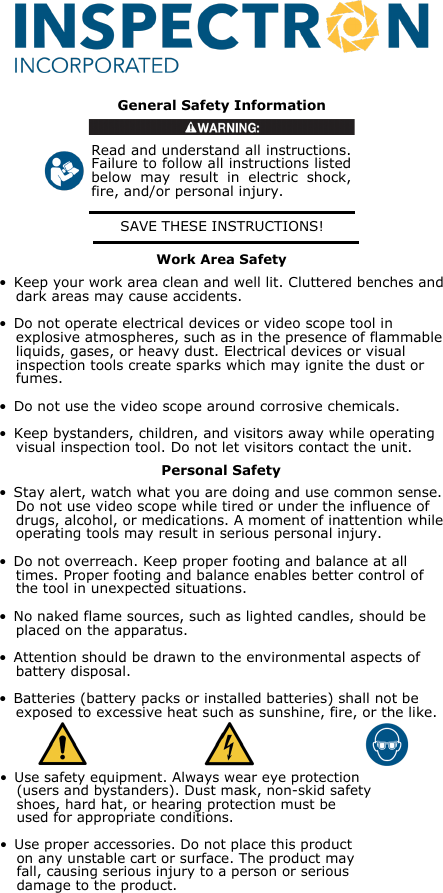

SAVE THESE INSTRUCTIONS!General Safety InformationRead and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or personal injury.• Keep your work area clean and well lit. Cluttered benches and dark areas may cause accidents.• Do not operate electrical devices or video scope tool in explosive atmospheres, such as in the presence of flammable liquids, gases, or heavy dust. Electrical devices or visual inspection tools create sparks which may ignite the dust or fumes.• Do not use the video scope around corrosive chemicals.• Keep bystanders, children, and visitors away while operating visual inspection tool. Do not let visitors contact the unit.• Stay alert, watch what you are doing and use common sense. Do not use video scope while tired or under the influence of drugs, alcohol, or medications. A moment of inattention while operating tools may result in serious personal injury.• Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.• No naked flame sources, such as lighted candles, should be placed on the apparatus.• Attention should be drawn to the environmental aspects of battery disposal.• Batteries (battery packs or installed batteries) shall not be exposed to excessive heat such as sunshine, fire, or the like.• Use safety equipment. Always wear eye protection (users and bystanders). Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.• Use proper accessories. Do not place this product on any unstable cart or surface. The product may fall, causing serious injury to a person or serious damage to the product.Personal SafetyWork Area Safety

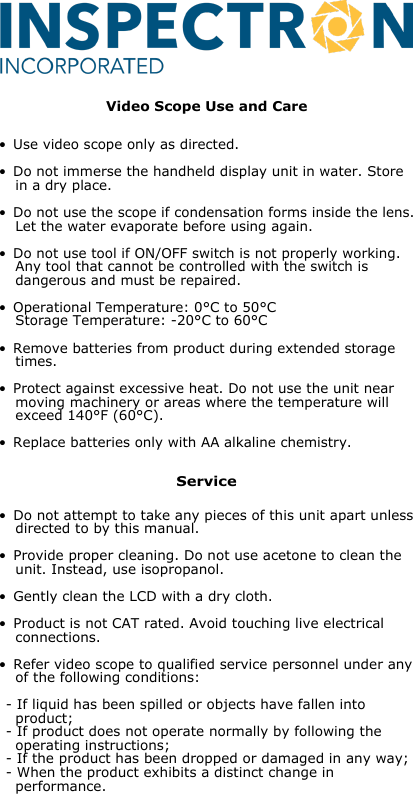

• Do not attempt to take any pieces of this unit apart unless directed to by this manual.• Provide proper cleaning. Do not use acetone to clean the unit. Instead, use isopropanol.• Gently clean the LCD with a dry cloth.• Product is not CAT rated. Avoid touching live electrical connections.• Refer video scope to qualified service personnel under any of the following conditions:- If liquid has been spilled or objects have fallen into product;- If product does not operate normally by following the operating instructions;- If the product has been dropped or damaged in any way;- When the product exhibits a distinct change in performance.ServiceVideo Scope Use and Care• Use video scope only as directed.• Do not immerse the handheld display unit in water. Store in a dry place.• Do not use the scope if condensation forms inside the lens. Let the water evaporate before using again.• Do not use tool if ON/OFF switch is not properly working. Any tool that cannot be controlled with the switch is dangerous and must be repaired.• Operational Temperature: 0°C to 50°C Storage Temperature: -20°C to 60°C• Remove batteries from product during extended storage times.• Protect against excessive heat. Do not use the unit near moving machinery or areas where the temperature will exceed 140°F (60°C).• Replace batteries only with AA alkaline chemistry.

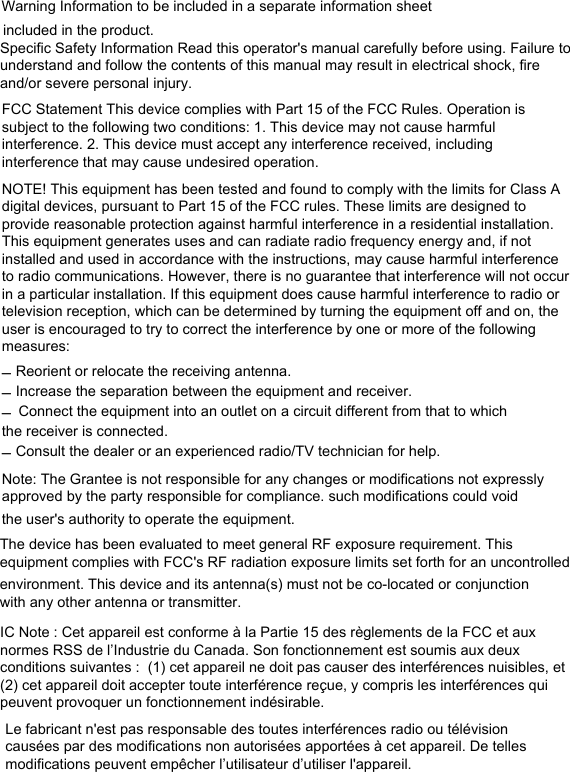

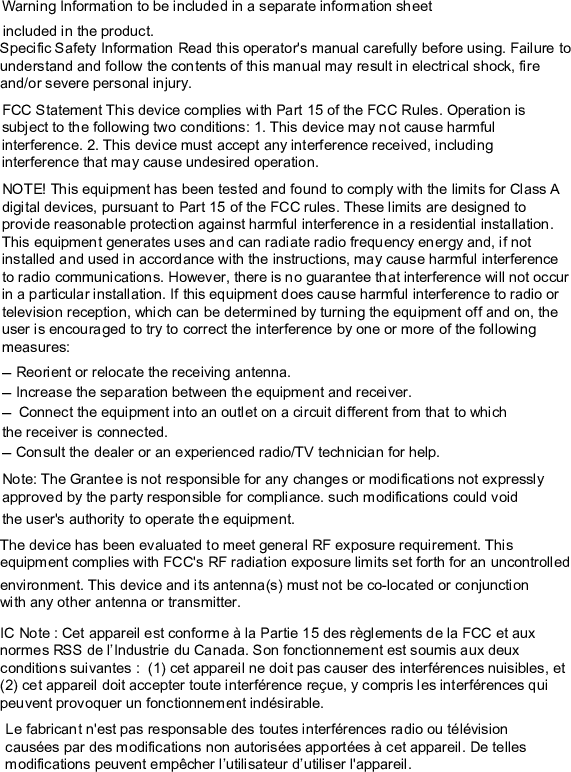

Warning Information to be included in a separate information sheetincluded in the product.Specific Safety Information Read this operator's manual carefully before using. Failure to understand and follow the contents of this manual may result in electrical shock, fire and/or severe personal injury. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. NOTE! This equipment has been tested and found to comply with the limits for Class A digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna.–Increase the separation between the equipment and receiver.–Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.–Consult the dealer or an experienced radio/TV technician for help.Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.The device has been evaluated to meet general RF exposure requirement. This equipment complies with FCC's RF radiation exposure limits set forth for an uncontrolledenvironment. This device and its antenna(s) must not be co-located or conjunction with any other antenna or transmitter.IC Note : Cet appareil est conforme à la Partie 15 des règlements de la FCC et aux normes RSS de l’Industrie du Canada. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer des interférences nuisibles, et (2) cet appareil doit accepter toute interférence reçue, y compris les interférences qui peuvent provoquer un fonctionnement indésirable. Le fabricant n'est pas responsable des toutes interférences radio ou télévision causées par des modifications non autorisées apportées à cet appareil. De telles modifications peuvent empêcher l’utilisateur d’utiliser l'appareil.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
