IntelliTouch EOS-P622 Dual Zone Wireless Speaker User Manual

IntelliTouch Dual Zone Wireless Speaker

User Manual

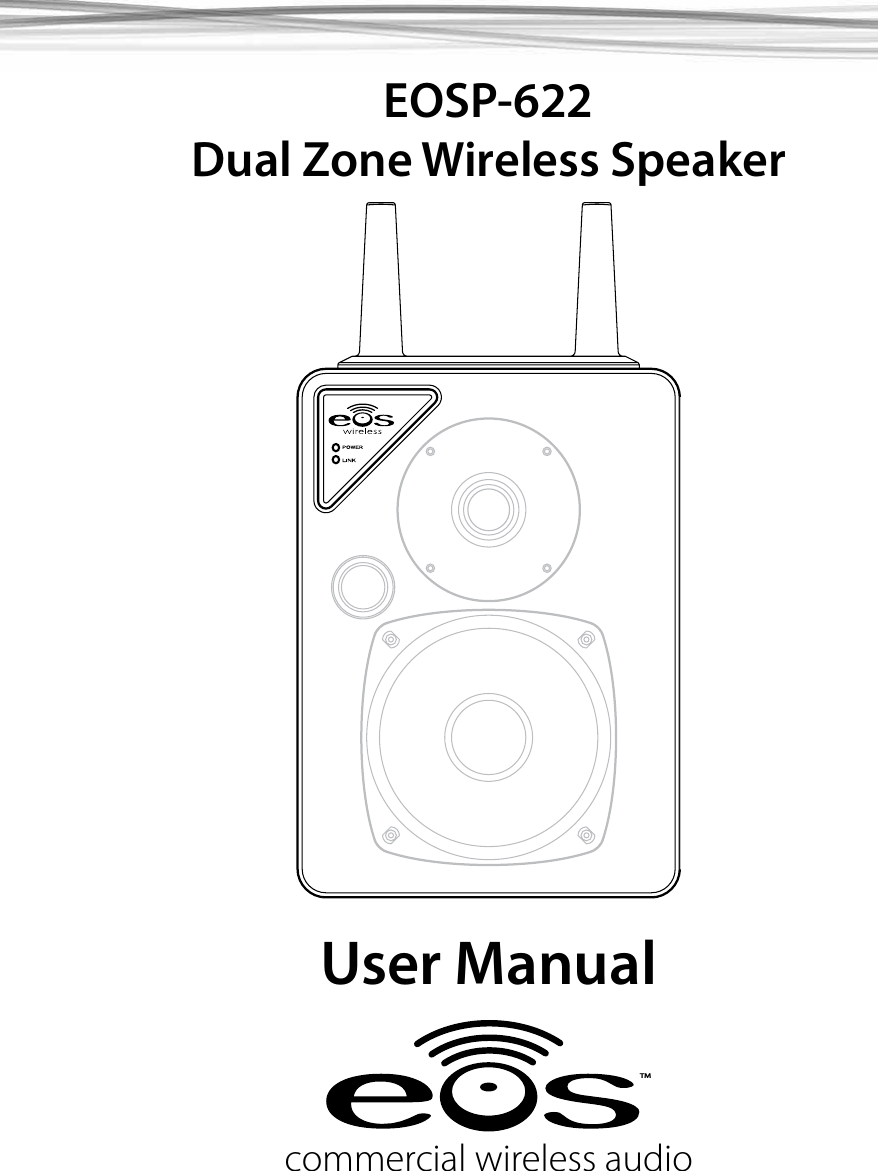

commercial wireless audioTMEOSP-622Dual Zone Wireless SpeakerUser Manual

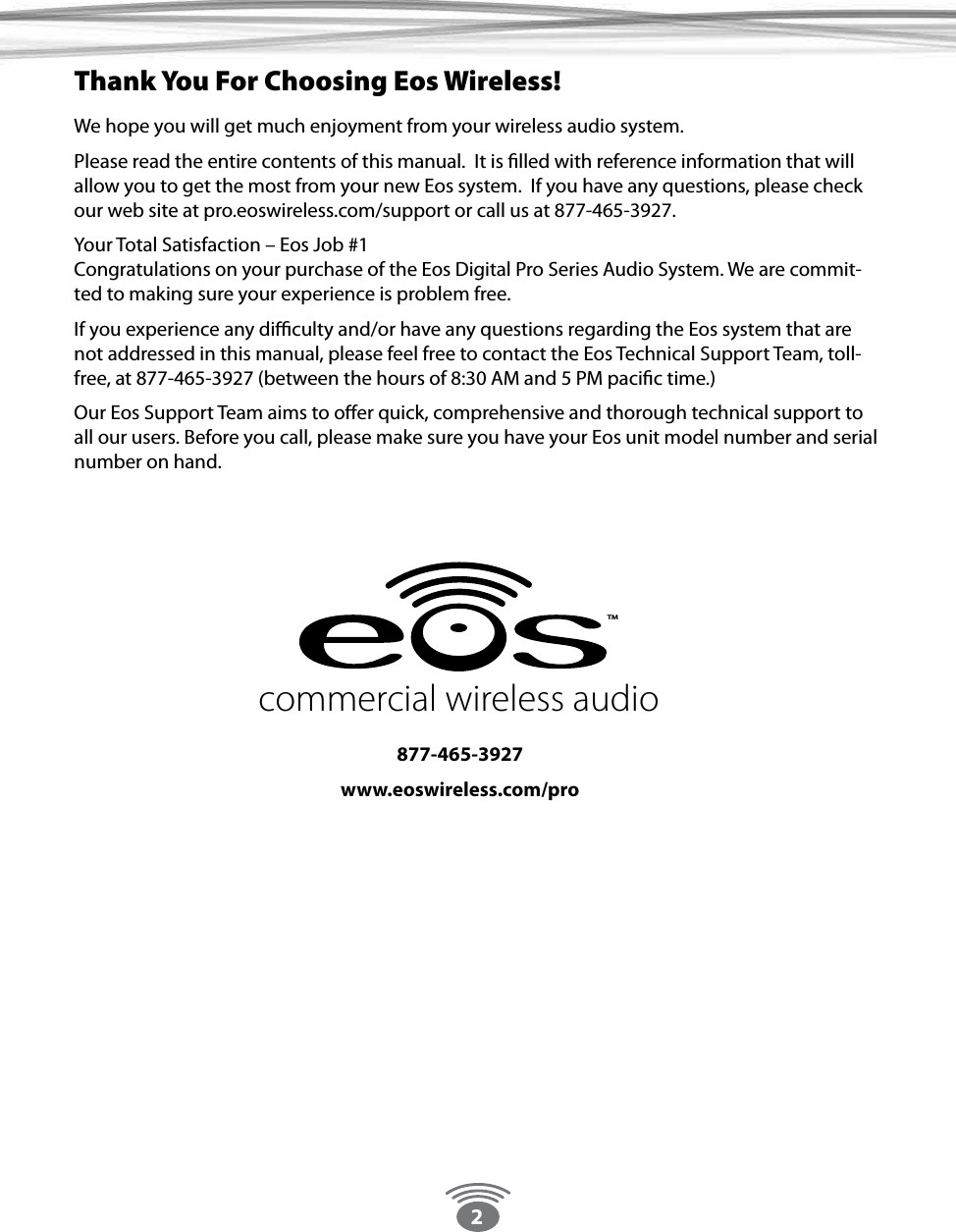

2We hope you will get much enjoyment from your wireless audio system.Please read the entire contents of this manual. It is lled with reference information that will allow you to get the most from your new Eos system. If you have any questions, please check our web site at pro.eoswireless.com/support or call us at 877-465-3927.Your Total Satisfaction – Eos Job #1 Congratulations on your purchase of the Eos Digital Pro Series Audio System. We are commit-ted to making sure your experience is problem free.If you experience any diculty and/or have any questions regarding the Eos system that are not addressed in this manual, please feel free to contact the Eos Technical Support Team, toll-free, at 877-465-3927 (between the hours of 8:30 AM and 5 PM pacic time.) Our Eos Support Team aims to oer quick, comprehensive and thorough technical support to all our users. Before you call, please make sure you have your Eos unit model number and serial number on hand. Thank You For Choosing Eos Wireless!877-465-3927www.eoswireless.com/procommercial wireless audioTM

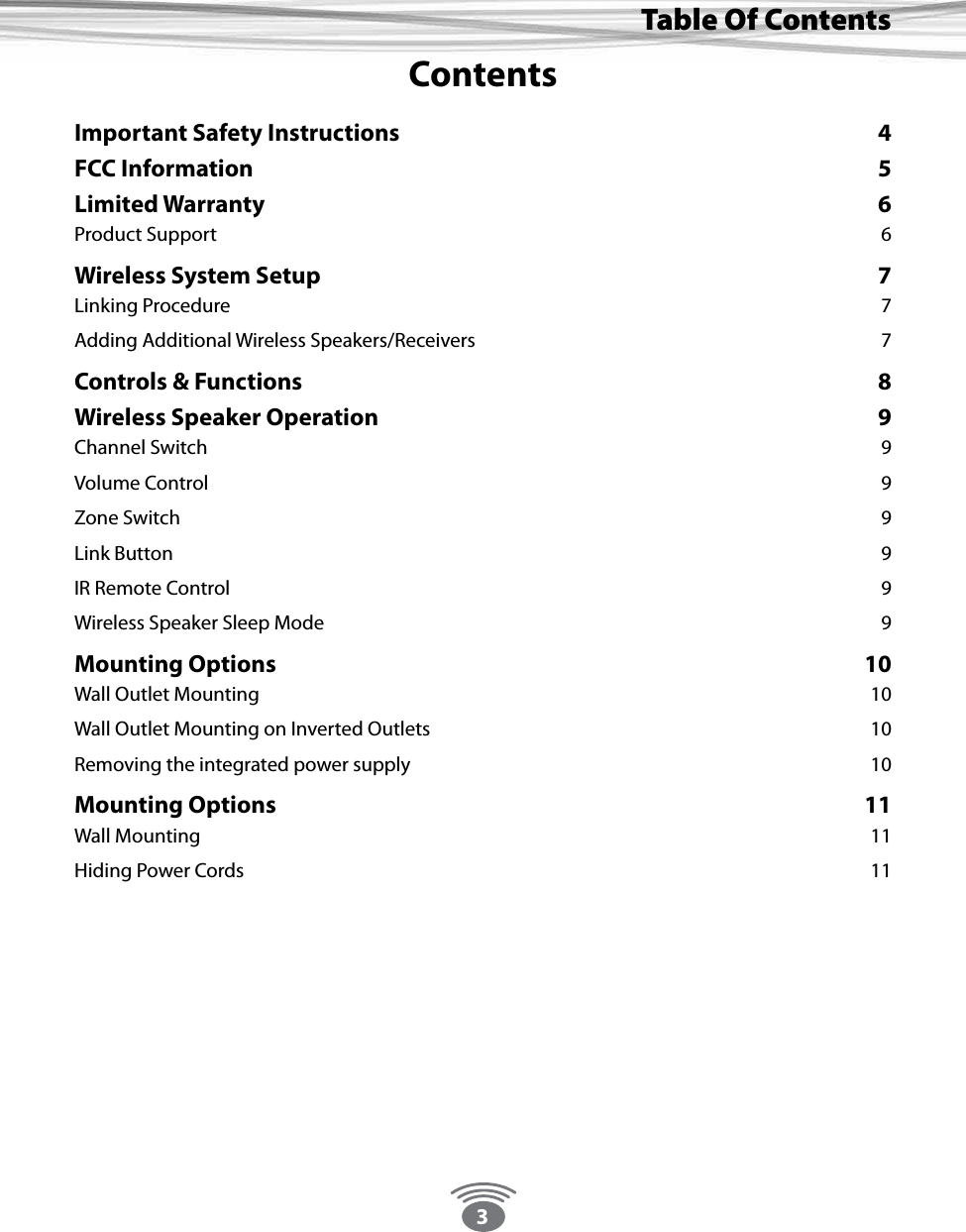

3Thank You For Choosing Eos Wireless!Table Of ContentsContentsImportant Safety Instructions 4FCC Information 5Limited Warranty 6Product Support 6Wireless System Setup 7Linking Procedure 7Adding Additional Wireless Speakers/Receivers 7Controls & Functions 8Wireless Speaker Operation 9Channel Switch 9Volume Control 9Zone Switch 9Link Button 9IR Remote Control 9Wireless Speaker Sleep Mode 9Mounting Options 10Wall Outlet Mounting 10Wall Outlet Mounting on Inverted Outlets 10Removing the integrated power supply 10Mounting Options 11Wall Mounting 11Hiding Power Cords 11

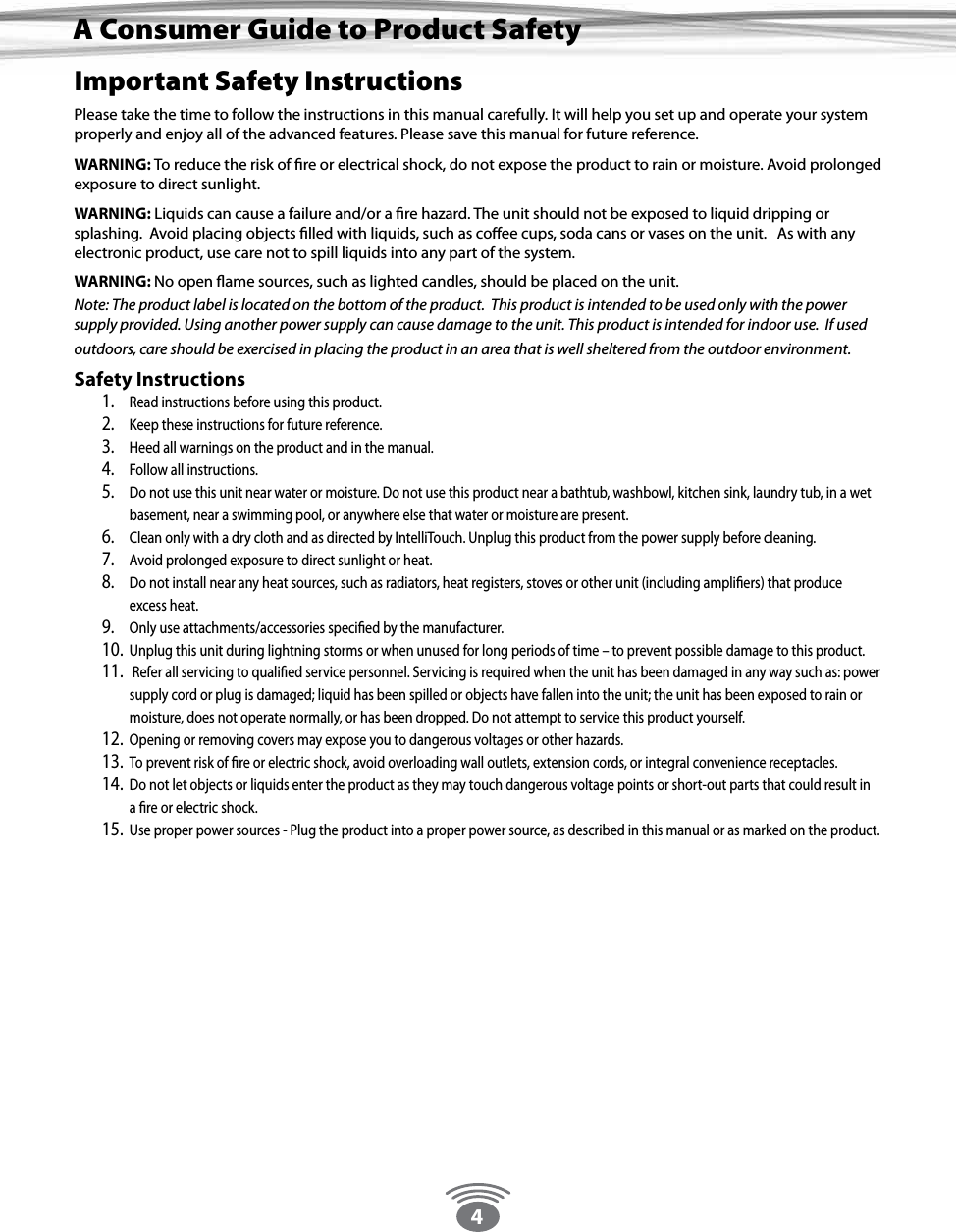

4Important Safety InstructionsPlease take the time to follow the instructions in this manual carefully. It will help you set up and operate your system properly and enjoy all of the advanced features. Please save this manual for future reference. WARNING: To reduce the risk of re or electrical shock, do not expose the product to rain or moisture. Avoid prolonged exposure to direct sunlight. WARNING: Liquids can cause a failure and/or a re hazard. The unit should not be exposed to liquid dripping or splashing. Avoid placing objects lled with liquids, such as coee cups, soda cans or vases on the unit. As with any electronic product, use care not to spill liquids into any part of the system. WARNING: No open ame sources, such as lighted candles, should be placed on the unit. Note: The product label is located on the bottom of the product. This product is intended to be used only with the power supply provided. Using another power supply can cause damage to the unit. This product is intended for indoor use. If used outdoors, care should be exercised in placing the product in an area that is well sheltered from the outdoor environment. Safety Instructions1. Read instructions before using this product. 2. Keep these instructions for future reference. 3. Heed all warnings on the product and in the manual. 4. Follow all instructions. 5. Do not use this unit near water or moisture. Do not use this product near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, or anywhere else that water or moisture are present. 6. Clean only with a dry cloth and as directed by IntelliTouch. Unplug this product from the power supply before cleaning. 7. Avoid prolonged exposure to direct sunlight or heat. 8. Do not install near any heat sources, such as radiators, heat registers, stoves or other unit (including ampliers) that produce excess heat. 9. Only use attachments/accessories specied by the manufacturer. 10. Unplug this unit during lightning storms or when unused for long periods of time – to prevent possible damage to this product. 11. Refer all servicing to qualied service personnel. Servicing is required when the unit has been damaged in any way such as: power supply cord or plug is damaged; liquid has been spilled or objects have fallen into the unit; the unit has been exposed to rain or moisture, does not operate normally, or has been dropped. Do not attempt to service this product yourself. 12. Opening or removing covers may expose you to dangerous voltages or other hazards. 13. To prevent risk of re or electric shock, avoid overloading wall outlets, extension cords, or integral convenience receptacles.14. Do not let objects or liquids enter the product as they may touch dangerous voltage points or short-out parts that could result in a re or electric shock. 15. Use proper power sources - Plug the product into a proper power source, as described in this manual or as marked on the product.A Consumer Guide to Product Safety

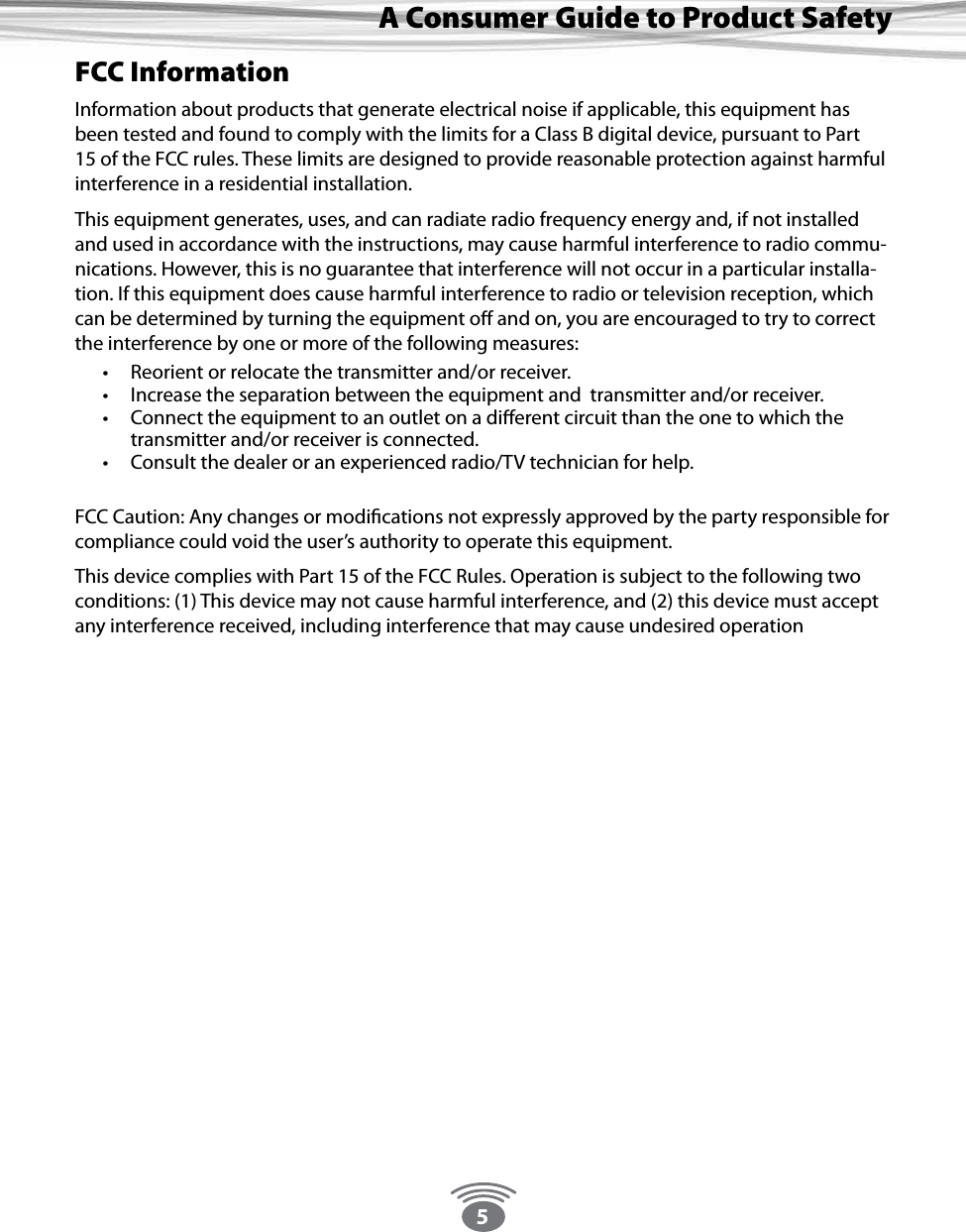

5A Consumer Guide to Product SafetyFCC InformationInformation about products that generate electrical noise if applicable, this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio commu-nications. However, this is no guarantee that interference will not occur in a particular installa-tion. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, you are encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the transmitter and/or receiver. • Increase the separation between the equipment and transmitter and/or receiver. • Connect the equipment to an outlet on a dierent circuit than the one to which the transmitter and/or receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

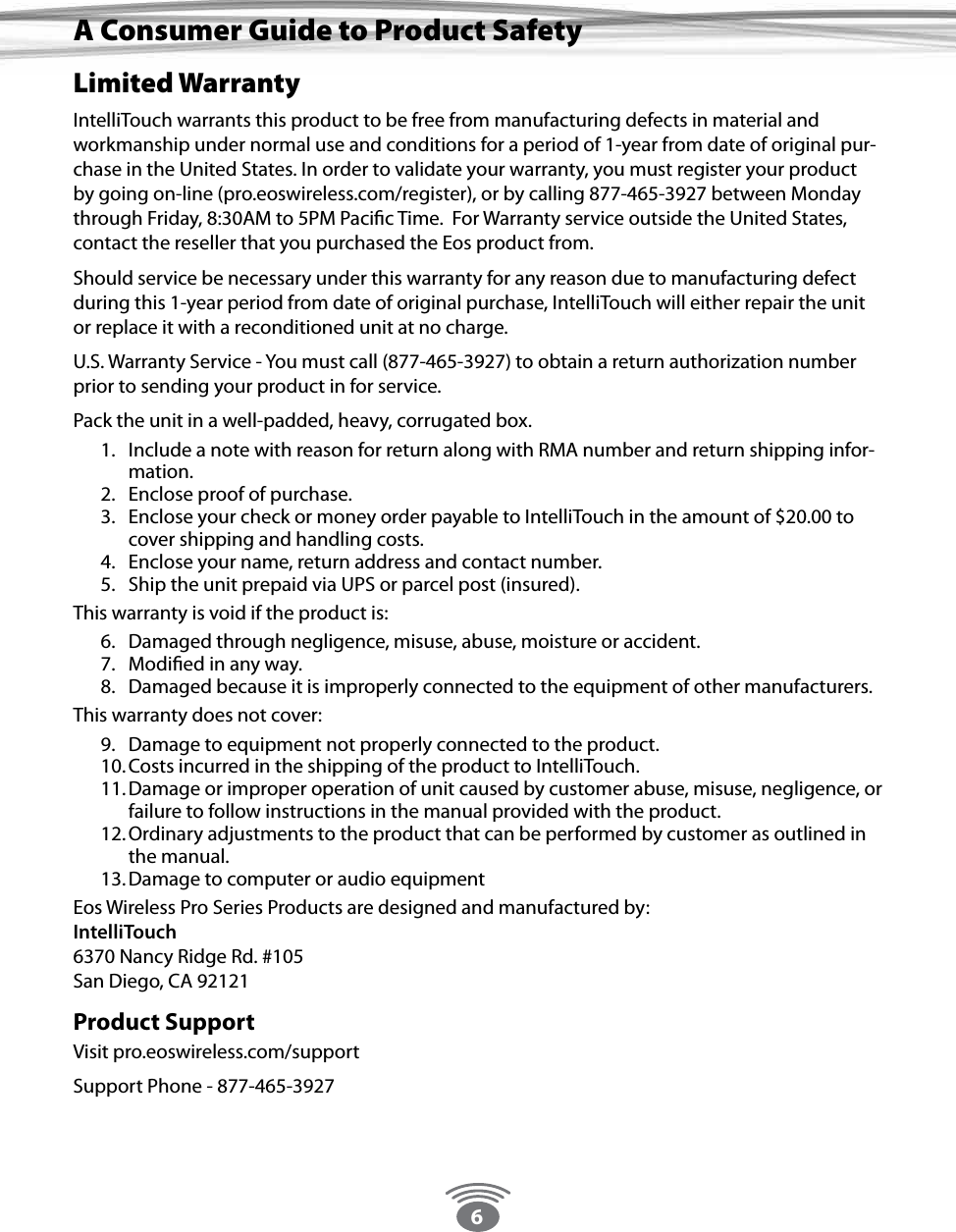

6Limited WarrantyIntelliTouch warrants this product to be free from manufacturing defects in material and workmanship under normal use and conditions for a period of 1-year from date of original pur-chase in the United States. In order to validate your warranty, you must register your product by going on-line (pro.eoswireless.com/register), or by calling 877-465-3927 between Monday through Friday, 8:30AM to 5PM Pacic Time. For Warranty service outside the United States, contact the reseller that you purchased the Eos product from.Should service be necessary under this warranty for any reason due to manufacturing defect during this 1-year period from date of original purchase, IntelliTouch will either repair the unit or replace it with a reconditioned unit at no charge.U.S. Warranty Service - You must call (877-465-3927) to obtain a return authorization number prior to sending your product in for service.Pack the unit in a well-padded, heavy, corrugated box.1. Include a note with reason for return along with RMA number and return shipping infor-mation.2. Enclose proof of purchase.3. Enclose your check or money order payable to IntelliTouch in the amount of $20.00 to cover shipping and handling costs.4. Enclose your name, return address and contact number.5. Ship the unit prepaid via UPS or parcel post (insured).This warranty is void if the product is:6. Damaged through negligence, misuse, abuse, moisture or accident.7. Modied in any way.8. Damaged because it is improperly connected to the equipment of other manufacturers.This warranty does not cover:9. Damage to equipment not properly connected to the product.10. Costs incurred in the shipping of the product to IntelliTouch.11. Damage or improper operation of unit caused by customer abuse, misuse, negligence, or failure to follow instructions in the manual provided with the product.12. Ordinary adjustments to the product that can be performed by customer as outlined in the manual.13. Damage to computer or audio equipmentEos Wireless Pro Series Products are designed and manufactured by: IntelliTouch 6370 Nancy Ridge Rd. #105 San Diego, CA 92121Product SupportVisit pro.eoswireless.com/supportSupport Phone - 877-465-3927A Consumer Guide to Product Safety

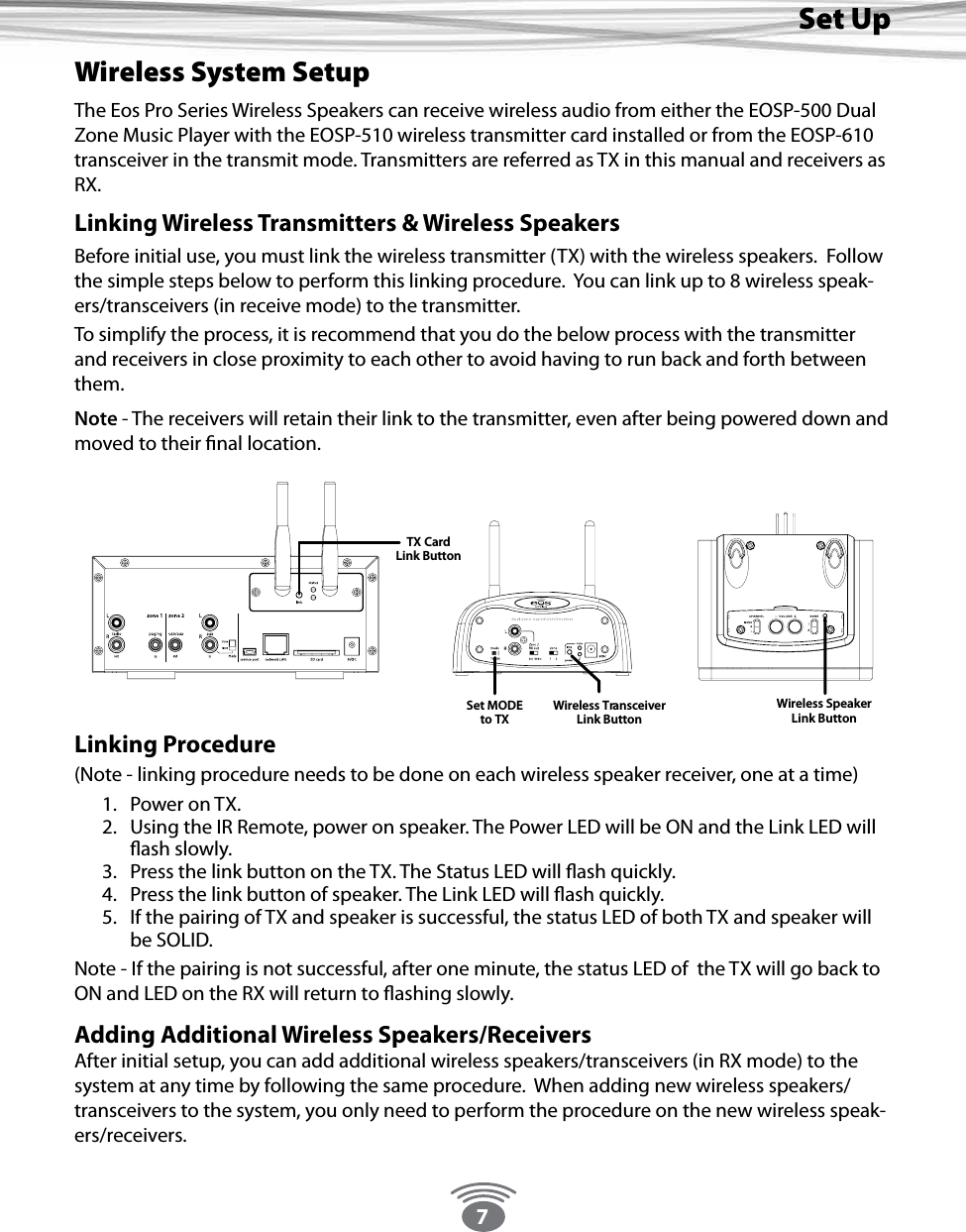

7Set UpWireless System SetupThe Eos Pro Series Wireless Speakers can receive wireless audio from either the EOSP-500 Dual Zone Music Player with the EOSP-510 wireless transmitter card installed or from the EOSP-610 transceiver in the transmit mode. Transmitters are referred as TX in this manual and receivers as RX.Linking Wireless Transmitters & Wireless SpeakersBefore initial use, you must link the wireless transmitter (TX) with the wireless speakers. Follow the simple steps below to perform this linking procedure. You can link up to 8 wireless speak-ers/transceivers (in receive mode) to the transmitter. To simplify the process, it is recommend that you do the below process with the transmitter and receivers in close proximity to each other to avoid having to run back and forth between them. Note - The receivers will retain their link to the transmitter, even after being powered down and moved to their nal location. Linking Procedure (Note - linking procedure needs to be done on each wireless speaker receiver, one at a time)1. Power on TX. 2. Using the IR Remote, power on speaker. The Power LED will be ON and the Link LED will ash slowly.3. Press the link button on the TX. The Status LED will ash quickly.4. Press the link button of speaker. The Link LED will ash quickly.5. If the pairing of TX and speaker is successful, the status LED of both TX and speaker will be SOLID.Note - If the pairing is not successful, after one minute, the status LED of the TX will go back to ON and LED on the RX will return to ashing slowly.Adding Additional Wireless Speakers/ReceiversAfter initial setup, you can add additional wireless speakers/transceivers (in RX mode) to the system at any time by following the same procedure. When adding new wireless speakers/transceivers to the system, you only need to perform the procedure on the new wireless speak-ers/receivers.TX CardLink ButtonWireless SpeakerLink ButtonTMWireless TransceiverLink ButtonSet MODEto TX

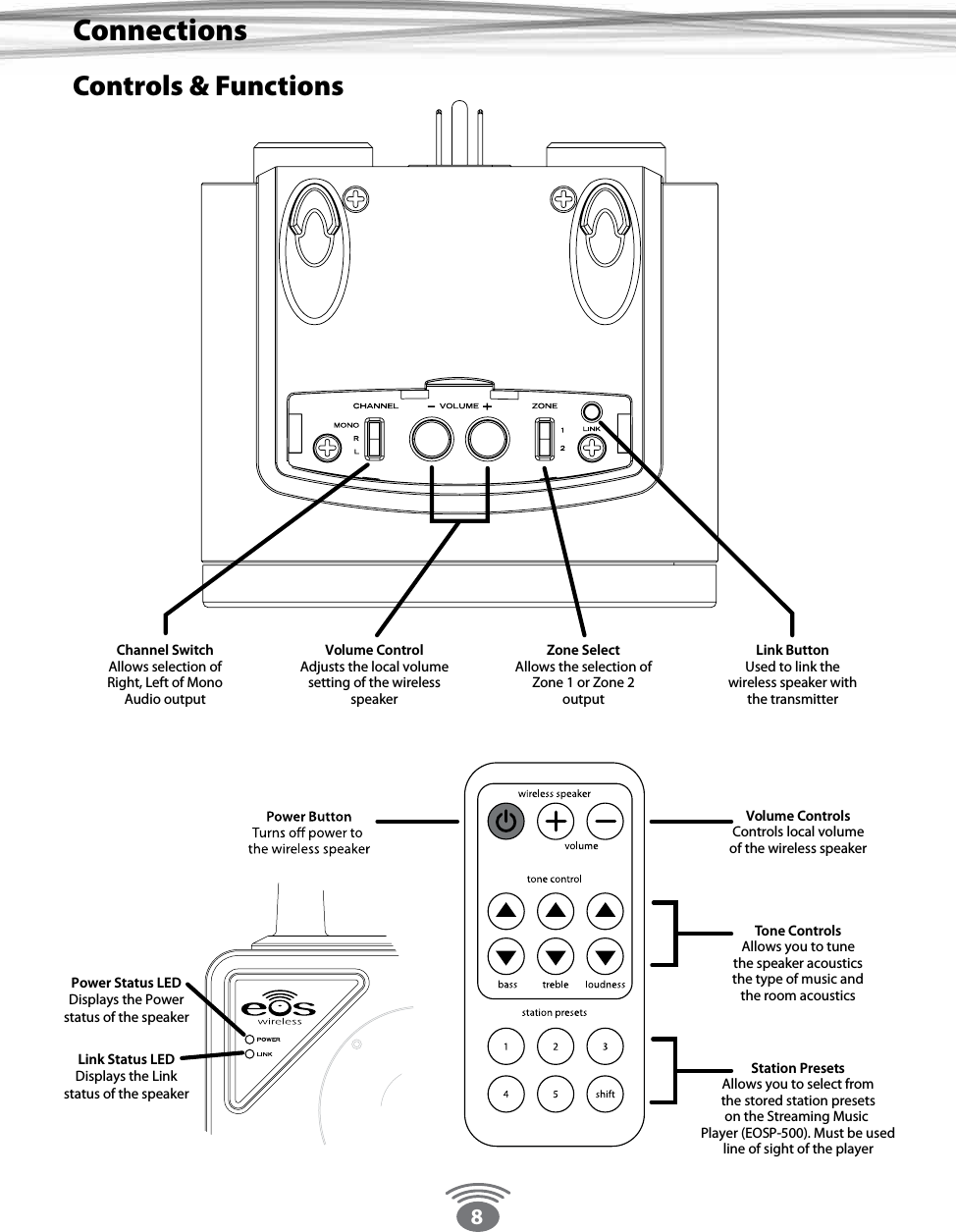

8ConnectionsControls & FunctionsChannel SwitchAllows selection ofRight, Left of MonoAudio outputVolume ControlsControls local volumeof the wireless speakerTone ControlsAllows you to tunethe speaker acousticsthe type of music andthe room acousticsVolume ControlAdjusts the local volumesetting of the wirelessspeakerZone SelectAllows the selection ofZone 1 or Zone 2outputLink ButtonUsed to link thewireless speaker withthe transmitterStation PresetsAllows you to select fromthe stored station presetson the Streaming Music Player (EOSP-500). Must be usedline of sight of the playerPower Status LEDLink Status LEDDisplays the Powerstatus of the speakerDisplays the Linkstatus of the speaker

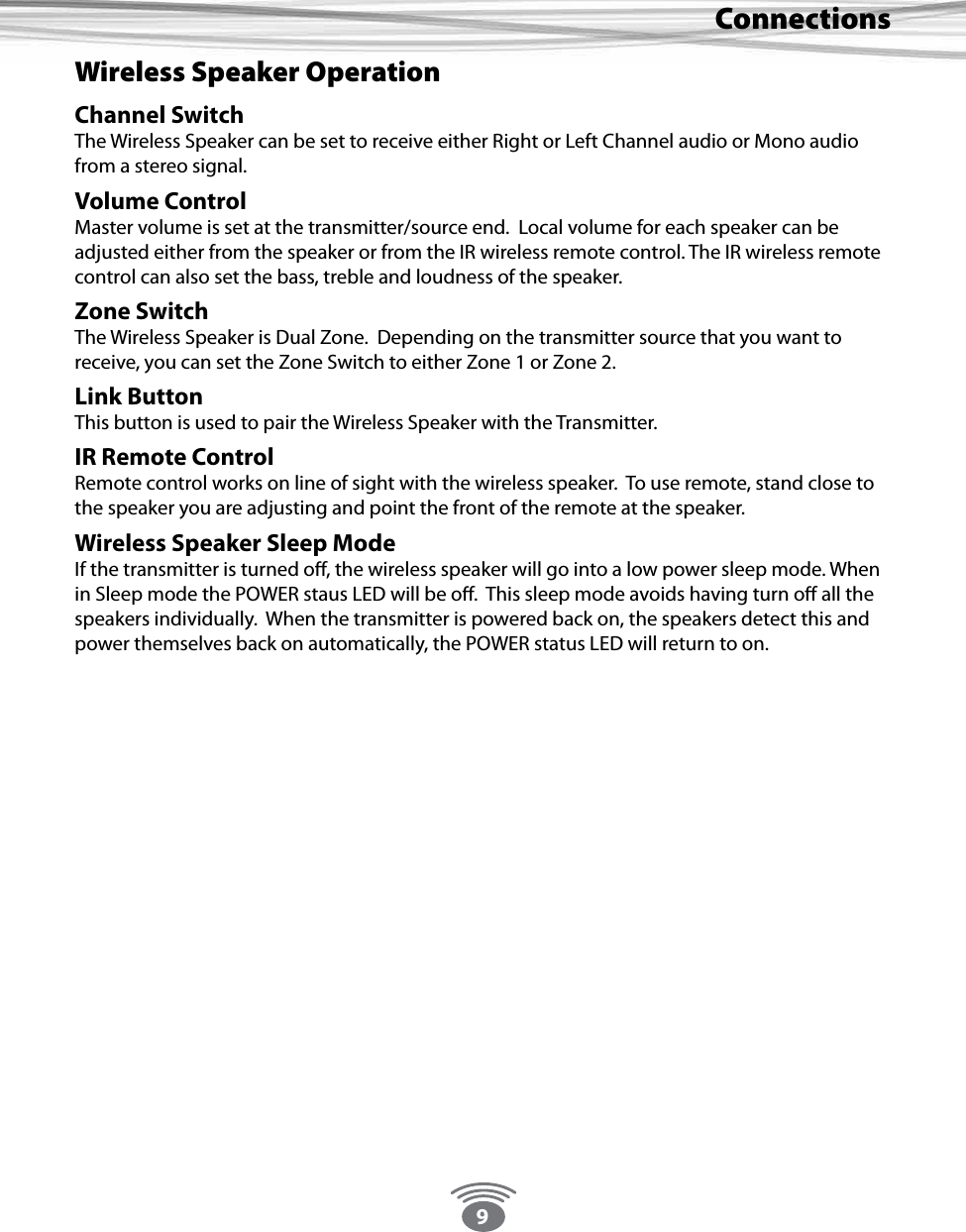

9ConnectionsWireless Speaker OperationChannel SwitchThe Wireless Speaker can be set to receive either Right or Left Channel audio or Mono audio from a stereo signal.Volume ControlMaster volume is set at the transmitter/source end. Local volume for each speaker can be adjusted either from the speaker or from the IR wireless remote control. The IR wireless remote control can also set the bass, treble and loudness of the speaker. Zone SwitchThe Wireless Speaker is Dual Zone. Depending on the transmitter source that you want to receive, you can set the Zone Switch to either Zone 1 or Zone 2. Link ButtonThis button is used to pair the Wireless Speaker with the Transmitter.IR Remote ControlRemote control works on line of sight with the wireless speaker. To use remote, stand close to the speaker you are adjusting and point the front of the remote at the speaker.Wireless Speaker Sleep ModeIf the transmitter is turned o, the wireless speaker will go into a low power sleep mode. When in Sleep mode the POWER staus LED will be o. This sleep mode avoids having turn o all the speakers individually. When the transmitter is powered back on, the speakers detect this and power themselves back on automatically, the POWER status LED will return to on.

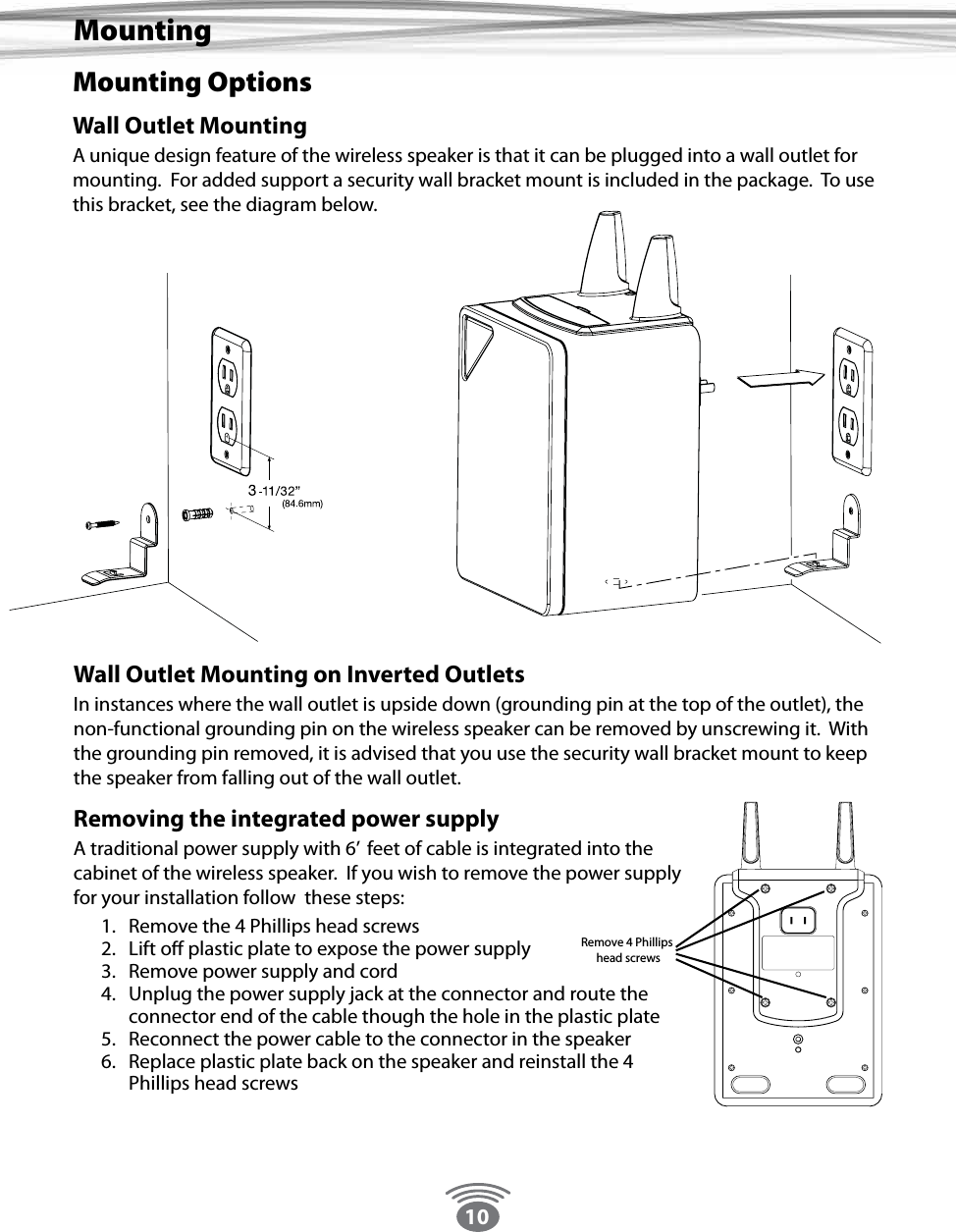

10Mounting OptionsWall Outlet MountingA unique design feature of the wireless speaker is that it can be plugged into a wall outlet for mounting. For added support a security wall bracket mount is included in the package. To use this bracket, see the diagram below.MountingWall Outlet Mounting on Inverted Outlets In instances where the wall outlet is upside down (grounding pin at the top of the outlet), the non-functional grounding pin on the wireless speaker can be removed by unscrewing it. With the grounding pin removed, it is advised that you use the security wall bracket mount to keep the speaker from falling out of the wall outlet.Removing the integrated power supply A traditional power supply with 6’ feet of cable is integrated into the cabinet of the wireless speaker. If you wish to remove the power supply for your installation follow these steps:1. Remove the 4 Phillips head screws2. Lift o plastic plate to expose the power supply3. Remove power supply and cord4. Unplug the power supply jack at the connector and route the connector end of the cable though the hole in the plastic plate5. Reconnect the power cable to the connector in the speaker6. Replace plastic plate back on the speaker and reinstall the 4 Phillips head screws Remove 4 Phillips head screws

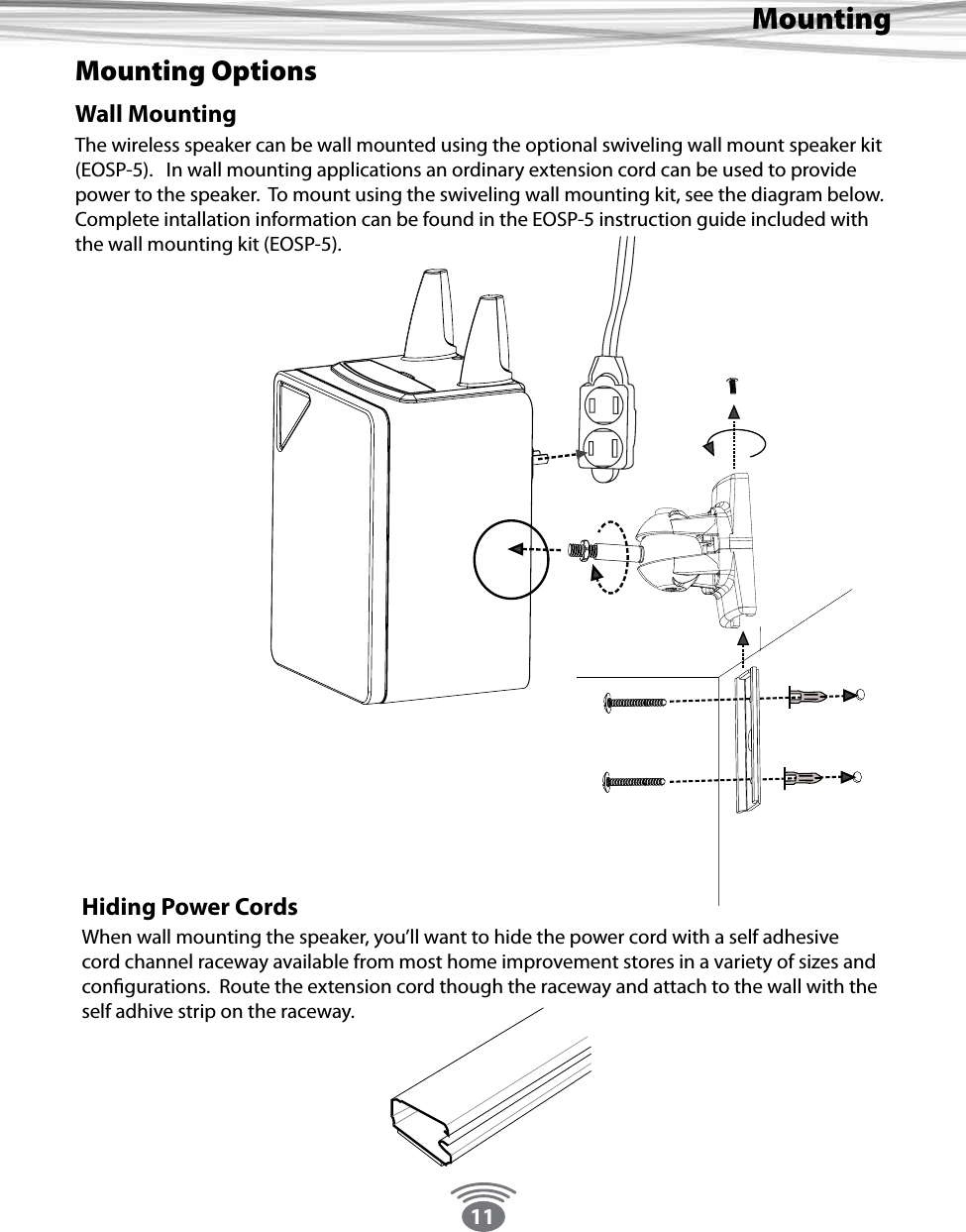

11MountingMounting OptionsWall MountingThe wireless speaker can be wall mounted using the optional swiveling wall mount speaker kit (EOSP-5). In wall mounting applications an ordinary extension cord can be used to provide power to the speaker. To mount using the swiveling wall mounting kit, see the diagram below.Complete intallation information can be found in the EOSP-5 instruction guide included with the wall mounting kit (EOSP-5). Hiding Power CordsWhen wall mounting the speaker, you’ll want to hide the power cord with a self adhesive cord channel raceway available from most home improvement stores in a variety of sizes and congurations. Route the extension cord though the raceway and attach to the wall with the self adhive strip on the raceway.
877-465-3927www.eoswireless.com/procommercial wireless audioTM
