JDTECK JD60-8-AWS-LC Wireless Cellular Repeater User Manual

JDTECK INC Wireless Cellular Repeater Users Manual

Users Manual

Meaning Automatic Gain Control Base Transmitting Station (Cell Tower) Code Division Multiple Access Decibel – (A unit of measure for signal strength) Downlink (Communication channel from cell tower to mobile device) Outdoor Antenna (Antenna that donates an input signal) Global System for Mobile Communications Integrated Digital Enhanced Network Liquid Crystal Display Light Emitting Diode Long Term Evolution Mobile Station Personal Communication System Radio Frequency Uplink (Communication channel from mobile device to cell tower) AGC BTS CDMA dB DL Donor GSM iDEN LCD LED LTE MS PCS RF UL Abbreviations…………………………………………..………………………………..2 Safety……………………………………………………………………….……………….2 1. Preface………………………………………………………………………………... 3 2. Introduction / Features & Functions……………………………………..5 3. Installation…………………………………………………………………………….7 3.1 Installation Procedure………………………………………...………………8 3.1 Installation Procedure – Con’t……………………………………………9 3.2 Antenna Installing and Cable Wiring………………………..………10 3.3 Manual Gain Adjustment - UL / DL……………………..……………11 3.4 Testing……………………………………………………………………….……..15 3.5 Trouble Shooting………………………………………………..…………….16 Specifications……………………………………………………………………..…..17 FCC Statement………………………………………………………...……….……18 Repeater Settings….………………………………………………...…………..…18 Terminology User Warnings – MUST READ! 1. This repeater must ONLY be used for the purpose it was intended for. Making any alternations to the design layout without first consulting with a trained technician can result in interference to the operator’s network and liability by the end user. 2. Please read this entire manual carefully before using this product! 3. Only the power supply that came with the repeater should be used at all times. It is highly recommended that the repeater is grounded and lightning protection used. 4. Do not attempt to open any part of the repeater. This will void the warranty and can cause an electric shock. Electrostatic can also cause damage to the internal components. 5. Please keep away from any heating-equipment, because the repeater will dissipate heat when working. Do not cover the repeater with anything that influences heat-dissipation. 6. Do not place or mount the repeater in a location that is exposed to the elements. This will void the warranty and can cause an electric shock. 1 2

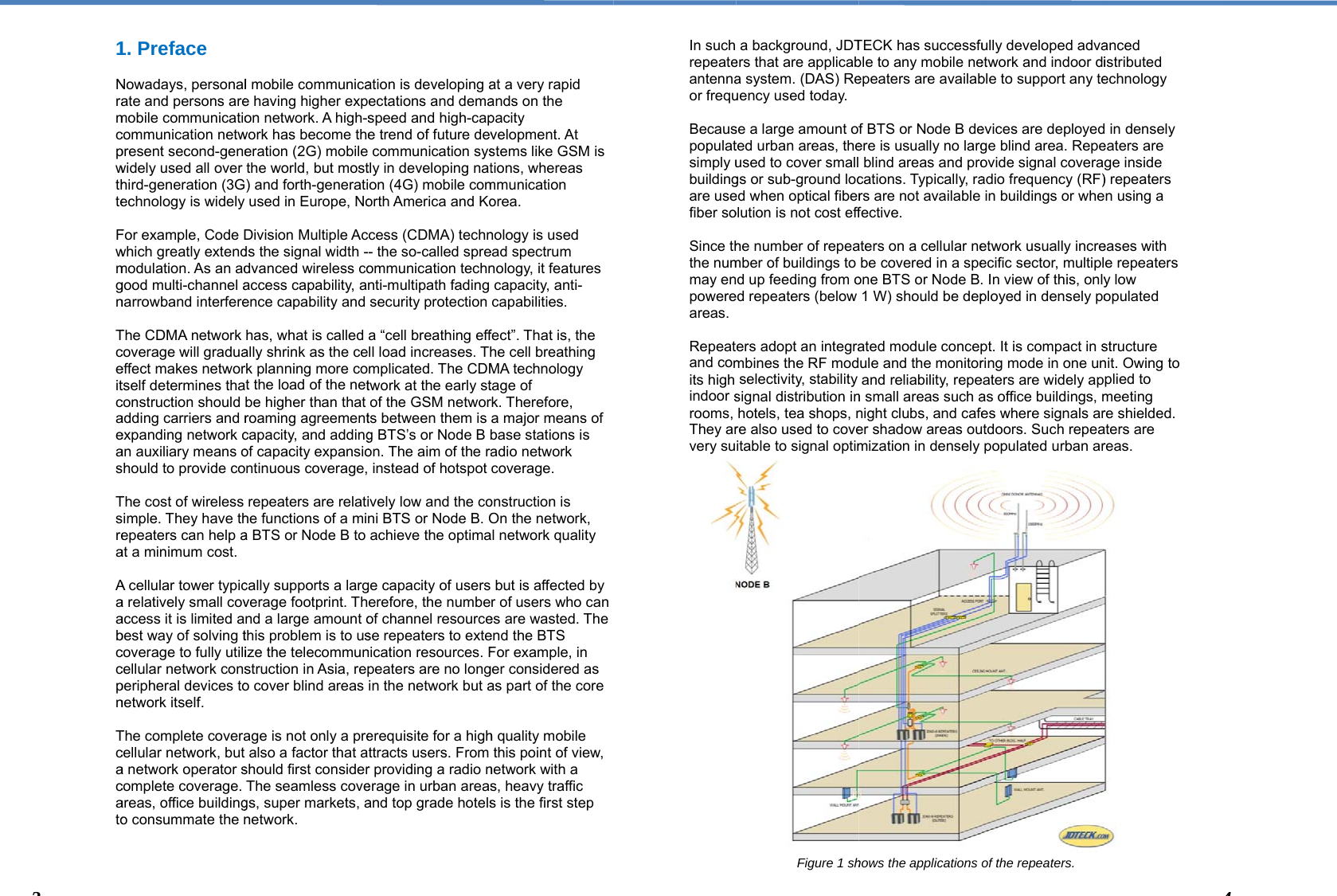

1 Nramcpwthte Fwmgn Tceitcaeas Tsrea Aaabccpn Tcacato 31. Preface Nowadays, personalate and persons aremobile communicatiocommunication netwpresent second-genewidely used all over hird-generation (3Gechnology is widely For example, Code Dwhich greatly extendmodulation. As an adgood multi-channel anarrowband interfereThe CDMA network coverage will graduaeffect makes networtself determines thaconstruction should adding carriers and rexpanding network can auxiliary means ohould to provide coThe cost of wireless imple. They have thepeaters can help aat a minimum cost. A cellular tower typica relatively small covaccess it is limited abest way of solving tcoverage to fully utilicellular network consperipheral devices tonetwork itself. The complete coveracellular network, but a network operator scomplete coverage. areas, office buildingo consummate the nl mobile communicae having higher expon network. A high-swork has become theeration (2G) mobilethe world, but most) and forth-generatiused in Europe, NoDivision Multiple Acds the signal width -dvanced wireless coaccess capability, aence capability and has, what is called ally shrink as the cerk planning more cot the load of the netbe higher than that roaming agreementcapacity, and addingof capacity expansiontinuous coverage,repeaters are relatihe functions of a mia BTS or Node B to cally supports a largverage footprint. Thnd a large amount othis problem is to usize the telecommunstruction in Asia, repo cover blind areasage is not only a prealso a factor that ashould first considerThe seamless covegs, super markets, anetwork. ation is developing aectations and demaspeed and high-cape trend of future dev communication systly in developing naton (4G) mobile comorth America and Koccess (CDMA) techn- the so-called spreommunication technnti-multipath fading security protection a “cell breathing effll load increases. Thmplicated. The CDMtwork at the early stof the GSM networts between them is g BTS’s or Node B bon. The aim of the ra instead of hotspot ively low and the coni BTS or Node B. Oachieve the optimage capacity of userserefore, the numbeof channel resourcese repeaters to extenication resources. Fpeaters are no longin the network but aerequisite for a highttracts users. From r providing a radio nerage in urban areasand top grade hotelsat a very rapid ands on the pacity velopment. At stems like GSM is tions, whereas mmunication orea. nology is used ead spectrum nology, it features capacity, anti-capabilities. fect”. That is, the he cell breathing MA technology tage of rk. Therefore, a major means of base stations is adio network coverage. onstruction is On the network, al network quality but is affected by r of users who can es are wasted. The end the BTS For example, in ger considered as as part of the core h quality mobile this point of view, network with a s, heavy traffic s is the first step In such repeateantennaor frequ Becauspopulatsimply ubuildingare usefiber so Since ththe nummay enpowereareas. Repeatand comits high indoor srooms, They arvery su a background, JDTers that are applicaba system. (DAS) Reuency used today. se a large amount ofted urban areas, theused to cover smallgs or sub-ground loced when optical fiberolution is not cost effhe number of repeamber of buildings to d up feeding from oed repeaters (below ers adopt an integrambines the RF modselectivity, stability signal distribution inhotels, tea shops, nre also used to coveitable to signal optimFigure 1 shTECK has successfuble to any mobile neepeaters are availabf BTS or Node B deere is usually no larg blind areas and procations. Typically, rars are not available fective. aters on a cellular nebe covered in a speone BTS or Node B.1 W) should be depated module concepule and the monitorand reliability, repen small areas such anight clubs, and cafeer shadow areas oumization in densely hows the applications ully developed advaetwork and indoor dible to support any teevices are deployedge blind area. Repeovide signal coveraadio frequency (RF)in buildings or wheetwork usually increecific sector, multipl. In view of this, onlyployed in densely popt. It is compact in sring mode in one uneaters are widely apas office buildings, mes where signals arutdoors. Such repeapopulated urban arof the repeaters. anced istributed echnology d in densely eaters are ge inside ) repeaters n using a eases with e repeaters y low opulated structure nit. Owing to plied to meeting re shielded. aters are reas. 44

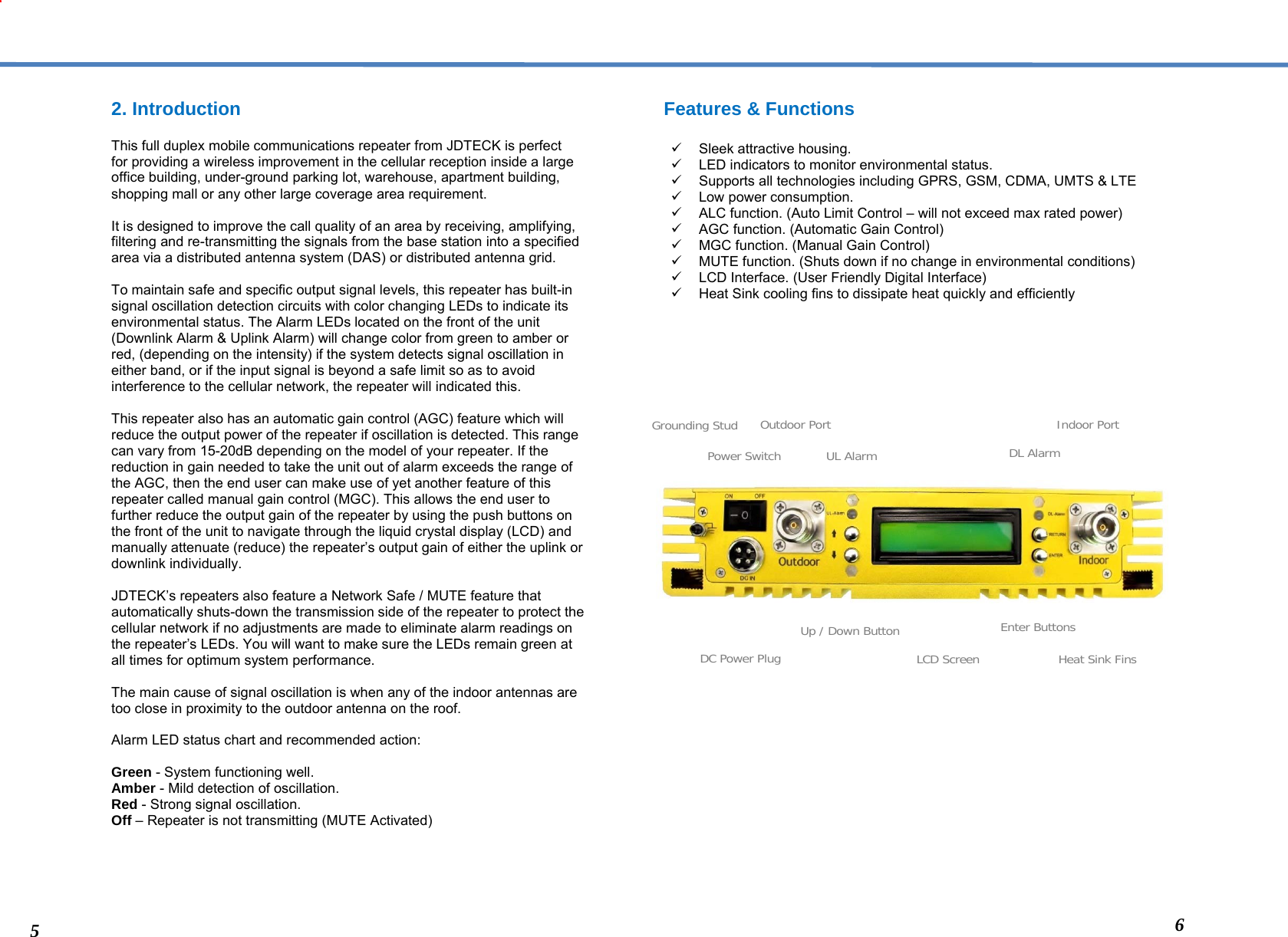

2. Introduction This full duplex mobile communications repeater from JDTECK is perfect for providing a wireless improvement in the cellular reception inside a large office building, under-ground parking lot, warehouse, apartment building, shopping mall or any other large coverage area requirement. It is designed to improve the call quality of an area by receiving, amplifying, filtering and re-transmitting the signals from the base station into a specified area via a distributed antenna system (DAS) or distributed antenna grid. To maintain safe and specific output signal levels, this repeater has built-in signal oscillation detection circuits with color changing LEDs to indicate its environmental status. The Alarm LEDs located on the front of the unit (Downlink Alarm & Uplink Alarm) will change color from green to amber or red, (depending on the intensity) if the system detects signal oscillation in either band, or if the input signal is beyond a safe limit so as to avoid interference to the cellular network, the repeater will indicated this. This repeater also has an automatic gain control (AGC) feature which will reduce the output power of the repeater if oscillation is detected. This range can vary from 15-20dB depending on the model of your repeater. If the reduction in gain needed to take the unit out of alarm exceeds the range of the AGC, then the end user can make use of yet another feature of this repeater called manual gain control (MGC). This allows the end user to further reduce the output gain of the repeater by using the push buttons on the front of the unit to navigate through the liquid crystal display (LCD) and manually attenuate (reduce) the repeater’s output gain of either the uplink or downlink individually. JDTECK’s repeaters also feature a Network Safe / MUTE feature that automatically shuts-down the transmission side of the repeater to protect the cellular network if no adjustments are made to eliminate alarm readings on the repeater’s LEDs. You will want to make sure the LEDs remain green at all times for optimum system performance. The main cause of signal oscillation is when any of the indoor antennas are too close in proximity to the outdoor antenna on the roof. Alarm LED status chart and recommended action: Green - System functioning well. Amber - Mild detection of oscillation. Red - Strong signal oscillation. Off – Repeater is not transmitting (MUTE Activated) Features & Functions  Sleek attractive housing.  LED indicators to monitor environmental status.  Supports all technologies including GPRS, GSM, CDMA, UMTS & LTE  Low power consumption.  ALC function. (Auto Limit Control – will not exceed max rated power)  AGC function. (Automatic Gain Control)  MGC function. (Manual Gain Control)  MUTE function. (Shuts down if no change in environmental conditions)  LCD Interface. (User Friendly Digital Interface)  Heat Sink cooling fins to dissipate heat quickly and efficiently Grounding StudPower SwitchOutdoor PortLCD ScreenDC Power PlugUL AlarmEnter ButtonsUp / Down Button Heat Sink Fins DL AlarmIndoor Port5 6

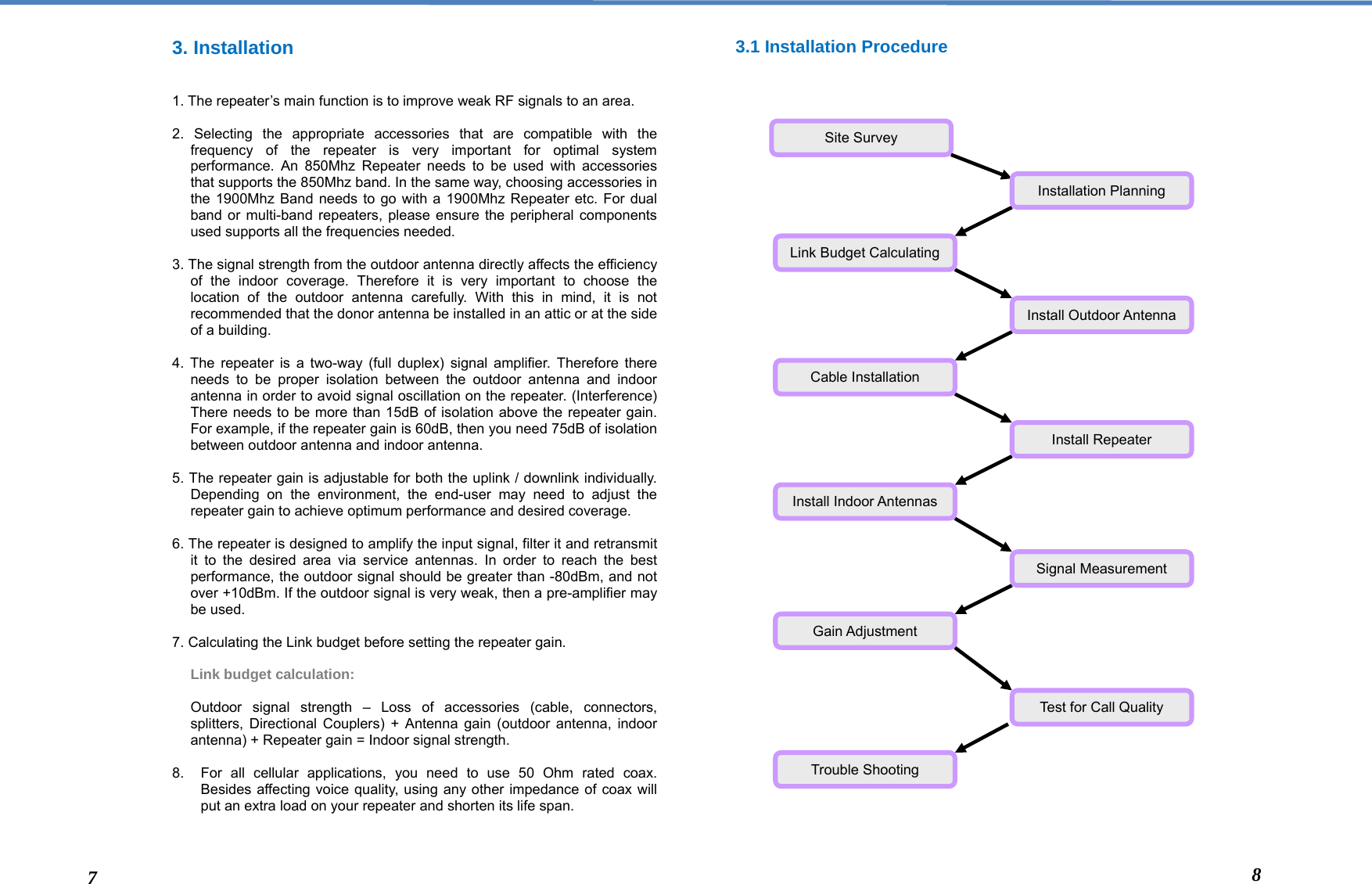

3. Installation 1. The repeater’s main function is to improve weak RF signals to an area. 2. Selecting the appropriate accessories that are compatible with the frequency of the repeater is very important for optimal system performance. An 850Mhz Repeater needs to be used with accessories that supports the 850Mhz band. In the same way, choosing accessories in the 1900Mhz Band needs to go with a 1900Mhz Repeater etc. For dual band or multi-band repeaters, please ensure the peripheral components used supports all the frequencies needed. 3. The signal strength from the outdoor antenna directly affects the efficiency of the indoor coverage. Therefore it is very important to choose the location of the outdoor antenna carefully. With this in mind, it is not recommended that the donor antenna be installed in an attic or at the side of a building. 4. The repeater is a two-way (full duplex) signal amplifier. Therefore there needs to be proper isolation between the outdoor antenna and indoor antenna in order to avoid signal oscillation on the repeater. (Interference) There needs to be more than 15dB of isolation above the repeater gain. For example, if the repeater gain is 60dB, then you need 75dB of isolation between outdoor antenna and indoor antenna. 5. The repeater gain is adjustable for both the uplink / downlink individually. Depending on the environment, the end-user may need to adjust the repeater gain to achieve optimum performance and desired coverage. 6. The repeater is designed to amplify the input signal, filter it and retransmit it to the desired area via service antennas. In order to reach the best performance, the outdoor signal should be greater than -80dBm, and not over +10dBm. If the outdoor signal is very weak, then a pre-amplifier may be used. 7. Calculating the Link budget before setting the repeater gain. Link budget calculation: Outdoor signal strength – Loss of accessories (cable, connectors, splitters, Directional Couplers) + Antenna gain (outdoor antenna, indoor antenna) + Repeater gain = Indoor signal strength. 8. For all cellular applications, you need to use 50 Ohm rated coax. Besides affecting voice quality, using any other impedance of coax will put an extra load on your repeater and shorten its life span. 3.1 Installation Procedure Site SurveyInstallation PlanningLink Budget CalculatingInstall Outdoor AntennaCable InstallationInstall RepeaterInstall Indoor AntennasSignal MeasurementGain AdjustmentTest for Call QualityTrouble Shooting7 8

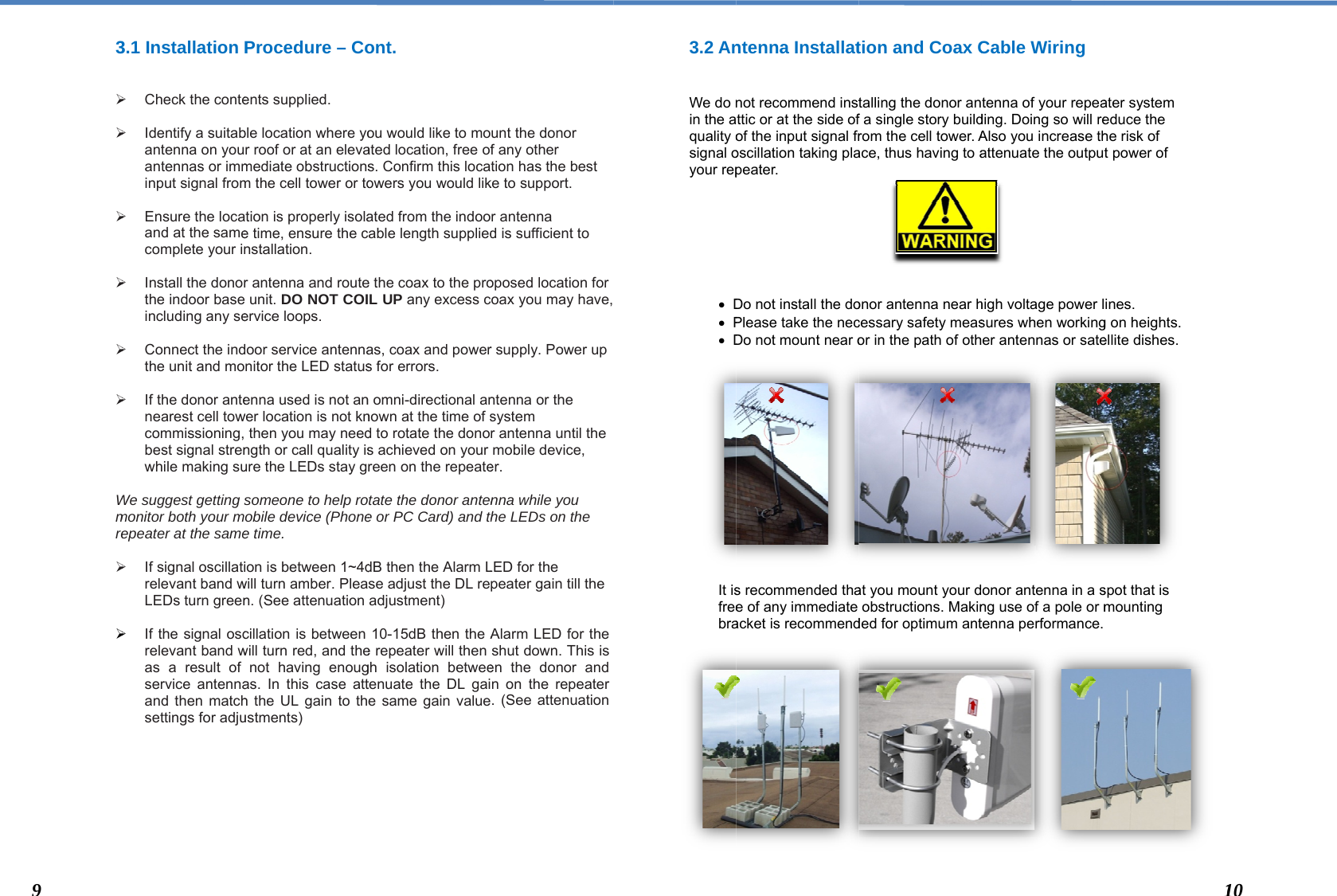

3 Wmre  93.1 Installation P Check the conte  Identify a suitabantenna on youantennas or imminput signal from  Ensure the locaand at the samecomplete your in  Install the donorthe indoor base including any se  Connect the indthe unit and mo  If the donor antenearest cell towcommissioning, best signal strenwhile making su We suggest getting smonitor both your mepeater at the same If signal oscillatirelevant band wLEDs turn green  If the signal oscrelevant band was a result of service antennaand then matchsettings for adju Procedure – Coents supplied. ble location where yor roof or at an elevamediate obstructionsm the cell tower or totion is properly isolae time, ensure the cnstallation. r antenna and routeunit. DO NOT COIervice loops. door service antennanitor the LED statusenna used is not anwer location is not knthen you may needngth or call quality isure the LEDs stay gsomeone to help roobile device (Phonee time. ion is between 1~4dwill turn amber. Plean. (See attenuationcillation is between will turn red, and thenot having enougas. In this case atth the UL gain to thustments) ont. ou would like to moated location, free ofs. Confirm this locaowers you would likated from the indoocable length suppliede the coax to the proL UP any excess cas, coax and powers for errors. n omni-directional annown at the time of sd to rotate the donos achieved on your reen on the repeateotate the donor antene or PC Card) and thdB then the Alarm Lse adjust the DL readjustment) 10-15dB then the Ae repeater will then gh isolation betweetenuate the DL gaie same gain valueunt the donor f any other tion has the best ke to support. r antenna d is sufficient to oposed location for coax you may have, r supply. Power up ntenna or the system r antenna until the mobile device, er. nna while you he LEDs on the LED for the peater gain till theAlarm LED for the shut down. This is en the donor and n on the repeater . (See attenuation 3.2 An We do nin the aquality osignal oyour rep  D P D It isfreebra ntenna Installatnot recommend instttic or at the side ofof the input signal froscillation taking plapeater. Do not install the doPlease take the necDo not mount near os recommended thae of any immediate acket is recommendtion and Coax Ctalling the donor anf a single story buildrom the cell tower. Aace, thus having to aonor antenna near hcessary safety measor in the path of othat you mount your dobstructions. Makinded for optimum antCable Wiring tenna of your repeading. Doing so will reAlso you increase thattenuate the outputhigh voltage power lsures when workinger antennas or sateonor antenna in a sng use of a pole or mtenna performance. ater system educe the he risk of t power of ines. g on heights. ellite dishes. spot that is mounting 110

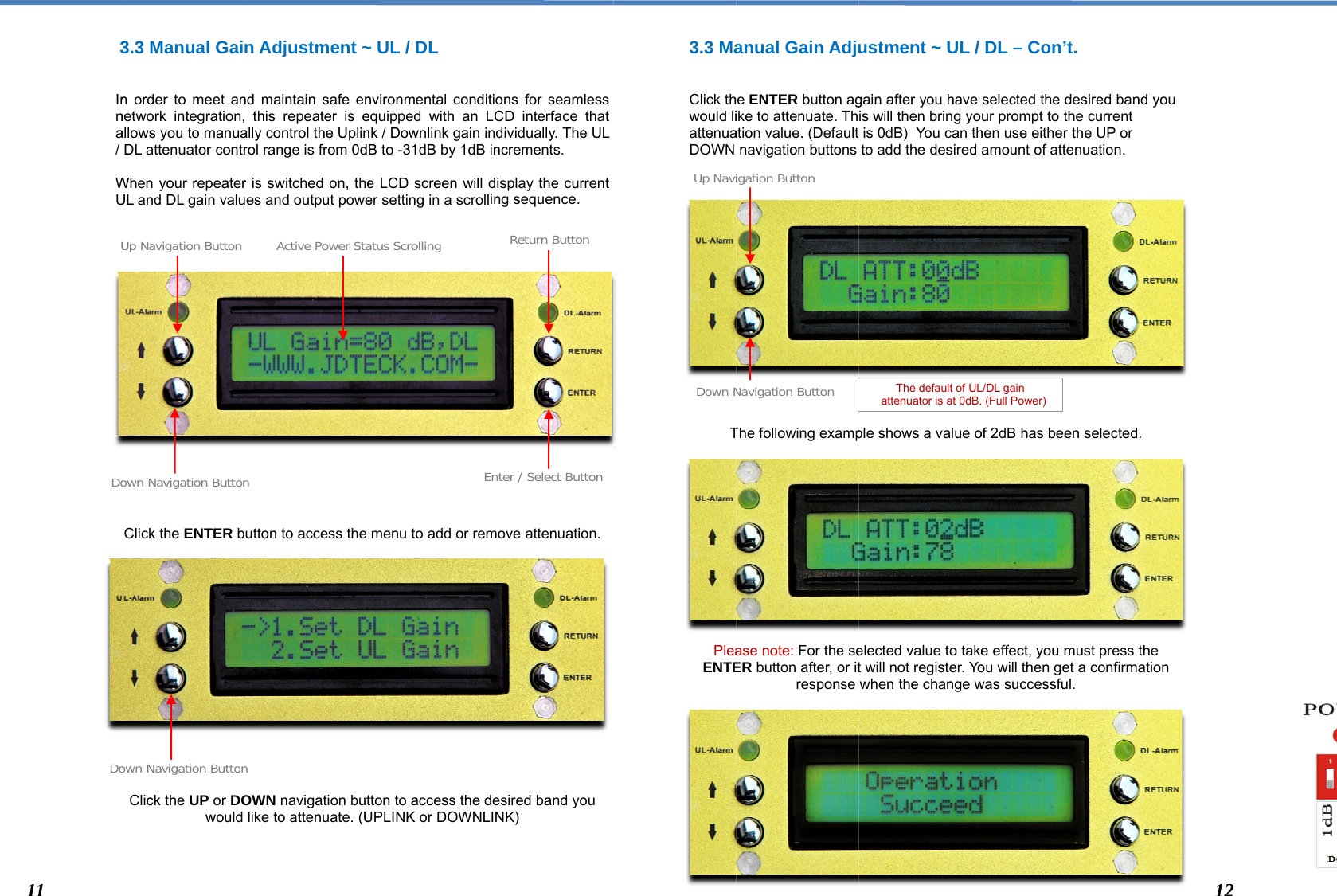

3 Inna/ WU DoUDo113.3 Manual Gainn order to meet annetwork integration,allows you to manuaDL attenuator contrWhen your repeaterUL and DL gain valuClick the ENTER bClick the UP or DOwould own Navigation ButtonUp Navigation Button own Navigation Buttonn Adjustment ~nd maintain safe en this repeater is eally control the Uplinrol range is from 0dr is switched on, thees and output poweutton to access the OWN navigation butlike to attenuate. (Un Active Power Stan ~ UL / DL nvironmental conditequipped with an Lnk / Downlink gain inB to -31dB by 1dB ie LCD screen will der setting in a scrollmenu to add or remtton to access the dUPLINK or DOWNLEatus Scrollingtions for seamless LCD interface that ndividually. The ULincrements. display the current ing sequence. move attenuation. desired band you INK) nter / Select ButtonReturn Button3.3 Ma Click thwould liattenuaDOWN T PleaENTE Down NUp Navianual Gain Adjue ENTER button agike to attenuate. Thation value. (Default navigation buttons The following exampase note: For the seER button after, or itresponse Navigation Buttonigation Buttonustment ~ UL / gain after you have is will then bring yois 0dB) You can thto add the desired ple shows a value oelected value to taket will not register. Yowhen the change w The default of UL attenuator is at 0dB.DL – Con’t. selected the desiredur prompt to the curhen use either the Uamount of attenuatiof 2dB has been selee effect, you must pou will then get a cowas successful. L/DL gain (Full Power) d band you rrent UP or ion. ected. press the onfirmation 122

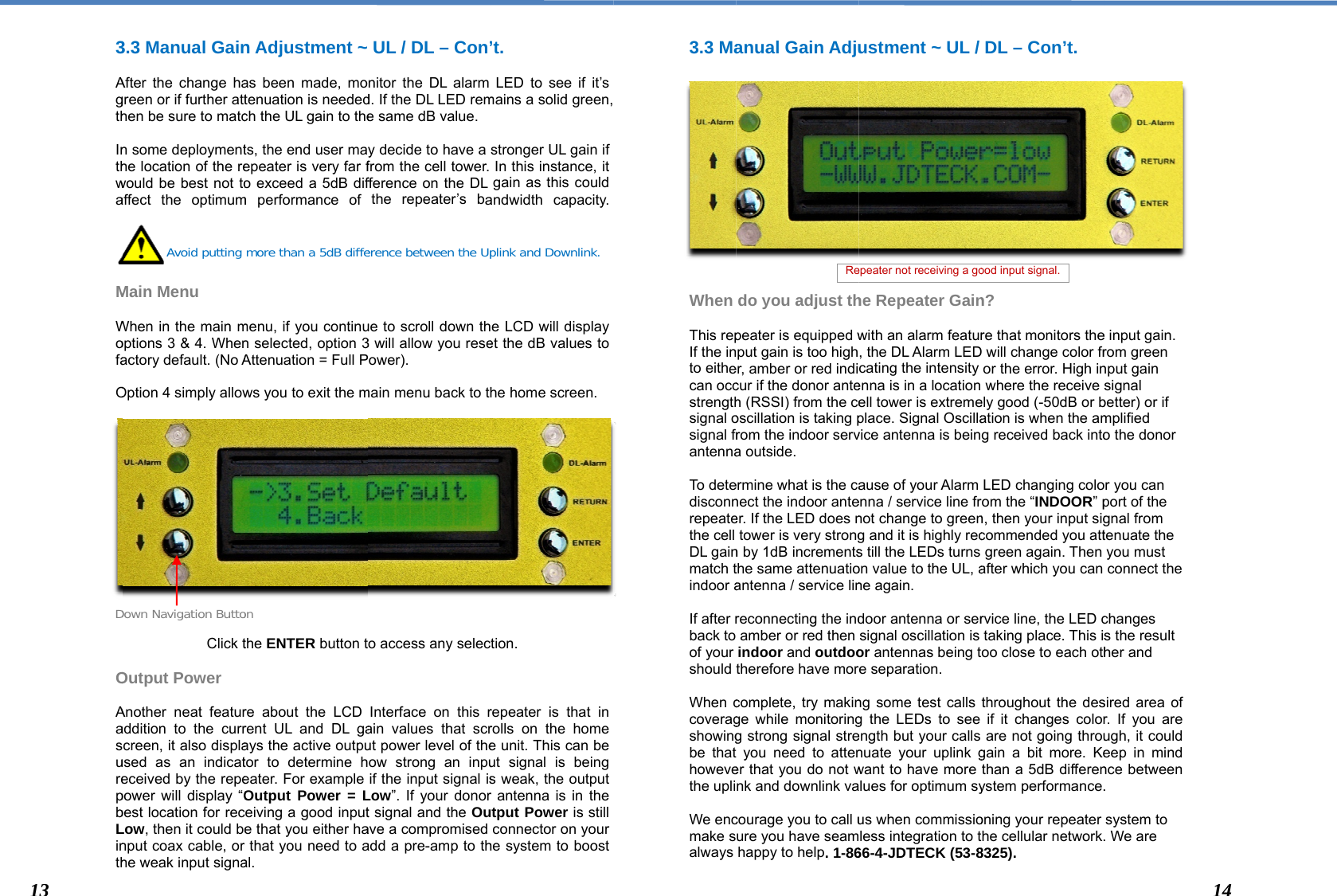

3 Agth Inthwa M Wofa O O AasurepbLinth D133.3 Manual GainAfter the change hagreen or if further atthen be sure to matcn some deploymenthe location of the rewould be best not toaffect the optimum Main Menu When in the main moptions 3 & 4. Whenactory default. (No AOption 4 simply allowClick tOutput Power Another neat featuraddition to the currcreen, it also displaused as an indicateceived by the repepower will display “Obest location for recLow, then it could benput coax cable, or he weak input signaAvoid putting Down Navigation Button Adjustment ~as been made, motenuation is neededch the UL gain to thets, the end user maepeater is very far fo exceed a 5dB difm performance of menu, if you continun selected, option 3Attenuation = Full Pws you to exit the mthe ENTER button tre about the LCD rent UL and DL gaays the active outputor to determine heater. For example Output Power = Leiving a good inpute that you either hathat you need to aal. more than a 5dB diffeon UL / DL – Con’nitor the DL alarm d. If the DL LED reme same dB value.y decide to have a from the cell tower. fference on the DL the repeater’s baue to scroll down th3 will allow you reseower). main menu back to tho access any selecInterface on this rain values that scrut power level of theow strong an inpuif the input signal isLow”. If your donort signal and the Ouave a compromised add a pre-amp to therence between the Up’t. LED to see if it’s mains a solid green, stronger UL gain if In this instance, it gain as this could andwidth capacity. e LCD will display et the dB values to he home screen. tion. repeater is that in rolls on the home e unit. This can be ut signal is being s weak, the output r antenna is in the tput Power is still connector on your he system to boost plink and Downlink. 3.3 Ma When This repIf the into eithecan occstrengthsignal osignal frantenna To detedisconnrepeatethe cell DL gainmatch tindoor a If after rback to of your should When ccoveragshowingbe thathowevethe upli We encmake salways anual Gain Adjudo you adjust thpeater is equipped wput gain is too higher, amber or red indicur if the donor anteh (RSSI) from the ceoscillation is taking prom the indoor serva outside. ermine what is the canect the indoor anteer. If the LED does ntower is very strongn by 1dB incrementsthe same attenuatioantenna / service linreconnecting the indamber or red then indoor and outdootherefore have morcomplete, try makinge while monitoringg strong signal stre you need to attener that you do not wnk and downlink vacourage you to call uure you have seamhappy to help. 1-86Reustment ~ UL / he Repeater Gainwith an alarm featur, the DL Alarm LEDcating the intensityenna is in a location ell tower is extremeplace. Signal Oscillavice antenna is beinause of your Alarm enna / service line frnot change to greeng and it is highly recs till the LEDs turns on value to the UL, ane again. door antenna or sersignal oscillation is or antennas being te separation. ng some test calls g the LEDs to see ength but your calls nuate your uplink gwant to have more lues for optimum syus when commissioless integration to t66-4-JDTECK (53-8epeater not receiving a goDL – Con’t. n? re that monitors the will change color fror the error. High inwhere the receive sely good (-50dB or bation is when the amg received back intoLED changing coloom the “INDOOR” pn, then your input sigcommended you attgreen again. Then after which you can rvice line, the LED ctaking place. This isoo close to each oththroughout the desif it changes colorare not going througain a bit more. Kethan a 5dB differenystem performance.oning your repeater he cellular network.8325). ood input signal. e input gain. rom green nput gain signal better) or if mplified o the donor r you can port of the gnal from tenuate the you must connect the changes s the result her and sired area of r. If you are ugh, it could eep in mind nce between . system to . We are 144

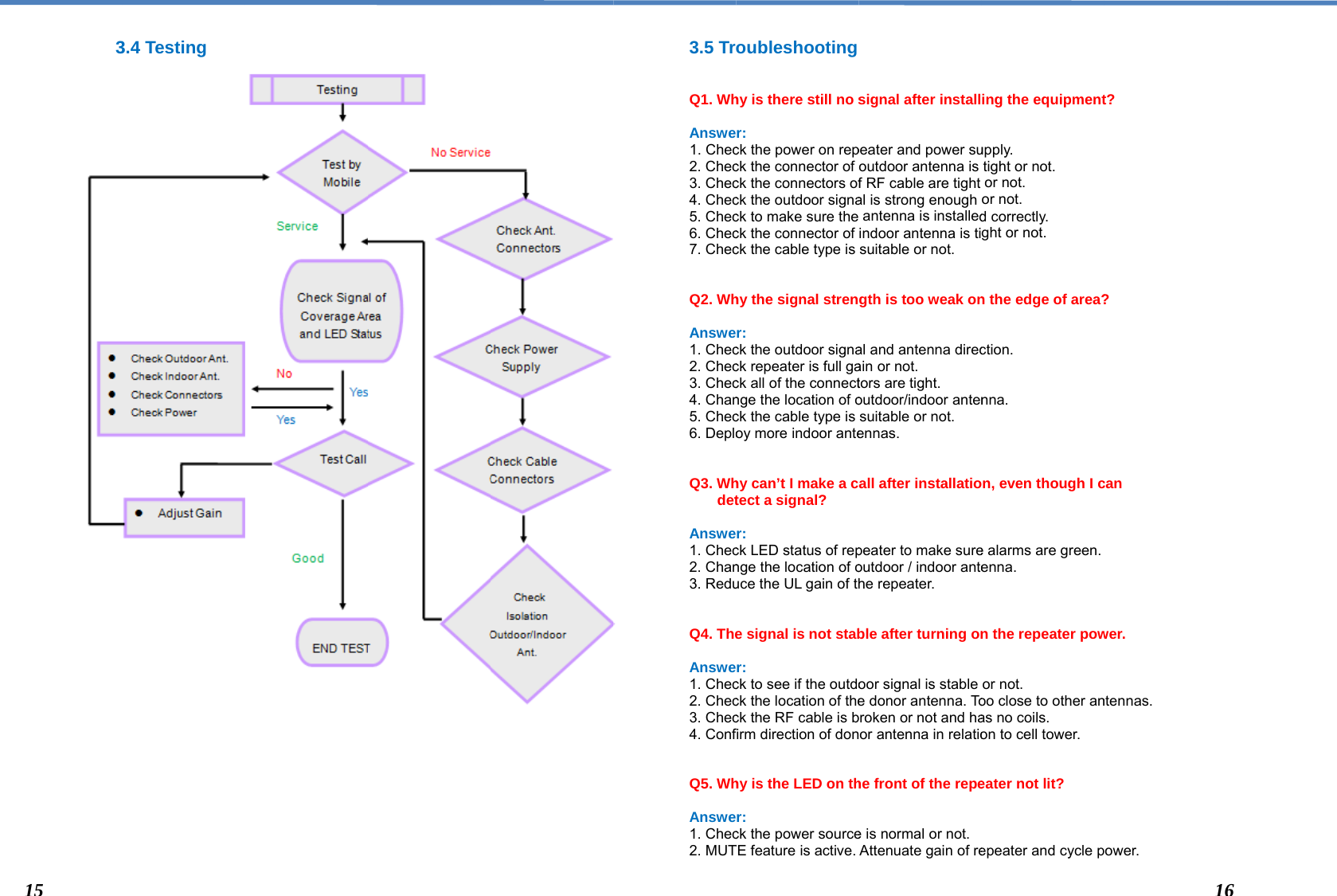

3 153.4 Testing 3.5 Tr Q1. Wh Answe1. Chec2. Chec3. Chec4. Chec5. Chec6. Chec7. Chec Q2. Wh Answe1. Chec2. Chec3. Chec4. Chan5. Chec6. Deplo Q3. Whdet Answe1. Chec2. Chan3. Redu Q4. The Answe1. Chec2. Chec3. Chec4. Conf Q5. Wh Answe1. Chec2. MUT oubleshootinghy is there still no sr: ck the power on repck the connector of ck the connectors ofck the outdoor signack to make sure the ck the connector of ck the cable type is hy the signal strenr: ck the outdoor signack repeater is full gack all of the connectnge the location of ock the cable type is oy more indoor antehy can’t I make a ctect a signal? r: ck LED status of repnge the location of ouce the UL gain of the signal is not stabr: ck to see if the outdock the location of theck the RF cable is bfirm direction of donhy is the LED on thr: ck the power sourceTE feature is active. signal after installpeater and power suoutdoor antenna is f RF cable are tight al is strong enough antenna is installedindoor antenna is tisuitable or not. gth is too weak onal and antenna direcain or not. tors are tight. outdoor/indoor antensuitable or not. ennas. all after installatiopeater to make sureoutdoor / indoor antehe repeater. ble after turning onoor signal is stable e donor antenna. Toroken or not and haor antenna in relatiohe front of the repee is normal or not.Attenuate gain of reing the equipmentupply. tight or not. or not. or not. d correctly. ght or not. n the edge of area?ction. nna. n, even though I ce alarms are green.enna. n the repeater powor not. oo close to other anas no coils. on to cell tower. eater not lit? epeater and cycle pt? ? can wer. ntennas. ower. 166

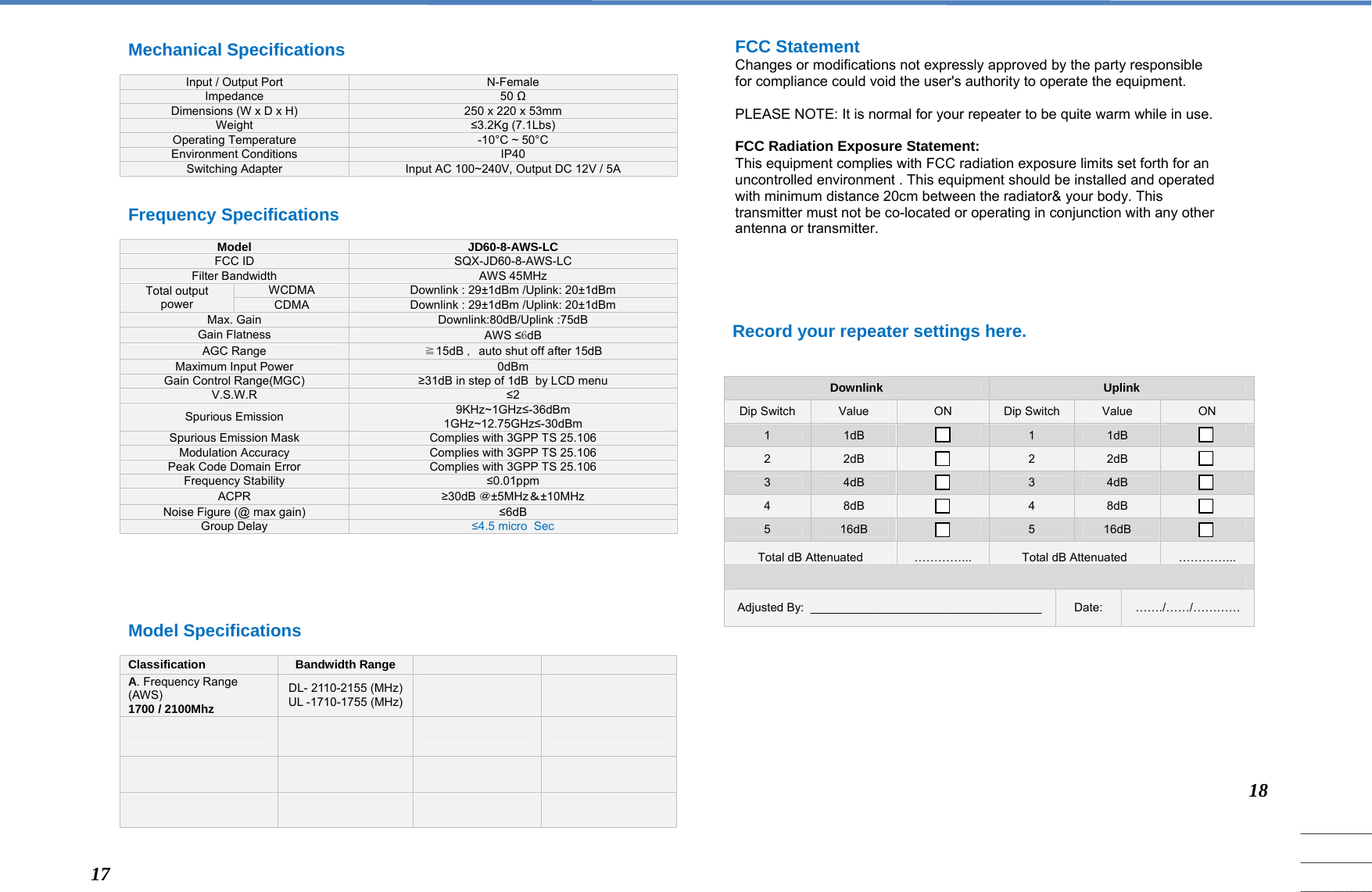

Mechanical Specifications Input / Output Port N-Female Impedance 50 Ω Dimensions (W x D x H) 250 x 220 x 53mm Weight ≤3.2Kg (7.1Lbs) Operating Temperature -10°C ~ 50°C Environment Conditions IP40 Switching Adapter Input AC 100~240V, Output DC 12V / 5A Record your repeater settings here. Downlink Uplink Dip Switch Value ON Dip Switch Value ON 1 1dB 1 1dB 2 2dB 2 2dB 3 4dB 3 4dB 4 8dB 4 8dB 5 16dB 5 16dB Total dB Attenuated …………... Total dB Attenuated …………... Adjusted By: ___________________________________ Date: ……./……/………… ____________ ____________ ____________ FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. PLEASE NOTE: It is normal for your repeater to be quite warm while in use. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Frequency Specifications Model JD60-8-AWS-LCFCC ID SQX-JD60-8-AWS-LC Filter Bandwidth AWS 45MHz Total output power WCDMA Downlink : 29±1dBm /Uplink: 20±1dBm CDMA Downlink : 29±1dBm /Uplink: 20±1dBm Max. Gain Downlink:80dB/Uplink :75dB Gain Flatness AWS ≤6dB AGC Range ≧15dB ，auto shut off after 15dB Maximum Input Power 0dBm Gain Control Range(MGC) ≥31dB in step of 1dB by LCD menu V.S.W.R ≤2 Spurious Emission 9KHz~1GHz≤-36dBm 1GHz~12.75GHz≤-30dBm Spurious Emission Mask Complies with 3GPP TS 25.106 Modulation Accuracy Complies with 3GPP TS 25.106 Peak Code Domain Error Complies with 3GPP TS 25.106 Frequency Stability ≤0.01ppm ACPR ≥30dB ＠±5MHz＆±10MHz Noise Figure (@ max gain) ≤6dB Group Delay ≤4.5 micro Sec Model Specifications Classification Bandwidth Range A. Frequency Range (AWS) 1700 / 2100Mhz DL- 2110-2155 (MHz)UL -1710-1755 (MHz) 17 18
