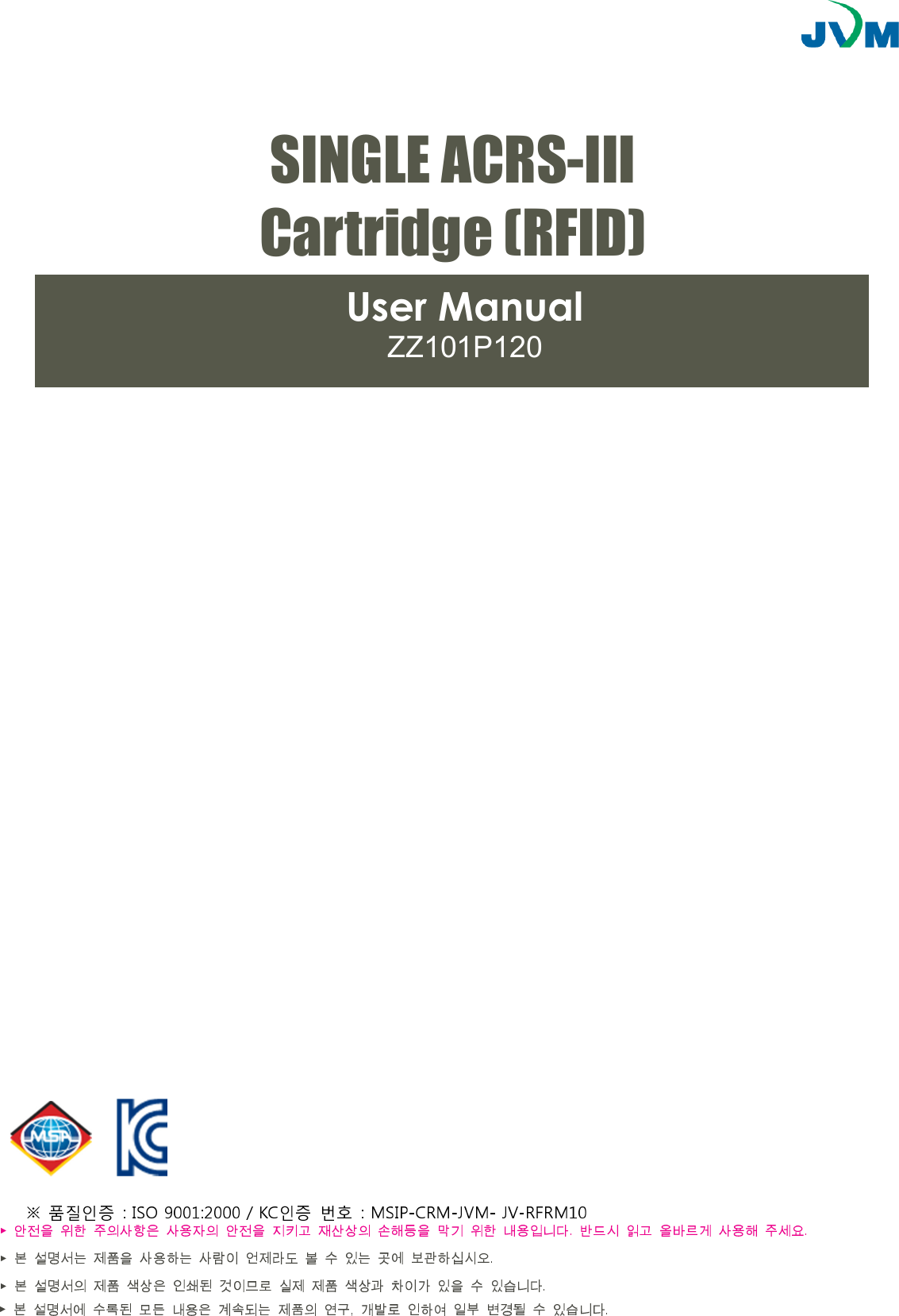

JVM SINGLE-ACRS SINGLE ACRS-III CARTRIDGE(RFID) User Manual

JVM Co., Ltd. SINGLE ACRS-III CARTRIDGE(RFID)

User Manual

JV-TM10 SINGLE ACRS-III Cartridge (RFID) User Manual ZZ101P120

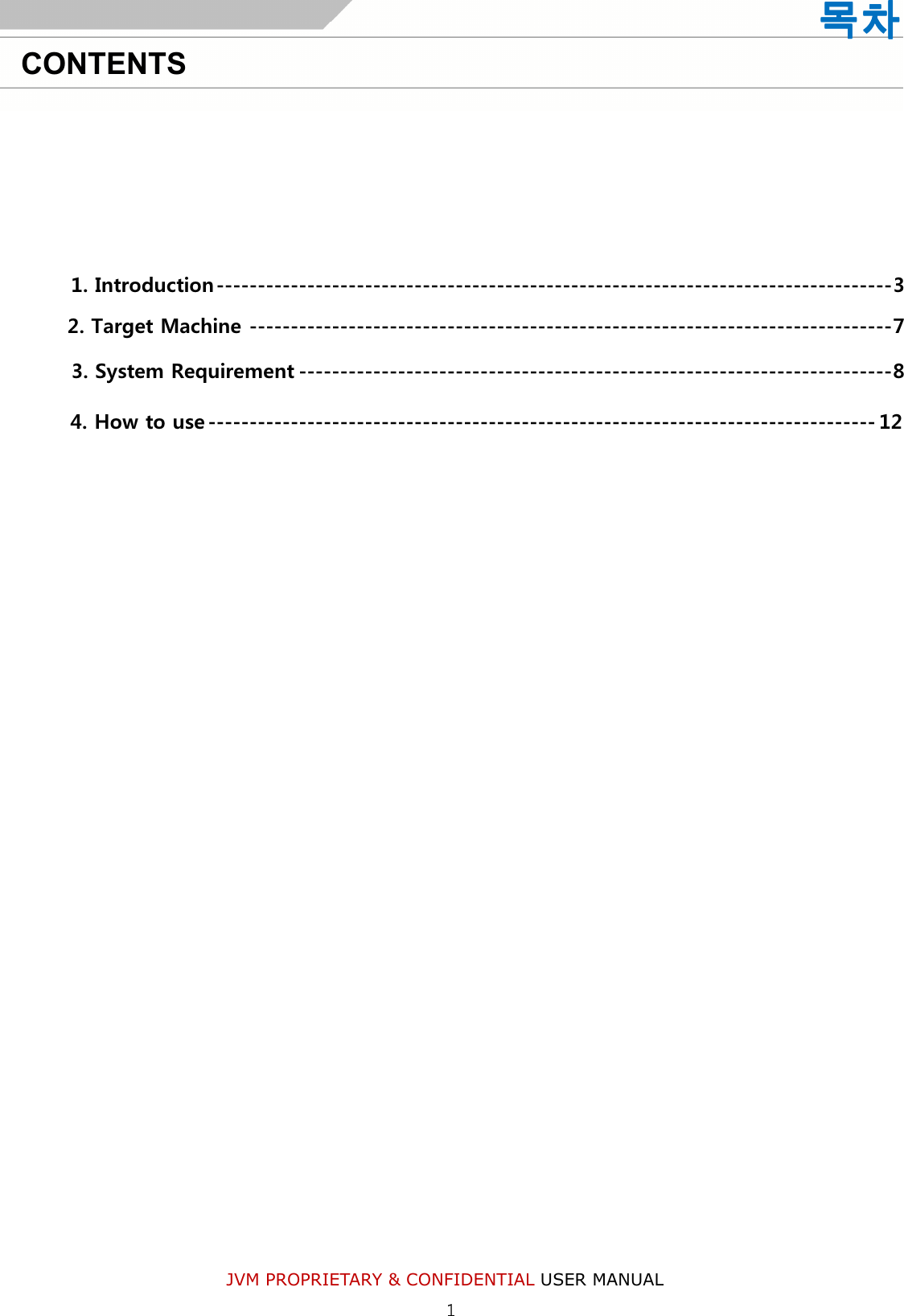

JVM PROPRIETARY & CONFIDENTIAL USER MANUAL 1. Introduction ---------------------------------------------------------------------------------- 3 2. Target Machine ------------------------------------------------------------------------------ 7 3. System Requirement ------------------------------------------------------------------------ 8 4. How to use --------------------------------------------------------------------------------- 12 목차목차목차목차 CONTENTS
JVM PROPRIETARY & CONFIDENTIAL USER MANUAL 1. Introduction.ViewThis product supports RFID. Antenna RFID Module ZZ101P120

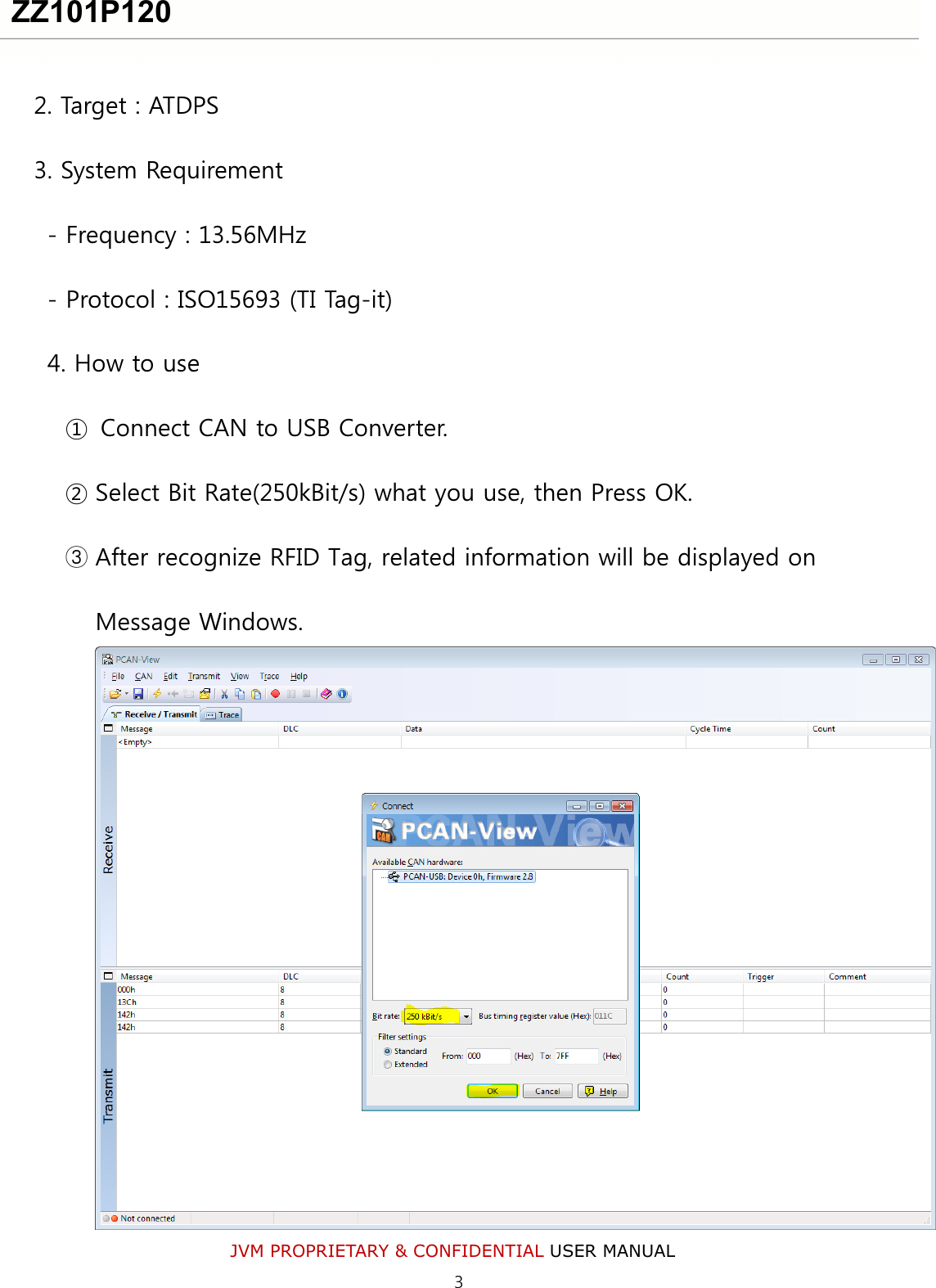

JVM PROPRIETARY & CONFIDENTIAL USER MANUAL 2. Target : ATDPS 3. System Requirement - Frequency : 13.56MHz - Protocol : ISO15693 (TI Tag-it) 4. How to use ① Connect CAN to USB Converter. ② Select Bit Rate(250kBit/s) what you use, then Press OK. ③ After recognize RFID Tag, related information will be displayed on Message Windows. ZZ101P120
JVM PROPRIETARY & CONFIDENTIAL USER MANUAL  JV-RFRM10 Size (WxDmm) 70mm x 110mm Weight (g) 200g Power 5V Communications CAN Temperature -20 ~ +50 Frequency 13.56MHz Specifications ZZ101P120

