Jasco BS2TX Transmitter Portion of Wireless Intercom User Manual 3028 BS Manual A

Jasco Products Company Transmitter Portion of Wireless Intercom 3028 BS Manual A

User Manual

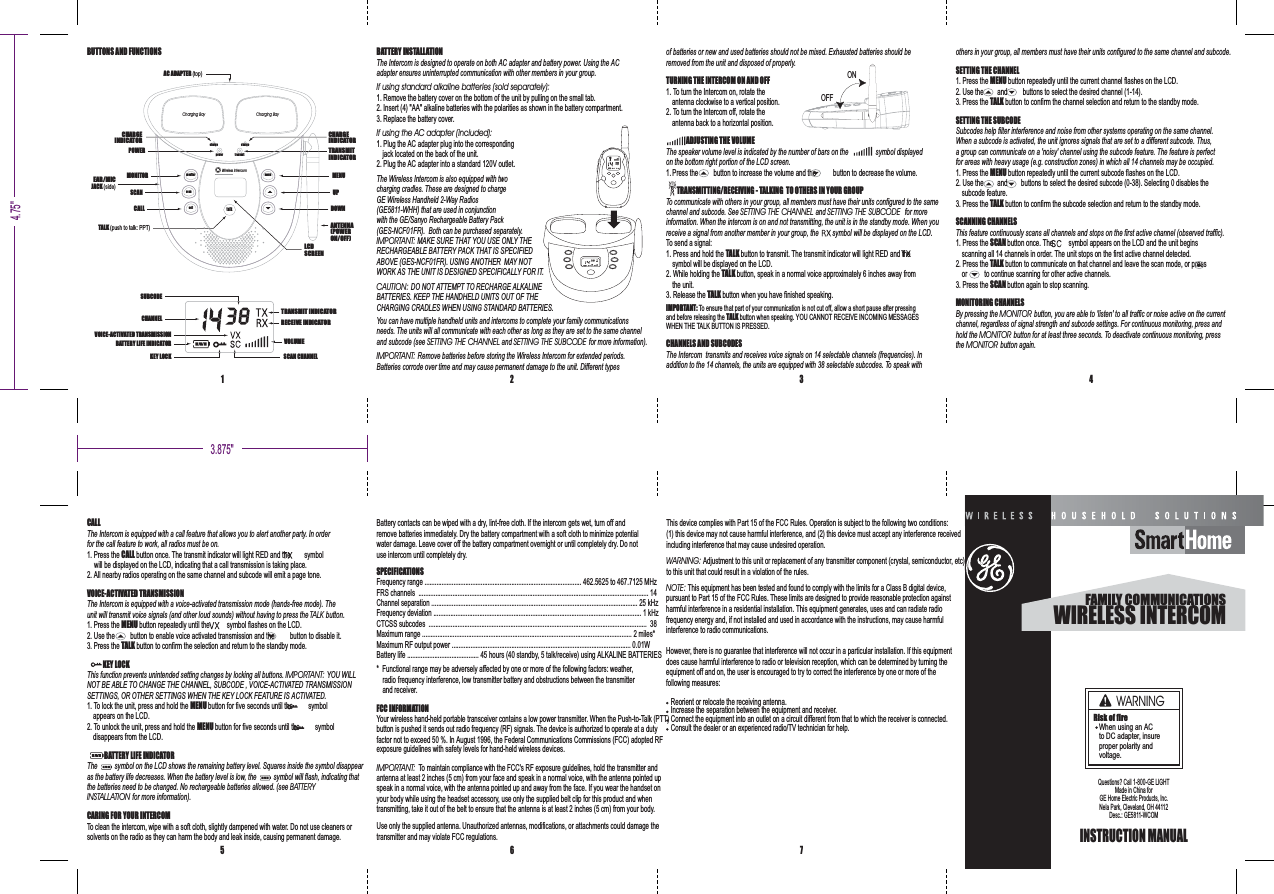

BUTTONS AND FUNCTIONS BATTERY INSTALLATIONThe Intercom is designed to operate on both AC adapter and battery power. Using the ACadapter ensures uninterrupted communication with other members in your group.If using standard alkaline batteries (sold separately):1. Remove the battery cover on the bottom of the unit by pulling on the small tab.2. Insert (4) "AA" alkaline batteries with the polarities as shown in the battery compartment.3. Replace the battery cover.If using the AC adapter (included):1. Plug the AC adapter plug into the correspondingjack located on the back of the unit.2. Plug the AC adapter into a standard 120V outlet.The Wireless Intercom is also equipped with twocharging cradles. These are designed to chargeGE Wireless Handheld 2-Way Radios(GE5811-WHH) that are used in conjunctionwith the GE/Sanyo Rechargeable Battery Pack(GES-NCF FR). Both can be purchased separately.01IMPORTANT: MAKE SURE THAT YOU USE ONLY THERECHARGEABLE BATTERY PACK THAT IS SPECIFIEDABOVE (GES-NCF FR). USING ANOTHER MAY NOT01WORK AS THE UNIT IS DESIGNED SPECIFICALLY FOR IT.CAUTION: DO NOT ATTEMPT TO RECHARGE ALKALINEBATTERIES. KEEP THE HANDHELD UNITS OUT OF THECHARGING CRADLES WHEN USING STANDARD BATTERIES.You can have multiple handheld units and intercoms to complete your family communicationsneeds. The units will all communicate with each other as long as they are set to the same channeland subcode (see and for more information).SETTING THE CHANNEL SETTING THE SUBCODEIMPORTANT: Remove batteries before storing the Wireless Intercom for extended periods.Batteries corrode over time and may cause permanent damage to the unit. Different typesof batteries or new and used batteries should not be mixed. Exhausted batteries should beremoved from the unit and disposed of properly.TURNING THE INTERCOM ON AND OFF1. To turn the Intercom on, rotate theantenna clockwise to a vertical position.2. To turn the Intercom off, rotate theantenna back to a horizontal position.ADJUSTING THE VOLUMEThe speaker volume level is indicated by the number of bars on the symbol displayedon the bottom right portion of the LCD screen.1. Press the button to increase the volume and the button to decrease the volume.TRANSMITTING/RECEIVING - TALKING TO OTHERS IN YOUR GROUPTo communicate with others in your group, all members must have their units configured to the samechannel and subcode. See and for moreSETTING THE CHANNEL SETTING THE SUBCODEinformation. When the intercom is on and not transmitting, the unit is in the standby mode. When youreceive a signal from another member in your group, the symbol will be displayed on the LCD.To send a signal:1. Press and hold the button to transmit. The transmit indicator will light RED and theTALKsymbol will be displayed on the LCD.2. While holding the button, speak in a normal voice approximately 6 inches away fromTALKthe unit.3. Release the button when you have finished speaking.TALKIMPORTANT: To ensure that part of your communication is not cut off, allow a short pause after pressingand before releasing the button when speaking. YOU CANNOT RECEIVE INCOMING MESSAGESTALKWHEN THE TALK BUTTON IS PRESSED.CHANNELS AND SUBCODESThe Intercom transmits and receives voice signals on 14 selectable channels (frequencies). Inaddition to the 14 channels, the units are equipped with 38 selectable subcodes. To speak withothers in your group, all members must have their units configured to the same channel and subcode.SETTING THE CHANNEL1. Press the button repeatedly until the current channel flashes on the LCD.MENU2. Use the and buttons to select the desired channel (1-14).3. Press the button to confirm the channel selection and return to the standby mode.TALKSETTING THE SUBCODESubcodes help filter interference and noise from other systems operating on the same channel.When a subcode is activated, the unit ignores signals that are set to a different subcode. Thus,a group can communicate on a 'noisy' channel using the subcode feature. The feature is perfectfor areas with heavy usage (e.g. construction zones) in which all 14 channels may be occupied.1. Press the button repeatedly until the current subcode flashes on the LCD.MENU2. Use the and buttons to select the desired subcode (0-38). Selecting 0 disables thesubcode feature.3. Press the button to confirm the subcode selection and return to the standby mode.TALKSCANNING CHANNELSThis feature continuously scans all channels and stops on the first active channel (observed traffic).1. Press the button once. The symbol appears on the LCD and the unit beginsSCANscanning all 14 channels in order. The unit stops on the first active channel detected.2. Press the button to communicate on that channel and leave the scan mode, or pressTALKor to continue scanning for other active channels.3. Press the button again to stop scanning.SCANMONITORING CHANNELSBy pressing the button, you are able to 'listen' to all traffic or noise active on the currentMONITORchannel, regardless of signal strength and subcode settings. For continuous monitoring, press andhold the button for at least three seconds. To deactivate continuous monitoring, pressMONITORthe button again.MONITORCALLThe Intercom is equipped with a call feature that allows you to alert another party. In orderfor the call feature to work, all radios must be on.1. Press the button once. The transmit indicator will light RED and the symbolCALLwill be displayed on the LCD, indicating that a call transmission is taking place.2. All nearby radios operating on the same channel and subcode will emit a page tone.VOICE-ACTIVATED TRANSMISSIONThe Intercom is equipped with a voice-activated transmission mode (hands-free mode). Theunit will transmit voice signals (and other loud sounds) without having to press the button.TALK1. Press the button repeatedly until the symbol flashes on the LCD.MENU2. Use the button to enable voice activated transmission and the button to disable it.3. Press the button to confirm the selection and return to the standby mode.TALKKEY LOCKThis function prevents unintended setting changes by locking all buttons. YOU WILLIMPORTANT:NOT BE ABLE TO CHANGE THE CHANNEL, SUBCODE , VOICE-ACTIVATED TRANSMISSIONSETTINGS, OR OTHER SETTINGS WHEN THE KEY LOCK FEATURE IS ACTIVATED.1. To lock the unit, press and hold the button for five seconds until the symbolMENUappears on the LCD.2. To unlock the unit, press and hold the button for five seconds until the symbolMENUdisappears from the LCD.BATTERY LIFE INDICATORThe symbol on the LCD shows the remaining battery level. Squares inside the symbol disappearas the battery life decreases. When the battery level is low, the symbol will flash, indicating thatthe batteries need to be changed. No rechargeable batteries allowed. (see BATTERYINSTALLATION for more information).CARING FOR YOUR INTERCOMTo clean the intercom, wipe with a soft cloth, slightly dampened with water. Do not use cleaners orsolvents on the radio as they can harm the body and leak inside, causing permanent damage.Battery contacts can be wiped with a dry, lint-free cloth. If the intercom gets wet, turn off andremove batteries immediately. Dry the battery compartment with a soft cloth to minimize potentialwater damage. Leave cover off the battery compartment overnight or until completely dry. Do notuse intercom until completely dry.SPECIFICATIONSFrequency range ............................................................................................ 462.5625 to 467.7125 MHzFRS channels ....................................................................................................................................... 14Channel separation ......................................................................................................................... 25 kHzFrequency deviation .......................................................................................................................... 1 kHzCTCSS subcodes ................................................................................................................................ 38Maximum range ........................................................................................................................... 2 miles*Maximum RF output power ......................................................................................................... 0.01WBattery life .......................................... 45 hours (40 standby, 5 talk/receive) using ALKALINE BATTERIES* Functional range may be adversely affected by one or more of the following factors: weather,radio frequency interference, low transmitter battery and obstructions between the transmitterand receiver.FCC INFORMATIONIMPORTANT: To maintain compliance with the FCC'sRF exposure guidelines, hold the transmitter andantenna at least 2 inches (5 cm) from your face and speak in a normal voice, with the antenna pointed upspeak in a normal voice, with the antenna pointed up and away from the face. If you wear the handset onyour body while using the headset accessory, use only the supplied belt clip for this product and whentransmitting, take it out of the belt to ensure that the antenna is at least 2 inches (5 cm) from your body.1 2 3 45 6 7INSTRUCTION MANUALQuestions? Call - -GE LIGHT1800Made in China forGE Home Electric Products, Inc.Nela Park, Cleveland, OH 44112Desc.: GE5811-WCOMWIRELESS INTERCOMFAMILY COMMUNICATIONSOFFONVOLUMETRANSMIT INDICATORRECEIVE INDICATORCHANNELSUBCODEBATTERY LIFE INDICATORKEY LOCK SCAN CHANNELVOICE-ACTIVATED TRANSMISSIONLCDSCREENTRANSMITINDICATORCHARGEINDICATORCHARGEINDICATOREAR/MICJACK (side)MONITORTALK (push to talk: PPT)POWERSCANCALLMENUUPDOWNANTENNA(POWERON/OFF)AC ADAPTER (top)scantalkcallmenuchargechargepower transmitmonitorCharging Bay Charging BayWireless IntercomUse only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage thetransmitter and may violate FCC regulations.3.875"4.75"This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference receivedincluding interference that may cause undesired operation.WARNING: Adjustment to this unit or replacement of any transmitter component (crystal, semiconductor, etc)to this unit that could result in a violation of the rules.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures:Your wireless hand-held portable transceiver contains a low power transmitter. When the Push-to-Talk (PTT)button is pushed it sends out radio frequency (RF) signals. The device is authorized to operate at a dutyfactor not to exceed 50 %. In August 1996, the Federal Communications Commissions (FCC) adopted RFexposure guidelines with safety levels for hand-held wireless devices.Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.WARNINGRisk of fireWhen using an ACto DC adapter, insureproper polarity andvoltage.
