Jean Co T81B 18" LCD TV Monitor User Manual JC186H

Jean Co Ltd 18" LCD TV Monitor JC186H

users manual

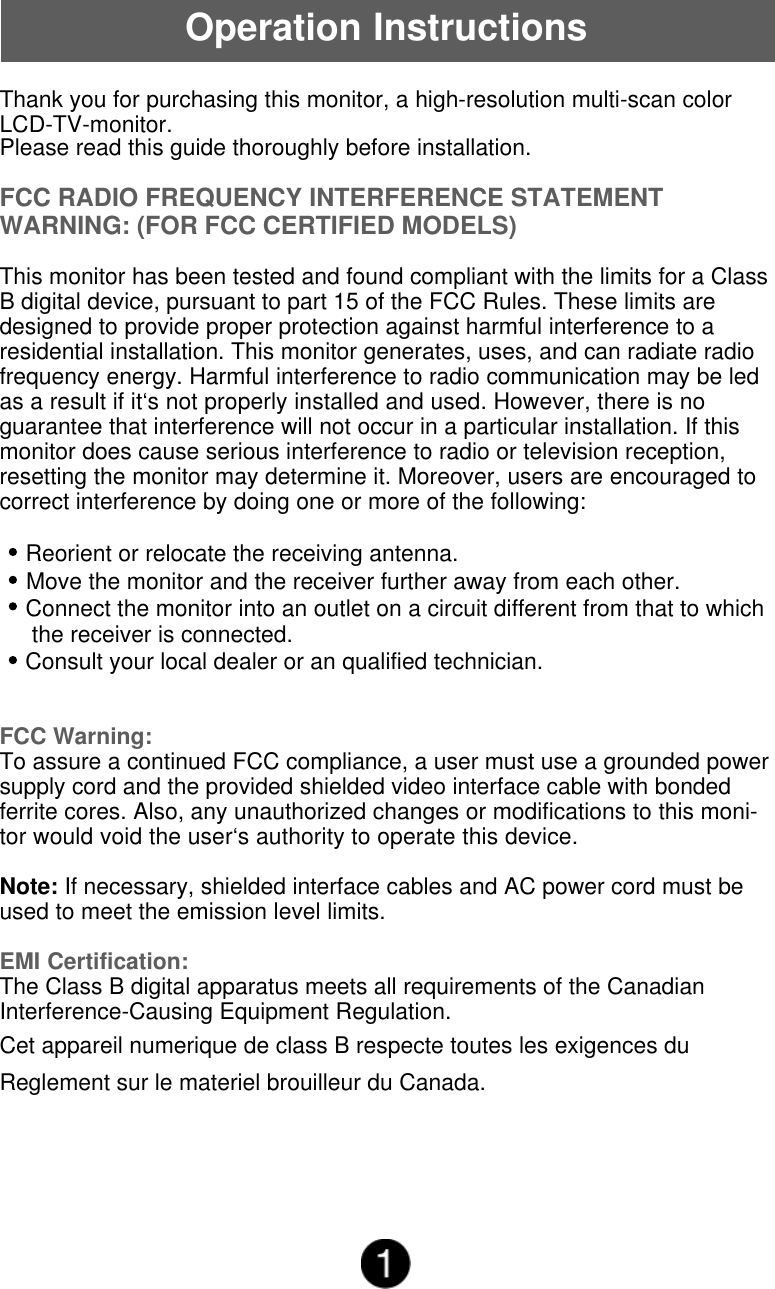

Thank you for purchasing this monitor, a high-resolution multi-scan colorLCD-TV-monitor.Please read this guide thoroughly before installation.FCC RADIO FREQUENCY INTERFERENCE STATEMENTWARNING: (FOR FCC CERTIFIED MODELS)This monitor has been tested and found compliant with the limits for a ClassB digital device, pursuant to part 15 of the FCC Rules. These limits aredesigned to provide proper protection against harmful interference to aresidential installation. This monitor generates, uses, and can radiate radiofrequency energy. Harmful interference to radio communication may be ledas a result if it‘s not properly installed and used. However, there is noguarantee that interference will not occur in a particular installation. If thismonitor does cause serious interference to radio or television reception,resetting the monitor may determine it. Moreover, users are encouraged tocorrect interference by doing one or more of the following: Reorient or relocate the receiving antenna. Move the monitor and the receiver further away from each other. Connect the monitor into an outlet on a circuit different from that to which the receiver is connected. Consult your local dealer or an qualified technician.FCC Warning:To assure a continued FCC compliance, a user must use a grounded powersupply cord and the provided shielded video interface cable with bondedferrite cores. Also, any unauthorized changes or modifications to this moni-tor would void the user‘s authority to operate this device.Note: If necessary, shielded interface cables and AC power cord must beused to meet the emission level limits.EMI Certification:The Class B digital apparatus meets all requirements of the CanadianInterference-Causing Equipment Regulation.Cet appareil numerique de class B respecte toutes les exigences duReglement sur le materiel brouilleur du Canada.Operation Instructions
Fisrt Setup ........................................................................ 3Front Panel Control .......................................................... 4Installation ........................................................................ 5Remote Control ................................................................ 6Using the OSD functions .................................................. 7-TV mode ......................................................................... 7-Video (Include-YPbPr, AV).............................................12-PC mode ........................................................................14Timing modes..................................................................20TV-Frequency table.........................................................21Technical Information ......................................................23Safety Precaution ............................................................24Care and Maintenance ....................................................25Content

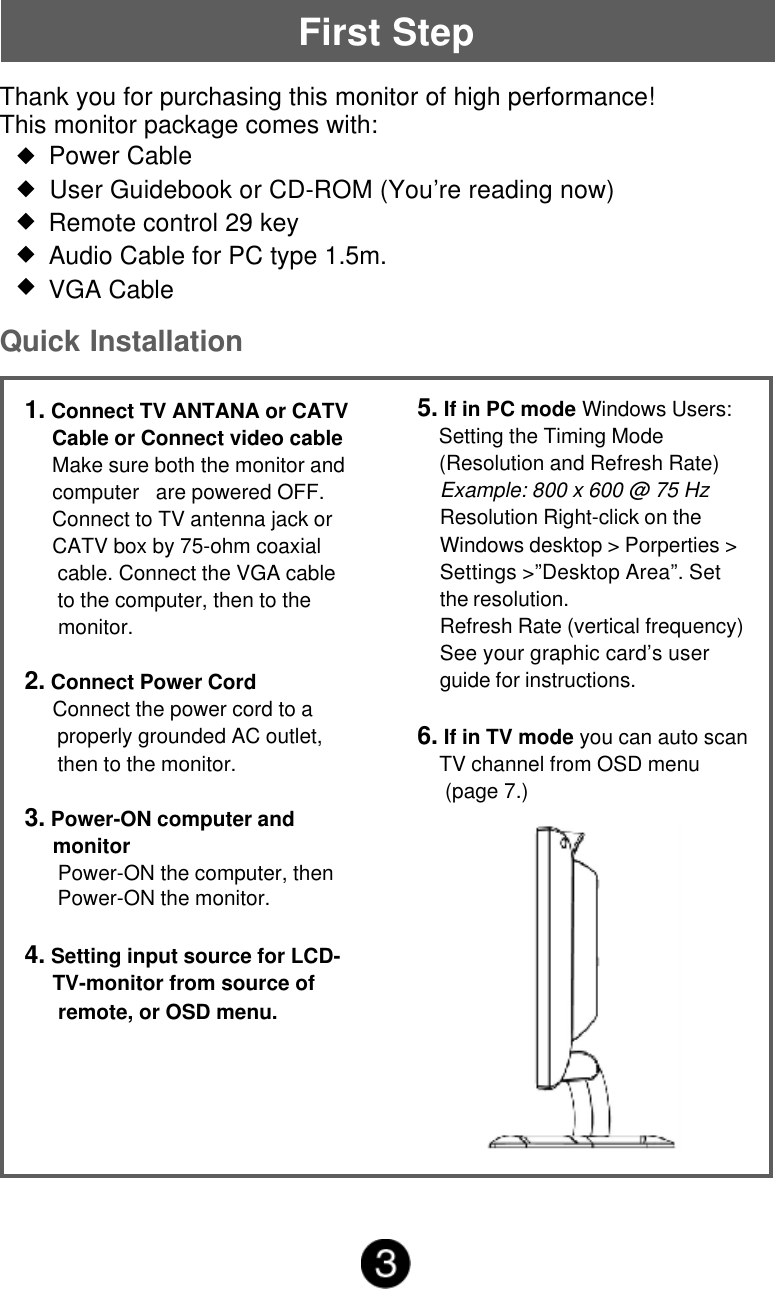

First StepThank you for purchasing this monitor of high performance!This monitor package comes with: Power Cable User Guidebook or CD-ROM (You’re reading now) Remote control 29 key Audio Cable for PC type 1.5m. VGA CableQuick Installation1. Connect TV ANTANA or CATV Cable or Connect video cable Make sure both the monitor and computer are powered OFF. Connect to TV antenna jack or CATV box by 75-ohm coaxial cable. Connect the VGA cable to the computer, then to the monitor.2. Connect Power Cord Connect the power cord to a properly grounded AC outlet, then to the monitor.3. Power-ON computer and monitor Power-ON the computer, then Power-ON the monitor.4. Setting input source for LCD- TV-monitor from source of remote, or OSD menu.5. If in PC mode Windows Users: Setting the Timing Mode (Resolution and Refresh Rate)Example: 800 x 600 @ 75 HzResolution Right-click on theWindows desktop > Porperties >Settings >”Desktop Area”. Setthe resolution.Refresh Rate (vertical frequency)See your graphic card’s userguide for instructions.6. If in TV mode you can auto scan TV channel from OSD menu (page 7.)

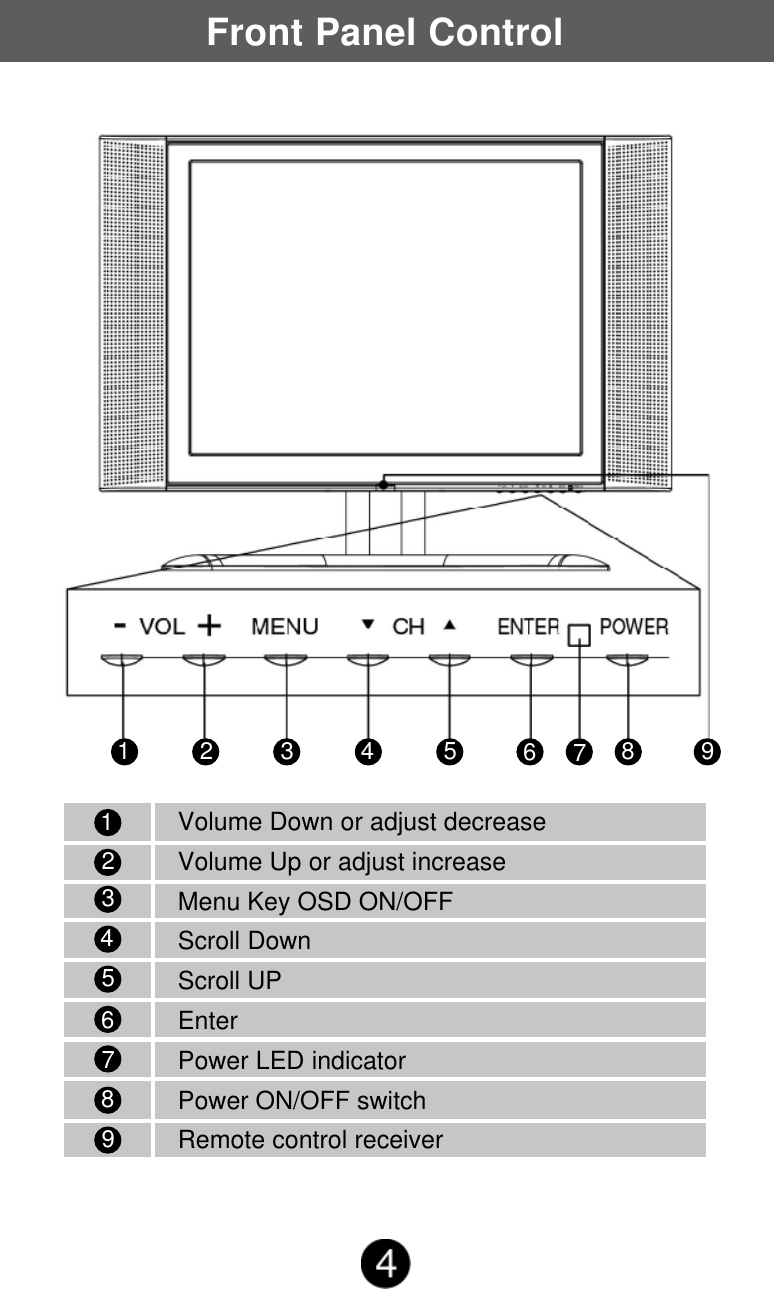

Front Panel ControlVolume Down or adjust decreaseVolume Up or adjust increaseMenu Key OSD ON/OFFScroll DownScroll UPEnterPower LED indicatorPower ON/OFF switchRemote control receiver1234567891 2 3 4 5 678 9

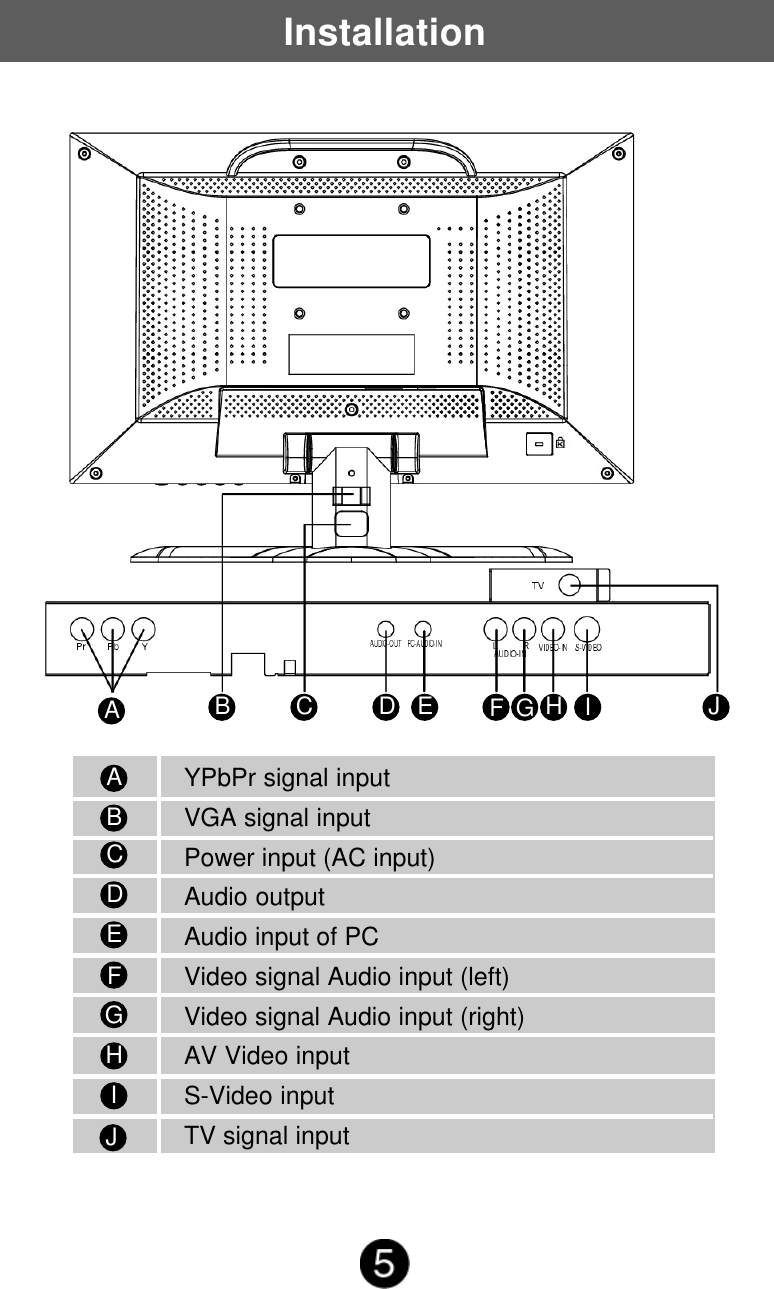

InstallationAJB C D E F G HIYPbPr signal inputVGA signal inputPower input (AC input)Audio outputAudio input of PCVideo signal Audio input (left)Video signal Audio input (right)AV Video inputS-Video inputTV signal inputBCDEFGHIAJ

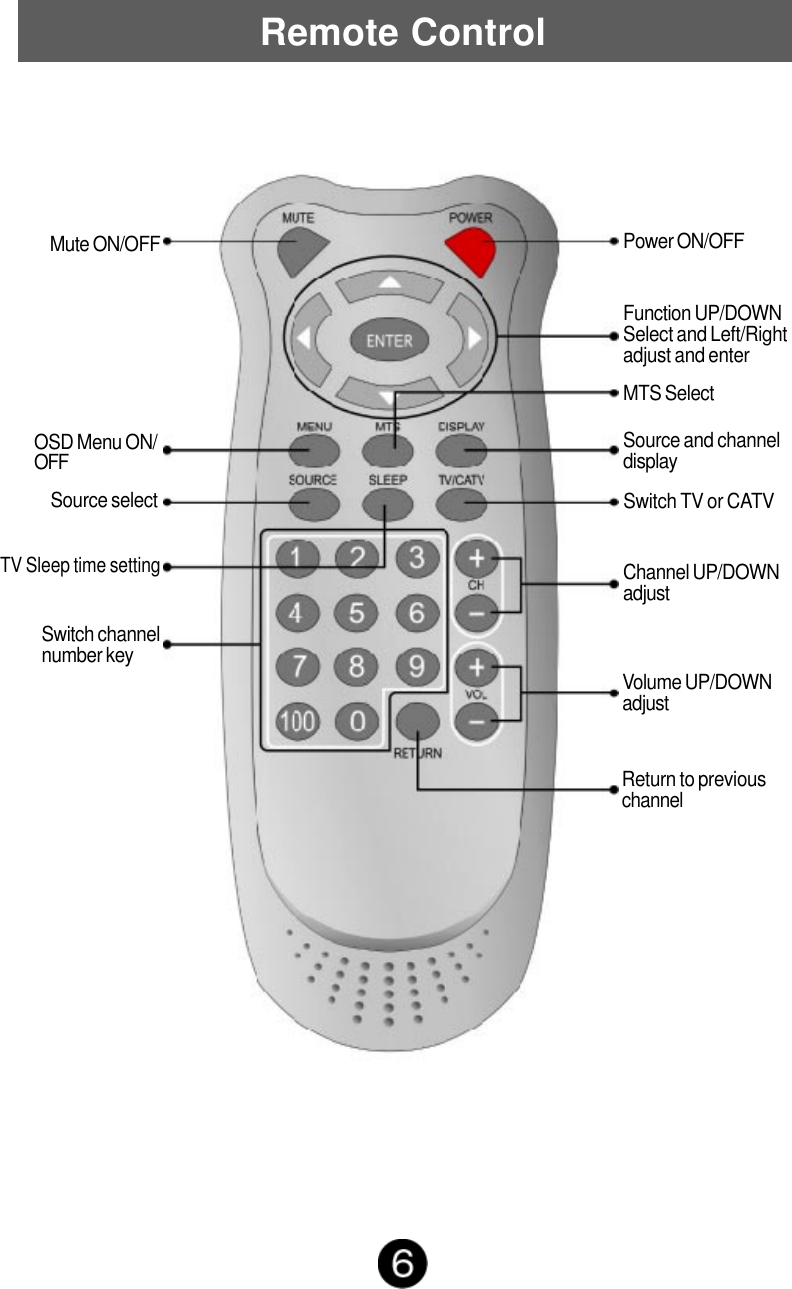

Remote ControlPower ON/OFFFunction UP/DOWNSelect and Left/Rightadjust and enterSource and channeldisplayMTS SelectSwitch TV or CATVChannel UP/DOWNadjustVolume UP/DOWNadjustReturn to previouschannelSwitch channelnumber keyTV Sleep time settingSource selectOSD Menu ON/OFFMute ON/OFF

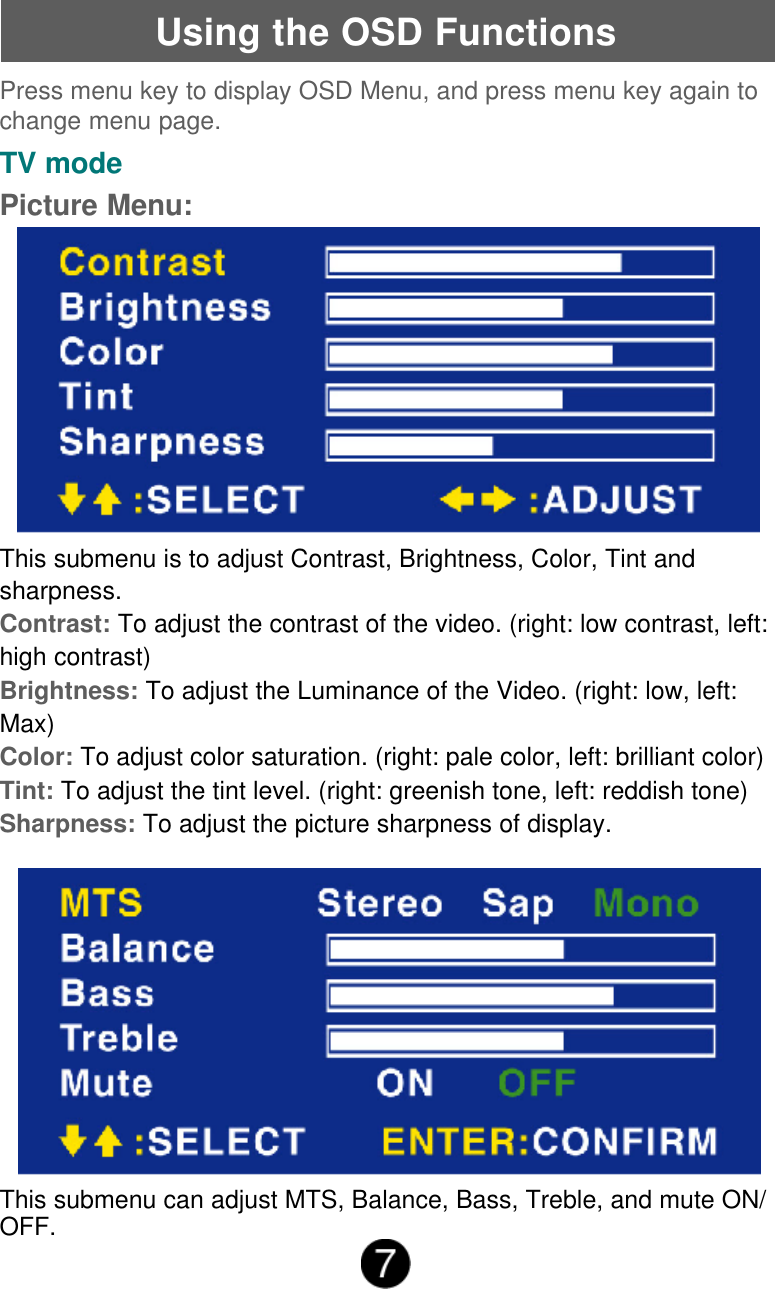

Using the OSD FunctionsTV modePicture Menu:Press menu key to display OSD Menu, and press menu key again tochange menu page.This submenu is to adjust Contrast, Brightness, Color, Tint andsharpness.Contrast: To adjust the contrast of the video. (right: low contrast, left:high contrast)Brightness: To adjust the Luminance of the Video. (right: low, left:Max)Color: To adjust color saturation. (right: pale color, left: brilliant color)Tint: To adjust the tint level. (right: greenish tone, left: reddish tone)Sharpness: To adjust the picture sharpness of display.This submenu can adjust MTS, Balance, Bass, Treble, and mute ON/OFF.

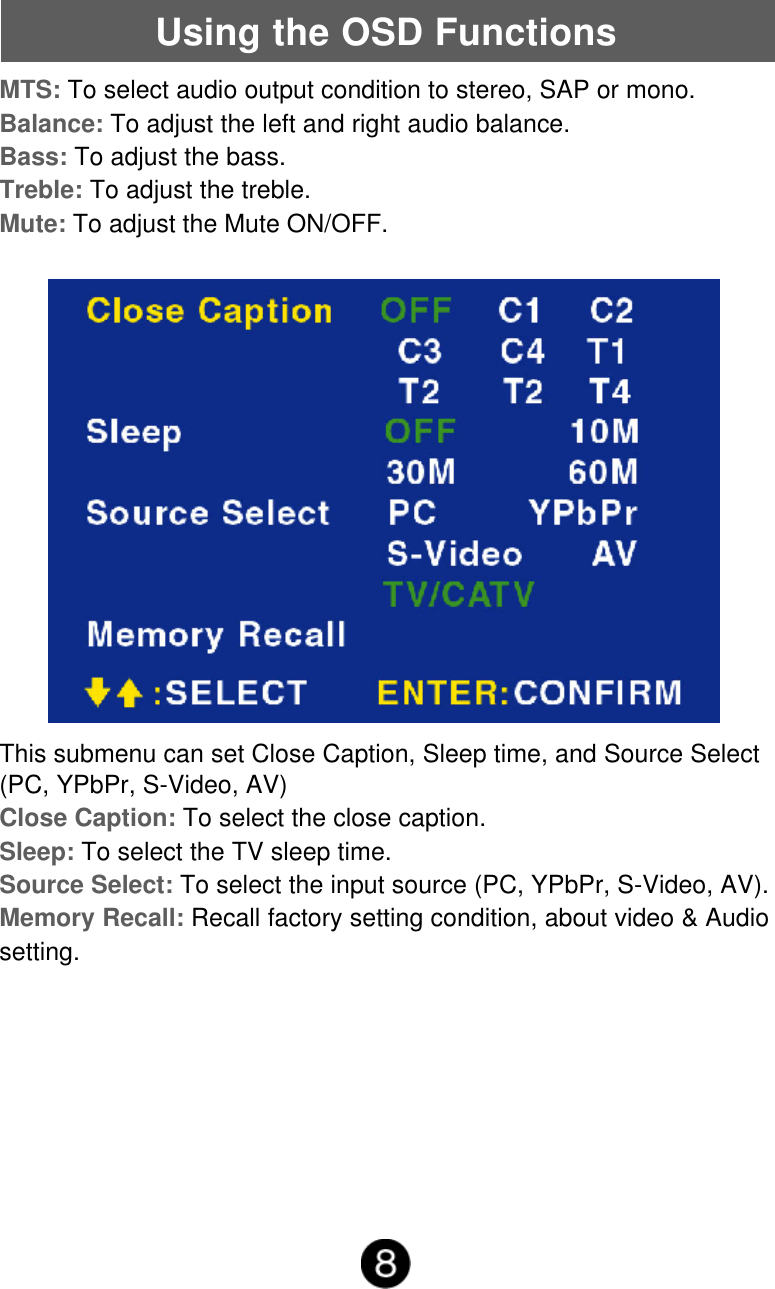

Using the OSD FunctionsThis submenu can set Close Caption, Sleep time, and Source Select(PC, YPbPr, S-Video, AV)Close Caption: To select the close caption.Sleep: To select the TV sleep time.Source Select: To select the input source (PC, YPbPr, S-Video, AV).Memory Recall: Recall factory setting condition, about video & Audiosetting.MTS: To select audio output condition to stereo, SAP or mono.Balance: To adjust the left and right audio balance.Bass: To adjust the bass.Treble: To adjust the treble.Mute: To adjust the Mute ON/OFF.

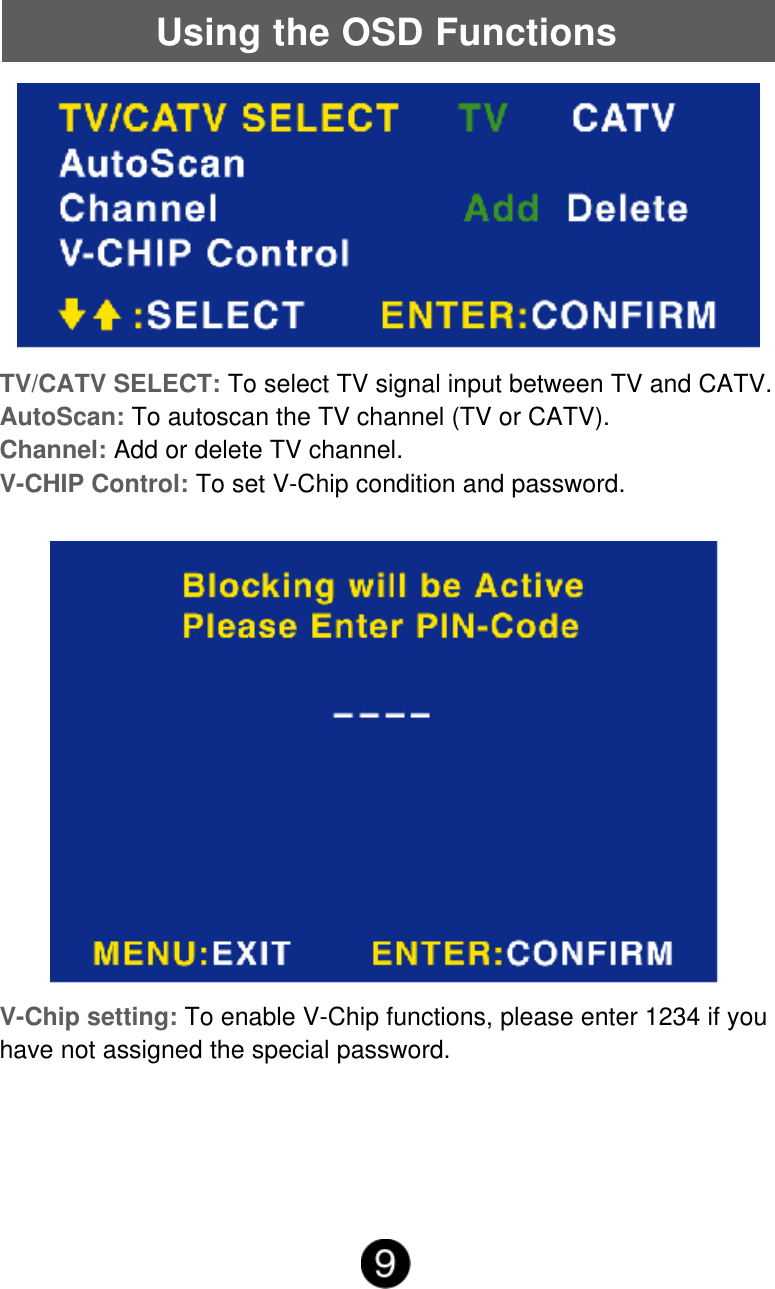

Using the OSD FunctionsTV/CATV SELECT: To select TV signal input between TV and CATV.AutoScan: To autoscan the TV channel (TV or CATV).Channel: Add or delete TV channel.V-CHIP Control: To set V-Chip condition and password.V-Chip setting: To enable V-Chip functions, please enter 1234 if youhave not assigned the special password.

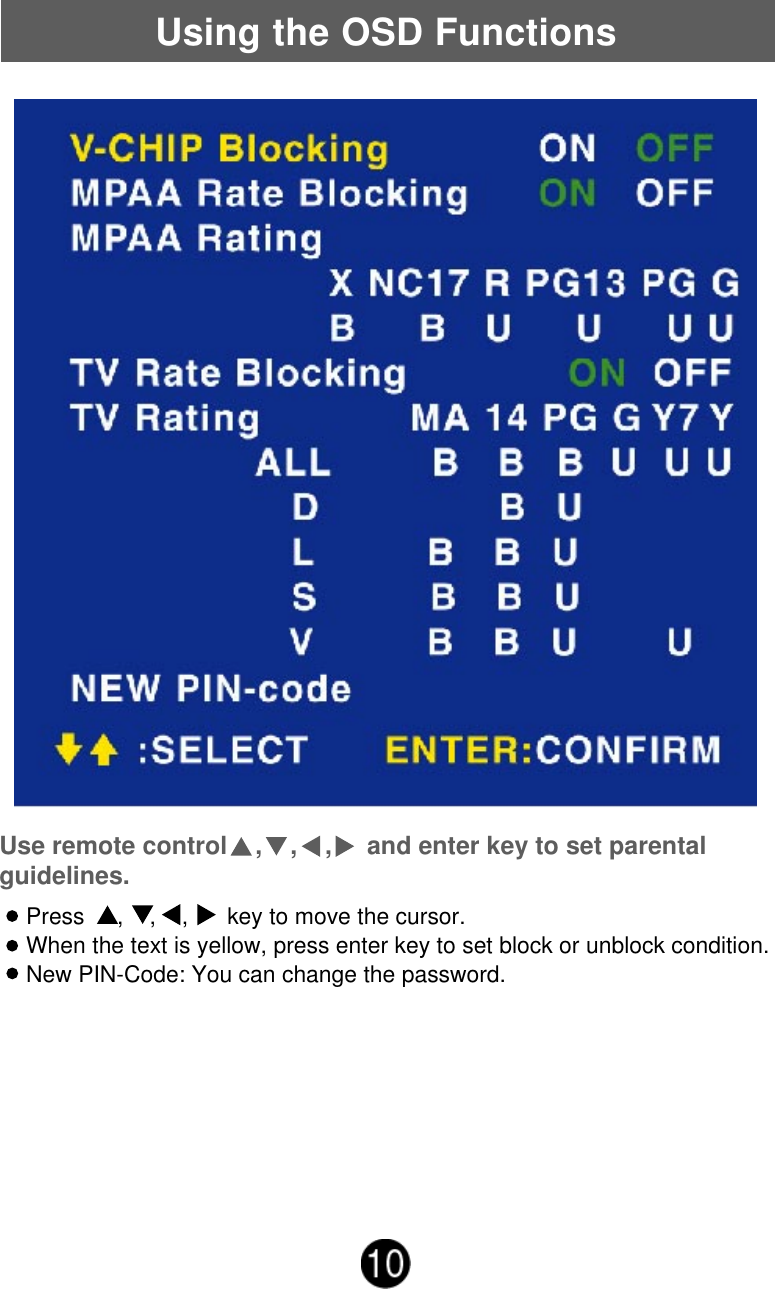

Using the OSD FunctionsUse remote control , , , and enter key to set parentalguidelines.Press , , , key to move the cursor.When the text is yellow, press enter key to set block or unblock condition.New PIN-Code: You can change the password.

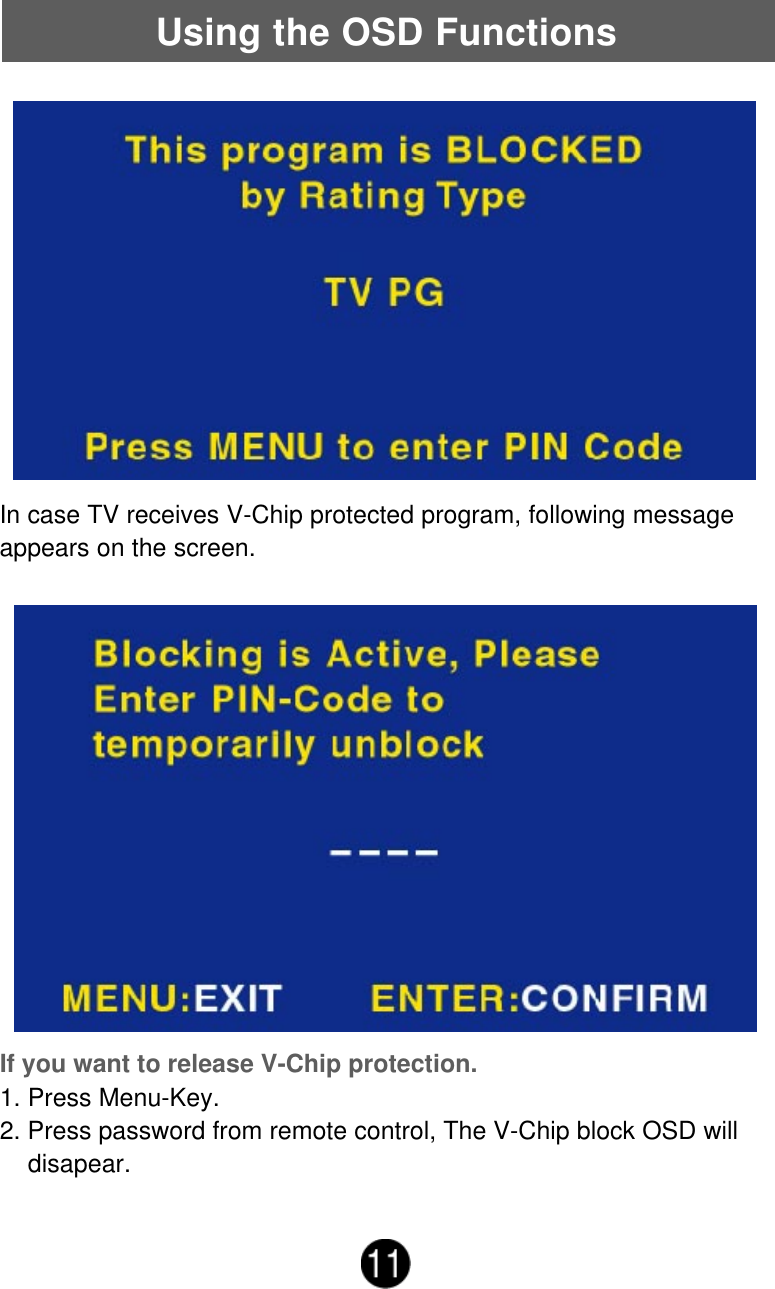

Using the OSD FunctionsIn case TV receives V-Chip protected program, following messageappears on the screen.If you want to release V-Chip protection.1. Press Menu-Key.2. Press password from remote control, The V-Chip block OSD will disapear.

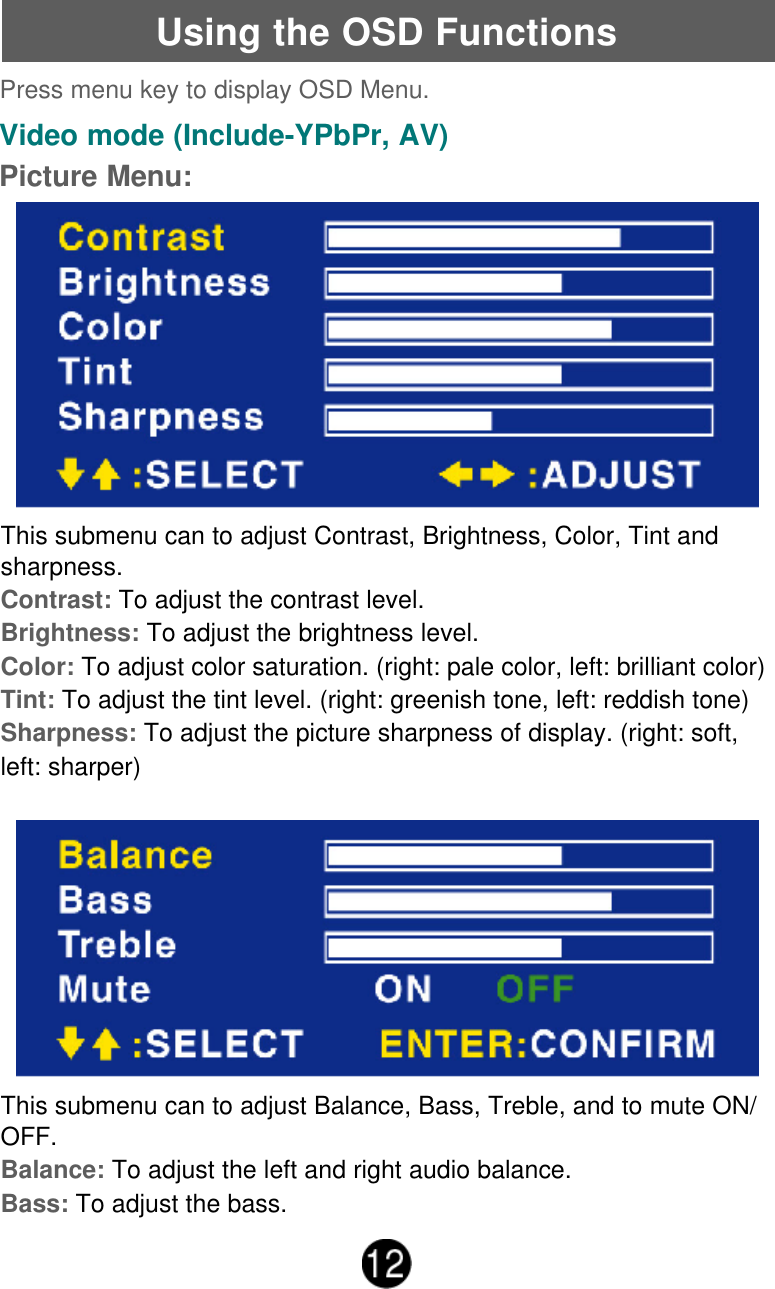

Using the OSD FunctionsVideo mode (Include-YPbPr, AV)Picture Menu:Press menu key to display OSD Menu.This submenu can to adjust Contrast, Brightness, Color, Tint andsharpness.Contrast: To adjust the contrast level.Brightness: To adjust the brightness level.Color: To adjust color saturation. (right: pale color, left: brilliant color)Tint: To adjust the tint level. (right: greenish tone, left: reddish tone)Sharpness: To adjust the picture sharpness of display. (right: soft,left: sharper)This submenu can to adjust Balance, Bass, Treble, and to mute ON/OFF.Balance: To adjust the left and right audio balance.Bass: To adjust the bass.

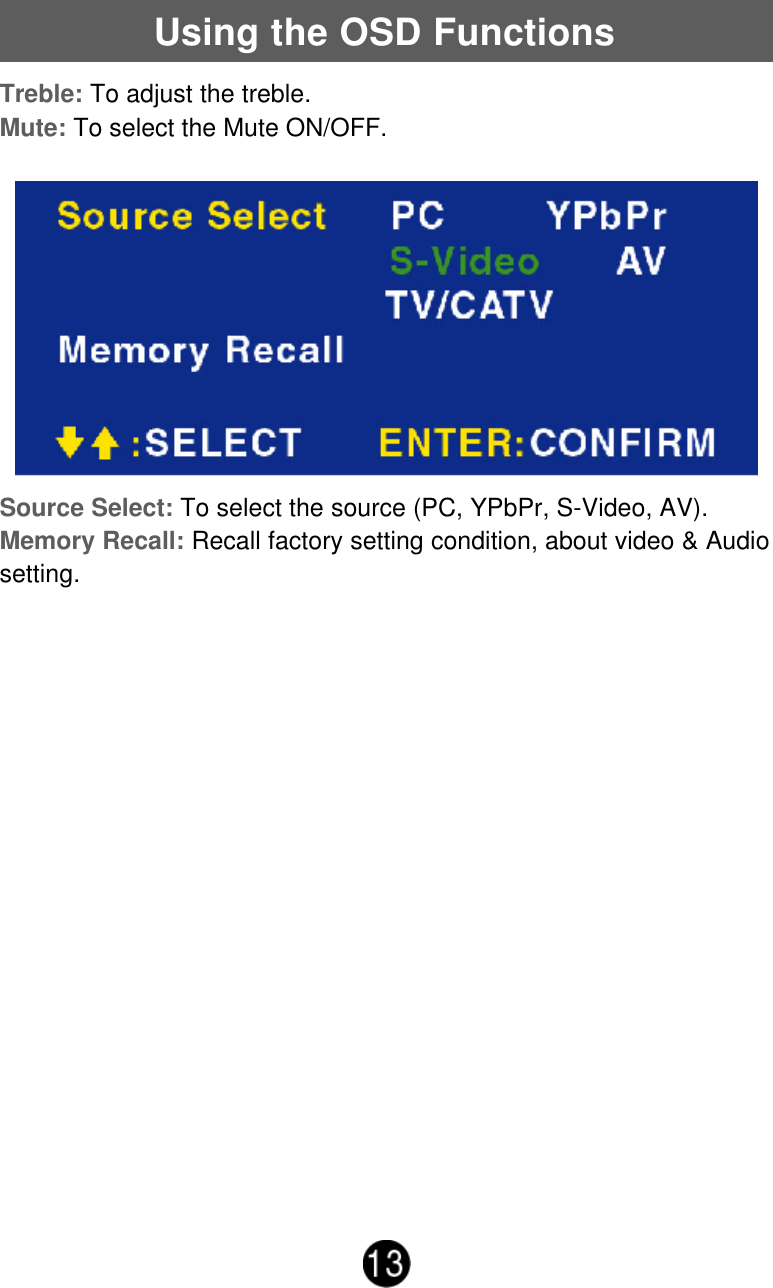

Using the OSD FunctionsSource Select: To select the source (PC, YPbPr, S-Video, AV).Memory Recall: Recall factory setting condition, about video & Audiosetting.Treble: To adjust the treble.Mute: To select the Mute ON/OFF.

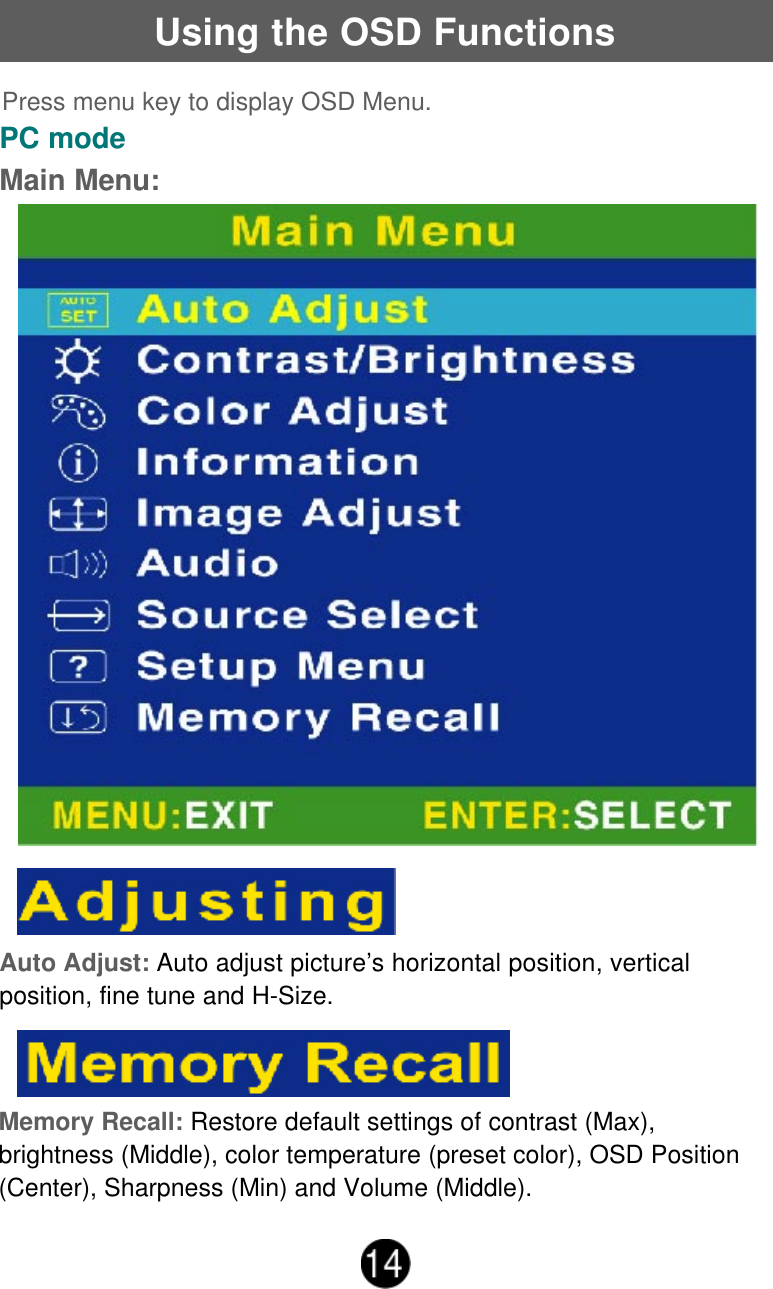

Using the OSD FunctionsPC modeMain Menu:Auto Adjust: Auto adjust picture’s horizontal position, verticalposition, fine tune and H-Size.Memory Recall: Restore default settings of contrast (Max),brightness (Middle), color temperature (preset color), OSD Position(Center), Sharpness (Min) and Volume (Middle).Press menu key to display OSD Menu.

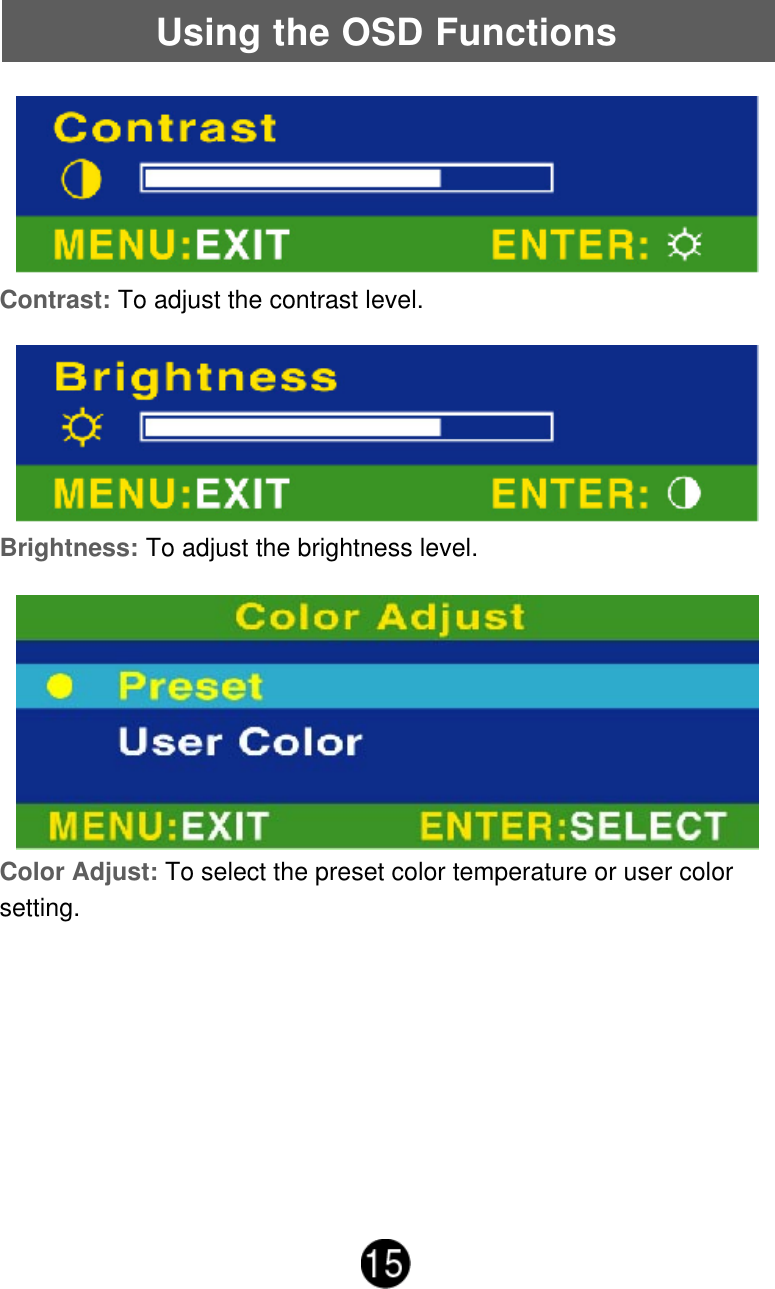

Contrast: To adjust the contrast level.Using the OSD FunctionsBrightness: To adjust the brightness level.Color Adjust: To select the preset color temperature or user colorsetting.

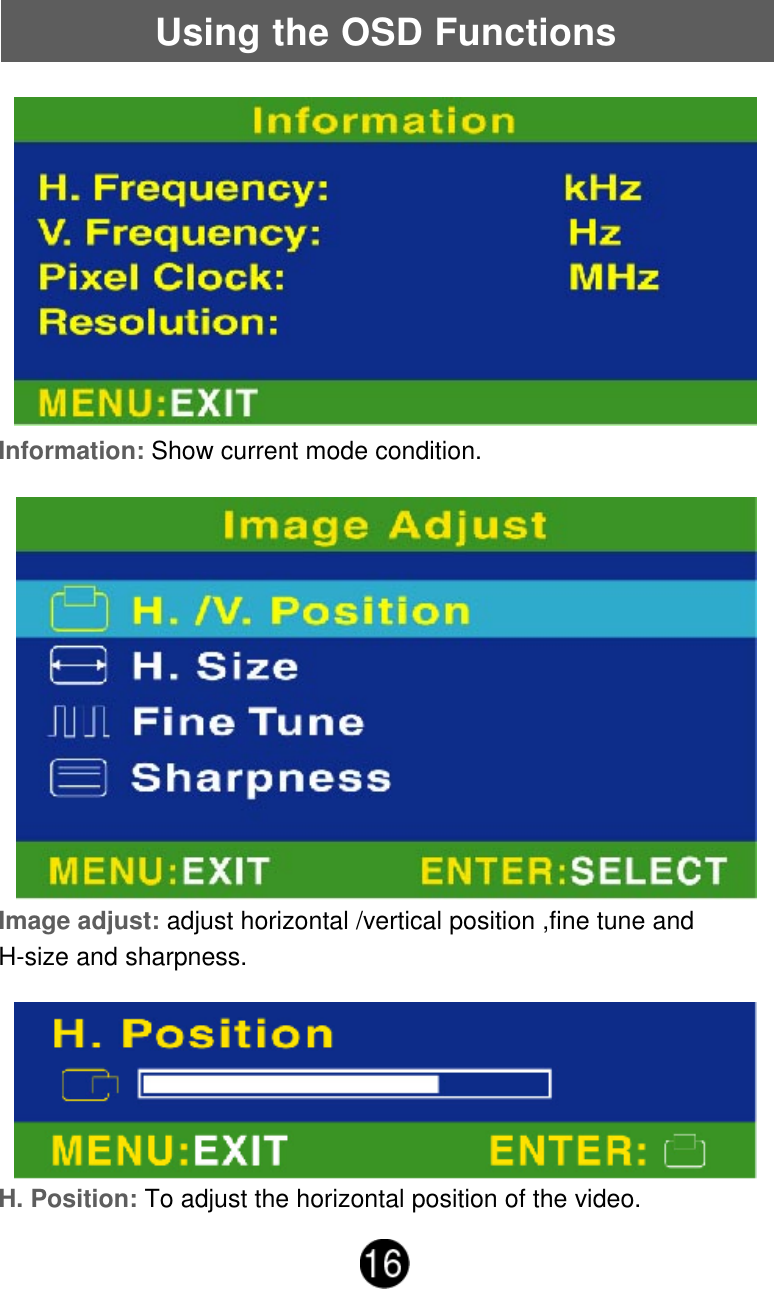

Using the OSD FunctionsInformation: Show current mode condition.Image adjust: adjust horizontal /vertical position ,fine tune andH-size and sharpness.H. Position: To adjust the horizontal position of the video.

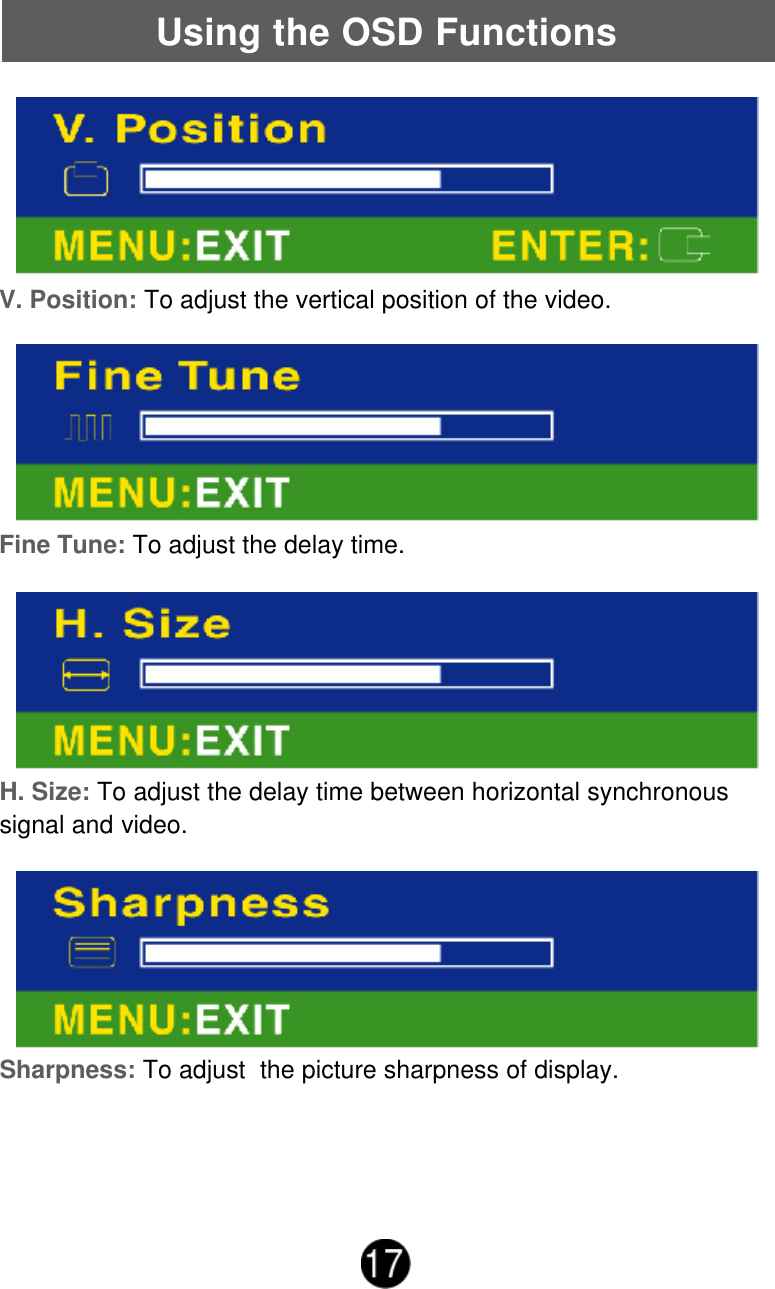

Using the OSD FunctionsV. Position: To adjust the vertical position of the video.Fine Tune: To adjust the delay time.H. Size: To adjust the delay time between horizontal synchronoussignal and video.Sharpness: To adjust the picture sharpness of display.

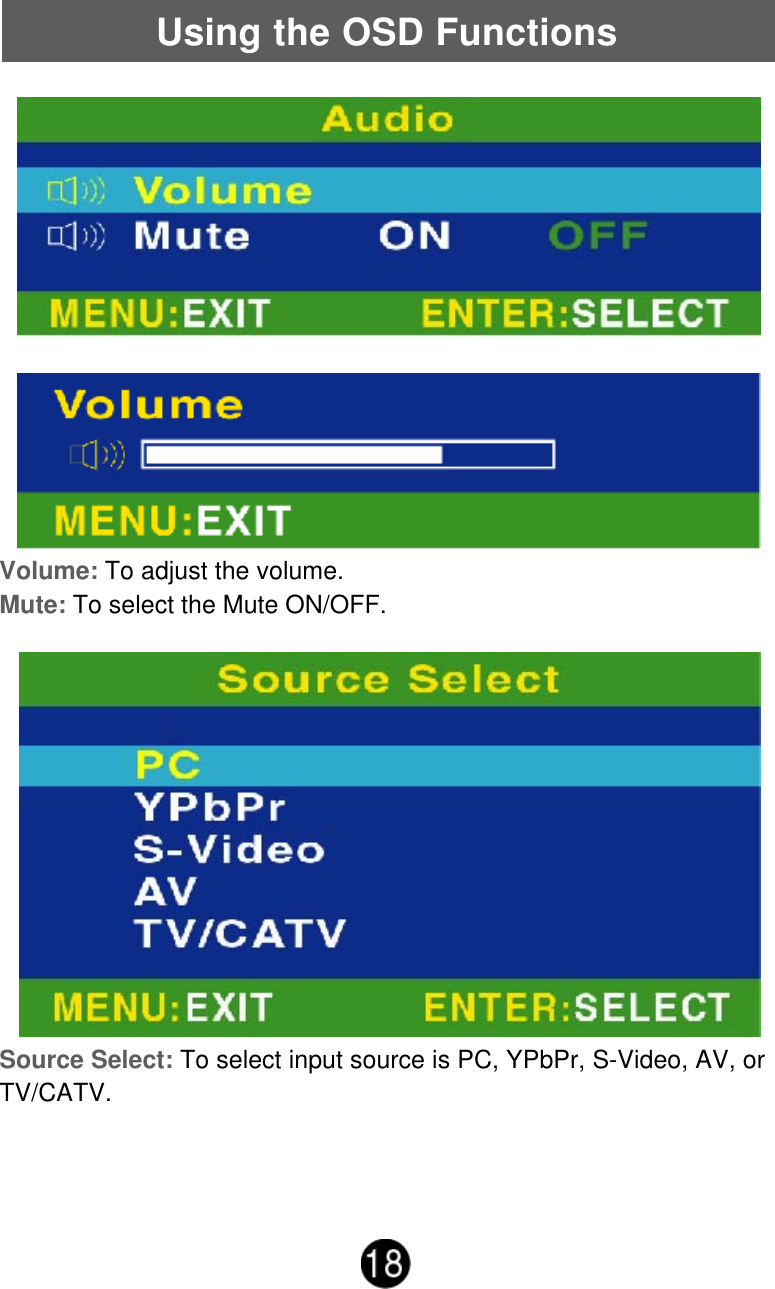

Using the OSD FunctionsVolume: To adjust the volume.Mute: To select the Mute ON/OFF.Source Select: To select input source is PC, YPbPr, S-Video, AV, orTV/CATV.

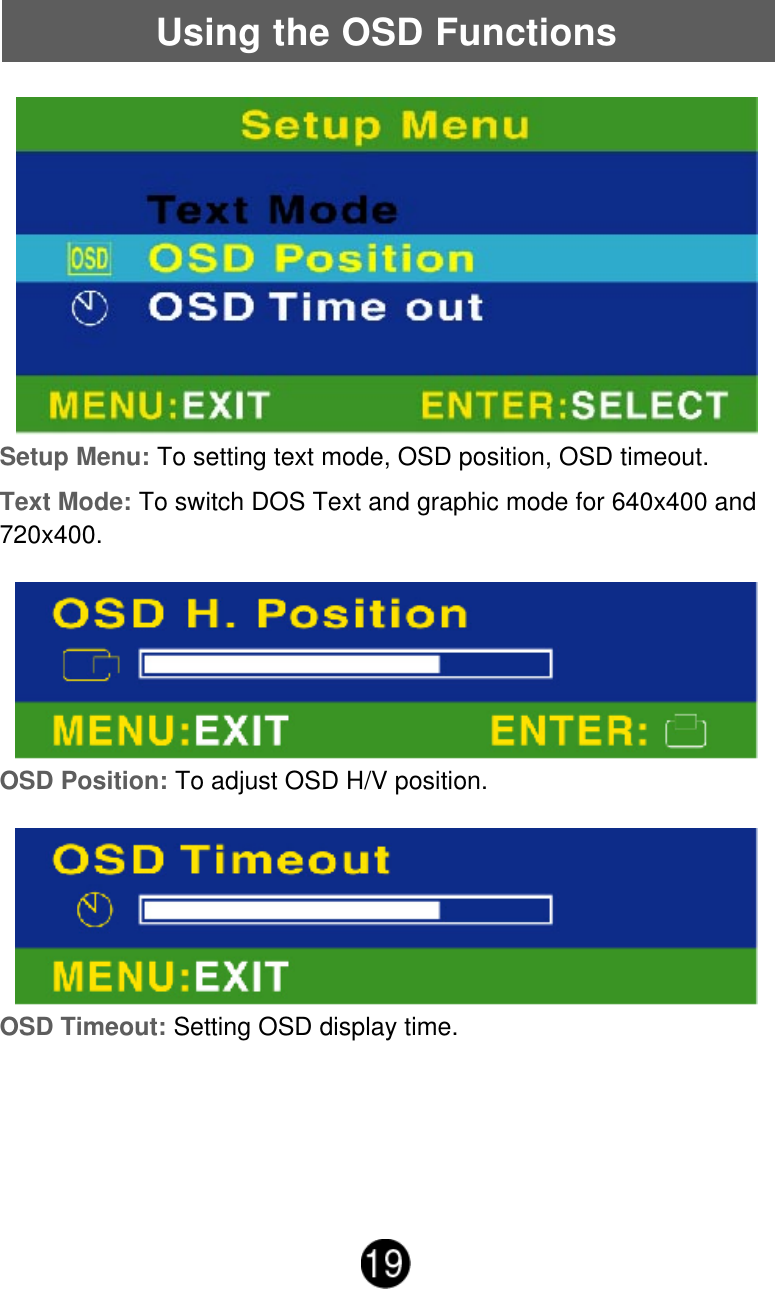

Using the OSD FunctionsSetup Menu: To setting text mode, OSD position, OSD timeout.Text Mode: To switch DOS Text and graphic mode for 640x400 and720x400.OSD Position: To adjust OSD H/V position.OSD Timeout: Setting OSD display time.

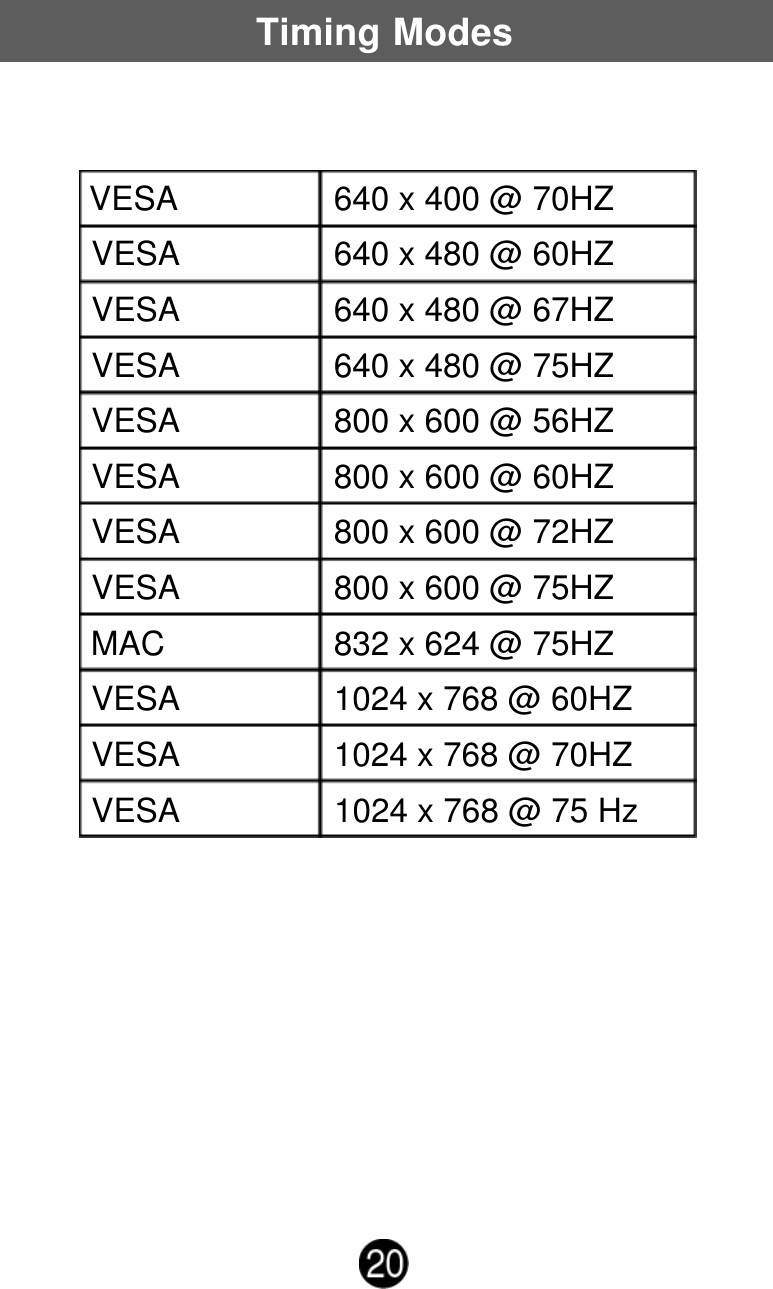

Timing Modes VESA 640 x 400 @ 70HZ VESA 640 x 480 @ 60HZ VESA 640 x 480 @ 67HZ VESA 640 x 480 @ 75HZ VESA 800 x 600 @ 56HZ VESA 800 x 600 @ 60HZ VESA 800 x 600 @ 72HZ VESA 800 x 600 @ 75HZ MAC 832 x 624 @ 75HZ VESA 1024 x 768 @ 60HZ VESA 1024 x 768 @ 70HZ VESA 1024 x 768 @ 75 Hz

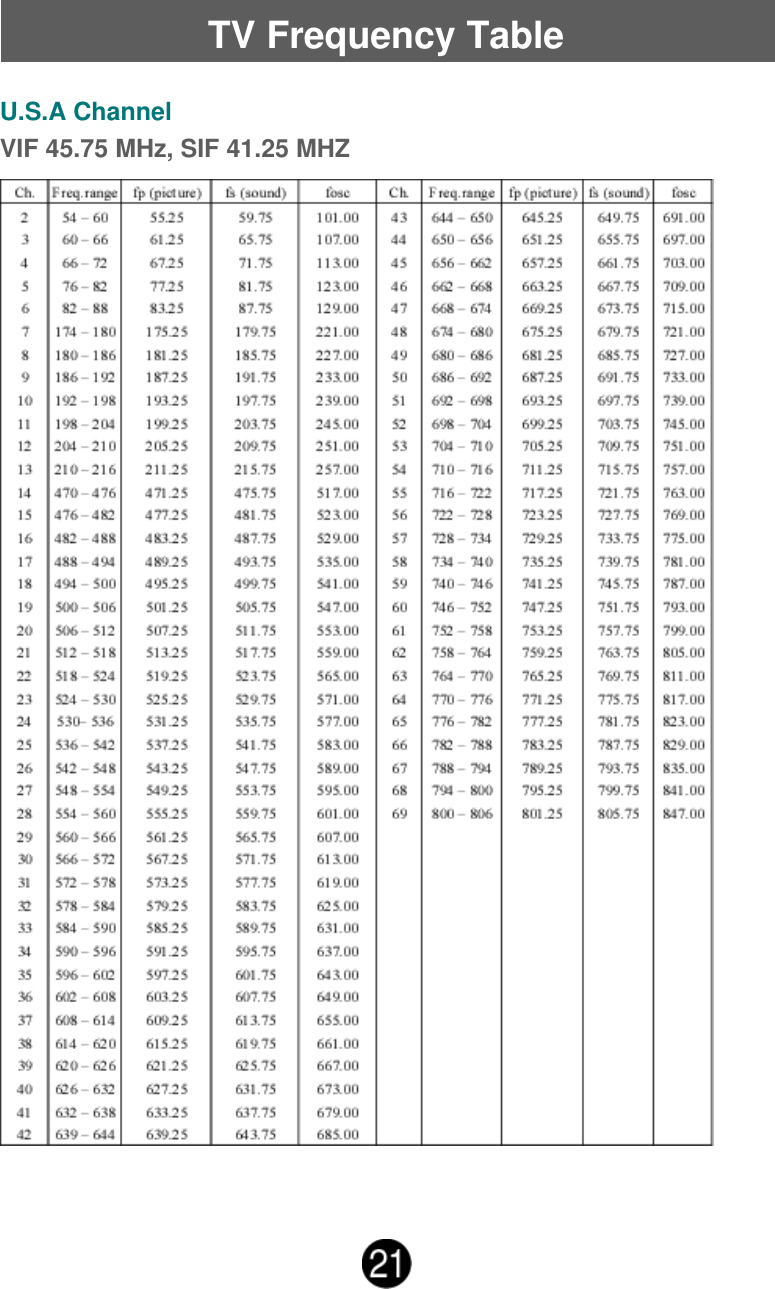

TV Frequency TableU.S.A ChannelVIF 45.75 MHz, SIF 41.25 MHZ

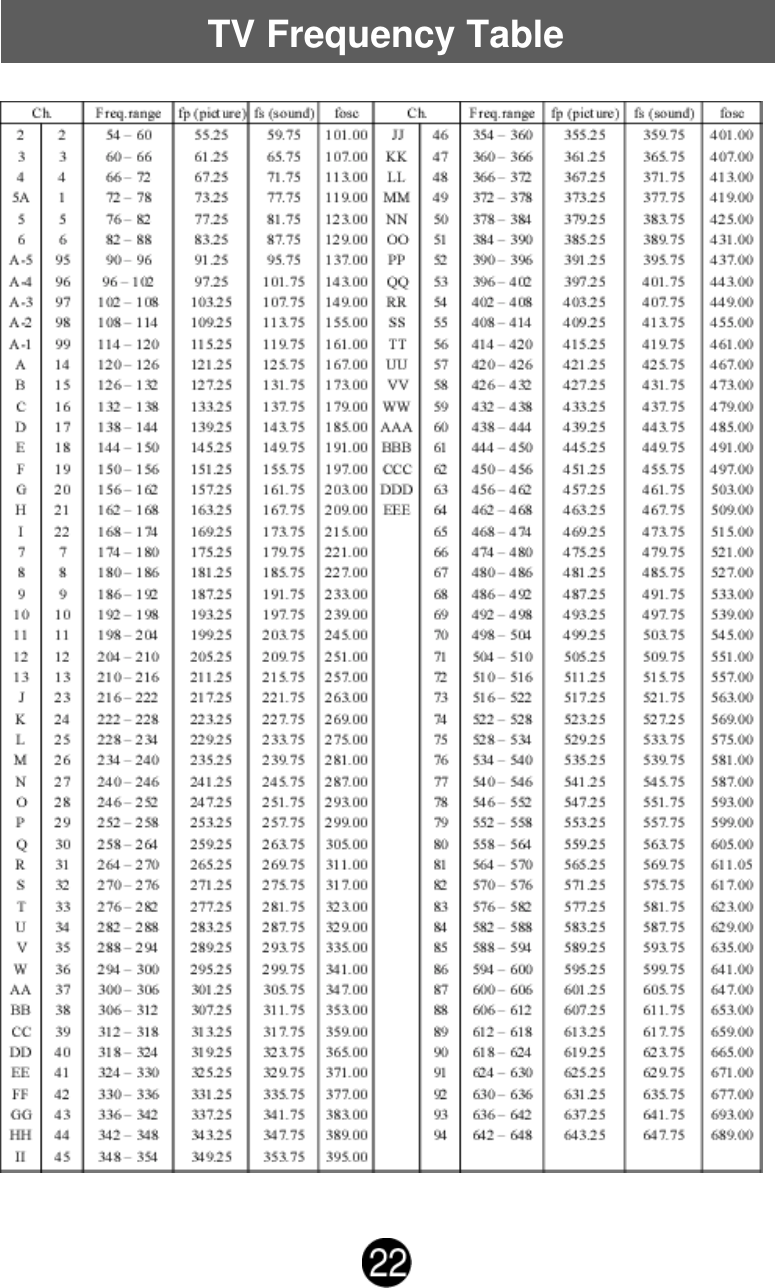

TV Frequency Table

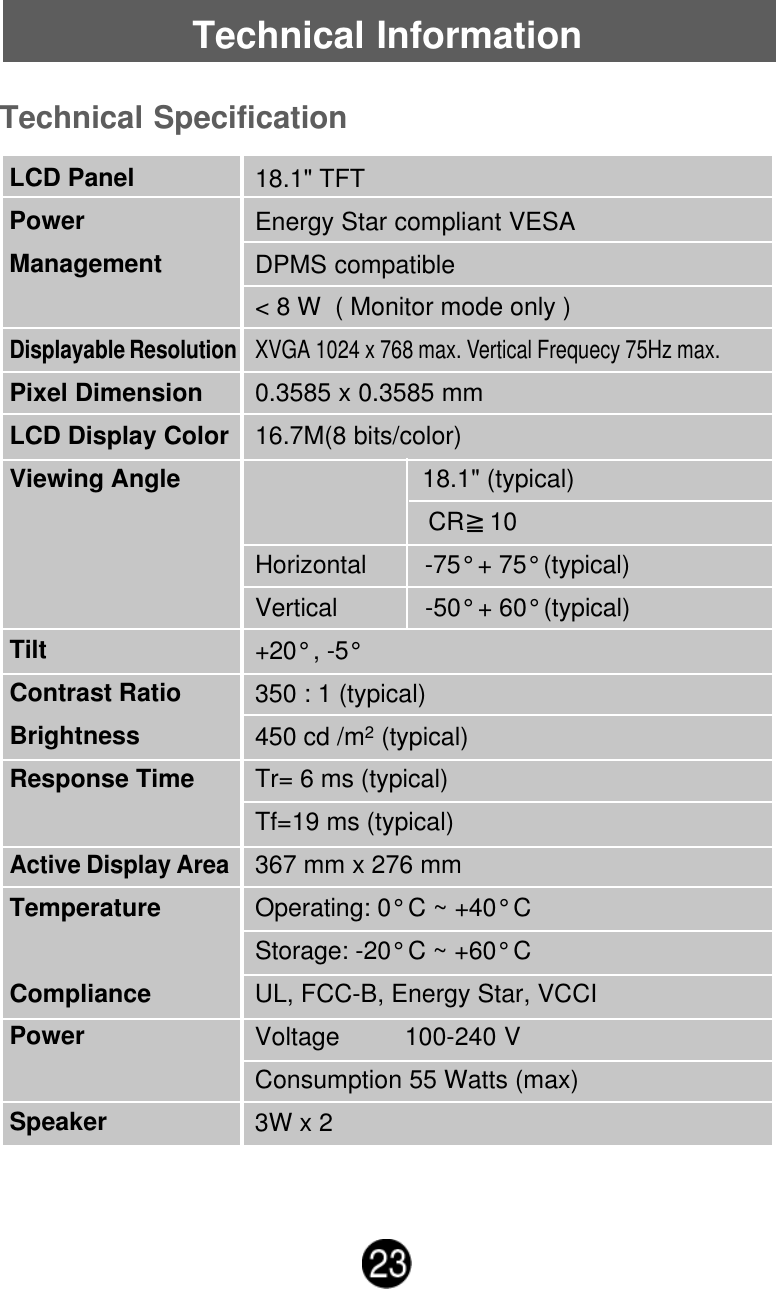

Technical InformationTechnical Specification18.1" TFTEnergy Star compliant VESADPMS compatible< 8 W ( Monitor mode only )XVGA 1024 x 768 max. Vertical Frequecy 75Hz max.0.3585 x 0.3585 mm16.7M(8 bits/color) 18.1" (typical) CR≧10Horizontal -75° + 75° (typical)Vertical -50° + 60° (typical)+20° , -5° 350 : 1 (typical)450 cd /m2 (typical)Tr= 6 ms (typical)Tf=19 ms (typical)367 mm x 276 mmOperating: 0° C ~ +40° CStorage: -20° C ~ +60° CUL, FCC-B, Energy Star, VCCIVoltage 100-240 VConsumption 55 Watts (max)3W x 2LCD PanelPowerManagementDisplayable ResolutionPixel DimensionLCD Display ColorViewing AngleTiltContrast RatioBrightnessResponse TimeActive Display AreaTemperatureCompliancePowerSpeaker

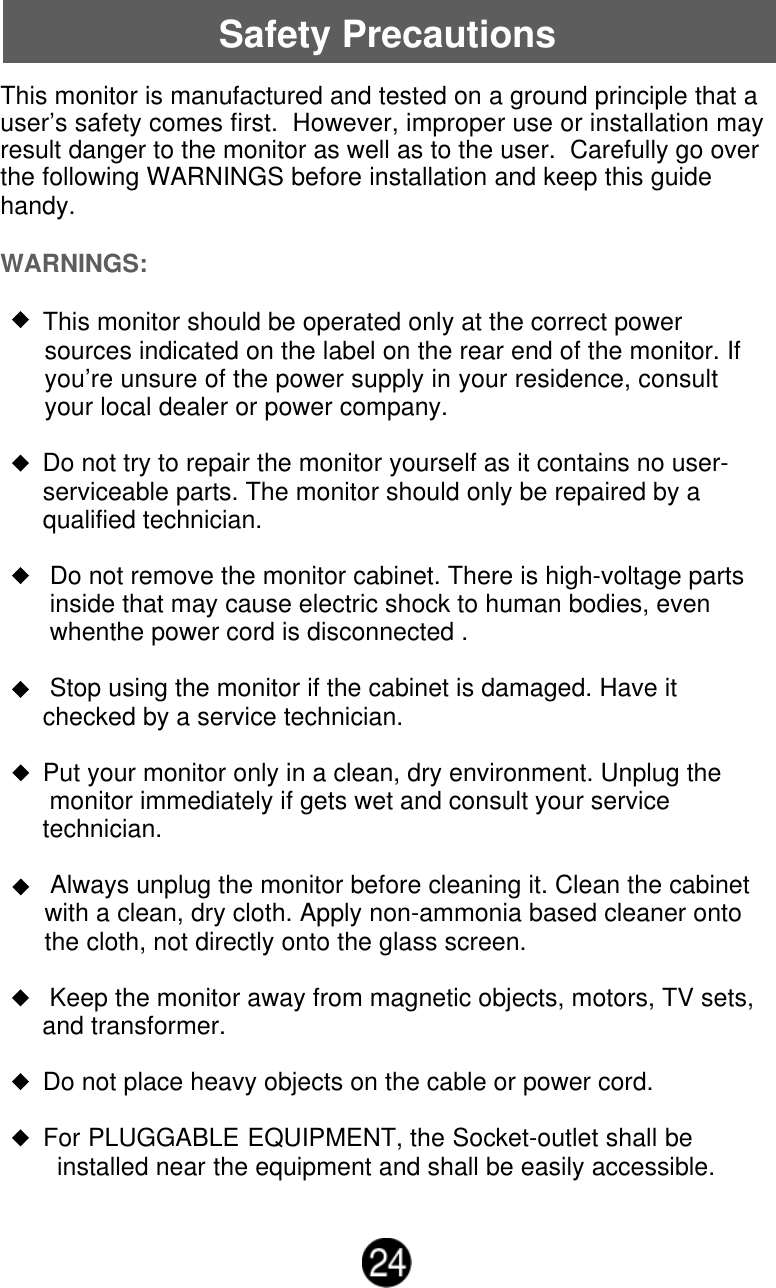

Safety PrecautionsThis monitor is manufactured and tested on a ground principle that auser’s safety comes first. However, improper use or installation mayresult danger to the monitor as well as to the user. Carefully go overthe following WARNINGS before installation and keep this guidehandy.WARNINGS: This monitor should be operated only at the correct powersources indicated on the label on the rear end of the monitor. Ifyou’re unsure of the power supply in your residence, consultyour local dealer or power company. Do not try to repair the monitor yourself as it contains no user- serviceable parts. The monitor should only be repaired by a qualified technician. Do not remove the monitor cabinet. There is high-voltage parts inside that may cause electric shock to human bodies, even whenthe power cord is disconnected . Stop using the monitor if the cabinet is damaged. Have it checked by a service technician. Put your monitor only in a clean, dry environment. Unplug the monitor immediately if gets wet and consult your service technician. Always unplug the monitor before cleaning it. Clean the cabinetwith a clean, dry cloth. Apply non-ammonia based cleaner ontothe cloth, not directly onto the glass screen. Keep the monitor away from magnetic objects, motors, TV sets, and transformer. Do not place heavy objects on the cable or power cord. For PLUGGABLE EQUIPMENT, the Socket-outlet shall be installed near the equipment and shall be easily accessible.
Care and MaintenanceCareAvoid exposing your monitor directly to sunlight or other heatsource.Place your monitor away from diret ray of the sun to reduce glare.Put your monitor in a well ventilated area. Do not place anythingheavy on top of your monitor.Make certain your monitor is installed in a clean and moisture-freearea.Keep your monitor away from magnets, motors, transformers,speakers,and TV sets.If smoke, abnormal noise or odor came out of your monitor, switchoff the power immediately and call your service center.Never remove the rear cover of your monitor cabinet. The displayunit inside contains high-voltage parts and may cause electricshock to human bodies.Never try to repair your monitor yourself. Always call your servicecenter or a qualified technician to fix it.Safety Tips
