Jiangmen Audiovisio Electronics GOHAWKLIT Bluetooth Alexa Speaker LED Lamp User Manual 1

Jiangmen Audiovisio Electronics Co., Ltd. Bluetooth Alexa Speaker LED Lamp 1

User Manual

Smart speaker ManualAlexa

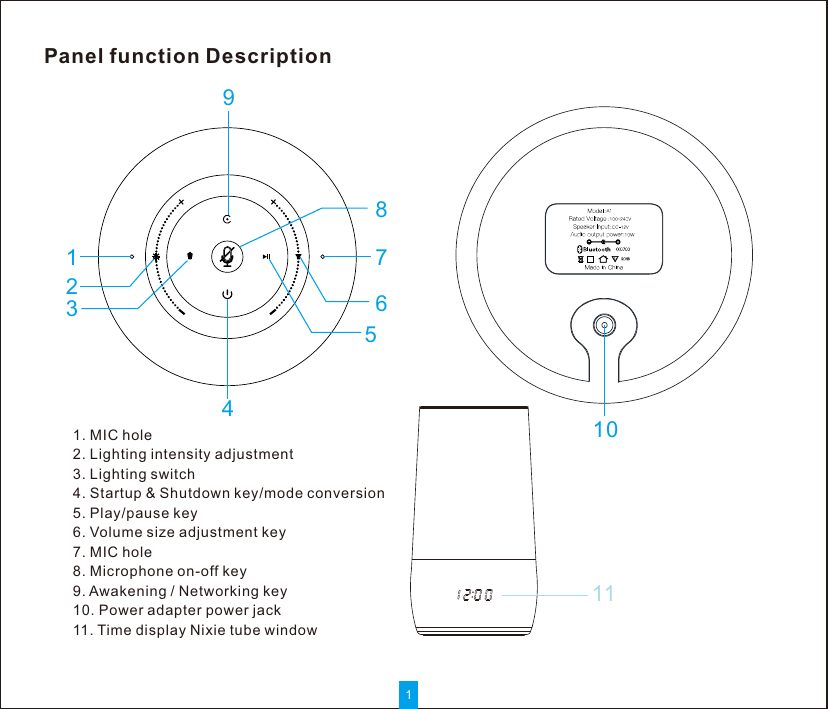

112345678911101. MIC hole2. Lighting intensity adjustment3. Lighting switch4. Startup & Shutdown key/mode conversion5. Play/pause key6. Volume size adjustment key7. MIC hole8. Microphone on-off key9. Awakening / Networking key10. Power adapter power jack11. Time display Nixie tube windowPanel function Description

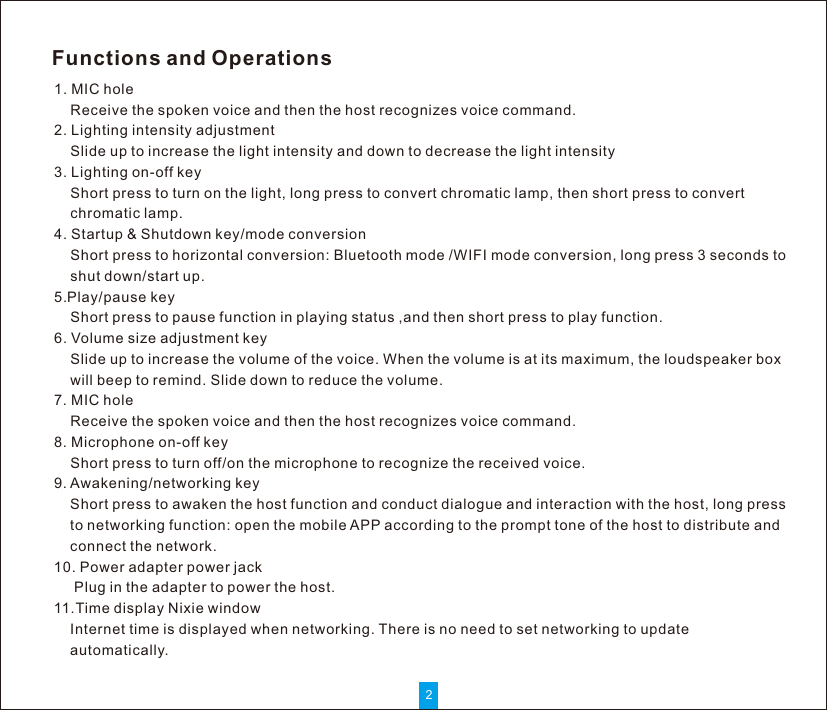

21. MIC hole Receive the spoken voice and then the host recognizes voice command.2. Lighting intensity adjustment Slide up to increase the light intensity and down to decrease the light intensity3. Lighting on-off key Short press to turn on the light, long press to convert chromatic lamp, then short press to convert chromatic lamp.4. Startup & Shutdown key/mode conversion Short press to horizontal conversion: Bluetooth mode /WIFI mode conversion, long press 3 seconds to shut down/start up.5. Play/pause key Short press to pause function in playing status ,and then short press to play function.6. Volume size adjustment key Slide up to increase the volume of the voice. When the volume is at its maximum, the loudspeaker box will beep to remind. Slide down to reduce the volume.7. MIC hole Receive the spoken voice and then the host recognizes voice command.8. Microphone on-off key Short press to turn off/on the microphone to recognize the received voice.9. Awakening/networking key Short press to awaken the host function and conduct dialogue and interaction with the host, long press to networking function: open the mobile APP according to the prompt tone of the host to distribute and connect the network.10. Power adapter power jack Plug in the adapter to power the host.11.Time display Nixie window Internet time is displayed when networking. There is no need to set networking to update automatically.Functions and Operations

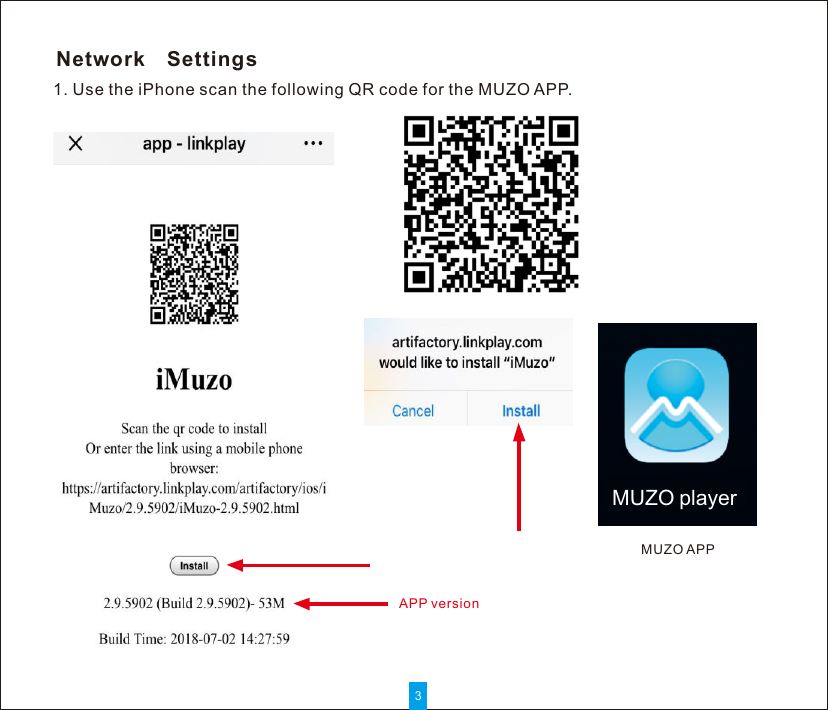

31. Use the iPhone scan the following QR code for the MUZO APP.APP versionMUZO APPMUZO playerNetwork Settings

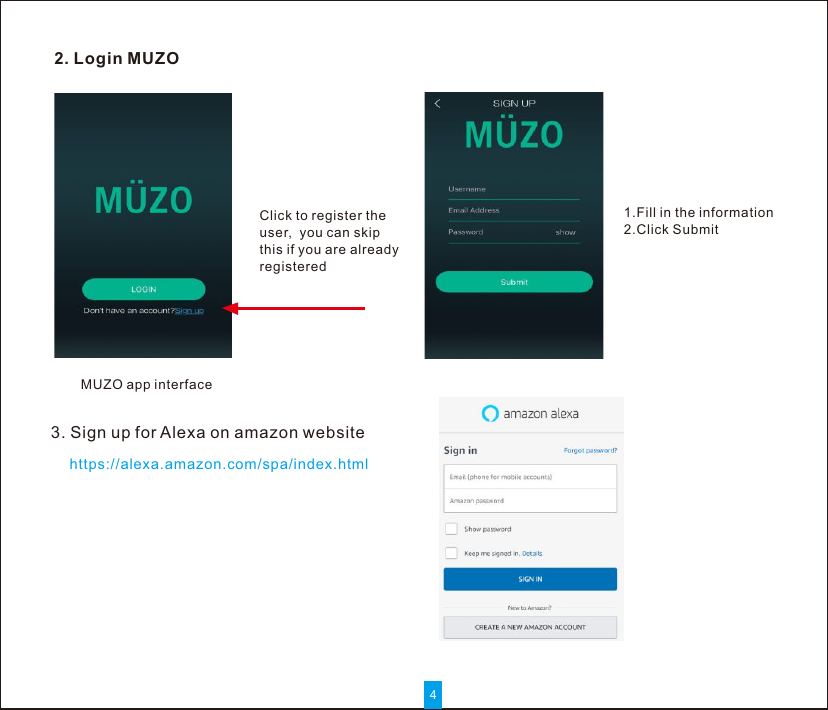

4Click to register the user, you can skip this if you are already registered1.Fill in the information2.Click SubmitMUZO app interface3. Sign up for Alexa on amazon website https://alexa.amazon.com/spa/index.html2. Login MUZO

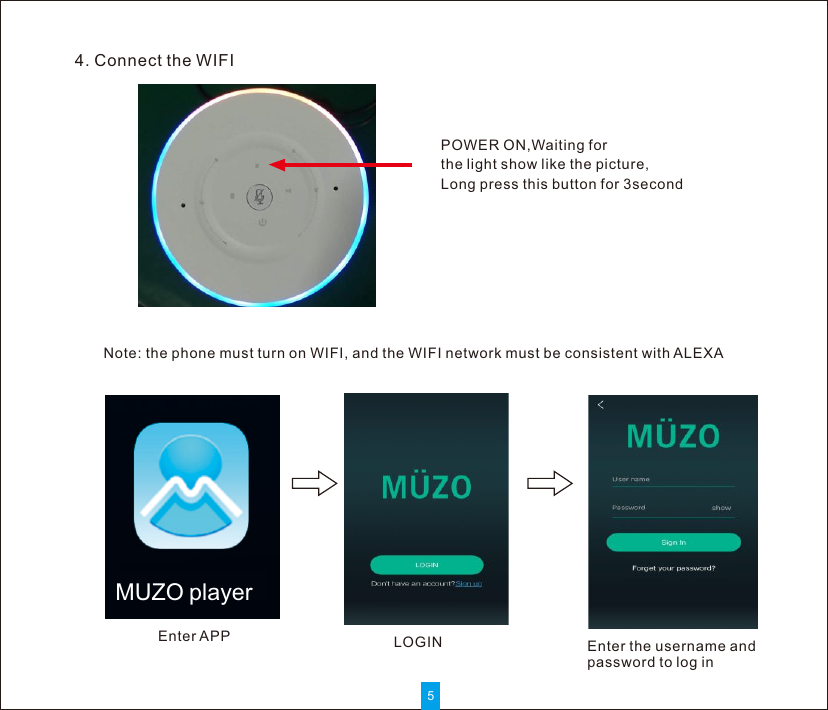

4. Connect the WIFI5MUZO playerPOWER ON,Waiting for the light show like the picture,Long press this button for 3secondNote: the phone must turn on WIFI, and the WIFI network must be consistent with ALEXAEnter APP LOGIN Enter the username and password to log in

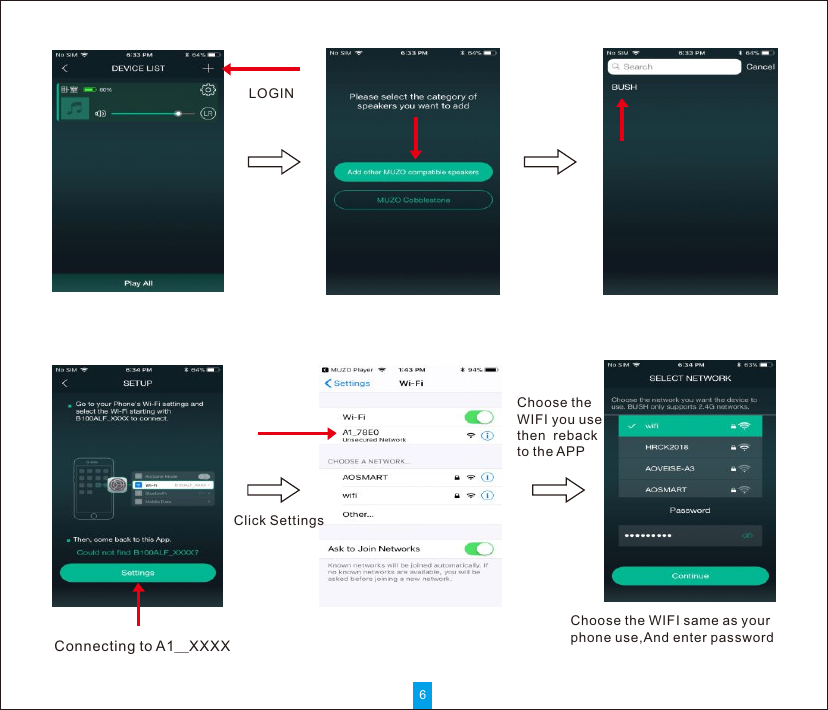

6 LOGINClick SettingsChoose the WIFI you use then reback to the APPConnecting to A1＿XXXXChoose the WIFI same as your phone use,And enter password

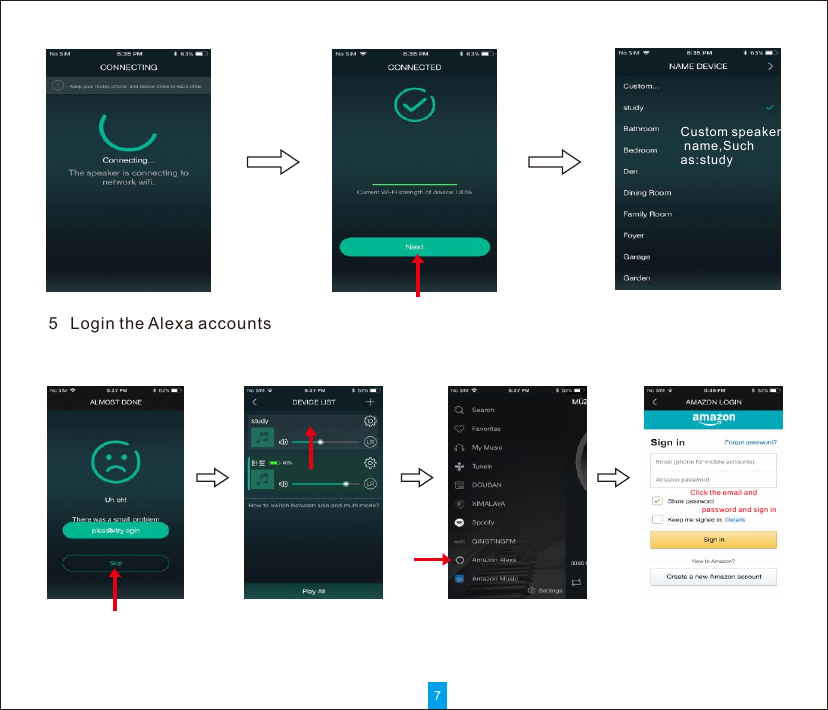

7Custom speaker name,Such as:study5 Login the Alexa accountsClic k the email and pass word and sign in

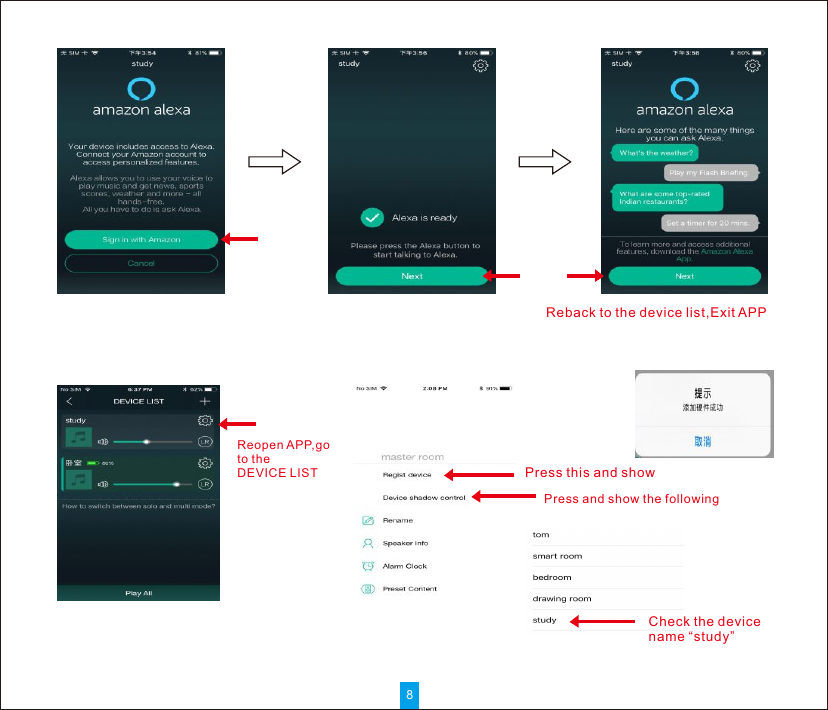

8Reback to the device list,Exit APPReopen APP,go to the DEVICE LIST Press this and showPress and show the followingCheck the device name “study”
96.Load the MUZO player account on amazon https://alexa.amazon.com/spa/index.html2.input Linkplay Smart home134567Enter the account and password registered with the MUZO player APPShow successfully linked will ok

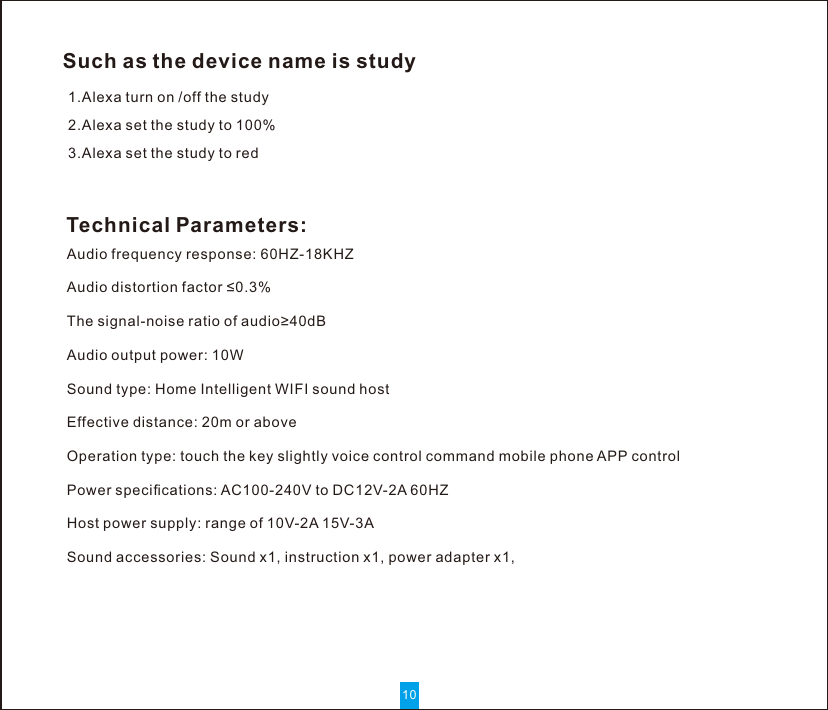

101.Alexa turn on /off the study 2.Alexa set the study to 100% 3.Alexa set the study to redSuch as the device name is studyAudio frequency response: 60HZ-18KHZAudio distortion factor ≤0.3%The signal-noise ratio of audio≥40dBAudio output power: 10WSound type: Home Intelligent WIFI sound hostEffective distance: 20m or aboveOperation type: touch the key slightly voice control command mobile phone APP controlPower specifications: AC100-240V to DC12V-2A 60HZHost power supply: range of 10V-2A 15V-3ASound accessories: Sound x1, instruction x1, power adapter x1,Technical Parameters:
Smart speaker ManualAlexa

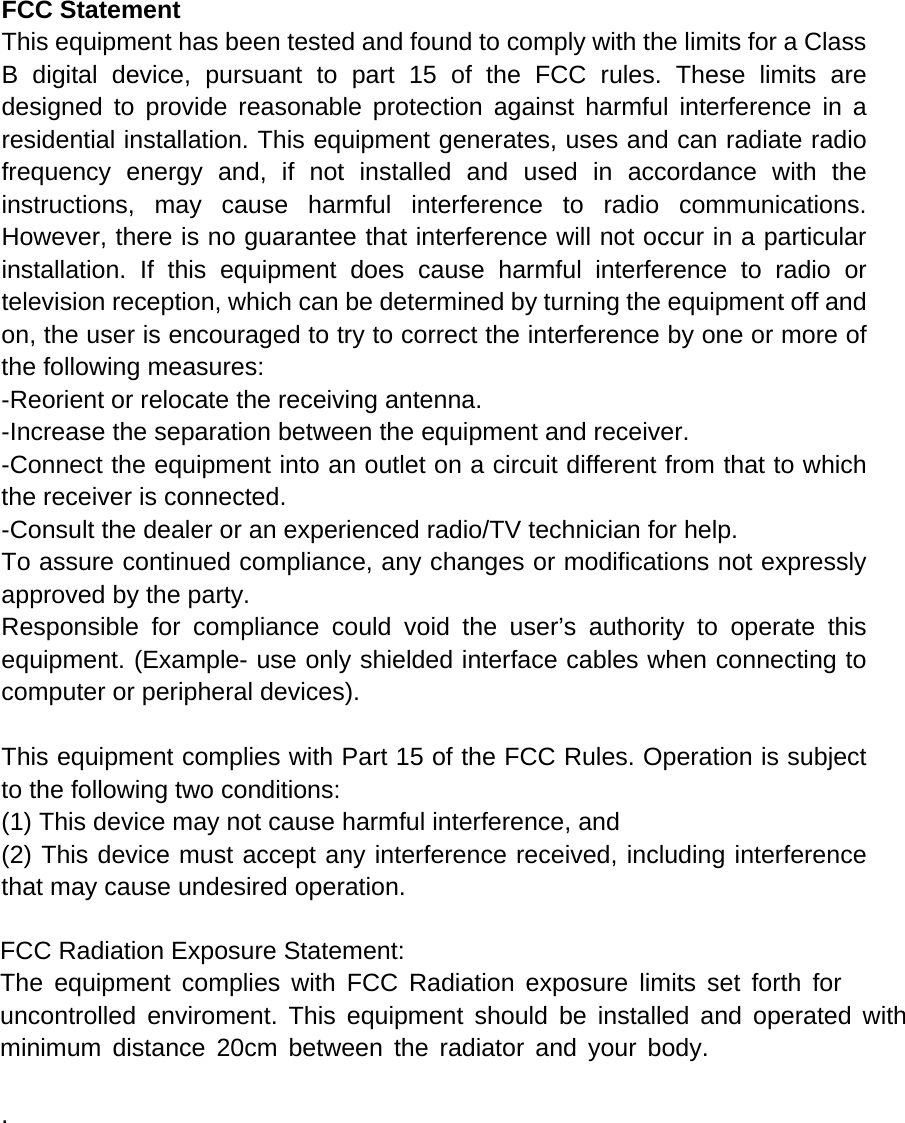

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth foruncontrolled enviroment. This equipment should be installed and operated withminimum distance 20cm between the radiator and your body. .
