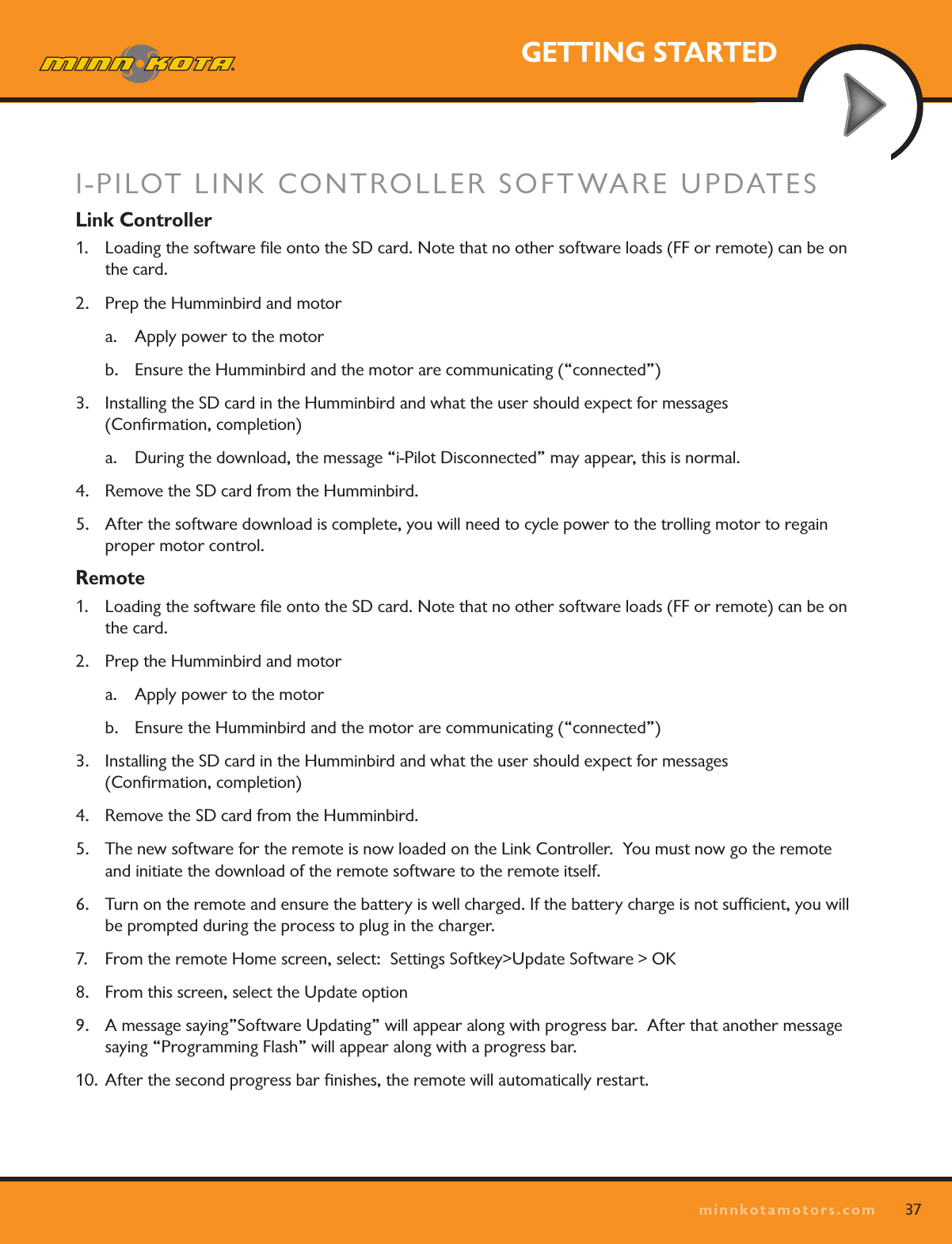

37minnkotamotors.comGETTING STARTEDI-PILOT LINK CONTROLLER SOFTWARE UPDATESLink Controller1. Loading the software file onto the SD card. Note that no other software loads (FF or remote) can be on the card.2. Prep the Humminbird and motora. Apply power to the motorb. Ensure the Humminbird and the motor are communicating (“connected”)3. Installing the SD card in the Humminbird and what the user should expect for messages (Confirmation, completion)a. During the download, the message “i-Pilot Disconnected” may appear, this is normal. 4. Remove the SD card from the Humminbird.5. After the software download is complete, you will need to cycle power to the trolling motor to regain proper motor control.Remote1. Loading the software file onto the SD card. Note that no other software loads (FF or remote) can be on the card.2. Prep the Humminbird and motora. Apply power to the motorb. Ensure the Humminbird and the motor are communicating (“connected”)3. Installing the SD card in the Humminbird and what the user should expect for messages (Confirmation, completion)4. Remove the SD card from the Humminbird.5. The new software for the remote is now loaded on the Link Controller. You must now go the remote and initiate the download of the remote software to the remote itself.6. Turn on the remote and ensure the battery is well charged. If the battery charge is not sufficient, you will be prompted during the process to plug in the charger.7. From the remote Home screen, select: Settings Softkey>Update Software > OK8. From this screen, select the Update option9. A message saying”Software Updating” will appear along with progress bar. After that another message saying “Programming Flash” will appear along with a progress bar.10. After the second progress bar finishes, the remote will automatically restart.

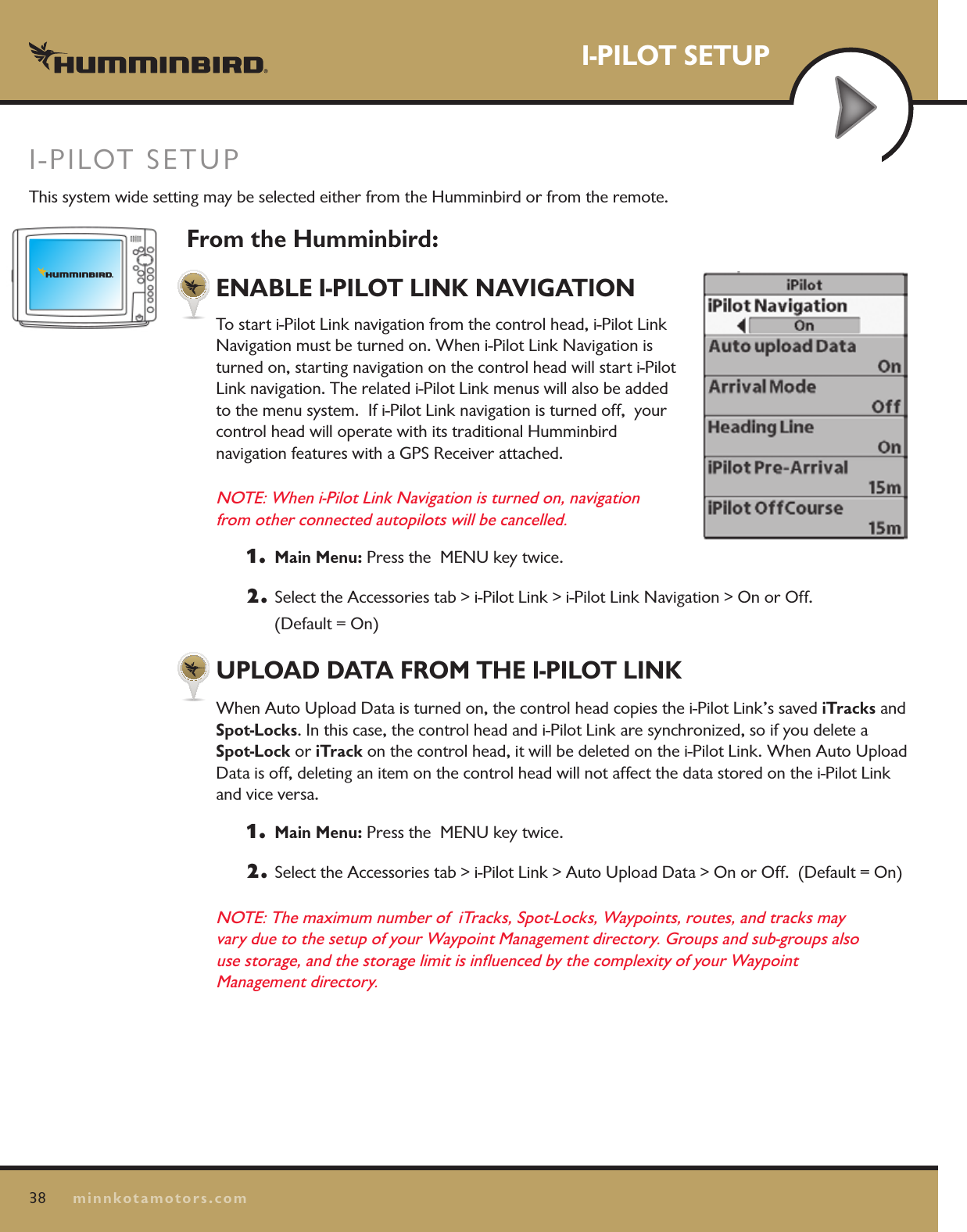

38minnkotamotors.comI-PILOT SETUPFrom the Humminbird:ENABLE I-PILOT LINK NAVIGATIONTo start i-Pilot Link navigation from the control head, i-Pilot Link Navigation must be turned on. When i-Pilot Link Navigation is turned on, starting navigation on the control head will start i-Pilot Link navigation. The related i-Pilot Link menus will also be added to the menu system. If i-Pilot Link navigation is turned off, your control head will operate with its traditional Humminbird navigation features with a GPS Receiver attached. NOTE: When i-Pilot Link Navigation is turned on, navigation from other connected autopilots will be cancelled.1. Main Menu: Press the MENU key twice. 2. Select the Accessories tab > i-Pilot Link > i-Pilot Link Navigation > On or Off. (Default = On)UPLOAD DATA FROM THE I-PILOT LINKWhen Auto Upload Data is turned on, the control head copies the i-Pilot Link’s saved iTracks and Spot-Locks. In this case, the control head and i-Pilot Link are synchronized, so if you delete a Spot-Lock or iTrack on the control head, it will be deleted on the i-Pilot Link. When Auto Upload Data is off, deleting an item on the control head will not affect the data stored on the i-Pilot Link and vice versa.1. Main Menu: Press the MENU key twice. 2. Select the Accessories tab > i-Pilot Link > Auto Upload Data > On or Off. (Default = On)NOTE: The maximum number of iTracks, Spot-Locks, Waypoints, routes, and tracks may vary due to the setup of your Waypoint Management directory. Groups and sub-groups also use storage, and the storage limit is influenced by the complexity of your Waypoint Management directory.I-PILOT SETUPThis system wide setting may be selected either from the Humminbird or from the remote.

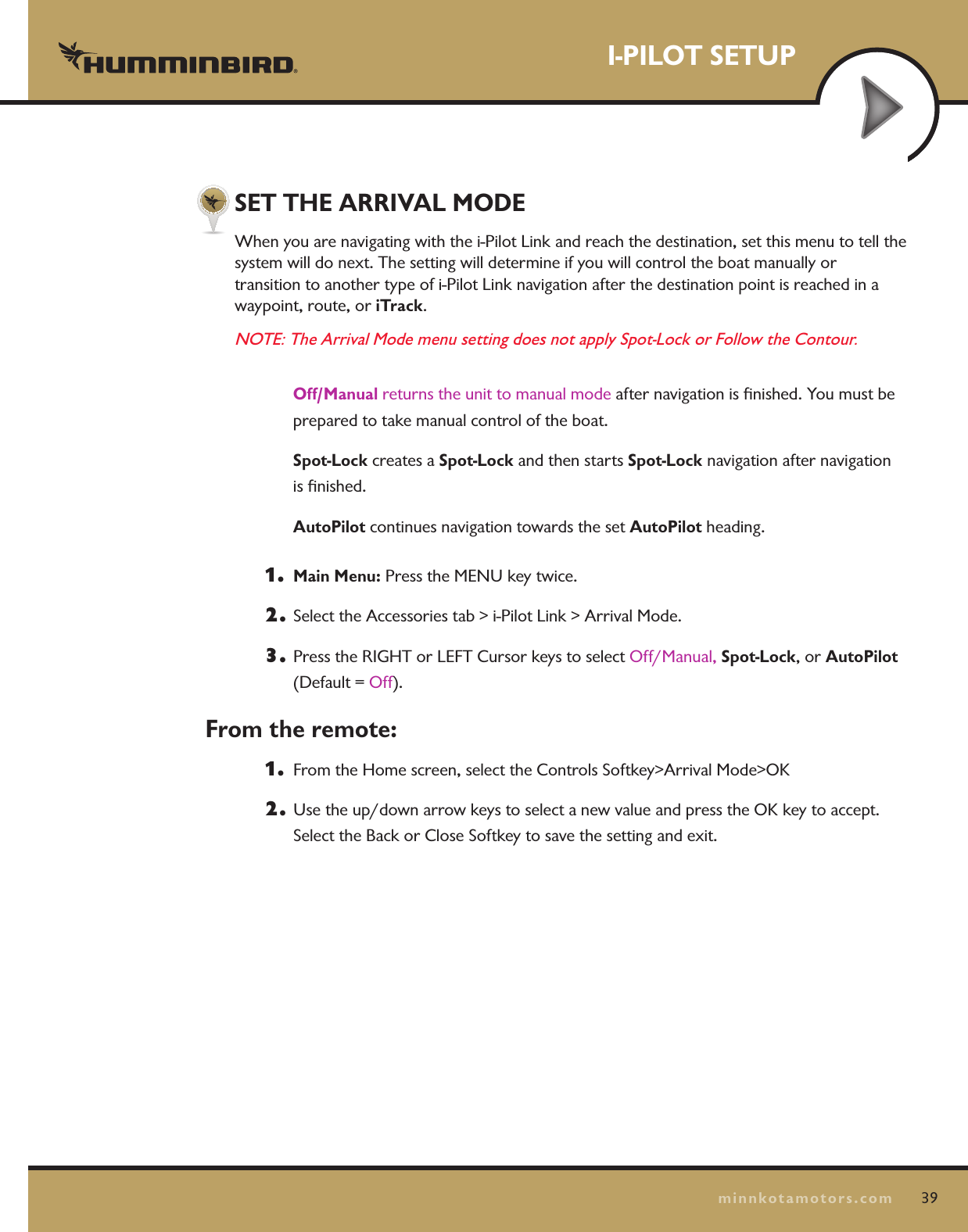

SET THE ARRIVAL MODEWhen you are navigating with the i-Pilot Link and reach the destination, set this menu to tell the system will do next. The setting will determine if you will control the boat manually or transition to another type of i-Pilot Link navigation after the destination point is reached in a waypoint, route, or iTrack. NOTE: The Arrival Mode menu setting does not apply Spot-Lock or Follow the Contour. Off/Manual returns the unit to manual mode after navigation is finished. You must be prepared to take manual control of the boat. Spot-Lock creates a Spot-Lock and then starts Spot-Lock navigation after navigation is finished. AutoPilot continues navigation towards the set AutoPilot heading. 1. Main Menu: Press the MENU key twice. 2. Select the Accessories tab > i-Pilot Link > Arrival Mode.3. Press the RIGHT or LEFT Cursor keys to select Off/Manual, Spot-Lock, or AutoPilot (Default = Off).From the remote:1. From the Home screen, select the Controls Softkey>Arrival Mode>OK2. Use the up/down arrow keys to select a new value and press the OK key to accept. Select the Back or Close Softkey to save the setting and exit.I-PILOT SETUP39minnkotamotors.com

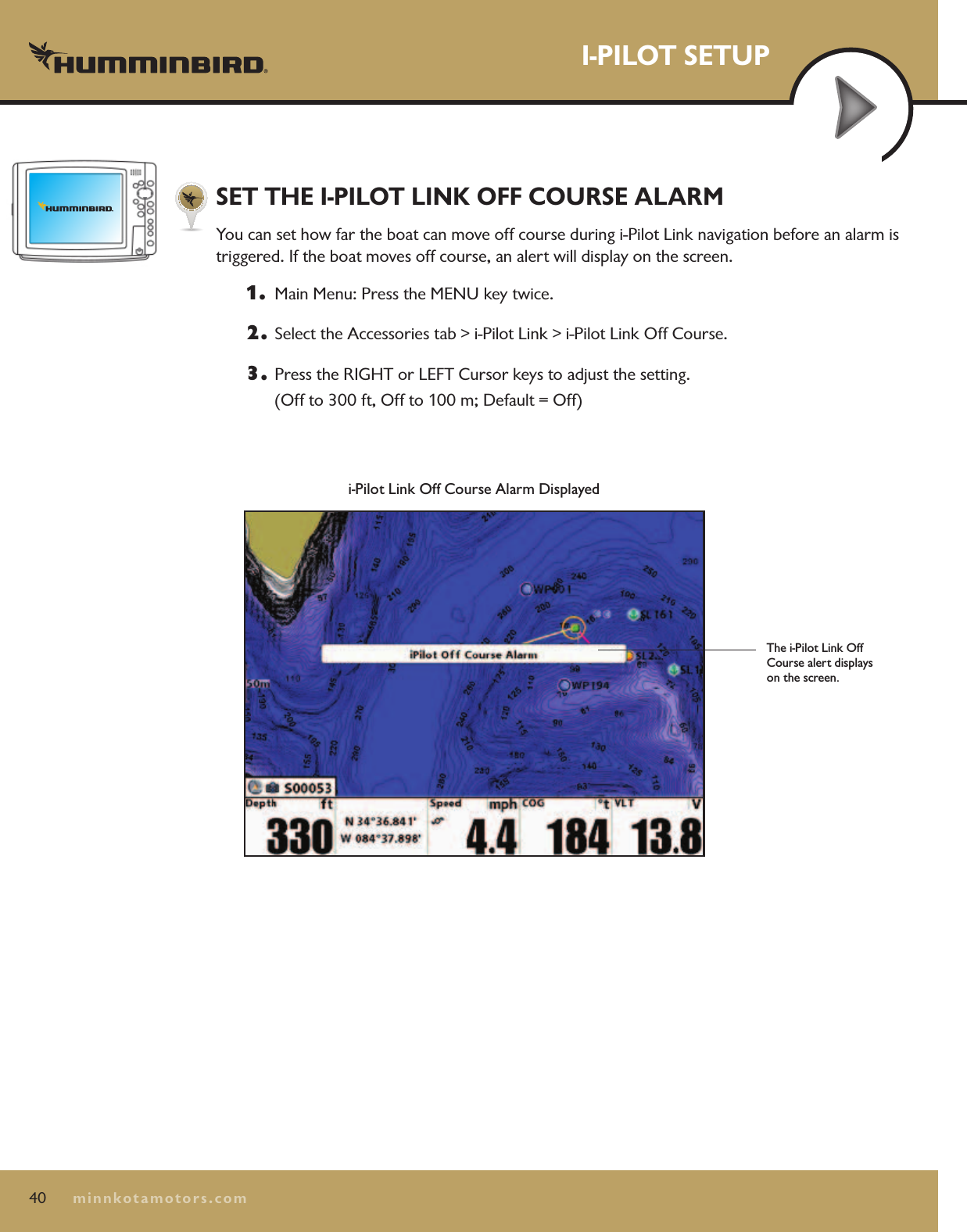

40minnkotamotors.comI-PILOT SETUPi-Pilot Link Off Course Alarm DisplayedThe i-Pilot Link Off Course alert displays on the screen.SET THE I-PILOT LINK OFF COURSE ALARMYou can set how far the boat can move off course during i-Pilot Link navigation before an alarm is triggered. If the boat moves off course, an alert will display on the screen.1. Main Menu: Press the MENU key twice. 2. Select the Accessories tab > i-Pilot Link > i-Pilot Link Off Course.3. Press the RIGHT or LEFT Cursor keys to adjust the setting. (Off to 300 ft, Off to 100 m; Default = Off)

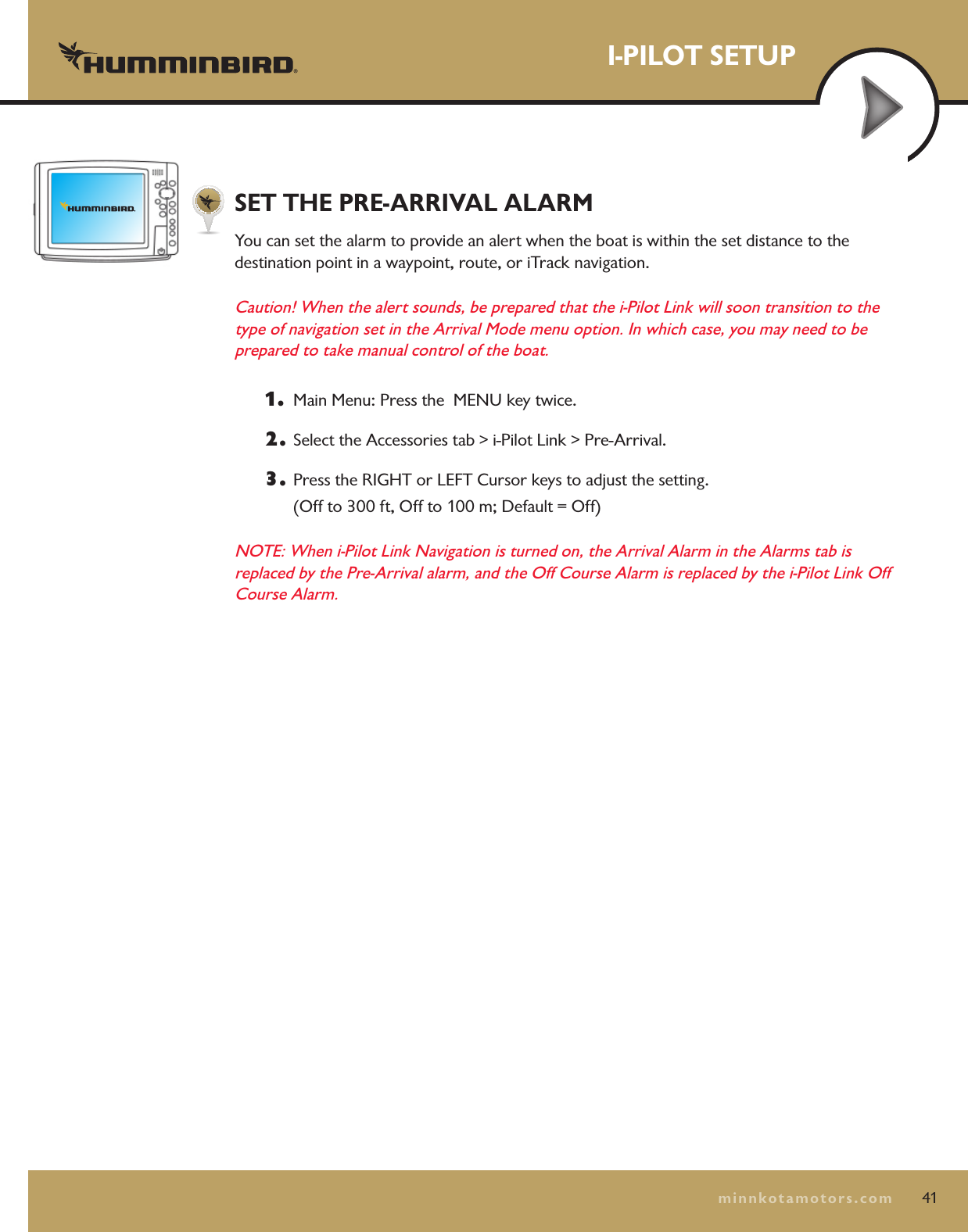

I-PILOT SETUP41minnkotamotors.comSET THE PRE-ARRIVAL ALARMYou can set the alarm to provide an alert when the boat is within the set distance to the destination point in a waypoint, route, or iTrack navigation.Caution! When the alert sounds, be prepared that the i-Pilot Link will soon transition to the type of navigation set in the Arrival Mode menu option. In which case, you may need to be prepared to take manual control of the boat.1. Main Menu: Press the MENU key twice. 2. Select the Accessories tab > i-Pilot Link > Pre-Arrival.3. Press the RIGHT or LEFT Cursor keys to adjust the setting. (Off to 300 ft, Off to 100 m; Default = Off)NOTE: When i-Pilot Link Navigation is turned on, the Arrival Alarm in the Alarms tab is replaced by the Pre-Arrival alarm, and the Off Course Alarm is replaced by the i-Pilot Link Off Course Alarm.

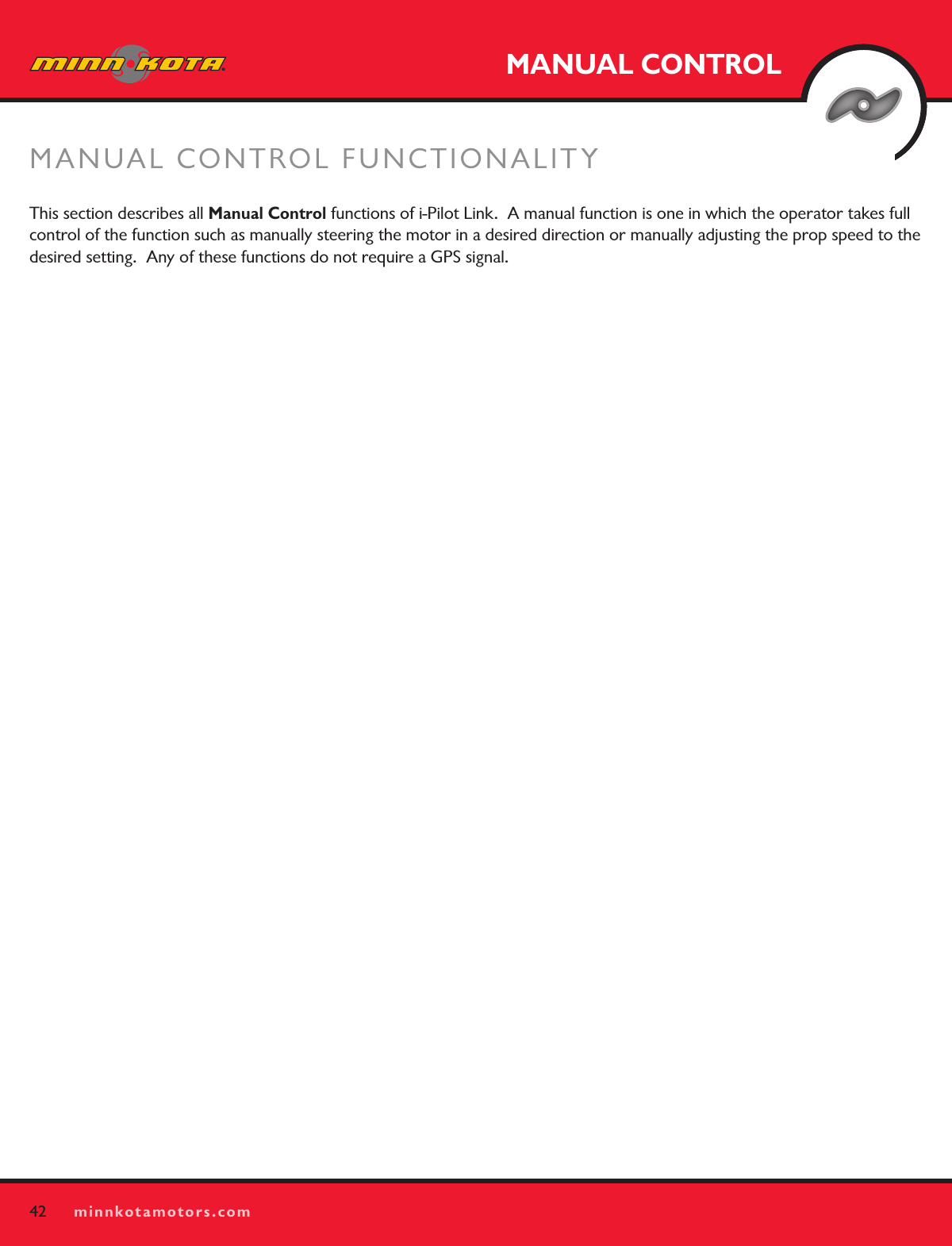

42minnkotamotors.comMANUAL CONTROLMANUAL CONTROL FUNCTIONALITY 42minnkotamotors.comThis section describes all Manual Control functions of i-Pilot Link. A manual function is one in which the operator takes full control of the function such as manually steering the motor in a desired direction or manually adjusting the prop speed to the desired setting. Any of these functions do not require a GPS signal.

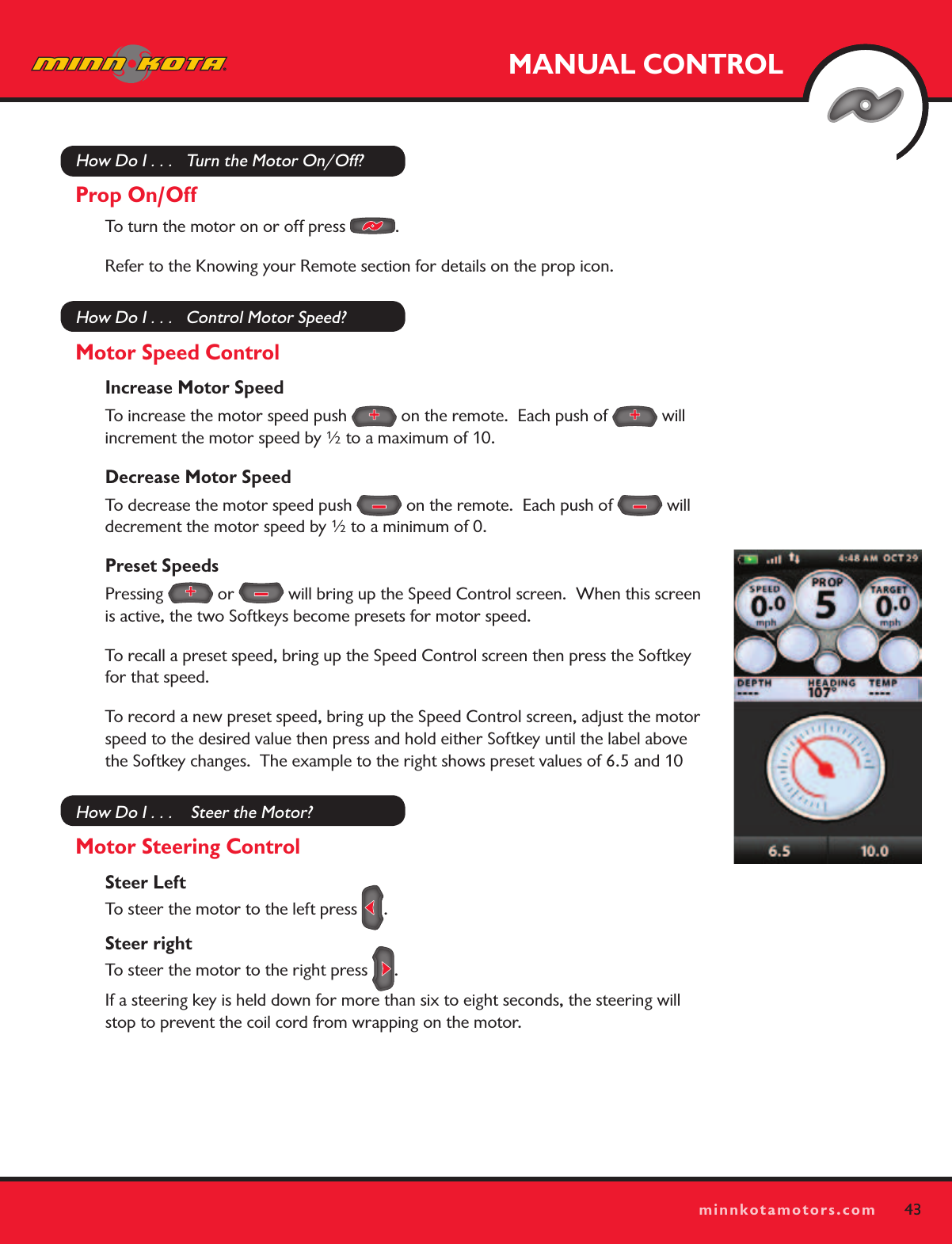

43minnkotamotors.comMANUAL CONTROL43minnkotamotors.comHow Do I . . . Turn the Motor On/Off?Prop On/OffTo turn the motor on or off press . Refer to the Knowing your Remote section for details on the prop icon. How Do I . . . Control Motor Speed?Motor Speed ControlIncrease Motor SpeedTo increase the motor speed push on the remote. Each push of will increment the motor speed by ½ to a maximum of 10.Decrease Motor SpeedTo decrease the motor speed push on the remote. Each push of will decrement the motor speed by ½ to a minimum of 0.Preset SpeedsPressing or will bring up the Speed Control screen. When this screen is active, the two Softkeys become presets for motor speed. To recall a preset speed, bring up the Speed Control screen then press the Softkey for that speed.To record a new preset speed, bring up the Speed Control screen, adjust the motor speed to the desired value then press and hold either Softkey until the label above the Softkey changes. The example to the right shows preset values of 6.5 and 10How Do I . . . Steer the Motor?Motor Steering ControlSteer Left To steer the motor to the left press .Steer right To steer the motor to the right press .If a steering key is held down for more than six to eight seconds, the steering will stop to prevent the coil cord from wrapping on the motor.

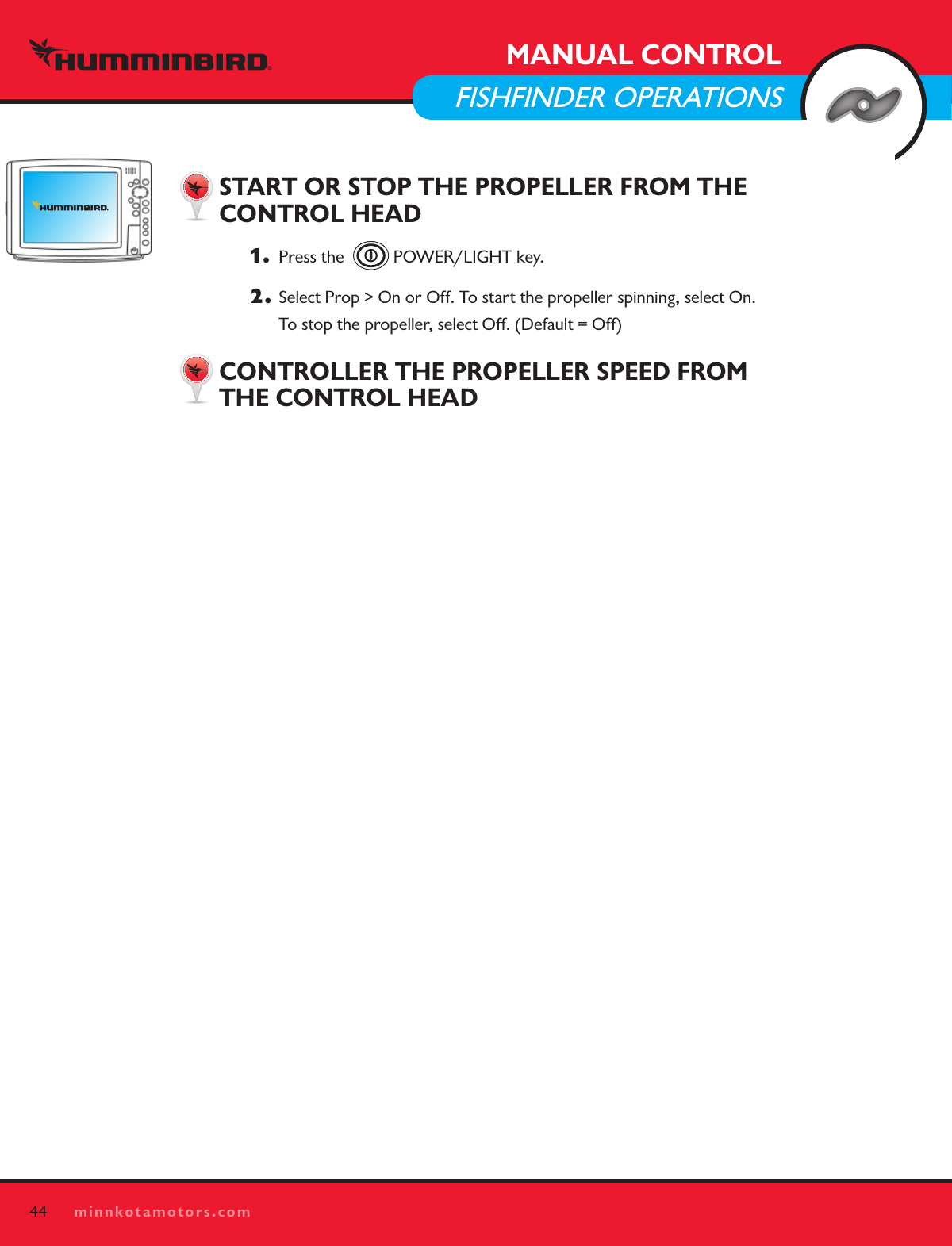

44minnkotamotors.comMANUAL CONTROLFISHFINDER OPERATIONSSTART OR STOP THE PROPELLER FROM THE CONTROL HEAD1. Press the POWER/LIGHT key. 2. Select Prop > On or Off. To start the propeller spinning, select On. To stop the propeller, select Off. (Default = Off) CONTROLLER THE PROPELLER SPEED FROM THE CONTROL HEAD

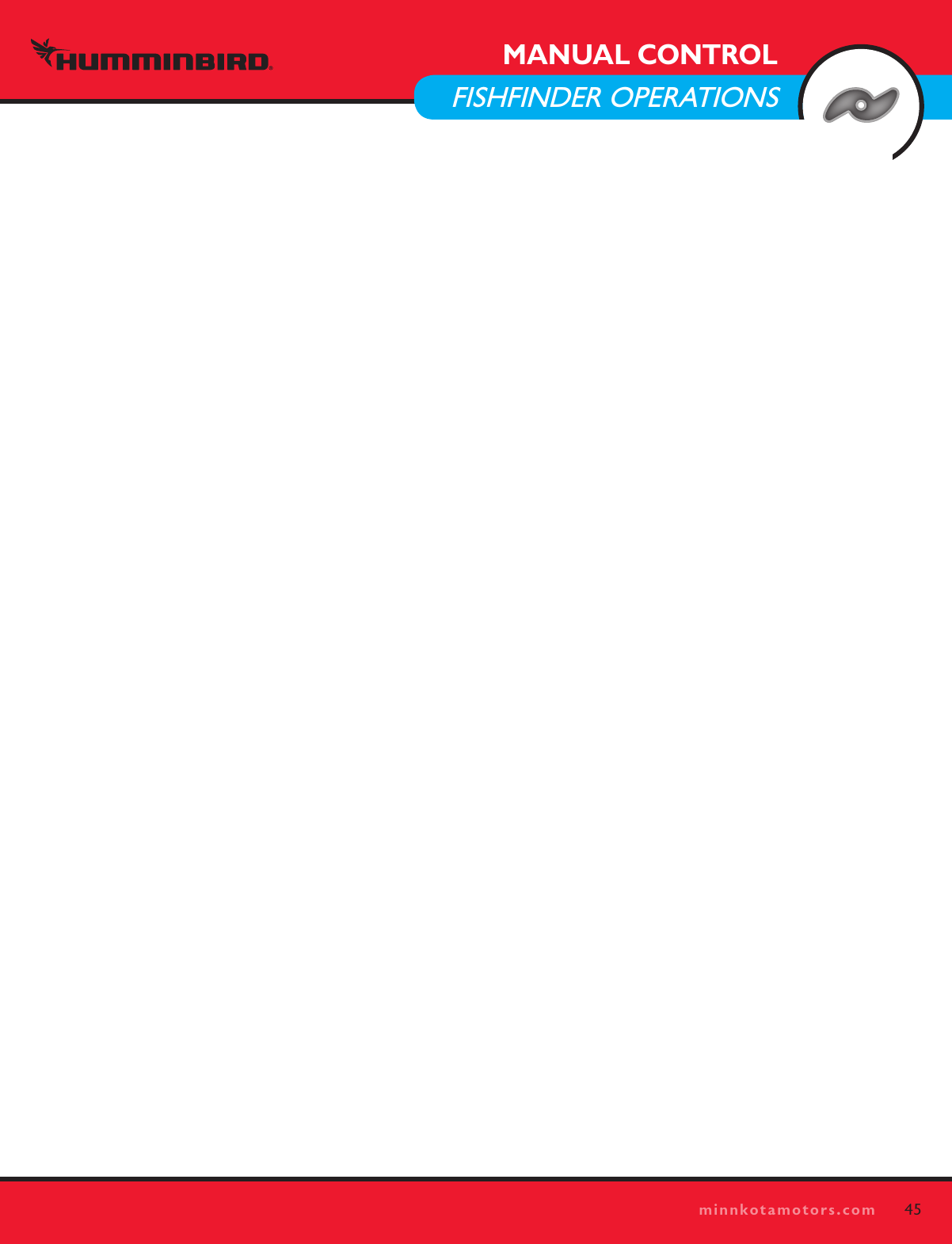

45minnkotamotors.comMANUAL CONTROL FISHFINDER OPERATIONS

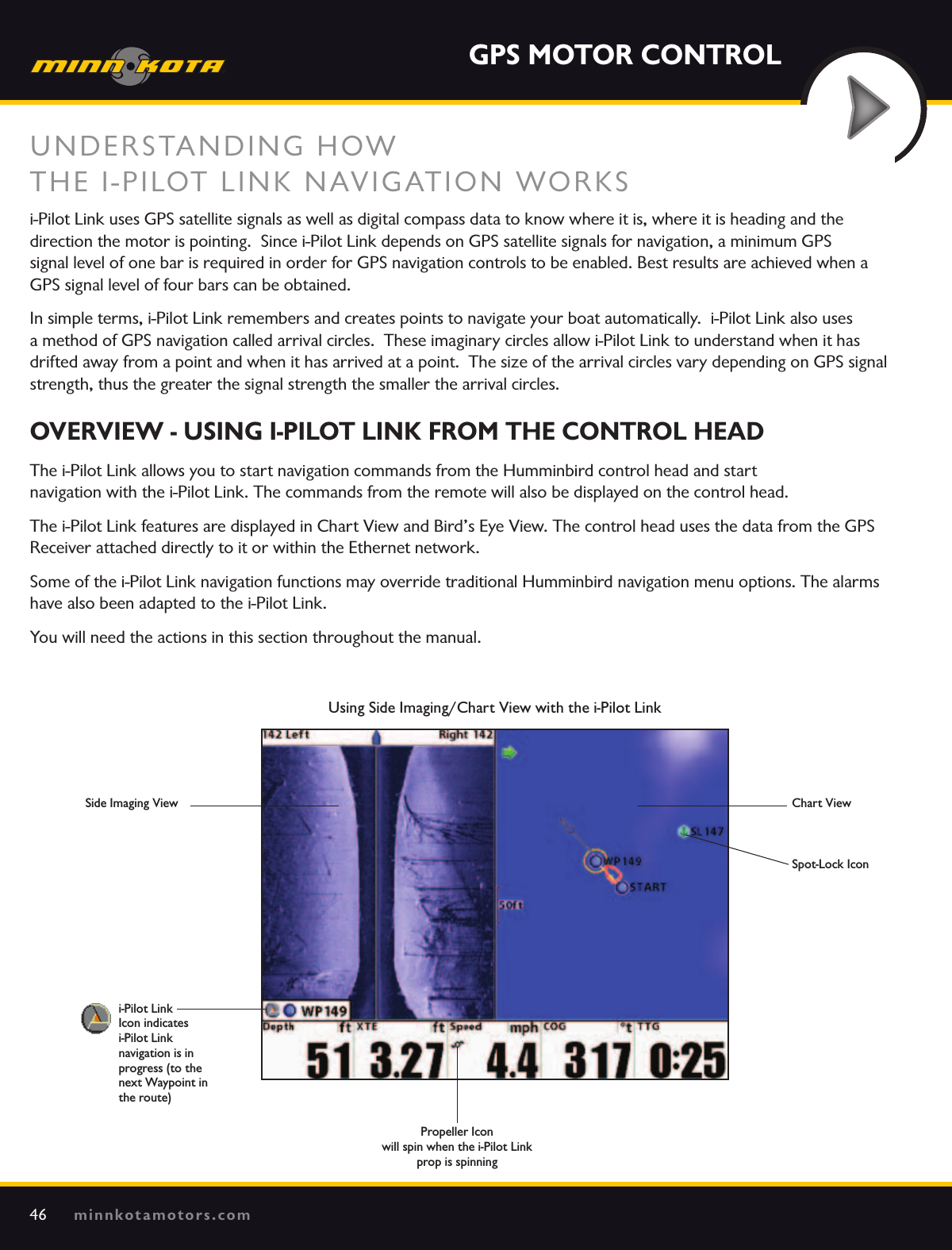

GPS Motor Controlminnkotamotors.com46UNDERSTANDING HOW THE I-PILOT LINK NAVIGATION WORKSi-Pilot Link uses GPS satellite signals as well as digital compass data to know where it is, where it is heading and the direction the motor is pointing. Since i-Pilot Link depends on GPS satellite signals for navigation, a minimum GPS signal level of one bar is required in order for GPS navigation controls to be enabled. Best results are achieved when a GPS signal level of four bars can be obtained.In simple terms, i-Pilot Link remembers and creates points to navigate your boat automatically. i-Pilot Link also uses a method of GPS navigation called arrival circles. These imaginary circles allow i-Pilot Link to understand when it has drifted away from a point and when it has arrived at a point. The size of the arrival circles vary depending on GPS signal strength, thus the greater the signal strength the smaller the arrival circles.overview - USinG i-Pilot link froM the Control headThe i-Pilot Link allows you to start navigation commands from the Humminbird control head and start navigation with the i-Pilot Link. The commands from the remote will also be displayed on the control head. The i-Pilot Link features are displayed in Chart View and Bird’s Eye View. The control head uses the data from the GPS Receiver attached directly to it or within the Ethernet network. Some of the i-Pilot Link navigation functions may override traditional Humminbird navigation menu options. The alarms have also been adapted to the i-Pilot Link. You will need the actions in this section throughout the manual. Using Side Imaging/Chart View with the i-Pilot Linki-Pilot Link Icon indicates i-Pilot Link navigation is in progress (to the next Waypoint in the route)Side Imaging View Chart ViewSpot-Lock IconPropeller Icon will spin when the i-Pilot Link prop is spinning

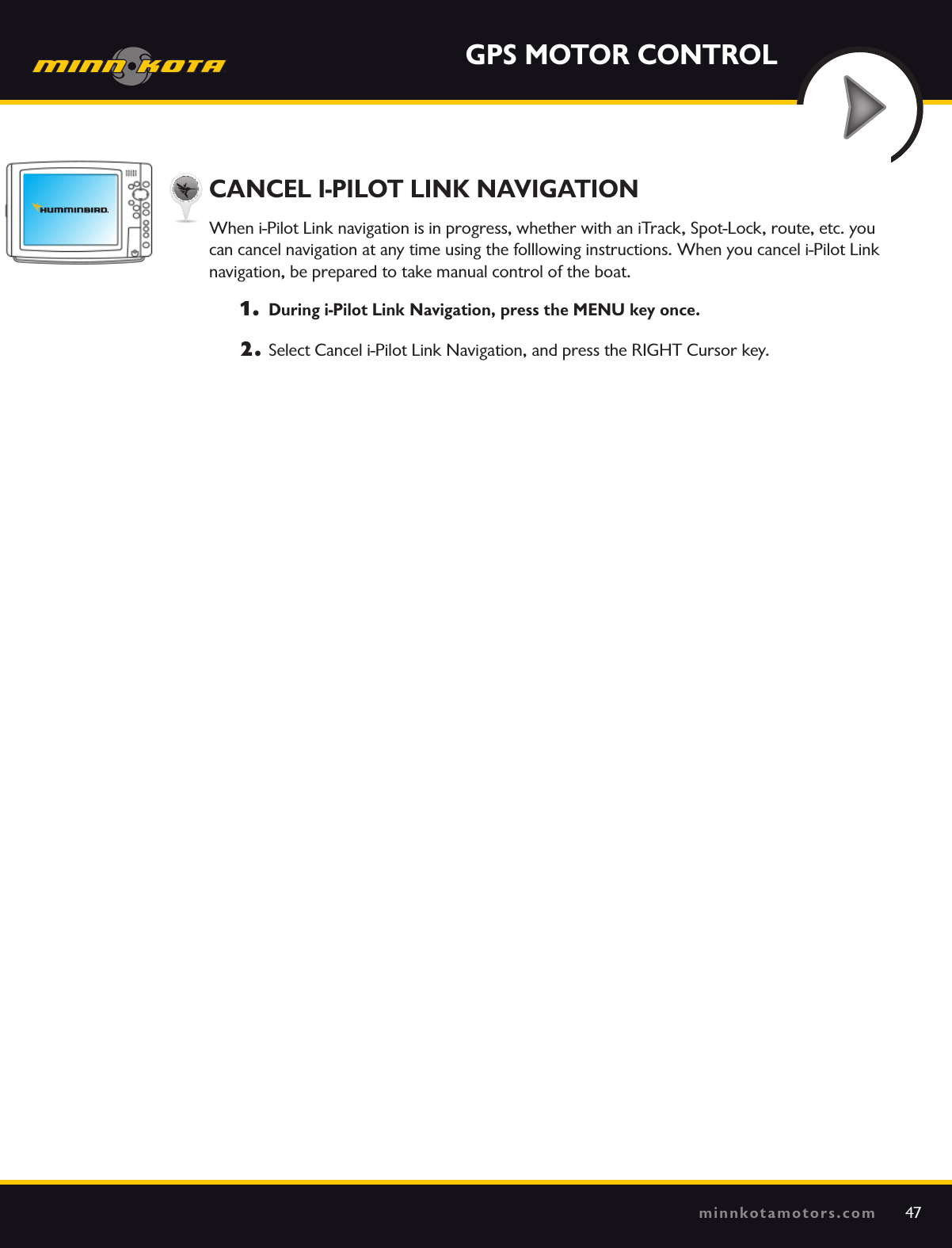

47minnkotamotors.comGPS MOTOR CONTROLCANCEL I-PILOT LINK NAVIGATIONWhen i-Pilot Link navigation is in progress, whether with an iTrack, Spot-Lock, route, etc. you can cancel navigation at any time using the folllowing instructions. When you cancel i-Pilot Link navigation, be prepared to take manual control of the boat. 1. During i-Pilot Link Navigation, press the MENU key once.2. Select Cancel i-Pilot Link Navigation, and press the RIGHT Cursor key.

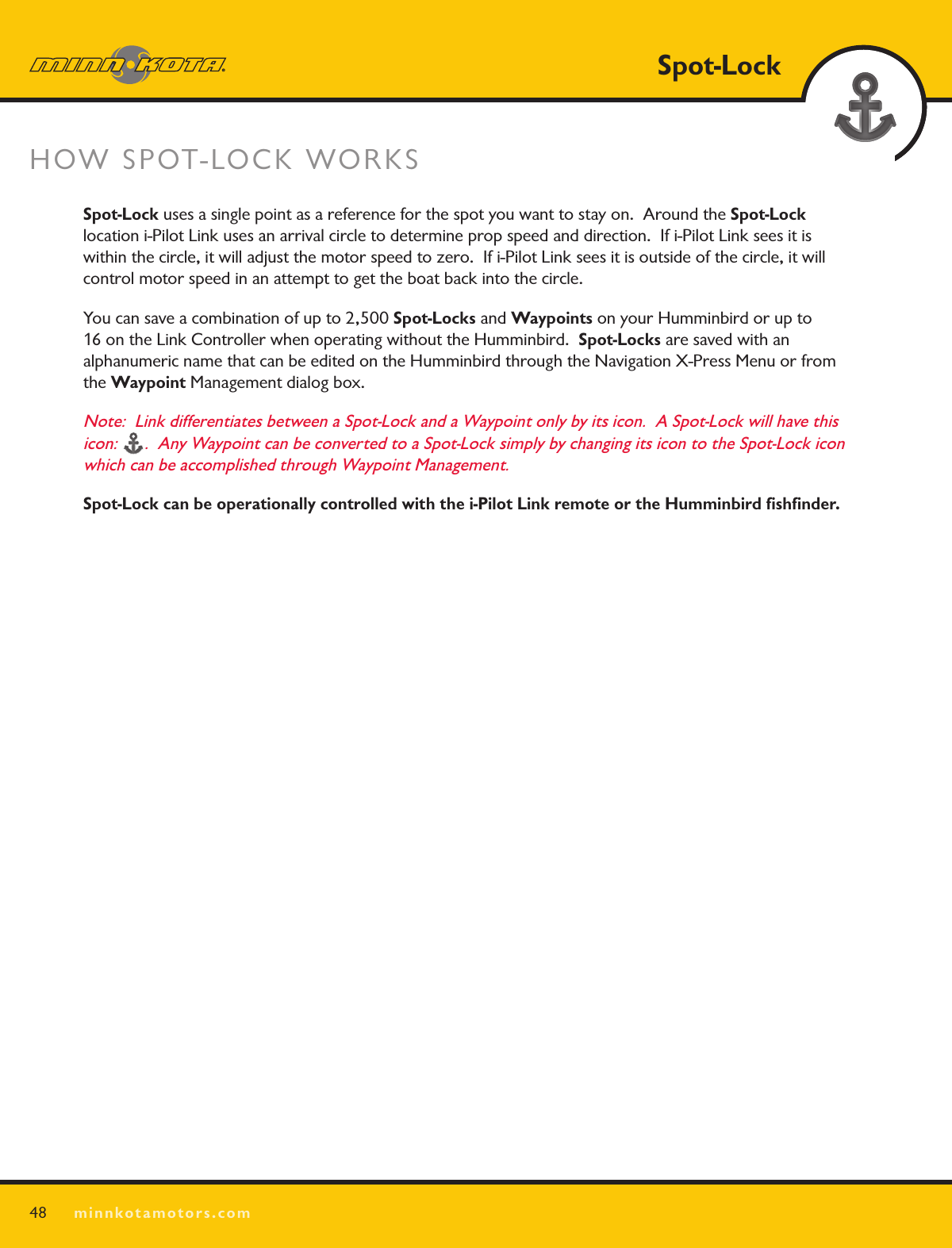

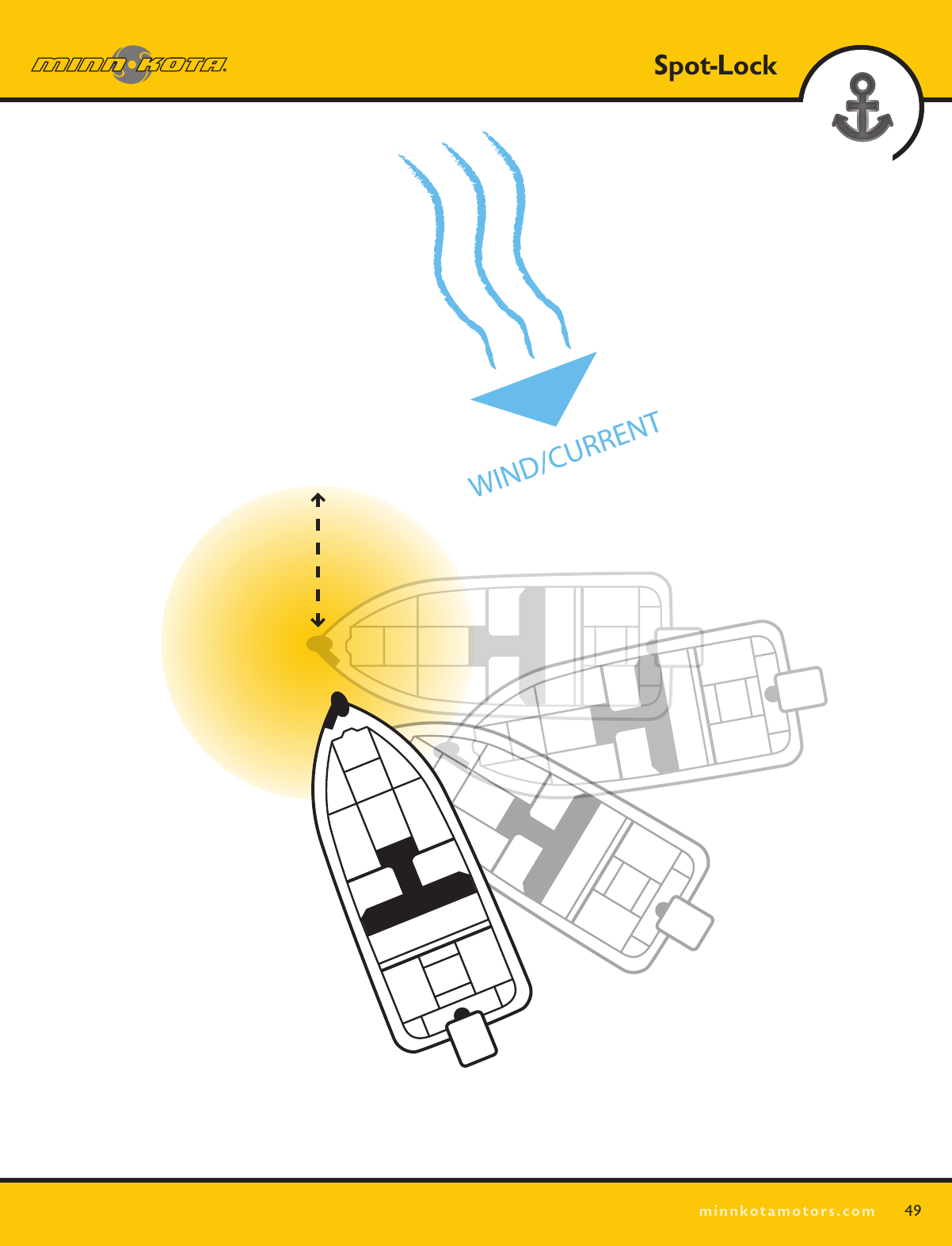

SPOT LOCKHOW SPOT-LOCK WORKS 48Spot-Lockminnkotamotors.comSpot-Lock uses a single point as a reference for the spot you want to stay on. Around the Spot-Lock location i-Pilot Link uses an arrival circle to determine prop speed and direction. If i-Pilot Link sees it is within the circle, it will adjust the motor speed to zero. If i-Pilot Link sees it is outside of the circle, it will control motor speed in an attempt to get the boat back into the circle.You can save a combination of up to 2,500 Spot-Locks and Waypoints on your Humminbird or up to 16 on the Link Controller when operating without the Humminbird. Spot-Locks are saved with an alphanumeric name that can be edited on the Humminbird through the Navigation X-Press Menu or from the Waypoint Management dialog box. Note: Link differentiates between a Spot-Lock and a Waypoint only by its icon. A Spot-Lock will have this icon: . Any Waypoint can be converted to a Spot-Lock simply by changing its icon to the Spot-Lock icon which can be accomplished through Waypoint Management.Spot-Lock can be operationally controlled with the i-Pilot Link remote or the Humminbird fishfinder.
SPOT LOCK49Spot-Lockminnkotamotors.com

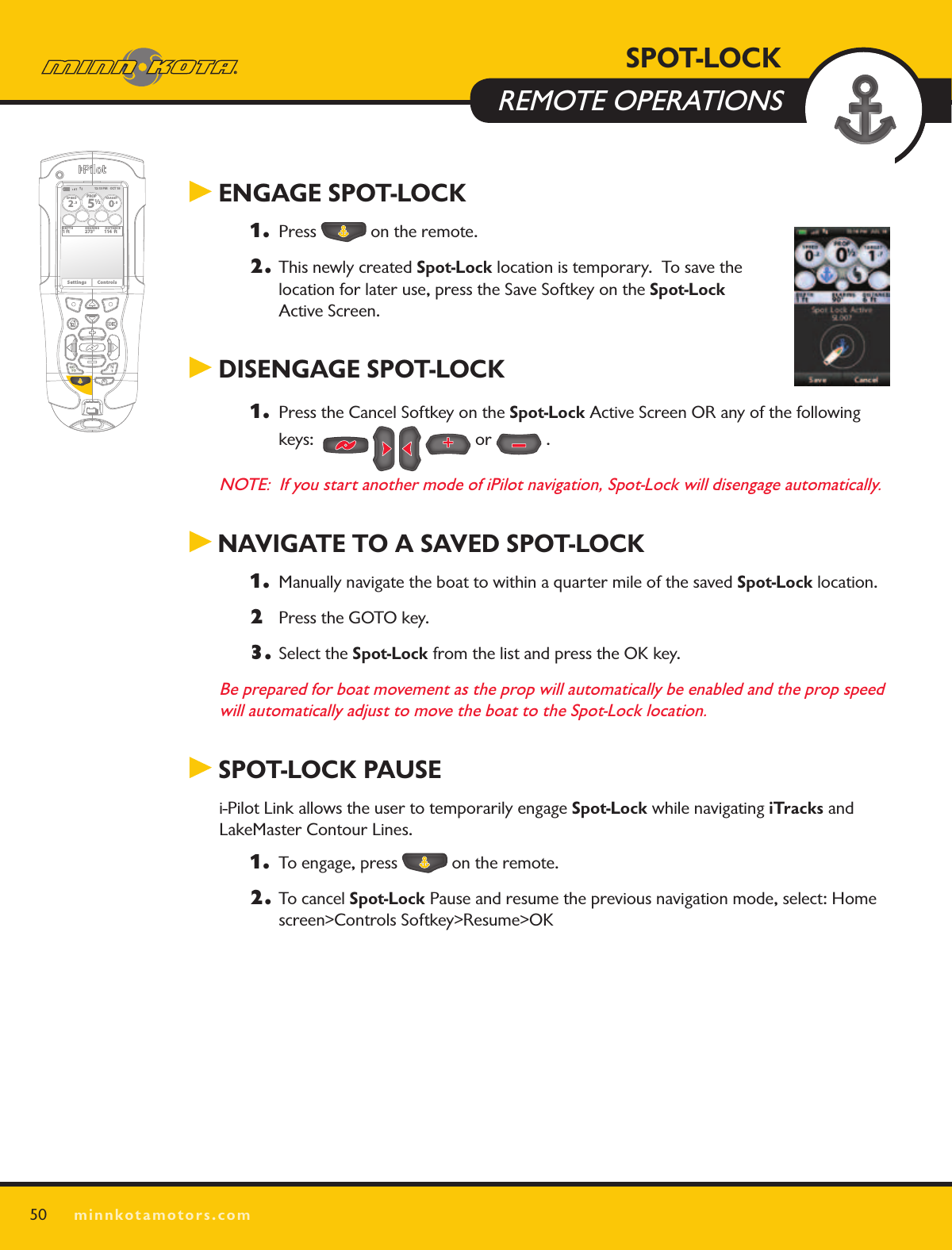

SPOT LOCKminnkotamotors.com50 ENGAGE SPOT-LOCK 1. Press on the remote.2. This newly created Spot-Lock location is temporary. To save the location for later use, press the Save Softkey on the Spot-Lock Active Screen. DISENGAGE SPOT-LOCK1. Press the Cancel Softkey on the Spot-Lock Active Screen OR any of the following keys: or .NOTE: If you start another mode of iPilot navigation, Spot-Lock will disengage automatically. NAVIGATE TO A SAVED SPOT-LOCK1. Manually navigate the boat to within a quarter mile of the saved Spot-Lock location. 2 Press the GOTO key.3. Select the Spot-Lock from the list and press the OK key.Be prepared for boat movement as the prop will automatically be enabled and the prop speed will automatically adjust to move the boat to the Spot-Lock location. SPOT-LOCK PAUSEi-Pilot Link allows the user to temporarily engage Spot-Lock while navigating iTracks and LakeMaster Contour Lines. 1. To engage, press on the remote.2. To cancel Spot-Lock Pause and resume the previous navigation mode, select: Home screen>Controls Softkey>Resume>OK 12:13 PM OCT 18SPEED2.3PROP12/5TARGET0.0DEPTH1 ft 273° 114 ftBEARING DISTANCESettings ControlsSPOT-LOCK REMOTE OPERATIONS

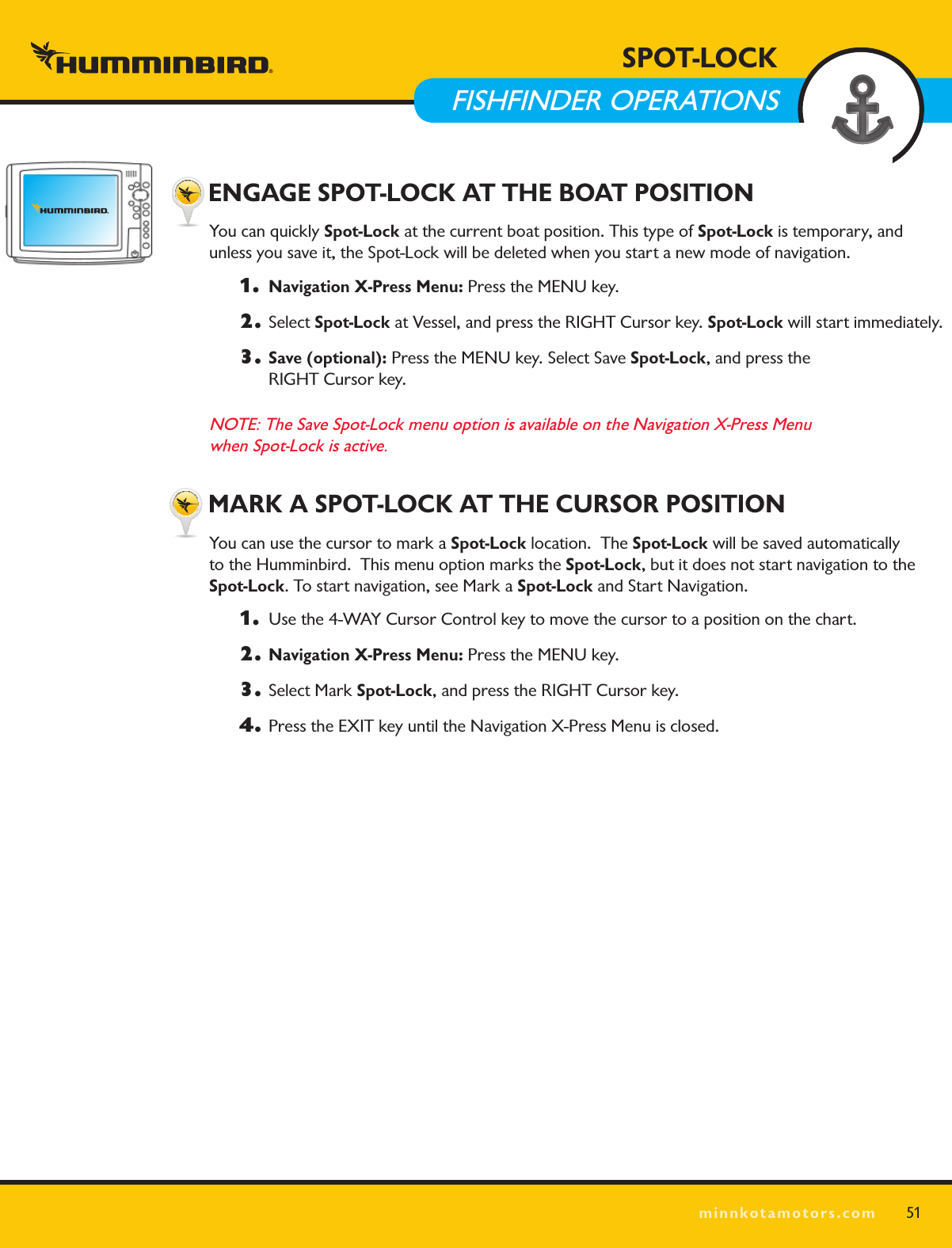

SPOT LOCKminnkotamotors.com51 ENGAGE SPOT-LOCK AT THE BOAT POSITIONYou can quickly Spot-Lock at the current boat position. This type of Spot-Lock is temporary, and unless you save it, the Spot-Lock will be deleted when you start a new mode of navigation.1. Navigation X-Press Menu: Press the MENU key.2. Select Spot-Lock at Vessel, and press the RIGHT Cursor key. Spot-Lock will start immediately.3. Save (optional): Press the MENU key. Select Save Spot-Lock, and press the RIGHT Cursor key.NOTE: The Save Spot-Lock menu option is available on the Navigation X-Press Menu when Spot-Lock is active. MARK A SPOT-LOCK AT THE CURSOR POSITIONYou can use the cursor to mark a Spot-Lock location. The Spot-Lock will be saved automatically to the Humminbird. This menu option marks the Spot-Lock, but it does not start navigation to the Spot-Lock. To start navigation, see Mark a Spot-Lock and Start Navigation.1. Use the 4-WAY Cursor Control key to move the cursor to a position on the chart.2. Navigation X-Press Menu: Press the MENU key. 3. Select Mark Spot-Lock, and press the RIGHT Cursor key. 4. Press the EXIT key until the Navigation X-Press Menu is closed.SPOT-LOCK FISHFINDER OPERATIONS

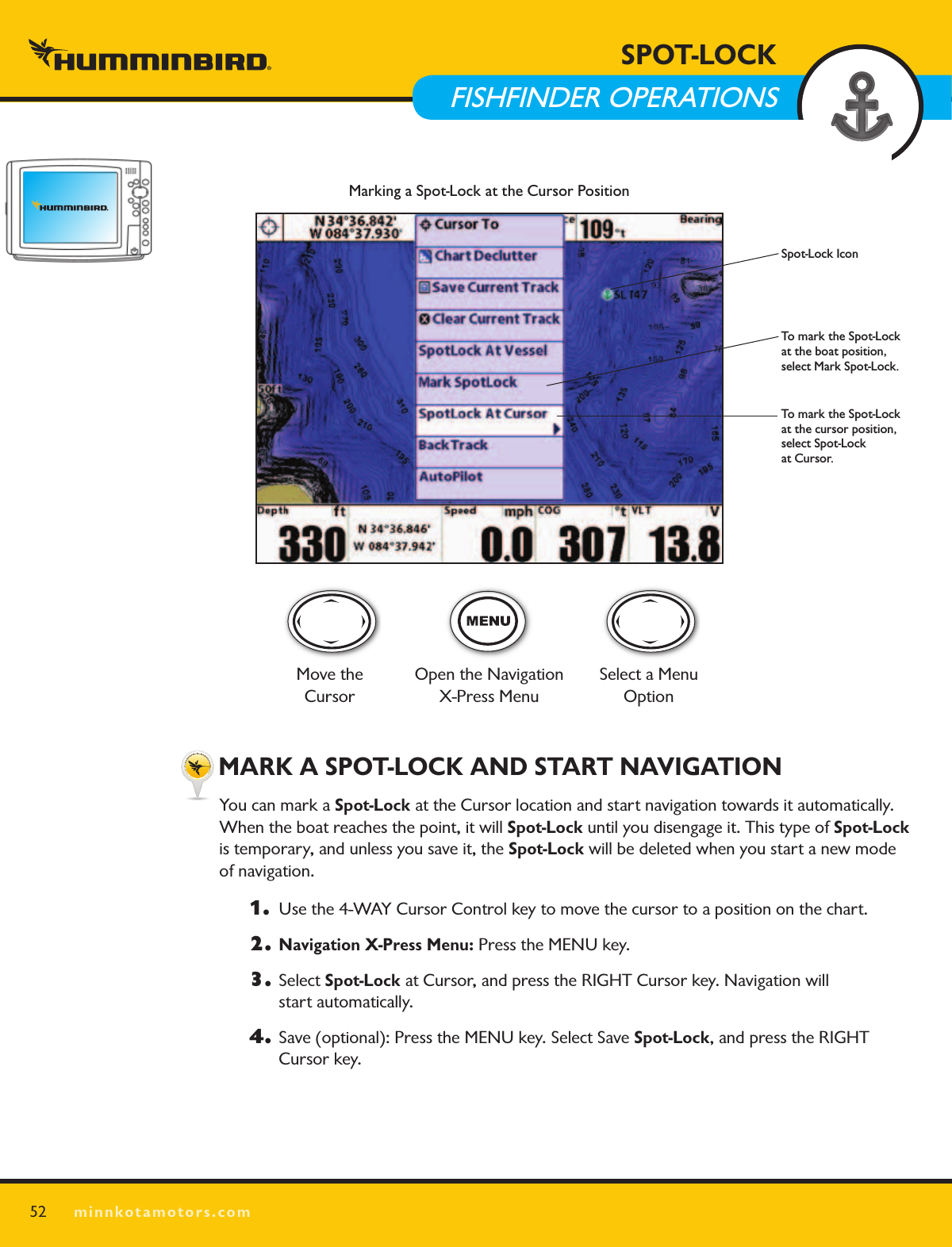

SPOT LOCKminnkotamotors.com MARK A SPOT-LOCK AND START NAVIGATIONYou can mark a Spot-Lock at the Cursor location and start navigation towards it automatically. When the boat reaches the point, it will Spot-Lock until you disengage it. This type of Spot-Lock is temporary, and unless you save it, the Spot-Lock will be deleted when you start a new mode of navigation.1. Use the 4-WAY Cursor Control key to move the cursor to a position on the chart.2. Navigation X-Press Menu: Press the MENU key. 3. Select Spot-Lock at Cursor, and press the RIGHT Cursor key. Navigation will start automatically. 4. Save (optional): Press the MENU key. Select Save Spot-Lock, and press the RIGHT Cursor key.52SPOT-LOCK FISHFINDER OPERATIONSMarking a Spot-Lock at the Cursor PositionTo mark the Spot-Lock at the boat position, select Mark Spot-Lock.To mark the Spot-Lock at the cursor position, select Spot-Lock at Cursor.Spot-Lock IconMove the CursorOpen the Navigation X-Press MenuSelect a Menu Option

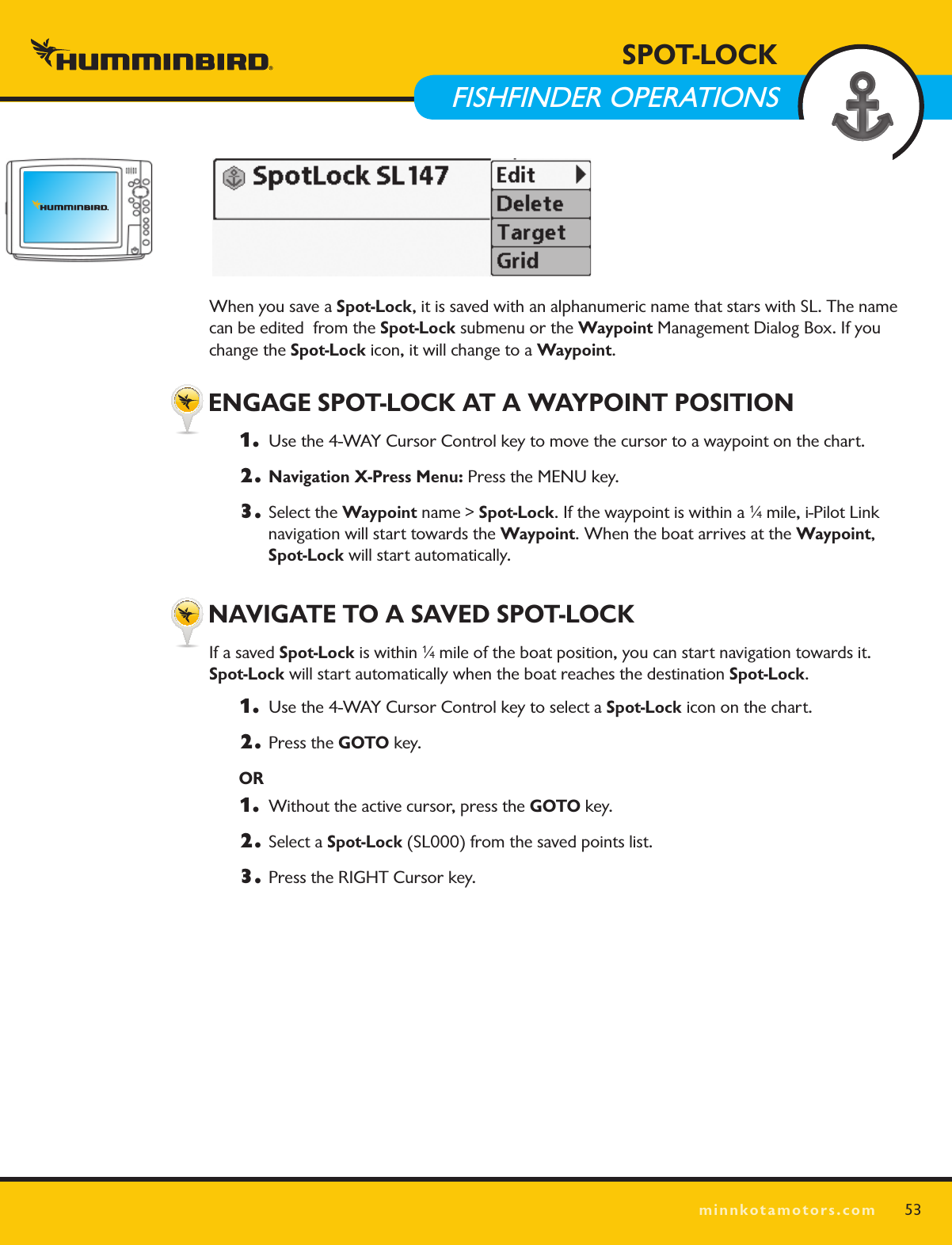

SPOT LOCKminnkotamotors.comWhen you save a Spot-Lock, it is saved with an alphanumeric name that stars with SL. The name can be edited from the Spot-Lock submenu or the Waypoint Management Dialog Box. If you change the Spot-Lock icon, it will change to a Waypoint. ENGAGE SPOT-LOCK AT A WAYPOINT POSITION1. Use the 4-WAY Cursor Control key to move the cursor to a waypoint on the chart.2. Navigation X-Press Menu: Press the MENU key.3. Select the Waypoint name > Spot-Lock. If the waypoint is within a 1⁄4 mile, i-Pilot Link navigation will start towards the Waypoint. When the boat arrives at the Waypoint, Spot-Lock will start automatically. NAVIGATE TO A SAVED SPOT-LOCKIf a saved Spot-Lock is within 1⁄4 mile of the boat position, you can start navigation towards it. Spot-Lock will start automatically when the boat reaches the destination Spot-Lock.1. Use the 4-WAY Cursor Control key to select a Spot-Lock icon on the chart. 2. Press the GOTO key. OR1. Without the active cursor, press the GOTO key. 2. Select a Spot-Lock (SL000) from the saved points list. 3. Press the RIGHT Cursor key. 53SPOT-LOCK FISHFINDER OPERATIONS

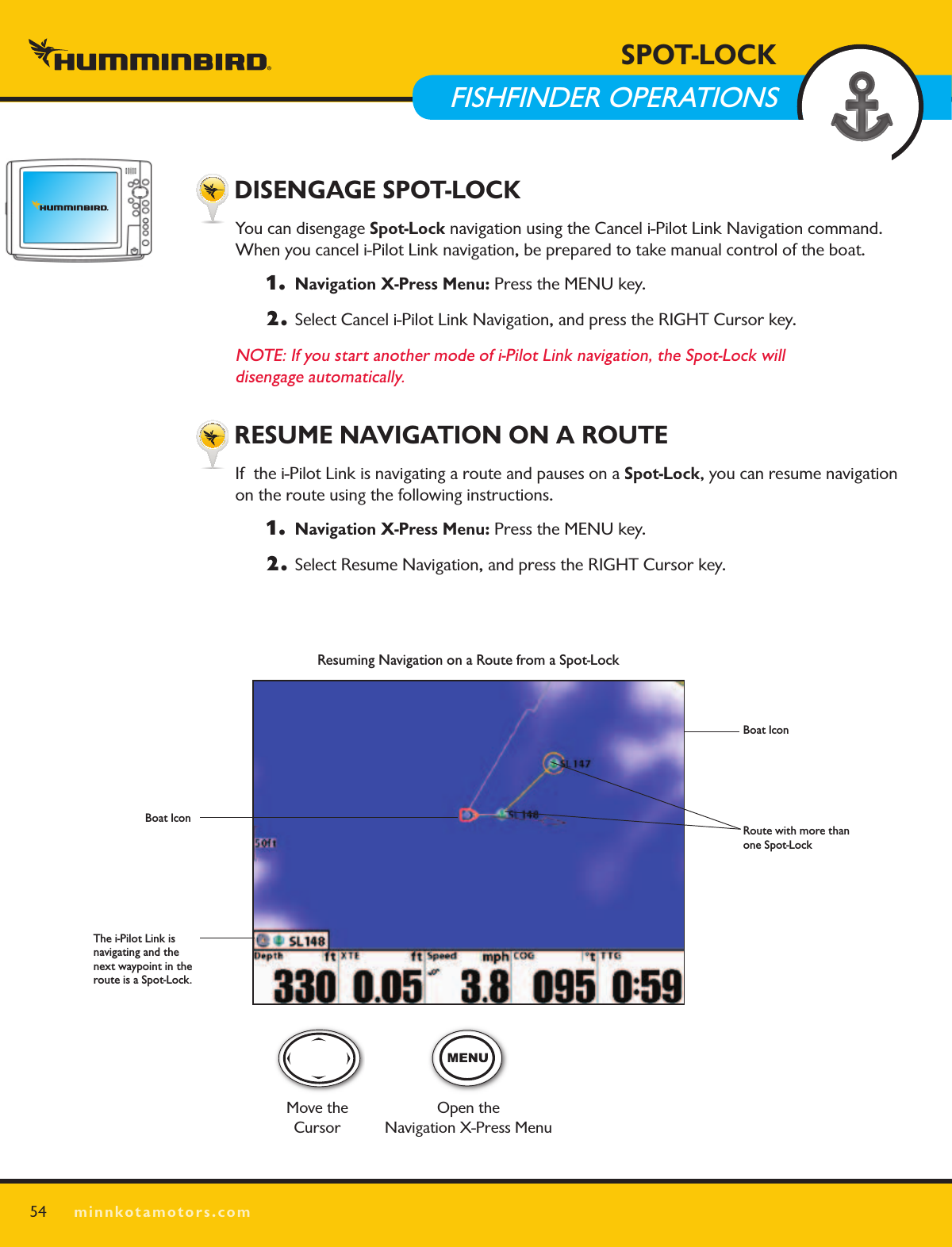

SPOT LOCKminnkotamotors.com54SPOT-LOCK FISHFINDER OPERATIONS DISENGAGE SPOT-LOCKYou can disengage Spot-Lock navigation using the Cancel i-Pilot Link Navigation command. When you cancel i-Pilot Link navigation, be prepared to take manual control of the boat. 1. Navigation X-Press Menu: Press the MENU key. 2. Select Cancel i-Pilot Link Navigation, and press the RIGHT Cursor key.NOTE: If you start another mode of i-Pilot Link navigation, the Spot-Lock will disengage automatically. RESUME NAVIGATION ON A ROUTEIf the i-Pilot Link is navigating a route and pauses on a Spot-Lock, you can resume navigation on the route using the following instructions. 1. Navigation X-Press Menu: Press the MENU key. 2. Select Resume Navigation, and press the RIGHT Cursor key.Resuming Navigation on a Route from a Spot-LockBoat IconRoute with more than one Spot-LockMove the CursorOpen the Navigation X-Press MenuThe i-Pilot Link is navigating and the next waypoint in the route is a Spot-Lock.Boat Icon
