Jonter Digital M23 BLUETOOTH SPEAKER User Manual JONTER

Shenzhen Jonter Digital Co., Ltd BLUETOOTH SPEAKER JONTER

User Manual

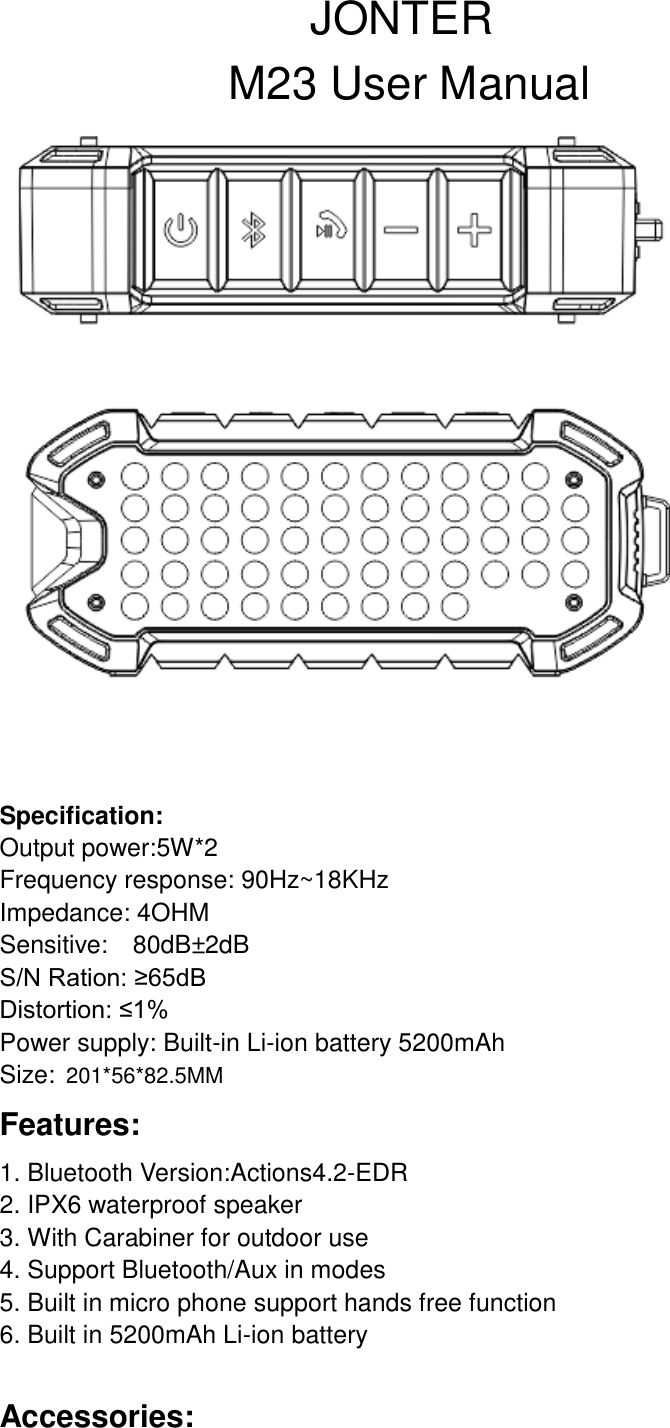

JONTER M23 User Manual Specification: Output power:5W*2 Frequency response: 90Hz~18KHz Impedance: 4OHM Sensitive: 80dB±2dB S/N Ration: ≥65dB Distortion: ≤1% Power supply: Built-in Li-ion battery 5200mAh Size: 201*56*82.5MM Features: 1. Bluetooth Version:Actions4.2-EDR 2. IPX6 waterproof speaker 3. With Carabiner for outdoor use 4. Support Bluetooth/Aux in modes 5. Built in micro phone support hands free function 6. Built in 5200mAh Li-ion battery Accessories:

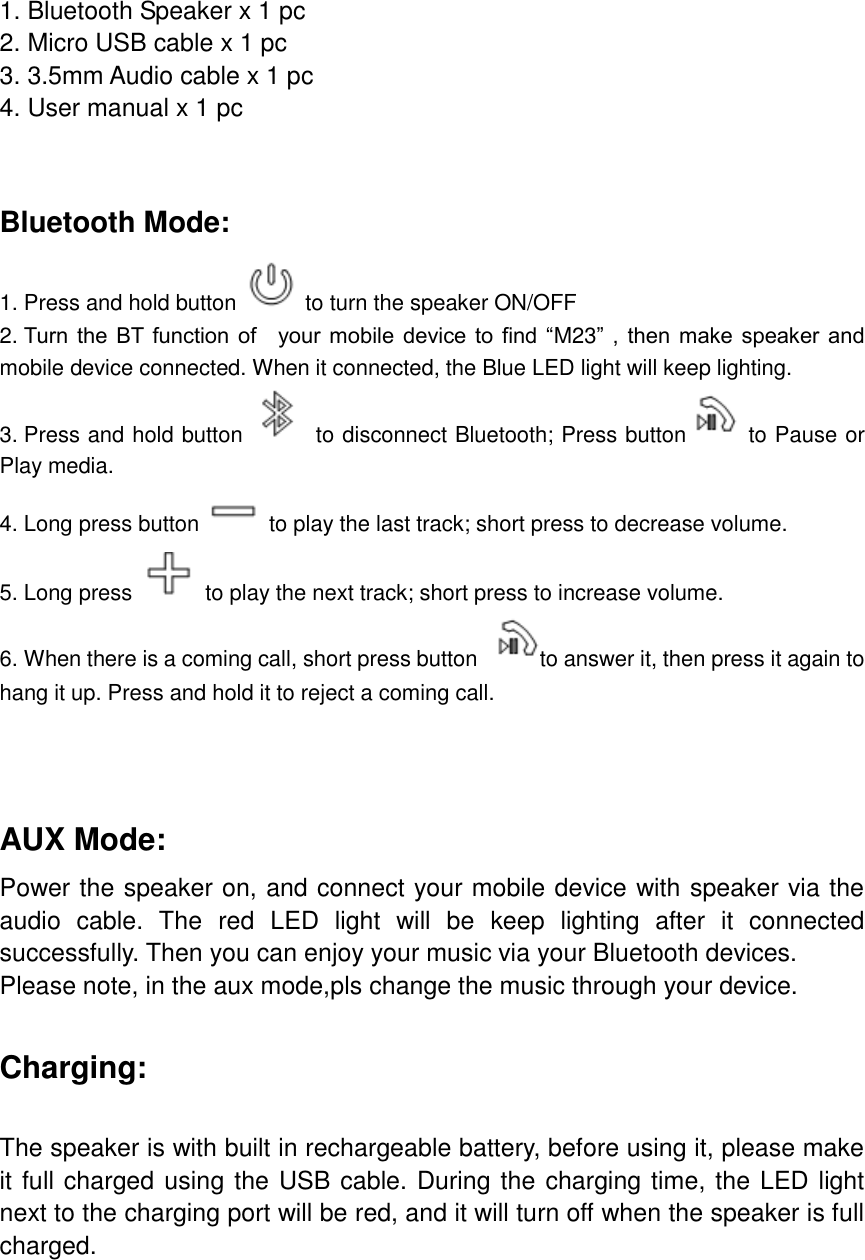

1. Bluetooth Speaker x 1 pc 2. Micro USB cable x 1 pc 3. 3.5mm Audio cable x 1 pc 4. User manual x 1 pc Bluetooth Mode: 1. Press and hold button to turn the speaker ON/OFF 2. Turn the BT function of your mobile device to find “M23” , then make speaker and mobile device connected. When it connected, the Blue LED light will keep lighting. 3. Press and hold button to disconnect Bluetooth; Press button to Pause or Play media. 4. Long press button to play the last track; short press to decrease volume. 5. Long press to play the next track; short press to increase volume. 6. When there is a coming call, short press button to answer it, then press it again to hang it up. Press and hold it to reject a coming call. AUX Mode: Power the speaker on, and connect your mobile device with speaker via the audio cable. The red LED light will be keep lighting after it connected successfully. Then you can enjoy your music via your Bluetooth devices. Please note, in the aux mode,pls change the music through your device. Charging: The speaker is with built in rechargeable battery, before using it, please make it full charged using the USB cable. During the charging time, the LED light next to the charging port will be red, and it will turn off when the speaker is full charged.

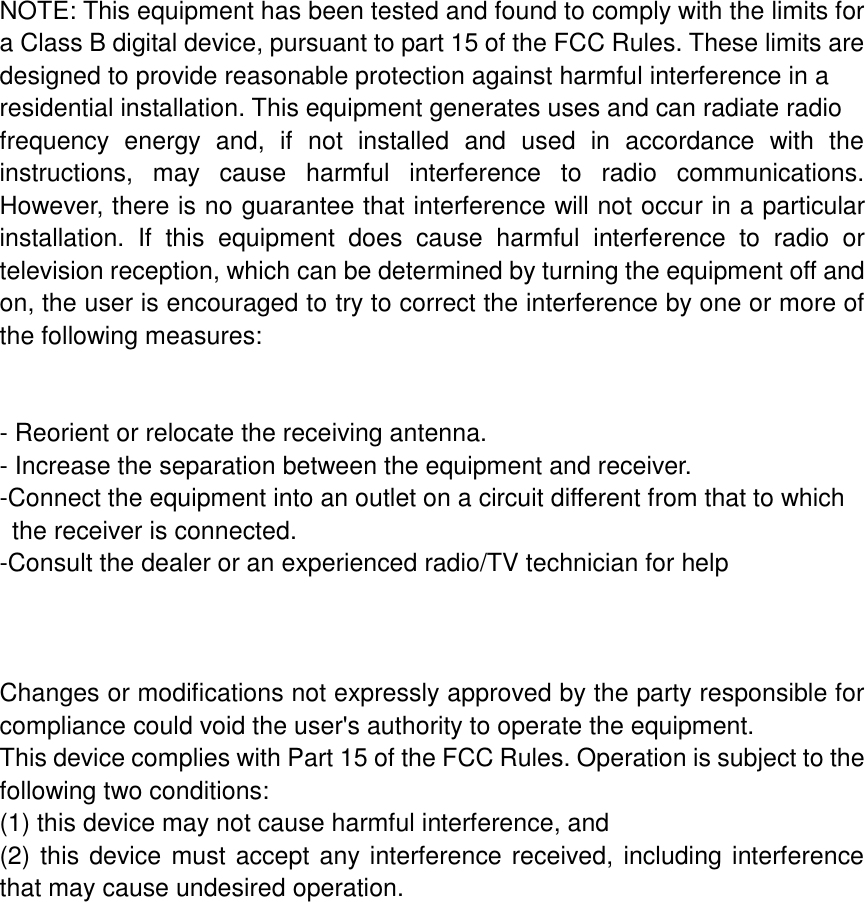

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
