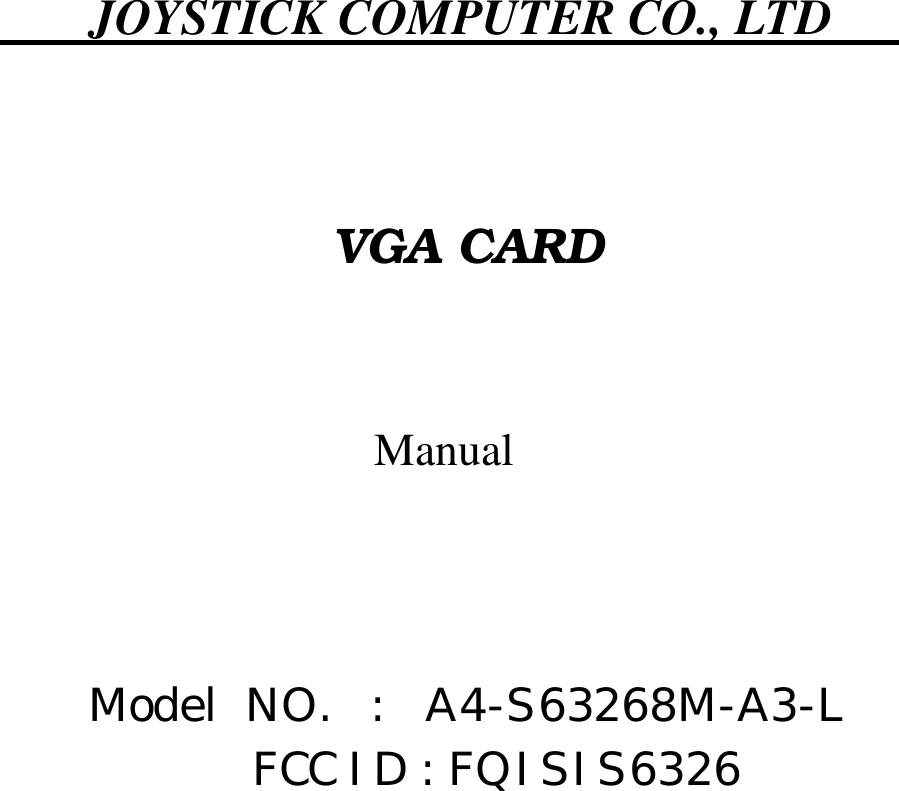

JOYSTICK COMPUTER CO., LTD VGA CARD Manual Model NO. : A4-S63268M-A3-L FCC ID : FQISIS6326
FEDERAL COMMUNICATIONS COMMISSIONThis device complies with Part 15 of the FCC Rules. Operation is subject tothe following two conditions:(1) this device may not cause harmfulinterference, and (2) this device must accept any interference received,including interference that may cause undesired operation.NOTEThis equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection. This equipment generates, usesand can radiated radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will notoccur in a particular installation If this equipment does cause harmfulinterference to radio or television reception, which can be determined byturning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.Shielded interface cables must be used in order to comply with emissionlimits.Changes or modifications not expressly approved by the party responsible forcompliance could void the user‘s authority to operate the equipment.

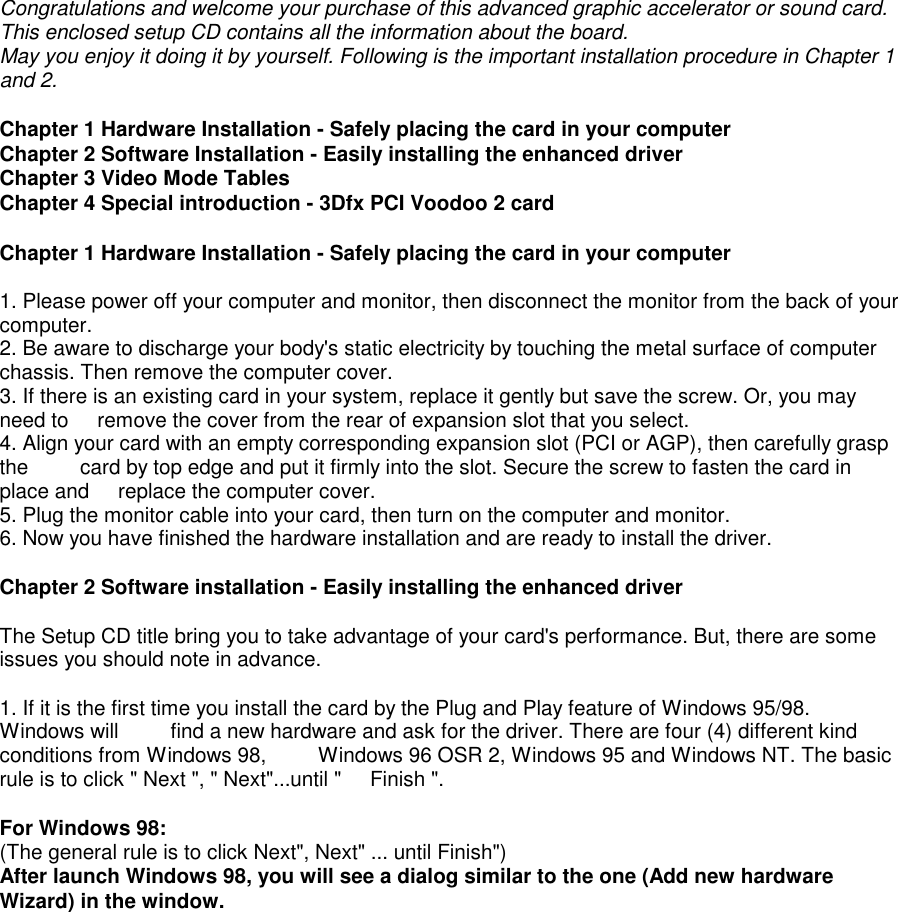

Congratulations and welcome your purchase of this advanced graphic accelerator or sound card.This enclosed setup CD contains all the information about the board.May you enjoy it doing it by yourself. Following is the important installation procedure in Chapter 1and 2.Chapter 1 Hardware Installation - Safely placing the card in your computerChapter 2 Software Installation - Easily installing the enhanced driverChapter 3 Video Mode TablesChapter 4 Special introduction - 3Dfx PCI Voodoo 2 cardChapter 1 Hardware Installation - Safely placing the card in your computer1. Please power off your computer and monitor, then disconnect the monitor from the back of yourcomputer.2. Be aware to discharge your body's static electricity by touching the metal surface of computerchassis. Then remove the computer cover.3. If there is an existing card in your system, replace it gently but save the screw. Or, you mayneed to remove the cover from the rear of expansion slot that you select.4. Align your card with an empty corresponding expansion slot (PCI or AGP), then carefully graspthe card by top edge and put it firmly into the slot. Secure the screw to fasten the card inplace and replace the computer cover.5. Plug the monitor cable into your card, then turn on the computer and monitor.6. Now you have finished the hardware installation and are ready to install the driver.Chapter 2 Software installation - Easily installing the enhanced driverThe Setup CD title bring you to take advantage of your card's performance. But, there are someissues you should note in advance.1. If it is the first time you install the card by the Plug and Play feature of Windows 95/98.Windows will find a new hardware and ask for the driver. There are four (4) different kindconditions from Windows 98, Windows 96 OSR 2, Windows 95 and Windows NT. The basicrule is to click " Next ", " Next"...until " Finish ".For Windows 98:(The general rule is to click Next", Next" ... until Finish")After launch Windows 98, you will see a dialog similar to the one (Add new hardwareWizard) in the window.

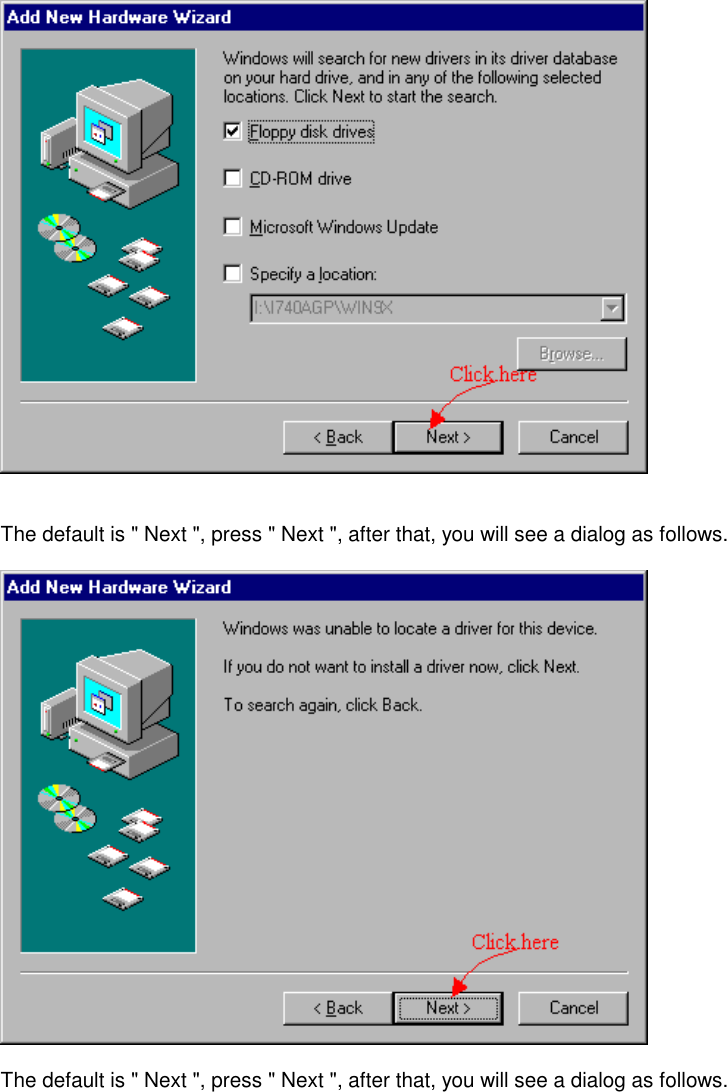

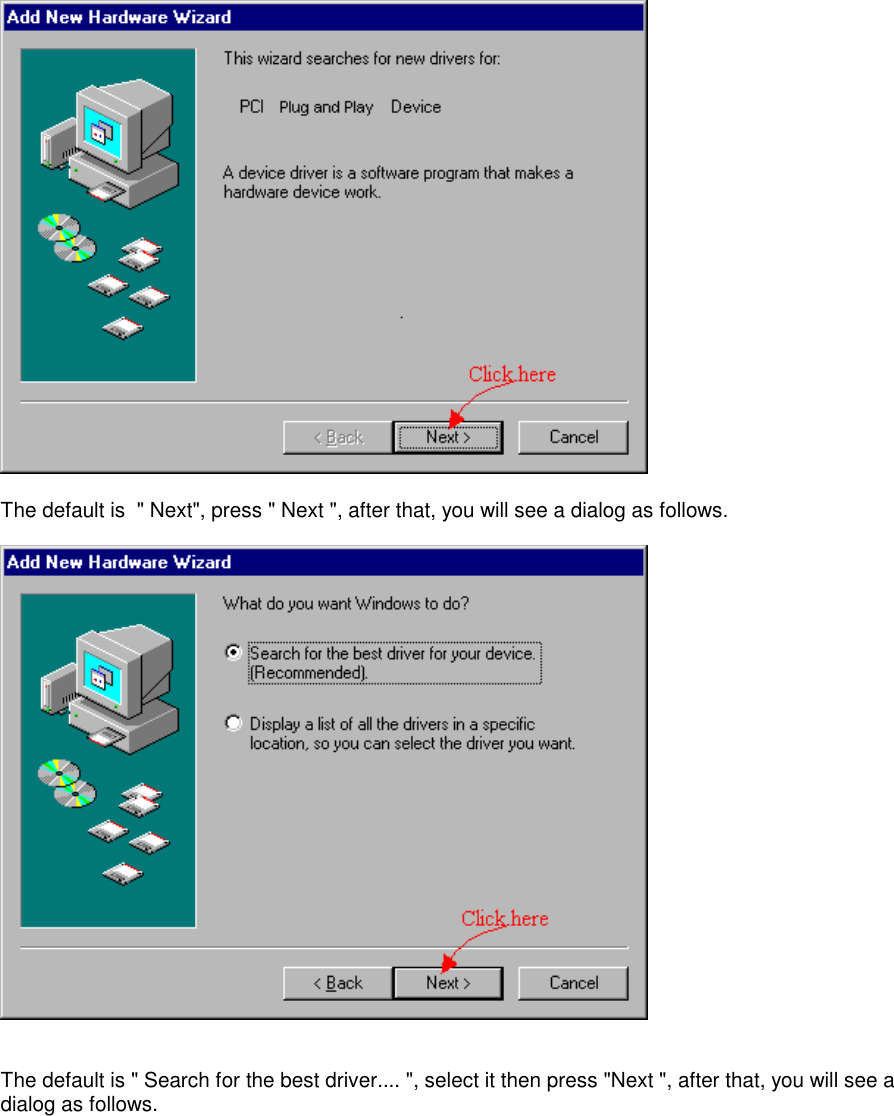

The default is " Next", press " Next ", after that, you will see a dialog as follows.The default is " Search for the best driver.... ", select it then press "Next ", after that, you will see adialog as follows.
The default is " Next ", press " Next ", after that, you will see a dialog as follows.The default is " Next ", press " Next ", after that, you will see a dialog as follows.

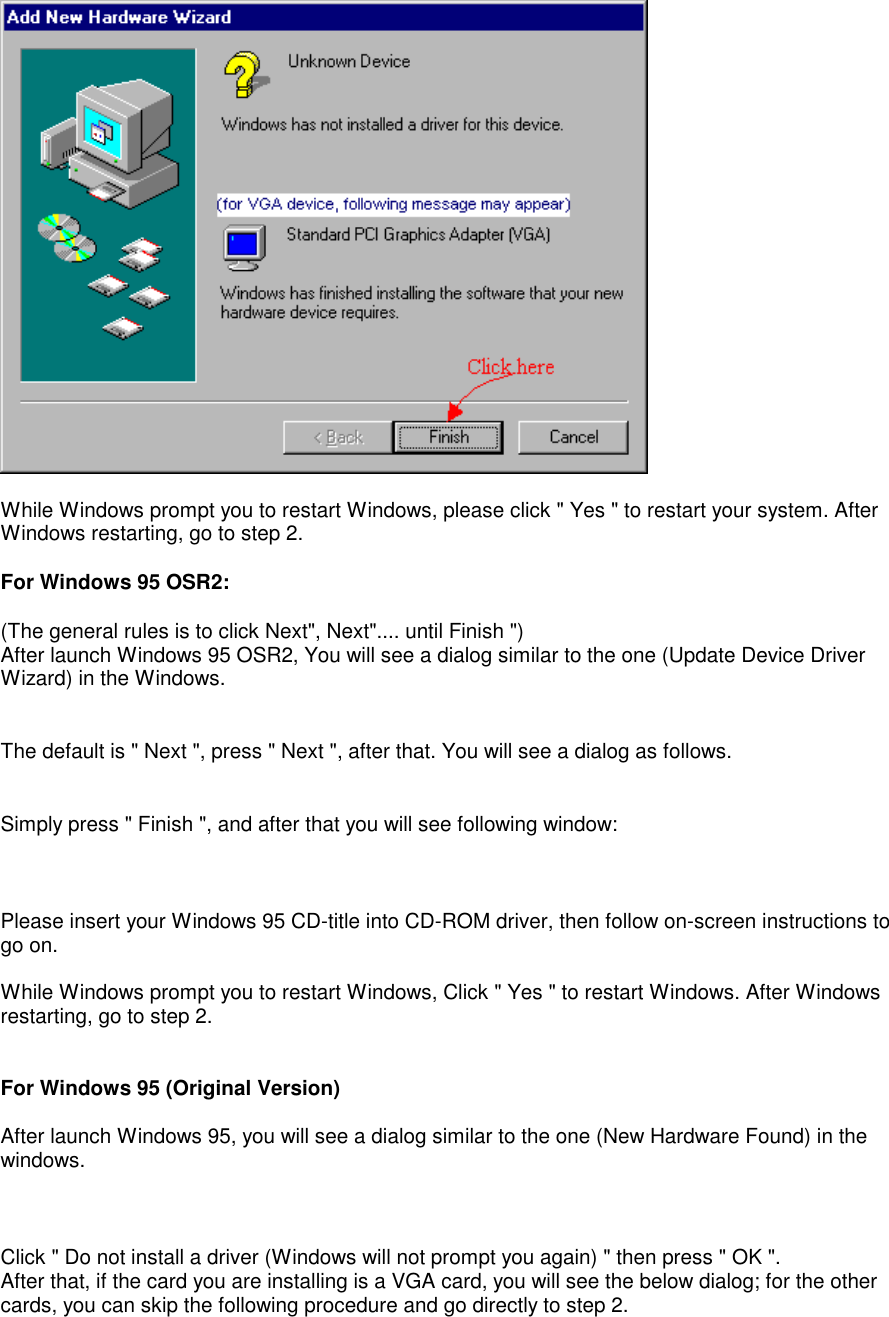

While Windows prompt you to restart Windows, please click " Yes " to restart your system. AfterWindows restarting, go to step 2.For Windows 95 OSR2:(The general rules is to click Next", Next".... until Finish ")After launch Windows 95 OSR2, You will see a dialog similar to the one (Update Device DriverWizard) in the Windows.The default is " Next ", press " Next ", after that. You will see a dialog as follows.Simply press " Finish ", and after that you will see following window:Please insert your Windows 95 CD-title into CD-ROM driver, then follow on-screen instructions togo on.While Windows prompt you to restart Windows, Click " Yes " to restart Windows. After Windowsrestarting, go to step 2.For Windows 95 (Original Version)After launch Windows 95, you will see a dialog similar to the one (New Hardware Found) in thewindows.Click " Do not install a driver (Windows will not prompt you again) " then press " OK ".After that, if the card you are installing is a VGA card, you will see the below dialog; for the othercards, you can skip the following procedure and go directly to step 2.
Press " Cancel ", and then you will see:Click " Cancel ", then go to step 2.While Windows prompt you restart Windows; please click " Yes " to restart your system. AfterWindows restarting go to step 2.For Windows NT:Please select VGA mode from boot menu, if it is your first time to start Windows NT.2. Insert the Setup CD into your CD-ROM driver.IF Windows 95/98 runs the CD-ROM automatically, proceed to step 3.3. It will auto-launch the setup program on Windows 95/98 or Windows NT then click a properdriver.4. If you are on the other platform on the setup program does not auto-run, please double click theMSSETUP.EXE on the root of the setup CD. After a setup display in the specific setup window,you can conveniently install the driver and related software by the on-screen instructions tocomplete the installation.The following windows is an example Setup Window for 3Dfx Banshee, other chipset has similarpicture. Click the button to install a corresponding drivers or software. While Windows prompt youto restart Windows, please click YES to restart your system.Chapter 3 Video Mode tablesVideo Mode TablesnVidia TNT AGP/16MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 60-170 60-170 - 60-170800x600 60-144 60-144 - 60-1441024x768 60-100 60-100 - 60-1001152x864 60-100 60-100 - 60-1001280x1024 60-85 60-85 - 60-851600x1200 60-75 60-75 - 60-753Dfx Voodoo Banshee AGP/16MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 60-120 60-120 60-120 60-120

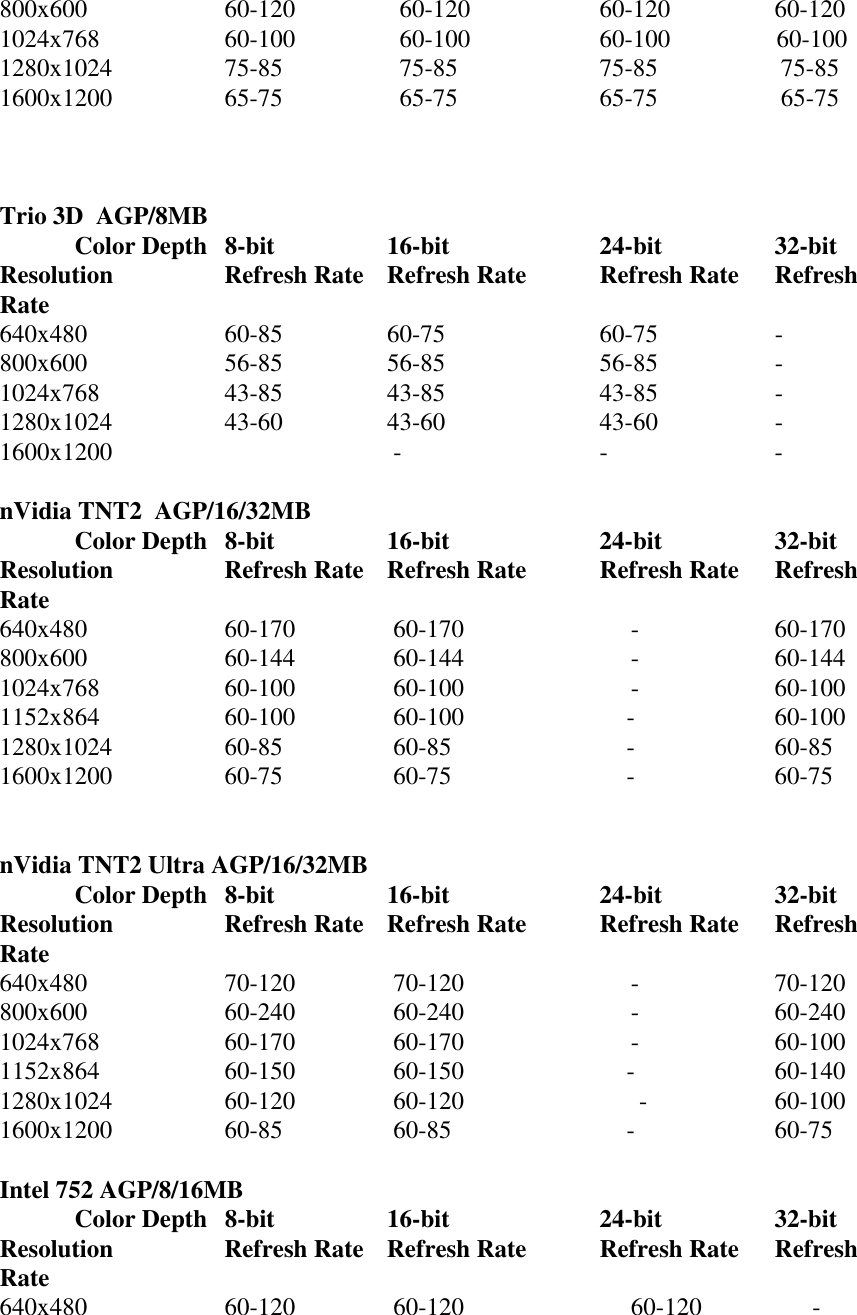

800x600 60-120 60-120 60-120 60-1201024x768 60-100 60-100 60-100 60-1001280x1024 75-85 75-85 75-85 75-851600x1200 65-75 65-75 65-75 65-75Trio 3D AGP/8MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 60-85 60-75 60-75 -800x600 56-85 56-85 56-85 -1024x768 43-85 43-85 43-85 -1280x1024 43-60 43-60 43-60 -1600x1200 - - -nVidia TNT2 AGP/16/32MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 60-170 60-170 - 60-170800x600 60-144 60-144 - 60-1441024x768 60-100 60-100 - 60-1001152x864 60-100 60-100 - 60-1001280x1024 60-85 60-85 - 60-851600x1200 60-75 60-75 - 60-75 nVidia TNT2 Ultra AGP/16/32MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 70-120 70-120 - 70-120800x600 60-240 60-240 - 60-2401024x768 60-170 60-170 - 60-1001152x864 60-150 60-150 - 60-1401280x1024 60-120 60-120 - 60-1001600x1200 60-85 60-85 - 60-75Intel 752 AGP/8/16MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 60-120 60-120 60-120 -

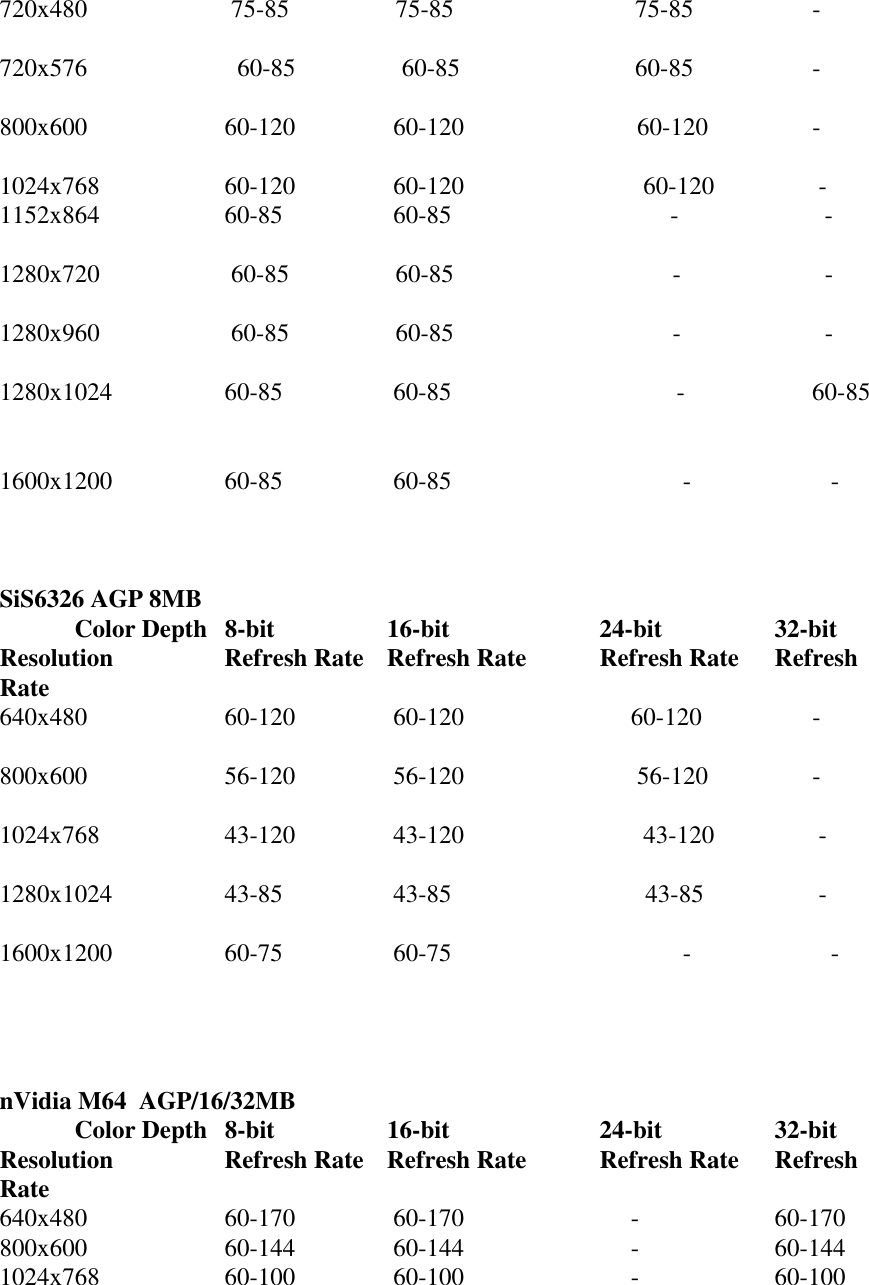

720x480 75-85 75-85 75-85 -720x576 60-85 60-85 60-85 -800x600 60-120 60-120 60-120 -1024x768 60-120 60-120 60-120 -1152x864 60-85 60-85 - -1280x720 60-85 60-85 - -1280x960 60-85 60-85 - -1280x1024 60-85 60-85 - 60-851600x1200 60-85 60-85 - -SiS6326 AGP 8MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 60-120 60-120 60-120 -800x600 56-120 56-120 56-120 -1024x768 43-120 43-120 43-120 -1280x1024 43-85 43-85 43-85 -1600x1200 60-75 60-75 - -nVidia M64 AGP/16/32MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 60-170 60-170 - 60-170800x600 60-144 60-144 - 60-1441024x768 60-100 60-100 - 60-100

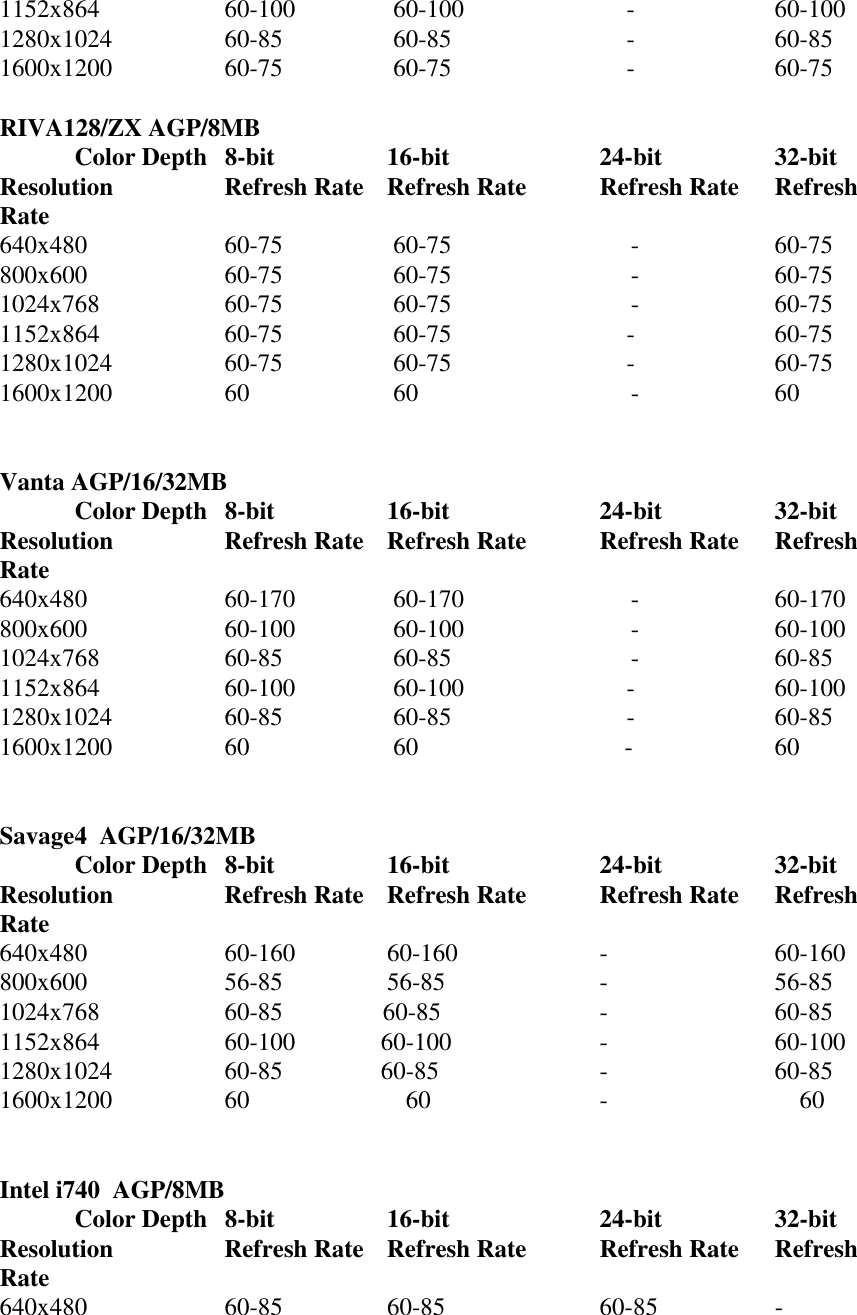

1152x864 60-100 60-100 - 60-1001280x1024 60-85 60-85 - 60-851600x1200 60-75 60-75 - 60-75RIVA128/ZX AGP/8MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 60-75 60-75 - 60-75800x600 60-75 60-75 - 60-751024x768 60-75 60-75 - 60-751152x864 60-75 60-75 - 60-751280x1024 60-75 60-75 - 60-751600x1200 60 60 - 60Vanta AGP/16/32MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 60-170 60-170 - 60-170800x600 60-100 60-100 - 60-1001024x768 60-85 60-85 - 60-851152x864 60-100 60-100 - 60-1001280x1024 60-85 60-85 - 60-851600x1200 60 60 - 60Savage4 AGP/16/32MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 60-160 60-160 - 60-160800x600 56-85 56-85 - 56-851024x768 60-85 60-85 - 60-851152x864 60-100 60-100 - 60-1001280x1024 60-85 60-85 - 60-851600x1200 60 60 - 60Intel i740 AGP/8MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 60-85 60-85 60-85 -

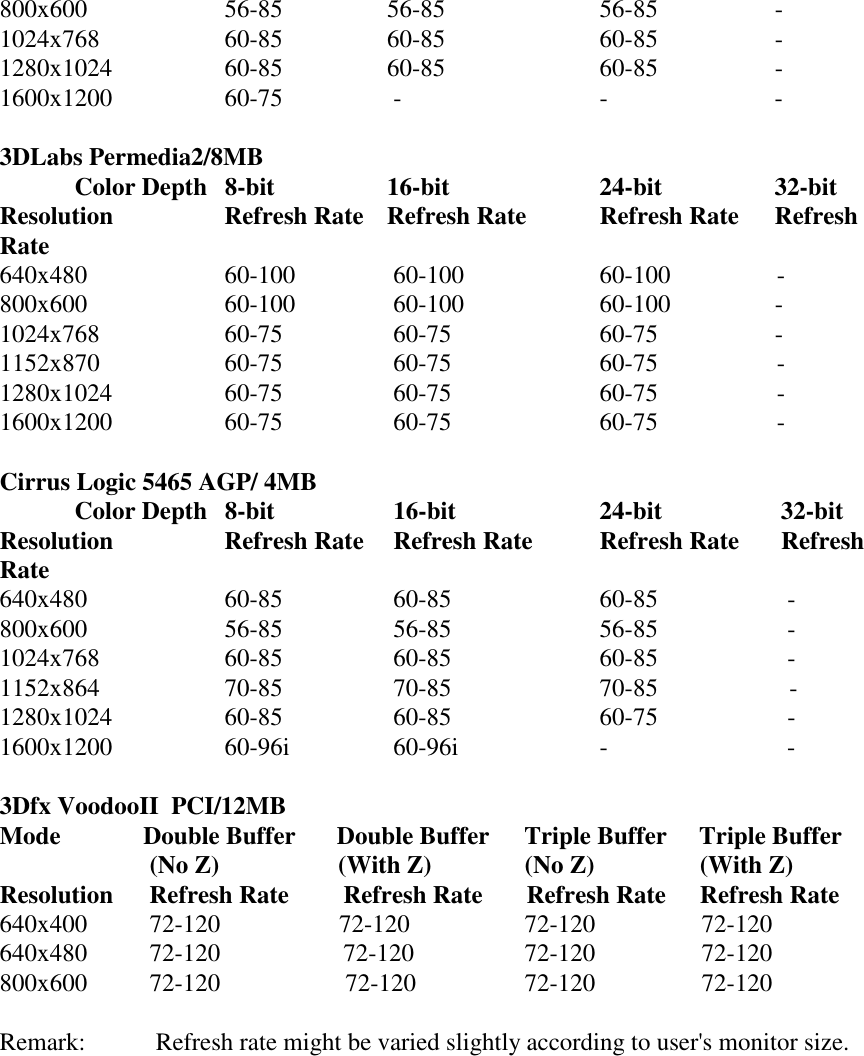

800x600 56-85 56-85 56-85 -1024x768 60-85 60-85 60-85 -1280x1024 60-85 60-85 60-85 -1600x1200 60-75 - - -3DLabs Permedia2/8MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 60-100 60-100 60-100 -800x600 60-100 60-100 60-100 -1024x768 60-75 60-75 60-75 -1152x870 60-75 60-75 60-75 -1280x1024 60-75 60-75 60-75 -1600x1200 60-75 60-75 60-75 -Cirrus Logic 5465 AGP/ 4MBColor Depth 8-bit 16-bit 24-bit 32-bitResolution Refresh Rate Refresh Rate Refresh Rate RefreshRate640x480 60-85 60-85 60-85 -800x600 56-85 56-85 56-85 -1024x768 60-85 60-85 60-85 -1152x864 70-85 70-85 70-85 -1280x1024 60-85 60-85 60-75 -1600x1200 60-96i 60-96i - -3Dfx VoodooII PCI/12MBMode Double Buffer Double Buffer Triple Buffer Triple Buffer(No Z) (With Z) (No Z) (With Z)Resolution Refresh Rate Refresh Rate Refresh Rate Refresh Rate640x400 72-120 72-120 72-120 72-120640x480 72-120 72-120 72-120 72-120800x600 72-120 72-120 72-120 72-120Remark: Refresh rate might be varied slightly according to user's monitor size.
