K Mark GL-DEVICE Good Life Remote User Manual

K-Mark Industrial Limited. Good Life Remote

User manual

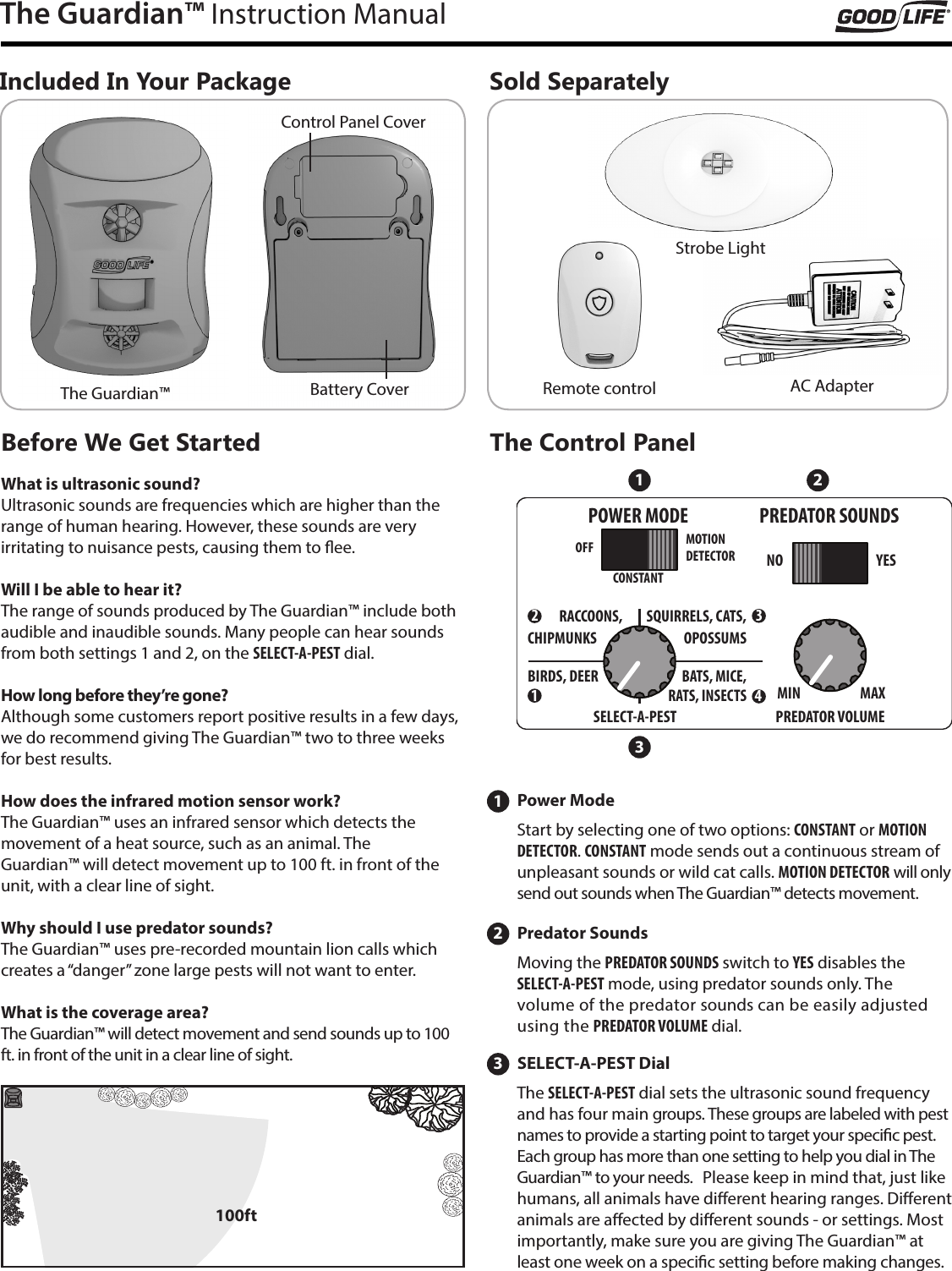

The Guardian™ Instruction ManualIncluded In Your PackageBefore We Get StartedSold SeparatelyThe Guardian™Control Panel CoverBattery Cover AC AdapterRemote controlStrobe LightSELECT-A-PEST Dial3The SELECT-A-PEST dial sets the ultrasonic sound frequency and has four main groups. These groups are labeled with pest names to provide a starting point to target your specic pest. Each group has more than one setting to help you dial in The Guardian™ to your needs. Please keep in mind that, just like humans, all animals have dierent hearing ranges. Dierent animals are aected by dierent sounds - or settings. Most importantly, make sure you are giving The Guardian™ at least one week on a specic setting before making changes.Power Mode1Start by selecting one of two options: CONSTANT or MOTION DETECTOR. CONSTANT mode sends out a continuous stream of unpleasant sounds or wild cat calls. MOTION DETECTOR will only send out sounds when The Guardian™ detects movement. Predator Sounds2Moving the PREDATOR SOUNDS switch to YES disables the SELECT-A-PEST mode, using predator sounds only. The volume of the predator sounds can be easily adjusted using the PREDATOR VOLUME dial. What is ultrasonic sound?Ultrasonic sounds are frequencies which are higher than the range of human hearing. However, these sounds are very irritating to nuisance pests, causing them to ee. Will I be able to hear it?The range of sounds produced by The Guardian™ include both audible and inaudible sounds. Many people can hear sounds from both settings 1 and 2, on the SELECT-A-PEST dial.How long before they’re gone?Although some customers report positive results in a few days, we do recommend giving The Guardian™ two to three weeks for best results. How does the infrared motion sensor work?The Guardian™ uses an infrared sensor which detects the movement of a heat source, such as an animal. The Guardian™ will detect movement up to 100 ft. in front of the unit, with a clear line of sight.Why should I use predator sounds?The Guardian™ uses pre-recorded mountain lion calls which creates a “danger” zone large pests will not want to enter.What is the coverage area?The Guardian™ will detect movement and send sounds up to 100 ft. in front of the unit in a clear line of sight. OFF NOMIN MAXBIRDS, DEEROPOSSUMSCHIPMUNKSRACCOONS,BATS, MICE,YESCONSTANTPOWER MODE PREDATOR SOUNDSPREDATOR VOLUMESELECT-A-PESTMOTIONDETECTORSQUIRRELS, CATS,RATS, INSECTS32141 23The Control Panel100ft

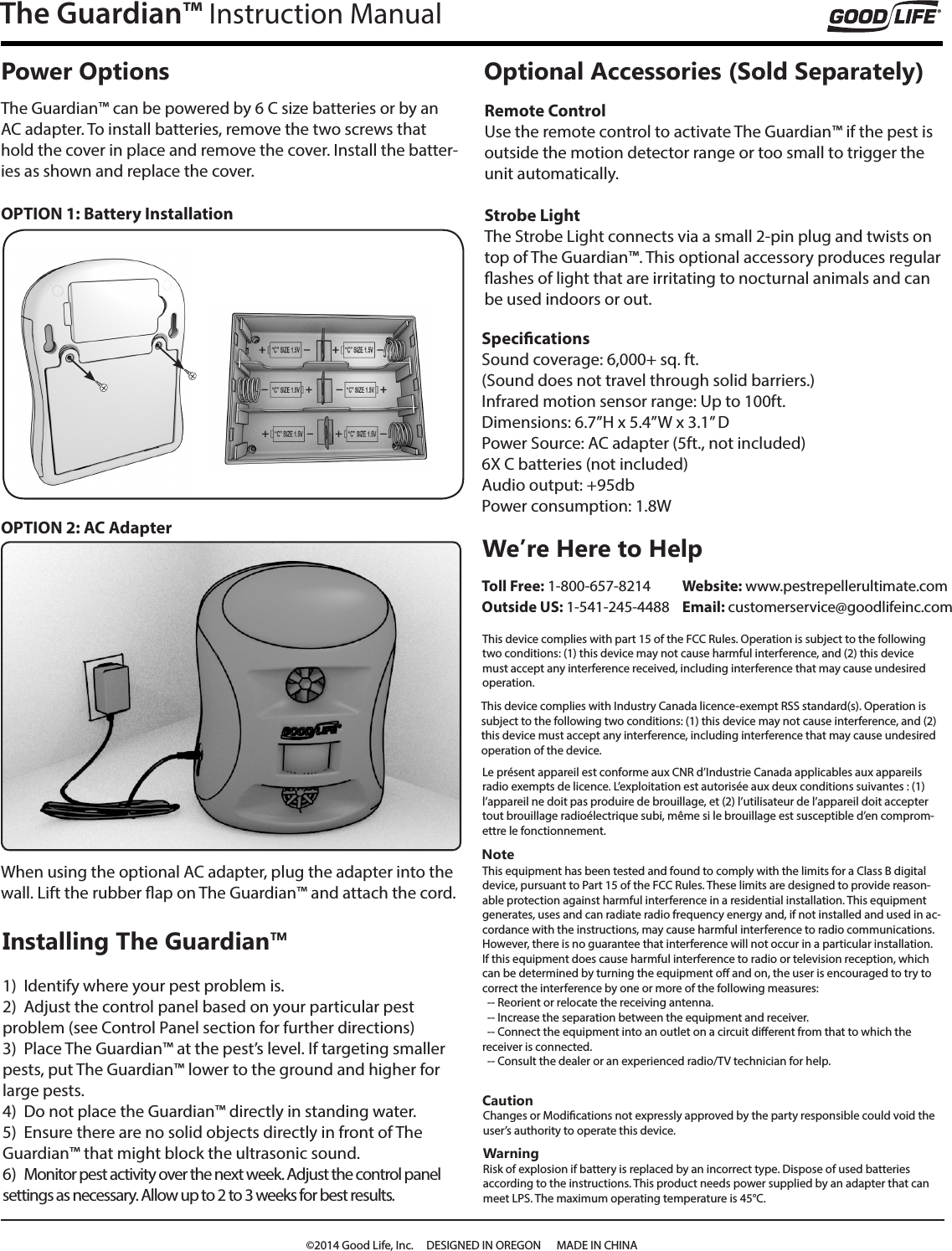

The Guardian™ Instruction ManualNoteThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-able protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in ac-cordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.We’re Here to Help Toll Free: 1-800-657-8214 Outside US: 1-541-245-4488CautionChanges or Modications not expressly approved by the party responsible could void the user’s authority to operate this device.WarningRisk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. This product needs power supplied by an adapter that can meet LPS. The maximum operating temperature is 45°C.This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Website: www.pestrepellerultimate.com Email: customerservice@goodlifeinc.comThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en comprom-ettre le fonctionnement.©2014 Good Life, Inc. DESIGNED IN OREGON MADE IN CHINAPower Options Optional Accessories (Sold Separately)The Guardian™ can be powered by 6 C size batteries or by an AC adapter. To install batteries, remove the two screws that hold the cover in place and remove the cover. Install the batter-ies as shown and replace the cover.When using the optional AC adapter, plug the adapter into the wall. Lift the rubber ap on The Guardian™ and attach the cord. Remote ControlUse the remote control to activate The Guardian™ if the pest is outside the motion detector range or too small to trigger the unit automatically. Strobe LightThe Strobe Light connects via a small 2-pin plug and twists on top of The Guardian™. This optional accessory produces regular ashes of light that are irritating to nocturnal animals and can be used indoors or out. Installing The Guardian™1) Identify where your pest problem is.2) Adjust the control panel based on your particular pest problem (see Control Panel section for further directions)3) Place The Guardian™ at the pest’s level. If targeting smaller pests, put The Guardian™ lower to the ground and higher for large pests. 4) Do not place the Guardian™ directly in standing water. 5) Ensure there are no solid objects directly in front of The Guardian™ that might block the ultrasonic sound.6) Monitor pest activity over the next week. Adjust the control panel settings as necessary. Allow up to 2 to 3 weeks for best results.OPTION 1: Battery InstallationOPTION 2: AC AdapterSpecicationsSound coverage: 6,000+ sq. ft.(Sound does not travel through solid barriers.)Infrared motion sensor range: Up to 100ft.Dimensions: 6.7”H x 5.4”W x 3.1” DPower Source: AC adapter (5ft., not included)6X C batteries (not included)Audio output: +95dbPower consumption: 1.8W
