WLM200N5 49 User Manual

(WLM200N5-23-4.9) User Manual_20120925

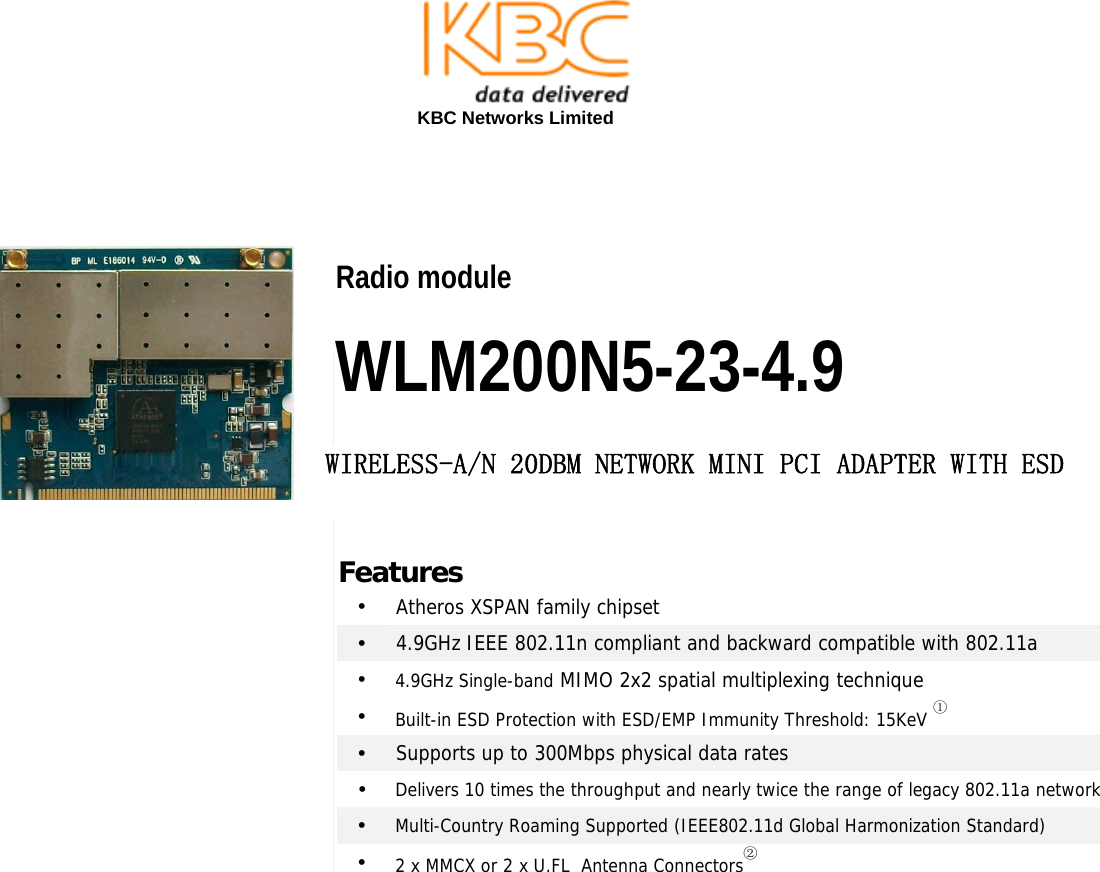

KBC Networks Limited 2 x 2 802.11N MIMO mini-PCI Modules Radio module WLM200N5-23-4.9 WIRELESS-A/N 20DBM NETWORK MINI PCI ADAPTER WITH ESD Features • Atheros XSPAN family chipset • 4.9GHz IEEE 802.11n compliant and backward compatible with 802.11a • 4.9GHz Single-band MIMO 2x2 spatial multiplexing technique • Built-in ESD Protection with ESD/EMP Immunity Threshold: 15KeV ① • Supports up to 300Mbps physical data rates • Delivers 10 times the throughput and nearly twice the range of legacy 802.11a network• Multi-Country Roaming Supported (IEEE802.11d Global Harmonization Standard) • 2 x MMCX or 2 x U.FL Antenna Connectors②

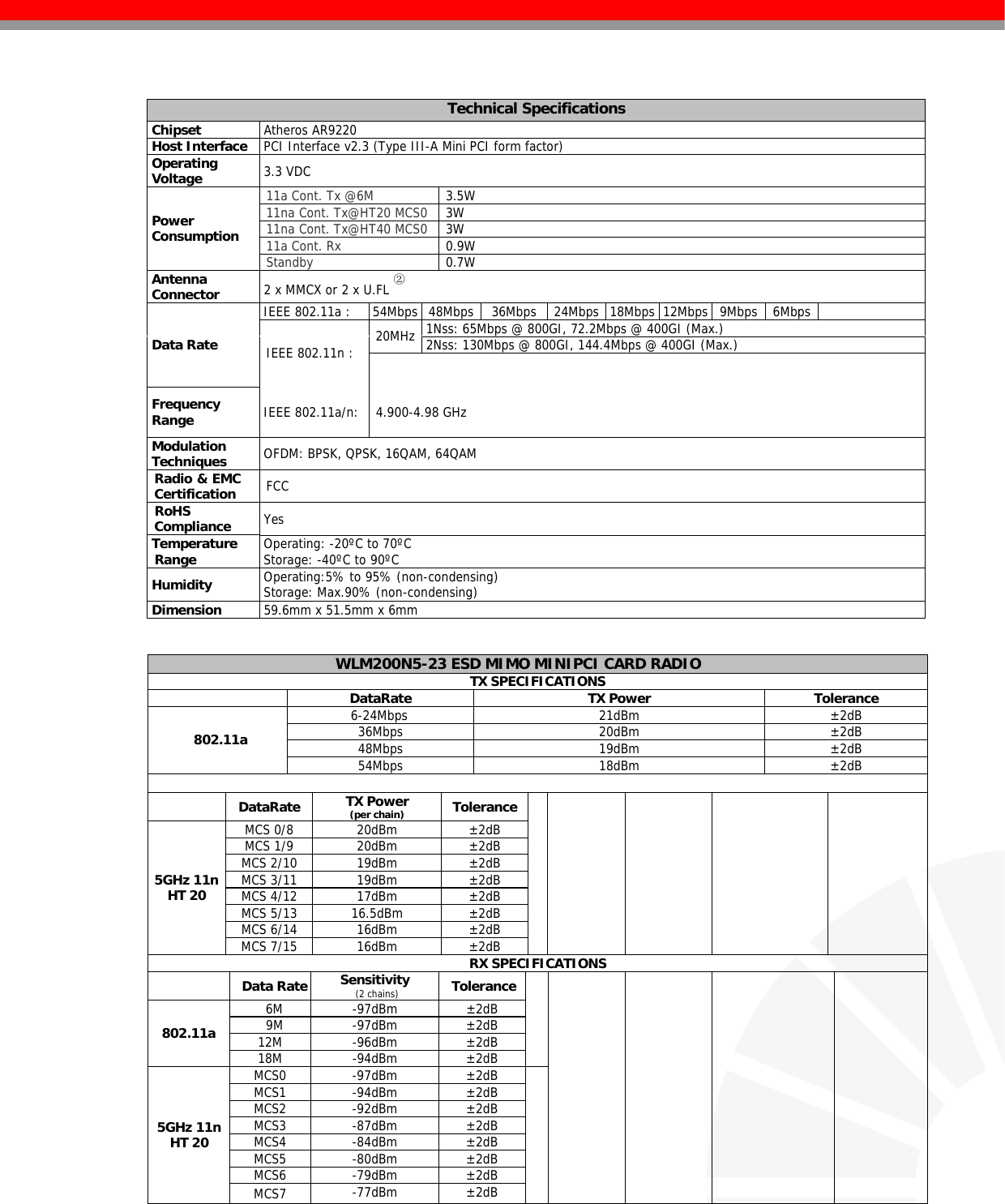

WLM200N5-23 ESD MIMO MINIPCI CARD RADIO TX SPECIFICATIONS DataRate TX Power Tolerance 6-24Mbps 21dBm ±2dB 36Mbps 20dBm ±2dB 48Mbps 19dBm ±2dB 802.11a 54Mbps 18dBm ±2dB DataRate TX Power (per chain) ToleranceMCS 0/8 20dBm ±2dB MCS 1/9 20dBm ±2dB MCS 2/10 19dBm ±2dB MCS 3/11 19dBm ±2dB MCS 4/12 17dBm ±2dB MCS 5/13 16.5dBm ±2dB MCS 6/14 16dBm ±2dB 5GHz 11n HT 20 MCS 7/15 16dBm ±2dB RX SPECIFICATIONS Data Rate Sensitivity (2 chains) Tolerance 6M -97dBm ±2dB 9M -97dBm ±2dB 12M -96dBm ±2dB 802.11a 18M -94dBm ±2dB MCS0 -97dBm ±2dB MCS1 -94dBm ±2dB MCS2 -92dBm ±2dB MCS3 -87dBm ±2dB MCS4 -84dBm ±2dB MCS5 -80dBm ±2dB MCS6 -79dBm ±2dB 5GHz 11n HT 20 MCS7 -77dBm ±2dB Technical Specifications Chipset Atheros AR9220 Host Interface PCI Interface v2.3 (Type III-A Mini PCI form factor) Operating Voltage 3.3 VDC 11a Cont. Tx @6M 3.5W 11na Cont. Tx@HT20 MCS0 3W 11na Cont. Tx@HT40 MCS0 3W 11a Cont. Rx 0.9W Power Consumption Standby 0.7W Antenna Connector 2 x MMCX or 2 x U.FL ② IEEE 802.11a : 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps 1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.) 20MHz 2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.) Data Rate IEEE 802.11n : Frequency Range IEEE 802.11a/n: 4.900-4.98 GHz Modulation Techniques OFDM: BPSK, QPSK, 16QAM, 64QAM Radio & EMC Certification FCC RoHS Compliance Yes Temperature Range Operating: -20ºC to 70ºC Storage: -40ºC to 90ºC Humidity Operating:5% to 95% (non-condensing) Storage: Max.90% (non-condensing) Dimension 59.6mm x 51.5mm x 6mm

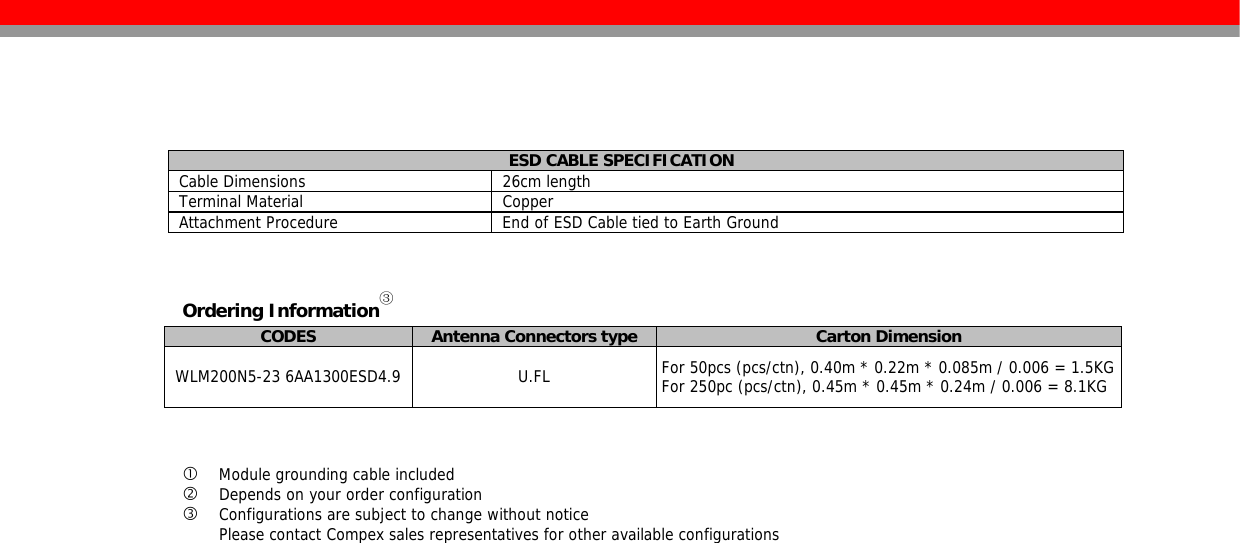

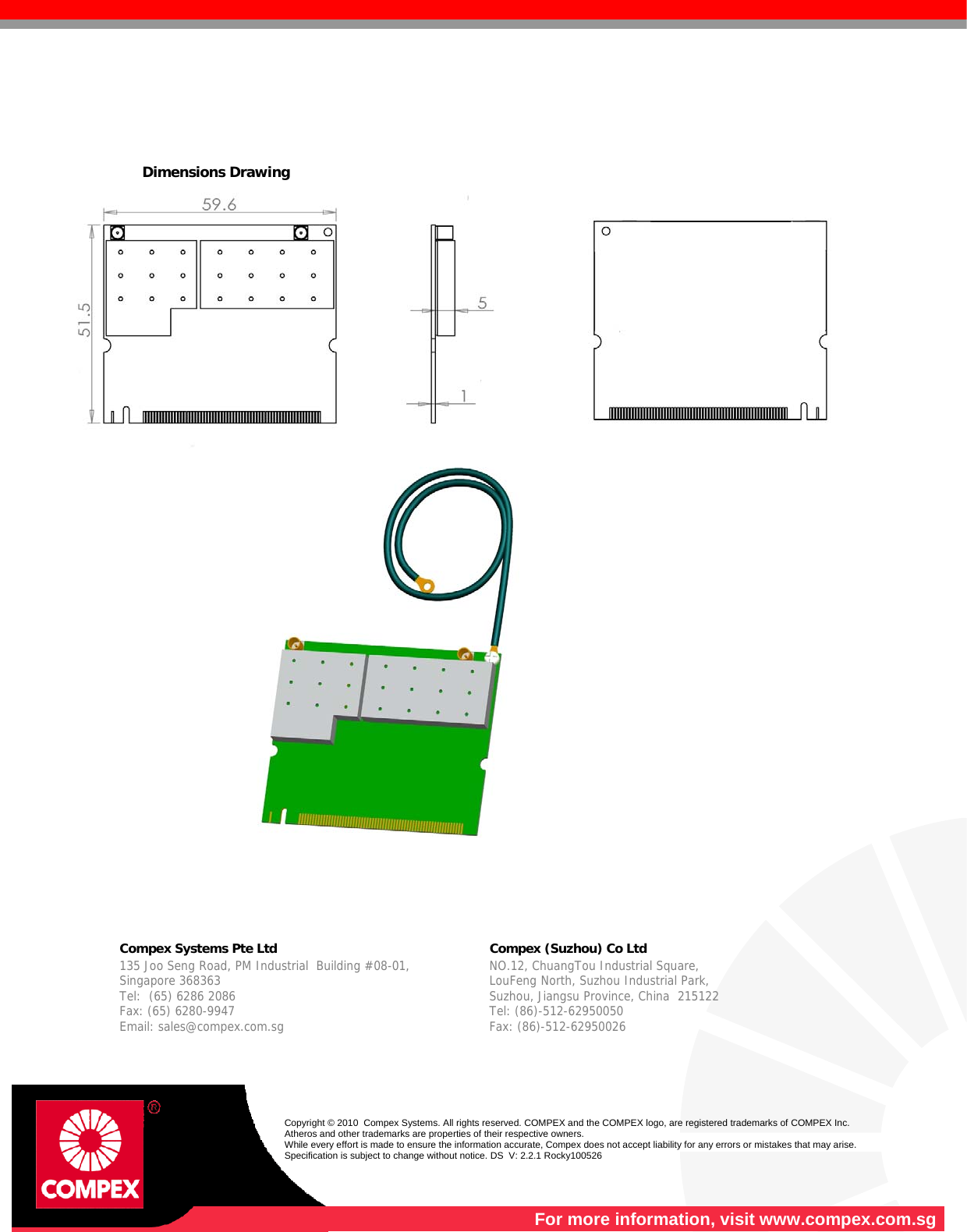

ESD CABLE SPECIFICATION Cable Dimensions 26cm length Terminal Material Copper Attachment Procedure End of ESD Cable tied to Earth Ground Ordering Information③ CODES Antenna Connectors type Carton Dimension WLM200N5-23 6AA1300ESD4.9 U.FL For 50pcs (pcs/ctn), 0.40m * 0.22m * 0.085m / 0.006 = 1.5KG For 250pc (pcs/ctn), 0.45m * 0.45m * 0.24m / 0.006 = 8.1KG  Module grounding cable included  Depends on your order configuration  Configurations are subject to change without notice Please contact Compex sales representatives for other available configurations

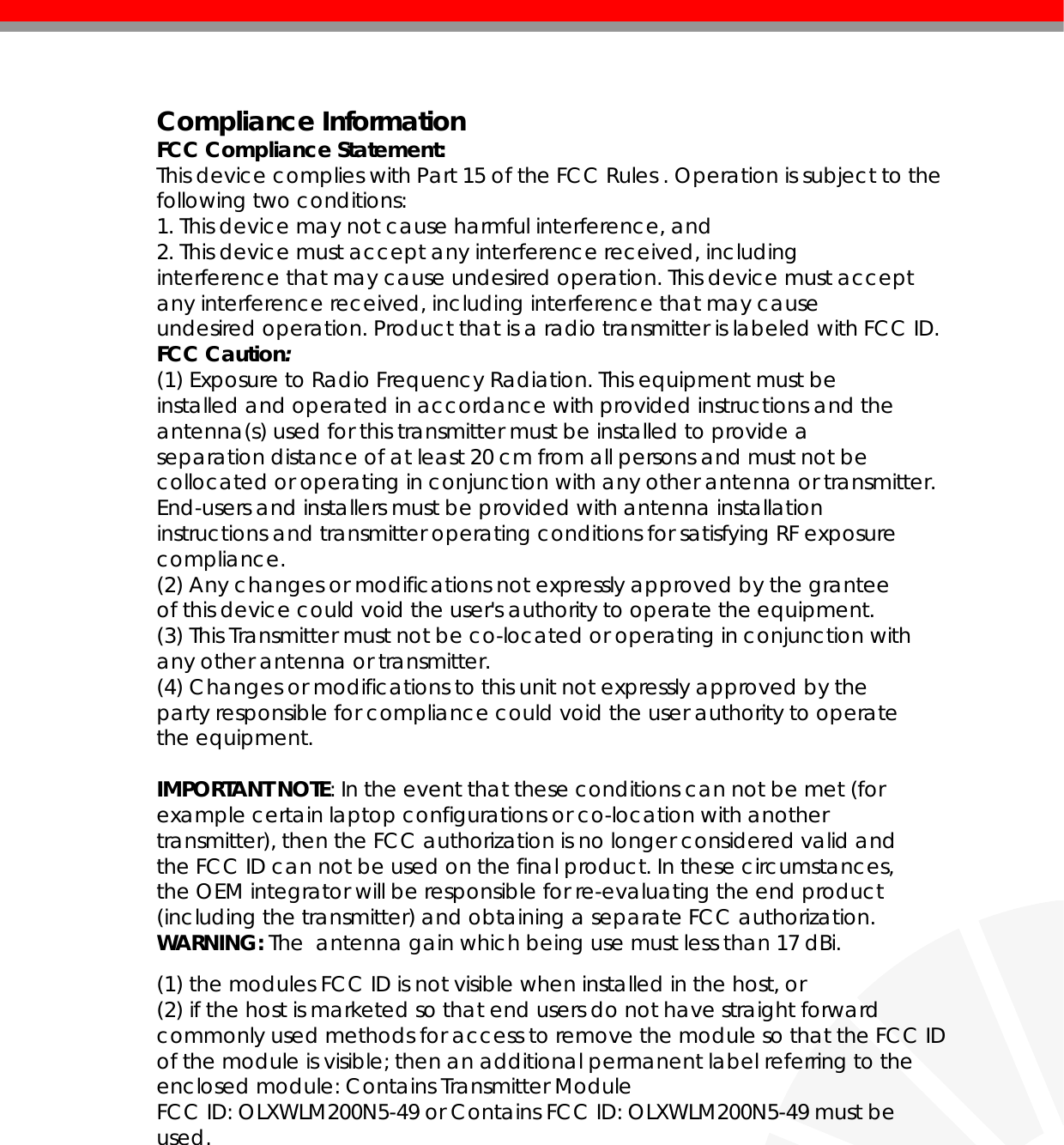

Compliance Information FCC Compliance Statement: This device complies with Part 15 of the FCC Rules . Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This device must accept any interference received, including interference that may cause undesired operation. Product that is a radio transmitter is labeled with FCC ID. FCC Caution: (1) Exposure to Radio Frequency Radiation. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. (2) Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. (3) This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. (4) Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. WARNING: The antenna gain which being use must less than 17 dBi. (1) the modules FCC ID is not visible when installed in the host, or (2) if the host is marketed so that end users do not have straight forward commonly used methods for access to remove the module so that the FCC ID of the module is visible; then an additional permanent label referring to the enclosed module: Contains Transmitter Module FCC ID: OLXWLM200N5-49 or Contains FCC ID: OLXWLM200N5-49 must be used.
