KYUNGWOO SYSTECH FMS-HF1 RMCU-FMS User Manual 1

KYUNGWOO SYSTECH INC. RMCU-FMS 1

Contents

User manual

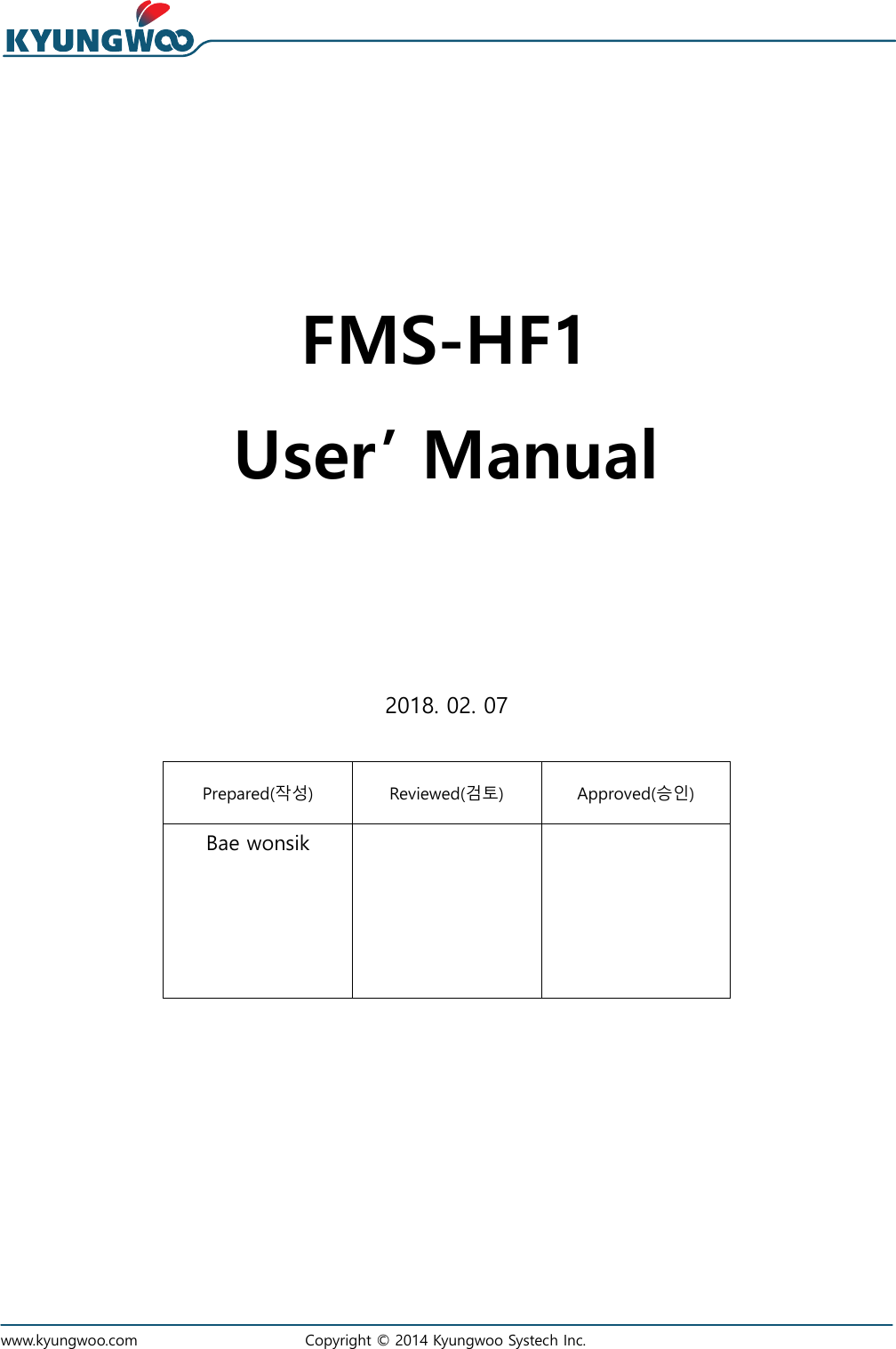

www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. 2018. 02. 07 Prepared(작성) Reviewed(검토) Approved(승인) Bae wonsik FMS-HF1 User’ Manual

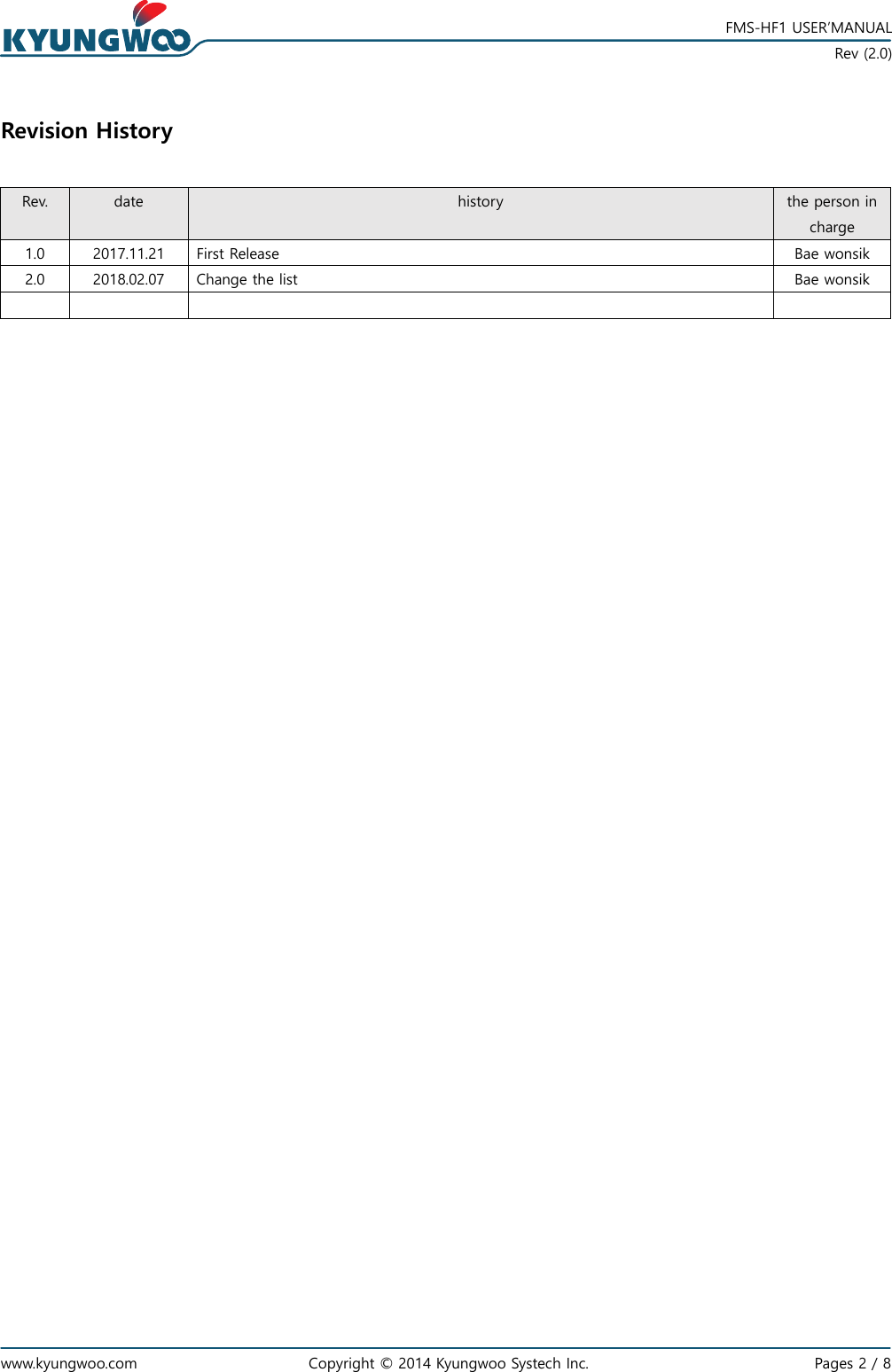

www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. Pages 2 / 8 FMS-HF1 USER’MANUAL Rev (2.0) Revision History Rev. date history the person in charge 1.0 2017.11.21 First Release Bae wonsik 2.0 2018.02.07 Change the list Bae wonsik

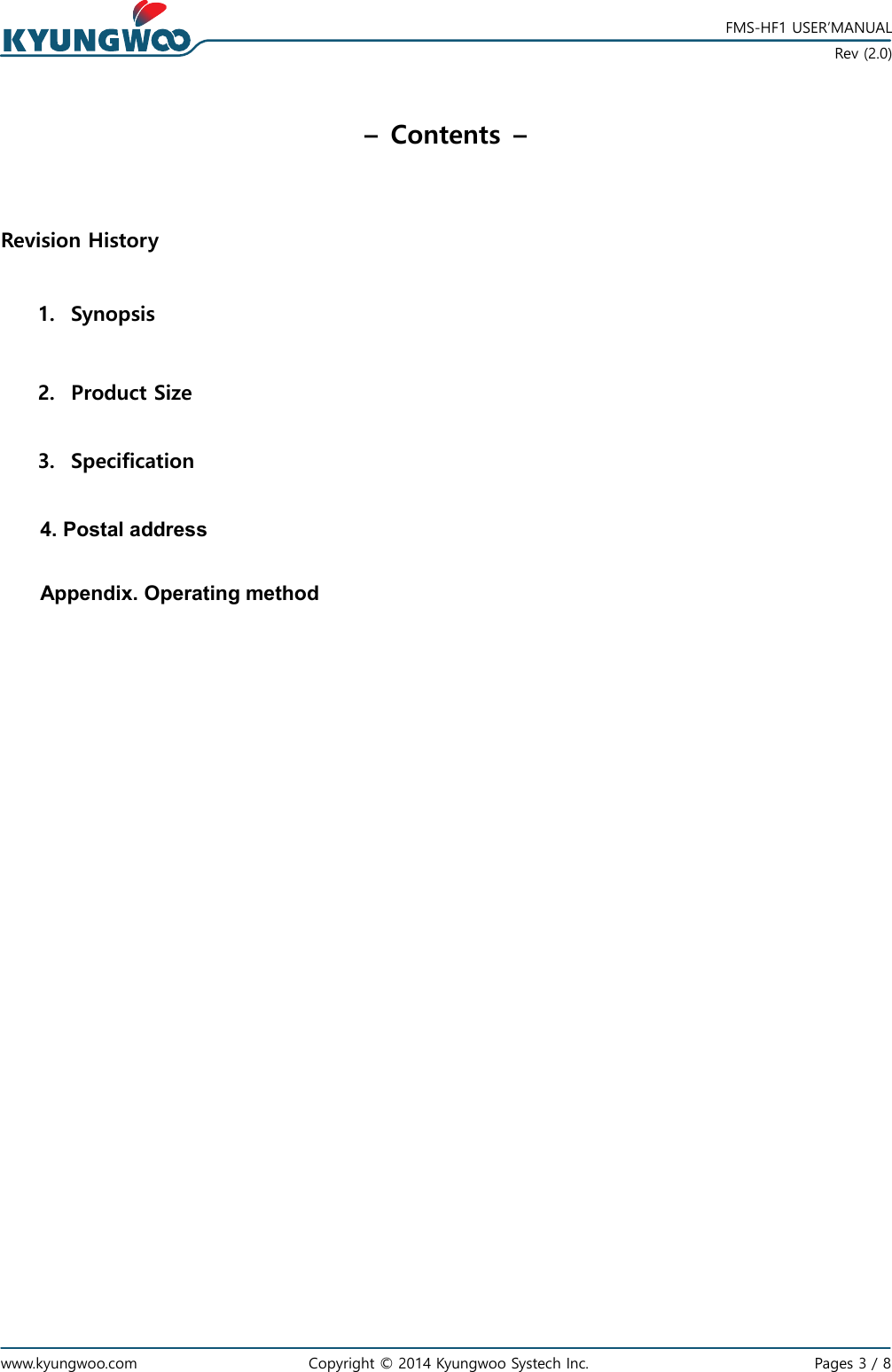

www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. Pages 3 / 8 FMS-HF1 USER’MANUAL Rev (2.0) – Contents – Revision History 1. Synopsis 2. Product Size 3. Specification 4. Postal address Appendix. Operating method

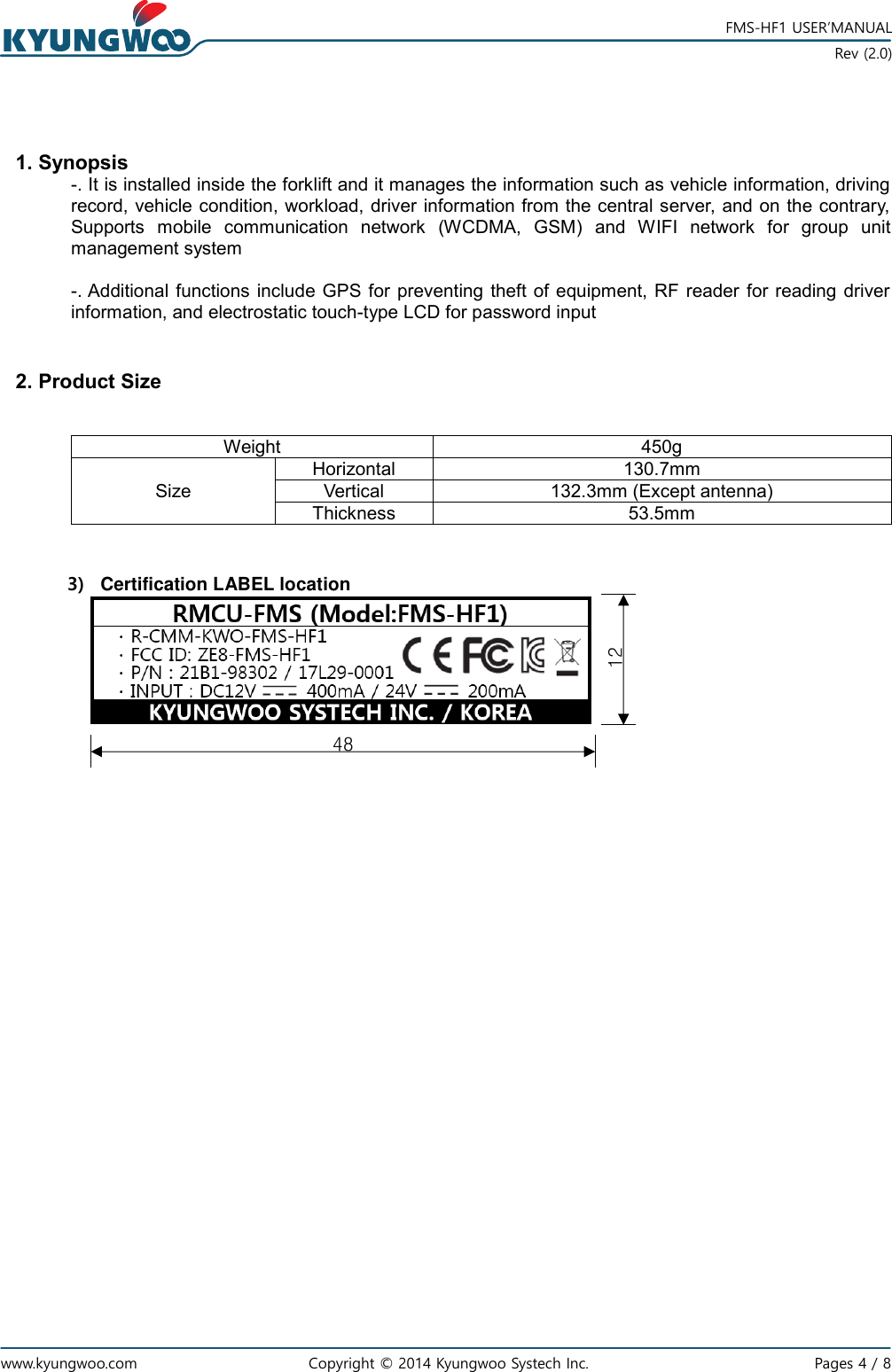

www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. Pages 4 / 8 FMS-HF1 USER’MANUAL Rev (2.0) 1. Synopsis -. It is installed inside the forklift and it manages the information such as vehicle information, driving record, vehicle condition, workload, driver information from the central server, and on the contrary, Supports mobile communication network (WCDMA, GSM) and WIFI network for group unit management system -. Additional functions include GPS for preventing theft of equipment, RF reader for reading driver information, and electrostatic touch-type LCD for password input 2. Product Size Weight 450g Size Horizontal 130.7mm Vertical 132.3mm (Except antenna) Thickness 53.5mm 3) Certification LABEL location 48 12
www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. Pages 5 / 8 FMS-HF1 USER’MANUAL Rev (2.0) 3. Specification 3.1. General Specification 1) Rated Voltage: 12/24Vdc 2) Operating Voltage: 9 ~ 32Vdc 3) Operating Temperature: -20℃ ~ +65℃ 4) Storage Temperature: -40℃ ~ +85℃ 5) Power Consumption: Max. 5W 3.2. 3G Modem(UBLOX / LISA-U200): This device is not supported the voice function. 1) WCDMA - RMC mode only - Band 2 & Band 5 2) GSM - GPRS mode only - GPRS 850 & 1900 3.3. WIFI 1) TYPE: IEEE 802.11 b/g/n 2) Frequency range: 2 412 MHz ~ 2 472 MHz 3) MODULE: WIS3000XXSR

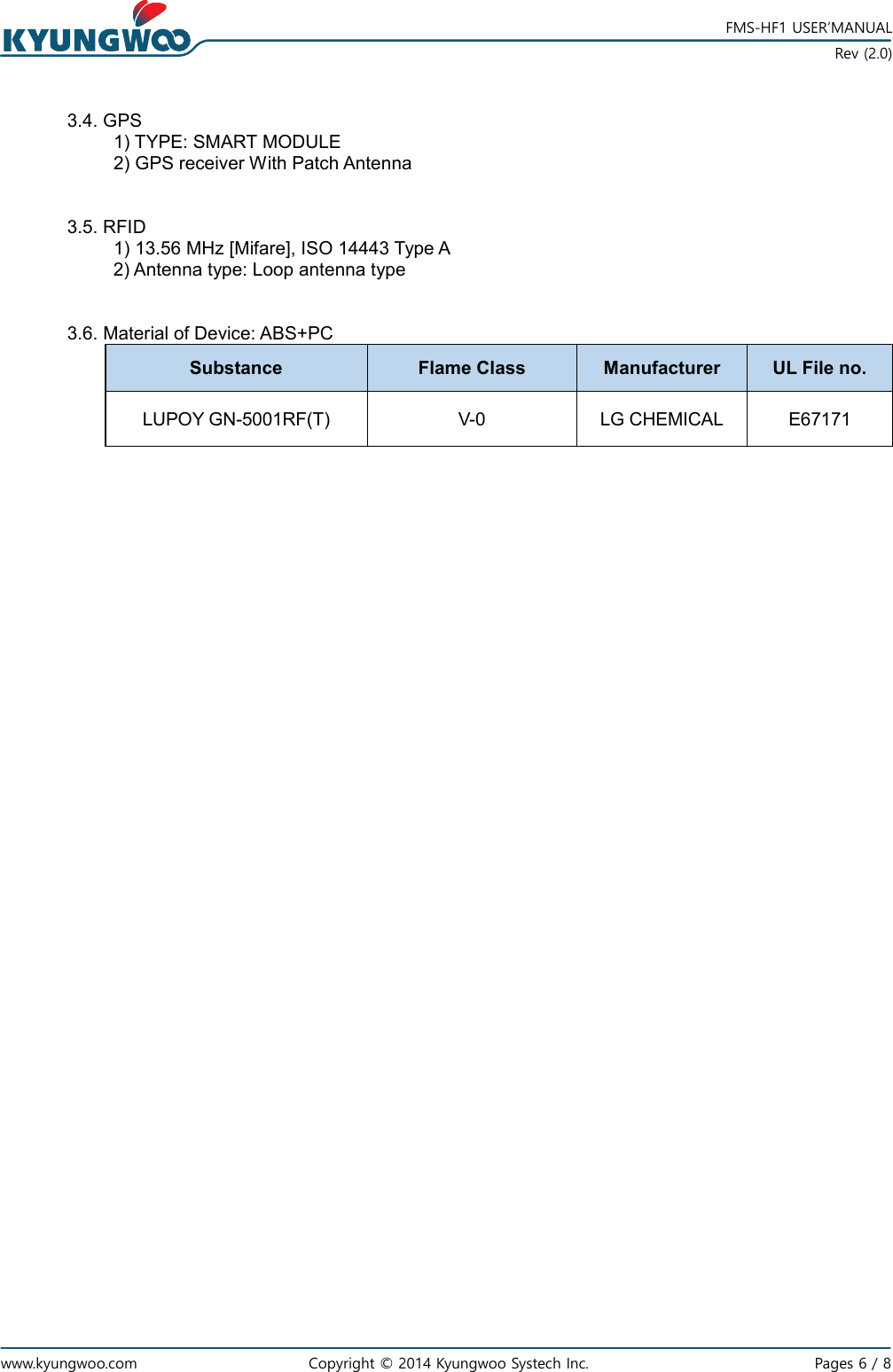

www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. Pages 6 / 8 FMS-HF1 USER’MANUAL Rev (2.0) 3.4. GPS 1) TYPE: SMART MODULE 2) GPS receiver With Patch Antenna 3.5. RFID 1) 13.56 MHz [Mifare], ISO 14443 Type A 2) Antenna type: Loop antenna type 3.6. Material of Device: ABS+PC Substance Flame Class Manufacturer UL File no. LUPOY GN-5001RF(T) V-0 LG CHEMICAL E67171
www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. Pages 7 / 8 FMS-HF1 USER’MANUAL Rev (2.0) 3.7. PCB Material PCB Division Manufacturer/ Trademark Layer /Thickness Flame Class Standard Mark UL File no. MAIN B/D JM ELECTRONICS CO LTD 6layer / 1.6T V-0 UL 796 E117655 POWER B/D 2layer / 1.6T RFID B/D 2layer / 0.4T 3.8. Product label Explanation of graphic symbols used Symbol Description Communaute Europeenne Marking Federal Communication Commision Marking Electrical waste and electronics equipment Direct current 4. Postal address Kyungwoo Systech, Inc. Office: +82-2-985-8085 #401, Daeryung Post Tower 5, 68, Digital-ro 9, Geumcheon-gu, Seoul, South Korea E-mail: Webmaster@kyungwoo.com

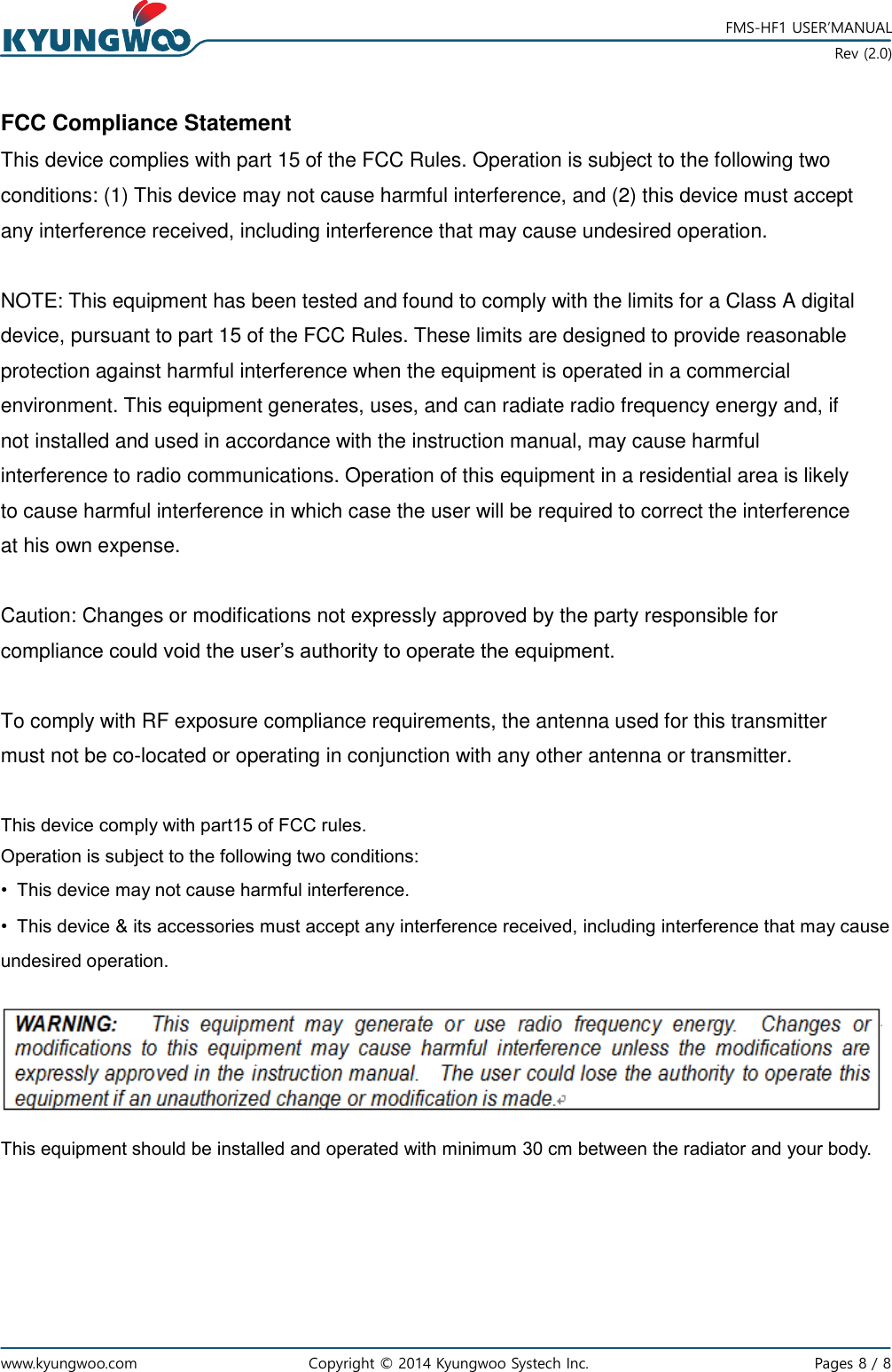

www.kyungwoo.com Copyright © 2014 Kyungwoo Systech Inc. Pages 8 / 8 FMS-HF1 USER’MANUAL Rev (2.0) FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with RF exposure compliance requirements, the antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device comply with part15 of FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device & its accessories must accept any interference received, including interference that may cause undesired operation. This equipment should be installed and operated with minimum 30 cm between the radiator and your body.
