1Intelligent Proximity Alert System180905_Rev. 1.06KIGIS IPAS User ManualVehicle Tag(VT)ㆍPedestrian Tag(PT)Wired Type [Standard]

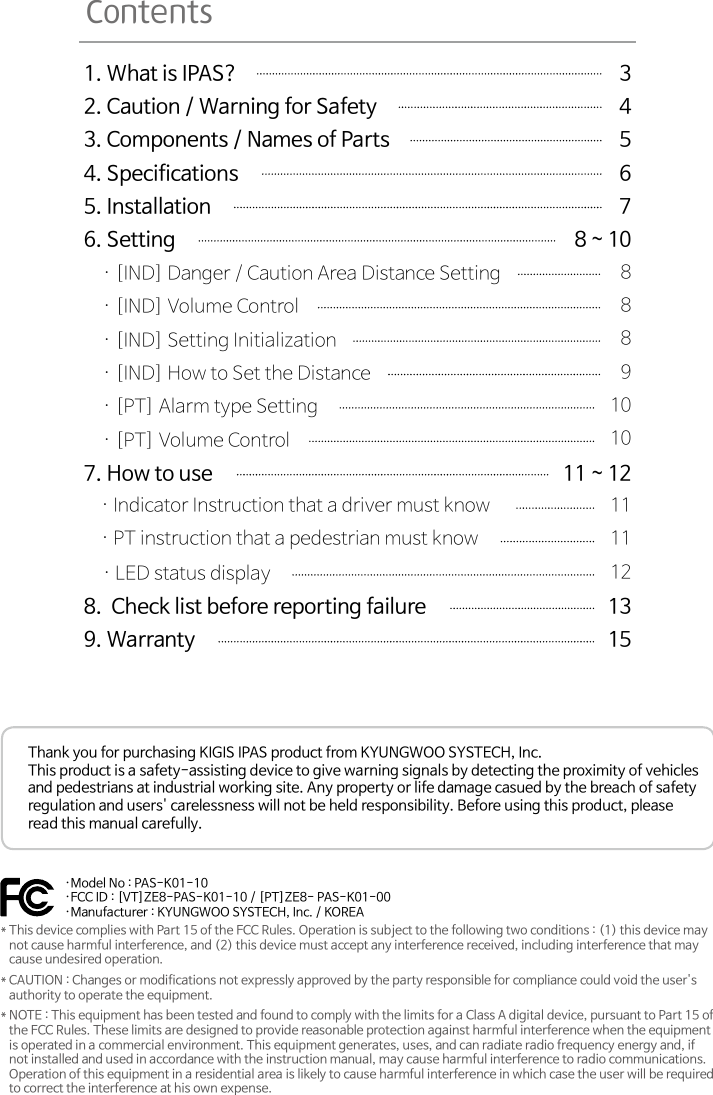

2Thank you for purchasing KIGIS IPAS product from KYUNGWOO SYSTECH, Inc.This product is a safety-assisting device to give warning signals by detecting the proximity of vehicles and pedestrians at industrial working site. Any property or life damage casued by the breach of safety regulation and users' carelessness will not be held responsibility. Before using this product, please read this manual carefully.Contents1. What is IPAS?2. Caution / Warning for Safety3. Components / Names of Parts4. Specifications5. Installation6. Setting · [IND] Danger / Caution Area Distance Setting · [IND] Volume Control · [IND] Setting Initialization · [IND] How to Set the Distance · [PT] Alarm type Setting · [PT] Volume Control7. How to use · Indicator Instruction that a driver must know · PT instruction that a pedestrian must know · LED status display8. Check list before reporting failure9. Warranty345678 ~ 108889101011 ~ 121111121315* This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.* CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.* NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.·Model No : PAS-K01-10·FCC ID : [VT]ZE8-PAS-K01-10 / [PT]ZE8- PAS-K01-00·Manufacturer : KYUNGWOO SYSTECH, Inc. / KOREA

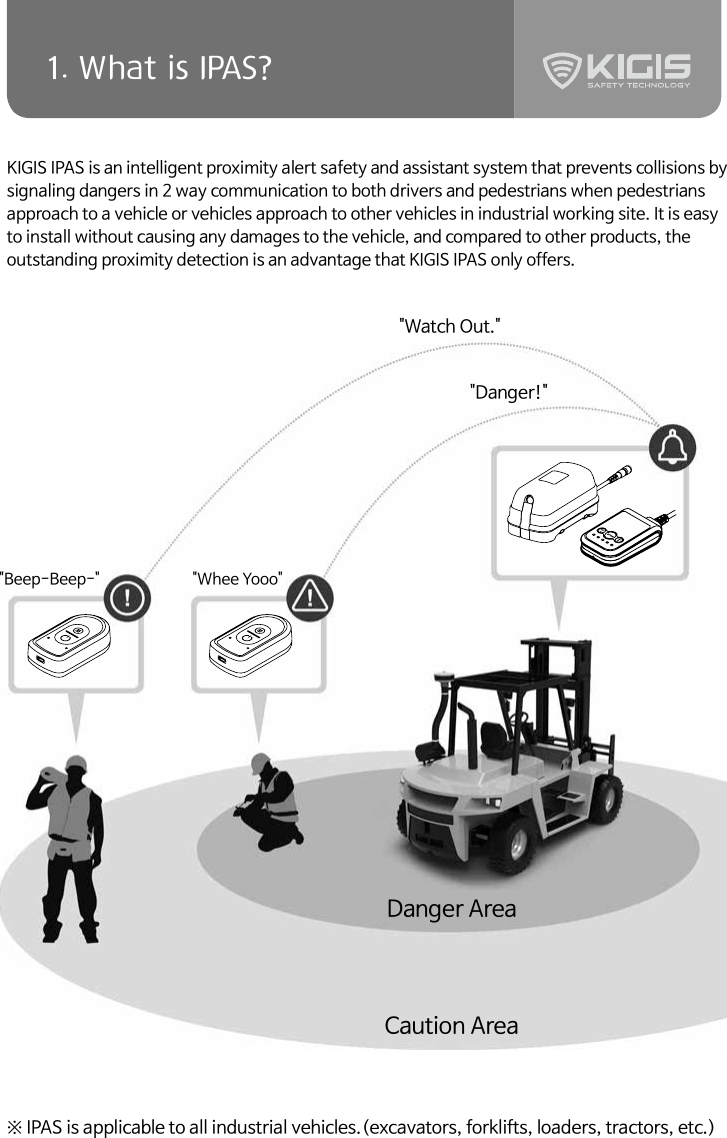

3KIGIS IPAS is an intelligent proximity alert safety and assistant system that prevents collisions by signaling dangers in 2 way communication to both drivers and pedestrians when pedestrians approach to a vehicle or vehicles approach to other vehicles in industrial working site. It is easy to install without causing any damages to the vehicle, and compared to other products, the outstanding proximity detection is an advantage that KIGIS IPAS only offers.※ IPAS is applicable to all industrial vehicles.(excavators, forklifts, loaders, tractors, etc.)1. What is IPAS?"Watch Out."Danger AreaCaution Area"Danger!""Beep-Beep-" "Whee Yooo"

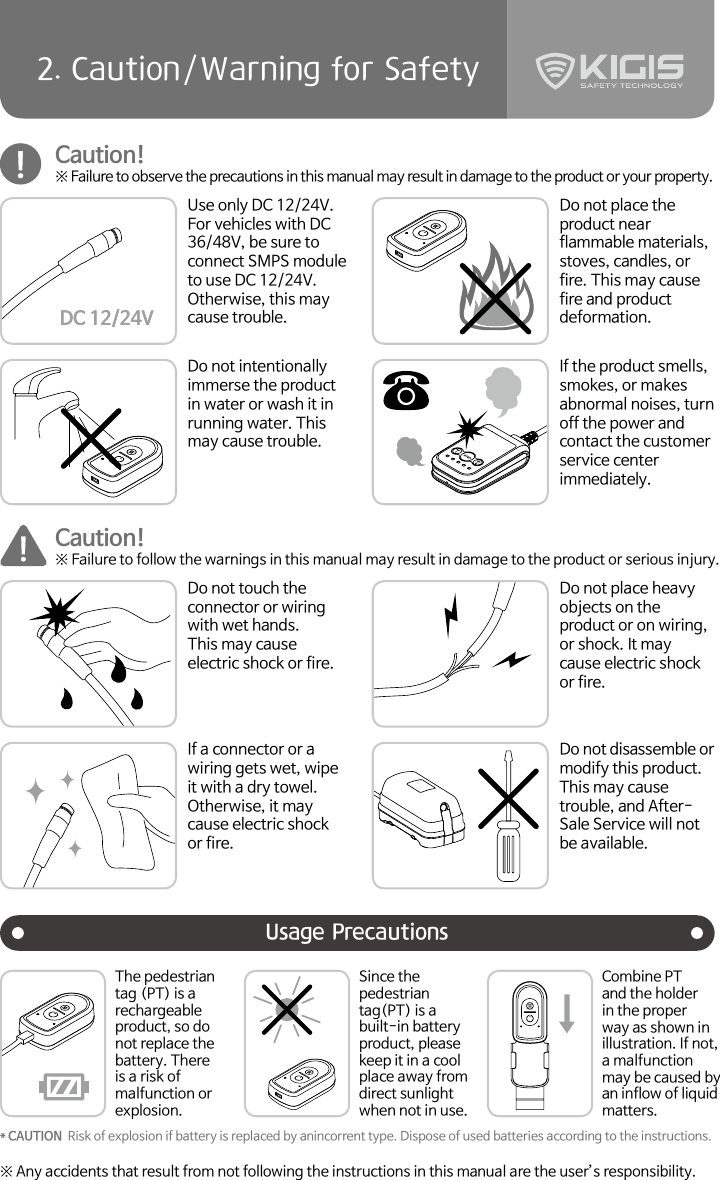

42. Caution/Warning for SafetyUsage PrecautionsCaution!※ Failure to observe the precautions in this manual may result in damage to the product or your property.Caution!※ Failure to follow the warnings in this manual may result in damage to the product or serious injury.Use only DC 12/24V. For vehicles with DC 36/48V, be sure to connect SMPS module to use DC 12/24V. Otherwise, this may cause trouble. Do not touch the connector or wiring with wet hands.This may cause electric shock or fire.Do not place the product near flammable materials, stoves, candles, or fire. This may cause fire and product deformation.Do not place heavy objects on the product or on wiring, or shock. It may cause electric shock or fire.Do not intentionally immerse the product in water or wash it in running water. This may cause trouble.If a connector or a wiring gets wet, wipe it with a dry towel.Otherwise, it may cause electric shock or fire.If the product smells, smokes, or makes abnormal noises, turn off the power and contact the customer service center immediately.Do not disassemble or modify this product.This may cause trouble, and After-Sale Service will not be available.※ Any accidents that result from not following the instructions in this manual are the user’s responsibility.DC 12/24V* CAUTION Risk of explosion if battery is replaced by anincorrent type. Dispose of used batteries according to the instructions.The pedestrian tag (PT) is a rechargeable product, so do not replace the battery. There is a risk of malfunction or explosion.Since the pedestrian tag(PT) is a built-in battery product, please keep it in a cool place away from direct sunlight when not in use. Combine PT and the holder in the proper way as shown in illustration. If not, a malfunction may be caused by an inflow of liquid matters.DC 12/24V

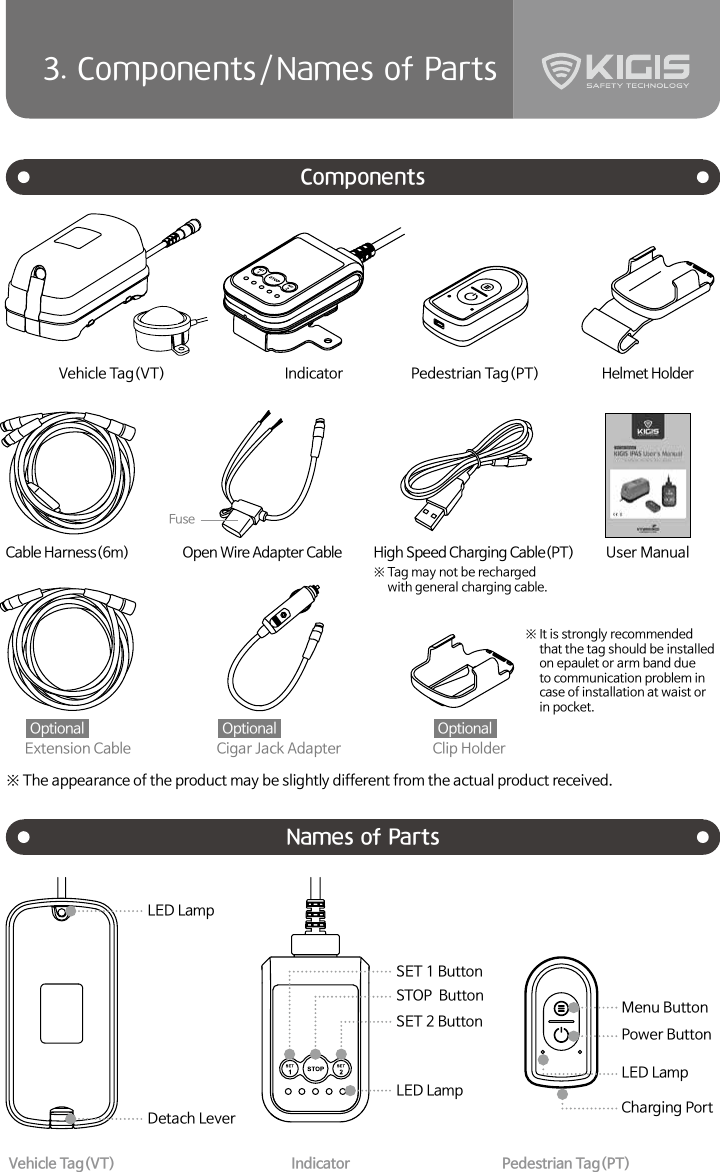

53. Components/Names of PartsClip HolderCigar Jack AdapterExtension CableOptional Optional Optional Names of PartsComponentsMenu Button Power ButtonLED LampCharging PortLED LampSET 1 ButtonSTOP ButtonSET 2 ButtonLED LampDetach Lever※ The appearance of the product may be slightly different from the actual product received.※ It is strongly recommended that the tag should be installed on epaulet or arm band due to communication problem in case of installation at waist or in pocket.Vehicle Tag(VT)Vehicle Tag(VT)Cable Harness(6m) Open Wire Adapter CableIndicatorIndicatorUser ManualHelmet HolderPedestrian Tag(PT)Pedestrian Tag(PT)FuseHigh Speed Charging Cable(PT)※ Tag may not be recharged with general charging cable.

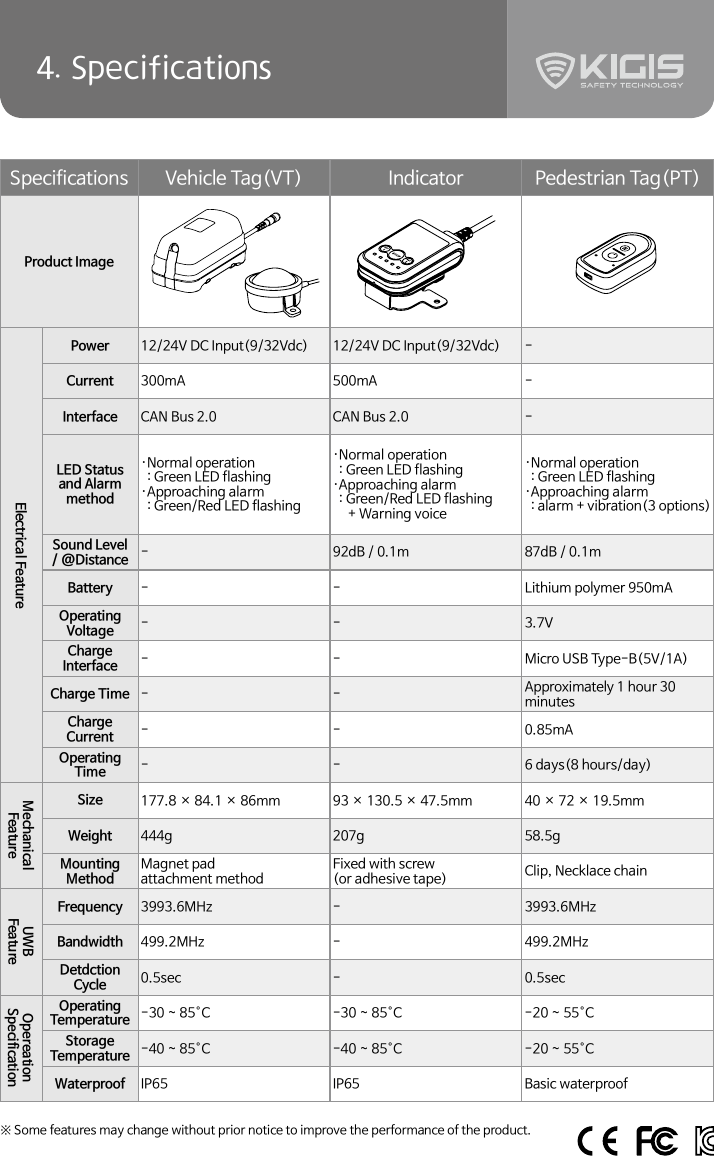

6Specifications Vehicle Tag(VT) Indicator Pedestrian Tag(PT)Product ImagePower 12/24V DC Input(9/32Vdc) 12/24V DC Input(9/32Vdc) -Current 300mA 500mA -Interface CAN Bus 2.0 CAN Bus 2.0 -LED Status and Alarm method·Normal operation : Green LED flashing·Approaching alarm : Green/Red LED flashing·Normal operation : Green LED flashing·Approaching alarm : Green/Red LED flashing + Warning voice·Normal operation : Green LED flashing·Approaching alarm : alarm + vibration(3 options)Sound Level/ @Distance - 92dB / 0.1m 87dB / 0.1mBattery - - Lithium polymer 950mAOperating Voltage - - 3.7VCharge Interface - - Micro USB Type-B(5V/1A)Charge Time --Approximately 1 hour 30 minutesCharge Current - - 0.85mAOperating Time - - 6 days(8 hours/day)Size 177.8 × 84.1 × 86mm 93 × 130.5 × 47.5mm 40 × 72 × 19.5mmWeight 444g 207g 58.5gMounting Method Magnet padattachment method Fixed with screw(or adhesive tape) Clip, Necklace chain Frequency 3993.6MHz - 3993.6MHzBandwidth 499.2MHz - 499.2MHzDetdctionCycle 0.5sec - 0.5secOperating Temperature -30 ~ 85°C -30 ~ 85°C -20 ~ 55°CStorage Temperature -40 ~ 85°C -40 ~ 85°C -20 ~ 55°CWaterproof IP65 IP65 Basic waterproof4. Specifications※ Some features may change without prior notice to improve the performance of the product.Electrical Feature MechanicalFeature OpereationSpecificationUWBFeature

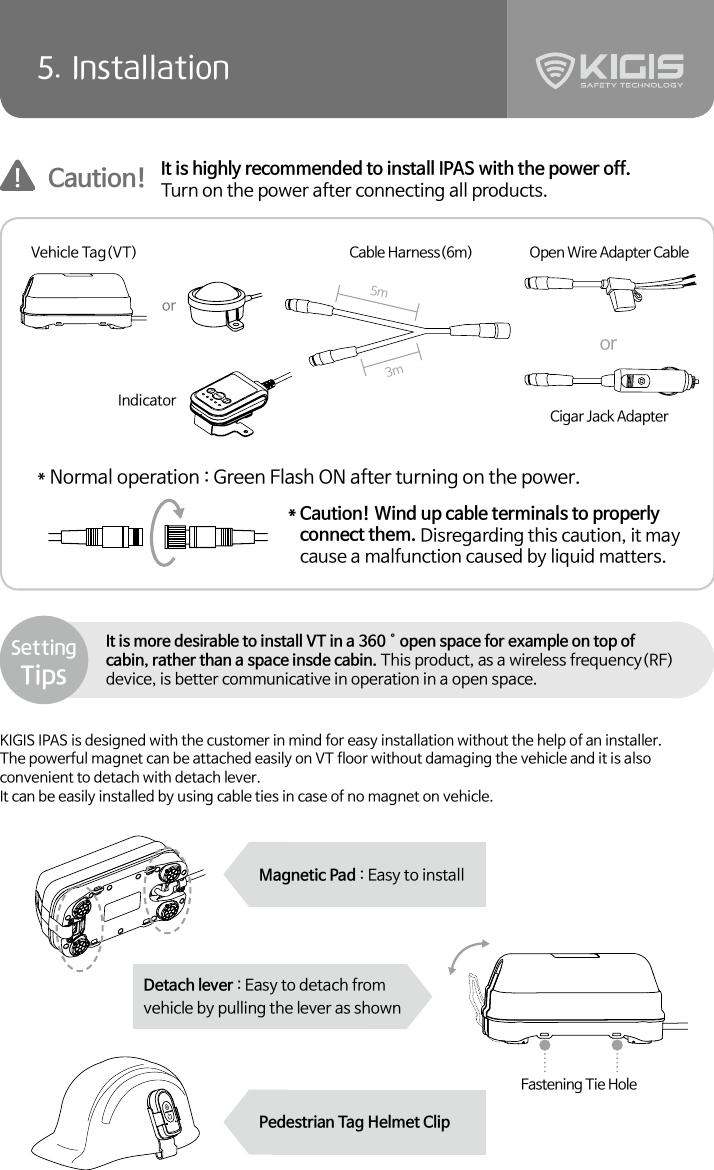

75. InstallationKIGIS IPAS is designed with the customer in mind for easy installation without the help of an installer.The powerful magnet can be attached easily on VT floor without damaging the vehicle and it is also convenient to detach with detach lever.It can be easily installed by using cable ties in case of no magnet on vehicle.It is more desirable to install VT in a 360˚open space for example on top ofcabin, rather than a space insde cabin. This product, as a wireless frequency(RF) device, is better communicative in operation in a open space.SettingTipsCaution! It is highly recommended to install IPAS with the power off.Turn on the power after connecting all products.Magnetic Pad : Easy to installPedestrian Tag Helmet ClipDetach lever : Easy to detach from vehicle by pulling the lever as shownFastening Tie Hole* Normal operation : Green Flash ON after turning on the power.Cable Harness(6m)5m3mOpen Wire Adapter CableCigar Jack AdapterorVehicle Tag(VT)orIndicator* Caution! Wind up cable terminals to properly connect them. Disregarding this caution, it may cause a malfunction caused by liquid matters.

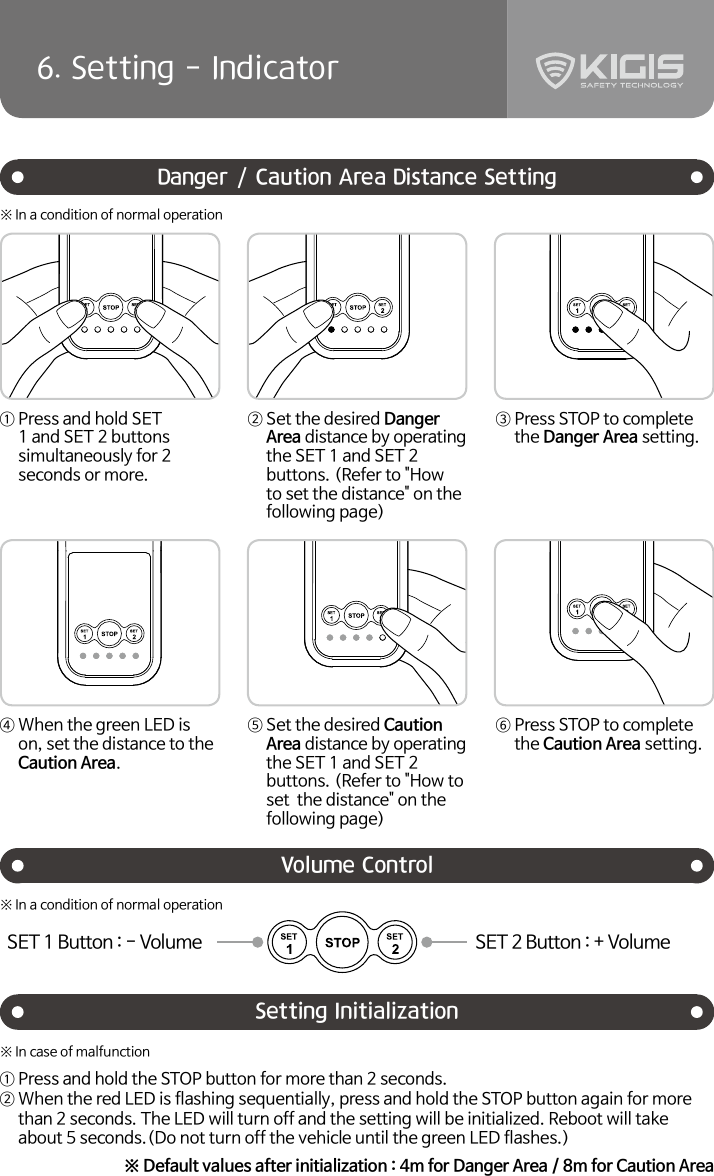

86. Setting - IndicatorDanger / Caution Area Distance SettingSetting InitializationVolume Control① Press and hold SET 1 and SET 2 buttons simultaneously for 2 seconds or more.④ When the green LED is on, set the distance to the Caution Area.① Press and hold the STOP button for more than 2 seconds.② When the red LED is flashing sequentially, press and hold the STOP button again for more than 2 seconds. The LED will turn off and the setting will be initialized. Reboot will take about 5 seconds.(Do not turn off the vehicle until the green LED flashes.)※ Default values after initialization : 4m for Danger Area / 8m for Caution AreaSET 1 Button : - Volume SET 2 Button : + Volume② Set the desired Danger Area distance by operating the SET 1 and SET 2 buttons. (Refer to "How to set the distance" on the following page)⑤ Set the desired Caution Area distance by operating the SET 1 and SET 2 buttons. (Refer to "How to set the distance" on the following page)③ Press STOP to complete the Danger Area setting.⑥ Press STOP to complete the Caution Area setting.※ In a condition of normal operation※ In a condition of normal operation※ In case of malfunction

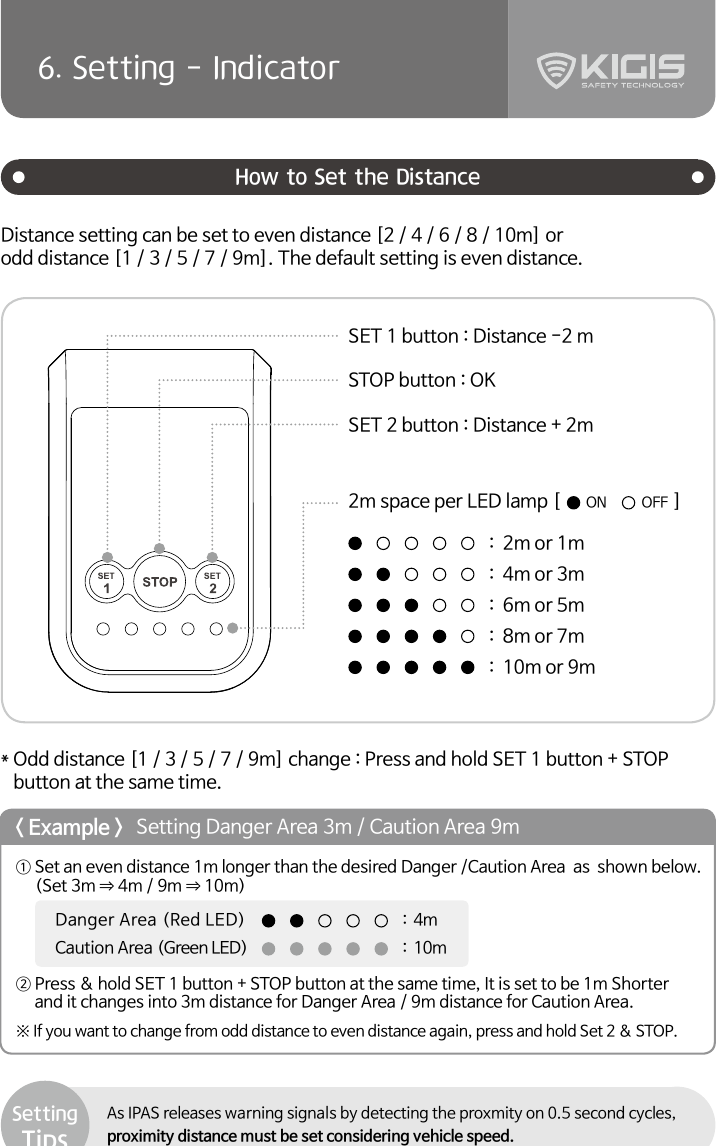

96. Setting - IndicatorHow to Set the DistanceSET 1 button : Distance -2 mSTOP button : OKDistance setting can be set to even distance [2 / 4 / 6 / 8 / 10m] or odd distance [1 / 3 / 5 / 7 / 9m]. The default setting is even distance.SET 2 button : Distance + 2m: 2m or 1m: 4m or 3m: 6m or 5m: 8m or 7m: 10m or 9m2m space per LED lamp [ ]ON OFF* Odd distance [1 / 3 / 5 / 7 / 9m] change : Press and hold SET 1 button + STOP button at the same time.< Example > Setting Danger Area 3m / Caution Area 9m① Set an even distance 1m longer than the desired Danger /Caution Area as shown below. (Set 3m ⇒ 4m / 9m ⇒ 10m)② Press & hold SET 1 button + STOP button at the same time, It is set to be 1m Shorter and it changes into 3m distance for Danger Area / 9m distance for Caution Area.※ If you want to change from odd distance to even distance again, press and hold Set 2 & STOP.: 4m: 10mDanger Area (Red LED)Caution Area (Green LED)As IPAS releases warning signals by detecting the proxmity on 0.5 second cycles,proximity distance must be set considering vehicle speed.SettingTips

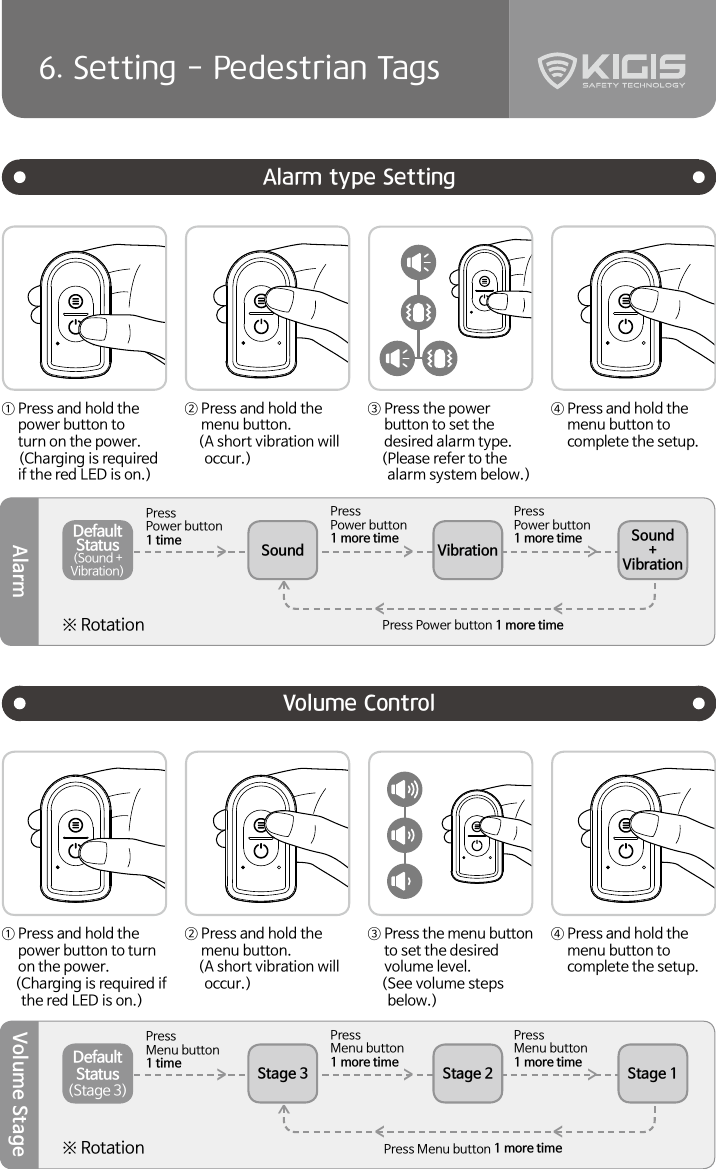

106. Setting - Pedestrian TagsAlarm type SettingVolume Control① Press and hold the power button to turn on the power. (Charging is required if the red LED is on.)① Press and hold the power button to turn on the power. ( Charging is required if the red LED is on.)② Press and hold the menu button. ( A short vibration will occur.) ② Press and hold the menu button. ( A short vibration will occur.)③ Press the power button to set the desired alarm type. ( Please refer to the alarm system below.)③ Press the menu button to set the desired volume level. ( See volume steps below.)④ Press and hold the menu button to complete the setup.④ Press and hold the menu button to complete the setup.※ RotationSoundDefault Status(Sound +Vibration)VibrationPressPower button1 time > > >> >>PressPower button1 more timePressPower button1 more timePress Power button 1 more timeSound+VibrationAlarm※ RotationStage 3Default Status(Stage 3)Stage 2PressMenu button1 time > > >> >>PressMenu button1 more timePressMenu button1 more timePress Menu button 1 more timeStage 1Volume Stage

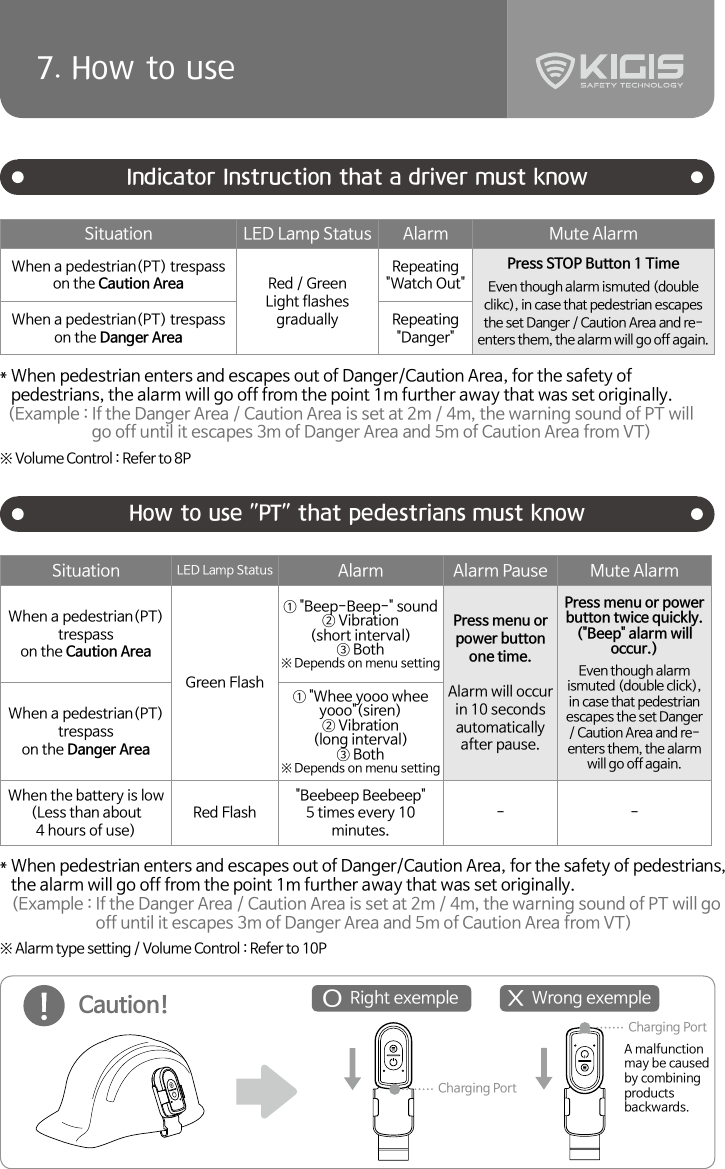

117. How to useIndicator Instruction that a driver must knowHow to use "PT" that pedestrians must know* When pedestrian enters and escapes out of Danger/Caution Area, for the safety of pedestrians, the alarm will go off from the point 1m further away that was set originally. (Example : If the Danger Area / Caution Area is set at 2m / 4m, the warning sound of PT will go off until it escapes 3m of Danger Area and 5m of Caution Area from VT)※ Volume Control : Refer to 8P* When pedestrian enters and escapes out of Danger/Caution Area, for the safety of pedestrians, the alarm will go off from the point 1m further away that was set originally. (Example : If the Danger Area / Caution Area is set at 2m / 4m, the warning sound of PT will go off until it escapes 3m of Danger Area and 5m of Caution Area from VT)※ Alarm type setting / Volume Control : Refer to 10PSituation LED Lamp Status Alarm Mute AlarmWhen a pedestrian(PT) trespasson the Caution Area Red / Green Light flashes graduallyRepeating"Watch Out"Press STOP Button 1 TimeEven though alarm ismuted (double clikc), in case that pedestrian escapes the set Danger / Caution Area and re-enters them, the alarm will go off again.When a pedestrian(PT) trespasson the Danger AreaRepeating"Danger"Situation LED Lamp Status Alarm Alarm Pause Mute AlarmWhen a pedestrian(PT)trespasson the Caution AreaGreen Flash① "Beep-Beep-" sound② Vibration(short interval)③ Both※ Depends on menu settingPress menu or power button one time. Alarm will occurin 10 secondsautomaticallyafter pause.Press menu or power button twice quickly. ("Beep" alarm will occur.)Even though alarm ismuted (double click), in case that pedestrian escapes the set Danger / Caution Area and re-enters them, the alarm will go off again.When a pedestrian(PT)trespasson the Danger Area① "Whee yooo whee yooo"(siren) ② Vibration(long interval)③ Both※ Depends on menu settingWhen the battery is low(Less than about4 hours of use)Red Flash"Beebeep Beebeep"5 times every 10 minutes. - -A malfunction may be caused by combining products backwards.Charging PortCaution!O Right exempleCharging PortX Wrong exemple

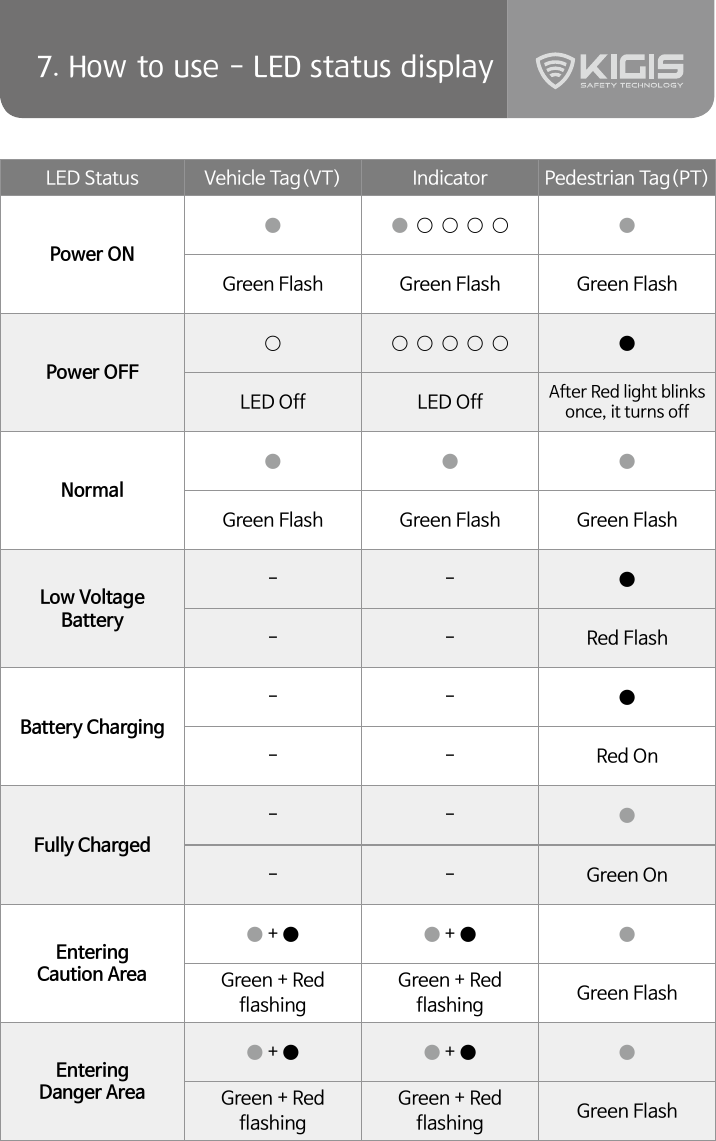

127. How to use - LED status displayLED Status Vehicle Tag(VT) Indicator Pedestrian Tag(PT)Power ON● ● ○ ○ ○ ○ ●Green Flash Green Flash Green FlashPower OFF○ ○ ○ ○ ○ ○ ●LED Off LED Off After Red light blinks once, it turns offNormal●●●Green Flash Green Flash Green FlashLow VoltageBattery- - ●- - Red FlashBattery Charging- - ●- - Red OnFully Charged- - ●- - Green OnEntering Caution Area● + ● ● + ● ●Green + RedflashingGreen + Redflashing Green FlashEnteringDanger Area● + ● ● + ● ●Green + RedflashingGreen + Redflashing Green Flash

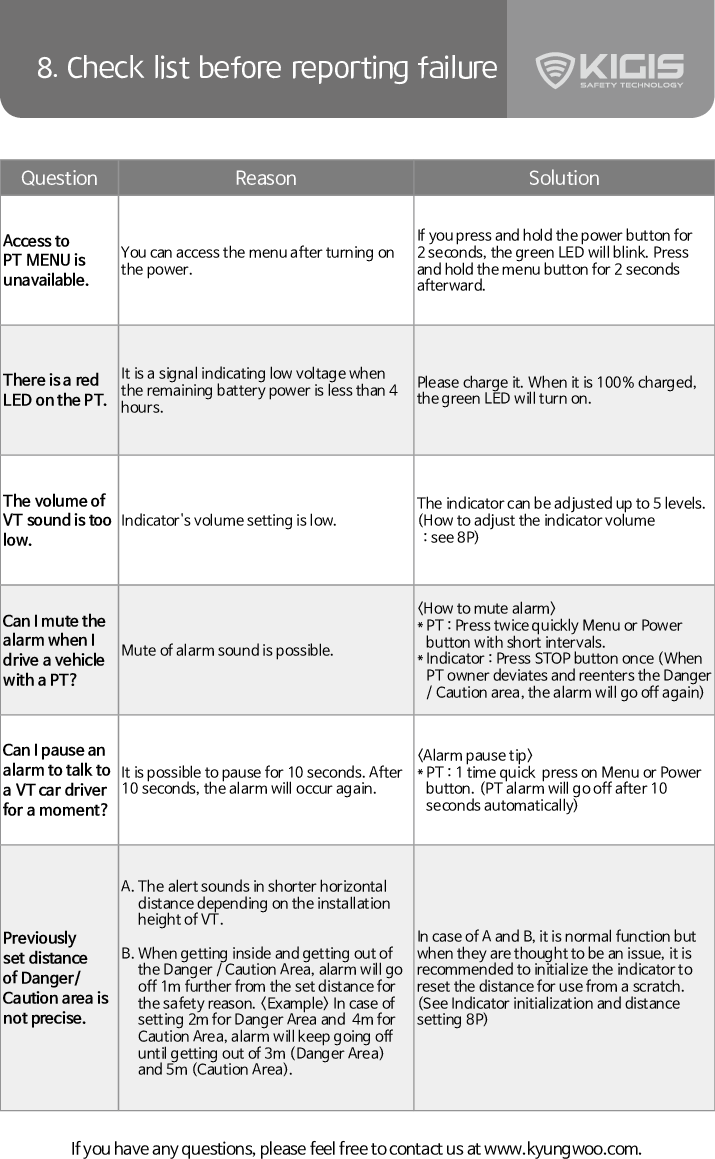

13Question Reason SolutionAccess to PT MENU is unavailable.You can access the menu after turning on the power.If you press and hold the power button for 2 seconds, the green LED will blink. Press and hold the menu button for 2 seconds afterward.There is a red LED on the PT. It is a signal indicating low voltage when the remaining battery power is less than 4 hours. Please charge it. When it is 100% charged, the green LED will turn on.The volume of VT sound is too low.Indicator's volume setting is low.The indicator can be adjusted up to 5 levels.(How to adjust the indicator volume : see 8P)Can I mute the alarm when I drive a vehicle with a PT?Mute of alarm sound is possible.<How to mute alarm>* PT : Press twice quickly Menu or Power button with short intervals.* Indicator : Press STOP button once (When PT owner deviates and reenters the Danger / Caution area, the alarm will go off again)Can I pause an alarm to talk to a VT car driver for a moment?It is possible to pause for 10 seconds. After 10 seconds, the alarm will occur again.<Alarm pause tip>* PT : 1 time quick press on Menu or Power button. (PT alarm will go off after 10 seconds automatically)Previously set distance of Danger/ Caution area is not precise.A. The alert sounds in shorter horizontal distance depending on the installation height of VT.B. When getting inside and getting out of the Danger / Caution Area, alarm will go off 1m further from the set distance for the safety reason. <Example> In case of setting 2m for Danger Area and 4m for Caution Area, alarm will keep going off until getting out of 3m (Danger Area) and 5m (Caution Area).In case of A and B, it is normal function but when they are thought to be an issue, it is recommended to initialize the indicator to reset the distance for use from a scratch.(See Indicator initialization and distance setting 8P)8. Check list before reporting failureIf you have any questions, please feel free to contact us at www.kyungwoo.com.
MEMO

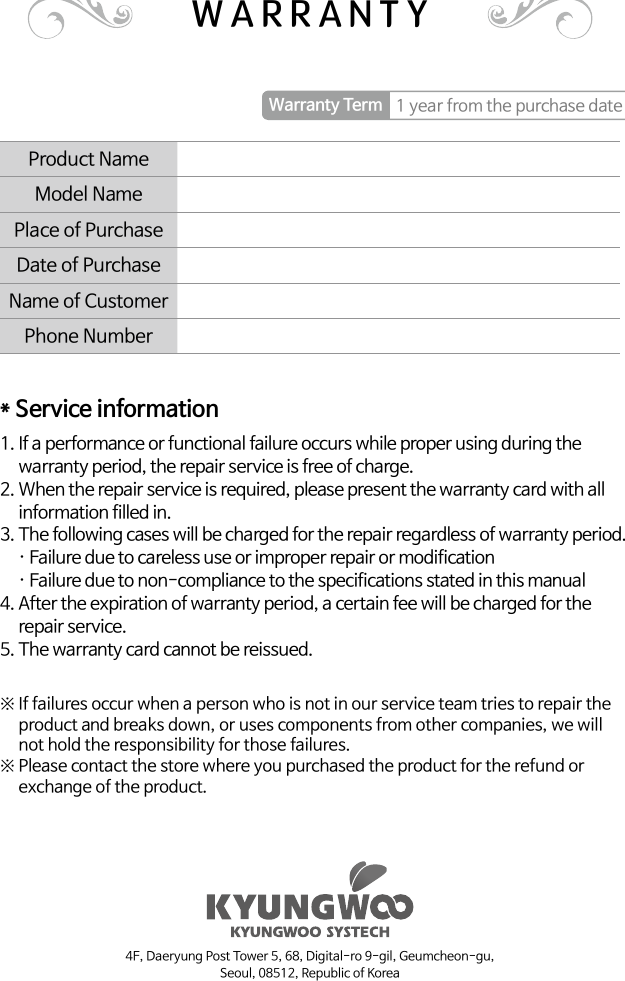

Product Name Model NamePlace of PurchaseDate of PurchaseName of CustomerPhone NumberWarranty Term 1 year from the purchase date* Service information1. If a performance or functional failure occurs while proper using during the warranty period, the repair service is free of charge.2. When the repair service is required, please present the warranty card with all information filled in.3. The following cases will be charged for the repair regardless of warranty period. · Failure due to careless use or improper repair or modification · Failure due to non-compliance to the specifications stated in this manual4. After the expiration of warranty period, a certain fee will be charged for the repair service.5. The warranty card cannot be reissued.※ If failures occur when a person who is not in our service team tries to repair the product and breaks down, or uses components from other companies, we will not hold the responsibility for those failures.※ Please contact the store where you purchased the product for the refund or exchange of the product.WARRANTY4F, Daeryung Post Tower 5, 68, Digital-ro 9-gil, Geumcheon-gu,Seoul, 08512, Republic of Korea
Think Smart,Work Safe KYUNGWOO SYSTECH, INC.4F, Daeryung Post Tower 5, 68, Digital-ro 9-gil, Geumcheon-gu, Seoul, 08512, Republic of KoreaTel. +82-2-985-8085 Fax. +82-2-985-8087 E mail. info@kigistec.comwww.kyungwoo.com / www.kigistec.comManufacturer* Any inquiry about the purchased product iscontactable to distributor(or purchasing store) at below line.Distributor(or purchasing store)
