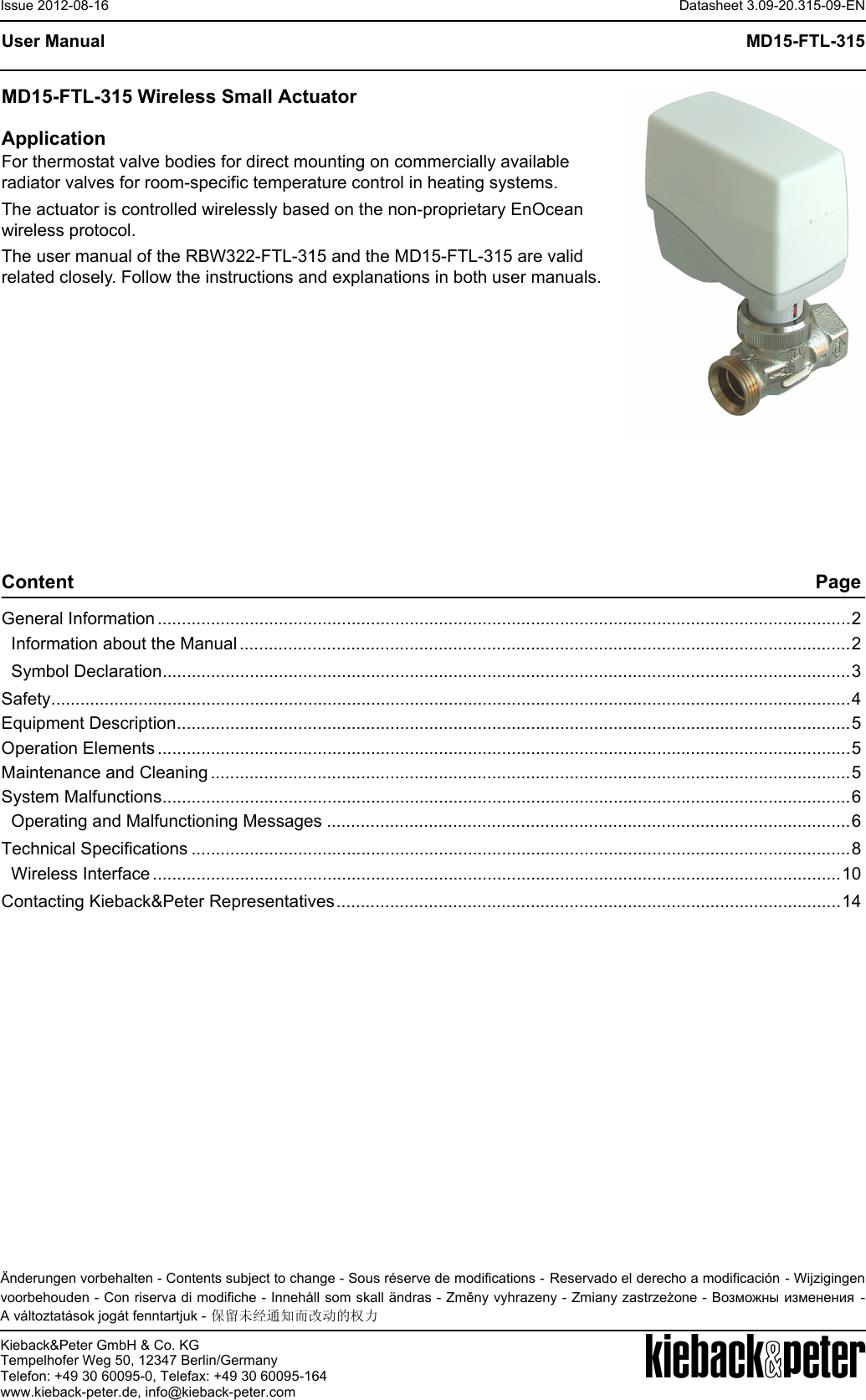

Kieback&Peter GmbH & Co. KGTempelhofer Weg 50, 12347 Berlin/GermanyTelefon: +49 30 60095-0, Telefax: +49 30 60095-164www.kieback-peter.de, info@kieback-peter.comDatasheet 3.09-20.315-09-ENMD15-FTL-315Issue 2012-08-16AÄnderungen vorbehalten - Contents subject to change - Sous réserve de modifications - Reservado el derecho a modificación - Wijzigingenvoorbehouden - Con riserva di modifiche - Innehåll som skall ändras - Změny vyhrazeny - Zmiany zastrzeżone - Возможны изменения -A változtatások jogát fenntartjuk - 保留未经通知而改动的权力User ManualMD15-FTL-315 Wireless Small ActuatorApplicationFor thermostat valve bodies for direct mounting on commercially available radiator valves for room-specific temperature control in heating systems.The actuator is controlled wirelessly based on the non-proprietary EnOcean wireless protocol.The user manual of the RBW322-FTL-315 and the MD15-FTL-315 are valid related closely. Follow the instructions and explanations in both user manuals. Content PageGeneral Information ...............................................................................................................................................2Information about the Manual..............................................................................................................................2Symbol Declaration..............................................................................................................................................3Safety.....................................................................................................................................................................4Equipment Description...........................................................................................................................................5Operation Elements ...............................................................................................................................................5Maintenance and Cleaning ....................................................................................................................................5System Malfunctions..............................................................................................................................................6Operating and Malfunctioning Messages ............................................................................................................6Technical Specifications ........................................................................................................................................8Wireless Interface ..............................................................................................................................................10Contacting Kieback&Peter Representatives........................................................................................................14

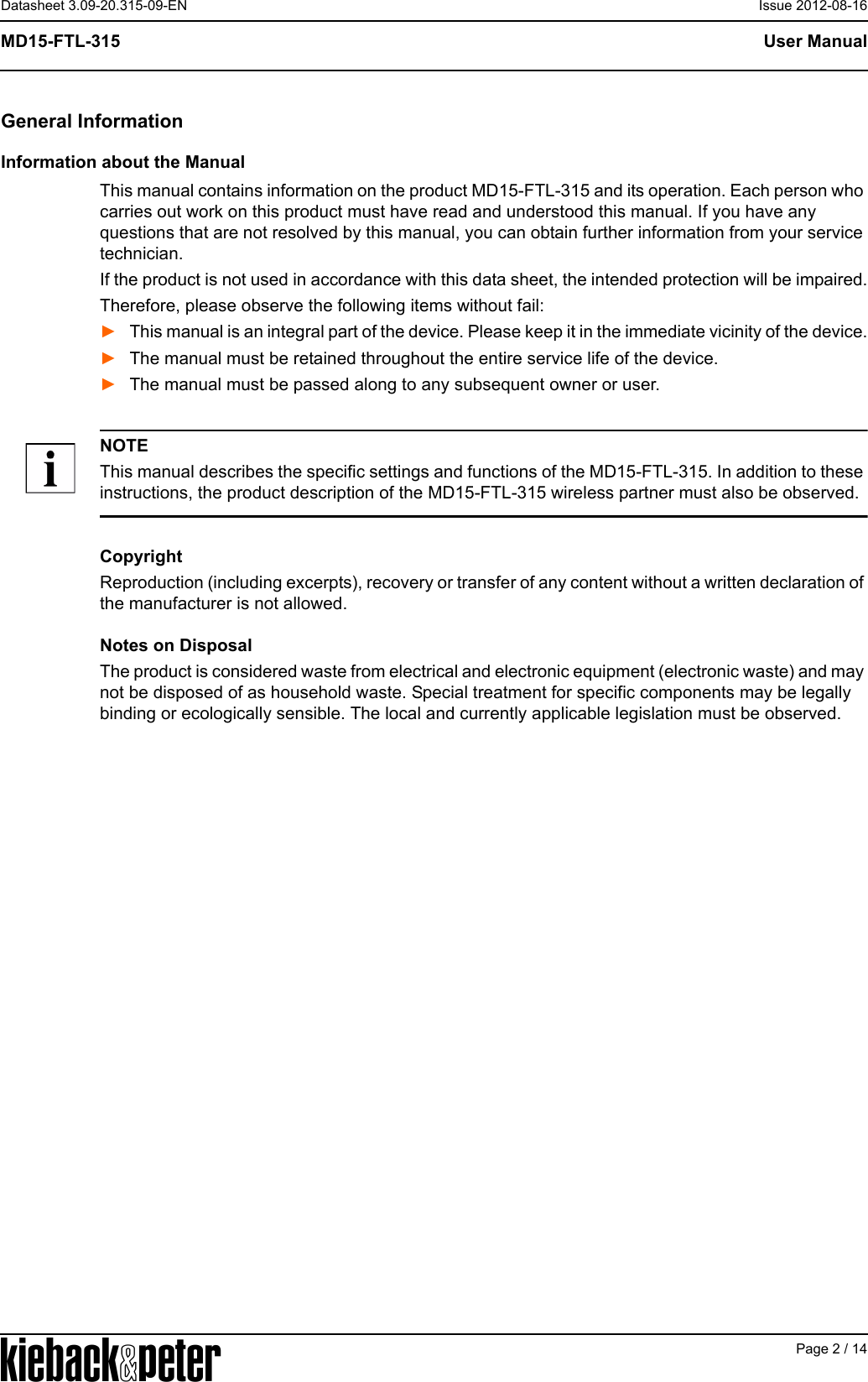

APage 2 / 14User ManualMD15-FTL-315Datasheet 3.09-20.315-09-EN Issue 2012-08-16General InformationInformation about the ManualThis manual contains information on the product MD15-FTL-315 and its operation. Each person who carries out work on this product must have read and understood this manual. If you have any questions that are not resolved by this manual, you can obtain further information from your service technician.If the product is not used in accordance with this data sheet, the intended protection will be impaired.Therefore, please observe the following items without fail:►This manual is an integral part of the device. Please keep it in the immediate vicinity of the device.►The manual must be retained throughout the entire service life of the device.►The manual must be passed along to any subsequent owner or user.NOTEThis manual describes the specific settings and functions of the MD15-FTL-315. In addition to these instructions, the product description of the MD15-FTL-315 wireless partner must also be observed.CopyrightReproduction (including excerpts), recovery or transfer of any content without a written declaration of the manufacturer is not allowed. Notes on DisposalThe product is considered waste from electrical and electronic equipment (electronic waste) and may not be disposed of as household waste. Special treatment for specific components may be legally binding or ecologically sensible. The local and currently applicable legislation must be observed.

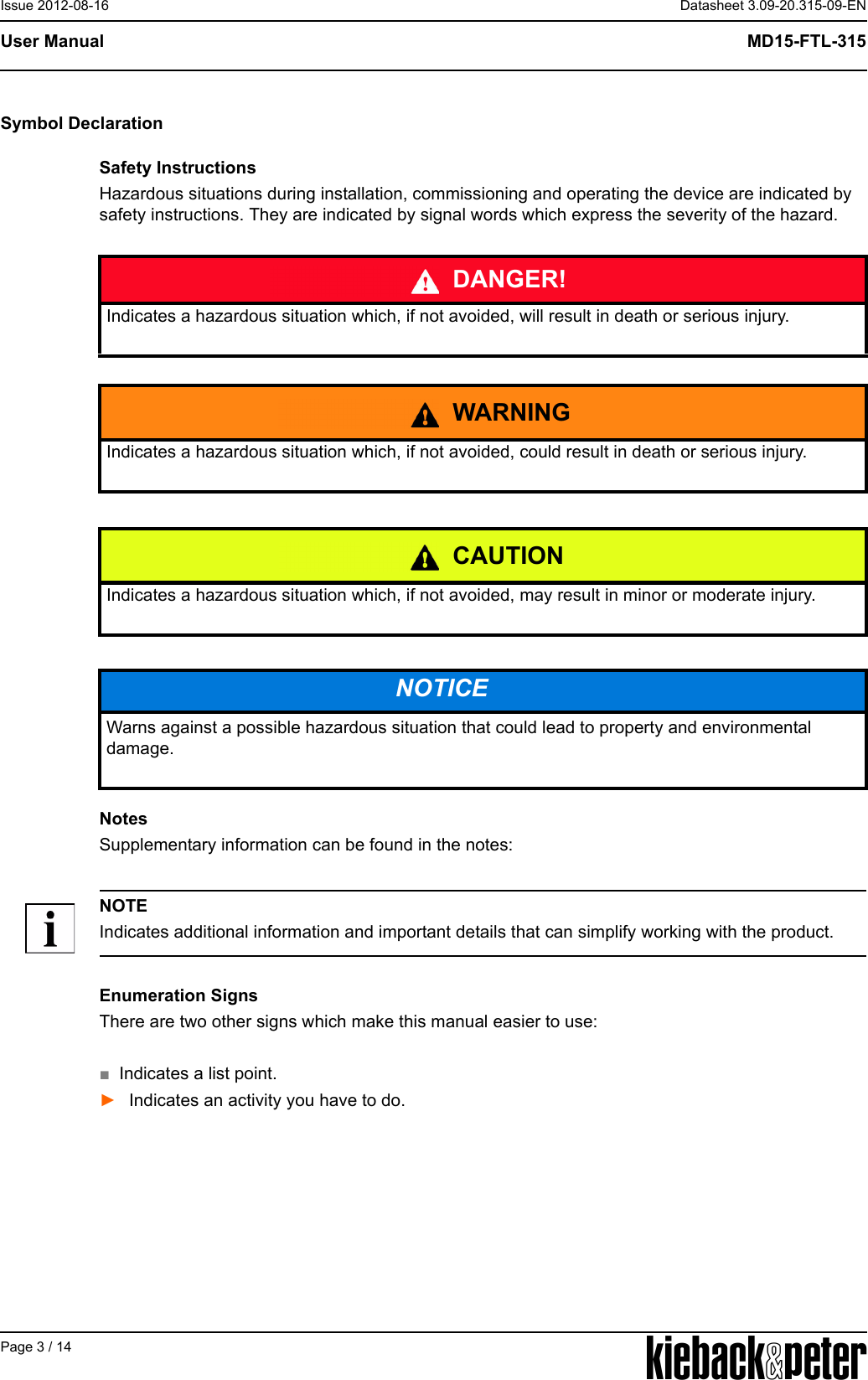

APage 3 / 14Datasheet 3.09-20.315-09-ENMD15-FTL-315User ManualIssue 2012-08-16Symbol DeclarationSafety InstructionsHazardous situations during installation, commissioning and operating the device are indicated by safety instructions. They are indicated by signal words which express the severity of the hazard. NotesSupplementary information can be found in the notes:NOTEIndicates additional information and important details that can simplify working with the product.Enumeration SignsThere are two other signs which make this manual easier to use:■Indicates a list point.►Indicates an activity you have to do.DANGER!Indicates a hazardous situation which, if not avoided, will result in death or serious injury.WARNINGIndicates a hazardous situation which, if not avoided, could result in death or serious injury.CAUTIONIndicates a hazardous situation which, if not avoided, may result in minor or moderate injury.NOTICEWarns against a possible hazardous situation that could lead to property and environmental damage.

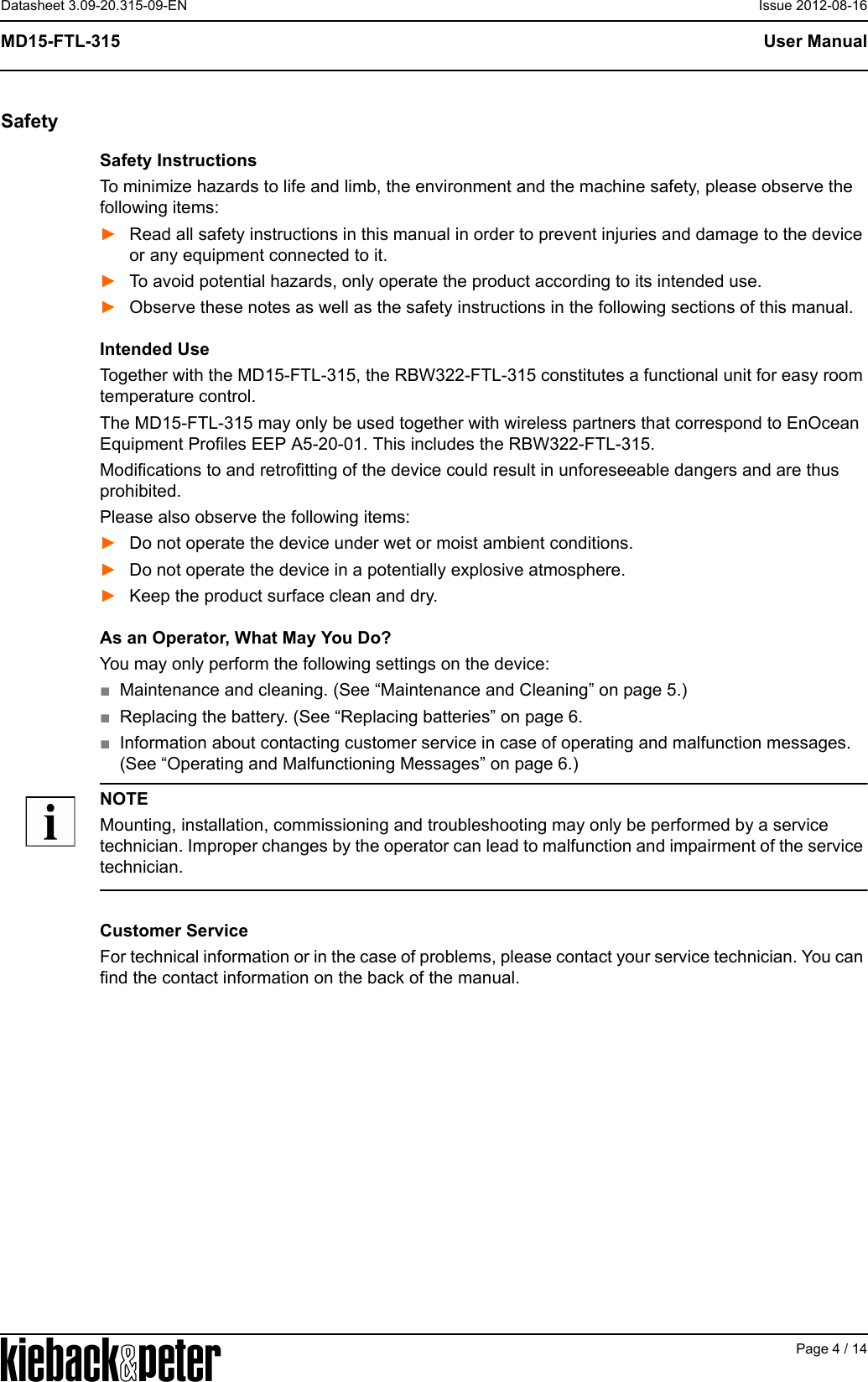

APage 4 / 14User ManualMD15-FTL-315Datasheet 3.09-20.315-09-EN Issue 2012-08-16SafetySafety InstructionsTo minimize hazards to life and limb, the environment and the machine safety, please observe the following items:►Read all safety instructions in this manual in order to prevent injuries and damage to the device or any equipment connected to it.►To avoid potential hazards, only operate the product according to its intended use.►Observe these notes as well as the safety instructions in the following sections of this manual.Intended UseTogether with the MD15-FTL-315, the RBW322-FTL-315 constitutes a functional unit for easy room temperature control.The MD15-FTL-315 may only be used together with wireless partners that correspond to EnOcean Equipment Profiles EEP A5-20-01. This includes the RBW322-FTL-315.Modifications to and retrofitting of the device could result in unforeseeable dangers and are thus prohibited.Please also observe the following items:►Do not operate the device under wet or moist ambient conditions.►Do not operate the device in a potentially explosive atmosphere.►Keep the product surface clean and dry.As an Operator, What May You Do?You may only perform the following settings on the device:■Maintenance and cleaning. (See “Maintenance and Cleaning” on page 5.)■Replacing the battery. (See “Replacing batteries” on page 6.■Information about contacting customer service in case of operating and malfunction messages. (See “Operating and Malfunctioning Messages” on page 6.)NOTEMounting, installation, commissioning and troubleshooting may only be performed by a service technician. Improper changes by the operator can lead to malfunction and impairment of the service technician.Customer ServiceFor technical information or in the case of problems, please contact your service technician. You can find the contact information on the back of the manual.

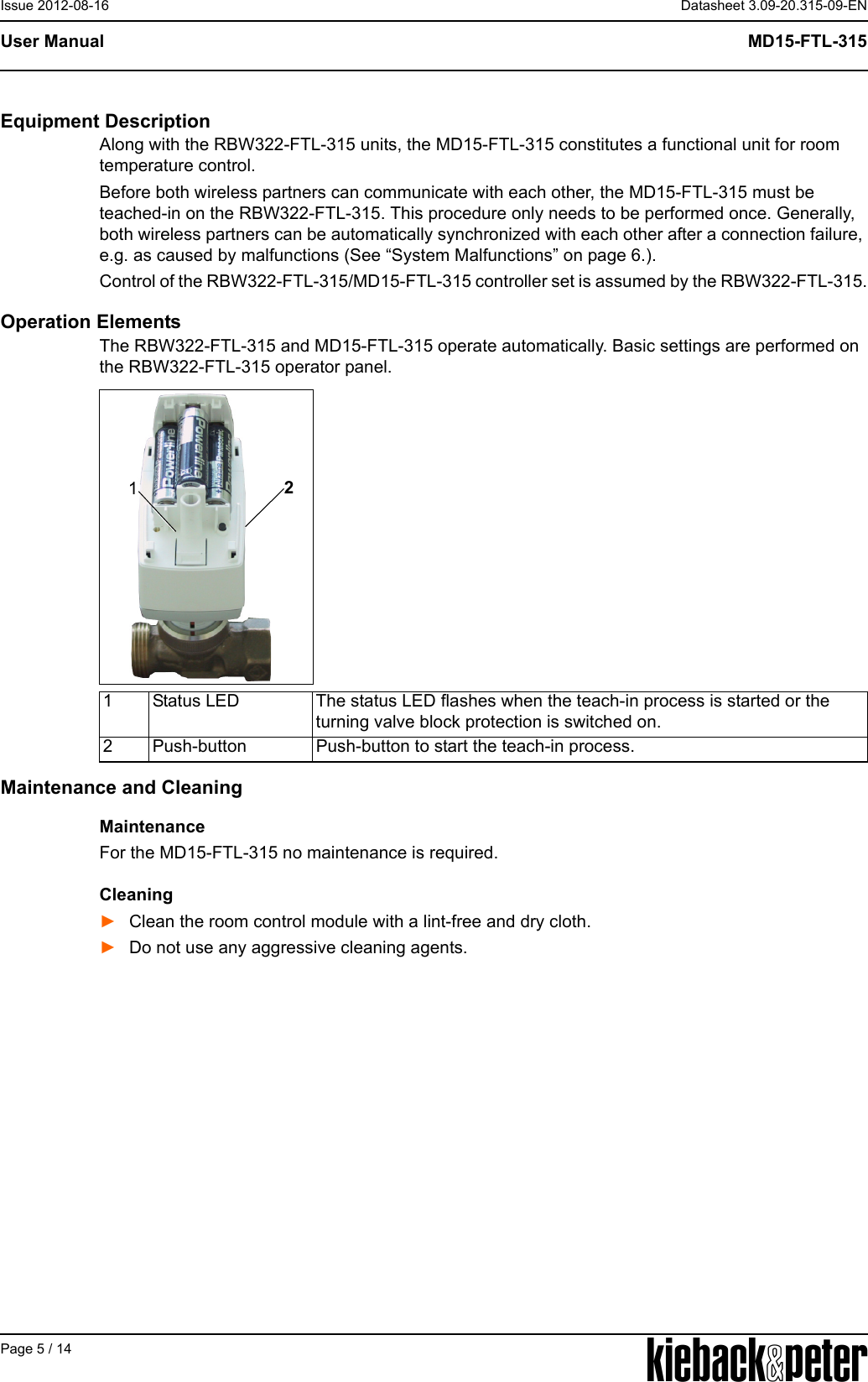

APage 5 / 14Datasheet 3.09-20.315-09-ENMD15-FTL-315User ManualIssue 2012-08-16Equipment DescriptionAlong with the RBW322-FTL-315 units, the MD15-FTL-315 constitutes a functional unit for room temperature control.Before both wireless partners can communicate with each other, the MD15-FTL-315 must be teached-in on the RBW322-FTL-315. This procedure only needs to be performed once. Generally, both wireless partners can be automatically synchronized with each other after a connection failure, e.g. as caused by malfunctions (See “System Malfunctions” on page 6.).Control of the RBW322-FTL-315/MD15-FTL-315 controller set is assumed by the RBW322-FTL-315.Operation ElementsThe RBW322-FTL-315 and MD15-FTL-315 operate automatically. Basic settings are performed on the RBW322-FTL-315 operator panel.Maintenance and CleaningMaintenanceFor the MD15-FTL-315 no maintenance is required.Cleaning►Clean the room control module with a lint-free and dry cloth.►Do not use any aggressive cleaning agents.121 Status LED The status LED flashes when the teach-in process is started or the turning valve block protection is switched on.2 Push-button Push-button to start the teach-in process.

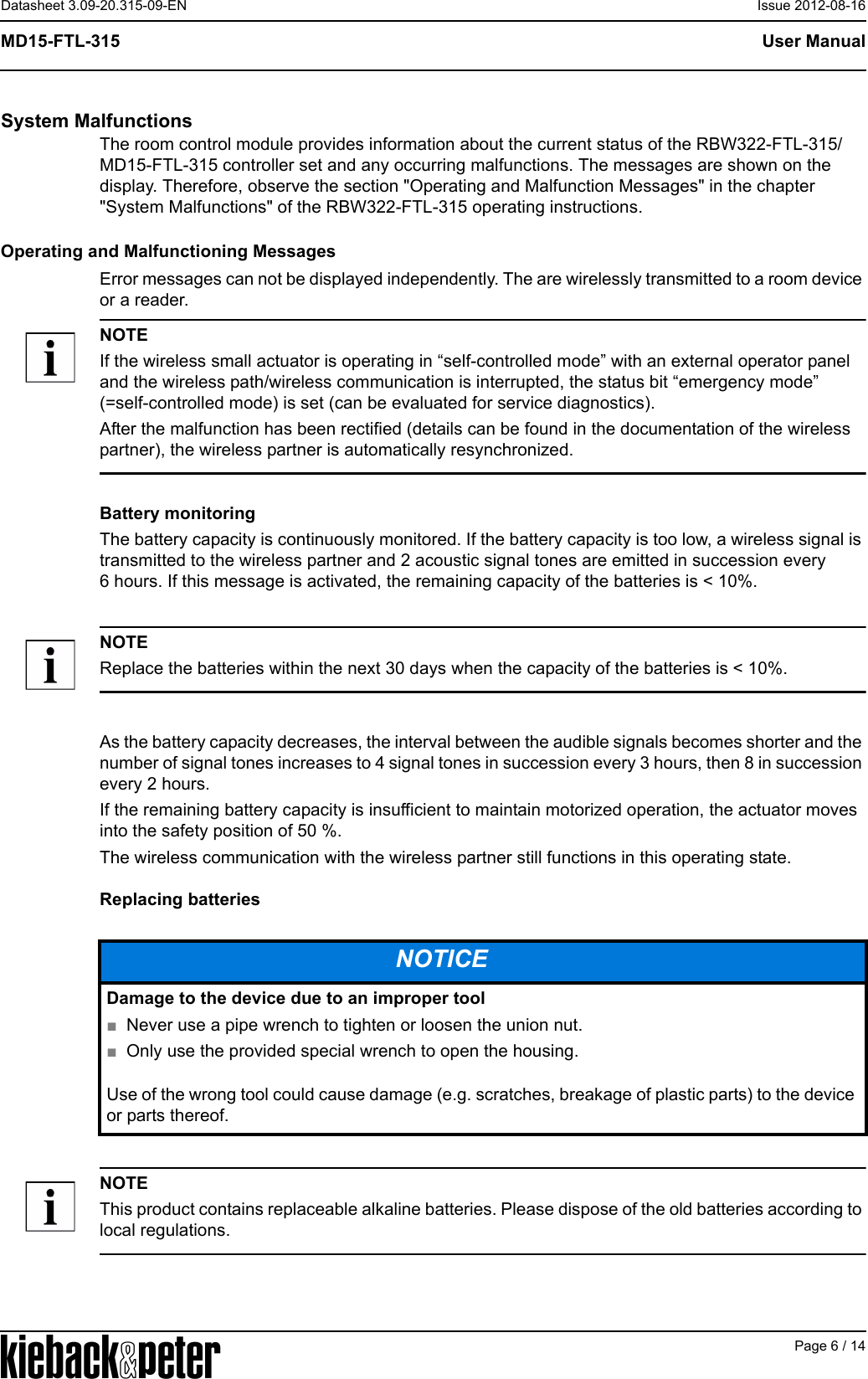

APage 6 / 14User ManualMD15-FTL-315Datasheet 3.09-20.315-09-EN Issue 2012-08-16System MalfunctionsThe room control module provides information about the current status of the RBW322-FTL-315/MD15-FTL-315 controller set and any occurring malfunctions. The messages are shown on the display. Therefore, observe the section "Operating and Malfunction Messages" in the chapter "System Malfunctions" of the RBW322-FTL-315 operating instructions.Operating and Malfunctioning MessagesError messages can not be displayed independently. The are wirelessly transmitted to a room device or a reader.NOTEIf the wireless small actuator is operating in “self-controlled mode” with an external operator panel and the wireless path/wireless communication is interrupted, the status bit “emergency mode” (=self-controlled mode) is set (can be evaluated for service diagnostics).After the malfunction has been rectified (details can be found in the documentation of the wireless partner), the wireless partner is automatically resynchronized.Battery monitoringThe battery capacity is continuously monitored. If the battery capacity is too low, a wireless signal is transmitted to the wireless partner and 2 acoustic signal tones are emitted in succession every 6 hours. If this message is activated, the remaining capacity of the batteries is < 10%.NOTEReplace the batteries within the next 30 days when the capacity of the batteries is < 10%.As the battery capacity decreases, the interval between the audible signals becomes shorter and the number of signal tones increases to 4 signal tones in succession every 3 hours, then 8 in succession every 2 hours.If the remaining battery capacity is insufficient to maintain motorized operation, the actuator moves into the safety position of 50 %.The wireless communication with the wireless partner still functions in this operating state.Replacing batteriesNOTEThis product contains replaceable alkaline batteries. Please dispose of the old batteries according to local regulations.NOTICEDamage to the device due to an improper tool■Never use a pipe wrench to tighten or loosen the union nut.■Only use the provided special wrench to open the housing.Use of the wrong tool could cause damage (e.g. scratches, breakage of plastic parts) to the device or parts thereof.

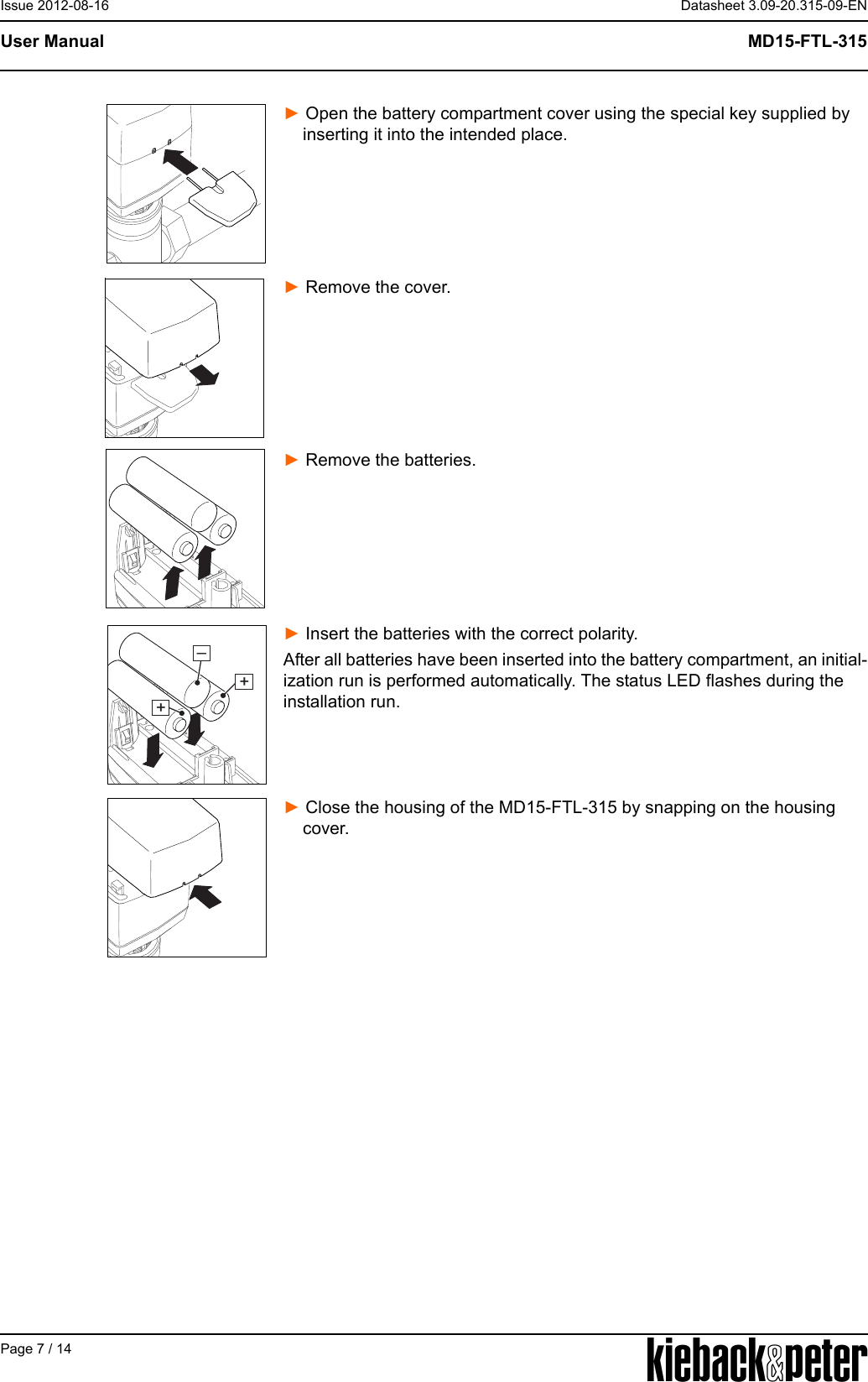

APage 7 / 14Datasheet 3.09-20.315-09-ENMD15-FTL-315User ManualIssue 2012-08-16► Open the battery compartment cover using the special key supplied by inserting it into the intended place.► Remove the cover.► Remove the batteries.► Insert the batteries with the correct polarity.After all batteries have been inserted into the battery compartment, an initial-ization run is performed automatically. The status LED flashes during the installation run.► Close the housing of the MD15-FTL-315 by snapping on the housing cover.++–

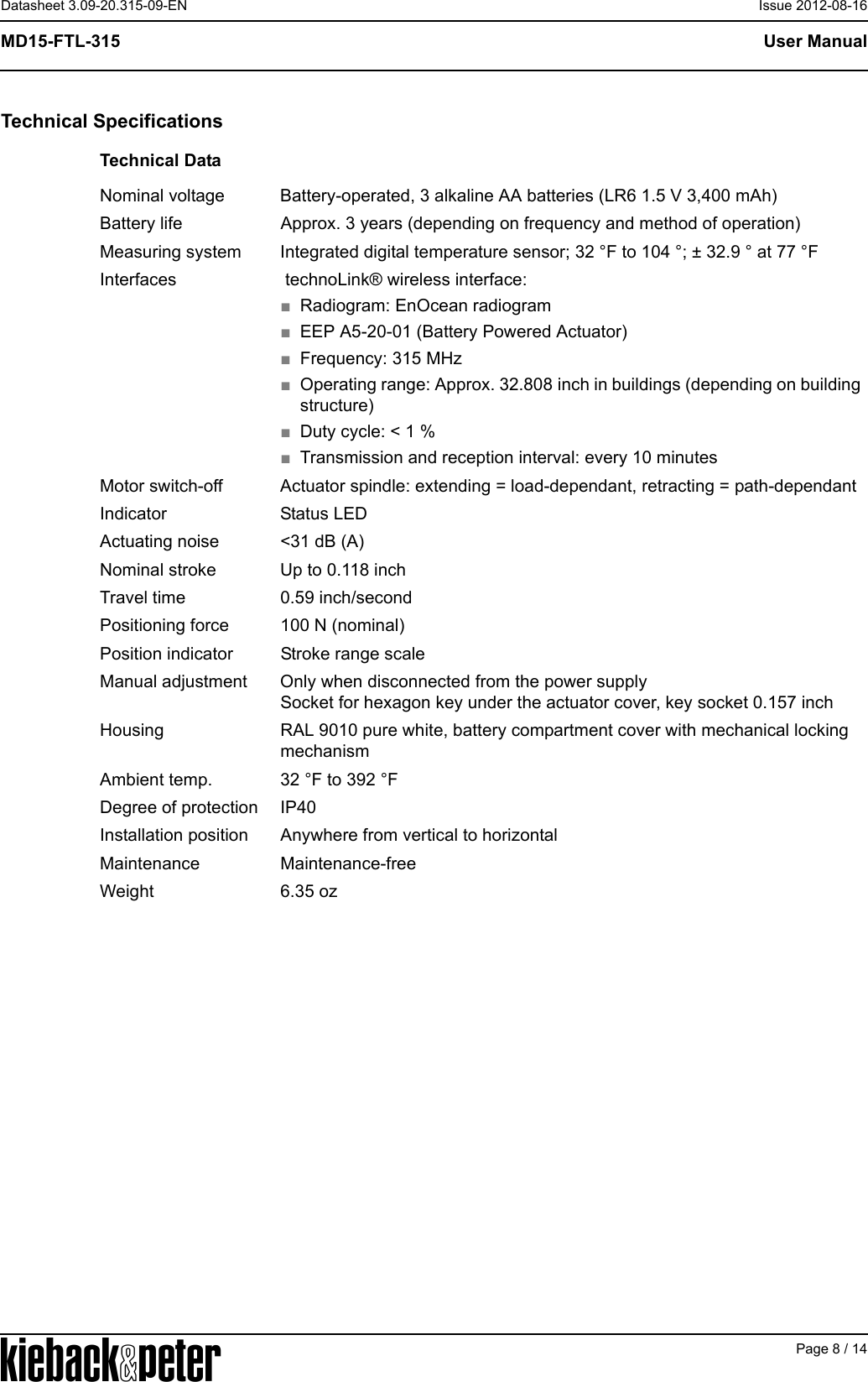

APage 8 / 14User ManualMD15-FTL-315Datasheet 3.09-20.315-09-EN Issue 2012-08-16Technical SpecificationsTechnical DataNominal voltage Battery-operated, 3 alkaline AA batteries (LR6 1.5 V 3,400 mAh)Battery life Approx. 3 years (depending on frequency and method of operation)Measuring system Integrated digital temperature sensor; 32 °F to 104 °; ± 32.9 ° at 77 °FInterfaces technoLink® wireless interface:■Radiogram: EnOcean radiogram■EEP A5-20-01 (Battery Powered Actuator)■Frequency: 315 MHz■Operating range: Approx. 32.808 inch in buildings (depending on building structure)■Duty cycle: < 1 %■Transmission and reception interval: every 10 minutesMotor switch-off Actuator spindle: extending = load-dependant, retracting = path-dependantIndicator Status LEDActuating noise <31 dB (A)Nominal stroke Up to 0.118 inchTravel time 0.59 inch/secondPositioning force 100 N (nominal)Position indicator Stroke range scaleManual adjustment Only when disconnected from the power supplySocket for hexagon key under the actuator cover, key socket 0.157 inchHousing RAL 9010 pure white, battery compartment cover with mechanical locking mechanismAmbient temp. 32 °F to 392 °FDegree of protection IP40Installation position Anywhere from vertical to horizontalMaintenance Maintenance-freeWeight 6.35 oz

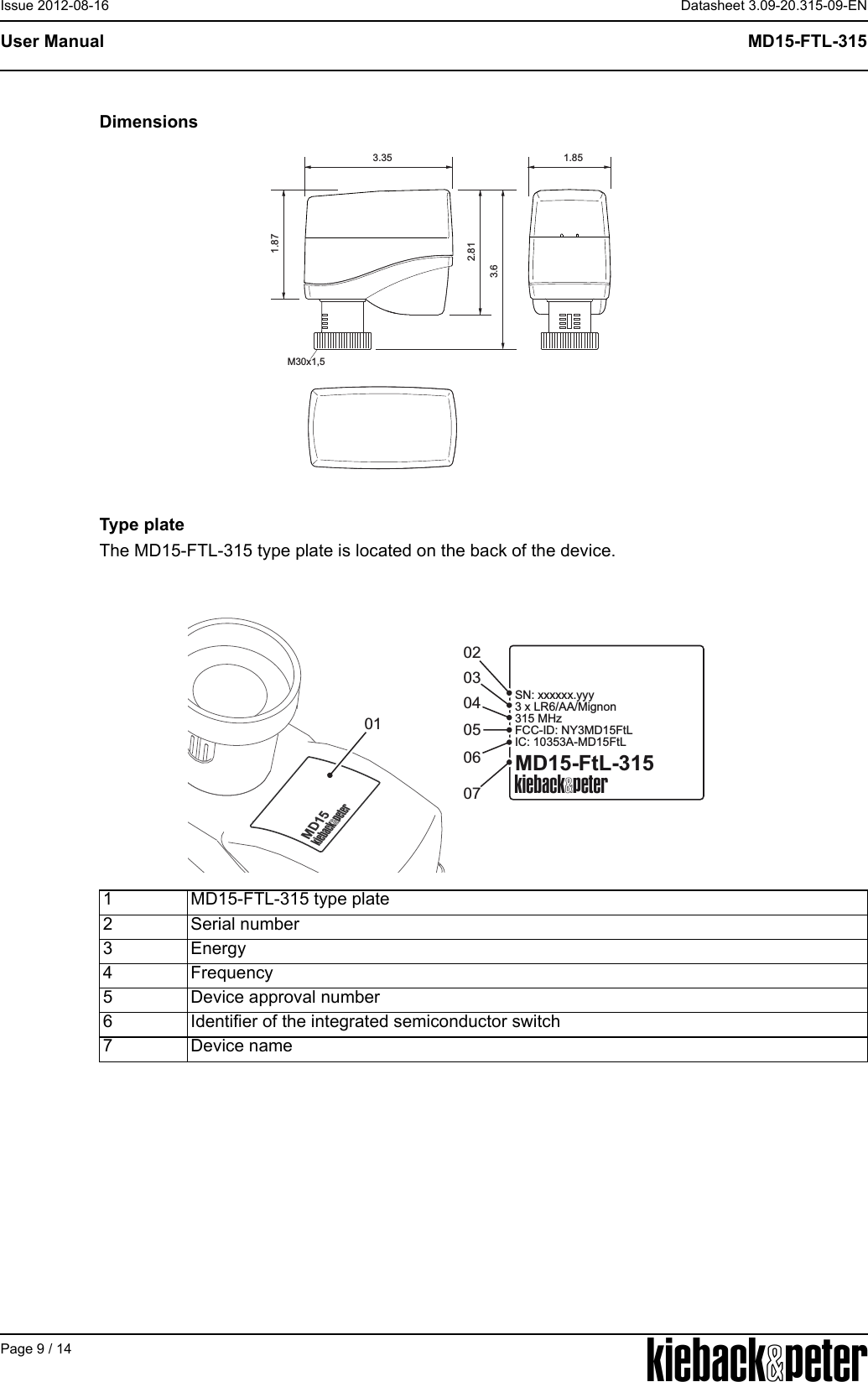

APage 9 / 14Datasheet 3.09-20.315-09-ENMD15-FTL-315User ManualIssue 2012-08-16DimensionsType plateThe MD15-FTL-315 type plate is located on the back of the device.1 MD15-FTL-315 type plate2 Serial number3Energy4 Frequency5 Device approval number6 Identifier of the integrated semiconductor switch7 Device name3.35 1.852.811.873.6M30x1,5MD15-FtL-315ASN: xxxxxx.yyy3 x LR6/AA/Mignon315 MHzFCC-ID: NY3MD15FtLIC: 10353A-MD15FtL030207060504MD15A01

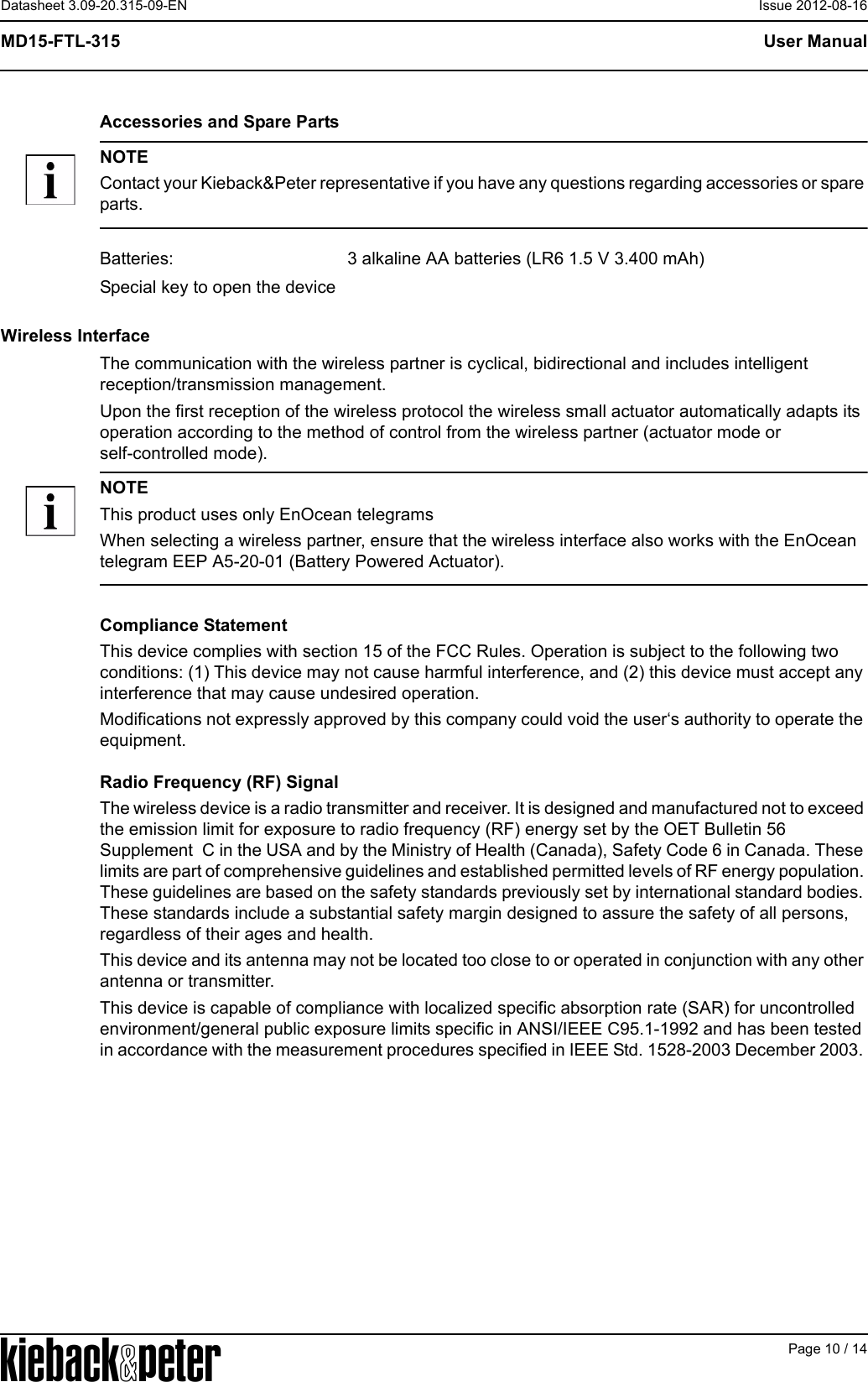

APage 10 / 14User ManualMD15-FTL-315Datasheet 3.09-20.315-09-EN Issue 2012-08-16Accessories and Spare PartsNOTEContact your Kieback&Peter representative if you have any questions regarding accessories or spare parts.Wireless InterfaceThe communication with the wireless partner is cyclical, bidirectional and includes intelligent reception/transmission management.Upon the first reception of the wireless protocol the wireless small actuator automatically adapts its operation according to the method of control from the wireless partner (actuator mode or self-controlled mode).NOTEThis product uses only EnOcean telegramsWhen selecting a wireless partner, ensure that the wireless interface also works with the EnOcean telegram EEP A5-20-01 (Battery Powered Actuator).Compliance StatementThis device complies with section 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation.Modifications not expressly approved by this company could void the user‘s authority to operate the equipment.Radio Frequency (RF) SignalThe wireless device is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limit for exposure to radio frequency (RF) energy set by the OET Bulletin 56 Supplement C in the USA and by the Ministry of Health (Canada), Safety Code 6 in Canada. These limits are part of comprehensive guidelines and established permitted levels of RF energy population. These guidelines are based on the safety standards previously set by international standard bodies. These standards include a substantial safety margin designed to assure the safety of all persons, regardless of their ages and health.This device and its antenna may not be located too close to or operated in conjunction with any other antenna or transmitter.This device is capable of compliance with localized specific absorption rate (SAR) for uncontrolled environment/general public exposure limits specific in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in IEEE Std. 1528-2003 December 2003. Batteries: 3 alkaline AA batteries (LR6 1.5 V 3.400 mAh)Special key to open the device

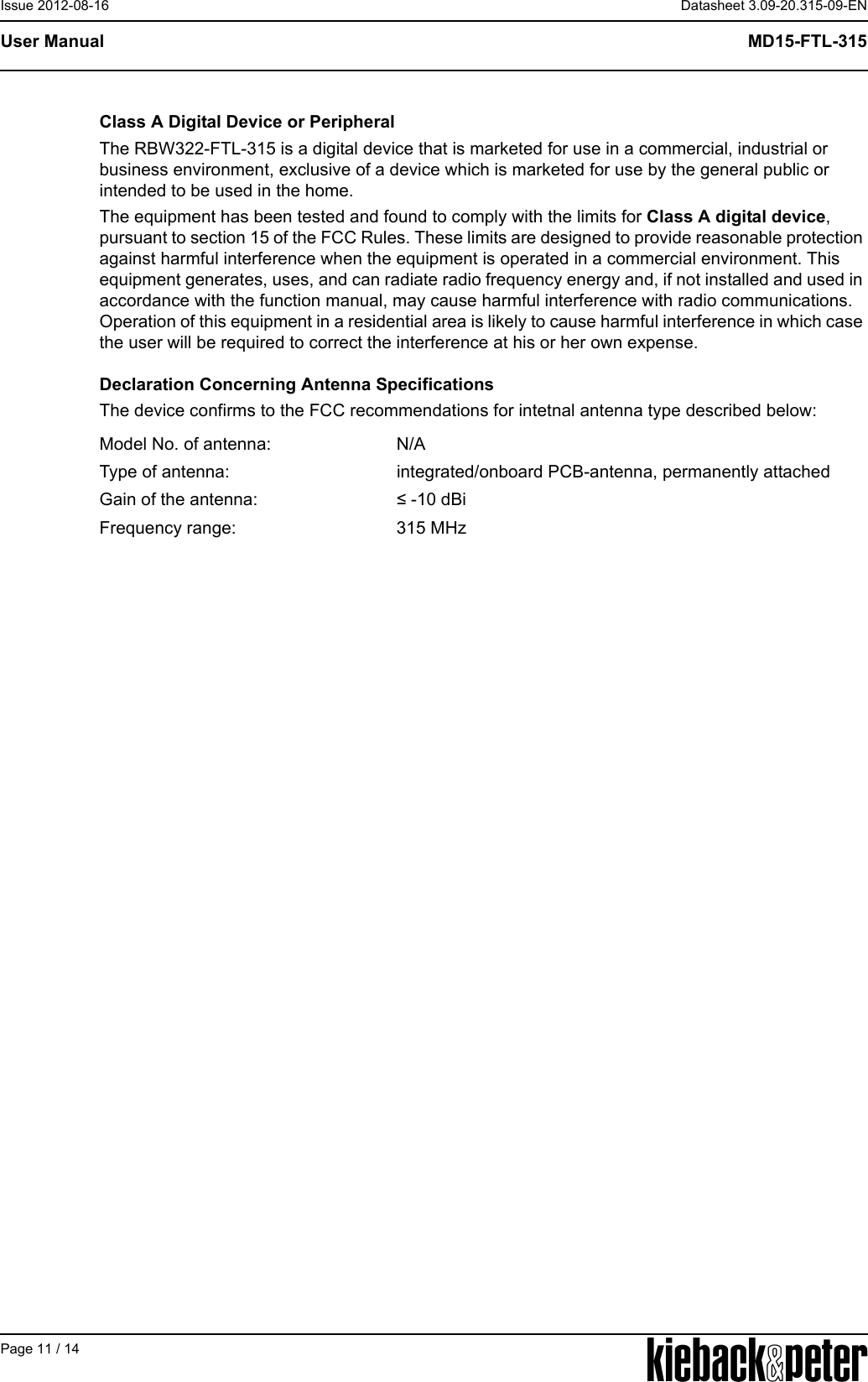

APage 11 / 14Datasheet 3.09-20.315-09-ENMD15-FTL-315User ManualIssue 2012-08-16Class A Digital Device or PeripheralThe RBW322-FTL-315 is a digital device that is marketed for use in a commercial, industrial or business environment, exclusive of a device which is marketed for use by the general public or intended to be used in the home.The equipment has been tested and found to comply with the limits for Class A digital device, pursuant to section 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the function manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his or her own expense. Declaration Concerning Antenna SpecificationsThe device confirms to the FCC recommendations for intetnal antenna type described below:Model No. of antenna: N/AType of antenna: integrated/onboard PCB-antenna, permanently attachedGain of the antenna: ≤ -10 dBiFrequency range: 315 MHz

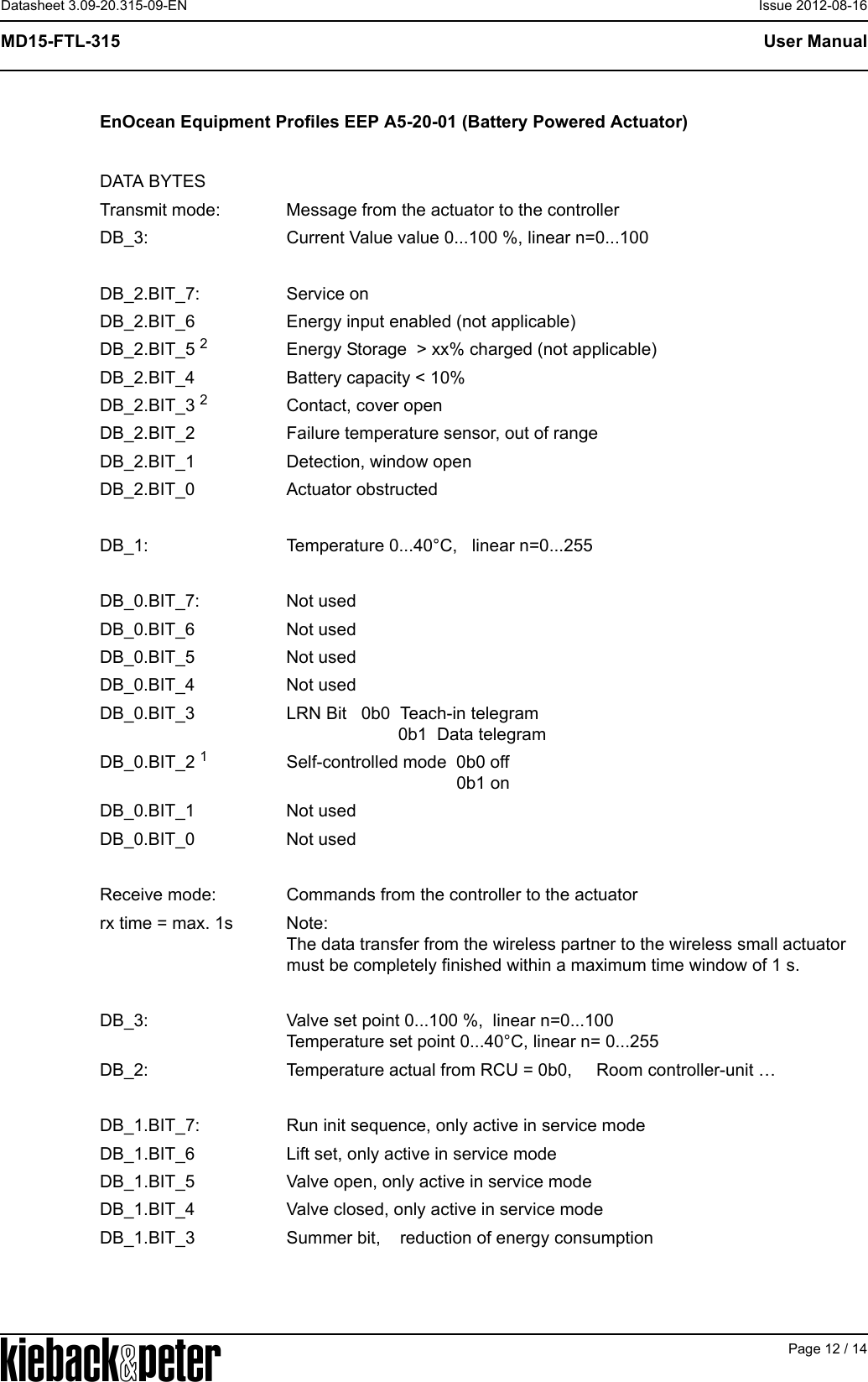

APage 12 / 14User ManualMD15-FTL-315Datasheet 3.09-20.315-09-EN Issue 2012-08-16EnOcean Equipment Profiles EEP A5-20-01 (Battery Powered Actuator)DATA BYTESTransmit mode: Message from the actuator to the controllerDB_3: Current Value value 0...100 %, linear n=0...100DB_2.BIT_7: Service onDB_2.BIT_6 Energy input enabled (not applicable)DB_2.BIT_5 2Energy Storage > xx% charged (not applicable)DB_2.BIT_4 Battery capacity < 10%DB_2.BIT_3 2Contact, cover openDB_2.BIT_2 Failure temperature sensor, out of rangeDB_2.BIT_1 Detection, window openDB_2.BIT_0 Actuator obstructedDB_1: Temperature 0...40°C, linear n=0...255 DB_0.BIT_7: Not usedDB_0.BIT_6 Not usedDB_0.BIT_5 Not usedDB_0.BIT_4 Not usedDB_0.BIT_3 LRN Bit 0b0 Teach-in telegram 0b1 Data telegramDB_0.BIT_2 1Self-controlled mode 0b0 off 0b1 onDB_0.BIT_1 Not usedDB_0.BIT_0 Not usedReceive mode: Commands from the controller to the actuatorrx time = max. 1s Note:The data transfer from the wireless partner to the wireless small actuator must be completely finished within a maximum time window of 1 s.DB_3: Valve set point 0...100 %, linear n=0...100Temperature set point 0...40°C, linear n= 0...255DB_2: Temperature actual from RCU = 0b0, Room controller-unit …DB_1.BIT_7: Run init sequence, only active in service modeDB_1.BIT_6 Lift set, only active in service modeDB_1.BIT_5 Valve open, only active in service modeDB_1.BIT_4 Valve closed, only active in service modeDB_1.BIT_3 Summer bit, reduction of energy consumption

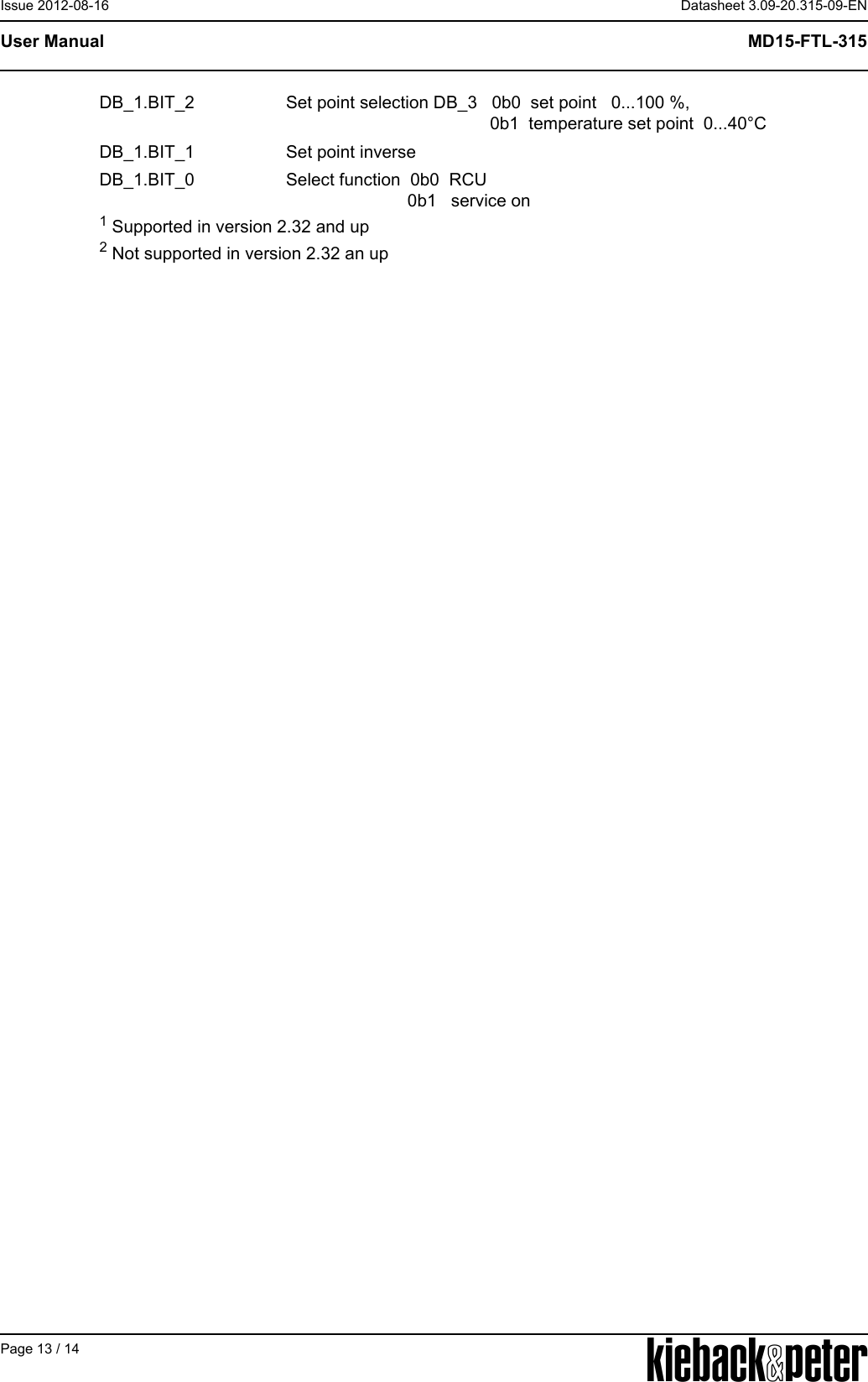

APage 13 / 14Datasheet 3.09-20.315-09-ENMD15-FTL-315User ManualIssue 2012-08-161 Supported in version 2.32 and up2 Not supported in version 2.32 an upDB_1.BIT_2 Set point selection DB_3 0b0 set point 0...100 %, 0b1 temperature set point 0...40°CDB_1.BIT_1 Set point inverseDB_1.BIT_0 Select function 0b0 RCU 0b1 service on

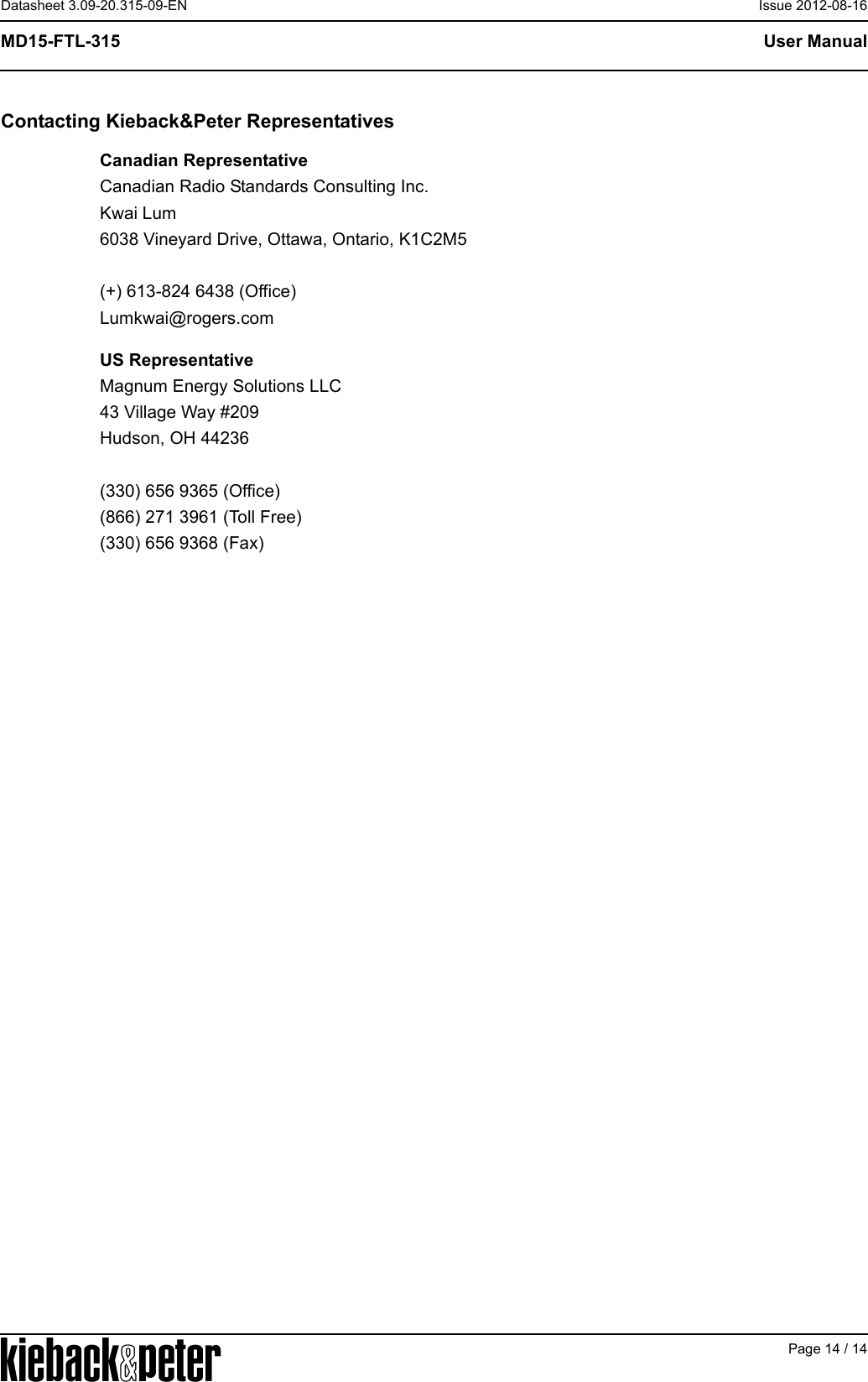

APage 14 / 14User ManualMD15-FTL-315Datasheet 3.09-20.315-09-EN Issue 2012-08-16Contacting Kieback&Peter RepresentativesCanadian RepresentativeCanadian Radio Standards Consulting Inc.Kwai Lum6038 Vineyard Drive, Ottawa, Ontario, K1C2M5(+) 613-824 6438 (Office)Lumkwai@rogers.comUS RepresentativeMagnum Energy Solutions LLC43 Village Way #209Hudson, OH 44236(330) 656 9365 (Office)(866) 271 3961 (Toll Free)(330) 656 9368 (Fax)
