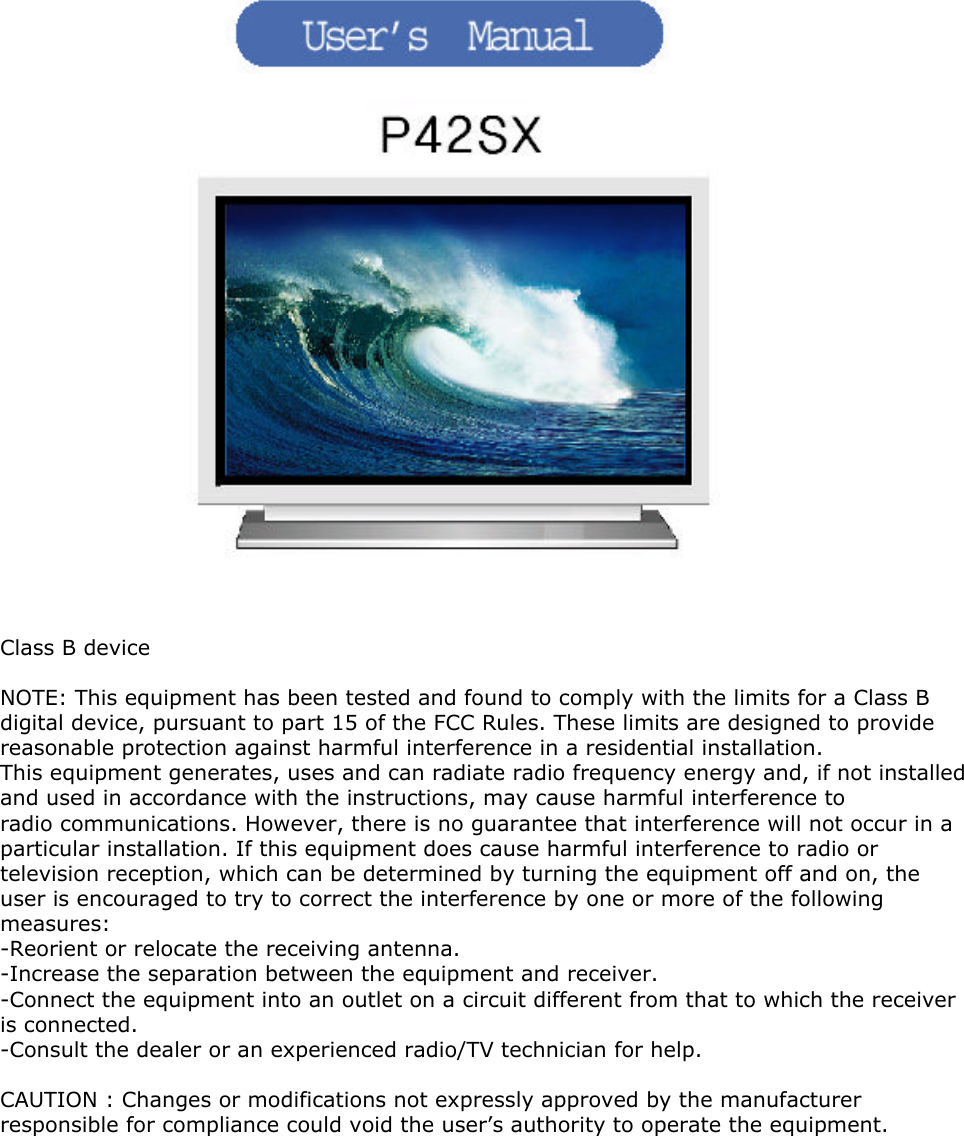

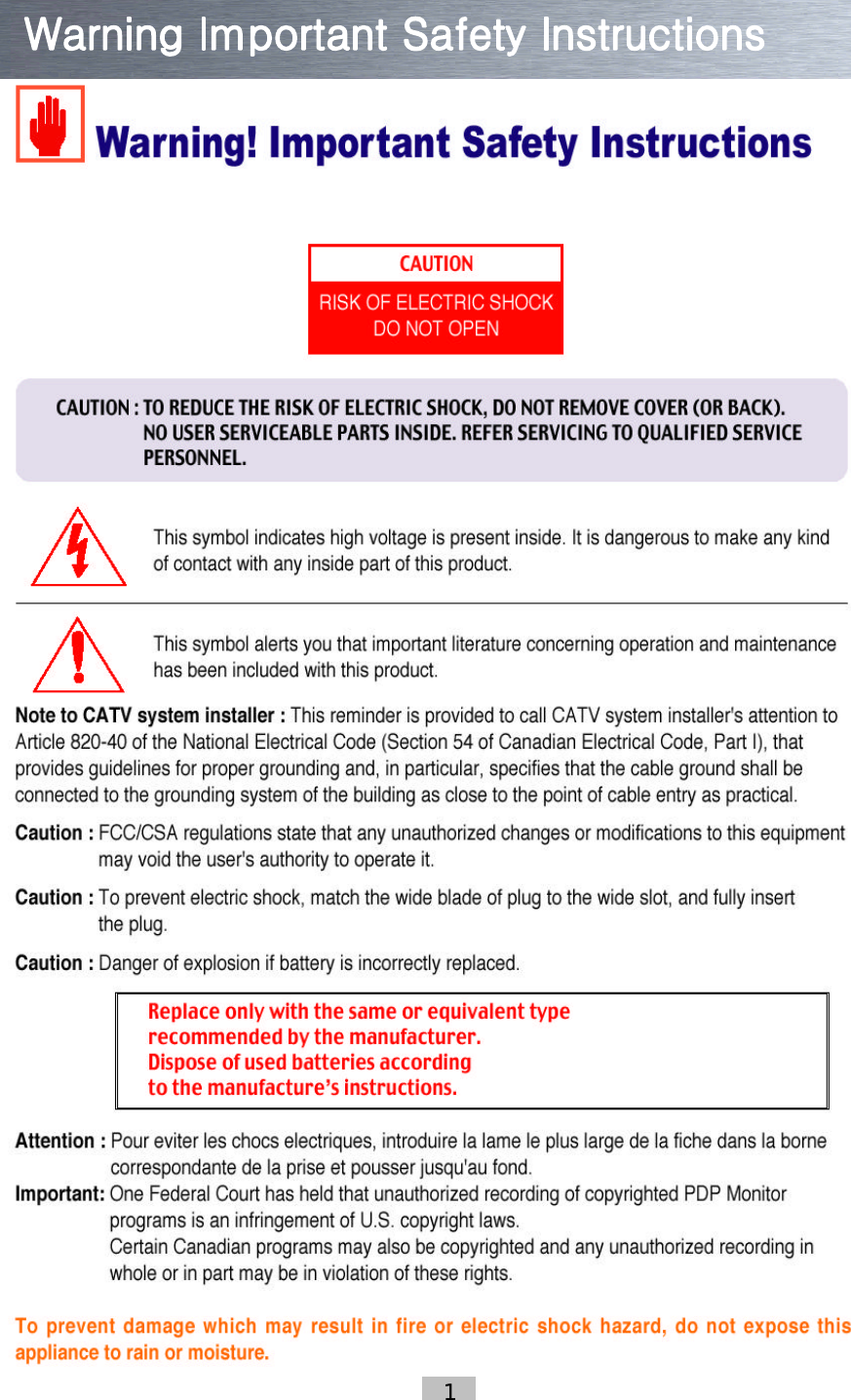

Class B device NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the  user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.  CAUTION : Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment.

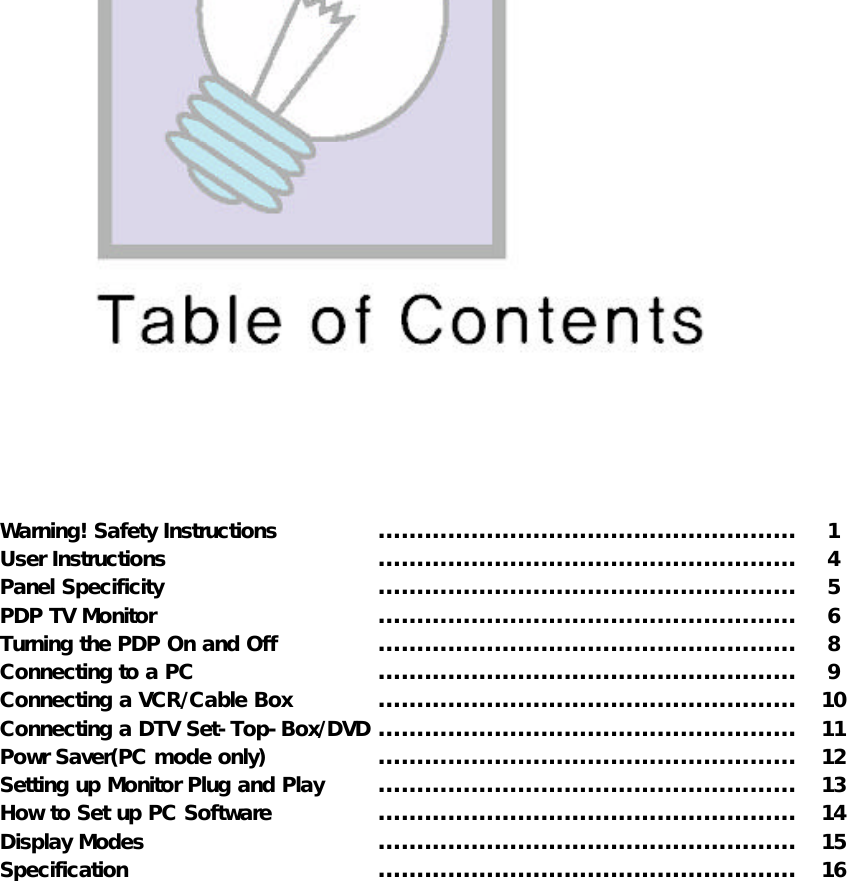

Warning! Safety Instructions ……………………………………………… 1User Instructions ……………………………………………… 4Panel Specificity ……………………………………………… 5PDP TV Monitor ……………………………………………… 6Turning the PDP On and Off ……………………………………………… 8Connecting to a PC ……………………………………………… 9Connecting a VCR/Cable Box ……………………………………………… 10Connecting a DTV Set-Top-Box/DVD ……………………………………………… 11Powr Saver(PC mode only) ……………………………………………… 12Setting up Monitor Plug and Play ……………………………………………… 13How to Set up PC Software ……………………………………………… 14Display Modes ……………………………………………… 15Specification ……………………………………………… 16
1

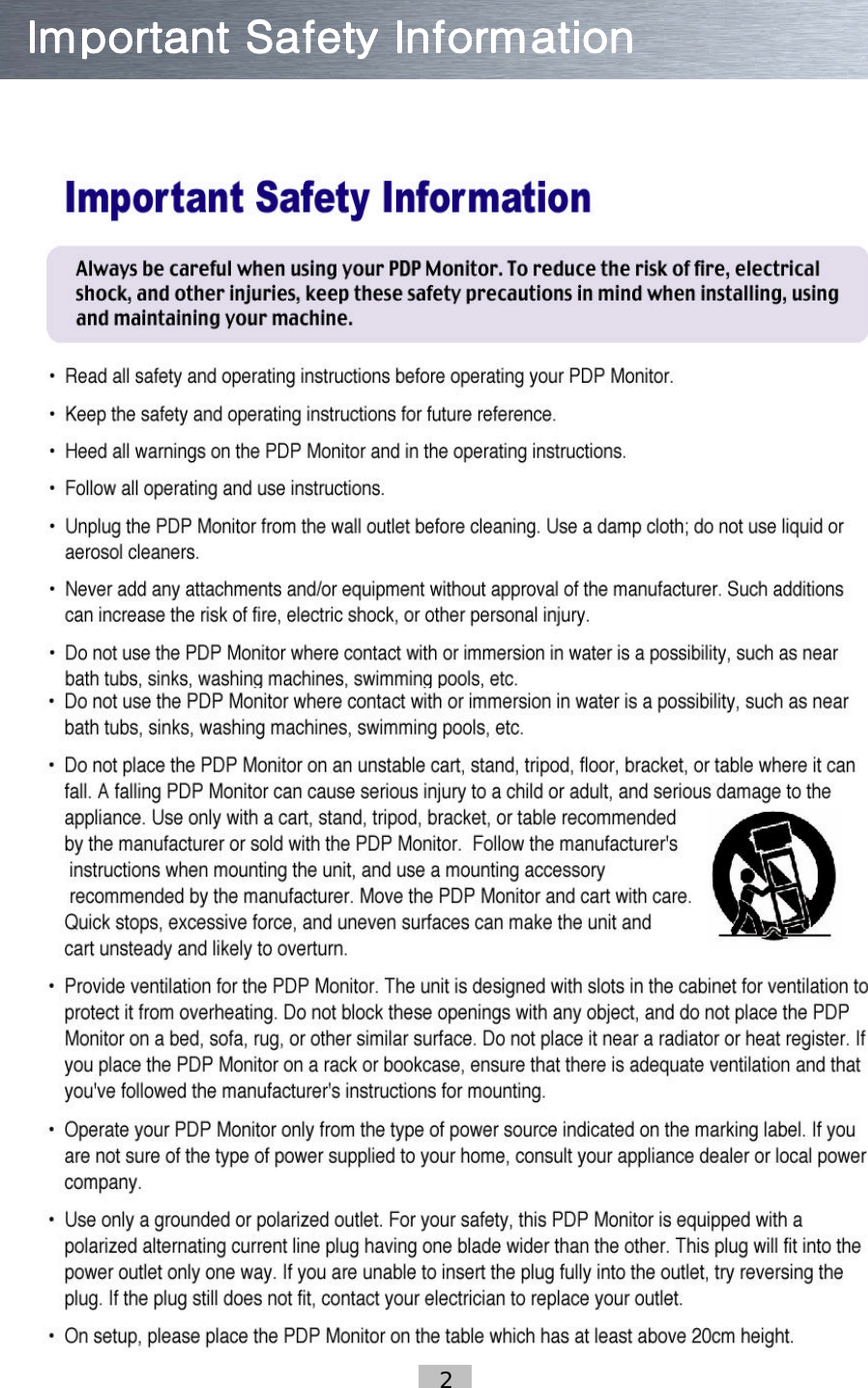

2

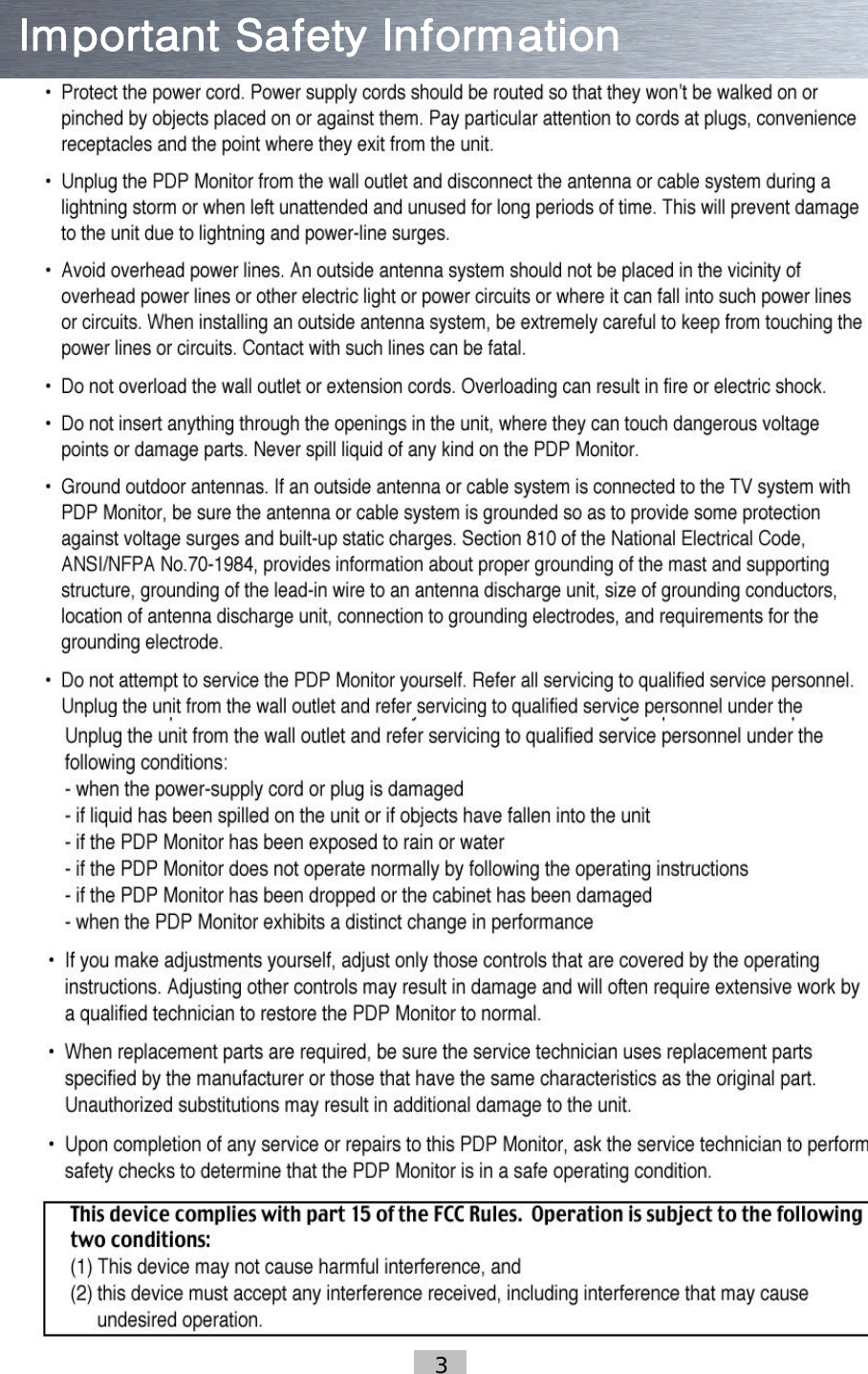

3

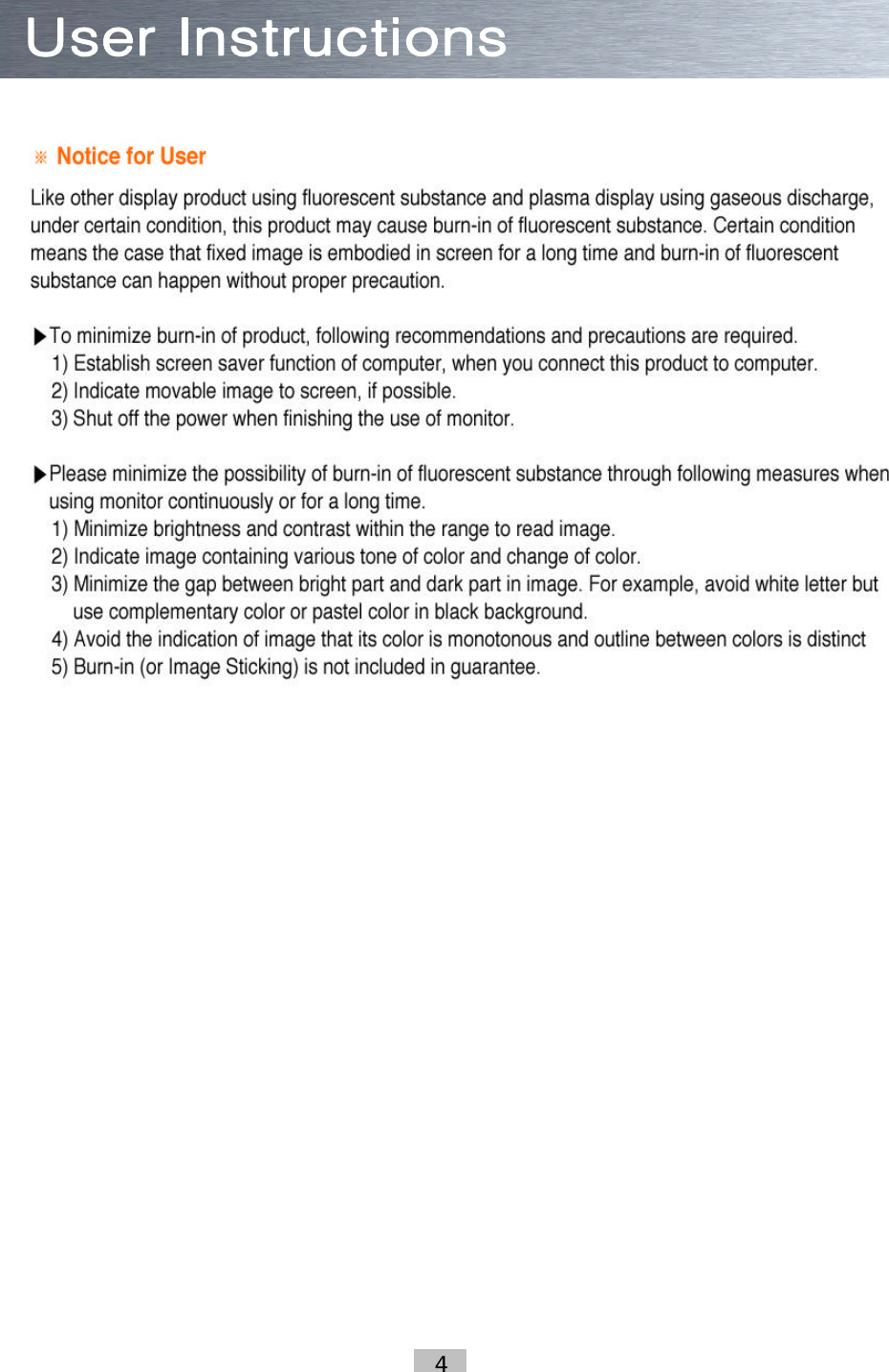

4

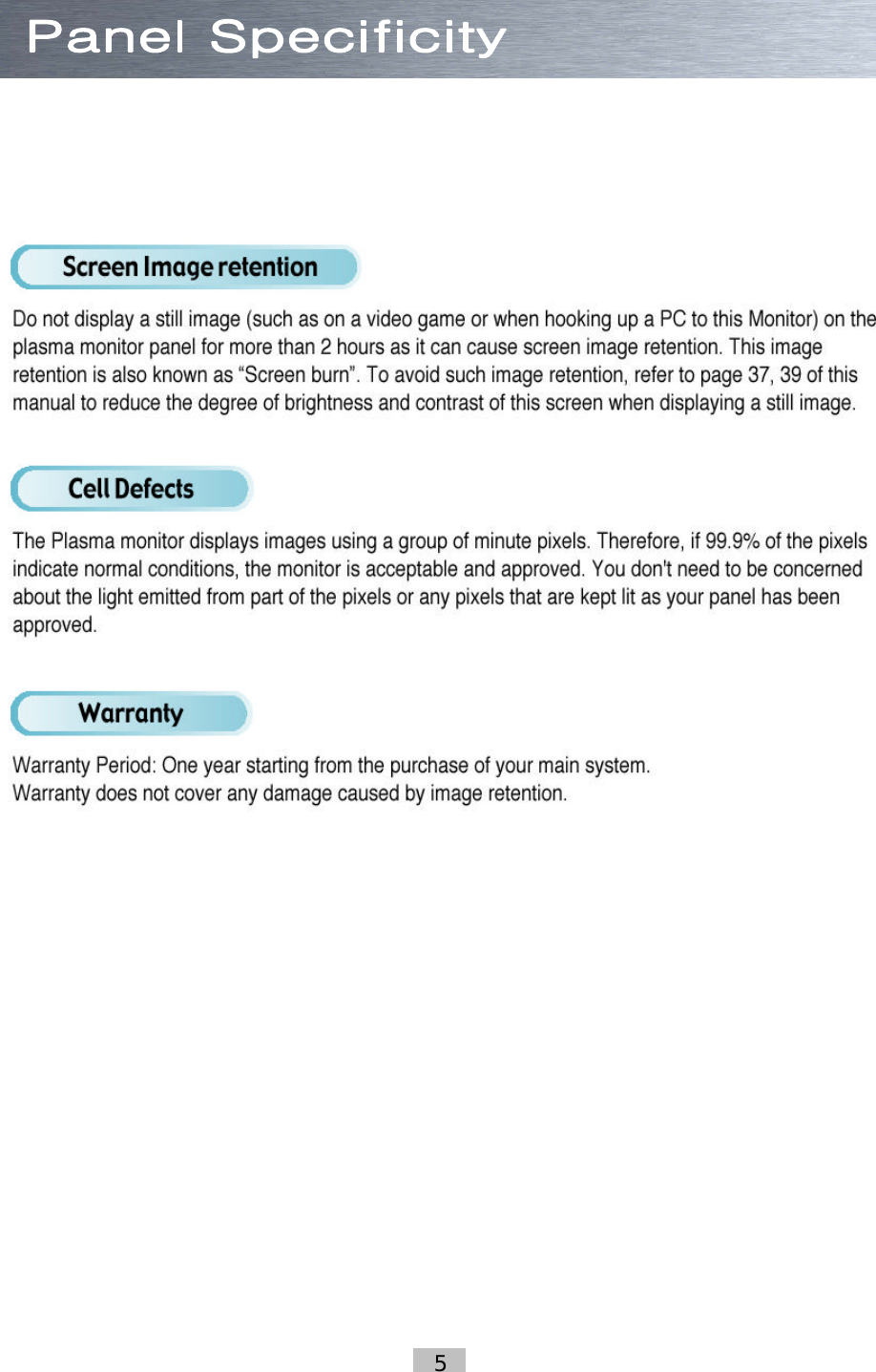

5

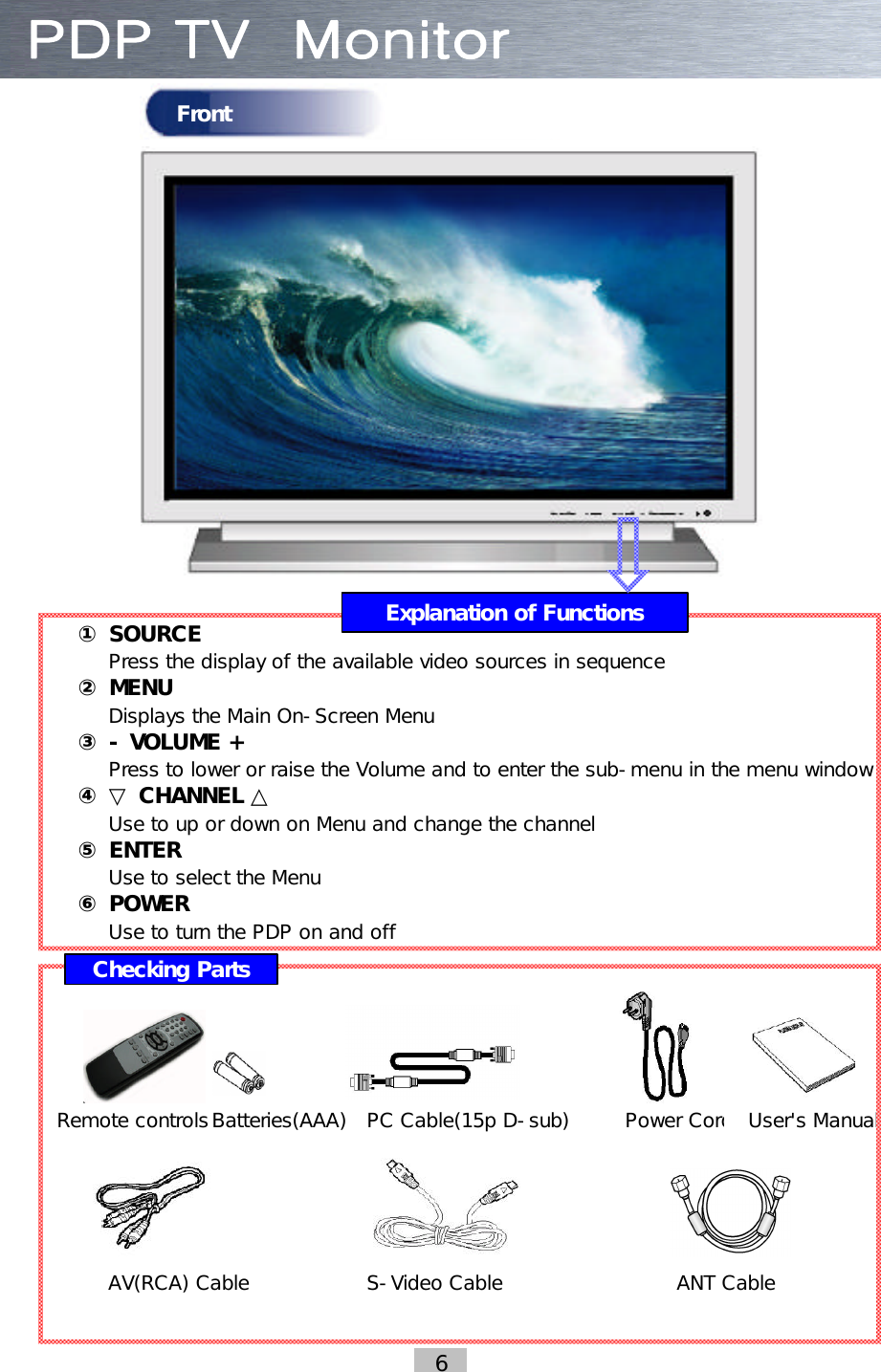

①SOURCEPress the display of the available video sources in sequence②MENUDisplays the Main On-Screen Menu③- VOLUME +Press to lower or raise the Volume and to enter the sub-menu in the menu window④▽ CHANNEL △Use to up or down on Menu and change the channel⑤ENTERUse to select the Menu⑥POWERUse to turn the PDP on and offRemote controlsBatteries(AAA) PC Cable(15p D-sub)Power Cord User's ManualAV(RCA) Cable S-Video Cable ANT Cable6Checking PartsExplanation of FunctionsFront

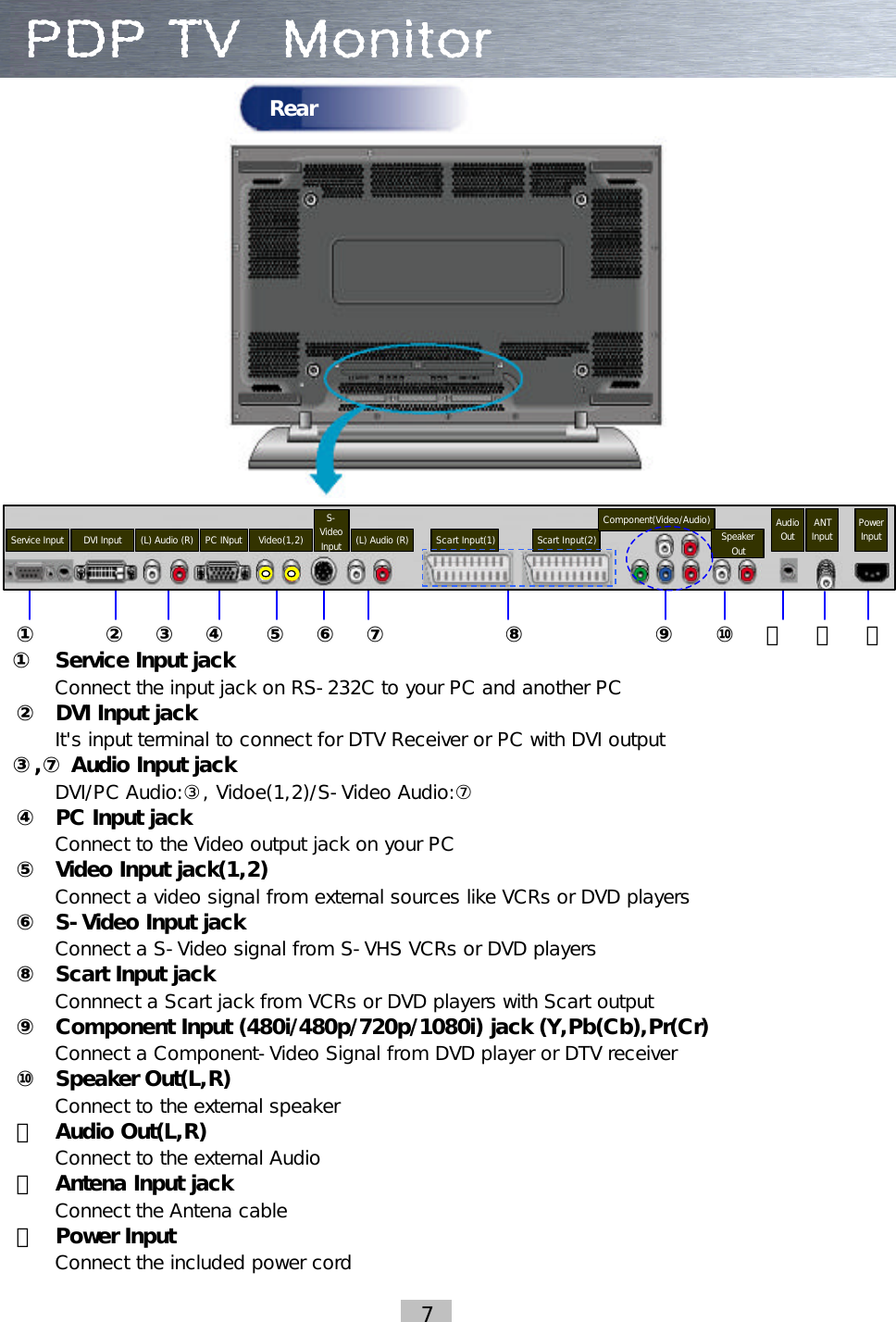

① ②③④ ⑤⑥⑦ ⑧ ⑨ ⑩⑪⑫⑬① Service Input jackConnect the input jack on RS-232C to your PC and another PC②DVI Input jackIt's input terminal to connect for DTV Receiver or PC with DVI output ③,⑦ Audio Input jackDVI/PC Audio:③, Vidoe(1,2)/S-Video Audio:⑦ ④PC Input jackConnect to the Video output jack on your PC⑤Video Input jack(1,2)Connect a video signal from external sources like VCRs or DVD players⑥S-Video Input jackConnect a S-Video signal from S-VHS VCRs or DVD players⑧Scart Input jackConnnect a Scart jack from VCRs or DVD players with Scart output⑨Component Input (480i/480p/720p/1080i) jack (Y,Pb(Cb),Pr(Cr)Connect a Component-Video Signal from DVD player or DTV receiver⑩Speaker Out(L,R)Connect to the external speaker⑪Audio Out(L,R)Connect to the external Audio⑫Antena Input jackConnect the Antena cable⑬Power Input Connect the included power cord7RearDVI InputService Input (L) Audio (R) PC INput Video(1,2)S-VideoInput(L) Audio (R) Scart Input(1) Scart Input(2)Component(Video/Audio)SpeakerOutAudioOut ANTInput PowerInput
