Krisvision Digital Technology Group BM4000 KARAOKE PLAYER User Manual

Shenzhen Krisvision Digital Technology Group Inc. KARAOKE PLAYER

User manual

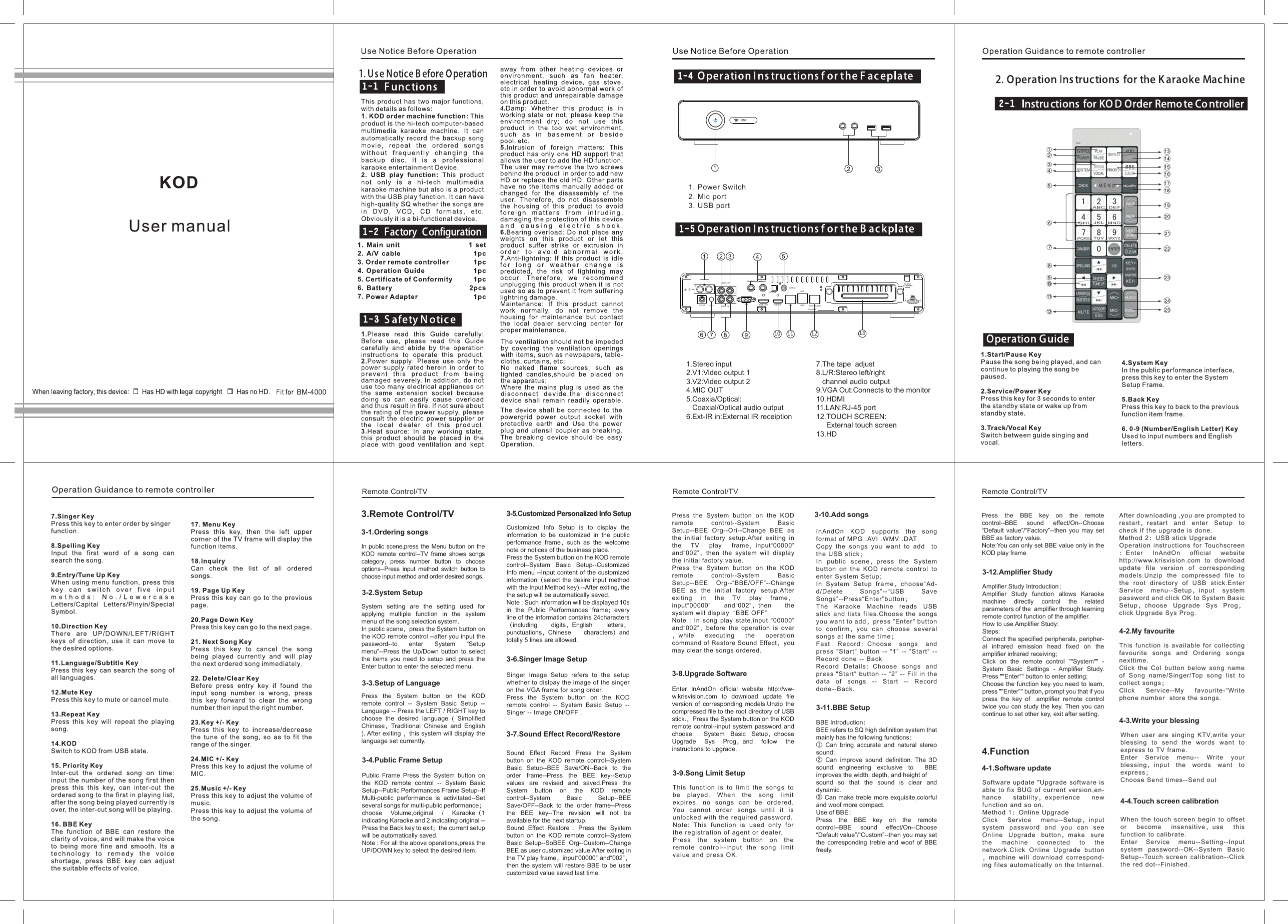

BM-40003.Remote Control/TV 3-1.Ordering songsIn public scene,press the Menu button on the KOD remote control--TV frame shows songs category，press number button to choose options--Press input method switch button to choose input method and order desired songs.3-2.System SetupSystem setting are the setting used for applying multiple function in the system menu of the song selection system.In public scene，press the System button on the KOD remote control --after you input the password--to enter System “Setup menu”--Press the Up/Down button to select the items you need to setup and press the Enter button to enter the selected menu. 3-3.Setup of Language Press the System button on the KOD remote control -- System Basic Setup -- Language -- Press the LEFT / RIGHT key to choose the desired language ( Simplified Chinese，Traditional Chinese and English ). After exiting ，this system will display the language set currently. 3-4.Public Frame SetupPublic Frame Press the System button on the KOD remote control -- System Basic Setup--Public Performances Frame Setup--If Multi-public performance is activitated--Set several songs for multi-public performance；choose Volume,original / Karaoke（1 indicating Karaoke and 2 indicating original -- Press the Back key to exit；the current setup will be automatically saved.Note : For all the above operations,press the UP/DOWN key to select the desired item. 3-5.Customized Personalized Info SetupCustomized Info Setup is to display the information to be customized in the public performance frame，such as the welcome note or notices of the business place.Press the System button on the KOD remote control--System Basic Setup--Customized Info menu --Input content of the customized information（select the desire input method with the Input Method key).--After exiting, the the setup will be automatically saved.Note : Such information will be displayed 10s in the Public Performances frame；every line of the information contains 24characters（including digits，English letters，punctuations，Chinese characters）and totally 5 lines are allowed. 3-6.Singer Image SetupSinger Image Setup refers to the setup whether to dislpay the image of the singer on the VGA frame for song order.Press the System button on the KOD remote control -- System Basic Setup -- Singer -- Image ON/OFF . 3-7.Sound Effect Record/RestoreSound Effect Record Press the System button on the KOD remote control--System Basic Setup--BEE Save/ON--Back to the order frame--Press the BEE key--Setup values are revised and saved.Press the System button on the KOD remote control--System Basic Setup--BEE Save/OFF--Back to the order frame--Press the BEE key--The revision will not be available for the next startup.Sound Effect Restore . Press the System button on the KOD remote control--System Basic Setup--SoBEE Org--Custom--Change BEE as user customized value.After exiting in the TV play frame，input“00000” and“002”，then the system will restore BBE to be user customized value saved last time. Press the System button on the KOD remote control--System Basic Setup--BEE Org--Ori--Change BEE as the initial factory setup.After exiting in the TV play frame，input“00000” and“002”，then the system will display the initial factory value.Press the System button on the KOD remote control--System Basic Setup--BEE Org--“BBE/OFF”--Change BEE as the initial factory setup.After exiting in the TV play frame，input“00000” and“002”，then the system will display “BBE OFF”.Note : In song play state,input “00000” and“002”，before the operation is over，while executing the operation command of Restore Sound Effect，you may clear the songs ordered.3-8.Upgrade Software Enter InAndOn official website http://ww-w.krisvision.com to download update file version of corresponding models.Unzip the compressed file to the root directory of USB stick.，Press the System button on the KOD remote control--input system password and choose System Basic Setup，choose Upgrade Sys Prog，and follow the instructions to upgrade. 3-10.Add songsInAndOn KOD supports the song format of MPG .AVI .WMV .DATCopy the songs you want to add to the USB stick；In public scene，press the System button on the KOD remote control to enter System Setup;In System Setup frame，choose“Ad-d/Delete Songs”--“USB Save Songs”--Press“Enter”button；The Karaoke Machine reads USB stick and lists files.Choose the songs you want to add，press "Enter" button to confirm，you can choose several songs at the same time；Fast Record：Choose songs and press "Start" button -- “1” -- ”Start“ -- Record done -- BackRecord Details：Choose songs and press "Start" button -- “2” -- Fill in the data of songs -- Start -- Record done--Back. 3-9.Song Limit SetupThis function is to limit the songs to be played. When the song limit expires, no songs can be ordered. You cannot order songs until it is unlocked with the required password.Note: This function is used only for the registration of agent or dealer.Press the system button on the remote control--input the song limit value and press OK.3-11.BBE SetupBBE Introduction：BEE refers to SQ high definition system that mainly has the following functions：① Can bring accurate and natural stereo sound;② Can improve sound definition. The 3D sound engineering exclusive to BBE improves the width, depth, and height of sound so that the sound is clear and dynamic.③ Can make treble more exquisite,colorful and woof more compact.Use of BBE：Press the BBE key on the remote control--BBE sound effect/On--Choose “Default value”/“Custom”--then you may set the corresponding treble and woof of BBE freely. Press the BBE key on the remote control--BBE sound effect/On--Choose “Default value”/“Factory”--then you may set BBE as factory value.Note:You can only set BBE value only in the KOD play frame 3-12.Amplifier StudyAmplifier Study Introduction：Amplifier Study function allows Karaoke machine directly control the related parameters of the amplifier through learning remote control function of the amplifier.How to use Amplifier Study:Steps:Connect the specified peripherals, peripher-al infrared emission head fixed on the amplifier infrared receiving;Click on the remote control ""System"" - System Basic Settings - Amplifier Study. Press ""Enter"" button to enter setting;Choose the function key you need to learn, press ""Enter"" button, prompt you that if you press the key of amplifier remote control twice you can study the key. Then you can continue to set other key, exit after setting.4.Function4-1.Software update Software update "Upgrade software is able to fix BUG of current version,en-hance stability，experience new function and so on.Method 1：Online UpgradeClick Service menu--Setup，input system password and you can see Online Upgrade button，make sure the machine connected to the network.Click Online Upgrade button，machine will download correspond-ing files automatically on the Internet.After downloading ,you are prompted to restart，restart and enter Setup to check if the upgrade is done.Method 2：USB stick UpgradeOperation instructions for Touchscreen：Enter InAndOn official website http://www.krisvision.com to download update file version of corresponding models.Unzip the compressed file to the root directory of USB stick.Enter Service menu--Setup，input system password and click OK to System Basic Setup，choose Upgrade Sys Prog，click Upgrade Sys Prog. 4-2.My favouriteThis function is available for collecting favourite songs and Ordering songs nexttime.Click the Col button below song name of Song name/Singer/Top song list to collect songs；Click Service--My favourite-“Write phone number store the songs.4-3.Write your blessingWhen user are singing KTV,write your blessing to send the words want to express to TV frame.Enter Service menu-- Write your blessing，input the words want to express；Choose Send times--Send out4-4.Touch screen calibrationWhen the touch screen begin to offset or become insensitive，use this function to calibrate.Enter Service menu--Setting--Input system password--OK--System Basic Setup--Touch screen calibration--Click the red dot--Finished.Remote Control/TV Remote Control/TV Remote Control/TV EXT-IR + VOL -V1RRV2LL录 音AUDIO OUTVIDEO OUTVGACOAXIALOPTICALTOUCH SCREENLANMIC OUT MIC OUTSerial NO:HDM I OUT HDMI IN USBUSB10 11 12 131. Power Switch2. Mic port3. USB port1.Stereo input2.V1:Video output 13.V2:Video output 24.MIC OUT5.Coaxia/Optical: Coaxial/Optical audio output6.Ext-IR in:External IR receiption7.The tape adjust8.L/R:Stereo left/right channel audio output9.VGA Out:Connects to the monitor10.HDMI11.LAN:RJ-45 port12.TOUCH SCREEN: External touch screen13.HD
4-5.Language InAndOn has Simplified Chinese，Traditional Chinese， English three built-in languages,users can choose the system language at their option.Enter Service--“Setup--Input system password -- OK -- System Basic Setup--Language--Choose desired language--After exiting，this system will display the language set currently.4-6.Message feedback When you can't find the song you want,you can use Msg feedback to provide the lacking song msg to manufacturer.Feedback Method： Service -- Msg feedback -- Fill in lacking song msg up to 3 songs -- Turn page to fill in suggestion , your name , phone number,address and so on--SubmitClick corresponding scene and correspond-ing effect appears . Click Close or Exit to close the current scene effect. Atmosphere：Applaud、Boos、Cheer Light：Dynamic、Soft、Light、Standard、Auto、Light offScene：Meeting、Station、Site、Restaurant、Road、EscSound effect：Standard，Tender , Live , Pop , Dance music4-7.SceneEnter Voice control menu to adjust sound effect of KOD and AMP according to your preference.Method：Service--Voice control4-9.Voice controlDisk is in a state of high-speed spinning，if force power off can cause disk physical damage,which will cause bad track of hard disk in the long run.So if you use KOD frequently，please power off through this software system.If a fault occurs in the system can use soft restart to troubleshoot problems preliminari-lyPower off： Service -- Power off -- Power offRestart： Service -- Power off -- Restart4-8.Power offThis function is available for changing VGA background and UI according to different users.Enter Service menu -- Change background / skin -- Choose your favorite background / skin4-10.Change Background/Skin Adding songs for USB stick ：Copy the songs you want to add to the USB stick.Press System button on remote controll to enter System Setup--Add/Del song--Data Disc Add-USB Save Songs,add song in USB stick to hdd follow the prompts;Batch adding songs：Visit our website http://www.krisvision.com on computer,click on download--back-ground software--single unit system--add-ing songs software to downloadDownload adding songs software on our website to make adding txt or get adding txt from dealer.Copy adding txt to USB stick and add multiple songs to hdd.Note：InAndOn KOD supports the song formats of PG .AVI .WMV .DAT .MP4 .MKV .MP3 4-11.Adding songsSmart Delete：Enter Basic Setting -- Add/Del Song -- Smart Delete on remote control，select options that fit your needDelete by Data：Download adding songs software on our website to make deleting txt or get deleting txt from dealer.Copy deleting txt to USB stick to delete multiple songs in hdd."4-13.Del songs Sogou is a new intelligent search way of InAndOn.Users can enter Chinese and English through spelling，handwriting and so on to search song name,singer,lyrics for associated songs.Click the Sogou search box on home page to enter search page；Enter Chinese keywords with spelling or handwriting of input box on the right.The keywords can be song name,singer and lyrics.Once entered,related songs will show in the list on the left.English please use handwriting method.4-12.SogouAfter recording,Users can save up for the songs that you want and save into USB stick to enjoy laterSwitch to the songs that you want to record.Click on Home above Record button Start to record when you enter and click on microphone icon When recording finished(you can also stop and manually save recording ), you can listen , delete and download or copy to USB stick 4-14.Record 4K means image quality.4K is classified as 4K movie and 4K song.4K image quality is a new resolution standard which combines digital movie and digital content.4K can resolve down to 4096*2160 pixels.4K content can be classified as 4K song and 4K movie.Enter directly on second home page.4-15.4KChallenge the microphone is a new function for scoring from InAndOn,which greatly improve the singing enjoyment and objectively reflects singers'skill.The songs on Challenge the microphone list are can be scored,just enter home pageOn other song list,songs that singer pictures marked by “scoring” can be scored.4-16.Challenge the microphoneEnter Service --“Score On/Off”,turn Scoring on and offScore Setting：Users can set their own scores ranging as Lowest score,Highest score,Accuracy， ranking selection for entertainment；Setting：Service--Setting--Enter password--Basic Setting--Score SettingQuick learning&singing is a unique Song-Teaching function from InAndOn.Us-ers is able to learn and teach songs.Click Quick learning&teaching on the second home page.Song list：Enter the teaching song list；Continued Play：Play songs not teach；4.Teach word for word：This sentence teaches cycleContinued Teach：Teach sentence by sentence until the song ends.Last sentence：Jump to last sentenceThis sentence：Teach this sentence；Next sentence：Jump to next sentence；4-17.Quick learning&teaching For the convenience of the user to watch private files,KV-601 from InAndOn supports USB play.Plug in USB stick and click the USB Play on the second home page to enter this function.Click USB Play on second home page；USB Play is classfied as video,audio and image.It supports order play，random play and single play.Open the file of the list on the left4-18.USB PlayKV-601 front panel has new USB3.0 port*2，and the theoretical maximum transmis-sion bandwidth of USB3.0 up to 5.0Gbps（625MB/s）,which is ten times the speed of USB2.0，letting users enter the era of speedFront panelUSB3.0*2；Back panelUSB2.0*2；4-19.USB3.0 Local Msg：Check local Msg and update（Please read the manual for Function-Software）Password Setup：Enter to change system setup password.Basic setting：Language：Choose display language.Touchscreen calibration：When the touch screen begin to offset，use this function to click the red dot and calibrate.Score Setting：Please refer to the eighteenth item Challenge the microphone of FunctionSinger Image：Singer Image ON/OFFHDMI%AV： Set the output resolutionIP：Check/change IP addressOutside euipment：Set up baudrate depending on different touch screen Precise：Search song name and singer in order Vague：Search song name and singer out of orderWeChat：Set WeChat link code on/off on TVAMP Vol：AMP Vol ON/OFF。Next Msg：Next Msg:ON/OFFShow Cloud：Activate it,Cloud list will show on the local song listSys Vol：Set system volumeAdd/Del songsAdding song please refer to instructions--Remote control--Add songData maintain：Enter song number to change t the song informationLimit Setting function is used only by the registration of agent or dealerLimit password：Modify the limit passwordLimit Setting：Limit the songs to be played（When the song limit expires，no songs can be ordered.)Set days：Set days,if the machine reach the setting date，it can not be used.Sys.Time：Set up system time. 4-20.Setting 5.Ordering SongsOrdering songs Methods： Click Song name，Singer，New songs，Dances，Challenge to the microphone,Top list,Hot,Feature,Movie,High Definition,Foreign language, 4K zone and Quick learning & singing to order desired songs. You can check Ordering songs in Requested list, and "Priority" "Delete" "Confuse"songs. Favorites：Please enter phone number to collect，you can find collected songs in My favourite.Hot：Hot is classified by music program of The voice of China,I’m a singer,Duets,Crazy for music,Celebrity Battle,Masked King,Dream partner.Click on favourite show to order songs. Deleting songs：Find the songs you want to delete.Click Delete icon button you can find delete list.Click OK button and entersystem password to delete songs，several songs can be deleted at the same time.Ordering songs：Ordering songs is the shortcut to order songs.Enter Ordering songs menu and Spelling keyboard pops up ,enter first letter of song name to search desired songs. Scene：Click corresponding scene and corresponding effect appears.Click Close or Exit to close the current scene effect. Atmosphere：Applaud、Boos、Cheer Light：Dynamic、Soft、Light、Standard、Auto、Light offScene：Meeting、Station、Site、Restaurant、Road、EscSound effect：Standard，Tender, Live, Pop, Dance musicHigh Definition：HD songs are classified as 1280*720 and 1920*1080 two kinds resolution，HD songs audio and video are better than standard songs. Priority：Set this song a priority，after current playing，play this song first. 6.RetrievalSogou is a new intelligent search way of InAndOn. Users can enter spelling，handwriting and English to search for song name, singer, lyrics for associated songs, which truly achieves intelligent song - searching. Song name According to the language categories can be classified as Chinese，Cantonese，Hokkien，English，Japanese，Korean，Combodian and others. Total list According to the top categories can be classified as Chinese list，Cantonese list，Hokkien list，Antiphonal songs，English list，Japanese list，New songs , Others and Total list. Foreign language Foreign language can be classified as English，Japanese，Korean，Vietnamese，Thai ,Russian，Combodi-an，malaysian IndonesianSpelling Input first letter of song name to search corresponding songs on song name page.Input first letter of singer to search corresponding singer corresponding singer on singer page.Singer According to the regional categories can be classified as ：M.L Male , M.L Female , HK&TW Male ,HK&TW Female,Foreign male , Foreign female , Groups and AllHot According to the music program categories can be classified as The voice of China,I’m a singer,and Crazy for music,Ce-lebrity Battle, Duets, Masked King, Dream partner, Sing my song Cloud If you can not search the desired songs in local hdd ,you can search here and download to the local hdd.According to the language categories can be classified as New songs, Chinese，Cantonese，Hokkien，English，Japanese，Korean，Combodian and others.Handwrite Handwrite the song name to search corresponding songs on song name page.Handwrite the singer to search corresponding songs on singer page.New songs According to the language categories can be classified as Chinese， Cantonese，Hokkien，English，Japanese and Korean. Feature According to the different preferences can be classified as Movie song， Women's love ， Classic ，Antiphonal songs，Network songs， Music，Celebration，Folk song， Ode to the MotherlandForeign language songs,Dance music, Disco,Prairie song，Opera， Children， Men's love 4K means image quality.4K image quality technology allows users to enjoy a visual feast.4K is classified as 4K movie and 4K songStroke Input each Chinese character's first stroke of song name to search correspond-ing songs on song name page.Input each Chinese character's first stroke of singer to search corresponding singer on singer page. Challenge the microphone The songs on Challenge the microphone list all with scoring function according the singing standard.It's classified as Chinese，Cantonese，Hokkien，English，Japanese，Korean，Combodian，Dances and others. Movies can be classified as Action，Horror,Science fiction,Comedy,Romance Quick learning&singing is a unique Song-Teaching function from InAndOn.The songs on Quick learning&singing all with Song-Teaching functionWords Input words of song name to search corresponding songs on song name page.Input words of singer to search corresponding singer on singer page. Dance music categories can be classified as hit dance, dicso, tango, chacha, waltz,, blues, Jitterbug, slow rock High Definition High-definition can be High-definition songs can be classified as Chinese，Cantonese，Hokkien，English，Japanese，Korean，Combodian and others.Function Function Function FunctionFunctionFault phenomenon Test mode Adjustment method◆Please check attaching plug whetherinsert correctly◆Insert attaching plug correctly◆Please check attaching plug whetherhave the power supply. ◆Check the socket whether can work.No sound output◆Whether audio cable is correctlyconnected◆Check connection port and perform correctconnection.◆ Whether the AV cable in bad contact ◆Connect the AV cable again◆ Whether the AV cable was damaged ◆ Change the A/V cable.◆Press the TV/Video key of the TV◆ Check the TV electric wireNo picture◆■Check the plug whether insert theoutput port(Video signal)Power supply deadVoice irregular orPicture occasionallydisappearItem1 Coaxial output：1 Power;110VAC/220VAC2 Fiber output：1 VGA output interface：13Record interface ：1 set ，Record volumeknob：1Power;110VAC/220VAC4 Microphone input：2，Microphone output:2 Power;65W5 Audio interface：1 set（R/L channel ）Audio：LR20HZ-20KHZ6 Video output:HDMI、AV（2）Output Resolution：4K/60Hz7 External infrared receiver：1 Receiver:IR38KHZ8 Touch screen RJ45;1 Distortion:<0.01%9 Network RJ45：1 Measurement：390*65*280(mm)10 USB；4（panelUSB3.0*2，back panelUSB2.0*2）Weight：3.5KG11 VGA output interface：1DescriptionWhen the machine malfunction, please check the corresponding item and adjust method, so that can find and solve the problems. If the problems can’t solve, please contact the distributor.7. Phone Ordering7-1 APP Ordering Steps Inandon app download IOS： AppStore platform download: apple AppStore built-in download software market,search “音王” "inandon". 91 Assistant Platform download, 91 assistant platform comes with the IPhone and the IPad version, please select the version of the devices. Search "inandon" "音王” in 91Assistant ，software can be found. Android Android ordering songs search market：You can search software in Gfan Market、Mumayi Market、Android Market、Wandoujia.Android software regardless of mobile and tablet. Search“音王点歌”、“音王点歌2代” 7-2.Inandon app installation Apple app download and install The Android phone to download directly and run the setup, if it is through the computer to download, copy the file to the Android device note file location, find the file to install. 7-3. Connect the machine QR Code Start Inandon app,press the "scanning QR code "to scan the QR code on the left, after connecting the machine,you can sing songs.

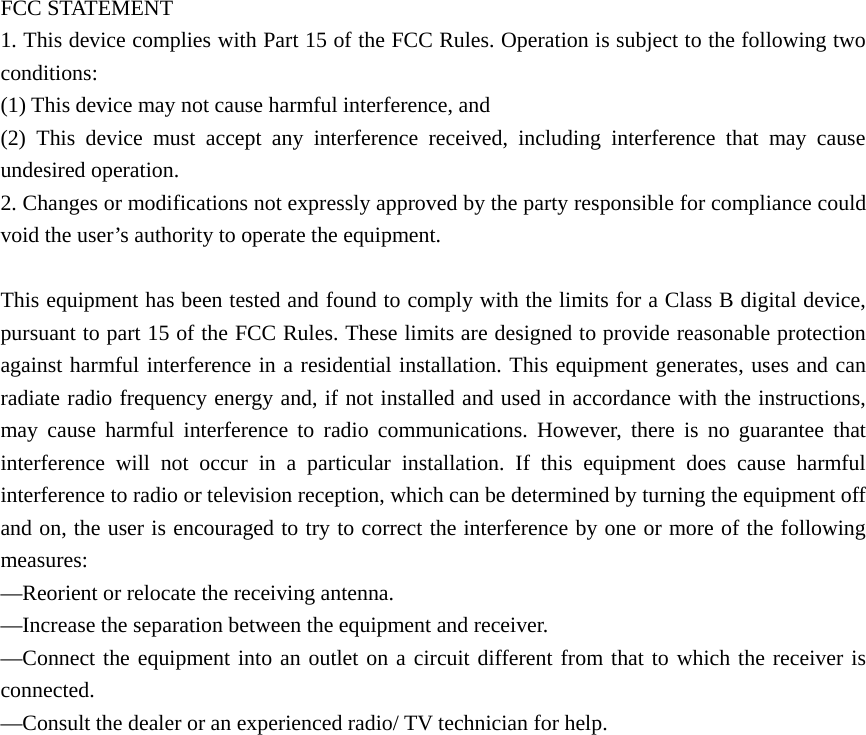

FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help.
