LUXPAD TABLET NITROTAB7N Tablet User Manual

LUXPAD TABLET Tablet

User manual

1ContentContent................................................................................................................................................ 11 Introduction...................................................................................................................................... 31.1 Acknowledgement..............................................................................................................31.2 Announcements.................................................................................................................. 31.3 Safety Instruction............................................................................................................... 31.4 Abbreviation/Terminology................................................................................................. 52 Nitro Phablet 7N Introduction................................................................................................62.1 7N Operation and Preparation........................................................... 62.2 7N Status and Reminder.................................................................... 63 Quick Start Guide.............................................................................................................................73.1 Keys Function.................................................................................................................... 73.2 Startup and Shutdown........................................................................................................ 73.3 Open and Close of the Screen............................................................................................73.4 Usage of Touch Screen.......................................................................................................83.5 Home Page......................................................................................................................... 93.6 Visit Application Procedures............................................................................................123.7 USB Connection...............................................................................................................123.8 Typing words....................................................................................................................133.9 Operation Technique........................................................................................................ 143.10 Quick Setting..................................................................................................................154 Basic Setting...................................................................................................................................154.1 Wireless and Internet........................................................................................................154.2 Bluetooth.......................................................................................................................... 184.3 Data Usage....................................................................................................................... 204.4 More................................................................................................................................. 214.5 Sound & notification........................................................................................................244.6 Display............................................................................................................................. 264.7 Storage..............................................................................................................................294.8 Battery.............................................................................................................................. 314.9 Application program.........................................................................................................324.10 Memory.......................................................................................................................... 334.11 Account and Sync...........................................................................................................344.12 Location service............................................................................................................. 354.13 Safety setting..................................................................................................................364.14 Language and Input Method.......................................................................................... 384.15 Backup and Reset...........................................................................................................394.16 Date and Time................................................................................................................ 40Nitro PhabletNitro Phablet

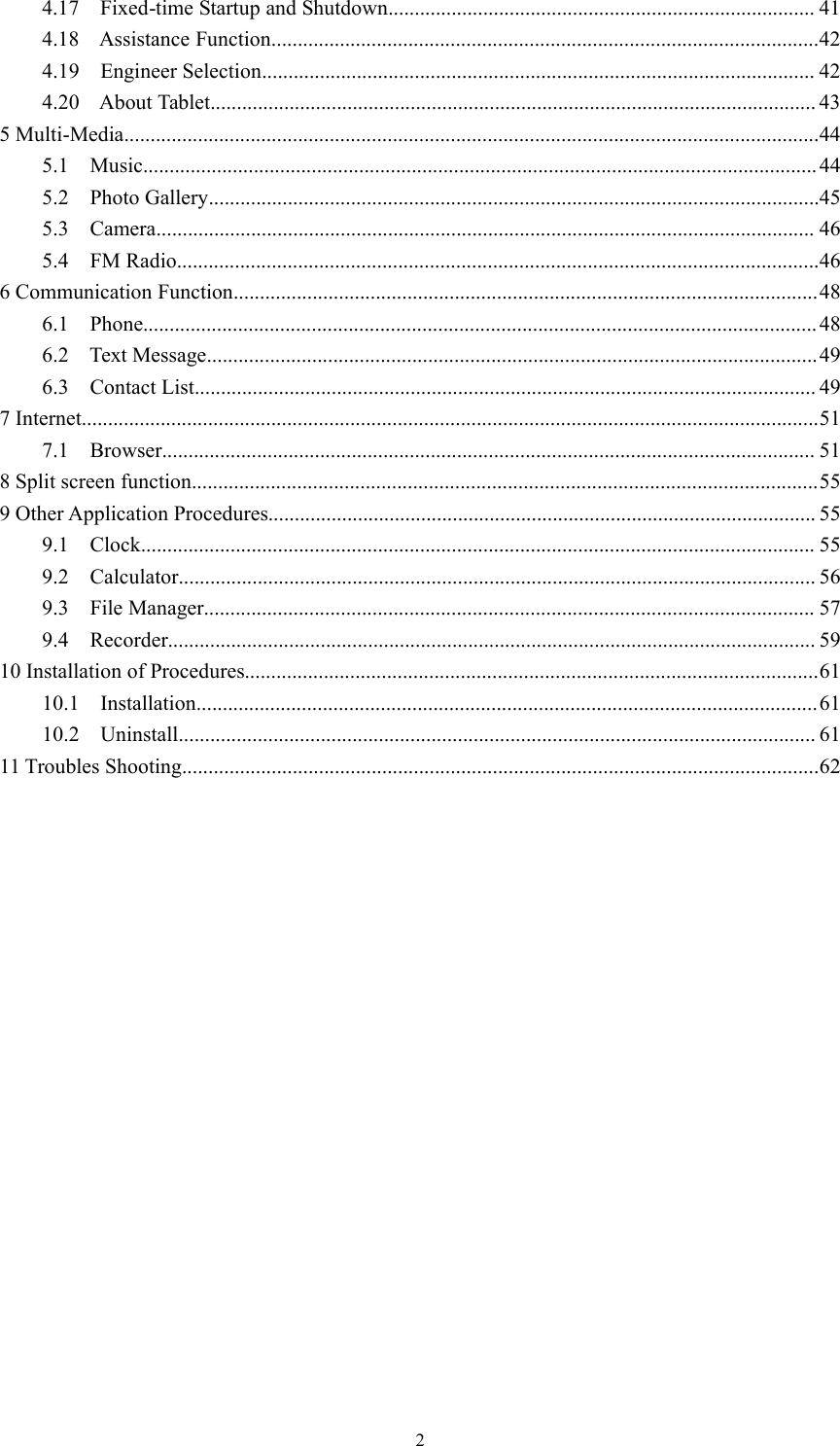

24.17 Fixed-time Startup and Shutdown................................................................................. 414.18 Assistance Function........................................................................................................424.19 Engineer Selection......................................................................................................... 424.20 About Tablet................................................................................................................... 435 Multi-Media....................................................................................................................................445.1 Music................................................................................................................................445.2 Photo Gallery....................................................................................................................455.3 Camera............................................................................................................................. 465.4 FM Radio..........................................................................................................................466 Communication Function...............................................................................................................486.1 Phone................................................................................................................................486.2 Text Message....................................................................................................................496.3 Contact List...................................................................................................................... 497 Internet............................................................................................................................................517.1 Browser............................................................................................................................ 518 Split screen function.......................................................................................................................559 Other Application Procedures........................................................................................................ 559.1 Clock................................................................................................................................ 559.2 Calculator......................................................................................................................... 569.3 File Manager.................................................................................................................... 579.4 Recorder........................................................................................................................... 5910 Installation of Procedures.............................................................................................................6110.1 Installation......................................................................................................................6110.2 Uninstall......................................................................................................................... 6111 Troubles Shooting.........................................................................................................................62

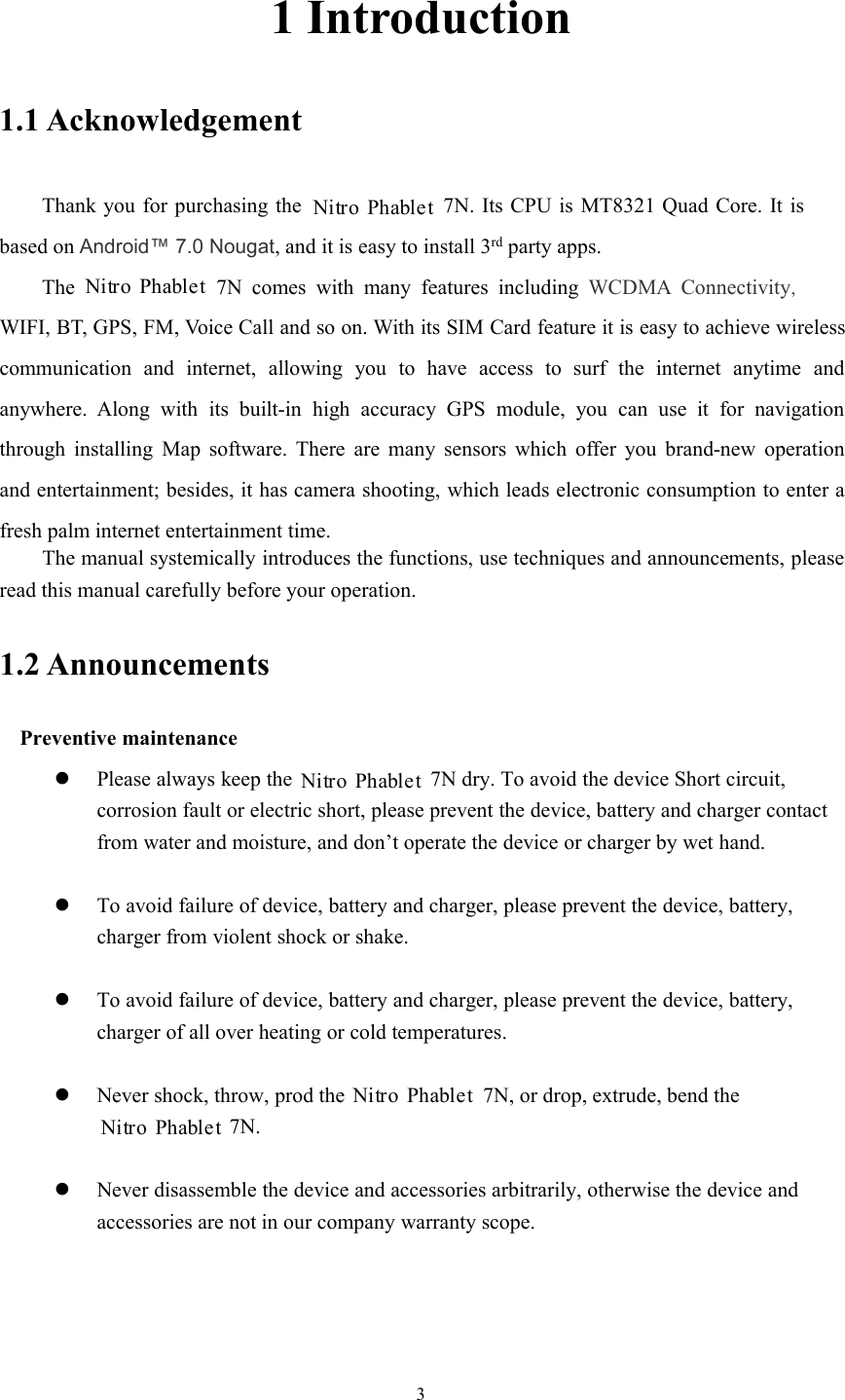

31 Introduction1.1 AcknowledgementThank you for purchasing the 7N. Its CPU is MT8321 Quad Core. It isbased on Android™ 7.0 Nougat, and it is easy to install 3rd party apps.The 7N comes with many features including WCDMA Connectivity,WIFI, BT, GPS, FM, Voice Call and so on. With its SIM Card feature it is easy to achieve wirelesscommunication and internet, allowing you to have access to surf the internet anytime andanywhere. Along with its built-in high accuracy GPS module, you can use it for navigationthrough installing Map software. There are many sensors which offer you brand-new operationand entertainment; besides, it has camera shooting, which leads electronic consumption to enter afresh palm internet entertainment time.The manual systemically introduces the functions, use techniques and announcements, pleaseread this manual carefully before your operation.1.2 AnnouncementsPreventive maintenancePlease always keep the7N dry. To avoid the device Short circuit,corrosion fault or electric short, please prevent the device, battery and charger contactfrom water and moisture, and don’t operate the device or charger by wet hand.To avoid failure of device, battery and charger, please prevent the device, battery,charger from violent shock or shake.To avoid failure of device, battery and charger, please prevent the device, battery,charger of all over heating or cold temperatures.Never shock, throw, prod the7N, or drop, extrude, bend the7N.Never disassemble the device and accessories arbitrarily, otherwise the device andaccessories are not in our company warranty scope.Nitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro Phablet

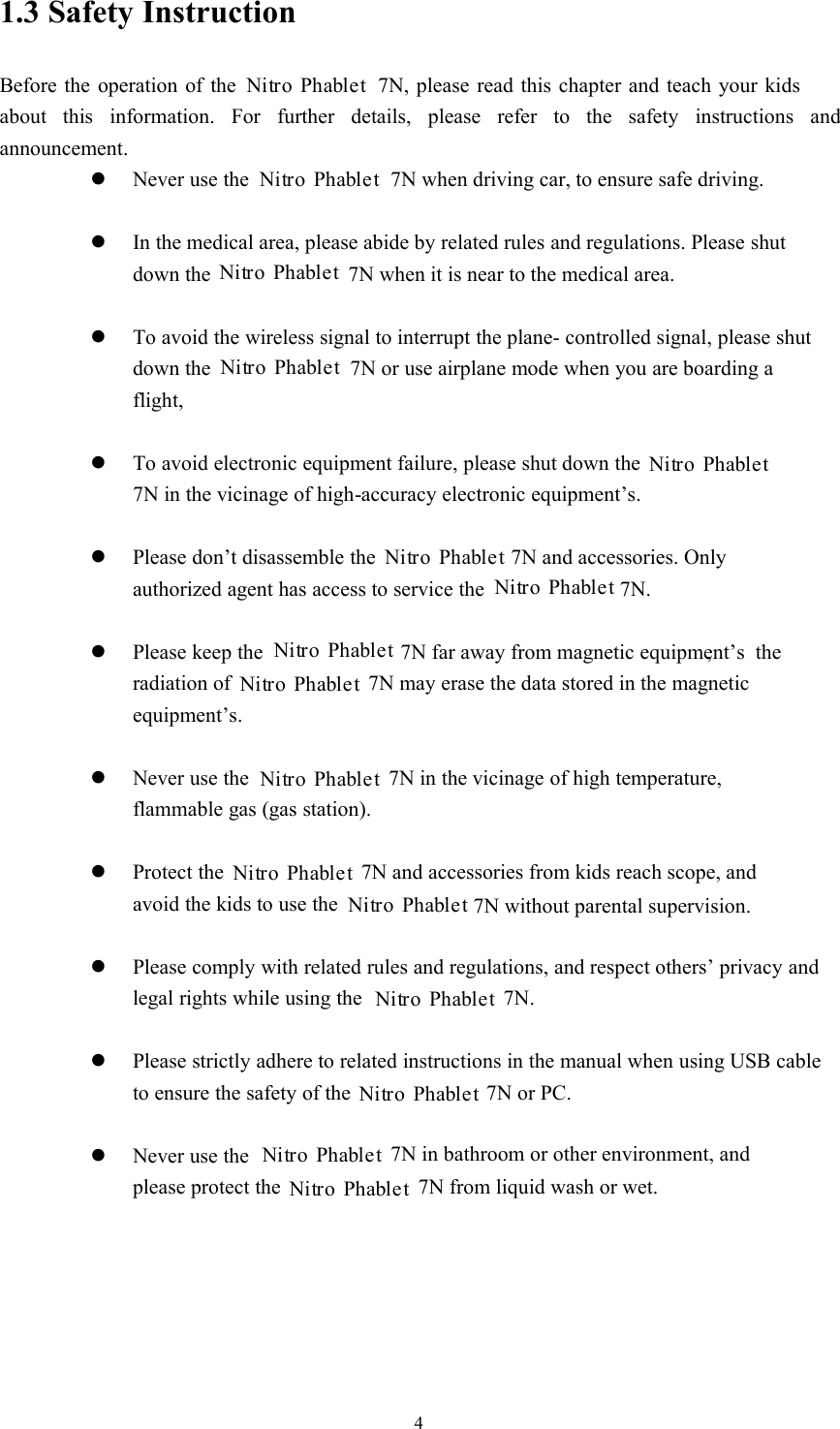

41.3 Safety InstructionBefore the operation of the 7N, please read this chapter and teach your kidsabout this information. For further details, please refer to the safety instructions andannouncement.Never use the7N when driving car, to ensure safe driving.In the medical area, please abide by related rules and regulations. Please shutdown the 7N when it is near to the medical area.To avoid the wireless signal to interrupt the plane- controlled signal, please shutdown the 7N or use airplane mode when you are boarding aflight,To avoid electronic equipment failure, please shut down the7N in the vicinage of high-accuracy electronic equipment’s.Please don’t disassemble the7N and accessories. Onlyauthorized agent has access to service the 7N.Please keep the7N far away from magnetic equipment’s,theradiation of 7N may erase the data stored in the magneticequipment’s.Never use the7N in the vicinage of high temperature,flammable gas (gas station).Protect the7N and accessories from kids reach scope, andavoid the kids to use the 7N without parental supervision.Please comply with related rules and regulations, and respect others’ privacy andlegal rights while using the 7N.Please strictly adhere to related instructions in the manual when using USB cableto ensure the safety of the 7N or PC.Never use the7N in bathroom or other environment, andplease protect the 7N from liquid wash or wet.Nitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro Phablet

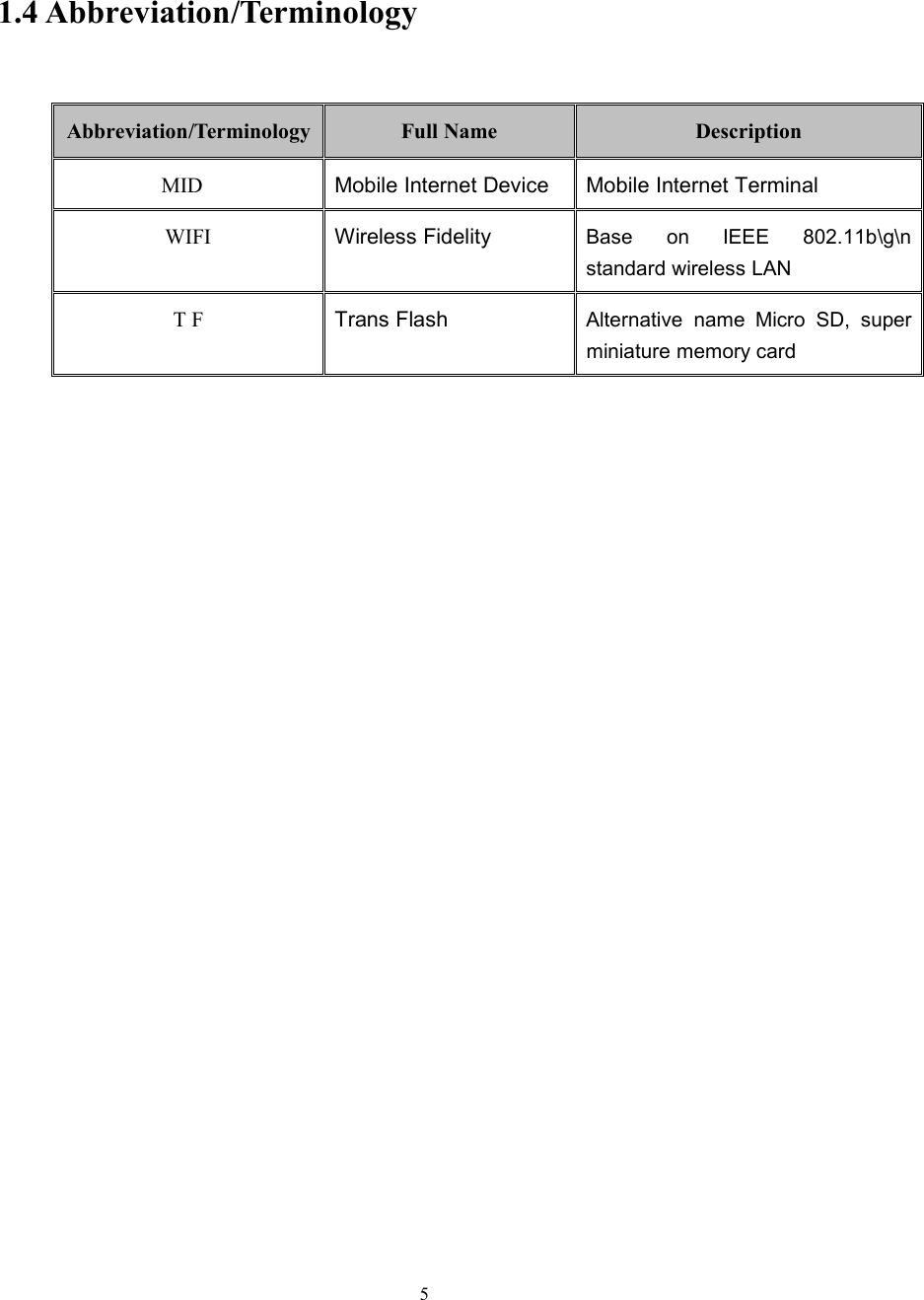

51.4 Abbreviation/TerminologyAbbreviation/Terminology Full Name DescriptionMID Mobile Internet Device Mobile Internet TerminalWIFI Wireless Fidelity Base on IEEE 802.11b\g\nstandard wireless LANT F Trans Flash Alternative name Micro SD, superminiature memory card

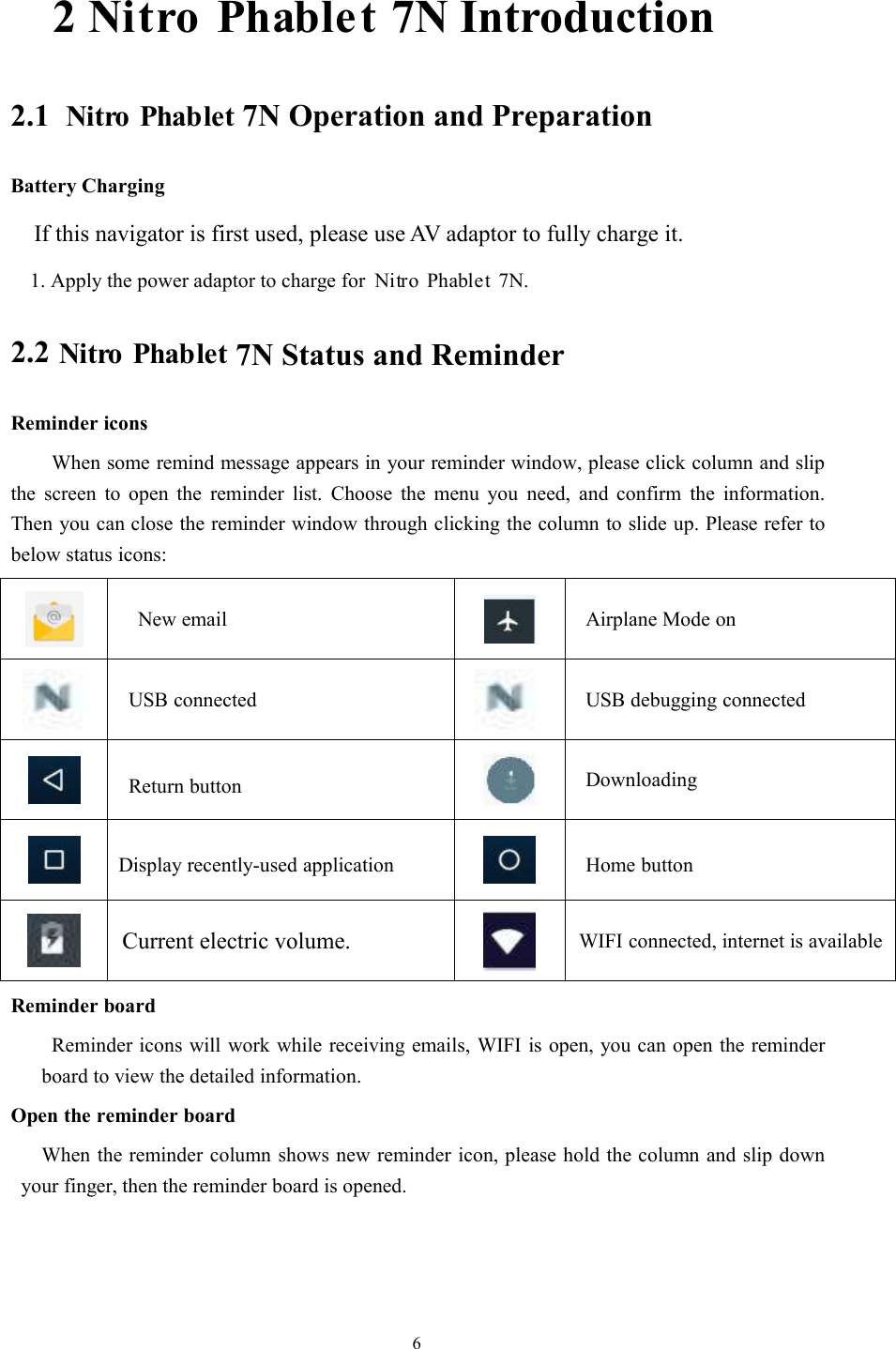

62 Nitro Phablet 7N Introduction2.1 7N Operation and PreparationBattery ChargingIf this navigator is first used, please use AV adaptor to fully charge it.1. Apply the power adaptor to charge for 7N.2.27N Status and ReminderReminder iconsWhen some remind message appears in your reminder window, please click column and slipthe screen to open the reminder list. Choose the menu you need, and confirm the information.Then you can close the reminder window through clicking the column to slide up. Please refer tobelow status icons:New email Airplane Mode onUSB connected USB debugging connectedReturn button DownloadingDisplay recently-used application Home buttonCurrent electric volume. WIFI connected, internet is availableReminder boardReminder icons will work while receiving emails, WIFI is open, you can open the reminderboard to view the detailed information.Open the reminder boardWhen the reminder column shows new reminder icon, please hold the column and slip downyour finger, then the reminder board is opened.Nitro PhabletNitro PhabletNitro Phablet

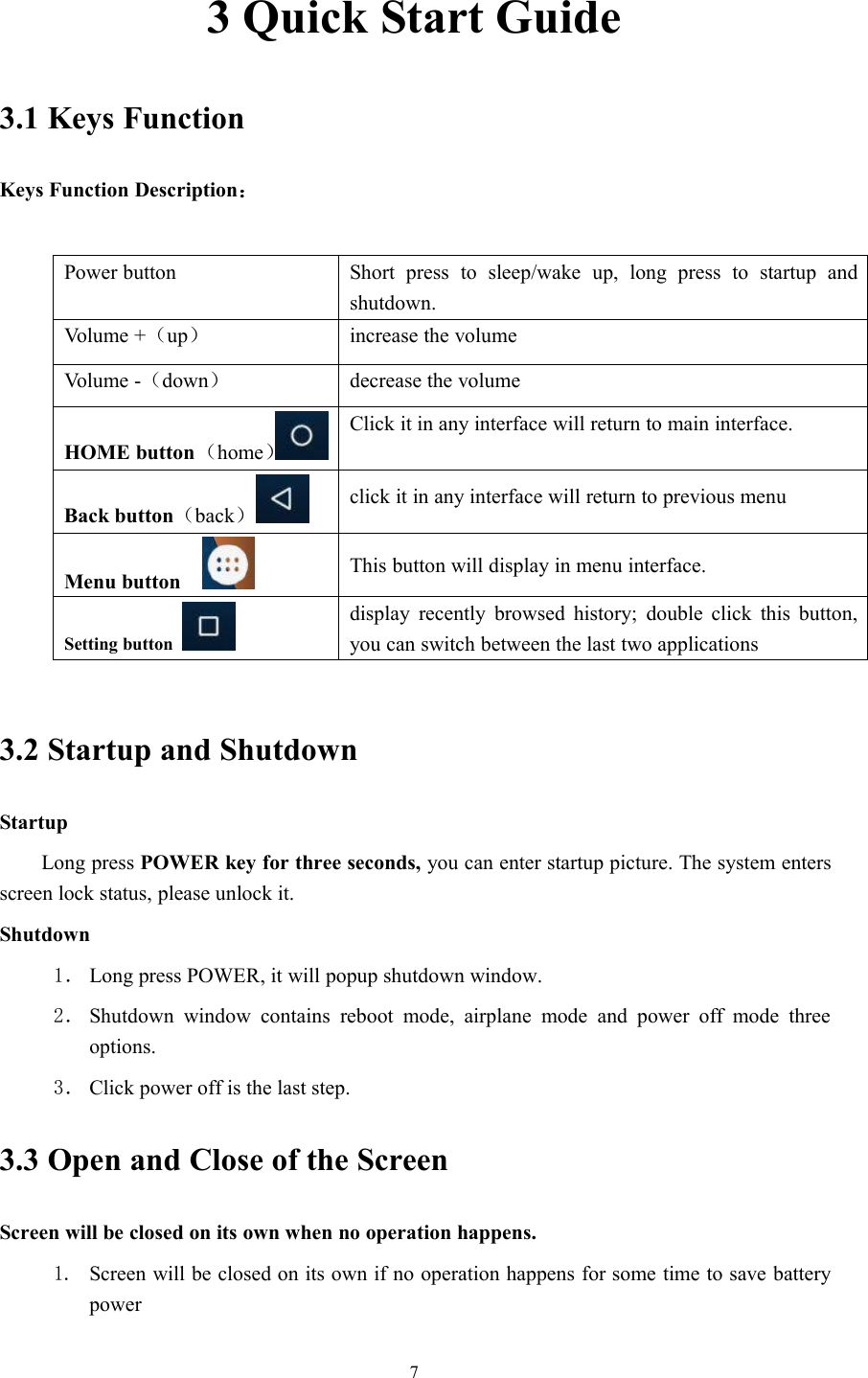

73 Quick Start Guide3.1 Keys FunctionKeys Function Description：Power button Short press to sleep/wake up, long press to startup andshutdown.Volume +（up）increase the volumeVolume -（down）decrease the volumeHOME button（home）Click it in any interface will return to main interface.Back button（back）click it in any interface will return to previous menuMenu button This button will display in menu interface.Setting buttondisplay recently browsed history; double click this button,you can switch between the last two applications3.2 Startup and ShutdownStartupLong press POWER key for three seconds, you can enter startup picture. The system entersscreen lock status, please unlock it.Shutdown1． Long press POWER, it will popup shutdown window.2． Shutdown window contains reboot mode, airplane mode and power off mode threeoptions.3． Click power off is the last step.3.3 Open and Close of the ScreenScreen will be closed on its own when no operation happens.1. Screen will be closed on its own if no operation happens for some time to save batterypower

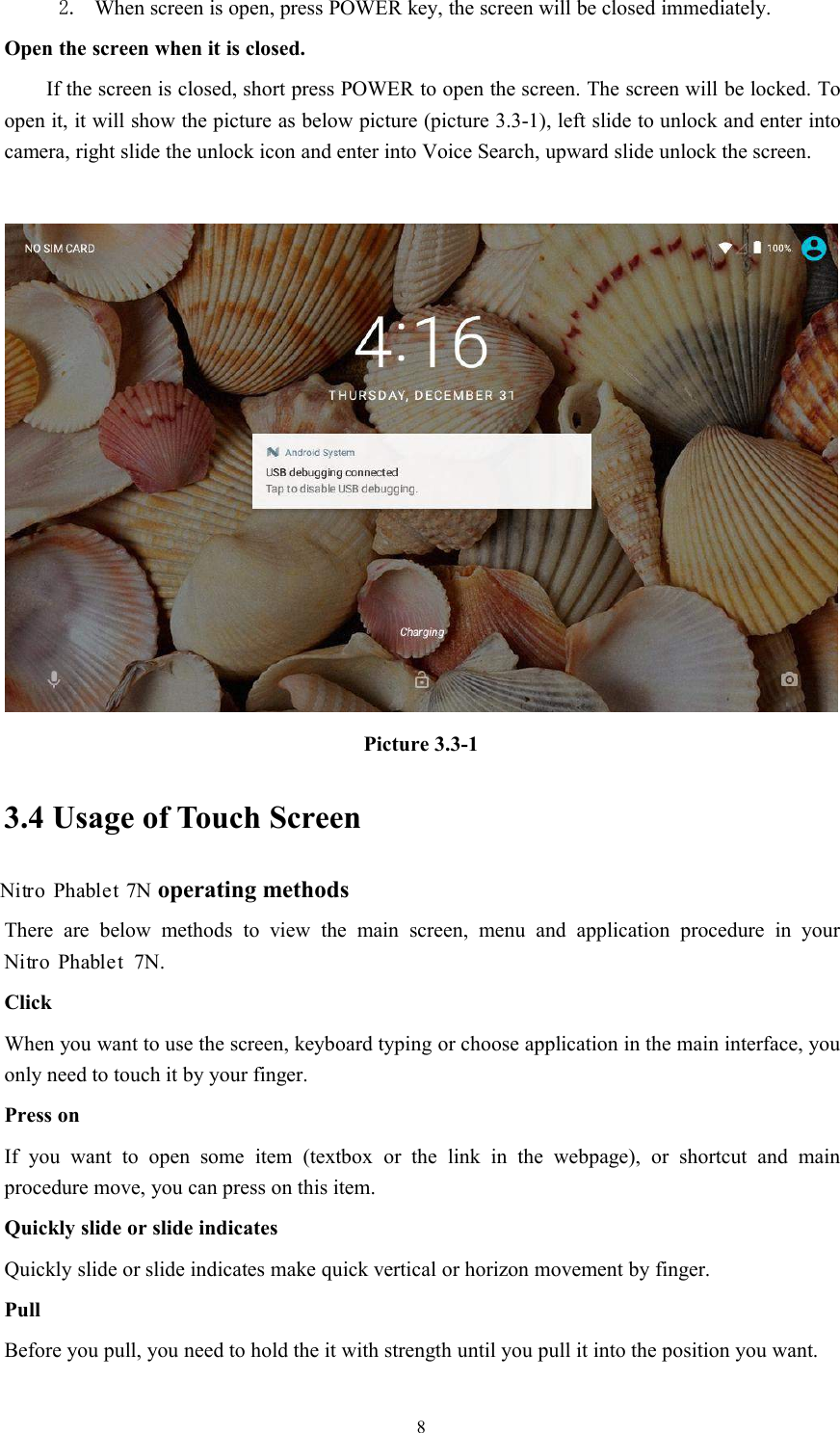

82. When screen is open, press POWER key, the screen will be closed immediately.Open the screen when it is closed.If the screen is closed, short press POWER to open the screen. The screen will be locked. Toopen it, it will show the picture as below picture (picture 3.3-1), left slide to unlock and enter intocamera, right slide the unlock icon and enter into Voice Search, upward slide unlock the screen.Picture 3.3-13.4 Usage of Touch Screen7N operating methodsThere are below methods to view the main screen, menu and application procedure in your7N.ClickWhen you want to use the screen, keyboard typing or choose application in the main interface, youonly need to touch it by your finger.Press onIf you want to open some item (textbox or the link in the webpage), or shortcut and mainprocedure move, you can press on this item.Quickly slide or slide indicatesQuickly slide or slide indicates make quick vertical or horizon movement by finger.PullBefore you pull, you need to hold the it with strength until you pull it into the position you want.Nitro PhabletNitro Phablet

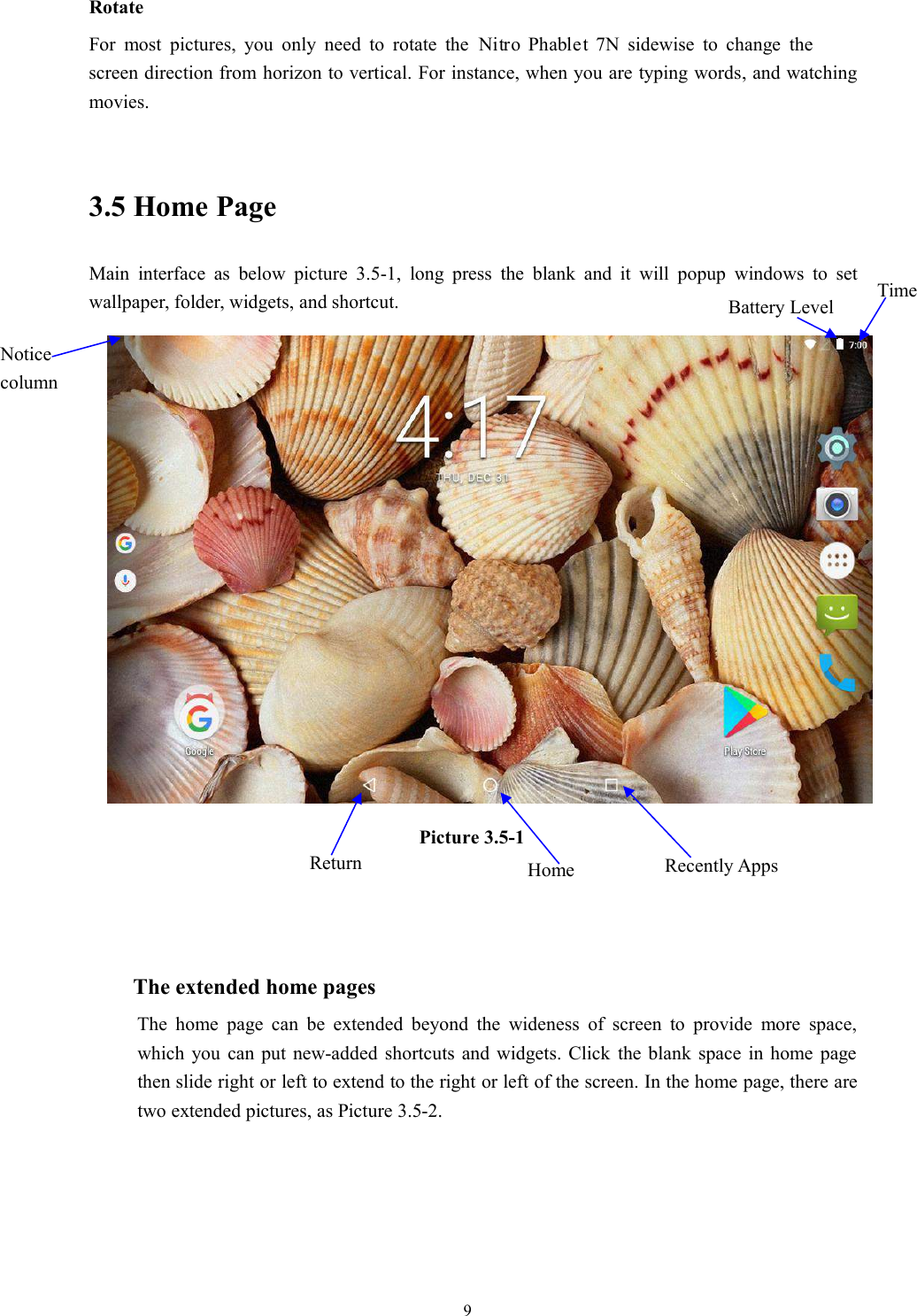

9RotateFor most pictures, you only need to rotate the 7N sidewise to change thescreen direction from horizon to vertical. For instance, when you are typing words, and watchingmovies.3.5 Home PageMain interface as below picture 3.5-1, long press the blank and it will popup windows to setwallpaper, folder, widgets, and shortcut.Picture 3.5-1The extended home pagesThe home page can be extended beyond the wideness of screen to provide more space,which you can put new-added shortcuts and widgets. Click the blank space in home pagethen slide right or left to extend to the right or left of the screen. In the home page, there aretwo extended pictures, as Picture 3.5-2.Recently AppsHomeReturnTimeBattery LevelNoticecolumnNitro Phablet

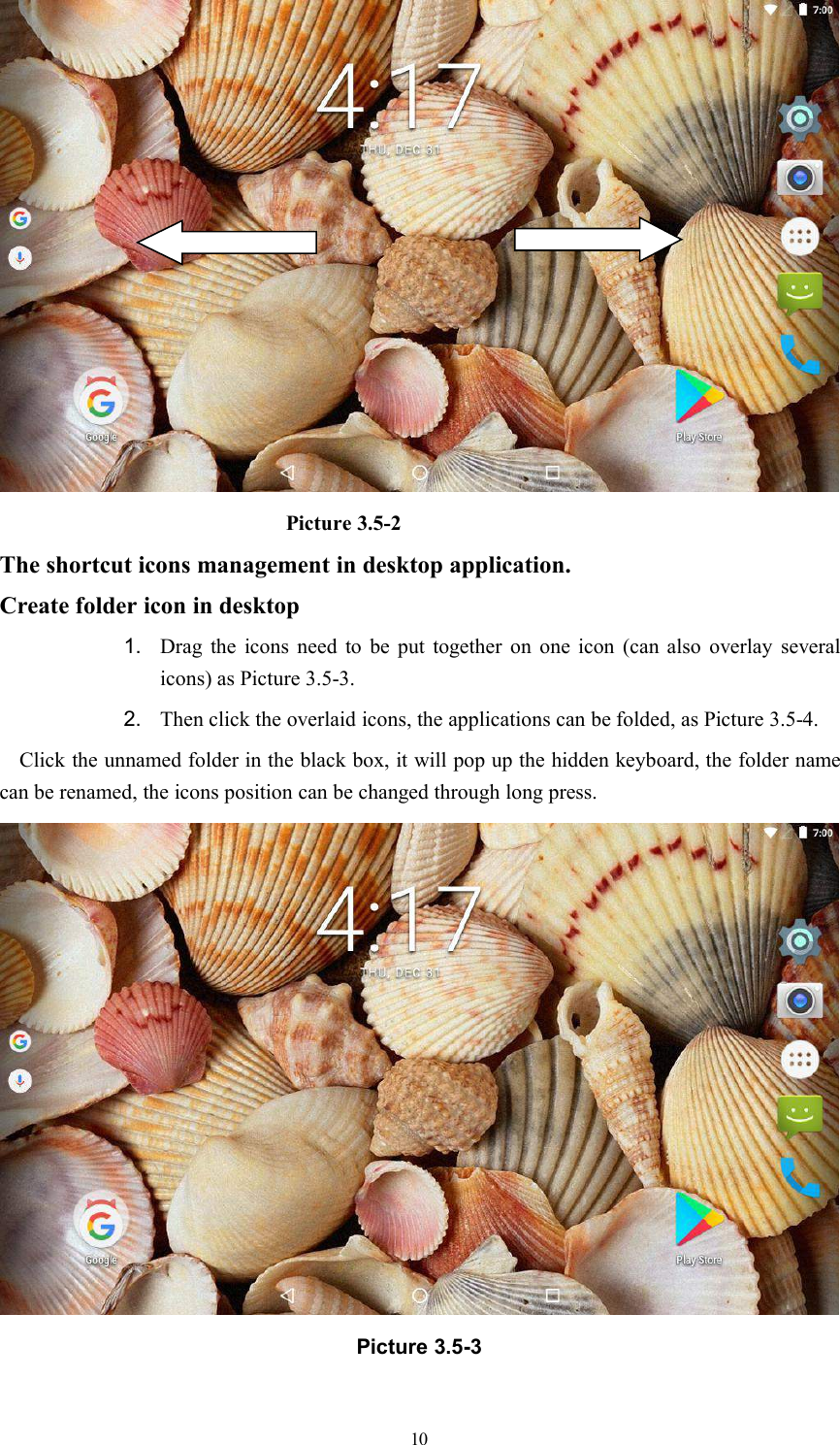

10Picture 3.5-2The shortcut icons management in desktop application.Create folder icon in desktop1. Drag the icons need to be put together on one icon (can also overlay severalicons) as Picture 3.5-3.2. Then click the overlaid icons, the applications can be folded, as Picture 3.5-4.Click the unnamed folder in the black box, it will pop up the hidden keyboard, the folder namecan be renamed, the icons position can be changed through long press.Picture 3.5-3

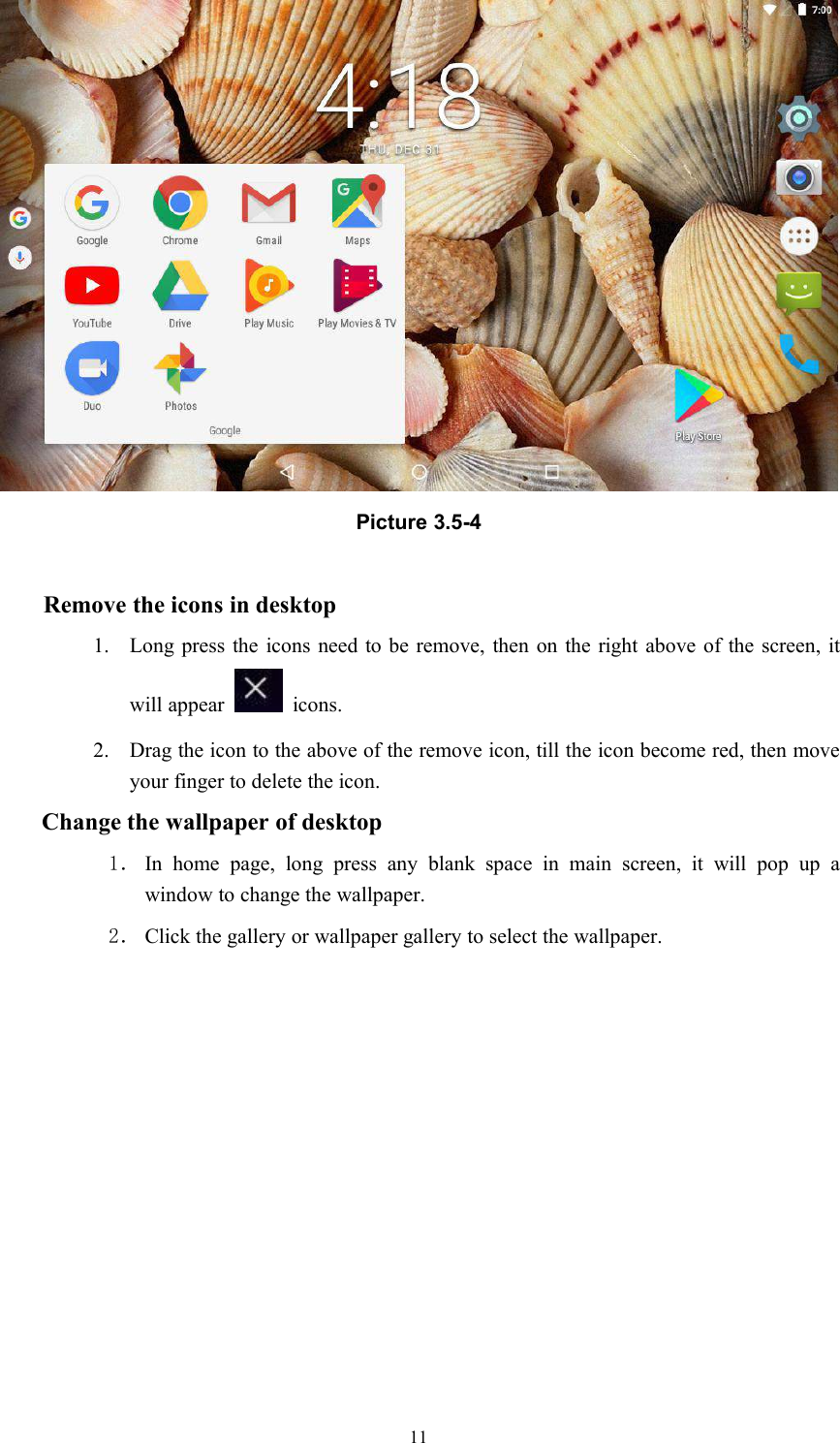

11Picture 3.5-4Remove the icons in desktop1. Long press the icons need to be remove, then on the right above of the screen, itwill appear icons.2. Drag the icon to the above of the remove icon, till the icon become red, then moveyour finger to delete the icon.Change the wallpaper of desktop1． In home page, long press any blank space in main screen, it will pop up awindow to change the wallpaper.2． Click the gallery or wallpaper gallery to select the wallpaper.

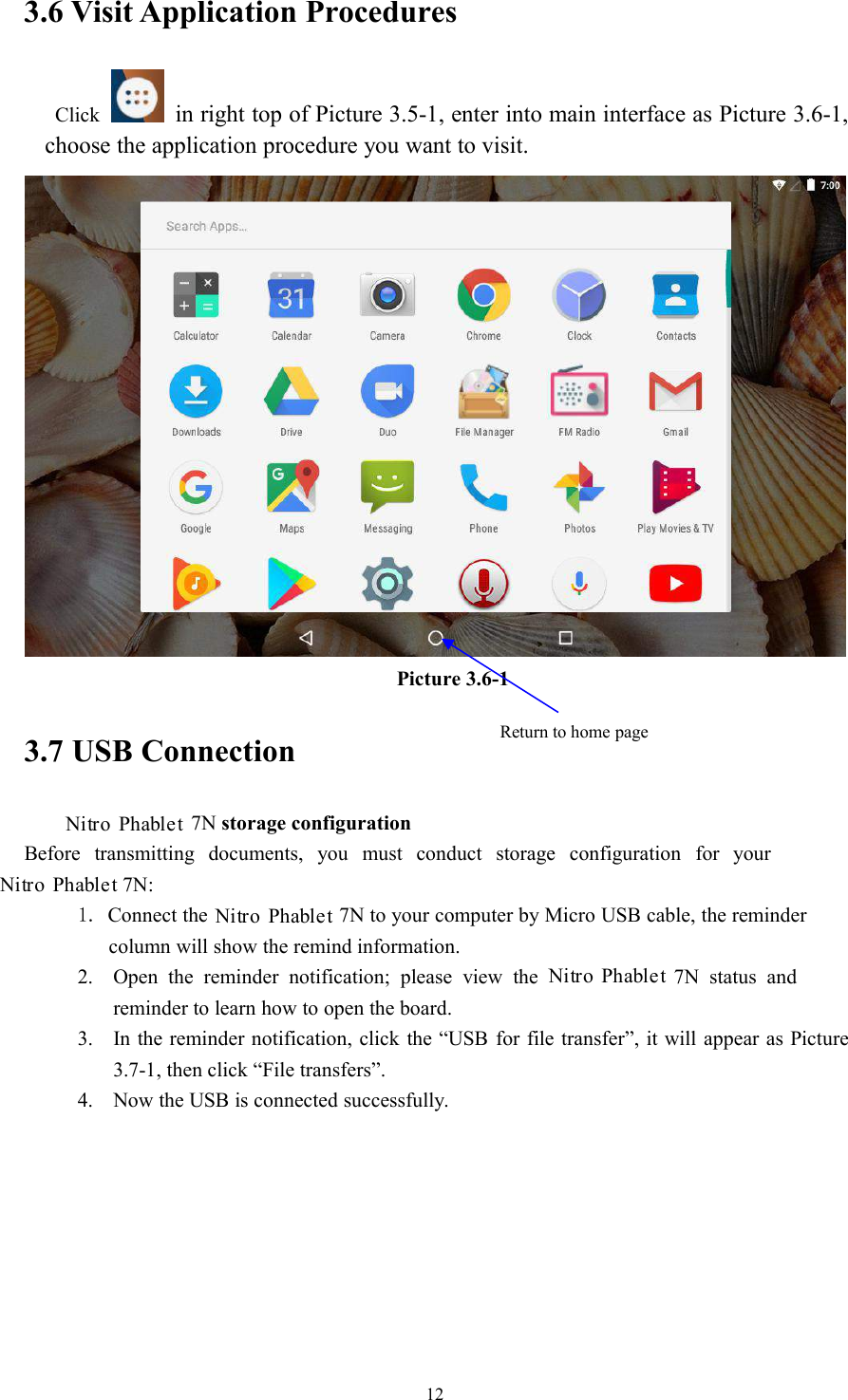

123.6 Visit Application ProceduresClick in right top of Picture 3.5-1, enter into main interface as Picture 3.6-1,choose the application procedure you want to visit.Picture 3.6-13.7 USB Connection7N storage configurationBefore transmitting documents, you must conduct storage configuration for your7N:1. Connect the 7N to your computer by Micro USB cable, the remindercolumn will show the remind information.2. Open the reminder notification; please view the7N status andreminder to learn how to open the board.3. In the reminder notification, click the “USB for file transfer”, it will appear as Picture3.7-1, then click “File transfers”.4. Now the USB is connected successfully.Return to home pageNitro PhabletNitro PhabletNitro PhabletNitro Phablet
13Picture 3.7-1Copy the document into memory card1. Connect the7N to the computer with USB cable.2. As7N storage configuration, it relates to computer successfully.3. Open the “My computer” in your computer, check the items in “MTP devices”.4. Copy the documents you need into “MTP devices”.5. After copying finishes, unplug the USB can.3.8 Typing wordsUse the screen keyboardWhen you start the procedure, or choose the words or numbers edition, it will show thescreen keyboard. The keyboard contains below typing options:1. Android keyboardChoose the typing method you want1. Click Setting procedure application.2. Click Language and Keyboard.3. In the text setting area will reveal all the installed words-typing methods in your7N.4. Select the typing method you want.Nitro PhabletNitro PhabletNitro Phablet

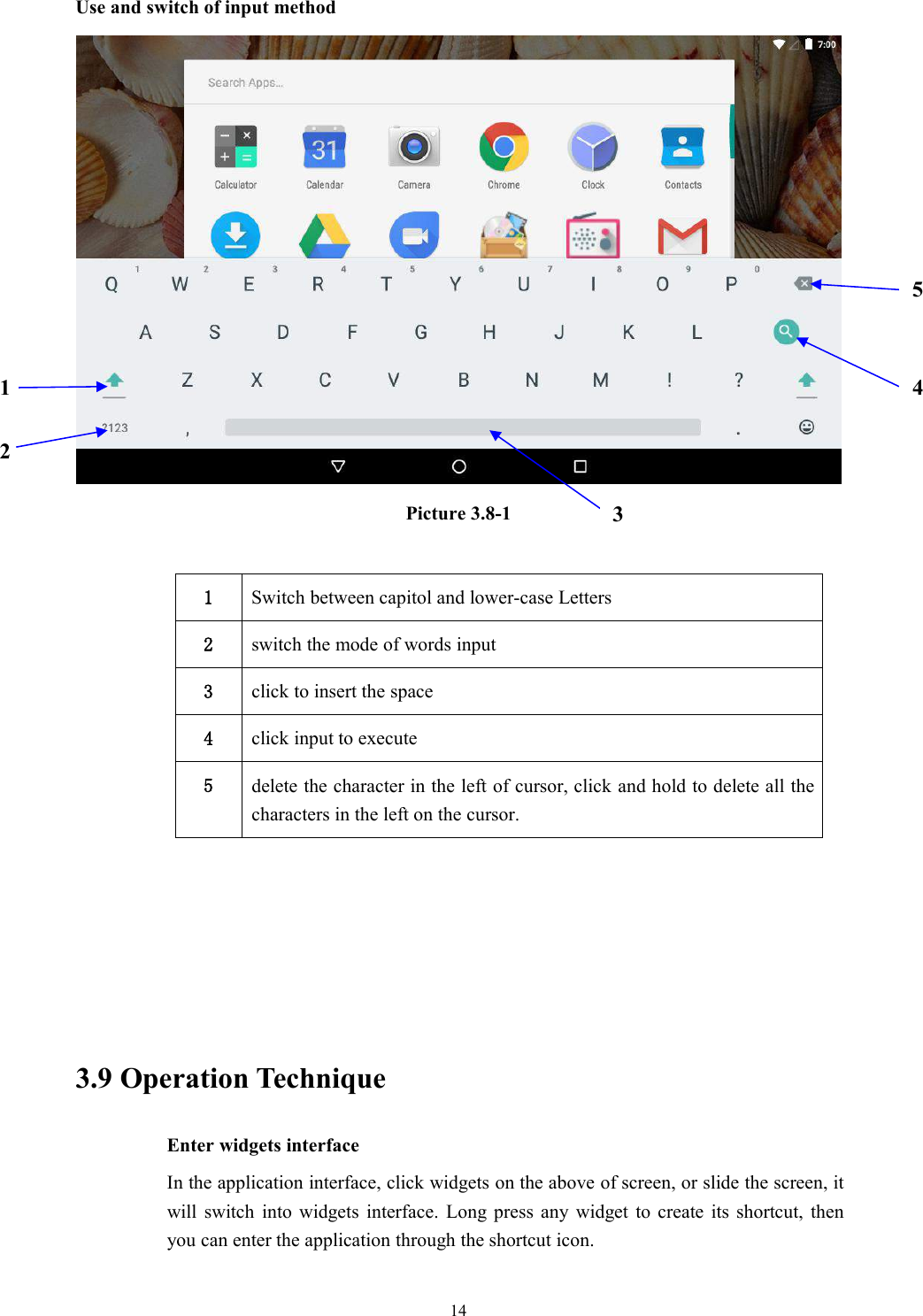

14Use and switch of input methodPicture 3.8-11Switch between capitol and lower-case Letters2switch the mode of words input3click to insert the space4click input to execute5delete the character in the left of cursor, click and hold to delete all thecharacters in the left on the cursor.3.9 Operation TechniqueEnter widgets interfaceIn the application interface, click widgets on the above of screen, or slide the screen, itwill switch into widgets interface. Long press any widget to create its shortcut, thenyou can enter the application through the shortcut icon.12345

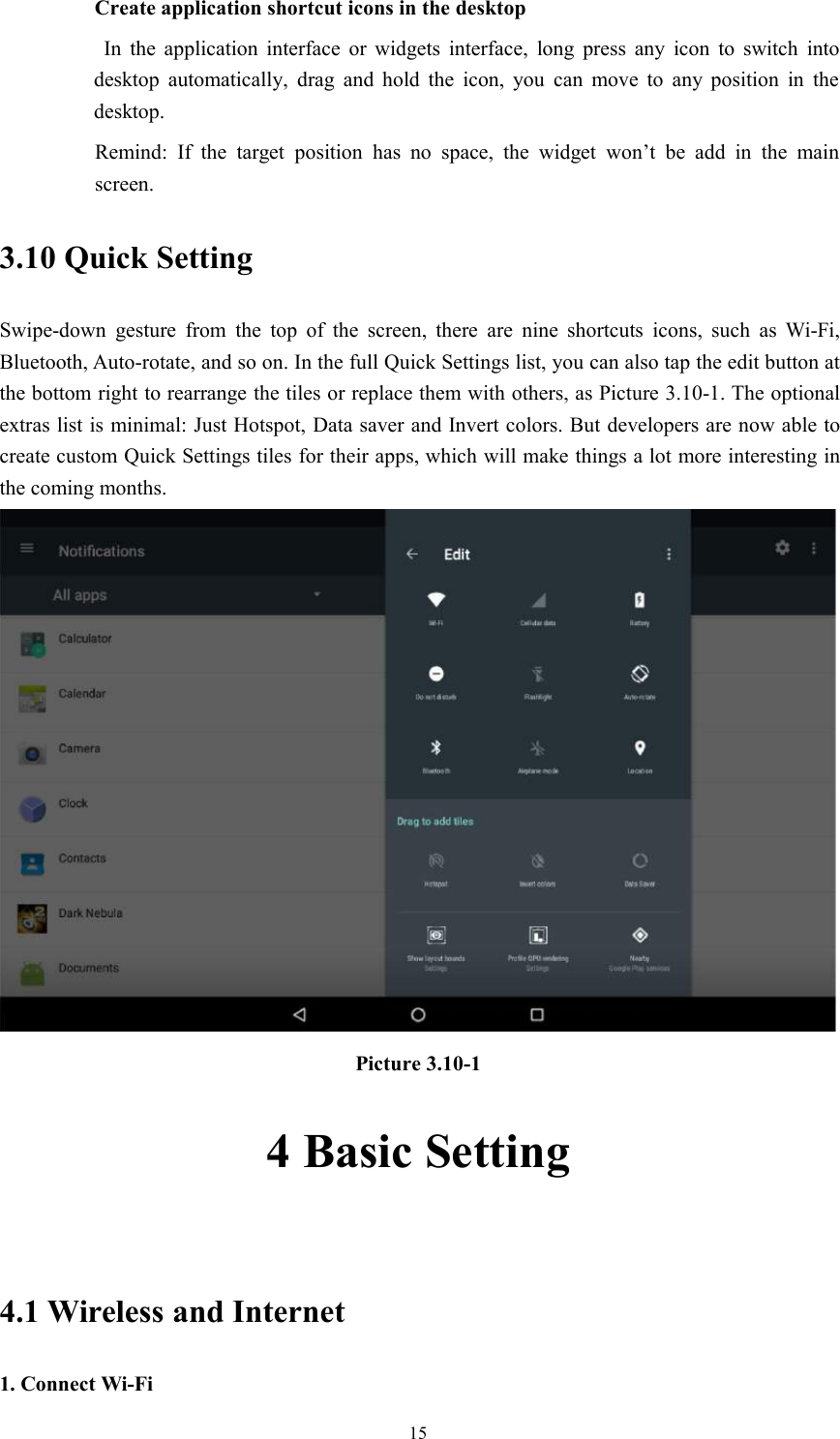

15Create application shortcut icons in the desktopIn the application interface or widgets interface, long press any icon to switch intodesktop automatically, drag and hold the icon, you can move to any position in thedesktop.Remind: If the target position has no space, the widget won’t be add in the mainscreen.3.10 Quick SettingSwipe-down gesture from the top of the screen, there are nine shortcuts icons, such as Wi-Fi,Bluetooth, Auto-rotate, and so on. In the full Quick Settings list, you can also tap the edit button atthe bottom right to rearrange the tiles or replace them with others, as Picture 3.10-1. The optionalextras list is minimal: Just Hotspot, Data saver and Invert colors. But developers are now able tocreate custom Quick Settings tiles for their apps, which will make things a lot more interesting inthe coming months.Picture 3.10-14 Basic Setting4.1 Wireless and Internet1. Connect Wi-Fi

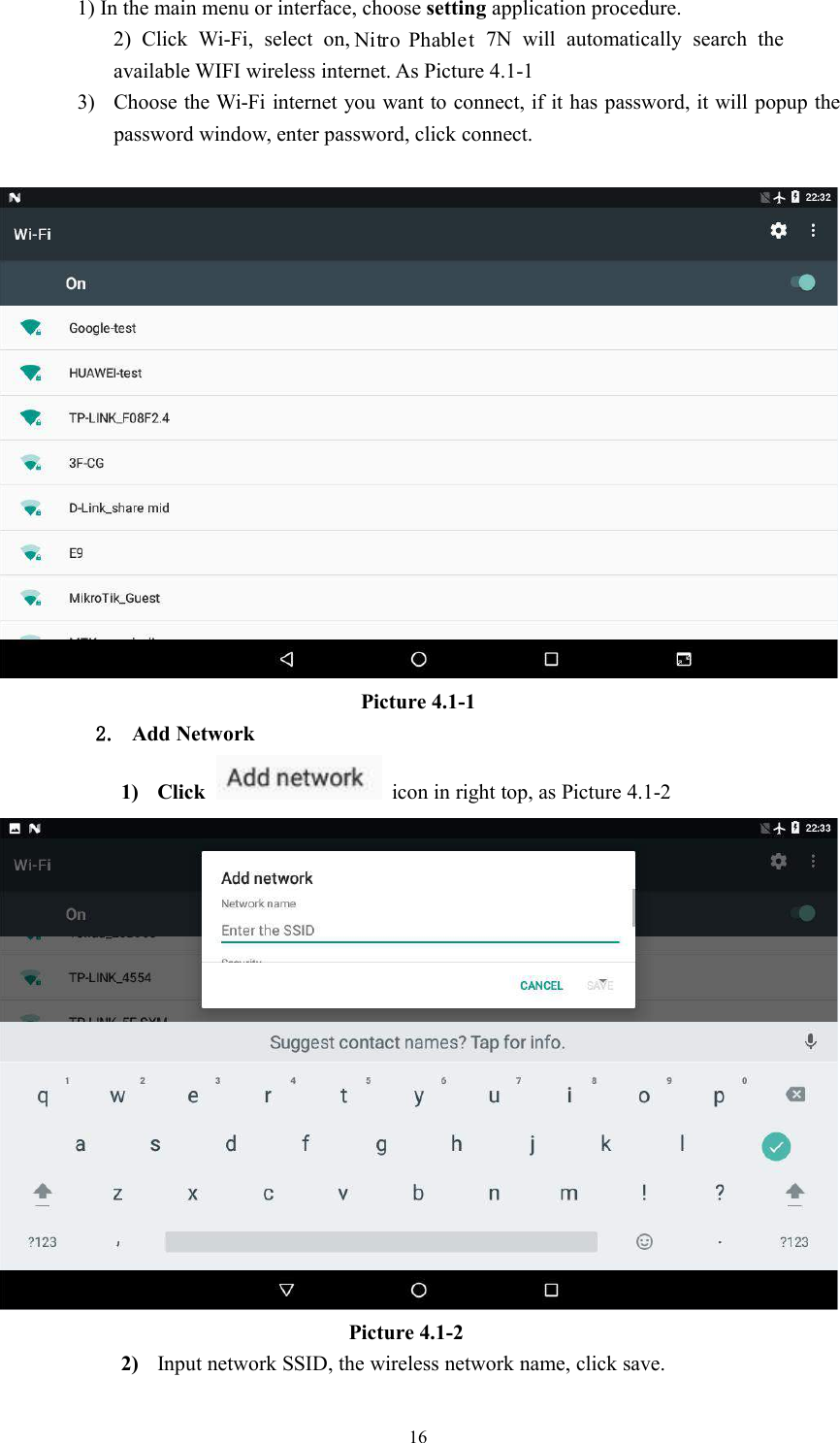

161) In the main menu or interface, choose setting application procedure.2) Click Wi-Fi, select on, 7N will automatically search theavailable WIFI wireless internet. As Picture 4.1-13) Choose the Wi-Fi internet you want to connect, if it has password, it will popup thepassword window, enter password, click connect.Picture 4.1-12. Add Network1) Click icon in right top, as Picture 4.1-2Picture 4.1-22) Input network SSID, the wireless network name, click save.Nitro Phablet

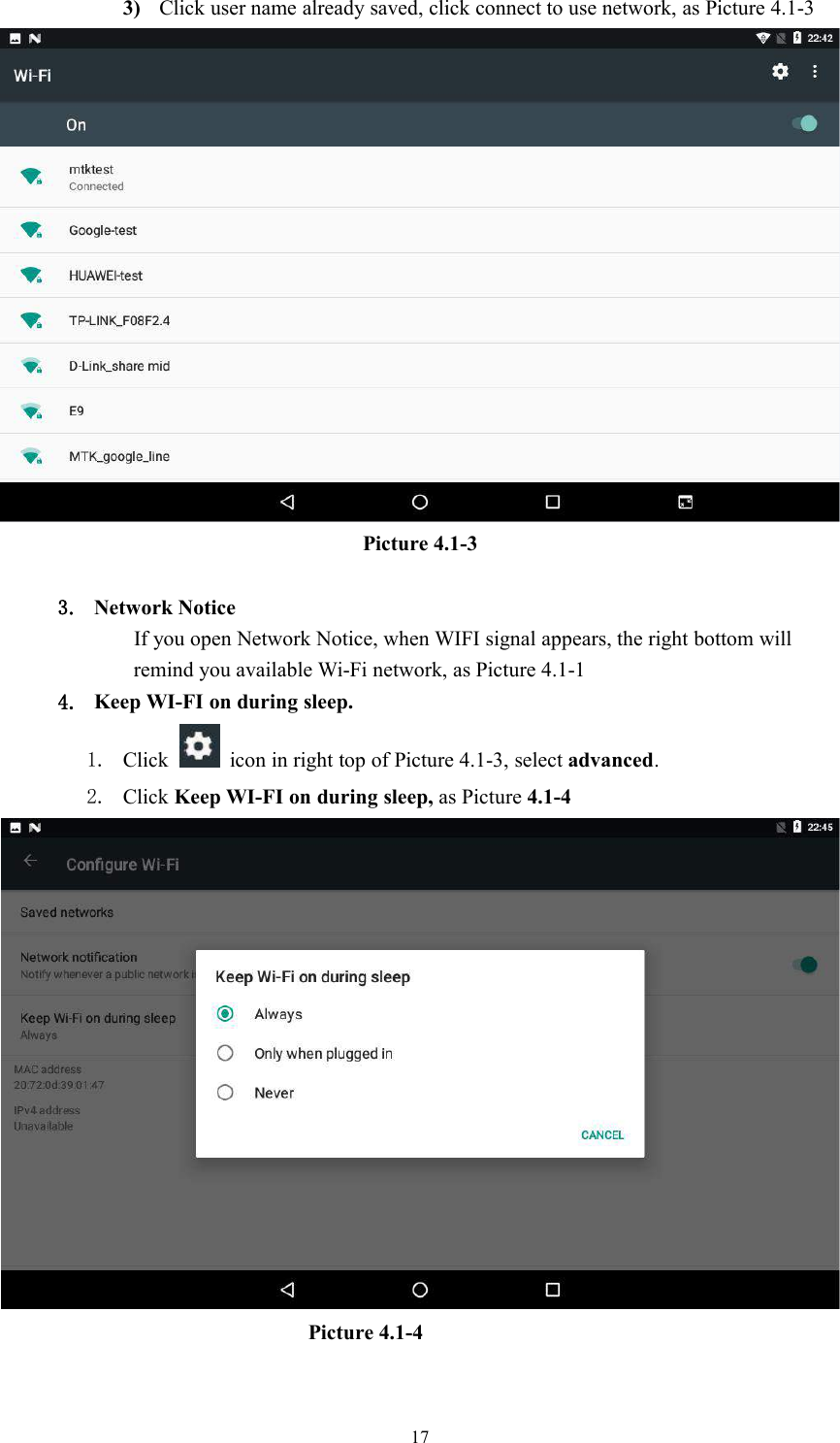

173) Click user name already saved, click connect to use network, as Picture 4.1-3Picture 4.1-33. Network NoticeIf you open Network Notice, when WIFI signal appears, the right bottom willremind you available Wi-Fi network, as Picture 4.1-14. Keep WI-FI on during sleep.1. Click icon in right top of Picture 4.1-3, select advanced.2. Click Keep WI-FI on during sleep, as Picture 4.1-4Picture 4.1-4

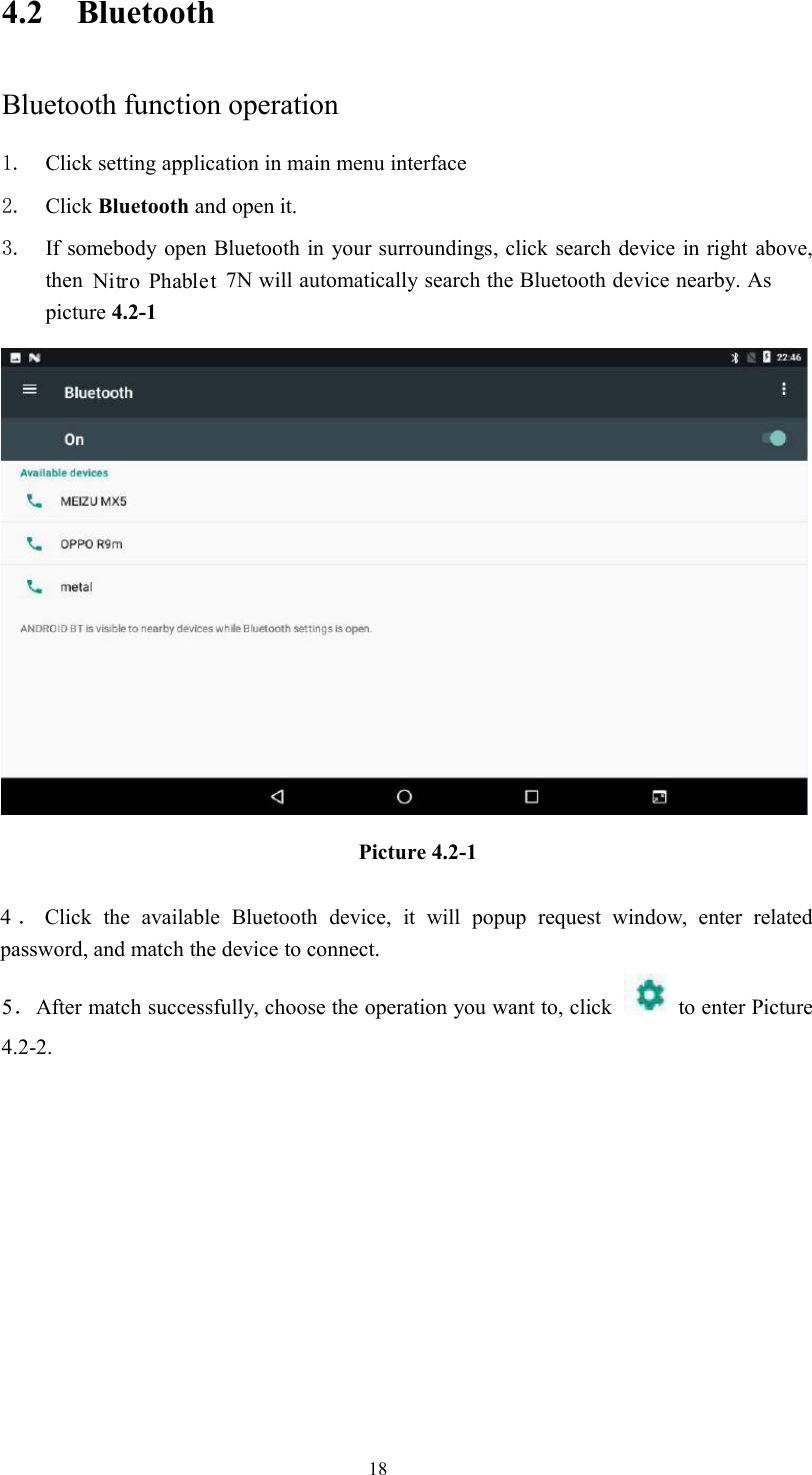

184.2 BluetoothBluetooth function operation1. Click setting application in main menu interface2. Click Bluetooth and open it.3. If somebody open Bluetooth in your surroundings, click search device in right above,then 7N will automatically search the Bluetooth device nearby. Aspicture 4.2-1Picture 4.2-14．Click the available Bluetooth device, it will popup request window, enter relatedpassword, and match the device to connect.5．After match successfully, choose the operation you want to, click to enter Picture4.2-2.Nitro Phablet

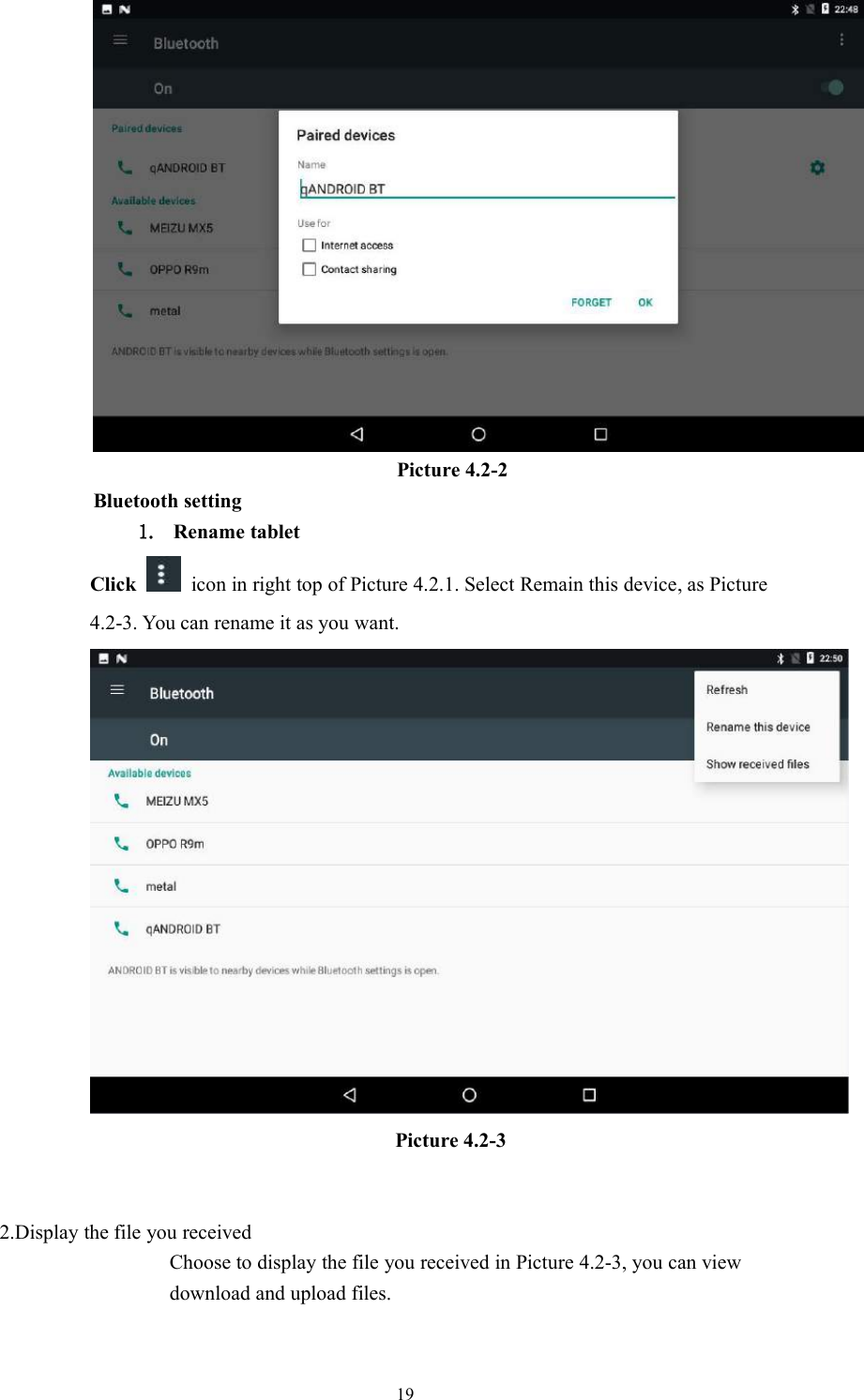

19Picture 4.2-2Bluetooth setting1. Rename tabletClick icon in right top of Picture 4.2.1. Select Remain this device, as Picture4.2-3. You can rename it as you want.Picture 4.2-32.Display the file you receivedChoose to display the file you received in Picture 4.2-3, you can viewdownload and upload files.

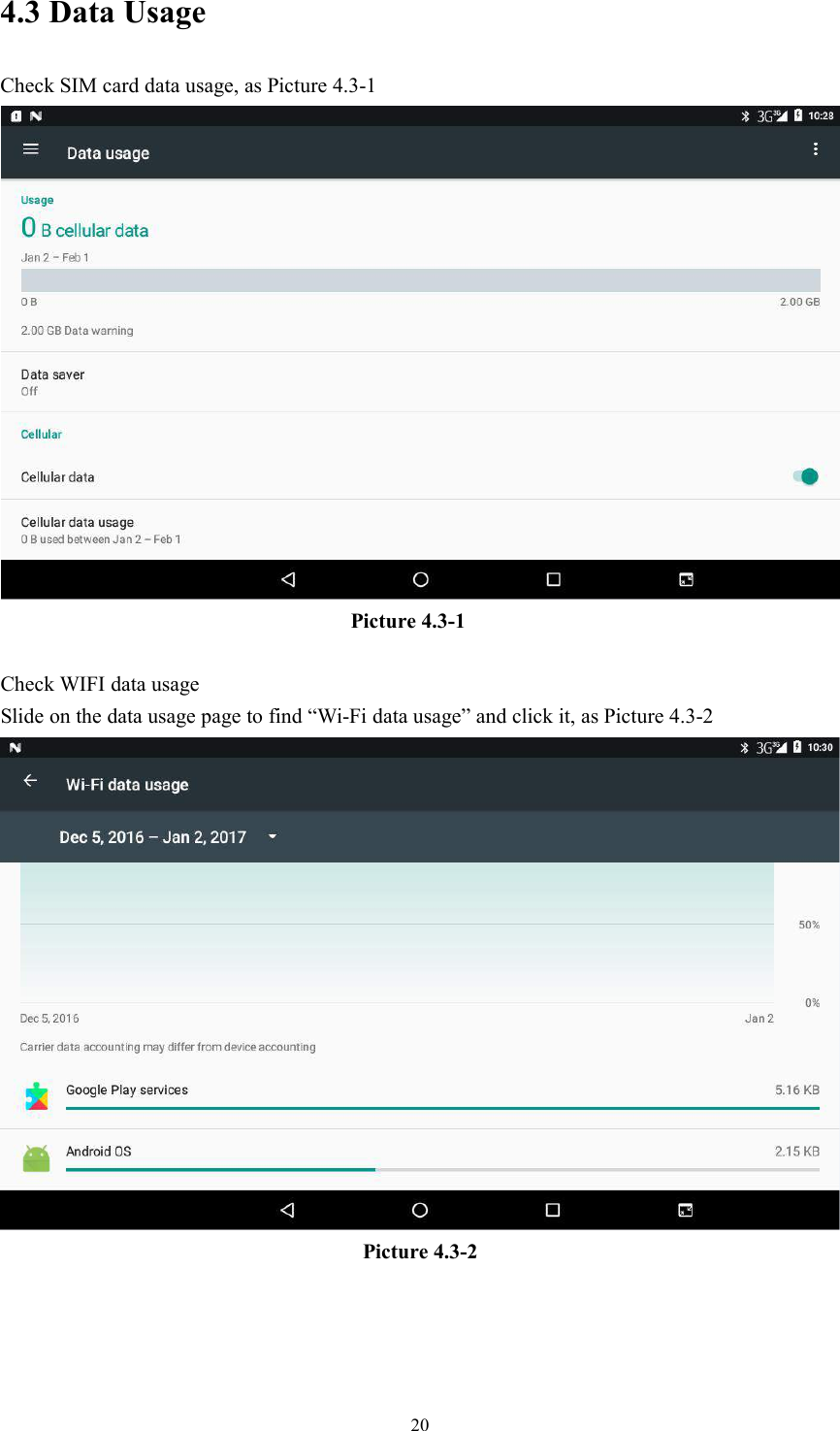

204.3 Data UsageCheck SIM card data usage, as Picture 4.3-1Picture 4.3-1Check WIFI data usageSlide on the data usage page to find “Wi-Fi data usage” and click it, as Picture 4.3-2Picture 4.3-2

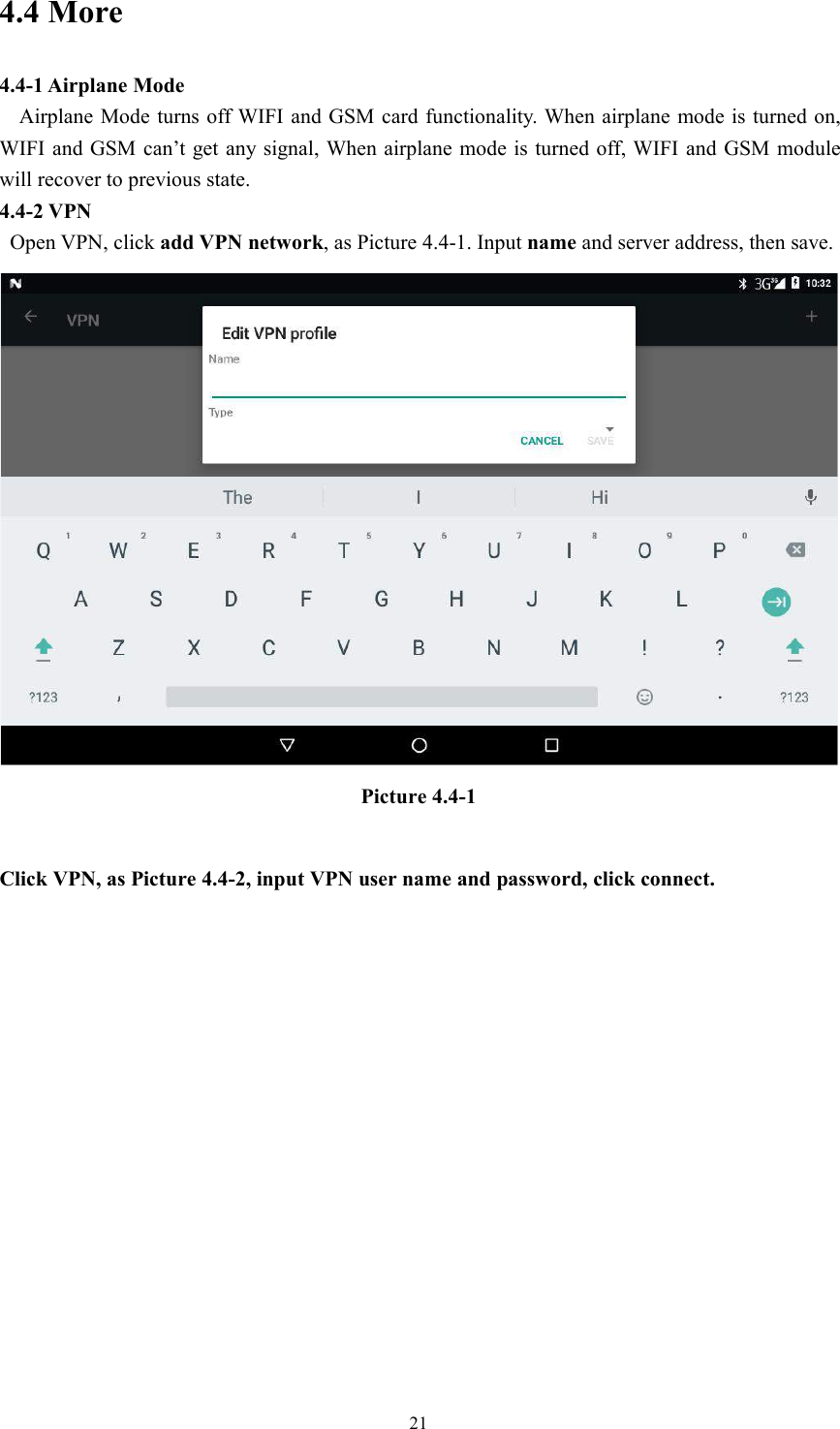

214.4 More4.4-1 Airplane ModeAirplane Mode turns off WIFI and GSM card functionality. When airplane mode is turned on,WIFI and GSM can’t get any signal, When airplane mode is turned off, WIFI and GSM modulewill recover to previous state.4.4-2 VPNOpen VPN, click add VPN network, as Picture 4.4-1. Input name and server address, then save.Picture 4.4-1Click VPN, as Picture 4.4-2, input VPN user name and password, click connect.

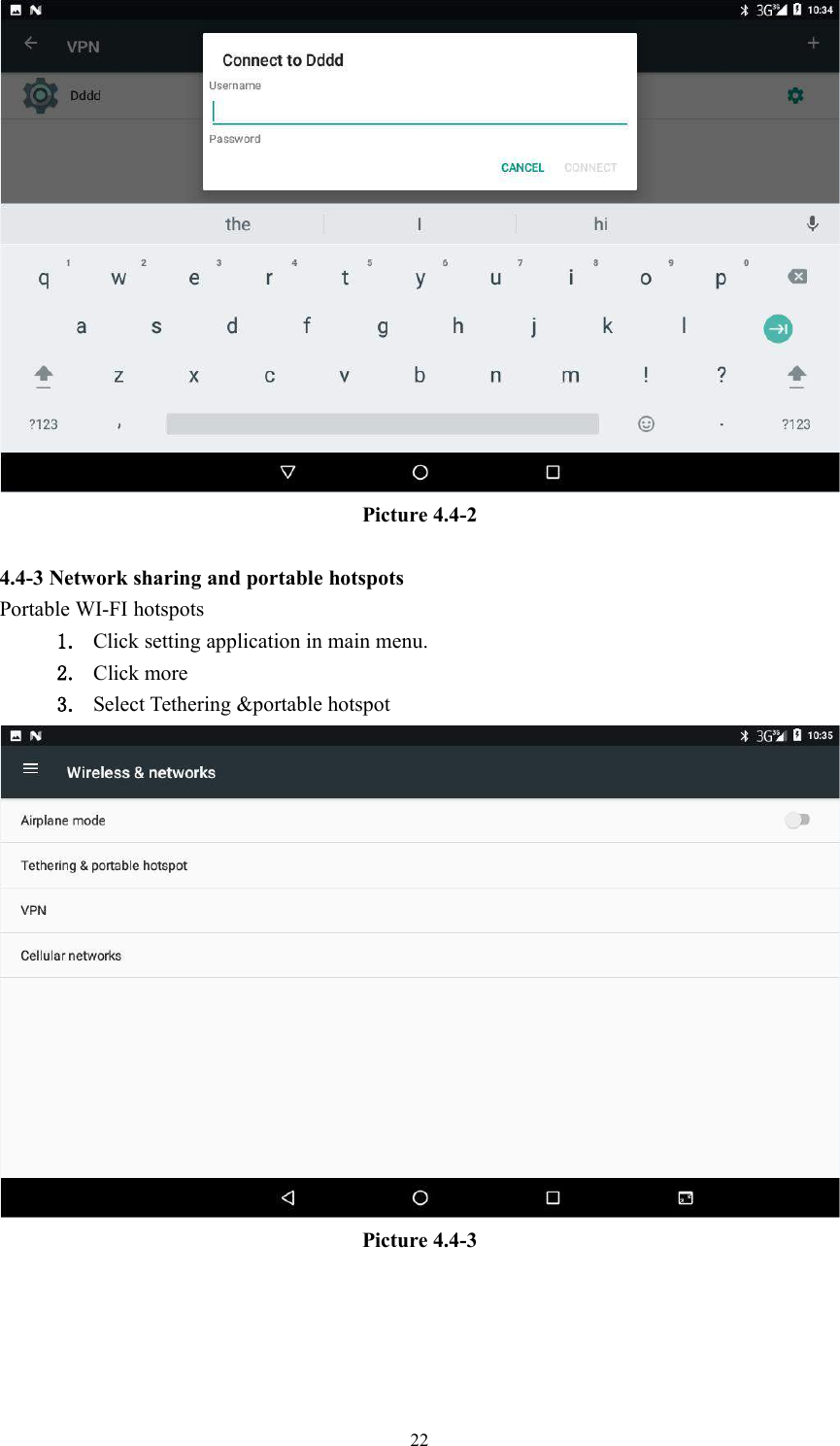

22Picture 4.4-24.4-3 Network sharing and portable hotspotsPortable WI-FI hotspots1. Click setting application in main menu.2. Click more3. Select Tethering &portable hotspotPicture 4.4-3
23Picture 4.4-43. Click keep WI-FI hotspots on, choose open time.4. Return to previous menu, open portable Wi-Fi hotspots, click Set up WI-FI hotspots.Picture 4.4-55. Set passwords you want to, password should be more than 8 numbers.4.4-4 Mobile Networks1. Access Point Name(APN)2. Choose access points name (APN), choose SIM card you need to connect, Choose connect type

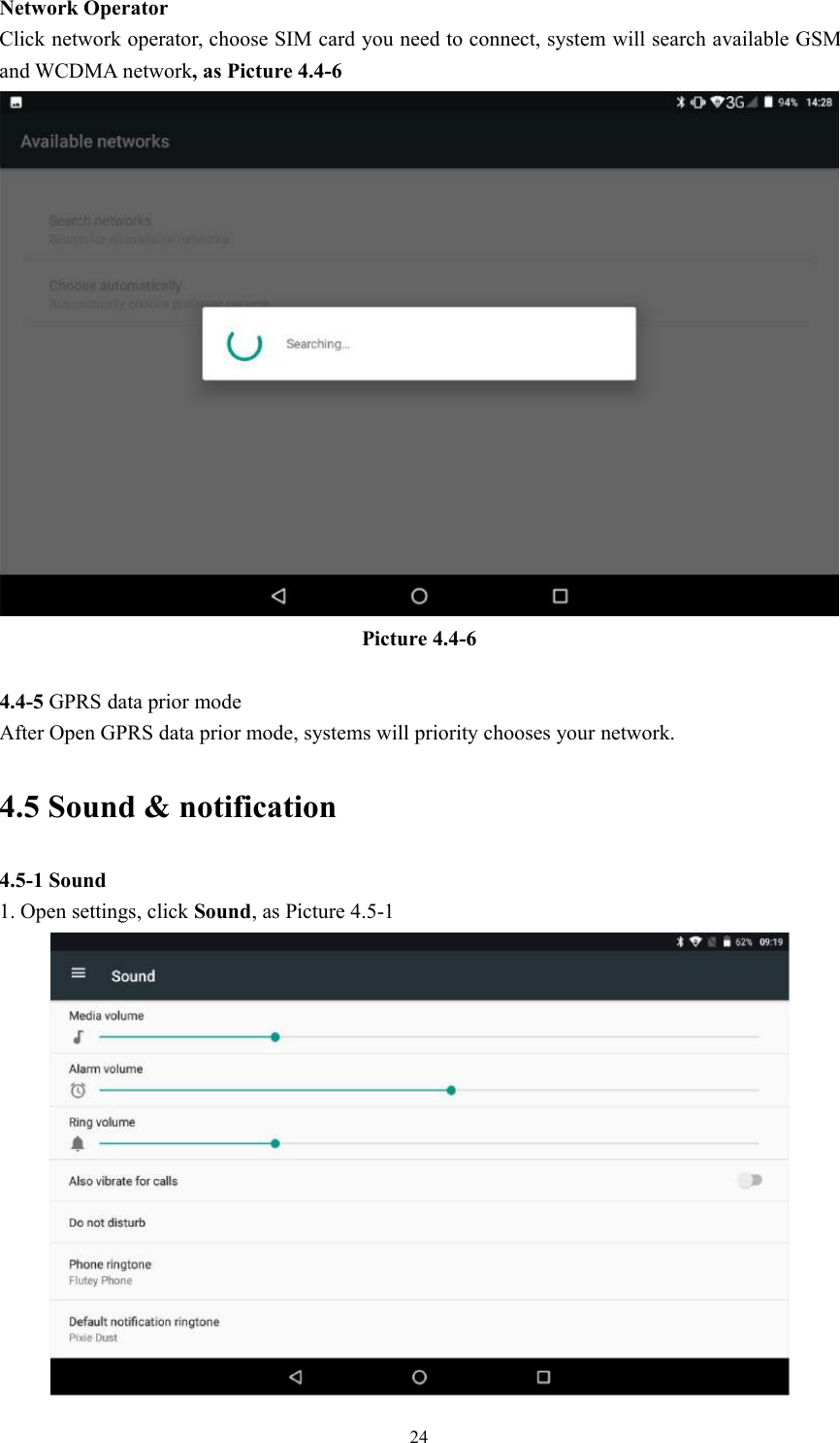

24Network OperatorClick network operator, choose SIM card you need to connect, system will search available GSMand WCDMA network, as Picture 4.4-6Picture 4.4-64.4-5 GPRS data prior modeAfter Open GPRS data prior mode, systems will priority chooses your network.4.5 Sound & notification4.5-1 Sound1. Open settings, click Sound, as Picture 4.5-1

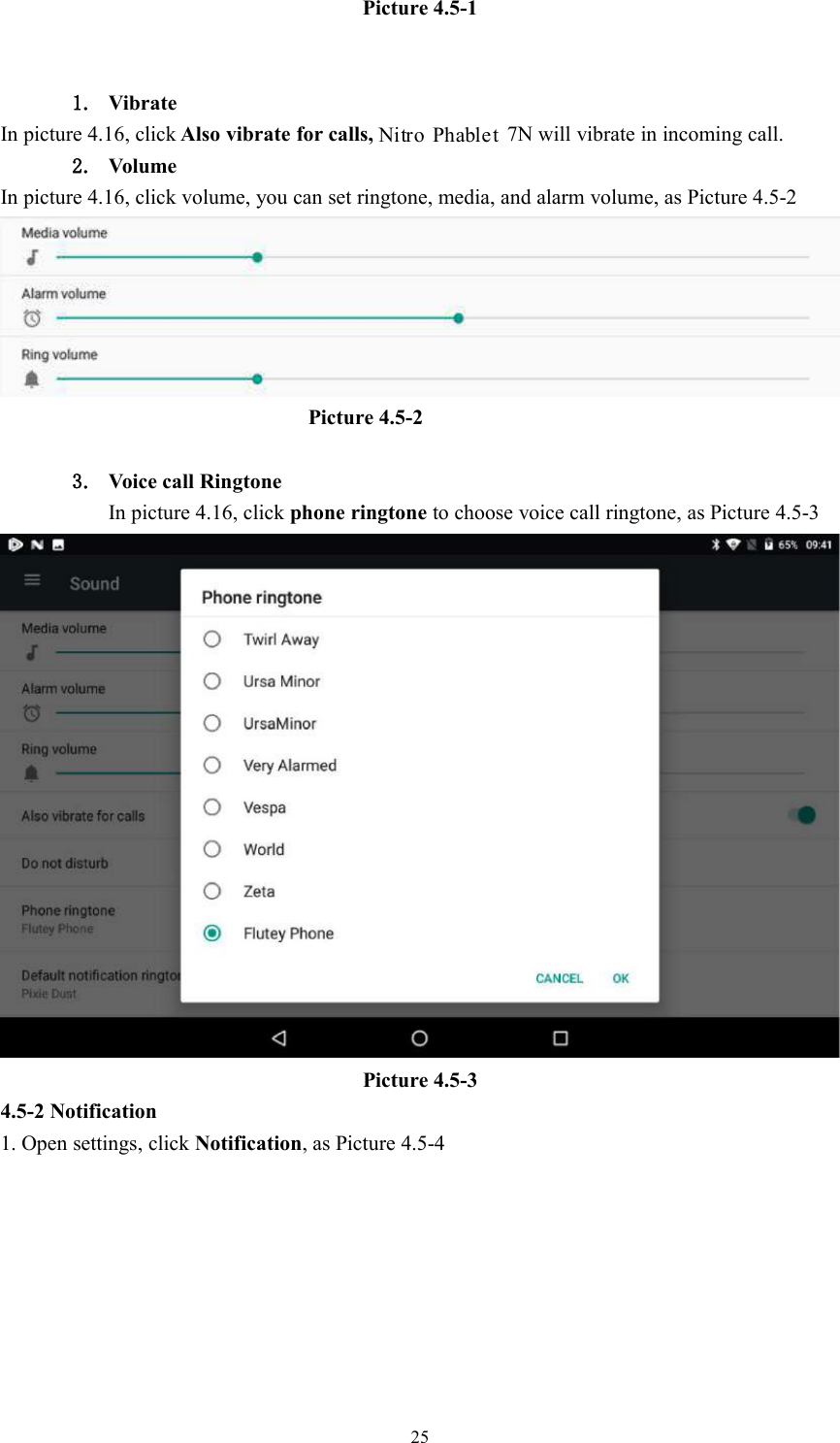

25Picture 4.5-11. VibrateIn picture 4.16, click Also vibrate for calls, 7N will vibrate in incoming call.2. VolumeIn picture 4.16, click volume, you can set ringtone, media, and alarm volume, as Picture 4.5-2Picture 4.5-23. Voice call RingtoneIn picture 4.16, click phone ringtone to choose voice call ringtone, as Picture 4.5-3Picture 4.5-34.5-2 Notification1. Open settings, click Notification, as Picture 4.5-4Nitro Phablet
26Picture 4.5-42. Click on any app icon in the list, then you can choose to show notifications silently, block allnotifications or don’t silence or block, as Picture 4.5-5Picture 4.5-54.6 Display4.6-1 Adjust the screen brightness1. Click Setting application procedure.

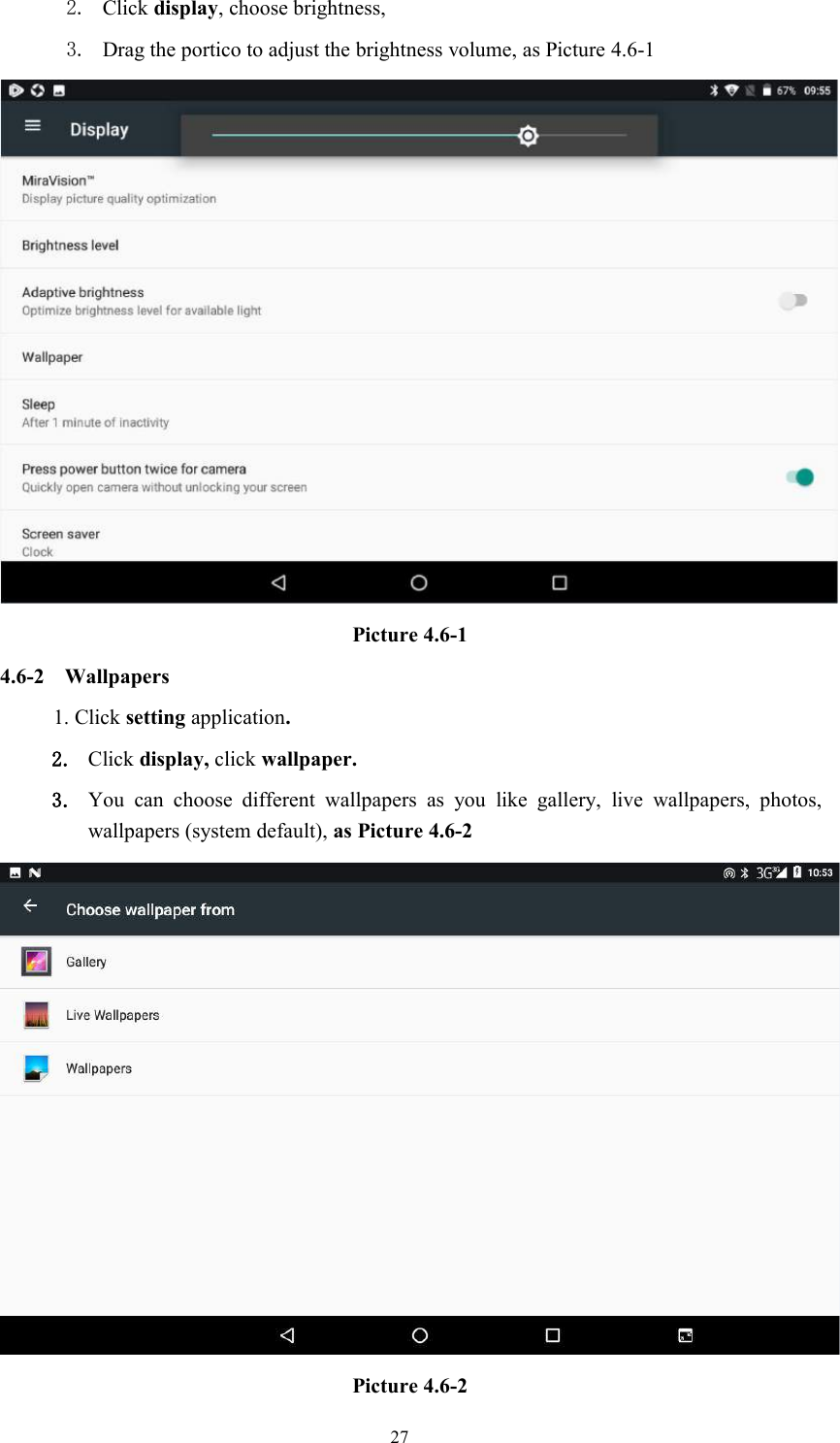

272. Click display, choose brightness,3. Drag the portico to adjust the brightness volume, as Picture 4.6-1Picture 4.6-14.6-2 Wallpapers1. Click setting application.2. Click display, click wallpaper.3. You can choose different wallpapers as you like gallery, live wallpapers, photos,wallpapers (system default), as Picture 4.6-2Picture 4.6-2
284.6-3 Auto rotationSystem is defaulted as open auto rotation, when it is turned off, system won’t rotate7N screen by G-sensor.4.6-4 Sleep4. Click setting application.5. Click display.6. Click sleep.7. Set the sleep time as you want, as Picture 4.6-3Picture 4.6-34.6-5 Font sizeClick font size to adjust the size of the text, as Picture 4.6-4Nitro Phablet
29Picture 4.6-44.6-6 Display sizeClick Display size to adjust the size of the icons, as Picture4.6-5Picture 4.6-54.6-7 Screen saverCharging Case, the tablet will enter the screen saver state.4.6-8 Mira VisionMira Vision is a set of engines to enhance display picture quality.4.7 StorageOpen setting function, click Storage, as Picture 4.6-6

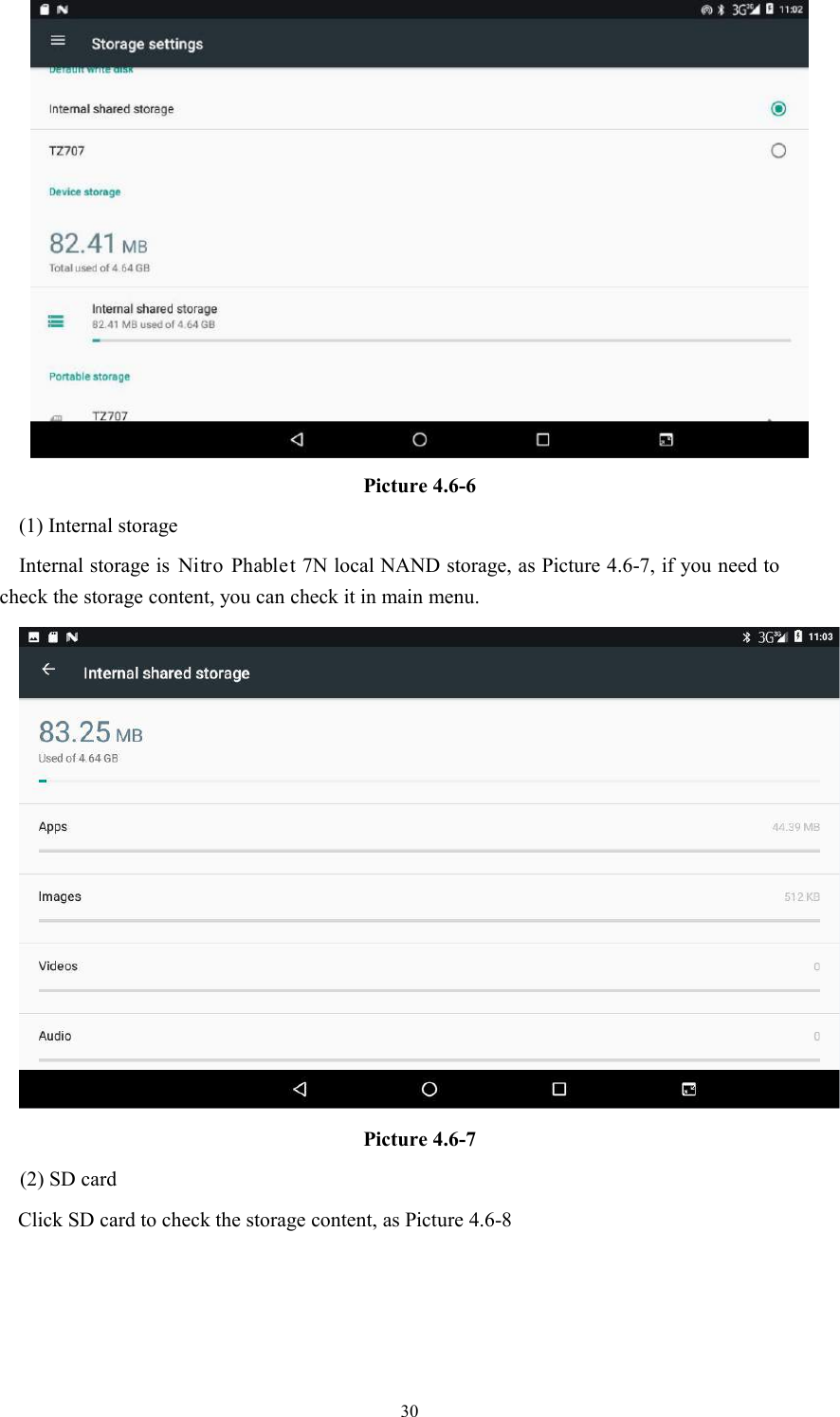

30Picture 4.6-6(1) Internal storageInternal storage is 7N local NAND storage, as Picture 4.6-7, if you need tocheck the storage content, you can check it in main menu.Picture 4.6-7(2) SD cardClick SD card to check the storage content, as Picture 4.6-8Nitro Phablet

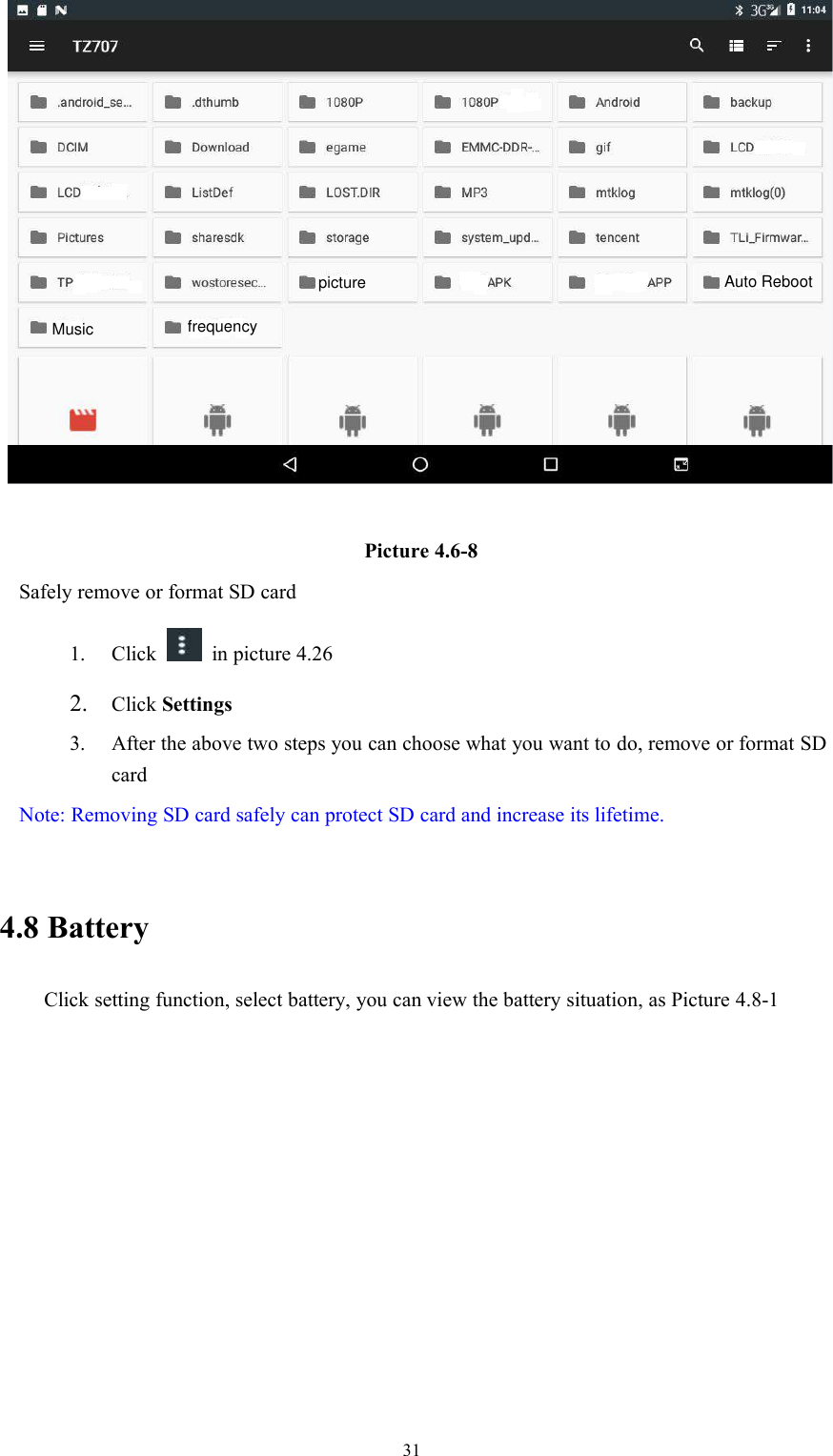

31Picture 4.6-8Safely remove or format SD card1. Click in picture 4.262. Click Settings3. After the above two steps you can choose what you want to do, remove or format SDcardNote: Removing SD card safely can protect SD card and increase its lifetime.4.8 BatteryClick setting function, select battery, you can view the battery situation, as Picture 4.8-1Music frequencypicture Auto Reboot
32Picture 4.8-14.9 Application program1. Click setting application in Apps.2. Select application, after entering, you can manage and delete installed application.(As Picture 4.9-1)Picture 4.9-1
334.10 MemoryView the used space and available space, as Picture 4.10-1Picture 4.10-1Click view the working device，as Picture 4.10-2Picture 4.10-2

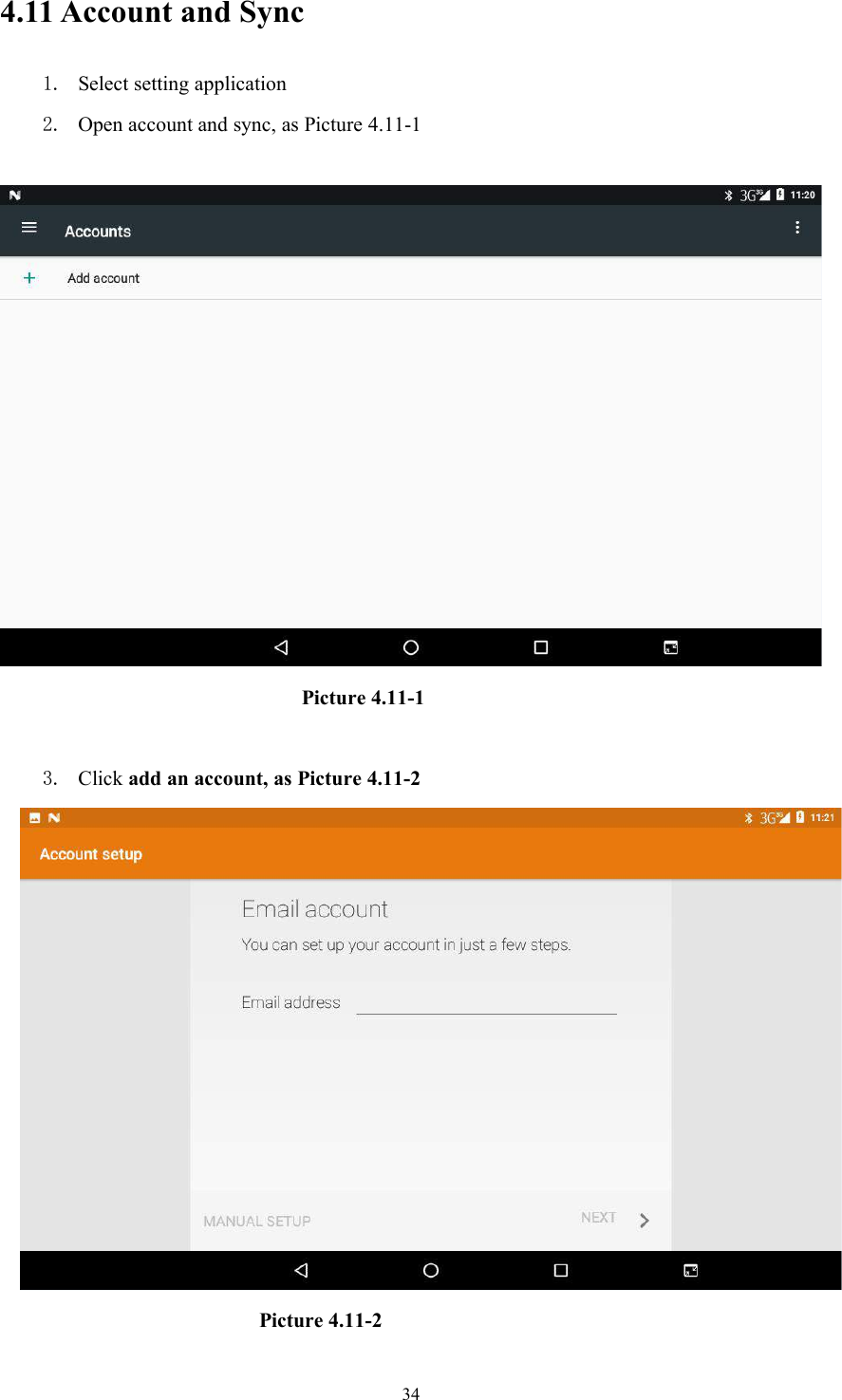

344.11 Account and Sync1. Select setting application2. Open account and sync, as Picture 4.11-1Picture 4.11-13. Click add an account, as Picture 4.11-2Picture 4.11-2
354. After successfully load, it will open the sync function, as Picture 4.11-3Picture 4.11-34.12 Location serviceClick setting, select Location, as Picture 4.12-1Picture 4.12-1

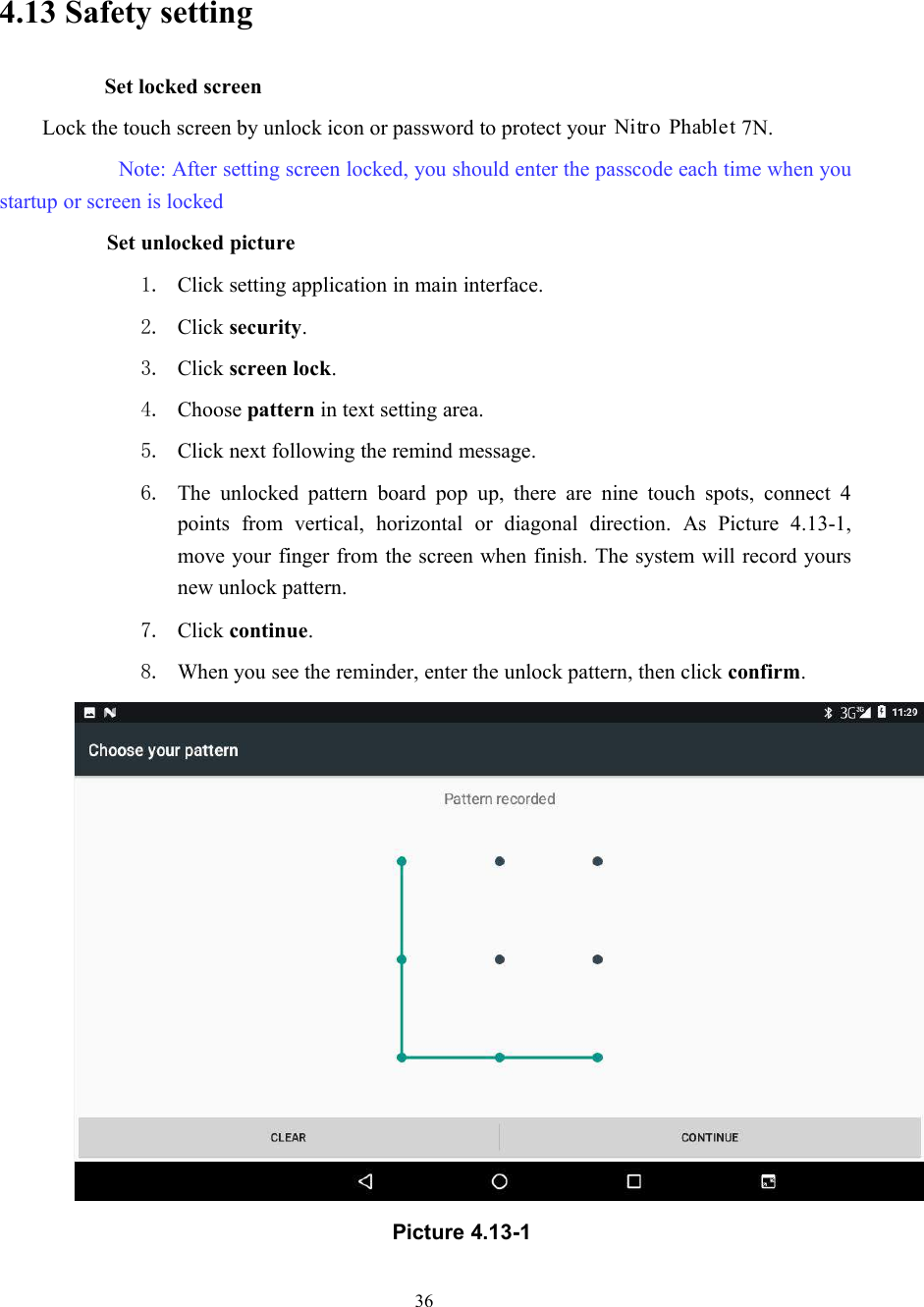

364.13 Safety settingSet locked screenLock the touch screen by unlock icon or password to protect your 7N.Note: After setting screen locked, you should enter the passcode each time when youstartup or screen is lockedSet unlocked picture1. Click setting application in main interface.2. Click security.3. Click screen lock.4. Choose pattern in text setting area.5. Click next following the remind message.6. The unlocked pattern board pop up, there are nine touch spots, connect 4points from vertical, horizontal or diagonal direction. As Picture 4.13-1,move your finger from the screen when finish. The system will record yoursnew unlock pattern.7. Click continue.8. When you see the reminder, enter the unlock pattern, then click confirm.Picture 4.13-1Nitro Phablet

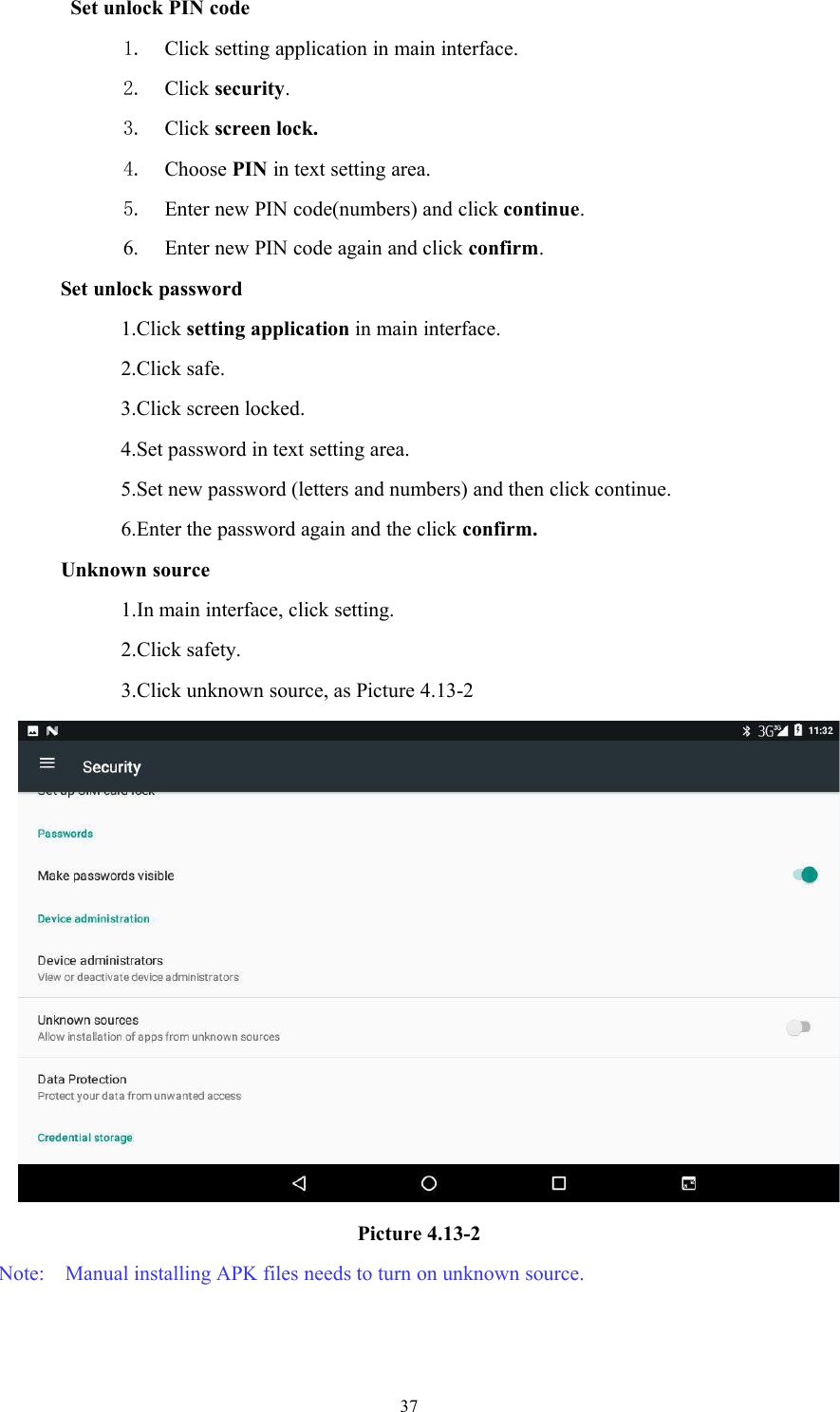

37Set unlock PIN code1. Click setting application in main interface.2. Click security.3. Click screen lock.4. Choose PIN in text setting area.5. Enter new PIN code(numbers) and click continue.6. Enter new PIN code again and click confirm.Set unlock password1.Click setting application in main interface.2.Click safe.3.Click screen locked.4.Set password in text setting area.5.Set new password (letters and numbers) and then click continue.6.Enter the password again and the click confirm.Unknown source1.In main interface, click setting.2.Click safety.3.Click unknown source, as Picture 4.13-2Picture 4.13-2Note: Manual installing APK files needs to turn on unknown source.

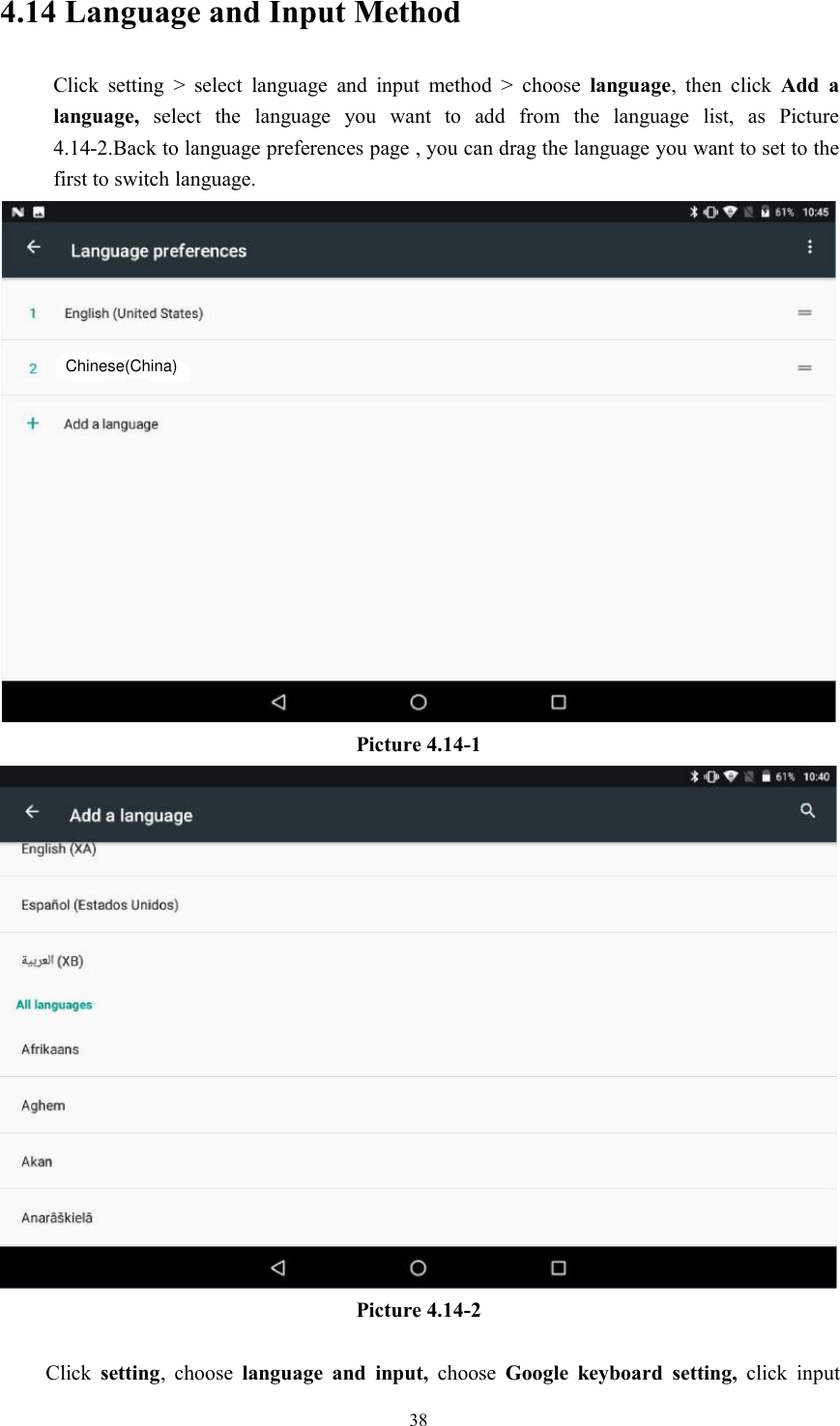

384.14 Language and Input MethodClick setting > select language and input method > choose language, then click Add alanguage, select the language you want to add from the language list, as Picture4.14-2.Back to language preferences page , you can drag the language you want to set to thefirst to switch language.Picture 4.14-1Picture 4.14-2Click setting, choose language and input, choose Google keyboard setting, click inputChinese(China)

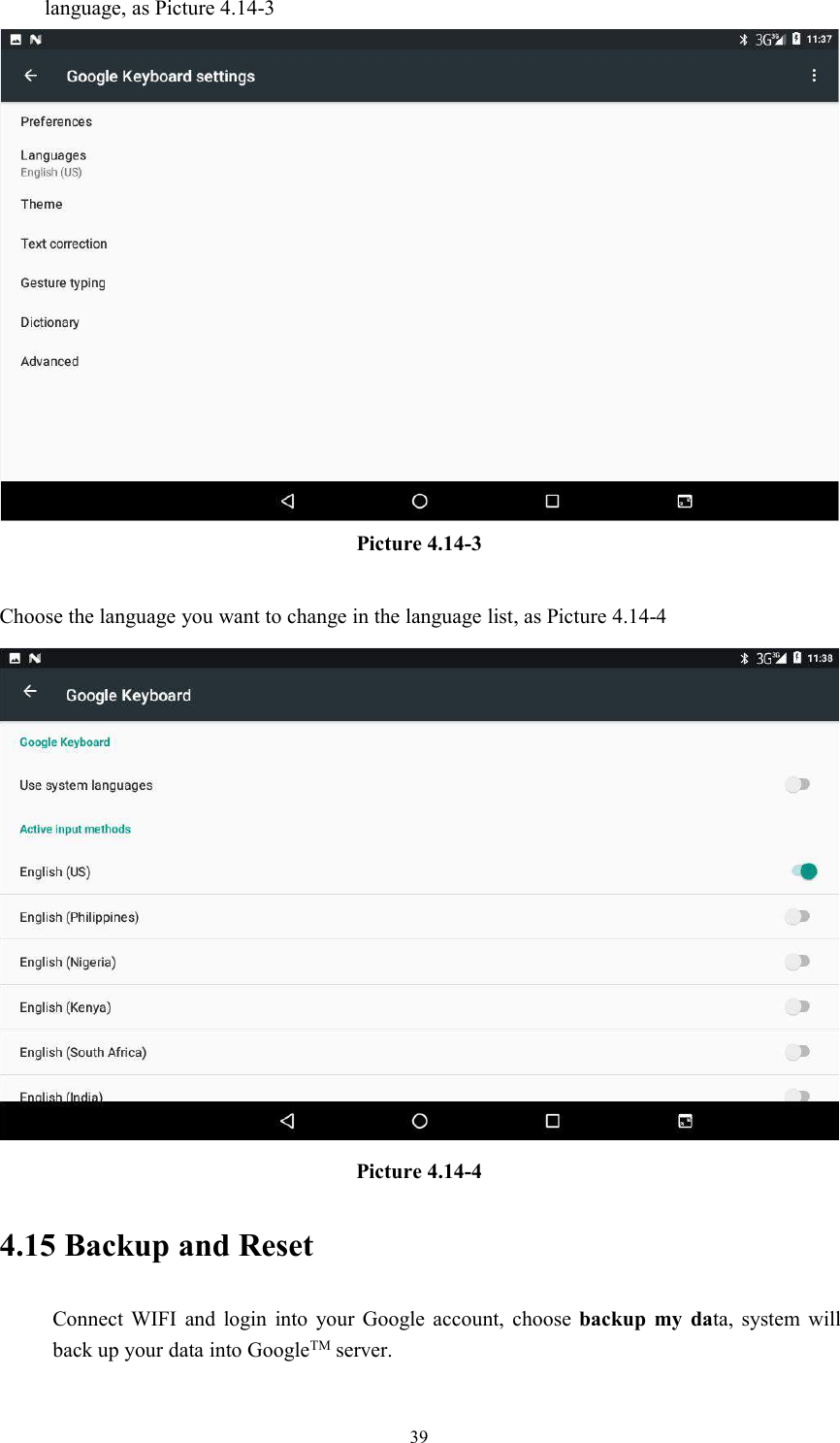

39language, as Picture 4.14-3Picture 4.14-3Choose the language you want to change in the language list, as Picture 4.14-4Picture 4.14-44.15 Backup and ResetConnect WIFI and login into your Google account, choose backup my data, system willback up your data into GoogleTM server.

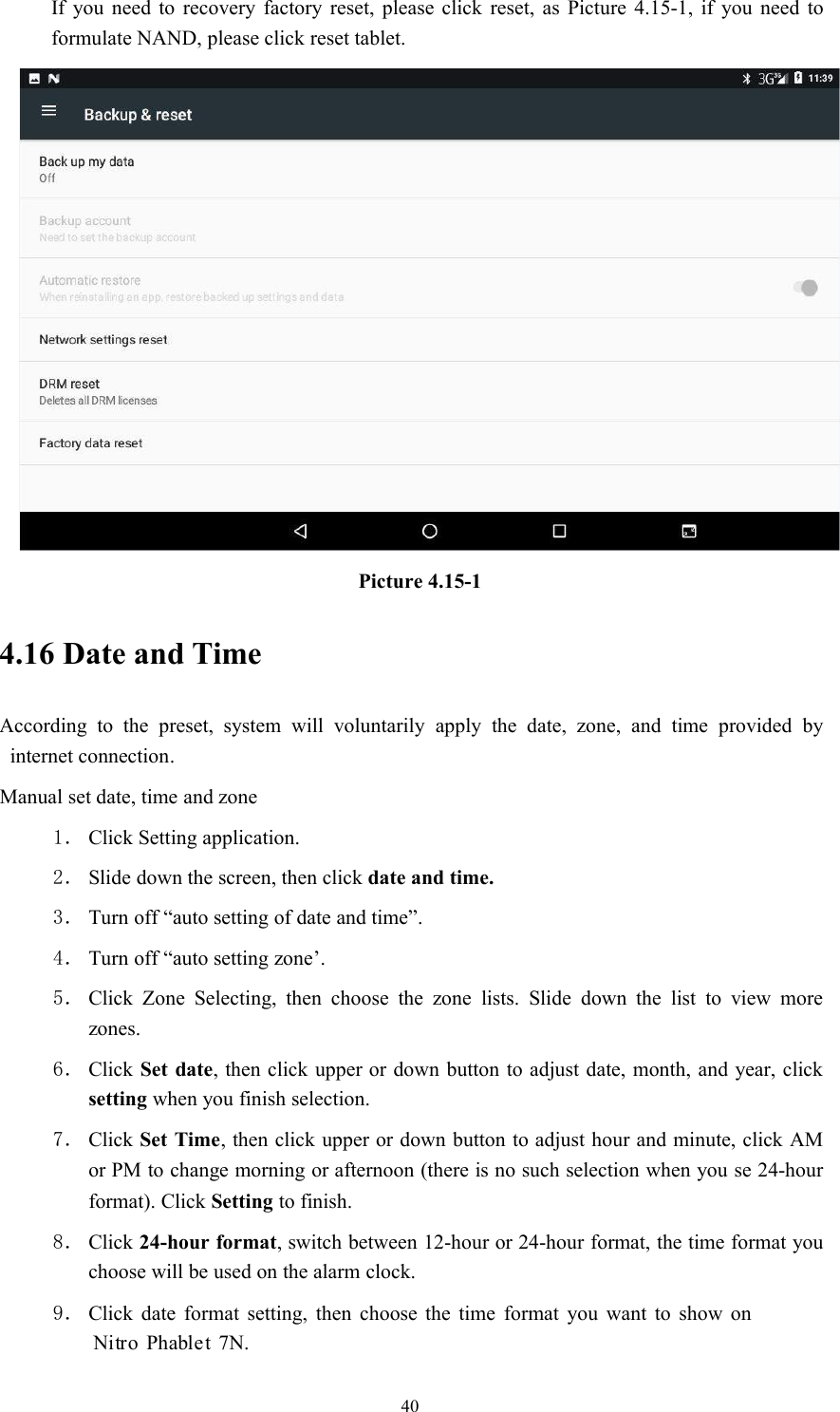

40If you need to recovery factory reset, please click reset, as Picture 4.15-1, if you need toformulate NAND, please click reset tablet.Picture 4.15-14.16 Date and TimeAccording to the preset, system will voluntarily apply the date, zone, and time provided byinternet connection.Manual set date, time and zone1． Click Setting application.2． Slide down the screen, then click date and time.3． Turn off “auto setting of date and time”.4． Turn off “auto setting zone’.5． Click Zone Selecting, then choose the zone lists. Slide down the list to view morezones.6． Click Set date, then click upper or down button to adjust date, month, and year, clicksetting when you finish selection.7． Click Set Time, then click upper or down button to adjust hour and minute, click AMor PM to change morning or afternoon (there is no such selection when you se 24-hourformat). Click Setting to finish.8． Click 24-hour format, switch between 12-hour or 24-hour format, the time format youchoose will be used on the alarm clock.9． Click date format setting, then choose the time format you want to show on7N.Nitro Phablet

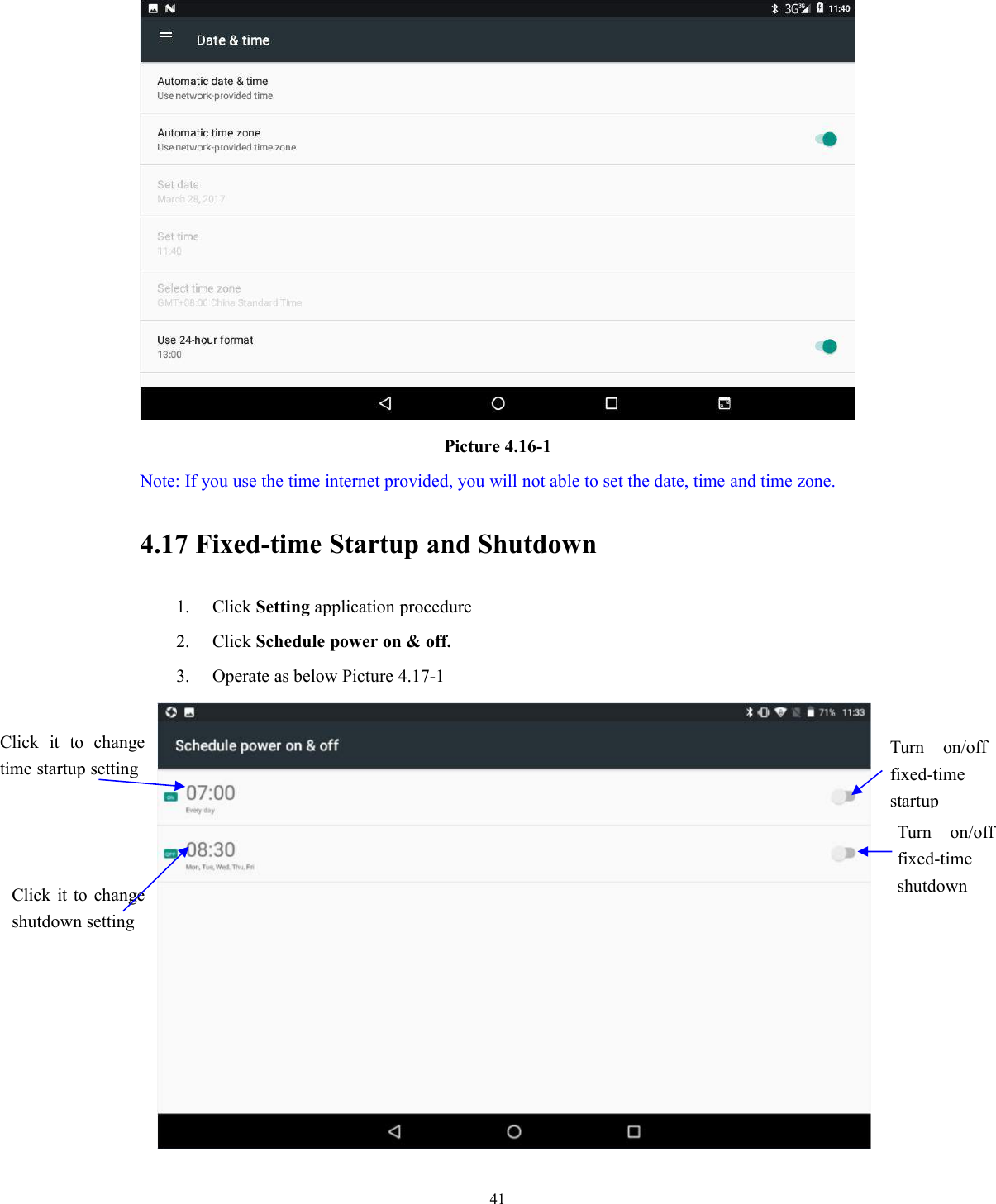

41Picture 4.16-1Note: If you use the time internet provided, you will not able to set the date, time and time zone.4.17 Fixed-time Startup and Shutdown1. Click Setting application procedure2. Click Schedule power on & off.3. Operate as below Picture 4.17-1Click it to changetime startup settingClick it to changeshutdown settingTurn on/offfixed-timestartupTurn on/offfixed-timeshutdown

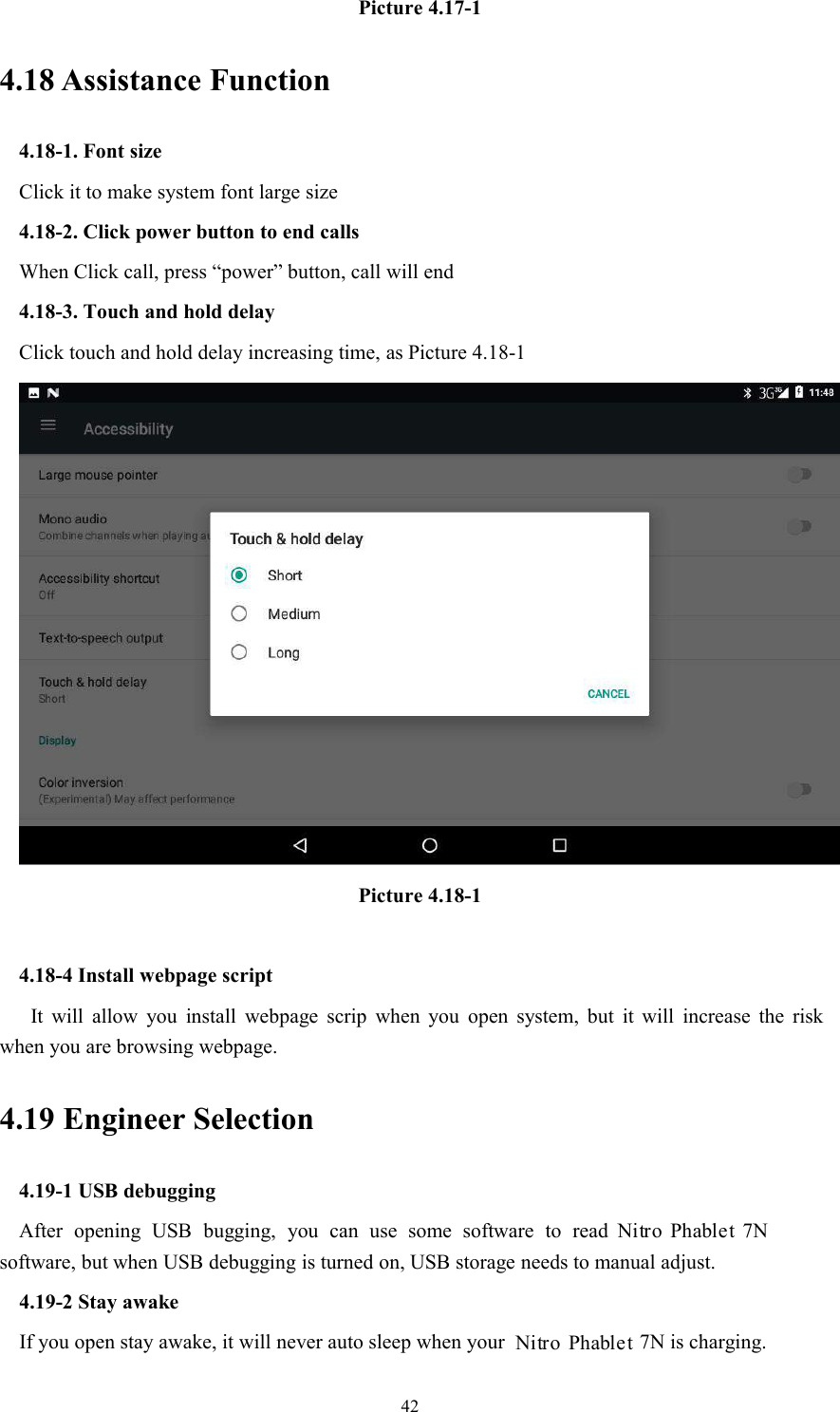

42Picture 4.17-14.18 Assistance Function4.18-1. Font sizeClick it to make system font large size4.18-2. Click power button to end callsWhen Click call, press “power” button, call will end4.18-3. Touch and hold delayClick touch and hold delay increasing time, as Picture 4.18-1Picture 4.18-14.18-4 Install webpage scriptIt will allow you install webpage scrip when you open system, but it will increase the riskwhen you are browsing webpage.4.19 Engineer Selection4.19-1 USB debuggingAfter opening USB bugging, you can use some software to read 7Nsoftware, but when USB debugging is turned on, USB storage needs to manual adjust.4.19-2 Stay awakeIf you open stay awake, it will never auto sleep when your 7N is charging.Nitro PhabletNitro Phablet

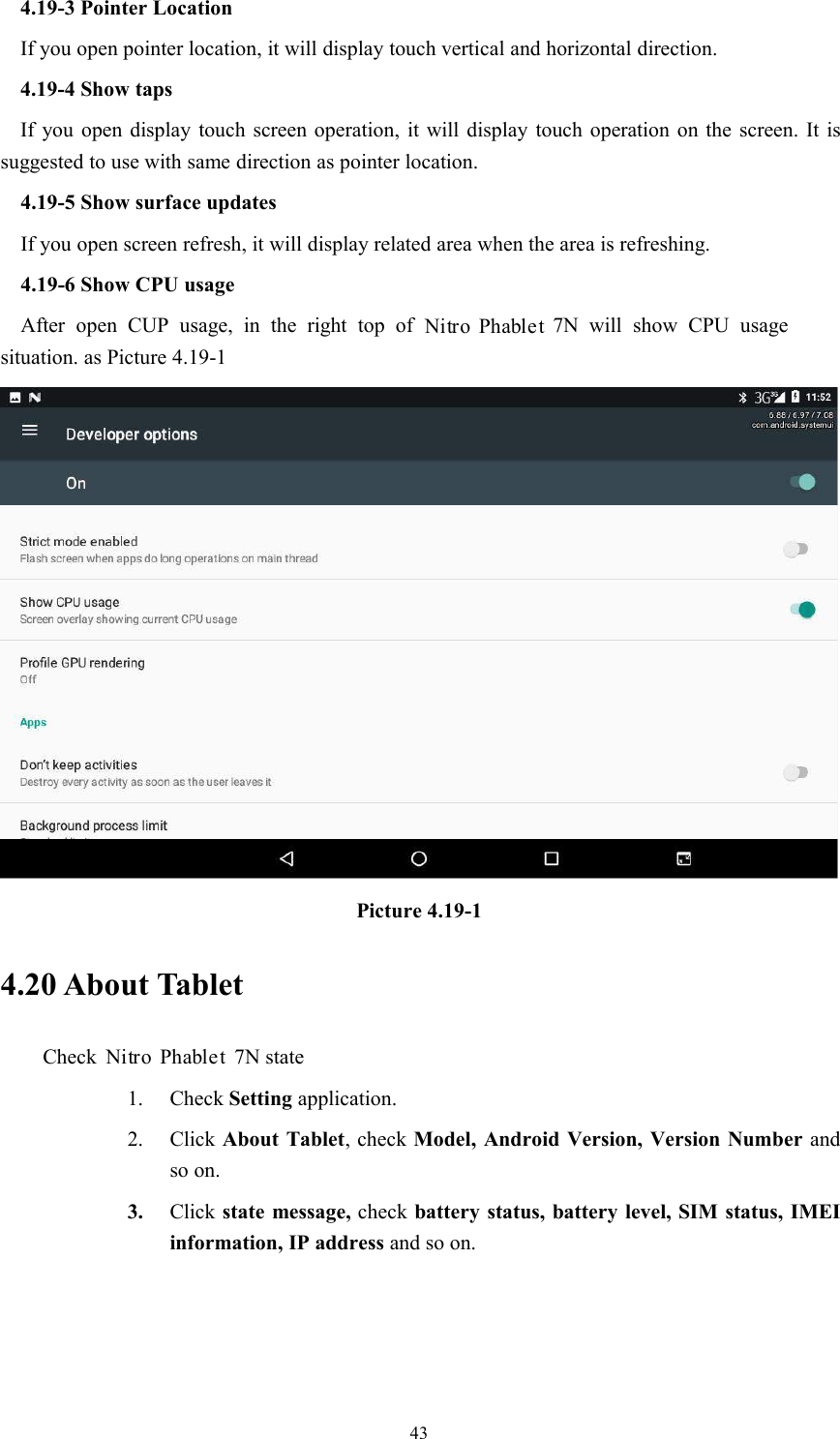

434.19-3 Pointer LocationIf you open pointer location, it will display touch vertical and horizontal direction.4.19-4 Show tapsIf you open display touch screen operation, it will display touch operation on the screen. It issuggested to use with same direction as pointer location.4.19-5 Show surface updatesIf you open screen refresh, it will display related area when the area is refreshing.4.19-6 Show CPU usageAfter open CUP usage, in the right top of 7N will show CPU usagesituation. as Picture 4.19-1Picture 4.19-14.20 About TabletCheck 7N state1. Check Setting application.2. Click About Tablet, check Model, Android Version, Version Number andso on.3. Click state message, check battery status, battery level, SIM status, IMEIinformation, IP address and so on.Nitro PhabletNitro Phablet

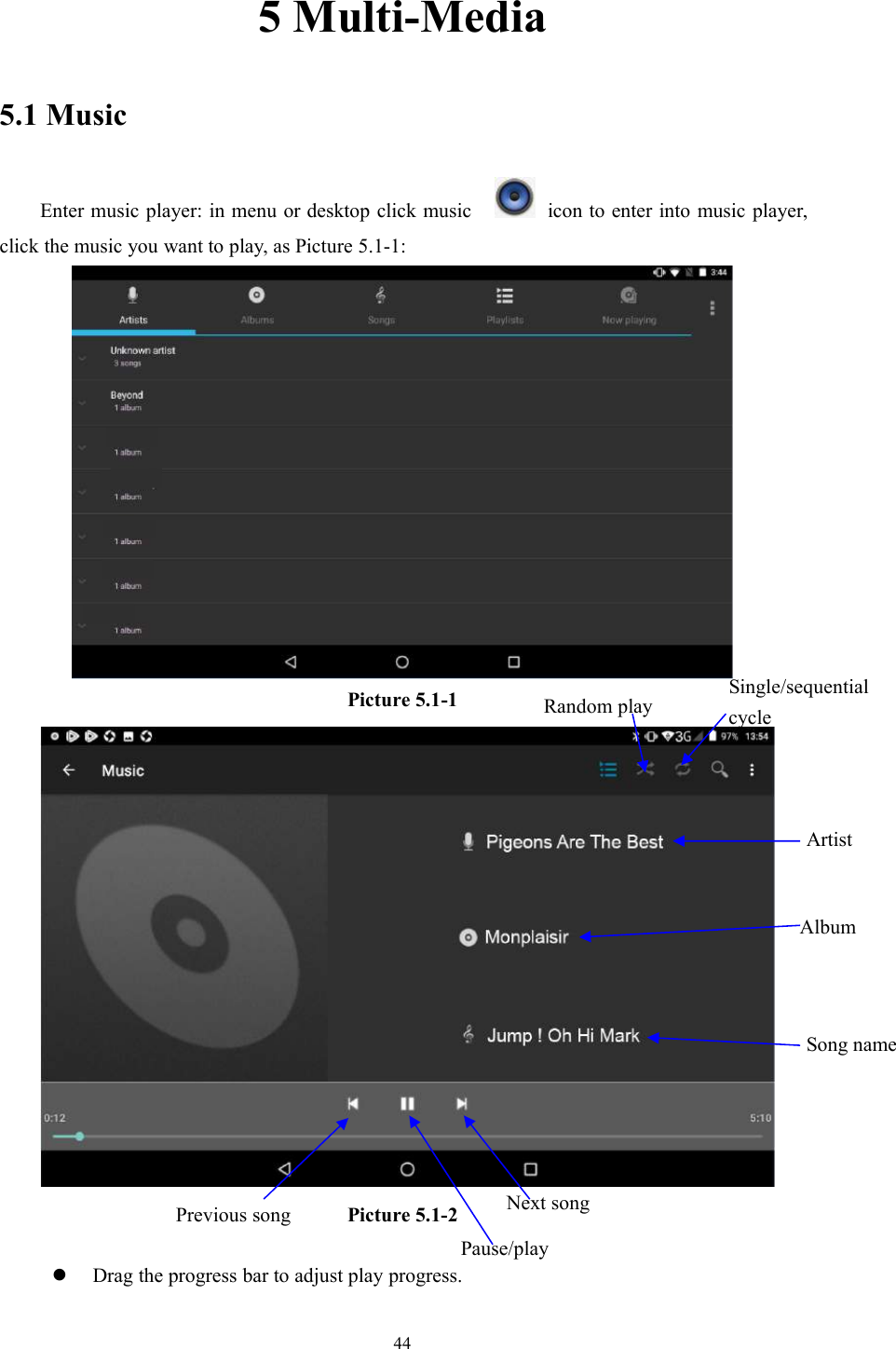

445 Multi-Media5.1 MusicEnter music player: in menu or desktop click music icon to enter into music player,click the music you want to play, as Picture 5.1-1:Picture 5.1-1Picture 5.1-2Drag the progress bar to adjust play progress.AlbumPause/playNext songPrevious songArtistSong nameRandom playSingle/sequentialcycle

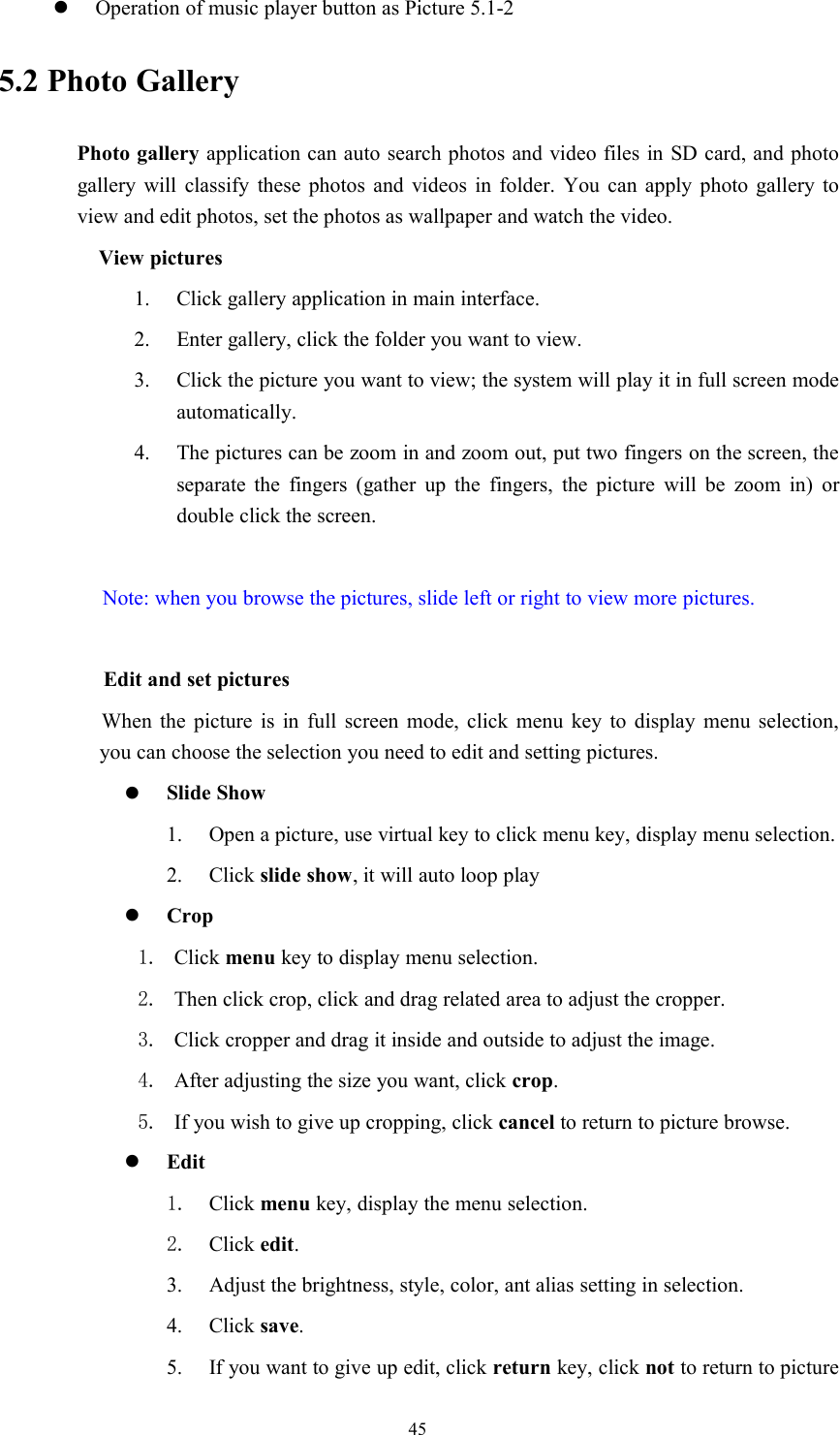

45Operation of music player button as Picture 5.1-25.2 Photo GalleryPhoto gallery application can auto search photos and video files in SD card, and photogallery will classify these photos and videos in folder. You can apply photo gallery toview and edit photos, set the photos as wallpaper and watch the video.View pictures1. Click gallery application in main interface.2. Enter gallery, click the folder you want to view.3. Click the picture you want to view; the system will play it in full screen modeautomatically.4. The pictures can be zoom in and zoom out, put two fingers on the screen, theseparate the fingers (gather up the fingers, the picture will be zoom in) ordouble click the screen.Note: when you browse the pictures, slide left or right to view more pictures.Edit and set picturesWhen the picture is in full screen mode, click menu key to display menu selection,you can choose the selection you need to edit and setting pictures.Slide Show1. Open a picture, use virtual key to click menu key, display menu selection.2. Click slide show, it will auto loop playCrop1. Click menu key to display menu selection.2. Then click crop, click and drag related area to adjust the cropper.3. Click cropper and drag it inside and outside to adjust the image.4. After adjusting the size you want, click crop.5. If you wish to give up cropping, click cancel to return to picture browse.Edit1. Click menu key, display the menu selection.2. Click edit.3. Adjust the brightness, style, color, ant alias setting in selection.4. Click save.5. If you want to give up edit, click return key, click not to return to picture

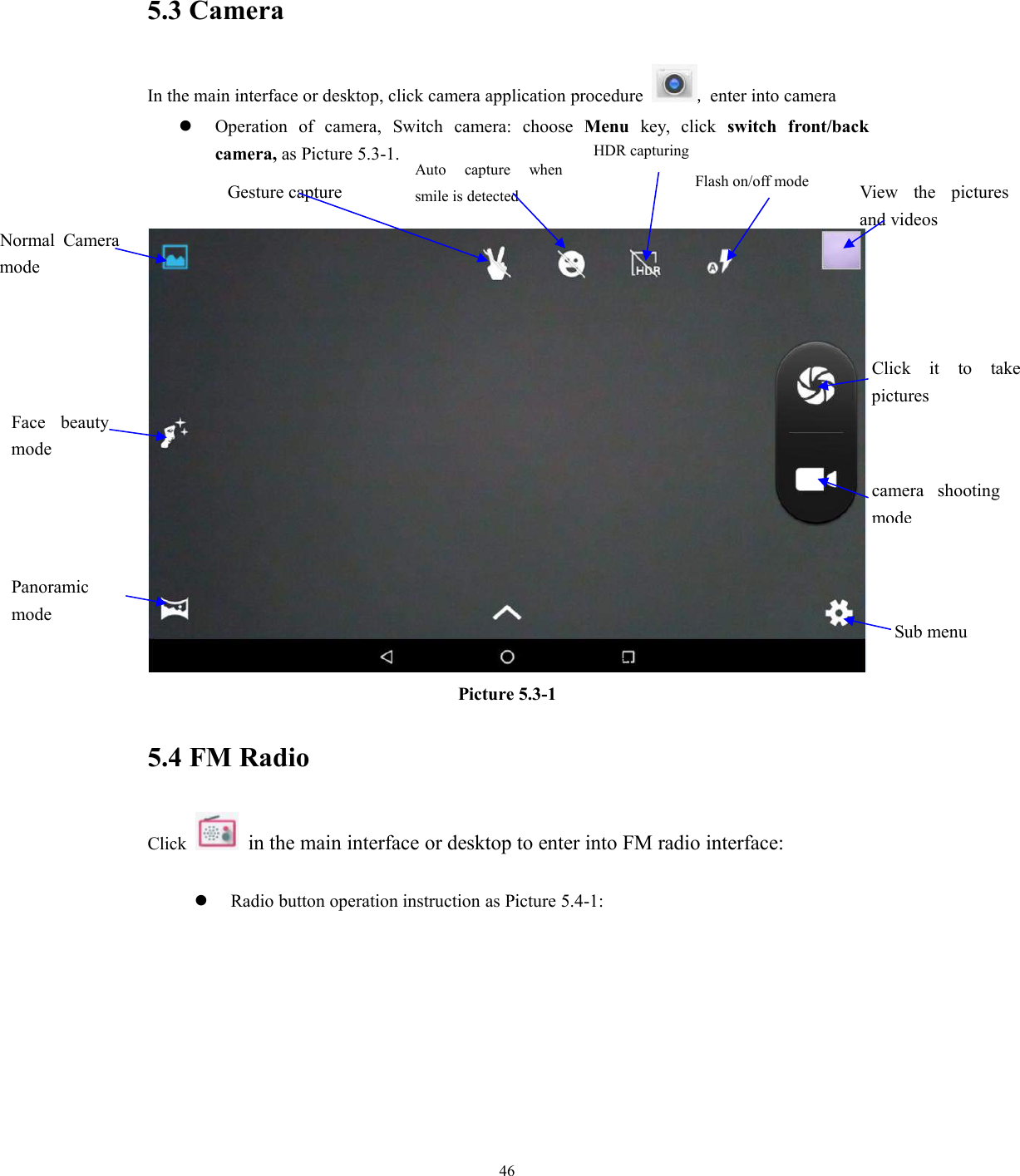

465.3 CameraIn the main interface or desktop, click camera application procedure ,enter into cameraOperation of camera, Switch camera: choose Menu key, click switch front/backcamera, as Picture 5.3-1.Picture 5.3-15.4 FM RadioClick in the main interface or desktop to enter into FM radio interface:Radio button operation instruction as Picture 5.4-1:Next channelNormal CameramodeFace beautymodePanoramicmodeSub menucamera shootingmodeFlash on/off mode View the picturesand videosClick it to takepicturesGesture captureAuto capture whensmile is detectedHDR capturing

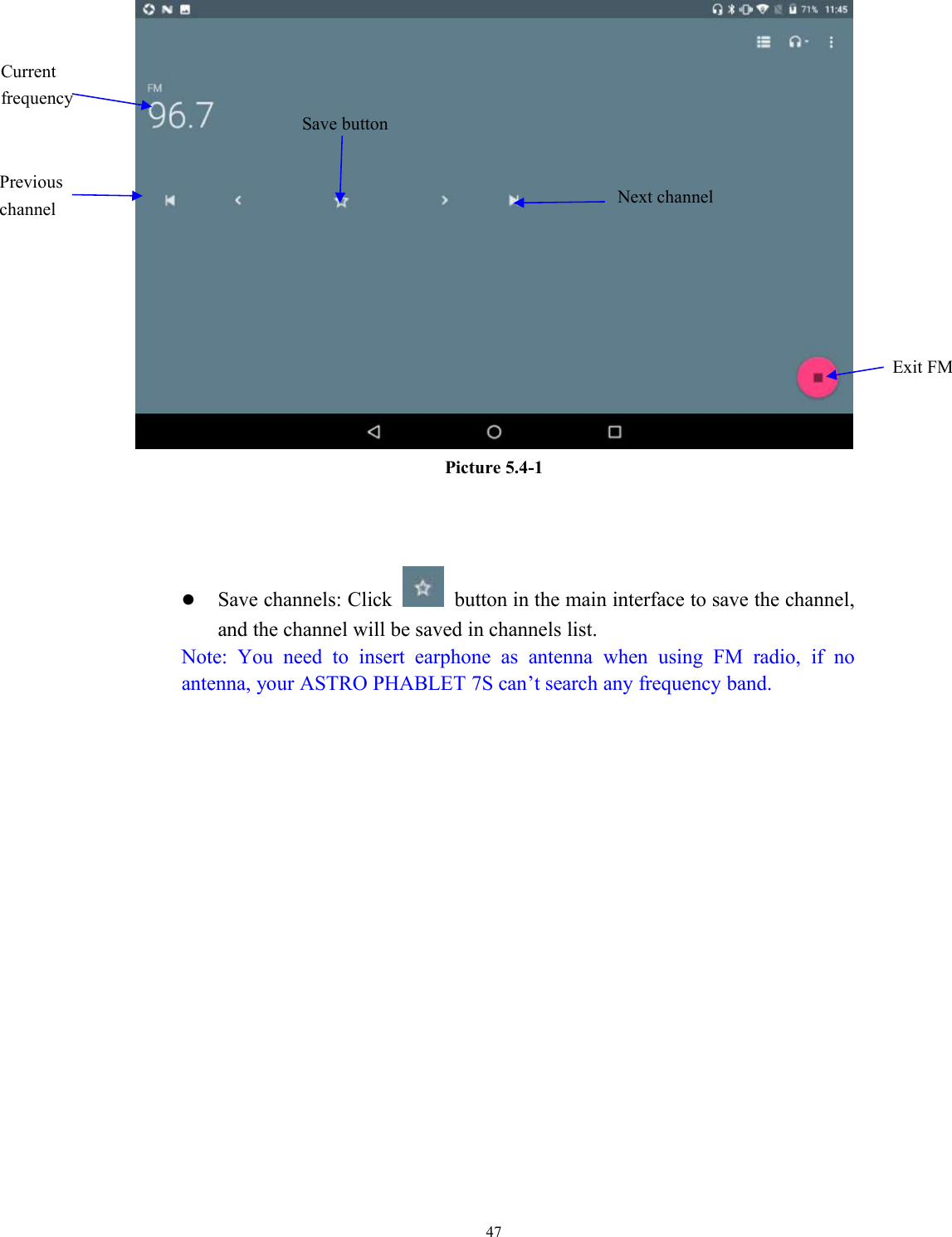

47Picture 5.4-1Save channels: Click button in the main interface to save the channel,and the channel will be saved in channels list.Note: You need to insert earphone as antenna when using FM radio, if noantenna, your ASTRO PHABLET 7S can’t search any frequency band.Save buttonPreviouschannelCurrentfrequencyExit FMNext channel
486 Communication Function6.1 Phone1. Click Phone application procedure2.Operate as Picture 6.1-1Picture 6.1-1DisplayphonenumbersDial phonenumbers

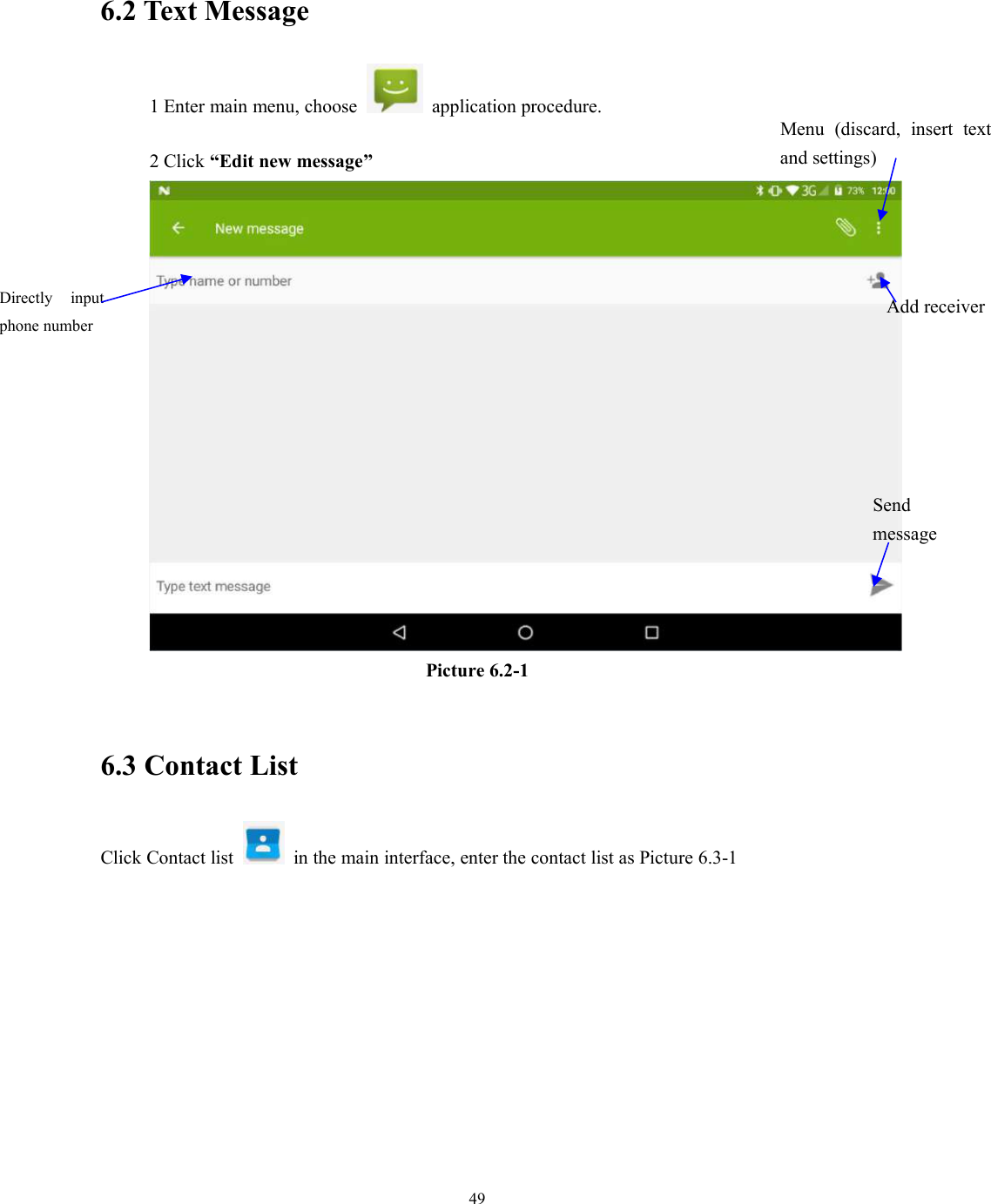

496.2 Text Message1 Enter main menu, choose application procedure.2 Click “Edit new message”Picture 6.2-16.3 Contact ListClick Contact list in the main interface, enter the contact list as Picture 6.3-1Directly inputphone numberAdd receiverSendmessageMenu (discard, insert textand settings)

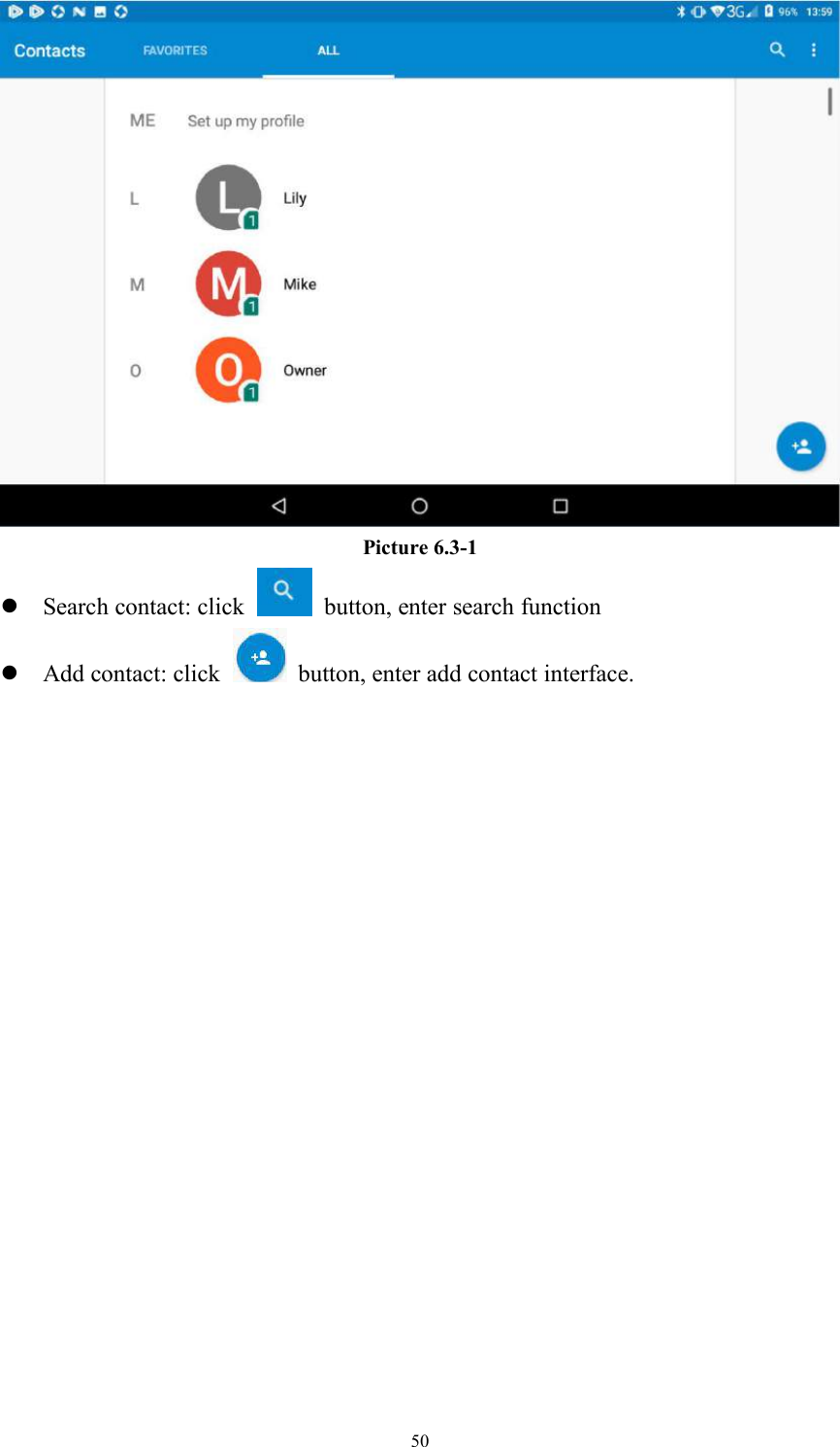

50Picture 6.3-1Search contact: click button, enter search functionAdd contact: click button, enter add contact interface.

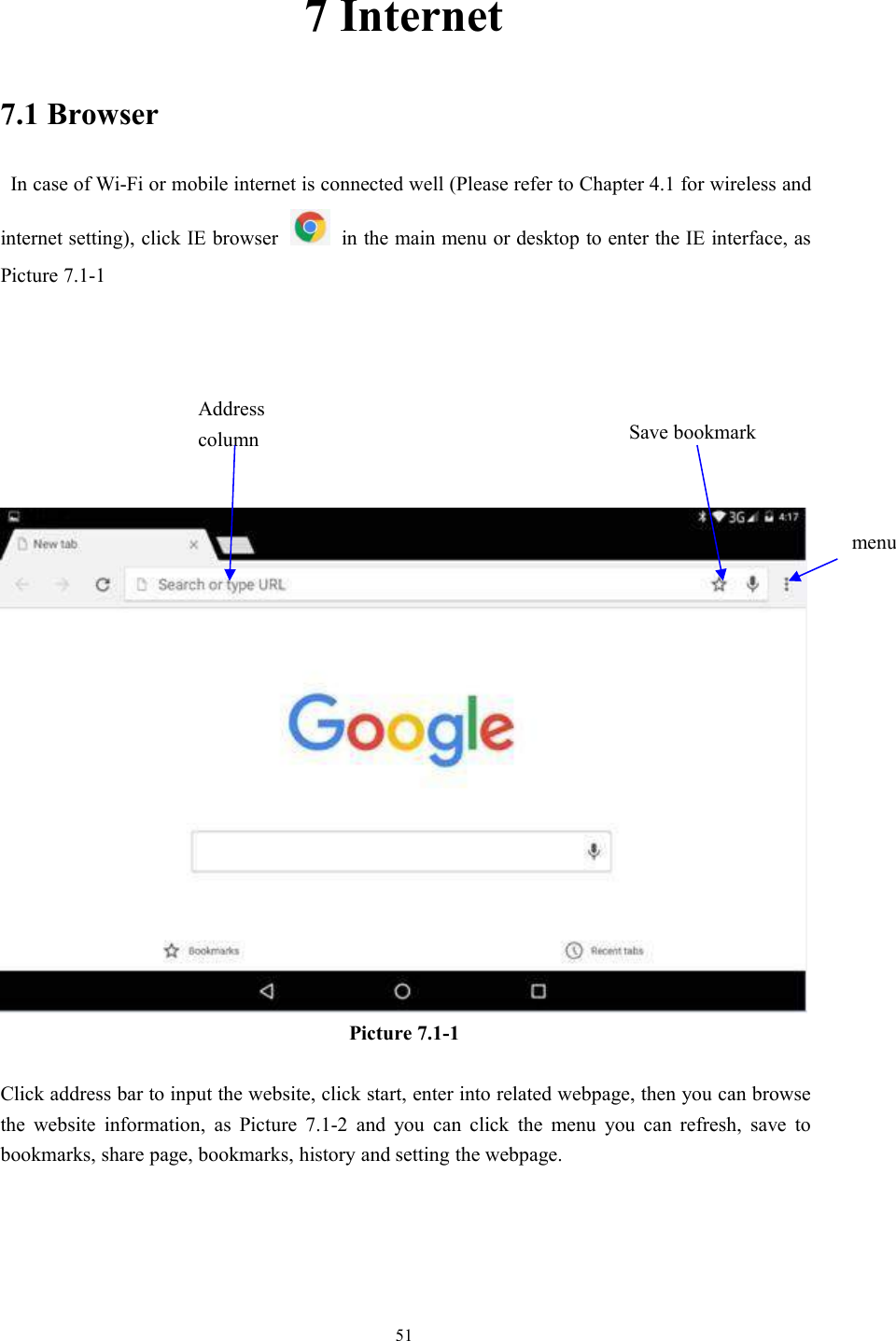

517 Internet7.1 BrowserIn case of Wi-Fi or mobile internet is connected well (Please refer to Chapter 4.1 for wireless andinternet setting), click IE browser in the main menu or desktop to enter the IE interface, asPicture 7.1-1Picture 7.1-1Click address bar to input the website, click start, enter into related webpage, then you can browsethe website information, as Picture 7.1-2 and you can click the menu you can refresh, save tobookmarks, share page, bookmarks, history and setting the webpage.AddresscolumnmenuSave bookmark

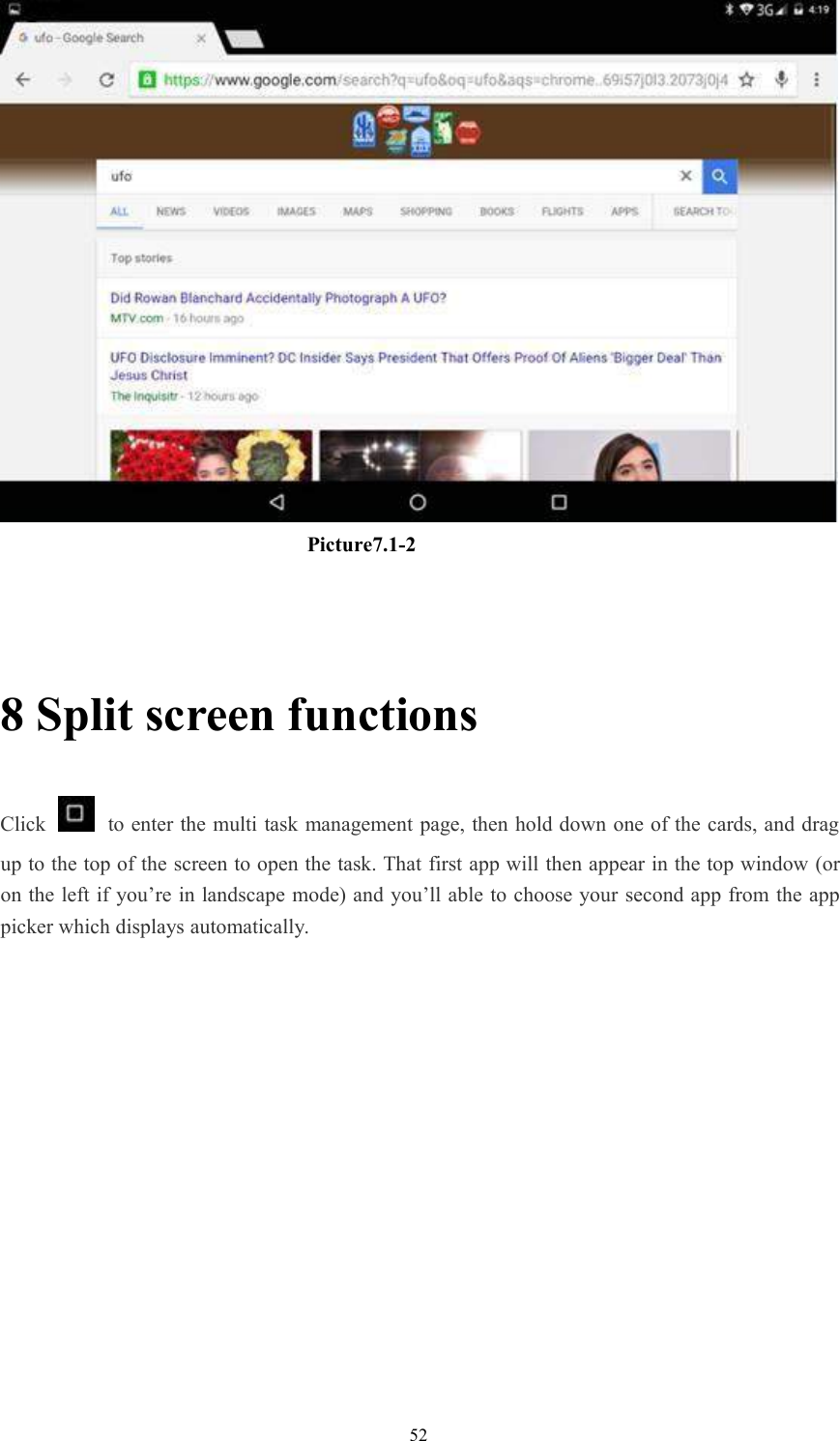

52Picture7.1-28 Split screen functionsClick to enter the multi task management page, then hold down one of the cards, and dragup to the top of the screen to open the task. That first app will then appear in the top window (oron the left if you’re in landscape mode) and you’ll able to choose your second app from the apppicker which displays automatically.
53Picture 8.1-19 Other Application Procedures9.1 ClockClick Clock procedure, enter below interface as Picture 9.1-1.There are clock, picture, music and homepage buttons.

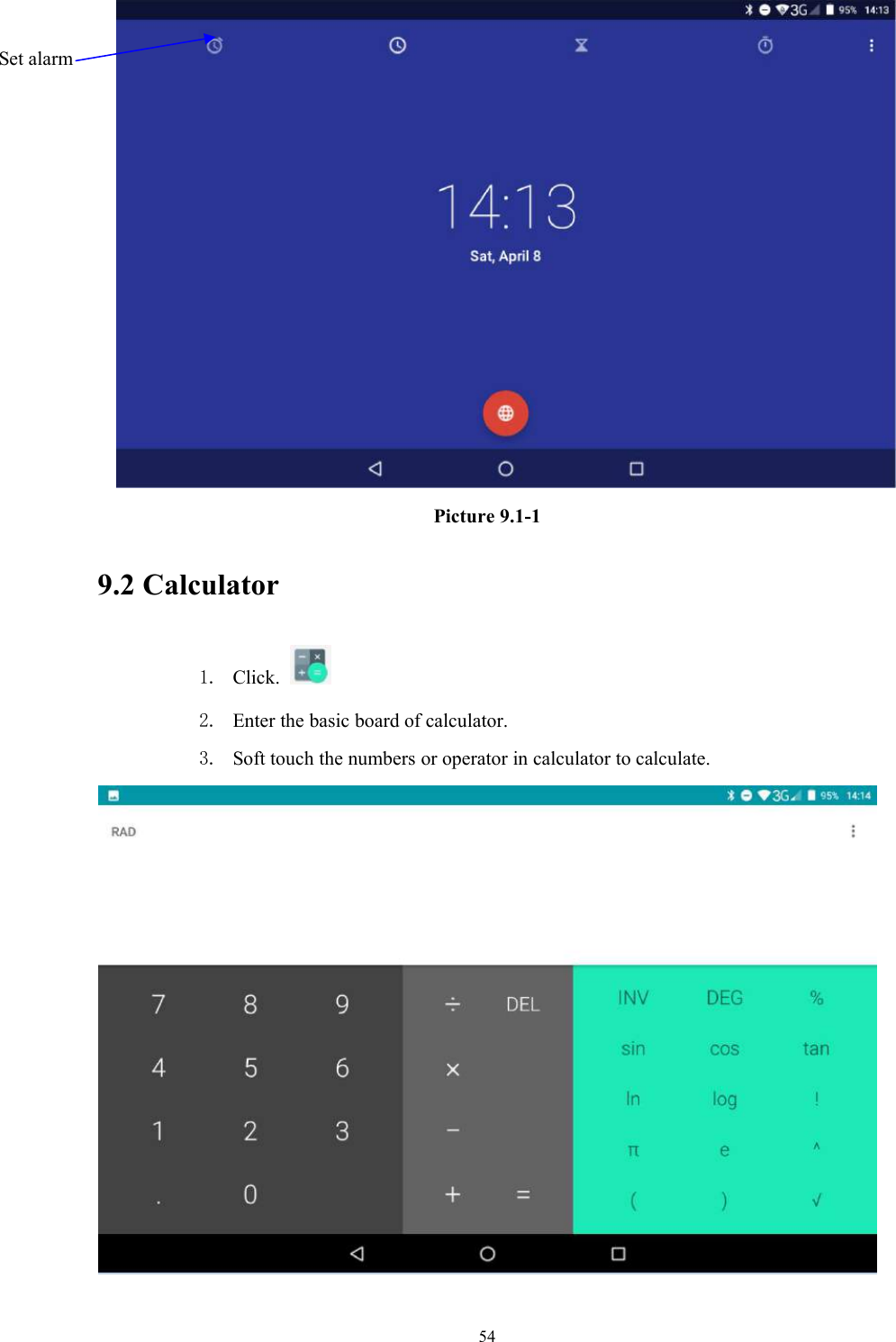

54Picture 9.1-19.2 Calculator1. Click.2. Enter the basic board of calculator.3. Soft touch the numbers or operator in calculator to calculate.Set alarm
55Pictuer9.2-19.3 File ManagerFile manager will copy, cut, delete, rename the documents or the folder in the TF card, it also willshare the files, install apk etc.In the main menu or desktop, click the document manager icon to enter documentsmanager.Picture9.3-1a、Copy, cut, delete, rename the files and folder: choose the file or folder, long press the file orfolder to enter into the interface as Picture 9.3-2, you can operate the file or folder.ROMExternalSD card
56Picture9.3-2b、Paste the copy or cut file: choose the file you want to paste, icon to enter into Picture 9.3-3,Picture9.3-3C. Share file: choose any file, long press it, it will popup “share”, choose the share way you wantin the list（Picture 9.3-4）
57Picture 9.3-4d、install apk file：Choose the file suffixed. apk in the file manager, you can install the third partsoftware as reminder.e、build new folder: Choose the menu you want to build the file, click icon in right top,choose new folder, you can build new folder as reminder.9.4 RecorderIn the main interface or desktop, click recorder icon to enter into record interface, clickrecord key to start record. Click Stop key to stop recording. Click Play keyto play the recorded sound. The system will auto remind you to use or abandon this record, pleasechoose it manually.Play the record: choose the video player to play the recorded sound, choose the recorded sound inthe source manager, and click it to play.

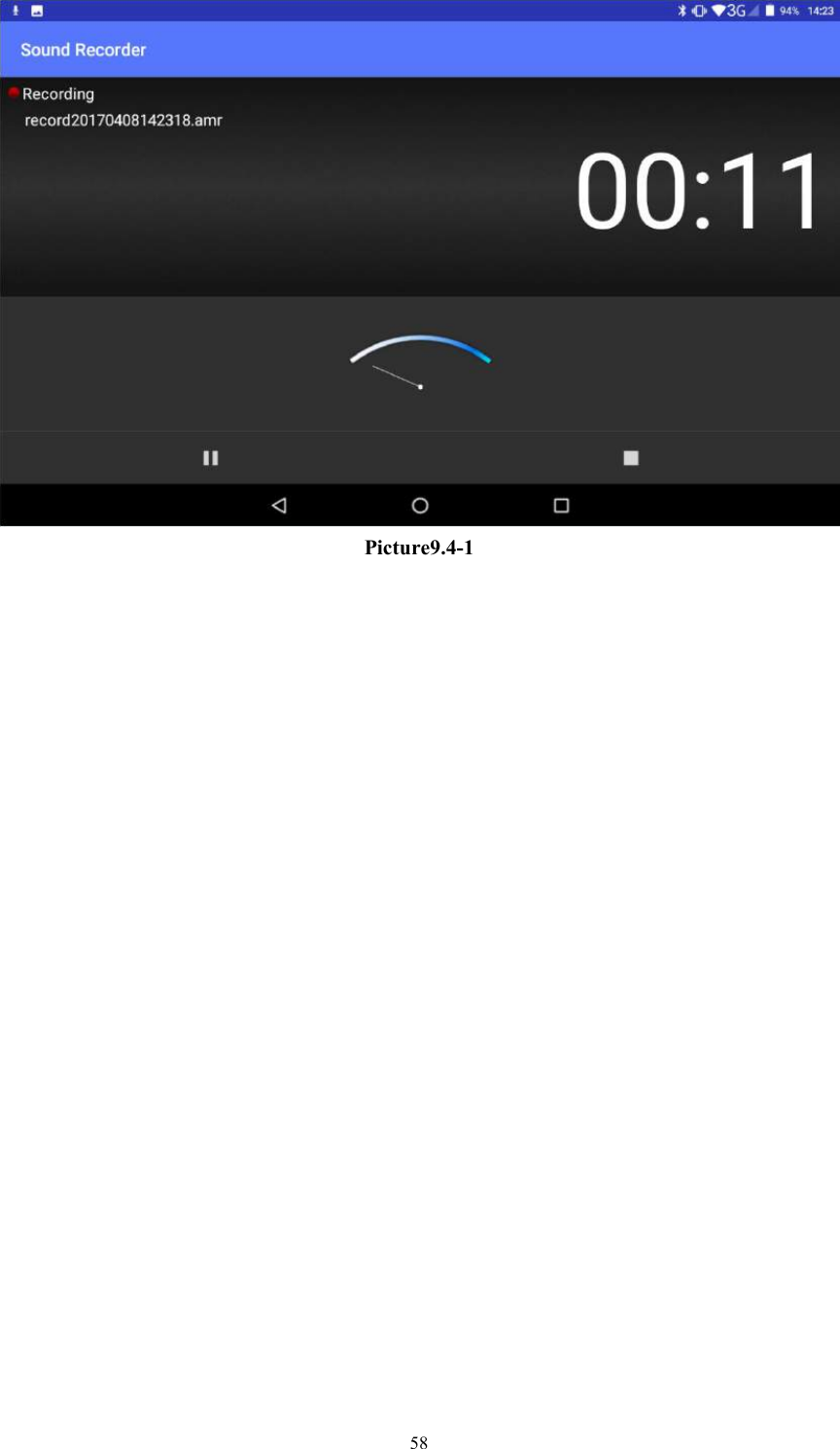

58Picture9.4-1
5910 Installation of Procedures10.1 InstallationInstalling Applications from Google Play Store1. Open Play Store2. Login / Create a GoogleTM account3. Find apps you want and installingInstall the third-party application procedure1. Click “file manager” application procedure; choose the application procedureyou need to install.2. Hold the application procedure you need to install.3. It popup install, click install apk.4. Finish the installation as guide, it will operate.Note: The third-party procedure searched from internet to use on the system are all suffixedwith. apk.10.2 UninstallUninstall application procedure1. Click setting icon in main interface.2. Click apps, list all the application procedures installed in the system.3. Click the APK you want to uninstall, click uninstall.4. Click confirm to finish uninstallation.Note: The procedure manager installed by system has many convenient methods to uninstallafter opening procedure manager, click uninstall, it will list all the application proceduresinstalled by system.

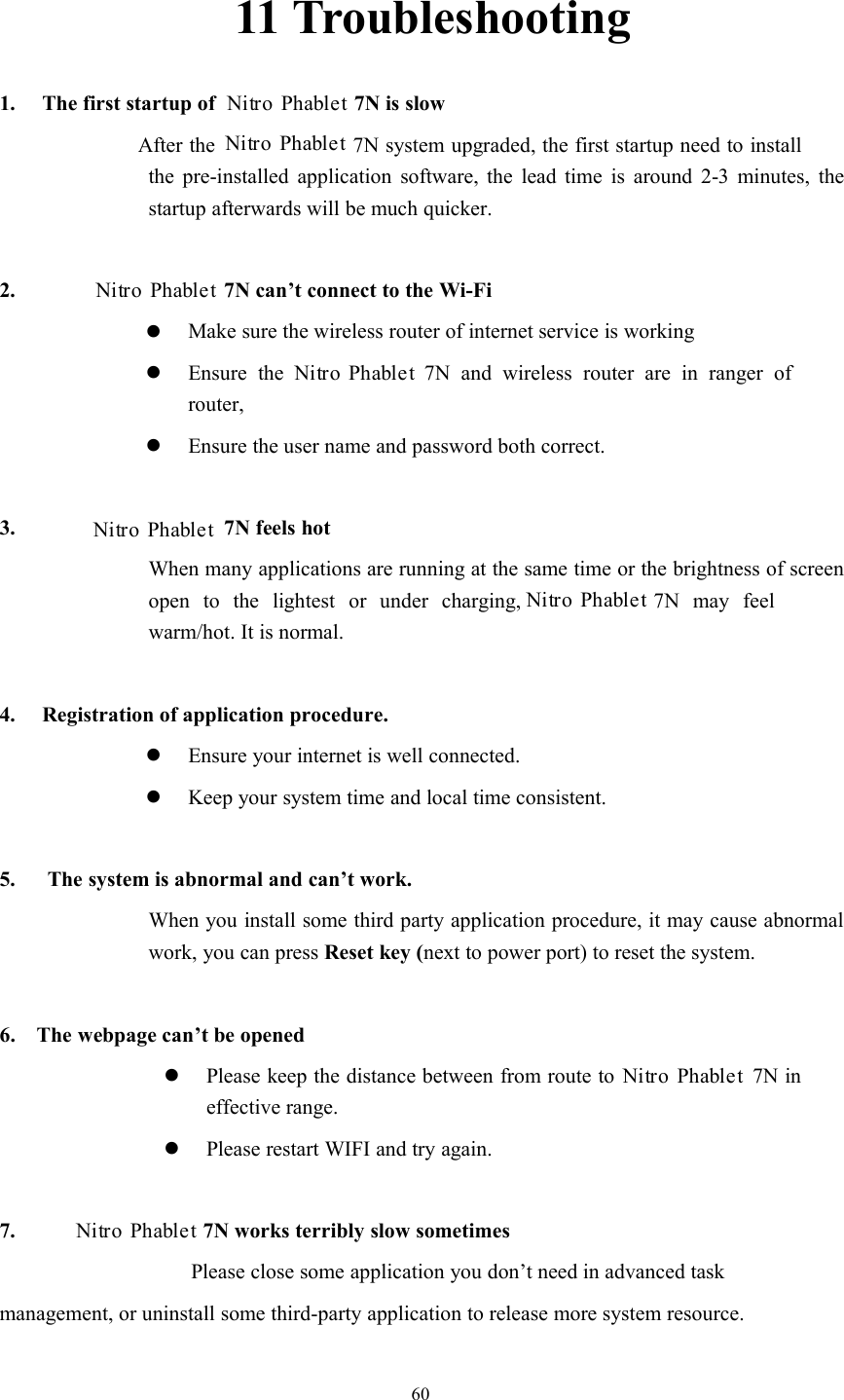

6011 Troubleshooting1. The first startup of7N is slowAfter the 7N system upgraded, the first startup need to installthe pre-installed application software, the lead time is around 2-3 minutes, thestartup afterwards will be much quicker.2. 7N can’t connect to the Wi-FiMake sure the wireless router of internet service is workingEnsure the7N and wireless router are in ranger ofrouter,Ensure the user name and password both correct.3. 7N feels hotWhen many applications are running at the same time or the brightness of screenopen to the lightest or under charging, 7N may feelwarm/hot. It is normal.4. Registration of application procedure.Ensure your internet is well connected.Keep your system time and local time consistent.5. The system is abnormal and can’t work.When you install some third party application procedure, it may cause abnormalwork, you can press Reset key (next to power port) to reset the system.6. The webpage can’t be openedPlease keep the distance between from route to7N ineffective range.Please restart WIFI and try again.7. 7N works terribly slow sometimesPlease close some application you don’t need in advanced taskmanagement, or uninstall some third-party application to release more system resource.Nitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro PhabletNitro Phablet
