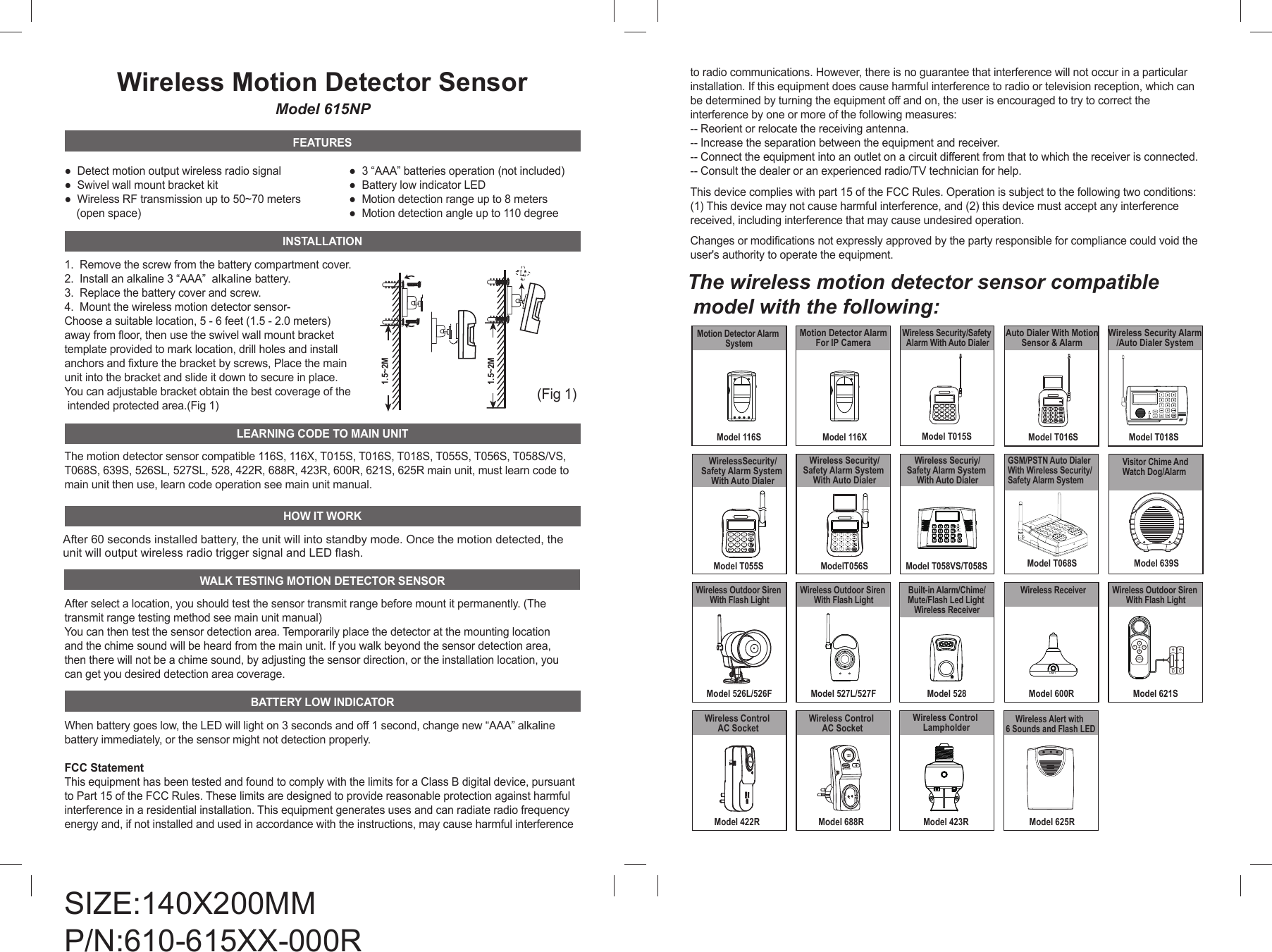

Wireless Motion Detector SensorModel 615NPFEATURES● Detect motion output wireless radio signal● Swivel wall mount bracket kit● Wireless RF transmission up to 50~70 meters (open space)INSTALLATION1. Remove the screw from the battery compartment cover. 2. Install an alkaline 3 “AAA” alkaline battery.3. Replace the battery cover and screw.4. Mount the wireless motion detector sensor-Choose a suitable location, 5 - 6 feet (1.5 - 2.0 meters) away from floor, then use the swivel wall mount brackettemplate provided to mark location, drill holes and install anchors and fixture the bracket by screws, Place the main unit into the bracket and slide it down to secure in place. You can adjustable bracket obtain the best coverage of the intended protected area.(Fig 1)LEARNING CODE TO MAIN UNITThe motion detector sensor compatible 116S, 116X, T015S, T016S, T018S, T055S, T056S, T058S/VS, T068S, 639S, 526SL, 527SL, 528, 422R, 688R, 423R, 600R, 621S, 625R main unit, must learn code to main unit then use, learn code operation see main unit manual.HOW IT WORKAfter 60 seconds installed battery, the unit will into standby mode. Once the motion detected, the unit will output wireless radio trigger signal and LED flash.WALK TESTING MOTION DETECTOR SENSORAfter select a location, you should test the sensor transmit range before mount it permanently. (The transmit range testing method see main unit manual) You can then test the sensor detection area. Temporarily place the detector at the mounting locationand the chime sound will be heard from the main unit. If you walk beyond the sensor detection area, then there will not be a chime sound, by adjusting the sensor direction, or the installation location, you can get you desired detection area coverage.BATTERY LOW INDICATORWhen battery goes low, the LED will light on 3 seconds and off 1 second, change new “AAA” alkaline battery immediately, or the sensor might not detection properly.FCC StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The wireless motion detector sensor compatible model with the following:1.5~2M1.5~2M(Fig 1)Wireless Security Alarm/Auto Dialer SystemModel T018SModelT056SWireless Security/Safety Alarm System With Auto DialerBATT.LOW147/ UP2580369PROG/DOWNPANICACModel T055SWirelessSecurity/Safety Alarm System With Auto Dialer147/ UP2580369PROG/DOWNBATT.LOWACPANICModel 116SMotion Detector Alarm SystemModel 116XMotion Detector Alarm For IP Camera BATT.LOW147/ UP2580369PROGPAUSEARM/DISARMPANIC/DOWNModel T015SWireless Security/Safety Alarm With Auto Dialer147*/ UP2580369PROGPAUSEARM/DISARMPANIC/DOWNAuto Dialer With MotionSensor & AlarmModel T016SModel 639SVisitor Chime And Watch Dog/AlarmModel 600RWireless ReceiverLINE 1Model 625RWireless Alert with 6 Sounds and Flash LEDModel 423RWireless Control LampholderModel 621SWireless Outdoor Siren With Flash Light1234ARM/DISARMSIZE:140X200MMP/N:610-615XX-000R● 3 “AAA” batteries operation (not included) ● Battery low indicator LED● Motion detection range up to 8 meters● Motion detection angle up to 110 degreeModel T058VS/T058SWireless Securiy/Safety Alarm System With Auto DialerModel T068SGSM/PSTN Auto Dialer With Wireless Security/Safety Alarm SystemModel 528Built-in Alarm/Chime/Mute/Flash Led Light Wireless ReceiverMODEModel 527L/527FWireless Outdoor Siren With Flash LightModel 526L/526FWireless Outdoor Siren With Flash LightModel 422RWireless Control AC SocketModel 688RWireless Control AC Socket
