Libelium Comunicaciones Distribuidas S L MESHLIUM-V1 Multiprotocol router for the Internet of Things User Manual

Libelium Comunicaciones Distribuidas S.L. Multiprotocol router for the Internet of Things Users Manual

Contents

Users Manual

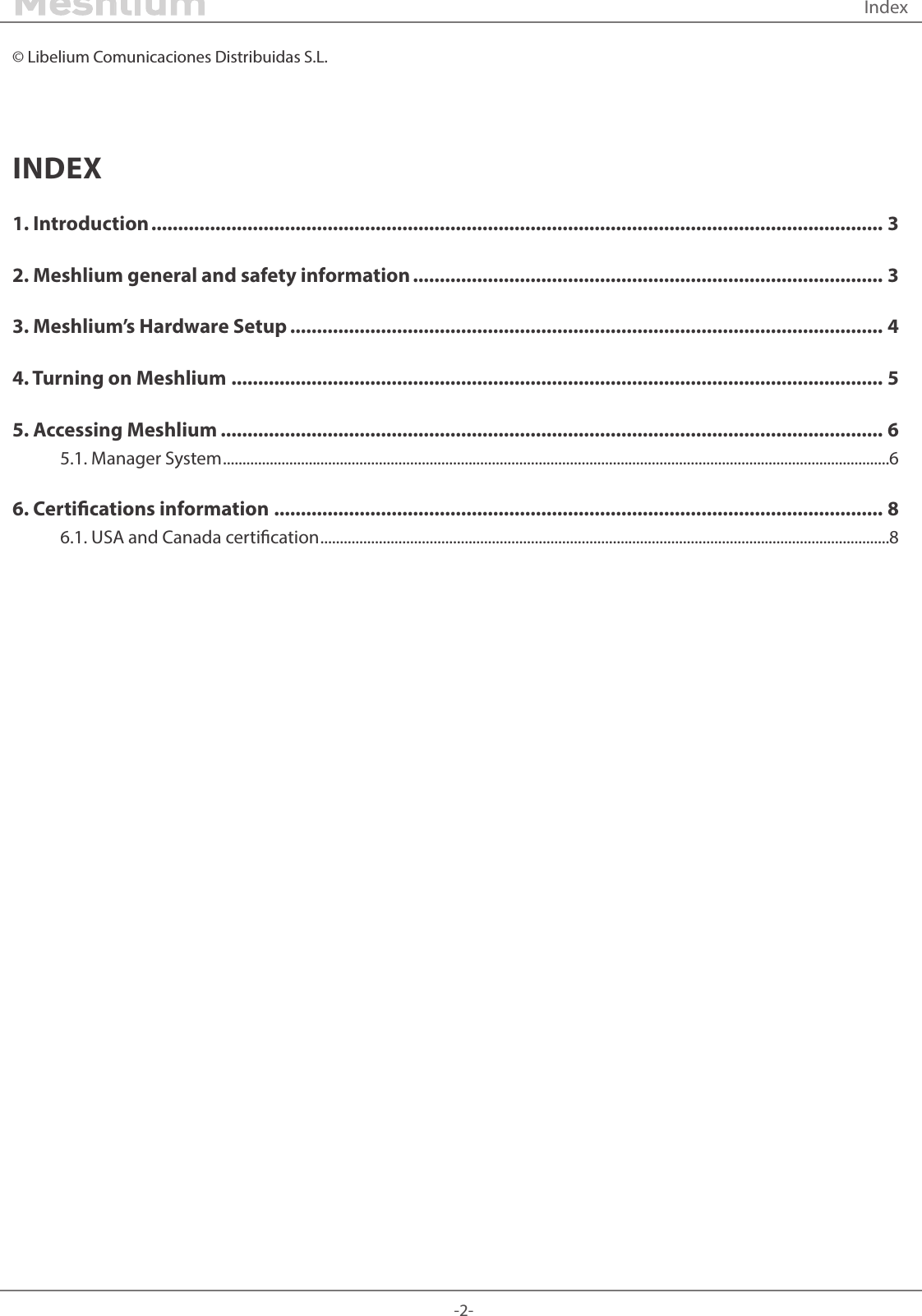

-2-Meshlium © Libelium Comunicaciones Distribuidas S.L.INDEX1. Introduction ......................................................................................................................................... 32. Meshlium general and safety information ........................................................................................ 33. Meshlium’s Hardware Setup ............................................................................................................... 44. Turning on Meshlium .......................................................................................................................... 55. Accessing Meshlium ............................................................................................................................ 65.1. Manager System ...........................................................................................................................................................................66. Certications information .................................................................................................................. 86.1. USA and Canada certication ..................................................................................................................................................8Index

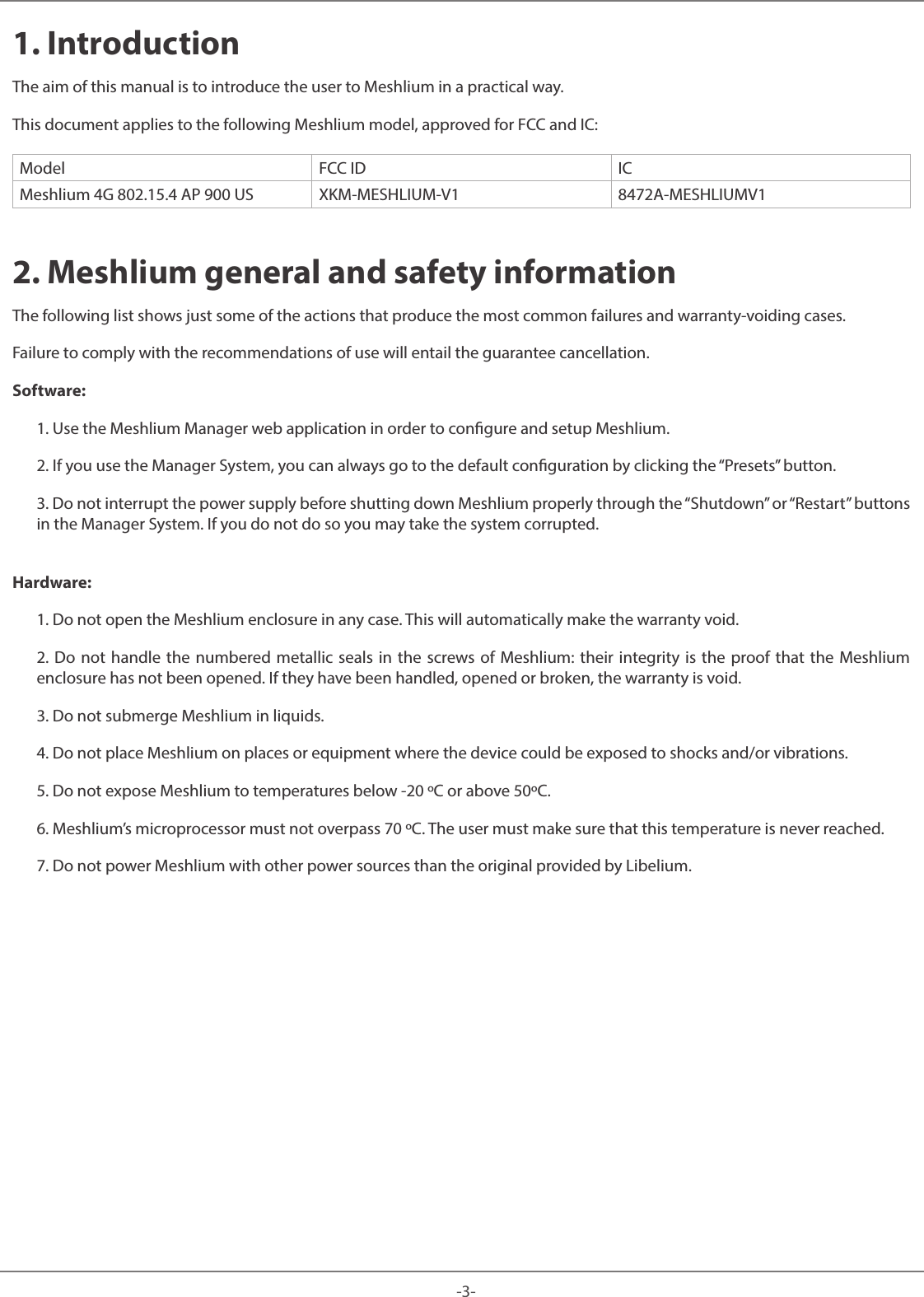

-3-Meshlium 1. IntroductionThe aim of this manual is to introduce the user to Meshlium in a practical way. This document applies to the following Meshlium model, approved for FCC and IC:Model FCC ID ICMeshlium 4G 802.15.4 AP 900 US XKM-MESHLIUM-V1 8472A-MESHLIUMV12. Meshlium general and safety informationThe following list shows just some of the actions that produce the most common failures and warranty-voiding cases. Failure to comply with the recommendations of use will entail the guarantee cancellation.Software:1. Use the Meshlium Manager web application in order to congure and setup Meshlium.2. If you use the Manager System, you can always go to the default conguration by clicking the “Presets” button.3. Do not interrupt the power supply before shutting down Meshlium properly through the “Shutdown” or “Restart” buttonsin the Manager System. If you do not do so you may take the system corrupted.Hardware:1. Do not open the Meshlium enclosure in any case. This will automatically make the warranty void.2. Do not handle the numbered metallic seals in the screws of Meshlium: their integrity is the proof that the Meshliumenclosure has not been opened. If they have been handled, opened or broken, the warranty is void.3. Do not submerge Meshlium in liquids.4. Do not place Meshlium on places or equipment where the device could be exposed to shocks and/or vibrations.5. Do not expose Meshlium to temperatures below -20 ºC or above 50ºC.6. Meshlium’s microprocessor must not overpass 70 ºC. The user must make sure that this temperature is never reached.7. Do not power Meshlium with other power sources than the original provided by Libelium.

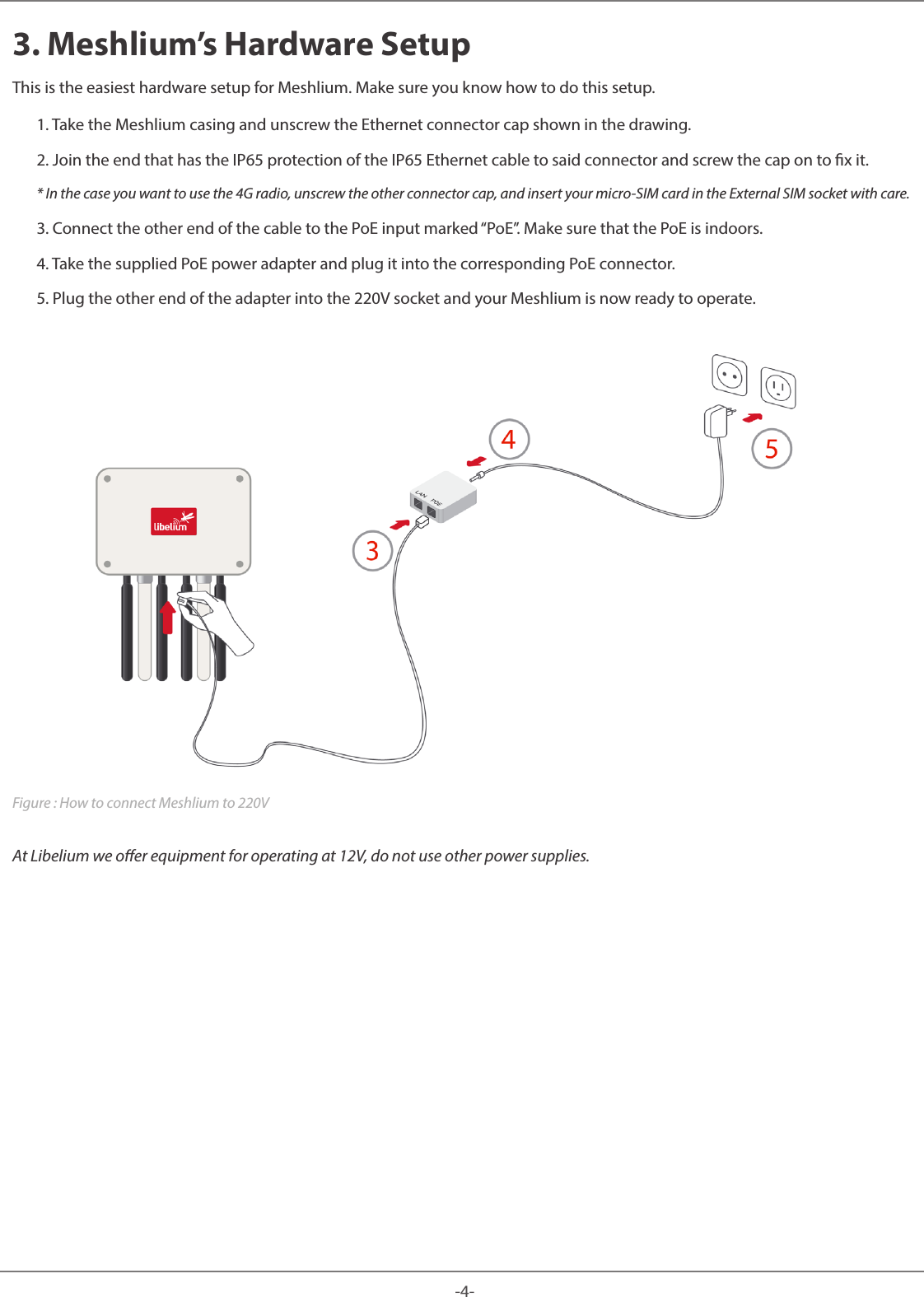

-4-Meshlium 3. Meshlium’s Hardware SetupThis is the easiest hardware setup for Meshlium. Make sure you know how to do this setup. 1. Take the Meshlium casing and unscrew the Ethernet connector cap shown in the drawing.2. Join the end that has the IP65 protection of the IP65 Ethernet cable to said connector and screw the cap on to x it.* In the case you want to use the 4G radio, unscrew the other connector cap, and insert your micro-SIM card in the External SIM socket with care.3. Connect the other end of the cable to the PoE input marked “PoE”. Make sure that the PoE is indoors.4. Take the supplied PoE power adapter and plug it into the corresponding PoE connector.5. Plug the other end of the adapter into the 220V socket and your Meshlium is now ready to operate.Figure : How to connect Meshlium to 220VAt Libelium we oer equipment for operating at 12V, do not use other power supplies.

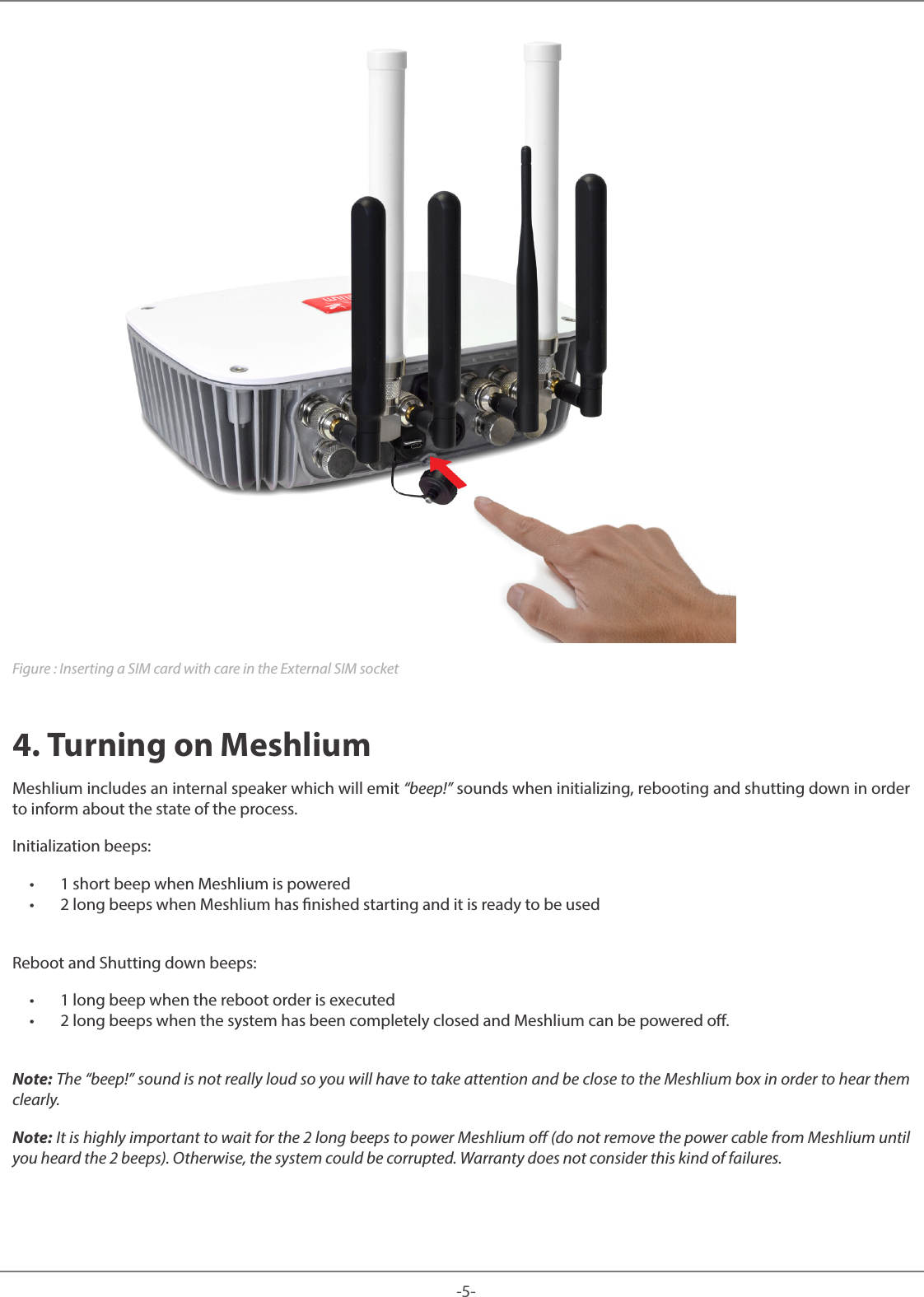

-5-Meshlium Figure : Inserting a SIM card with care in the External SIM socket4. Turning on MeshliumMeshlium includes an internal speaker which will emit “beep!” sounds when initializing, rebooting and shutting down in order to inform about the state of the process. Initialization beeps: • 1 short beep when Meshlium is powered • 2 long beeps when Meshlium has nished starting and it is ready to be usedReboot and Shutting down beeps: • 1 long beep when the reboot order is executed • 2 long beeps when the system has been completely closed and Meshlium can be powered o.Note: The “beep!” sound is not really loud so you will have to take attention and be close to the Meshlium box in order to hear them clearly.Note: It is highly important to wait for the 2 long beeps to power Meshlium o (do not remove the power cable from Meshlium until you heard the 2 beeps). Otherwise, the system could be corrupted. Warranty does not consider this kind of failures.

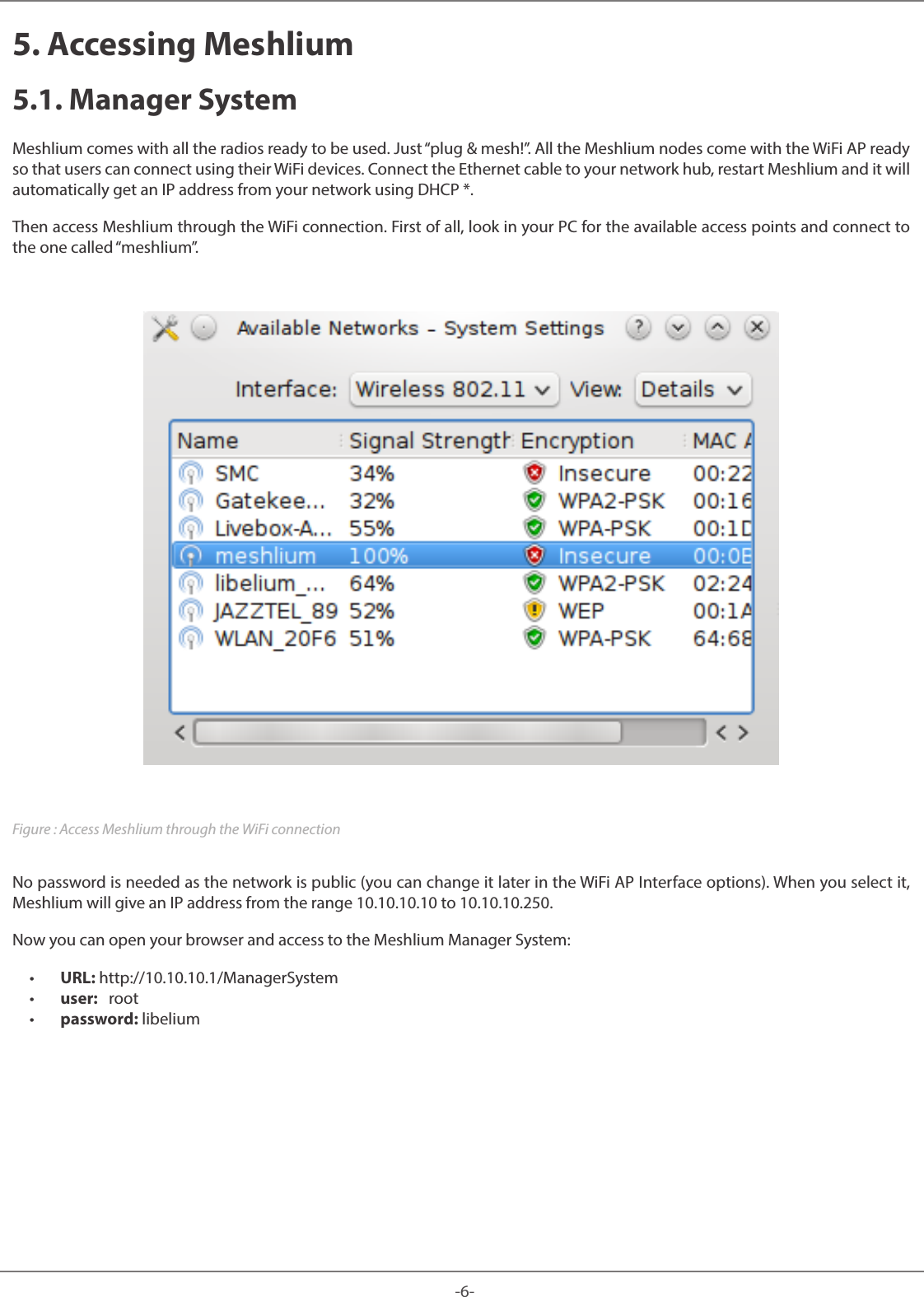

-6-Meshlium 5. Accessing Meshlium5.1. Manager SystemMeshlium comes with all the radios ready to be used. Just “plug & mesh!”. All the Meshlium nodes come with the WiFi AP ready so that users can connect using their WiFi devices. Connect the Ethernet cable to your network hub, restart Meshlium and it will automatically get an IP address from your network using DHCP *.Then access Meshlium through the WiFi connection. First of all, look in your PC for the available access points and connect to the one called “meshlium”.Figure : Access Meshlium through the WiFi connectionNo password is needed as the network is public (you can change it later in the WiFi AP Interface options). When you select it, Meshlium will give an IP address from the range 10.10.10.10 to 10.10.10.250. Now you can open your browser and access to the Meshlium Manager System: • URL: http://10.10.10.1/ManagerSystem • user: root • password: libelium

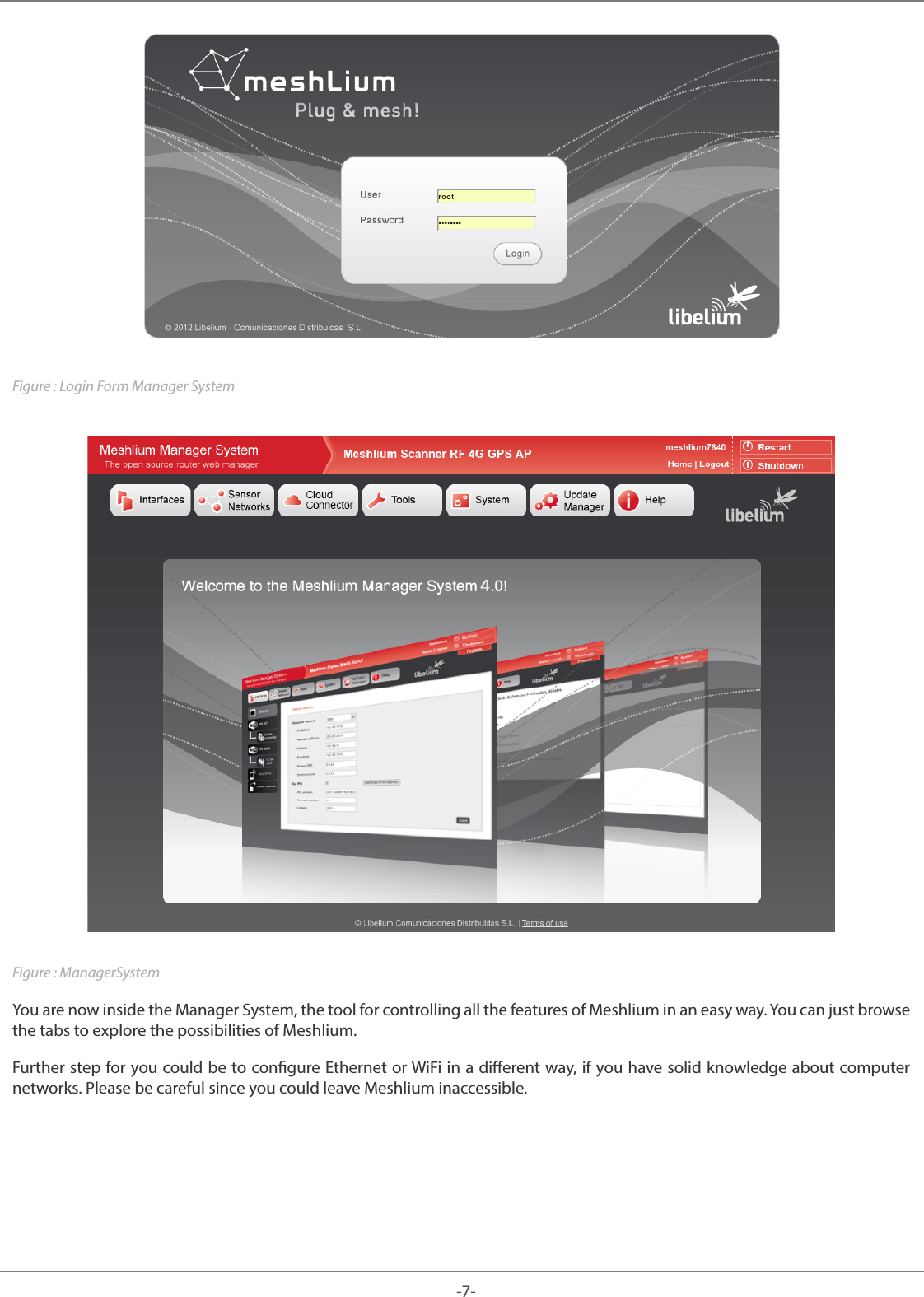

-7-Meshlium Figure : Login Form Manager SystemFigure : ManagerSystemYou are now inside the Manager System, the tool for controlling all the features of Meshlium in an easy way. You can just browse the tabs to explore the possibilities of Meshlium. Further step for you could be to congure Ethernet or WiFi in a dierent way, if you have solid knowledge about computer networks. Please be careful since you could leave Meshlium inaccessible.

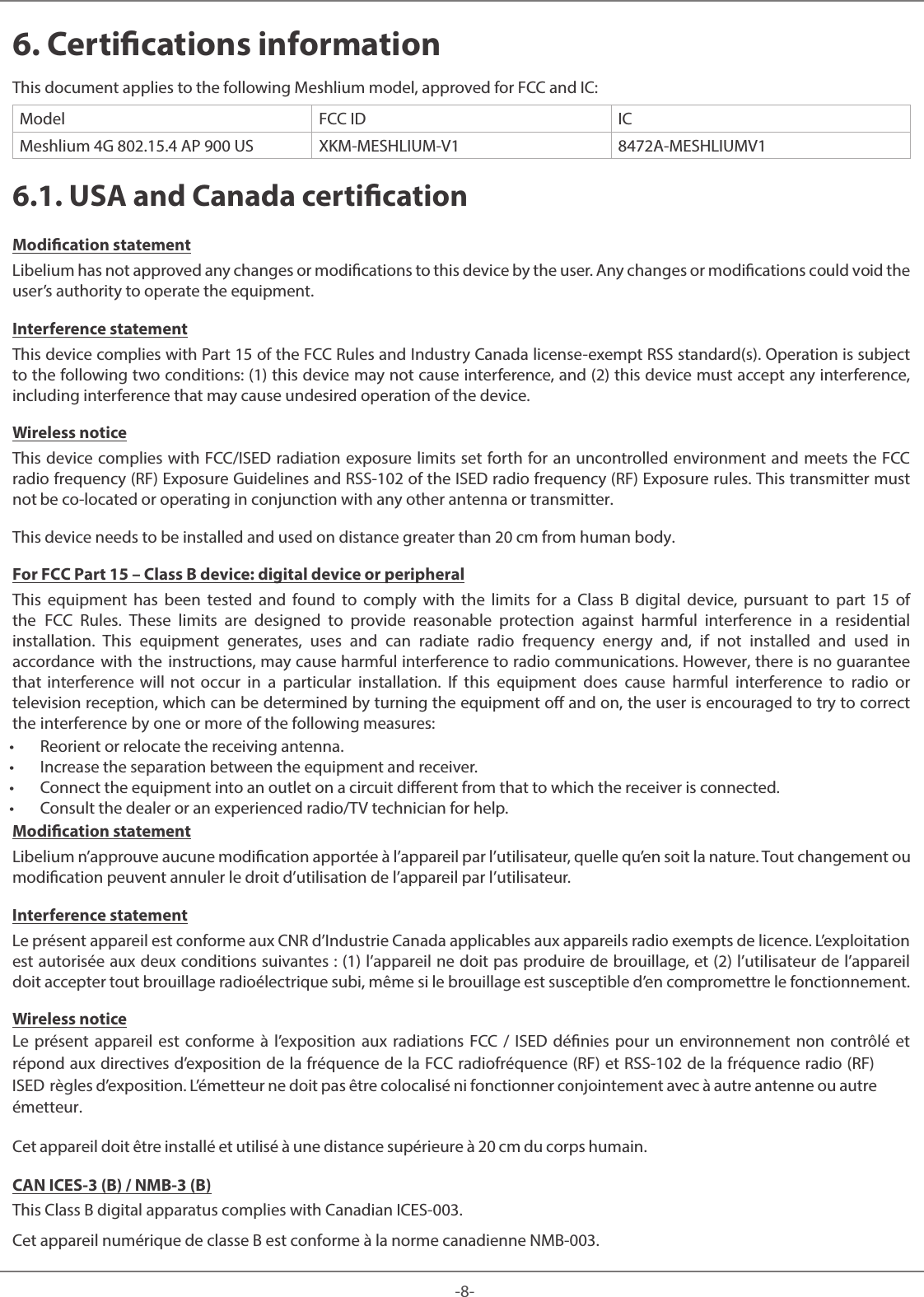

-8-Meshlium 6. Certications informationThis document applies to the following Meshlium model, approved for FCC and IC:Model FCC ID ICMeshlium 4G 802.15.4 AP 900 US XKM-MESHLIUM-V1 8472A-MESHLIUMV16.1. USA and Canada certicationModication statementLibelium has not approved any changes or modications to this device by the user. Any changes or modications could void the user’s authority to operate the equipment. Interference statementThis device complies with Part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Wireless noticeThis device complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS‐102 of the ISED radio frequency (RF) Exposure rules. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.This device needs to be installed and used on distance greater than 20 cm from human body. For FCC Part 15 – Class B device: digital device or peripheralThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.Modication statementLibelium n’approuve aucune modication apportée à l’appareil par l’utilisateur, quelle qu’en soit la nature. Tout changement ou modication peuvent annuler le droit d’utilisation de l’appareil par l’utilisateur. Interference statementLe présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Wireless noticeLe présent appareil est conforme à l’exposition aux radiations FCC / ISED dénies pour un environnement non contrôlé et répond aux directives d’exposition de la fréquence de la FCC radiofréquence (RF) et RSS‐102 de la fréquence radio (RF) ISED règles d’exposition. L’émetteur ne doit pas être colocalisé ni fonctionner conjointement avec à autre antenne ou autre émetteur.Cet appareil doit être installé et utilisé à une distance supérieure à 20 cm du corps humain. CAN ICES-3 (B) / NMB-3 (B)This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme canadienne NMB-003.
