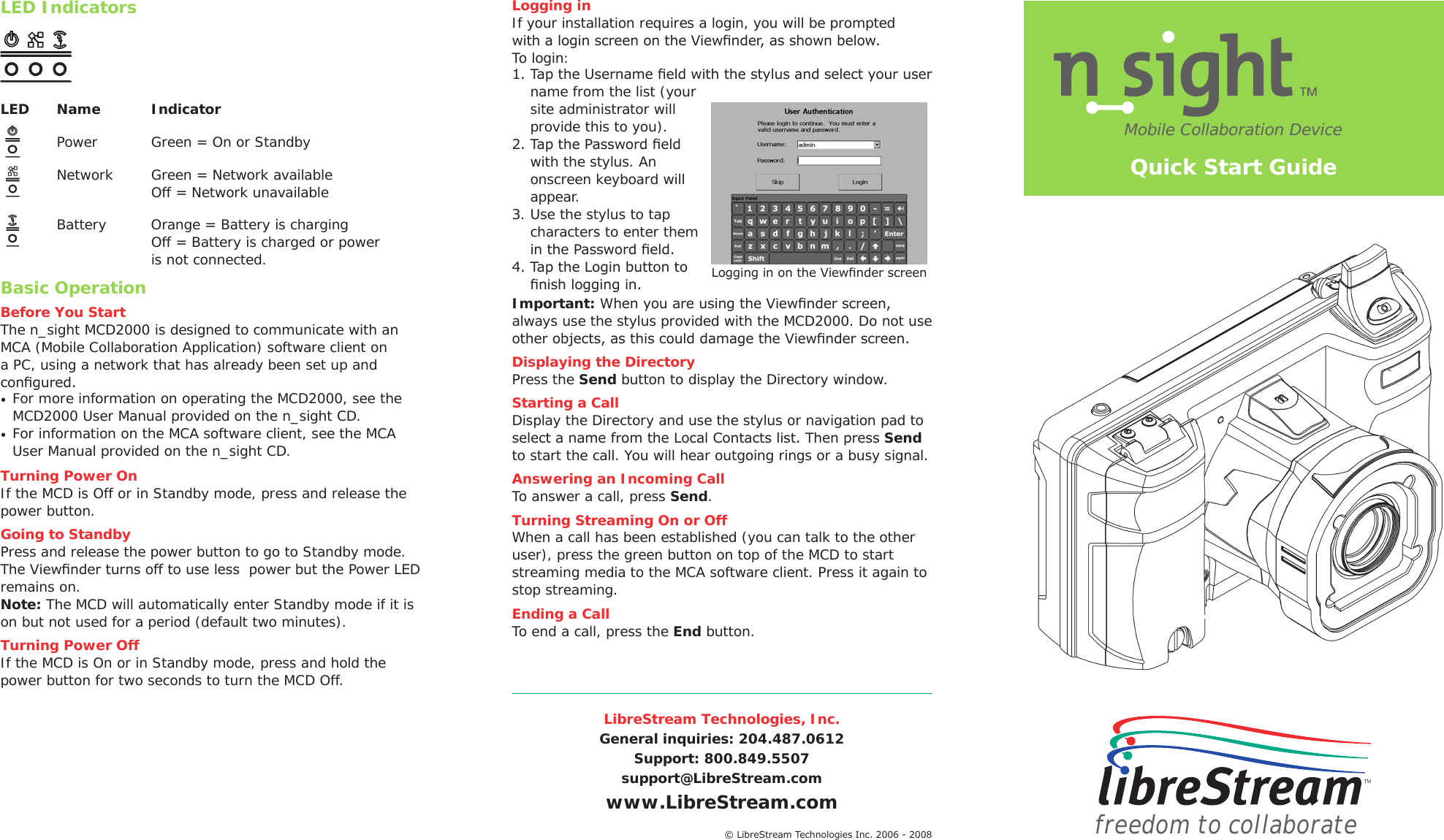

LibreStream Technologies, Inc.General inquiries: 204.487.0612Support: 800.849.5507support@LibreStream.comwww.LibreStream.comLED IndicatorsLED Name Indicator Power Green = On or Standby Network Green = Network available Off = Network unavailable Battery Orange = Battery is charging Off = Battery is charged or power is not connected.Basic OperationBefore You StartThe n_sight MCD2000 is designed to communicate with an MCA (Mobile Collaboration Application) software client on a PC, using a network that has already been set up and congured. • For more information on operating the MCD2000, see the MCD2000 User Manual provided on the n_sight CD.• For information on the MCA software client, see the MCA User Manual provided on the n_sight CD. Turning Power OnIf the MCD is Off or in Standby mode, press and release the power button.Going to StandbyPress and release the power button to go to Standby mode. The Viewnder turns off to use less power but the Power LED remains on. Note: The MCD will automatically enter Standby mode if it is on but not used for a period (default two minutes).Turning Power OffIf the MCD is On or in Standby mode, press and hold the power button for two seconds to turn the MCD Off.Mobile Collaboration Devicefreedom to collaborate© LibreStream Technologies Inc. 2006 - 2008Logging inIf your installation requires a login, you will be prompted with a login screen on the Viewnder, as shown below. To login:1. Tap the Username eld with the stylus and select your user name from the list (your site administrator will provide this to you).2. Tap the Password eld with the stylus. An onscreen keyboard will appear.3. Use the stylus to tap characters to enter them in the Password eld.4. Tap the Login button to nish logging in.Important: When you are using the Viewnder screen, always use the stylus provided with the MCD2000. Do not use other objects, as this could damage the Viewnder screen.Displaying the Directory Press the Send button to display the Directory window. Starting a CallDisplay the Directory and use the stylus or navigation pad to select a name from the Local Contacts list. Then press Send to start the call. You will hear outgoing rings or a busy signal. Answering an Incoming CallTo answer a call, press Send.Turning Streaming On or OffWhen a call has been established (you can talk to the other user), press the green button on top of the MCD to start streaming media to the MCA software client. Press it again to stop streaming.Ending a CallTo end a call, press the End button.Quick Start GuideLogging in on the Viewnder screen

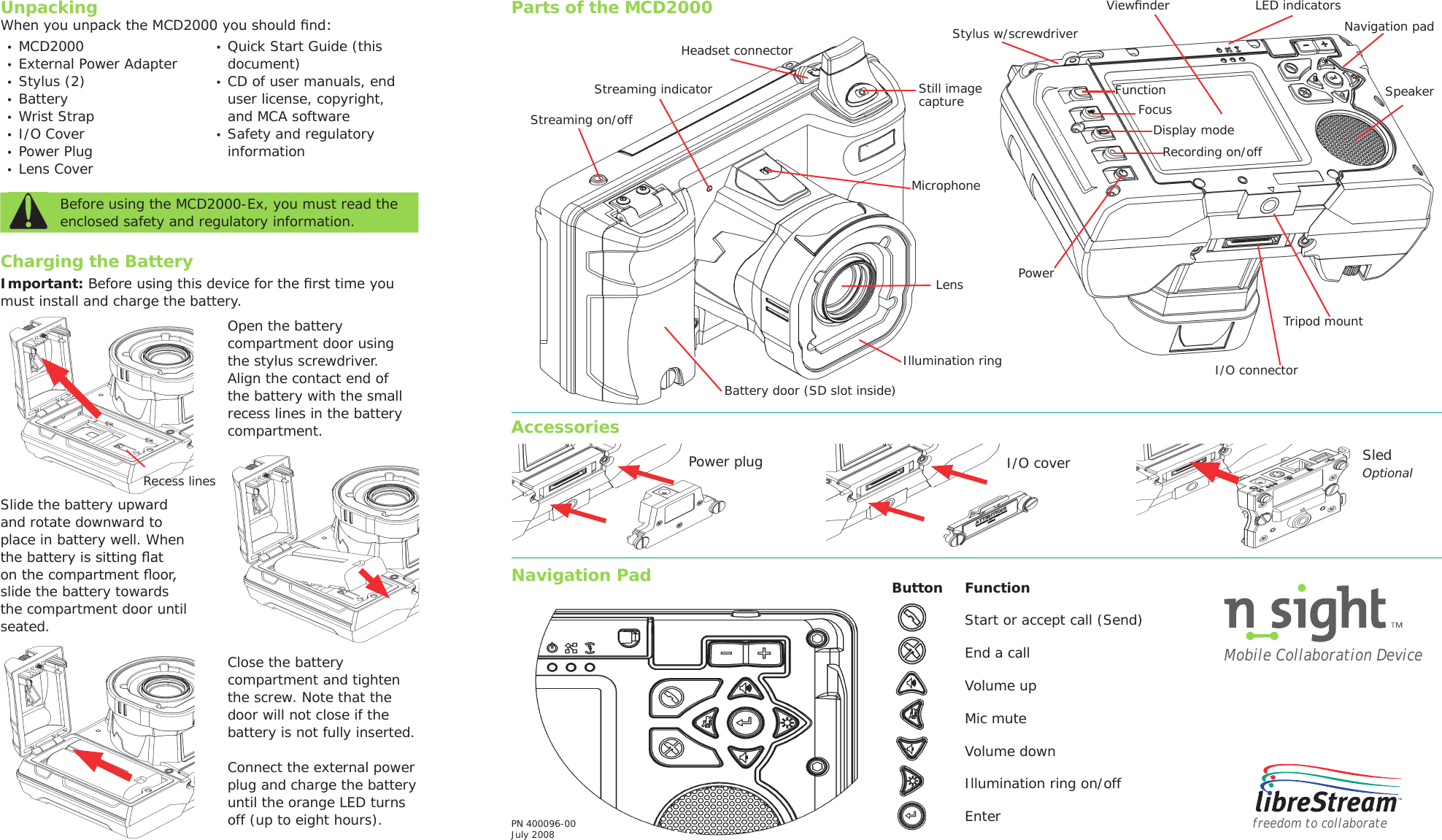

UnpackingWhen you unpack the MCD2000 you should find:• MCD2000• External Power Adapter• Stylus (2)• Battery• Wrist Strap• I/O Cover• Power Plug• Lens Cover• Quick Start Guide (this document)• CD of user manuals, end user license, copyright, and MCA software• Safety and regulatory informationBefore using the MCD2000-Ex, you must read the enclosed safety and regulatory information. Important: Before using this device for the first time you must install and charge the battery. Parts of the MCD2000freedom to collaborateButton Function Start or accept call (Send) End a callVolume upMic muteVolume downIllumination ring on/off EnterMobile Collaboration DevicePN 400096-00July 2008AccessoriesNavigation PadOpen the battery compartment door using the stylus screwdriver. Align the contact end of the battery with the small recess lines in the battery compartment.Slide the battery upward and rotate downward to place in battery well. When the battery is sitting flat on the compartment floor, slide the battery towards the compartment door until seated.Close the battery compartment and tighten the screw. Note that the door will not close if the battery is not fully inserted.Connect the external power plug and charge the battery until the orange LED turns off (up to eight hours). Power plug I/O cover Sled OptionalCharging the BatteryViewfinderNavigation padSpeakerStreaming indicatorBattery door (SD slot inside)Headset connectorStill imagecaptureMicrophoneLensIllumination ringLED indicatorsTripod mountI/O connectorStreaming on/offRecording on/offDisplay modeFocusFunctionPowerStylus w/screwdriverRecess lines
