Linx Technologies OTX400HHKF Keyfob Transmitter User Manual MS

Linx Technologies Keyfob Transmitter MS

User Manual - MS

MS Keyfob Transmitter Data Guide
Warning: Some customers may want Linx radio frequency (“RF”) products to control machinery or devices remotely, including machinery or devices that can cause death, bodily injuries, and/or property damage if improperly or inadvertently triggered, particularly in industrial settings or other applications implicating life-safety concerns (“Life and Property Safety Situations”). NO OEM LINX REMOTE CONTROL OR FUNCTION MODULE SHOULD EVER BE USED IN LIFE AND PROPERTY SAFETY SITUATIONS. No OEM Linx Remote Control or Function Module should be modified for Life and Property Safety Situations. Such modification cannot provide sufficient safety and will void the product’s regulatory certification and warranty.Customers may use our (non-Function) Modules, Antenna and Connectors as part of other systems in Life Safety Situations, but only with necessary and industry appropriate redundancies and in compliance with applicable safety standards, including without limitation, ANSI and NFPA standards. It is solely the responsibility of any Linx customer who uses one or more of these products to incorporate appropriate redundancies and safety standards for the Life and Property Safety Situation application.Do not use this or any Linx product to trigger an action directly from the data line or RSSI lines without a protocol or encoder/decoder to validate the data. Without validation, any signal from another unrelated transmitter in the environment received by the module could inadvertently trigger the action.All RF products are susceptible to RF interference that can prevent communication. RF products without frequency agility or hopping implemented are more subject to interference. This module does not have a frequency hopping protocol built in.Do not use any Linx product over the limits in this data guide. Excessive voltage or extended operation at the maximum voltage could cause product failure. Exceeding the reflow temperature profile could cause product failure which is not immediately evident.Do not make any physical or electrical modifications to any Linx product. This will void the warranty and regulatory and UL certifications and may cause product failure which is not immediately evident.!Table of Contents 1 Description 1 Features 1 Applications 1 OEM Congurations 2 Ordering Information 2 Electrical Specications 3 Theory of Operation 4 Setting the Transmitter Address 4 Button Assignments 5 Contention Considerations 5 Battery Replacement 5 Assembly Diagram 6 Compliance Requirements 6 Labeling / Instruction Requirements 8 Typical Applications 10 Resources 11 Notes
– –1DescriptionThe Linx MS Series Keyfob transmitter is ideal for remote control and command applications. Available in 315, 418 (standard) or 433.92MHz versions, it has been pre-certified for FCC Part 15, Industry Canada, and European CE (433MHz) compliance. This dramatically reduces development cost and time to market. The high-performance synthesized design provides superior frequency accuracy and minimizes body proximity effects. When combined with an LR or LT Series module, the Keyfob can operate at distances of up to 750 feet. Ease of use and security are dramatically enhanced by the on-board MS Series encoder, which allows instant creation of up to 16,777,216 (224) unique addresses without cumbersome DIP switches or cut traces. When paired with a MS Series decoder, Keyfob identity can be determined and button permissions established. The Keyfob is available with 1 to 5 buttons and can be custom labeledFeatures• FCC, IC and CE pre-certified• Long range• Simple user setup• 224 unique addresses• 1 to 5 buttons• Compact, stylish packageApplications• General remote control• Keyless entry• Garage / gate openers• Lighting control• Home / industrial automation• Wire eliminationMS Keyfob Transmitter Data GuideRevised 9/8/142.23"1.00"0.45"1.37"S4S2S1 S3S5Figure 1: Package DimensionsFigure 2: Keyfob Button ConfigurationsOEM CongurationsWith a one-time NRE and minimum order, Linx can configure the keypad and label areas. Contact Linx for details.

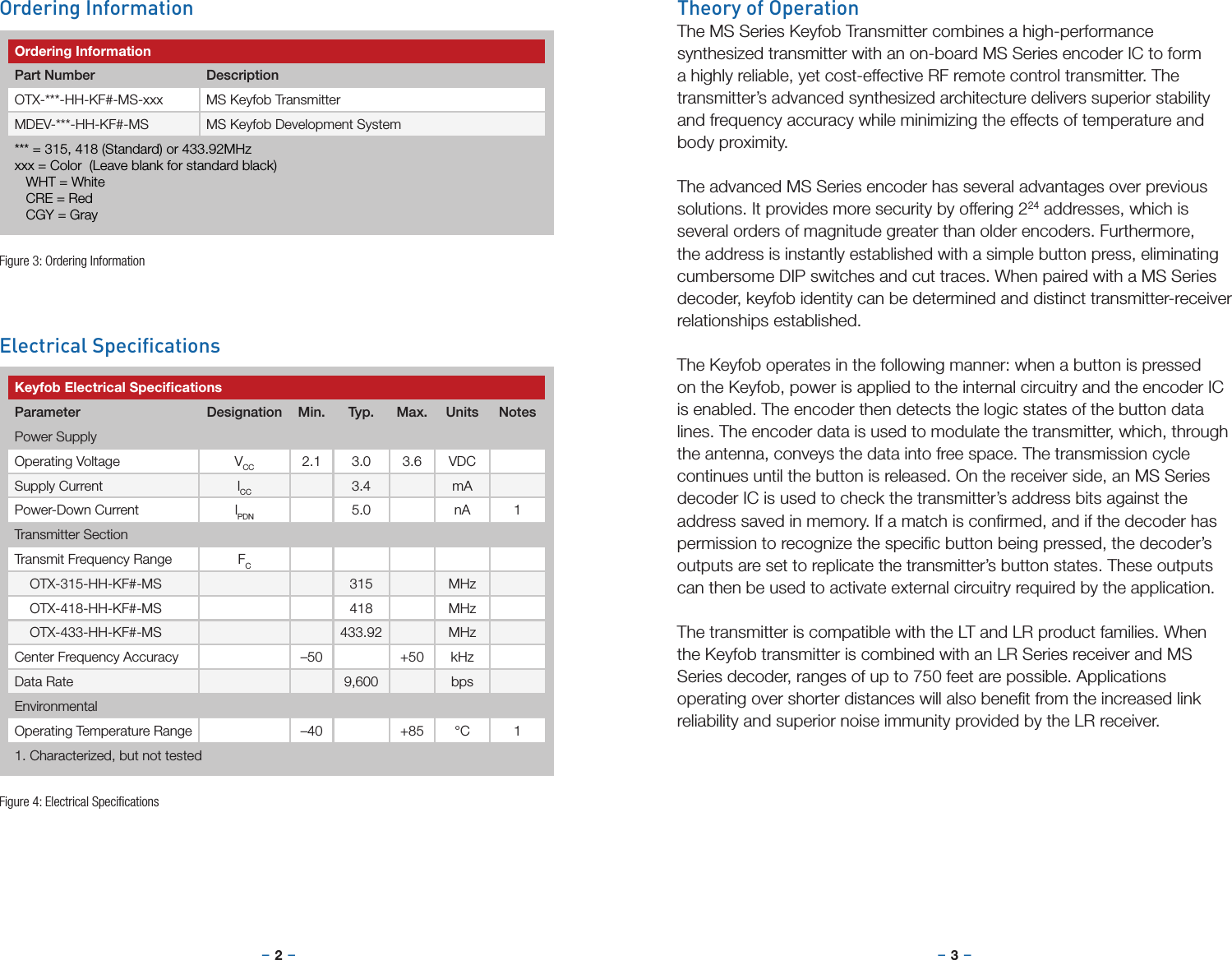

– – – –2 3Ordering InformationPart Number DescriptionOTX-***-HH-KF#-MS-xxx MS Keyfob TransmitterMDEV-***-HH-KF#-MS MS Keyfob Development System*** = 315, 418 (Standard) or 433.92MHzxxx = Color (Leave blank for standard black) WHT = White CRE = Red CGY = GrayKeyfob Electrical SpecificationsParameter Designation Min. Typ. Max. Units NotesPower SupplyOperating Voltage VCC 2.1 3.0 3.6 VDCSupply Current lCC 3.4 mAPower-Down Current lPDN 5.0 nA 1Transmitter SectionTransmit Frequency Range FC OTX-315-HH-KF#-MS 315 MHz OTX-418-HH-KF#-MS 418 MHz OTX-433-HH-KF#-MS 433.92 MHzCenter Frequency Accuracy –50 +50 kHzData Rate 9,600 bpsEnvironmentalOperating Temperature Range –40 +85 °C 11. Characterized, but not testedElectrical SpecicationsOrdering InformationFigure 3: Ordering InformationFigure 4: Electrical SpecificationsTheory of OperationThe MS Series Keyfob Transmitter combines a high-performance synthesized transmitter with an on-board MS Series encoder IC to form a highly reliable, yet cost-effective RF remote control transmitter. The transmitter’s advanced synthesized architecture delivers superior stability and frequency accuracy while minimizing the effects of temperature and body proximity.The advanced MS Series encoder has several advantages over previous solutions. It provides more security by offering 224 addresses, which is several orders of magnitude greater than older encoders. Furthermore, the address is instantly established with a simple button press, eliminating cumbersome DIP switches and cut traces. When paired with a MS Series decoder, keyfob identity can be determined and distinct transmitter-receiver relationships established.The Keyfob operates in the following manner: when a button is pressed on the Keyfob, power is applied to the internal circuitry and the encoder IC is enabled. The encoder then detects the logic states of the button data lines. The encoder data is used to modulate the transmitter, which, through the antenna, conveys the data into free space. The transmission cycle continues until the button is released. On the receiver side, an MS Series decoder IC is used to check the transmitter’s address bits against the address saved in memory. If a match is confirmed, and if the decoder has permission to recognize the specific button being pressed, the decoder’s outputs are set to replicate the transmitter’s button states. These outputs can then be used to activate external circuitry required by the application.The transmitter is compatible with the LT and LR product families. When the Keyfob transmitter is combined with an LR Series receiver and MS Series decoder, ranges of up to 750 feet are possible. Applications operating over shorter distances will also benefit from the increased link reliability and superior noise immunity provided by the LR receiver.

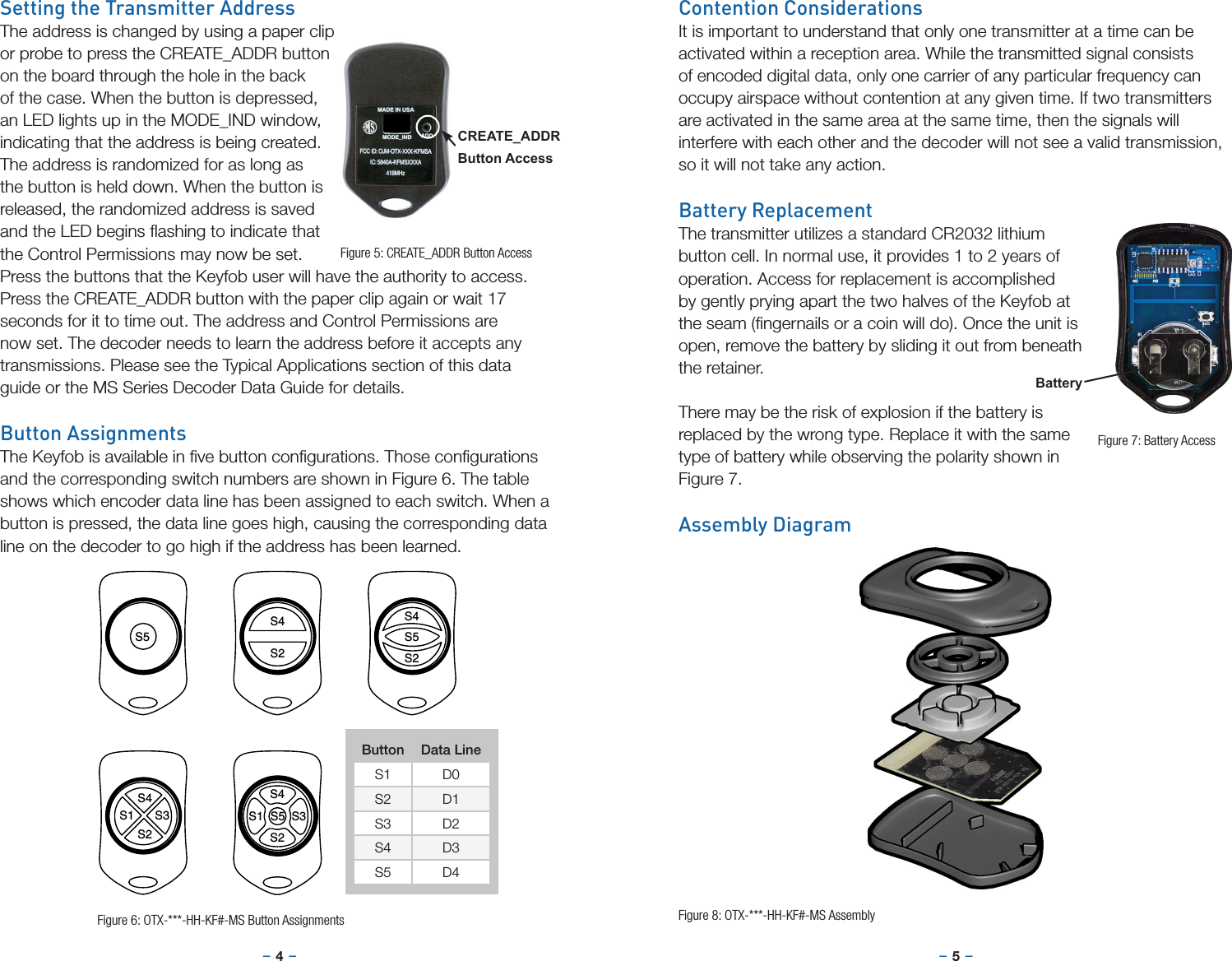

– – – –4 5Setting the Transmitter AddressThe address is changed by using a paper clip or probe to press the CREATE_ADDR button on the board through the hole in the back of the case. When the button is depressed, an LED lights up in the MODE_IND window, indicating that the address is being created. The address is randomized for as long as the button is held down. When the button is released, the randomized address is saved and the LED begins flashing to indicate that the Control Permissions may now be set. Press the buttons that the Keyfob user will have the authority to access. Press the CREATE_ADDR button with the paper clip again or wait 17 seconds for it to time out. The address and Control Permissions are now set. The decoder needs to learn the address before it accepts any transmissions. Please see the Typical Applications section of this data guide or the MS Series Decoder Data Guide for details.Button AssignmentsThe Keyfob is available in five button configurations. Those configurations and the corresponding switch numbers are shown in Figure 6. The table shows which encoder data line has been assigned to each switch. When a button is pressed, the data line goes high, causing the corresponding data line on the decoder to go high if the address has been learned.Figure 5: CREATE_ADDR Button AccessS4S2S1 S3S5S5S2S5S4S4S2S4S1 S3S2Button Data LineS1 D0S2 D1S3 D2S4 D3S5 D4Figure 6: OTX-***-HH-KF#-MS Button AssignmentsContention ConsiderationsIt is important to understand that only one transmitter at a time can be activated within a reception area. While the transmitted signal consists of encoded digital data, only one carrier of any particular frequency can occupy airspace without contention at any given time. If two transmitters are activated in the same area at the same time, then the signals will interfere with each other and the decoder will not see a valid transmission, so it will not take any action.Battery ReplacementThe transmitter utilizes a standard CR2032 lithium button cell. In normal use, it provides 1 to 2 years of operation. Access for replacement is accomplished by gently prying apart the two halves of the Keyfob at the seam (fingernails or a coin will do). Once the unit is open, remove the battery by sliding it out from beneath the retainer.There may be the risk of explosion if the battery is replaced by the wrong type. Replace it with the same type of battery while observing the polarity shown in Figure 7.Assembly DiagramBatteryFigure 7: Battery AccessFigure 8: OTX-***-HH-KF#-MS AssemblyCREATE_ADDRButton Access

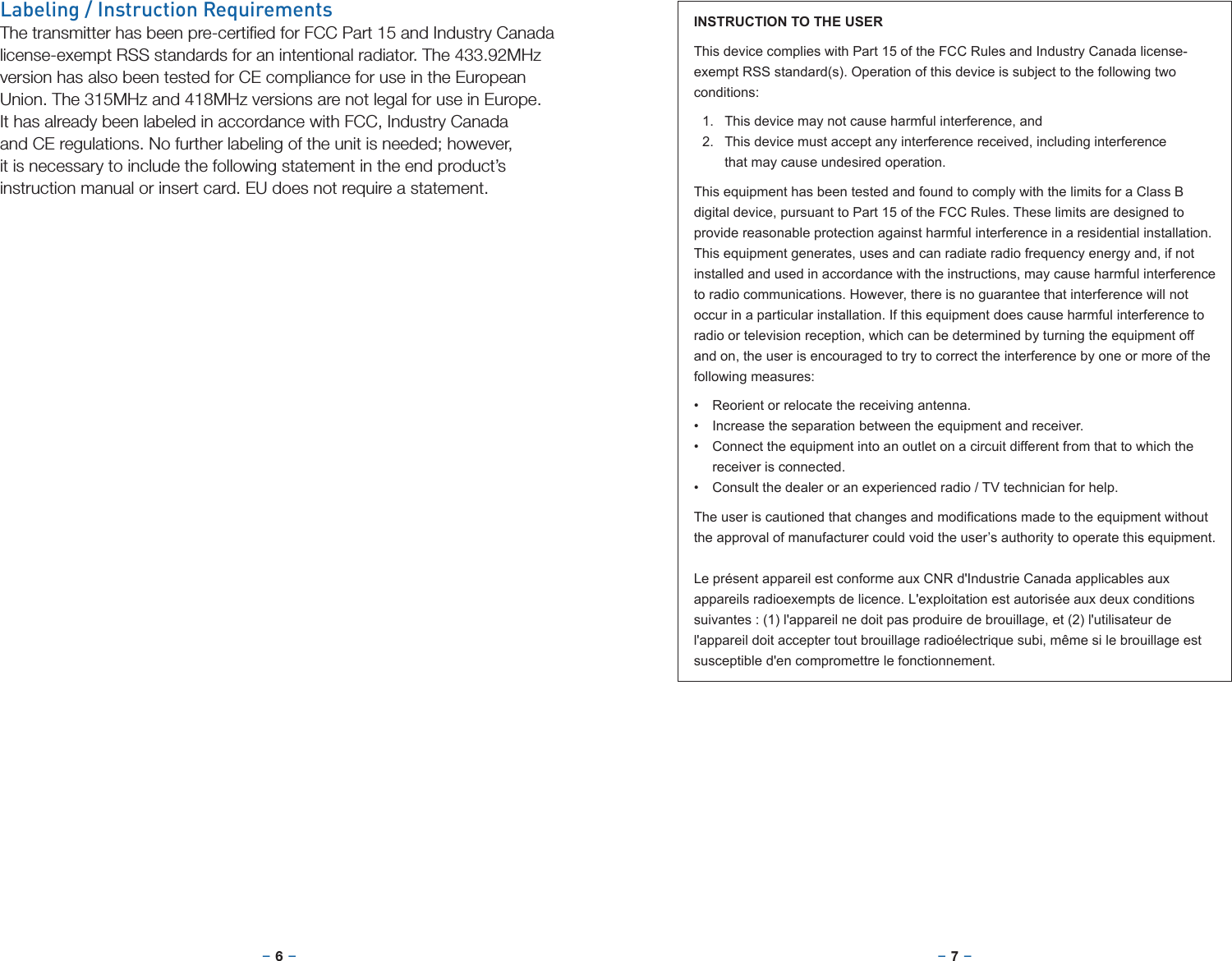

– – – –6 7Labeling / Instruction RequirementsThe transmitter has been pre-certified for FCC Part 15 and Industry Canada license-exempt RSS standards for an intentional radiator. The 433.92MHz version has also been tested for CE compliance for use in the European Union. The 315MHz and 418MHz versions are not legal for use in Europe. It has already been labeled in accordance with FCC, Industry Canada and CE regulations. No further labeling of the unit is needed; however, it is necessary to include the following statement in the end product’s instruction manual or insert card. EU does not require a statement.INSTRUCTION TO THE USERThis device complies with Part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s). Operation of this device is subject to the following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio / TV technician for help.Theuseriscautionedthatchangesandmodicationsmadetotheequipmentwithoutthe approval of manufacturer could void the user’s authority to operate this equipment.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

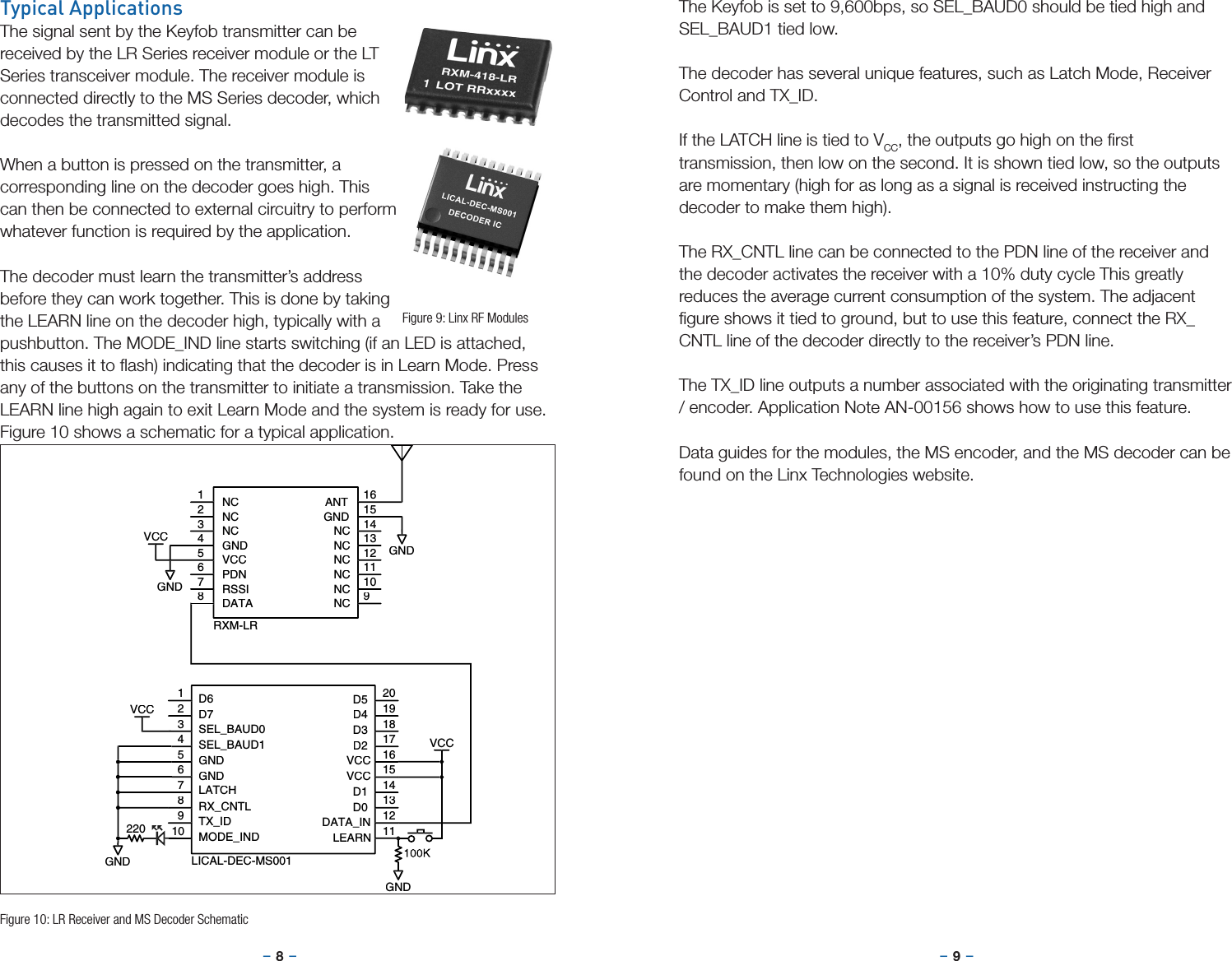

– – – –8 9Typical ApplicationsThe signal sent by the Keyfob transmitter can be received by the LR Series receiver module or the LT Series transceiver module. The receiver module is connected directly to the MS Series decoder, which decodes the transmitted signal.When a button is pressed on the transmitter, a corresponding line on the decoder goes high. This can then be connected to external circuitry to perform whatever function is required by the application.The decoder must learn the transmitter’s address before they can work together. This is done by taking the LEARN line on the decoder high, typically with a pushbutton. The MODE_IND line starts switching (if an LED is attached, this causes it to flash) indicating that the decoder is in Learn Mode. Press any of the buttons on the transmitter to initiate a transmission. Take the LEARN line high again to exit Learn Mode and the system is ready for use. Figure 10 shows a schematic for a typical application.Figure 9: Linx RF ModulesThe Keyfob is set to 9,600bps, so SEL_BAUD0 should be tied high and SEL_BAUD1 tied low. The decoder has several unique features, such as Latch Mode, Receiver Control and TX_ID.If the LATCH line is tied to VCC, the outputs go high on the first transmission, then low on the second. It is shown tied low, so the outputs are momentary (high for as long as a signal is received instructing the decoder to make them high).The RX_CNTL line can be connected to the PDN line of the receiver and the decoder activates the receiver with a 10% duty cycle This greatly reduces the average current consumption of the system. The adjacent figure shows it tied to ground, but to use this feature, connect the RX_CNTL line of the decoder directly to the receiver’s PDN line.The TX_ID line outputs a number associated with the originating transmitter / encoder. Application Note AN-00156 shows how to use this feature.Data guides for the modules, the MS encoder, and the MS decoder can be found on the Linx Technologies website.GNDGNDVCCNC1NC2NC3GND4VCC5PDN6RSSI7DATA8NC9NC10NC11NC12NC13NC14GND15ANT16RXM-LR220D6D7SEL_BAUD0SEL_BAUD1GNDGNDLATCHRX_CNTLTX_IDMODE_INDD5D4D3D2VCCVCCD1D0DATA_INLEARN1234567891011121314151617181920LICAL-DEC-MS001VCCGNDGNDVCCFigure 10: LR Receiver and MS Decoder Schematic

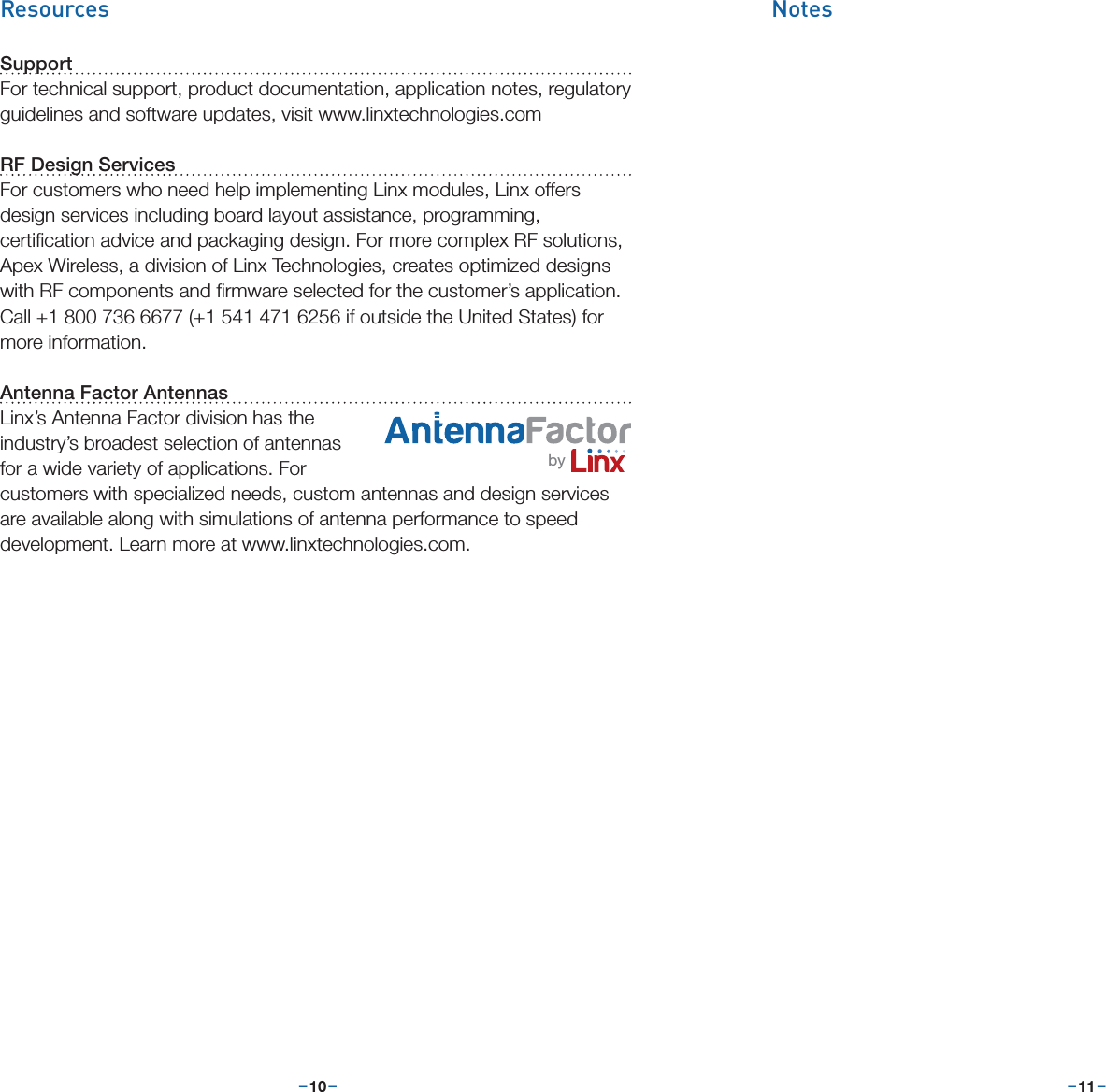

– – – –10 11ResourcesSupportFor technical support, product documentation, application notes, regulatory guidelines and software updates, visit www.linxtechnologies.comRF Design ServicesFor customers who need help implementing Linx modules, Linx offers design services including board layout assistance, programming, certification advice and packaging design. For more complex RF solutions, Apex Wireless, a division of Linx Technologies, creates optimized designs with RF components and firmware selected for the customer’s application. Call +1 800 736 6677 (+1 541 471 6256 if outside the United States) for more information.Antenna Factor AntennasLinx’s Antenna Factor division has the industry’s broadest selection of antennas for a wide variety of applications. For customers with specialized needs, custom antennas and design services are available along with simulations of antenna performance to speed development. Learn more at www.linxtechnologies.com. byNotes

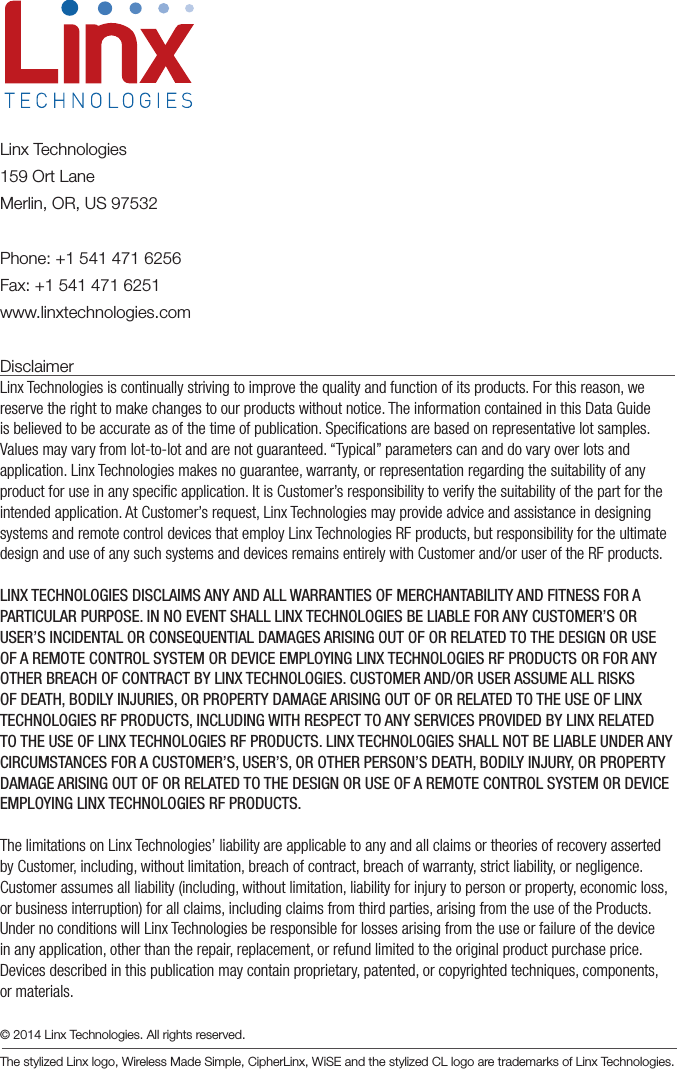

Linx Technologies159 Ort LaneMerlin, OR, US 97532Phone: +1 541 471 6256Fax: +1 541 471 6251www.linxtechnologies.comDisclaimerLinx Technologies is continually striving to improve the quality and function of its products. For this reason, we reserve the right to make changes to our products without notice. The information contained in this Data Guide is believed to be accurate as of the time of publication. Specifications are based on representative lot samples. Values may vary from lot-to-lot and are not guaranteed. “Typical” parameters can and do vary over lots and application. Linx Technologies makes no guarantee, warranty, or representation regarding the suitability of any product for use in any specific application. It is Customer’s responsibility to verify the suitability of the part for the intended application. At Customer’s request, Linx Technologies may provide advice and assistance in designing systems and remote control devices that employ Linx Technologies RF products, but responsibility for the ultimate design and use of any such systems and devices remains entirely with Customer and/or user of the RF products. LINX TECHNOLOGIES DISCLAIMS ANY AND ALL WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL LINX TECHNOLOGIES BE LIABLE FOR ANY CUSTOMER’S OR USER’S INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR RELATED TO THE DESIGN OR USE OF A REMOTE CONTROL SYSTEM OR DEVICE EMPLOYING LINX TECHNOLOGIES RF PRODUCTS OR FOR ANY OTHER BREACH OF CONTRACT BY LINX TECHNOLOGIES. CUSTOMER AND/OR USER ASSUME ALL RISKS OF DEATH, BODILY INJURIES, OR PROPERTY DAMAGE ARISING OUT OF OR RELATED TO THE USE OF LINX TECHNOLOGIES RF PRODUCTS, INCLUDING WITH RESPECT TO ANY SERVICES PROVIDED BY LINX RELATED TO THE USE OF LINX TECHNOLOGIES RF PRODUCTS. LINX TECHNOLOGIES SHALL NOT BE LIABLE UNDER ANY CIRCUMSTANCES FOR A CUSTOMER’S, USER’S, OR OTHER PERSON’S DEATH, BODILY INJURY, OR PROPERTY DAMAGE ARISING OUT OF OR RELATED TO THE DESIGN OR USE OF A REMOTE CONTROL SYSTEM OR DEVICE EMPLOYING LINX TECHNOLOGIES RF PRODUCTS.The limitations on Linx Technologies’ liability are applicable to any and all claims or theories of recovery asserted by Customer, including, without limitation, breach of contract, breach of warranty, strict liability, or negligence. Customer assumes all liability (including, without limitation, liability for injury to person or property, economic loss, or business interruption) for all claims, including claims from third parties, arising from the use of the Products. Under no conditions will Linx Technologies be responsible for losses arising from the use or failure of the device in any application, other than the repair, replacement, or refund limited to the original product purchase price. Devices described in this publication may contain proprietary, patented, or copyrighted techniques, components, or materials. © 2014 Linx Technologies. All rights reserved. The stylized Linx logo, Wireless Made Simple, CipherLinx, WiSE and the stylized CL logo are trademarks of Linx Technologies.
