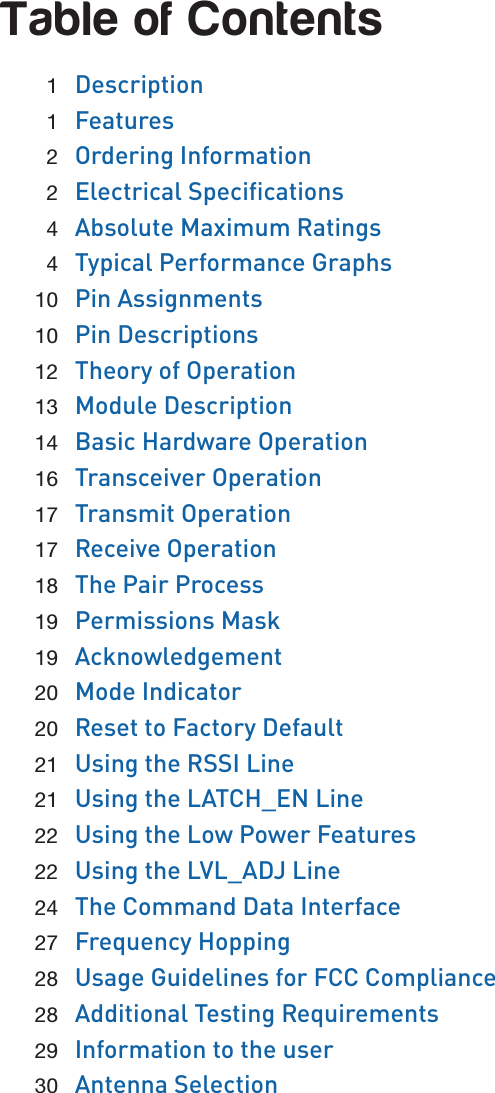

Table of Contents 1 Description 1 Features 2 Ordering Information 2 Electrical Specications 4 Absolute Maximum Ratings 4 Typical Performance Graphs 10 Pin Assignments 10 Pin Descriptions 12 Theory of Operation 13 Module Description 14 Basic Hardware Operation 16 Transceiver Operation 17 Transmit Operation 17 Receive Operation 18 The Pair Process 19 Permissions Mask 19 Acknowledgement 20 Mode Indicator 20 Reset to Factory Default 21 Using the RSSI Line 21 Using the LATCH_EN Line 22 Using the Low Power Features 22 Using the LVL_ADJ Line 24 The Command Data Interface 27 Frequency Hopping 28 Usage Guidelines for FCC Compliance 28 Additional Testing Requirements 29 Information to the user 30 Antenna Selection

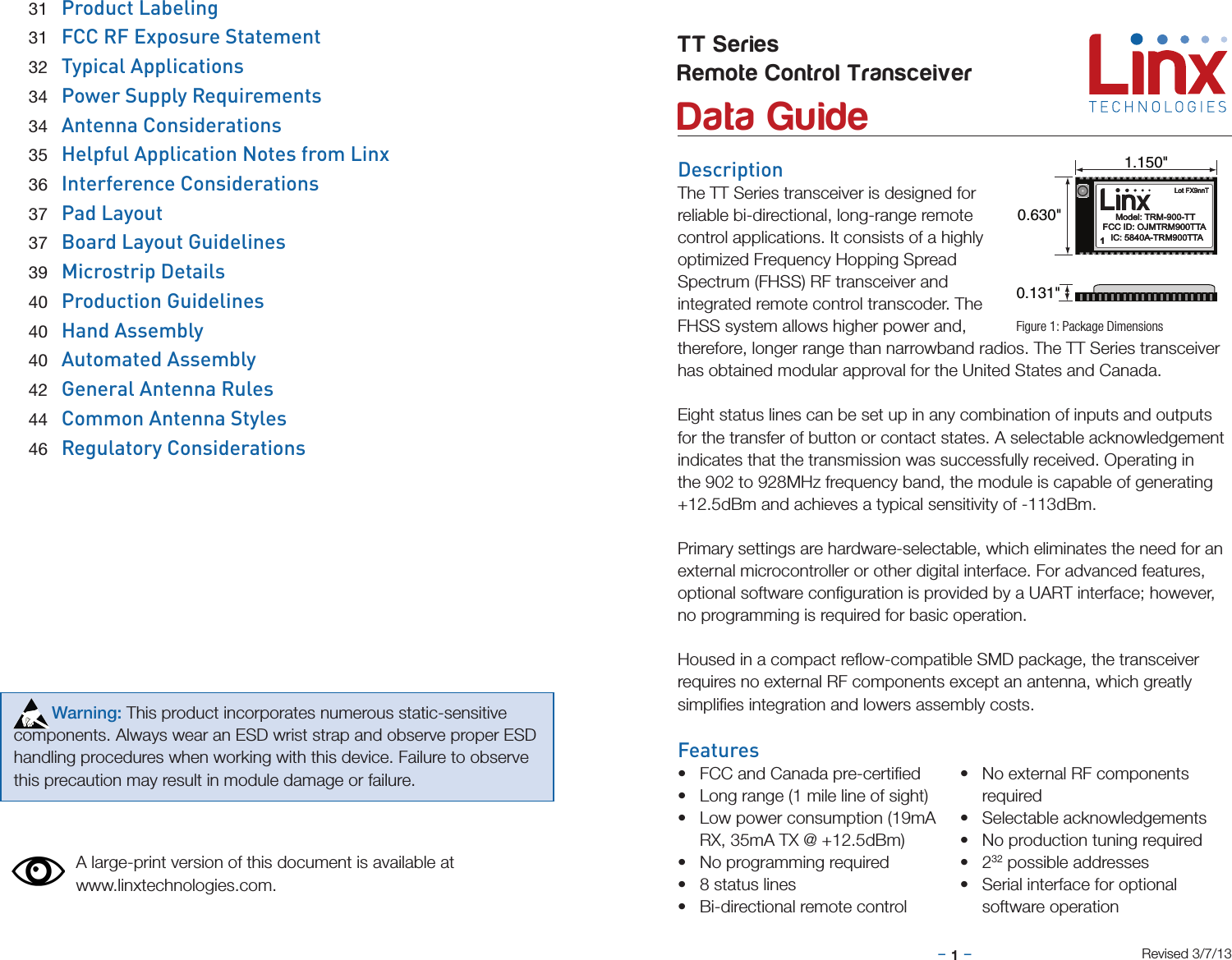

– –1DescriptionThe TT Series transceiver is designed for reliable bi-directional, long-range remote control applications. It consists of a highly optimized Frequency Hopping Spread Spectrum (FHSS) RF transceiver and integrated remote control transcoder. The FHSS system allows higher power and, therefore, longer range than narrowband radios. The TT Series transceiver has obtained modular approval for the United States and Canada. Eight status lines can be set up in any combination of inputs and outputs for the transfer of button or contact states. A selectable acknowledgement indicates that the transmission was successfully received. Operating in the 902 to 928MHz frequency band, the module is capable of generating +12.5dBm and achieves a typical sensitivity of -113dBm. Primary settings are hardware-selectable, which eliminates the need for an external microcontroller or other digital interface. For advanced features, optional software configuration is provided by a UART interface; however, no programming is required for basic operation.Housed in a compact reflow-compatible SMD package, the transceiver requires no external RF components except an antenna, which greatly simplifies integration and lowers assembly costs. Features• FCC and Canada pre-certified• Long range (1 mile line of sight)• Low power consumption (19mA RX, 35mA TX @ +12.5dBm)• No programming required• 8 status lines• Bi-directional remote control• No external RF components required• Selectable acknowledgements• No production tuning required• 232 possible addresses• Serial interface for optional software operationTT SeriesRemote Control Transceiver Data GuideFigure 1: Package DimensionsRevised 3/7/130.131"0.630"1.150"11Model: TRM-900-TTModel: TRM-900-TTLot FX9nnTLot FX9nnTFCC ID: OJMTRM900TTAFCC ID: OJMTRM900TTAIC: 5840A-TRM900TTAIC: 5840A-TRM900TTAA large-print version of this document is available at www.linxtechnologies.com. 31 Product Labeling 31 FCC RF Exposure Statement 32 Typical Applications 34 Power Supply Requirements 34 Antenna Considerations 35 Helpful Application Notes from Linx 36 Interference Considerations 37 Pad Layout 37 Board Layout Guidelines 39 Microstrip Details 40 Production Guidelines 40 Hand Assembly 40 Automated Assembly 42 General Antenna Rules 44 Common Antenna Styles 46 Regulatory Considerations Warning: This product incorporates numerous static-sensitive components. Always wear an ESD wrist strap and observe proper ESD handling procedures when working with this device. Failure to observe this precaution may result in module damage or failure.
– – – –23TT Series Transceiver SpecificationsParameter Symbol Min. Typ. Max. Units NotesPower SupplyOperating Voltage VCC 2.5 5.5 VDCTX Supply Current lCCTX At +12.5dBm 33.9 38.1 mA 1,2 At 0dBm 15.2 18.9 mA 1,2RX Supply Current lCCRX 19.2 22.7 mA 1,2Standby Current lSTD TBD mA 1,2Power-Down Current lPDN 1.0 µA 1,2RF SectionOperating Frequency Band FC902 928 MHz 3Center Frequency Accuracy –5 +5 kHz 2Number of Channels 25 3,10Channel Spacing 500 kHz 3Modulation Rate 45 kbpsReceiver SectionSpurious Emissions −62 dBmReceiver Sensitivity -111 dBm 5RSSI Dynamic Range 64 dBTransmitter SectionOutput Power PO−15.5 +12.5 dBm 6Output Power Control Range28 dBHarmonic Emissions PH−42 –36 dBc 7Frequency Deviation ±70 kHzElectrical SpecicationsOrdering InformationOrdering InformationPart Number DescriptionTRM-900-TT 900MHz TT Series Remote Control TransceiverMDEV-900-TT TT Series Master Development SystemFigure 2: Ordering InformationTT Series Transceiver SpecificationsParameter Symbol Min. Typ. Max. Units NotesAntenna PortRF Impedance RI N 50 ΩEnvironmentalOperating Temp. Range −40 +85 ºCStorage Temp. Range −55 +125 ºCTimingModule Turn-On Time Via VCC TBD TBD ms 4 Via POWER_DOWN TBD TBD ms 4 Via Standby TBD TBD ms 4Serial Command Response Factory Reset/Erase Table 560 ms 11 Write NV Parameter 8 38 ms 11 Write V/Read/Control 2 13 ms 11IU to RU Status High 4 50 ms 10Channel Dwell Time 12.3 12.7 msInterface SectionPOWER_DOWN, ACK_EN Logic Low VI L VCC*0.2 VDC Logic High VI H VCC*0.8 VCC VDCInput Logic Low VI L 0.8 VDC Logic Low VI L Logic High VI H Logic High VI H 2 5.5 VDCOutput Logic Low VOL 0.6 VDC Logic High VOH VCC–0.7 VCC VDCCertificationsModular Certifications FCC, Industry CanadaTransceivers are supplied in tubes of 18 pcs.1. Measured at 3.3V VCC2. Measured at 25ºC3. Guaranteed by design4. Characterized but not tested5. BER=10–36. Into a 50-ohm load7. PO=+12.5dBm (max output power)8. 4.5V ≤ VCC ≤ 5.5V9. VCC ≤ 4.5V10. No RF interference11. Response time is from end of command to start of responseFigure 3: Electrical Specifications

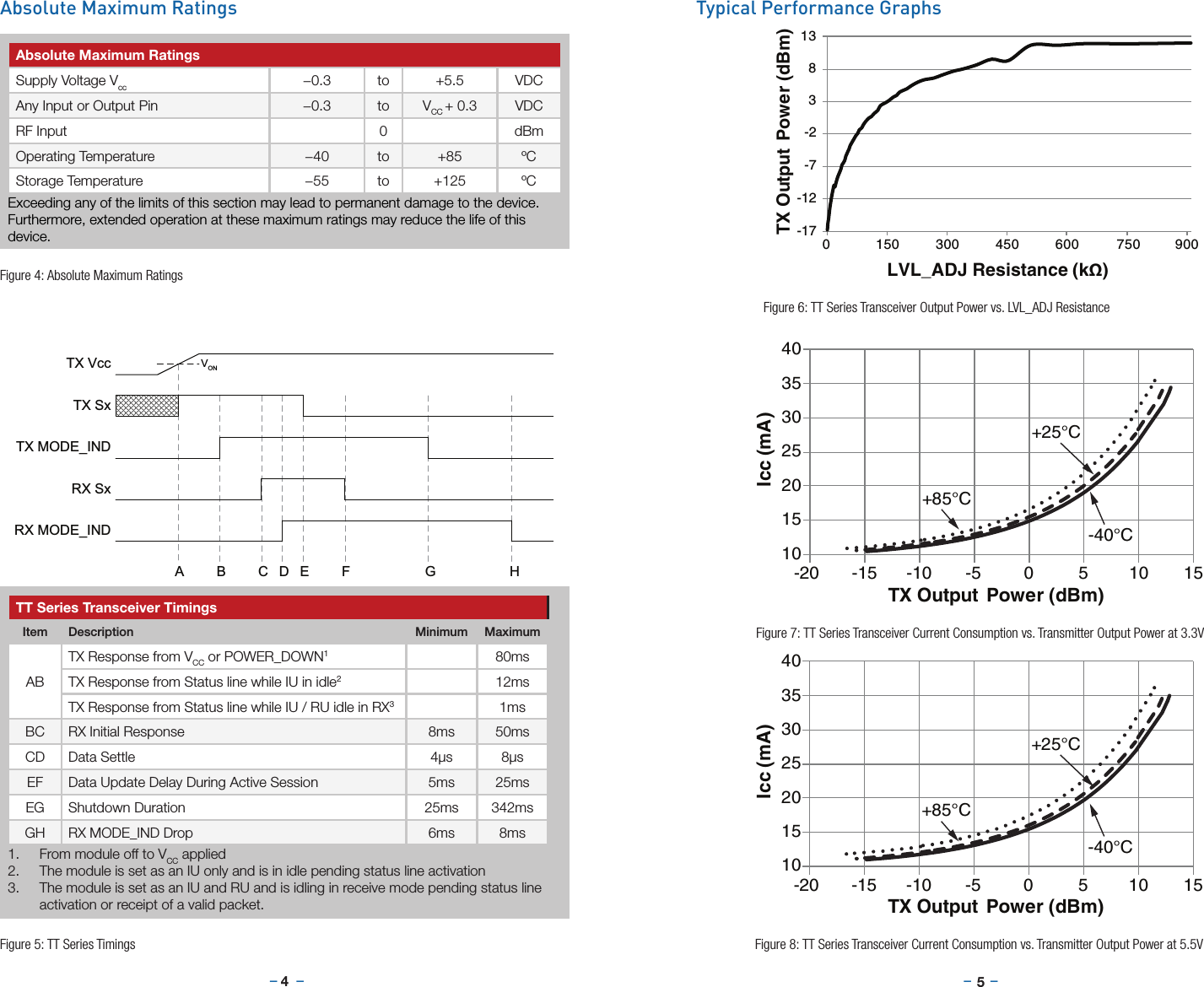

– – – –45Absolute Maximum RatingsSupply Voltage Vcc −0.3 to +5.5 VDCAny Input or Output Pin −0.3 to VCC + 0.3 VDCRF Input 0 dBmOperating Temperature −40 to +85 ºCStorage Temperature −55 to +125 ºCExceeding any of the limits of this section may lead to permanent damage to the device. Furthermore, extended operation at these maximum ratings may reduce the life of this device.Absolute Maximum RatingsFigure 4: Absolute Maximum RatingsTypical Performance GraphsTX Output Power (dBm)LVL_ADJ Resistance (kΩ)-17-12-7-238130150 300450 600 750 900Figure 6: TT Series Transceiver Output Power vs. LVL_ADJ Resistance10152025303540-20 -15 -10 -5 0510 15Icc (mA)TX Output Power (dBm)-40°C+25°C+85°C10152025303540-20 -15 -10 -5 0510 15Icc (mA)TX Output Power (dBm)-40°C+25°C+85°CFigure 7: TT Series Transceiver Current Consumption vs. Transmitter Output Power at 3.3VFigure 8: TT Series Transceiver Current Consumption vs. Transmitter Output Power at 5.5VTX VccTX SxTX MODE_INDRX SxABCDE FGHRX MODE_INDAB – TX Power up Response – <80ms BC – RX Initial Response – 8 to 50ms with no interference CD – Data Settle – 4 to 8us EF – Data Update Delay During Active Session – 5 to 25ms EG – Shutdown Duration – 25 to 342msGH – RX MODE_IND Drop – 6 to 8msVONTT Series Transceiver TimingsItem Description Minimum MaximumABTX Response from VCC or POWER_DOWN180msTX Response from Status line while IU in idle212msTX Response from Status line while IU / RU idle in RX31msBC RX Initial Response 8ms 50msCD Data Settle 4µs 8µsEF Data Update Delay During Active Session 5ms 25msEG Shutdown Duration 25ms 342msGH RX MODE_IND Drop 6ms 8msFigure 5: TT Series Timings1. From module off to VCC applied2. The module is set as an IU only and is in idle pending status line activation3. The module is set as an IU and RU and is idling in receive mode pending status line activation or receipt of a valid packet.

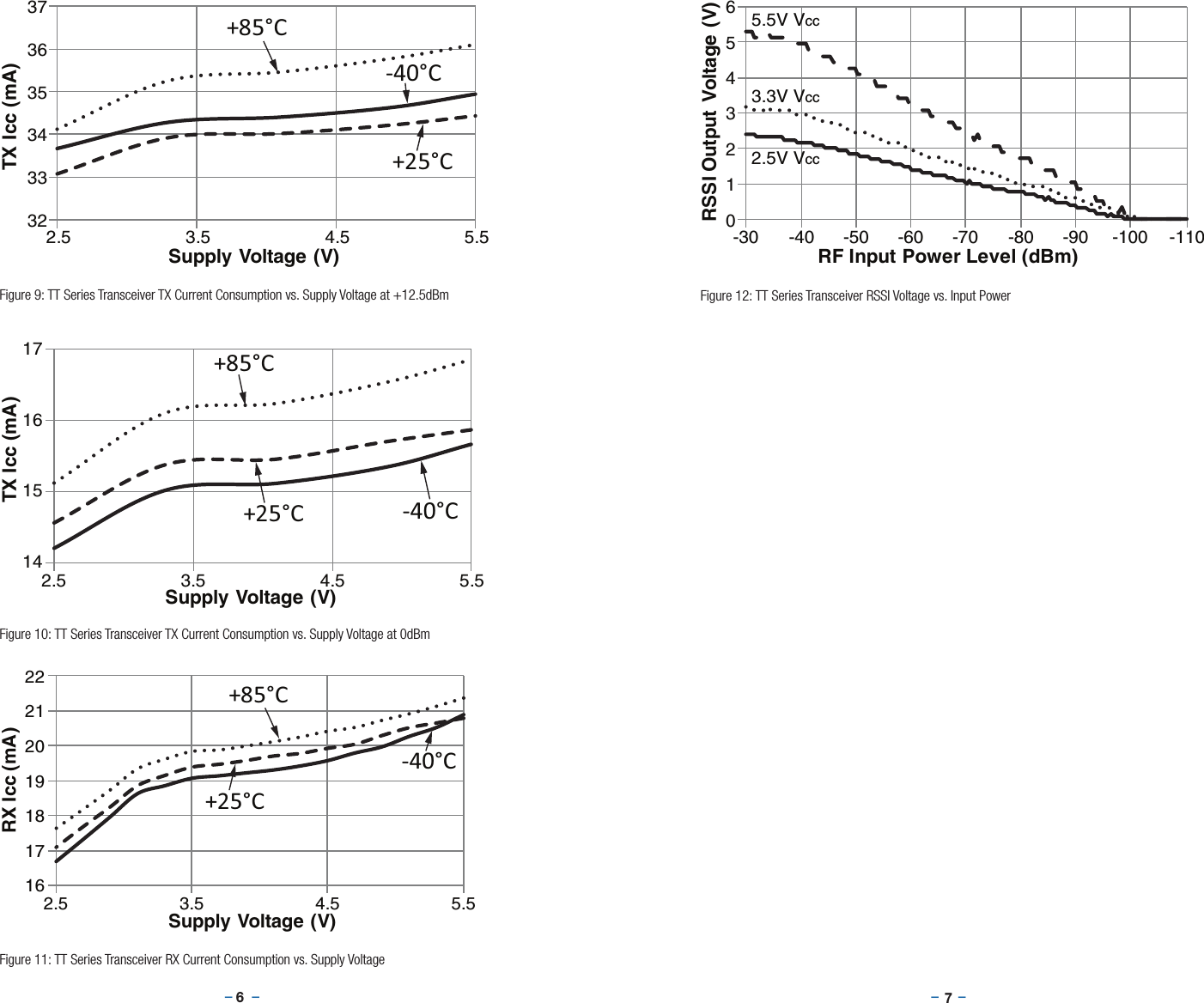

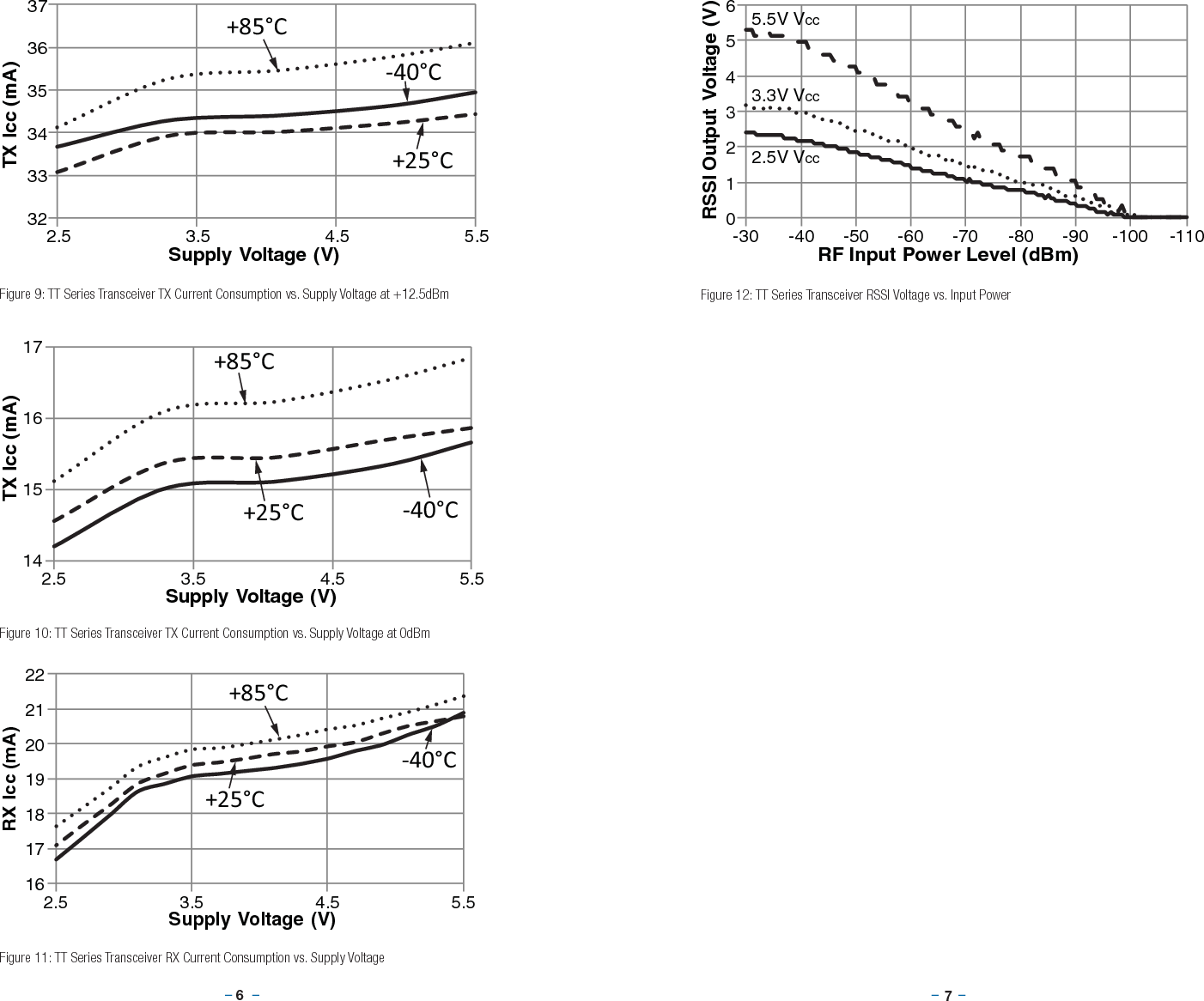

– – – –67161718192021222.53.5 4.55.5RX Icc (mA)Supply Voltage (V)-40°C+25°C+85°C141516172.53.5 4.55.5TX Icc (mA)Supply Voltage (V)-40°C+25°C+85°CFigure 10: TT Series Transceiver TX Current Consumption vs. Supply Voltage at 0dBmFigure 11: TT Series Transceiver RX Current Consumption vs. Supply Voltage0123456-30 -40 -50 -60 -70 -80 -90 -100 -110RSSI Output Voltage (V)RF Input Power Level (dBm)2.5V Vcc3.3V Vcc5.5V VccFigure 12: TT Series Transceiver RSSI Voltage vs. Input PowerFigure 9: TT Series Transceiver TX Current Consumption vs. Supply Voltage at +12.5dBm3233343536372.53.5 4.55.5TX Icc (mA)Supply Voltage (V)-40°C+25°C+85°C
– – – –89
– – – –10 11Pin AssignmentsGNDNCGND GNDNCNCGNDNCNCNCNCNCGNDNCGNDANTENNA123456783738394041424344S0S1GND GNDPAIRC1ACK_OUTC0CMD_DATA_OUTLATCH_ENS2S3LVL_ADJRESETACK_ENMODE_IND910111213141516 2930313233343536GNDS7S6 S5VCCPOWER_DOWNGNDS4RSSIGNDGNDCMD_DATA_IN171819202122232425262728Figure 13: TT Series Transceiver Pin Assignments (Top View)Pin DescriptionsPin Number Name I/O Description1, 3, 6, 11, 17, 22, 23, 28, 34, 39, 42, 44GND — Ground2, 4, 5, 7, 8, 37, 38, 40, 41 NC — No Electrical Connection. Do not connect any traces to these lines.9, 10, 12, 13, 18, 19, 20, 26 S0 - S7 I/OStatus Lines. Each line can be configured as either an input to register button or contact closures or as an output to control application circuitry.14 LVL_ADJ 1ILevel Adjust. This line sets the transmitter output power level. Pull high or leave open for the highest power; connect to GND through a resistor to lower the power.Pin Descriptions ContinuedPin Number Name I/O Description15 LATCH_EN IIf this line is high, then the status line outputs are latched (a received command to activate a status line toggles the output state). If this line is low, then the output lines are momentary (active for as long as a valid signal is received) and which are latched. 16 RESET IPull low to perform a soft reset of the module. This line has an internal pull-up to POWER_DOWN, may be left unconnected21 RSSI OReceived Signal Strength Indicator. This line outputs an analog voltage that increases with the strength of the received signal. It is updated once a second.24 POWER_DOWN IPower Down. Pulling this line low places the module into a low-power state. The module is not functional in this state. Pull high for normal operation. Do not leave floating.25 VCC — Supply Voltage27 CMD_DATA_IN I Command Data In. Input line for the serial interface commands29 CMD_DATA_OUT O Command Data Out. Output line for the serial interface commands30, 32 C0 IThis line sets the input/output direction for status lines S0-S3. When low, the lines are outputs; when high they are inputs.31 ACK_OUT OThis line goes high when the module receives an acknowledgement message from another module after sending a control message.32 C1 IThis line sets the input/output direction for status lines S4-S7. When low, the lines are outputs; when high they are inputs.33 PAIR IA high on this line initiates the Pair process, which causes two units to accept each other’s transmissions. It is also used with a special sequence to reset the module to factory default configuration35 MODE_IND OThis line indicates module activity. It can source enough current to drive a small LED, causing it to flash. The duration of the flashes indicates the module’s current state.36 ACK_EN IPull this line high to enable the module to send an acknowledgement message after a valid control message has been received.43 ANTENNA — 50-ohm RF Antenna Port1. This line has an internal 100kΩ pull-up resistorFigure 14: TT Series Transceiver Pin DescriptionsPin Descriptions

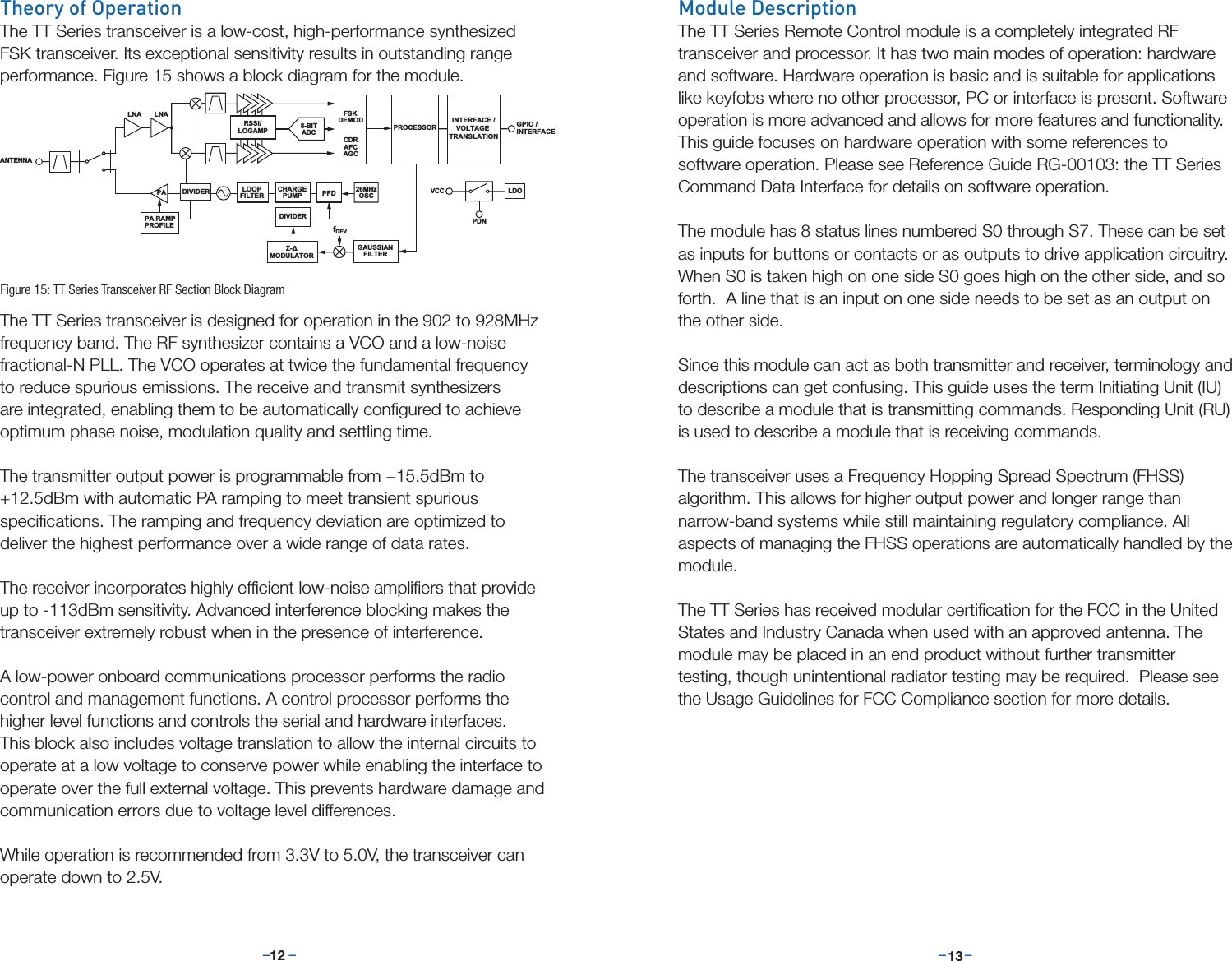

– – – –12 13Theory of OperationThe TT Series transceiver is a low-cost, high-performance synthesized FSK transceiver. Its exceptional sensitivity results in outstanding range performance. Figure 15 shows a block diagram for the module.The TT Series transceiver is designed for operation in the 902 to 928MHz frequency band. The RF synthesizer contains a VCO and a low-noise fractional-N PLL. The VCO operates at twice the fundamental frequency to reduce spurious emissions. The receive and transmit synthesizers are integrated, enabling them to be automatically configured to achieve optimum phase noise, modulation quality and settling time.The transmitter output power is programmable from −15.5dBm to +12.5dBm with automatic PA ramping to meet transient spurious specifications. The ramping and frequency deviation are optimized to deliver the highest performance over a wide range of data rates.The receiver incorporates highly efficient low-noise amplifiers that provide up to -113dBm sensitivity. Advanced interference blocking makes the transceiver extremely robust when in the presence of interference.A low-power onboard communications processor performs the radio control and management functions. A control processor performs the higher level functions and controls the serial and hardware interfaces. This block also includes voltage translation to allow the internal circuits to operate at a low voltage to conserve power while enabling the interface to operate over the full external voltage. This prevents hardware damage and communication errors due to voltage level differences. While operation is recommended from 3.3V to 5.0V, the transceiver can operate down to 2.5V.RSSI/LOGAMPLNAFSKDEMODCDRAFCAGC PROCESSOR26MHzOSCPA RAMPPROFILEPA8-BITADCLOOPFILTERCHARGEPUMP PFDDIVIDERΣ-ΔMODULATORGAUSSIANFILTERfDEVDIVIDERLNAANTENNAGPIO /INTERFACELDOVCCPDNINTERFACE /VOLTAGE TRANSLATIONFigure 15: TT Series Transceiver RF Section Block DiagramModule DescriptionThe TT Series Remote Control module is a completely integrated RF transceiver and processor. It has two main modes of operation: hardware and software. Hardware operation is basic and is suitable for applications like keyfobs where no other processor, PC or interface is present. Software operation is more advanced and allows for more features and functionality. This guide focuses on hardware operation with some references to software operation. Please see Reference Guide RG-00103: the TT Series Command Data Interface for details on software operation.The module has 8 status lines numbered S0 through S7. These can be set as inputs for buttons or contacts or as outputs to drive application circuitry. When S0 is taken high on one side S0 goes high on the other side, and so forth. A line that is an input on one side needs to be set as an output on the other side. Since this module can act as both transmitter and receiver, terminology and descriptions can get confusing. This guide uses the term Initiating Unit (IU) to describe a module that is transmitting commands. Responding Unit (RU) is used to describe a module that is receiving commands.The transceiver uses a Frequency Hopping Spread Spectrum (FHSS) algorithm. This allows for higher output power and longer range than narrow-band systems while still maintaining regulatory compliance. All aspects of managing the FHSS operations are automatically handled by the module.The TT Series has received modular certification for the FCC in the United States and Industry Canada when used with an approved antenna. The module may be placed in an end product without further transmitter testing, though unintentional radiator testing may be required. Please see the Usage Guidelines for FCC Compliance section for more details.

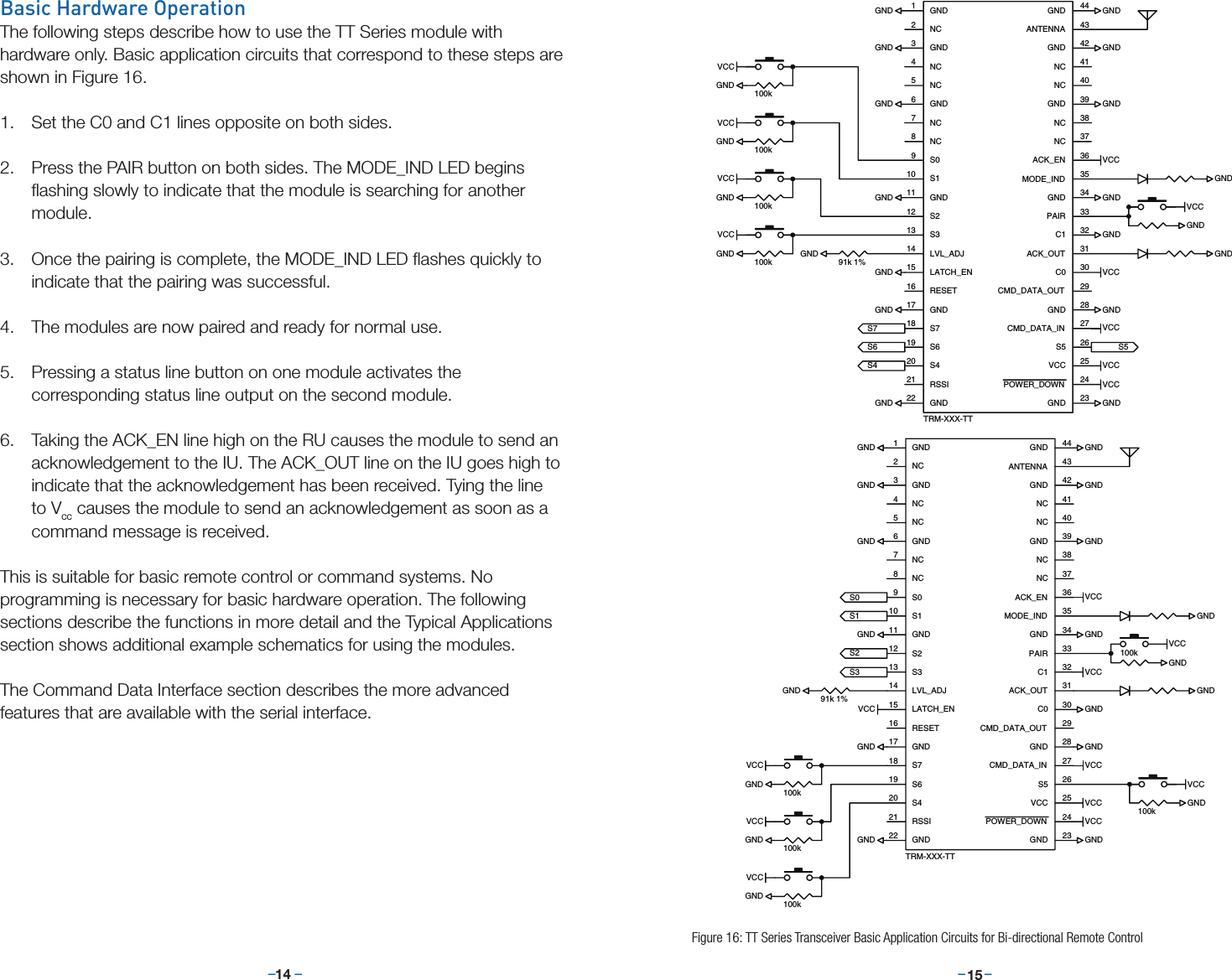

– – – –14 15Basic Hardware OperationThe following steps describe how to use the TT Series module with hardware only. Basic application circuits that correspond to these steps are shown in Figure 16.1. Set the C0 and C1 lines opposite on both sides.2. Press the PAIR button on both sides. The MODE_IND LED begins flashing slowly to indicate that the module is searching for another module.3. Once the pairing is complete, the MODE_IND LED flashes quickly to indicate that the pairing was successful.4. The modules are now paired and ready for normal use.5. Pressing a status line button on one module activates the corresponding status line output on the second module.6. Taking the ACK_EN line high on the RU causes the module to send an acknowledgement to the IU. The ACK_OUT line on the IU goes high to indicate that the acknowledgement has been received. Tying the line to Vcc causes the module to send an acknowledgement as soon as a command message is received.This is suitable for basic remote control or command systems. No programming is necessary for basic hardware operation. The following sections describe the functions in more detail and the Typical Applications section shows additional example schematics for using the modules.The Command Data Interface section describes the more advanced features that are available with the serial interface.1TRM-XXX-TTNC2GND3NC4NC5GND6NC7S09S110GND11S718S619RSSI21GND22 GND23POWER_DOWN 24VCC25S5 26CMD_DATA_IN27S212GND17S313LVL_ADJ14LATCH_EN15RESET16NC8S420GNDGND28CMD_DATA_OUT29C0 30ACK_OUT31C1 32PAIR 33GND34MODE_IND 35ACK_EN 36NC 37NC 38GND39NC 40NC 41GND42ANTENNA 43GND44GNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDVCCVCCGND100k100k100k100kGND91k 1%GNDGNDGNDGNDVCCVCCVCCVCCGNDS7S6S4S5VCCGNDGNDGNDVCCVCCNC2GND3NC4NC5GND6NC7S09S110GND11S718S619RSSI21GND22 GND23POWER_DOWN24VCC25S5 26CMD_DATA_IN 27S212GND17S313LVL_ADJ14LATCH_EN15RESET16NC8S420GND1GND28CMD_DATA_OUT29C0 30ACK_OUT31C1 32PAIR 33GND34MODE_IND 35ACK_EN36NC 37NC 38GND39NC 40NC 41GND42ANTENNA 43GND44TRM-XXX-TTGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDVCCVCCGND91k 1%GNDS0S1S2S3VCCGNDGND100kGNDVCC100k100k100kGNDGNDGNDGNDVCCVCCVCCVCCVCC100kVCCVCCVCC1TRM-XXX-TTNC2GND3NC4NC5GND6NC7S09S110GND11S718S619RSSI21GND22 GND23POWER_DOWN 24VCC25S5 26CMD_DATA_IN27S212GND17S313LVL_ADJ14LATCH_EN15RESET16NC8S420GNDGND28CMD_DATA_OUT29C0 30ACK_OUT31C1 32PAIR 33GND34MODE_IND 35ACK_EN 36NC 37NC 38GND39NC 40NC 41GND42ANTENNA 43GND44GNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDVCCVCCGND100k100k100k100kGND91k 1%GNDGNDGNDGNDVCCVCCVCCVCCGNDS7S6S4S5VCCGNDGNDGNDVCCVCCNC2GND3NC4NC5GND6NC7S09S110GND11S718S619RSSI21GND22 GND23POWER_DOWN24VCC25S5 26CMD_DATA_IN 27S212GND17S313LVL_ADJ14LATCH_EN15RESET16NC8S420GND1GND28CMD_DATA_OUT29C0 30ACK_OUT31C1 32PAIR 33GND34MODE_IND 35ACK_EN36NC 37NC 38GND39NC 40NC 41GND42ANTENNA 43GND44TRM-XXX-TTGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDVCCVCCGND91k 1%GNDS0S1S2S3VCCGNDGND100kGNDVCC100k100k100kGNDGNDGNDGNDVCCVCCVCCVCCVCC100kVCCVCCVCCFigure 16: TT Series Transceiver Basic Application Circuits for Bi-directional Remote Control

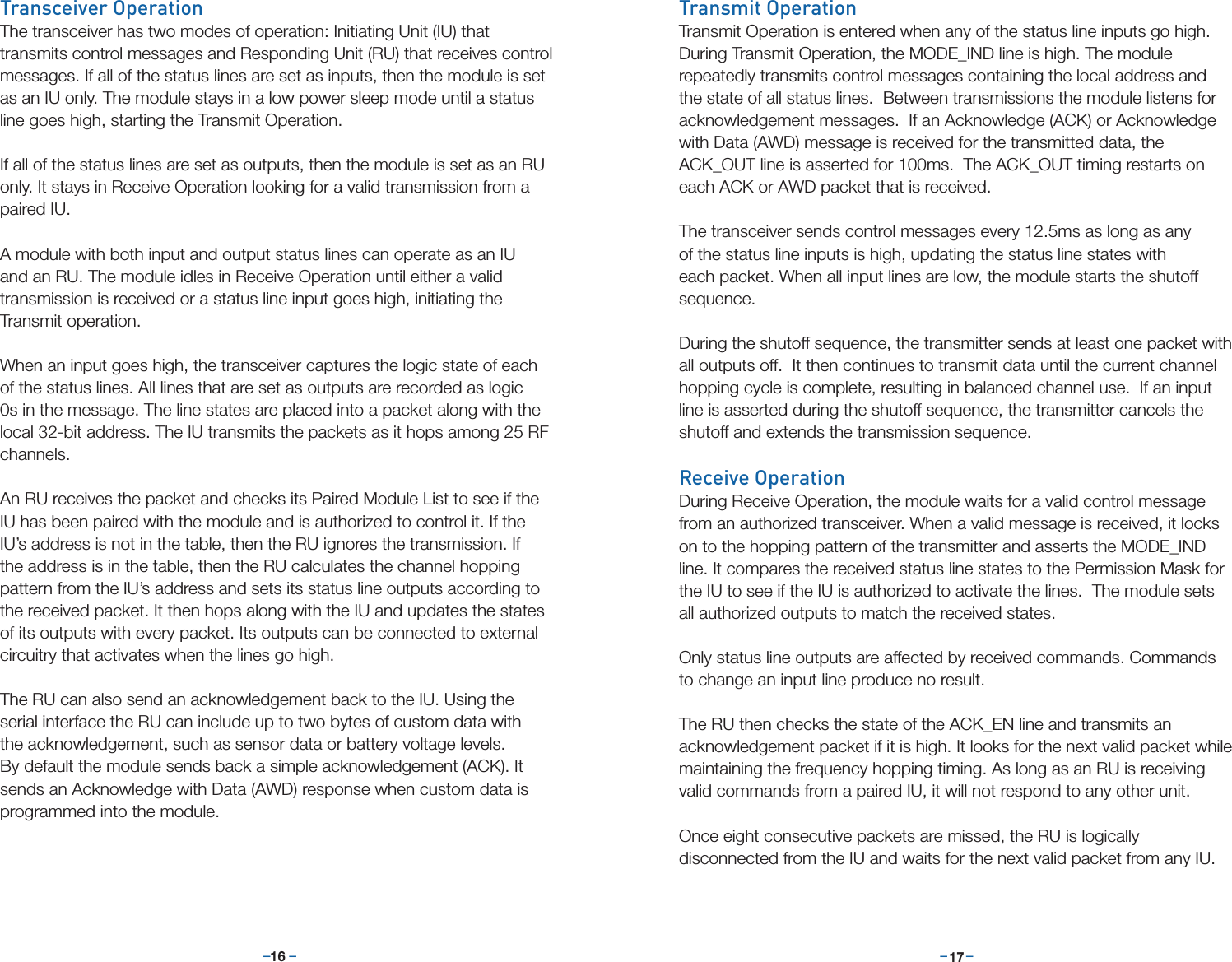

– – – –16 17Transceiver OperationThe transceiver has two modes of operation: Initiating Unit (IU) that transmits control messages and Responding Unit (RU) that receives control messages. If all of the status lines are set as inputs, then the module is set as an IU only. The module stays in a low power sleep mode until a status line goes high, starting the Transmit Operation.If all of the status lines are set as outputs, then the module is set as an RU only. It stays in Receive Operation looking for a valid transmission from a paired IU.A module with both input and output status lines can operate as an IU and an RU. The module idles in Receive Operation until either a valid transmission is received or a status line input goes high, initiating the Transmit operation.When an input goes high, the transceiver captures the logic state of each of the status lines. All lines that are set as outputs are recorded as logic 0s in the message. The line states are placed into a packet along with the local 32-bit address. The IU transmits the packets as it hops among 25 RF channels. An RU receives the packet and checks its Paired Module List to see if the IU has been paired with the module and is authorized to control it. If the IU’s address is not in the table, then the RU ignores the transmission. If the address is in the table, then the RU calculates the channel hopping pattern from the IU’s address and sets its status line outputs according to the received packet. It then hops along with the IU and updates the states of its outputs with every packet. Its outputs can be connected to external circuitry that activates when the lines go high.The RU can also send an acknowledgement back to the IU. Using the serial interface the RU can include up to two bytes of custom data with the acknowledgement, such as sensor data or battery voltage levels. By default the module sends back a simple acknowledgement (ACK). It sends an Acknowledge with Data (AWD) response when custom data is programmed into the module.Transmit OperationTransmit Operation is entered when any of the status line inputs go high. During Transmit Operation, the MODE_IND line is high. The module repeatedly transmits control messages containing the local address and the state of all status lines. Between transmissions the module listens for acknowledgement messages. If an Acknowledge (ACK) or Acknowledge with Data (AWD) message is received for the transmitted data, the ACK_OUT line is asserted for 100ms. The ACK_OUT timing restarts on each ACK or AWD packet that is received.The transceiver sends control messages every 12.5ms as long as any of the status line inputs is high, updating the status line states with each packet. When all input lines are low, the module starts the shutoff sequence.During the shutoff sequence, the transmitter sends at least one packet with all outputs off. It then continues to transmit data until the current channel hopping cycle is complete, resulting in balanced channel use. If an input line is asserted during the shutoff sequence, the transmitter cancels the shutoff and extends the transmission sequence.Receive OperationDuring Receive Operation, the module waits for a valid control message from an authorized transceiver. When a valid message is received, it locks on to the hopping pattern of the transmitter and asserts the MODE_IND line. It compares the received status line states to the Permission Mask for the IU to see if the IU is authorized to activate the lines. The module sets all authorized outputs to match the received states.Only status line outputs are affected by received commands. Commands to change an input line produce no result.The RU then checks the state of the ACK_EN line and transmits an acknowledgement packet if it is high. It looks for the next valid packet while maintaining the frequency hopping timing. As long as an RU is receiving valid commands from a paired IU, it will not respond to any other unit.Once eight consecutive packets are missed, the RU is logically disconnected from the IU and waits for the next valid packet from any IU.

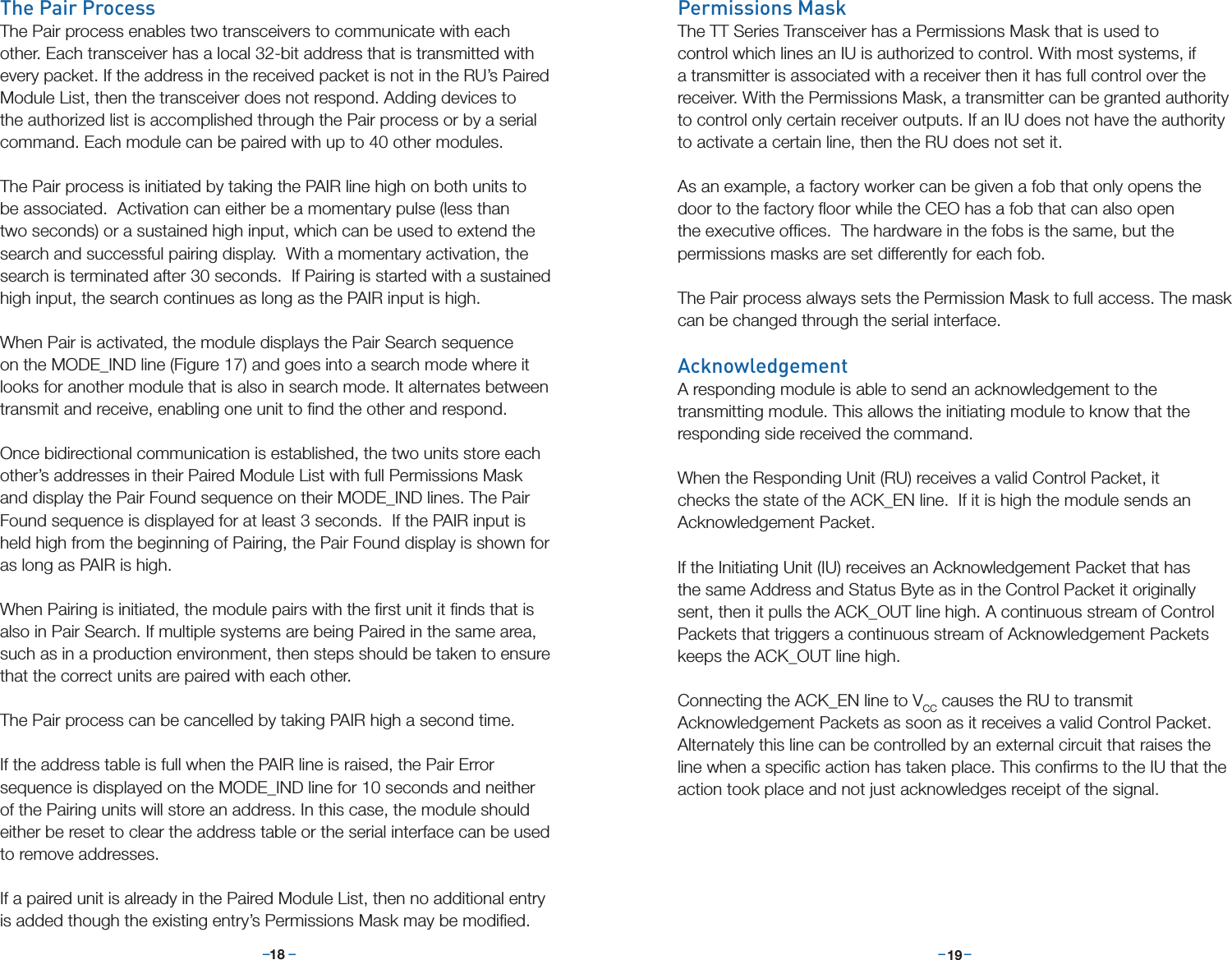

– – – –18 19Permissions MaskThe TT Series Transceiver has a Permissions Mask that is used to control which lines an IU is authorized to control. With most systems, if a transmitter is associated with a receiver then it has full control over the receiver. With the Permissions Mask, a transmitter can be granted authority to control only certain receiver outputs. If an IU does not have the authority to activate a certain line, then the RU does not set it.As an example, a factory worker can be given a fob that only opens the door to the factory floor while the CEO has a fob that can also open the executive offices. The hardware in the fobs is the same, but the permissions masks are set differently for each fob.The Pair process always sets the Permission Mask to full access. The mask can be changed through the serial interface.AcknowledgementA responding module is able to send an acknowledgement to the transmitting module. This allows the initiating module to know that the responding side received the command.When the Responding Unit (RU) receives a valid Control Packet, it checks the state of the ACK_EN line. If it is high the module sends an Acknowledgement Packet.If the Initiating Unit (IU) receives an Acknowledgement Packet that has the same Address and Status Byte as in the Control Packet it originally sent, then it pulls the ACK_OUT line high. A continuous stream of Control Packets that triggers a continuous stream of Acknowledgement Packets keeps the ACK_OUT line high.Connecting the ACK_EN line to VCC causes the RU to transmit Acknowledgement Packets as soon as it receives a valid Control Packet. Alternately this line can be controlled by an external circuit that raises the line when a specific action has taken place. This confirms to the IU that the action took place and not just acknowledges receipt of the signal.The Pair ProcessThe Pair process enables two transceivers to communicate with each other. Each transceiver has a local 32-bit address that is transmitted with every packet. If the address in the received packet is not in the RU’s Paired Module List, then the transceiver does not respond. Adding devices to the authorized list is accomplished through the Pair process or by a serial command. Each module can be paired with up to 40 other modules.The Pair process is initiated by taking the PAIR line high on both units to be associated. Activation can either be a momentary pulse (less than two seconds) or a sustained high input, which can be used to extend the search and successful pairing display. With a momentary activation, the search is terminated after 30 seconds. If Pairing is started with a sustained high input, the search continues as long as the PAIR input is high.When Pair is activated, the module displays the Pair Search sequence on the MODE_IND line (Figure 17) and goes into a search mode where it looks for another module that is also in search mode. It alternates between transmit and receive, enabling one unit to find the other and respond. Once bidirectional communication is established, the two units store each other’s addresses in their Paired Module List with full Permissions Mask and display the Pair Found sequence on their MODE_IND lines. The Pair Found sequence is displayed for at least 3 seconds. If the PAIR input is held high from the beginning of Pairing, the Pair Found display is shown for as long as PAIR is high.When Pairing is initiated, the module pairs with the first unit it finds that is also in Pair Search. If multiple systems are being Paired in the same area, such as in a production environment, then steps should be taken to ensure that the correct units are paired with each other.The Pair process can be cancelled by taking PAIR high a second time.If the address table is full when the PAIR line is raised, the Pair Error sequence is displayed on the MODE_IND line for 10 seconds and neither of the Pairing units will store an address. In this case, the module should either be reset to clear the address table or the serial interface can be used to remove addresses. If a paired unit is already in the Paired Module List, then no additional entry is added though the existing entry’s Permissions Mask may be modified.

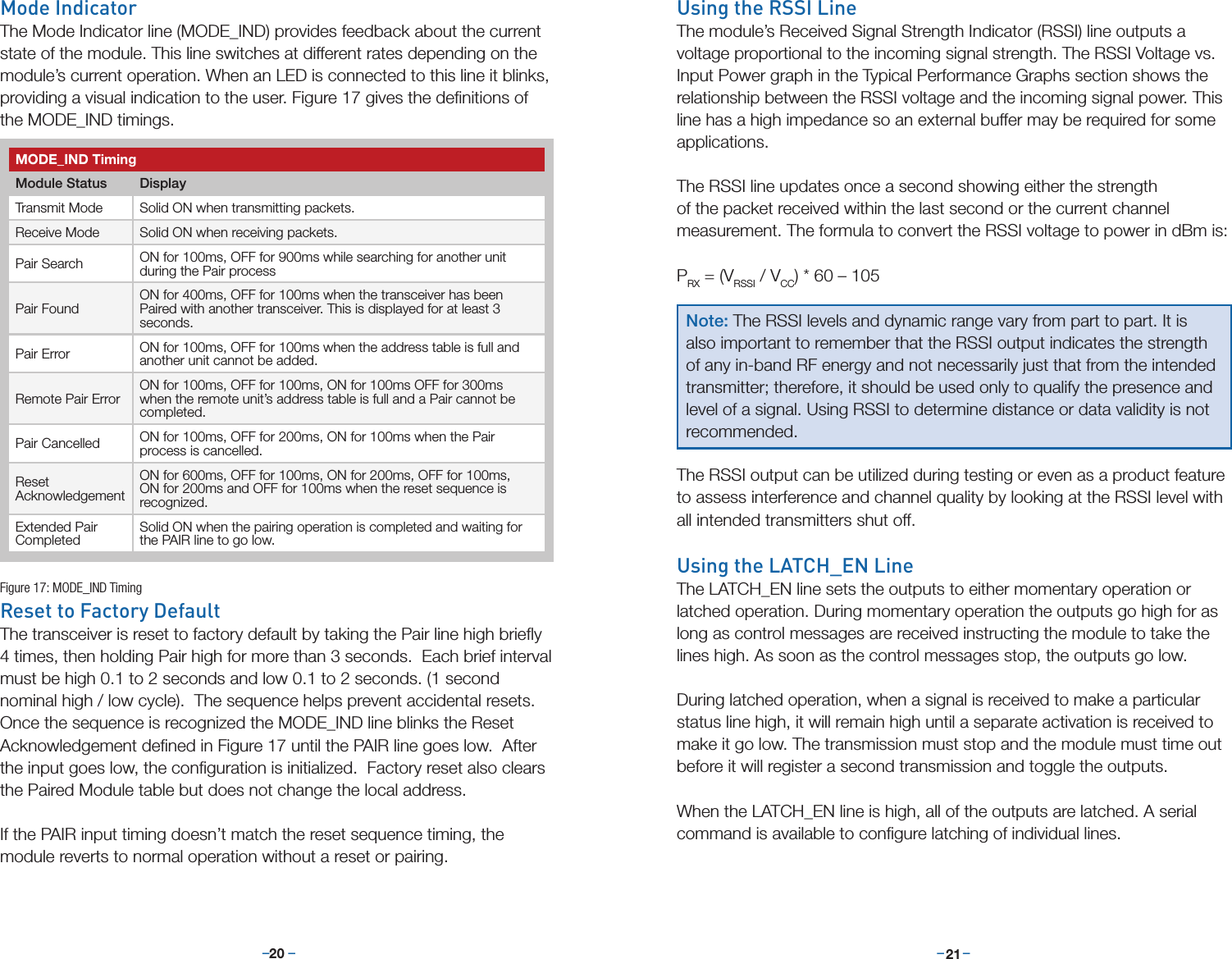

– – – –20 21Using the RSSI LineThe module’s Received Signal Strength Indicator (RSSI) line outputs a voltage proportional to the incoming signal strength. The RSSI Voltage vs. Input Power graph in the Typical Performance Graphs section shows the relationship between the RSSI voltage and the incoming signal power. This line has a high impedance so an external buffer may be required for some applications.The RSSI line updates once a second showing either the strength of the packet received within the last second or the current channel measurement. The formula to convert the RSSI voltage to power in dBm is:PRX = (VRSSI / VCC) * 60 – 105The RSSI output can be utilized during testing or even as a product feature to assess interference and channel quality by looking at the RSSI level with all intended transmitters shut off.Using the LATCH_EN LineThe LATCH_EN line sets the outputs to either momentary operation or latched operation. During momentary operation the outputs go high for as long as control messages are received instructing the module to take the lines high. As soon as the control messages stop, the outputs go low.During latched operation, when a signal is received to make a particular status line high, it will remain high until a separate activation is received to make it go low. The transmission must stop and the module must time out before it will register a second transmission and toggle the outputs.When the LATCH_EN line is high, all of the outputs are latched. A serial command is available to configure latching of individual lines.Note: The RSSI levels and dynamic range vary from part to part. It is also important to remember that the RSSI output indicates the strength of any in-band RF energy and not necessarily just that from the intended transmitter; therefore, it should be used only to qualify the presence and level of a signal. Using RSSI to determine distance or data validity is not recommended.Mode IndicatorThe Mode Indicator line (MODE_IND) provides feedback about the current state of the module. This line switches at different rates depending on the module’s current operation. When an LED is connected to this line it blinks, providing a visual indication to the user. Figure 17 gives the definitions of the MODE_IND timings.Reset to Factory DefaultThe transceiver is reset to factory default by taking the Pair line high briefly 4 times, then holding Pair high for more than 3 seconds. Each brief interval must be high 0.1 to 2 seconds and low 0.1 to 2 seconds. (1 second nominal high / low cycle). The sequence helps prevent accidental resets. Once the sequence is recognized the MODE_IND line blinks the Reset Acknowledgement defined in Figure 17 until the PAIR line goes low. After the input goes low, the configuration is initialized. Factory reset also clears the Paired Module table but does not change the local address.If the PAIR input timing doesn’t match the reset sequence timing, the module reverts to normal operation without a reset or pairing. MODE_IND TimingModule Status DisplayTransmit Mode Solid ON when transmitting packets.Receive Mode Solid ON when receiving packets.Pair Search ON for 100ms, OFF for 900ms while searching for another unit during the Pair processPair FoundON for 400ms, OFF for 100ms when the transceiver has been Paired with another transceiver. This is displayed for at least 3 seconds.Pair Error ON for 100ms, OFF for 100ms when the address table is full and another unit cannot be added.Remote Pair ErrorON for 100ms, OFF for 100ms, ON for 100ms OFF for 300ms when the remote unit’s address table is full and a Pair cannot be completed.Pair Cancelled ON for 100ms, OFF for 200ms, ON for 100ms when the Pair process is cancelled.Reset AcknowledgementON for 600ms, OFF for 100ms, ON for 200ms, OFF for 100ms, ON for 200ms and OFF for 100ms when the reset sequence is recognized.Extended Pair CompletedSolid ON when the pairing operation is completed and waiting for the PAIR line to go low.Figure 17: MODE_IND Timing
– – – –22 23Power Level vs. Resistor ValuePower LevelPO (dBm)1% Resistor ValuePower LevelPO (dBm)1% Resistor ValuePower LevelPO (dBm)1% Resistor value57 12.2 Open 38 3.4 154k 19 −5.4 44.2k56 12.1 750k 37 3.1 143k 18 −5.7 41.2k55 12.1 649k 36 2.7 133k 17 −6.1 37.4k54 11.8 576k 35 2.1 127k 16 −6.7 34.8k53 11.8 510k 34 1.6 118k 15 −7.0 32.4k52 9.5 453k 33 1.1 111k 14 −7.5 29.4k51 9.7 412k 32 0.8 105k 13 −7.9 26.7k50 8.9 347k 31 0.3 97.6k 12 −8.3 24.3k49 8.3 340k 30 −0.1 91k 11 −8.8 22k48 8.0 316k 29 −0.6 86.6k 10 −9.3 19.6k47 7.4 287k 28 −0.9 80.6k 9 −9.1 17.4k46 6.9 267k 27 −1.4 76.8k 8 −9.6 15.4k45 6.7 243k 26 −1.8 71.5k 7 −10.2 13.3k44 6.3 226k 25 −2.3 66.5k 6 −10.8 11.3k43 5.8 210k 24 −2.8 62k 5 −11.5 9.53k42 5.3 200k 23 −3.2 57.6k 4 −12.2 7.5k41 4.8 182k 22 −3.7 54.9k 3 −13.0 5.76k40 4.3 174k 21 −4.3 51k 2 −13.9 4.02k39 4.0 165k 20 −4.8 47k 1 −14.5 2.32k0 −15.7 750Figure 18: Power Level vs. Resistor ValueUsing the Low Power FeaturesThe Power Down (POWER_DOWN) line can be used to completely power down the transceiver module without the need for an external switch. This line allows easy control of the transceiver power state from external components, such as a microcontroller. The module is not functional while in power down mode.Using the LVL_ADJ LineThe Level Adjust (LVL_ADJ) line allows the transceiver’s output power to be easily adjusted for range control or lower power consumption. This is done by placing a resistor to ground on LVL_ADJ to form a voltage divider with an internal 100kΩ resistor. When the transceiver powers up, the voltage on this line is measured and the output power level is set accordingly. When LVL_ADJ is connected to VCC or floating, the output power and current consumption are the highest. When connected to ground, the output power and current are the lowest. The power is digitally controlled in 58 steps providing approximately 0.5dB per step. See the Typical Performance Graphs section (Figure 6) for a graph of the output power vs. LVL_ADJ resistance. Even in designs where attenuation is not anticipated, it is a good idea to place resistor pads connected to LVL_ADJ and ground so that it can be used if needed. Figure 18 shows the 1% tolerance resistor value that is needed to set each power level and gives the approximate output power for each level. The output power levels are approximate and may vary part-to-part.Warning: The LVL_ADJ line uses a resistor divider to create a voltage that determines the output power. Any additional current sourcing or sinking can change this voltage and result in a different power level. The power level should be checked to confirm that it is set as expected.Warning: Pulling any of the module inputs high while in Power Down can partially activate the module, increasing current consumption and potentially placing it into an indeterminate state that could lead to unpredictable operation. Pull all inputs low before pulling POWER_DOWN low to prevent this issue. Lines that may be hardwired (for example, the ACK_EN line) can be connected to the POWER_DOWN line so that they are lowered when POWER_DOWN is lowered.
– – – –24 25The Command Data InterfaceThe TT Series transceiver has a serial Command Data Interface (CDI) that offers the option to configure and control the transceiver through software instead of through hardware. This interface consists of a standard UART with a serial command set. This allows for fewer connections in applications controlled by a microcontroller as well as for more control and advanced features than can be offered through hardware pins alone.The serial port uses the CMD_DATA_IN and CMD_DATA_OUT lines as a UART. An automatic baud rate detection system allows the interface to run at a variable data rate from 9.6kbps to 57.6kbps.The Command Data Interface has two sets of operators. One is a set of commands that performs specific tasks and the other is a set of parameters that are for module configuration and status reporting. These are shown in Figure 19.TT Series Transceiver Command Data Interface Reference Guide has full details on each command. Some key features available with the serial interface are:• Configure the module through software instead of setting the hardware lines.• Change the output power, providing the ability to lower power consumption when signal levels are good and extend battery life.• Individually set which status lines are inputs and outputs.• Individually set status line outputs to operate as momentary or latched.• Add or remove specific paired devices.• Individually set Permission Masks that prevent certain paired devices from activating certain status line outputs.• Change the module’s local address for production or tracking purposes or to replace a lost or broken product.• Put the module into a low power state to conserve battery power.• Receive the entire control message serially instead of needing to monitor individual status lines. Get the IU address for logging access attempts.• Receive control messages from unpaired modules, allowing for expansion of the system beyond the maximum of 40 paired units. Access control and address validation can be undertaken by an external processor or PC with more memory than the module.• Serially configure and control acknowledge messages.• Send and receive 2 bytes (16 bits) of custom data with each command message and acknowledge message.• Serially initiate transmission of control messages instead of triggering the status line inputs.• Set interrupts to notify an external processor when specific events occur, such as receiving a control message.• Read out the RSSI value for the last received packet and the current ambient RF level.The serial interface offers a great deal of flexibility for use more complicated designs. Please see Reference Guide RG-00103: the TT Series Command Data Interface for details on the CDI. A list of the serial commands is shown in Figure 19 for reference.

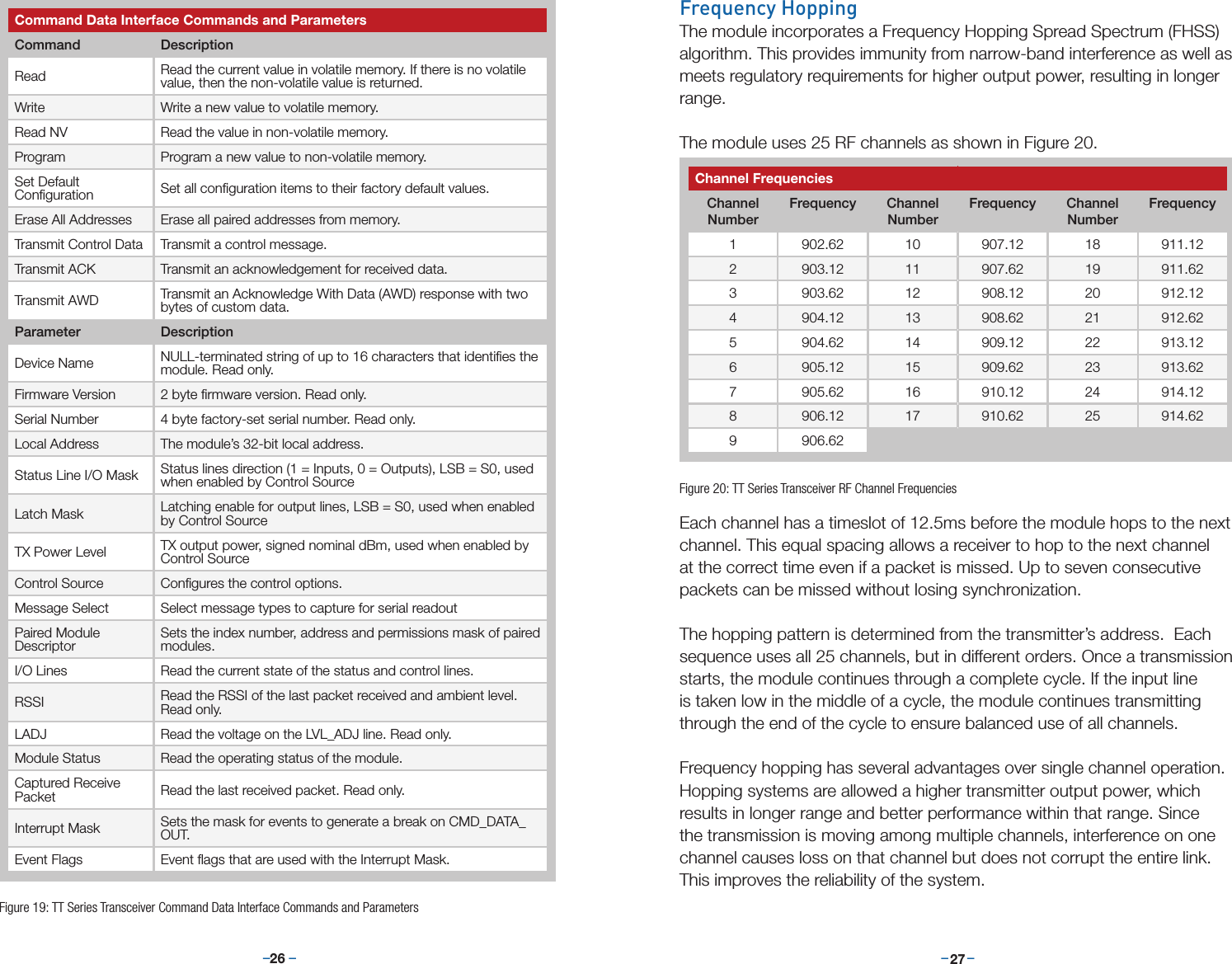

– – – –26 27Command Data Interface Commands and ParametersCommand DescriptionRead Read the current value in volatile memory. If there is no volatile value, then the non-volatile value is returned.Write Write a new value to volatile memory.Read NV Read the value in non-volatile memory.Program Program a new value to non-volatile memory.Set Default Configuration Set all configuration items to their factory default values.Erase All Addresses Erase all paired addresses from memory.Transmit Control Data Transmit a control message.Transmit ACK Transmit an acknowledgement for received data.Transmit AWD Transmit an Acknowledge With Data (AWD) response with two bytes of custom data.Parameter DescriptionDevice Name NULL-terminated string of up to 16 characters that identifies the module. Read only.Firmware Version 2 byte firmware version. Read only.Serial Number 4 byte factory-set serial number. Read only.Local Address The module’s 32-bit local address.Status Line I/O Mask Status lines direction (1 = Inputs, 0 = Outputs), LSB = S0, used when enabled by Control SourceLatch Mask Latching enable for output lines, LSB = S0, used when enabled by Control SourceTX Power Level TX output power, signed nominal dBm, used when enabled by Control SourceControl Source Configures the control options.Message Select Select message types to capture for serial readoutPaired Module DescriptorSets the index number, address and permissions mask of paired modules.I/O Lines Read the current state of the status and control lines.RSSI Read the RSSI of the last packet received and ambient level. Read only.LADJ Read the voltage on the LVL_ADJ line. Read only.Module Status Read the operating status of the module.Captured Receive Packet Read the last received packet. Read only.Interrupt Mask Sets the mask for events to generate a break on CMD_DATA_OUT.Event Flags Event flags that are used with the Interrupt Mask.Figure 19: TT Series Transceiver Command Data Interface Commands and ParametersFrequency HoppingThe module incorporates a Frequency Hopping Spread Spectrum (FHSS) algorithm. This provides immunity from narrow-band interference as well as meets regulatory requirements for higher output power, resulting in longer range.The module uses 25 RF channels as shown in Figure 20.Each channel has a timeslot of 12.5ms before the module hops to the next channel. This equal spacing allows a receiver to hop to the next channel at the correct time even if a packet is missed. Up to seven consecutive packets can be missed without losing synchronization.The hopping pattern is determined from the transmitter’s address. Each sequence uses all 25 channels, but in different orders. Once a transmission starts, the module continues through a complete cycle. If the input line is taken low in the middle of a cycle, the module continues transmitting through the end of the cycle to ensure balanced use of all channels.Frequency hopping has several advantages over single channel operation. Hopping systems are allowed a higher transmitter output power, which results in longer range and better performance within that range. Since the transmission is moving among multiple channels, interference on one channel causes loss on that channel but does not corrupt the entire link. This improves the reliability of the system.Channel FrequenciesChannel NumberFrequency Channel NumberFrequency Channel NumberFrequency1 902.62 10 907.12 18 911.122 903.12 11 907.62 19 911.623 903.62 12 908.12 20 912.124 904.12 13 908.62 21 912.625 904.62 14 909.12 22 913.126 905.12 15 909.62 23 913.627 905.62 16 910.12 24 914.128 906.12 17 910.62 25 914.629 906.62Figure 20: TT Series Transceiver RF Channel Frequencies

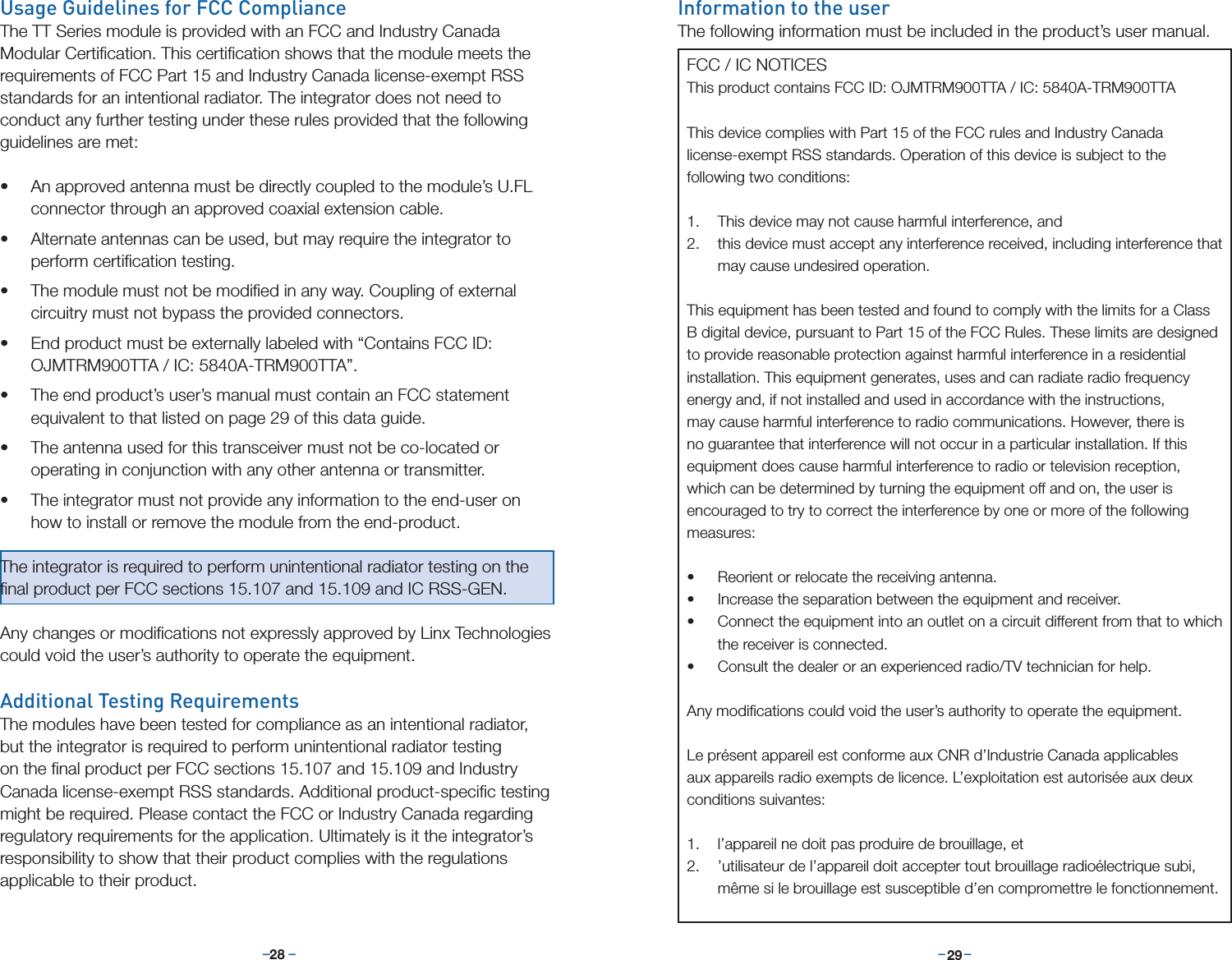

– – – –28 29Usage Guidelines for FCC ComplianceThe TT Series module is provided with an FCC and Industry Canada Modular Certification. This certification shows that the module meets the requirements of FCC Part 15 and Industry Canada license-exempt RSS standards for an intentional radiator. The integrator does not need to conduct any further testing under these rules provided that the following guidelines are met:• An approved antenna must be directly coupled to the module’s U.FL connector through an approved coaxial extension cable.• Alternate antennas can be used, but may require the integrator to perform certification testing.• The module must not be modified in any way. Coupling of external circuitry must not bypass the provided connectors.• End product must be externally labeled with “Contains FCC ID: OJMTRM900TTA / IC: 5840A-TRM900TTA”. • The end product’s user’s manual must contain an FCC statement equivalent to that listed on page 29 of this data guide.• The antenna used for this transceiver must not be co-located or operating in conjunction with any other antenna or transmitter.• The integrator must not provide any information to the end-user on how to install or remove the module from the end-product.The integrator is required to perform unintentional radiator testing on the final product per FCC sections 15.107 and 15.109 and IC RSS-GEN.Any changes or modifications not expressly approved by Linx Technologies could void the user’s authority to operate the equipment.Additional Testing RequirementsThe modules have been tested for compliance as an intentional radiator, but the integrator is required to perform unintentional radiator testing on the final product per FCC sections 15.107 and 15.109 and Industry Canada license-exempt RSS standards. Additional product-specific testing might be required. Please contact the FCC or Industry Canada regarding regulatory requirements for the application. Ultimately is it the integrator’s responsibility to show that their product complies with the regulations applicable to their product.Information to the userThe following information must be included in the product’s user manual.FCC / IC NOTICESThis product contains FCC ID: OJMTRM900TTA / IC: 5840A-TRM900TTAThis device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS standards. Operation of this device is subject to the following two conditions:1. This device may not cause harmful interference, and2. this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Any modifications could void the user’s authority to operate the equipment.Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:1. l’appareil ne doit pas produire de brouillage, et 2. ’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
– – – –30 31Product LabelingThe end product must be labeled to meet the FCC and IC product label requirements. It must have the below or similar text:Contains FCC ID: OJMTRM900TTA / IC: 5840A-TRM900TTAThe label must be permanently affixed to the product and readily visible to the user. ‘‘Permanently affixed’’ means that the label is etched, engraved, stamped, silkscreened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable.FCC RF Exposure StatementTo satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.Antenna SelectionUnder FCC and Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by the FCC and Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.The TRM-900-TT radio transmitter has been approved by the FCC and Industry Canada to operate with the antenna types listed in Figure 21 with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.Le présent émetteur radio (TRM-900-TT) a été approuvé par Industrie Canada pour fonctionner avec les types d’antenne énumérés la Figure 21 et ayant un gain admissible maximal et l’impédance requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de l’émetteur.Antennas / AntennesLinx Part NumberRéférence Linx Type Gain ImpedanceImpédanceANT-916-CW-QW ¼ Wave Whip 1.84dBi 50ΩANT-916-PW-LP ¼ Wave Whip 2.44dBi 50ΩANT-916-SP Planar 1.35dBi 50ΩANT-916-WRT-RPS ½ Wave Dipole Helical 1.83dBi 50ΩANT-916-CHP ¼ Wave Whip 1.34dBi 50ΩANT-916-CW-HW ½ Wave Dipole Helical 1.83dBi 50ΩCable Assemblies / Assemblages de CâblesLinx Part NumberRéférence Linx DescriptionCSI-RSFB-300-UFMR* RP-SMA Bulkhead to U.FL with 300mm cableCSI-RSFE-300-UFMR* RP-SMA External Mount Bulkhead to U.FL with 300mm cable* Also available in 100mm and 200mm cable lengthFigure 21: TT Series Approved Antennas

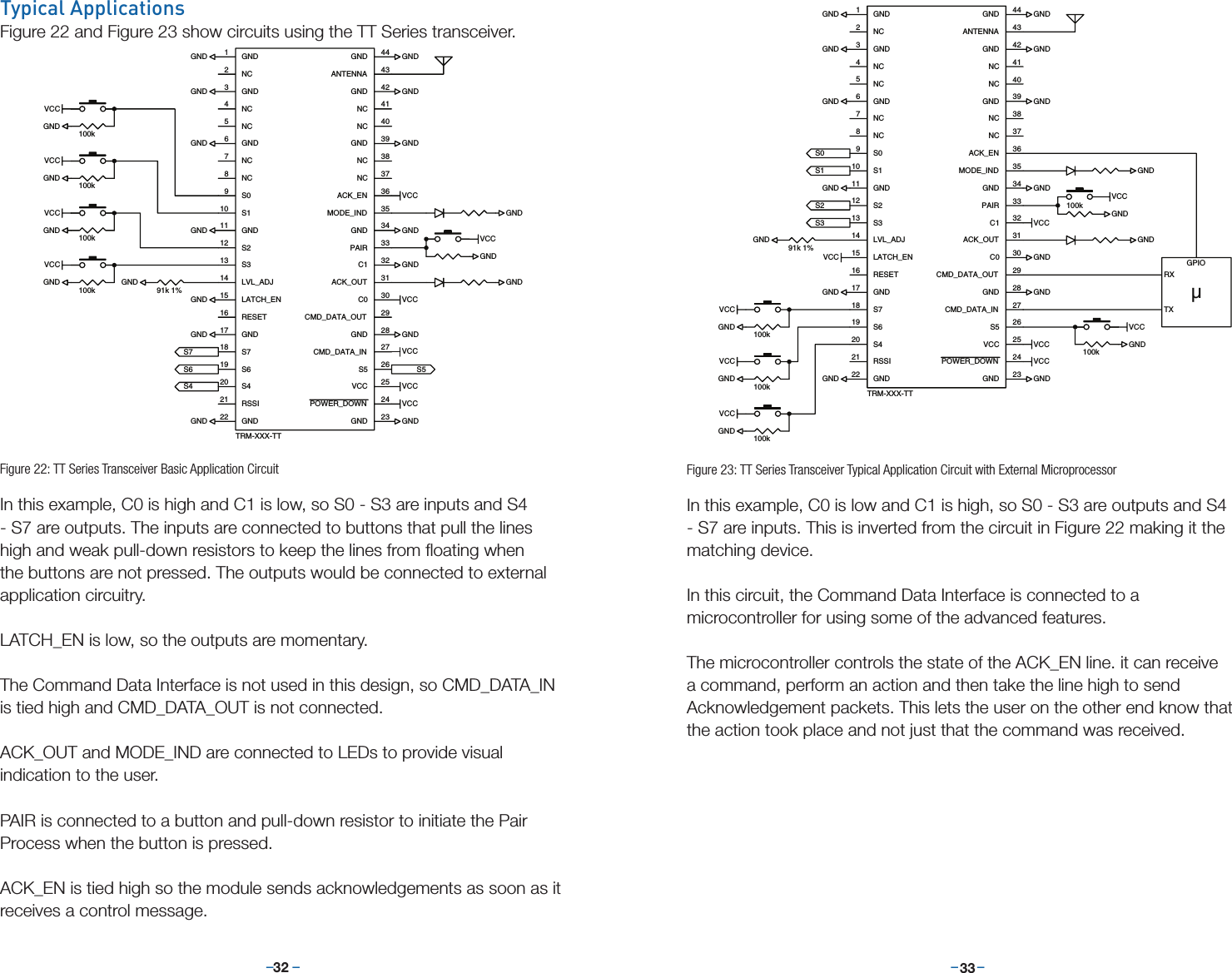

– – – –32 33In this example, C0 is low and C1 is high, so S0 - S3 are outputs and S4 - S7 are inputs. This is inverted from the circuit in Figure 22 making it the matching device.In this circuit, the Command Data Interface is connected to a microcontroller for using some of the advanced features. The microcontroller controls the state of the ACK_EN line. it can receive a command, perform an action and then take the line high to send Acknowledgement packets. This lets the user on the other end know that the action took place and not just that the command was received.Typical ApplicationsFigure 22 and Figure 23 show circuits using the TT Series transceiver.In this example, C0 is high and C1 is low, so S0 - S3 are inputs and S4 - S7 are outputs. The inputs are connected to buttons that pull the lines high and weak pull-down resistors to keep the lines from floating when the buttons are not pressed. The outputs would be connected to external application circuitry.LATCH_EN is low, so the outputs are momentary.The Command Data Interface is not used in this design, so CMD_DATA_IN is tied high and CMD_DATA_OUT is not connected.ACK_OUT and MODE_IND are connected to LEDs to provide visual indication to the user.PAIR is connected to a button and pull-down resistor to initiate the Pair Process when the button is pressed.ACK_EN is tied high so the module sends acknowledgements as soon as it receives a control message.1TRM-XXX-TTNC2GND3NC4NC5GND6NC7S09S110GND11S718S619RSSI21GND22 GND23POWER_DOWN 24VCC25S5 26CMD_DATA_IN27S212GND17S313LVL_ADJ14LATCH_EN15RESET16NC8S420GNDGND28CMD_DATA_OUT29C0 30ACK_OUT31C1 32PAIR 33GND34MODE_IND 35ACK_EN 36NC 37NC 38GND39NC 40NC 41GND42ANTENNA 43GND44GNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDVCCVCCGND100k100k100k100kGND91k 1%GNDGNDGNDGNDVCCVCCVCCVCCGNDS7S6S4S5VCCGNDGNDGNDVCCVCCNC2GND3NC4NC5GND6NC7S09S110GND11S718S619RSSI21GND22 GND23POWER_DOWN24VCC25S5 26CMD_DATA_IN 27S212GND17S313LVL_ADJ14LATCH_EN15RESET16NC8S420GND1GND28CMD_DATA_OUT29C0 30ACK_OUT31C1 32PAIR 33GND34MODE_IND 35ACK_EN36NC 37NC 38GND39NC 40NC 41GND42ANTENNA 43GND44TRM-XXX-TTGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDVCCVCCGND91k 1%GNDS0S1S2S3VCCGNDGND100kGNDVCC100k100k100kGNDGNDGNDGNDVCCVCCVCCVCCVCC100kµVCCRXTXGPIOFigure 22: TT Series Transceiver Basic Application Circuit1TRM-XXX-TTNC2GND3NC4NC5GND6NC7S09S110GND11S718S619RSSI21GND22 GND23POWER_DOWN 24VCC25S5 26CMD_DATA_IN27S212GND17S313LVL_ADJ14LATCH_EN15RESET16NC8S420GNDGND28CMD_DATA_OUT29C0 30ACK_OUT31C1 32PAIR 33GND34MODE_IND 35ACK_EN 36NC 37NC 38GND39NC 40NC 41GND42ANTENNA 43GND44GNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDVCCVCCGND100k100k100k100kGND91k 1%GNDGNDGNDGNDVCCVCCVCCVCCGNDS7S6S4S5VCCGNDGNDGNDVCCVCCNC2GND3NC4NC5GND6NC7S09S110GND11S718S619RSSI21GND22 GND23POWER_DOWN24VCC25S5 26CMD_DATA_IN 27S212GND17S313LVL_ADJ14LATCH_EN15RESET16NC8S420GND1GND28CMD_DATA_OUT29C0 30ACK_OUT31C1 32PAIR 33GND34MODE_IND 35ACK_EN36NC 37NC 38GND39NC 40NC 41GND42ANTENNA 43GND44TRM-XXX-TTGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDVCCVCCGND91k 1%GNDS0S1S2S3VCCGNDGND100kGNDVCC100k100k100kGNDGNDGNDGNDVCCVCCVCCVCCVCC100kµVCCRXTXGPIOFigure 23: TT Series Transceiver Typical Application Circuit with External Microprocessor

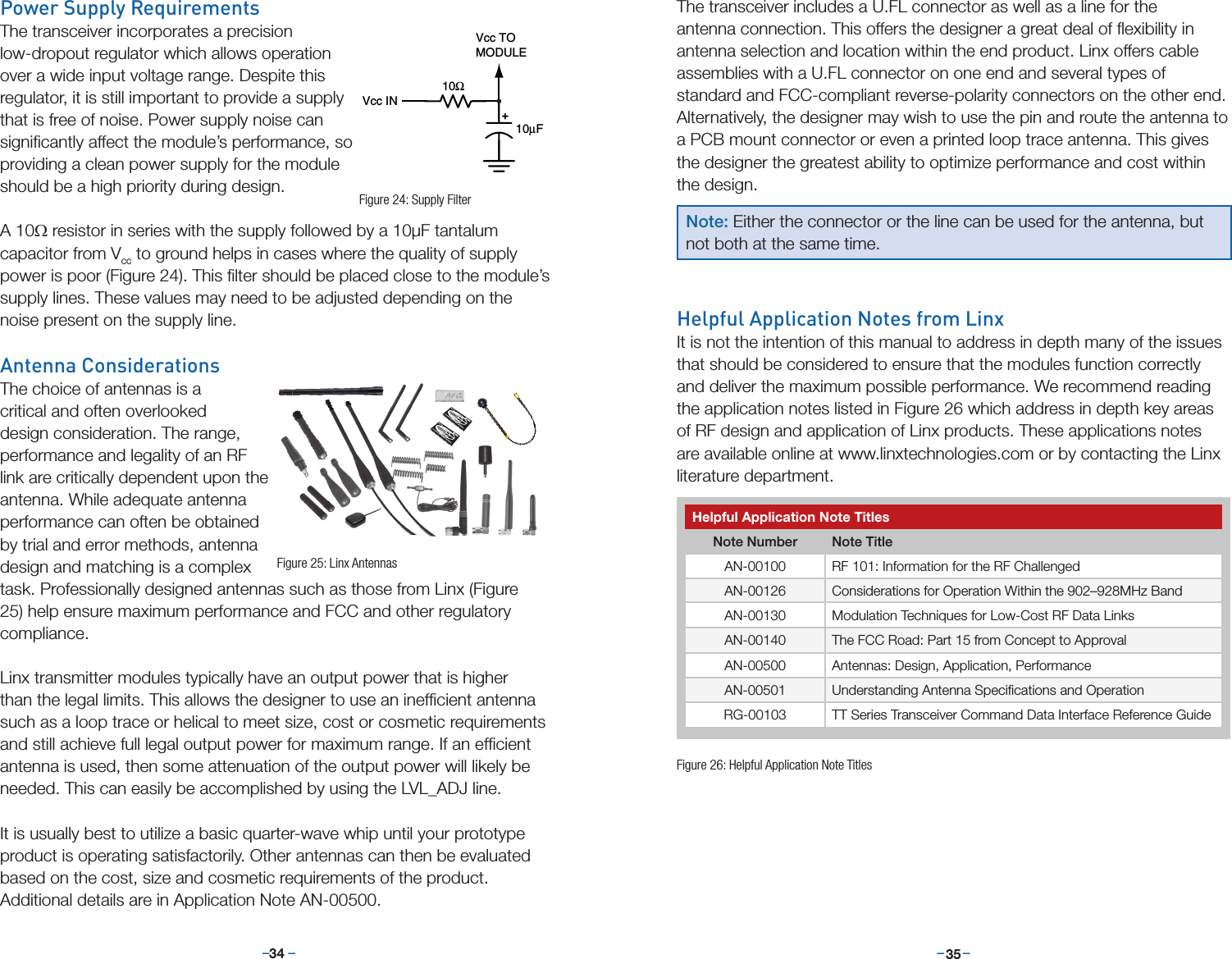

– – – –34 35The transceiver includes a U.FL connector as well as a line for the antenna connection. This offers the designer a great deal of flexibility in antenna selection and location within the end product. Linx offers cable assemblies with a U.FL connector on one end and several types of standard and FCC-compliant reverse-polarity connectors on the other end. Alternatively, the designer may wish to use the pin and route the antenna to a PCB mount connector or even a printed loop trace antenna. This gives the designer the greatest ability to optimize performance and cost within the design.Helpful Application Notes from LinxIt is not the intention of this manual to address in depth many of the issues that should be considered to ensure that the modules function correctly and deliver the maximum possible performance. We recommend reading the application notes listed in Figure 26 which address in depth key areas of RF design and application of Linx products. These applications notes are available online at www.linxtechnologies.com or by contacting the Linx literature department.Power Supply RequirementsThe transceiver incorporates a precision low-dropout regulator which allows operation over a wide input voltage range. Despite this regulator, it is still important to provide a supply that is free of noise. Power supply noise can significantly affect the module’s performance, so providing a clean power supply for the module should be a high priority during design. A 10Ω resistor in series with the supply followed by a 10µF tantalum capacitor from Vcc to ground helps in cases where the quality of supply power is poor (Figure 24). This filter should be placed close to the module’s supply lines. These values may need to be adjusted depending on the noise present on the supply line.Antenna ConsiderationsThe choice of antennas is a critical and often overlooked design consideration. The range, performance and legality of an RF link are critically dependent upon the antenna. While adequate antenna performance can often be obtained by trial and error methods, antenna design and matching is a complex task. Professionally designed antennas such as those from Linx (Figure 25) help ensure maximum performance and FCC and other regulatory compliance.Linx transmitter modules typically have an output power that is higher than the legal limits. This allows the designer to use an inefficient antenna such as a loop trace or helical to meet size, cost or cosmetic requirements and still achieve full legal output power for maximum range. If an efficient antenna is used, then some attenuation of the output power will likely be needed. This can easily be accomplished by using the LVL_ADJ line.It is usually best to utilize a basic quarter-wave whip until your prototype product is operating satisfactorily. Other antennas can then be evaluated based on the cost, size and cosmetic requirements of the product. Additional details are in Application Note AN-00500.+10Ω10µFVcc INVcc TOMODULEFigure 24: Supply FilterFigure 25: Linx AntennasNote: Either the connector or the line can be used for the antenna, but not both at the same time.Helpful Application Note TitlesNote Number Note TitleAN-00100 RF 101: Information for the RF ChallengedAN-00126 Considerations for Operation Within the 902–928MHz BandAN-00130 Modulation Techniques for Low-Cost RF Data LinksAN-00140 The FCC Road: Part 15 from Concept to ApprovalAN-00500 Antennas: Design, Application, PerformanceAN-00501 Understanding Antenna Specifications and OperationRG-00103 TT Series Transceiver Command Data Interface Reference GuideFigure 26: Helpful Application Note Titles
– – – –36 37Pad LayoutThe pad layout diagram in Figure 27 is designed to facilitate both hand and automated assembly.Board Layout GuidelinesThe module’s design makes integration straightforward; however, it is still critical to exercise care in PCB layout. Failure to observe good layout techniques can result in a significant degradation of the module’s performance. A primary layout goal is to maintain a characteristic 50-ohm impedance throughout the path from the antenna to the module. Grounding, filtering, decoupling, routing and PCB stack-up are also important considerations for any RF design. The following section provides some basic design guidelines.During prototyping, the module should be soldered to a properly laid-out circuit board. The use of prototyping or “perf” boards results in poor performance and is strongly discouraged. Likewise, the use of sockets can have a negative impact on the performance of the module and is discouraged. The module should, as much as reasonably possible, be isolated from other components on your PCB, especially high-frequency circuitry such as crystal oscillators, switching power supplies, and high-speed bus lines. When possible, separate RF and digital circuits into different PCB regions.Make sure internal wiring is routed away from the module and antenna and is secured to prevent displacement.0.028"0.065"0.605"0.050" 0.050"0.045"Figure 27: Recommended PCB LayoutInterference ConsiderationsThe RF spectrum is crowded and the potential for conflict with unwanted sources of RF is very real. While all RF products are at risk from interference, its effects can be minimized by better understanding its characteristics. Interference may come from internal or external sources. The first step is to eliminate interference from noise sources on the board. This means paying careful attention to layout, grounding, filtering and bypassing in order to eliminate all radiated and conducted interference paths. For many products, this is straightforward; however, products containing components such as switching power supplies, motors, crystals and other potential sources of noise must be approached with care. Comparing your own design with a Linx evaluation board can help to determine if and at what level design-specific interference is present. External interference can manifest itself in a variety of ways. Low-level interference produces noise and hashing on the output and reduces the link’s overall range.High-level interference is caused by nearby products sharing the same frequency or from near-band high-power devices. It can even come from your own products if more than one transmitter is active in the same area. It is important to remember that only one transmitter at a time can occupy a frequency, regardless of the coding of the transmitted signal. This type of interference is less common than those mentioned previously, but in severe cases it can prevent all useful function of the affected device. Although technically not interference, multipath is also a factor to be understood. Multipath is a term used to refer to the signal cancellation effects that occur when RF waves arrive at the receiver in different phase relationships. This effect is a particularly significant factor in interior environments where objects provide many different signal reflection paths. Multipath cancellation results in lowered signal levels at the receiver and shorter useful distances for the link.

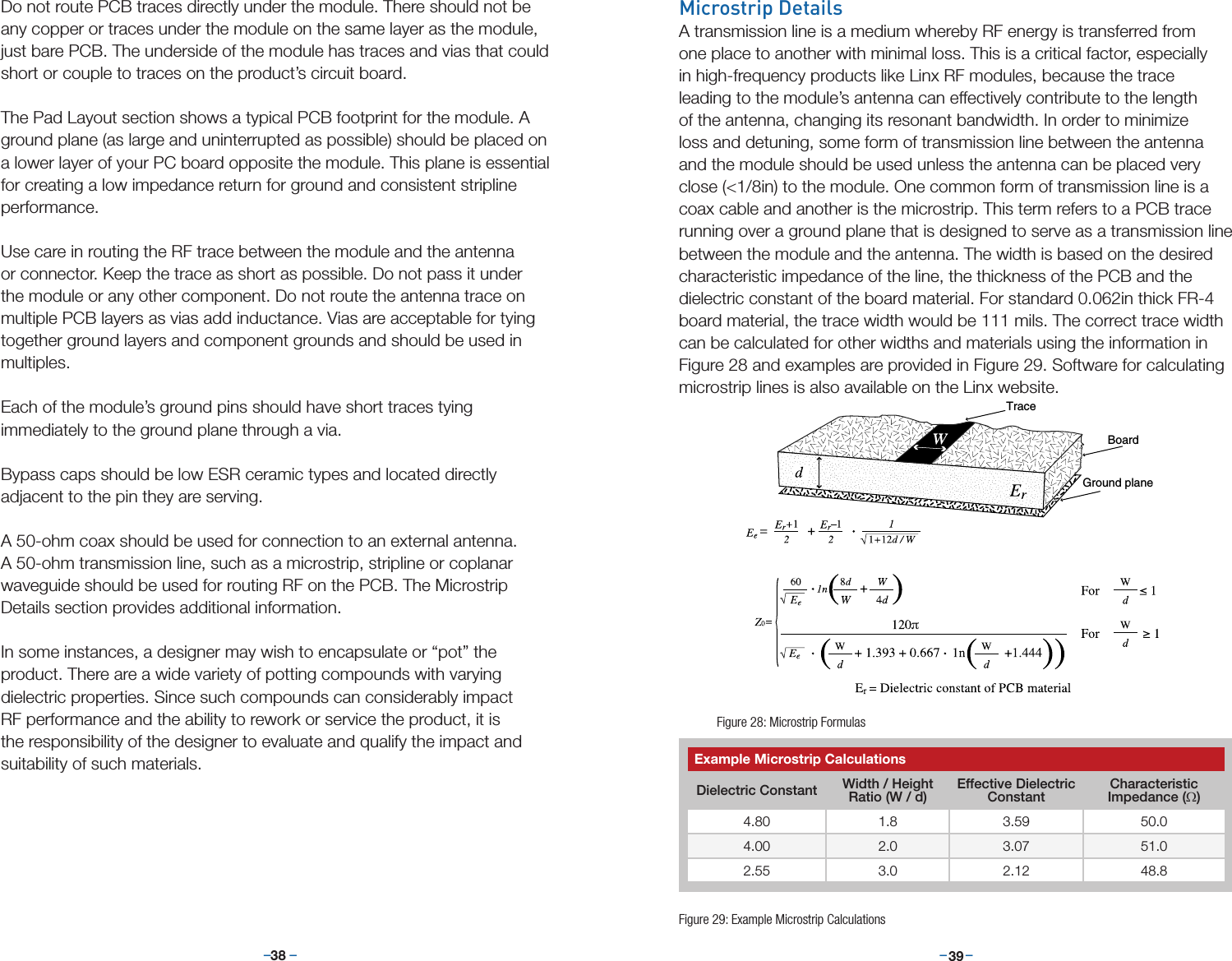

– – – –38 39Microstrip DetailsA transmission line is a medium whereby RF energy is transferred from one place to another with minimal loss. This is a critical factor, especially in high-frequency products like Linx RF modules, because the trace leading to the module’s antenna can effectively contribute to the length of the antenna, changing its resonant bandwidth. In order to minimize loss and detuning, some form of transmission line between the antenna and the module should be used unless the antenna can be placed very close (<1/8in) to the module. One common form of transmission line is a coax cable and another is the microstrip. This term refers to a PCB trace running over a ground plane that is designed to serve as a transmission line between the module and the antenna. The width is based on the desired characteristic impedance of the line, the thickness of the PCB and the dielectric constant of the board material. For standard 0.062in thick FR-4 board material, the trace width would be 111 mils. The correct trace width can be calculated for other widths and materials using the information in Figure 28 and examples are provided in Figure 29. Software for calculating microstrip lines is also available on the Linx website.TraceBoardGround planeFigure 28: Microstrip FormulasExample Microstrip CalculationsDielectric Constant Width / Height Ratio (W / d)Effective Dielectric ConstantCharacteristic Impedance (Ω)4.80 1.8 3.59 50.04.00 2.0 3.07 51.02.55 3.0 2.12 48.8Figure 29: Example Microstrip CalculationsDo not route PCB traces directly under the module. There should not be any copper or traces under the module on the same layer as the module, just bare PCB. The underside of the module has traces and vias that could short or couple to traces on the product’s circuit board.The Pad Layout section shows a typical PCB footprint for the module. A ground plane (as large and uninterrupted as possible) should be placed on a lower layer of your PC board opposite the module. This plane is essential for creating a low impedance return for ground and consistent stripline performance. Use care in routing the RF trace between the module and the antenna or connector. Keep the trace as short as possible. Do not pass it under the module or any other component. Do not route the antenna trace on multiple PCB layers as vias add inductance. Vias are acceptable for tying together ground layers and component grounds and should be used in multiples.Each of the module’s ground pins should have short traces tying immediately to the ground plane through a via. Bypass caps should be low ESR ceramic types and located directly adjacent to the pin they are serving. A 50-ohm coax should be used for connection to an external antenna. A 50-ohm transmission line, such as a microstrip, stripline or coplanar waveguide should be used for routing RF on the PCB. The Microstrip Details section provides additional information.In some instances, a designer may wish to encapsulate or “pot” the product. There are a wide variety of potting compounds with varying dielectric properties. Since such compounds can considerably impact RF performance and the ability to rework or service the product, it is the responsibility of the designer to evaluate and qualify the impact and suitability of such materials.

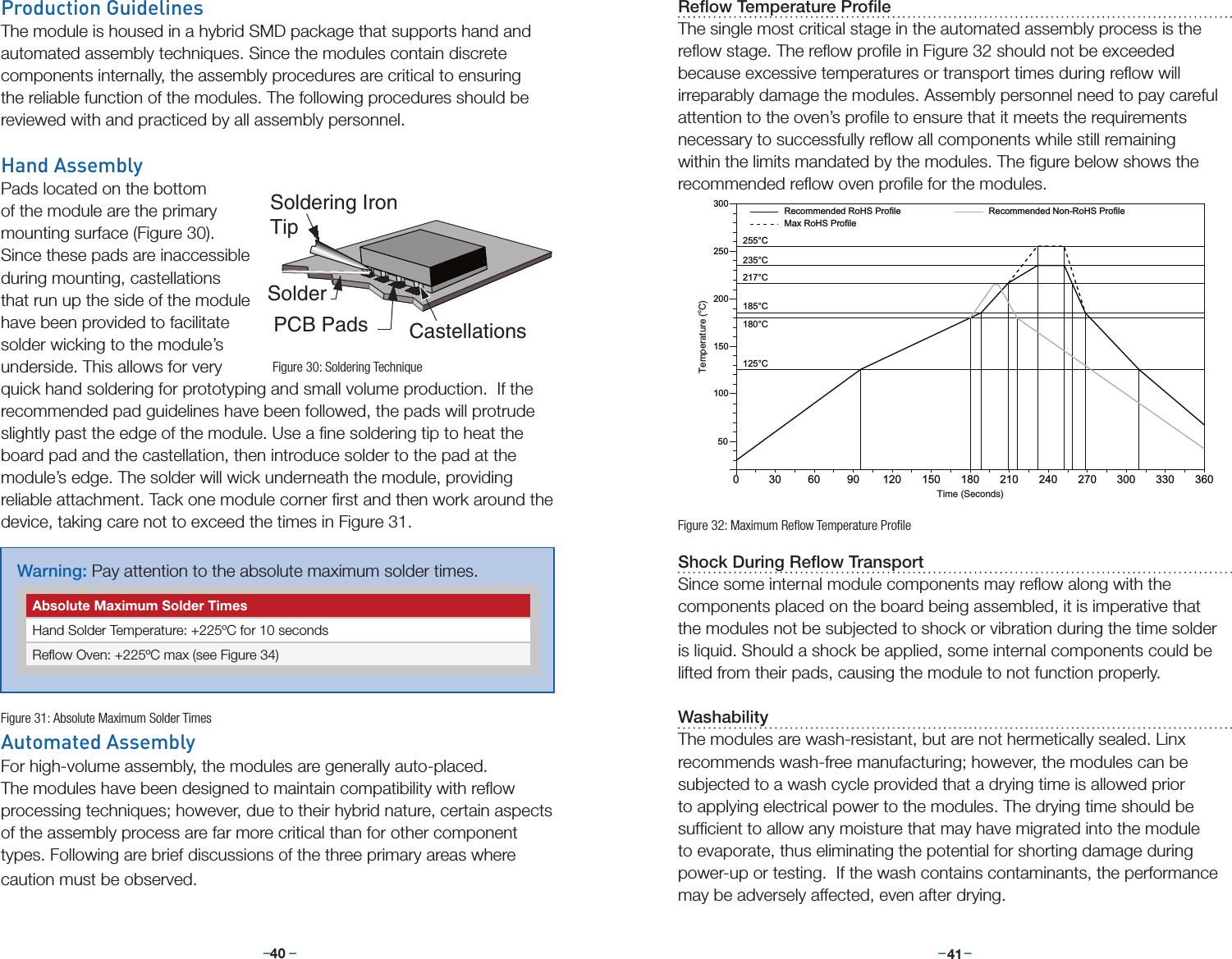

– – – –40 41Production GuidelinesThe module is housed in a hybrid SMD package that supports hand and automated assembly techniques. Since the modules contain discrete components internally, the assembly procedures are critical to ensuring the reliable function of the modules. The following procedures should be reviewed with and practiced by all assembly personnel.Hand AssemblyPads located on the bottom of the module are the primary mounting surface (Figure 30). Since these pads are inaccessible during mounting, castellations that run up the side of the module have been provided to facilitate solder wicking to the module’s underside. This allows for very quick hand soldering for prototyping and small volume production. If the recommended pad guidelines have been followed, the pads will protrude slightly past the edge of the module. Use a fine soldering tip to heat the board pad and the castellation, then introduce solder to the pad at the module’s edge. The solder will wick underneath the module, providing reliable attachment. Tack one module corner first and then work around the device, taking care not to exceed the times in Figure 31.Automated AssemblyFor high-volume assembly, the modules are generally auto-placed. The modules have been designed to maintain compatibility with reflow processing techniques; however, due to their hybrid nature, certain aspects of the assembly process are far more critical than for other component types. Following are brief discussions of the three primary areas where caution must be observed.CastellationsPCB PadsSoldering IronTipSolderFigure 30: Soldering TechniqueReflow Temperature ProfileThe single most critical stage in the automated assembly process is the reflow stage. The reflow profile in Figure 32 should not be exceeded because excessive temperatures or transport times during reflow will irreparably damage the modules. Assembly personnel need to pay careful attention to the oven’s profile to ensure that it meets the requirements necessary to successfully reflow all components while still remaining within the limits mandated by the modules. The figure below shows the recommended reflow oven profile for the modules.Shock During Reflow TransportSince some internal module components may reflow along with the components placed on the board being assembled, it is imperative that the modules not be subjected to shock or vibration during the time solder is liquid. Should a shock be applied, some internal components could be lifted from their pads, causing the module to not function properly.WashabilityThe modules are wash-resistant, but are not hermetically sealed. Linx recommends wash-free manufacturing; however, the modules can be subjected to a wash cycle provided that a drying time is allowed prior to applying electrical power to the modules. The drying time should be sufficient to allow any moisture that may have migrated into the module to evaporate, thus eliminating the potential for shorting damage during power-up or testing. If the wash contains contaminants, the performance may be adversely affected, even after drying.125°C185°C217°C255°C235°C60 12030 150180 210240 270300 33036009050100150200250300Recommended RoHS ProfileMax RoHS ProfileRecommended Non-RoHS Profile180°CTemperature (oC)Time (Seconds)Figure 32: Maximum Reflow Temperature ProfileWarning: Pay attention to the absolute maximum solder times.Figure 31: Absolute Maximum Solder TimesAbsolute Maximum Solder TimesHand Solder Temperature: +225ºC for 10 secondsReflow Oven: +225ºC max (see Figure 34)

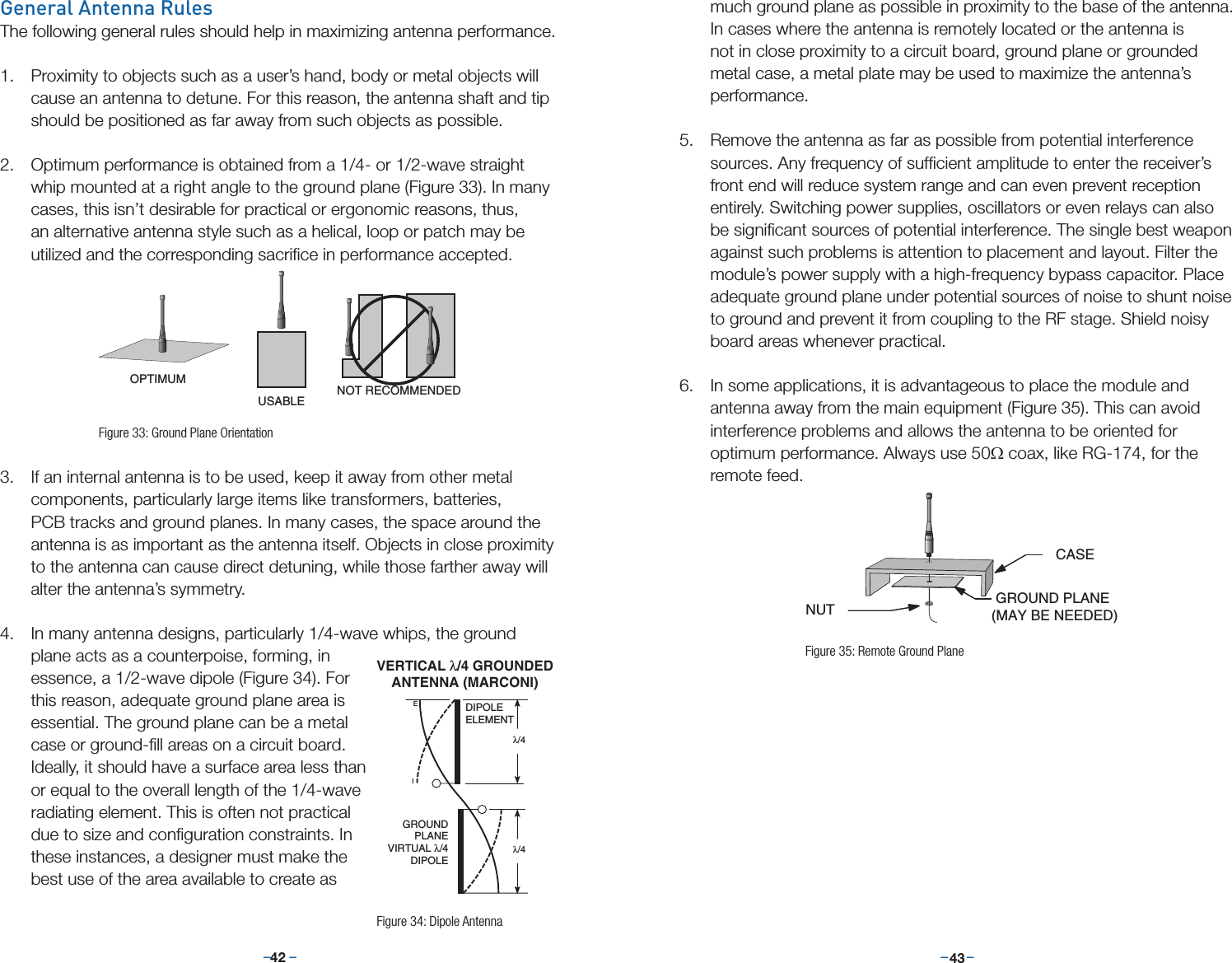

– – – –42 43General Antenna RulesThe following general rules should help in maximizing antenna performance.1. Proximity to objects such as a user’s hand, body or metal objects will cause an antenna to detune. For this reason, the antenna shaft and tip should be positioned as far away from such objects as possible. 2. Optimum performance is obtained from a 1/4- or 1/2-wave straight whip mounted at a right angle to the ground plane (Figure 33). In many cases, this isn’t desirable for practical or ergonomic reasons, thus, an alternative antenna style such as a helical, loop or patch may be utilized and the corresponding sacrifice in performance accepted.3. If an internal antenna is to be used, keep it away from other metal components, particularly large items like transformers, batteries, PCB tracks and ground planes. In many cases, the space around the antenna is as important as the antenna itself. Objects in close proximity to the antenna can cause direct detuning, while those farther away will alter the antenna’s symmetry.4. In many antenna designs, particularly 1/4-wave whips, the ground plane acts as a counterpoise, forming, in essence, a 1/2-wave dipole (Figure 34). For this reason, adequate ground plane area is essential. The ground plane can be a metal case or ground-fill areas on a circuit board. Ideally, it should have a surface area less than or equal to the overall length of the 1/4-wave radiating element. This is often not practical due to size and configuration constraints. In these instances, a designer must make the best use of the area available to create as OPTIMUMUSABLE NOT RECOMMENDEDNUT GROUND PLANE (MAY BE NEEDED)CASEFigure 33: Ground Plane Orientationmuch ground plane as possible in proximity to the base of the antenna. In cases where the antenna is remotely located or the antenna is not in close proximity to a circuit board, ground plane or grounded metal case, a metal plate may be used to maximize the antenna’s performance. 5. Remove the antenna as far as possible from potential interference sources. Any frequency of sufficient amplitude to enter the receiver’s front end will reduce system range and can even prevent reception entirely. Switching power supplies, oscillators or even relays can also be significant sources of potential interference. The single best weapon against such problems is attention to placement and layout. Filter the module’s power supply with a high-frequency bypass capacitor. Place adequate ground plane under potential sources of noise to shunt noise to ground and prevent it from coupling to the RF stage. Shield noisy board areas whenever practical. 6. In some applications, it is advantageous to place the module and antenna away from the main equipment (Figure 35). This can avoid interference problems and allows the antenna to be oriented for optimum performance. Always use 50Ω coax, like RG-174, for the remote feed. IEDIPOLEELEMENTGROUNDPLANEVIRTUAL λ/4DIPOLEλ/4 λ/4 VERTICAL λ/4 GROUNDEDANTENNA (MARCONI)Figure 34: Dipole AntennaOPTIMUMUSABLE NOT RECOMMENDEDNUT GROUND PLANE (MAY BE NEEDED)CASEFigure 35: Remote Ground Plane
– – – –44 45Common Antenna StylesThere are hundreds of antenna styles and variations that can be employed with Linx RF modules. Following is a brief discussion of the styles most commonly utilized. Additional antenna information can be found in Linx Application Notes AN-00100, AN-00140, AN-00500 and AN-00501. Linx antennas and connectors offer outstanding performance at a low price.Whip StyleA whip style antenna (Figure 36) provides outstanding overall performance and stability. A low-cost whip can be easily fabricated from a wire or rod, but most designers opt for the consistent performance and cosmetic appeal of a professionally-made model. To meet this need, Linx offers a wide variety of straight and reduced height whip style antennas in permanent and connectorized mounting styles.The wavelength of the operational frequency determines an antenna’s overall length. Since a full wavelength is often quite long, a partial 1/2- or 1/4-wave antenna is normally employed. Its size and natural radiation resistance make it well matched to Linx modules. The proper length for a straight 1/4-wave can be easily determined using the formula in Figure 37. It is also possible to reduce the overall height of the antenna by using a helical winding. This reduces the antenna’s bandwidth but is a great way to minimize the antenna’s physical size for compact applications. This also means that the physical appearance is not always an indicator of the antenna’s frequency.Specialty StylesLinx offers a wide variety of specialized antenna styles (Figure 38). Many of these styles utilize helical elements to reduce the overall antenna size while maintaining reasonable performance. A helical antenna’s bandwidth is often quite narrow and the antenna can detune in proximity to other objects, so care must be exercised in layout and placement.L =234FMHzFigure 36: Whip Style AntennasFigure 37: L = length in feet of quarter-wave lengthF = operating frequency in megahertzFigure 38: Specialty Style AntennasLoop StyleA loop or trace style antenna is normally printed directly on a product’s PCB (Figure 39). This makes it the most cost-effective of antenna styles. The element can be made self-resonant or externally resonated with discrete components, but its actual layout is usually product specific. Despite the cost advantages, loop style antennas are generally inefficient and useful only for short range applications. They are also very sensitive to changes in layout and PCB dielectric, which can cause consistency issues during production. In addition, printed styles are difficult to engineer, requiring the use of expensive equipment including a network analyzer. An improperly designed loop will have a high VSWR at the desired frequency which can cause instability in the RF stage.Linx offers low-cost planar (Figure 40) and chip antennas that mount directly to a product’s PCB. These tiny antennas do not require testing and provide excellent performance despite their small size. They offer a preferable alternative to the often problematic “printed” antenna.Figure 39: Loop or Trace AntennaFigure 40: SP Series “Splatch” Antenna

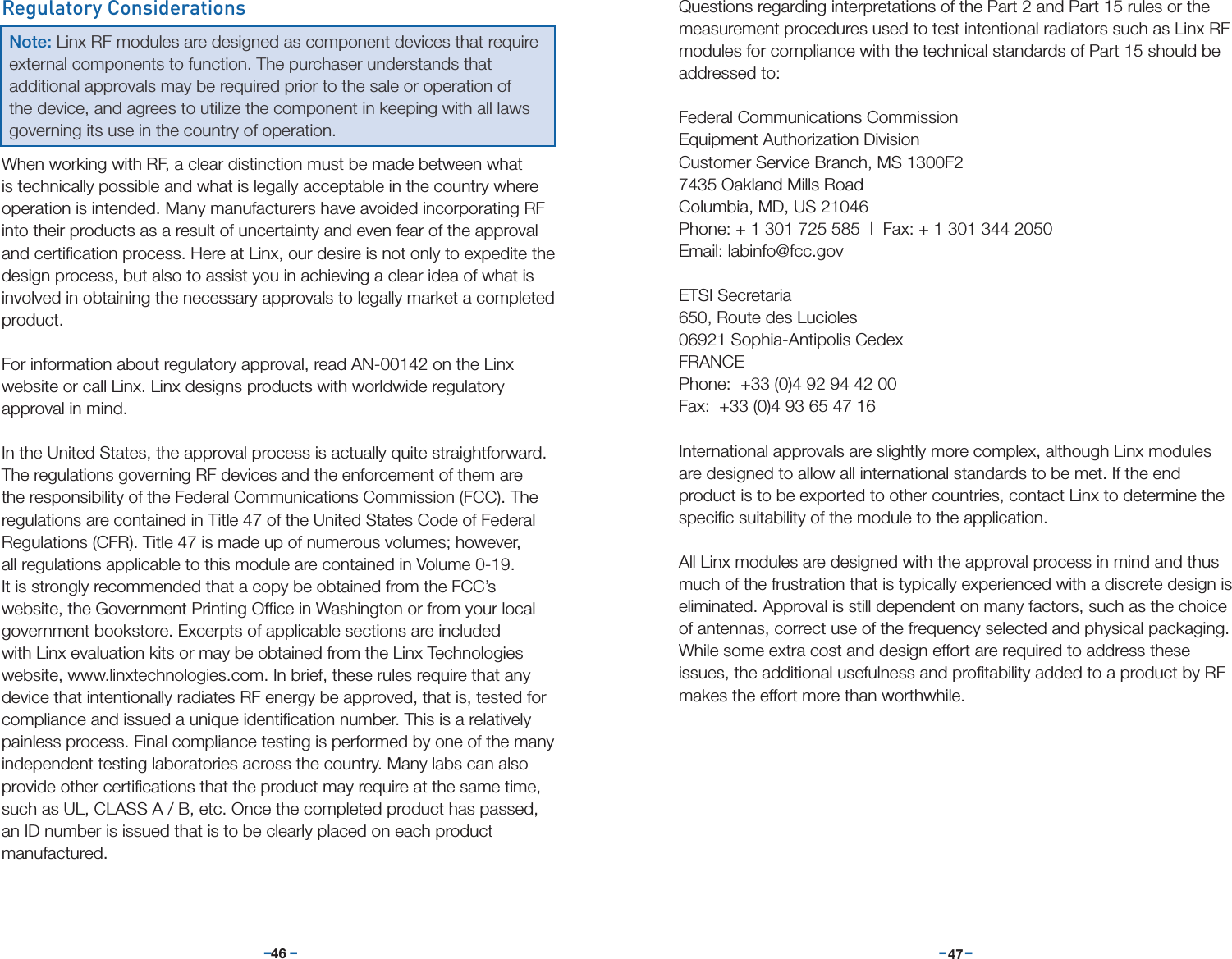

– – – –46 47Regulatory ConsiderationsWhen working with RF, a clear distinction must be made between what is technically possible and what is legally acceptable in the country where operation is intended. Many manufacturers have avoided incorporating RF into their products as a result of uncertainty and even fear of the approval and certification process. Here at Linx, our desire is not only to expedite the design process, but also to assist you in achieving a clear idea of what is involved in obtaining the necessary approvals to legally market a completed product. For information about regulatory approval, read AN-00142 on the Linx website or call Linx. Linx designs products with worldwide regulatory approval in mind. In the United States, the approval process is actually quite straightforward. The regulations governing RF devices and the enforcement of them are the responsibility of the Federal Communications Commission (FCC). The regulations are contained in Title 47 of the United States Code of Federal Regulations (CFR). Title 47 is made up of numerous volumes; however, all regulations applicable to this module are contained in Volume 0-19. It is strongly recommended that a copy be obtained from the FCC’s website, the Government Printing Office in Washington or from your local government bookstore. Excerpts of applicable sections are included with Linx evaluation kits or may be obtained from the Linx Technologies website, www.linxtechnologies.com. In brief, these rules require that any device that intentionally radiates RF energy be approved, that is, tested for compliance and issued a unique identification number. This is a relatively painless process. Final compliance testing is performed by one of the many independent testing laboratories across the country. Many labs can also provide other certifications that the product may require at the same time, such as UL, CLASS A / B, etc. Once the completed product has passed, an ID number is issued that is to be clearly placed on each product manufactured. Questions regarding interpretations of the Part 2 and Part 15 rules or the measurement procedures used to test intentional radiators such as Linx RF modules for compliance with the technical standards of Part 15 should be addressed to:Federal Communications Commission Equipment Authorization Division Customer Service Branch, MS 1300F2 7435 Oakland Mills Road Columbia, MD, US 21046 Phone: + 1 301 725 585 | Fax: + 1 301 344 2050 Email: labinfo@fcc.govETSI Secretaria650, Route des Lucioles06921 Sophia-Antipolis CedexFRANCEPhone: +33 (0)4 92 94 42 00 Fax: +33 (0)4 93 65 47 16International approvals are slightly more complex, although Linx modules are designed to allow all international standards to be met. If the end product is to be exported to other countries, contact Linx to determine the specific suitability of the module to the application.All Linx modules are designed with the approval process in mind and thus much of the frustration that is typically experienced with a discrete design is eliminated. Approval is still dependent on many factors, such as the choice of antennas, correct use of the frequency selected and physical packaging. While some extra cost and design effort are required to address these issues, the additional usefulness and profitability added to a product by RF makes the effort more than worthwhile.Note: Linx RF modules are designed as component devices that require external components to function. The purchaser understands that additional approvals may be required prior to the sale or operation of the device, and agrees to utilize the component in keeping with all laws governing its use in the country of operation.

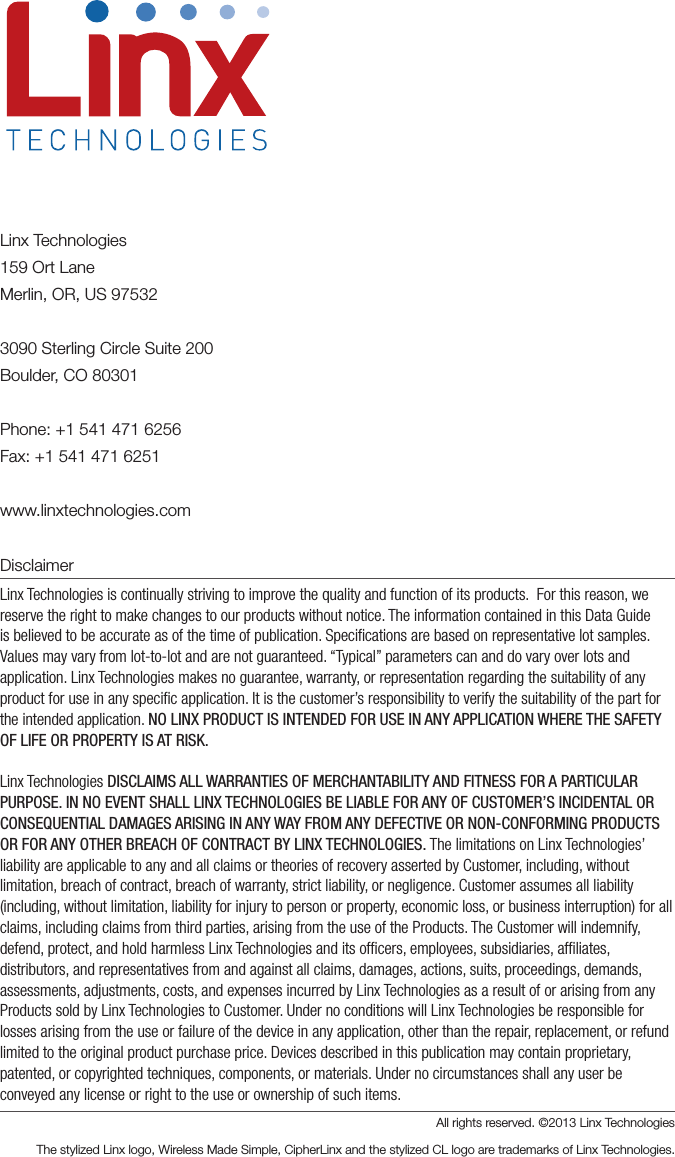

Linx Technologies159 Ort LaneMerlin, OR, US 975323090 Sterling Circle Suite 200Boulder, CO 80301Phone: +1 541 471 6256Fax: +1 541 471 6251www.linxtechnologies.comDisclaimerLinx Technologies is continually striving to improve the quality and function of its products. For this reason, we reserve the right to make changes to our products without notice. The information contained in this Data Guide is believed to be accurate as of the time of publication. Specifications are based on representative lot samples. Values may vary from lot-to-lot and are not guaranteed. “Typical” parameters can and do vary over lots and application. Linx Technologies makes no guarantee, warranty, or representation regarding the suitability of any product for use in any specific application. It is the customer’s responsibility to verify the suitability of the part for the intended application. NO LINX PRODUCT IS INTENDED FOR USE IN ANY APPLICATION WHERE THE SAFETY OF LIFE OR PROPERTY IS AT RISK.Linx Technologies DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL LINX TECHNOLOGIES BE LIABLE FOR ANY OF CUSTOMER’S INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING IN ANY WAY FROM ANY DEFECTIVE OR NON-CONFORMING PRODUCTS OR FOR ANY OTHER BREACH OF CONTRACT BY LINX TECHNOLOGIES. The limitations on Linx Technologies’ liability are applicable to any and all claims or theories of recovery asserted by Customer, including, without limitation, breach of contract, breach of warranty, strict liability, or negligence. Customer assumes all liability (including, without limitation, liability for injury to person or property, economic loss, or business interruption) for all claims, including claims from third parties, arising from the use of the Products. The Customer will indemnify, defend, protect, and hold harmless Linx Technologies and its officers, employees, subsidiaries, affiliates, distributors, and representatives from and against all claims, damages, actions, suits, proceedings, demands, assessments, adjustments, costs, and expenses incurred by Linx Technologies as a result of or arising from any Products sold by Linx Technologies to Customer. Under no conditions will Linx Technologies be responsible for losses arising from the use or failure of the device in any application, other than the repair, replacement, or refund limited to the original product purchase price. Devices described in this publication may contain proprietary, patented, or copyrighted techniques, components, or materials. Under no circumstances shall any user be conveyed any license or right to the use or ownership of such items.All rights reserved. ©2013 Linx Technologies The stylized Linx logo, Wireless Made Simple, CipherLinx and the stylized CL logo are trademarks of Linx Technologies.
