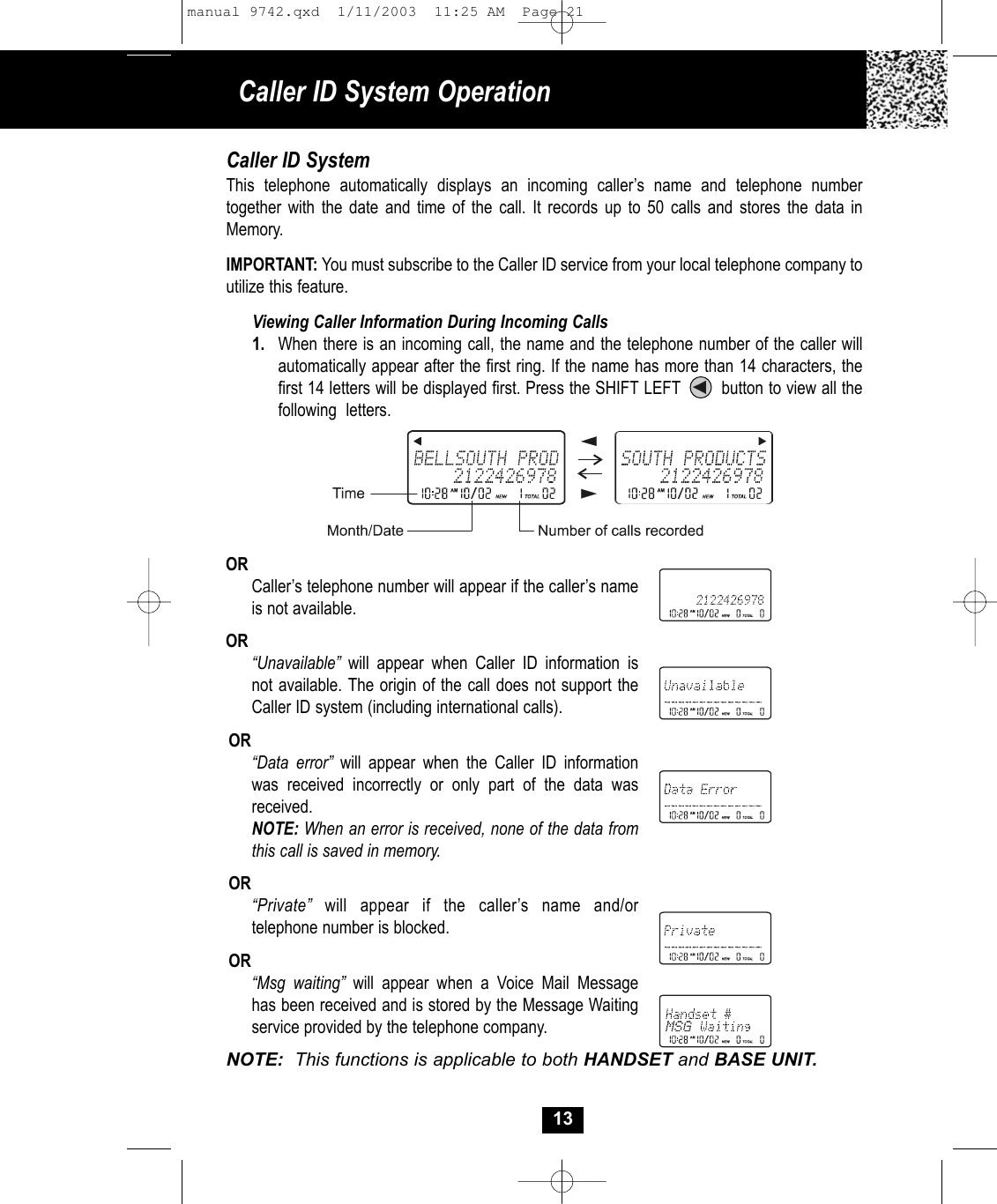

13Caller ID SystemThis telephone automatically displays an incoming caller’s name and telephone number together with the date and time of the call. It records up to 50 calls and stores the data in Memory. IMPORTANT: You must subscribe to the Caller ID service from your local telephone company toutilize this feature.Viewing Caller Information During Incoming Calls1. When there is an incoming call, the name and the telephone number of the caller will automatically appear after the first ring. If the name has more than 14 characters, thefirst 14 letters will be displayed first. Press the SHIFT LEFT button to view all the following letters.OR Caller’s telephone number will appear if the caller’s name is not available.OR“Unavailable” will appear when Caller ID information is not available. The origin of the call does not support the Caller ID system (including international calls).OR“Data error” will appear when the Caller ID informationwas received incorrectly or only part of the data wasreceived.NOTE: When an error is received, none of the data from this call is saved in memory. OR“Private” will appear if the caller’s name and/or telephone number is blocked.OR“Msg waiting” will appear when a Voice Mail Message has been received and is stored by the Message Waitingservice provided by the telephone company.Caller ID System OperationNOTE: This functions is applicable to both HANDSET and BASE UNIT.manual 9742.qxd 1/11/2003 11:25 AM Page 21

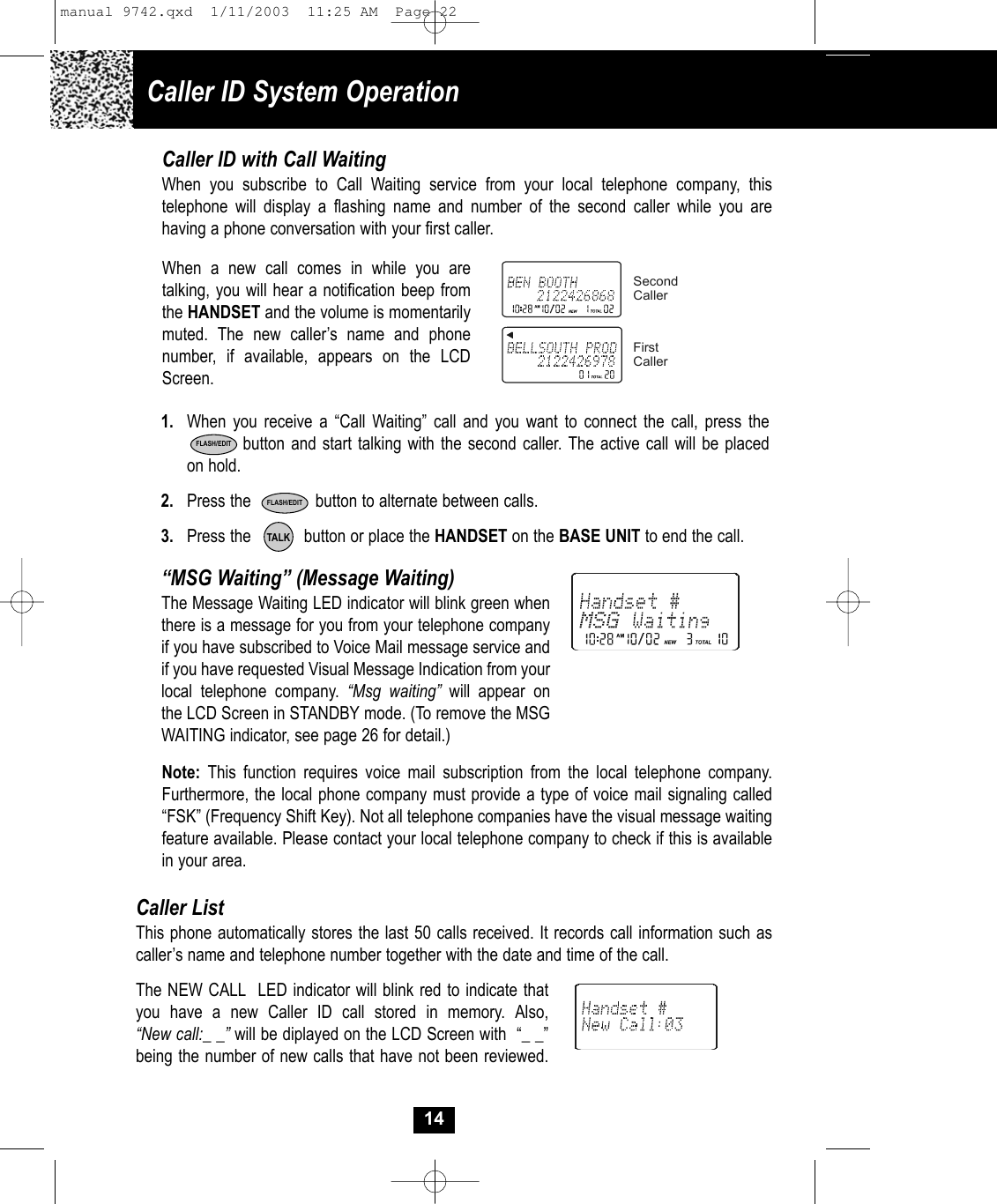

14Caller ID with Call WaitingWhen you subscribe to Call Waiting service from your local telephone company, this telephone will display a flashing name and number of the second caller while you are having a phone conversation with your first caller.When a new call comes in while you are talking, you will hear a notification beep fromthe HANDSET and the volume is momentarily muted. The new caller’s name and phone number, if available, appears on the LCDScreen.1. When you receive a “Call Waiting” call and you want to connect the call, press thebutton and start talking with the second caller. The active call will be placed on hold. 2. Press the button to alternate between calls.3. Press the button or place the HANDSET on the BASE UNIT to end the call.SecondCallerFirstCallerTALK“MSG Waiting” (Message Waiting)The Message Waiting LED indicator will blink green whenthere is a message for you from your telephone companyif you have subscribed to Voice Mail message service andif you have requested Visual Message Indication from yourlocal telephone company. “Msg waiting” will appear onthe LCD Screen in STANDBY mode. (To remove the MSG WAITING indicator, see page 26 for detail.)FLASH/EDITNote: This function requires voice mail subscription from the local telephone company. Furthermore, the local phone company must provide a type of voice mail signaling called “FSK” (Frequency Shift Key). Not all telephone companies have the visual message waiting feature available. Please contact your local telephone company to check if this is available in your area.Caller ListThis phone automatically stores the last 50 calls received. It records call information such ascaller’s name and telephone number together with the date and time of the call. The NEW CALL LED indicator will blink red to indicate thatyou have a new Caller ID call stored in memory. Also, “New call:_ _” will be diplayed on the LCD Screen with “_ _”being the number of new calls that have not been reviewed.FLASH/EDITCaller ID System Operationmanual 9742.qxd 1/11/2003 11:25 AM Page 22

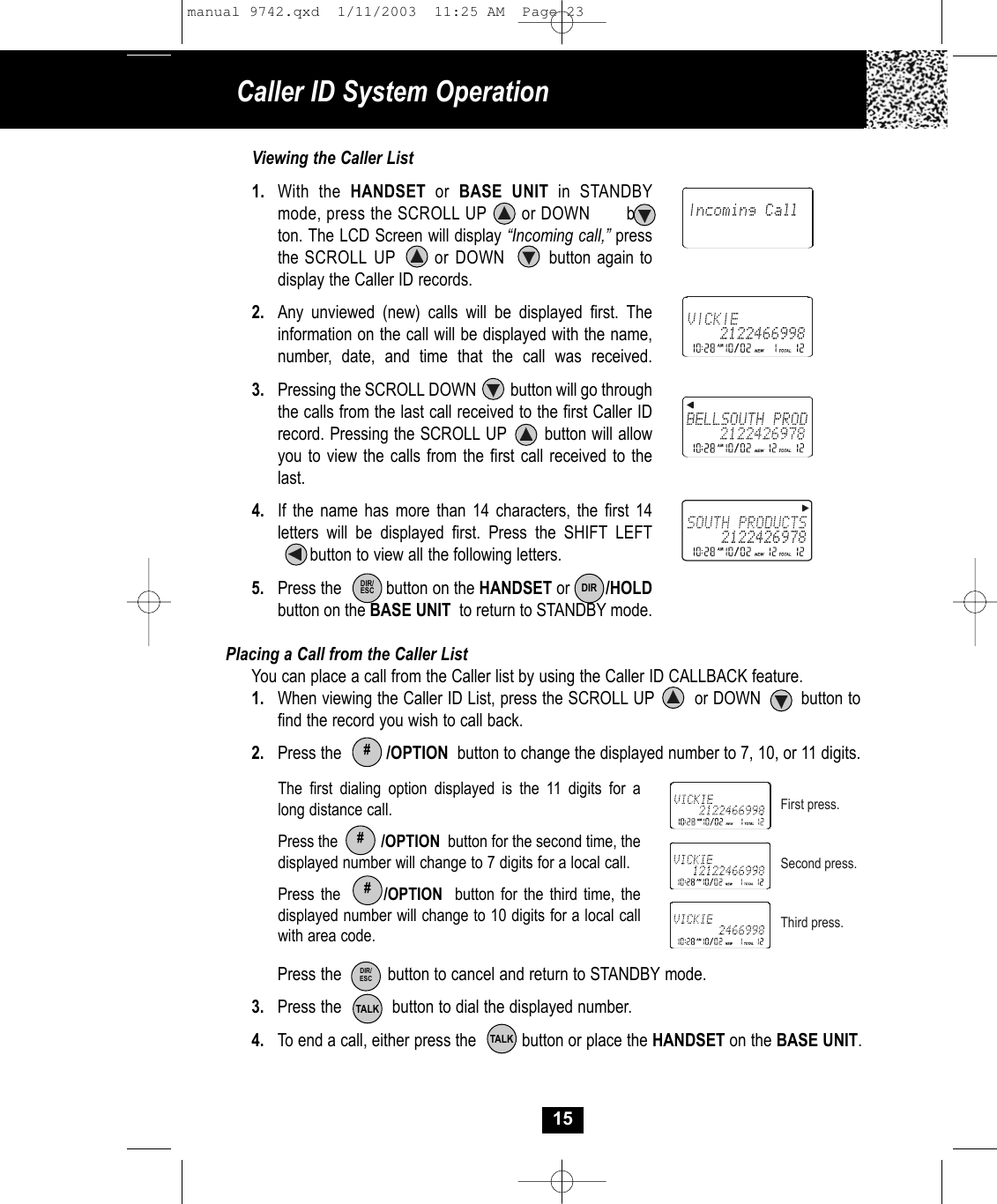

15Viewing the Caller List 1. With the HANDSET or BASE UNIT in STANDBYmode, press the SCROLL UP or DOWN but-ton. The LCD Screen will display “Incoming call,” press the SCROLL UP or DOWN button again to display the Caller ID records. 2. Any unviewed (new) calls will be displayed first. Theinformation on the call will be displayed with the name, number, date, and time that the call was received.3. Pressing the SCROLL DOWN button will go throughthe calls from the last call received to the first Caller ID record. Pressing the SCROLL UP button will allow you to view the calls from the first call received to thelast.4. If the name has more than 14 characters, the first 14 letters will be displayed first. Press the SHIFT LEFT button to view all the following letters. 5. Press the button on the HANDSET or /HOLDbutton on the BASE UNIT to return to STANDBY mode.Placing a Call from the Caller ListYou can place a call from the Caller list by using the Caller ID CALLBACK feature.1. When viewing the Caller ID List, press the SCROLL UP or DOWN button tofind the record you wish to call back.2. Press the /OPTION button to change the displayed number to 7, 10, or 11 digits.The first dialing option displayed is the 11 digits for a long distance call.Press the /OPTION button for the second time, the displayed number will change to 7 digits for a local call.Press the /OPTION button for the third time, the displayed number will change to 10 digits for a local call with area code.Press the button to cancel and return to STANDBY mode. 3. Press the button to dial the displayed number.4. To end a call, either press the button or place the HANDSET on the BASE UNIT.TALK#First press.Second press.Third press.Caller ID System OperationDIR/ESCDIR/ESCDIR##TALKmanual 9742.qxd 1/11/2003 11:25 AM Page 23
16Storing Caller ID Records into the DIRECTORY (PHONE BOOK)1. When viewing the Caller ID List, press the SCROLL UP or DOWN button tofind the record you wish to store into the DIRECTORY (PHONE BOOK).2. Press and hold the /RE/PA button.3. The LCD Screen will display “Saved.”4. If you wish to edit the newly stored number, edit it in the DIRECTORY (PHONE BOOK) (page 19, “Editing a Stored Number”).5. Press the button to return to STANDBY mode.NOTE: You can store Caller ID Records into the DIRECTORY (PHONE BOOK) on the BASE UNIT by following the steps 1 to 3.Deleting Caller ID RecordsWhen viewing the Caller ID List you can delete a single call record or all of the call records.Deleting a Single Record1. Press the SCROLL UP or DOWN button to find the record you wish to delete.2. Press the button. The LCD Screen will display “Erase item?”3. To delete the record, press the button again. The LCD Screen will display the preceeding Caller ID record.4. Press the button to exit the Caller ID List.NOTE: This functions are applicable both HANDSET and BASE UNIT.Deleting All Records1. Press the SCROLL UP or DOWN button. 2. Press and hold the button. The LCD Screen will prompt “Erase all?”3. To delete all of the Caller ID records, press the button again. The LCDScreen will return to STANDBY mode.NOTE: The user can cancel the deleting step by pressing the button. SAVEDEL/INTDIR/ESCDIR/ESCDEL/INTDEL/INTDEL/INTDIR/ESCCaller ID System Operationmanual 9742.qxd 1/11/2003 11:25 AM Page 24

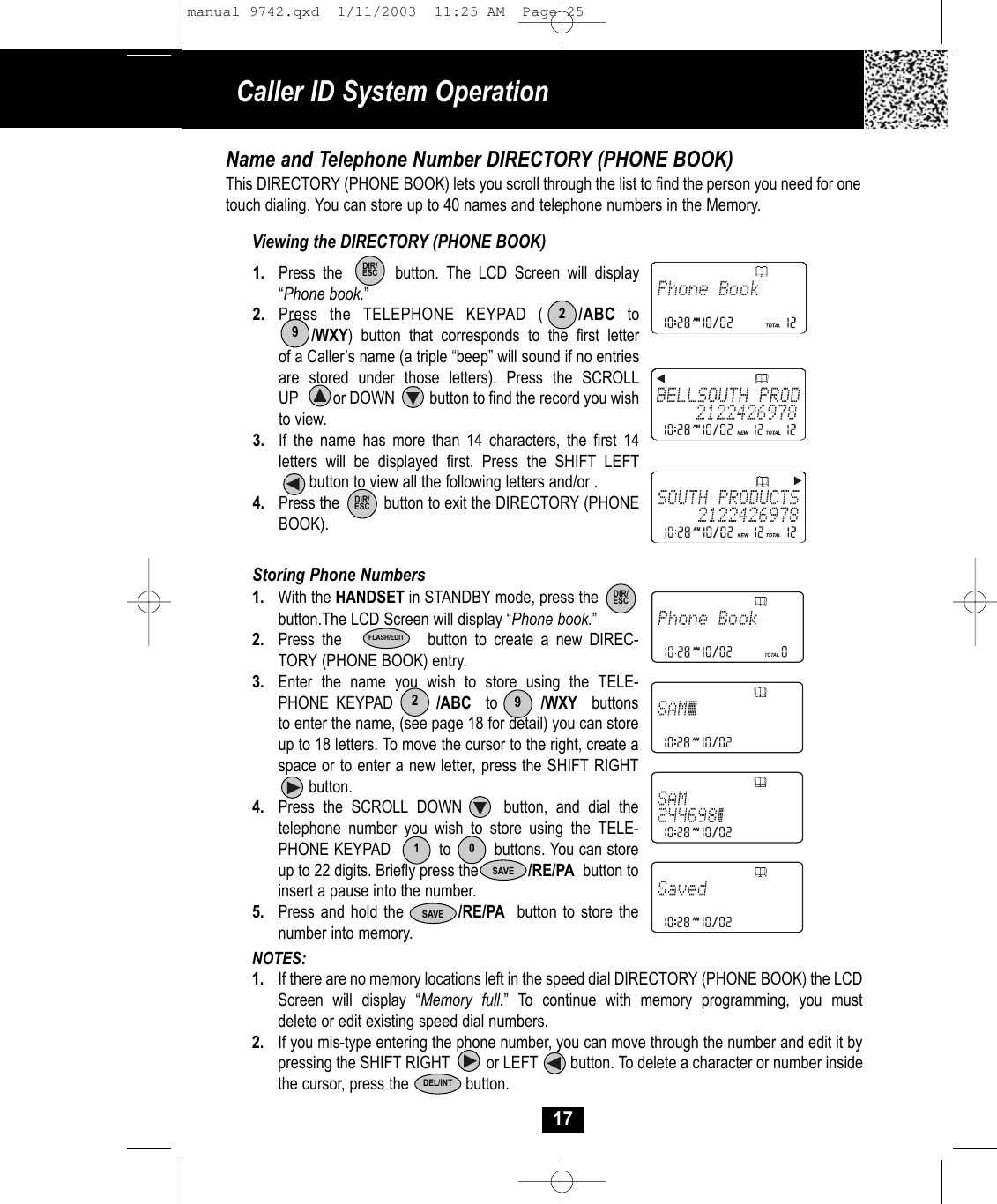

NOTES: 1. If there are no memory locations left in the speed dial DIRECTORY (PHONE BOOK) the LCD Screen will display “Memory full.” To continue with memory programming, you must delete or edit existing speed dial numbers.2. If you mis-type entering the phone number, you can move through the number and edit it by pressing the SHIFT RIGHT or LEFT button. To delete a character or number inside the cursor, press the button.17Name and Telephone Number DIRECTORY (PHONE BOOK)This DIRECTORY (PHONE BOOK) lets you scroll through the list to find the person you need for onetouch dialing. You can store up to 40 names and telephone numbers in the Memory.Viewing the DIRECTORY (PHONE BOOK)1. Press the button. The LCD Screen will display “Phone book.”2. Press the TELEPHONE KEYPAD ( /ABC to/WXY) button that corresponds to the first letterof a Caller’s name (a triple “beep” will sound if no entriesare stored under those letters). Press the SCROLL UP or DOWN button to find the record you wishto view.3. If the name has more than 14 characters, the first 14 letters will be displayed first. Press the SHIFT LEFTbutton to view all the following letters and/or . 4. Press the button to exit the DIRECTORY (PHONEBOOK). Storing Phone Numbers1. With the HANDSET in STANDBY mode, press thebutton.The LCD Screen will display “Phone book.”2. Press the button to create a new DIREC-TORY (PHONE BOOK) entry. 3. Enter the name you wish to store using the TELE-PHONE KEYPAD /ABC to /WXY buttons to enter the name, (see page 18 for detail) you can store up to 18 letters. To move the cursor to the right, create a space or to enter a new letter, press the SHIFT RIGHTbutton. 4. Press the SCROLL DOWN button, and dial the telephone number you wish to store using the TELE-PHONE KEYPAD to buttons. You can storeup to 22 digits. Briefly press the /RE/PA button toinsert a pause into the number.5. Press and hold the /RE/PA button to store the number into memory.DIR/ESCSAVE2910FLASH/EDIT29Caller ID System OperationDIR/ESCDIR/ESCSAVEDEL/INTmanual 9742.qxd 1/11/2003 11:25 AM Page 25

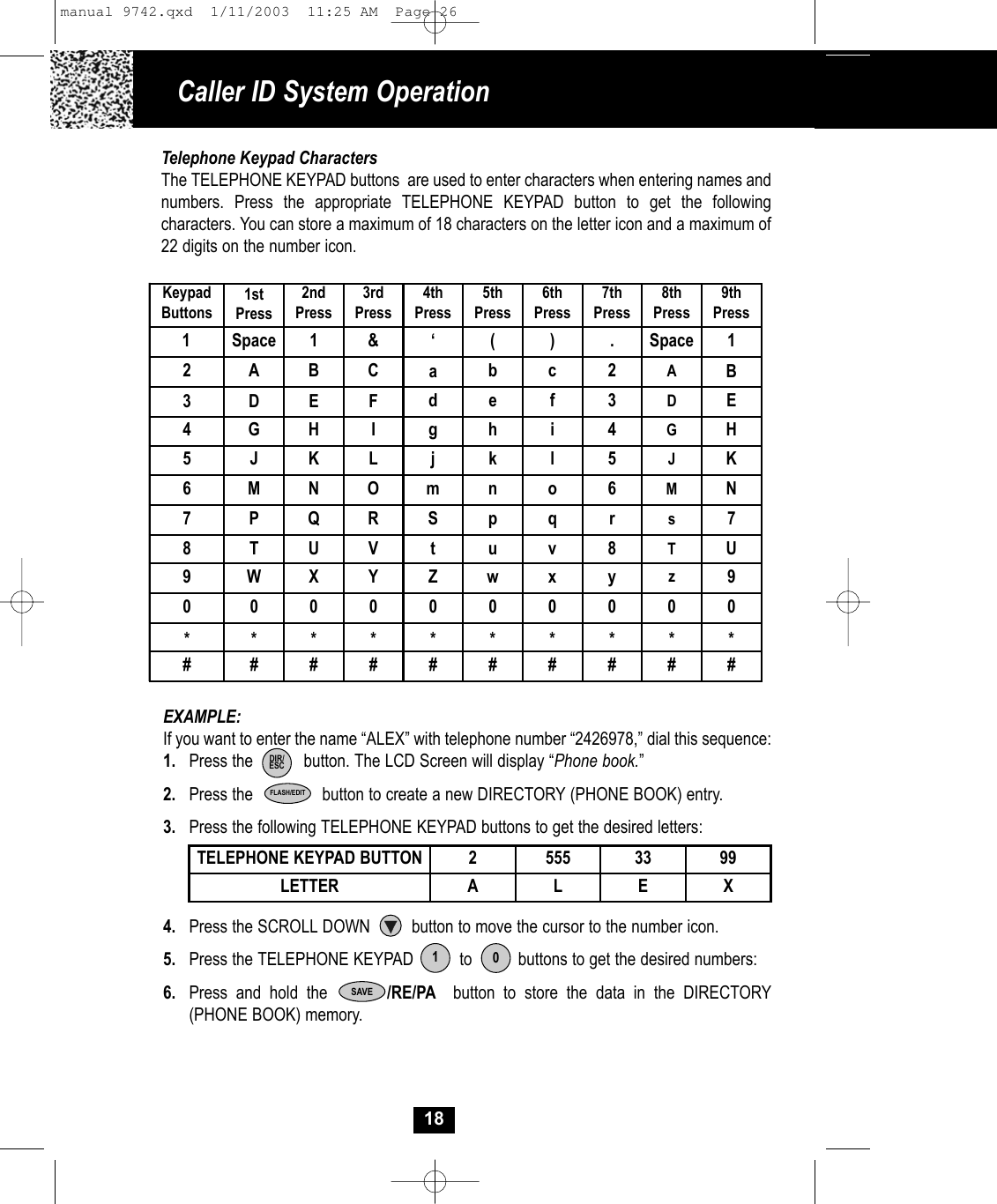

1SpaceCaller ID System Operation18Telephone Keypad CharactersThe TELEPHONE KEYPAD buttons are used to enter characters when entering names and numbers. Press the appropriate TELEPHONE KEYPAD button to get the following characters. You can store a maximum of 18 characters on the letter icon and a maximum of 22 digits on the number icon. EXAMPLE: If you want to enter the name “ALEX” with telephone number “2426978,” dial this sequence:1. Press the button. The LCD Screen will display “Phone book.” 2. Press the button to create a new DIRECTORY (PHONE BOOK) entry.3. Press the following TELEPHONE KEYPAD buttons to get the desired letters:4. Press the SCROLL DOWN button to move the cursor to the number icon.5. Press the TELEPHONE KEYPAD to buttons to get the desired numbers:6. Press and hold the /RE/PA button to store the data in the DIRECTORY (PHONE BOOK) memory.TELEPHONE KEYPAD BUTTON 2 555 33 99LETTER A L E XSAVEDIR/ESCFLASH/EDITKeypadButtons1stPress2ndPress3rdPress4thPress5thPress6thPress7thPress8thPress9thPress12 A B C ab c 2 AB3 D E F d e f 3 DE4 G H I g h i 4 GH5 J K L j k l 5 JK6 M N O m n o 6 MN7 P Q R S p q r s78 T U V t u v 8 TU9 W X Y Z w x y z90 0 0 0 0 0 0 0 0 0 * * * * * * * * * * # # # # # # # # # # 10‘&().Space 1manual 9742.qxd 1/11/2003 11:25 AM Page 26

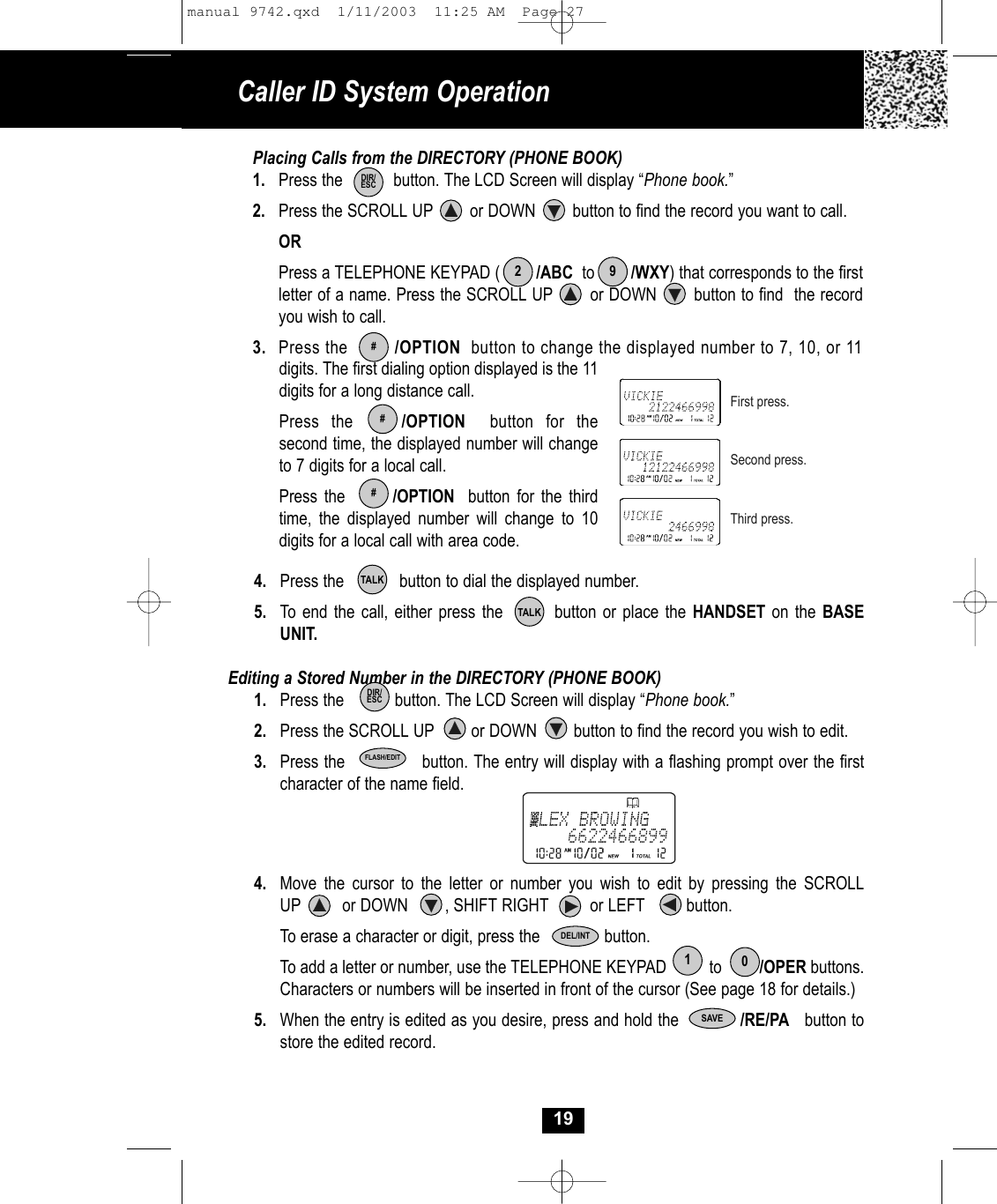

19Placing Calls from the DIRECTORY (PHONE BOOK)1. Press the button. The LCD Screen will display “Phone book.” 2. Press the SCROLL UP or DOWN button to find the record you want to call.ORPress a TELEPHONE KEYPAD ( /ABC to /WXY) that corresponds to the first letter of a name. Press the SCROLL UP or DOWN button to find the record you wish to call.3. Press the /OPTION button to change the displayed number to 7, 10, or 11digits. The first dialing option displayed is the 11 digits for a long distance call. Press the /OPTION button for the second time, the displayed number will change to 7 digits for a local call.Press the /OPTION button for the third time, the displayed number will change to 10 digits for a local call with area code.4. Press the button to dial the displayed number.5. To end the call, either press the button or place the HANDSET on the BASEUNIT.Editing a Stored Number in the DIRECTORY (PHONE BOOK)1. Press the button. The LCD Screen will display “Phone book.”2. Press the SCROLL UP or DOWN button to find the record you wish to edit.3. Press the button. The entry will display with a flashing prompt over the firstcharacter of the name field.4. Move the cursor to the letter or number you wish to edit by pressing the SCROLLUP or DOWN , SHIFT RIGHT or LEFT button. To erase a character or digit, press the button. To add a letter or number, use the TELEPHONE KEYPAD to /OPER buttons. Characters or numbers will be inserted in front of the cursor (See page 18 for details.)5. When the entry is edited as you desire, press and hold the /RE/PA button to store the edited record.DIR/ESCTALK29#10SAVEFLASH/EDITDEL/INTFirst press.Second press.Third press.Caller ID System Operation##TALKDIR/ESCmanual 9742.qxd 1/11/2003 11:25 AM Page 27

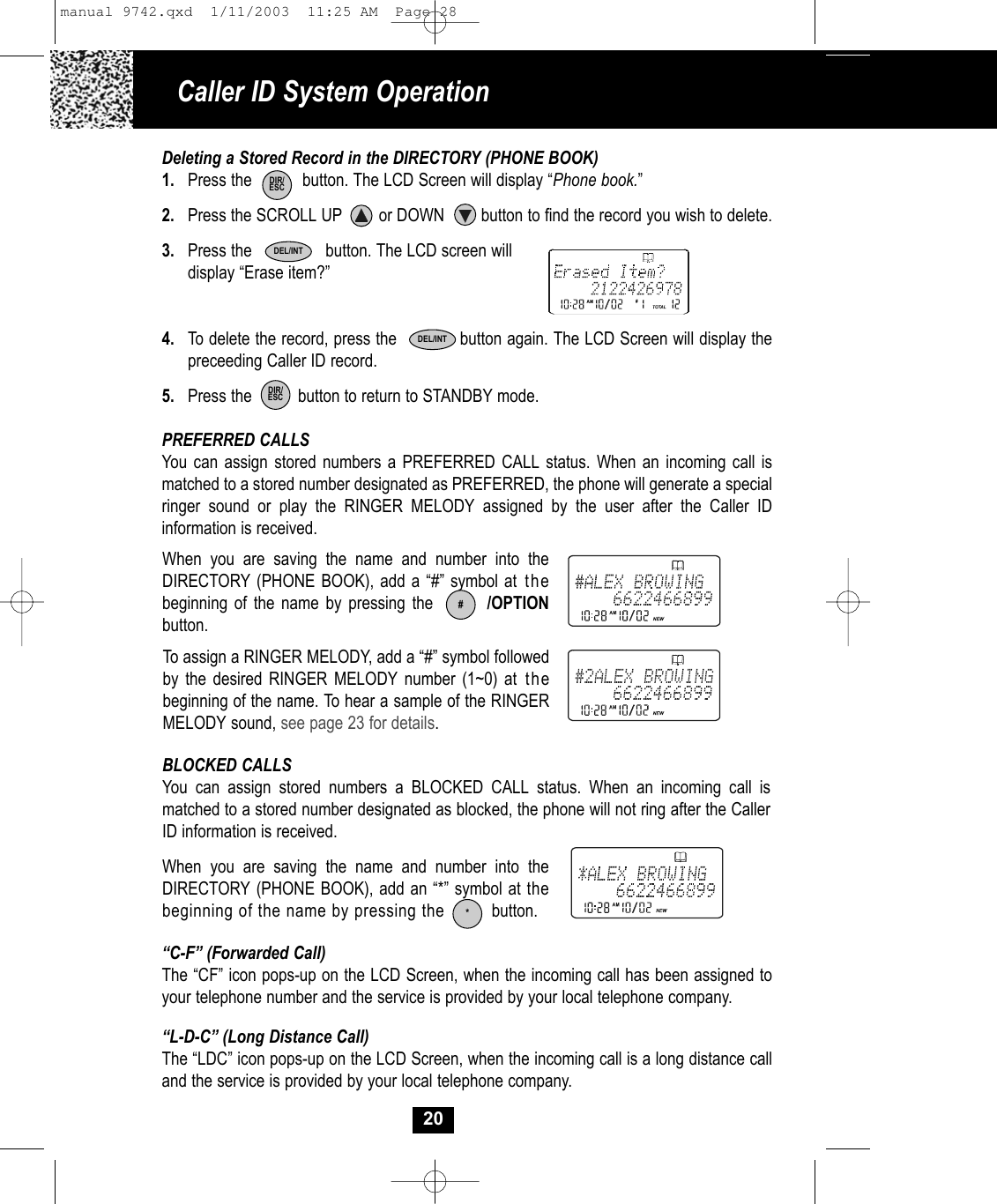

20Deleting a Stored Record in the DIRECTORY (PHONE BOOK)1. Press the button. The LCD Screen will display “Phone book.”2. Press the SCROLL UP or DOWN button to find the record you wish to delete.3. Press the button. The LCD screen will display “Erase item?”4. To delete the record, press the button again. The LCD Screen will display thepreceeding Caller ID record.5. Press the button to return to STANDBY mode.PREFERRED CALLSYou can assign stored numbers a PREFERRED CALL status. When an incoming call ismatched to a stored number designated as PREFERRED, the phone will generate a special ringer sound or play the RINGER MELODY assigned by the user after the Caller ID information is received.When you are saving the name and number into the DIRECTORY (PHONE BOOK), add a “#” symbol at thebeginning of the name by pressing the /OPTION button.BLOCKED CALLSYou can assign stored numbers a BLOCKED CALL status. When an incoming call is matched to a stored number designated as blocked, the phone will not ring after the Caller ID information is received.When you are saving the name and number into the DIRECTORY (PHONE BOOK), add an “*” symbol at thebeginning of the name by pressing the button. DIR/ESCDEL/INT#To assign a RINGER MELODY, add a “#” symbol followed by the desired RINGER MELODY number (1~0) at thebeginning of the name. To hear a sample of the RINGERMELODY sound, see page 23 for details. “C-F” (Forwarded Call)The “CF” icon pops-up on the LCD Screen, when the incoming call has been assigned to your telephone number and the service is provided by your local telephone company.“L-D-C” (Long Distance Call)The “LDC” icon pops-up on the LCD Screen, when the incoming call is a long distance call and the service is provided by your local telephone company.DEL/INTDIR/ESC*Caller ID System Operationmanual 9742.qxd 1/11/2003 11:25 AM Page 28

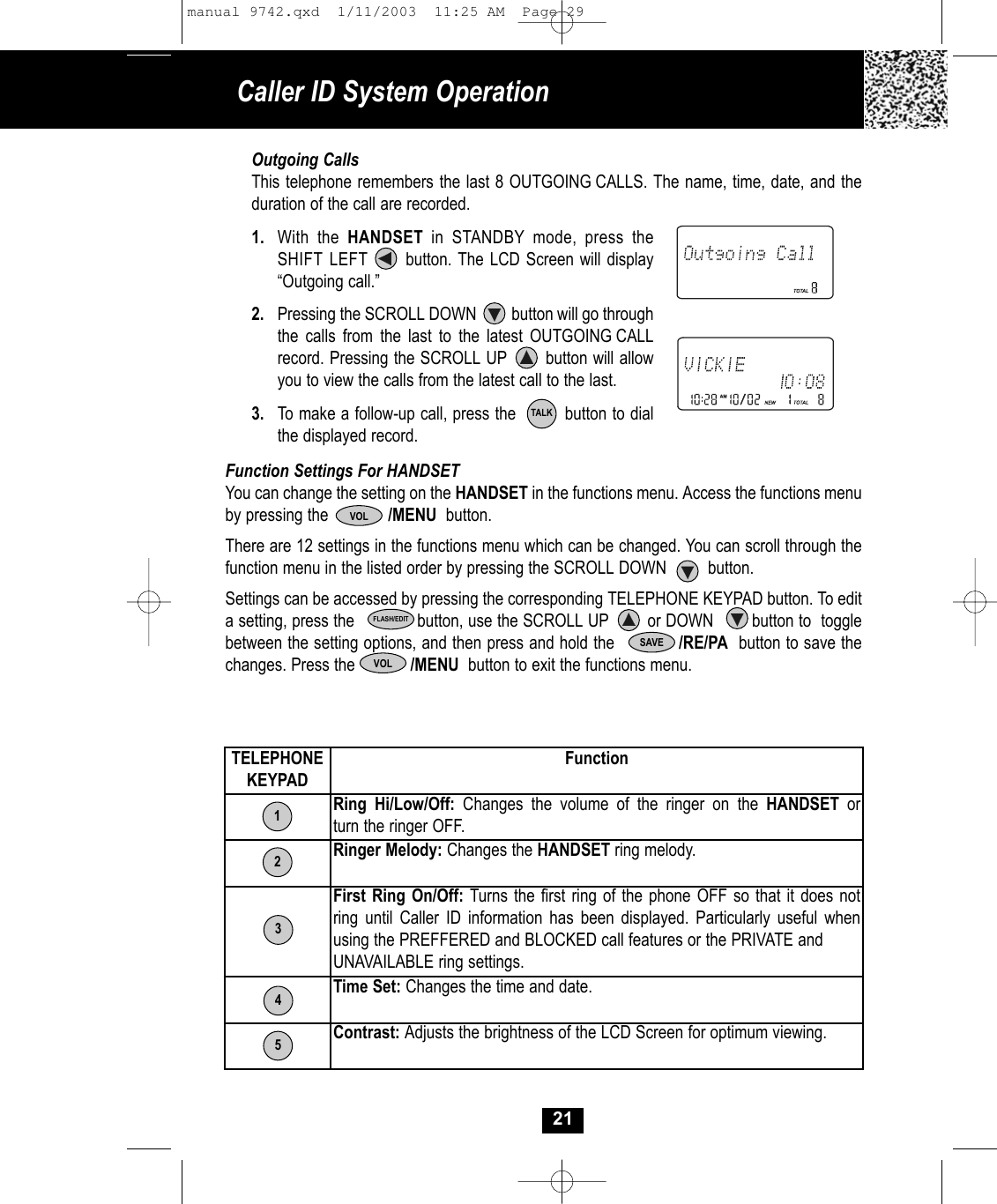

21Outgoing CallsThis telephone remembers the last 8 OUTGOING CALLS. The name, time, date, and the duration of the call are recorded. 1. With the HANDSET in STANDBY mode, press theSHIFT LEFT button. The LCD Screen will display “Outgoing call.” 2. Pressing the SCROLL DOWN button will go throughthe calls from the last to the latest OUTGOING CALL record. Pressing the SCROLL UP button will allow you to view the calls from the latest call to the last.3. To make a follow-up call, press the button to dial the displayed record.Function Settings For HANDSETYou can change the setting on the HANDSET in the functions menu. Access the functions menuby pressing the /MENU button.There are 12 settings in the functions menu which can be changed. You can scroll through thefunction menu in the listed order by pressing the SCROLL DOWN button. Settings can be accessed by pressing the corresponding TELEPHONE KEYPAD button. To edit a setting, press the button, use the SCROLL UP or DOWN button to toggle between the setting options, and then press and hold the /RE/PA button to save thechanges. Press the /MENU button to exit the functions menu.TALKSAVEFLASH/EDITVOLTELEPHONEKEYPAD FunctionRing Hi/Low/Off: Changes the volume of the ringer on the HANDSET orturn the ringer OFF.Ringer Melody: Changes the HANDSET ring melody.First Ring On/Off: Turns the first ring of the phone OFF so that it does not ring until Caller ID information has been displayed. Particularly useful whenusing the PREFFERED and BLOCKED call features or the PRIVATE andUNAVAILABLE ring settings.Time Set: Changes the time and date.Contrast: Adjusts the brightness of the LCD Screen for optimum viewing.12345Caller ID System OperationVOLmanual 9742.qxd 1/11/2003 11:25 AM Page 29
22TELEPHONEKEYPAD FunctionPBX Number: Inserts if a “PBX Number” before an outgoing number is dialed. Select the number (0-9) which is required to access an outside line when using a switchboard system, and the phone will automatically dial the PBX number and a pause before any speed dial or Caller ID callback number. factory setting is “OFF.”Language: Changes the language that appears on the LCD Screen. Choosebetween English, Spanish or French.User Name: Changes the user that appears on the LCD Screen during STANDBY mode.MSG Waiting Delete: Clears current message waiting indication.Area Code: Adds the local Area Code to numbers that were stored as 7-digitsin the phone book and 10-digit dialing is required in the local calling area.Register: Initiates the registration of HANDSET/S into the BASE UNIT.Alarm Clock: Sets the Alarm clock time.67890*#NOTE: At any time during options programming you can quit and the settings that you have changed will be saved. Press the /MENU button to quit the options menu or let the options programming time out by not pressing any TELEPHONE KEYPAD buttons for 20 seconds.A. Setting the Ringer Level1. Press the /MENU button to enter the menu.2. Press the button to go to the RINGER LEVEL programming option.3. Press the button to change the setting. “High” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between HI, LOW, and OFF.5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.VOLFLASH/EDIT1VOLVOLSAVECaller ID System Operationmanual 9742.qxd 1/11/2003 11:25 AM Page 30

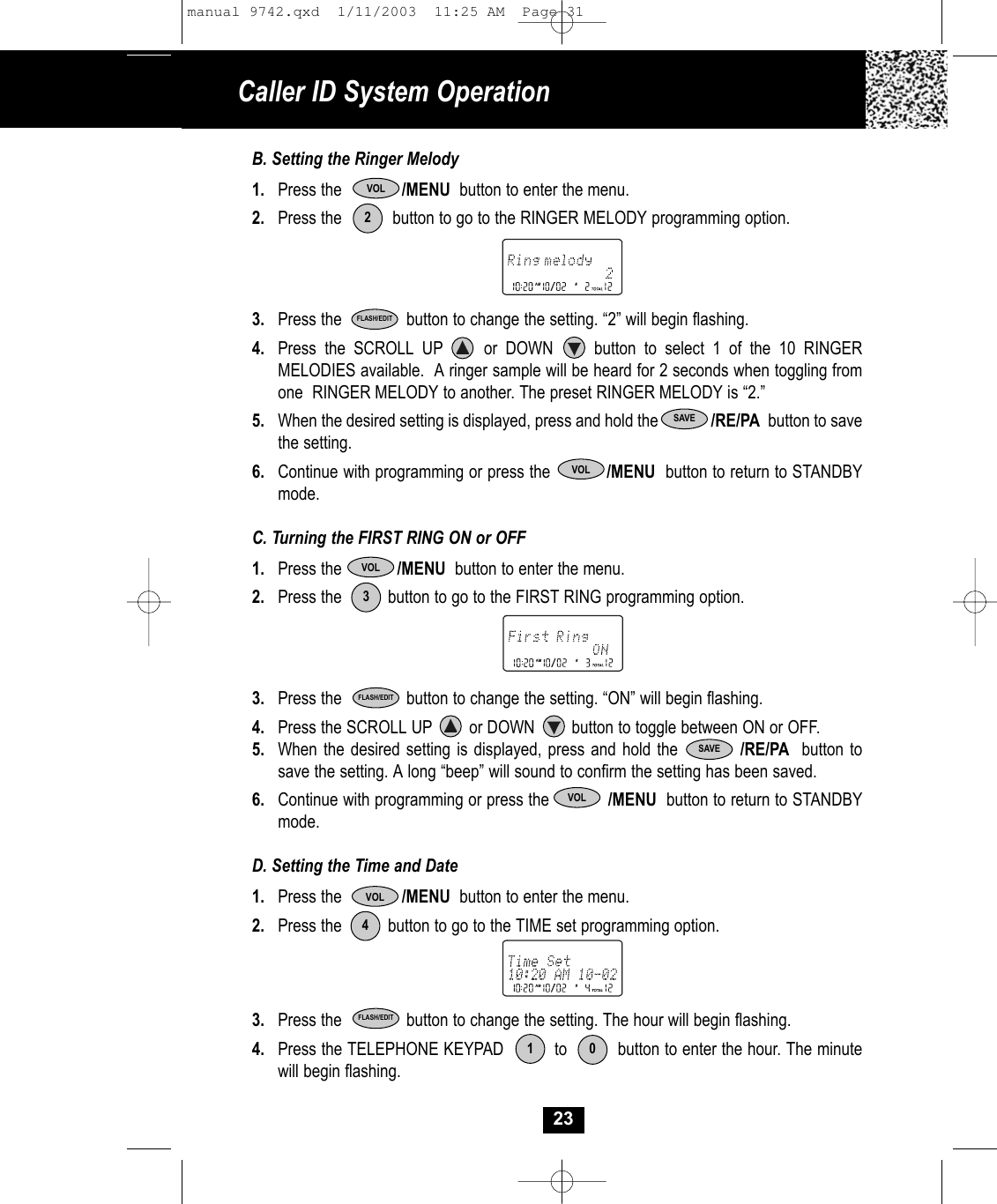

B. Setting the Ringer Melody1. Press the /MENU button to enter the menu.2. Press the button to go to the RINGER MELODY programming option.3. Press the button to change the setting. “2” will begin flashing.4. Press the SCROLL UP or DOWN button to select 1 of the 10 RINGERMELODIES available. A ringer sample will be heard for 2 seconds when toggling fromone RINGER MELODY to another. The preset RINGER MELODY is “2.”5. When the desired setting is displayed, press and hold the /RE/PA button to savethe setting. 6. Continue with programming or press the /MENU button to return to STANDBYmode.C. Turning the FIRST RING ON or OFF1. Press the /MENU button to enter the menu.2. Press the button to go to the FIRST RING programming option.3. Press the button to change the setting. “ON” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between ON or OFF.5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.D. Setting the Time and Date1. Press the /MENU button to enter the menu.2. Press the button to go to the TIME set programming option.3. Press the button to change the setting. The hour will begin flashing.4. Press the TELEPHONE KEYPAD to button to enter the hour. The minute will begin flashing.32VOLFLASH/EDITSAVE41023Caller ID System OperationVOLVOLFLASH/EDITSAVEVOLVOLFLASH/EDITmanual 9742.qxd 1/11/2003 11:25 AM Page 31

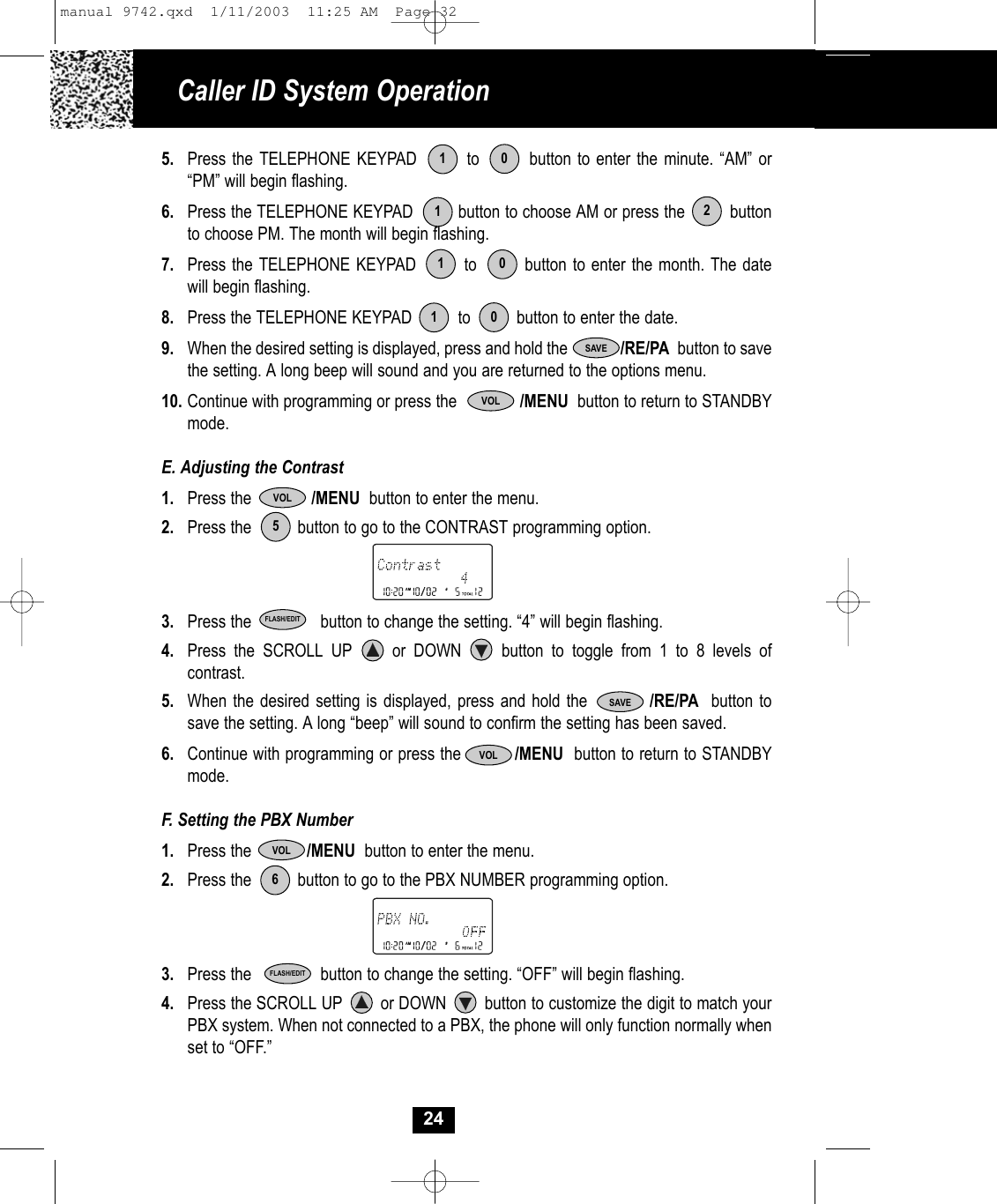

245. Press the TELEPHONE KEYPAD to button to enter the minute. “AM” or “PM” will begin flashing.6. Press the TELEPHONE KEYPAD button to choose AM or press the buttonto choose PM. The month will begin flashing.7. Press the TELEPHONE KEYPAD to button to enter the month. The datewill begin flashing. 8. Press the TELEPHONE KEYPAD to button to enter the date. 9. When the desired setting is displayed, press and hold the /RE/PA button to savethe setting. A long beep will sound and you are returned to the options menu.10. Continue with programming or press the /MENU button to return to STANDBYmode.E. Adjusting the Contrast1. Press the /MENU button to enter the menu.2. Press the button to go to the CONTRAST programming option.3. Press the button to change the setting. “4” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle from 1 to 8 levels of contrast.5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.F. Setting the PBX Number1. Press the /MENU button to enter the menu.2. Press the button to go to the PBX NUMBER programming option.3. Press the button to change the setting. “OFF” will begin flashing.4. Press the SCROLL UP or DOWN button to customize the digit to match your PBX system. When not connected to a PBX, the phone will only function normally whenset to “OFF.”SAVE5FLASH/EDIT61010101VOL2VOLSAVEVOLVOLFLASH/EDITCaller ID System Operationmanual 9742.qxd 1/11/2003 11:25 AM Page 32

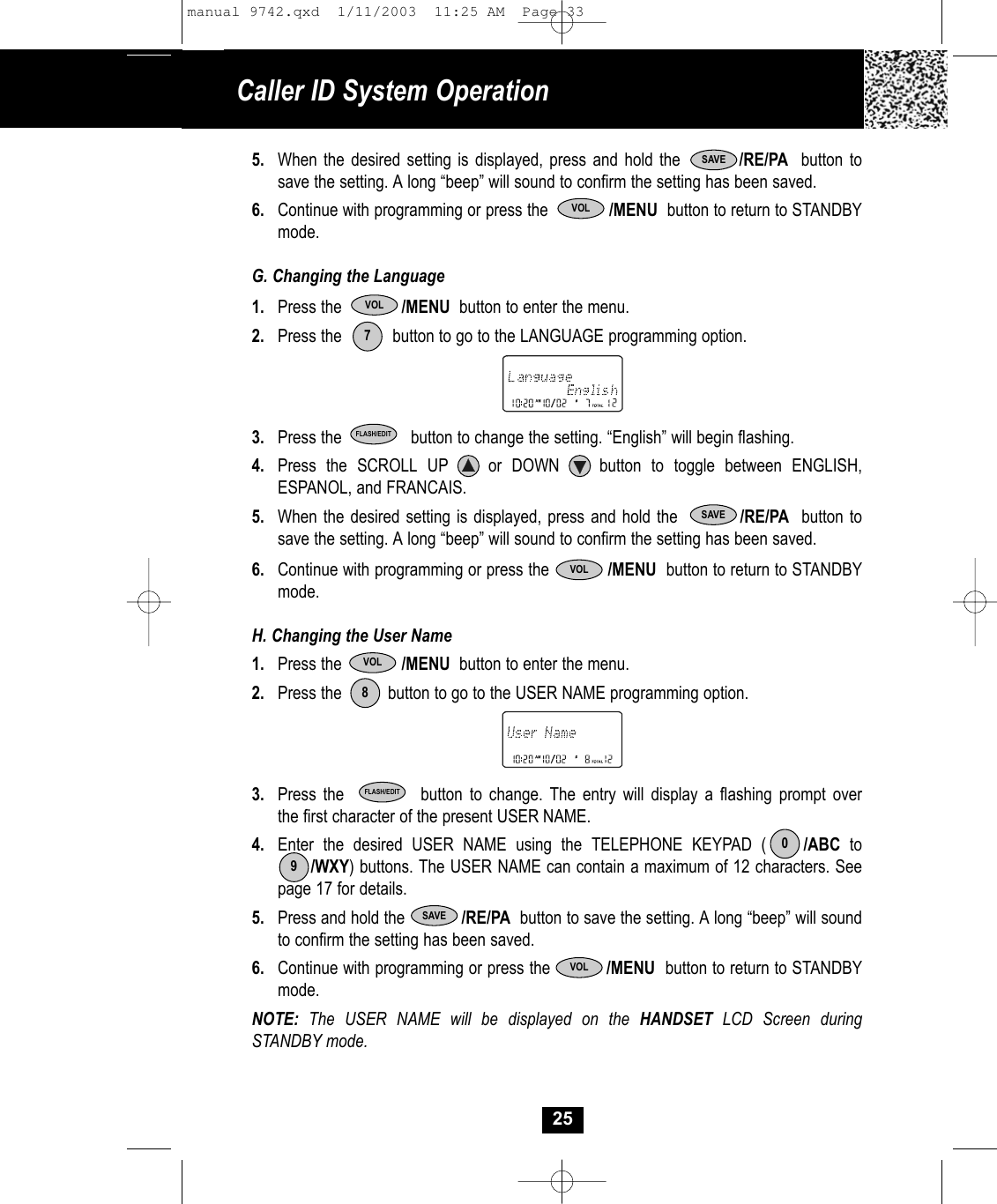

255. When the desired setting is displayed, press and hold the /RE/PA button tosave the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.G. Changing the Language1. Press the /MENU button to enter the menu.2. Press the button to go to the LANGUAGE programming option.3. Press the button to change the setting. “English” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between ENGLISH, ESPANOL, and FRANCAIS.5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.H. Changing the User Name1. Press the /MENU button to enter the menu.2. Press the button to go to the USER NAME programming option.3. Press the button to change. The entry will display a flashing prompt overthe first character of the present USER NAME.4. Enter the desired USER NAME using the TELEPHONE KEYPAD ( /ABC to /WXY) buttons. The USER NAME can contain a maximum of 12 characters. Seepage 17 for details. 5. Press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.NOTE: The USER NAME will be displayed on the HANDSET LCD Screen during STANDBY mode.SAVEVOL7FLASH/EDIT809Caller ID System OperationVOLSAVEVOLVOLFLASH/EDITSAVEVOLmanual 9742.qxd 1/11/2003 11:25 AM Page 33
I. Deleting Message Waiting Indication1. Press the /MENU button to enter the menu.2. Press the button to go to the MESSAGE WAITING programming option.3. Press the button to reset the Message Waiting Indication. “Off” will begin flashing.4. Press and hold the /RE/PA button to delete the indication. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.J. Setting the Area Code1. Press the /MENU button to enter the menu.2. Press the button to go to the AREA CODE programming option.3. Press the button. The entry will display a flashing prompt at the right side of thenumber field.4. Press the TELEPHONE KEYPAD to buttons to enter the three digit area code for your phone number. 5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.NOTE: To use the call back function, press the /OPTION button and then select the 10-DIGIT DIALING mode. Press the button and the unit will automatically dial the stored 7-digit number plus the area code. The LCD Screen will only display the last 7-DIGITS for all 10-DIGIT INCOMING CALLS that matched the AREA CODE setting. FLASH/EDITSAVE9VOL10#TALK26VOLVOLFLASH/EDITSAVEVOL0Caller ID System Operationmanual 9742.qxd 1/11/2003 11:25 AM Page 34
K. Registering the HANDSET1. Press the /MENU button to enter the menu.2. Press the button to go to the REGISTER programming option.3. Press the button. The LCD Screen will prompt “Select base.” The default setting is “BASE 1 (B1)”.4. To confirm, press the button again. The LCDScreen will display “Put down H/S”. Put the HAND-SET on the BASE UNIT charge cradle within 6 seconds. A confirmation “beep” tone will be heard. 5. The BASE UNIT will automatically assign the ID number of the newly registered HANDSET. TheHANDSET ID # will be displayed on the LCD Screen.6. To register more HANDSETS, follow steps 1 to 4.7. Continue with programming or press the /MENUbutton to return to STANDBY mode.NOTE: To register the HANDSET/S to another BASE UNIT. Select the BASE 2 option by pressingthe SCROLL UP or DOWN button. The second BASE UNIT (B2) must be connected to a separate telephone line. L. Setting the ALARM CLOCK1. Press the /MENU button to enter the menu.2. Press the /OPTION button to go to the ALARM CLOCK programming option.3. Press the button. Set the time by pressing the TELEPHONE KEYPAD to buttons. Press the button to enter AM, or button to enter PM. The defaultALARM CLOCK setting is “Off.”4. When the desired setting is displayed, press and hold the /RE/PA button to savethe setting. A long “beep” will sound to confirm the setting has been saved.5. Press the /MENU button to return to STANDBY mode.NOTE: To stop the alarm, press any TELEPHONE KEYPAD button. The ALARM setting is one short setting and once activated it has to be re-set for the next alarm. #1012SAVE27Caller ID System OperationVOLFLASH/EDITVOLVOLFLASH/EDITVOL*FLASH/EDITmanual 9742.qxd 1/11/2003 11:25 AM Page 35

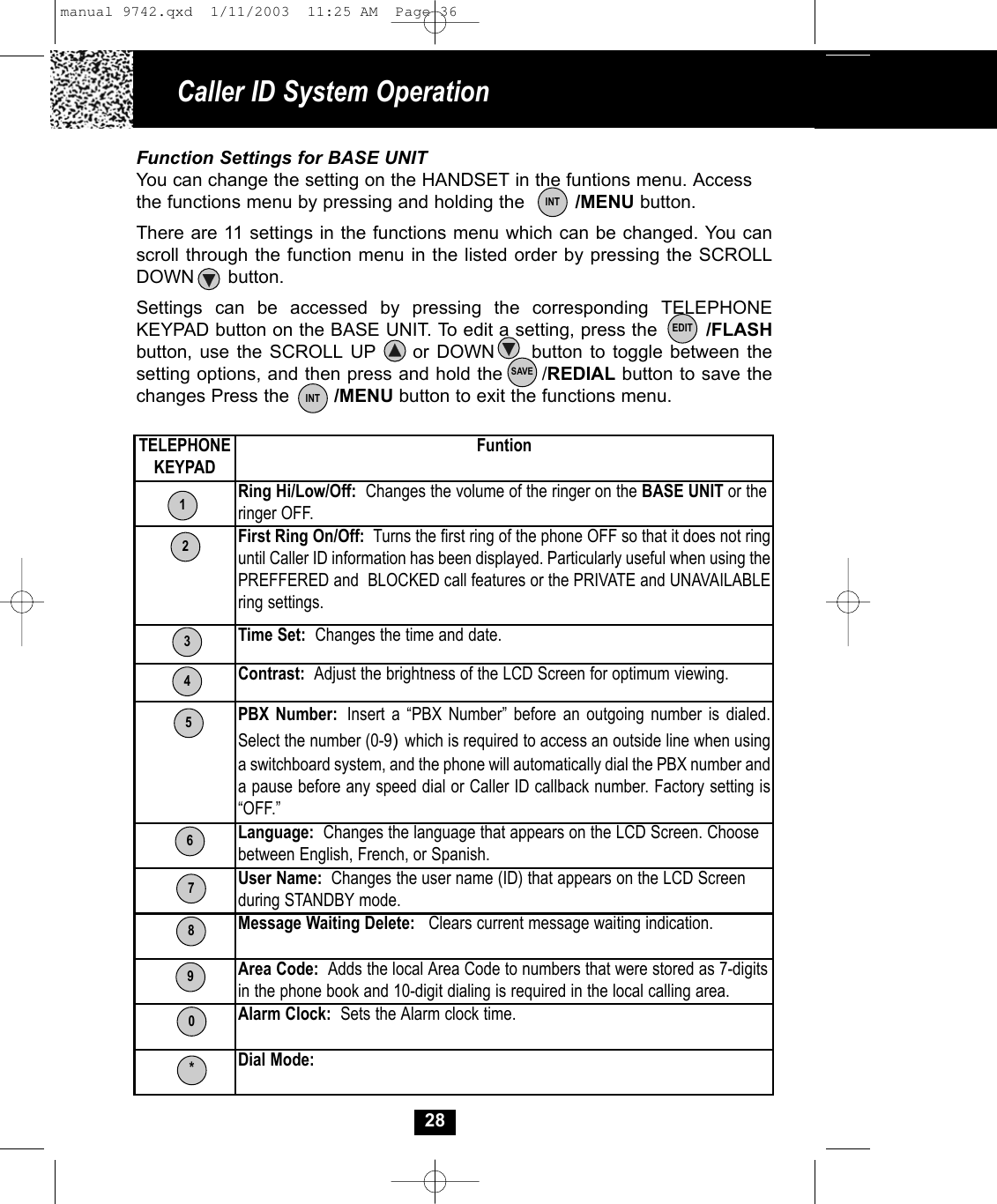

28Function Settings for BASE UNITYou can change the setting on the HANDSET in the funtions menu. Accessthe functions menu by pressing and holding the /MENU button.There are 11 settings in the functions menu which can be changed. You canscroll through the function menu in the listed order by pressing the SCROLLDOWN button.Settings can be accessed by pressing the corresponding TELEPHONE KEYPAD button on the BASE UNIT. To edit a setting, press the /FLASHbutton, use the SCROLL UP or DOWN button to toggle between the setting options, and then press and hold the /REDIAL button to save thechanges Press the /MENU button to exit the functions menu.INTEDITSAVEINTTELEPHONEKEYPADFuntionRing Hi/Low/Off: Changes the volume of the ringer on the BASE UNIT or theringer OFF.First Ring On/Off: Turns the first ring of the phone OFF so that it does not ringuntil Caller ID information has been displayed. Particularly useful when using thePREFFERED and BLOCKED call features or the PRIVATE and UNAVAILABLEring settings.Time Set: Changes the time and date.Contrast: Adjust the brightness of the LCD Screen for optimum viewing.PBX Number: Insert a “PBX Number” before an outgoing number is dialed.Select the number (0-9)which is required to access an outside line when using a switchboard system, and the phone will automatically dial the PBX number anda pause before any speed dial or Caller ID callback number. Factory setting is“OFF.”Language: Changes the language that appears on the LCD Screen. Choosebetween English, French, or Spanish. User Name: Changes the user name (ID) that appears on the LCD Screenduring STANDBY mode.Message Waiting Delete: Clears current message waiting indication.Area Code: Adds the local Area Code to numbers that were stored as 7-digitsin the phone book and 10-digit dialing is required in the local calling area.Alarm Clock: Sets the Alarm clock time.Dial Mode:1234567890*Caller ID System Operationmanual 9742.qxd 1/11/2003 11:25 AM Page 36

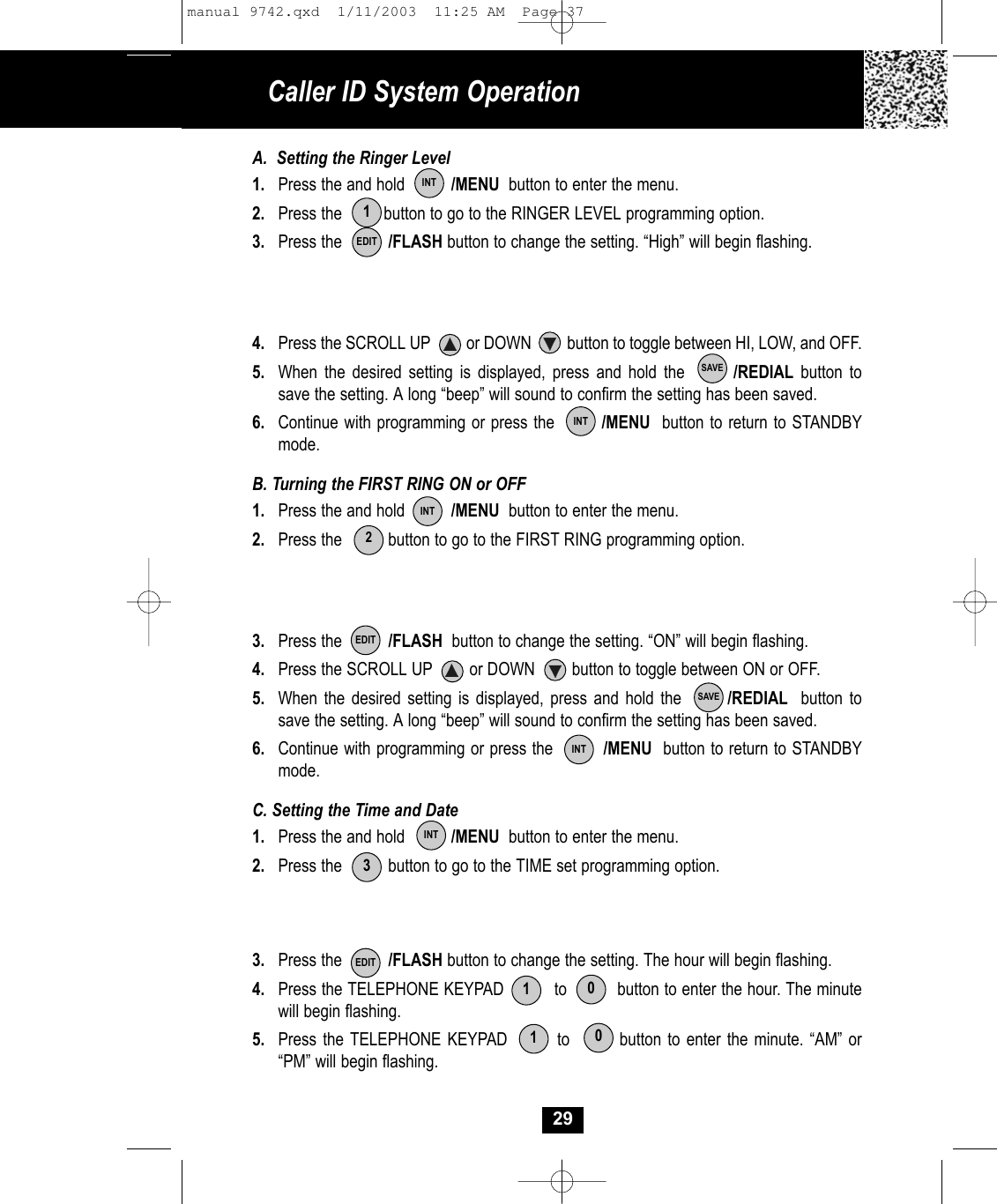

29Caller ID System OperationA. Setting the Ringer Level1. Press the and hold /MENU button to enter the menu.2. Press the button to go to the RINGER LEVEL programming option.3. Press the /FLASH button to change the setting. “High” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between HI, LOW, and OFF.5. When the desired setting is displayed, press and hold the /REDIAL button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.B. Turning the FIRST RING ON or OFF1. Press the and hold /MENU button to enter the menu.2. Press the button to go to the FIRST RING programming option.3. Press the /FLASH button to change the setting. “ON” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between ON or OFF.5. When the desired setting is displayed, press and hold the /REDIAL button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.C. Setting the Time and Date1. Press the and hold /MENU button to enter the menu.2. Press the button to go to the TIME set programming option.3. Press the /FLASH button to change the setting. The hour will begin flashing.4. Press the TELEPHONE KEYPAD to button to enter the hour. The minute will begin flashing.5. Press the TELEPHONE KEYPAD to button to enter the minute. “AM” or “PM” will begin flashing.INT1EDITSAVEINTINT2EDITSAVEINTINT3EDIT1010manual 9742.qxd 1/11/2003 11:25 AM Page 37

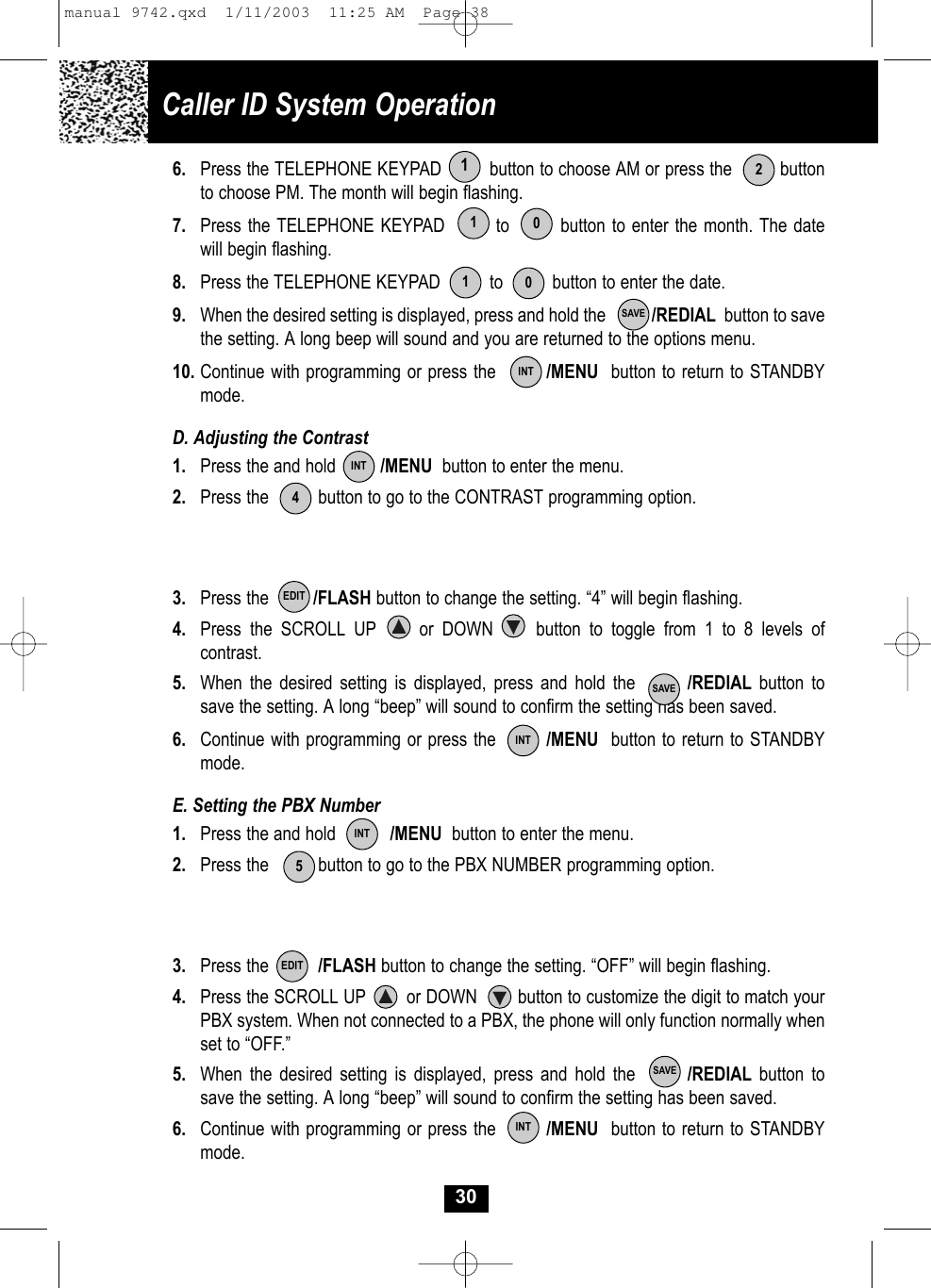

Caller ID System Operation306. Press the TELEPHONE KEYPAD button to choose AM or press the buttonto choose PM. The month will begin flashing.7. Press the TELEPHONE KEYPAD to button to enter the month. The datewill begin flashing. 8. Press the TELEPHONE KEYPAD to button to enter the date. 9. When the desired setting is displayed, press and hold the /REDIAL button to savethe setting. A long beep will sound and you are returned to the options menu.10. Continue with programming or press the /MENU button to return to STANDBYmode.D. Adjusting the Contrast1. Press the and hold /MENU button to enter the menu.2. Press the button to go to the CONTRAST programming option.3. Press the /FLASH button to change the setting. “4” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle from 1 to 8 levels of contrast.5. When the desired setting is displayed, press and hold the /REDIAL button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.E. Setting the PBX Number1. Press the and hold /MENU button to enter the menu.2. Press the button to go to the PBX NUMBER programming option.3. Press the /FLASH button to change the setting. “OFF” will begin flashing.4. Press the SCROLL UP or DOWN button to customize the digit to match your PBX system. When not connected to a PBX, the phone will only function normally whenset to “OFF.”5. When the desired setting is displayed, press and hold the /REDIAL button tosave the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.1INT10210SAVEINT4EDITSAVEINTINTEDITSAVEINT5manual 9742.qxd 1/11/2003 11:25 AM Page 38

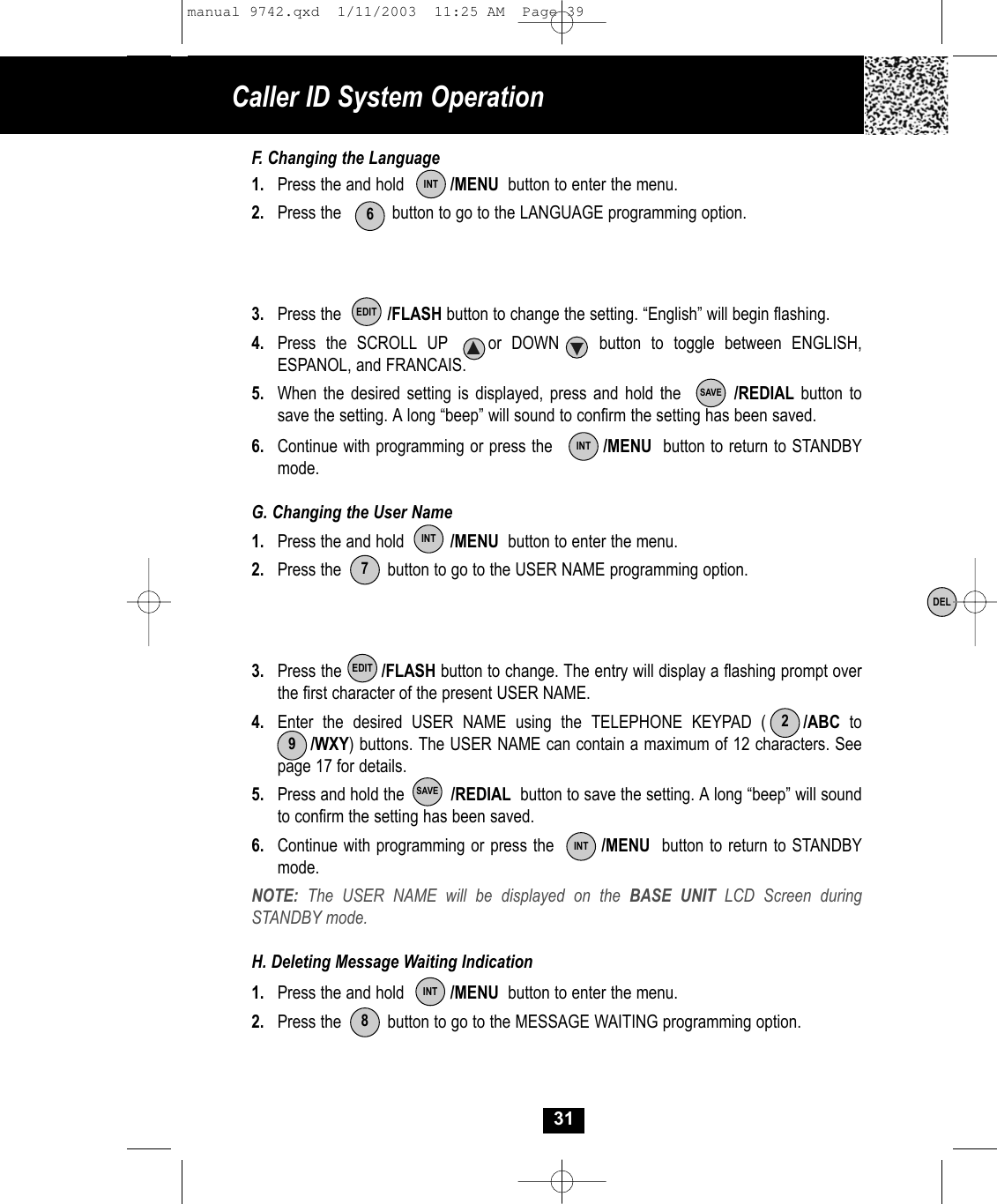

31F. Changing the Language1. Press the and hold /MENU button to enter the menu.2. Press the button to go to the LANGUAGE programming option.3. Press the /FLASH button to change the setting. “English” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between ENGLISH, ESPANOL, and FRANCAIS.5. When the desired setting is displayed, press and hold the /REDIAL button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.G. Changing the User Name1. Press the and hold /MENU button to enter the menu.2. Press the button to go to the USER NAME programming option.3. Press the /FLASH button to change. The entry will display a flashing prompt over the first character of the present USER NAME.4. Enter the desired USER NAME using the TELEPHONE KEYPAD ( /ABC to /WXY) buttons. The USER NAME can contain a maximum of 12 characters. Seepage 17 for details. 5. Press and hold the /REDIAL button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.NOTE: The USER NAME will be displayed on the BASE UNIT LCD Screen during STANDBY mode.H. Deleting Message Waiting Indication1. Press the and hold /MENU button to enter the menu.2. Press the button to go to the MESSAGE WAITING programming option.INT6EDITSAVEINTINT7EDIT29SAVEINTINT8DELCaller ID System Operationmanual 9742.qxd 1/11/2003 11:25 AM Page 39
323. Press the /FLASH button to reset the Message Waiting Indication. “Off” will begin flashing.4. Press and hold the /REDIAL button to delete the indication. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.I. Setting the Area Code1. Press the and hold /MENU button to enter the menu.2. Press the button to go to the AREA CODE programming option.3. Press the /FLASH button. The entry will display a flashing prompt at the right side of the number field.4. Press the TELEPHONE KEYPAD to buttons to enter the three digit area code for your phone number. 5. When the desired setting is displayed, press and hold the /REDIAL button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.J. Setting the ALARM CLOCK1. Press the and hold /MENU button to enter the menu.2. Press the button to go to the ALARM CLOCK programming option.3. Press the /FLASH button. Set the time by pressing the TELEPHONE KEYPAD to buttons. Press the button to enter AM, or button to enter PM. The default ALARM CLOCK setting is “Off.”4. When the desired setting is displayed, press and hold the /REDIAL button to savethe setting. A long “beep” will sound to confirm the setting has been saved.5. Press the /MENU button to return to STANDBY mode.NOTE: To stop the alarm, press any TELEPHONE KEYPAD button. The ALARM setting is one short setting and once activated it has to be re-set for the next alarm. K. Dial ModeEDITSAVEINTINT9EDIT10SAVEINTINTEDIT112SAVEINT00Caller ID System Operationmanual 9742.qxd 1/11/2003 11:25 AM Page 40

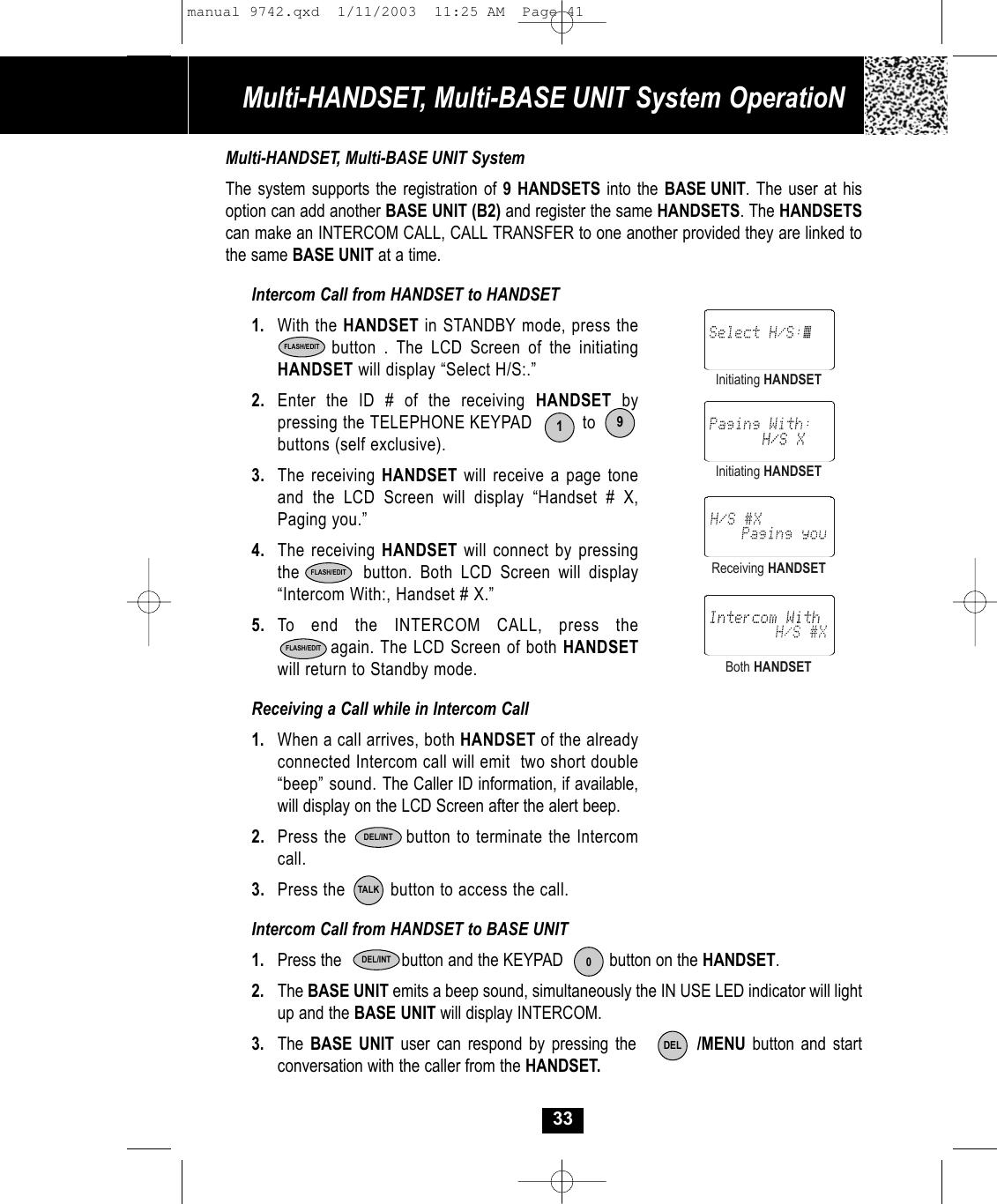

33Multi-HANDSET, Multi-BASE UNIT SystemThe system supports the registration of 9 HANDSETS into the BASE UNIT. The user at hisoption can add another BASE UNIT (B2) and register the same HANDSETS. The HANDSETScan make an INTERCOM CALL, CALL TRANSFER to one another provided they are linked to the same BASE UNIT at a time. Intercom Call from HANDSET to HANDSET1. With the HANDSET in STANDBY mode, press thebutton . The LCD Screen of the initiating HANDSET will display “Select H/S:.”2. Enter the ID # of the receiving HANDSET by pressing the TELEPHONE KEYPAD to buttons (self exclusive). 3. The receiving HANDSET will receive a page tone and the LCD Screen will display “Handset # X, Paging you.”4. The receiving HANDSET will connect by pressingthe button. Both LCD Screen will display“Intercom With:, Handset # X.”5. To end the INTERCOM CALL, press the again. The LCD Screen of both HANDSETwill return to Standby mode. Receiving a Call while in Intercom Call1. When a call arrives, both HANDSET of the alreadyconnected Intercom call will emit two short double “beep” sound. The Caller ID information, if available, will display on the LCD Screen after the alert beep.2. Press the button to terminate the Intercomcall.3. Press the button to access the call. Intercom Call from HANDSET to BASE UNIT1. Press the button and the KEYPAD button on the HANDSET.2. The BASE UNIT emits a beep sound, simultaneously the IN USE LED indicator will lightup and the BASE UNIT will display INTERCOM.3. The BASE UNIT user can respond by pressing the /MENU button and start conversation with the caller from the HANDSET.19FLASH/EDITTALKDEL/INTFLASH/EDITFLASH/EDITInitiating HANDSETInitiating HANDSETReceiving HANDSETBoth HANDSETDEL/INT 0DELMulti-HANDSET, Multi-BASE UNIT System OperatioNmanual 9742.qxd 1/11/2003 11:25 AM Page 41

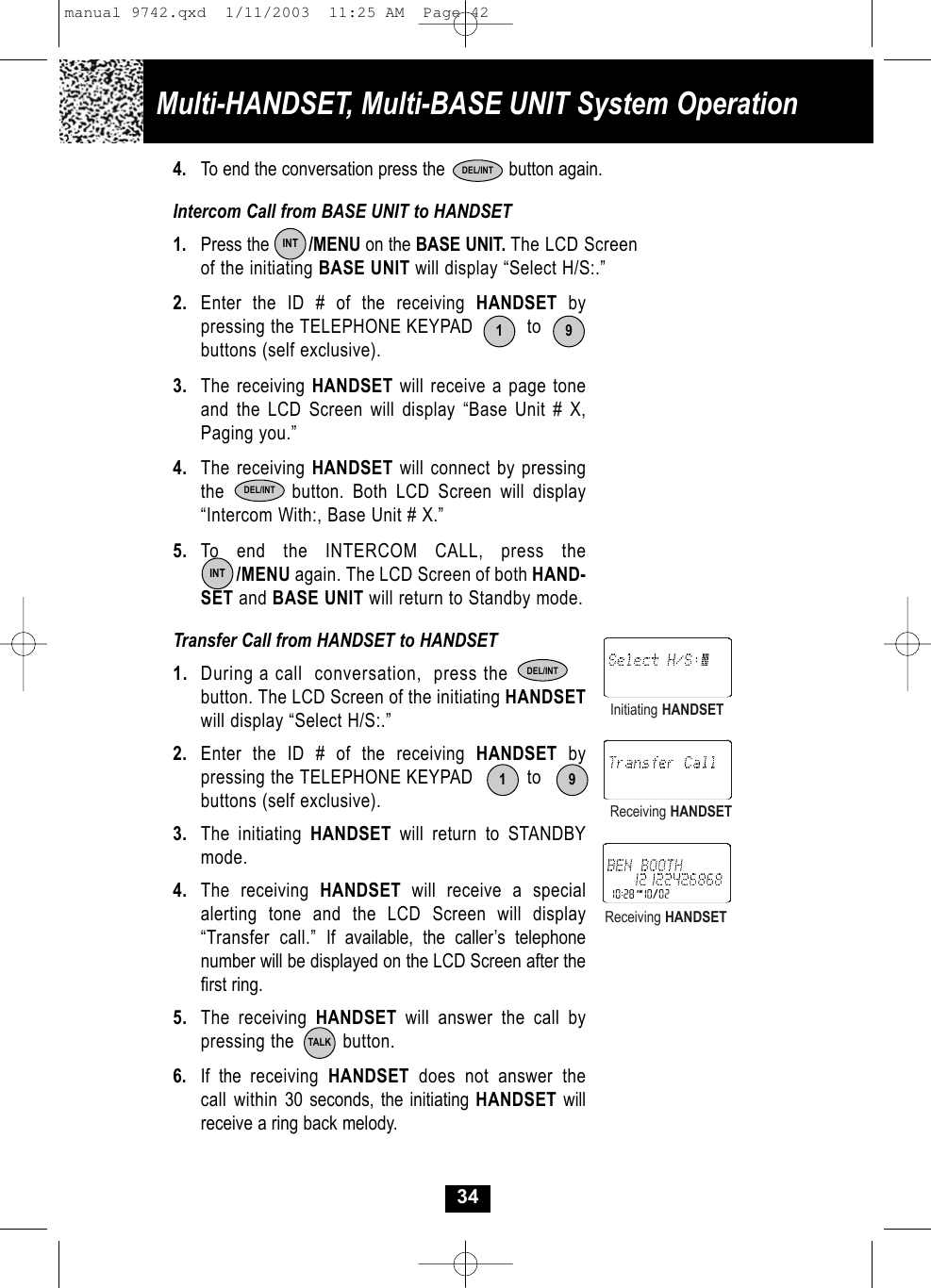

344. To end the conversation press the button again.Intercom Call from BASE UNIT to HANDSET1. Press the /MENU on the BASE UNIT. The LCD Screenof the initiating BASE UNIT will display “Select H/S:.”2. Enter the ID # of the receiving HANDSET by pressing the TELEPHONE KEYPAD to buttons (self exclusive). 3. The receiving HANDSET will receive a page tone and the LCD Screen will display “Base Unit # X, Paging you.”4. The receiving HANDSET will connect by pressingthe button. Both LCD Screen will display“Intercom With:, Base Unit # X.”5. To end the INTERCOM CALL, press the /MENU again. The LCD Screen of both HAND-SET and BASE UNIT will return to Standby mode. Transfer Call from HANDSET to HANDSET1. During a call conversation, press the button. The LCD Screen of the initiating HANDSETwill display “Select H/S:.”2. Enter the ID # of the receiving HANDSET by pressing the TELEPHONE KEYPAD to buttons (self exclusive).3. The initiating HANDSET will return to STANDBYmode.4. The receiving HANDSET will receive a special alerting tone and the LCD Screen will display“Transfer call.” If available, the caller’s telephone number will be displayed on the LCD Screen after thefirst ring. 5. The receiving HANDSET will answer the call by pressing the button. 6. If the receiving HANDSET does not answer thecall within 30 seconds, the initiating HANDSET willreceive a ring back melody.Initiating HANDSETReceiving HANDSETReceiving HANDSET1 9INTDEL/INTDEL/INT19TALKDEL/INTINTMulti-HANDSET, Multi-BASE UNIT System Operationmanual 9742.qxd 1/11/2003 11:25 AM Page 42

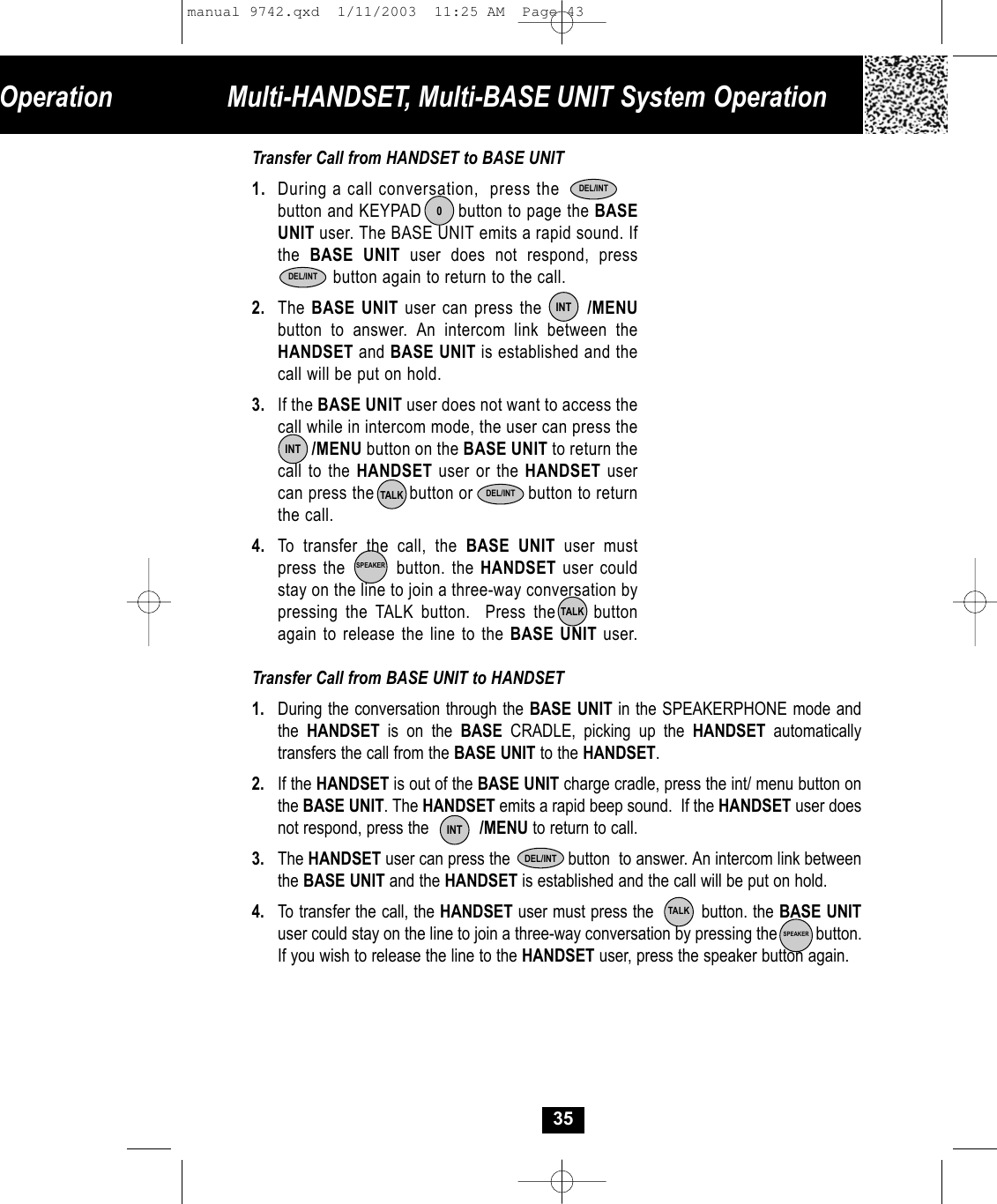

Multi-HANDSET, Multi-BASE UNIT System Operation35Transfer Call from HANDSET to BASE UNIT1. During a call conversation, press the button and KEYPAD button to page the BASEUNIT user. The BASE UNIT emits a rapid sound. If the BASE UNIT user does not respond, pressbutton again to return to the call.2. The BASE UNIT user can press the /MENUbutton to answer. An intercom link between the HANDSET and BASE UNIT is established and the call will be put on hold.3. If the BASE UNIT user does not want to access the call while in intercom mode, the user can press the /MENU button on the BASE UNIT to return thecall to the HANDSET user or the HANDSET user can press the button or button to returnthe call.4. To transfer the call, the BASE UNIT user must press the button. the HANDSET user couldstay on the line to join a three-way conversation by pressing the TALK button. Press the button again to release the line to the BASE UNIT user. Transfer Call from BASE UNIT to HANDSET1. During the conversation through the BASE UNIT in the SPEAKERPHONE mode and the HANDSET is on the BASE CRADLE, picking up the HANDSET automaticallytransfers the call from the BASE UNIT to the HANDSET.2. If the HANDSET is out of the BASE UNIT charge cradle, press the int/ menu button onthe BASE UNIT. The HANDSET emits a rapid beep sound. If the HANDSET user does not respond, press the /MENU to return to call.3. The HANDSET user can press the button to answer. An intercom link betweenthe BASE UNIT and the HANDSET is established and the call will be put on hold. 4. To transfer the call, the HANDSET user must press the button. the BASE UNITuser could stay on the line to join a three-way conversation by pressing the button. If you wish to release the line to the HANDSET user, press the speaker button again.DEL/INTSPEAKER0DEL/INTINTINTTALK DEL/INTTALKINTDEL/INTTALKSPEAKEROperationmanual 9742.qxd 1/11/2003 11:25 AM Page 43

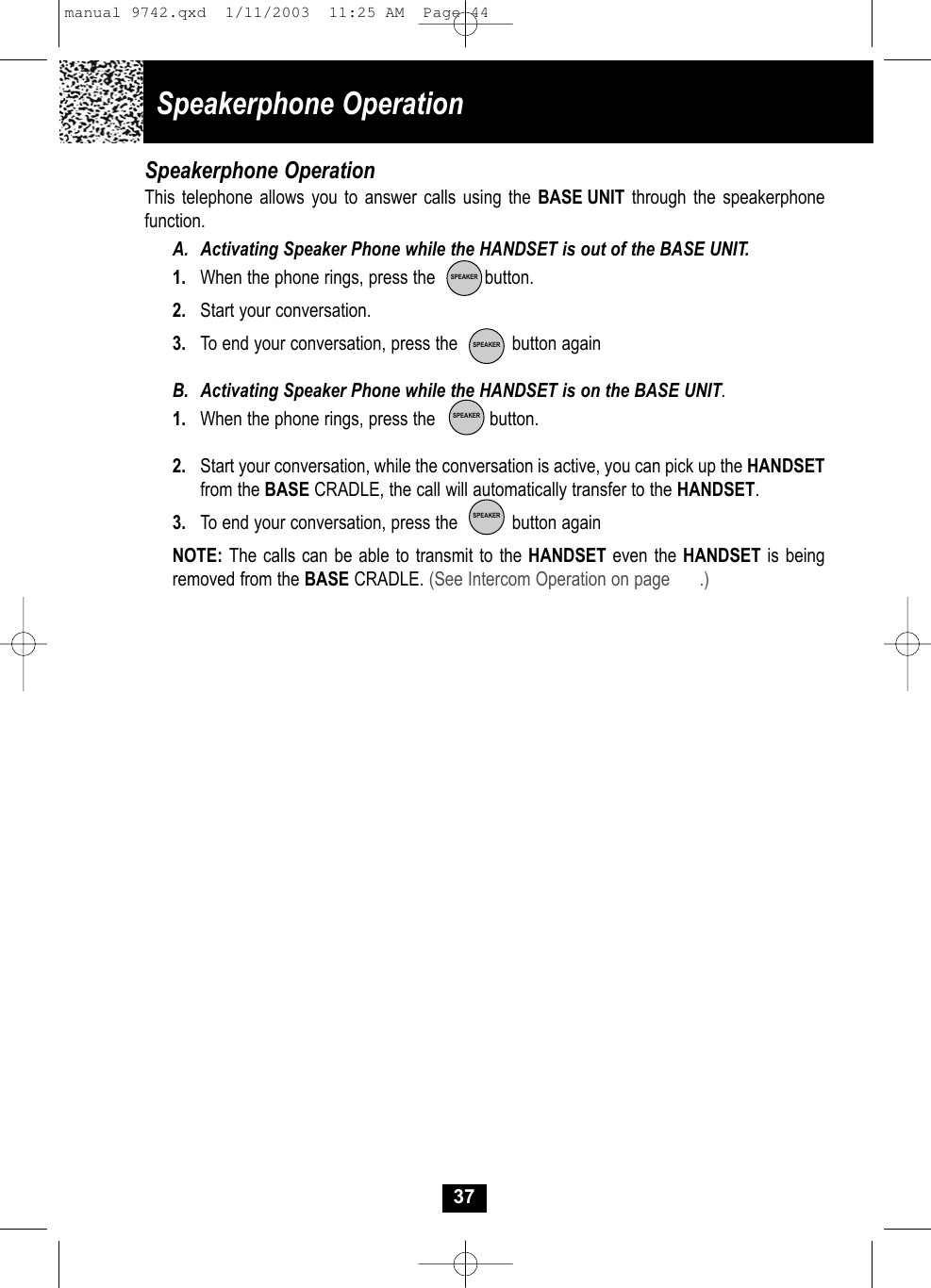

37Speakerphone OperationThis telephone allows you to answer calls using the BASE UNIT through the speakerphone function. A. Activating Speaker Phone while the HANDSET is out of the BASE UNIT.1. When the phone rings, press the button. 2. Start your conversation. 3. To end your conversation, press the button againB. Activating Speaker Phone while the HANDSET is on the BASE UNIT.1. When the phone rings, press the button.2. Start your conversation, while the conversation is active, you can pick up the HANDSETfrom the BASE CRADLE, the call will automatically transfer to the HANDSET.3. To end your conversation, press the button again NOTE: The calls can be able to transmit to the HANDSET even the HANDSET is being removed from the BASE CRADLE. (See Intercom Operation on page .) SPEAKERSPEAKERSPEAKERSPEAKERSpeakerphone Operationmanual 9742.qxd 1/11/2003 11:25 AM Page 44

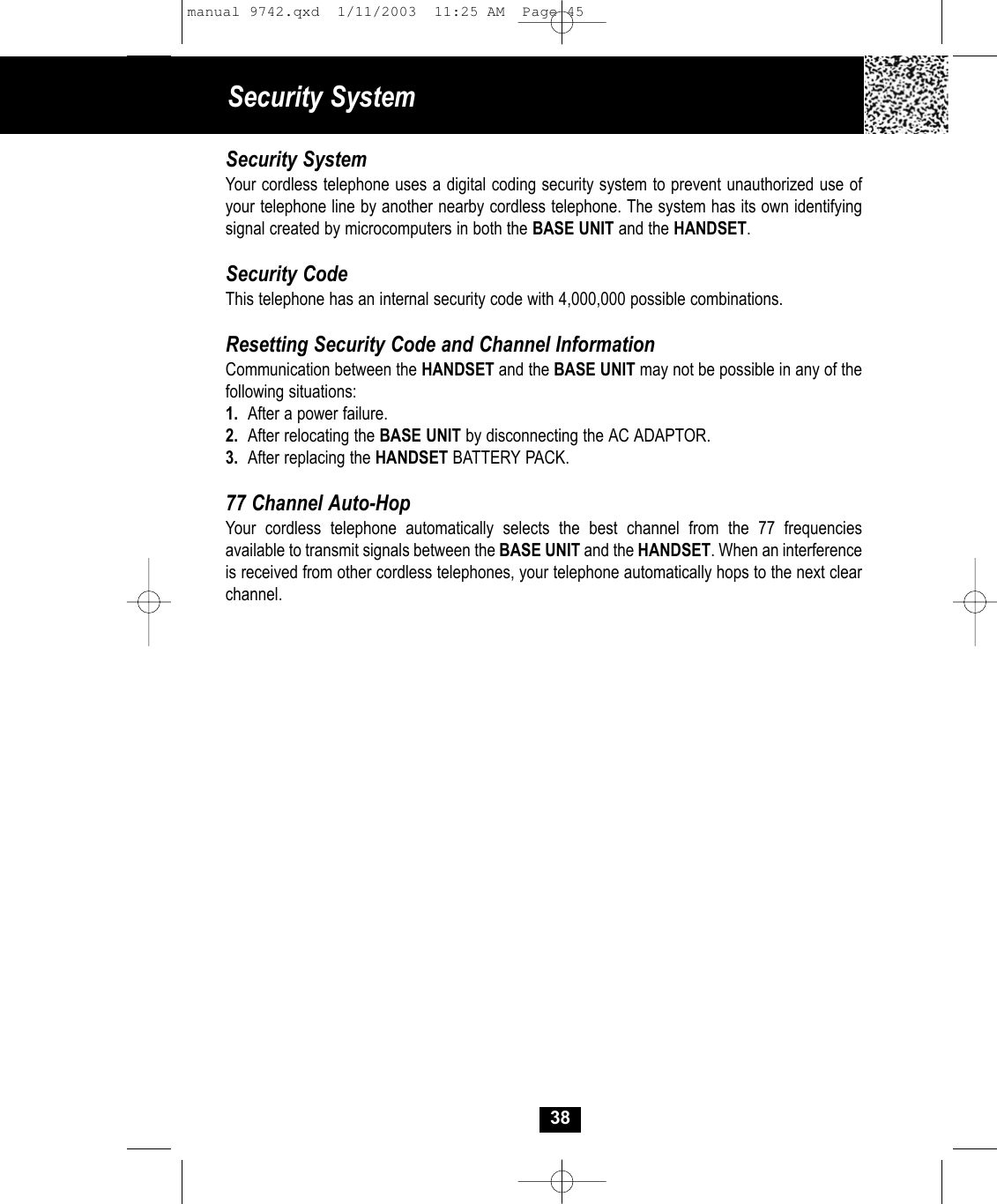

38Security SystemYour cordless telephone uses a digital coding security system to prevent unauthorized use ofyour telephone line by another nearby cordless telephone. The system has its own identifyingsignal created by microcomputers in both the BASE UNIT and the HANDSET.Security CodeThis telephone has an internal security code with 4,000,000 possible combinations. Resetting Security Code and Channel InformationCommunication between the HANDSET and the BASE UNIT may not be possible in any of the following situations:1. After a power failure.2. After relocating the BASE UNIT by disconnecting the AC ADAPTOR.3. After replacing the HANDSET BATTERY PACK.77 Channel Auto-HopYour cordless telephone automatically selects the best channel from the 77 frequenciesavailable to transmit signals between the BASE UNIT and the HANDSET. When an interferenceis received from other cordless telephones, your telephone automatically hops to the next clearchannel.Security Systemmanual 9742.qxd 1/11/2003 11:25 AM Page 45

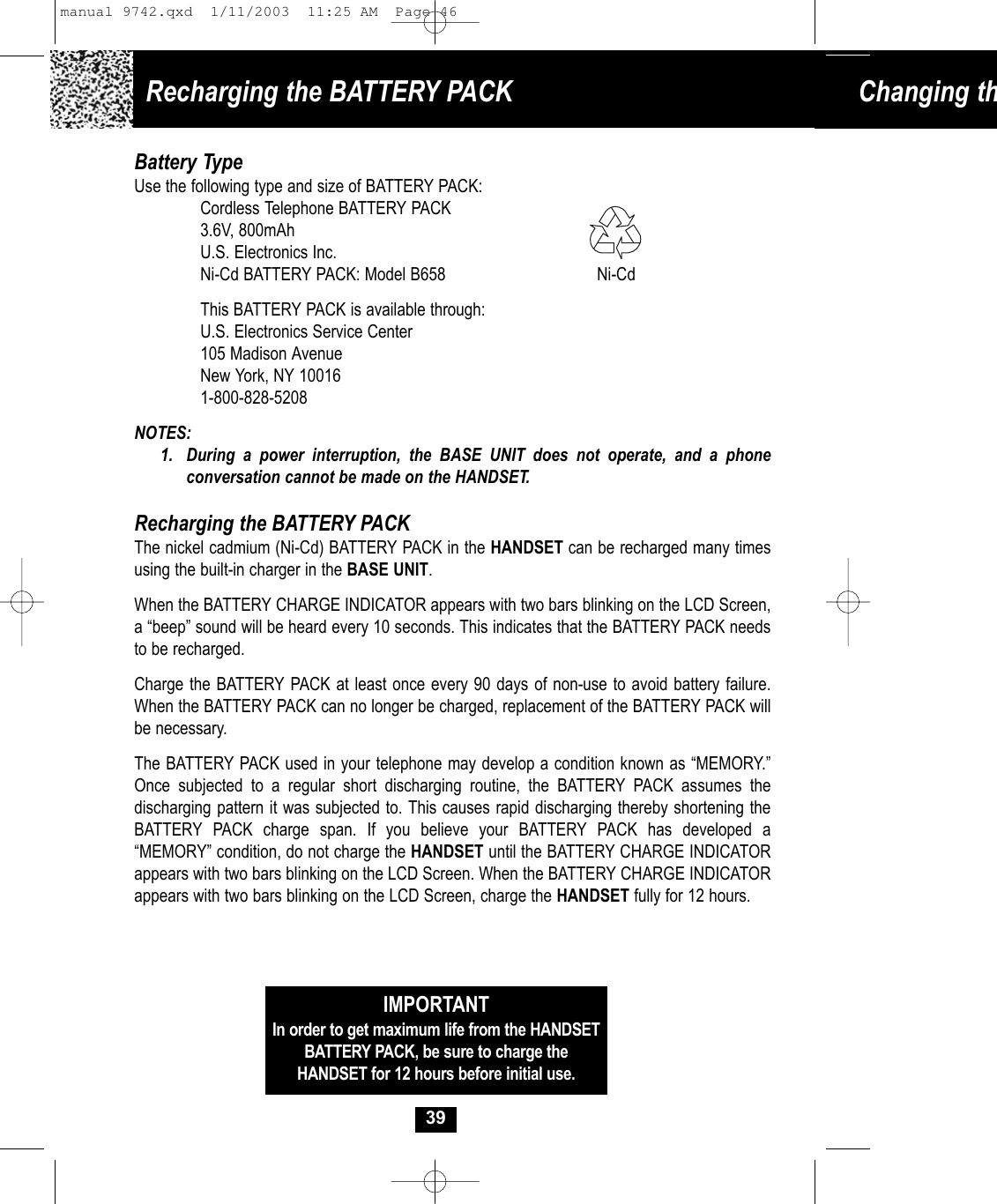

Changing th39Battery TypeUse the following type and size of BATTERY PACK:Cordless Telephone BATTERY PACK3.6V, 800mAhU.S. Electronics Inc.Ni-Cd BATTERY PACK: Model B658 Ni-CdThis BATTERY PACK is available through:U.S. Electronics Service Center105 Madison AvenueNew York, NY 100161-800-828-5208NOTES:1. During a power interruption, the BASE UNIT does not operate, and a phone conversation cannot be made on the HANDSET.Recharging the BATTERY PACKThe nickel cadmium (Ni-Cd) BATTERY PACK in the HANDSET can be recharged many times using the built-in charger in the BASE UNIT.When the BATTERY CHARGE INDICATOR appears with two bars blinking on the LCD Screen,a “beep” sound will be heard every 10 seconds. This indicates that the BATTERY PACK needs to be recharged.Charge the BATTERY PACK at least once every 90 days of non-use to avoid battery failure.When the BATTERY PACK can no longer be charged, replacement of the BATTERY PACK will be necessary.The BATTERY PACK used in your telephone may develop a condition known as “MEMORY.”Once subjected to a regular short discharging routine, the BATTERY PACK assumes the discharging pattern it was subjected to. This causes rapid discharging thereby shortening theBATTERY PACK charge span. If you believe your BATTERY PACK has developed a “MEMORY” condition, do not charge the HANDSET until the BATTERY CHARGE INDICATORappears with two bars blinking on the LCD Screen. When the BATTERY CHARGE INDICATORappears with two bars blinking on the LCD Screen, charge the HANDSET fully for 12 hours.IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSET for 12 hours before initial use.Recharging the BATTERY PACKmanual 9742.qxd 1/11/2003 11:25 AM Page 46

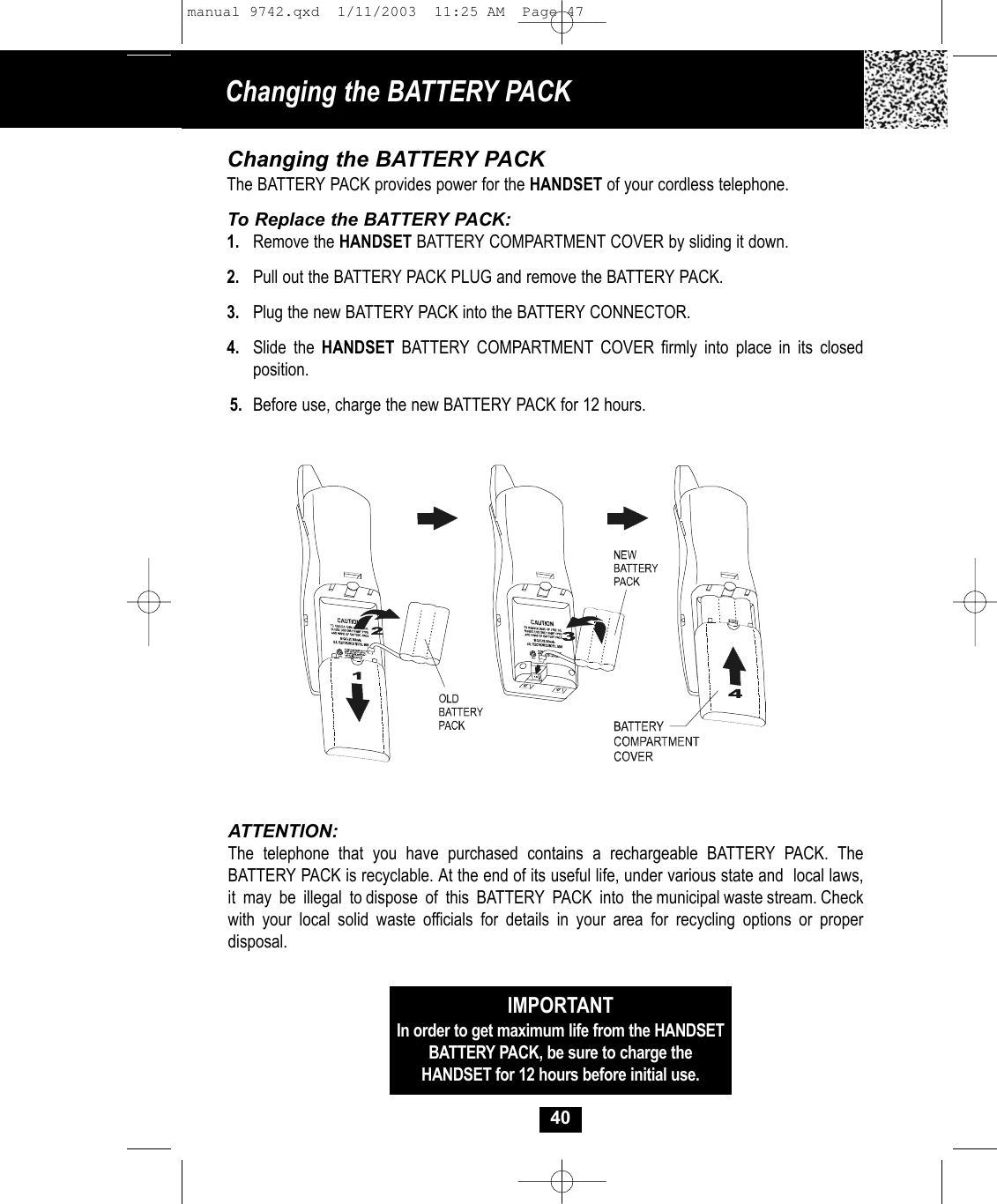

40Changing the BATTERY PACKThe BATTERY PACK provides power for the HANDSET of your cordless telephone.To Replace the BATTERY PACK:1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.2. Pull out the BATTERY PACK PLUG and remove the BATTERY PACK.3. Plug the new BATTERY PACK into the BATTERY CONNECTOR.4. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closed position.5. Before use, charge the new BATTERY PACK for 12 hours.ATTENTION:The telephone that you have purchased contains a rechargeable BATTERY PACK. TheBATTERY PACK is recyclable. At the end of its useful life, under various state and local laws,it may be illegal to dispose of this BATTERY PACK into the municipal waste stream. Checkwith your local solid waste officials for details in your area for recycling options or proper disposal.IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSET for 12 hours before initial use.Changing the BATTERY PACK manual 9742.qxd 1/11/2003 11:25 AM Page 47

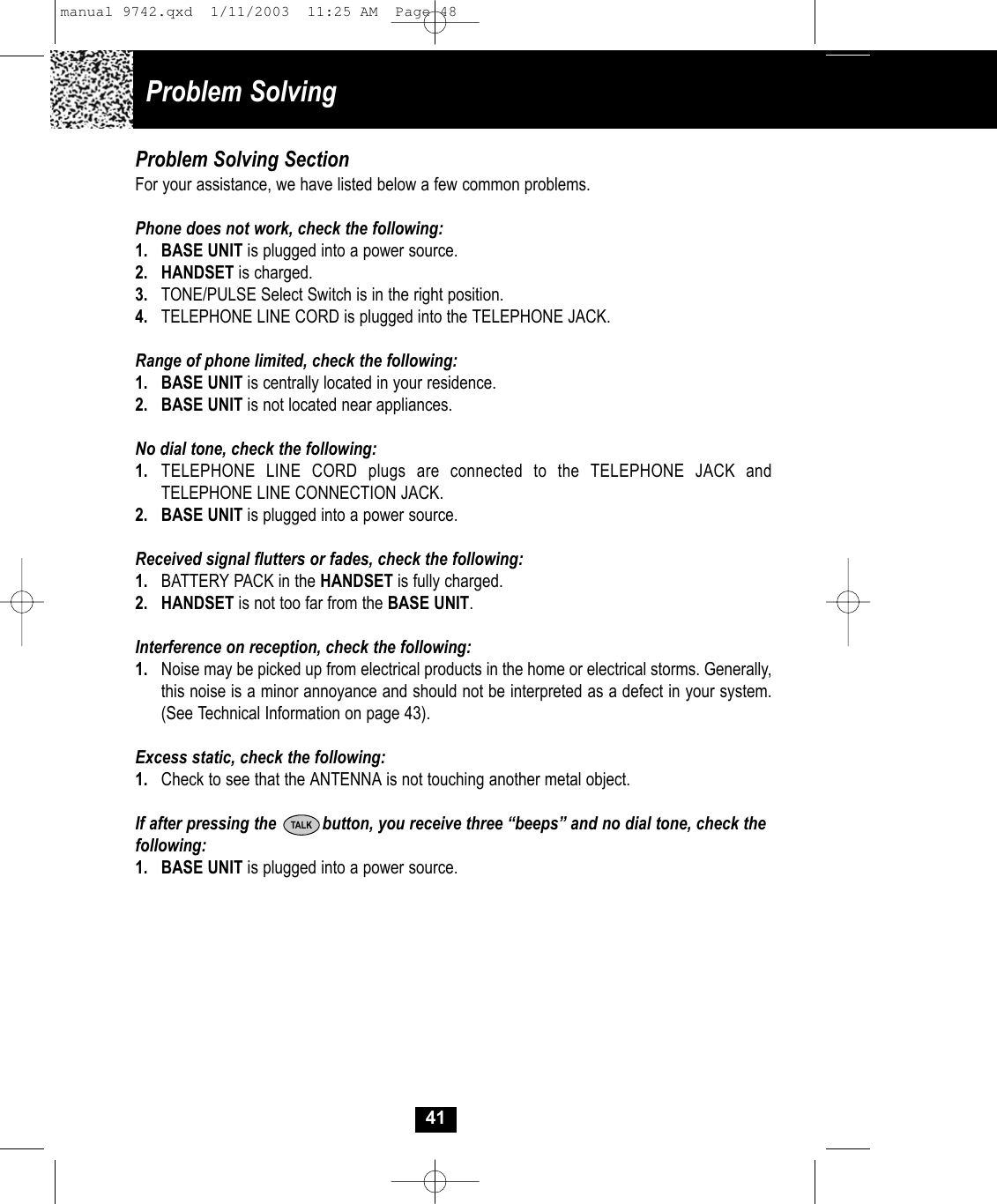

41Problem Solving SectionFor your assistance, we have listed below a few common problems.Phone does not work, check the following:1. BASE UNIT is plugged into a power source.2. HANDSET is charged.3. TONE/PULSE Select Switch is in the right position.4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.Range of phone limited, check the following:1. BASE UNIT is centrally located in your residence.2. BASE UNIT is not located near appliances.No dial tone, check the following:1. TELEPHONE LINE CORD plugs are connected to the TELEPHONE JACK and TELEPHONE LINE CONNECTION JACK.2. BASE UNIT is plugged into a power source.Received signal flutters or fades, check the following:1. BATTERY PACK in the HANDSET is fully charged.2. HANDSET is not too far from the BASE UNIT.Interference on reception, check the following:1. Noise may be picked up from electrical products in the home or electrical storms. Generally, this noise is a minor annoyance and should not be interpreted as a defect in your system. (See Technical Information on page 43).Excess static, check the following:1. Check to see that the ANTENNA is not touching another metal object.If after pressing the button, you receive three “beeps” and no dial tone, check thefollowing: 1. BASE UNIT is plugged into a power source.TALKProblem Solvingmanual 9742.qxd 1/11/2003 11:25 AM Page 48

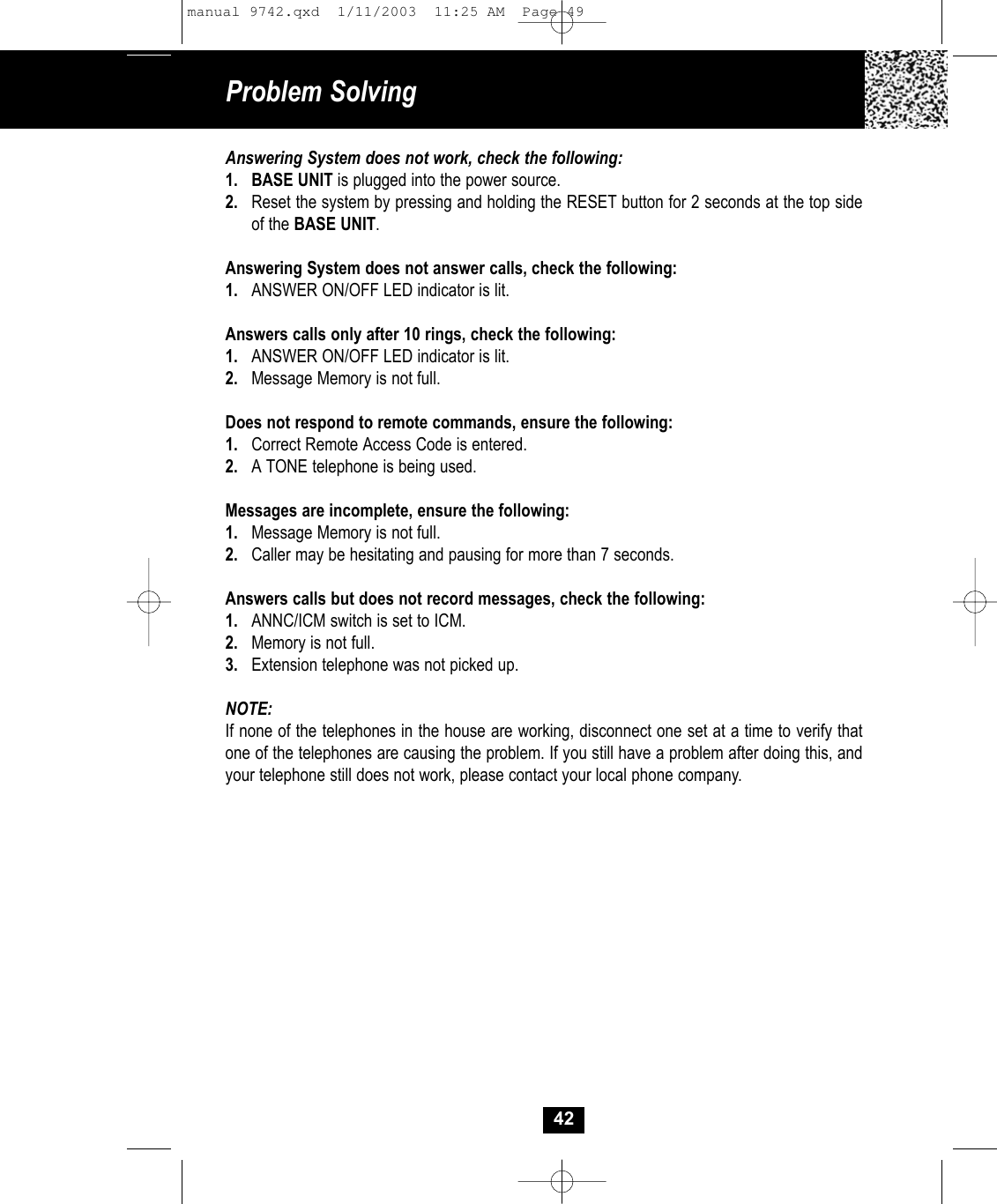

Problem Solving Answering System does not work, check the following:1. BASE UNIT is plugged into the power source.2. Reset the system by pressing and holding the RESET button for 2 seconds at the top sideof the BASE UNIT.Answering System does not answer calls, check the following:1. ANSWER ON/OFF LED indicator is lit.Answers calls only after 10 rings, check the following:1. ANSWER ON/OFF LED indicator is lit.2. Message Memory is not full.Does not respond to remote commands, ensure the following:1. Correct Remote Access Code is entered.2. A TONE telephone is being used.Messages are incomplete, ensure the following:1. Message Memory is not full.2. Caller may be hesitating and pausing for more than 7 seconds.Answers calls but does not record messages, check the following:1. ANNC/ICM switch is set to ICM.2. Memory is not full.3. Extension telephone was not picked up.NOTE: If none of the telephones in the house are working, disconnect one set at a time to verify thatone of the telephones are causing the problem. If you still have a problem after doing this, and your telephone still does not work, please contact your local phone company.42manual 9742.qxd 1/11/2003 11:25 AM Page 49

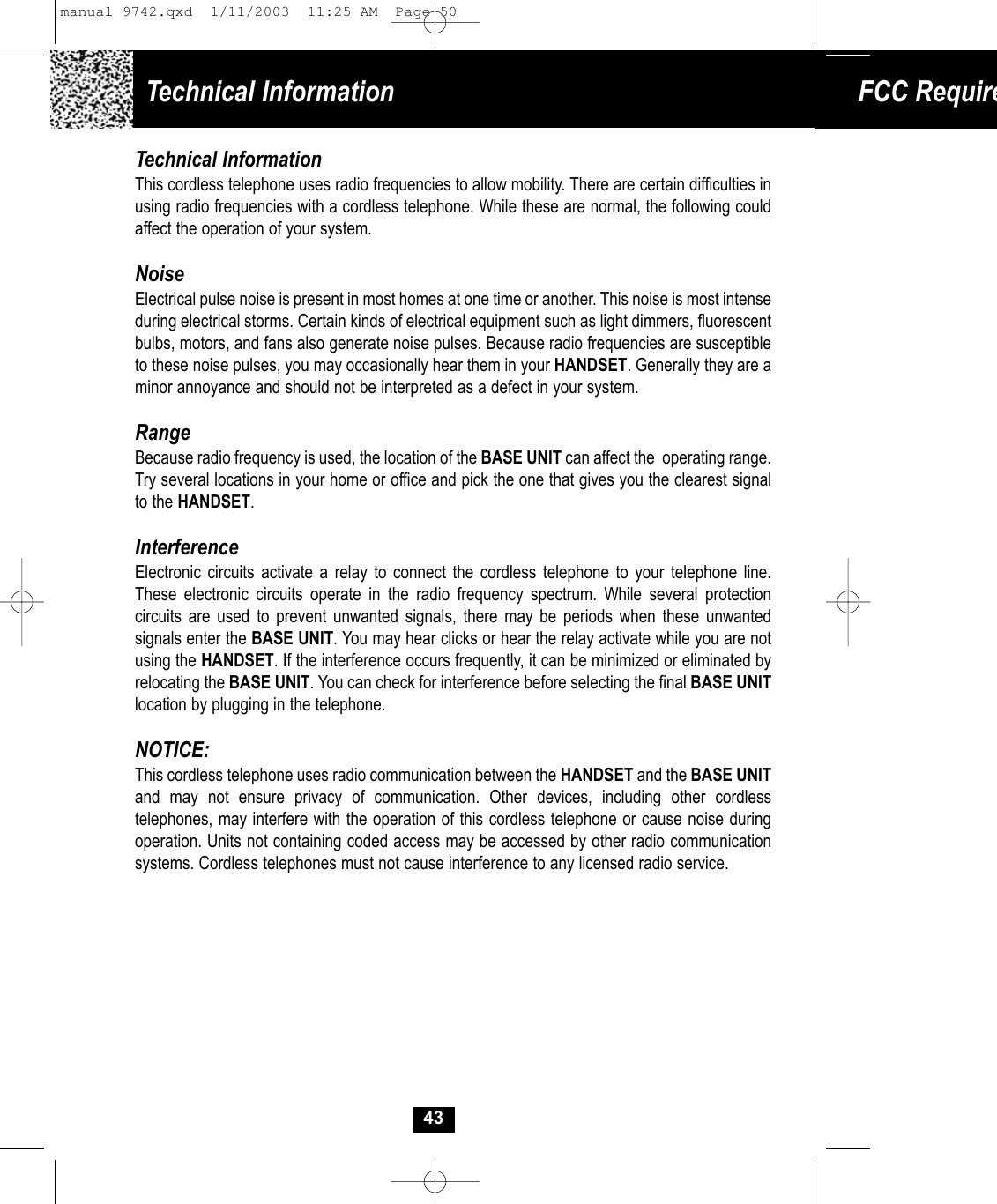

Technical Information FCC Require43Technical InformationThis cordless telephone uses radio frequencies to allow mobility. There are certain difficulties inusing radio frequencies with a cordless telephone. While these are normal, the following could affect the operation of your system.NoiseElectrical pulse noise is present in most homes at one time or another. This noise is most intense during electrical storms. Certain kinds of electrical equipment such as light dimmers, fluorescent bulbs, motors, and fans also generate noise pulses. Because radio frequencies are susceptible to these noise pulses, you may occasionally hear them in your HANDSET. Generally they are aminor annoyance and should not be interpreted as a defect in your system.RangeBecause radio frequency is used, the location of the BASE UNIT can affect the operating range. Try several locations in your home or office and pick the one that gives you the clearest signalto the HANDSET.InterferenceElectronic circuits activate a relay to connect the cordless telephone to your telephone line.These electronic circuits operate in the radio frequency spectrum. While several protection circuits are used to prevent unwanted signals, there may be periods when these unwanted signals enter the BASE UNIT. You may hear clicks or hear the relay activate while you are notusing the HANDSET. If the interference occurs frequently, it can be minimized or eliminated byrelocating the BASE UNIT. You can check for interference before selecting the final BASE UNITlocation by plugging in the telephone.NOTICE:This cordless telephone uses radio communication between the HANDSET and the BASE UNITand may not ensure privacy of communication. Other devices, including other cordless telephones, may interfere with the operation of this cordless telephone or cause noise duringoperation. Units not containing coded access may be accessed by other radio communication systems. Cordless telephones must not cause interference to any licensed radio service.manual 9742.qxd 1/11/2003 11:25 AM Page 50

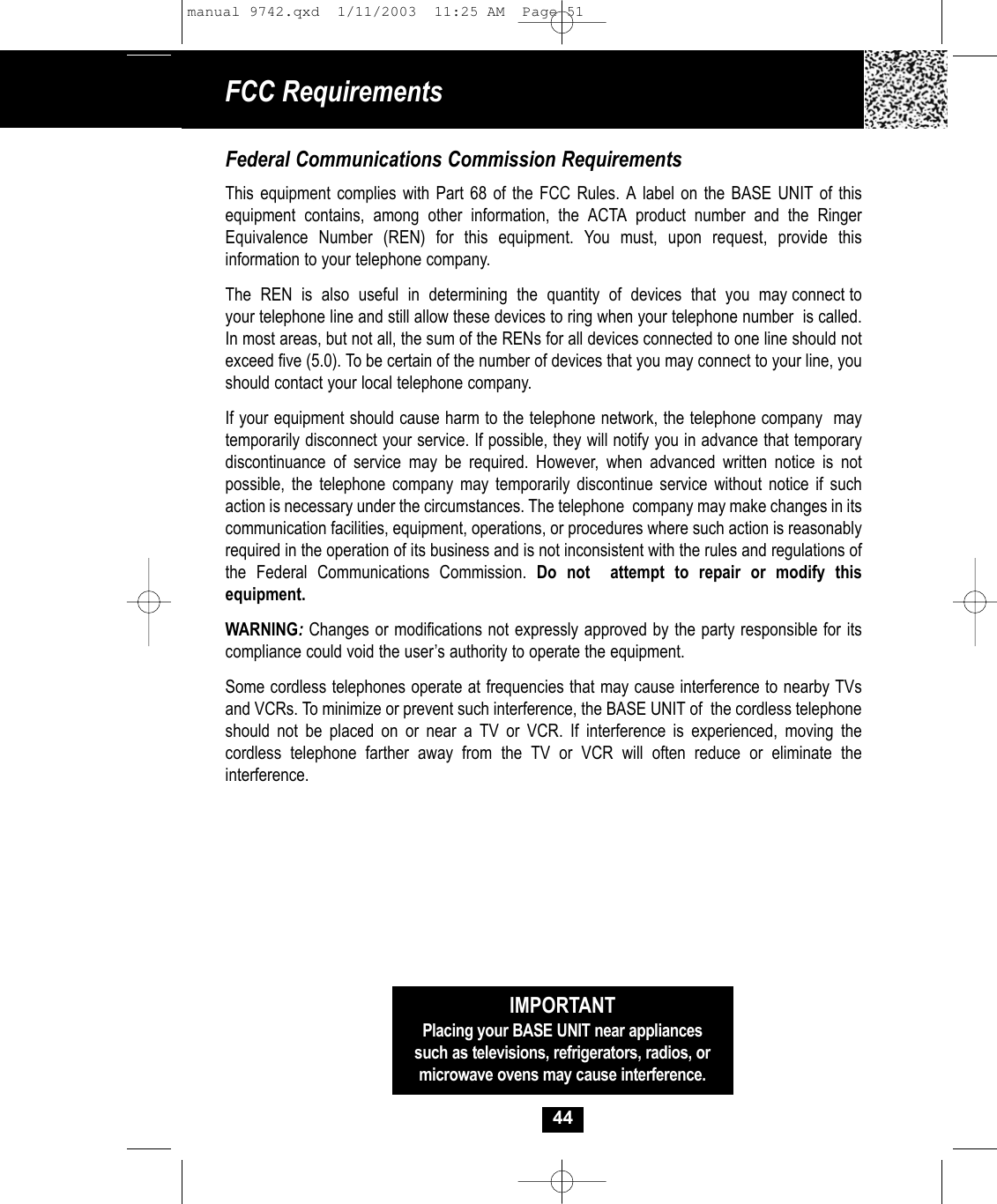

44IMPORTANTPlacing your BASE UNIT near appliancessuch as televisions, refrigerators, radios, ormicrowave ovens may cause interference.Federal Communications Commission RequirementsThis equipment complies with Part 68 of the FCC Rules. A label on the BASE UNIT of thisequipment contains, among other information, the ACTA product number and the Ringer Equivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone company.The REN is also useful in determining the quantity of devices that you may connect to your telephone line and still allow these devices to ring when your telephone number is called. In most areas, but not all, the sum of the RENs for all devices connected to one line should notexceed five (5.0). To be certain of the number of devices that you may connect to your line, you should contact your local telephone company.If your equipment should cause harm to the telephone network, the telephone company may temporarily disconnect your service. If possible, they will notify you in advance that temporary discontinuance of service may be required. However, when advanced written notice is notpossible, the telephone company may temporarily discontinue service without notice if suchaction is necessary under the circumstances. The telephone company may make changes in its communication facilities, equipment, operations, or procedures where such action is reasonablyrequired in the operation of its business and is not inconsistent with the rules and regulations ofthe Federal Communications Commission. Do not attempt to repair or modify thisequipment. WARNING: Changes or modifications not expressly approved by the party responsible for its compliance could void the user’s authority to operate the equipment.Some cordless telephones operate at frequencies that may cause interference to nearby TVsand VCRs. To minimize or prevent such interference, the BASE UNIT of the cordless telephoneshould not be placed on or near a TV or VCR. If interference is experienced, moving thecordless telephone farther away from the TV or VCR will often reduce or eliminate theinterference.FCC Requirements manual 9742.qxd 1/11/2003 11:25 AM Page 51
FCC Requirements WarrantyFederal Communications Commission Requirements (continued)This equipment should not be used on coin telephone lines. Connection to party line service issubject to state tariffs. If trouble is experienced, disconnect this equipment from the telephoneline to determine if it is causing the malfunction. If the equipment is determined to be malfunctioning, its use should be discontinued until the problem has been corrected.NOTE: This equipment has been tested and found to comply with the limits for a class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates,uses, and can radiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.1. Reorient or relocate the receiving ANTENNA.2. Increase the distance between the equipment and the receiver.3. Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The Relevant Guidelines and Standards are:• FCC Report and Order FCC 96-326 (August, 1996)• American National Standards Institute (C95-1-1992)• National Council Radiation Protection and Measuremants (NCRP-1986)• International Commission on Non-Ionizing Radiation Protection (ICNIRP-1998)45manual 9742.qxd 1/11/2003 11:25 AM Page 52

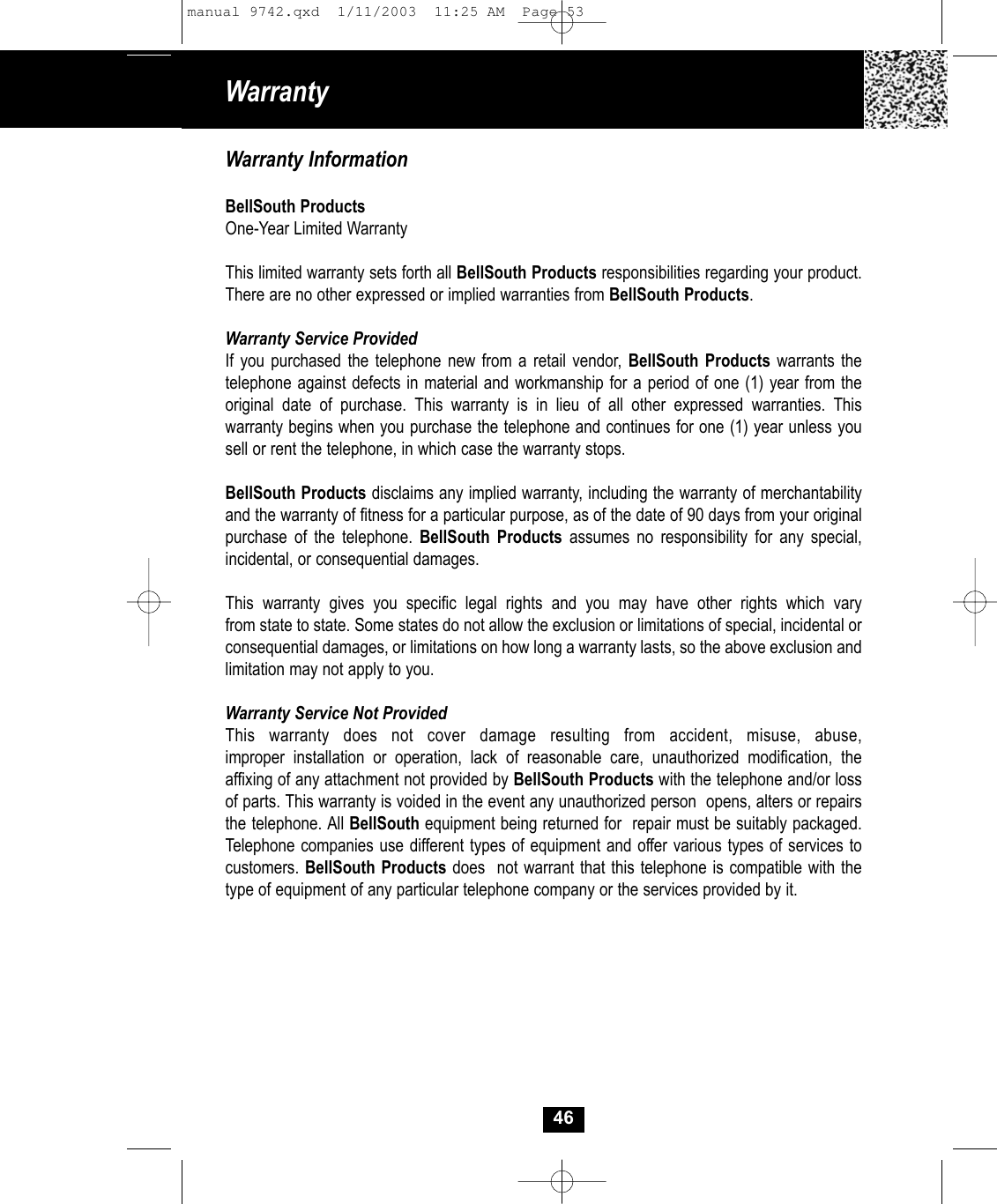

Warranty InformationBellSouth ProductsOne-Year Limited WarrantyThis limited warranty sets forth all BellSouth Products responsibilities regarding your product. There are no other expressed or implied warranties from BellSouth Products.Warranty Service ProvidedIf you purchased the telephone new from a retail vendor, BellSouth Products warrants the telephone against defects in material and workmanship for a period of one (1) year from the original date of purchase. This warranty is in lieu of all other expressed warranties. This warranty begins when you purchase the telephone and continues for one (1) year unless yousell or rent the telephone, in which case the warranty stops.BellSouth Products disclaims any implied warranty, including the warranty of merchantabilityand the warranty of fitness for a particular purpose, as of the date of 90 days from your original purchase of the telephone. BellSouth Products assumes no responsibility for any special, incidental, or consequential damages. This warranty gives you specific legal rights and you may have other rights which varyfrom state to state. Some states do not allow the exclusion or limitations of special, incidental orconsequential damages, or limitations on how long a warranty lasts, so the above exclusion and limitation may not apply to you.Warranty Service Not ProvidedThis warranty does not cover damage resulting from accident, misuse, abuse,improper installation or operation, lack of reasonable care, unauthorized modification, the affixing of any attachment not provided by BellSouth Products with the telephone and/or lossof parts. This warranty is voided in the event any unauthorized person opens, alters or repairsthe telephone. All BellSouth equipment being returned for repair must be suitably packaged.Telephone companies use different types of equipment and offer various types of services to customers. BellSouth Products does not warrant that this telephone is compatible with thetype of equipment of any particular telephone company or the services provided by it.46Warrantymanual 9742.qxd 1/11/2003 11:25 AM Page 53

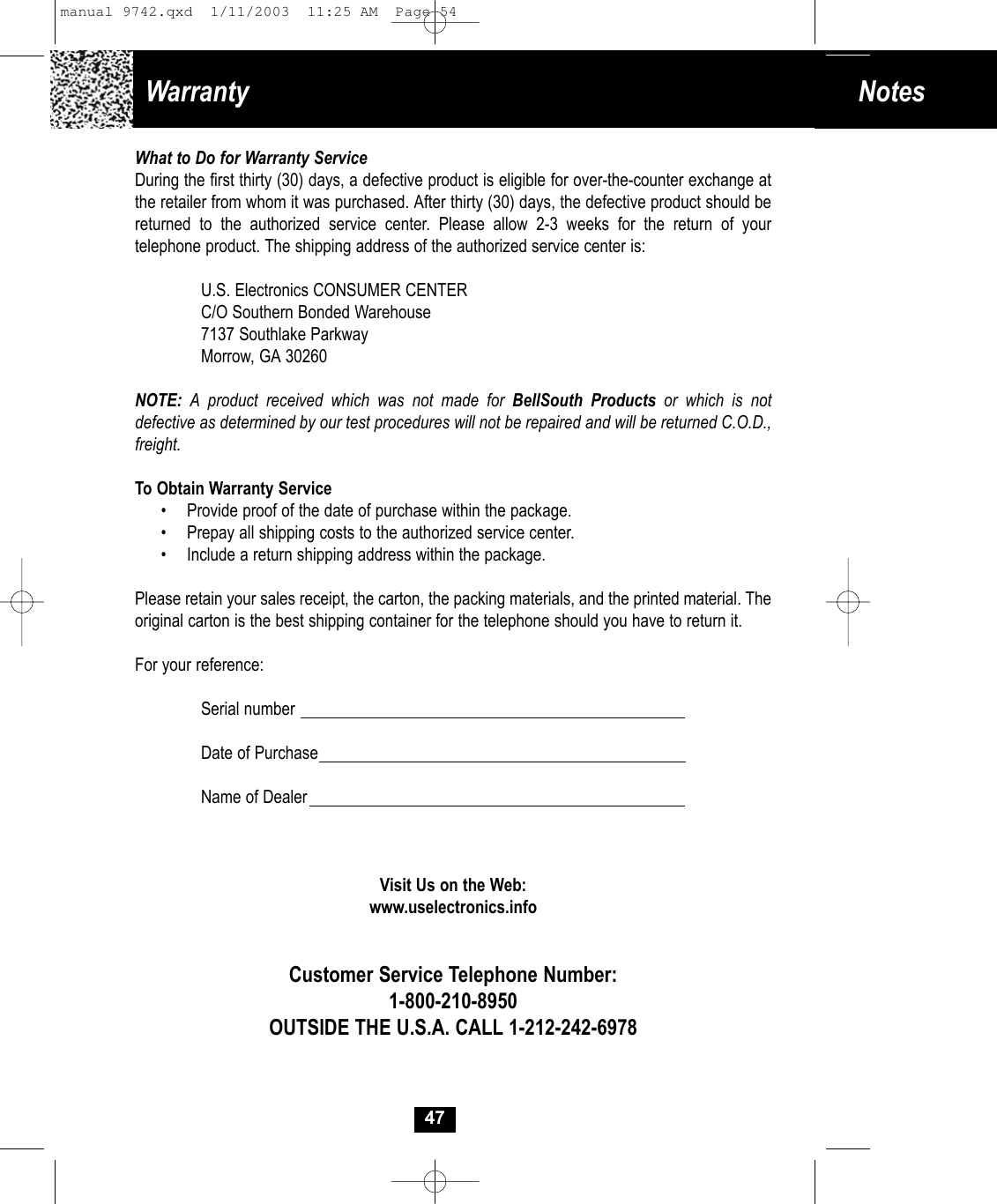

Notes Warranty What to Do for Warranty ServiceDuring the first thirty (30) days, a defective product is eligible for over-the-counter exchange atthe retailer from whom it was purchased. After thirty (30) days, the defective product should bereturned to the authorized service center. Please allow 2-3 weeks for the return of your telephone product. The shipping address of the authorized service center is:U.S. Electronics CONSUMER CENTERC/O Southern Bonded Warehouse7137 Southlake ParkwayMorrow, GA 30260NOTE: A product received which was not made for BellSouth Products or which is not defective as determined by our test procedures will not be repaired and will be returned C.O.D., freight.To Obtain Warranty Service• Provide proof of the date of purchase within the package.• Prepay all shipping costs to the authorized service center.• Include a return shipping address within the package.Please retain your sales receipt, the carton, the packing materials, and the printed material. The original carton is the best shipping container for the telephone should you have to return it.For your reference:Serial numberDate of PurchaseName of DealerVisit Us on the Web:www.uselectronics.infoCustomer Service Telephone Number:1-800-210-8950OUTSIDE THE U.S.A. CALL 1-212-242-697847manual 9742.qxd 1/11/2003 11:25 AM Page 54
48Notes manual 9742.qxd 1/11/2003 11:25 AM Page 55
Notes Wall Mount T49manual 9742.qxd 1/11/2003 11:25 AM Page 56

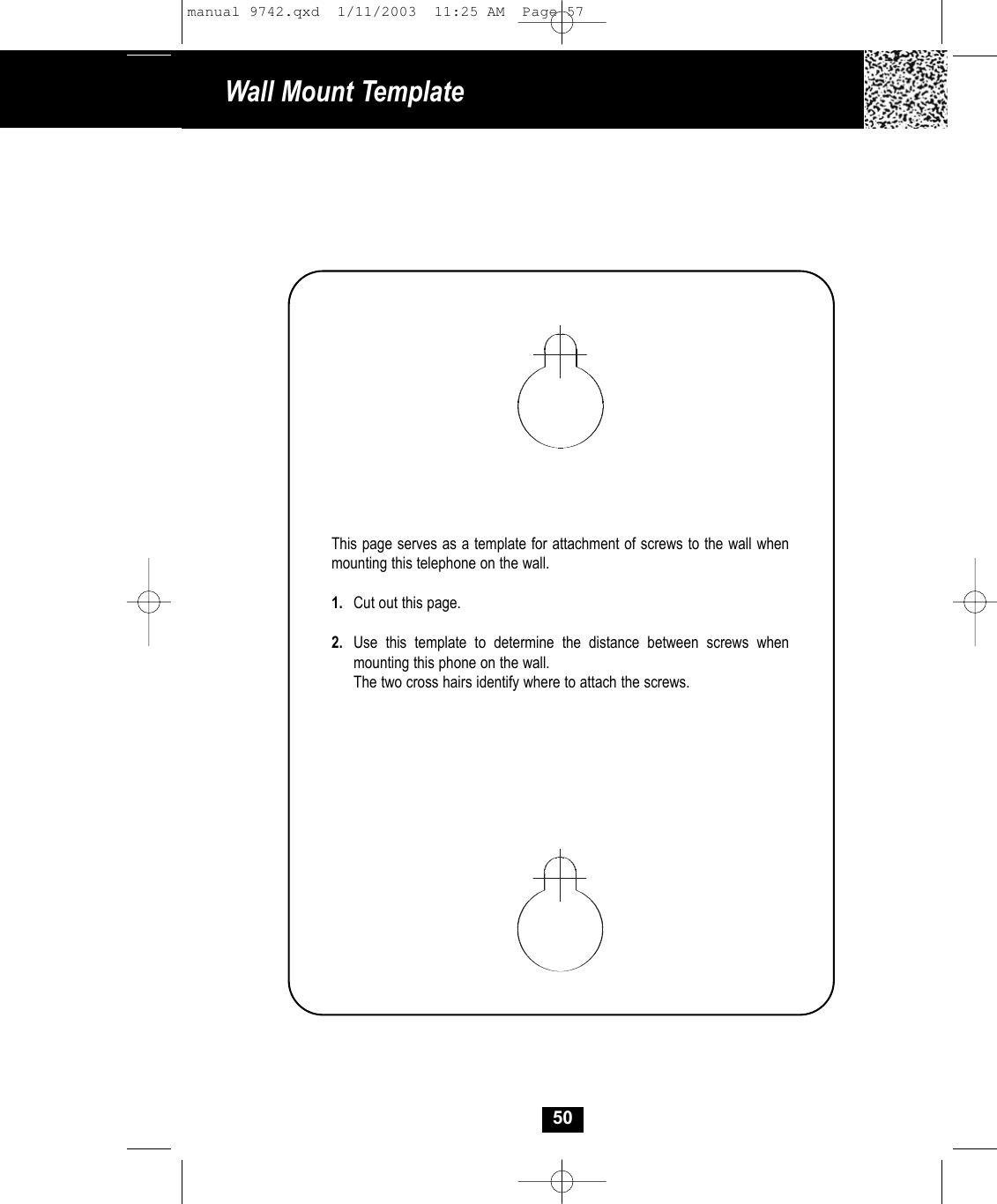

This page serves as a template for attachment of screws to the wall whenmounting this telephone on the wall.1. Cut out this page.2. Use this template to determine the distance between screws whenmounting this phone on the wall.The two cross hairs identify where to attach the screws.50Wall Mount Template manual 9742.qxd 1/11/2003 11:25 AM Page 57

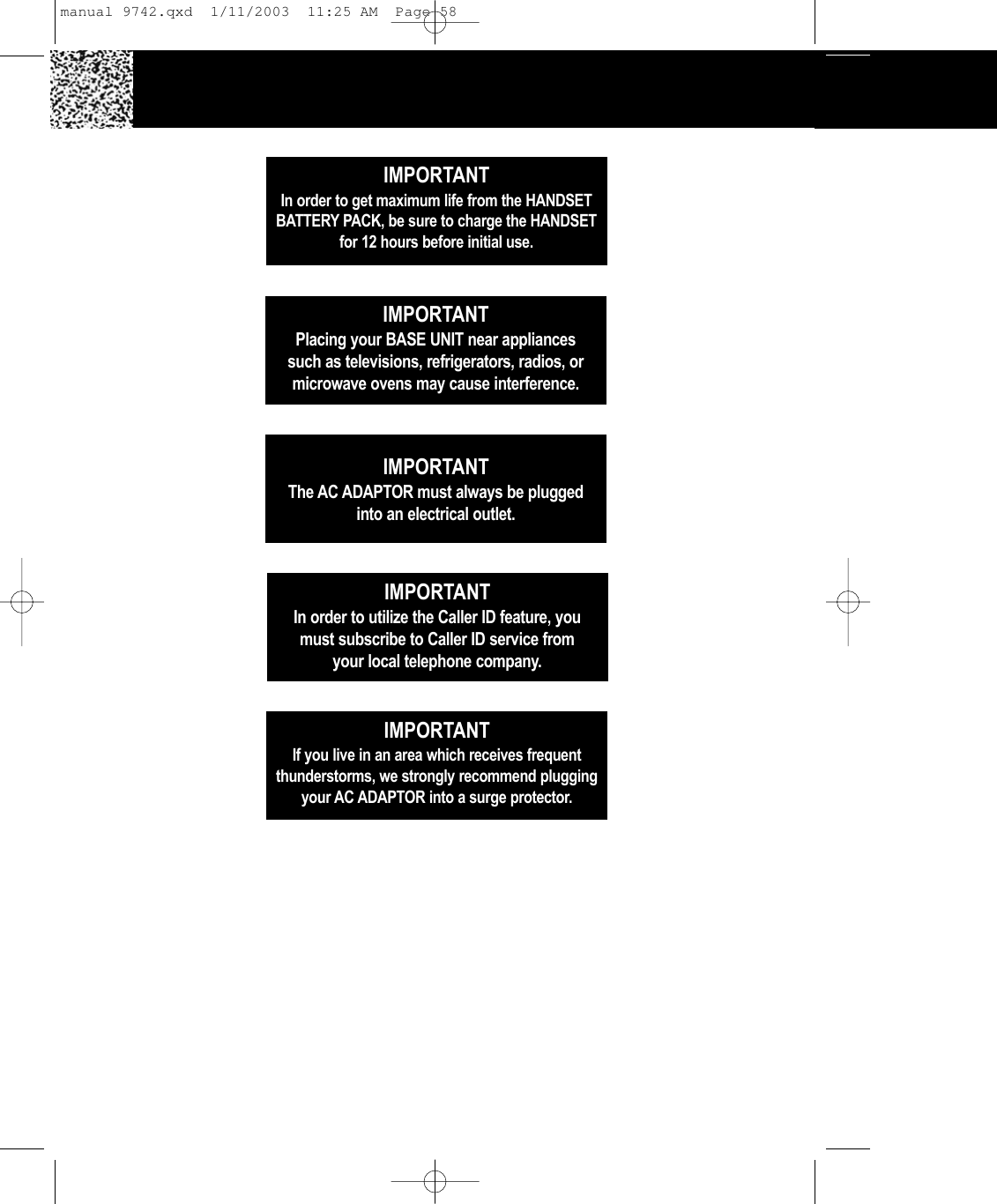

IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSETfor 12 hours before initial use.IMPORTANTPlacing your BASE UNIT near appliancessuch as televisions, refrigerators, radios, ormicrowave ovens may cause interference.IMPORTANTThe AC ADAPTOR must always be pluggedinto an electrical outlet.IMPORTANTIn order to utilize the Caller ID feature, youmust subscribe to Caller ID service fromyour local telephone company.IMPORTANTIf you live in an area which receives frequent thunderstorms, we strongly recommend pluggingyour AC ADAPTOR into a surge protector.manual 9742.qxd 1/11/2003 11:25 AM Page 58

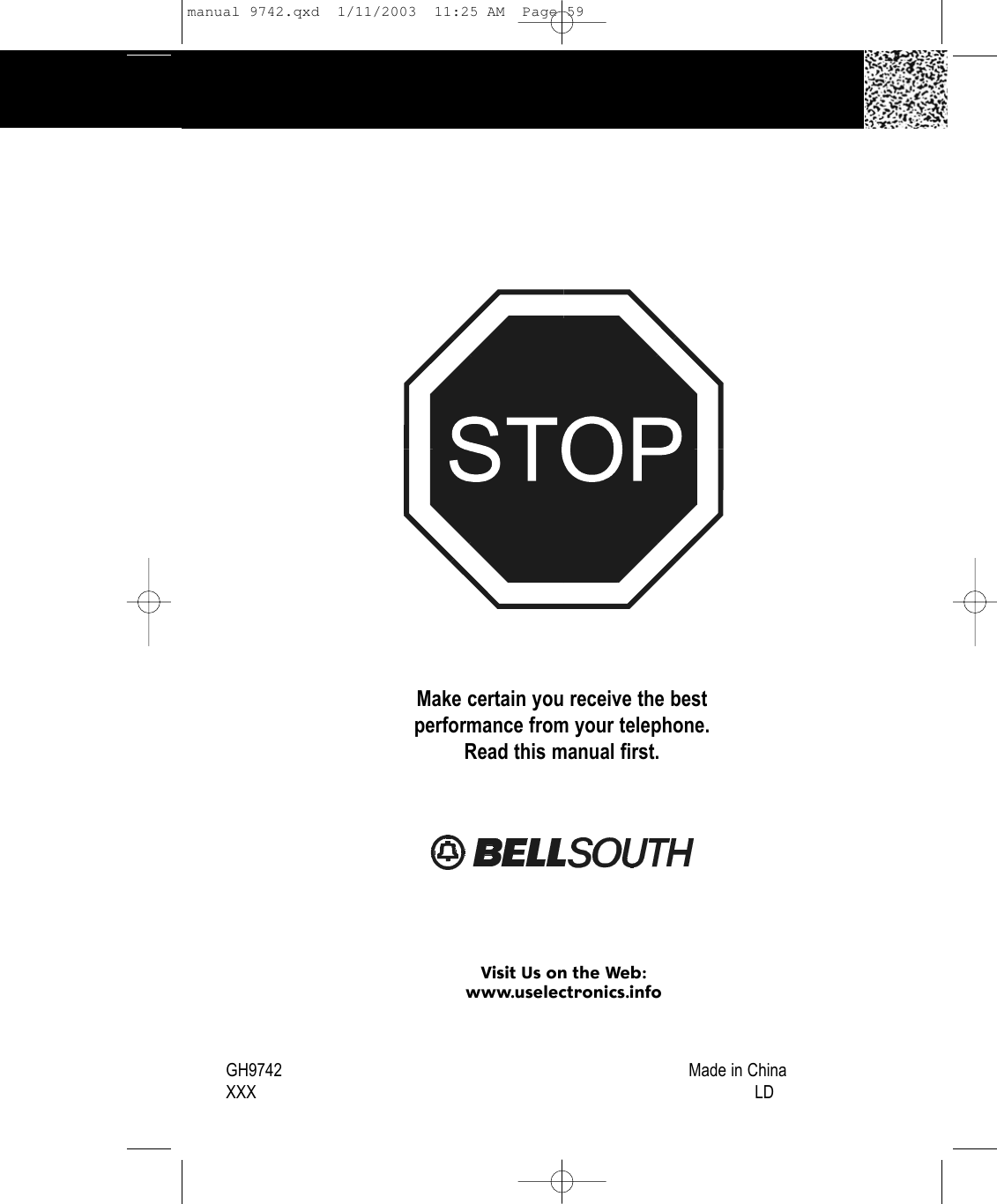

Make certain you receive the bestperformance from your telephone.Read this manual first.GH9742 Made in ChinaXXX LDVisit Us on the Web:www.uselectronics.infomanual 9742.qxd 1/11/2003 11:25 AM Page 59
