22TELEPHONEKEYPAD FunctionPBX Number: Inserts if a “PBX Number” before an outgoing number is dialed. Select the number (0-9) which is required to access an outside line when using a switchboard system, and the phone will automatically dial the PBX number and a pause before any speed dial or Caller ID callback number. factory setting is “OFF.”Language: Changes the language that appears on the LCD Screen. Choosebetween English, French, or Spanish.User Name: Changes the user name (ID) that appears on the LCD Screen during STANDBY mode.MSG Waiting Delete: Clears current message waiting indication.Area Code: Adds the local Area Code to numbers that were stored as 7-digitsin the phone book and 10-digit dialing is required in the local calling area.Register: Initiates the registration of HANDSETS to the BASE UNIT.Alarm Clock: Sets the Alarm clock time.67890*#NOTE: At any time during options programming you can quit and the settings that you have changed will be saved. Press the /MENU button to quit the options menu or let the options programming time out by not pressing any TELEPHONE KEYPAD buttons for 20 seconds.A. Setting the Ringer Level1. Press the /MENU button to enter the menu.2. Press the button to go to the RINGER LEVEL programming option.3. Press the button to change the setting. “High” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between HI, LOW, and OFF.5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.VOLVOLEDIT/FLASHVOLSAVE1Caller ID System Operation21Outgoing CallsThis telephone remembers the last 8 OUTGOING CALLS. The name, time, date, and the duration of the call are recorded. 1. With the HANDSET in STANDBY mode, press theSHIFT LEFT button. The LCD Screen will display “Outgoing call.” 2. Pressing the SCROLL DOWN button will go throughthe calls from the last to the latest OUTGOING CALL record. Pressing the SCROLL UP button will allow you to view the calls from the latest call to the last.3. To make a follow-up call, press the button to dial the displayed record.Function SettingsYou can change the setting on the HANDSET in the functions menu. Access the functions menuby pressing the /MENU button.There are 12 settings in the functions menu which can be changed. You can scroll through thefunction menu in the listed order by pressing the SCROLL DOWN button. Settings can be accessed by pressing the corresponding TELEPHONE KEYPAD button. To edit a setting, press the button, use the SCROLL UP or DOWN button to togglebetween the setting options, and then press and hold the /RE/PA button to save thechanges. Press the /MENU button to exit the functions menu.VOLTALKSAVEEDIT/FLASHVOLTELEPHONEKEYPAD FunctionRing Hi/Low/Off: Changes the volume of the ringer on the HANDSET orturn the ringer OFF.Ringer Melody: Changes the HANDSET ring melody.First Ring On/Off: Turns the first ring of the phone OFF so that it does not ring until Caller ID information has been displayed. Particularly useful whenusing the PREFFERED and BLOCKED call features or the PRIVATE andUNAVAILABLE ring settings.Time Set: Changes the time and date.Contrast: Adjusts the brightness of the LCD Screen for optimum viewing.12345Caller ID System OperationDSST~2801~B.qxd 1/25/2003 7:03 PM Page 12

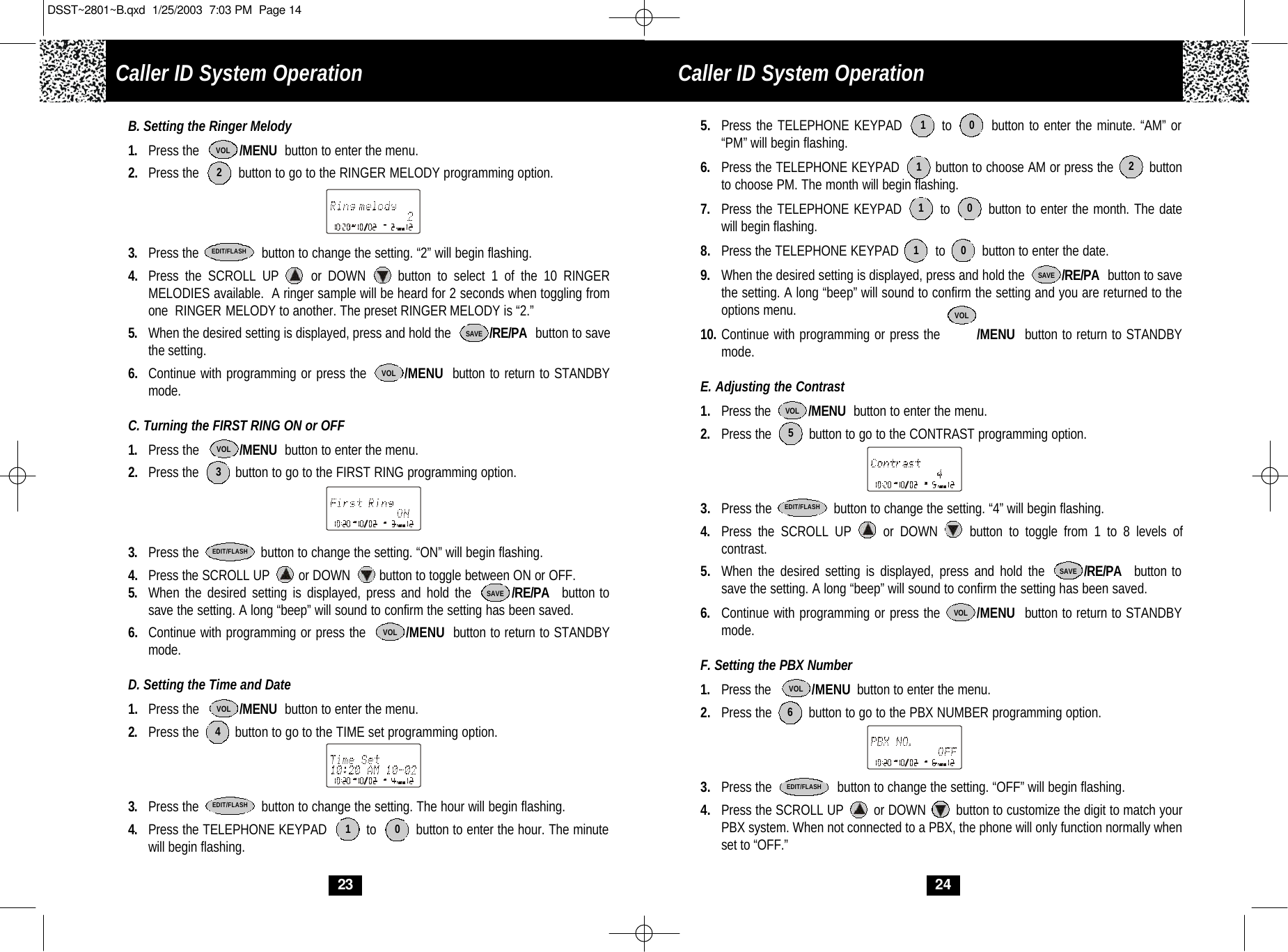

245. Press the TELEPHONE KEYPAD to button to enter the minute. “AM” or “PM” will begin flashing.6. Press the TELEPHONE KEYPAD button to choose AM or press the buttonto choose PM. The month will begin flashing.7. Press the TELEPHONE KEYPAD to button to enter the month. The datewill begin flashing. 8. Press the TELEPHONE KEYPAD to button to enter the date. 9. When the desired setting is displayed, press and hold the /RE/PA button to savethe setting. A long “beep” will sound to confirm the setting and you are returned to theoptions menu.10. Continue with programming or press the /MENU button to return to STANDBYmode.E. Adjusting the Contrast1. Press the /MENU button to enter the menu.2. Press the button to go to the CONTRAST programming option.3. Press the button to change the setting. “4” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle from 1 to 8 levels of contrast.5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.F. Setting the PBX Number1. Press the /MENU button to enter the menu.2. Press the button to go to the PBX NUMBER programming option.3. Press the button to change the setting. “OFF” will begin flashing.4. Press the SCROLL UP or DOWN button to customize the digit to match your PBX system. When not connected to a PBX, the phone will only function normally whenset to “OFF.”SAVESAVE5EDIT/FLASH6EDIT/FLASH1 0101 01VOL2VOLVOLVOLCaller ID System OperationB. Setting the Ringer Melody1. Press the /MENU button to enter the menu.2. Press the button to go to the RINGER MELODY programming option.3. Press the button to change the setting. “2” will begin flashing.4. Press the SCROLL UP or DOWN button to select 1 of the 10 RINGERMELODIES available. A ringer sample will be heard for 2 seconds when toggling fromone RINGER MELODY to another. The preset RINGER MELODY is “2.”5. When the desired setting is displayed, press and hold the /RE/PA button to savethe setting. 6. Continue with programming or press the /MENU button to return to STANDBYmode.C. Turning the FIRST RING ON or OFF1. Press the /MENU button to enter the menu.2. Press the button to go to the FIRST RING programming option.3. Press the button to change the setting. “ON” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between ON or OFF.5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.D. Setting the Time and Date1. Press the /MENU button to enter the menu.2. Press the button to go to the TIME set programming option.3. Press the button to change the setting. The hour will begin flashing.4. Press the TELEPHONE KEYPAD to button to enter the hour. The minute will begin flashing.EDIT/FLASH3SAVE2VOLEDIT/FLASHSAVEVOLVOLVOLVOL4EDIT/FLASH1 023Caller ID System OperationDSST~2801~B.qxd 1/25/2003 7:03 PM Page 14

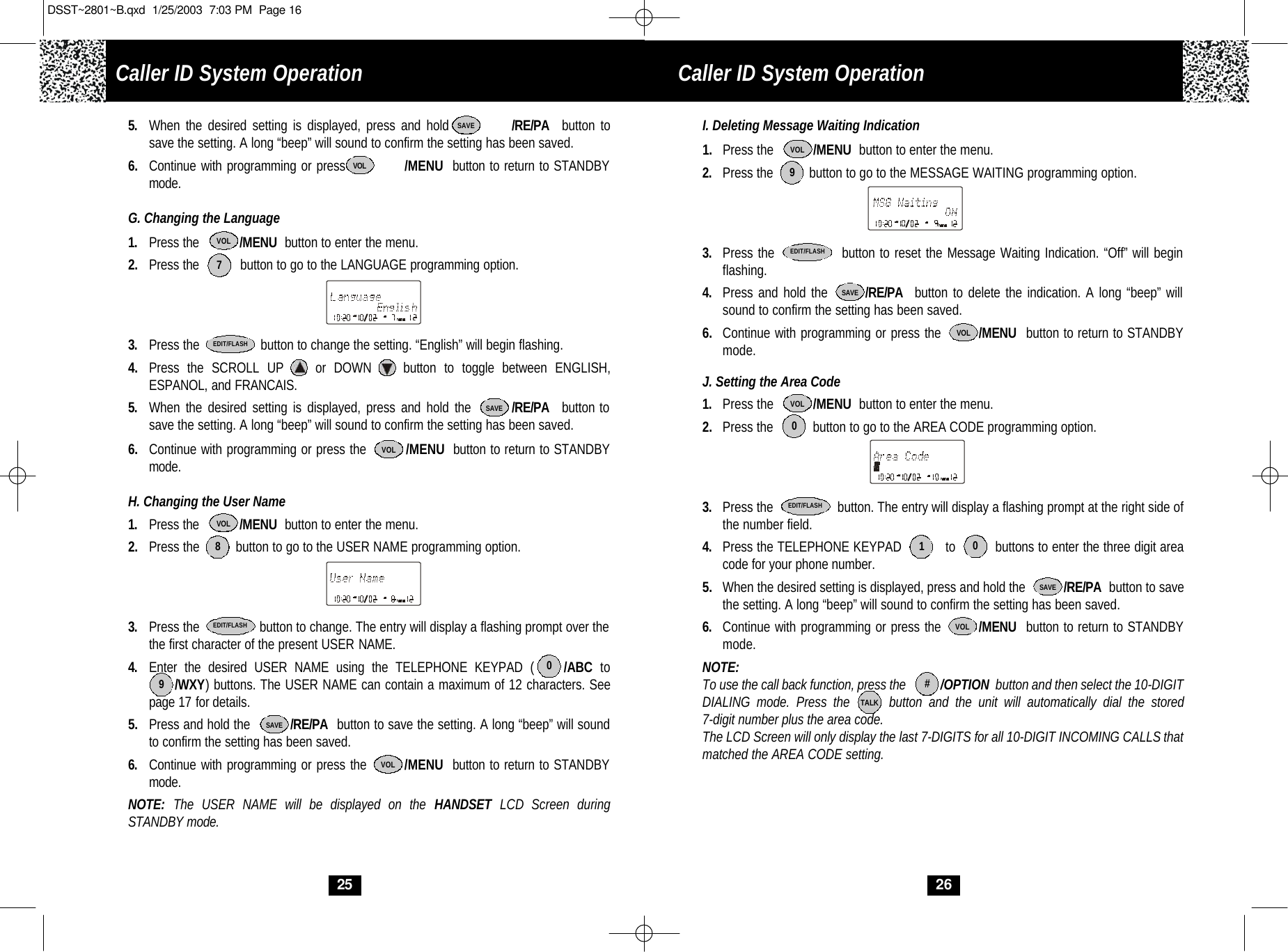

I. Deleting Message Waiting Indication1. Press the /MENU button to enter the menu.2. Press the button to go to the MESSAGE WAITING programming option.3. Press the button to reset the Message Waiting Indication. “Off” will begin flashing.4. Press and hold the /RE/PA button to delete the indication. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.J. Setting the Area Code1. Press the /MENU button to enter the menu.2. Press the button to go to the AREA CODE programming option.3. Press the button. The entry will display a flashing prompt at the right side ofthe number field.4. Press the TELEPHONE KEYPAD to buttons to enter the three digit area code for your phone number. 5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.NOTE: To use the call back function, press the /OPTION button and then select the 10-DIGITDIALING mode. Press the button and the unit will automatically dial the stored 7-digit number plus the area code.The LCD Screen will only display the last 7-DIGITS for all 10-DIGIT INCOMING CALLS thatmatched the AREA CODE setting. EDIT/FLASHSAVE9VOLVOLVOL0EDIT/FLASH10VOLSAVE#TALK26Caller ID System Operation255. When the desired setting is displayed, press and hold the /RE/PA button tosave the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.G. Changing the Language1. Press the /MENU button to enter the menu.2. Press the button to go to the LANGUAGE programming option.3. Press the button to change the setting. “English” will begin flashing.4. Press the SCROLL UP or DOWN button to toggle between ENGLISH, ESPANOL, and FRANCAIS.5. When the desired setting is displayed, press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBYmode.H. Changing the User Name1. Press the /MENU button to enter the menu.2. Press the button to go to the USER NAME programming option.3. Press the button to change. The entry will display a flashing prompt over the the first character of the present USER NAME.4. Enter the desired USER NAME using the TELEPHONE KEYPAD ( /ABC to /WXY) buttons. The USER NAME can contain a maximum of 12 characters. Seepage 17 for details. 5. Press and hold the /RE/PA button to save the setting. A long “beep” will sound to confirm the setting has been saved.6. Continue with programming or press the /MENU button to return to STANDBY mode.NOTE: The USER NAME will be displayed on the HANDSET LCD Screen during STANDBY mode.SAVEVOLVOL7VOLSAVEEDIT/FLASHEDIT/FLASHVOL809SAVEVOLCaller ID System OperationDSST~2801~B.qxd 1/25/2003 7:03 PM Page 16

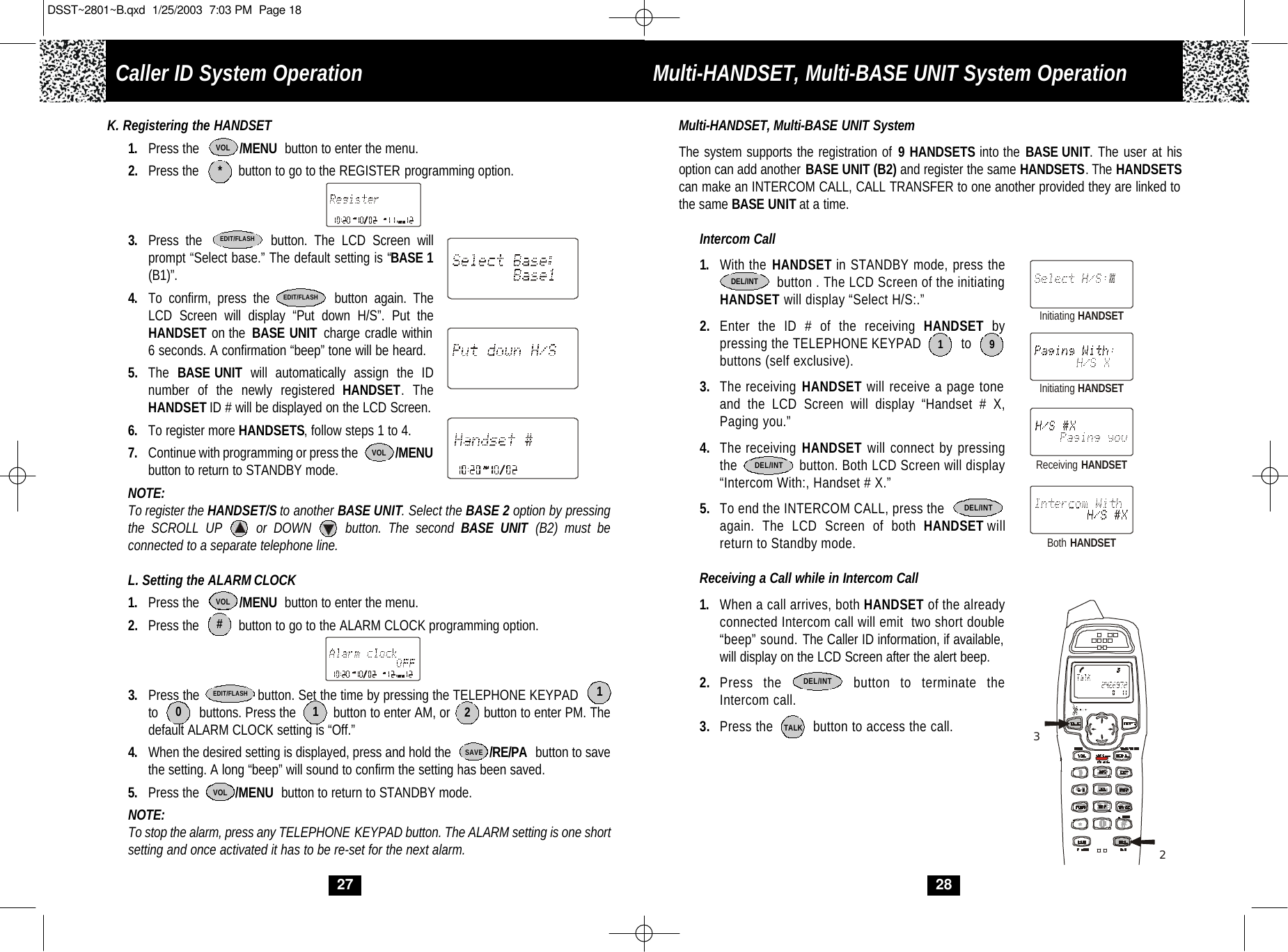

28Multi-HANDSET, Multi-BASE UNIT SystemThe system supports the registration of 9 HANDSETS into the BASE UNIT. The user at hisoption can add another BASE UNIT (B2) and register the same HANDSETS. The HANDSETScan make an INTERCOM CALL, CALL TRANSFER to one another provided they are linked to the same BASE UNIT at a time. Intercom Call1. With the HANDSET in STANDBY mode, press thebutton . The LCD Screen of the initiating HANDSET will display “Select H/S:.”2. Enter the ID # of the receiving HANDSET by pressing the TELEPHONE KEYPAD to buttons (self exclusive). 3. The receiving HANDSET will receive a page tone and the LCD Screen will display “Handset # X, Paging you.”4. The receiving HANDSET will connect by pressingthe button. Both LCD Screen will display“Intercom With:, Handset # X.”5. To end the INTERCOM CALL, press the again. The LCD Screen of both HANDSET willreturn to Standby mode. Receiving a Call while in Intercom Call1. When a call arrives, both HANDSET of the alreadyconnected Intercom call will emit two short double “beep” sound. The Caller ID information, if available, will display on the LCD Screen after the alert beep.2. Press the button to terminate theIntercom call.3. Press the button to access the call. 1 9DEL/INTDEL/INTDEL/INTInitiating HANDSETInitiating HANDSETReceiving HANDSETBoth HANDSETDEL/INTTALK 32Multi-HANDSET, Multi-BASE UNIT System OperationK. Registering the HANDSET1. Press the /MENU button to enter the menu.2. Press the button to go to the REGISTER programming option.3. Press the button. The LCD Screen will prompt “Select base.” The default setting is “BASE 1 (B1)”.4. To confirm, press the button again. The LCD Screen will display “Put down H/S”. Put the HANDSET on the BASE UNIT charge cradle within 6 seconds. A confirmation “beep” tone will be heard. 5. The BASE UNIT will automatically assign the ID number of the newly registered HANDSET. TheHANDSET ID # will be displayed on the LCD Screen.6. To register more HANDSETS, follow steps 1 to 4.7. Continue with programming or press the /MENUbutton to return to STANDBY mode.NOTE: To register the HANDSET/S to another BASE UNIT. Select the BASE 2 option by pressingthe SCROLL UP or DOWN button. The second BASE UNIT (B2) must be connected to a separate telephone line. L. Setting the ALARM CLOCK1. Press the /MENU button to enter the menu.2. Press the button to go to the ALARM CLOCK programming option.3. Press the button. Set the time by pressing the TELEPHONE KEYPAD to buttons. Press the button to enter AM, or button to enter PM. Thedefault ALARM CLOCK setting is “Off.”4. When the desired setting is displayed, press and hold the /RE/PA button to savethe setting. A long “beep” will sound to confirm the setting has been saved.5. Press the /MENU button to return to STANDBY mode.NOTE: To stop the alarm, press any TELEPHONE KEYPAD button. The ALARM setting is one short setting and once activated it has to be re-set for the next alarm. *EDIT/FLASHVOLEDIT/FLASHVOLVOL#EDIT/FLASH 10 1 2VOLSAVE27Caller ID System OperationDSST~2801~B.qxd 1/25/2003 7:03 PM Page 18

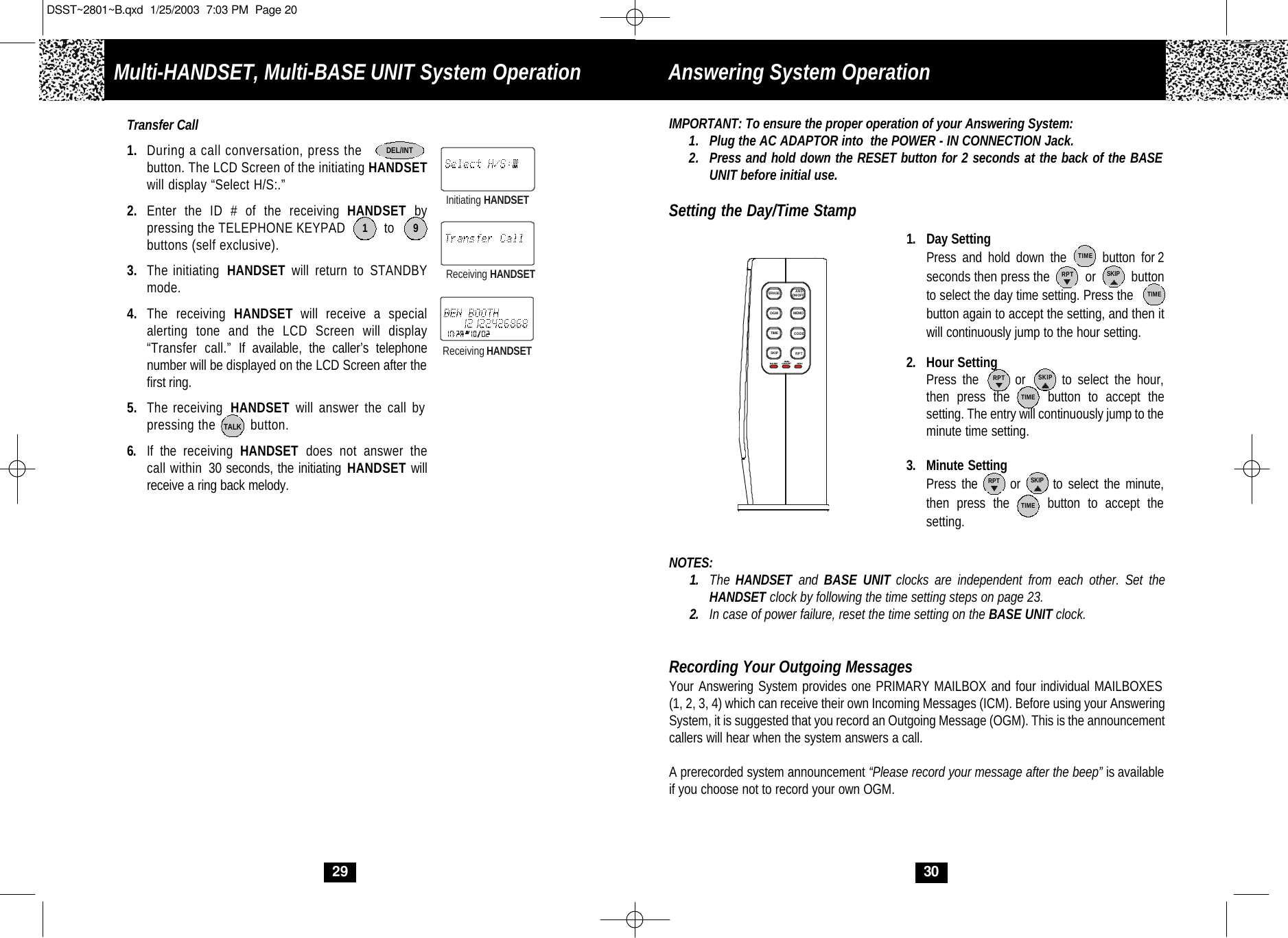

IMPORTANT: To ensure the proper operation of your Answering System:1. Plug the AC ADAPTOR into the POWER - IN CONNECTION Jack.2. Press and hold down the RESET button for 2 seconds at the back of the BASE UNIT before initial use.Setting the Day/Time Stamp1. Day SettingPress and hold down the button for 2 seconds then press the or button to select the day time setting. Press the button again to accept the setting, and then it will continuously jump to the hour setting.2. Hour SettingPress the or to select the hour,then press the button to accept the setting. The entry will continuously jump to theminute time setting. 3. Minute SettingPress the or to select the minute,then press the button to accept thesetting.NOTES:1. The HANDSET and BASE UNIT clocks are independent from each other. Set theHANDSET clock by following the time setting steps on page 23.2. In case of power failure, reset the time setting on the BASE UNIT clock.Recording Your Outgoing MessagesYour Answering System provides one PRIMARY MAILBOX and four individual MAILBOXES (1, 2, 3, 4) which can receive their own Incoming Messages (ICM). Before using your AnsweringSystem, it is suggested that you record an Outgoing Message (OGM). This is the announcement callers will hear when the system answers a call. A prerecorded system announcement “Please record your message after the beep” is available if you choose not to record your own OGM.30TIMEON/OFFANSOGMTIMESKIP RPTCODEMEMOANSON/OFFIN USE SPKERASESKIPRPTTIMETIMETIMESKIPRPTSKIPRPTAnswering System OperationTransfer Call1. During a call conversation, press the button. The LCD Screen of the initiating HANDSETwill display “Select H/S:.”2. Enter the ID # of the receiving HANDSET by pressing the TELEPHONE KEYPAD to buttons (self exclusive).3. The initiating HANDSET will return to STANDBYmode.4. The receiving HANDSET will receive a special alerting tone and the LCD Screen will display“Transfer call.” If available, the caller’s telephone number will be displayed on the LCD Screen after thefirst ring. 5. The receiving HANDSET will answer the call by pressing the button. 6. If the receiving HANDSET does not answer thecall within 30 seconds, the initiating HANDSET willreceive a ring back melody.1 9DEL/INTInitiating HANDSETReceiving HANDSETReceiving HANDSET29TALKMulti-HANDSET, Multi-BASE UNIT System OperationDSST~2801~B.qxd 1/25/2003 7:03 PM Page 20

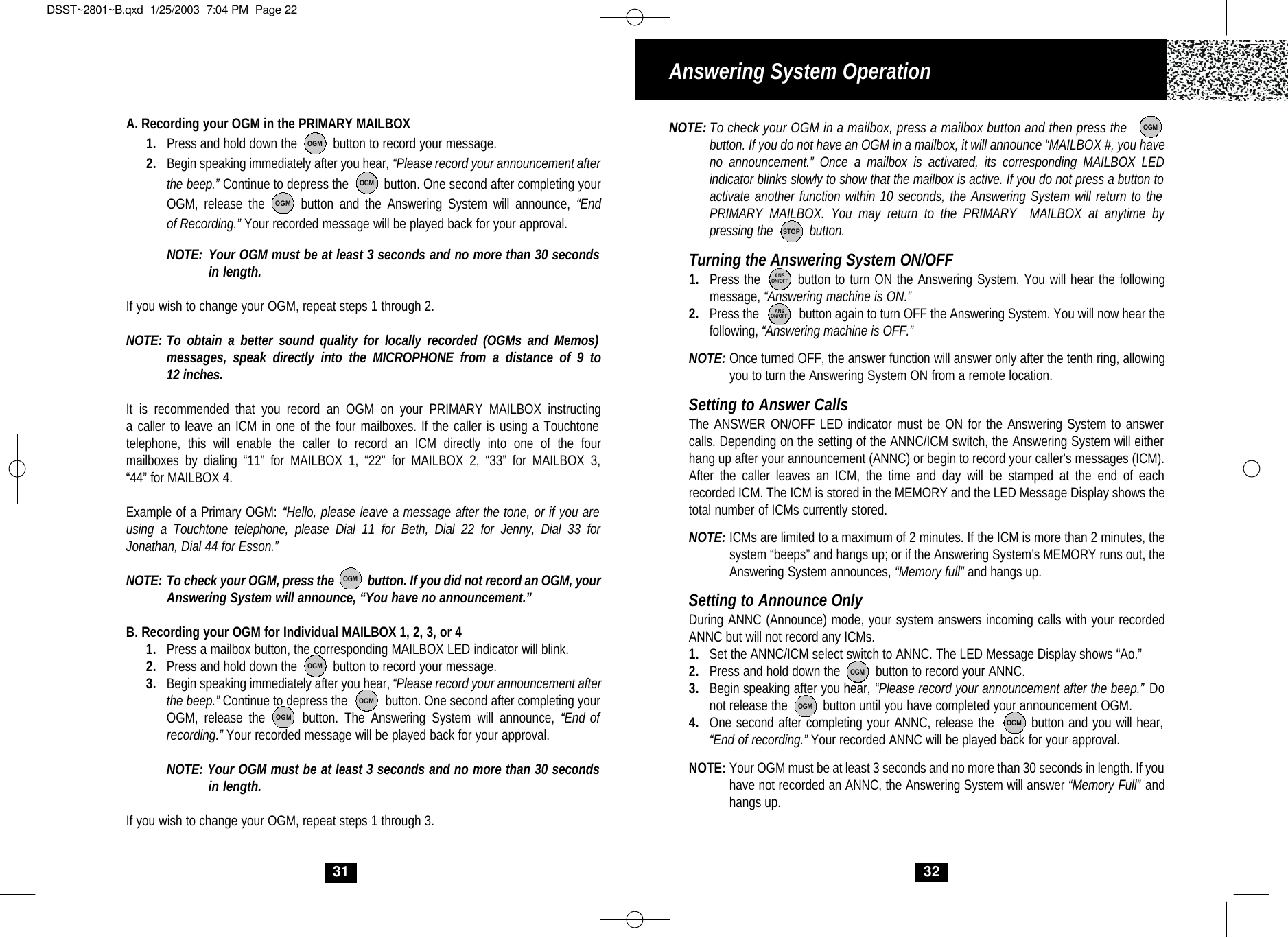

NOTE: To check your OGM in a mailbox, press a mailbox button and then press the button. If you do not have an OGM in a mailbox, it will announce “MAILBOX #, you haveno announcement.” Once a mailbox is activated, its corresponding MAILBOX LED indicator blinks slowly to show that the mailbox is active. If you do not press a button to activate another function within 10 seconds, the Answering System will return to the PRIMARY MAILBOX. You may return to the PRIMARY MAILBOX at anytime by pressing the button. Turning the Answering System ON/OFF1. Press the button to turn ON the Answering System. You will hear the followingmessage, “Answering machine is ON.”2. Press the button again to turn OFF the Answering System. You will now hear thefollowing, “Answering machine is OFF.”NOTE: Once turned OFF, the answer function will answer only after the tenth ring, allowingyou to turn the Answering System ON from a remote location.Setting to Answer CallsThe ANSWER ON/OFF LED indicator must be ON for the Answering System to answercalls. Depending on the setting of the ANNC/ICM switch, the Answering System will either hang up after your announcement (ANNC) or begin to record your caller’s messages (ICM). After the caller leaves an ICM, the time and day will be stamped at the end of each recorded ICM. The ICM is stored in the MEMORY and the LED Message Display shows thetotal number of ICMs currently stored.NOTE: ICMs are limited to a maximum of 2 minutes. If the ICM is more than 2 minutes, thesystem “beeps” and hangs up; or if the Answering System’s MEMORY runs out, theAnswering System announces, “Memory full” and hangs up.Setting to Announce OnlyDuring ANNC (Announce) mode, your system answers incoming calls with your recordedANNC but will not record any ICMs.1. Set the ANNC/ICM select switch to ANNC. The LED Message Display shows “Ao.”2. Press and hold down the button to record your ANNC.3. Begin speaking after you hear, “Please record your announcement after the beep.” Donot release the button until you have completed your announcement OGM.4. One second after completing your ANNC, release the button and you will hear,“End of recording.” Your recorded ANNC will be played back for your approval.NOTE: Your OGM must be at least 3 seconds and no more than 30 seconds in length. If you have not recorded an ANNC, the Answering System will answer “Memory Full” andhangs up.Answering System Operation32OGMSTOPANSON/OFFANSON/OFFOGMOGMOGMA. Recording your OGM in the PRIMARY MAILBOX1. Press and hold down the button to record your message.2. Begin speaking immediately after you hear, “Please record your announcement afterthe beep.” Continue to depress the button. One second after completing your OGM, release the button and the Answering System will announce, “End of Recording.” Your recorded message will be played back for your approval.NOTE: Your OGM must be at least 3 seconds and no more than 30 seconds in length.If you wish to change your OGM, repeat steps 1 through 2.NOTE: To obtain a better sound quality for locally recorded (OGMs and Memos) messages, speak directly into the MICROPHONE from a distance of 9 to 12 inches.It is recommended that you record an OGM on your PRIMARY MAILBOX instructing a caller to leave an ICM in one of the four mailboxes. If the caller is using a Touchtone telephone, this will enable the caller to record an ICM directly into one of the four mailboxes by dialing “11” for MAILBOX 1, “22” for MAILBOX 2, “33” for MAILBOX 3,“44” for MAILBOX 4.Example of a Primary OGM: “Hello, please leave a message after the tone, or if you are using a Touchtone telephone, please Dial 11 for Beth, Dial 22 for Jenny, Dial 33 forJonathan, Dial 44 for Esson.” NOTE: To check your OGM, press the button. If you did not record an OGM, your Answering System will announce, “You have no announcement.”B. Recording your OGM for Individual MAILBOX 1, 2, 3, or 41. Press a mailbox button, the corresponding MAILBOX LED indicator will blink.2. Press and hold down the button to record your message.3. Begin speaking immediately after you hear, “Please record your announcement after the beep.” Continue to depress the button. One second after completing yourOGM, release the button. The Answering System will announce, “End of recording.” Your recorded message will be played back for your approval.NOTE: Your OGM must be at least 3 seconds and no more than 30 seconds in length.If you wish to change your OGM, repeat steps 1 through 3.31OGMOGMOGMOGMOGMOGMOGMDSST~2801~B.qxd 1/25/2003 7:04 PM Page 22

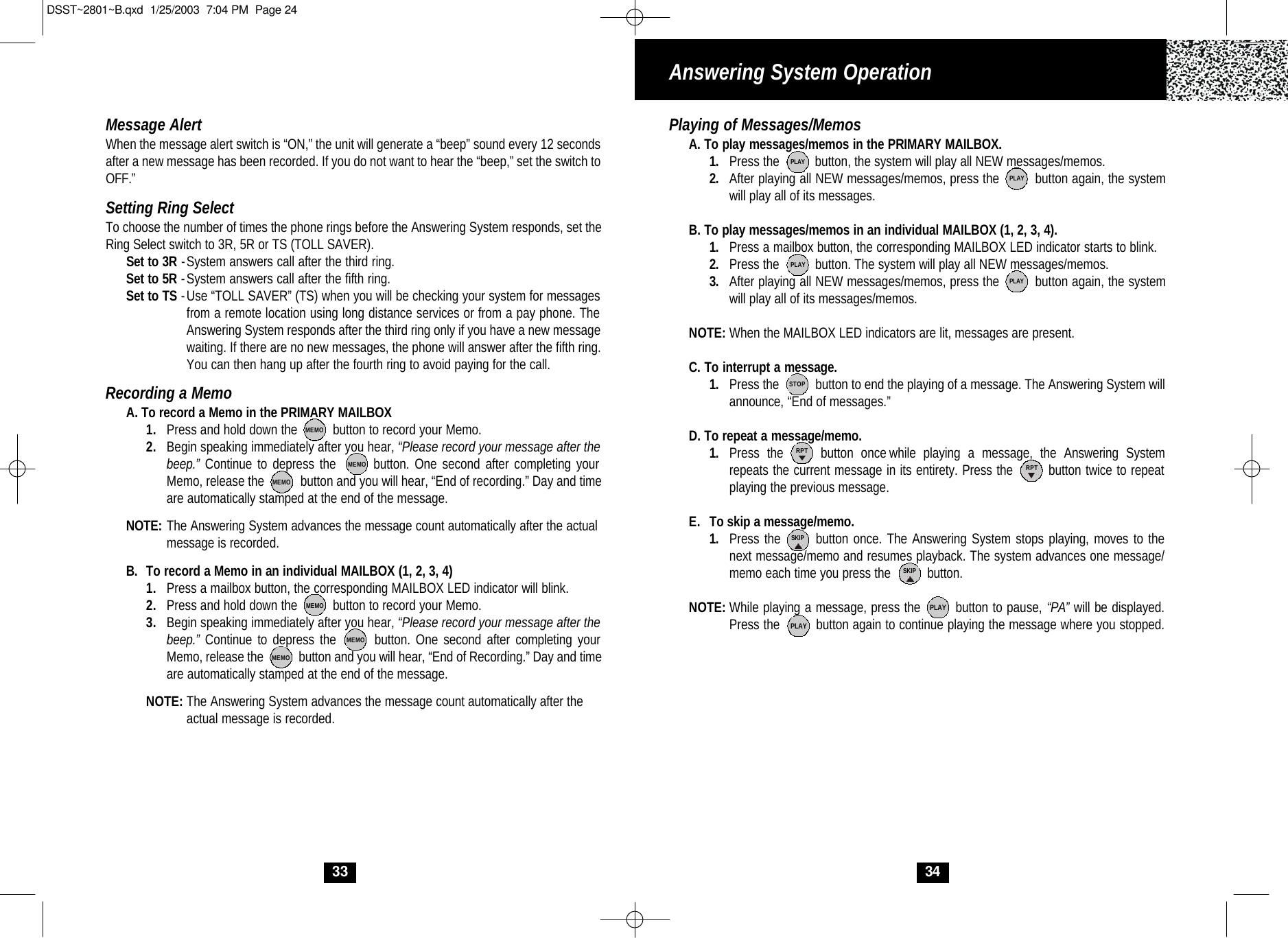

Playing of Messages/MemosA. To play messages/memos in the PRIMARY MAILBOX.1. Press the button, the system will play all NEW messages/memos.2. After playing all NEW messages/memos, press the button again, the systemwill play all of its messages. B. To play messages/memos in an individual MAILBOX (1, 2, 3, 4).1. Press a mailbox button, the corresponding MAILBOX LED indicator starts to blink.2. Press the button. The system will play all NEW messages/memos. 3. After playing all NEW messages/memos, press the button again, the systemwill play all of its messages/memos.NOTE: When the MAILBOX LED indicators are lit, messages are present.C. To interrupt a message.1. Press the button to end the playing of a message. The Answering System willannounce, “End of messages.”D. To repeat a message/memo.1. Press the button once while playing a message, the Answering System repeats the current message in its entirety. Press the button twice to repeat playing the previous message.E. To skip a message/memo.1. Press the button once. The Answering System stops playing, moves to thenext message/memo and resumes playback. The system advances one message/ memo each time you press the button.NOTE: While playing a message, press the button to pause, “PA” will be displayed.Press the button again to continue playing the message where you stopped.34PLAYPLAYPLAYPLAYSTOPPLAYPLAYSKIPRPTRPTSKIPMessage AlertWhen the message alert switch is “ON,” the unit will generate a “beep” sound every 12 seconds after a new message has been recorded. If you do not want to hear the “beep,” set the switch to OFF.” Setting Ring SelectTo choose the number of times the phone rings before the Answering System responds, set theRing Select switch to 3R, 5R or TS (TOLL SAVER).Set to 3R -System answers call after the third ring.Set to 5R -System answers call after the fifth ring.Set to TS -Use “TOLL SAVER” (TS) when you will be checking your system for messages from a remote location using long distance services or from a pay phone. The Answering System responds after the third ring only if you have a new message waiting. If there are no new messages, the phone will answer after the fifth ring. You can then hang up after the fourth ring to avoid paying for the call.Recording a MemoA. To record a Memo in the PRIMARY MAILBOX1. Press and hold down the button to record your Memo.2. Begin speaking immediately after you hear, “Please record your message after the beep.” Continue to depress the button. One second after completing your Memo, release the button and you will hear, “End of recording.” Day and timeare automatically stamped at the end of the message. NOTE: The Answering System advances the message count automatically after the actual message is recorded. B. To record a Memo in an individual MAILBOX (1, 2, 3, 4) 1. Press a mailbox button, the corresponding MAILBOX LED indicator will blink.2. Press and hold down the button to record your Memo.3. Begin speaking immediately after you hear, “Please record your message after the beep.” Continue to depress the button. One second after completing yourMemo, release the button and you will hear, “End of Recording.” Day and timeare automatically stamped at the end of the message. NOTE: The Answering System advances the message count automatically after the actual message is recorded.Answering System Operation33MEMOMEMOMEMOMEMOMEMOMEMODSST~2801~B.qxd 1/25/2003 7:04 PM Page 24
Remote Operation through a Tone TelephoneYou can use many Answering System features when you are away from home. To protect yourprivacy, most of the features can be used only after you enter the three-digit Remote AccessCode.Remote Access CodesThe Remote Access Codes are preset at the factory as shown below. You can use the preset codes or choose your own.PRIMARY MAILBOX: 999MAILBOX 1: 555MAILBOX 2: 666MAILBOX 3: 777MAILBOX 4: 888NOTE: If the RESET button is pressed, the Remote Access Codes return to the factory preset codes.Changing of the Remote Access CodesAll of the digits of the Remote Access Codes are a combination of numbers 5, 6, 7, 8, 9, 0.IMPORTANT: Digits 1, 2, 3, and 4 cannot be used when changing the Remote Access Codesfor any mailbox (including the PRIMARY MAILBOX). 1. Press a mailbox button for MAILBOX 1, 2, 3, or 4. For the PRIMARY MAILBOX, follow steps 2 to 6.2. Press and hold down the button until you hear the short beep.3. Press the or to select the first digit, then press the button to accept the setting.4. Press the or to select the second digit, then press the button to acceptthe setting.5. Press the or to select the third digit, then press the button to accept the setting.6. Press the button to return back to standby mode.36CODECODECODECODESTOPSKIPRPTSKIPRPTSKIPRPTAnswering System OperationSaving MessagesThe Answering System saves your messages automatically. After playing all of your messages,the Answering System announces, “End of message” and the total number of messages storedin the memory will be indicated on the LED Message Display.NOTE: The Answering System has a total Memory capacity of 12 minutes or up to 63 messages(OGM/ICM/MEMO). If the recorded messages contain high background noise, the totalrecording capacity of the unit will be less than 12 minutes.Erasing MessagesA. To erase all of the messages in the PRIMARY MAILBOX1. Press and hold down the button until you hear the announcement, “Messageserased, you have no new message.”B. To erase all of the messages in an individual MAILBOX (1, 2, 3, 4)1. If you want to erase all of the messages in a mailbox, activate the desired mailbox.2. Press and hold down the button until you hear the announcement, “MessagesErased, Mailbox # you have no new message.” C. To erase selected messages/memos1. While the unwanted message is playing, press the button. The AnsweringSystem announces erasure of the selected message/memo. After the erasure is complete, the numeric order of the remaining messages will be rearranged. When the Memory is FullWhen there is no memory available for additional messages, the Answering System will announce, “Memory full,” but will not save messages. Two-Way RecordingTwo-way recording allows you to record your conversation with another caller. Two-way recording can be enabled during conversation while you are using the HANDSET.1. During conversation, press a mailbox button (MAILBOX 1, 2, 3, or 4) where you want to record your conversation. The corresponding MAILBOX LED indicator will blink.2. Press and hold down the button. The LED Message Display will show “2r” to indicate the recording mode.3. Release the button to end your conversation recording.4. Also you can record on the PRIMARY MAILBOX, just follow steps 2 and 3.NOTE: Recording two-way conversations may be subject to local, state, or federal laws and regulations. Consent of both parties is required when a conversation will be recorded.Answering System Operation35ERASEERASEERASEMEMOMEMODSST~2801~B.qxd 1/25/2003 7:04 PM Page 26

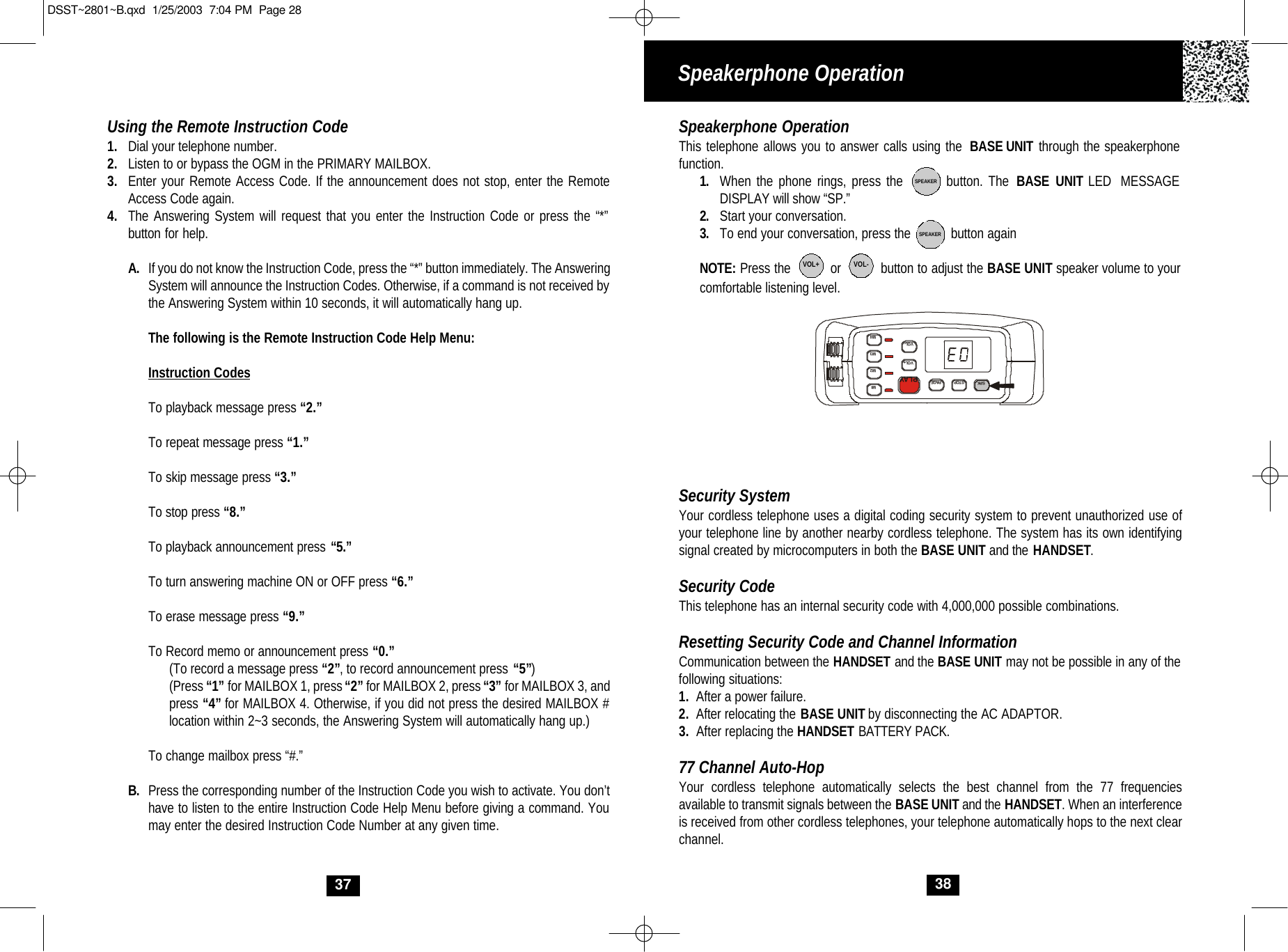

38Speakerphone OperationThis telephone allows you to answer calls using the BASE UNIT through the speakerphone function. 1. When the phone rings, press the button. The BASE UNIT LED MESSAGE DISPLAY will show “SP.” 2. Start your conversation. 3. To end your conversation, press the button againNOTE: Press the or button to adjust the BASE UNIT speaker volume to your comfortable listening level.Security SystemYour cordless telephone uses a digital coding security system to prevent unauthorized use ofyour telephone line by another nearby cordless telephone. The system has its own identifyingsignal created by microcomputers in both the BASE UNIT and the HANDSET.Security CodeThis telephone has an internal security code with 4,000,000 possible combinations. Resetting Security Code and Channel InformationCommunication between the HANDSET and the BASE UNIT may not be possible in any of the following situations:1. After a power failure.2. After relocating the BASE UNIT by disconnecting the AC ADAPTOR.3. After replacing the HANDSET BATTERY PACK.77 Channel Auto-HopYour cordless telephone automatically selects the best channel from the 77 frequenciesavailable to transmit signals between the BASE UNIT and the HANDSET. When an interferenceis received from other cordless telephones, your telephone automatically hops to the next clearchannel.SPEAKERSPEAKERVOL+ VOL-M1VOL+VOL-PAGESTOPSPKPLAYM2M3M4Speakerphone OperationUsing the Remote Instruction Code1. Dial your telephone number.2. Listen to or bypass the OGM in the PRIMARY MAILBOX.3. Enter your Remote Access Code. If the announcement does not stop, enter the RemoteAccess Code again.4. The Answering System will request that you enter the Instruction Code or press the “*” button for help.A. If you do not know the Instruction Code, press the “*” button immediately. The Answering System will announce the Instruction Codes. Otherwise, if a command is not received bythe Answering System within 10 seconds, it will automatically hang up.The following is the Remote Instruction Code Help Menu:Instruction CodesTo playback message press “2.”To repeat message press “1.”To skip message press “3.”To stop press “8.”To playback announcement press “5.”To turn answering machine ON or OFF press “6.”To erase message press “9.”To Record memo or announcement press “0.”(To record a message press “2”, to record announcement press “5”)(Press “1” for MAILBOX 1, press“2” for MAILBOX 2, press “3” for MAILBOX 3, and press “4” for MAILBOX 4. Otherwise, if you did not press the desired MAILBOX # location within 2~3 seconds, the Answering System will automatically hang up.)To change mailbox press “#.”B. Press the corresponding number of the Instruction Code you wish to activate. You don’thave to listen to the entire Instruction Code Help Menu before giving a command. Youmay enter the desired Instruction Code Number at any given time.37DSST~2801~B.qxd 1/25/2003 7:04 PM Page 28
40Changing the BATTERY PACKThe BATTERY PACK provides power for the HANDSET of your cordless telephone.To Replace the BATTERY PACK:1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.2. Pull out the BATTERY PACK PLUG and remove the BATTERY PACK.3. Plug the new BATTERY PACK into the BATTERY CONNECTOR.4. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closed position.5. Before use, charge the new BATTERY PACK for 12 hours.ATTENTION:The telephone that you have purchased contains a rechargeable BATTERY PACK. TheBATTERY PACK is recyclable. At the end of its useful life, under various state and local laws,it may be illegal to dispose of this BATTERY PACK into the municipal waste stream. Checkwith your local solid waste officials for details in your area for recycling options or proper disposal.OLDBATTERY PACKNEWBATTERY PACKBATTERY COMPARTMENTCOVERIMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSET for 12 hours before initial use.Changing the BATTERY PACK 39Battery TypeUse the following type and size of BATTERY PACK:Cordless Telephone BATTERY PACK3.6V, 800mAhU.S. Electronics Inc.Ni-Cd BATTERY PACK: Model B658 Ni-CdThis BATTERY PACK is available through:U.S. Electronics Service Center105 Madison AvenueNew York, NY 100161-800-828-5208NOTES:1. During a power interruption, the BASE UNIT does not operate, and a phone conversation cannot be made on the HANDSET.Recharging the BATTERY PACKThe nickel cadmium (Ni-Cd) BATTERY PACK in the HANDSET can be recharged many times using the built-in charger in the BASE UNIT.When the BATTERY CHARGE INDICATOR appears with two bars blinking on the LCD Screen,a “beep” sound will be heard every 10 seconds. This indicates that the BATTERY PACK needs to be recharged.Charge the BATTERY PACK at least once every 90 days of non-use to avoid battery failure.When the BATTERY PACK can no longer be charged, replacement of the BATTERY PACK will be necessary.The BATTERY PACK used in your telephone may develop a condition known as “MEMORY.”Once subjected to a regular short discharging routine, the BATTERY PACK assumes the discharging pattern it was subjected to. This causes rapid discharging thereby shortening theBATTERY PACK charge span. If you believe your BATTERY PACK has developed a “MEMORY” condition, do not charge the HANDSET until the BATTERY CHARGE INDICATORappears with two bars blinking on the LCD Screen. When the BATTERY CHARGE INDICATORappears with two bars blinking on the LCD Screen, charge the HANDSET fully for 12 hours.IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSET for 12 hours before initial use.Recharging the BATTERY PACKDSST~2801~B.qxd 1/25/2003 7:04 PM Page 30

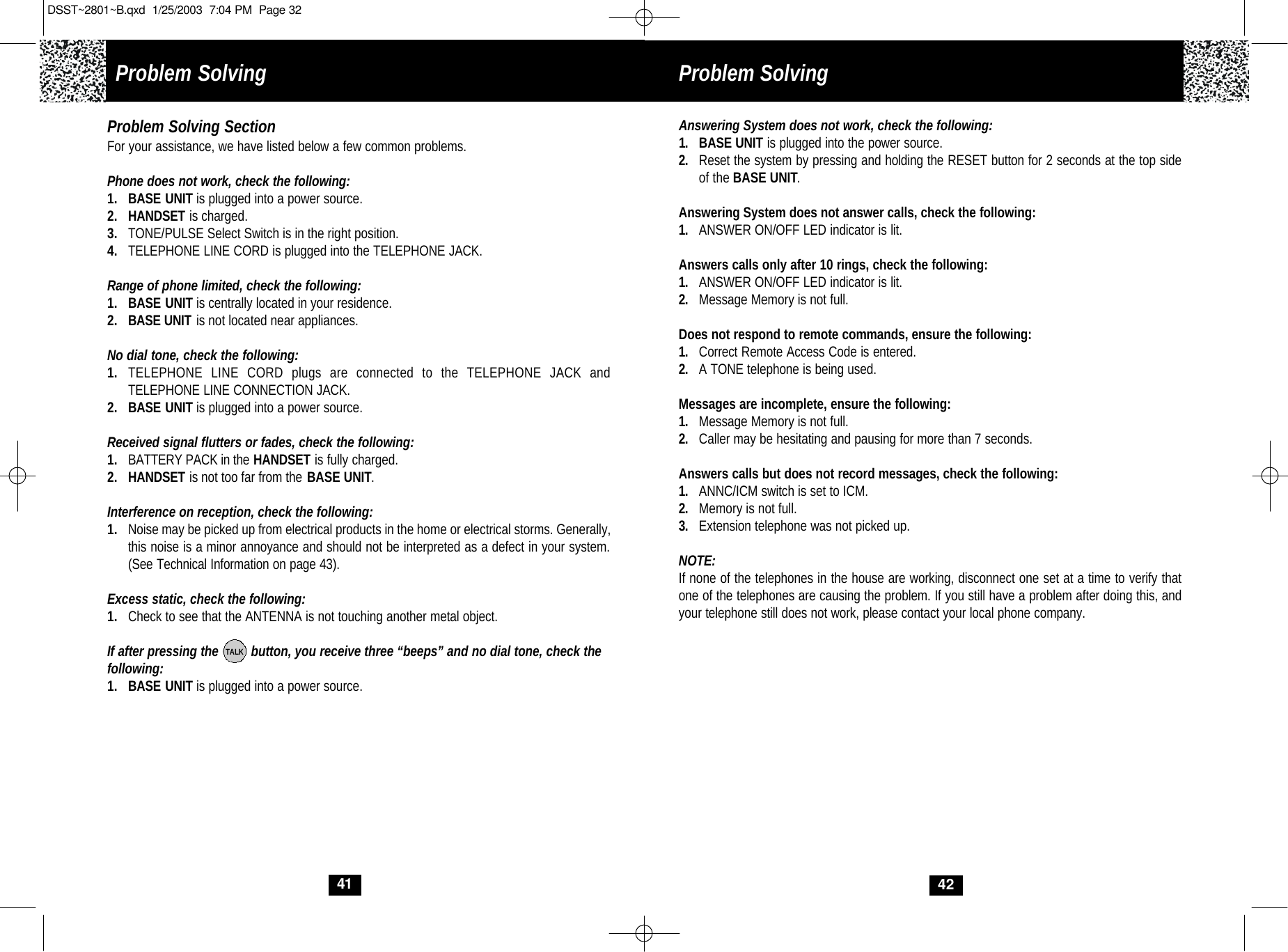

Problem Solving Answering System does not work, check the following:1. BASE UNIT is plugged into the power source.2. Reset the system by pressing and holding the RESET button for 2 seconds at the top sideof the BASE UNIT.Answering System does not answer calls, check the following:1. ANSWER ON/OFF LED indicator is lit.Answers calls only after 10 rings, check the following:1. ANSWER ON/OFF LED indicator is lit.2. Message Memory is not full.Does not respond to remote commands, ensure the following:1. Correct Remote Access Code is entered.2. A TONE telephone is being used.Messages are incomplete, ensure the following:1. Message Memory is not full.2. Caller may be hesitating and pausing for more than 7 seconds.Answers calls but does not record messages, check the following:1. ANNC/ICM switch is set to ICM.2. Memory is not full.3. Extension telephone was not picked up.NOTE: If none of the telephones in the house are working, disconnect one set at a time to verify thatone of the telephones are causing the problem. If you still have a problem after doing this, and your telephone still does not work, please contact your local phone company.4241Problem Solving SectionFor your assistance, we have listed below a few common problems.Phone does not work, check the following:1. BASE UNIT is plugged into a power source.2. HANDSET is charged.3. TONE/PULSE Select Switch is in the right position.4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.Range of phone limited, check the following:1. BASE UNIT is centrally located in your residence.2. BASE UNIT is not located near appliances.No dial tone, check the following:1. TELEPHONE LINE CORD plugs are connected to the TELEPHONE JACK and TELEPHONE LINE CONNECTION JACK.2. BASE UNIT is plugged into a power source.Received signal flutters or fades, check the following:1. BATTERY PACK in the HANDSET is fully charged.2. HANDSET is not too far from the BASE UNIT.Interference on reception, check the following:1. Noise may be picked up from electrical products in the home or electrical storms. Generally, this noise is a minor annoyance and should not be interpreted as a defect in your system. (See Technical Information on page 43).Excess static, check the following:1. Check to see that the ANTENNA is not touching another metal object.If after pressing the button, you receive three “beeps” and no dial tone, check thefollowing: 1. BASE UNIT is plugged into a power source.TALKProblem SolvingDSST~2801~B.qxd 1/25/2003 7:04 PM Page 32

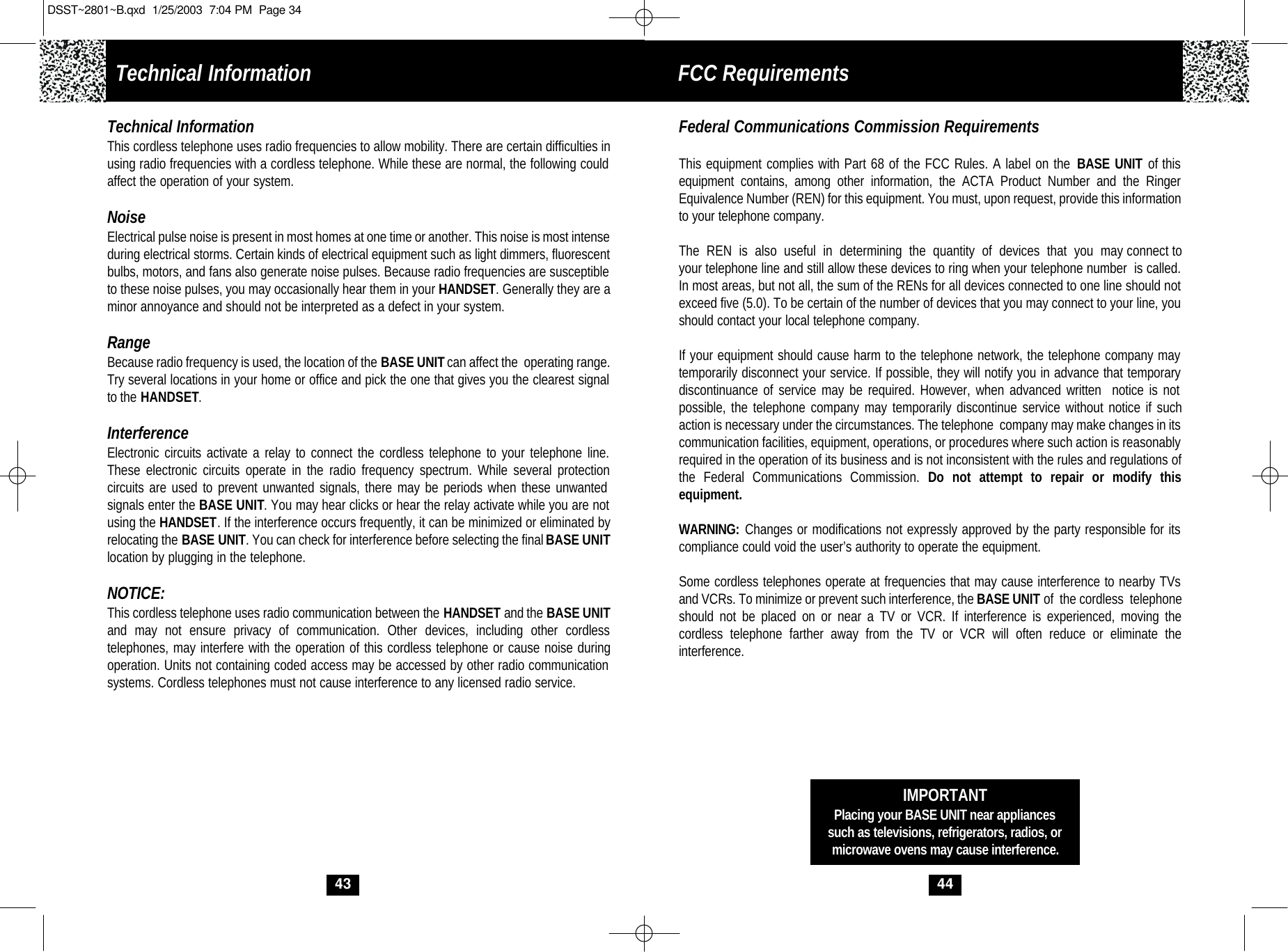

44IMPORTANTPlacing your BASE UNIT near appliancessuch as televisions, refrigerators, radios, ormicrowave ovens may cause interference.Federal Communications Commission RequirementsThis equipment complies with Part 68 of the FCC Rules. A label on the BASE UNIT of this equipment contains, among other information, the ACTA Product Number and the RingerEquivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone company.The REN is also useful in determining the quantity of devices that you may connect toyour telephone line and still allow these devices to ring when your telephone number is called.In most areas, but not all, the sum of the RENs for all devices connected to one line should notexceed five (5.0). To be certain of the number of devices that you may connect to your line, you should contact your local telephone company.If your equipment should cause harm to the telephone network, the telephone company may temporarily disconnect your service. If possible, they will notify you in advance that temporarydiscontinuance of service may be required. However, when advanced written notice is not possible, the telephone company may temporarily discontinue service without notice if suchaction is necessary under the circumstances. The telephone company may make changes in itscommunication facilities, equipment, operations, or procedures where such action is reasonablyrequired in the operation of its business and is not inconsistent with the rules and regulations of the Federal Communications Commission. Do not attempt to repair or modify this equipment. WARNING: Changes or modifications not expressly approved by the party responsible for its compliance could void the user’s authority to operate the equipment.Some cordless telephones operate at frequencies that may cause interference to nearby TVsand VCRs. To minimize or prevent such interference, the BASE UNIT of the cordless telephoneshould not be placed on or near a TV or VCR. If interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.Technical Information FCC Requirements 43Technical InformationThis cordless telephone uses radio frequencies to allow mobility. There are certain difficulties inusing radio frequencies with a cordless telephone. While these are normal, the following could affect the operation of your system.NoiseElectrical pulse noise is present in most homes at one time or another. This noise is most intense during electrical storms. Certain kinds of electrical equipment such as light dimmers, fluorescent bulbs, motors, and fans also generate noise pulses. Because radio frequencies are susceptible to these noise pulses, you may occasionally hear them in your HANDSET. Generally they are aminor annoyance and should not be interpreted as a defect in your system.RangeBecause radio frequency is used, the location of the BASE UNITcan affect the operating range. Try several locations in your home or office and pick the one that gives you the clearest signalto the HANDSET.InterferenceElectronic circuits activate a relay to connect the cordless telephone to your telephone line.These electronic circuits operate in the radio frequency spectrum. While several protection circuits are used to prevent unwanted signals, there may be periods when these unwanted signals enter the BASE UNIT. You may hear clicks or hear the relay activate while you are notusing the HANDSET. If the interference occurs frequently, it can be minimized or eliminated byrelocating the BASE UNIT. You can check for interference before selecting the final BASE UNITlocation by plugging in the telephone.NOTICE:This cordless telephone uses radio communication between the HANDSET and the BASE UNITand may not ensure privacy of communication. Other devices, including other cordless telephones, may interfere with the operation of this cordless telephone or cause noise duringoperation. Units not containing coded access may be accessed by other radio communication systems. Cordless telephones must not cause interference to any licensed radio service.DSST~2801~B.qxd 1/25/2003 7:04 PM Page 34
Warranty InformationXACT ProductsOne-Year Limited WarrantyThis limited warranty sets forth all XACT Products responsibilities regarding your product. There are no other expressed or implied warranties from XACT Products.Warranty Service ProvidedIf you purchased the telephone new from a retail vendor, XACT Products warrants the telephone against defects in material and workmanship for a period of one (1) year from the original date of purchase. This warranty is in lieu of all other expressed warranties. This warranty begins when you purchase the telephone and continues for one (1) year unless yousell or rent the telephone, in which case the warranty stops.XACT Products disclaims any implied warranty, including the warranty of merchantability andthe warranty of fitness for a particular purpose, as of the date of 90 days from your original purchase of the telephone. XACT Products assumes no responsibility for any special, incidental, or consequential damages. This warranty gives you specific legal rights and you may have other rights which varyfrom state to state. Some states do not allow the exclusion or limitations of special, incidental orconsequential damages, or limitations on how long a warranty lasts, so the above exclusion and limitation may not apply to you.Warranty Service Not ProvidedThis warranty does not cover damage resulting from accident, misuse, abuse,improper installation or operation, lack of reasonable care, unauthorized modification, the affixing of any attachment not provided by XACT Products with the telephone and/or loss ofparts. This warranty is voided in the event any unauthorized person opens, alters or repairs thetelephone. All XACT equipment being returned for repair must be suitably packaged. Telephonecompanies use different types of equipment and offer various types of services to customers. XACT Products does not warrant that this telephone is compatible with thetype of equipment of any particular telephone company or the services provided by it.46FCC Requirements WarrantyFederal Communications Commission Requirements (continued)This equipment should not be used on coin telephone lines. Connection to party line service issubject to state tariffs. If trouble is experienced, disconnect this equipment from the telephoneline to determine if it is causing the malfunction. If the equipment is determined to be malfunctioning, its use should be discontinued until the problem has been corrected.NOTE: This equipment has been tested and found to comply with the limits for a class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates,uses, and can radiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.1. Reorient or relocate the receiving ANTENNA.2. Increase the distance between the equipment and the receiver.3. Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.4. Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.EXPOSURE TO RADIO FREQUENCY ENERGYThe radiated output power of the device is far below the FCC radio frequency exposure limits.The internal wireless radio operates within guidelines found in radio frequency safety standards and recommendations, which reflect the consensus of the scientific community. The level of energyemitted is far less than the electromagnetic energy emitted by wireless deivce such as mobile phones. However, the use ofthe device may berestricted in some situations or environments, such as aboard airplanes. ifyou are unsure of restriction, you are encourged to ask for authorziation before us it. 45DSST~2801~B.qxd 1/25/2003 7:04 PM Page 36

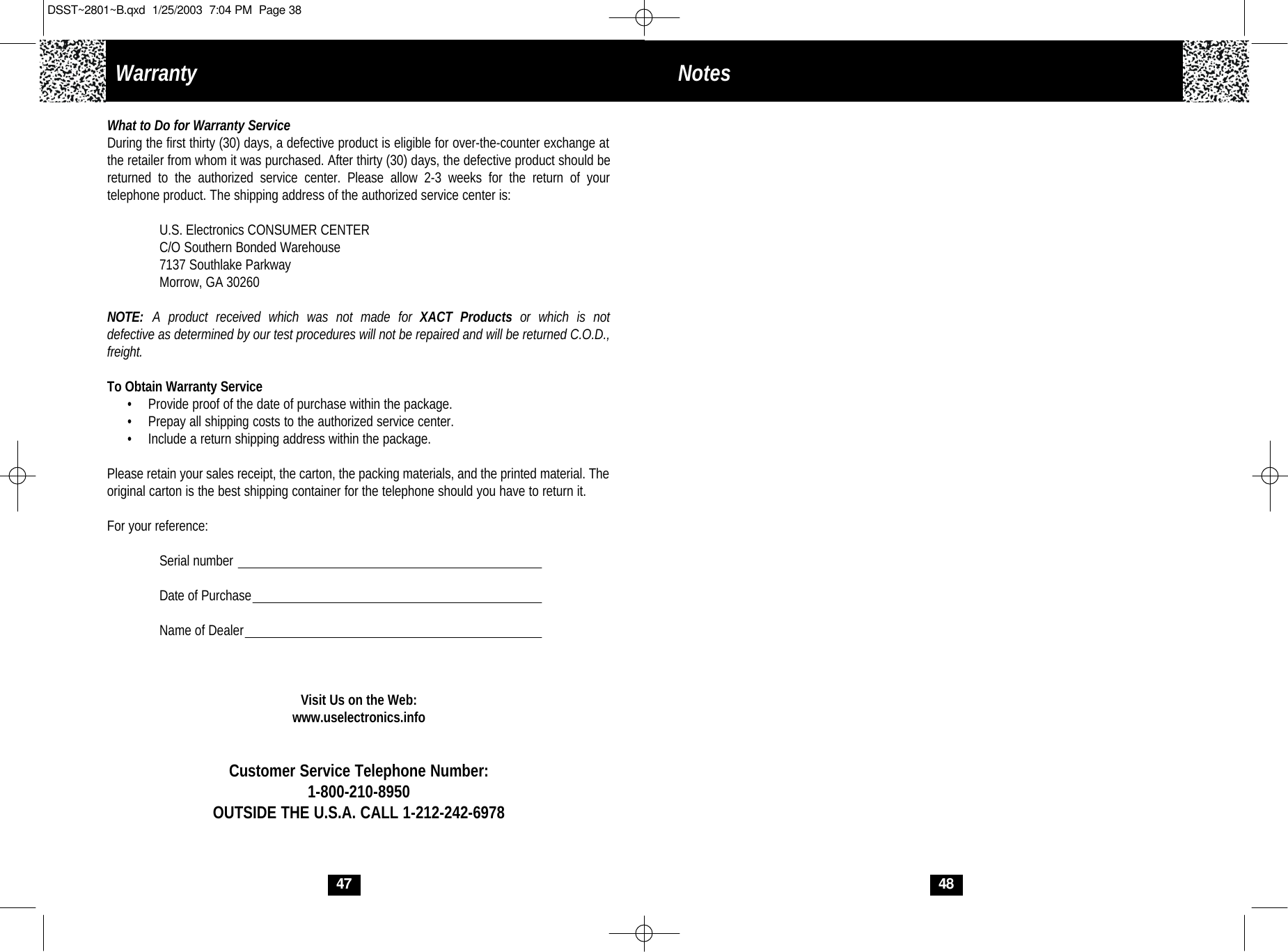

48Notes Warranty What to Do for Warranty ServiceDuring the first thirty (30) days, a defective product is eligible for over-the-counter exchange atthe retailer from whom it was purchased. After thirty (30) days, the defective product should bereturned to the authorized service center. Please allow 2-3 weeks for the return of your telephone product. The shipping address of the authorized service center is:U.S. Electronics CONSUMER CENTERC/O Southern Bonded Warehouse7137 Southlake ParkwayMorrow, GA 30260NOTE: A product received which was not made for XACT Products or which is not defective as determined by our test procedures will not be repaired and will be returned C.O.D., freight.To Obtain Warranty Service•Provide proof of the date of purchase within the package.•Prepay all shipping costs to the authorized service center.•Include a return shipping address within the package.Please retain your sales receipt, the carton, the packing materials, and the printed material. The original carton is the best shipping container for the telephone should you have to return it.For your reference:Serial numberDate of PurchaseName of DealerVisit Us on the Web:www.uselectronics.infoCustomer Service Telephone Number:1-800-210-8950OUTSIDE THE U.S.A. CALL 1-212-242-697847DSST~2801~B.qxd 1/25/2003 7:04 PM Page 38

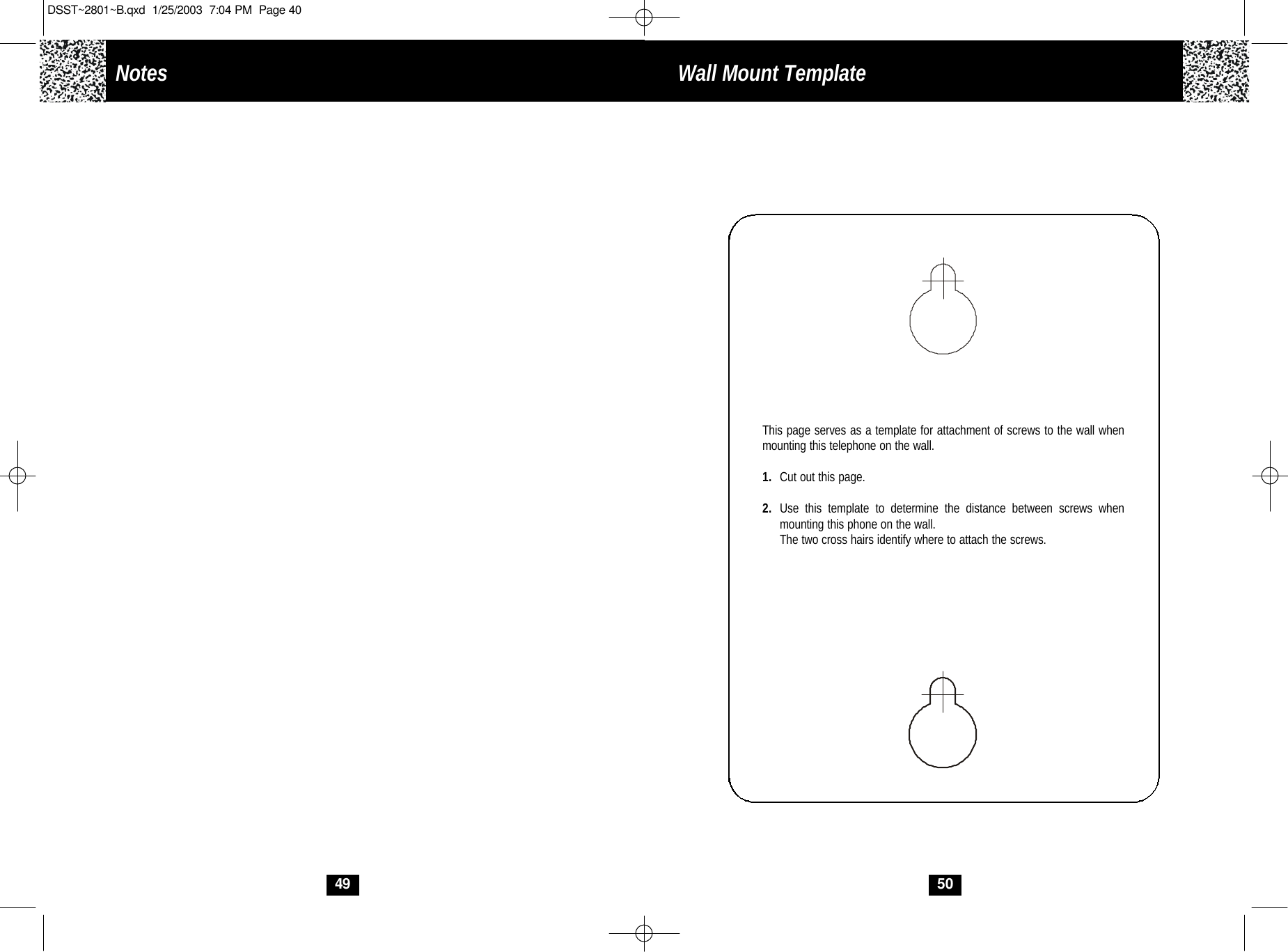

This page serves as a template for attachment of screws to the wall whenmounting this telephone on the wall.1. Cut out this page.2. Use this template to determine the distance between screws whenmounting this phone on the wall.The two cross hairs identify where to attach the screws.50Notes Wall Mount Template 49DSST~2801~B.qxd 1/25/2003 7:04 PM Page 40

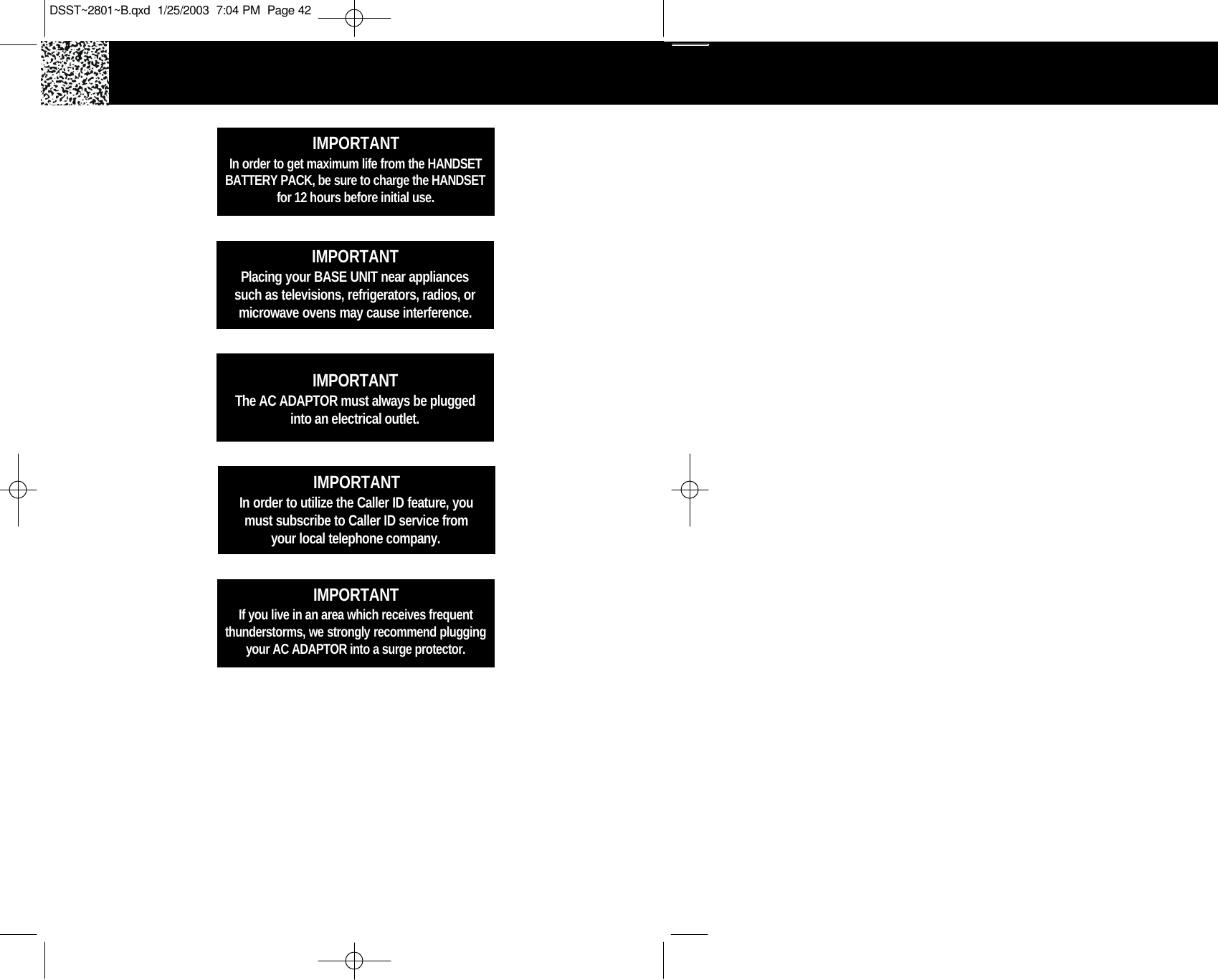

IMPORTANTIn order to get maximum life from the HANDSETBATTERY PACK, be sure to charge the HANDSETfor 12 hours before initial use.IMPORTANTPlacing your BASE UNIT near appliancessuch as televisions, refrigerators, radios, ormicrowave ovens may cause interference.IMPORTANTThe AC ADAPTOR must always be pluggedinto an electrical outlet.IMPORTANTIn order to utilize the Caller ID feature, youmust subscribe to Caller ID service fromyour local telephone company.IMPORTANTIf you live in an area which receives frequent thunderstorms, we strongly recommend pluggingyour AC ADAPTOR into a surge protector.DSST~2801~B.qxd 1/25/2003 7:04 PM Page 42
