Lithe Audio LWF1 Wi-Fi CEILING SPEAKER User Manual Lithe Audio Wifi Speaker Manual LWFIBGBA indd

Lithe Audio Ltd Wi-Fi CEILING SPEAKER Lithe Audio Wifi Speaker Manual LWFIBGBA indd

User Manual

INSTRUCTION MANUALALL-IN-ONE WI-FICEILING SPEAKER

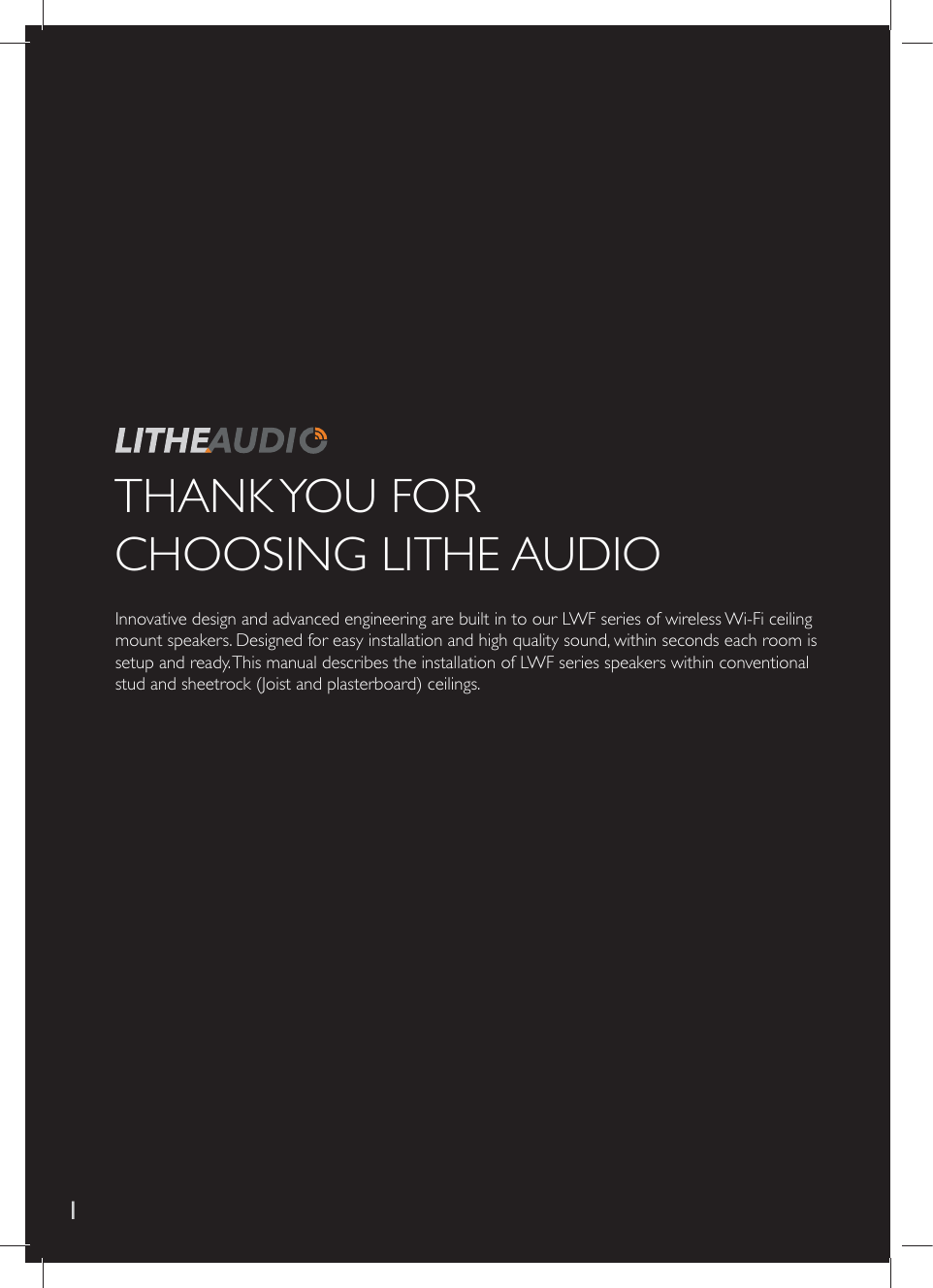

THANK YOU FOR CHOOSING LITHE AUDIO Innovative design and advanced engineering are built in to our LWF series of wireless Wi-Fi ceiling mount speakers. Designed for easy installation and high quality sound, within seconds each room is setup and ready. This manual describes the installation of LWF series speakers within conventional stud and sheetrock (Joist and plasterboard) ceilings. 1

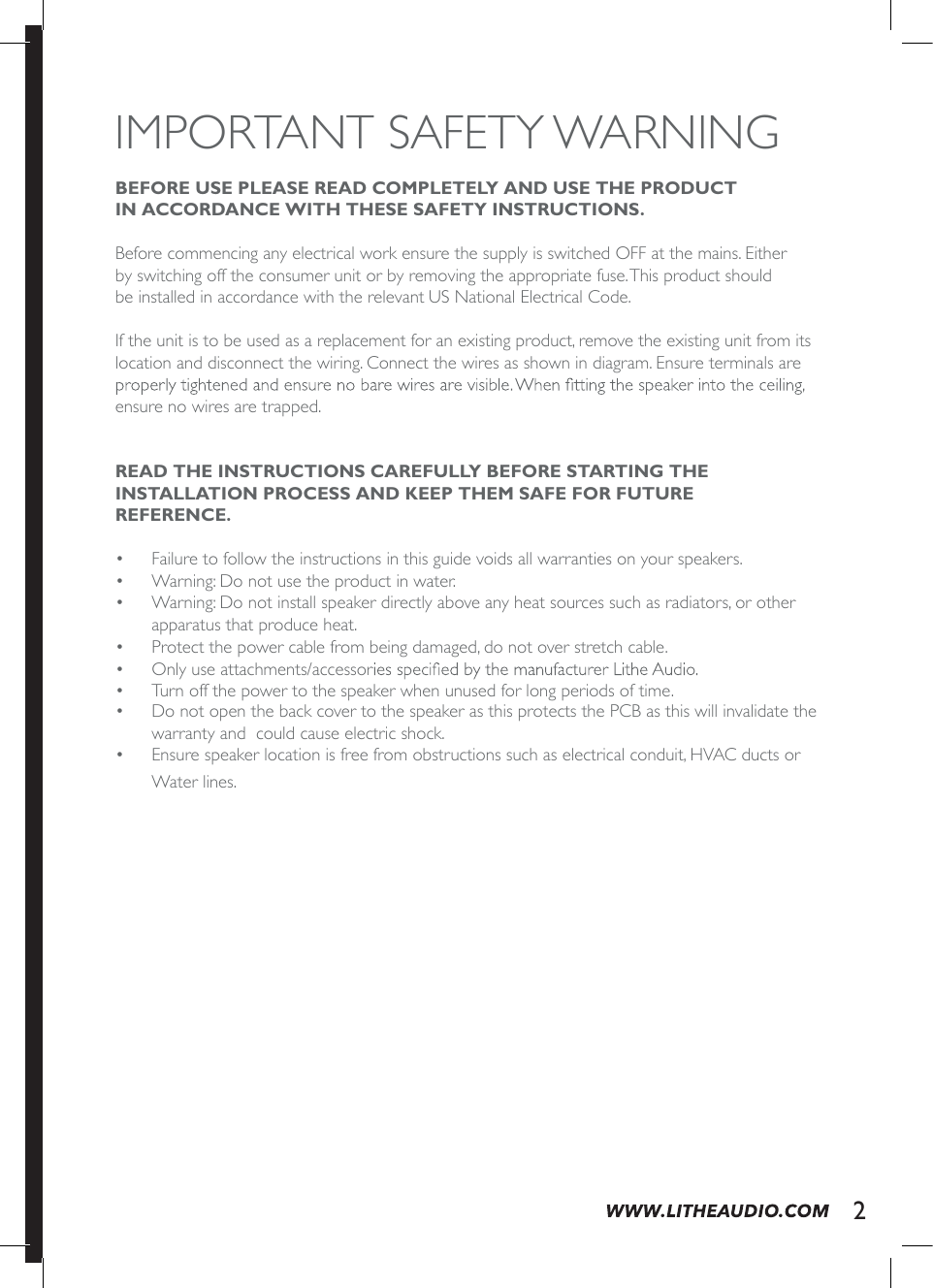

IMPORTANT SAFETY WARNING BEFORE USE PLEASE READ COMPLETELY AND USE THE PRODUCT IN ACCORDANCE WITH THESE SAFETY INSTRUCTIONS.Before commencing any electrical work ensure the supply is switched OFF at the mains. Either by switching off the consumer unit or by removing the appropriate fuse. This product should be installed in accordance with the relevant US National Electrical Code.If the unit is to be used as a replacement for an existing product, remove the existing unit from its location and disconnect the wiring. Connect the wires as shown in diagram. Ensure terminals are ensure no wires are trapped. READ THE INSTRUCTIONS CAREFULLY BEFORE STARTING THE INSTALLATION PROCESS AND KEEP THEM SAFE FOR FUTURE REFERENCE. o Failure to follow the instructions in this guide voids all warranties on your speakers.o Warning: Do not use the product in water.o Warning: Do not install speaker directly above any heat sources such as radiators, or other apparatus that produce heat.o Protect the power cable from being damaged, do not over stretch cable.o Only use attachments/accessoro Turn off the power to the speaker when unused for long periods of time.o Do not open the back cover to the speaker as this protects the PCB as this will invalidate the warranty and could cause electric shock. o Ensure speaker location is free from obstructions such as electrical conduit, HVAC ducts or Water lines.

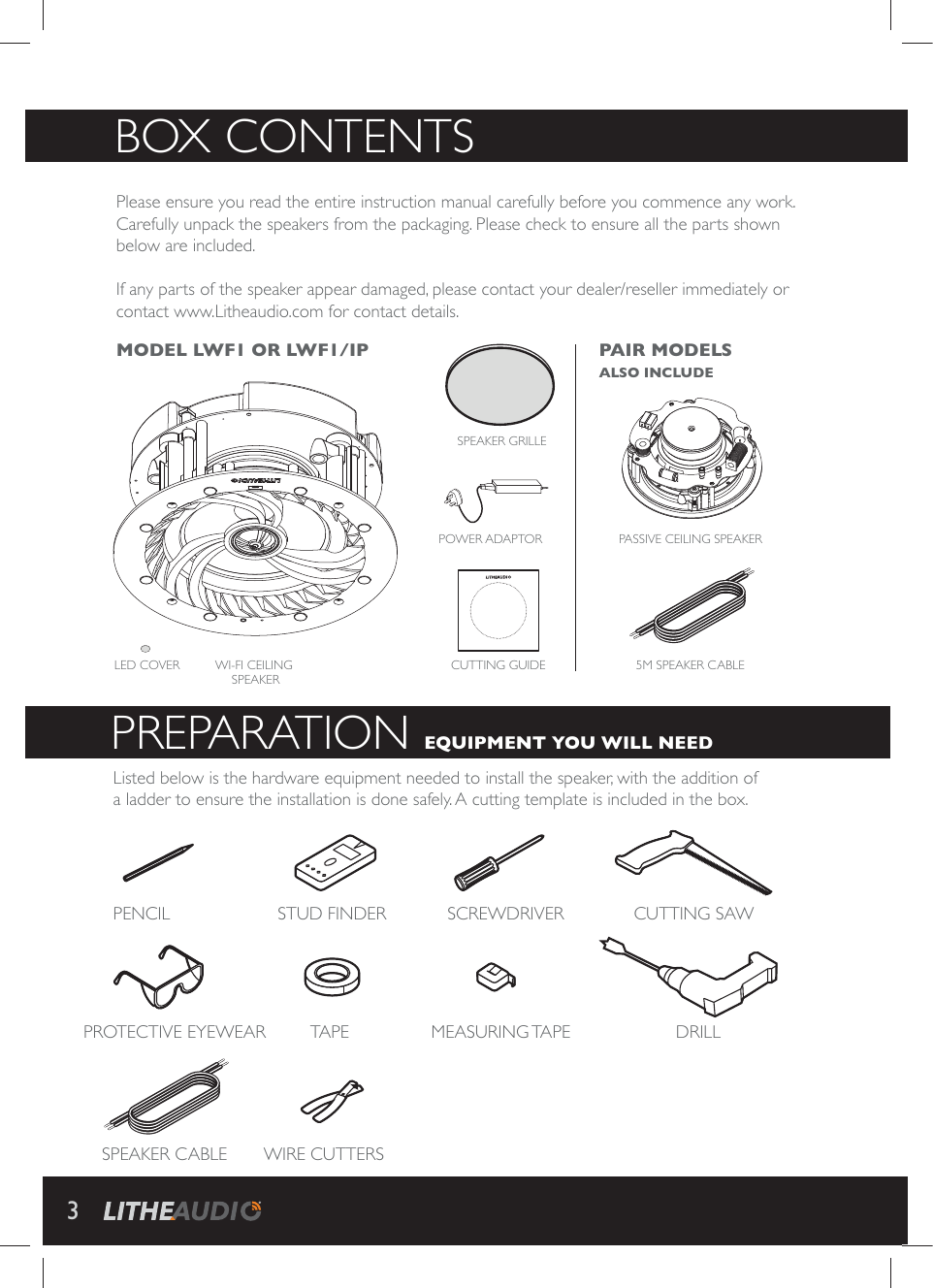

Please ensure you read the entire instruction manual carefully before you commence any work. Carefully unpack the speakers from the packaging. Please check to ensure all the parts shown below are included. If any parts of the speaker appear damaged, please contact your dealer/reseller immediately or contact www.Litheaudio.com for contact details.BOX CONTENTSListed below is the hardware equipment needed to install the speaker, with the addition of a ladder to ensure the installation is done safely. A cutting template is included in the box.PREPARATION EQUIPMENT YOU WILL NEED WI-FI CEILING SPEAKERCUTTING GUIDE 5M SPEAKER CABLESCREWDRIVERMEASURING TAPEPENCILPROTECTIVE EYEWEARSPEAKER CABLEPOWER ADAPTOR CUTTING SAWDRILLSTUD FINDERTAPEWIRE CUTTERSSPEAKER GRILLEMODEL LWF1 OR LWF1/IP PAIR MODELS ALSO INCLUDEPASSIVE CEILING SPEAKERLED COVER3

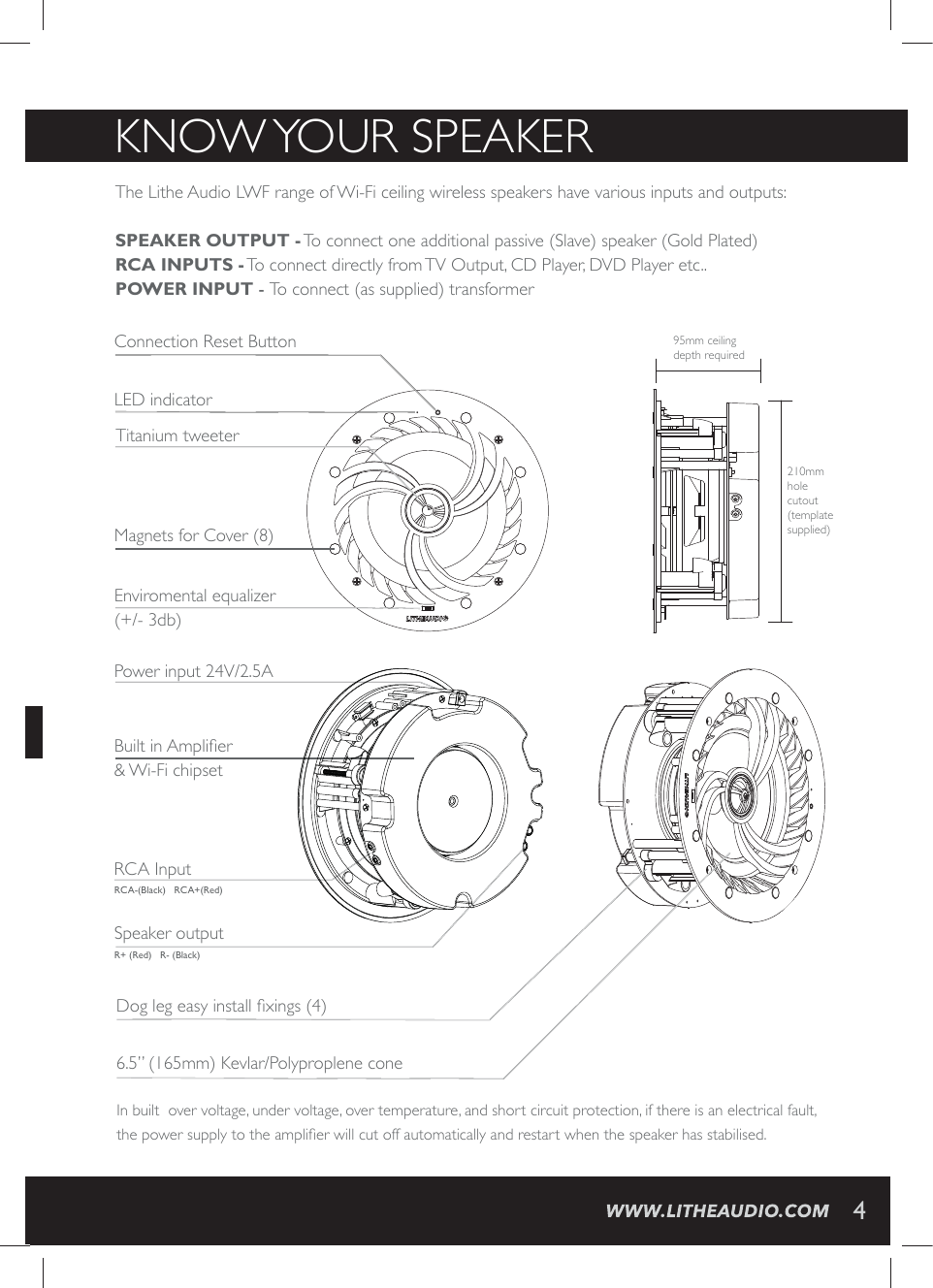

KNOW YOUR SPEAKERThe Lithe Audio LWF range of Wi-Fi ceiling wireless speakers have various inputs and outputs: SPEAKER OUTPUT - To connect one additional passive (Slave) speaker (Gold Plated)RCA INPUTS - To connect directly from TV Output, CD Player, DVD Player etc.. POWER INPUT - To connect (as supplied) transformer Power input 24V/2.5ARCA-(Black)R+ (Red) R- (Black)RCA+(Red)Speaker outputRCA Input(SKPIKIEW]MRWXEPP½\MRKW6.5” (165mm) Kevlar/Polyproplene coneTitanium tweeter &YMPXMR%QTPM½IV& Wi-Fi chipsetMagnets for Cover (8) Enviromental equalizer(+/- 3db)LED indicatorConnection Reset Button 95mm ceiling depth required210mm holecutout(template supplied)In built over voltage, under voltage, over temperature, and short circuit protection, if there is an electrical fault, XLITS[IVWYTTP]XSXLIEQTPM½IV[MPPGYXSJJEYXSQEXMGEPP]ERHVIWXEVX[LIRXLIWTIEOIVLEWWXEFMPMWIH4

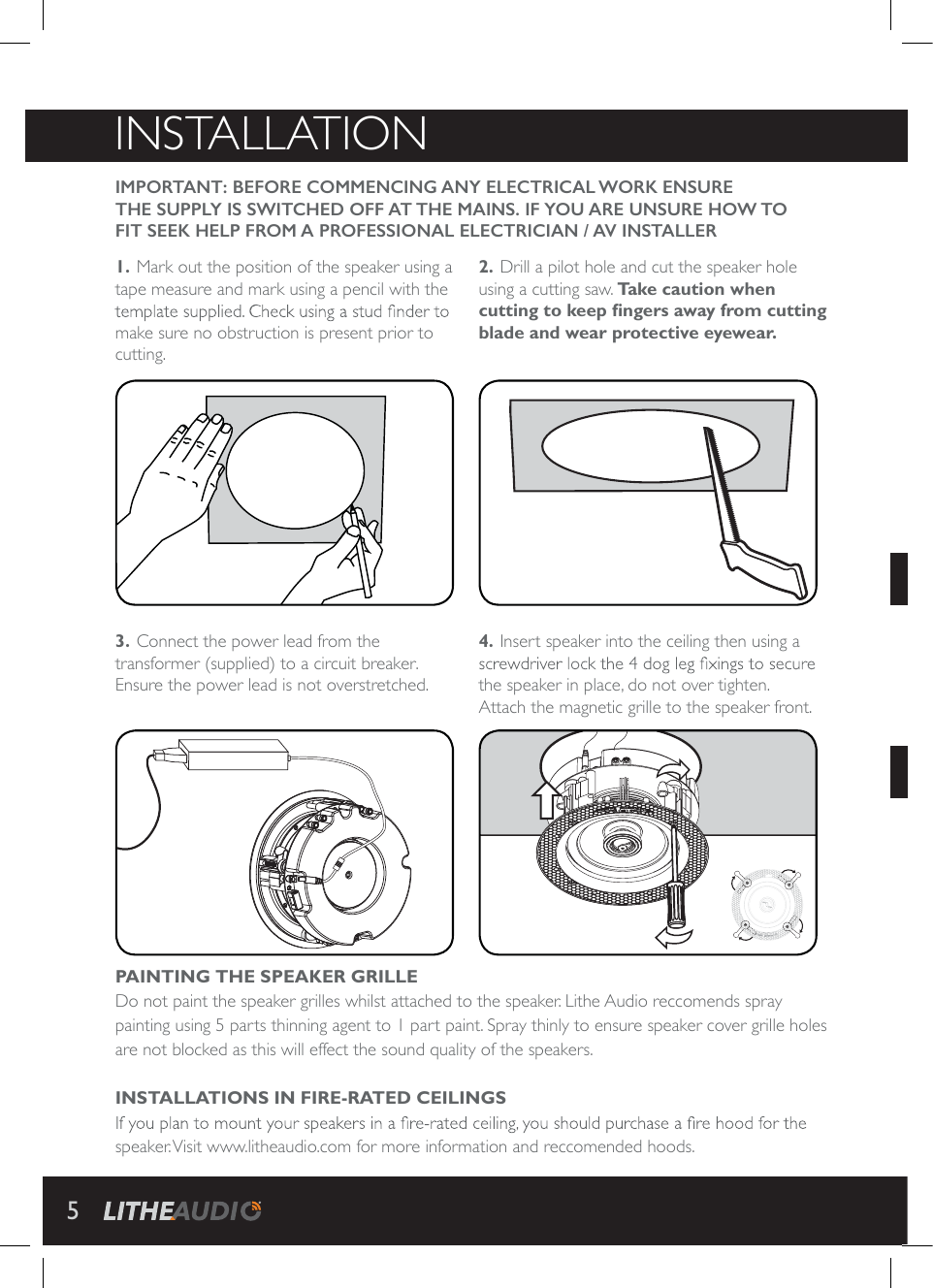

INSTALLATIONIMPORTANT: BEFORE COMMENCING ANY ELECTRICAL WORK ENSURE THE SUPPLY IS SWITCHED OFF AT THE MAINS. IF YOU ARE UNSURE HOW TO FIT SEEK HELP FROM A PROFESSIONAL ELECTRICIAN / AV INSTALLER 1. Mark out the position of the speaker using a tape measure and mark using a pencil with the make sure no obstruction is present prior to cutting.3. Connect the power lead from the transformer (supplied) to a circuit breaker.Ensure the power lead is not overstretched.2. Drill a pilot hole and cut the speaker hole using a cutting saw. Take caution when cutting to keep À ngers away from cutting blade and wear protective eyewear.4. Insert speaker into the ceiling then using a the speaker in place, do not over tighten. Attach the magnetic grille to the speaker front.PAINTING THE SPEAKER GRILLEDo not paint the speaker grilles whilst attached to the speaker. Lithe Audio reccomends spray painting using 5 parts thinning agent to 1 part paint. Spray thinly to ensure speaker cover grille holes are not blocked as this will effect the sound quality of the speakers. INSTALLATIONS IN FIRE-RATED CEILINGSspeaker. Visit www.litheaudio.com for more information and reccomended hoods.

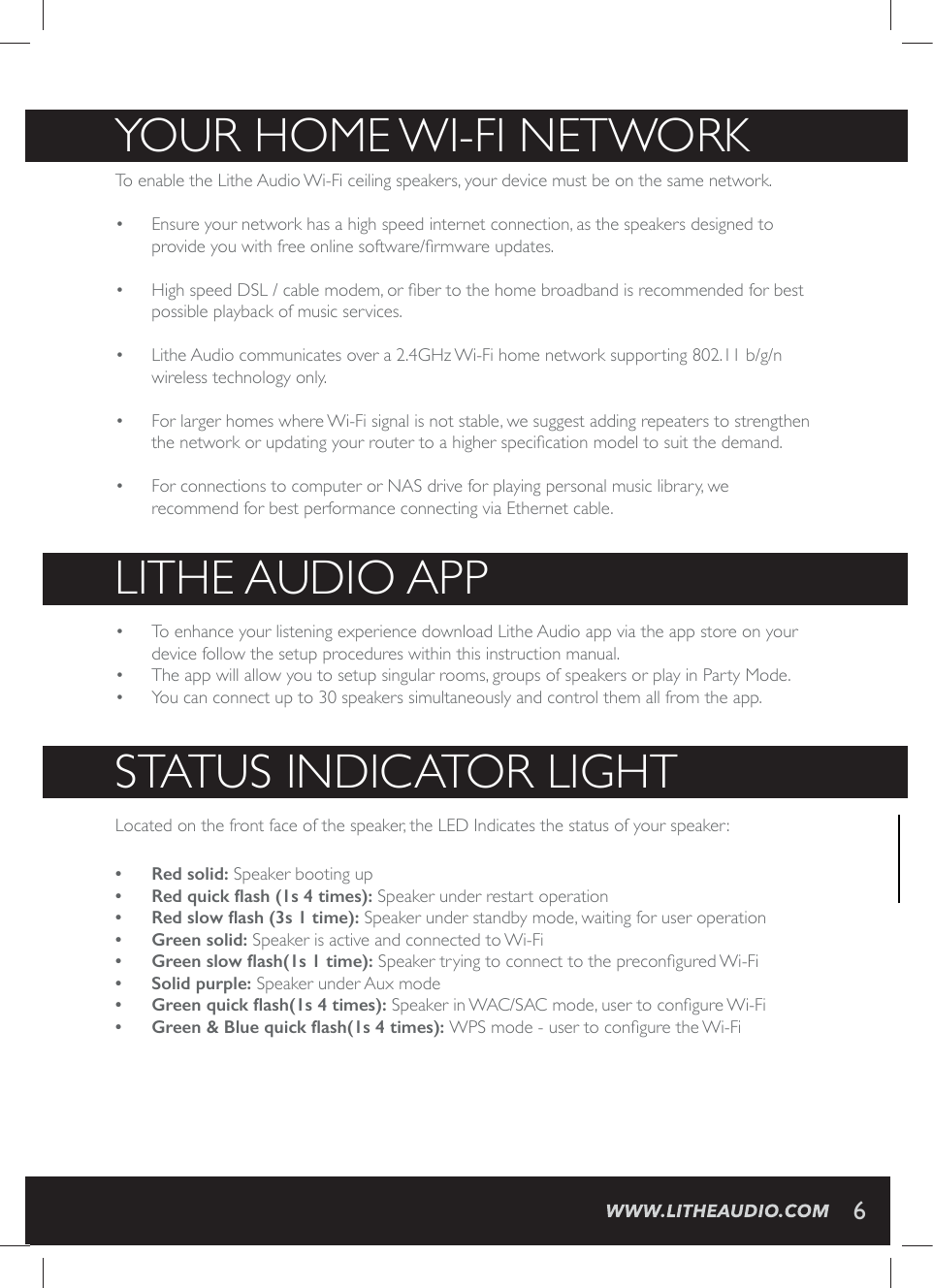

YOUR HOME WI-FI NETWORKTo enable the Lithe Audio Wi-Fi ceiling speakers, your device must be on the same network.• Ensure your network has a high speed internet connection, as the speakers designed to TVSZMHI]SY[MXLJVIISRPMRIWSJX[EVI½VQ[EVIYTHEXIW• ,MKLWTIIH(70GEFPIQSHIQSV½FIVXSXLILSQIFVSEHFERHMWVIGSQQIRHIHJSVFIWXpossible playback of music services.• Lithe Audio communicates over a 2.4GHz Wi-Fi home network supporting 802.11 b/g/n wireless technology only. • For larger homes where Wi-Fi signal is not stable, we suggest adding repeaters to strengthen XLIRIX[SVOSVYTHEXMRK]SYVVSYXIVXSELMKLIVWTIGM½GEXMSRQSHIPXSWYMXXLIHIQERH• For connections to computer or NAS drive for playing personal music library, we recommend for best performance connecting via Ethernet cable. LITHE AUDIO APP• To enhance your listening experience download Lithe Audio app via the app store on your device follow the setup procedures within this instruction manual.• The app will allow you to setup singular rooms, groups of speakers or play in Party Mode.• You can connect up to 30 speakers simultaneously and control them all from the app. STATUS INDICATOR LIGHTLocated on the front face of the speaker, the LED Indicates the status of your speaker:• Red solid: Speaker booting up• 5HGTXLFN½DVKVWLPHVSpeaker under restart operation• 5HGVORZ½DVKVWLPHSpeaker under standby mode, waiting for user operation• Green solid: Speaker is active and connected to Wi-Fi • *UHHQVORZ½DVKVWLPH7TIEOIVXV]MRKXSGSRRIGXXSXLITVIGSR½KYVIH;M*M• Solid purple: Speaker under Aux mode• *UHHQTXLFN½DVKVWLPHV7TIEOIVMR;%'7%'QSHIYWIVXSGSR½KYVI;M*M• *UHHQ%OXHTXLFN½DVKVWLPHV;47QSHIYWIVXSGSR½KYVIXLI;M*M6
7SETUP FOR "QQMF JOSDownload the Lithe Audio App from the App Store. 2. Ensure the Wi-Fi speaker is connected to the power supply and is XYVRIHSRXLI0)(MRHMGEXSV[MPP¾EWLVIHWPS[P]Press and hold the ‘Connection Reset Button’ for 5 seconds & VIPIEWIXLI0)(MRHMGEXSV[MPP¾EWL+VIIRERHXLIWTIEOIVMWRS[ready to connect to your Wi-Fi network.Open the Wi-Fi setting menu on your phone or tablet5. Select the new "JS1MBZ speaker listed you would like to add to your network 6. Select your network and change the ‘Speaker Name’ to something easily MHIRXM½EFPIIK/MXGLIRERHGPMGO2I\X4. The Lithe Audio Wi-Fi speaker setup is now complete, return to the Lithe Audio app Image shows Apple iPhone but visuals may change from device to device. Apple and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.OPEN CAMERA & SCAN TO DOWNLOAD THE APP

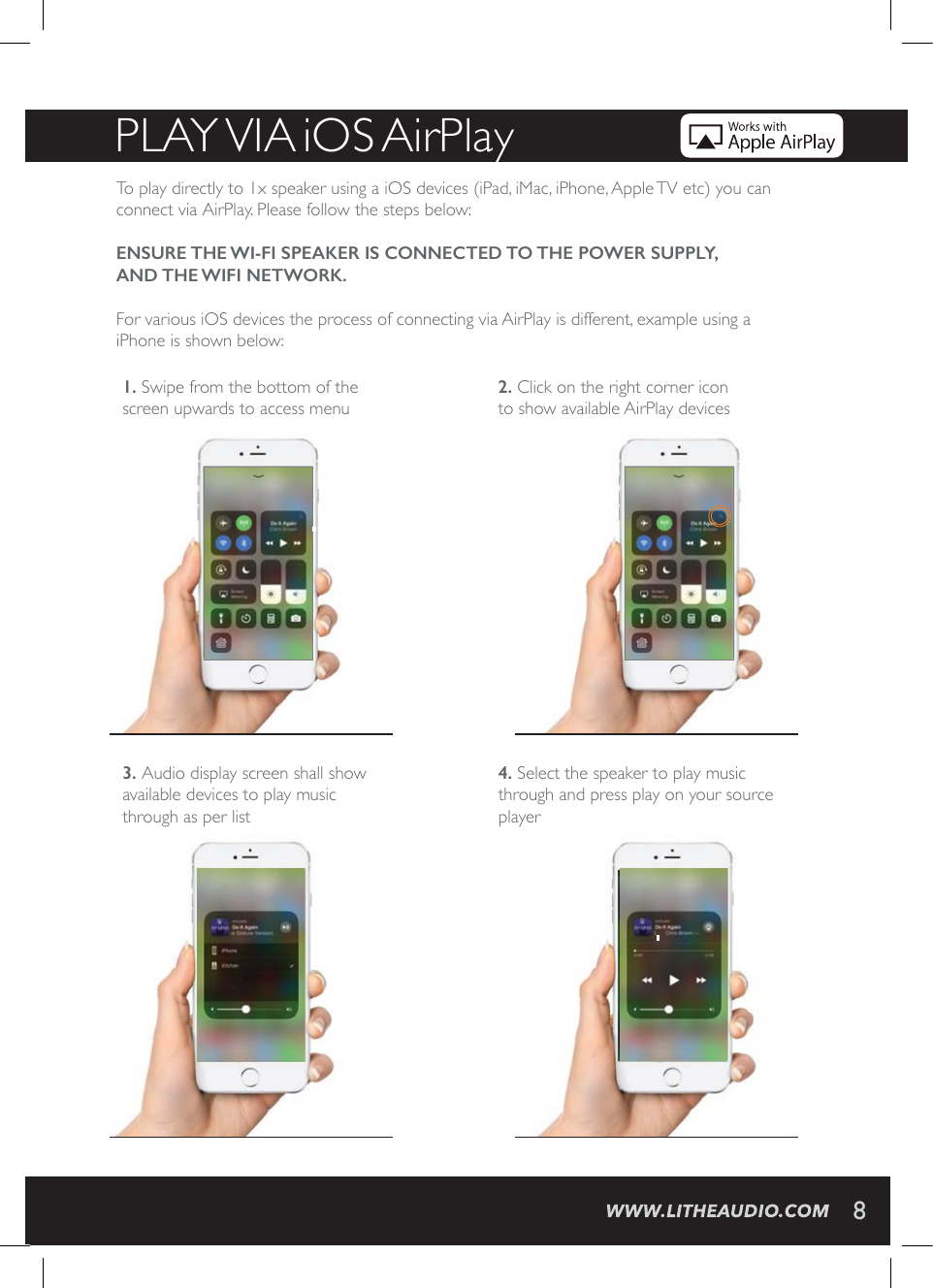

1. Swipe from the bottom of the screen upwards to access menu2. Click on the right corner icon to show available AirPlay devicesPLAY VIA iOS AirPlayTo play directly to 1x speaker using a iOS devices (iPad, iMac, iPhone, Apple TV etc) you can connect via AirPlay. Please follow the steps below:ENSURE THE WI-FI SPEAKER IS CONNECTED TO THE POWER SUPPLY, AND THE WIFI NETWORK. For various iOS devices the process of connecting via AirPlay is different, example using a iPhone is shown below:3. Audio display screen shall show available devices to play music through as per list4. Select the speaker to play music through and press play on your source player

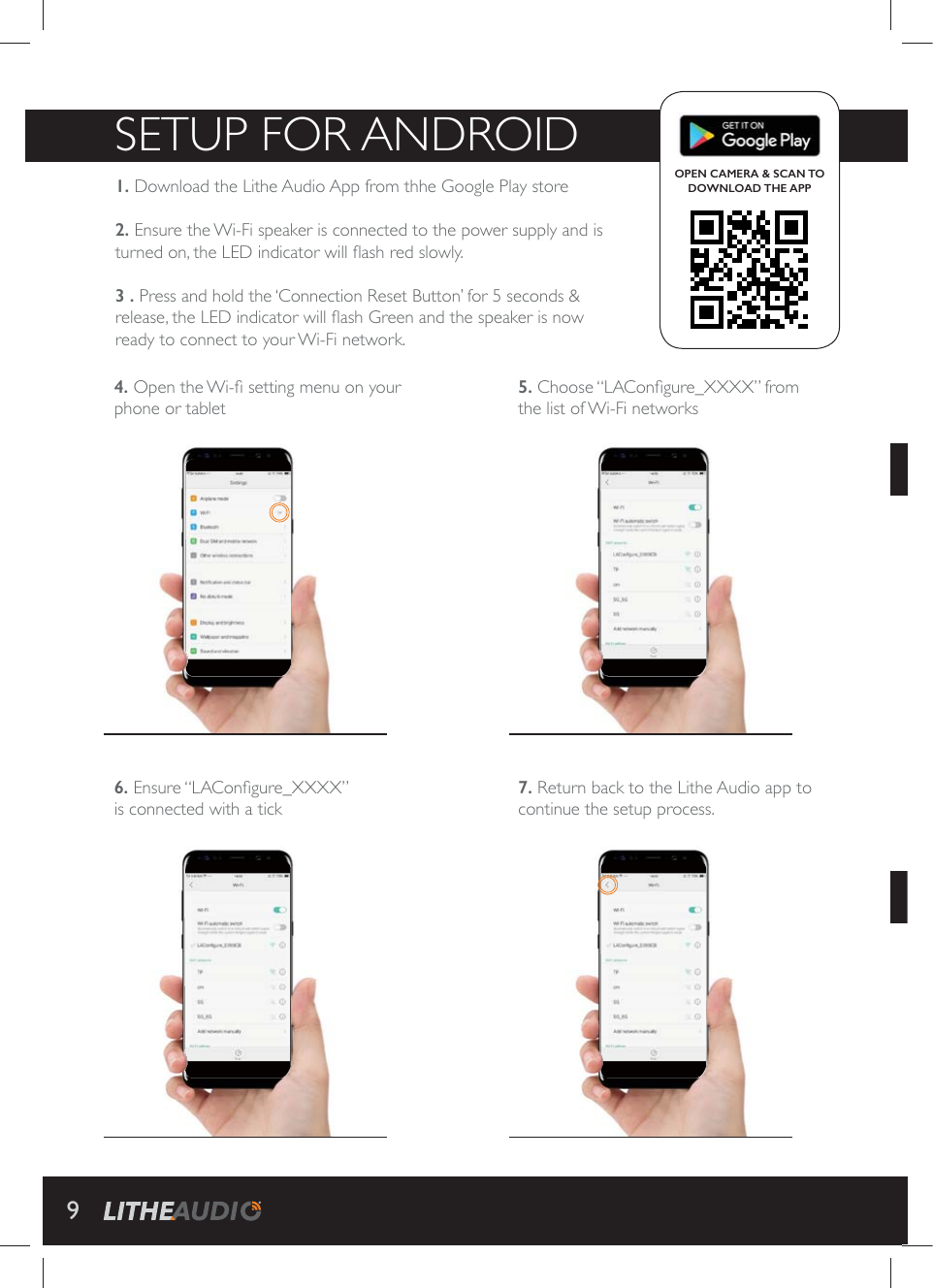

5. 'LSSWI±0%'SR½KYVIC<<<<²JVSQthe list of Wi-Fi networks7. Return back to the Lithe Audio app to continue the setup process.9SETUP FOR ANDROIDDownload the Lithe Audio App from thhe Google Play store 2. Ensure the Wi-Fi speaker is connected to the power supply and is XYVRIHSRXLI0)(MRHMGEXSV[MPP¾EWLVIHWPS[P]Press and hold the ‘Connection Reset Button’ for 5 seconds & VIPIEWIXLI0)(MRHMGEXSV[MPP¾EWL+VIIRERHXLIWTIEOIVMWRS[ready to connect to your Wi-Fi network.OPEN CAMERA & SCAN TO DOWNLOAD THE APP3TIRXLI;M½WIXXMRKQIRYSR]SYVphone or tablet6. )RWYVI±0%'SR½KYVIC<<<<²is connected with a tick

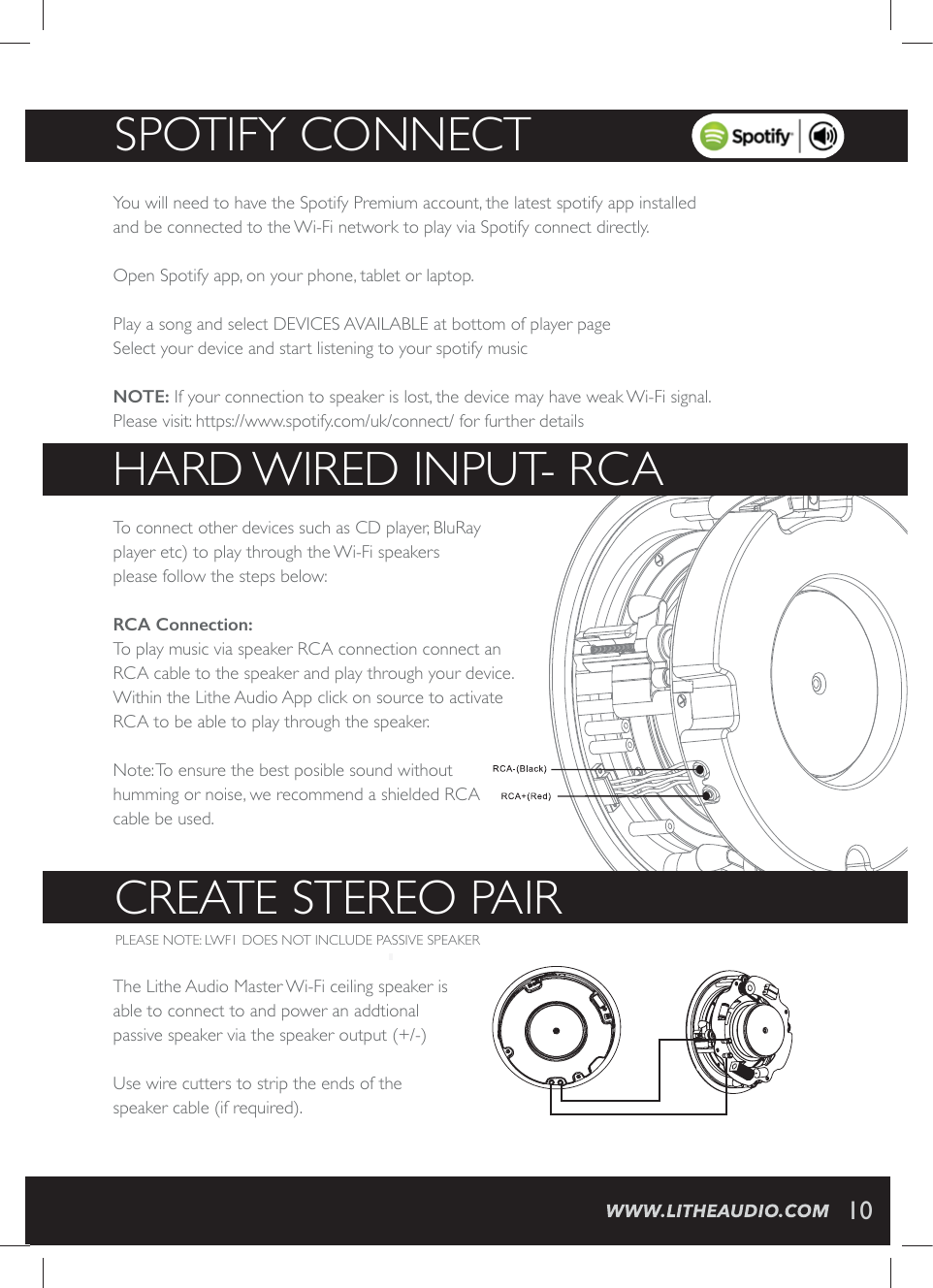

SPOTIFY CONNECT10You will need to have the Spotify Premium account, the latest spotify app installed and be connected to the Wi-Fi network to play via Spotify connect directly. Open Spotify app, on your phone, tablet or laptop. Play a song and select DEVICES AVAILABLE at bottom of player pageSelect your device and start listening to your spotify music NOTE: If your connection to speaker is lost, the device may have weak Wi-Fi signal. Please visit: https://www.spotify.com/uk/connect/ for further detailsHARD WIRED INPUT- RCA To connect other devices such as CD player, BluRay player etc) to play through the Wi-Fi speakers please follow the steps below:5&$&RQQHFWLRQTo play music via speaker RCA connection connect an RCA cable to the speaker and play through your device. Within the Lithe Audio App click on source to activate RCA to be able to play through the speaker.Note: To ensure the best posible sound without humming or noise, we recommend a shielded RCAcable be used.CREATE STEREO PAIR PLEASE NOTE: LWF1 DOES NOT INCLUDE PASSIVE SPEAKER The Lithe Audio Master Wi-Fi ceiling speaker is able to connect to and power an addtional passive speaker via the speaker output (+/-)Use wire cutters to strip the ends of the speaker cable (if required).

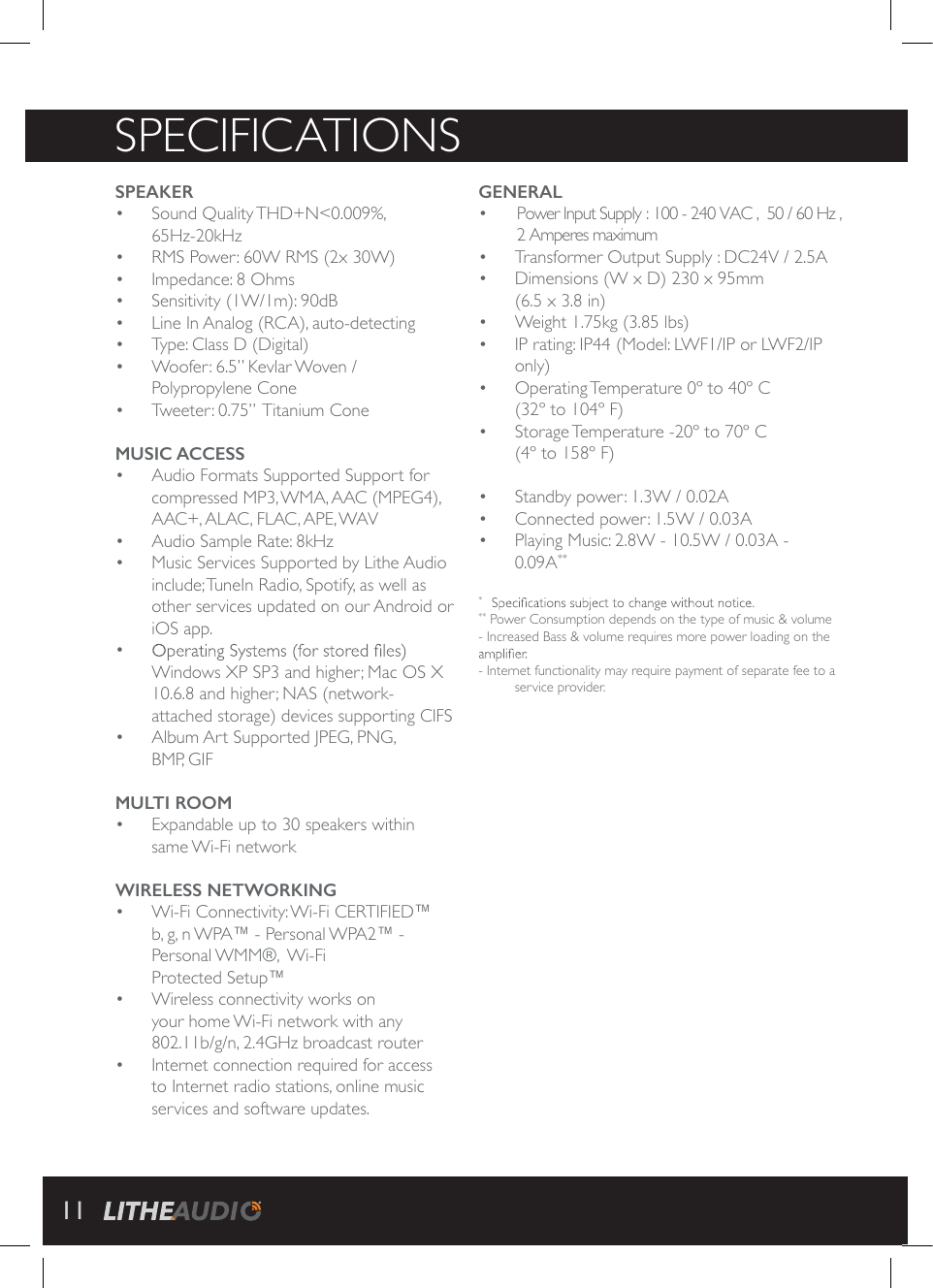

SPECIFICATIONSGENERALo o Transformer Output Supply : DC24V / 2.5Ao Dimensions (W x D) 230 x 95mm (6.5 x 3.8 in)o Weight 1.75kg (3.85 lbs)o IP rating: IP44 (Model: LWF1/IP or LWF2/IP only)o Operating Temperature 0º to 40º C (32º to 104º F)o Storage Temperature -20º to 70º C (4º to 158º F)o Standby power: 1.3W / 0.02Ao Connected power: 1.5W / 0.03Ao Playing Music: 2.8W - 10.5W / 0.03A - 0.09A*** ** Power Consumption depends on the type of music & volume - Increased Bass & volume requires more power loading on the - Internet functionality may require payment of separate fee to a service provider.SPEAKERo Sound Quality THD+N<0.009%, 65Hz-20kHzo RMS Power: 60W RMS (2x 30W)o Impedance: 8 Ohmso Sensitivity (1W/1m): 90dBo Line In Analog (RCA), auto-detectingo Type: Class D (Digital)o Woofer: 6.5” Kevlar Woven / Polypropylene Coneo Tweeter: 0.75” Titanium ConeMUSIC ACCESSo Audio Formats Supported Support for compressed MP3, WMA, AAC (MPEG4), AAC+, ALAC, FLAC, APE, WAVo Audio Sample Rate: 8kHz o Music Services Supported by Lithe Audio include; TuneIn Radio, Spotify, as well as other services updated on our Android or iOS app.o Windows XP SP3 and higher; Mac OS X 10.6.8 and higher; NAS (network- attached storage) devices supporting CIFSo Album Art Supported JPEG, PNG, BMP, GIFMULTI ROOMo Expandable up to 30 speakers within same Wi-Fi networkWIRELESS NETWORKINGo Wi-Fi Connectivity: Wi-Fi CERTIFIED™ b, g, n WPA™ - Personal WPA2™ - Personal WMM®, Wi-Fi Protected Setup™o Wireless connectivity works on your home Wi-Fi network with any 802.11b/g/n, 2.4GHz broadcast routero Internet connection required for access to Internet radio stations, online music services and software updates. Power Input Supply : 100 - 240 VAC , 50 / 60 Hz , 2 Amperes maximum

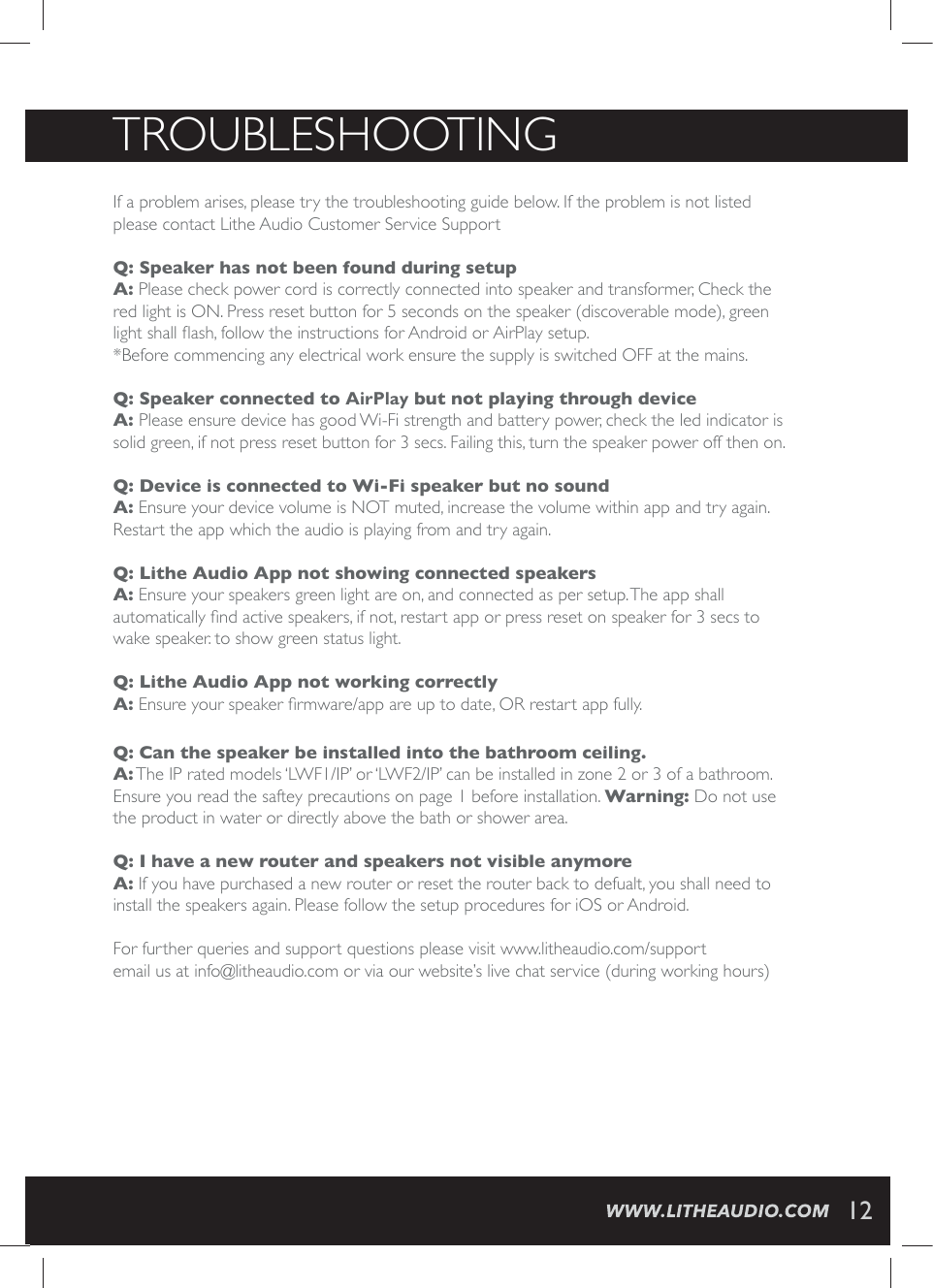

TROUBLESHOOTINGIf a problem arises, please try the troubleshooting guide below. If the problem is not listed please contact Lithe Audio Customer Service Support Q: Speaker has not been found during setup A: Please check power cord is correctly connected into speaker and transformer, Check the red light is ON. Press reset button for 5 seconds on the speaker (discoverable mode), green PMKLXWLEPP¾EWLJSPPS[XLIMRWXVYGXMSRWJSV%RHVSMHSV"JS1MBZWIXYT*Before commencing any electrical work ensure the supply is switched OFF at the mains. Q: Speaker connected to "JS1MBZ but not playing through device A: Please ensure device has good Wi-Fi strength and battery power, check the led indicator is solid green, if not press reset button for 3 secs. Failing this, turn the speaker power off then on. Q: Device is connected to Wi-Fi speaker but no sound A: Ensure your device volume is NOT muted, increase the volume within app and try again. Restart the app which the audio is playing from and try again. Q: Lithe Audio App not showing connected speakers A: Ensure your speakers green light are on, and connected as per setup. The app shall EYXSQEXMGEPP]½RHEGXMZIWTIEOIVWMJRSXVIWXEVXETTSVTVIWWVIWIXSRWTIEOIVJSVWIGWXSwake speaker. to show green status light. Q: Lithe Audio App not working correctly A:)RWYVI]SYVWTIEOIV½VQ[EVIETTEVIYTXSHEXI36VIWXEVXETTJYPP]Q: Can the speaker be installed into the bathroom ceiling.A: The IP rated models ‘LWF1/IP’ or ‘LWF2/IP’ can be installed in zone 2 or 3 of a bathroom. Ensure you read the saftey precautions on page 1 before installation. Warning: Do not use the product in water or directly above the bath or shower area. Q: I have a new router and speakers not visible anymoreA: If you have purchased a new router or reset the router back to defualt, you shall need to install the speakers again. Please follow the setup procedures for JOS or Android. For further queries and support questions please visit www.litheaudio.com/supportemail us at info@litheaudio.com or via our website’s live chat service (during working hours) 12

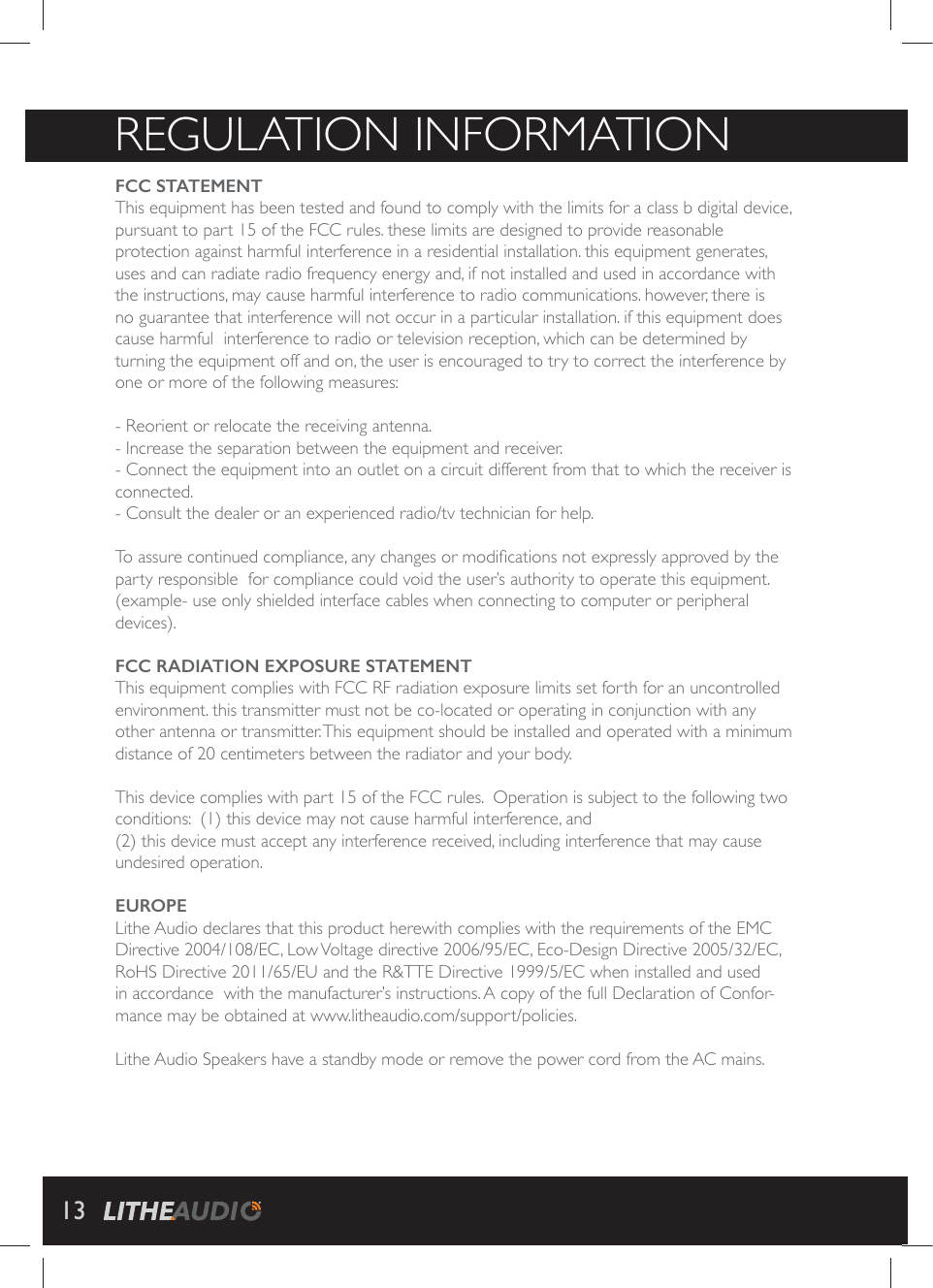

REGULATION INFORMATIONFCC STATEMENT This equipment has been tested and found to comply with the limits for a class b digital device, pursuant to part 15 of the FCC rules. these limits are designed to provide reasonable protection against harmful interference in a residential installation. this equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. however, there is no guarantee that interference will not occur in a particular installation. if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/tv technician for help. 8SEWWYVIGSRXMRYIHGSQTPMERGIER]GLERKIWSVQSHM½GEXMSRWRSXI\TVIWWP]ETTVSZIHF]XLIparty responsible for compliance could void the user’s authority to operate this equipment. (example- use only shielded interface cables when connecting to computer or peripheral devices). FCC RADIATION EXPOSURE STATEMENT This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled IRZMVSRQIRXXLMWXVERWQMXXIVQYWXRSXFIGSPSGEXIHSVSTIVEXMRKMRGSRNYRGXMSR[MXLER]other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. 8LMWHIZMGIGSQTPMIW[MXLTEVXSJXLI*''VYPIW3TIVEXMSRMWWYFNIGXXSXLIJSPPS[MRKX[Sconditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.EUROPELithe Audio declares that this product herewith complies with the requirements of the EMC Directive 2004/108/EC, Low Voltage directive 2006/95/EC, Eco-Design Directive 2005/32/EC, RoHS Directive 2011/65/EU and the R&TTE Directive 1999/5/EC when installed and used in accordance with the manufacturer’s instructions. A copy of the full Declaration of Confor-mance may be obtained at www.litheaudio.com/support/policies.Lithe Audio Speakers have a standby mode or remove the power cord from the AC mains.13

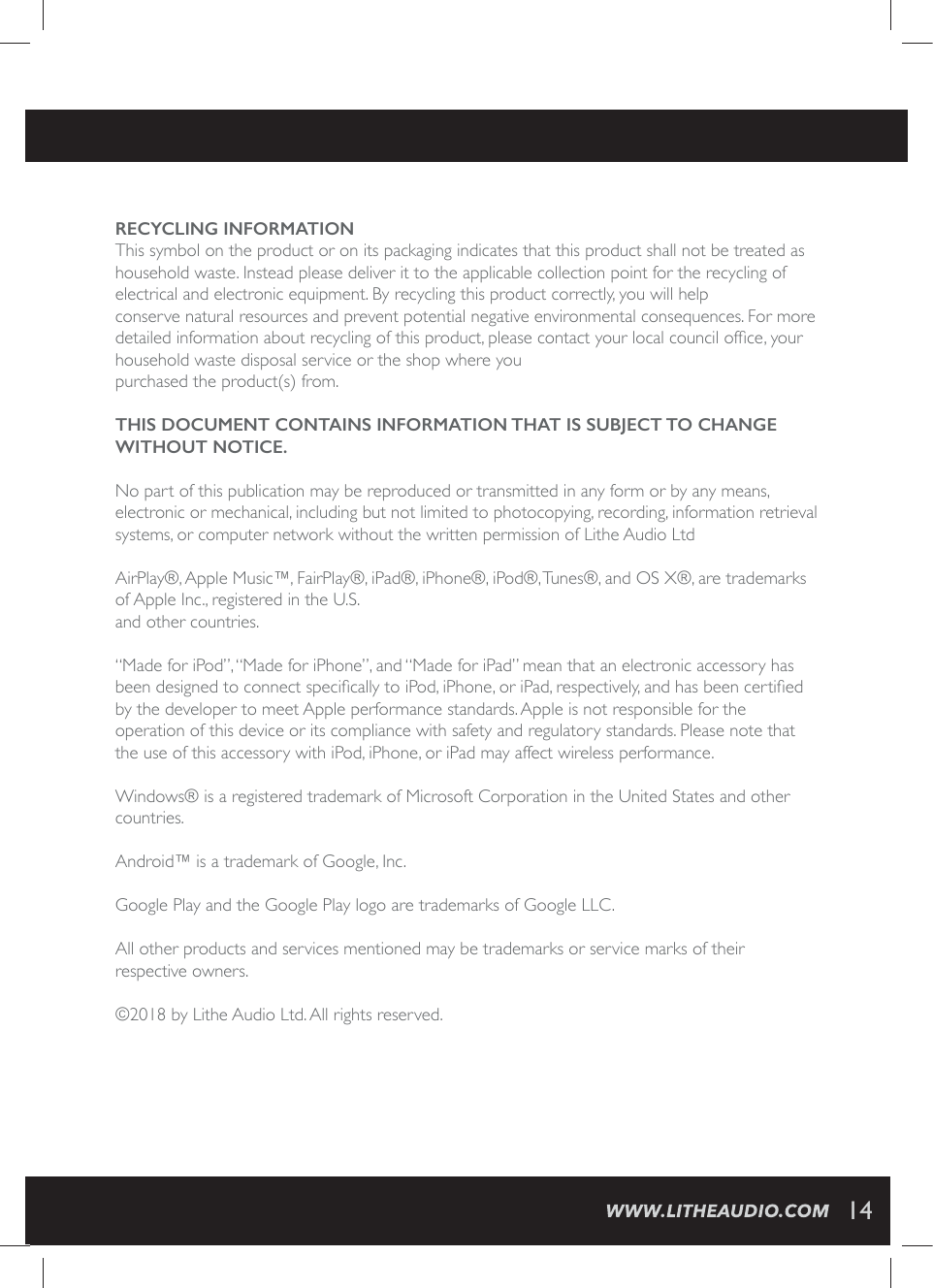

RECYCLING INFORMATIONThis symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead please deliver it to the applicable collection point for the recycling of electrical and electronic equipment. By recycling this product correctly, you will help conserve natural resources and prevent potential negative environmental consequences. For more HIXEMPIHMRJSVQEXMSREFSYXVIG]GPMRKSJXLMWTVSHYGXTPIEWIGSRXEGX]SYVPSGEPGSYRGMPSJ½GI]SYVhousehold waste disposal service or the shop where youpurchased the product(s) from.THIS DOCUMENT CONTAINS INFORMATION THAT IS SUBJECT TO CHANGE WITHOUT NOTICE.No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including but not limited to photocopying, recording, information retrieval systems, or computer network without the written permission of Lithe Audio Ltd AirPlay®, Apple Music™, FairPlay®, iPad®, iPhone®, iPod®, Tunes®, and OS X®, are trademarks of Apple Inc., registered in the U.S.and other countries.“Made for iPod”, “Made for iPhone”, and “Made for iPad” mean that an electronic accessory has FIIRHIWMKRIHXSGSRRIGXWTIGM½GEPP]XSM4SHM4LSRISVM4EHVIWTIGXMZIP]ERHLEWFIIRGIVXM½IHby the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.Windows® is a registered trademark of Microsoft Corporation in the United States and other countries. Android™ is a trademark of Google, Inc.Google Play and the Google Play logo are trademarks of Google LLC.All other products and services mentioned may be trademarks or service marks of their respective owners.©2018 by Lithe Audio Ltd. All rights reserved.14
This Ceiling Speaker is of excellent quality and construction. However, if any defects in materials or workmanship do appear during the guarantee period, we will, at our discretion, either repair or VITPEGIXLIHIJIGXMZITEVXWJVIISJGLEVKIWYFNIGXXSXLIXIVQWERHGSRHMXMSRWSJSYV+YEVERXIIshown below. This Guarantee covers both parts and labour. Carriage is not included. 8LMW+YEVERXIITVSZMHIWFIRI½XW[LMGLEVIEHHMXMSREPXSERHHSRSXEJJIGX]SYVWXEXYXSV]VMKLXWThis Guarantee does not cover the cost of returning the product to the dealer from whom it was purchased or to ourselves. This Guarantee applies only to products sold and located in mainland Great Britain. It does not cover liability in respect of or replacement of plugs, cables or fuses and also does not cover defects due to: • Failure to use or maintain product in accordance with Lithe Audio instructions. • The product being connected to an unsuitable electricity supply. • Accidental damage to or abuse or misuse of the product. 4VSHYGXQSHM½GEXMSRI\GITXF]0MXLI%YHMSSVETTVSZIHEKIRX• Dismantling of or interference with the product. Before returning any product under this Guarantee, please check that: • You have followed the product instructions correctly. • Your mains electricity supply is functional. • The defect is not due to a blown fuse.If you wish to claim under this guarantee you should: • Send the product, postage or carriage paid, to the dealer from whom it was purchased or to Lithe Audio direct. • Ensure that the product is clean and packed carefully (preferably in its original carton). • Enclose details of your name, address and telephone number and when and where the product was purchased, together with proof of purchase (e.g. a invoice or till receipt). • Give exact details of the nature of the defect. This Guarantee does not cover any other claims whatsoever, including, without limitation, any liability for incidental, indirect or consequential damage, nor does it cover any claims for conversion SVQSHM½GEXMSRSVJSVXLIGSWXWSJVITEMVGEVVMIHSYXF]ER]XLMVHTEVX][MXLSYXXLITVMSVGSRWIRXSJ0MXLI%YHMS-JVITPEGIQIRXTEVXWEVI½XXIHXSXLITVSHYGXXLMW[MPPRSXI\XIRHXLITIVMSHSJXLIGuarantee. For further advice contact the Lithe Audio customer services.WWW.LITHEAUDIO.COM TEL: 01293 922 015 EMAIL: INFO@LITHEAUDIO.COMLWF1GBA2 YEAR GUARANTEELithe Audio products marked with the CE mark comply with the EC Low Voltage Directive: 73/23/EEC, Electromagnetic Compatibility Directive 89/336/EEC
