OWNER’S MANUAL

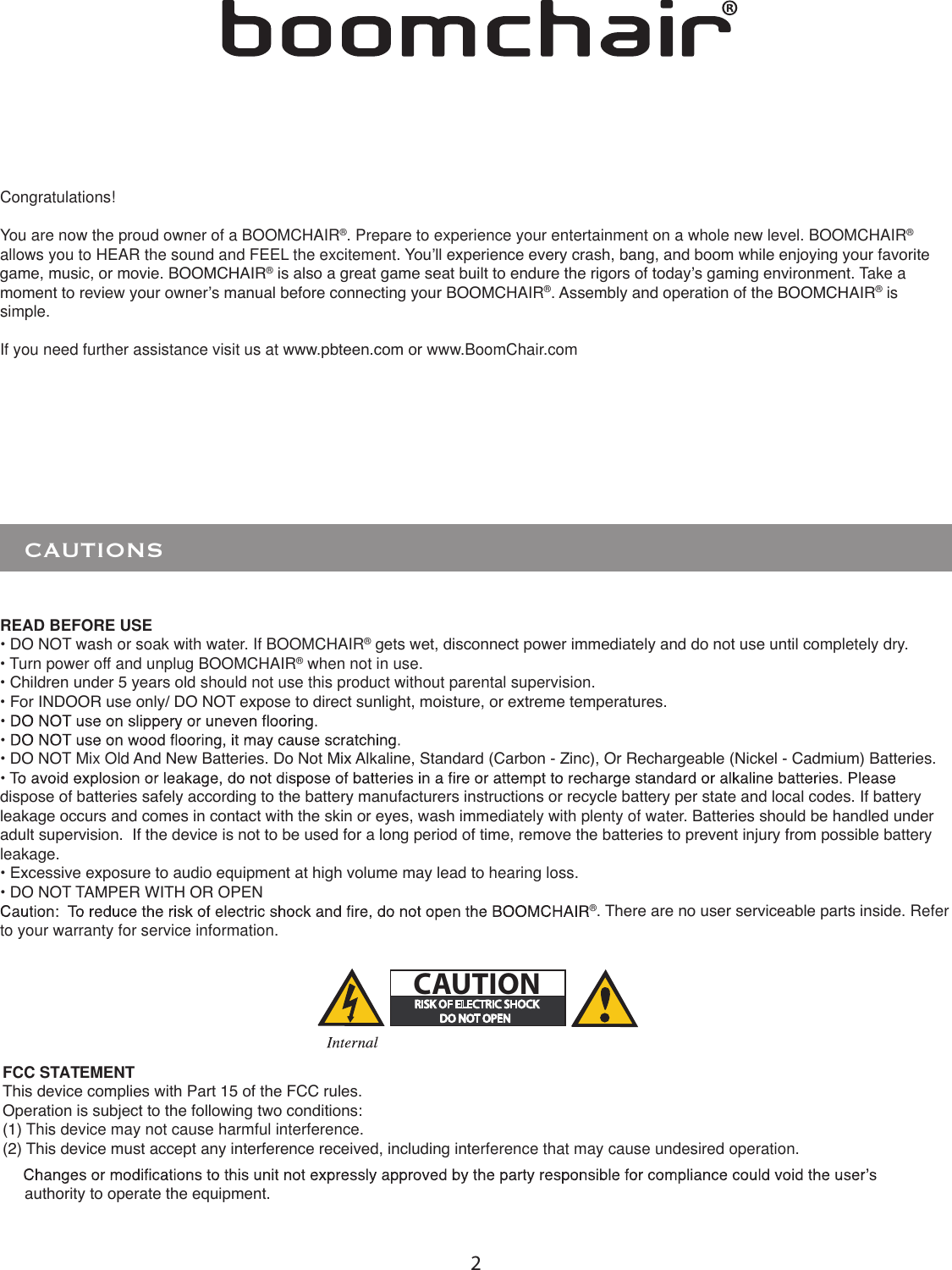

2Congratulations!You are now the proud owner of a BOOMCHAIR®. Prepare to experience your entertainment on a whole new level. BOOMCHAIR® allows you to HEAR the sound and FEEL the excitement. You’ll experience every crash, bang, and boom while enjoying your favorite game, music, or movie. BOOMCHAIR® is also a great game seat built to endure the rigors of today’s gaming environment. Take a moment to review your owner’s manual before connecting your BOOMCHAIR®. Assembly and operation of the BOOMCHAIR® is simple.If you need further assistance visit us at www.pbteen.com or www.BoomChair.comREAD BEFORE USE• DO NOT wash or soak with water. If BOOMCHAIR® gets wet, disconnect power immediately and do not use until completely dry.• Turn power off and unplug BOOMCHAIR® when not in use.• Children under 5 years old should not use this product without parental supervision.• For INDOOR use only/ DO NOT expose to direct sunlight, moisture, or extreme temperatures.• DO NOT Mix Old And New Batteries. Do Not Mix Alkaline, Standard (Carbon - Zinc), Or Rechargeable (Nickel - Cadmium) Batteries.dispose of batteries safely according to the battery manufacturers instructions or recycle battery per state and local codes. If battery leakage occurs and comes in contact with the skin or eyes, wash immediately with plenty of water. Batteries should be handled under adult supervision. If the device is not to be used for a long period of time, remove the batteries to prevent injury from possible battery leakage.• Excessive exposure to audio equipment at high volume may lead to hearing loss.• DO NOT TAMPER WITH OR OPEN®. There are no user serviceable parts inside. Refer to your warranty for service information.authority to operate the equipment.FCC ST AT EM ENTThis device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.CAUTION CAUTIONS

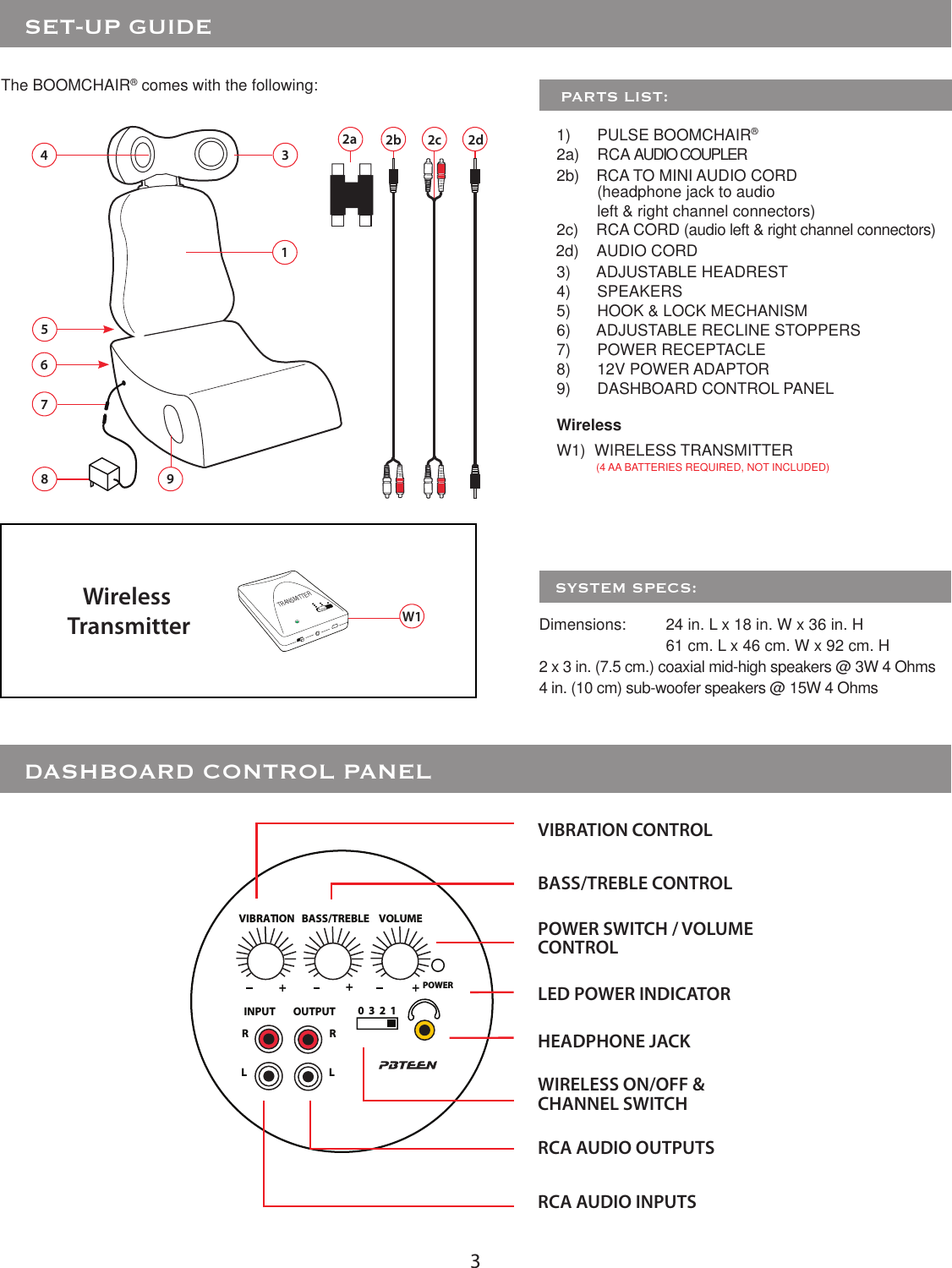

31The BOOMCHAIR® comes with the following: PARTS LIST:1) PULSE BOOMCHAIR®2b) RCA TO MINI AUDIO CORD 2c) RCA CORD (audio left & right channel connectors)3) ADJUSTABLE HEADREST4) SPEAKERS5) HOOK & LOCK MECHANISM6) ADJUSTABLE RECLINE STOPPERS7) POWER RECEPTACLE8) 12V POWER ADAPTOR9) DASHBOARD CONTROL PANELWireless W1) WIRELESS TRANSMITTER (4 AA BATTERIES REQUIRED, NOT INCLUDED)53Dimensions: 24 in. L x 18 in. W x 36 in. H 61 cm. L x 46 cm. W x 92 cm. H2 x 3 in. (7.5 cm.) coaxial mid-high speakers @ 3W 4 Ohms 4 in. (10 cm) sub-woofer speakers @ 15W 4 Ohms SYSTEM SPECS:879Wireless TransmitterTRANSMITTERW146 SET-UP GUIDE DASHBOARD CONTROL PANEL2a 2b 2cPOWERINPUT OUTPUTRRLL0 3 2 1VIBRATION BASS/TREBLE VOLUME+++RCA AUDIO INPUTSVIBRATION CONTROLBASS/TREBLE CONTROLPOWER SWITCH / VOLUME CONTROLLED POWER INDICATORWIRELESS ON/OFF &CHANNEL SWITCHHEADPHONE JACKRCA AUDIO OUTPUTS2d(headphone jack to audio left & right channel connectors)2a) RCA AUDIO COUPLER2d) AUDIO CORD

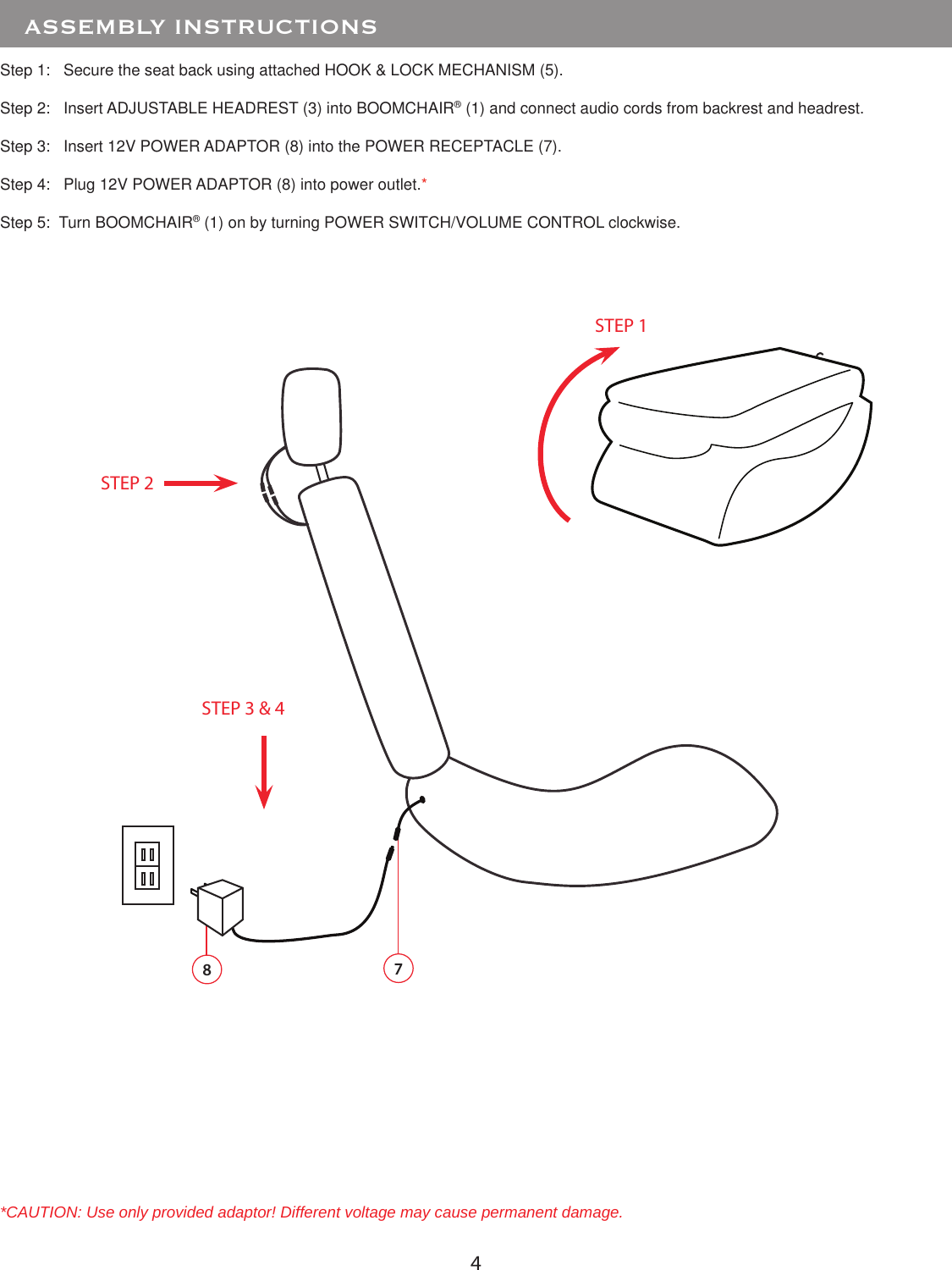

4Step 1: Secure the seat back using attached HOOK & LOCK MECHANISM (5).Step 2: Insert ADJUSTABLE HEADREST (3) into BOOMCHAIR® (1) and connect audio cords from backrest and headrest. Step 3: Insert 12V POWER ADAPTOR (8) into the POWER RECEPTACLE (7).Step 4: Plug 12V POWER ADAPTOR (8) into power outlet.*Step 5: Turn BOOMCHAIR® (1) on by turning POWER SWITCH/VOLUME CONTROL clockwise. ASSEMBLY INSTRUCTIONS*CAUTION: Use only provided adaptor! Different voltage may cause permanent damage. 8STEP 2STEP 3 & 47STEP 1

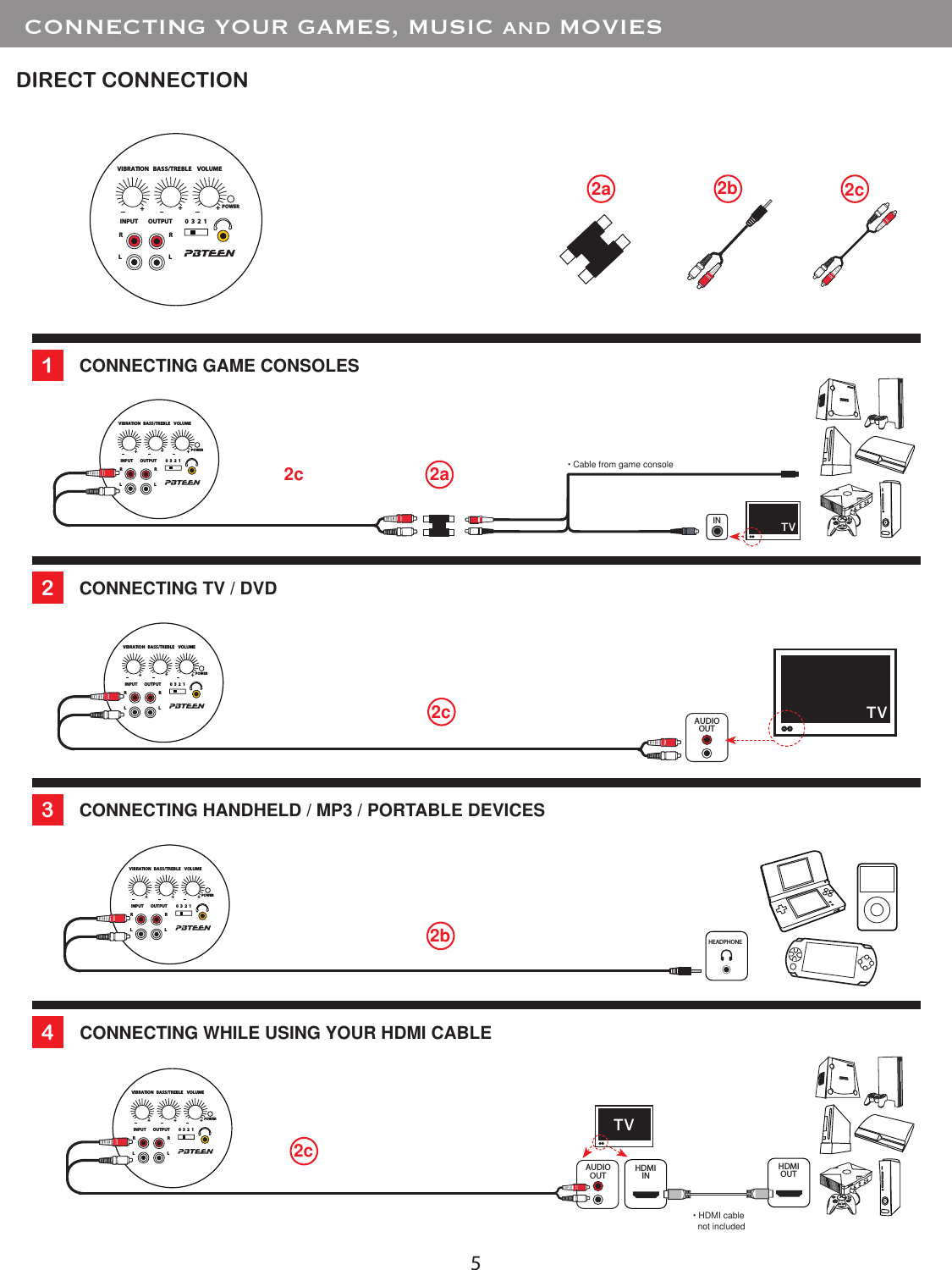

5 CONNECTING YOUR GAMES, MUSIC and MOVIESDIRECT CONNECTIONCONNECTING GAME CONSOLES 4CONNECTING TV / DVDCONNECTING HANDHELD / MP3 / PORTABLE DEVICESCONNECTING WHILE USING YOUR HDMI CABLEAUDIOOUTHDMIINTVHDMIOUT• HDMI cable not included321HEADPHONEAUDIOOUTTV• Cable from game consoleIN TV2a 2c2bPOWERINPUT OUTPUTRRLL0 3 2 1VIBRATION BASS/TREBLE VOLUME+++POWERINPUT OUTPUTRRLL0 3 2 1VIBRATION BASS/TREBLE VOLUME+++POWERINPUT OUTPUTRRLL0 3 2 1VIBRATION BASS/TREBLE VOLUME+++POWERINPUT OUTPUTRRLL0 3 2 1VIBRATION BASS/TREBLE VOLUME+++POWERINPUT OUTPUTRRLL0 3 2 1VIBRATION BASS/TREBLE VOLUME+++2a2c2c2c2b

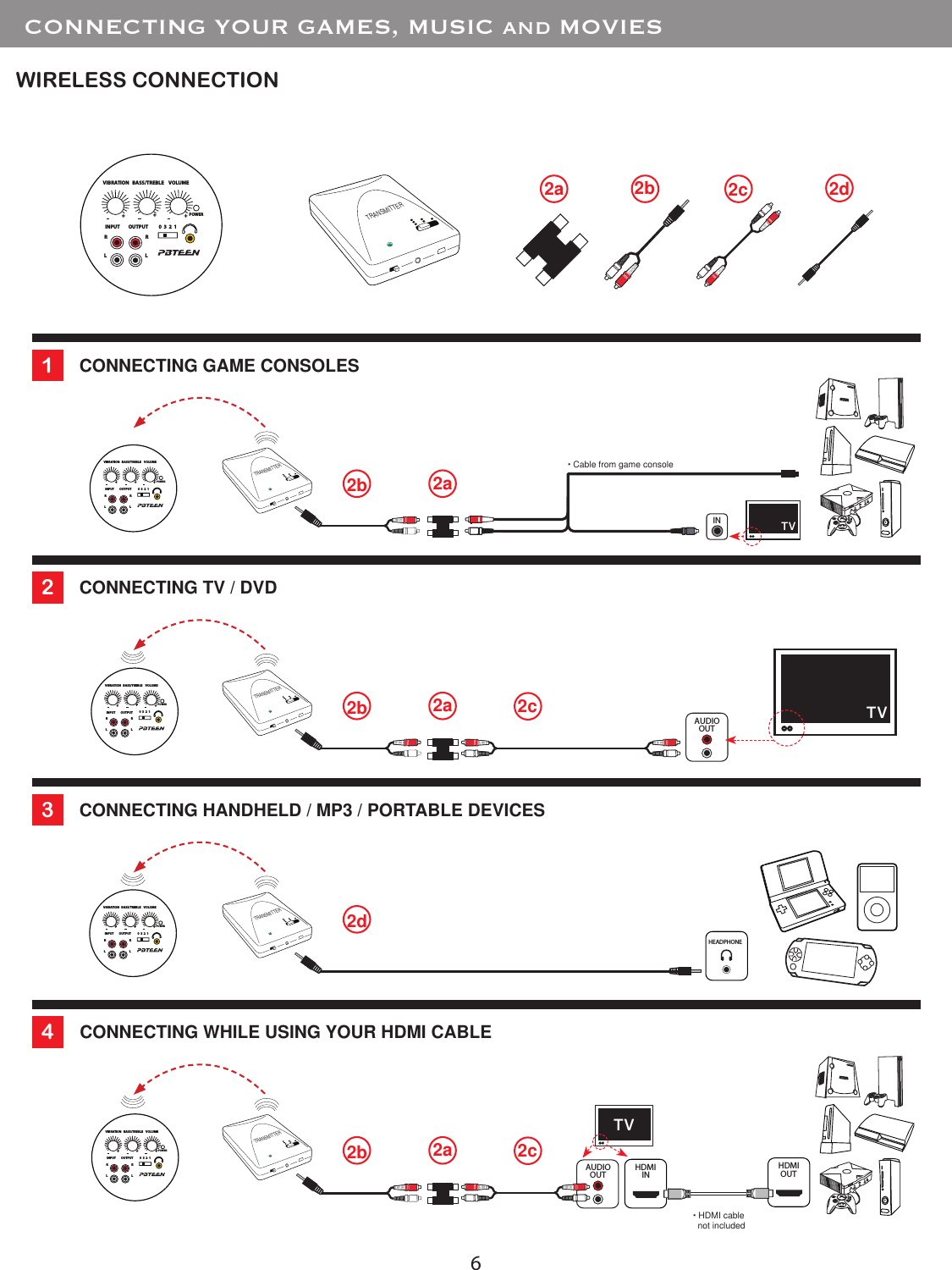

6 CONNECTING YOUR GAMES, MUSIC and MOVIESWIRELESS CONNECTIONCONNECTING GAME CONSOLES 4CONNECTING TV / DVDCONNECTING HANDHELD / MP3 / PORTABLE DEVICESCONNECTING WHILE USING YOUR HDMI CABLEAUDIOOUTHDMIINTVHDMIOUT• HDMI cable not included2c2aHEADPHONEAUDIOOUTTV• Cable from game consoleIN TV321TRANSMITTERTRANSMITTER2bTRANSMITTER2d2c2aTRANSMITTER2b2aTRANSMITTER2b2a 2cPOWERINPUT OUTPUTRRLL0 3 2 1VIBRATION BASS/TREBLE VOLUME+++POWERINPUT OUTPUTRRLL0 3 2 1VIBRATION BASS/TREBLE VOLUME+++POWERINPUT OUTPUTRRLL0 3 2 1VIBRATION BASS/TREBLE VOLUME+++POWERINPUT OUTPUTRRLL0 3 2 1VIBRATION BASS/TREBLE VOLUME+++POWERINPUT OUTPUTRRLL0 3 2 1VIBRATION BASS/TREBLE VOLUME+++2d2b

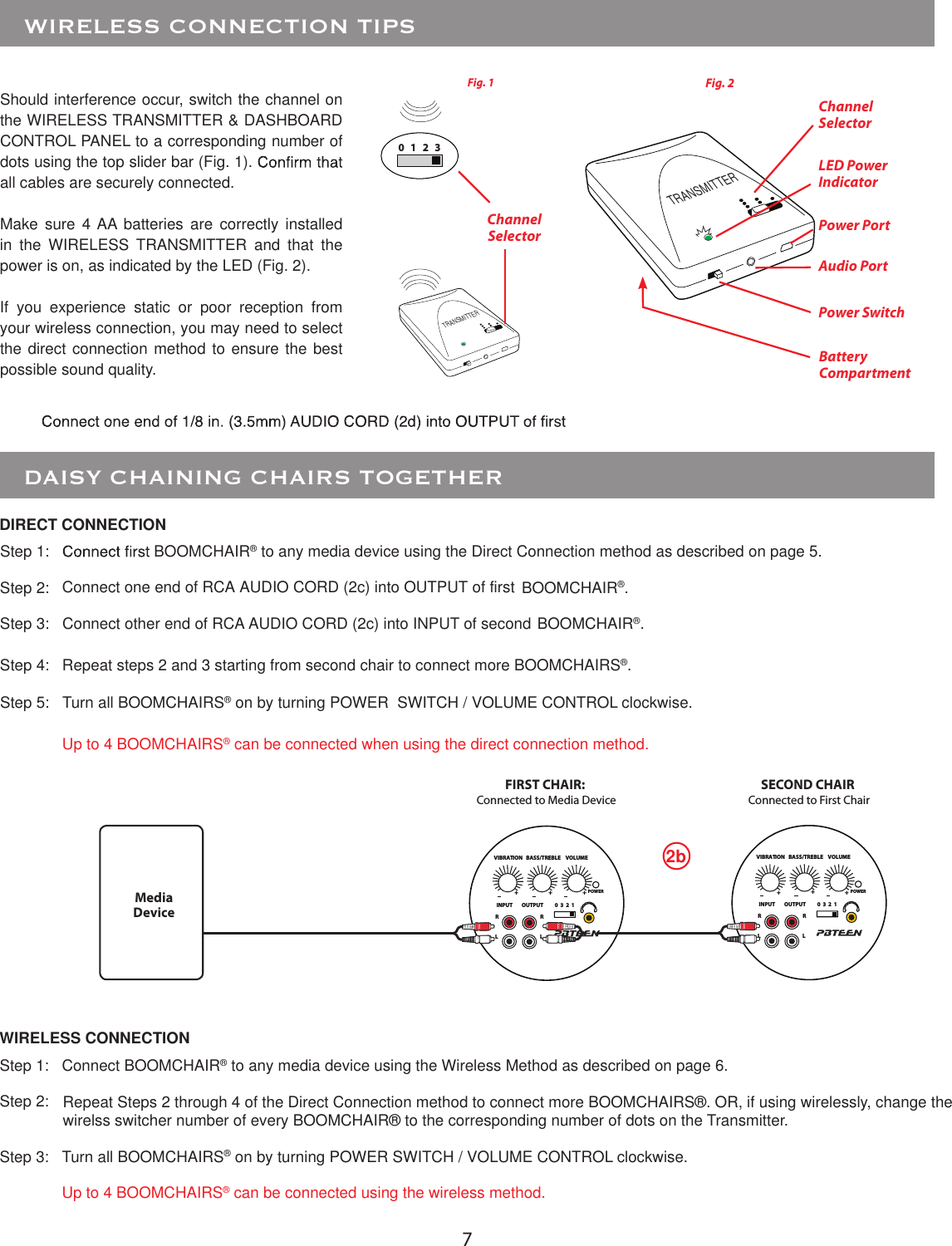

7 DAISY CHAINING CHAIRS TOGETHER Step 1: BOOMCHAIR® to any media device using the Direct Connection method as described on page 5. Step 2: BOOMCHAIR®.Step 3: Connect other end of RCA AUDIO CORD (2c) into INPUT of second BOOMCHAIR®.Step 4: Repeat steps 2 and 3 starting from second chair to connect more BOOMCHAIRS®.Step 5: Turn all BOOMCHAIRS® on by turning POWER SWITCH / VOLUME CONTROL clockwise. Up to 4 BOOMCHAIRS® can be connected when using the direct connection method.WIRELESS CONNECTIONDIRECT CONNECTIONStep 1: Connect BOOMCHAIR® to any media device using the Wireless Method as described on page 6.Step 2: Step 3: Turn all BOOMCHAIRS® on by turning POWER SWITCH / VOLUME CONTROL clockwise. Up to 4 BOOMCHAIRS® can be connected using the wireless method.SECOND CHAIR Connected to First ChairFIRST CHAIR: Connected to Media Device2bTRANSMITTERTRANSMITTERShould interference occur, switch the channel on the WIRELESS TRANSMITTER & DASHBOARD CONTROL PANEL to a corresponding number of dots using the top slider bar (Fig. 1).all cables are securely connected.Make sure 4 AA batteries are correctly installed in the WIRELESS TRANSMITTER and that the power is on, as indicated by the LED (Fig. 2).If you experience static or poor reception from your wireless connection, you may need to select the direct connection method to ensure the best possible sound quality. WIRELESS CONNECTION TIPS Fig. 2Power SwitchChannel SelectorLED Power IndicatorFig. 1Channel Selector Power PortAudio PortBattery Compartment0 1 2 3POWERINPUT OUTPUTRRLL0 3 2 1VIBRATION BASS/TREBLE VOLUME+++POWERINPUT OUTPUTRRLL0 3 2 1VIBRATION BASS/TREBLE VOLUME+++Media DeviceConnect one end of RCA AUDIO CORD (2c) into OUTPUT of firstRepeat Steps 2 through 4 of the Direct Connection method to connect more BOOMCHAIRS®. OR, if using wirelessly, change thewirelss switcher number of every BOOMCHAIR® to the corresponding number of dots on the Transmitter.

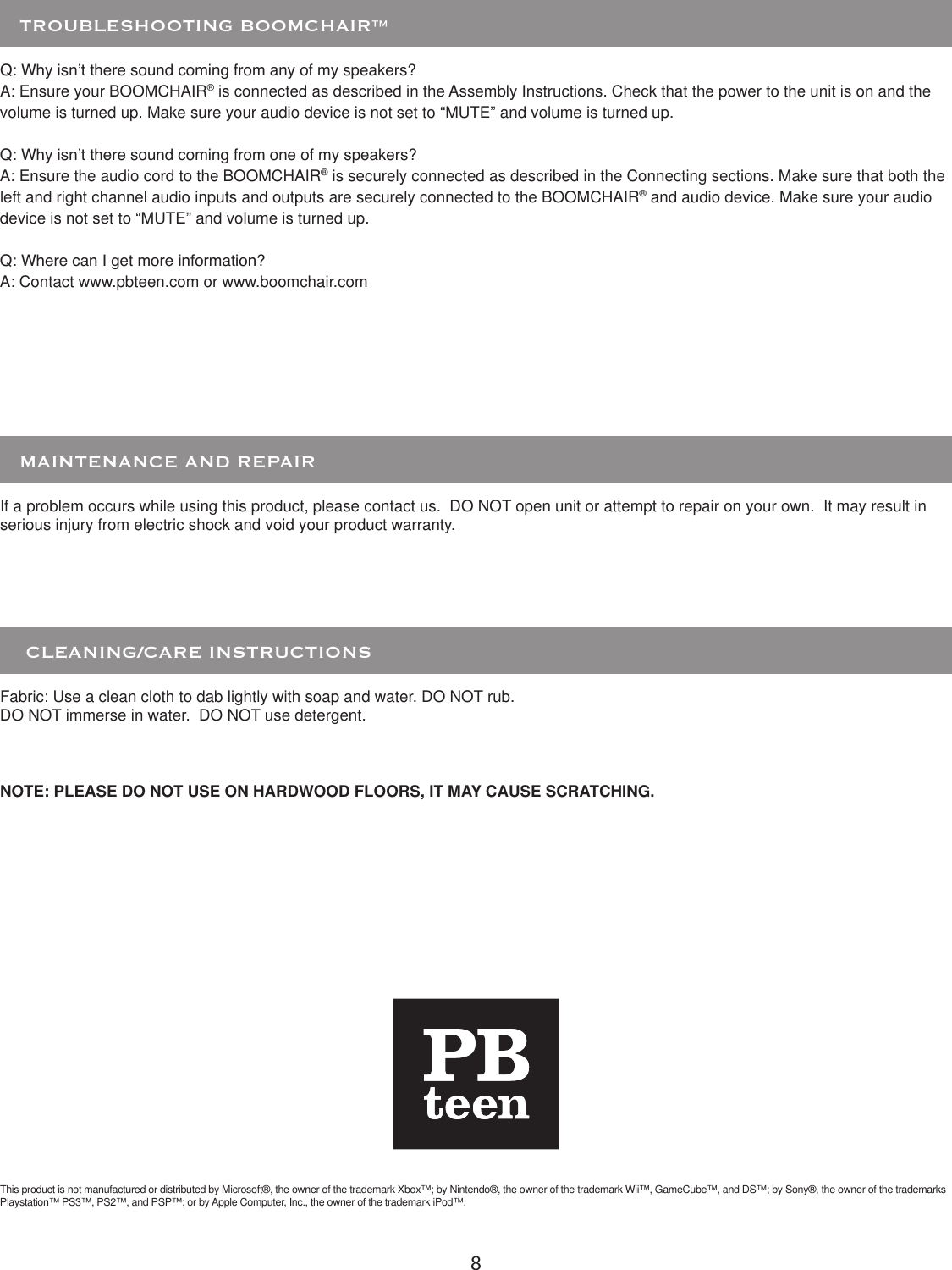

8 CLEANING/CARE INSTRUCTIONSFabric: Use a clean cloth to dab lightly with soap and water. DO NOT rub.DO NOT immerse in water. DO NOT use detergent.NOTE: PLEASE DO NOT USE ON HARDWOOD FLOORS, IT MAY CAUSE SCRATCHING.If a problem occurs while using this product, please contact us. DO NOT open unit or attempt to repair on your own. It may result in serious injury from electric shock and void your product warranty. MAINTENANCE AND REPAIRQ: Why isn’t there sound coming from any of my speakers?A: Ensure your BOOMCHAIR® is connected as described in the Assembly Instructions. Check that the power to the unit is on and the volume is turned up. Make sure your audio device is not set to “MUTE” and volume is turned up.Q: Why isn’t there sound coming from one of my speakers?A: Ensure the audio cord to the BOOMCHAIR® is securely connected as described in the Connecting sections. Make sure that both the left and right channel audio inputs and outputs are securely connected to the BOOMCHAIR® and audio device. Make sure your audio device is not set to “MUTE” and volume is turned up.Q: Where can I get more information?A: Contact www.pbteen.com or www.boomchair.com TROUBLESHOOTING BOOMCHAIR™ This product is not manufactured or distributed by Microsoft®, the owner of the trademark Xbox™; by Nintendo®, the owner of the trademark Wii™, GameCube™, and DS™; by Sony®, the owner of the trademarks Playstation™ PS3™, PS2™, and PSP™; or by Apple Computer, Inc., the owner of the trademark iPod™.
