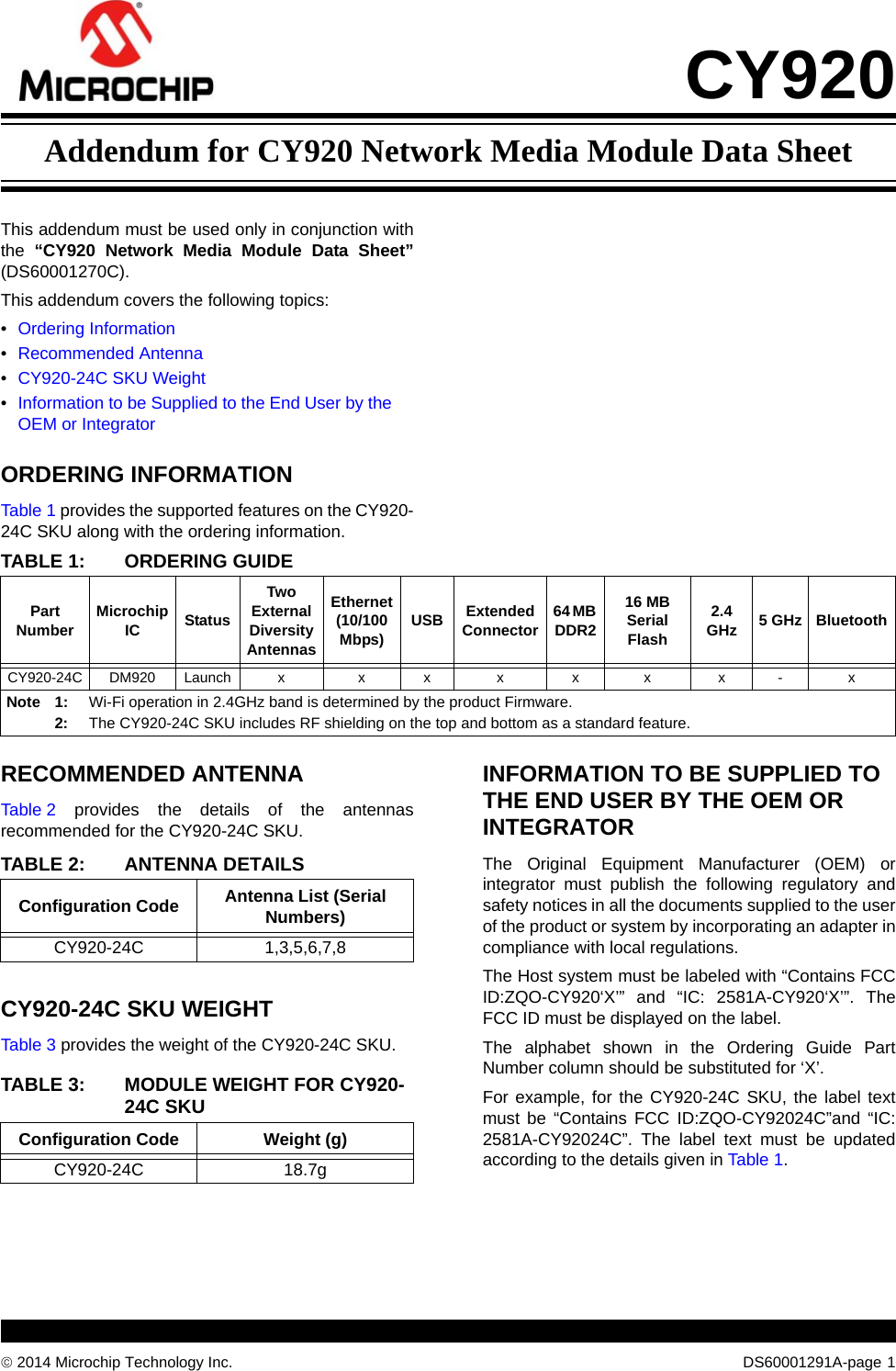

© 2014 Microchip Technology Inc. DS60001291A-page 1CY920This addendum must be used only in conjunction with the “CY920 Network Media Module Data Sheet”(DS60001270C). This addendum covers the following topics:•Ordering Information•Recommended Antenna•CY920-24C SKU Weight•Information to be Supplied to the End User by the OEM or IntegratorORDERING INFORMATIONTable 1 provides the supported features on the CY920-24C SKU along with the ordering information.RECOMMENDED ANTENNATable 2 provides the details of the antennas recommended for the CY920-24C SKU.CY920-24C SKU WEIGHTTable 3 provides the weight of the CY920-24C SKU.INFORMATION TO BE SUPPLIED TO THE END USER BY THE OEM OR INTEGRATORThe Original Equipment Manufacturer (OEM) or integrator must publish the following regulatory and safety notices in all the documents supplied to the user of the product or system by incorporating an adapter in compliance with local regulations.The Host system must be labeled with “Contains FCC ID:ZQO-CY920‘X’” and “IC: 2581A-CY920‘X’”. The FCC ID must be displayed on the label.The alphabet shown in the Ordering Guide Part Number column should be substituted for ‘X’. For example, for the CY920-24C SKU, the label text must be “Contains FCC ID:ZQO-CY92024C”and “IC: 2581A-CY92024C”. The label text must be updated according to the details given in Table 1.TABLE 1: ORDERING GUIDEPart Number Microchip IC StatusTwo External Diversity AntennasEthernet (10/100 Mbps) USB Extended Connector 64 MB DDR216 MB Serial Flash2.4 GHz 5 GHz BluetoothCY920-24C DM920 Launch x x x x x x x - xNote 1: Wi-Fi operation in 2.4GHz band is determined by the product Firmware.2: The CY920-24C SKU includes RF shielding on the top and bottom as a standard feature.TABLE 2: ANTENNA DETAILSConfiguration Code Antenna List (Serial Numbers)CY920-24C 1,3,5,6,7,8TABLE 3: MODULE WEIGHT FOR CY920-24C SKUConfiguration Code Weight (g)CY920-24C 18.7gAddendum for CY920 Network Media Module Data Sheet
