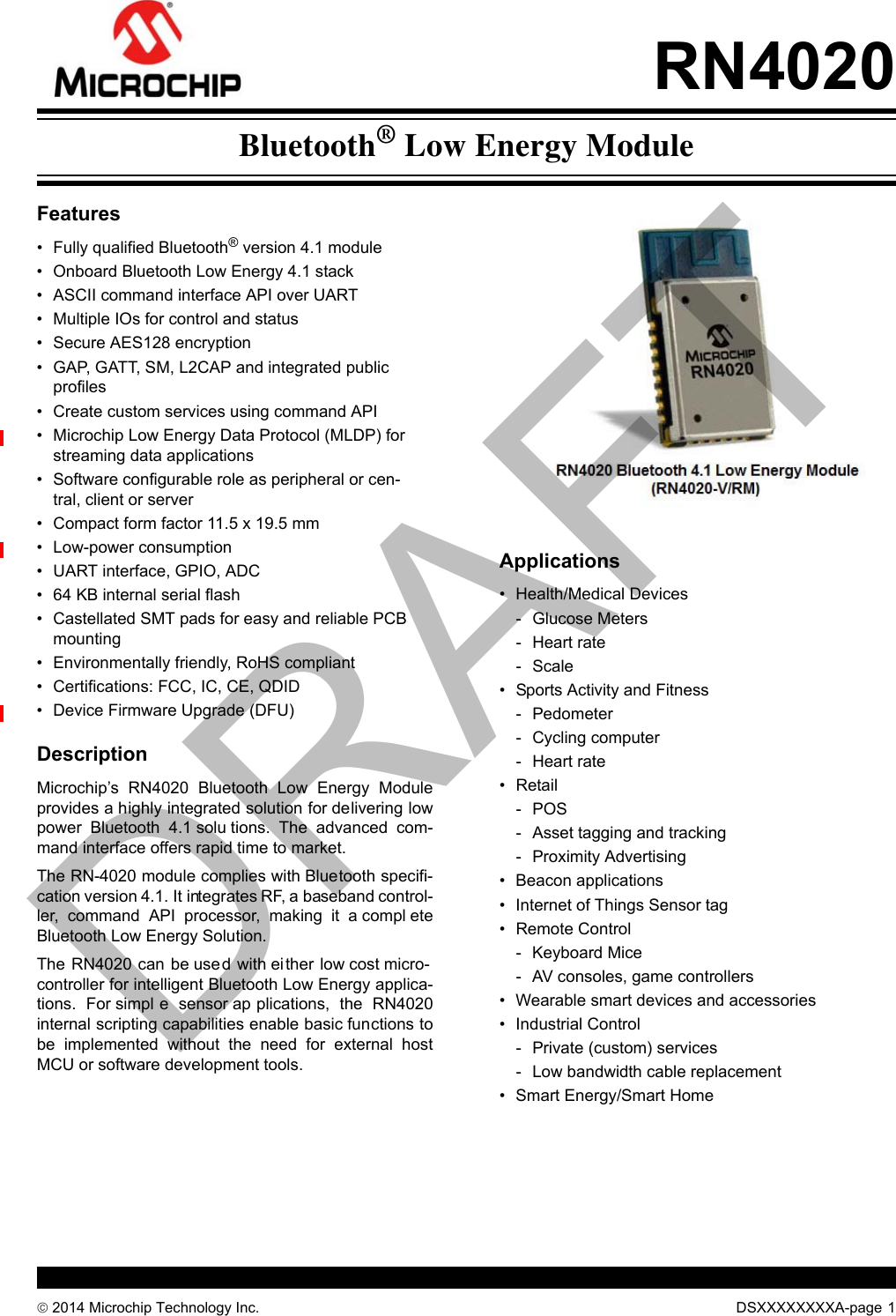

 2014 Microchip Technology Inc. DSXXXXXXXXA-page 1RN4020Features• Fully qualified Bluetooth® version 4.1 module• Onboard Bluetooth Low Energy 4.1 stack• ASCII command interface API over UART• Multiple IOs for control and status• Secure AES128 encryption• GAP, GATT, SM, L2CAP and integrated public profiles• Create custom services using command API• Microchip Low Energy Data Protocol (MLDP) for streaming data applications• Software configurable role as peripheral or cen-tral, client or server• Compact form factor 11.5 x 19.5 mm• Low-power consumption• UART interface, GPIO, ADC• 64 KB internal serial flash• Castellated SMT pads for easy and reliable PCB mounting• Environmentally friendly, RoHS compliant• Certifications: FCC, IC, CE, QDID• Device Firmware Upgrade (DFU)DescriptionMicrochip’s RN4020 Bluetooth Low Energy Moduleprovides a highly integrated solution for delivering lowpower Bluetooth 4.1 solu tions. The advanced com-mand interface offers rapid time to market.The RN-4020 module complies with Bluetooth specifi-cation version 4.1. It integrates RF, a baseband control-ler, command API processor, making it a compl eteBluetooth Low Energy Solution.The RN4020 can be used with either low cost micro-controller for intelligent Bluetooth Low Energy applica-tions. For simpl e sensor ap plications, the RN4020internal scripting capabilities enable basic functions tobe implemented without the need for external hostMCU or software development tools.Applications• Health/Medical Devices- Glucose Meters- Heart rate-Scale• Sports Activity and Fitness- Pedometer- Cycling computer- Heart rate• Retail-POS- Asset tagging and tracking- Proximity Advertising• Beacon applications• Internet of Things Sensor tag• Remote Control - Keyboard Mice- AV consoles, game controllers• Wearable smart devices and accessories• Industrial Control- Private (custom) services- Low bandwidth cable replacement• Smart Energy/Smart HomeBluetooth® Low Energy ModuleDRAFT

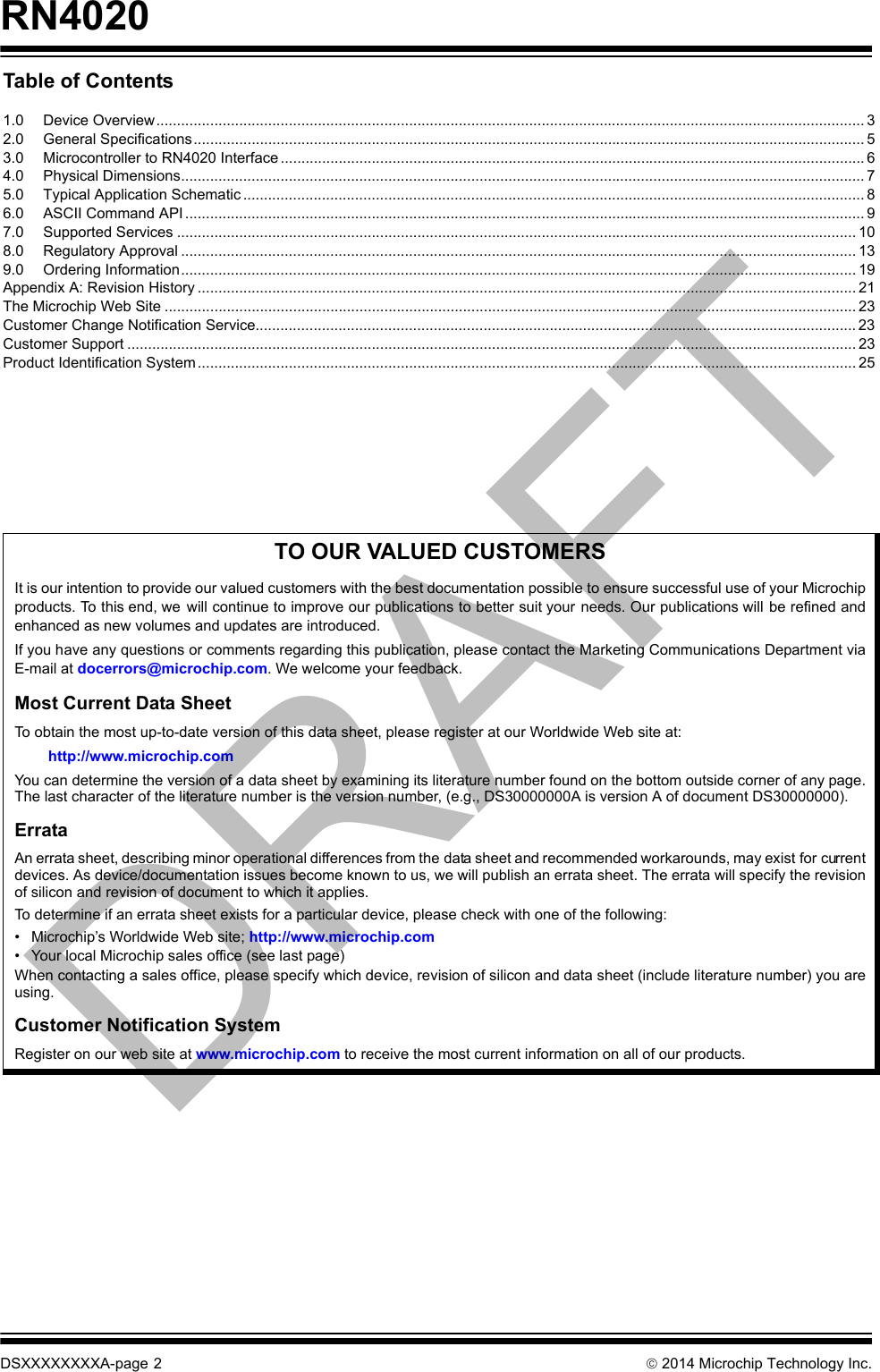

RN4020DSXXXXXXXXA-page 2  2014 Microchip Technology Inc.TO OUR VALUED CUSTOMERSIt is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchipproducts. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined andenhanced as new volumes and updates are introduced. If you have any questions or comments regarding this publication, please contact the Marketing Communications Department viaE-mail at docerrors@microchip.com. We welcome your feedback.Most Current Data SheetTo obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:http://www.microchip.comYou can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).ErrataAn errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for currentdevices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revisionof silicon and revision of document to which it applies.To determine if an errata sheet exists for a particular device, please check with one of the following:• Microchip’s Worldwide Web site; http://www.microchip.com• Your local Microchip sales office (see last page)When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you areusing.Customer Notification SystemRegister on our web site at www.microchip.com to receive the most current information on all of our products.Table of Contents1.0 Device Overview........................................................................................................................................................................... 32.0 General Specifications.................................................................................................................................................................. 53.0 Microcontroller to RN4020 Interface ............................................................................................................................................. 64.0 Physical Dimensions..................................................................................................................................................................... 75.0 Typical Application Schematic ...................................................................................................................................................... 86.0 ASCII Command API .................................................................................................................................................................... 97.0 Supported Services .................................................................................................................................................................... 108.0 Regulatory Approval ................................................................................................................................................................... 139.0 Ordering Information................................................................................................................................................................... 19Appendix A: Revision History ............................................................................................................................................................... 21The Microchip Web Site ....................................................................................................................................................................... 23Customer Change Notification Service................................................................................................................................................. 23Customer Support ................................................................................................................................................................................ 23Product Identification System............................................................................................................................................................... 25DRAFT

 2014 Microchip Technology Inc. DSXXXXXXXXA-page 3RN40201.0 DEVICE OVERVIEWFIGURE 1-1: RN4020 TOP VIEWFigure 1-2 shows the module’s pinout and Table 1-1 describes the pins.FIGURE 1-2: RN4020 PIN DIAGRAMDRAFT

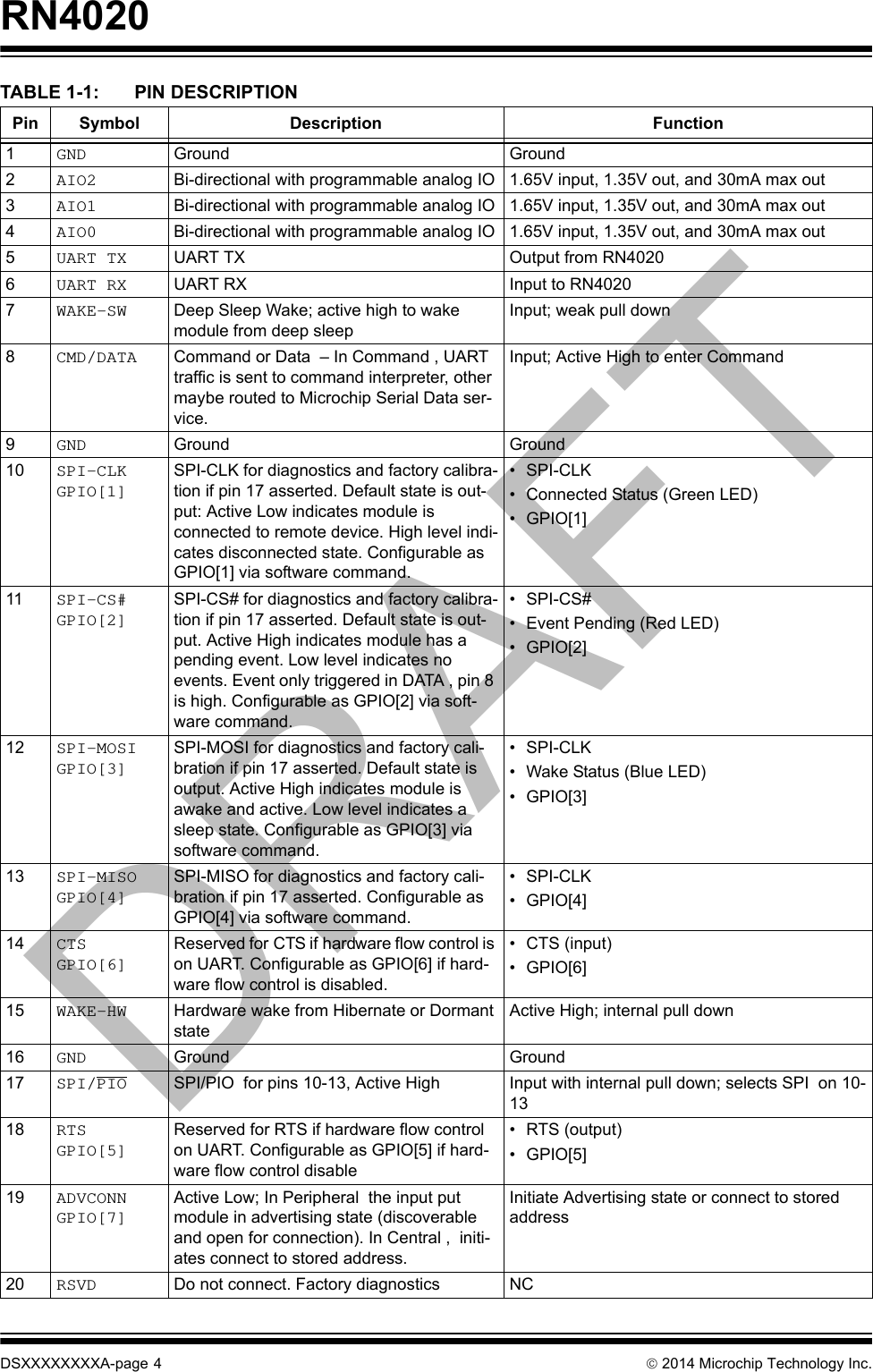

RN4020DSXXXXXXXXA-page 4  2014 Microchip Technology Inc.TABLE 1-1: PIN DESCRIPTIONPin Symbol Description Function1GND Ground Ground2AIO2 Bi-directional with programmable analog IO 1.65V input, 1.35V out, and 30mA max out3AIO1 Bi-directional with programmable analog IO 1.65V input, 1.35V out, and 30mA max out4AIO0 Bi-directional with programmable analog IO 1.65V input, 1.35V out, and 30mA max out5UART TX UART TX Output from RN40206UART RX UART RX Input to RN40207WAKE-SW Deep Sleep Wake; active high to wake module from deep sleep Input; weak pull down8CMD/DATA Command or Data – In Command , UART traffic is sent to command interpreter, other maybe routed to Microchip Serial Data ser-vice.Input; Active High to enter Command 9GND Ground Ground10 SPI-CLK GPIO[1]SPI-CLK for diagnostics and factory calibra-tion if pin 17 asserted. Default state is out-put: Active Low indicates module is connected to remote device. High level indi-cates disconnected state. Configurable as GPIO[1] via software command.• SPI-CLK• Connected Status (Green LED)• GPIO[1]11 SPI-CS# GPIO[2]SPI-CS# for diagnostics and factory calibra-tion if pin 17 asserted. Default state is out-put. Active High indicates module has a pending event. Low level indicates no events. Event only triggered in DATA , pin 8 is high. Configurable as GPIO[2] via soft-ware command.• SPI-CS#• Event Pending (Red LED)• GPIO[2]12 SPI-MOSI GPIO[3]SPI-MOSI for diagnostics and factory cali-bration if pin 17 asserted. Default state is output. Active High indicates module is awake and active. Low level indicates a sleep state. Configurable as GPIO[3] via software command.• SPI-CLK• Wake Status (Blue LED)• GPIO[3]13 SPI-MISO GPIO[4]SPI-MISO for diagnostics and factory cali-bration if pin 17 asserted. Configurable as GPIO[4] via software command.• SPI-CLK• GPIO[4]14 CTS GPIO[6]Reserved for CTS if hardware flow control is on UART. Configurable as GPIO[6] if hard-ware flow control is disabled.• CTS (input)• GPIO[6]15 WAKE-HW Hardware wake from Hibernate or Dormant stateActive High; internal pull down16 GND Ground Ground17 SPI/PIO SPI/PIO for pins 10-13, Active High Input with internal pull down; selects SPI on 10-1318 RTS GPIO[5]Reserved for RTS if hardware flow control on UART. Configurable as GPIO[5] if hard-ware flow control disable• RTS (output)• GPIO[5]19 ADVCONN GPIO[7]Active Low; In Peripheral the input put module in advertising state (discoverable and open for connection). In Central , initi-ates connect to stored address.Initiate Advertising state or connect to stored address20 RSVD Do not connect. Factory diagnostics NCDRAFT

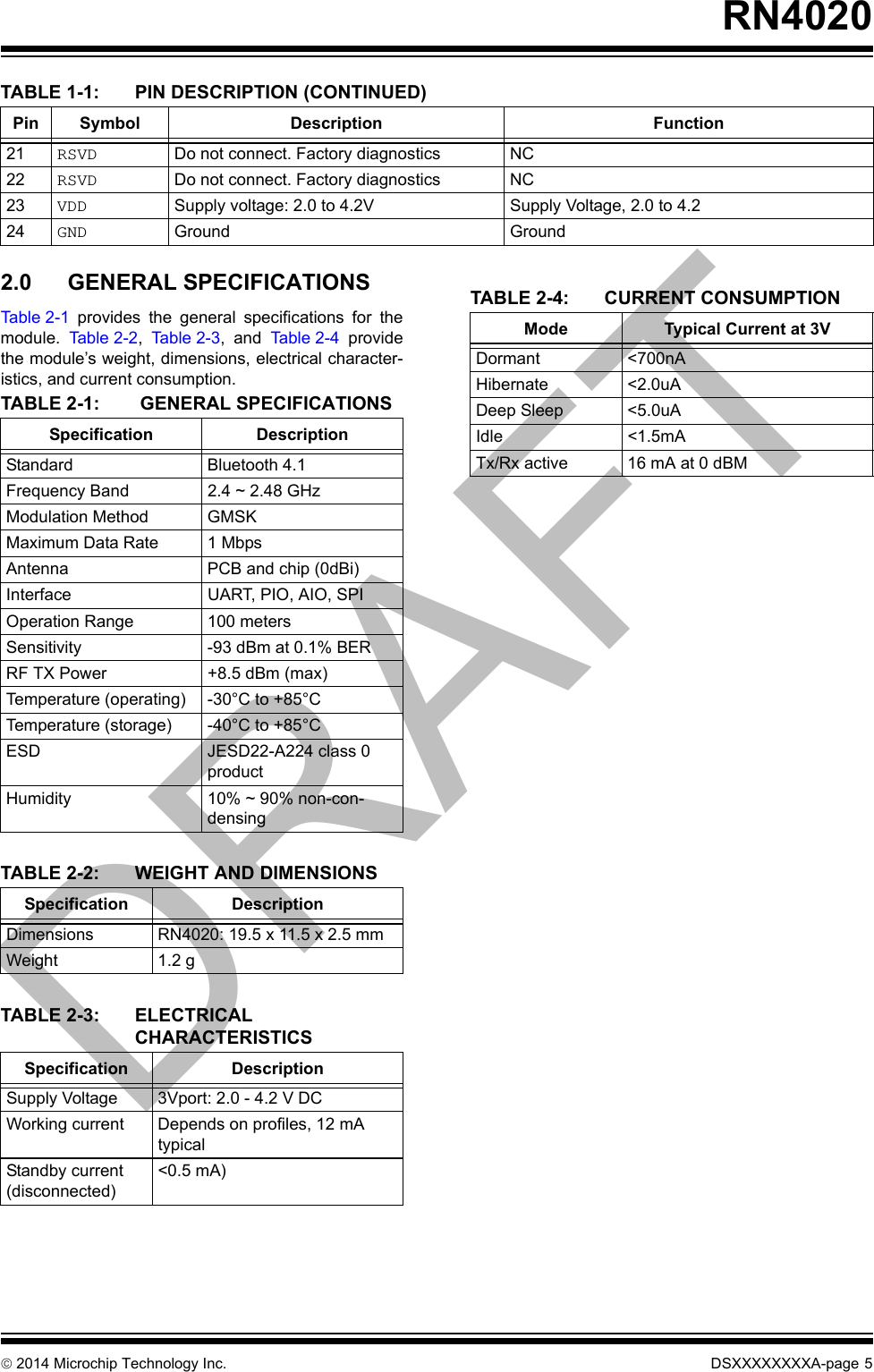

 2014 Microchip Technology Inc. DSXXXXXXXXA-page 5RN40202.0 GENERAL SPECIFICATIONSTable 2-1 provides the general specifications for themodule. Ta b le 2 - 2 , Tab l e 2 -3, and Table 2-4 providethe module’s weight, dimensions, electrical character-istics, and current consumption. 21 RSVD Do not connect. Factory diagnostics NC22 RSVD Do not connect. Factory diagnostics NC23 VDD Supply voltage: 2.0 to 4.2V Supply Voltage, 2.0 to 4.224 GND Ground GroundTABLE 1-1: PIN DESCRIPTION (CONTINUED)Pin Symbol Description FunctionTABLE 2-1: GENERAL SPECIFICATIONSSpecification DescriptionStandard Bluetooth 4.1Frequency Band 2.4 ~ 2.48 GHzModulation Method GMSKMaximum Data Rate 1 MbpsAntenna PCB and chip (0dBi)Interface UART, PIO, AIO, SPIOperation Range 100 metersSensitivity -93 dBm at 0.1% BERRF TX Power +8.5 dBm (max)Temperature (operating) -30°C to +85°CTemperature (storage) -40°C to +85°CESD JESD22-A224 class 0 productHumidity 10% ~ 90% non-con-densingTABLE 2-2: WEIGHT AND DIMENSIONSSpecification DescriptionDimensions RN4020: 19.5 x 11.5 x 2.5 mmWeight 1.2 gTABLE 2-3: ELECTRICAL CHARACTERISTICSSpecification DescriptionSupply Voltage 3Vport: 2.0 - 4.2 V DCWorking current Depends on profiles, 12 mA typicalStandby current (disconnected)<0.5 mA)TABLE 2-4: CURRENT CONSUMPTIONMode Typical Current at 3VDormant <700nAHibernate <2.0uADeep Sleep <5.0uAIdle <1.5mATx/Rx active 16 mA at 0 dBMDRAFT

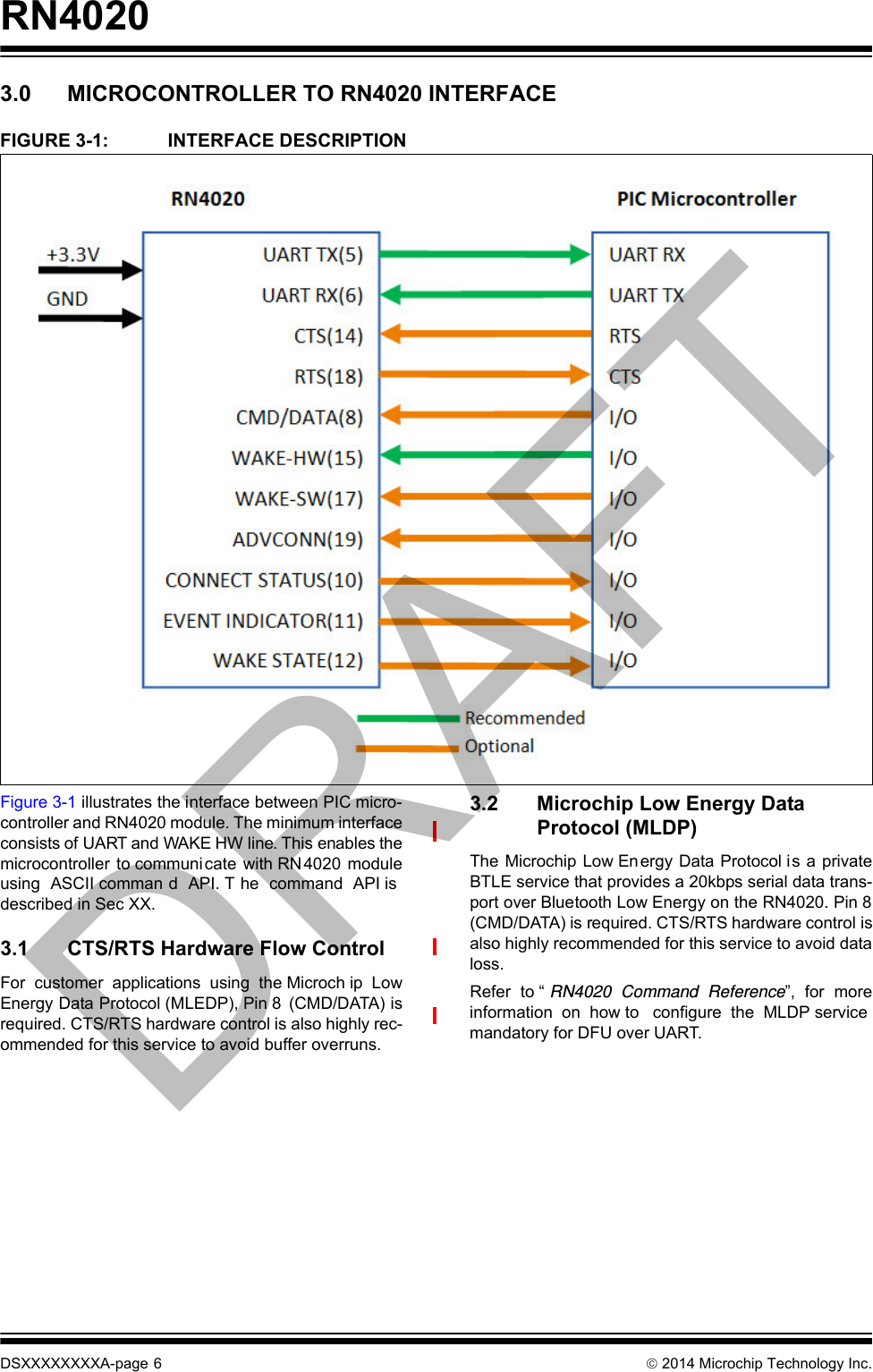

RN4020DSXXXXXXXXA-page 6  2014 Microchip Technology Inc.3.0 MICROCONTROLLER TO RN4020 INTERFACEFIGURE 3-1: INTERFACE DESCRIPTIONFigure 3-1 illustrates the interface between PIC micro-controller and RN4020 module. The minimum interfaceconsists of UART and WAKE HW line. This enables themicrocontroller to communi cate with RN 4020 moduleusing ASCII comman d API. T he command API isdescribed in Sec XX.3.1 CTS/RTS Hardware Flow ControlFor customer applications using the Microch ip LowEnergy Data Protocol (MLEDP), Pin 8 (CMD/DATA) isrequired. CTS/RTS hardware control is also highly rec-ommended for this service to avoid buffer overruns.3.2 Microchip Low Energy Data Protocol (MLDP)The Microchip Low Energy Data Protocol i s a privateBTLE service that provides a 20kbps serial data trans-port over Bluetooth Low Energy on the RN4020. Pin 8(CMD/DATA) is required. CTS/RTS hardware control isalso highly recommended for this service to avoid dataloss.Refer to “ RN4020 Command Reference”, for moreinformation on how to configure the MLDP servicemandatory for DFU over UART.DRAFT

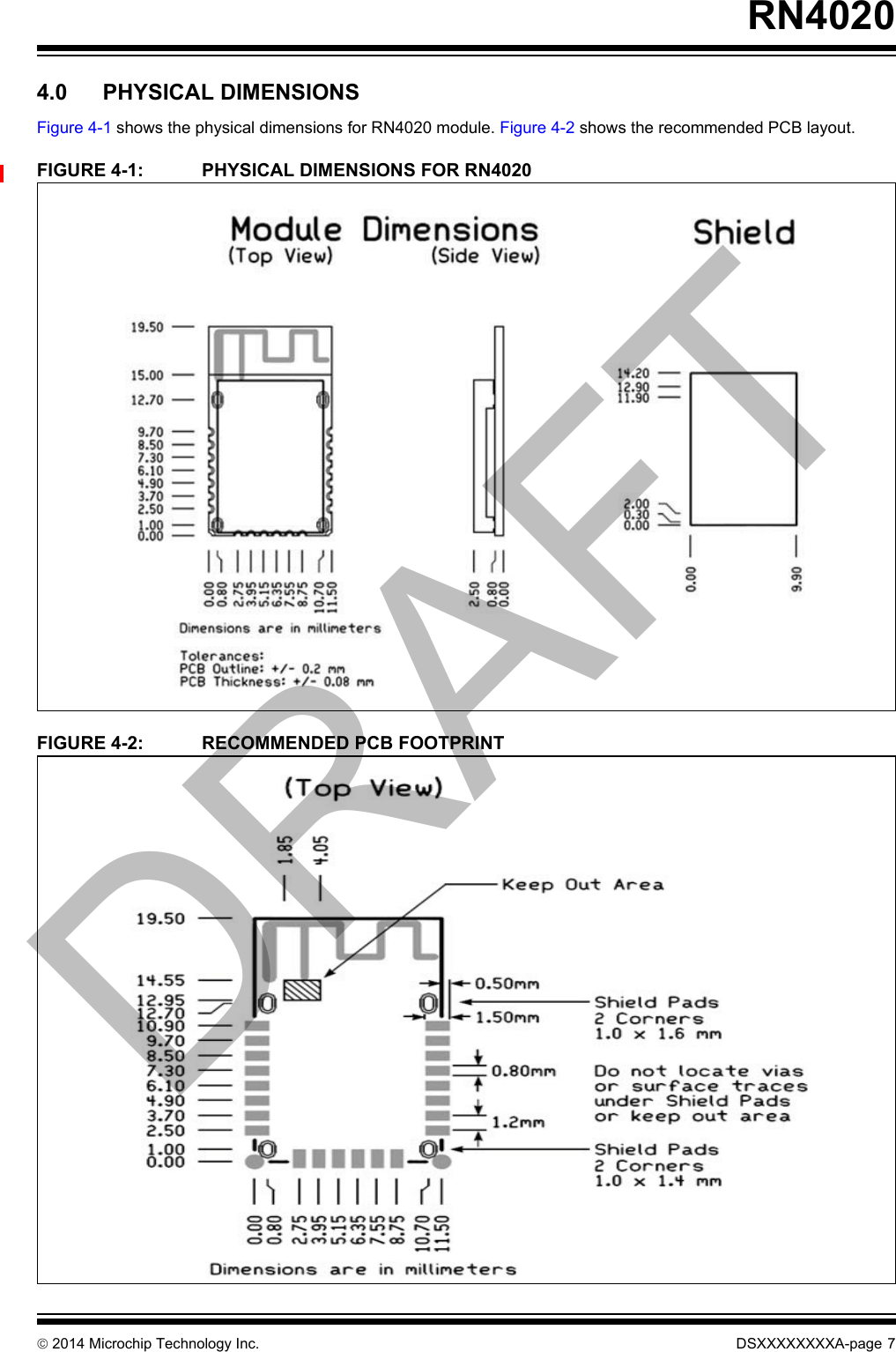

 2014 Microchip Technology Inc. DSXXXXXXXXA-page 7RN40204.0 PHYSICAL DIMENSIONSFigure 4-1 shows the physical dimensions for RN4020 module. Figure 4-2 shows the recommended PCB layout.FIGURE 4-1: PHYSICAL DIMENSIONS FOR RN4020FIGURE 4-2: RECOMMENDED PCB FOOTPRINTDRAFT

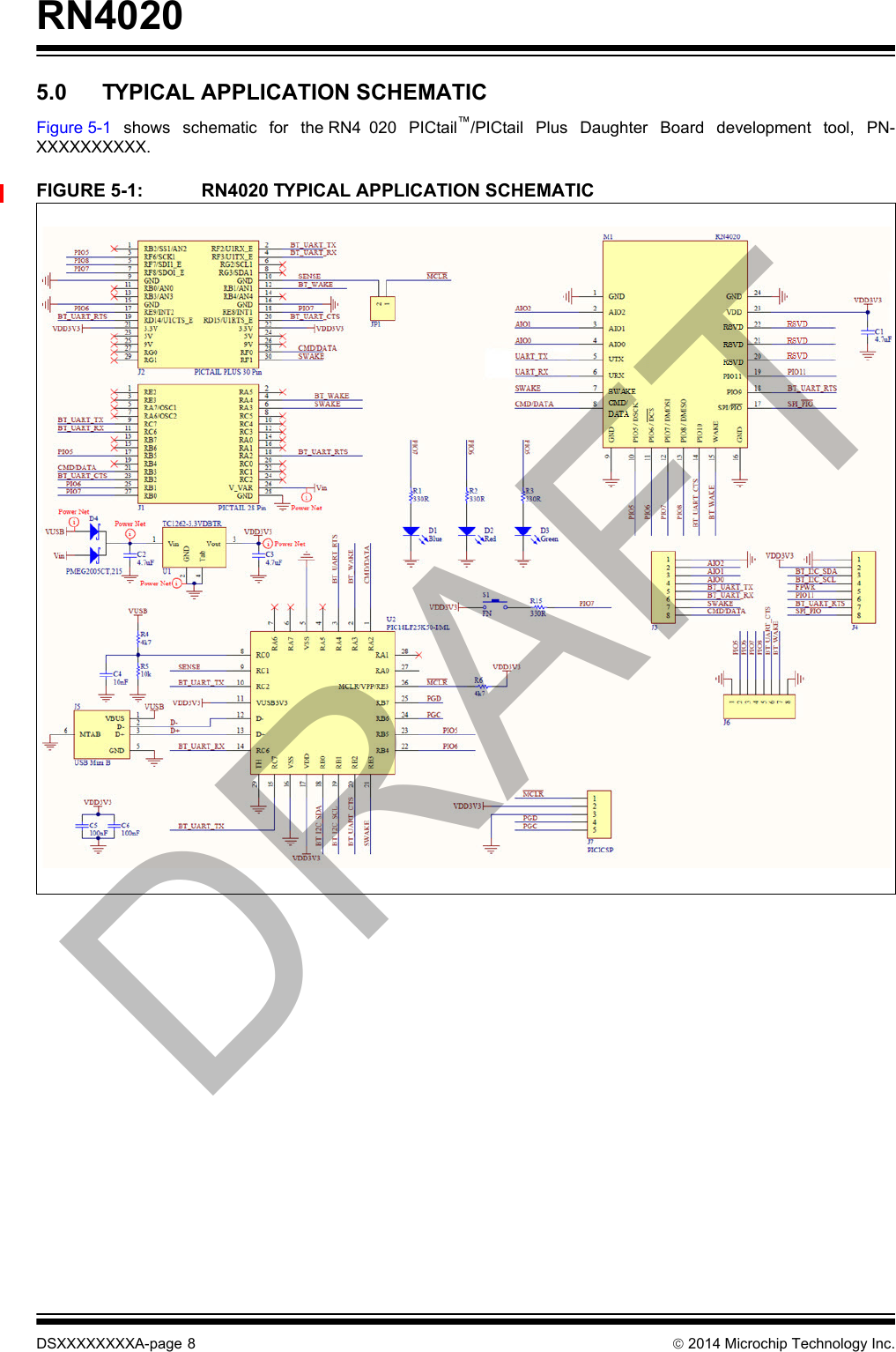

RN4020DSXXXXXXXXA-page 8  2014 Microchip Technology Inc.5.0 TYPICAL APPLICATION SCHEMATICFigure 5-1 shows schematic for the RN4 020 PICtail™/PICtail Plus Daughter Board development tool, PN-XXXXXXXXXX. FIGURE 5-1: RN4020 TYPICAL APPLICATION SCHEMATICDRAFT

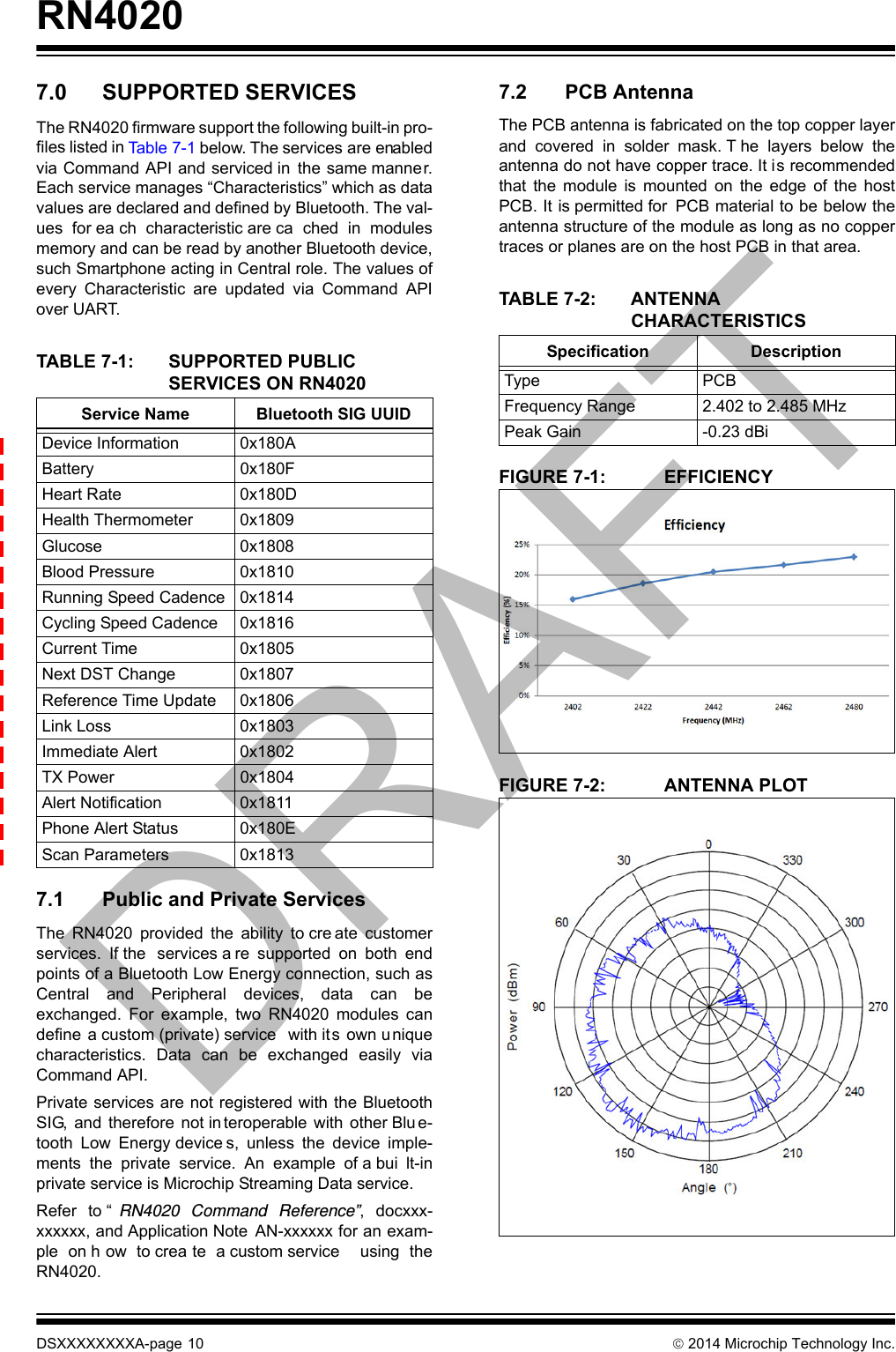

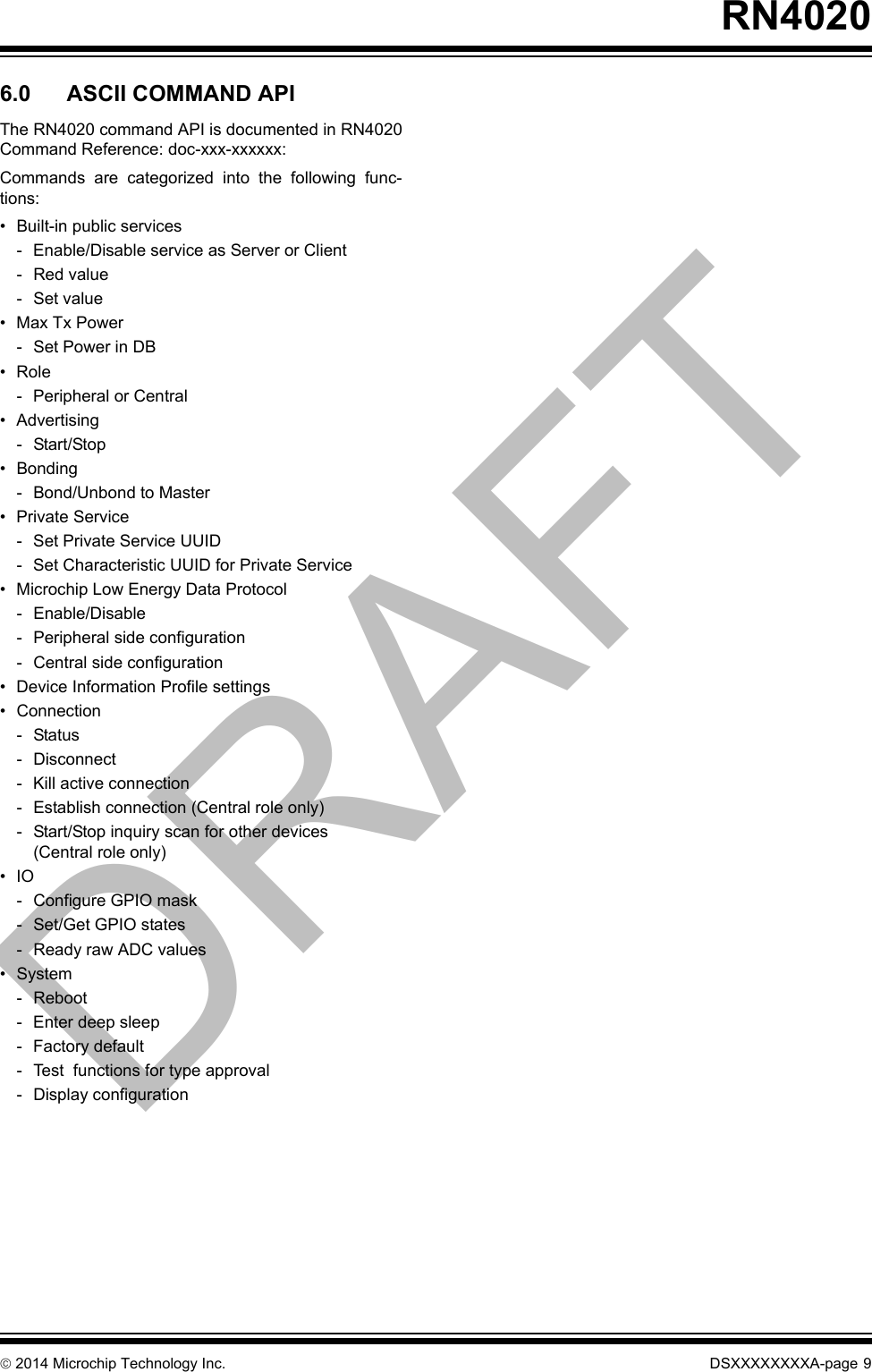

RN4020DSXXXXXXXXA-page 10  2014 Microchip Technology Inc.7.0 SUPPORTED SERVICESThe RN4020 firmware support the following built-in pro-files listed in Ta b l e 7 - 1 below. The services are enabledvia Command API and serviced in the same manne r.Each service manages “Characteristics” which as datavalues are declared and defined by Bluetooth. The val-ues for ea ch characteristic are ca ched in modulesmemory and can be read by another Bluetooth device,such Smartphone acting in Central role. The values ofevery Characteristic are updated via Command APIover UART. 7.1 Public and Private ServicesThe RN4020 provided the ability to cre ate customerservices. If the services a re supported on both endpoints of a Bluetooth Low Energy connection, such asCentral and Peripheral devices, data can beexchanged. For example, two RN4020 modules candefine a custom (private) service with its own uniquecharacteristics. Data can be exchanged easily viaCommand API.Private services are not registered with the BluetoothSIG, and therefore not in teroperable with other Blu e-tooth Low Energy device s, unless the device imple-ments the private service. An example of a bui lt-inprivate service is Microchip Streaming Data service.Refer to “ RN4020 Command Reference”, docxxx-xxxxxx, and Application Note AN-xxxxxx for an exam-ple on h ow to crea te a custom service using theRN4020.7.2 PCB AntennaThe PCB antenna is fabricated on the top copper layerand covered in solder mask. T he layers below theantenna do not have copper trace. It is recommendedthat the module is mounted on the edge of the hostPCB. It is permitted for PCB material to be below theantenna structure of the module as long as no coppertraces or planes are on the host PCB in that area. FIGURE 7-1: EFFICIENCYFIGURE 7-2: ANTENNA PLOTTABLE 7-1: SUPPORTED PUBLIC SERVICES ON RN4020Service Name Bluetooth SIG UUIDDevice Information 0x180ABattery 0x180FHeart Rate 0x180DHealth Thermometer 0x1809Glucose 0x1808Blood Pressure 0x1810Running Speed Cadence 0x1814Cycling Speed Cadence 0x1816Current Time 0x1805Next DST Change 0x1807Reference Time Update 0x1806Link Loss 0x1803Immediate Alert 0x1802TX Power 0x1804Alert Notification 0x1811Phone Alert Status 0x180EScan Parameters 0x1813TABLE 7-2: ANTENNA CHARACTERISTICSSpecification DescriptionType PCBFrequency Range 2.402 to 2.485 MHzPeak Gain -0.23 dBiDRAFT

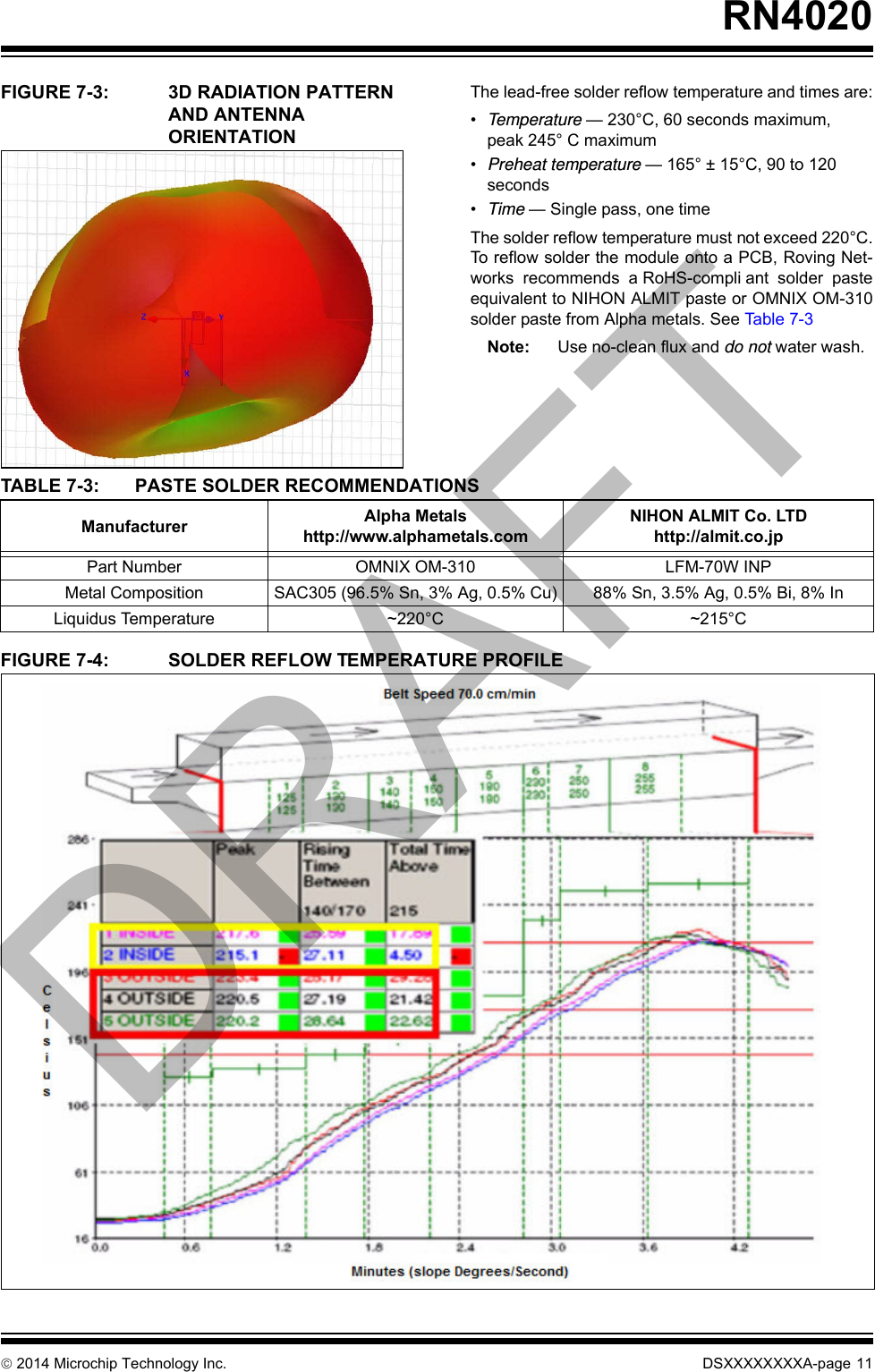

 2014 Microchip Technology Inc. DSXXXXXXXXA-page 11RN4020FIGURE 7-3: 3D RADIATION PATTERN AND ANTENNA ORIENTATIONThe lead-free solder reflow temperature and times are:•Temperature — 230°C, 60 seconds maximum, peak 245° C maximum•Preheat temperature — 165° ± 15°C, 90 to 120 seconds•Time — Single pass, one timeThe solder reflow temperature must not exceed 220°C.To reflow solder the module onto a PCB, Roving Net-works recommends a RoHS-compli ant solder pasteequivalent to NIHON ALMIT paste or OMNIX OM-310solder paste from Alpha metals. See Table 7-3Note: Use no-clean flux and do not water wash.FIGURE 7-4: SOLDER REFLOW TEMPERATURE PROFILETABLE 7-3: PASTE SOLDER RECOMMENDATIONSManufacturer Alpha Metals http://www.alphametals.comNIHON ALMIT Co. LTD http://almit.co.jpPart Number OMNIX OM-310 LFM-70W INPMetal Composition SAC305 (96.5% Sn, 3% Ag, 0.5% Cu) 88% Sn, 3.5% Ag, 0.5% Bi, 8% InLiquidus Temperature ~220°C ~215°CDRAFT

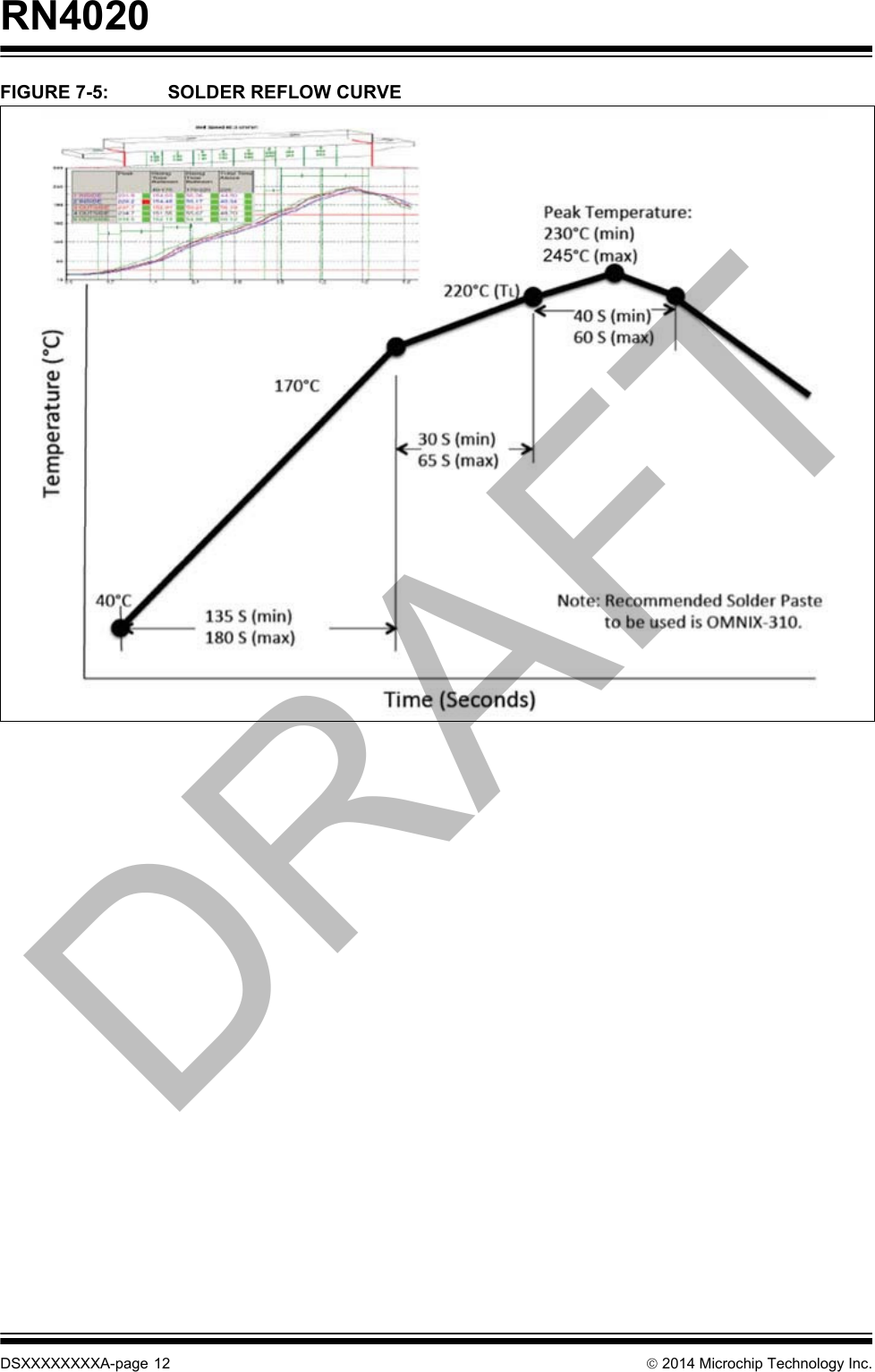

RN4020DSXXXXXXXXA-page 12  2014 Microchip Technology Inc.FIGURE 7-5: SOLDER REFLOW CURVEDRAFT

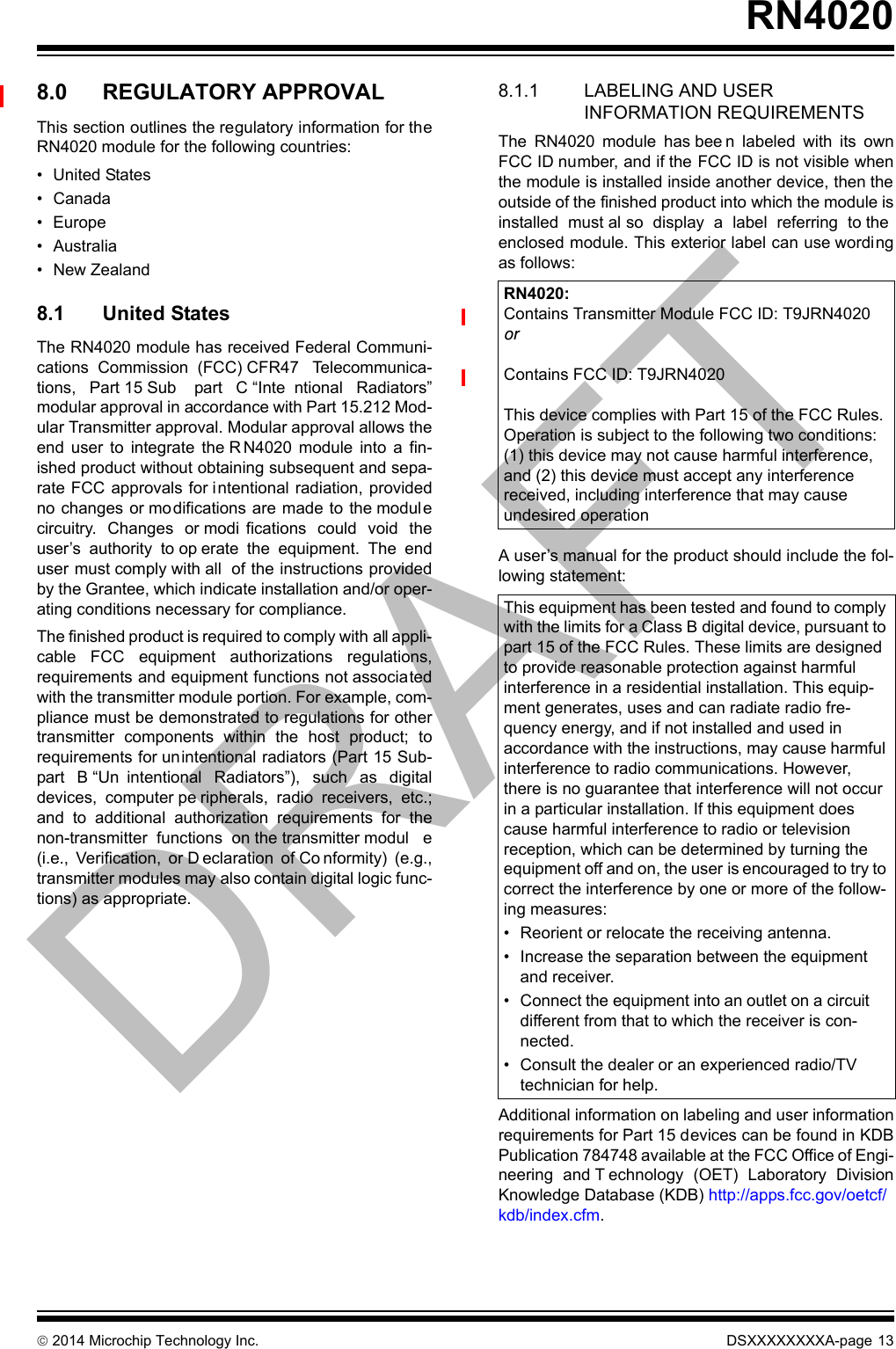

 2014 Microchip Technology Inc. DSXXXXXXXXA-page 13RN40208.0 REGULATORY APPROVALThis section outlines the regulatory information for theRN4020 module for the following countries:• United States• Canada• Europe• Australia• New Zealand8.1 United StatesThe RN4020 module has received Federal Communi-cations Commission (FCC) CFR47 Telecommunica-tions, Part 15 Sub part C “Inte ntional Radiators”modular approval in accordance with Part 15.212 Mod-ular Transmitter approval. Modular approval allows theend user to integrate the R N4020 module into a fin-ished product without obtaining subsequent and sepa-rate FCC approvals for intentional radiation, providedno changes or modifications are made to the modul ecircuitry. Changes or modi fications could void theuser’s authority to op erate the equipment. The enduser must comply with all of the instructions providedby the Grantee, which indicate installation and/or oper-ating conditions necessary for compliance.The finished product is required to comply with all appli-cable FCC equipment authorizations regulations,requirements and equipment functions not associatedwith the transmitter module portion. For example, com-pliance must be demonstrated to regulations for othertransmitter components within the host product; torequirements for unintentional radiators (Part 15 Sub-part B “Un intentional Radiators”), such as digitaldevices, computer pe ripherals, radio receivers, etc.;and to additional authorization requirements for thenon-transmitter functions on the transmitter modul e(i.e., Verification, or D eclaration of Co nformity) (e.g.,transmitter modules may also contain digital logic func-tions) as appropriate.8.1.1 LABELING AND USER INFORMATION REQUIREMENTSThe RN4020 module has bee n labeled with its ownFCC ID number, and if the FCC ID is not visible whenthe module is installed inside another device, then theoutside of the finished product into which the module isinstalled must al so display a label referring to theenclosed module. This exterior label can use wordingas follows:A user’s manual for the product should include the fol-lowing statement:Additional information on labeling and user informationrequirements for Part 15 devices can be found in KDBPublication 784748 available at the FCC Office of Engi-neering and T echnology (OET) Laboratory DivisionKnowledge Database (KDB) http://apps.fcc.gov/oetcf/kdb/index.cfm. RN4020:Contains Transmitter Module FCC ID: T9JRN4020orContains FCC ID: T9JRN4020 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operationThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equip-ment generates, uses and can radiate radio fre-quency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the follow-ing measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected.• Consult the dealer or an experienced radio/TV technician for help.DRAFT

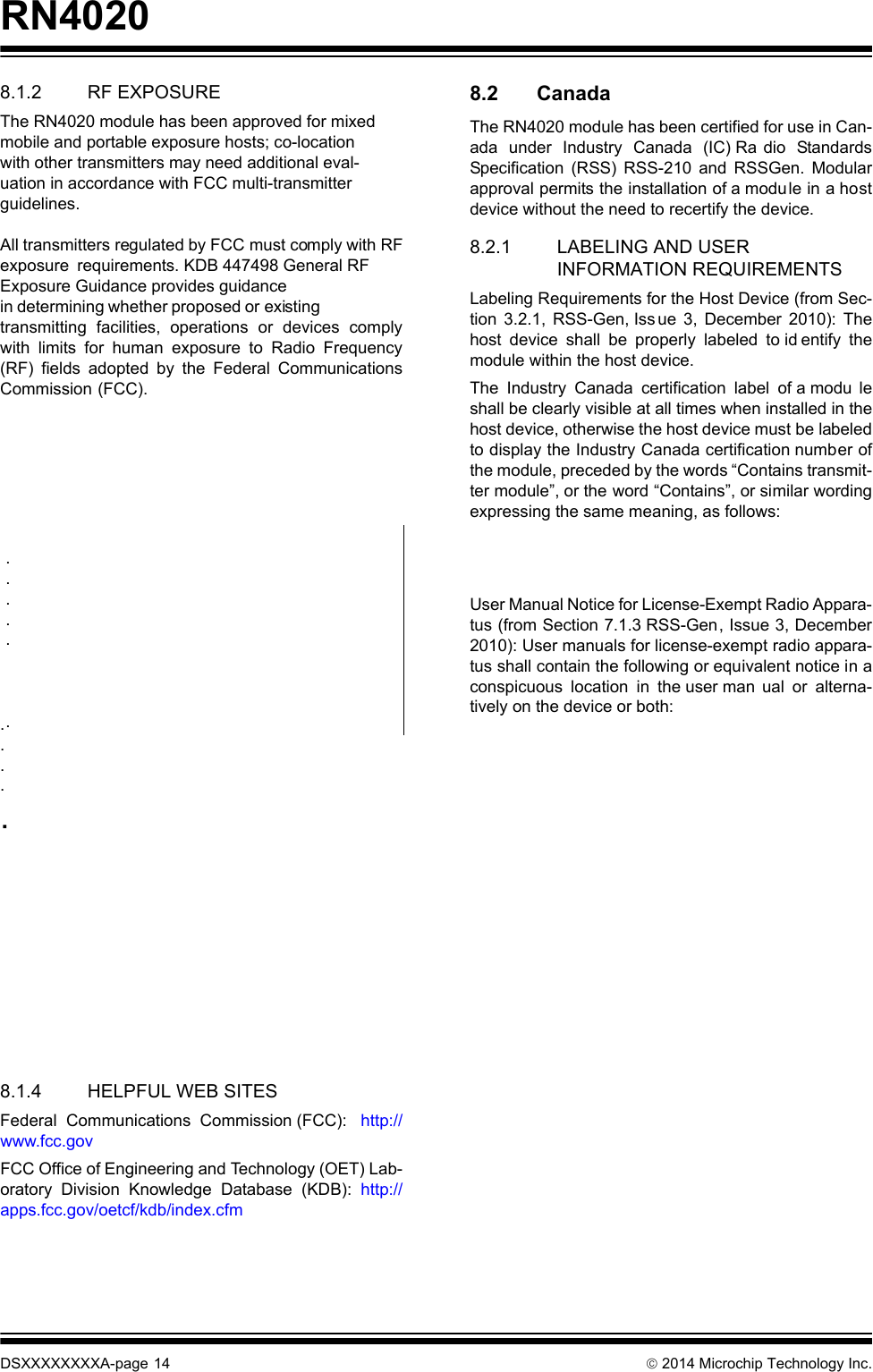

RN4020DSXXXXXXXXA-page 14  2014 Microchip Technology Inc.8.1.2 RF EXPOSUREThe RN4020 module has been approved for mixedmobile and portable exposure hosts; co-locationwith other transmitters may need additional eval-uation in accordance with FCC multi-transmitterguidelines. All transmitters regulated by FCC must comply with RFexposure requirements. KDB 447498 General RF Exposure Guidance provides guidancein determining whether proposed or existingtransmitting facilities, operations or devices complywith limits for human exposure to Radio Frequency(RF) fields adopted by the Federal CommunicationsCommission (FCC). ..... 8.1.4 HELPFUL WEB SITESFederal Communications Commission (FCC): http://www.fcc.govFCC Office of Engineering and Technology (OET) Lab-oratory Division Knowledge Database (KDB): http://apps.fcc.gov/oetcf/kdb/index.cfm 8.2 CanadaThe RN4020 module has been certified for use in Can-ada under Industry Canada (IC) Ra dio StandardsSpecification (RSS) RSS-210 and RSSGen. Modularapproval permits the installation of a modu le in a hostdevice without the need to recertify the device.8.2.1 LABELING AND USER INFORMATION REQUIREMENTSLabeling Requirements for the Host Device (from Sec-tion 3.2.1, RSS-Gen, Iss ue 3, December 2010): Thehost device shall be properly labeled to id entify themodule within the host device.The Industry Canada certification label of a modu leshall be clearly visible at all times when installed in thehost device, otherwise the host device must be labeledto display the Industry Canada certification number ofthe module, preceded by the words “Contains transmit-ter module”, or the word “Contains”, or similar wordingexpressing the same meaning, as follows: User Manual Notice for License-Exempt Radio Appara-tus (from Section 7.1.3 RSS-Gen, Issue 3, December2010): User manuals for license-exempt radio appara-tus shall contain the following or equivalent notice in aconspicuous location in the user man ual or alterna-tively on the device or both: . . . . . .

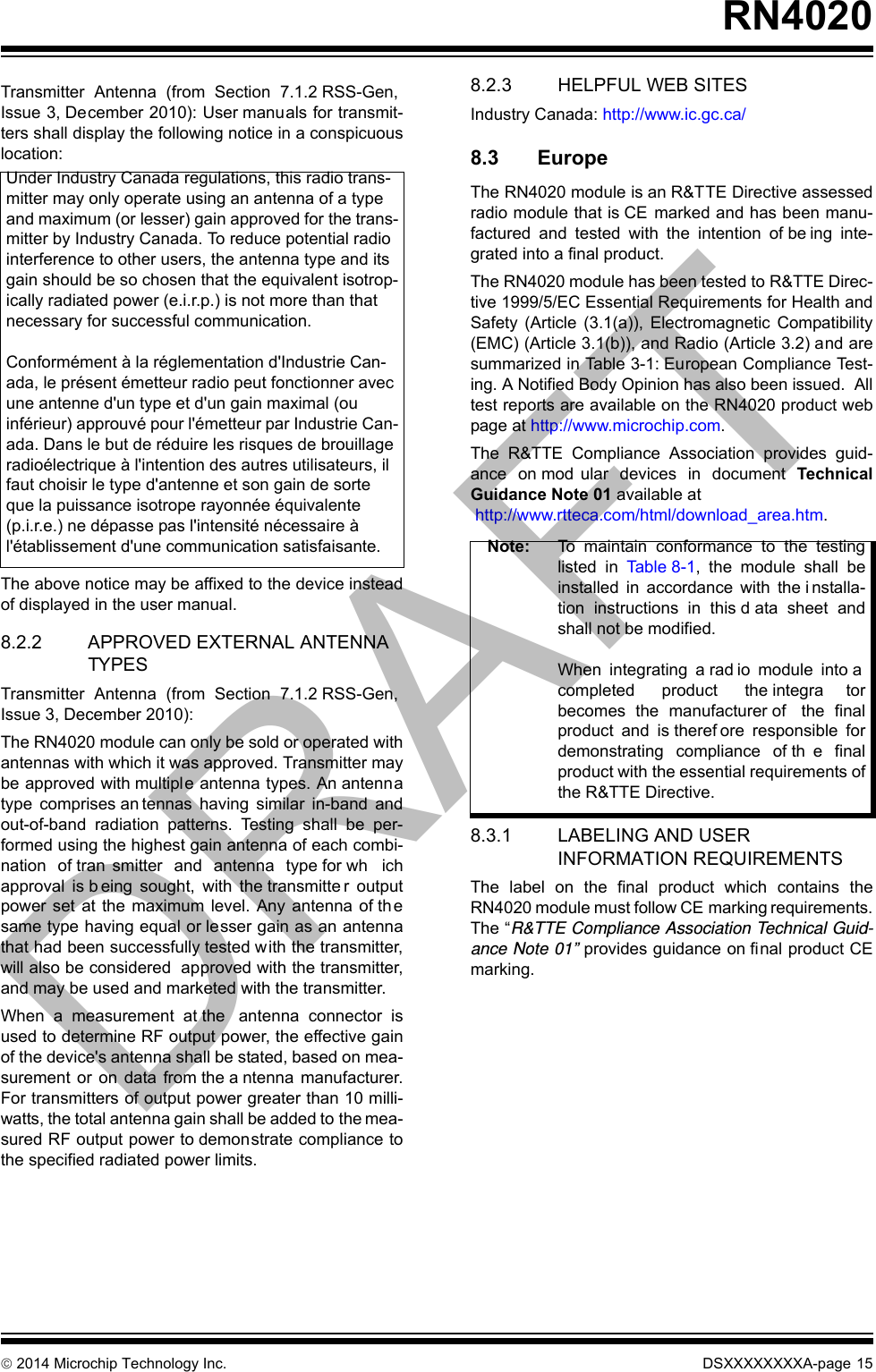

 2014 Microchip Technology Inc. DSXXXXXXXXA-page 15RN4020Transmitter Antenna (from Section 7.1.2 RSS-Gen,Issue 3, December 2010): User manuals for transmit-ters shall display the following notice in a conspicuouslocation:The above notice may be affixed to the device insteadof displayed in the user manual.8.2.2 APPROVED EXTERNAL ANTENNA TYPESTransmitter Antenna (from Section 7.1.2 RSS-Gen,Issue 3, December 2010):The RN4020 module can only be sold or operated withantennas with which it was approved. Transmitter maybe approved with multiple antenna types. An antennatype comprises an tennas having similar in-band andout-of-band radiation patterns. Testing shall be per-formed using the highest gain antenna of each combi-nation of tran smitter and antenna type for wh ichapproval is b eing sought, with the transmitte r outputpower set at the maximum level. Any antenna of th esame type having equal or lesser gain as an antennathat had been successfully tested with the transmitter,will also be considered approved with the transmitter,and may be used and marketed with the transmitter.When a measurement at the antenna connector isused to determine RF output power, the effective gainof the device's antenna shall be stated, based on mea-surement or on data from the a ntenna manufacturer.For transmitters of output power greater than 10 milli-watts, the total antenna gain shall be added to the mea-sured RF output power to demonstrate compliance tothe specified radiated power limits. 8.2.3 HELPFUL WEB SITESIndustry Canada: http://www.ic.gc.ca/ 8.3 EuropeThe RN4020 module is an R&TTE Directive assessedradio module that is CE marked and has been manu-factured and tested with the intention of be ing inte-grated into a final product. The RN4020 module has been tested to R&TTE Direc-tive 1999/5/EC Essential Requirements for Health andSafety (Article (3.1(a)), Electromagnetic Compatibility(EMC) (Article 3.1(b)), and Radio (Article 3.2) and aresummarized in Table 3-1: European Compliance Test-ing. A Notified Body Opinion has also been issued. Alltest reports are available on the RN4020 product webpage at http://www.microchip.com.The R&TTE Compliance Association provides guid-ance on mod ular devices in document TechnicalGuidance Note 01 available at http://www.rtteca.com/html/download_area.htm. 8.3.1 LABELING AND USER INFORMATION REQUIREMENTSThe label on the final product which contains theRN4020 module must follow CE marking requirements.The “R&TTE Compliance Association Technical Guid-ance Note 01” provides guidance on final product CEmarking.Under Industry Canada regulations, this radio trans-mitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the trans-mitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotrop-ically radiated power (e.i.r.p.) is not more than that necessary for successful communication.Conformément à la réglementation d'Industrie Can-ada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Can-ada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Note: To maintain conformance to the testinglisted in Ta b le 8- 1 , the module shall beinstalled in accordance with the i nstalla-tion instructions in this d ata sheet andshall not be modified.When integrating a rad io module into acompleted product the integra torbecomes the manufacturer of the finalproduct and is theref ore responsible fordemonstrating compliance of th e finalproduct with the essential requirements ofthe R&TTE Directive.DRAFT

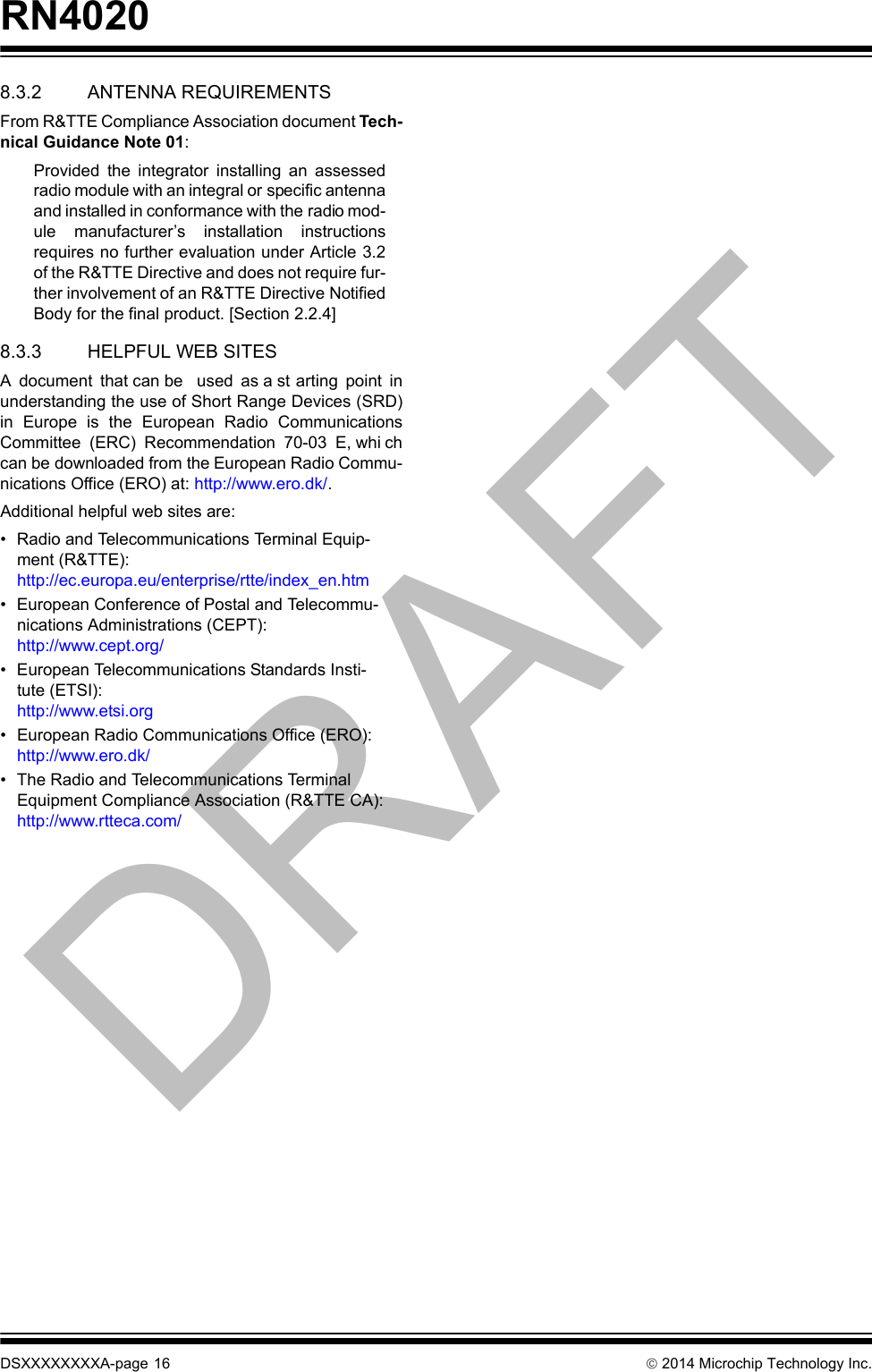

RN4020DSXXXXXXXXA-page 16  2014 Microchip Technology Inc.8.3.2 ANTENNA REQUIREMENTSFrom R&TTE Compliance Association document Tech-nical Guidance Note 01:Provided the integrator installing an assessedradio module with an integral or specific antennaand installed in conformance with the radio mod-ule manufacturer’s installation instructionsrequires no further evaluation under Article 3.2of the R&TTE Directive and does not require fur-ther involvement of an R&TTE Directive NotifiedBody for the final product. [Section 2.2.4]8.3.3 HELPFUL WEB SITESA document that can be used as a st arting point inunderstanding the use of Short Range Devices (SRD)in Europe is the European Radio CommunicationsCommittee (ERC) Recommendation 70-03 E, whi chcan be downloaded from the European Radio Commu-nications Office (ERO) at: http://www.ero.dk/. Additional helpful web sites are:• Radio and Telecommunications Terminal Equip-ment (R&TTE):http://ec.europa.eu/enterprise/rtte/index_en.htm• European Conference of Postal and Telecommu-nications Administrations (CEPT):http://www.cept.org/• European Telecommunications Standards Insti-tute (ETSI):http://www.etsi.org• European Radio Communications Office (ERO):http://www.ero.dk/• The Radio and Telecommunications Terminal Equipment Compliance Association (R&TTE CA):http://www.rtteca.com/DRAFT

http://www.rtteca.com/">

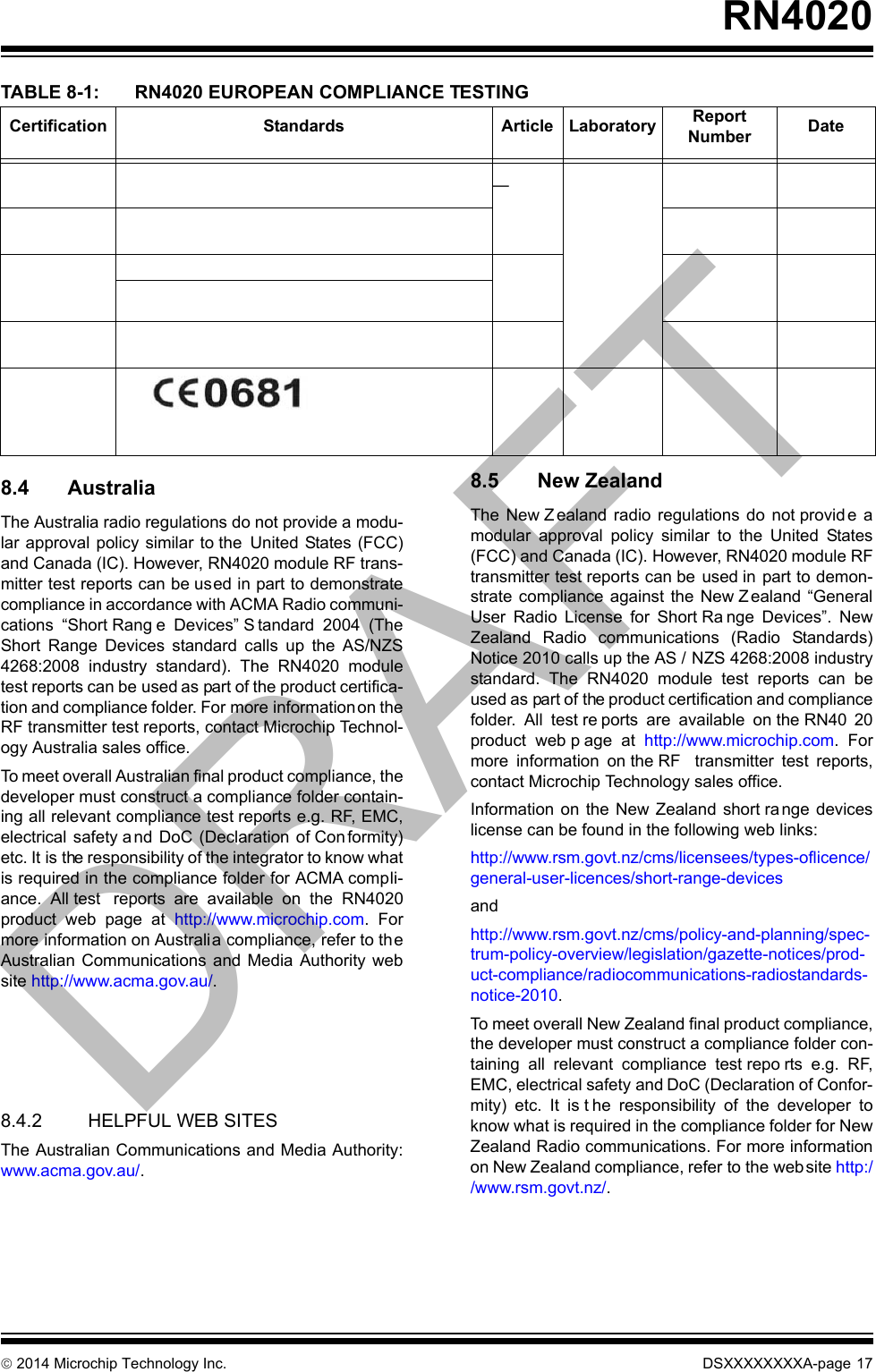

 2014 Microchip Technology Inc. DSXXXXXXXXA-page 17RN4020TABLE 8-1: RN4020 EUROPEAN COMPLIANCE TESTING8.4 AustraliaThe Australia radio regulations do not provide a modu-lar approval policy similar to the United States (FCC)and Canada (IC). However, RN4020 module RF trans-mitter test reports can be used in part to demonstratecompliance in accordance with ACMA Radio communi-cations “Short Rang e Devices” S tandard 2004 (TheShort Range Devices standard calls up the AS/NZS4268:2008 industry standard). The RN4020 moduletest reports can be used as part of the product certifica-tion and compliance folder. For more information on theRF transmitter test reports, contact Microchip Technol-ogy Australia sales office.To meet overall Australian final product compliance, thedeveloper must construct a compliance folder contain-ing all relevant compliance test reports e.g. RF, EMC,electrical safety and DoC (Declaration of Con formity)etc. It is the responsibility of the integrator to know whatis required in the compliance folder for ACMA compli-ance. All test reports are available on the RN4020product web page at http://www.microchip.com. Formore information on Australia compliance, refer to theAustralian Communications and Media Authority website http://www.acma.gov.au/. 8.4.2 HELPFUL WEB SITESThe Australian Communications and Media Authority:www.acma.gov.au/. 8.5 New ZealandThe New Z ealand radio regulations do not provid e amodular approval policy similar to the United States(FCC) and Canada (IC). However, RN4020 module RFtransmitter test reports can be used in part to demon-strate compliance against the New Zealand “GeneralUser Radio License for Short Ra nge Devices”. NewZealand Radio communications (Radio Standards)Notice 2010 calls up the AS / NZS 4268:2008 industrystandard. The RN4020 module test reports can beused as part of the product certification and compliancefolder. All test re ports are available on the RN40 20product web p age at http://www.microchip.com. Formore information on the RF transmitter test reports,contact Microchip Technology sales office. Information on the New Zealand short ra nge deviceslicense can be found in the following web links:http://www.rsm.govt.nz/cms/licensees/types-oflicence/general-user-licences/short-range-devices andhttp://www.rsm.govt.nz/cms/policy-and-planning/spec-trum-policy-overview/legislation/gazette-notices/prod-uct-compliance/radiocommunications-radiostandards-notice-2010. To meet overall New Zealand final product compliance,the developer must construct a compliance folder con-taining all relevant compliance test repo rts e.g. RF,EMC, electrical safety and DoC (Declaration of Confor-mity) etc. It is t he responsibility of the developer toknow what is required in the compliance folder for NewZealand Radio communications. For more informationon New Zealand compliance, refer to the web site http://www.rsm.govt.nz/. Certification Standards Article Laboratory Report Number Date —DRAFT

RN4020DSXXXXXXXXA-page 18  2014 Microchip Technology Inc. DRAFT

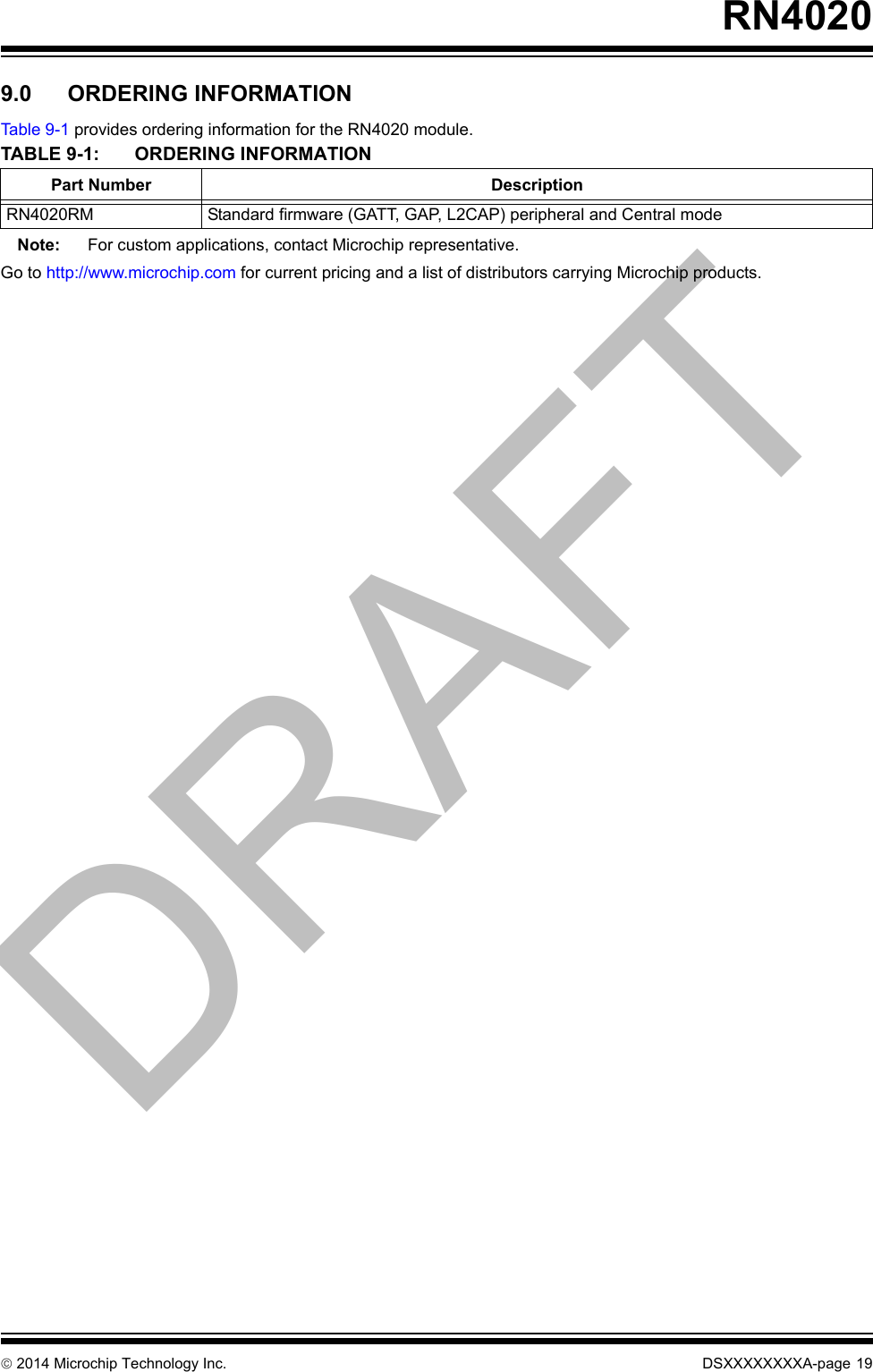

 2014 Microchip Technology Inc. DSXXXXXXXXA-page 19RN40209.0 ORDERING INFORMATIONTable 9-1 provides ordering information for the RN4020 module.Note: For custom applications, contact Microchip representative.Go to http://www.microchip.com for current pricing and a list of distributors carrying Microchip products.TABLE 9-1: ORDERING INFORMATIONPart Number DescriptionRN4020RM Standard firmware (GATT, GAP, L2CAP) peripheral and Central mode DRAFT

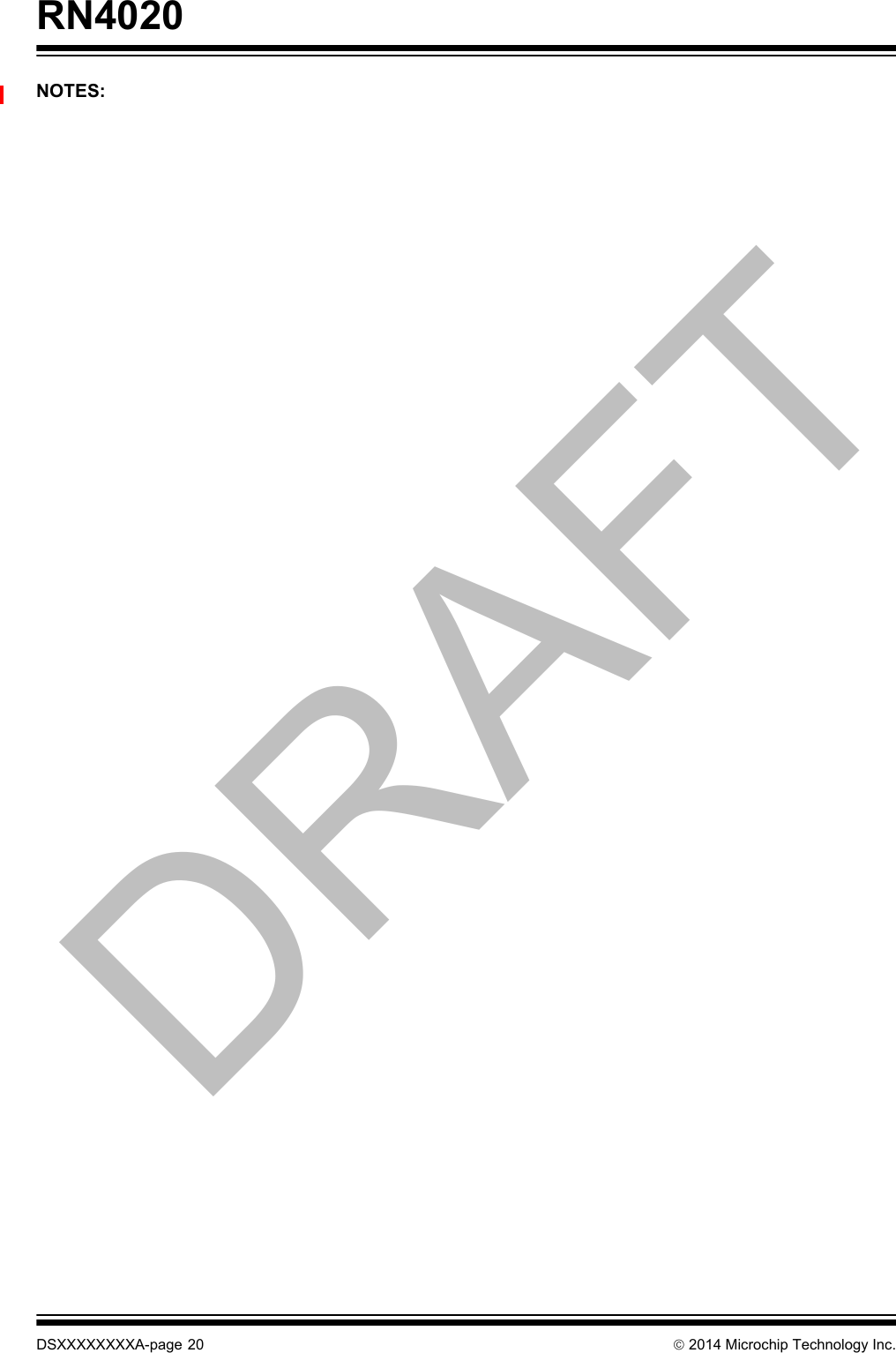

RN4020DSXXXXXXXXA-page 20  2014 Microchip Technology Inc.NOTES:DRAFT

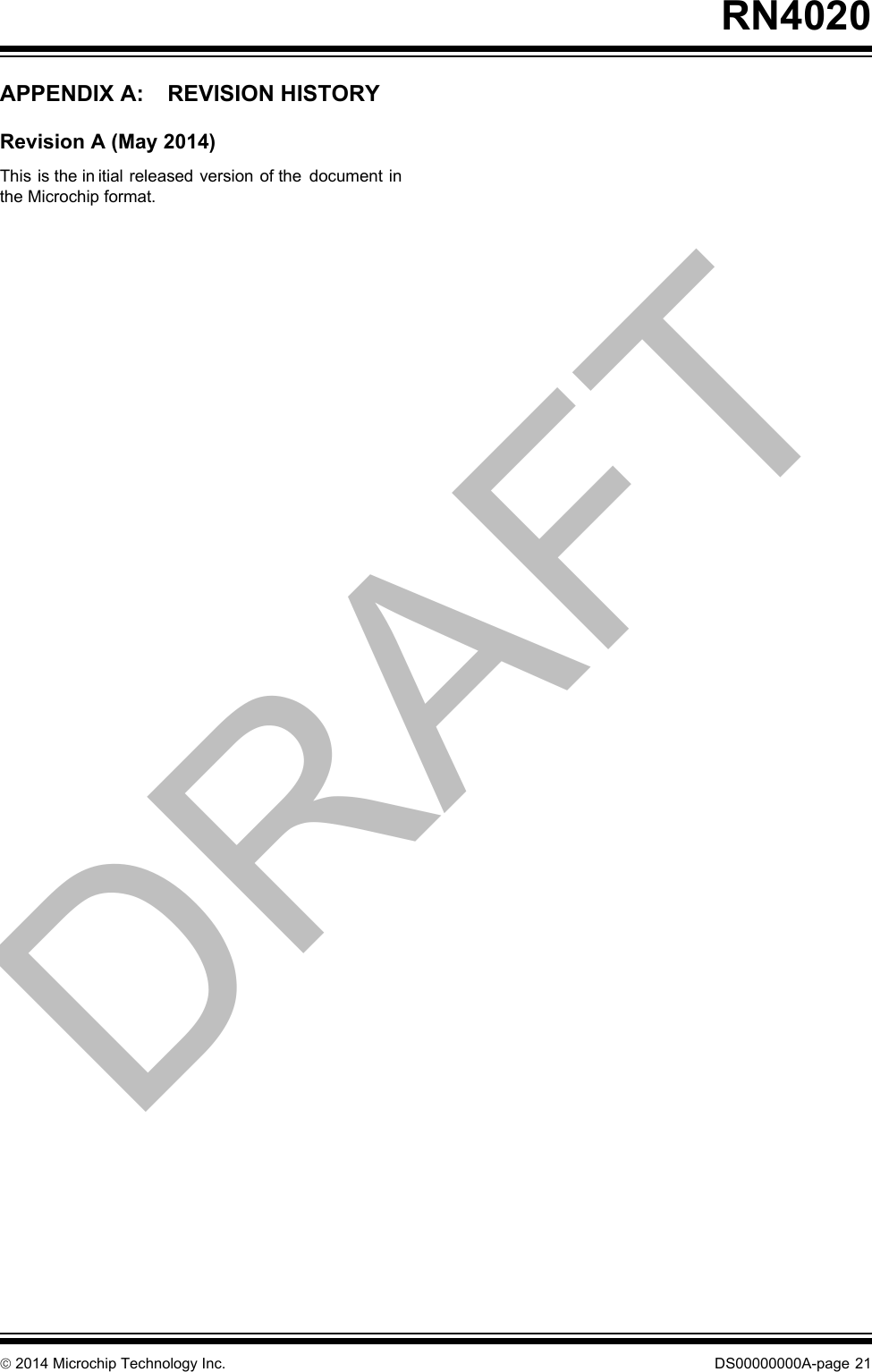

 2014 Microchip Technology Inc. DS00000000A-page 21RN4020APPENDIX A: REVISION HISTORYRevision A (May 2014)This is the in itial released version of the document inthe Microchip format. DRAFT

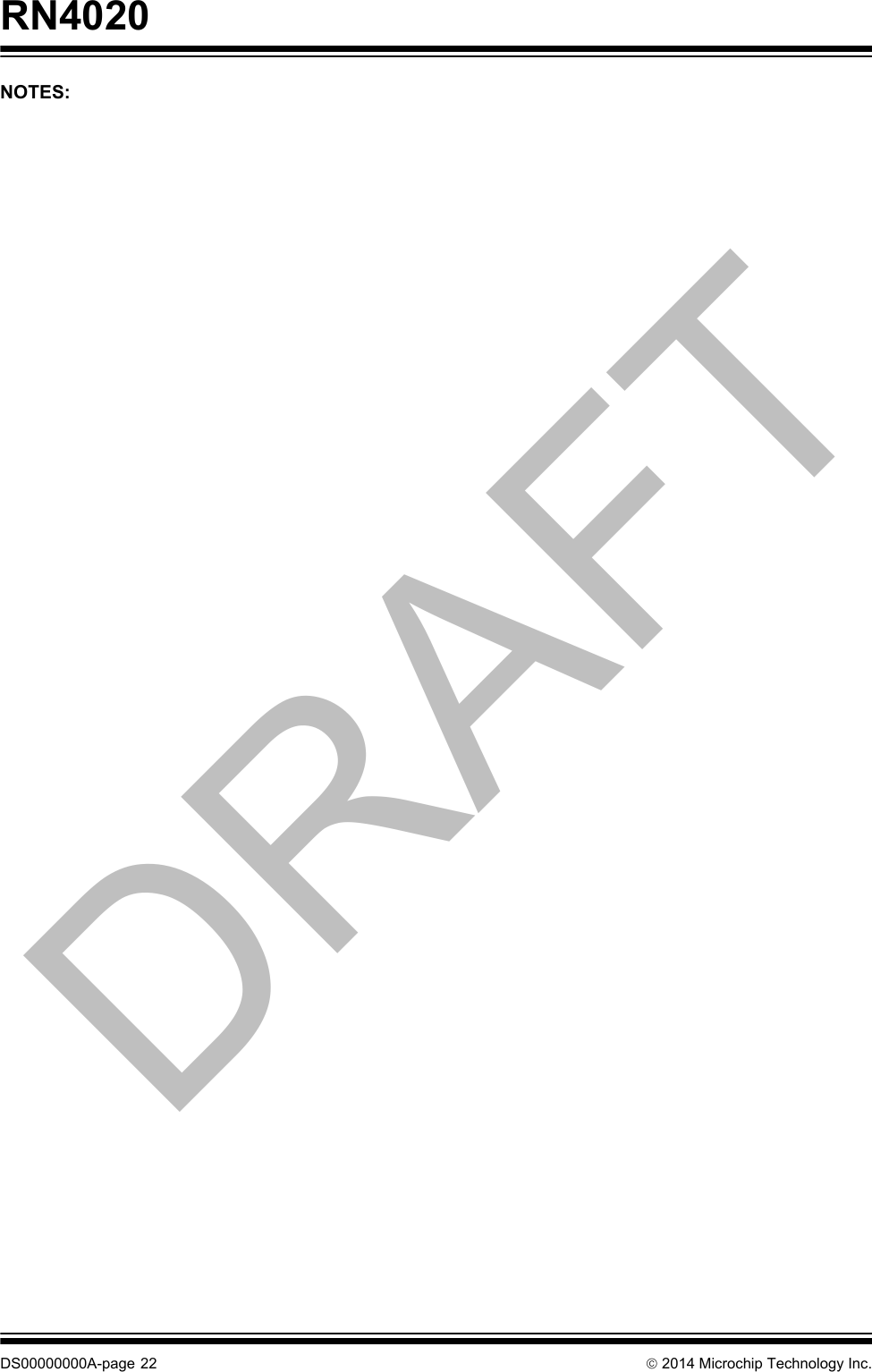

RN4020DS00000000A-page 22  2014 Microchip Technology Inc.NOTES:DRAFT

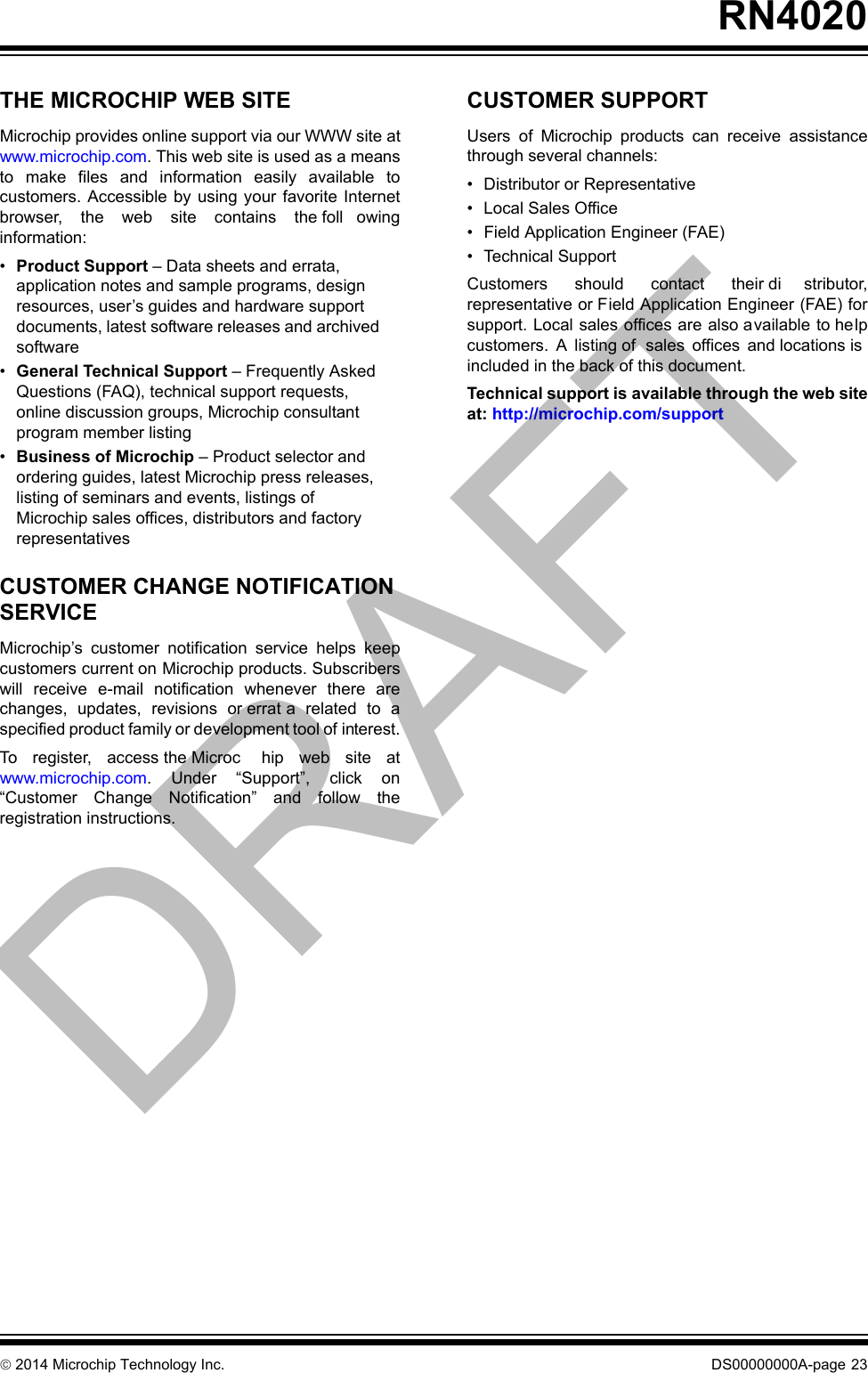

 2014 Microchip Technology Inc. DS00000000A-page 23RN4020THE MICROCHIP WEB SITEMicrochip provides online support via our WWW site atwww.microchip.com. This web site is used as a meansto make files and information easily available tocustomers. Accessible by using your favorite Internetbrowser, the web site contains the foll owinginformation:•Product Support – Data sheets and errata, application notes and sample programs, design resources, user’s guides and hardware support documents, latest software releases and archived software•General Technical Support – Frequently Asked Questions (FAQ), technical support requests, online discussion groups, Microchip consultant program member listing•Business of Microchip – Product selector and ordering guides, latest Microchip press releases, listing of seminars and events, listings of Microchip sales offices, distributors and factory representativesCUSTOMER CHANGE NOTIFICATION SERVICEMicrochip’s customer notification service helps keepcustomers current on Microchip products. Subscriberswill receive e-mail notification whenever there arechanges, updates, revisions or errat a related to aspecified product family or development tool of interest.To register, access the Microc hip web site atwww.microchip.com. Under “Support”, click on“Customer Change Notification” and follow theregistration instructions.CUSTOMER SUPPORTUsers of Microchip products can receive assistancethrough several channels:• Distributor or Representative• Local Sales Office• Field Application Engineer (FAE)• Technical SupportCustomers should contact their di stributor,representative or Field Application Engineer (FAE) forsupport. Local sales offices are also available to helpcustomers. A listing of sales offices and locations isincluded in the back of this document.Technical support is available through the web siteat: http://microchip.com/supportDRAFT

RN4020DS00000000A-page 24  2014 Microchip Technology Inc.NOTES:DRAFT

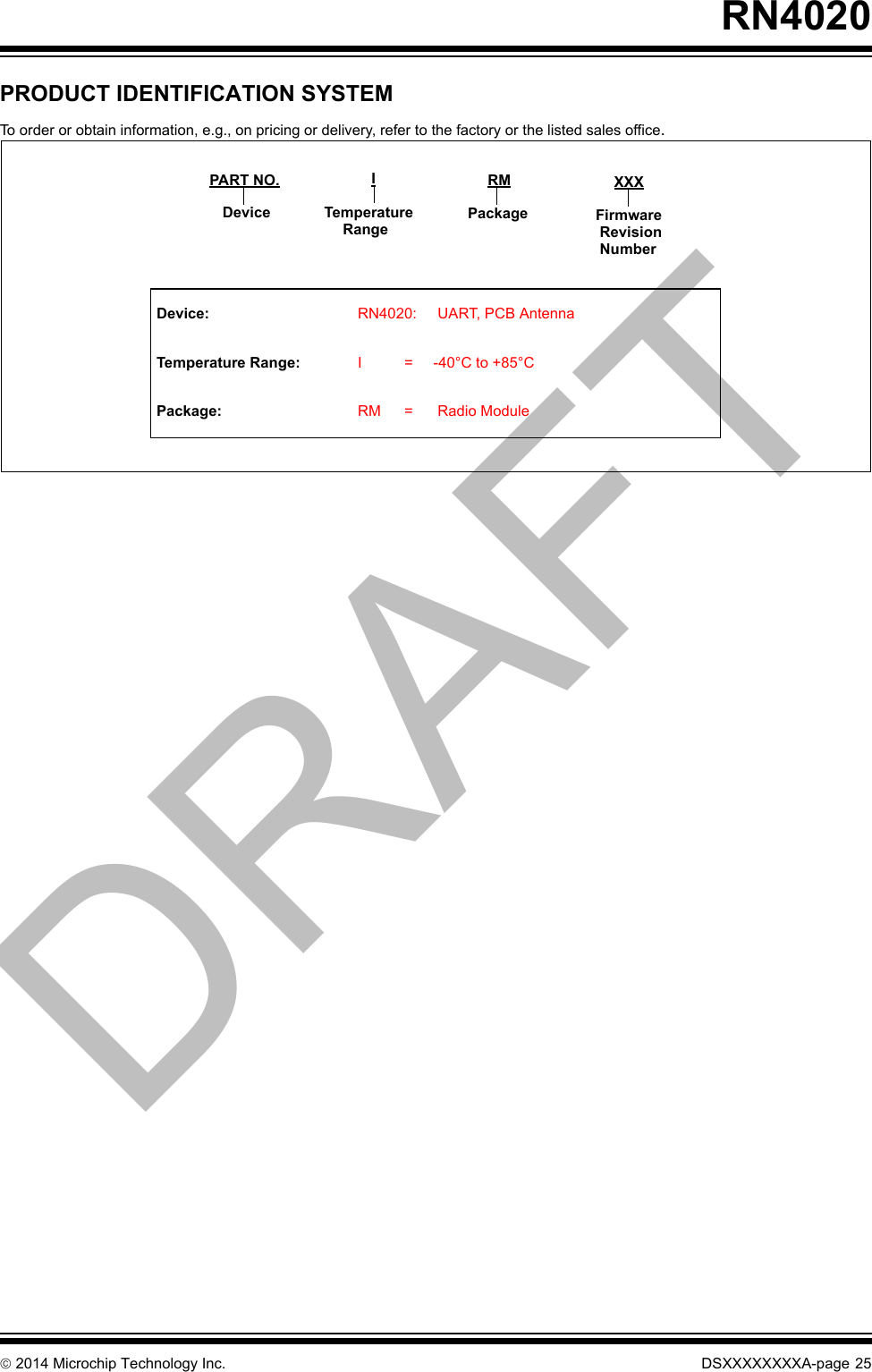

 2014 Microchip Technology Inc. DSXXXXXXXXA-page 25RN4020PRODUCT IDENTIFICATION SYSTEMTo order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office. Device: RN4020: UART, PCB AntennaTemperature Range: I = -40°C to +85°CPackage: RM = Radio Module PART NO. I RMPackageTemperatureRangeDeviceXXX Firmware Revision NumberDRAFT

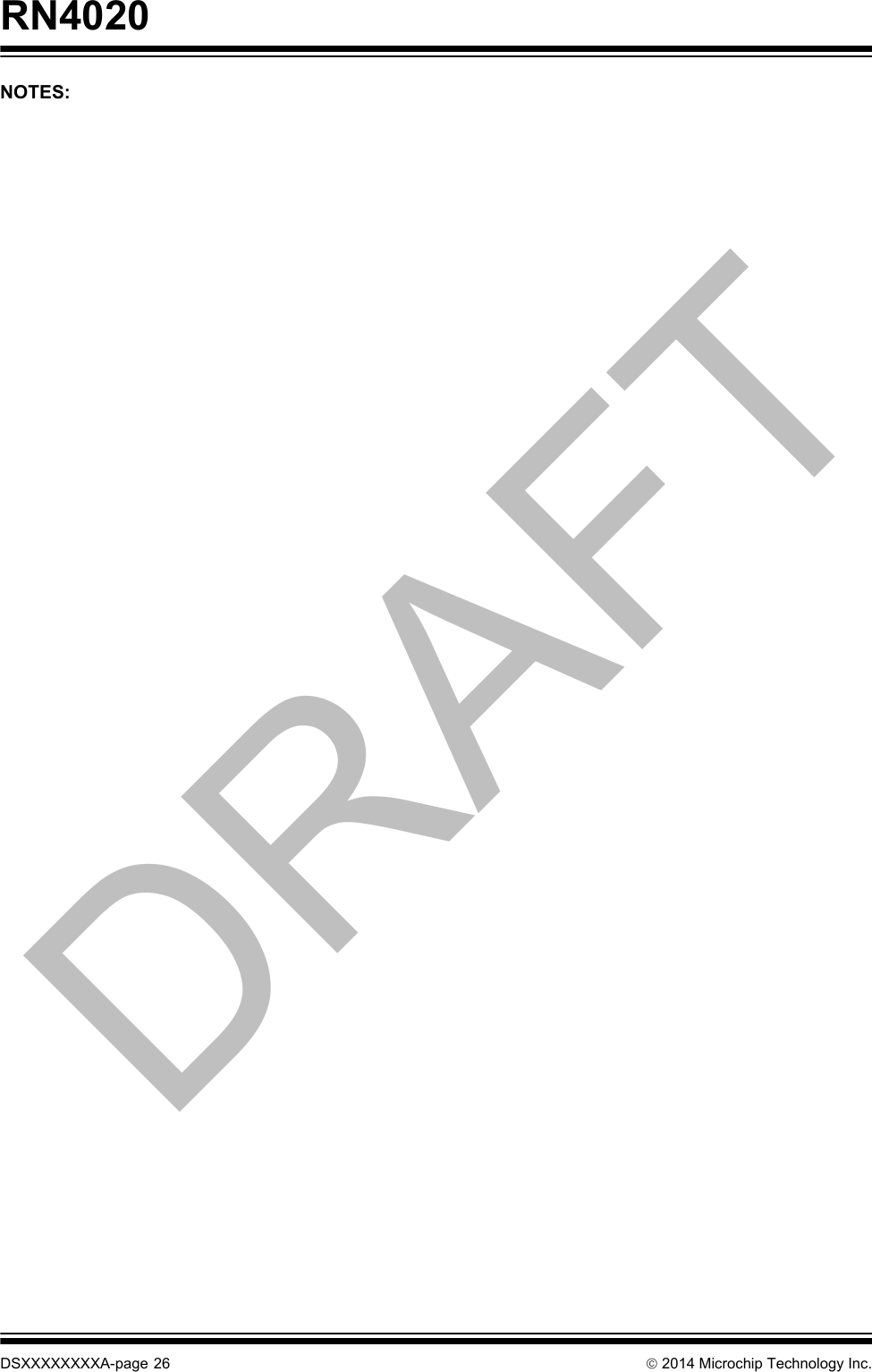

RN4020DSXXXXXXXXA-page 26  2014 Microchip Technology Inc.NOTES:DRAFT
