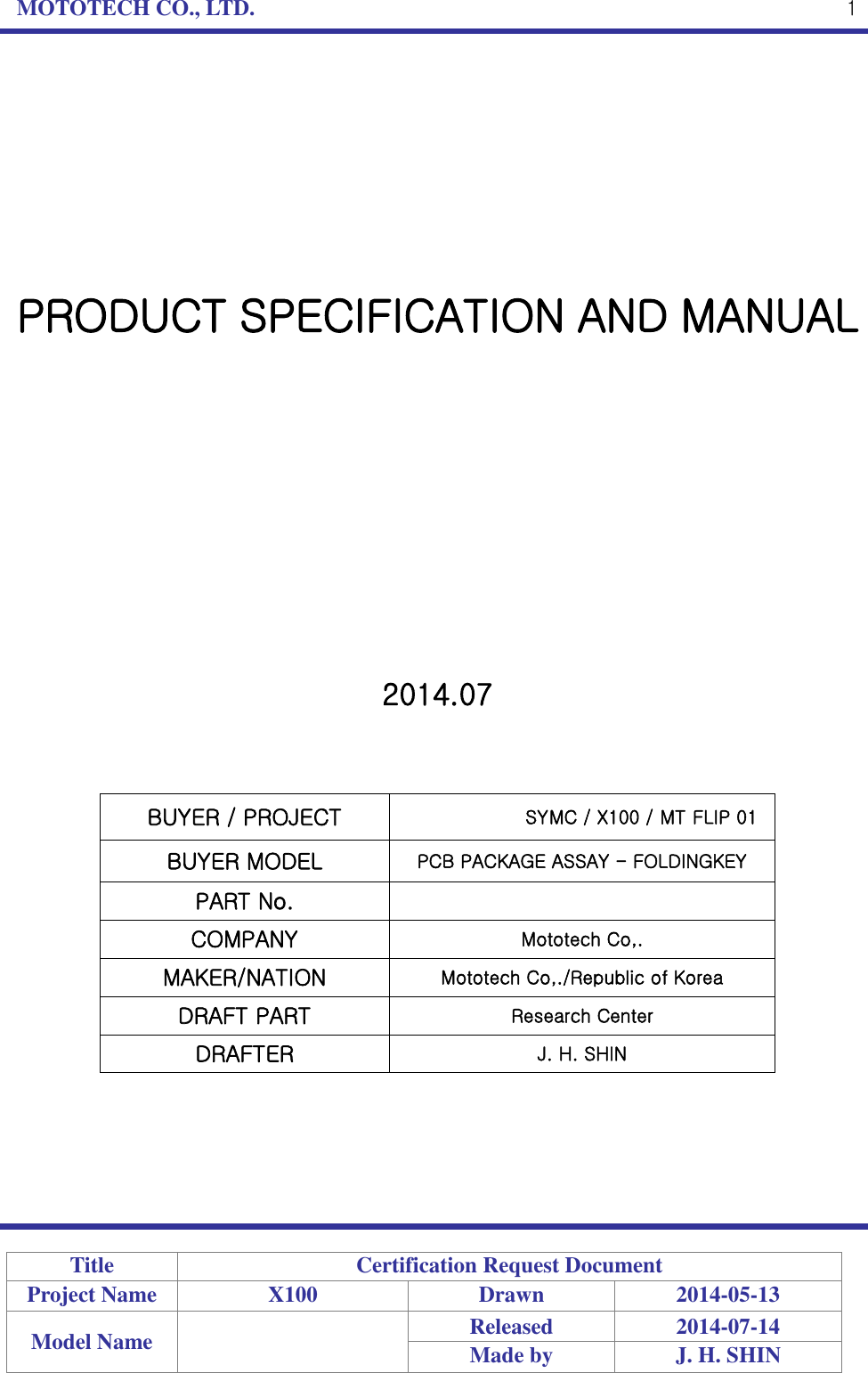

MOTOTECH CO., LTD. Title Certification Request Document Project Name X100 Drawn 2014-05-13 Model Name Released 2014-07-14 Made by J. H. SHIN 1 PRODUCT SPECIFICATION AND MANUAL 2014.07 BUYER / PROJECT SYMC / X100 / MT FLIP 01 BUYER MODEL PCB PACKAGE ASSAY - FOLDINGKEY PART No. COMPANY Mototech Co,. MAKER/NATION Mototech Co,./Republic of Korea DRAFT PART Research Center DRAFTER J. H. SHIN

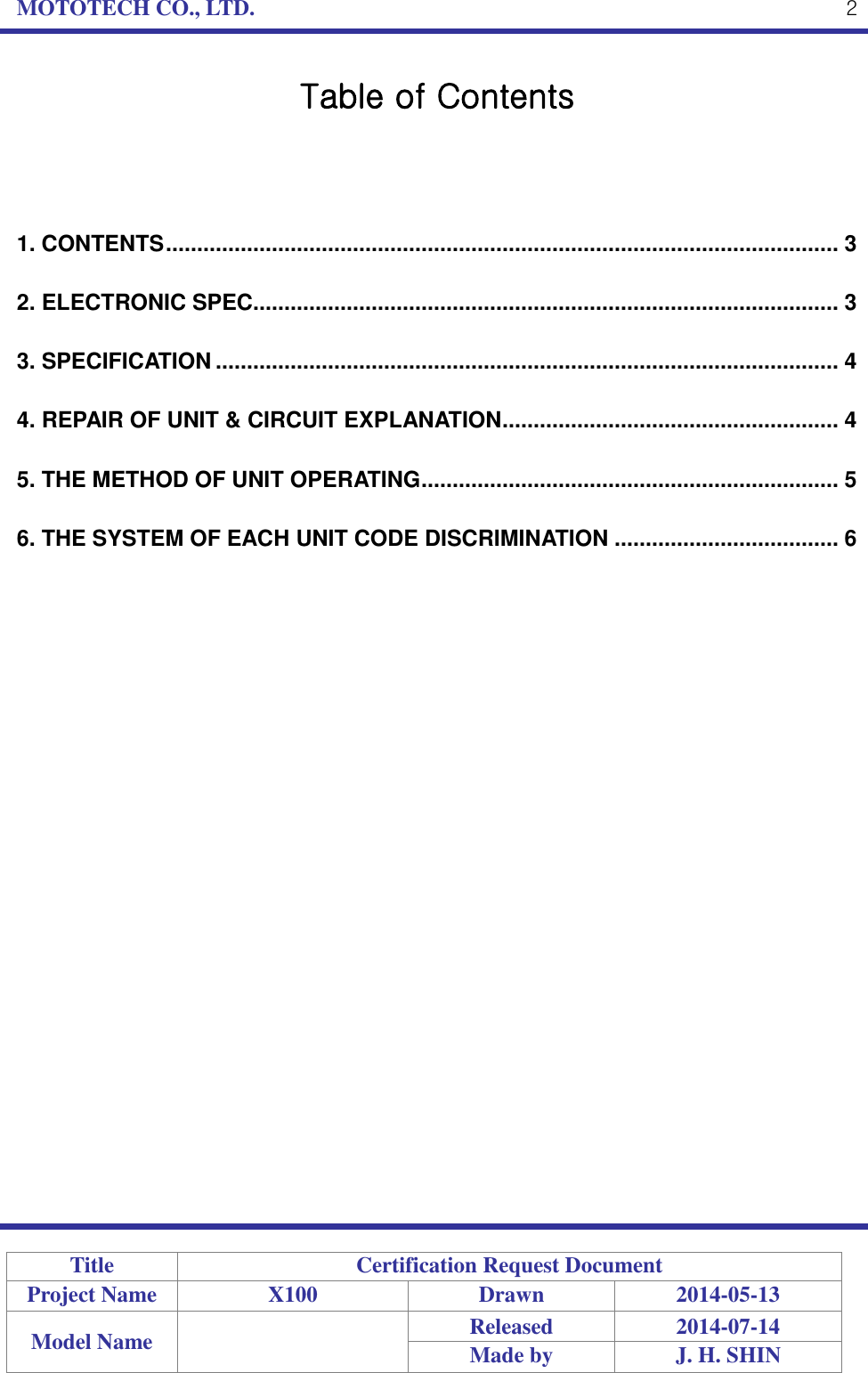

MOTOTECH CO., LTD. Title Certification Request Document Project Name X100 Drawn 2014-05-13 Model Name Released 2014-07-14 Made by J. H. SHIN 2 Table of Contents 1. CONTENTS ............................................................................................................ 3 2. ELECTRONIC SPEC.............................................................................................. 3 3. SPECIFICATION .................................................................................................... 4 4. REPAIR OF UNIT & CIRCUIT EXPLANATION ...................................................... 4 5. THE METHOD OF UNIT OPERATING ................................................................... 5 6. THE SYSTEM OF EACH UNIT CODE DISCRIMINATION .................................... 6

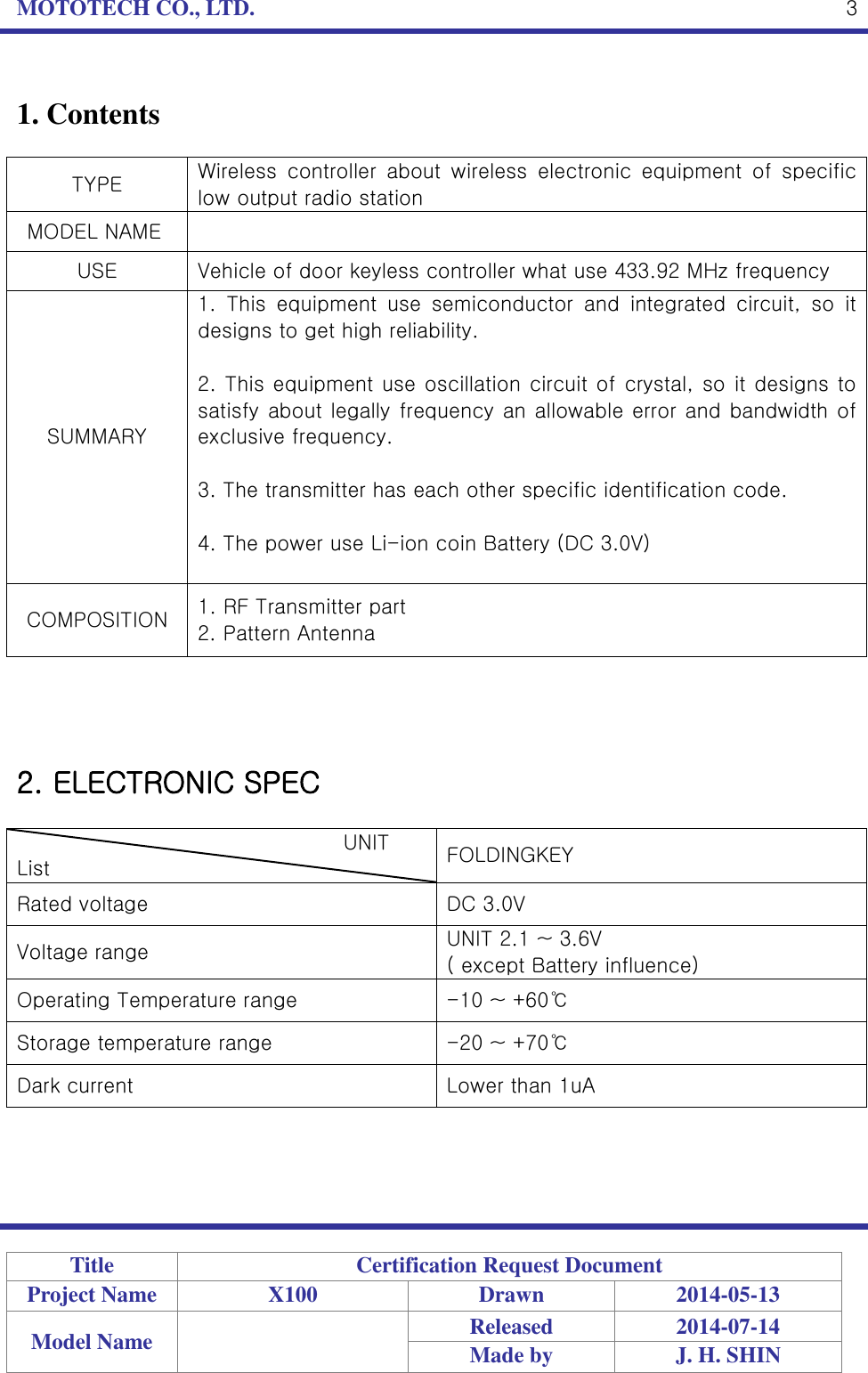

MOTOTECH CO., LTD. Title Certification Request Document Project Name X100 Drawn 2014-05-13 Model Name Released 2014-07-14 Made by J. H. SHIN 3 1. Contents TYPE Wireless controller about wireless electronic equipment of specific low output radio station MODEL NAME USE Vehicle of door keyless controller what use 433.92 MHz frequency SUMMARY 1. This equipment use semiconductor and integrated circuit, so it designs to get high reliability. 2. This equipment use oscillation circuit of crystal, so it designs to satisfy about legally frequency an allowable error and bandwidth of exclusive frequency. 3. The transmitter has each other specific identification code. 4. The power use Li-ion coin Battery (DC 3.0V) COMPOSITION 1. RF Transmitter part 2. Pattern Antenna 2. ELECTRONIC SPEC UNIT List FOLDINGKEY Rated voltage DC 3.0V Voltage range UNIT 2.1 ~ 3.6V ( except Battery influence) Operating Temperature range -10 ~ +60℃ Storage temperature range -20 ~ +70℃ Dark current Lower than 1uA

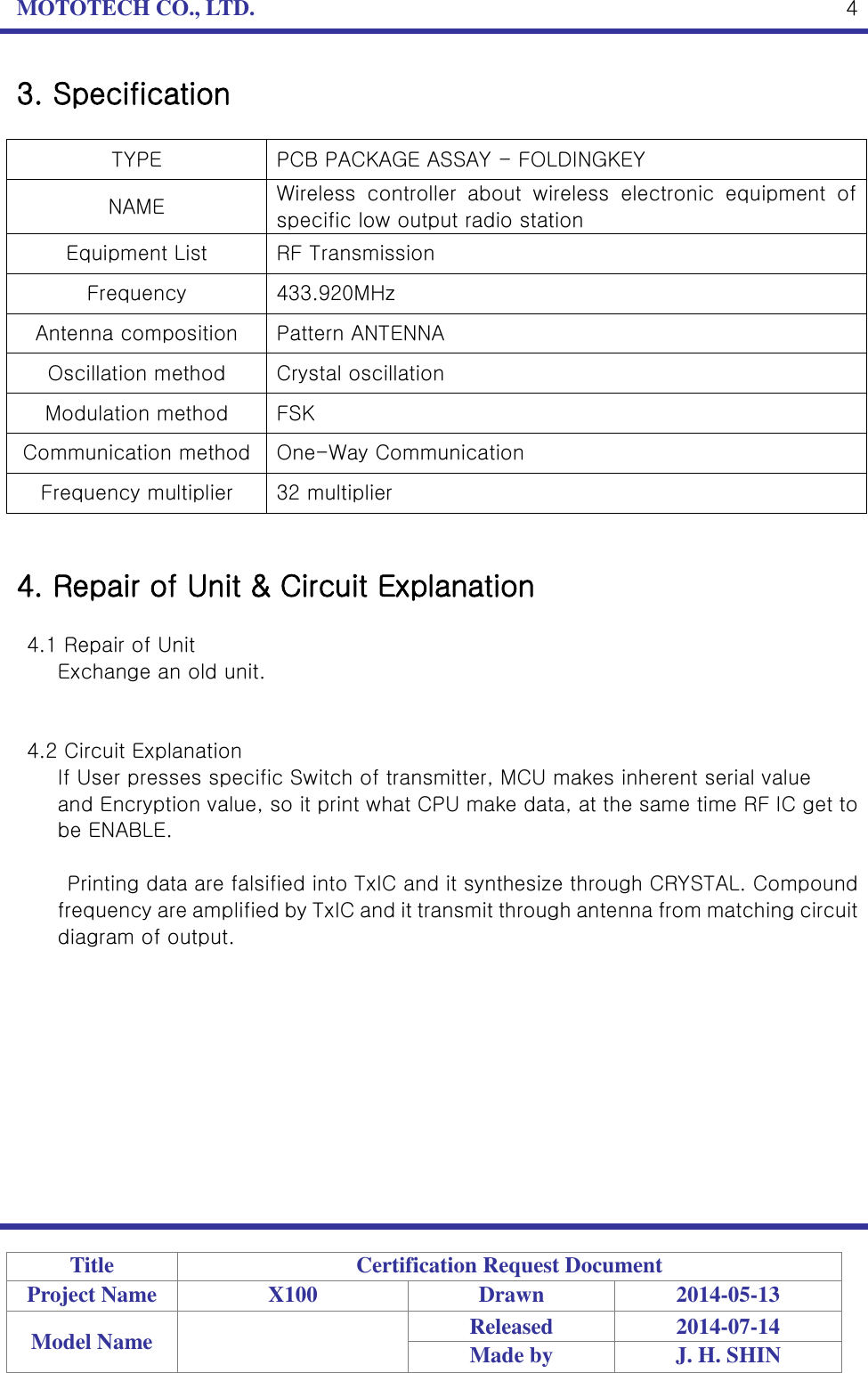

MOTOTECH CO., LTD. Title Certification Request Document Project Name X100 Drawn 2014-05-13 Model Name Released 2014-07-14 Made by J. H. SHIN 4 3. Specification TYPE PCB PACKAGE ASSAY - FOLDINGKEY NAME Wireless controller about wireless electronic equipment of specific low output radio station Equipment List RF Transmission Frequency 433.920MHz Antenna composition Pattern ANTENNA Oscillation method Crystal oscillation Modulation method FSK Communication method One-Way Communication Frequency multiplier 32 multiplier 4. Repair of Unit & Circuit Explanation 4.1 Repair of Unit Exchange an old unit. 4.2 Circuit Explanation If User presses specific Switch of transmitter, MCU makes inherent serial value and Encryption value, so it print what CPU make data, at the same time RF IC get to be ENABLE. Printing data are falsified into TxIC and it synthesize through CRYSTAL. Compound frequency are amplified by TxIC and it transmit through antenna from matching circuit diagram of output.

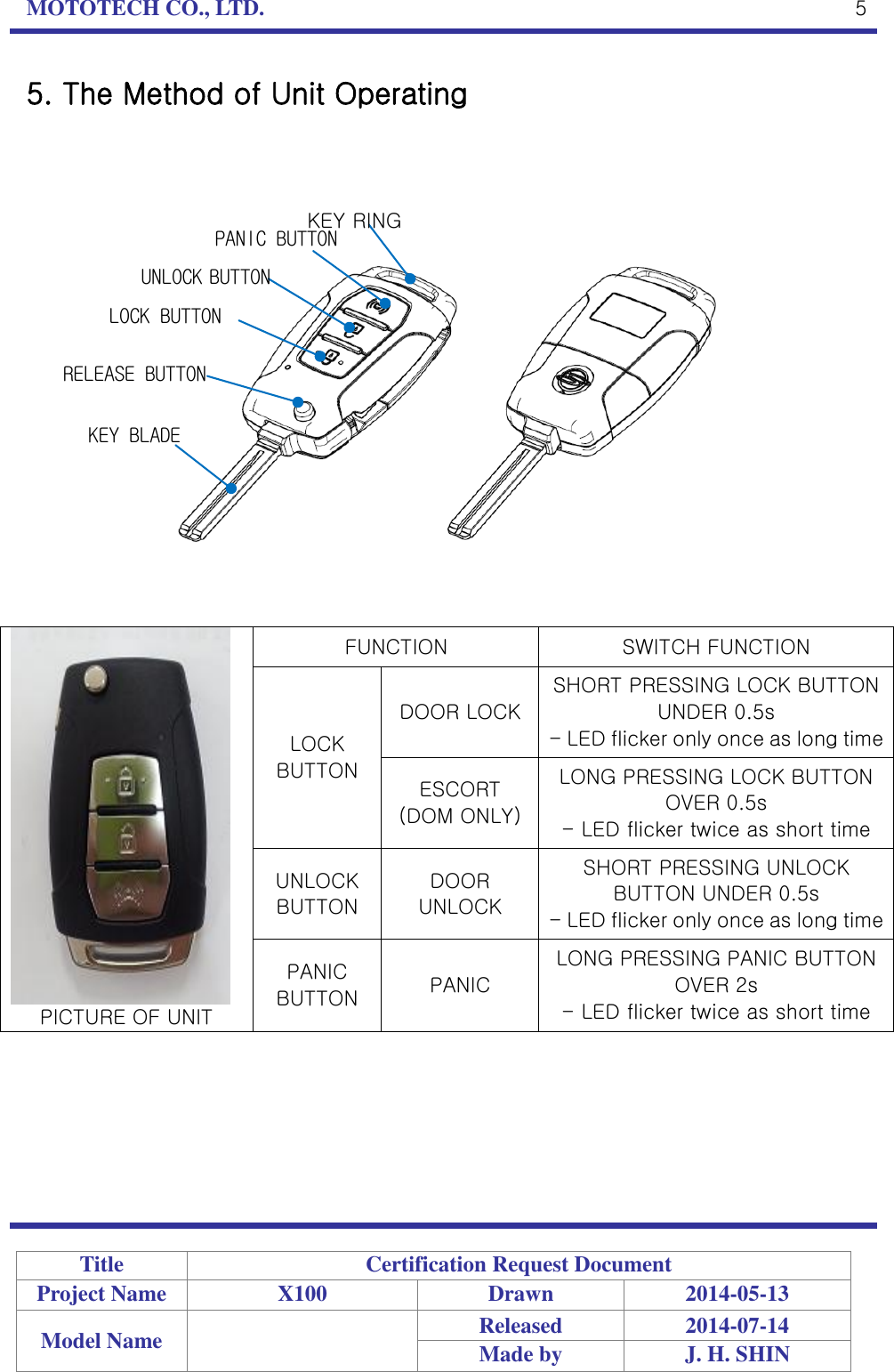

MOTOTECH CO., LTD. Title Certification Request Document Project Name X100 Drawn 2014-05-13 Model Name Released 2014-07-14 Made by J. H. SHIN 5 5. The Method of Unit Operating PICTURE OF UNIT FUNCTION SWITCH FUNCTION LOCK BUTTON DOOR LOCK SHORT PRESSING LOCK BUTTON UNDER 0.5s - LED flicker only once as long time ESCORT (DOM ONLY) LONG PRESSING LOCK BUTTON OVER 0.5s - LED flicker twice as short time UNLOCK BUTTON DOOR UNLOCK SHORT PRESSING UNLOCK BUTTON UNDER 0.5s - LED flicker only once as long time PANIC BUTTON PANIC LONG PRESSING PANIC BUTTON OVER 2s - LED flicker twice as short time RELEASE BUTTON LOCK BUTTON UNLOCK BUTTON PANIC BUTTON KEY RING KEY BLADE

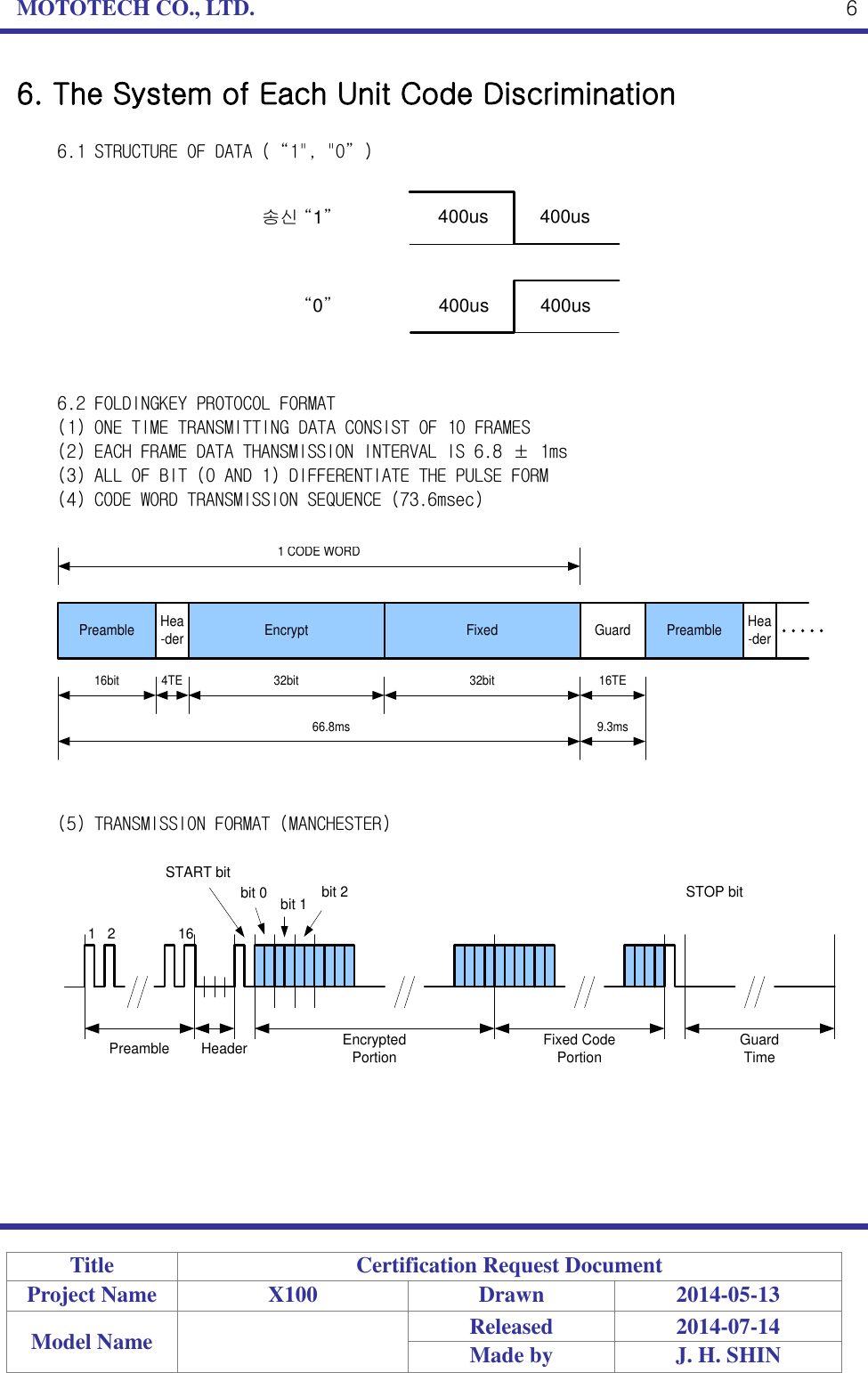

MOTOTECH CO., LTD. Title Certification Request Document Project Name X100 Drawn 2014-05-13 Model Name Released 2014-07-14 Made by J. H. SHIN 6 6. The System of Each Unit Code Discrimination 6.1 STRUCTURE OF DATA (“1", "0”) 송신 “1”“0”400us 400us400us 400us 6.2 FOLDINGKEY PROTOCOL FORMAT (1) ONE TIME TRANSMITTING DATA CONSIST OF 10 FRAMES (2) EACH FRAME DATA THANSMISSION INTERVAL IS 6.8 ± 1ms (3) ALL OF BIT (0 AND 1) DIFFERENTIATE THE PULSE FORM (4) CODE WORD TRANSMISSION SEQUENCE (73.6msec) Preamble Hea-der Encrypt Fixed PreambleGuard Hea-der16bit 4TE 32bit 32bit 16TE66.8ms 9.3ms1 CODE WORD (5) TRANSMISSION FORMAT (MANCHESTER) 1 2 16Preamble Header EncryptedPortion Fixed CodePortion GuardTimeSTOP bitbit 2bit 1bit 0START bit

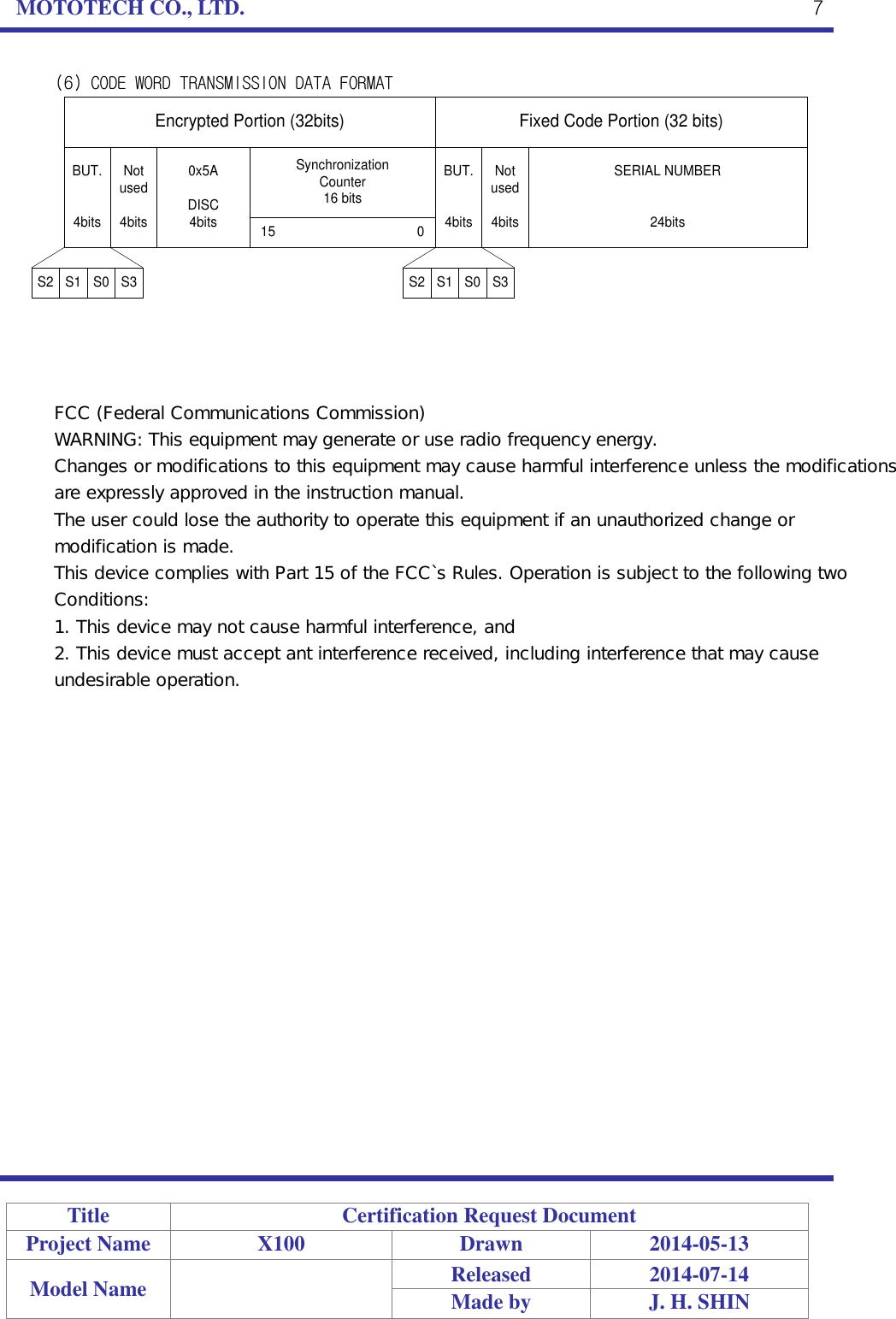

MOTOTECH CO., LTD. Title Certification Request Document Project Name X100 Drawn 2014-05-13 Model Name Released 2014-07-14 Made by J. H. SHIN 7 (6) CODE WORD TRANSMISSION DATA FORMAT Fixed Code Portion (32 bits)Encrypted Portion (32bits)BUT.4bitsNot used4bitsSERIAL NUMBER24bitsBUT.4bitsNot used4bits0x5ADISC4bitsSynchronizationCounter16 bits15 0S2 S1 S0 S3S2 S1 S0 S3 FCC (Federal Communications Commission) WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two Conditions: 1. This device may not cause harmful interference, and 2. This device must accept ant interference received, including interference that may cause undesirable operation.
