MOTOTECH MT-FLIP03 Transmitter Assy-Smart Key User Manual

MOTOTECH Co., Ltd. Transmitter Assy-Smart Key Users Manual

Product Manual

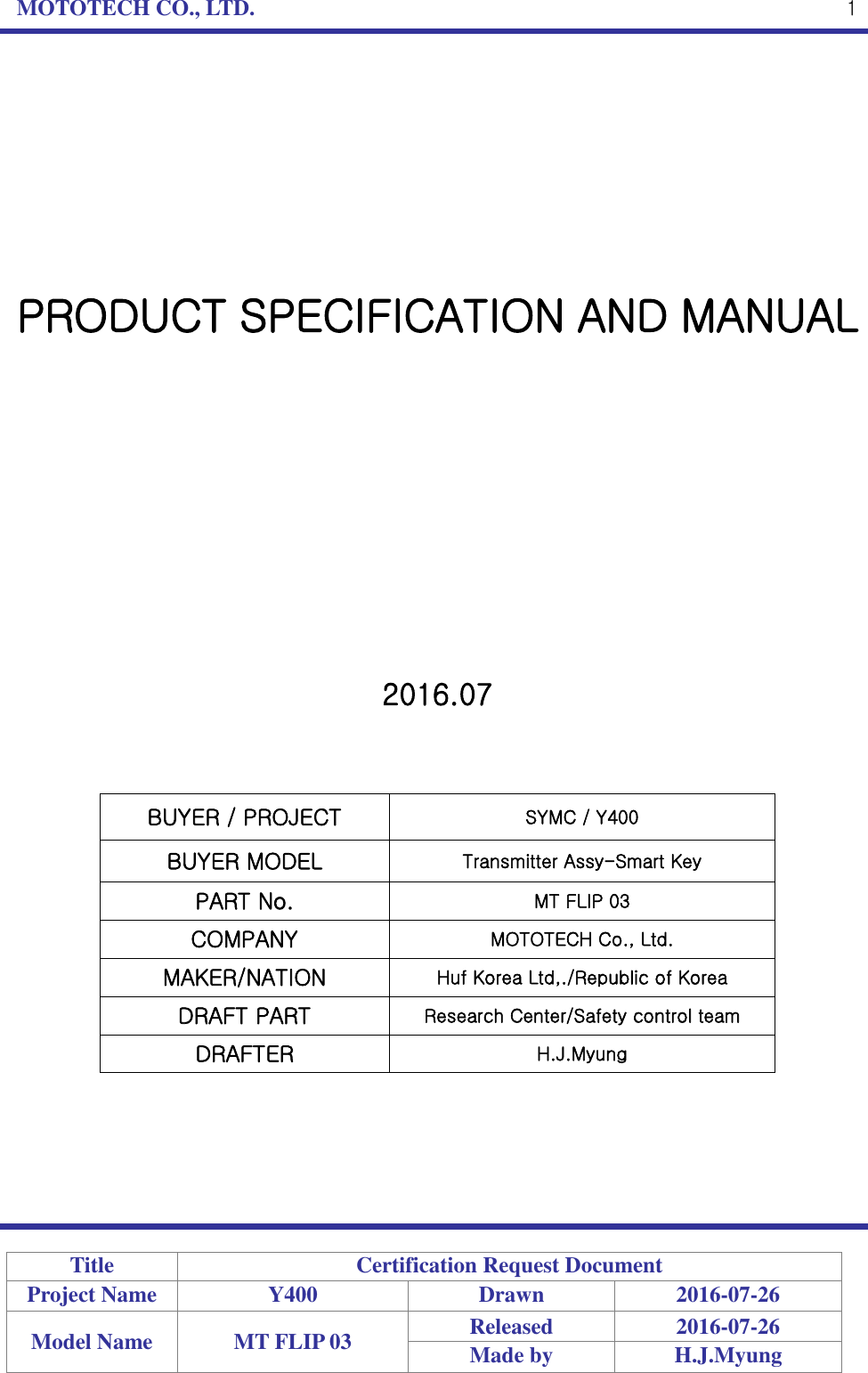

MOTOTECH CO., LTD. Title Certification Request Document Project Name Y400 Drawn 2016-07-26 Model Name MT FLIP 03 Released 2016-07-26 Made by H.J.Myung 1 PRODUCT SPECIFICATION AND MANUAL 2016.07 BUYER / PROJECT SYMC / Y400 BUYER MODEL Transmitter Assy-Smart Key PART No. MT FLIP 03 COMPANY MOTOTECH Co., Ltd. MAKER/NATION Huf Korea Ltd,./Republic of Korea DRAFT PART Research Center/Safety control team DRAFTER H.J.Myung

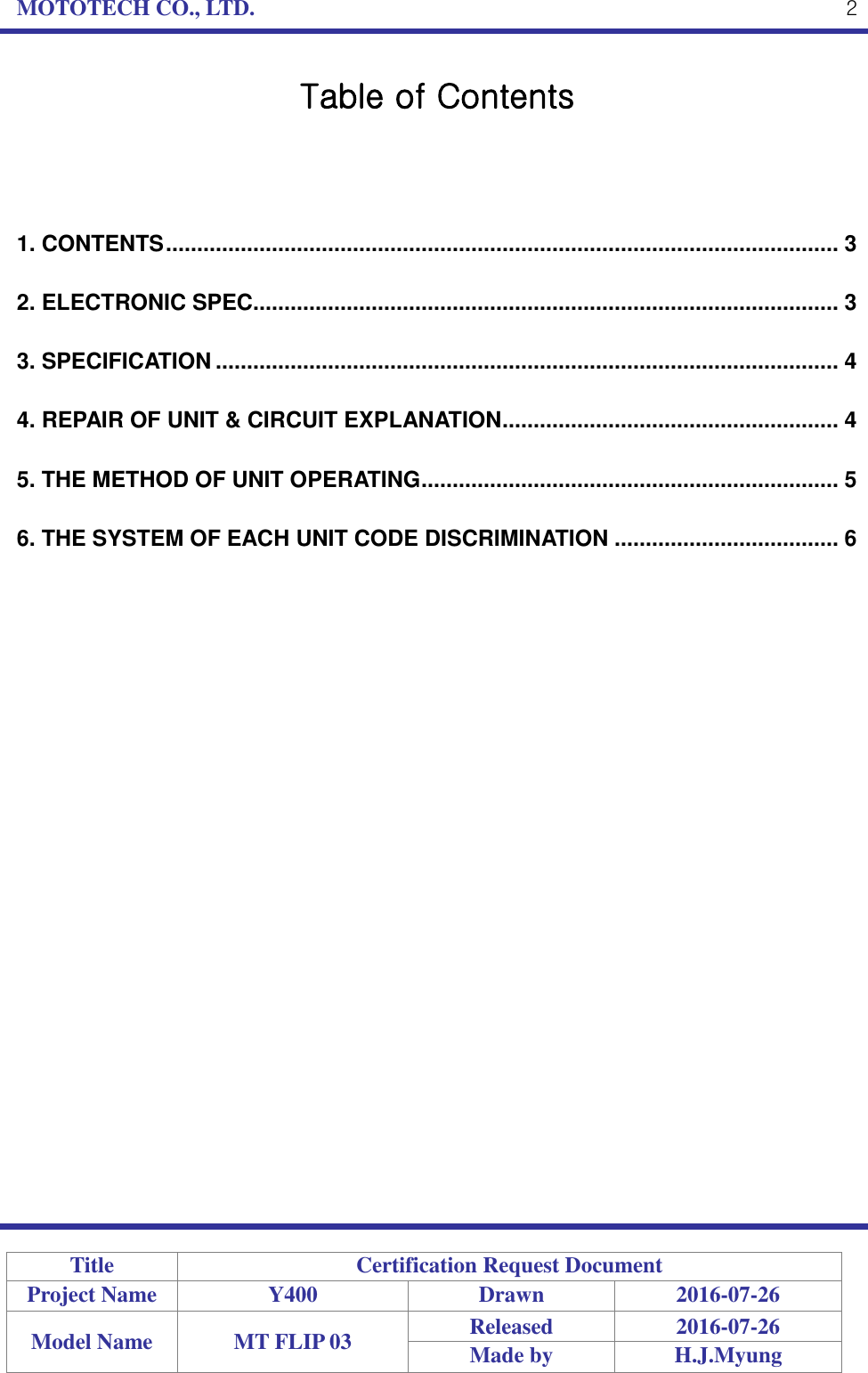

MOTOTECH CO., LTD. Title Certification Request Document Project Name Y400 Drawn 2016-07-26 Model Name MT FLIP 03 Released 2016-07-26 Made by H.J.Myung 2 Table of Contents 1. CONTENTS ............................................................................................................ 3 2. ELECTRONIC SPEC.............................................................................................. 3 3. SPECIFICATION .................................................................................................... 4 4. REPAIR OF UNIT & CIRCUIT EXPLANATION ...................................................... 4 5. THE METHOD OF UNIT OPERATING ................................................................... 5 6. THE SYSTEM OF EACH UNIT CODE DISCRIMINATION .................................... 6

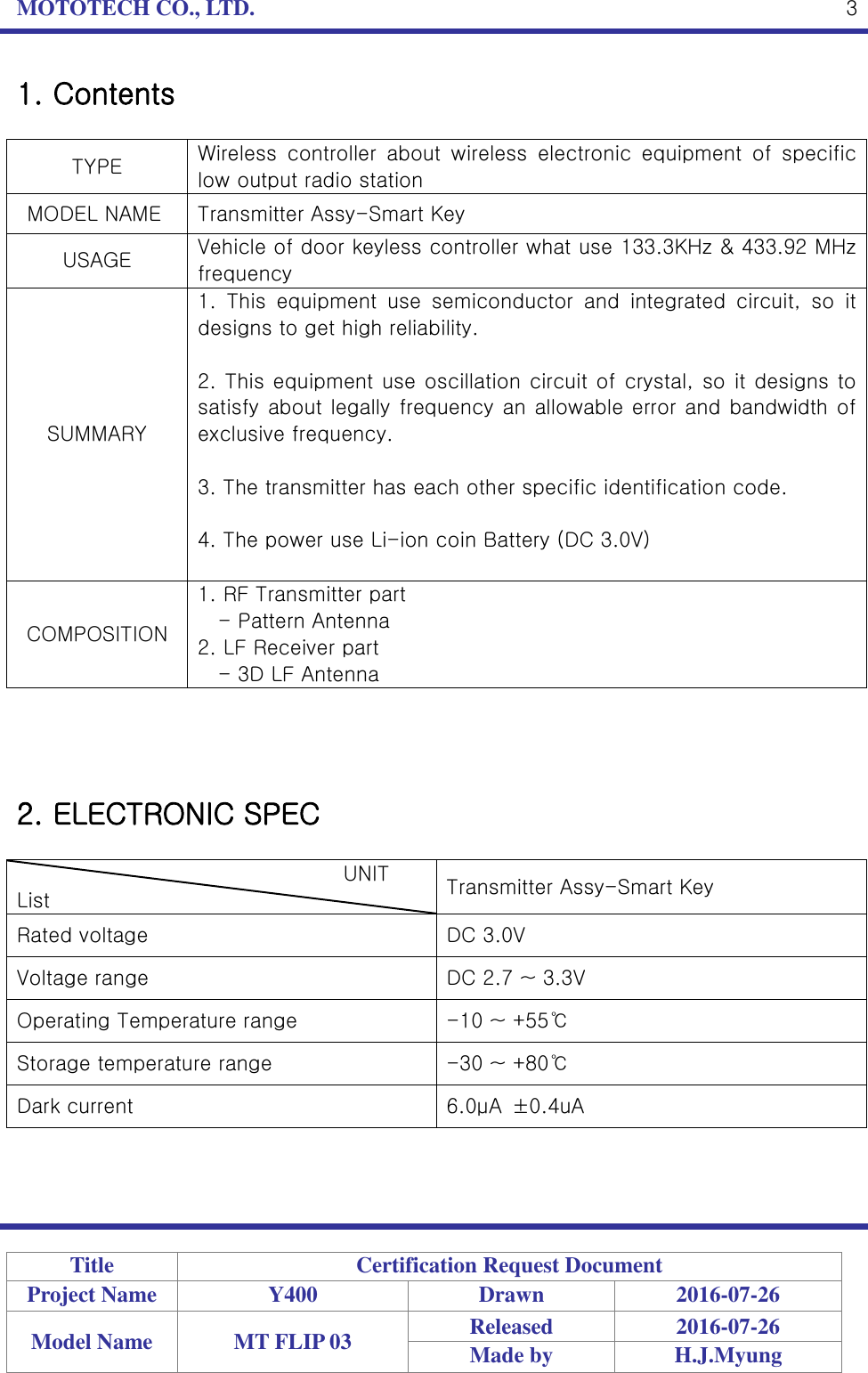

MOTOTECH CO., LTD. Title Certification Request Document Project Name Y400 Drawn 2016-07-26 Model Name MT FLIP 03 Released 2016-07-26 Made by H.J.Myung 3 1. Contents TYPE Wireless controller about wireless electronic equipment of specific low output radio station MODEL NAME Transmitter Assy-Smart Key USAGE Vehicle of door keyless controller what use 133.3KHz & 433.92 MHz frequency SUMMARY 1. This equipment use semiconductor and integrated circuit, so it designs to get high reliability. 2. This equipment use oscillation circuit of crystal, so it designs to satisfy about legally frequency an allowable error and bandwidth of exclusive frequency. 3. The transmitter has each other specific identification code. 4. The power use Li-ion coin Battery (DC 3.0V) COMPOSITION 1. RF Transmitter part - Pattern Antenna 2. LF Receiver part - 3D LF Antenna 2. ELECTRONIC SPEC UNIT List Transmitter Assy-Smart Key Rated voltage DC 3.0V Voltage range DC 2.7 ~ 3.3V Operating Temperature range -10 ~ +55℃ Storage temperature range -30 ~ +80℃ Dark current 6.0μA ±0.4uA

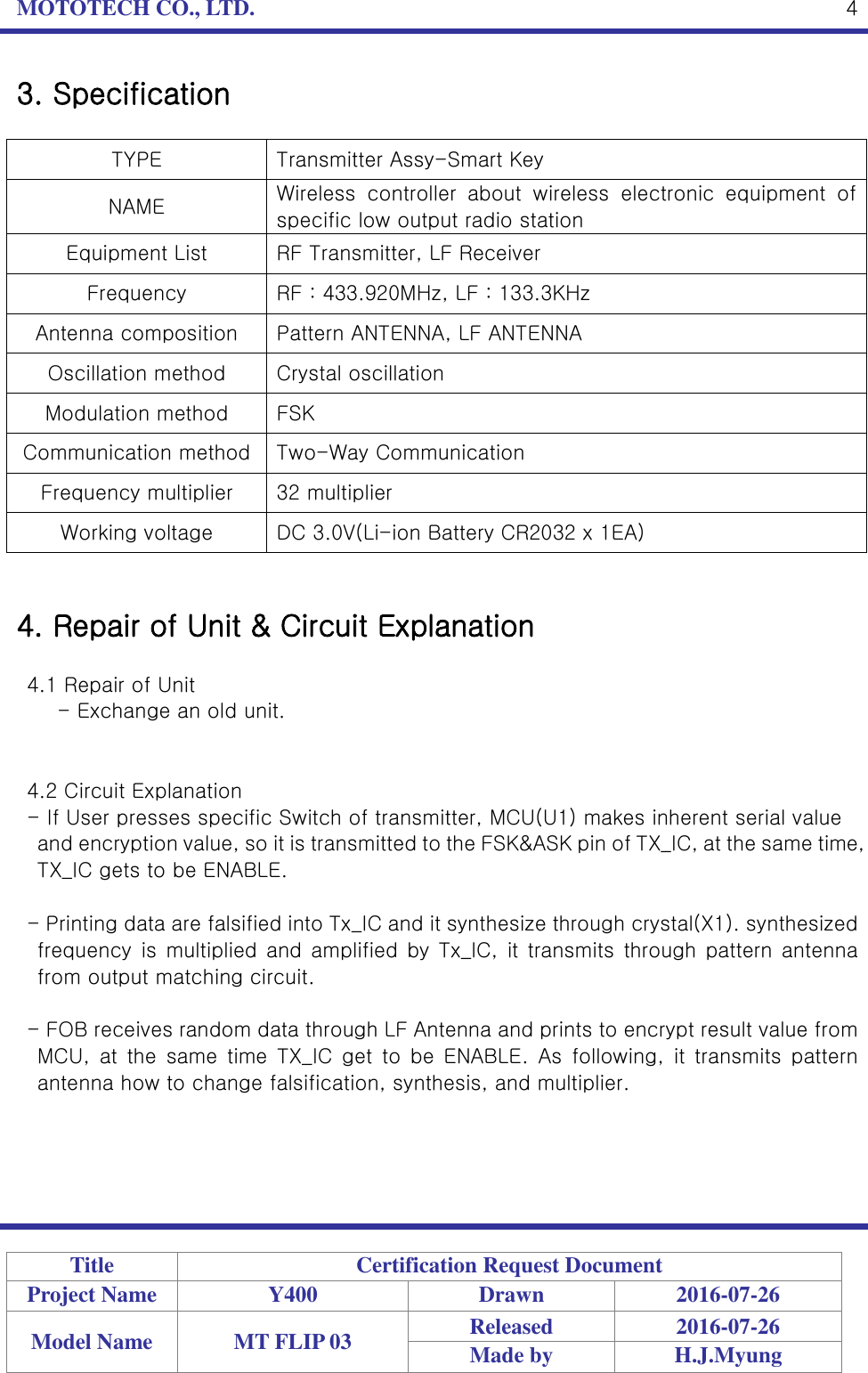

MOTOTECH CO., LTD. Title Certification Request Document Project Name Y400 Drawn 2016-07-26 Model Name MT FLIP 03 Released 2016-07-26 Made by H.J.Myung 4 3. Specification TYPE Transmitter Assy-Smart Key NAME Wireless controller about wireless electronic equipment of specific low output radio station Equipment List RF Transmitter, LF Receiver Frequency RF : 433.920MHz, LF : 133.3KHz Antenna composition Pattern ANTENNA, LF ANTENNA Oscillation method Crystal oscillation Modulation method FSK Communication method Two-Way Communication Frequency multiplier 32 multiplier Working voltage DC 3.0V(Li-ion Battery CR2032 x 1EA) 4. Repair of Unit & Circuit Explanation 4.1 Repair of Unit - Exchange an old unit. 4.2 Circuit Explanation - If User presses specific Switch of transmitter, MCU(U1) makes inherent serial value and encryption value, so it is transmitted to the FSK&ASK pin of TX_IC, at the same time, TX_IC gets to be ENABLE. - Printing data are falsified into Tx_IC and it synthesize through crystal(X1). synthesized frequency is multiplied and amplified by Tx_IC, it transmits through pattern antenna from output matching circuit. - FOB receives random data through LF Antenna and prints to encrypt result value from MCU, at the same time TX_IC get to be ENABLE. As following, it transmits pattern antenna how to change falsification, synthesis, and multiplier.

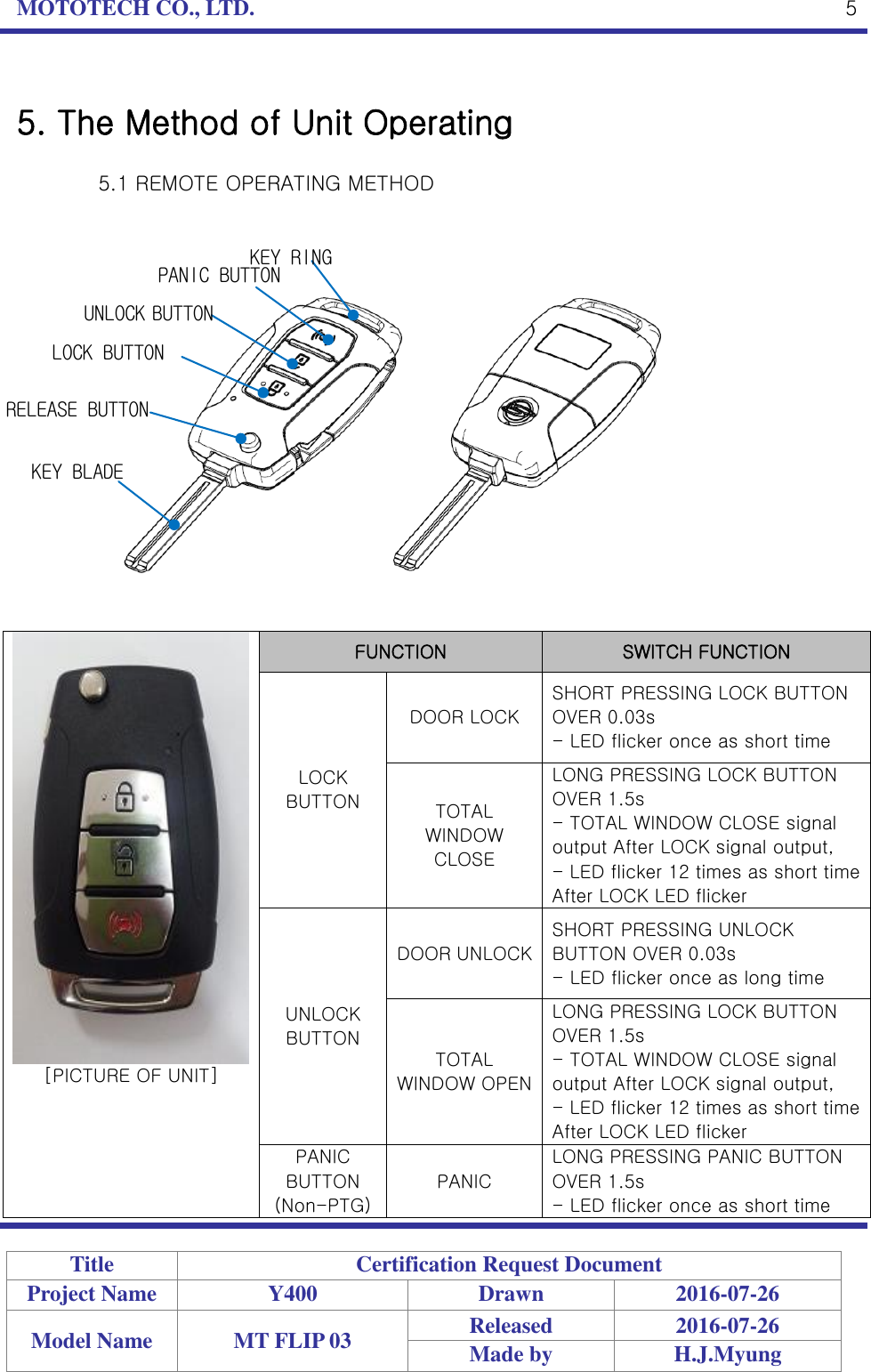

MOTOTECH CO., LTD. Title Certification Request Document Project Name Y400 Drawn 2016-07-26 Model Name MT FLIP 03 Released 2016-07-26 Made by H.J.Myung 5 5. The Method of Unit Operating 5.1 REMOTE OPERATING METHOD [PICTURE OF UNIT] FUNCTION SWITCH FUNCTION LOCK BUTTON DOOR LOCK SHORT PRESSING LOCK BUTTON OVER 0.03s - LED flicker once as short time TOTAL WINDOW CLOSE LONG PRESSING LOCK BUTTON OVER 1.5s - TOTAL WINDOW CLOSE signal output After LOCK signal output, - LED flicker 12 times as short time After LOCK LED flicker UNLOCK BUTTON DOOR UNLOCK SHORT PRESSING UNLOCK BUTTON OVER 0.03s - LED flicker once as long time TOTAL WINDOW OPEN LONG PRESSING LOCK BUTTON OVER 1.5s - TOTAL WINDOW CLOSE signal output After LOCK signal output, - LED flicker 12 times as short time After LOCK LED flicker PANIC BUTTON (Non-PTG) PANIC LONG PRESSING PANIC BUTTON OVER 1.5s - LED flicker once as short time RELEASE BUTTON LOCK BUTTON UNLOCK BUTTON PANIC BUTTON KEY RING KEY BLADE

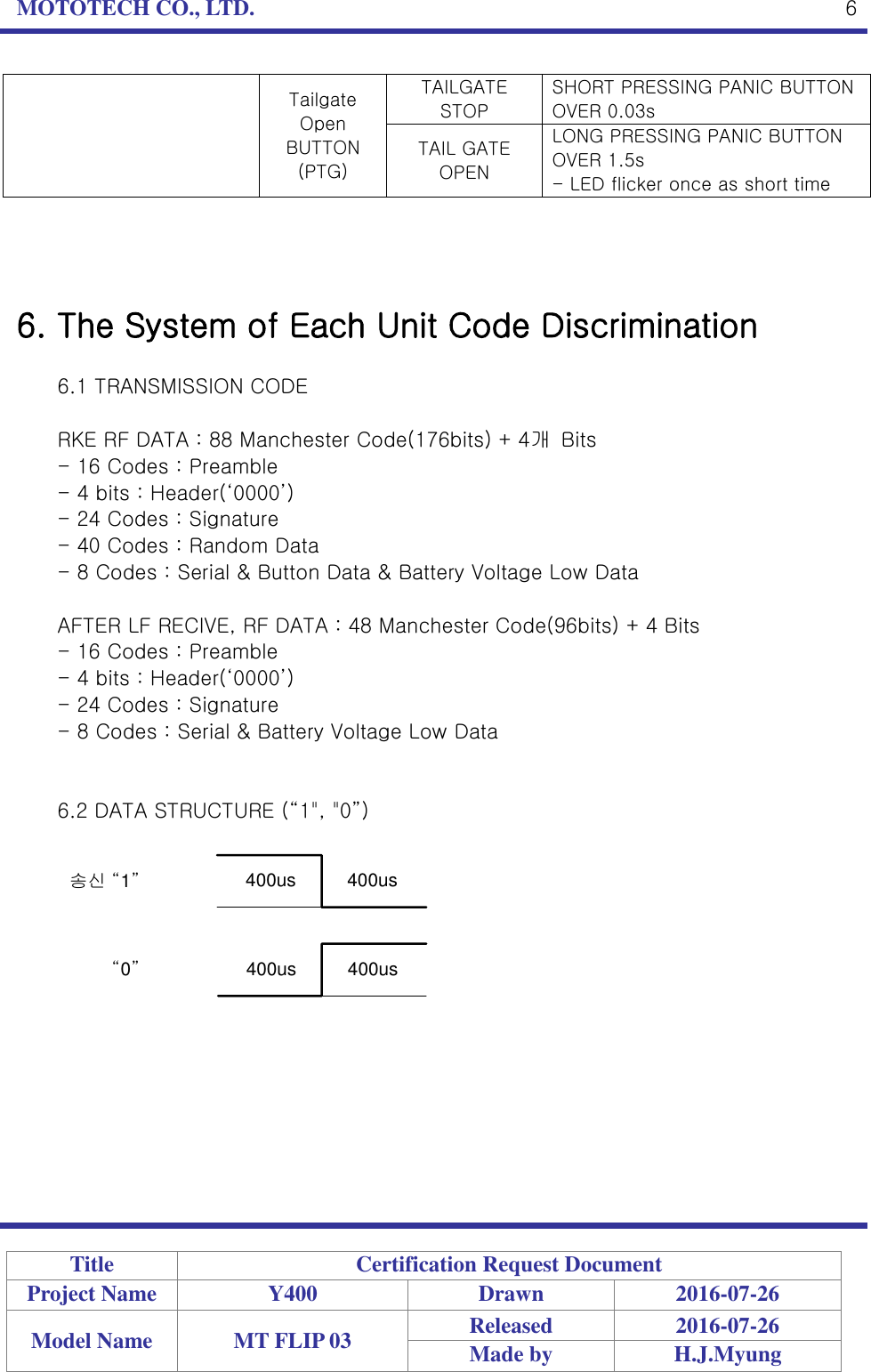

MOTOTECH CO., LTD. Title Certification Request Document Project Name Y400 Drawn 2016-07-26 Model Name MT FLIP 03 Released 2016-07-26 Made by H.J.Myung 6 Tailgate Open BUTTON (PTG) TAILGATE STOP SHORT PRESSING PANIC BUTTON OVER 0.03s TAIL GATE OPEN LONG PRESSING PANIC BUTTON OVER 1.5s - LED flicker once as short time 6. The System of Each Unit Code Discrimination 6.1 TRANSMISSION CODE RKE RF DATA : 88 Manchester Code(176bits) + 4개 Bits - 16 Codes : Preamble - 4 bits : Header(‘0000’) - 24 Codes : Signature - 40 Codes : Random Data - 8 Codes : Serial & Button Data & Battery Voltage Low Data AFTER LF RECIVE, RF DATA : 48 Manchester Code(96bits) + 4 Bits - 16 Codes : Preamble - 4 bits : Header(‘0000’) - 24 Codes : Signature - 8 Codes : Serial & Battery Voltage Low Data 6.2 DATA STRUCTURE (“1", "0”) 송신 “1”“0”400us 400us400us 400us

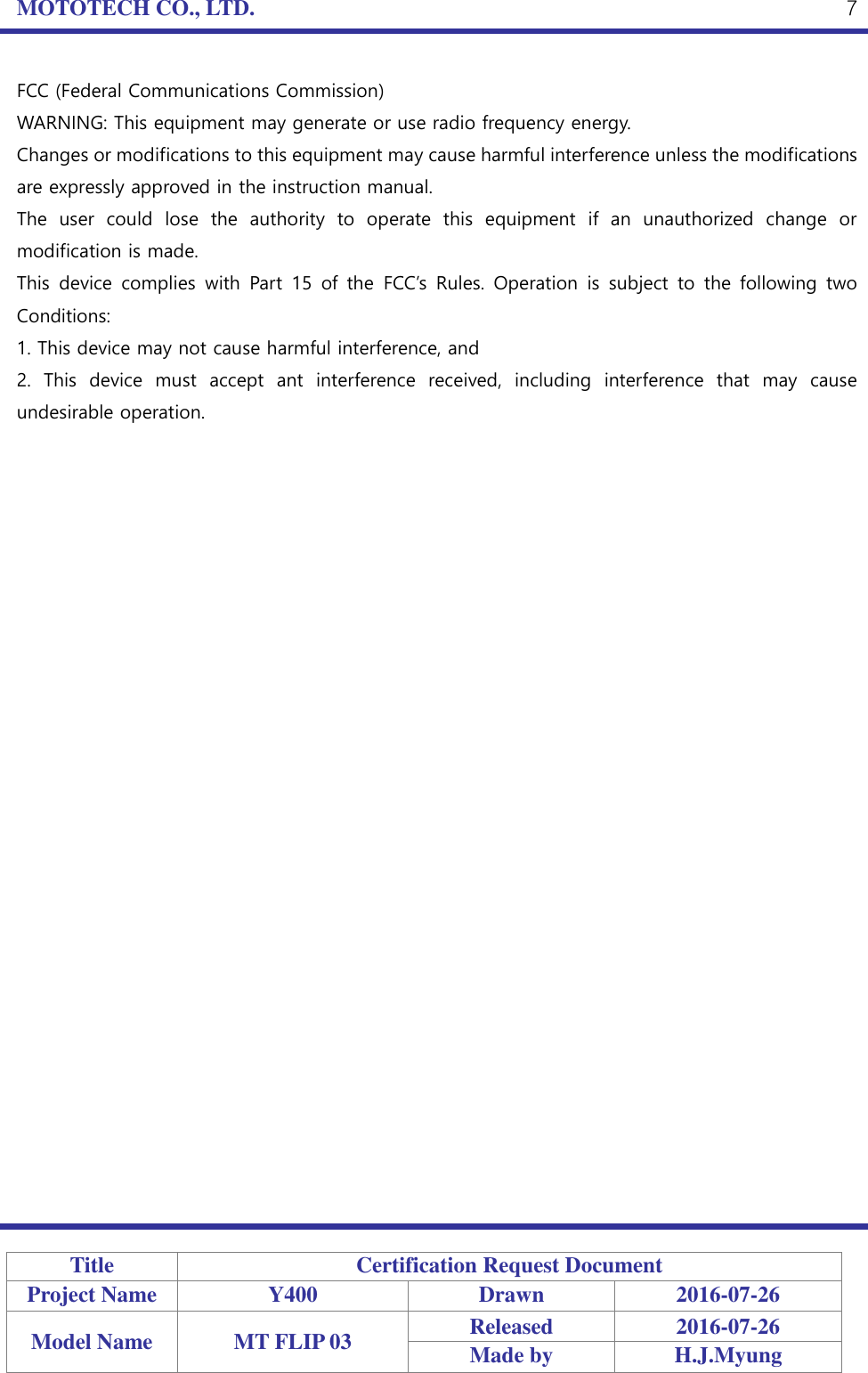

MOTOTECH CO., LTD. Title Certification Request Document Project Name Y400 Drawn 2016-07-26 Model Name MT FLIP 03 Released 2016-07-26 Made by H.J.Myung 7 FCC (Federal Communications Commission) WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device complies with Part 15 of the FCC’s Rules. Operation is subject to the following two Conditions: 1. This device may not cause harmful interference, and 2. This device must accept ant interference received, including interference that may cause undesirable operation.
