MOTOTECH Co., Ltd. Transmitter Assy - Folding Key

User Manual

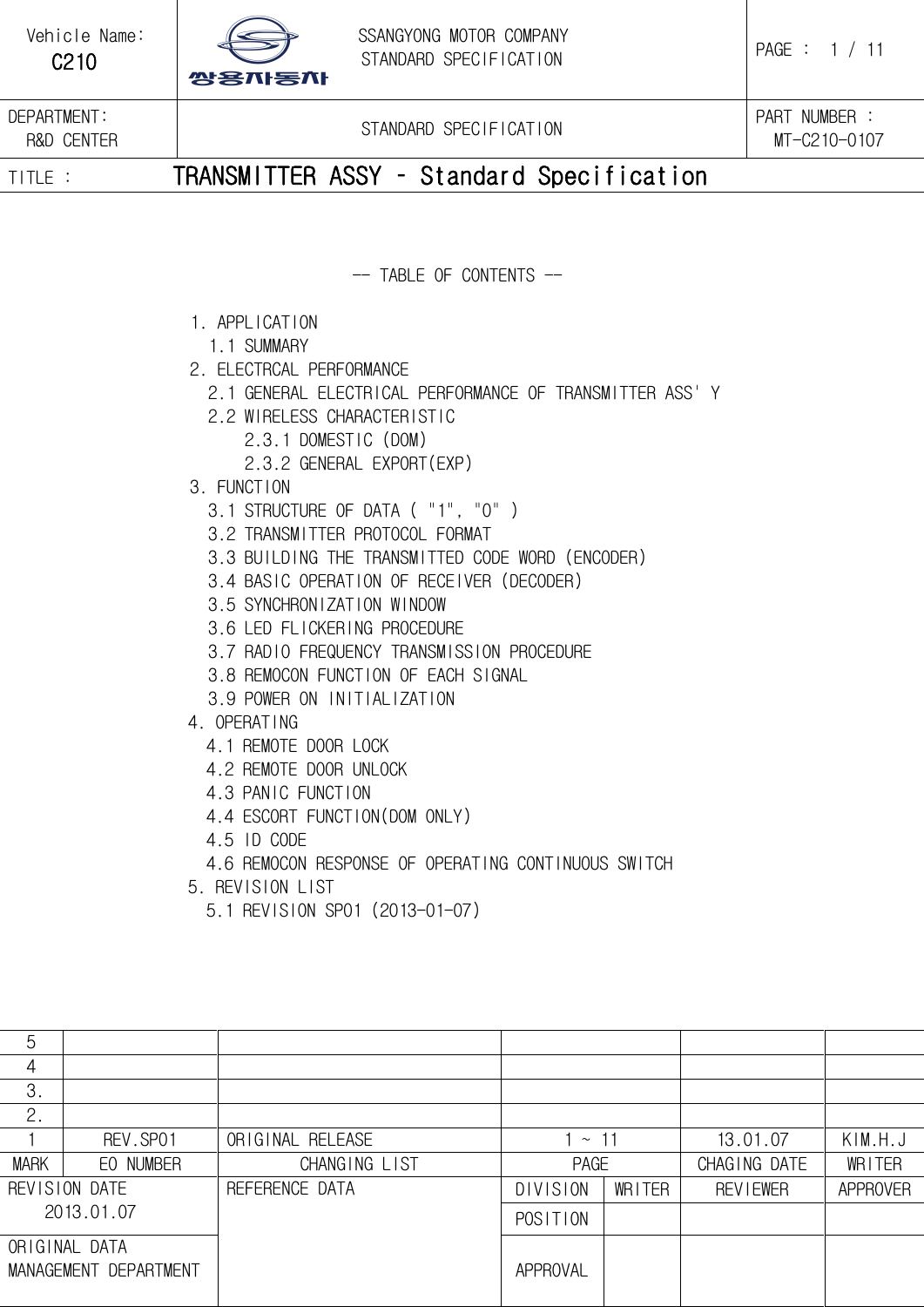

C210   DEPARTMENT: R&D CENTER STANDARD SPECIFICATION PART NUMBER : MT-C210-0107 TITLE : TRANSMITTER ASSY – Standard Specification -- TABLE OF CONTENTS -- 1. APPLICATION 1.1 SUMMARY 2. ELECTRCAL PERFORMANCE 2.1 GENERAL ELECTRICAL PERFORMANCE OF TRANSMITTER ASS' Y 2.2 WIRELESS CHARACTERISTIC 2.3.1 DOMESTIC (DOM) 2.3.2 GENERAL EXPORT(EXP) 3. FUNCTION 3.1 STRUCTURE OF DATA ( "1", "0" ) 3.2 TRANSMITTER PROTOCOL FORMAT 3.3 BUILDING THE TRANSMITTED CODE WORD (ENCODER) 3.4 BASIC OPERATION OF RECEIVER (DECODER) 3.5 SYNCHRONIZATION WINDOW 3.6 LED FLICKERING PROCEDURE 3.7 RADIO FREQUENCY TRANSMISSION PROCEDURE 3.8 REMOCON FUNCTION OF EACH SIGNAL 3.9 POWER ON INITIALIZATION 4. OPERATING 4.1 REMOTE DOOR LOCK 4.2 REMOTE DOOR UNLOCK 4.3 PANIC FUNCTION 4.4 ESCORT FUNCTION(DOM ONLY) 4.5 ID CODE 4.6 REMOCON RESPONSE OF OPERATING CONTINUOUS SWITCH 5. REVISION LIST 5.1 REVISION SP01 (2013-01-07) 5 4 3. 2. 1 REV.SP01 ORIGINAL RELEASE 1 ~ 11 13.01.07 KIM.H.J MARK EO NUMBER CHANGING LIST PAGE CHAGING DATE WRITER REVISION DATE 2013.01.07 REFERENCE DATA DIVISION WRITER REVIEWER APPROVER POSITION ORIGINAL DATA MANAGEMENT DEPARTMENT APPROVAL

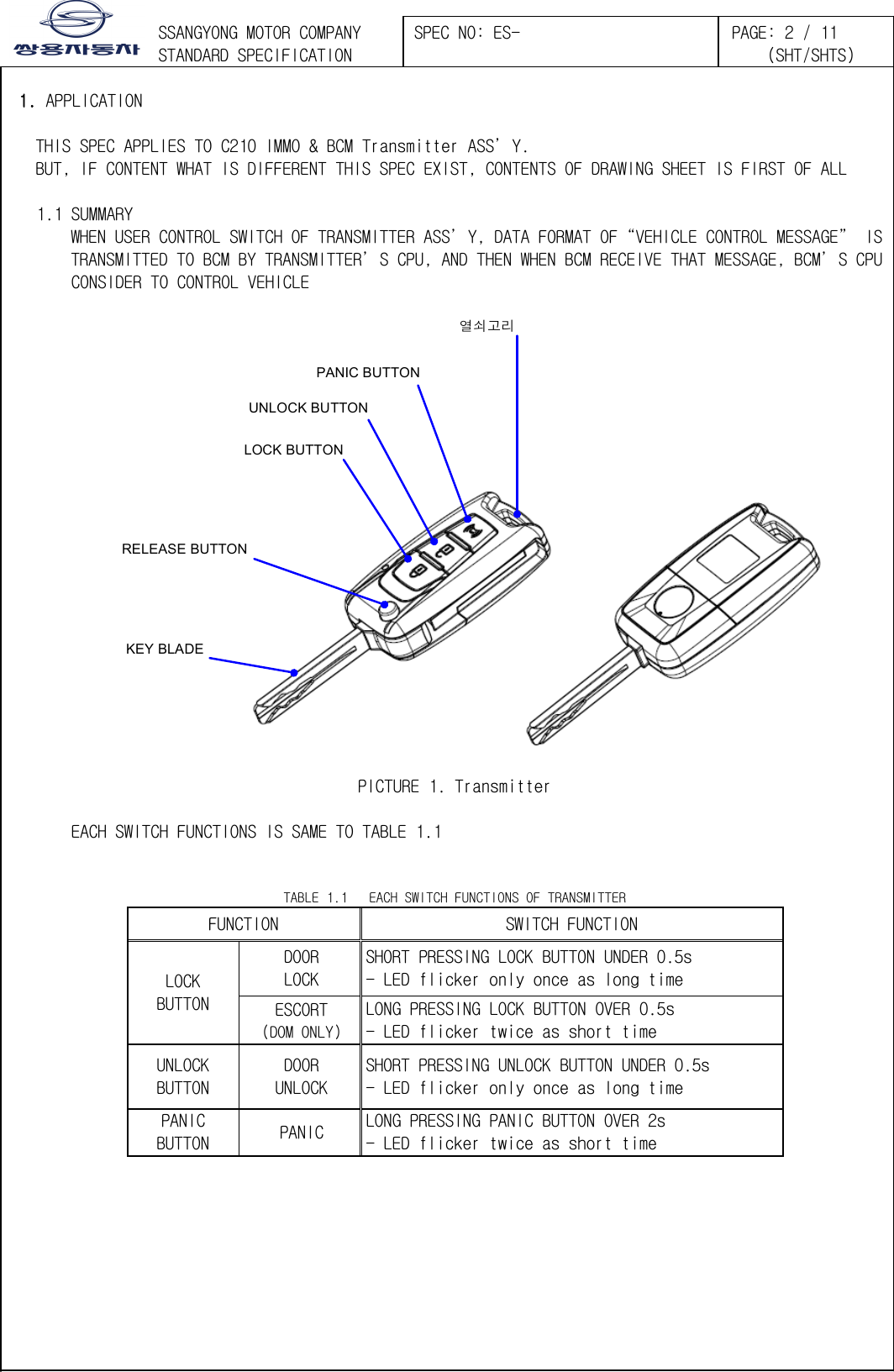

 1. APPLICATION THIS SPEC APPLIES TO C210 IMMO & BCM Transmitter ASS’Y. BUT, IF CONTENT WHAT IS DIFFERENT THIS SPEC EXIST, CONTENTS OF DRAWING SHEET IS FIRST OF ALL 1.1 SUMMARY WHEN USER CONTROL SWITCH OF TRANSMITTER ASS’Y, DATA FORMAT OF“VEHICLE CONTROL MESSAGE” IS TRANSMITTED TO BCM BY TRANSMITTER’S CPU, AND THEN WHEN BCM RECEIVE THAT MESSAGE, BCM’S CPU CONSIDER TO CONTROL VEHICLE LOCK BUTTONUNLOCK BUTTONPANIC BUTTONRELEASE BUTTONKEY BLADE열쇠고리  LOCK BUTTON DOOR LOCK SHORT PRESSING LOCK BUTTON UNDER 0.5s - LED flicker only once as long time ESCORT (DOM ONLY) LONG PRESSING LOCK BUTTON OVER 0.5s - LED flicker twice as short time UNLOCK BUTTON DOOR UNLOCK SHORT PRESSING UNLOCK BUTTON UNDER 0.5s - LED flicker only once as long time PANIC BUTTON PANIC LONG PRESSING PANIC BUTTON OVER 2s - LED flicker twice as short time

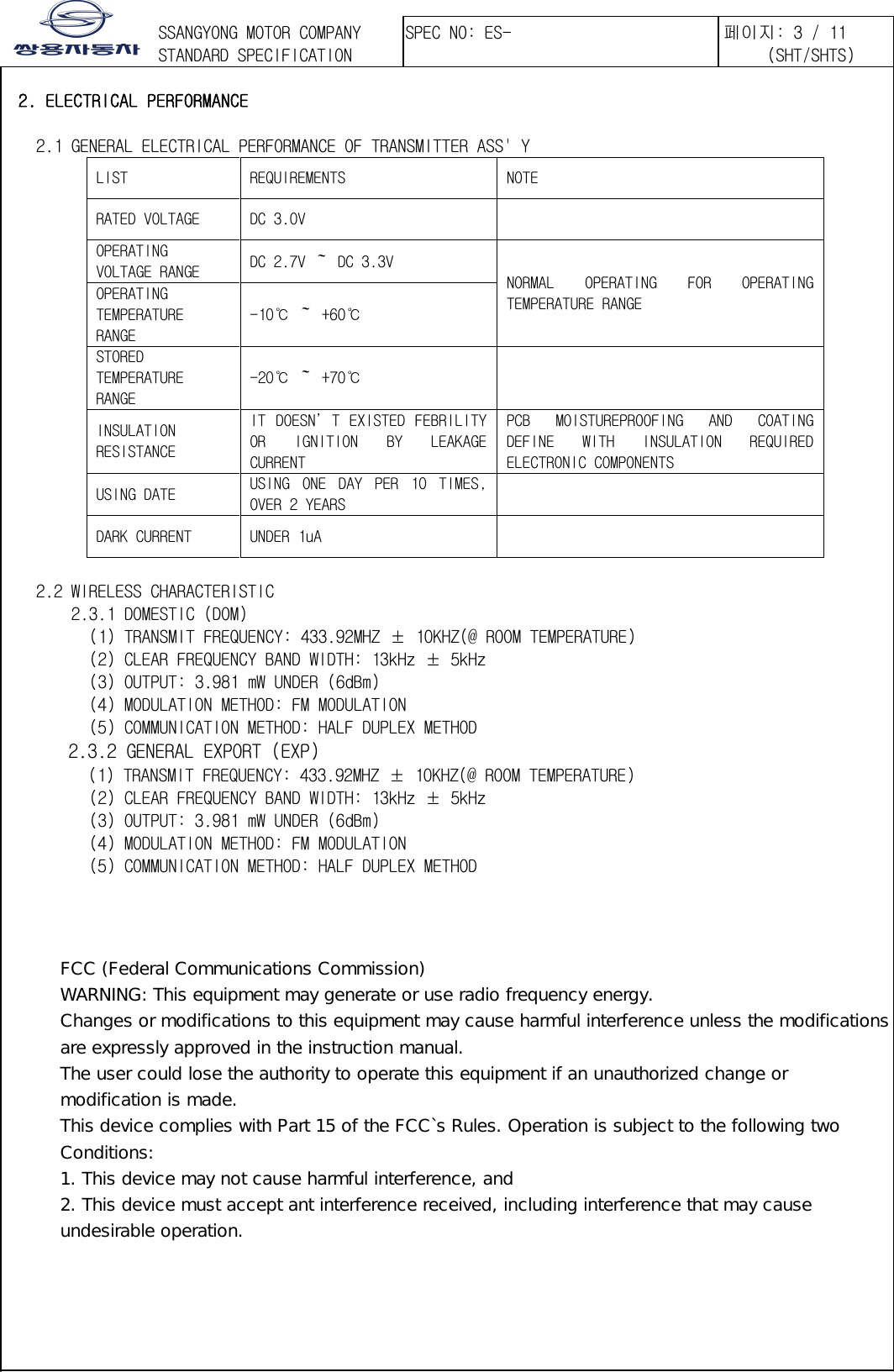

󲯍󱾩󲇵 2. ELECTRICAL PERFORMANCE 2.1 GENERAL ELECTRICAL PERFORMANCE OF TRANSMITTER ASS' Y LIST REQUIREMENTS NOTE RATED VOLTAGE DC 3.0V OPERATING VOLTAGE RANGE DC 2.7V ～ DC 3.3V NORMAL OPERATING FOR OPERATING TEMPERATURE RANGE OPERATING TEMPERATURE RANGE -10℃ ～ +60℃ STORED TEMPERATURE RANGE -20℃ ～ +70℃ INSULATION RESISTANCE IT DOESN’T EXISTED FEBRILITY OR IGNITION BY LEAKAGE CURRENT PCB MOISTUREPROOFING AND COATING DEFINE WITH INSULATION REQUIRED ELECTRONIC COMPONENTS USING DATE USING ONE DAY PER 10 TIMES, OVER 2 YEARS DARK CURRENT UNDER 1uA 2.2 WIRELESS CHARACTERISTIC 2.3.1 DOMESTIC (DOM) (1) TRANSMIT FREQUENCY: 433.92MHZ ± 10KHZ(@ ROOM TEMPERATURE) (2) CLEAR FREQUENCY BAND WIDTH: 13kHz ± 5kHz (3) OUTPUT: 3.981 mW UNDER (6dBm) (4) MODULATION METHOD: FM MODULATION (5) COMMUNICATION METHOD: HALF DUPLEX METHOD 2.3.2 GENERAL EXPORT (EXP) (1) TRANSMIT FREQUENCY: 433.92MHZ ± 10KHZ(@ ROOM TEMPERATURE) (2) CLEAR FREQUENCY BAND WIDTH: 13kHz ± 5kHz (3) OUTPUT: 3.981 mW UNDER (6dBm) (4) MODULATION METHOD: FM MODULATION (5) COMMUNICATION METHOD: HALF DUPLEX METHOD FCC (Federal Communications Commission) WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two Conditions: 1. This device may not cause harmful interference, and 2. This device must accept ant interference received, including interference that may cause undesirable operation.

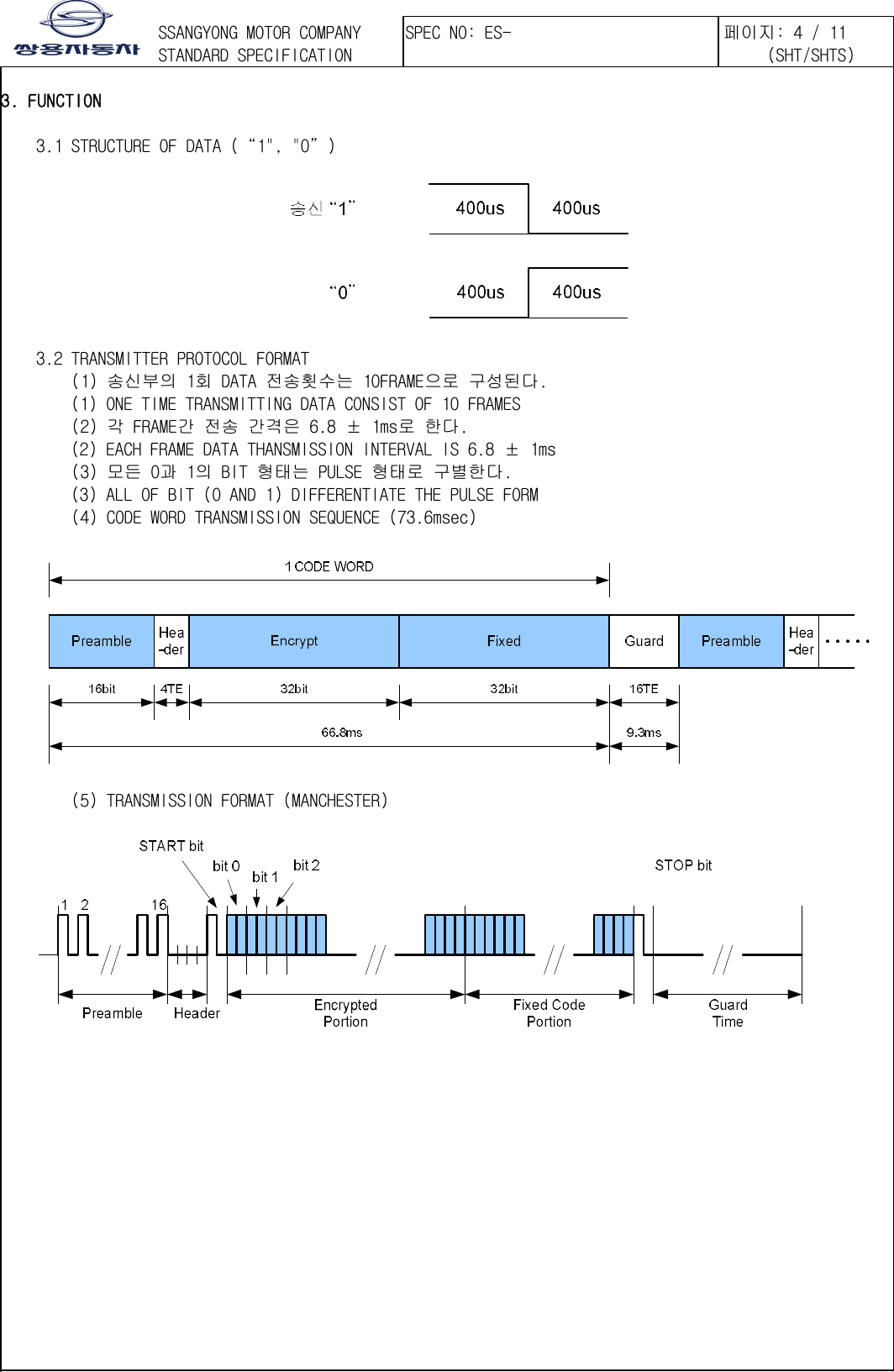

󲯍󱾩󲇵 3. FUNCTION 3.1 STRUCTURE OF DATA (“1", "0”) 3.2 TRANSMITTER PROTOCOL FORMAT (1) 송신부의 1회 DATA 전송횟수는 10FRAME으로 구성된다. (1) ONE TIME TRANSMITTING DATA CONSIST OF 10 FRAMES (2) 각 FRAME간 전송 간격은 6.8 ± 1ms로 한다. (2) EACH FRAME DATA THANSMISSION INTERVAL IS 6.8 ± 1ms (3) 모든 0과 1의 BIT 형태는 PULSE 형태로 구별한다. (3) ALL OF BIT (0 AND 1) DIFFERENTIATE THE PULSE FORM (4) CODE WORD TRANSMISSION SEQUENCE (73.6msec) (5) TRANSMISSION FORMAT (MANCHESTER)

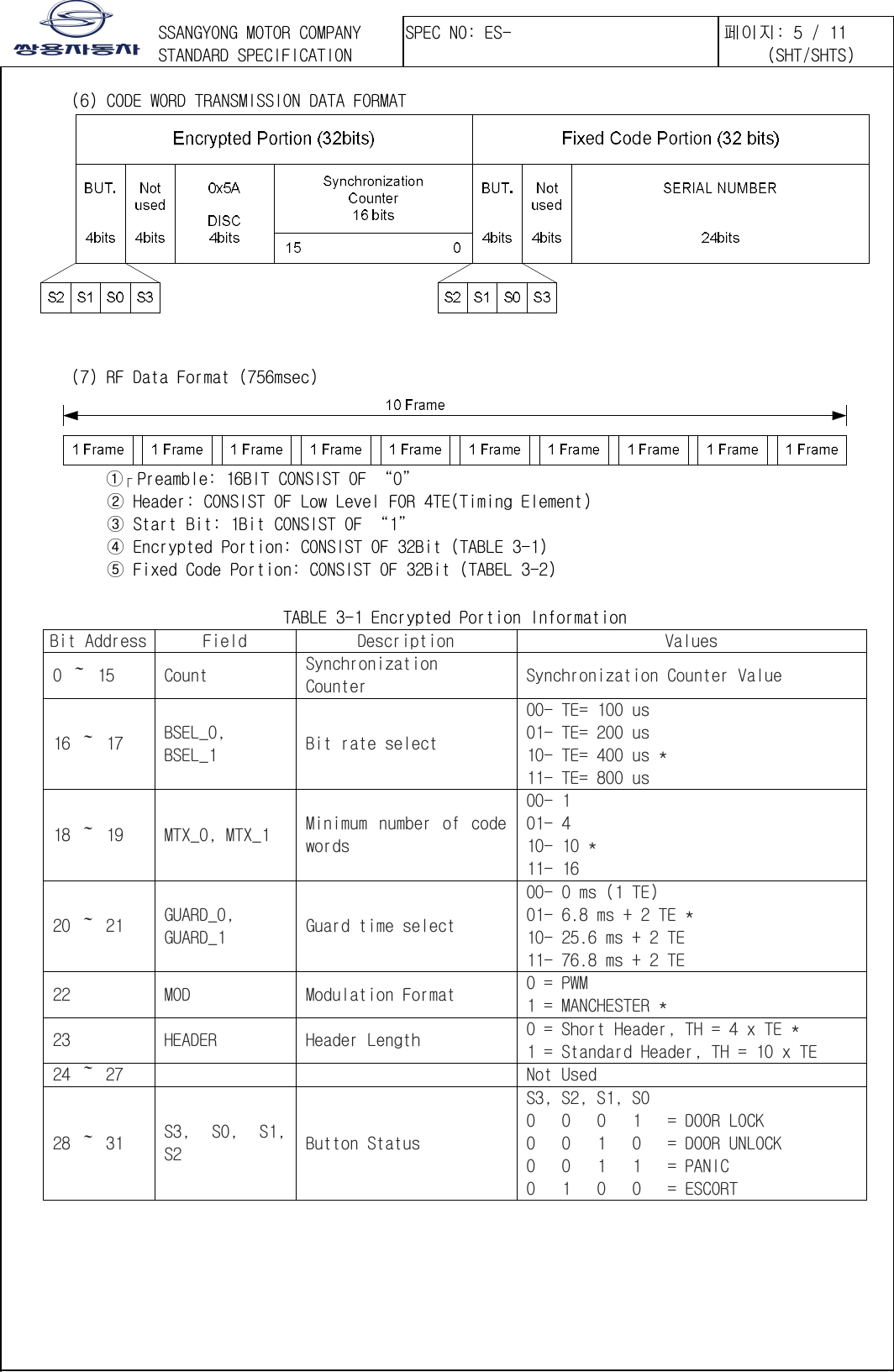

󲯍󱾩󲇵 (6) CODE WORD TRANSMISSION DATA FORMAT (7) RF Data Format (756msec) ① Preamble: 16BIT CONSIST OF “0” ② Header: CONSIST OF Low Level FOR 4TE(Timing Element) ③ Start Bit: 1Bit CONSIST OF “1” ④ Encrypted Portion: CONSIST OF 32Bit (TABLE 3-1) ⑤ Fixed Code Portion: CONSIST OF 32Bit (TABEL 3-2) TABLE 3-1 Encrypted Portion Information Bit Address Field Description Values 0 ～ 15 Count Synchronization Counter Synchronization Counter Value 16 ～ 17 BSEL_0, BSEL_1 Bit rate select 00- TE= 100 us 01- TE= 200 us 10- TE= 400 us * 11- TE= 800 us 18 ～ 19 MTX_0, MTX_1 Minimum number of code words 00- 1 01- 4 10- 10 * 11- 16 20 ～ 21 GUARD_0, GUARD_1 Guard time select 00- 0 ms (1 TE) 01- 6.8 ms + 2 TE * 10- 25.6 ms + 2 TE 11- 76.8 ms + 2 TE 22 MOD Modulation Format 0 = PWM 1 = MANCHESTER * 23 HEADER Header Length 0 = Short Header, TH = 4 x TE * 1 = Standard Header, TH = 10 x TE 24 ～ 27 Not Used 28 ～ 31 S3, S0, S1, S2 Button Status S3, S2, S1, S0 0 0 0 1 = DOOR LOCK 0 0 1 0 = DOOR UNLOCK 0 0 1 1 = PANIC 0 1 0 0 = ESCORT

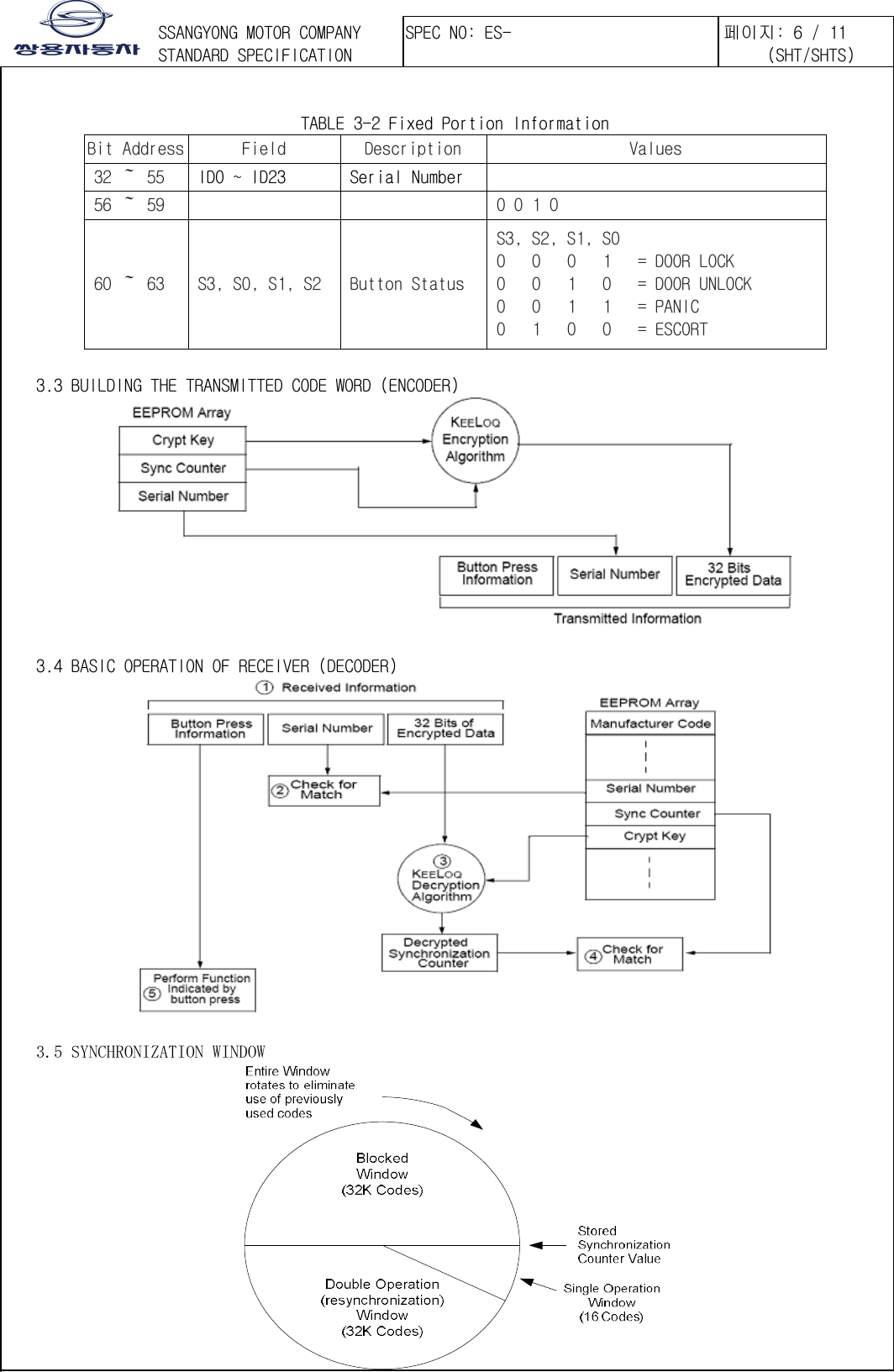

󲯍󱾩󲇵 TABLE 3-2 Fixed Portion Information Bit Address Field Description Values 32 ～ 55 ID0 ~ ID23 Serial Number 56 ～ 59 0 0 1 0 60 ～ 63 S3, S0, S1, S2 Button Status S3, S2, S1, S0 0 0 0 1 = DOOR LOCK 0 0 1 0 = DOOR UNLOCK 0 0 1 1 = PANIC 0 1 0 0 = ESCORT 3.3 BUILDING THE TRANSMITTED CODE WORD (ENCODER) 3.4 BASIC OPERATION OF RECEIVER (DECODER) 3.5 SYNCHRONIZATION WINDOW 

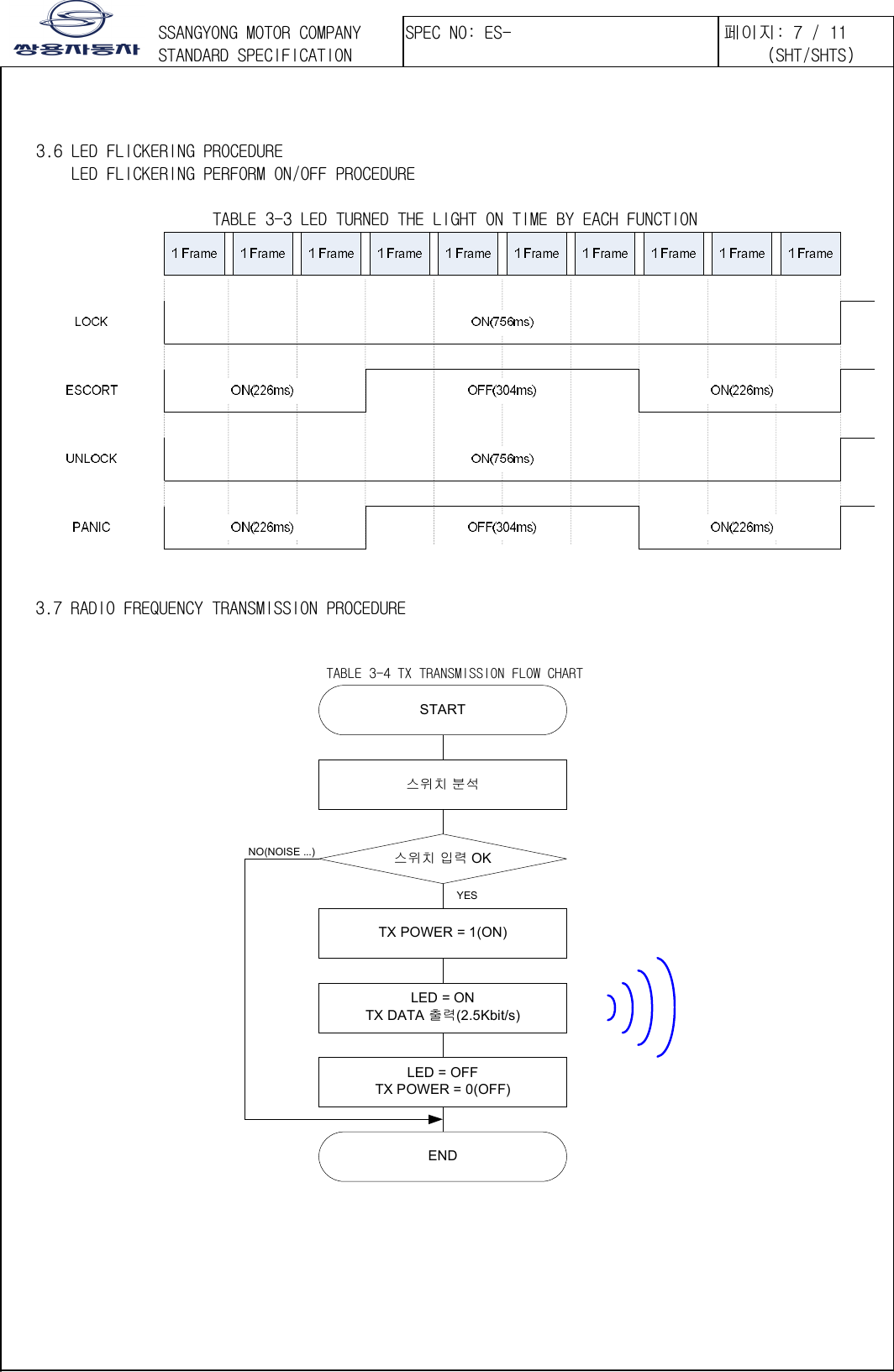

󲯍󱾩󲇵 3.6 LED FLICKERING PROCEDURE LED FLICKERING PERFORM ON/OFF PROCEDURE TABLE 3-3 LED TURNED THE LIGHT ON TIME BY EACH FUNCTION 3.7 RADIO FREQUENCY TRANSMISSION PROCEDURE TABLE 3-4 TX TRANSMISSION FLOW CHART START󱫙󱼹󲚍 󱖹󱥒󱫙󱼹󲚍 󱾺󱁚 OKTX POWER = 1(ON)LED = ONTX DATA 󲗑󱁚(2.5Kbit/s)LED = OFFTX POWER = 0(OFF)ENDNO(NOISE ...)YES

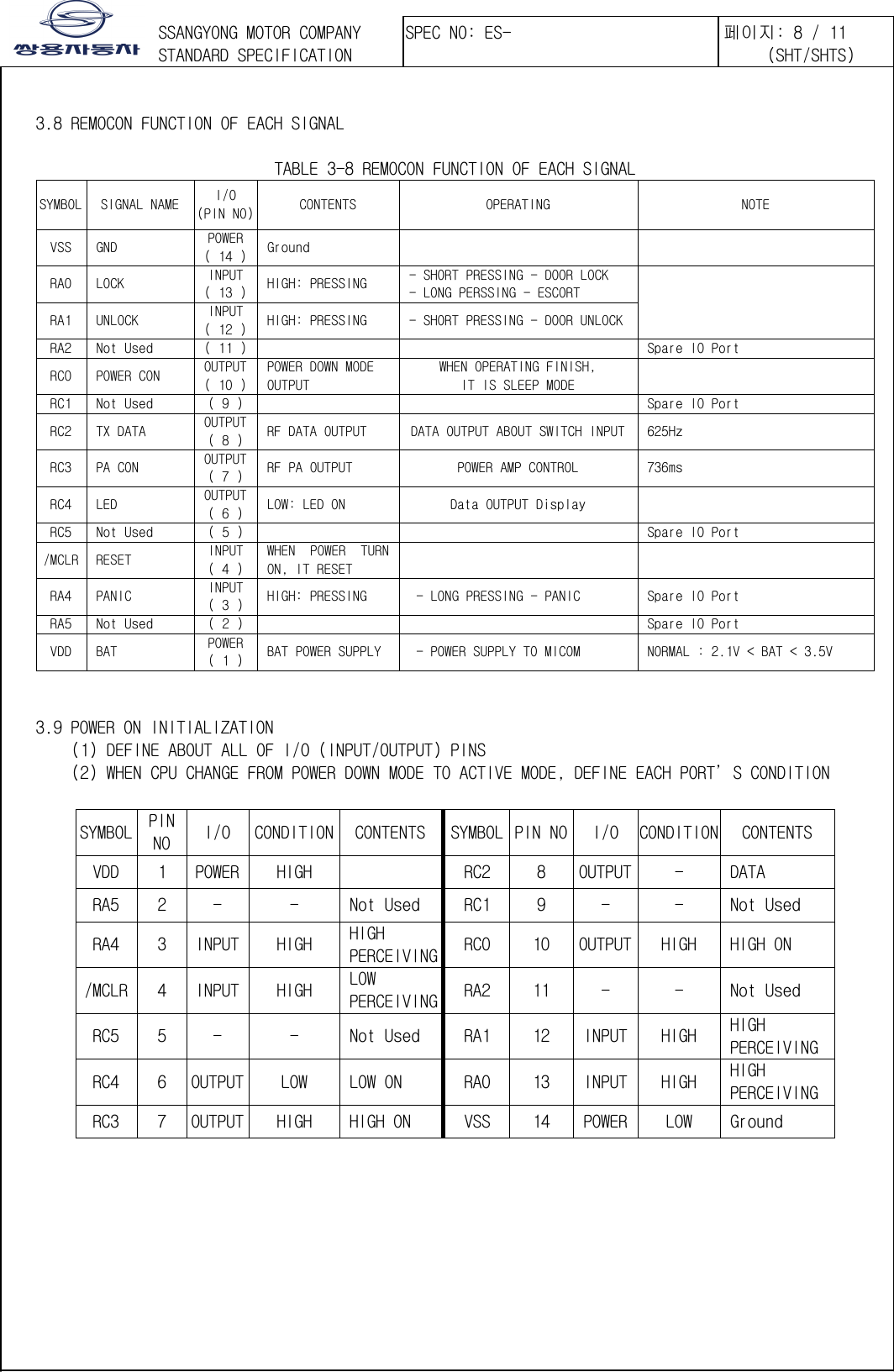

󲯍󱾩󲇵 3.8 REMOCON FUNCTION OF EACH SIGNAL TABLE 3-8 REMOCON FUNCTION OF EACH SIGNAL SYMBOL SIGNAL NAME I/O (PIN NO) CONTENTS OPERATING NOTE VSS GND POWER ( 14 ) Ground RA0 LOCK INPUT ( 13 ) HIGH: PRESSING - SHORT PRESSING - DOOR LOCK - LONG PERSSING - ESCORT RA1 UNLOCK INPUT ( 12 ) HIGH: PRESSING - SHORT PRESSING - DOOR UNLOCK RA2 Not Used ( 11 ) Spare IO Port RC0 POWER CON OUTPUT ( 10 ) POWER DOWN MODE OUTPUT WHEN OPERATING FINISH, IT IS SLEEP MODE RC1 Not Used ( 9 ) Spare IO Port RC2 TX DATA OUTPUT ( 8 ) RF DATA OUTPUT DATA OUTPUT ABOUT SWITCH INPUT 625Hz RC3 PA CON OUTPUT ( 7 ) RF PA OUTPUT POWER AMP CONTROL 736ms RC4 LED OUTPUT ( 6 ) LOW: LED ON Data OUTPUT Display RC5 Not Used ( 5 ) Spare IO Port /MCLR RESET INPUT ( 4 ) WHEN POWER TURN ON, IT RESET RA4 PANIC INPUT ( 3 ) HIGH: PRESSING - LONG PRESSING - PANIC Spare IO Port RA5 Not Used ( 2 ) Spare IO Port VDD BAT POWER ( 1 ) BAT POWER SUPPLY - POWER SUPPLY TO MICOM NORMAL : 2.1V < BAT < 3.5V 3.9 POWER ON INITIALIZATION (1) DEFINE ABOUT ALL OF I/O (INPUT/OUTPUT) PINS (2) WHEN CPU CHANGE FROM POWER DOWN MODE TO ACTIVE MODE, DEFINE EACH PORT’S CONDITION SYMBOL PIN NO I/O CONDITION CONTENTS SYMBOL PIN NO I/O CONDITION CONTENTS VDD 1 POWER HIGH RC2 8 OUTPUT - DATA RA5 2 - - Not Used RC1 9 - - Not Used RA4 3 INPUT HIGH HIGH PERCEIVING RC0 10 OUTPUT HIGH HIGH ON /MCLR 4 INPUT HIGH LOW PERCEIVING RA2 11 - - Not Used RC5 5 - - Not Used RA1 12 INPUT HIGH HIGH PERCEIVING RC4 6 OUTPUT LOW LOW ON RA0 13 INPUT HIGH HIGH PERCEIVING RC3 7 OUTPUT HIGH HIGH ON VSS 14 POWER LOW Ground

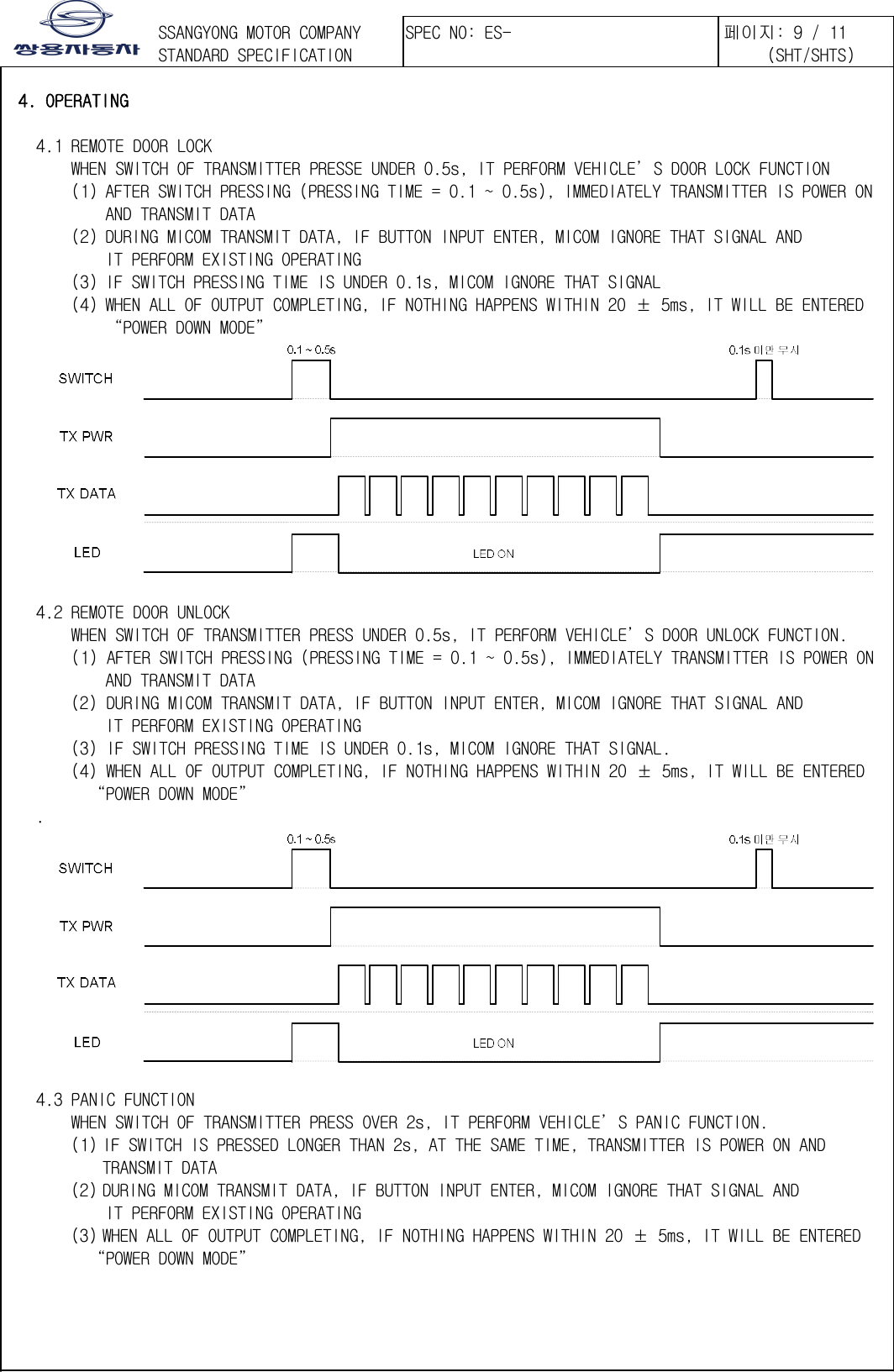

󲯍󱾩󲇵 4. OPERATING 4.1 REMOTE DOOR LOCK WHEN SWITCH OF TRANSMITTER PRESSE UNDER 0.5s, IT PERFORM VEHICLE’S DOOR LOCK FUNCTION (1) AFTER SWITCH PRESSING (PRESSING TIME = 0.1 ~ 0.5s), IMMEDIATELY TRANSMITTER IS POWER ON AND TRANSMIT DATA (2) DURING MICOM TRANSMIT DATA, IF BUTTON INPUT ENTER, MICOM IGNORE THAT SIGNAL AND IT PERFORM EXISTING OPERATING (3) IF SWITCH PRESSING TIME IS UNDER 0.1s, MICOM IGNORE THAT SIGNAL (4) WHEN ALL OF OUTPUT COMPLETING, IF NOTHING HAPPENS WITHIN 20 ± 5ms, IT WILL BE ENTERED “POWER DOWN MODE” 4.2 REMOTE DOOR UNLOCK WHEN SWITCH OF TRANSMITTER PRESS UNDER 0.5s, IT PERFORM VEHICLE’S DOOR UNLOCK FUNCTION. (1) AFTER SWITCH PRESSING (PRESSING TIME = 0.1 ~ 0.5s), IMMEDIATELY TRANSMITTER IS POWER ON AND TRANSMIT DATA (2) DURING MICOM TRANSMIT DATA, IF BUTTON INPUT ENTER, MICOM IGNORE THAT SIGNAL AND IT PERFORM EXISTING OPERATING (3) IF SWITCH PRESSING TIME IS UNDER 0.1s, MICOM IGNORE THAT SIGNAL. (4) WHEN ALL OF OUTPUT COMPLETING, IF NOTHING HAPPENS WITHIN 20 ± 5ms, IT WILL BE ENTERED “POWER DOWN MODE” . 4.3 PANIC FUNCTION WHEN SWITCH OF TRANSMITTER PRESS OVER 2s, IT PERFORM VEHICLE’S PANIC FUNCTION. (1) IF SWITCH IS PRESSED LONGER THAN 2s, AT THE SAME TIME, TRANSMITTER IS POWER ON AND TRANSMIT DATA (2) DURING MICOM TRANSMIT DATA, IF BUTTON INPUT ENTER, MICOM IGNORE THAT SIGNAL AND IT PERFORM EXISTING OPERATING (3) WHEN ALL OF OUTPUT COMPLETING, IF NOTHING HAPPENS WITHIN 20 ± 5ms, IT WILL BE ENTERED “POWER DOWN MODE”

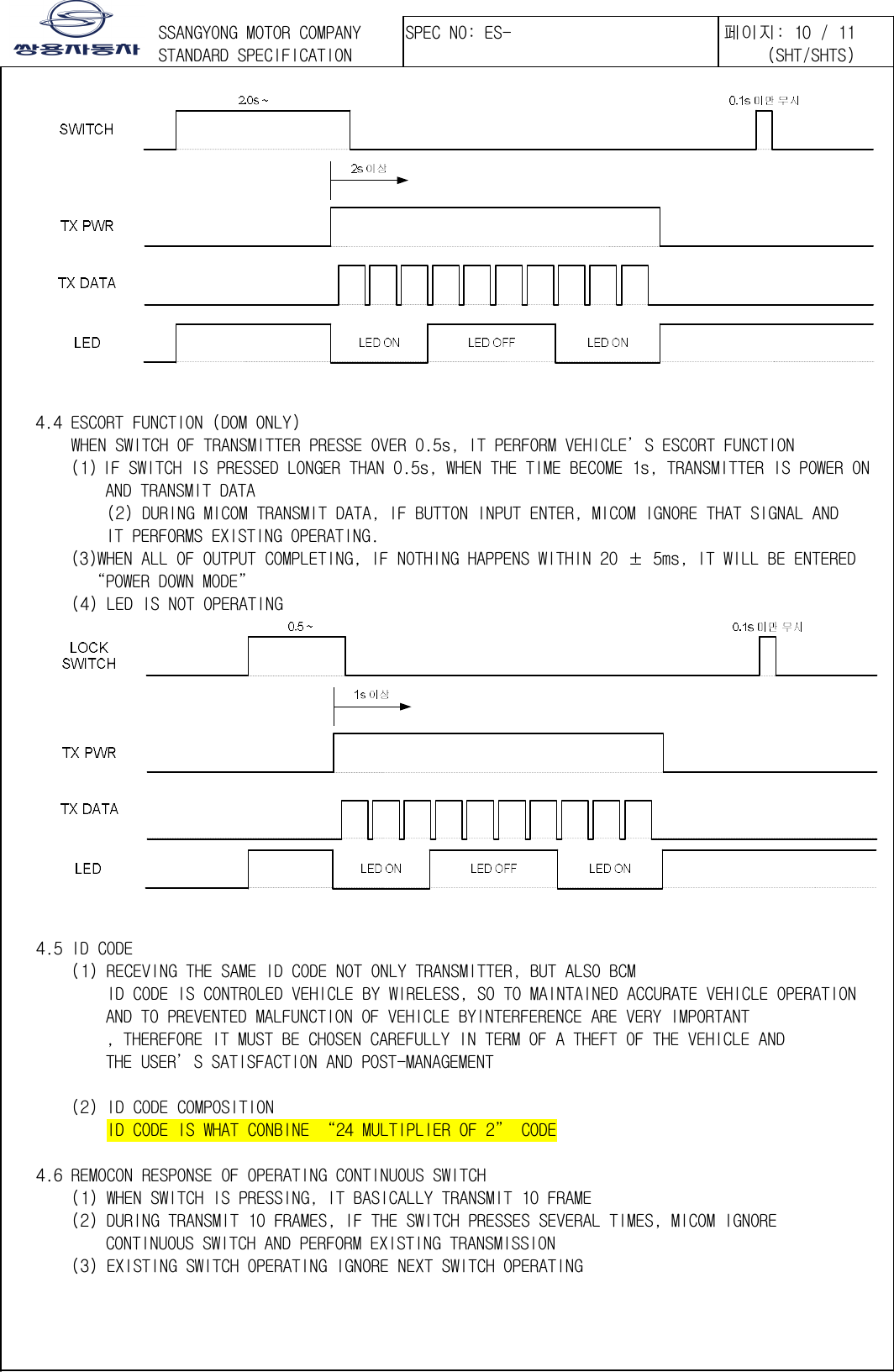

󲯍󱾩󲇵 4.4 ESCORT FUNCTION (DOM ONLY) WHEN SWITCH OF TRANSMITTER PRESSE OVER 0.5s, IT PERFORM VEHICLE’S ESCORT FUNCTION (1) IF SWITCH IS PRESSED LONGER THAN 0.5s, WHEN THE TIME BECOME 1s, TRANSMITTER IS POWER ON AND TRANSMIT DATA (2) DURING MICOM TRANSMIT DATA, IF BUTTON INPUT ENTER, MICOM IGNORE THAT SIGNAL AND IT PERFORMS EXISTING OPERATING. (3)WHEN ALL OF OUTPUT COMPLETING, IF NOTHING HAPPENS WITHIN 20 ± 5ms, IT WILL BE ENTERED “POWER DOWN MODE” (4) LED IS NOT OPERATING 4.5 ID CODE (1) RECEVING THE SAME ID CODE NOT ONLY TRANSMITTER, BUT ALSO BCM ID CODE IS CONTROLED VEHICLE BY WIRELESS, SO TO MAINTAINED ACCURATE VEHICLE OPERATION AND TO PREVENTED MALFUNCTION OF VEHICLE BYINTERFERENCE ARE VERY IMPORTANT , THEREFORE IT MUST BE CHOSEN CAREFULLY IN TERM OF A THEFT OF THE VEHICLE AND THE USER’S SATISFACTION AND POST-MANAGEMENT (2) ID CODE COMPOSITION ID CODE IS WHAT CONBINE “24 MULTIPLIER OF 2” CODE 4.6 REMOCON RESPONSE OF OPERATING CONTINUOUS SWITCH (1) WHEN SWITCH IS PRESSING, IT BASICALLY TRANSMIT 10 FRAME (2) DURING TRANSMIT 10 FRAMES, IF THE SWITCH PRESSES SEVERAL TIMES, MICOM IGNORE CONTINUOUS SWITCH AND PERFORM EXISTING TRANSMISSION (3) EXISTING SWITCH OPERATING IGNORE NEXT SWITCH OPERATING

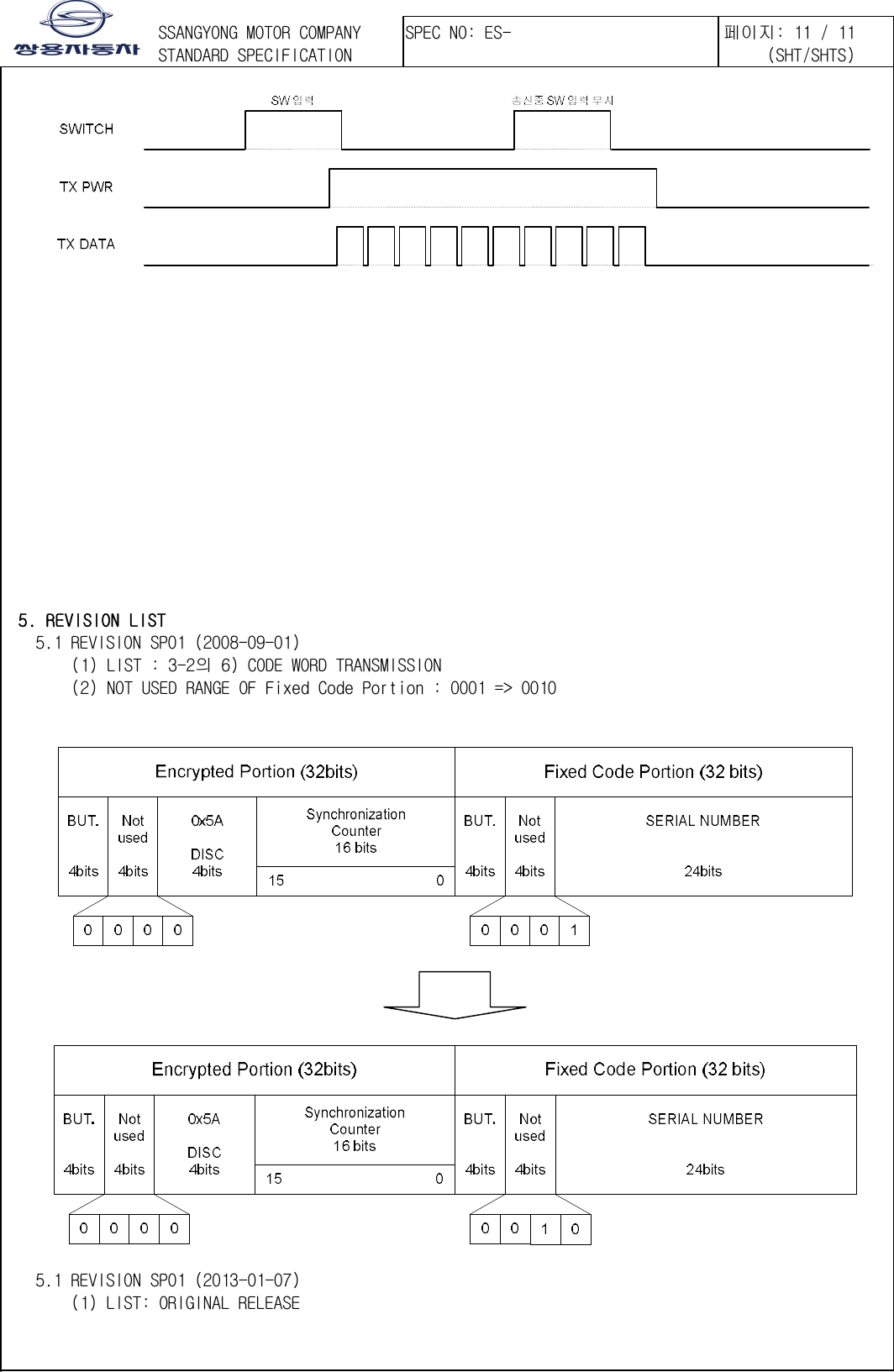

󲯍󱾩󲇵 5. REVISION LIST   󱾍     
