MOTOTECH MT-IMMO-02 Unit Assy - Immobilizer User Manual

MOTOTECH Co., Ltd. Unit Assy - Immobilizer

User Manual

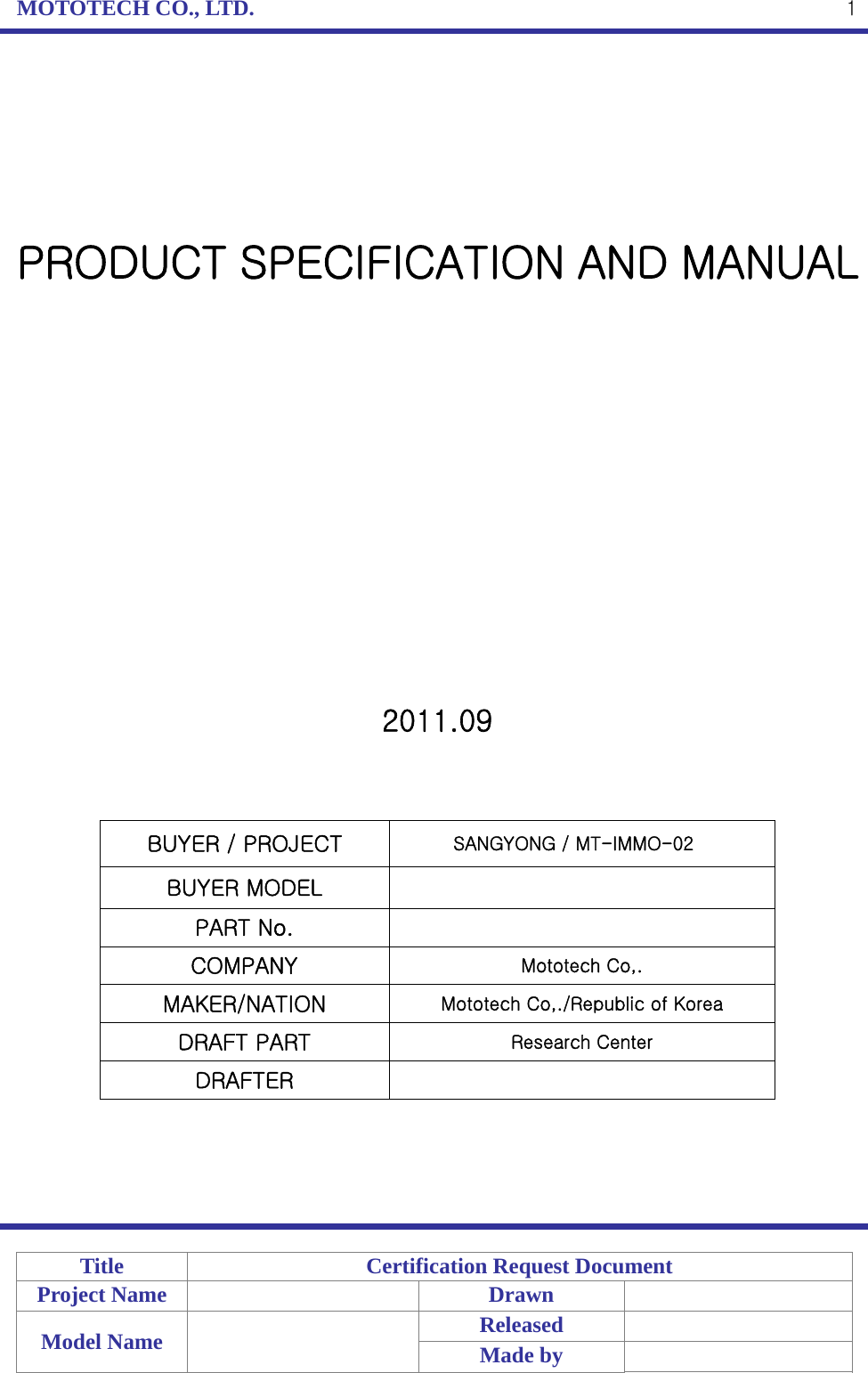

MOTOTECH CO., LTD.   Title  Certification Request Document Project Name    Drawn   Model Name    Released  Made by    1      PRODUCT SPECIFICATION AND MANUAL                2011.09    BUYER / PROJECT                SANGYONG / MT-IMMO-02BUYER MODEL   PART No.   COMPANY  Mototech Co,. MAKER/NATION  Mototech Co,./Republic of Korea DRAFT PART  Research Center DRAFTER

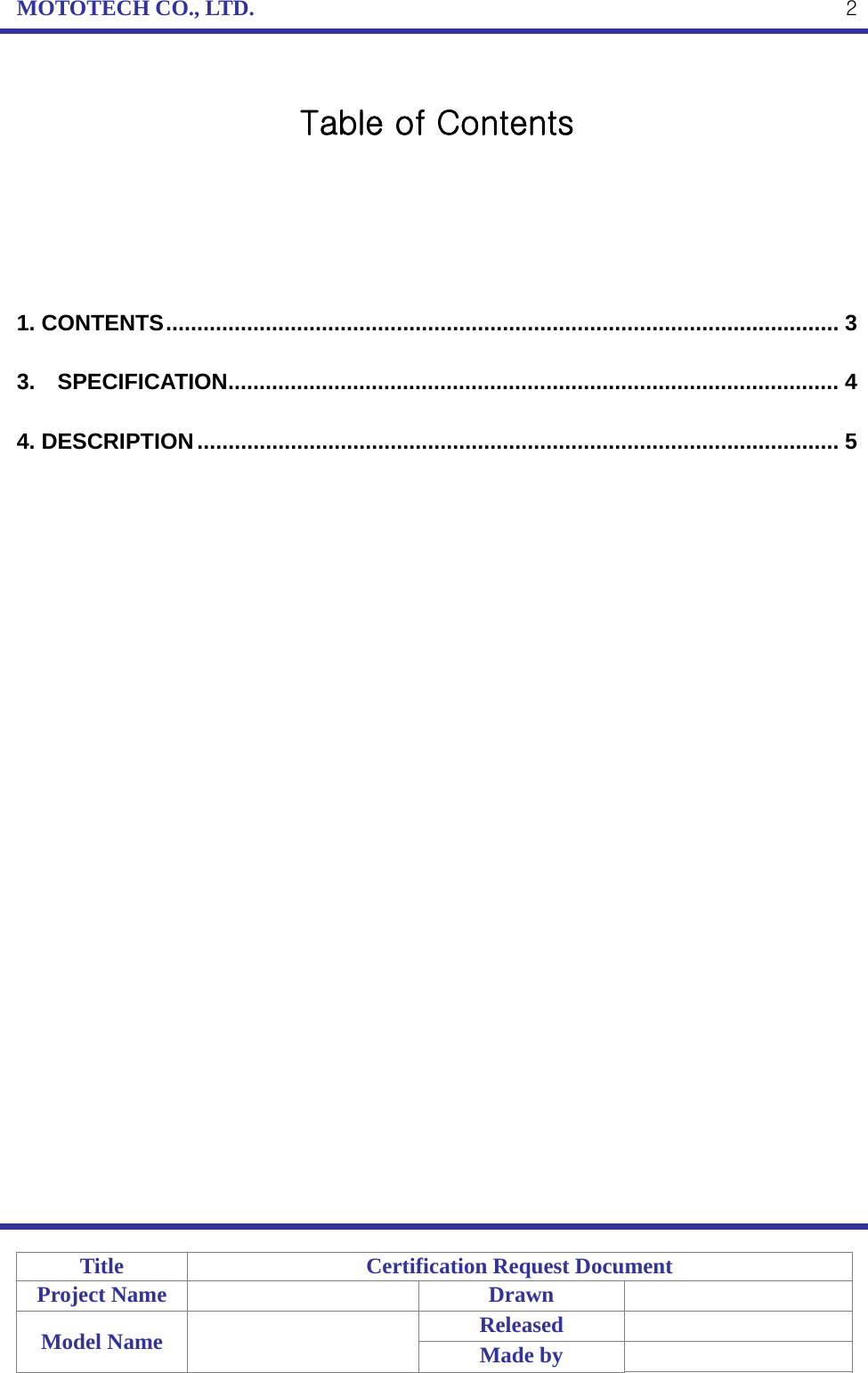

MOTOTECH CO., LTD.   Title  Certification Request Document Project Name    Drawn   Model Name    Released  Made by    2 Table of Contents      1. CONTENTS ............................................................................................................  3 3. SPECIFICATION .................................................................................................. 4 4. DESCRIPTION .......................................................................................................  5

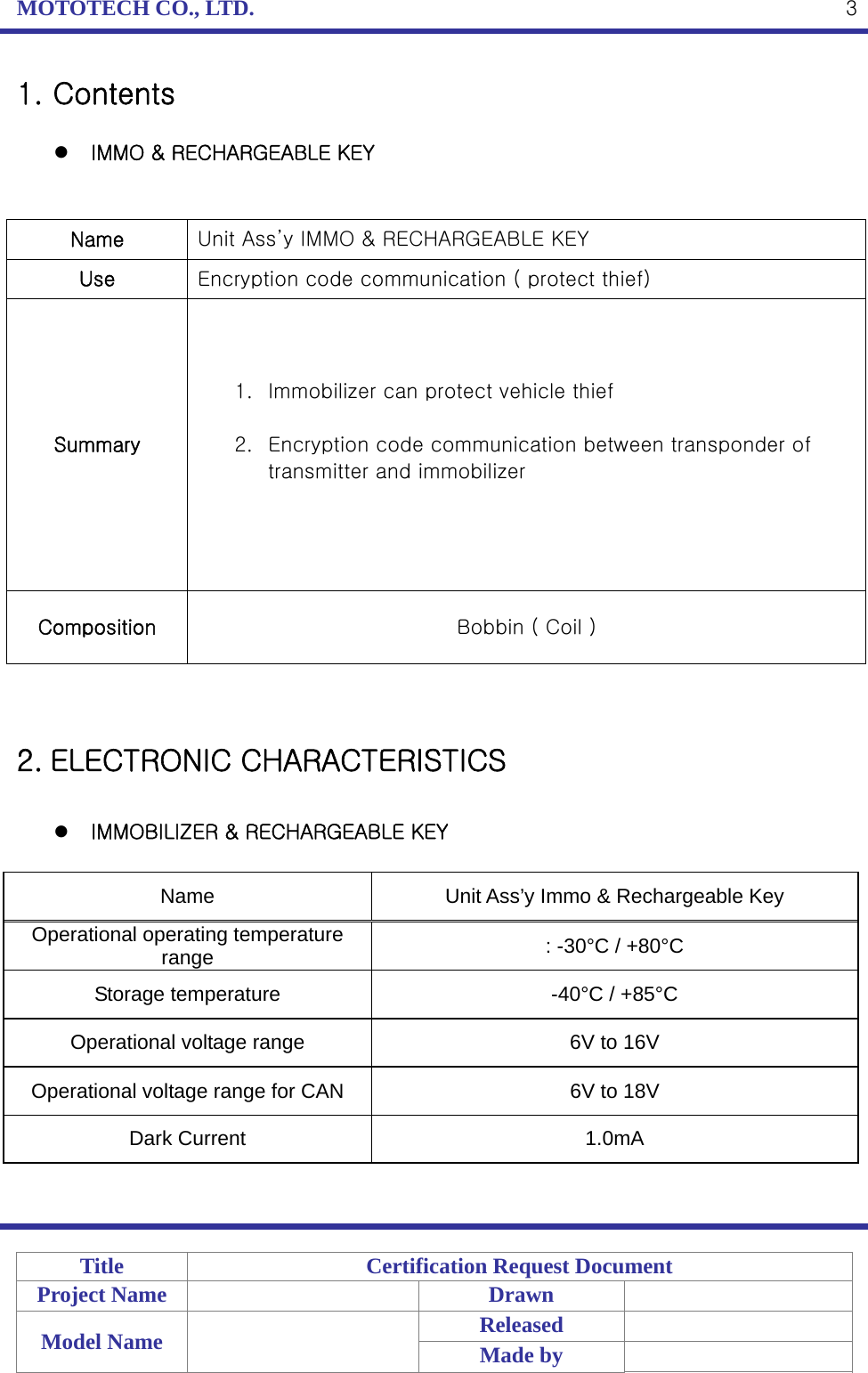

MOTOTECH CO., LTD.   Title  Certification Request Document Project Name    Drawn   Model Name    Released  Made by    31. Contents   IMMO & RECHARGEABLE KEY   Name  Unit Ass’y IMMO & RECHARGEABLE KEY Use  Encryption code communication ( protect thief)   Summary 1. Immobilizer can protect vehicle thief  2. Encryption code communication between transponder of transmitter and immobilizer  Composition  Bobbin ( Coil )   2. ELECTRONIC CHARACTERISTICS   IMMOBILIZER & RECHARGEABLE KEY  Name  Unit Ass’y Immo & Rechargeable Key Operational operating temperature range  : -30°C / +80°C Storage temperature  -40°C / +85°C Operational voltage range  6V to 16V Operational voltage range for CAN  6V to 18V Dark Current  1.0mA

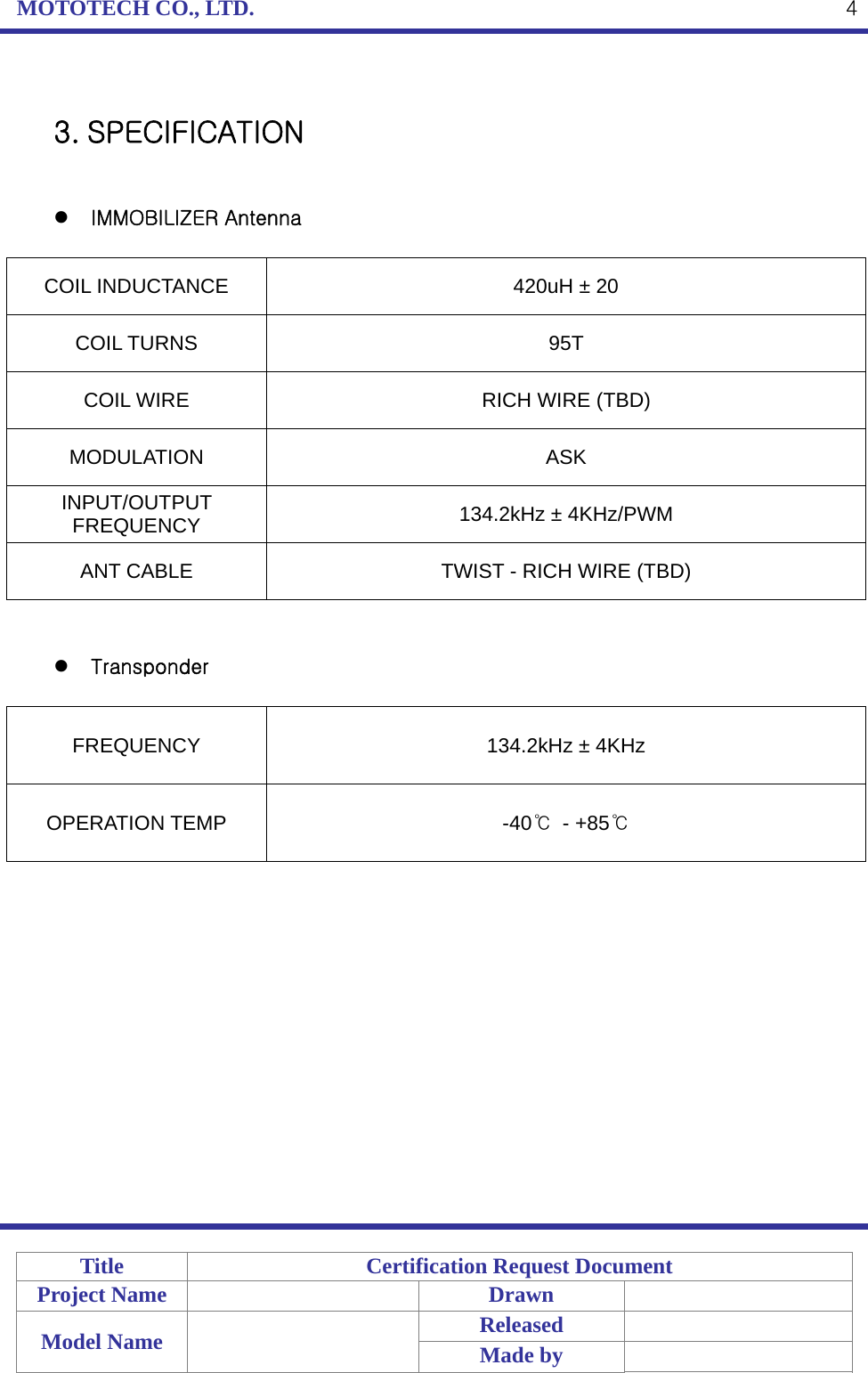

MOTOTECH CO., LTD.   Title  Certification Request Document Project Name    Drawn   Model Name    Released  Made by    4 3. SPECIFICATION    IMMOBILIZER Antenna  COIL INDUCTANCE  420uH ± 20 COIL TURNS  95T COIL WIRE  RICH WIRE (TBD) MODULATION ASK INPUT/OUTPUT FREQUENCY  134.2kHz ± 4KHz/PWM ANT CABLE  TWIST - RICH WIRE (TBD)    Transponder  FREQUENCY  134.2kHz ± 4KHz OPERATION TEMP  -40℃ - +85℃

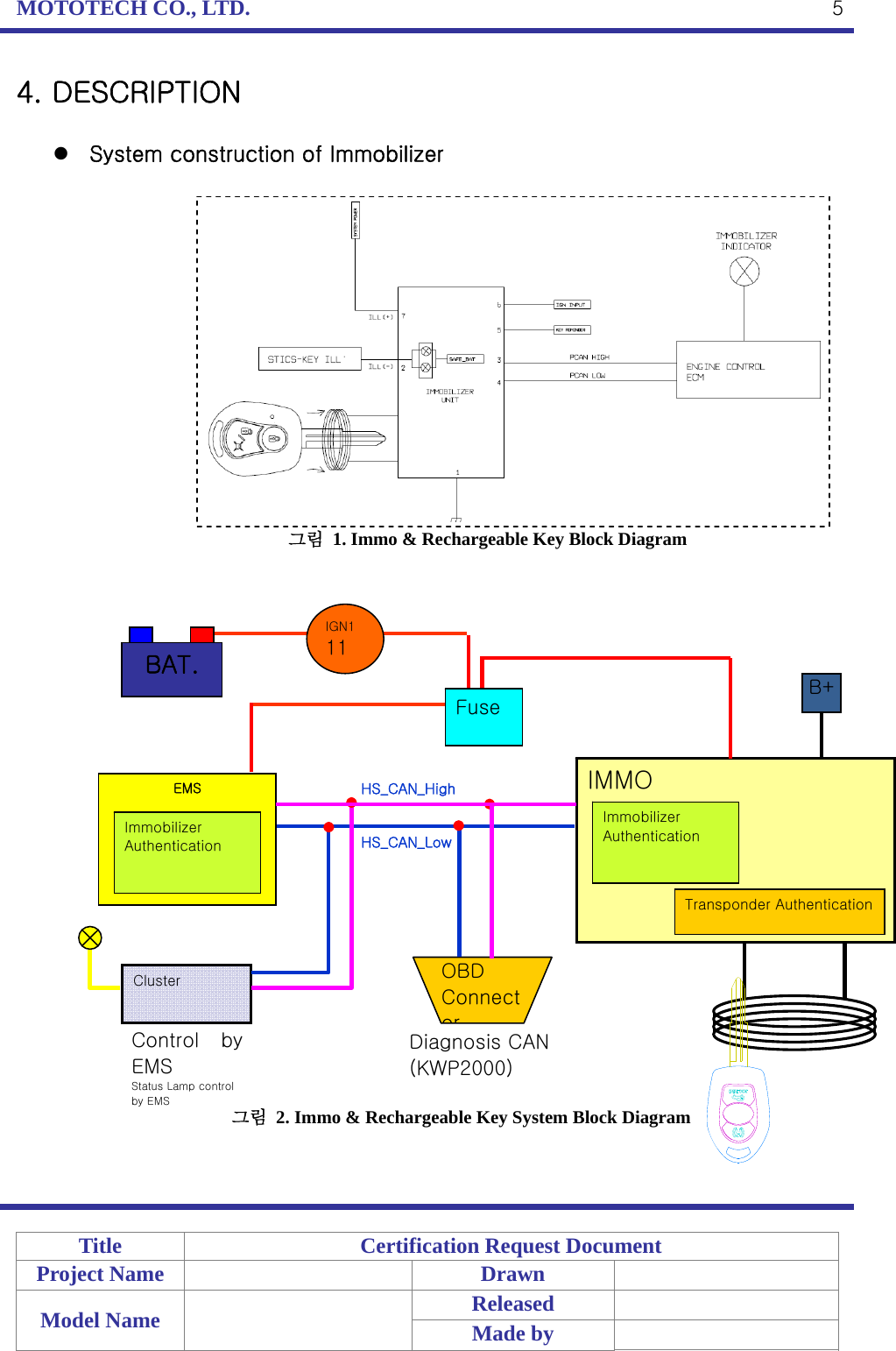

MOTOTECH CO., LTD.   Title  Certification Request Document Project Name    Drawn   Model Name    Released  Made by    54. DESCRIPTION   System construction of Immobilizer   그림  1. Immo & Rechargeable Key Block Diagram   그림  2. Immo & Rechargeable Key System Block Diagram   OBD Connector Cluster HS_CAN_High HS_CAN_Low Diagnosis CAN (KWP2000) Control  by EMS Status Lamp control by EMS EMS IMMO Immobilizer Authentication  Immobilizer Authentication Transponder AuthenticationIGN1 11 BAT. Fuse B+

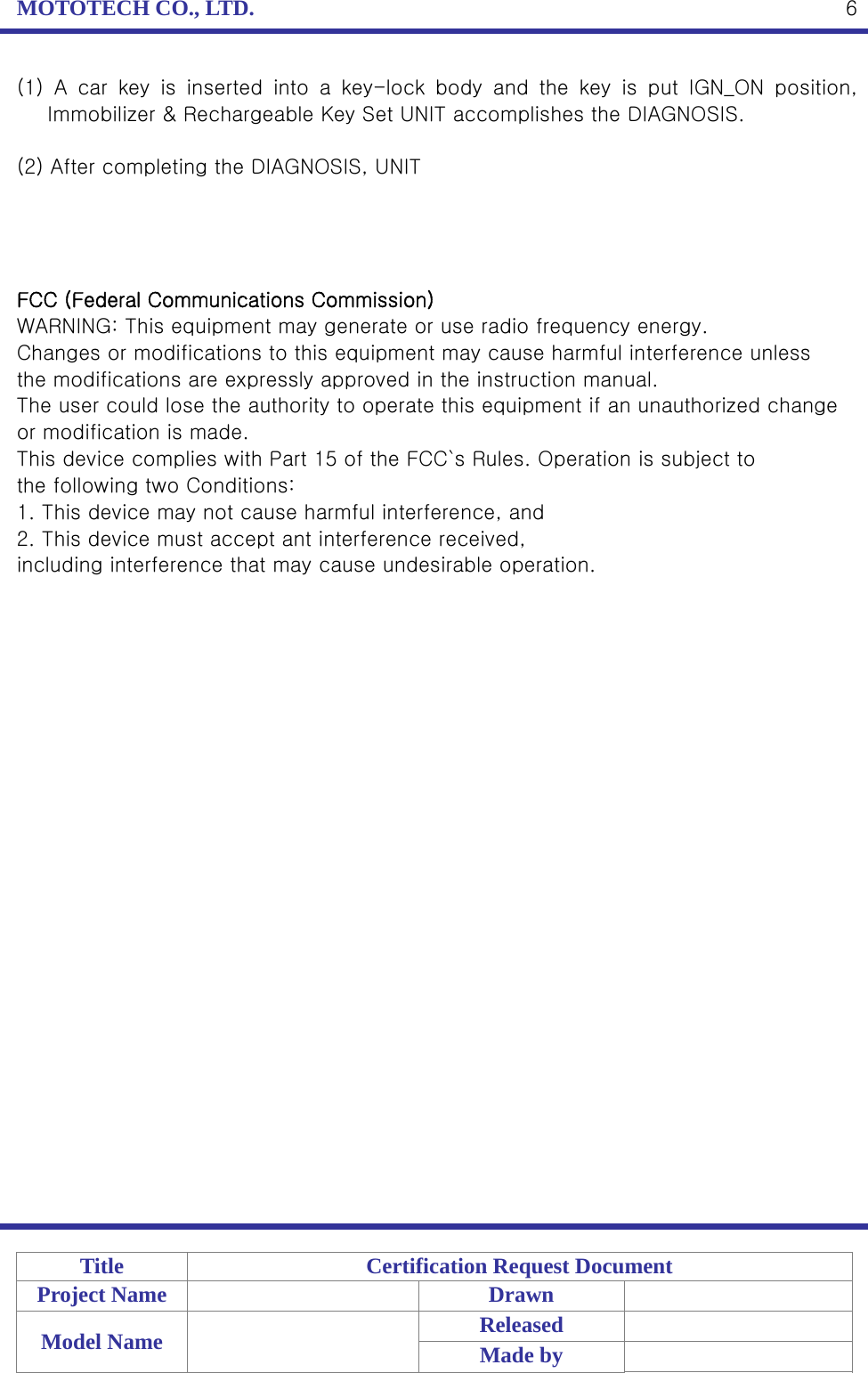

MOTOTECH CO., LTD.   Title  Certification Request Document Project Name    Drawn   Model Name    Released  Made by    6(1)  A  car  key  is  inserted  into  a  key-lock  body  and  the  key  is  put  IGN_ON  position, Immobilizer & Rechargeable Key Set UNIT accomplishes the DIAGNOSIS.  (2) After completing the DIAGNOSIS, UNIT     FCC (Federal Communications Commission) WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two Conditions: 1. This device may not cause harmful interference, and 2. This device must accept ant interference received, including interference that may cause undesirable operation.
