The S60 Access PointThe S60 AP is a cost optimised indoor LTE small cell, targeted at enterprise environments such as small oces, home oces, retailers, and public spaces.The S60 delivers 4G coverage and capacity into mass-market environments, and can be installed directly by end users in an unmanaged deployment.With up to 150/50 Mbps LTE FDD performance, the S60 supports up to 32 active 4G users, depending on the product variant.Fully self-configuring, the S60 can be mailed out to end users, and simply requires power and ethernet to be connected for a plug-and-play installation experience. ip.access’ proven Self Organising Network (SON) and Network Listen features have already been used for deployments approaching 1.5 million small cells worldwide.The S60 AP has single band FDD LTE support, covering all major global markets. The S60 also incorporates ip.access’ innovative SUMO™ technology, allowing a single S60 to provide coverage for multiple operators. Full mobility is provided between the S60 AP and neighbouring 4G, 3G and 2G cells, allowing seamless handover of calls to or from the macro network. Voice calls are supported with VoLTE, or using CSFB to ooad voice service to 3G or 2G macro network.The S60 is housed in a compact all-plastic enclosure with internal antennas, which can be desk, wall or ceiling mounted.Viper™ virtualised enterprise RAN platformThe S60 is part of ip.access’ Viper end-to-end small cell platform for enterprise RAN, which integrates the following components:— A range of plug-and-play 2G, 3G and 4G small cell Access Points for small, medium and large enterprise deployments— Virtualised Gateways which securely handle and route all trac between the APs and the operator’s core network— SUMO™ Multi-Operator technology, allowing a single access point to provide coverage for all networks— As A Service deployment models, including core network integration, AP deployment, and network operation.S60 nanoLTE APS60 nanoLTE® 4G SoHo Access Point for small enterprisesThe S60 4G small cell is a cost-eective solution for LTE coverage and capacity in enterprise environments, using IP backhaul for rapid deployment by the end-user4GSOLUTION

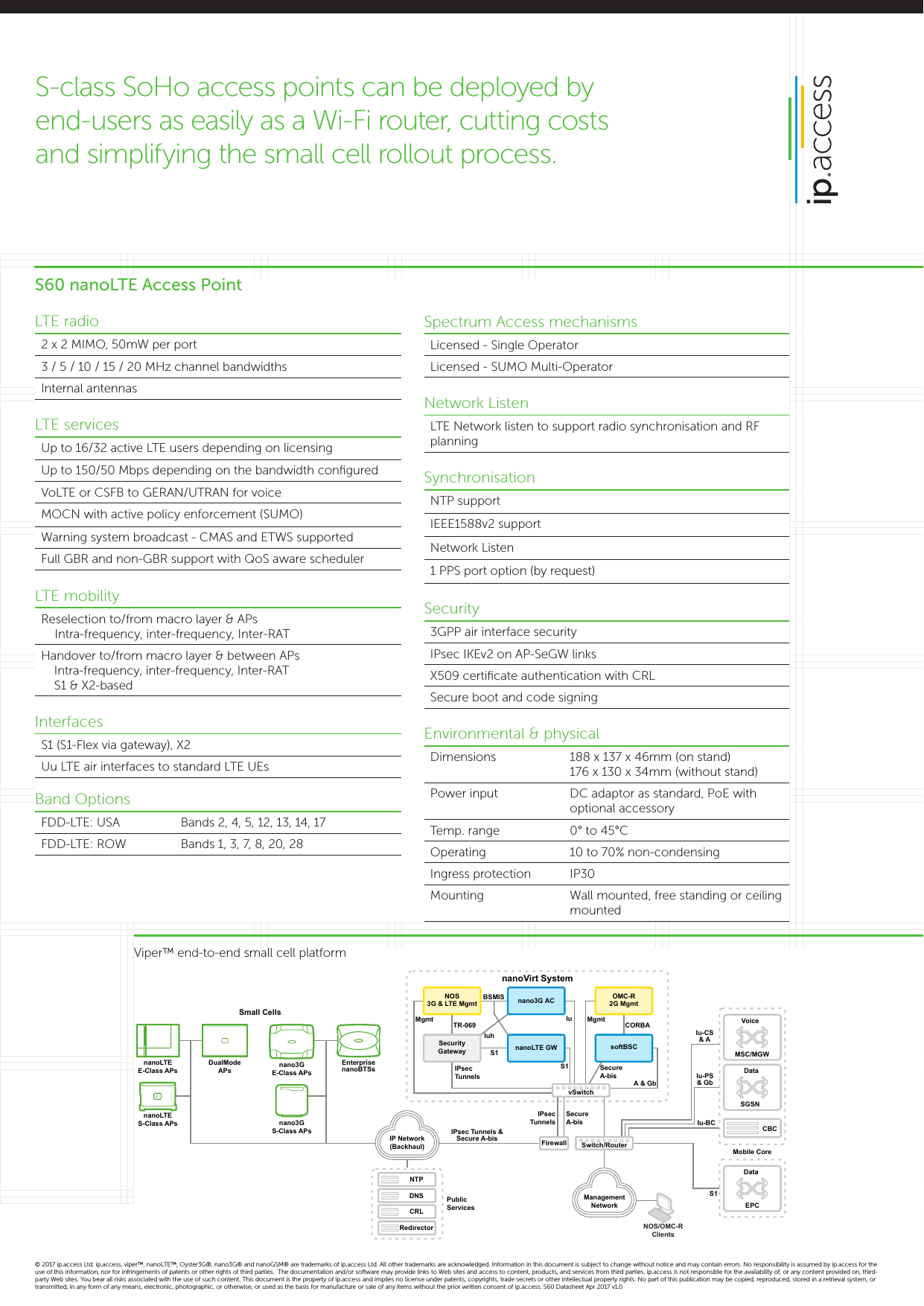

Viper™ end-to-end small cell platformSpectrum Access mechanismsLicensed - Single OperatorLicensed - SUMO Multi-Operator Network ListenLTE Network listen to support radio synchronisation and RF planningSynchronisationNTP supportIEEE1588v2 supportNetwork Listen1 PPS port option (by request)Security3GPP air interface securityIPsec IKEv2 on AP-SeGW linksX509 certificate authentication with CRLSecure boot and code signing Environmental & physicalDimensions 188 x 137 x 46mm (on stand)176 x 130 x 34mm (without stand)Power input DC adaptor as standard, PoE with optional accessoryTemp. range 0° to 45°COperating 10 to 70% non-condensingIngress protection IP30Mounting Wall mounted, free standing or ceiling mountedS60 nanoLTE Access PointLTE radio2 x 2 MIMO, 50mW per port 3 / 5 / 10 / 15 / 20 MHz channel bandwidthsInternal antennasLTE servicesUp to 16/32 active LTE users depending on licensingUp to 150/50 Mbps depending on the bandwidth configuredVoLTE or CSFB to GERAN/UTRAN for voiceMOCN with active policy enforcement (SUMO)Warning system broadcast - CMAS and ETWS supportedFull GBR and non-GBR support with QoS aware schedulerLTE mobilityReselection to/from macro layer & APs Intra-frequency, inter-frequency, Inter-RATHandover to/from macro layer & between APsIntra-frequency, inter-frequency, Inter-RATS1 & X2-basedInterfacesS1 (S1-Flex via gateway), X2Uu LTE air interfaces to standard LTE UEsBand OptionsFDD-LTE: USA Bands 2, 4, 5, 12, 13, 14, 17FDD-LTE: ROW Bands 1, 3, 7, 8, 20, 28nanoVirt SystemNOS/OMC-RClientsManagementNetworkCBCSGSNDataMSC/MGWVoiceIuhMobile CoreEPCDataS1Iu-BCTR-069 CORBAS1BSMISIPsecTunnelsIPsecTunnelsSecureA-bisSecureA-bisS1IuMgmt Mgmtnano3G ACSecurityGatewayPublicServicesNTPDNSCRLRedirectorIP Network(Backhaul)NOS3G & LTE MgmtOMC-R2G MgmtIPsec Tunnels &Secure A-bisA & GbsoftBSCIu-PS& GbIu-CS& AnanoLTE GWSwitch/RoutervSwitchFirewallSmall CellsnanoLTEE-Class APsnanoLTES-Class APsEnterprisenanoBTSsnano3GE-Class APsnano3GS-Class APsDualModeAPs© 2017 ip.access Ltd. ip.access, viper™, nanoLTE™, Oyster3G®, nano3G® and nanoGSM® are trademarks of ip.access Ltd. All other trademarks are acknowledged. Information in this document is subject to change without notice and may contain errors. No responsibility is assumed by ip.access for the use of this information, nor for infringements of patents or other rights of third parties. The documentation and/or software may provide links to Web sites and access to content, products, and services from third parties. ip.access is not responsible for the availability of, or any content provided on, third-party Web sites. You bear all risks associated with the use of such content. This document is the property of ip.access and implies no license under patents, copyrights, trade secrets or other intellectual property rights. No part of this publication may be copied, reproduced, stored in a retrieval system, or transmitted, in any form of any means, electronic, photographic, or otherwise, or used as the basis for manufacture or sale of any items without the prior written consent of ip.access. S60 Datasheet Apr 2017 v1.0S-class SoHo access points can be deployed by end-users as easily as a Wi-Fi router, cutting costs and simplifying the small cell rollout process.
