User manual

Maxitrol Company Confidential 1User manualMaxitrol CompanyConfidential

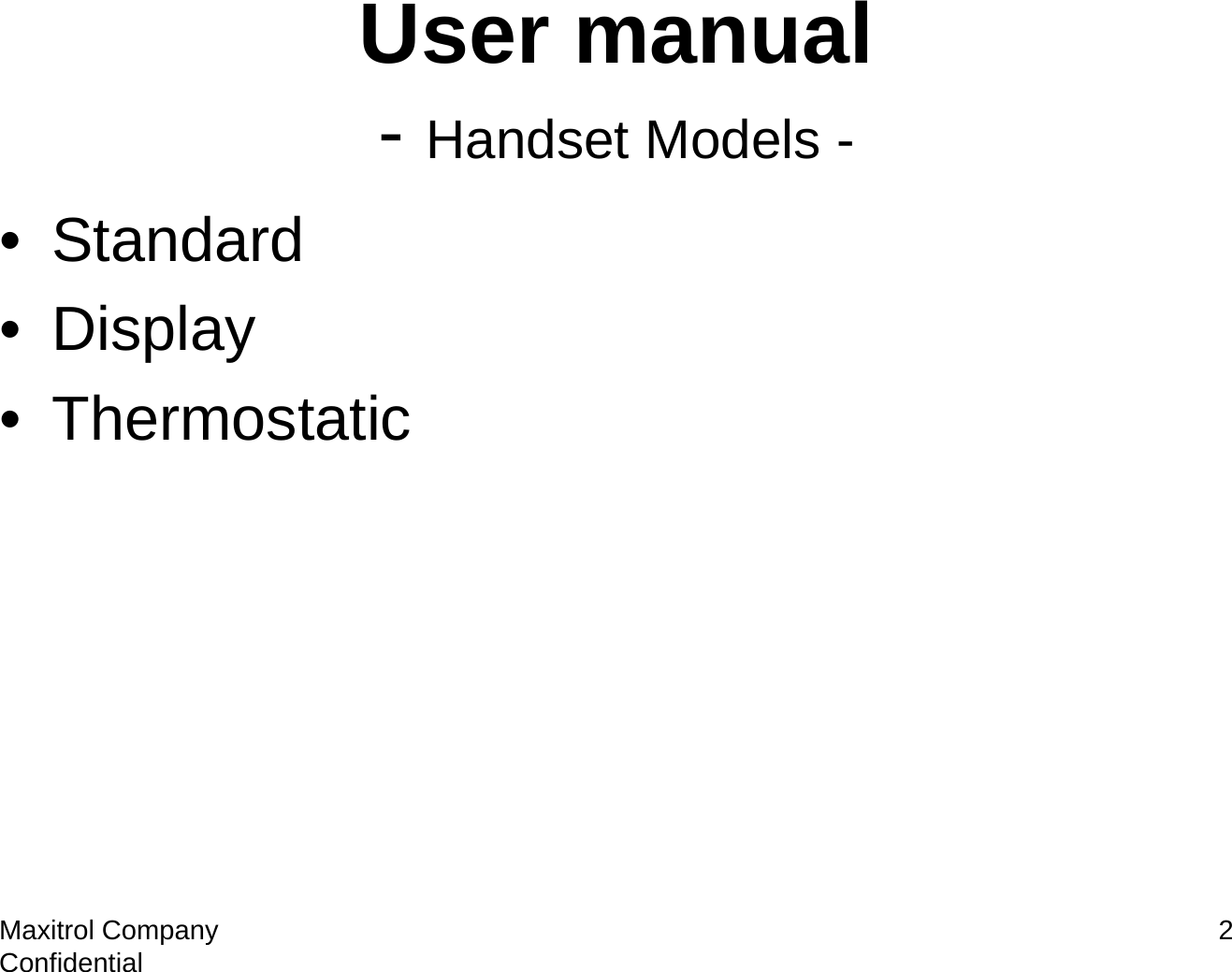

Maxitrol Company Confidential 2User manual-Handset Models -• Standard• Display• Thermostatic

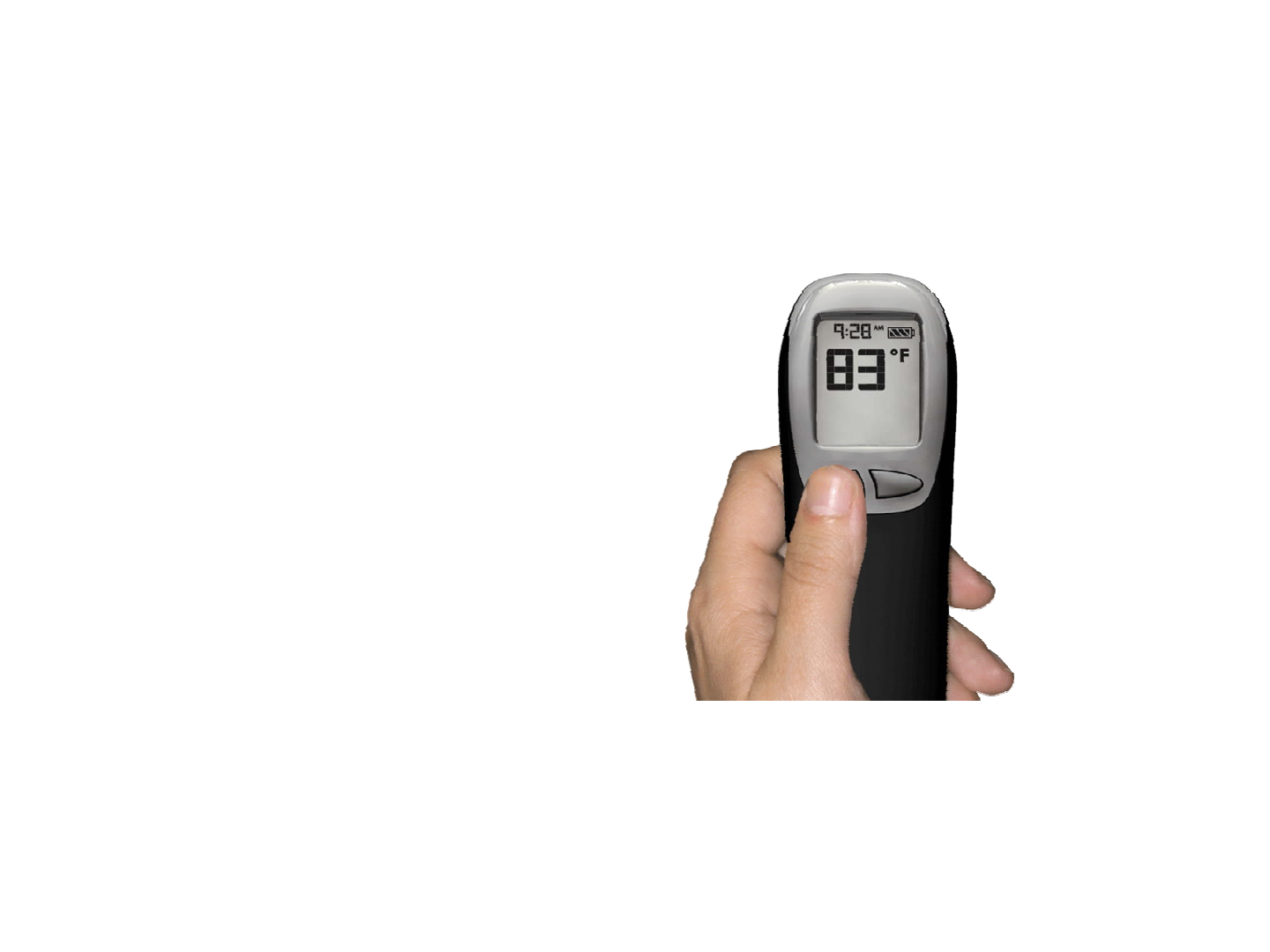

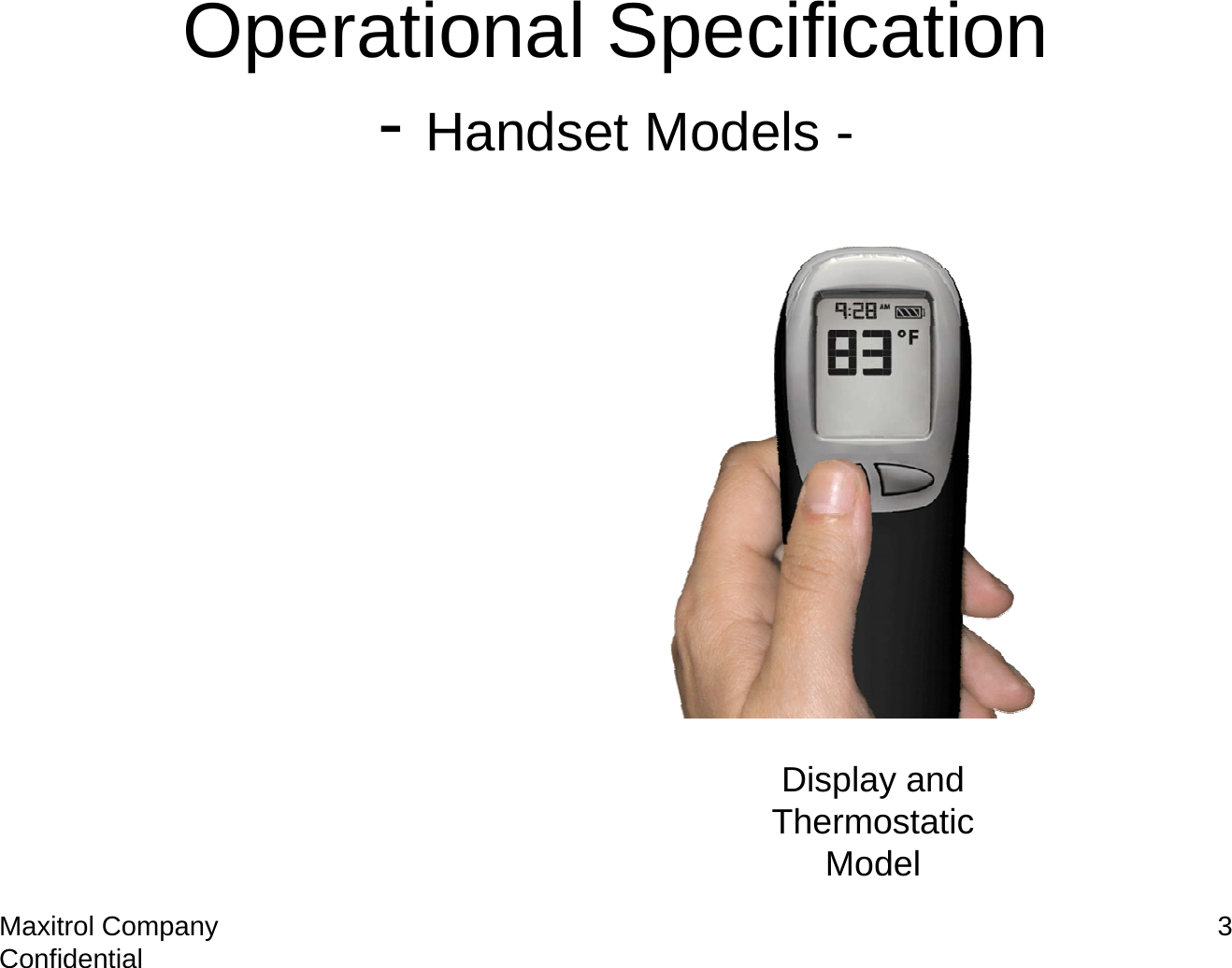

Maxitrol Company Confidential 3Operational Specification-Handset Models -Display and Thermostatic Model

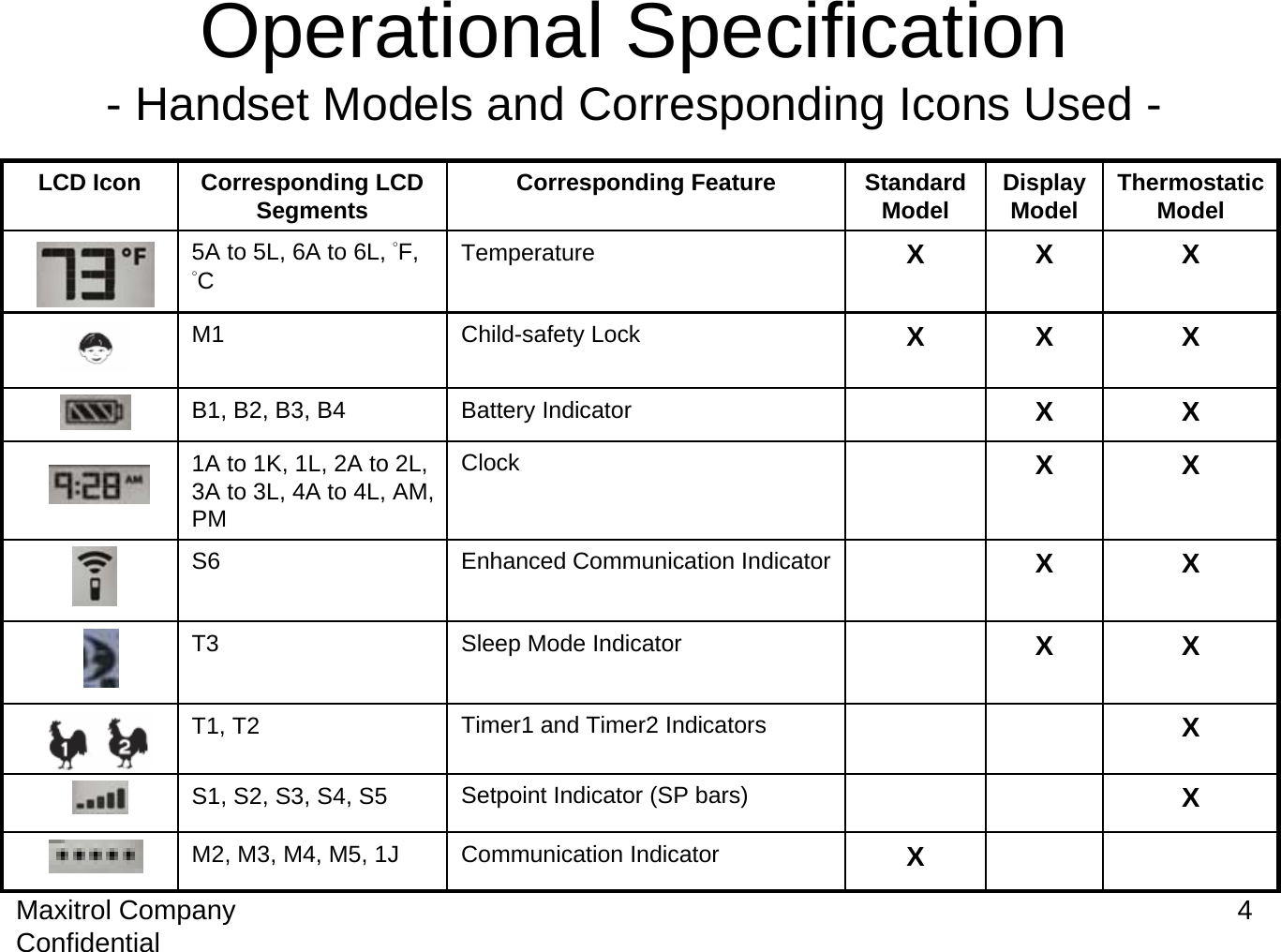

Maxitrol Company Confidential 4Operational Specification- Handset Models and Corresponding Icons Used -XXXXXXXXThermostatic ModelXXXXXXDisplay ModelM2, M3, M4, M5, 1JS1, S2, S3, S4, S5T1, T2T3S61A to 1K, 1L, 2A to 2L, 3A to 3L, 4A to 4L, AM, PMB1, B2, B3, B4M15A to 5L, 6A to 6L, °F, °CCorresponding LCD SegmentsLCD IconXCommunication IndicatorTimer1 and Timer2 IndicatorsSetpoint Indicator (SP bars)Sleep Mode IndicatorEnhanced Communication IndicatorClock Battery IndicatorXChild-safety LockStandard ModelCorresponding FeatureXTemperature

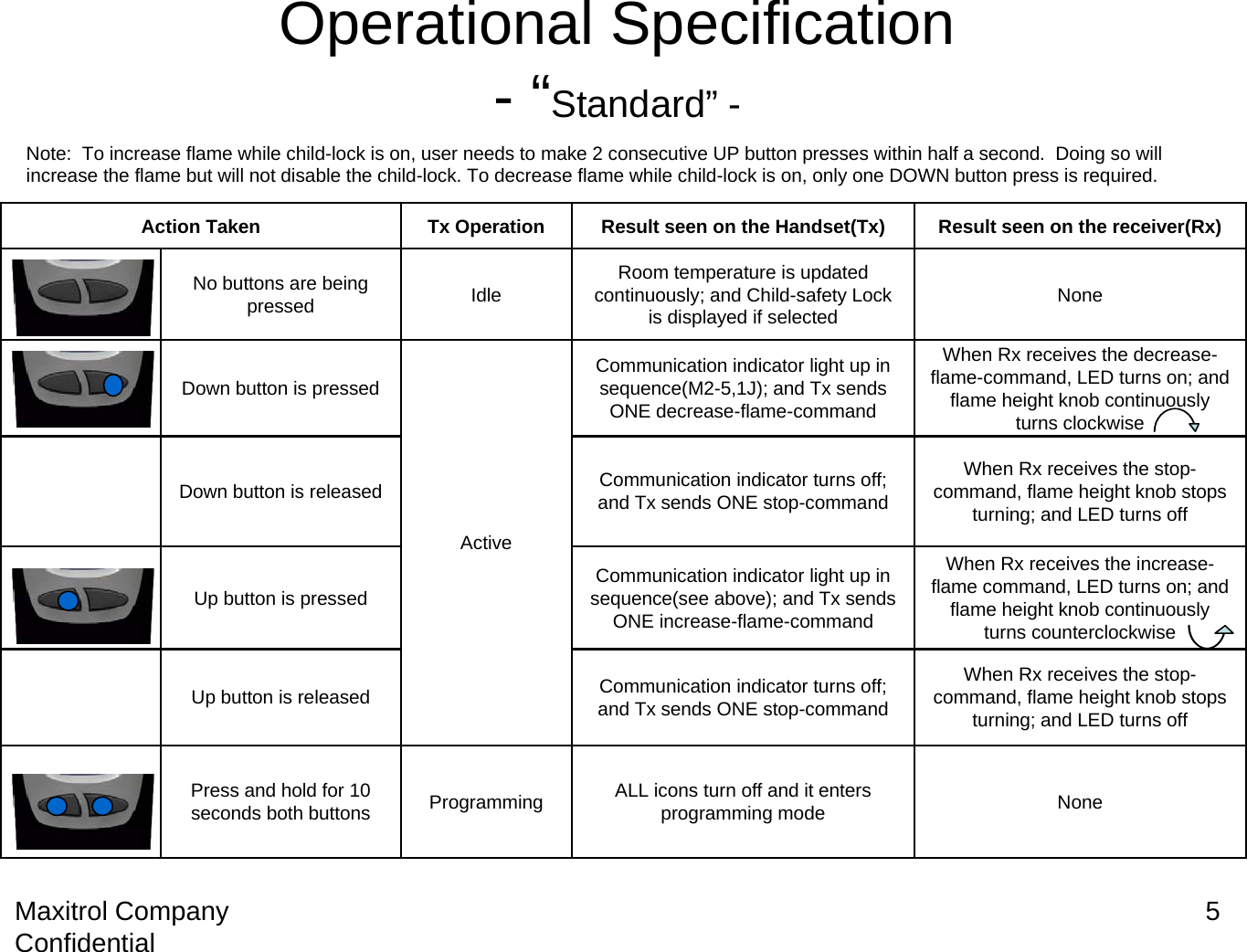

Maxitrol Company Confidential 5Operational Specification-“Standard” -NoneWhen Rx receives the stop-command, flame height knob stops turning; and LED turns offWhen Rx receives the increase-flame command, LED turns on; and flame height knob continuously turns counterclockwiseWhen Rx receives the stop-command, flame height knob stops turning; and LED turns offWhen Rx receives the decrease-flame-command, LED turns on; and flame height knob continuously turns clockwiseNoneResult seen on the receiver(Rx)Communication indicator turns off; and Tx sends ONE stop-commandUp button is releasedCommunication indicator turns off; and Tx sends ONE stop-commandDown button is releasedProgrammingActiveIdleTx Operation Result seen on the Handset(Tx)Action TakenALL icons turn off and it enters programming modePress and hold for 10 seconds both buttonsRoom temperature is updated continuously; and Child-safety Lock is displayed if selectedNo buttons are being pressedCommunication indicator light up in sequence(see above); and Tx sends ONE increase-flame-commandUp button is pressedCommunication indicator light up in sequence(M2-5,1J); and Tx sends ONE decrease-flame-commandDown button is pressedNote: To increase flame while child-lock is on, user needs to make 2 consecutive UP button presses within half a second. Doing so will increase the flame but will not disable the child-lock. To decrease flame while child-lock is on, only one DOWN button press is required.
Maxitrol Company Confidential 6Operational Specification-“Standard”-When Rx receives the decrease-flame-command, Rx continuously turns the flame height knob clockwise until knob reaches limit and then it stopsTx sends ONE decrease-flame-command to RxAuto-pilotAfter 8 hours of being in continuous Sleep ModeNoneResult seen on the receiver(Rx)SleepTx Operation Result seen on the Handset(Tx)Action TakenTx goes to sleep, and ONLY the sleep mode indicator is onAfter 120 minutes of being in continuous Idle Mode

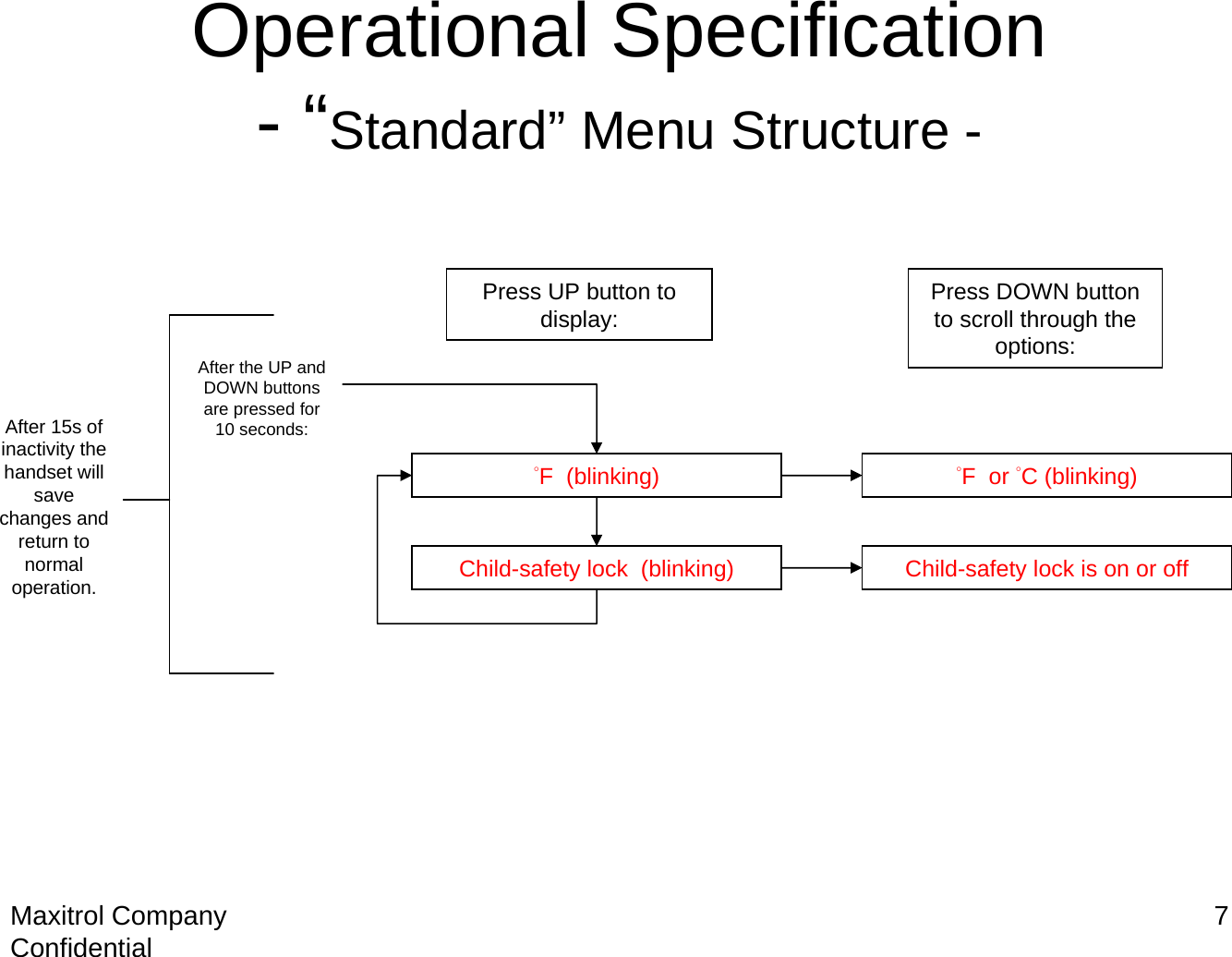

Maxitrol Company Confidential 7Operational Specification-“Standard” Menu Structure -After the UP and DOWN buttons are pressed for 10 seconds:°F (blinking)Child-safety lock (blinking)Press UP button to display: Press DOWN button to scroll through the options:After 15s of inactivity the handset will save changes and return to normal operation. Child-safety lock is on or off°F or °C (blinking)

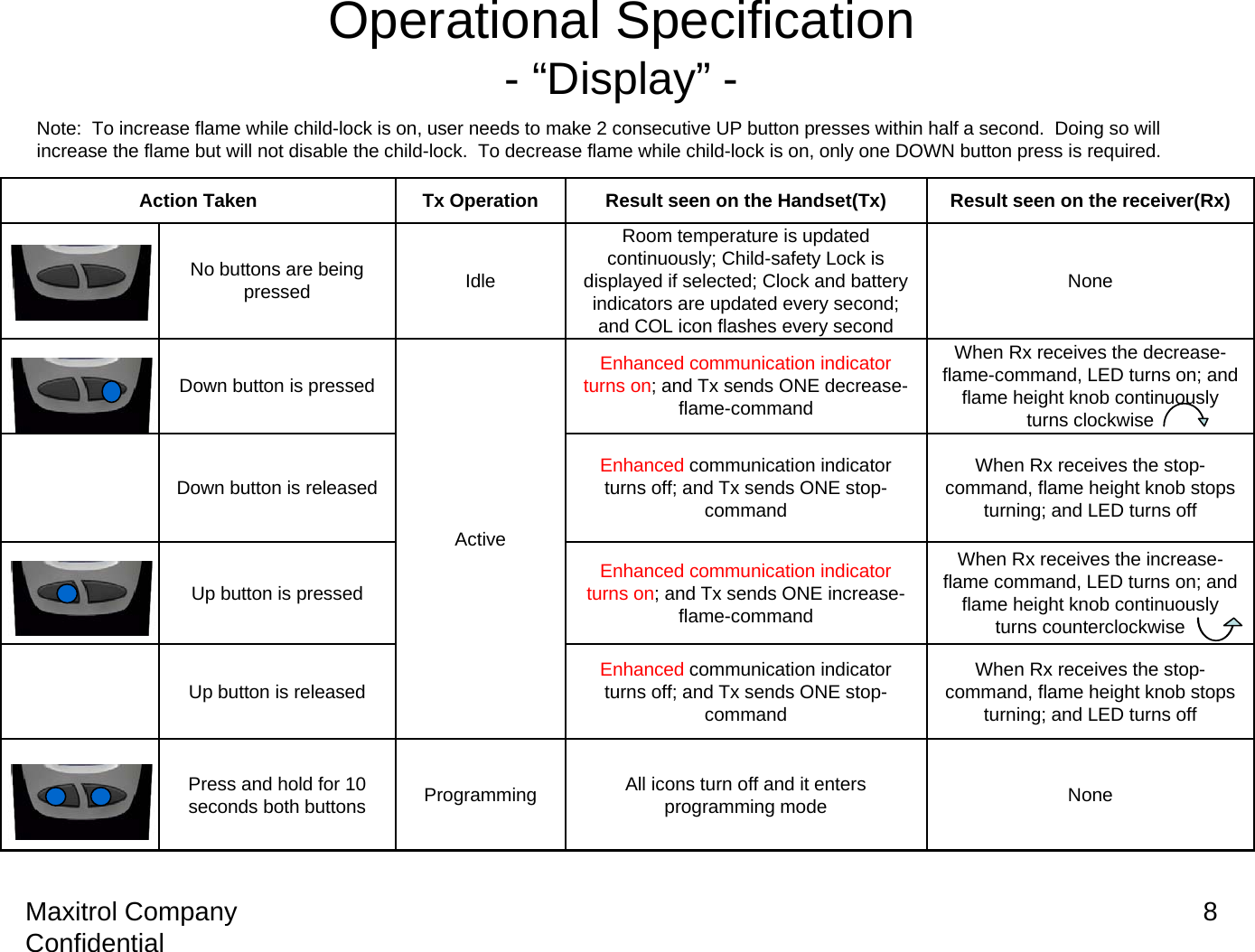

Maxitrol Company Confidential 8Operational Specification-“Display”-NoneWhen Rx receives the stop-command, flame height knob stops turning; and LED turns offWhen Rx receives the increase-flame command, LED turns on; and flame height knob continuously turns counterclockwiseWhen Rx receives the stop-command, flame height knob stops turning; and LED turns offWhen Rx receives the decrease-flame-command, LED turns on; and flame height knob continuously turns clockwiseNoneResult seen on the receiver(Rx)Enhanced communication indicator turns off; and Tx sends ONE stop-commandUp button is releasedEnhanced communication indicator turns off; and Tx sends ONE stop-commandDown button is releasedProgrammingActiveIdleTx Operation Result seen on the Handset(Tx)Action TakenAll icons turn off and it enters programming modePress and hold for 10 seconds both buttonsRoom temperature is updated continuously; Child-safety Lock is displayed if selected; Clock and battery indicators are updated every second; and COL icon flashes every secondNo buttons are being pressedEnhanced communication indicator turns on; and Tx sends ONE increase-flame-commandUp button is pressedEnhanced communication indicator turns on; and Tx sends ONE decrease-flame-commandDown button is pressedNote: To increase flame while child-lock is on, user needs to make 2 consecutive UP button presses within half a second. Doing so will increase the flame but will not disable the child-lock. To decrease flame while child-lock is on, only one DOWN button press is required.

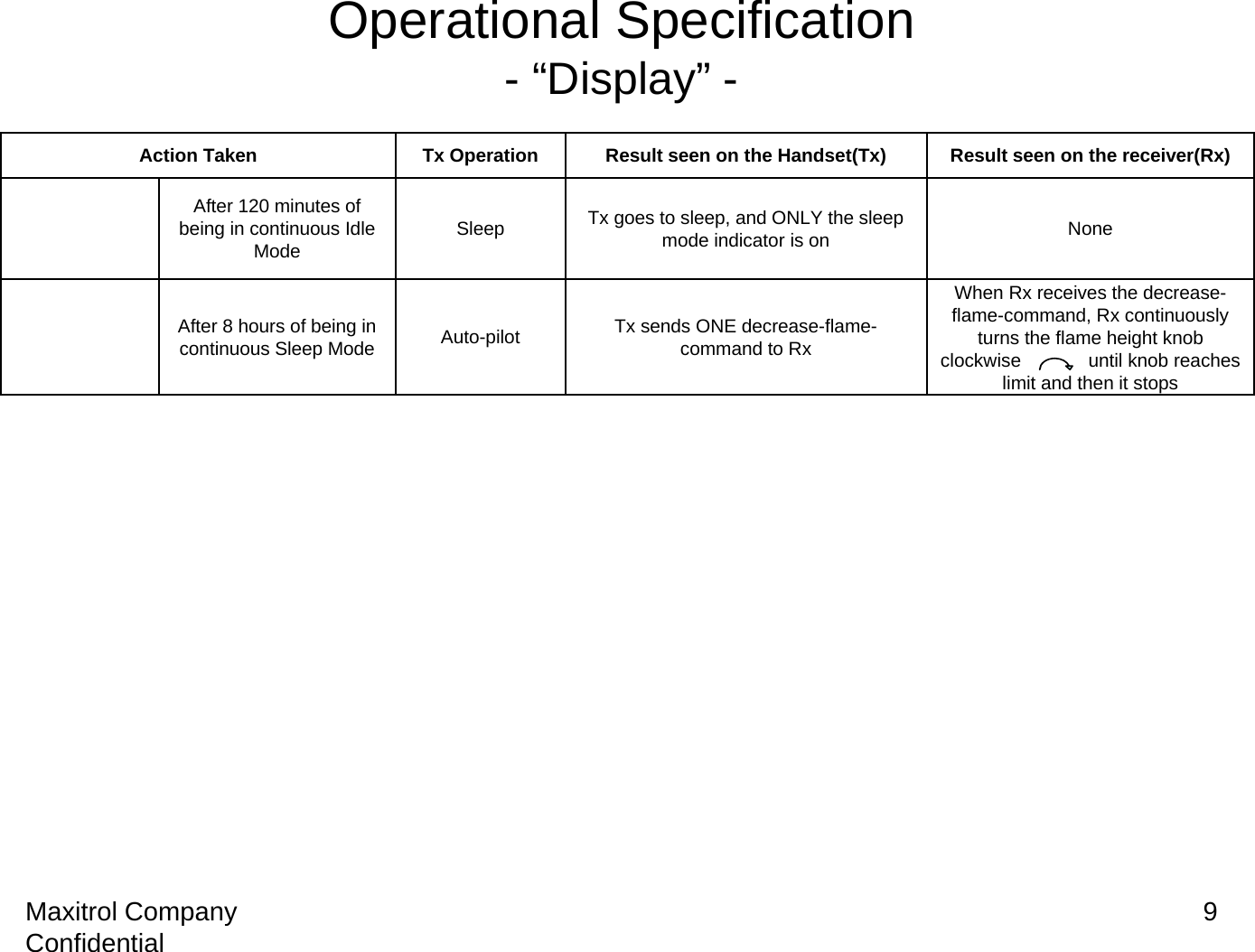

Maxitrol Company Confidential 9Operational Specification-“Display”-When Rx receives the decrease-flame-command, Rx continuously turns the flame height knob clockwise until knob reaches limit and then it stopsTx sends ONE decrease-flame-command to RxAuto-pilotAfter 8 hours of being in continuous Sleep ModeNoneResult seen on the receiver(Rx)SleepTx Operation Result seen on the Handset(Tx)Action TakenTx goes to sleep, and ONLY the sleep mode indicator is onAfter 120 minutes of being in continuous Idle Mode

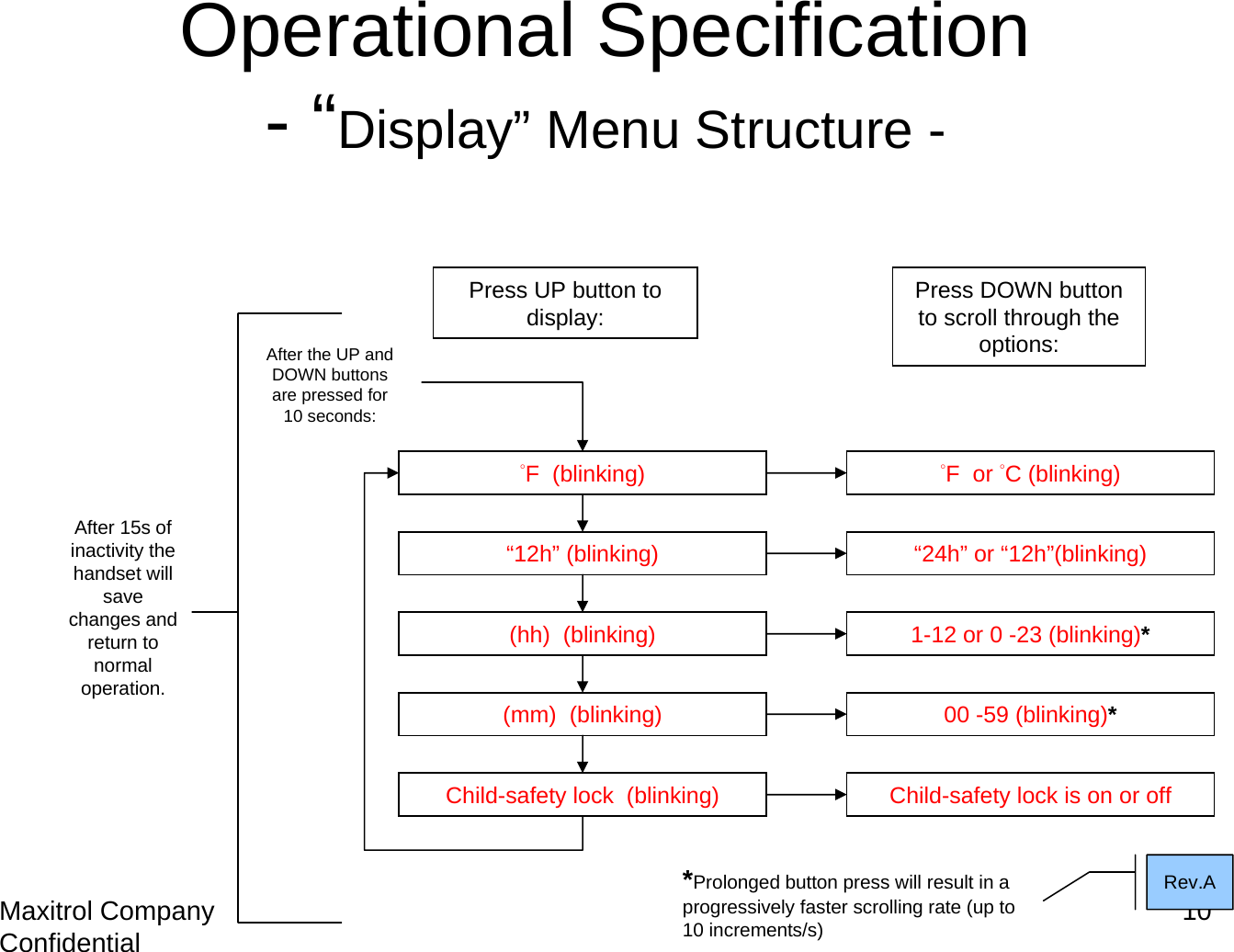

Maxitrol Company Confidential 10Operational Specification-“Display” Menu Structure -After the UP and DOWN buttons are pressed for 10 seconds:°F (blinking)“12h” (blinking)(hh) (blinking)Child-safety lock (blinking)Press UP button to display: Press DOWN button to scroll through the options:“24h” or “12h”(blinking)1-12 or 0 -23 (blinking)*00 -59 (blinking)*After 15s of inactivity the handset will save changes and return to normal operation.(mm) (blinking)Child-safety lock is on or off°F or °C (blinking)*Prolonged button press will result in a progressively faster scrolling rate (up to 10 increments/s)Rev.A

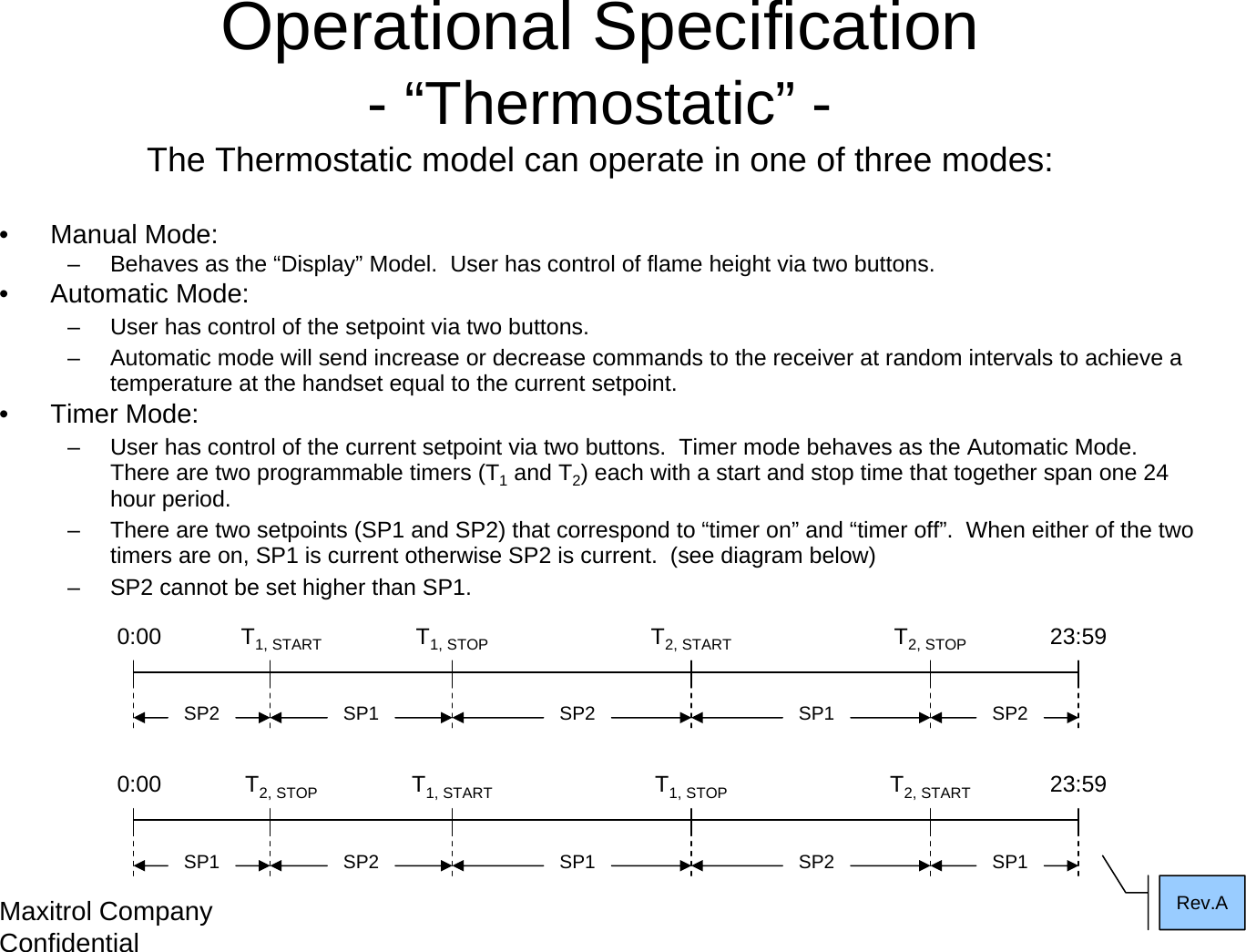

Maxitrol Company Confidential 11Operational Specification- “Thermostatic” -The Thermostatic model can operate in one of three modes:0:00 23:59T1, START T1, STOP T2, START T2, STOPSP2 SP1 SP2 SP2SP1• Manual Mode:– Behaves as the “Display” Model. User has control of flame height via two buttons.• Automatic Mode:– User has control of the setpoint via two buttons. – Automatic mode will send increase or decrease commands to the receiver at random intervals to achieve a temperature at the handset equal to the current setpoint.• Timer Mode:– User has control of the current setpoint via two buttons. Timer mode behaves as the Automatic Mode. There are two programmable timers (T1and T2) each with a start and stop time that together span one 24 hour period.– There are two setpoints (SP1 and SP2) that correspond to “timer on” and “timer off”. When either of the two timers are on, SP1 is current otherwise SP2 is current. (see diagram below)– SP2 cannot be set higher than SP1.0:00 23:59T2, STOP T1, START T1, STOP T2, STARTSP1 SP2 SP1 SP1SP2Rev.A

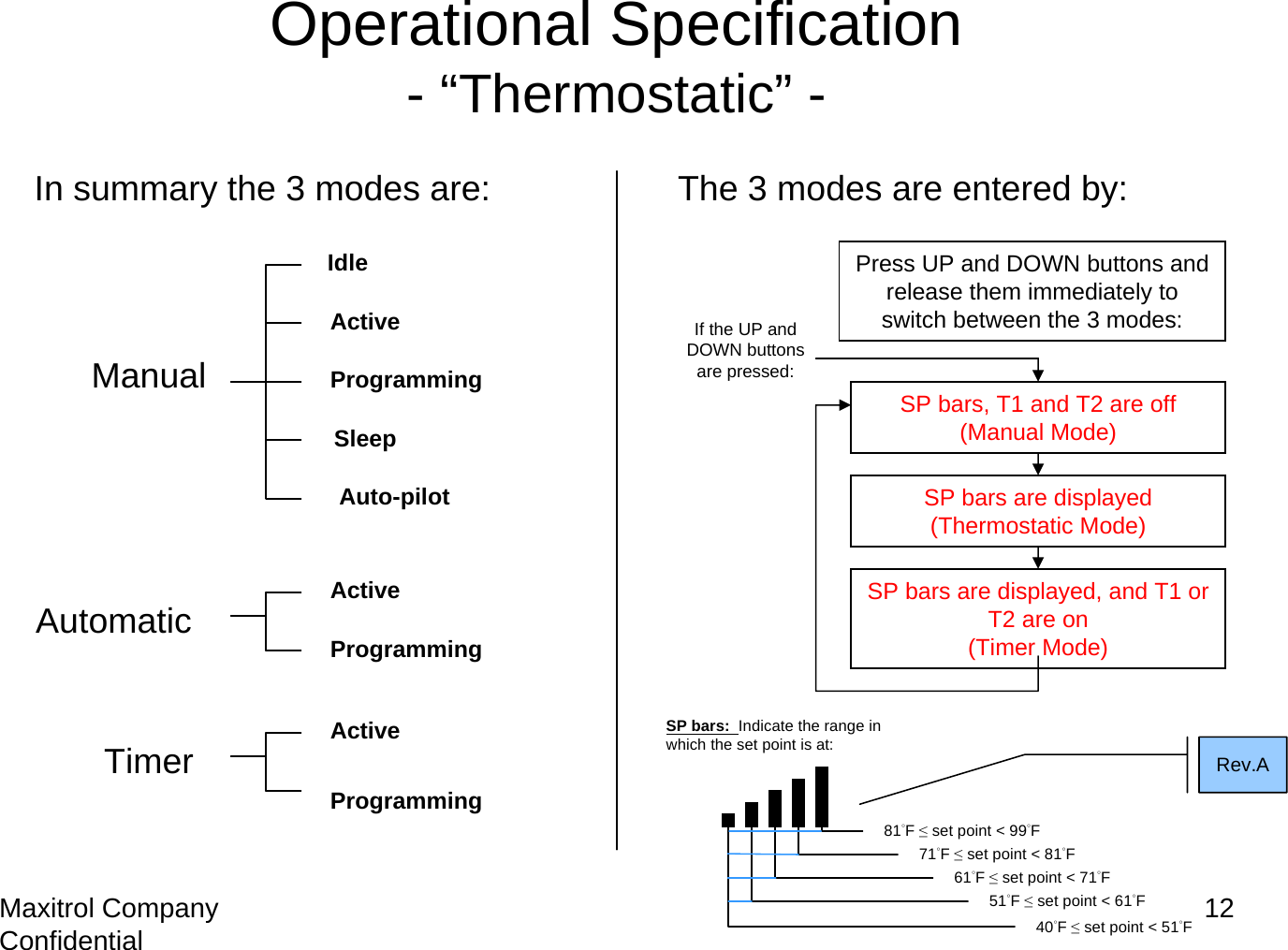

Maxitrol Company Confidential 12Operational Specification- “Thermostatic” -ManualAutomaticTimerIdleActiveProgrammingSleepAuto-pilotActiveActiveProgrammingProgrammingIf the UP and DOWN buttons are pressed:SP bars are displayed (Thermostatic Mode)SP bars, T1 and T2 are off (Manual Mode)Press UP and DOWN buttons and release them immediately to switch between the 3 modes:SP bars are displayed, and T1 or T2 are on (Timer Mode)In summary the 3 modes are: The 3 modes are entered by:51°F ≤set point < 61°F40°F ≤set point < 51°FSP bars: Indicate the range in which the set point is at:61°F ≤set point < 71°F71°F ≤set point < 81°F81°F ≤set point < 99°FRev.A

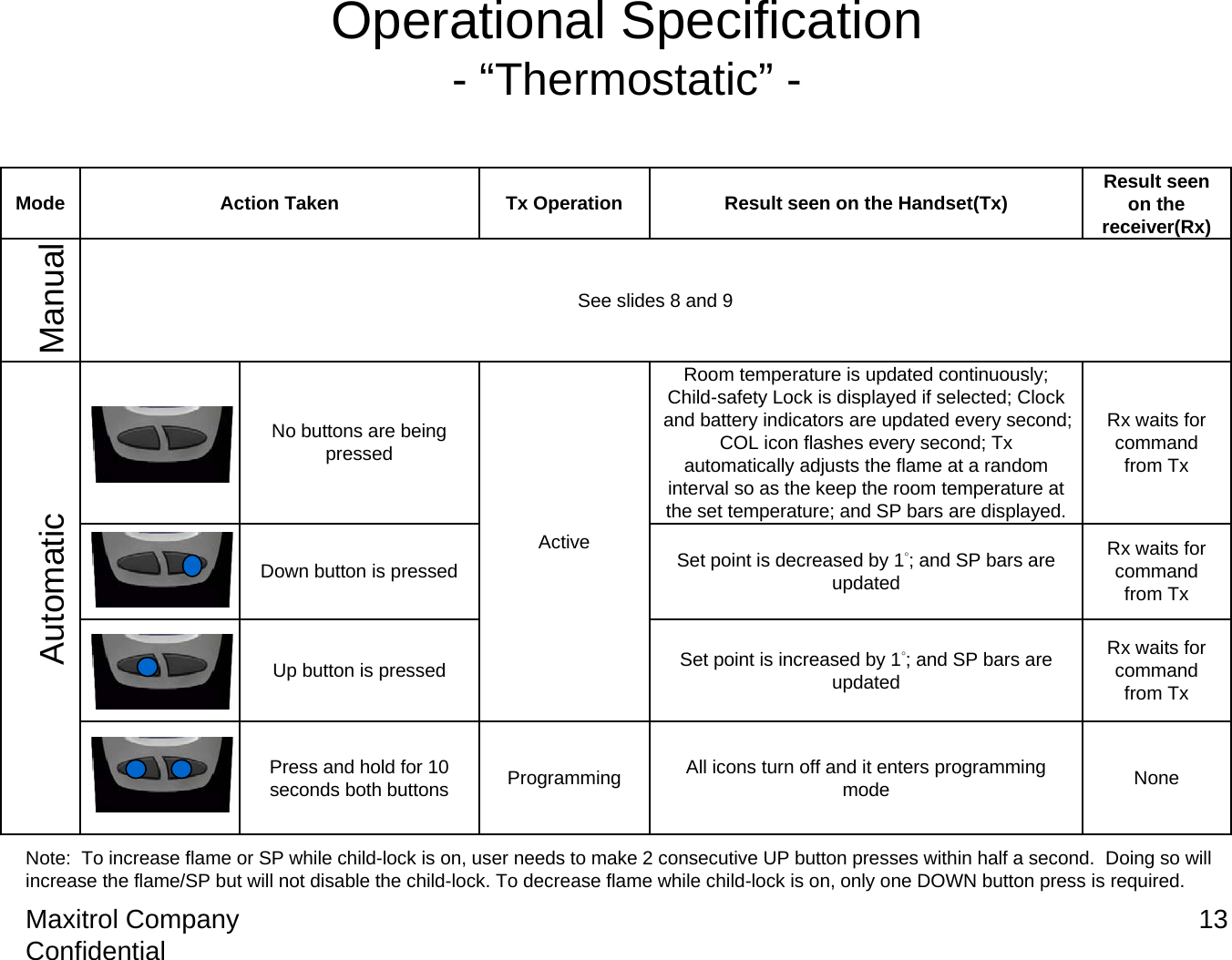

Maxitrol Company Confidential 13Operational Specification-“Thermostatic”-See slides 8 and 9ModeNoneRx waits for command from TxRx waits for command from TxRx waits for command from TxResult seen on the receiver(Rx)ProgrammingActiveTx Operation Result seen on the Handset(Tx)Action TakenAll icons turn off and it enters programming modePress and hold for 10 seconds both buttonsRoom temperature is updated continuously; Child-safety Lock is displayed if selected; Clock and battery indicators are updated every second; COL icon flashes every second; Txautomatically adjusts the flame at a random interval so as the keep the room temperature at the set temperature; and SP bars are displayed.No buttons are being pressedSet point is increased by 1°; and SP bars are updatedUp button is pressedSet point is decreased by 1°; and SP bars are updatedDown button is pressedAutomatic ManualNote: To increase flame or SP while child-lock is on, user needs to make 2 consecutive UP button presses within half a second. Doing so will increase the flame/SP but will not disable the child-lock. To decrease flame while child-lock is on, only one DOWN button press is required.

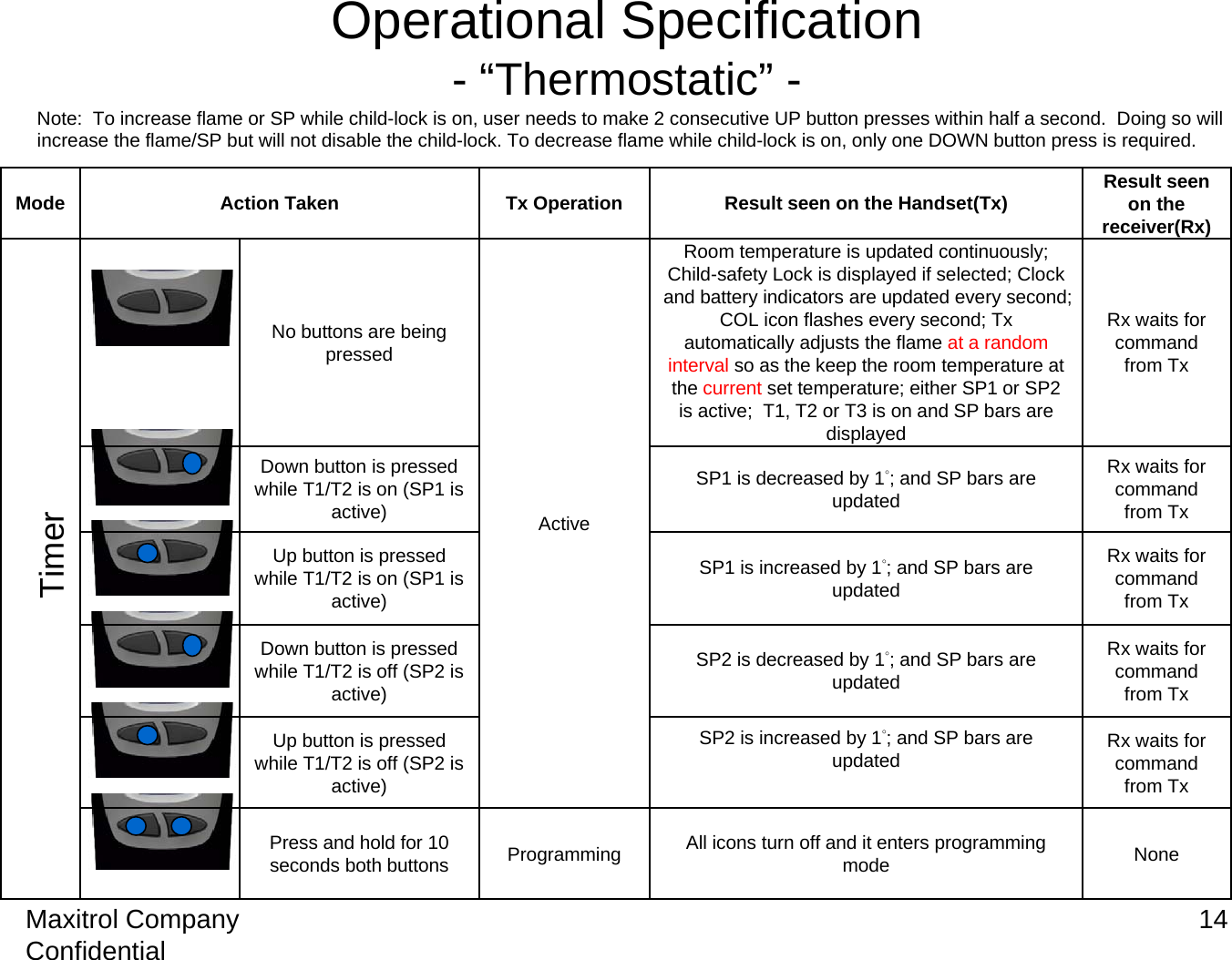

Maxitrol Company Confidential 14Operational Specification-“Thermostatic”-Rx waits for command from TxSP2 is decreased by 1°; and SP bars are updatedDown button is pressed while T1/T2 is off (SP2 is active)Rx waits for command from TxSP2 is increased by 1°; and SP bars are updatedUp button is pressed while T1/T2 is off (SP2 is active)ModeNoneRx waits for command from TxRx waits for command from TxRx waits for command from TxResult seen on the receiver(Rx)ProgrammingActiveTx Operation Result seen on the Handset(Tx)Action TakenAll icons turn off and it enters programming modePress and hold for 10 seconds both buttonsRoom temperature is updated continuously; Child-safety Lock is displayed if selected; Clock and battery indicators are updated every second; COL icon flashes every second; Txautomatically adjusts the flame at a random interval so as the keep the room temperature at the current set temperature; either SP1 or SP2 is active; T1, T2 or T3 is on and SP bars are displayedNo buttons are being pressedSP1 is increased by 1°; and SP bars are updatedUp button is pressed while T1/T2 is on (SP1 is active)SP1 is decreased by 1°; and SP bars are updatedDown button is pressed while T1/T2 is on (SP1 is active)TimerNote: To increase flame or SP while child-lock is on, user needs to make 2 consecutive UP button presses within half a second. Doing so will increase the flame/SP but will not disable the child-lock. To decrease flame while child-lock is on, only one DOWN button press is required.

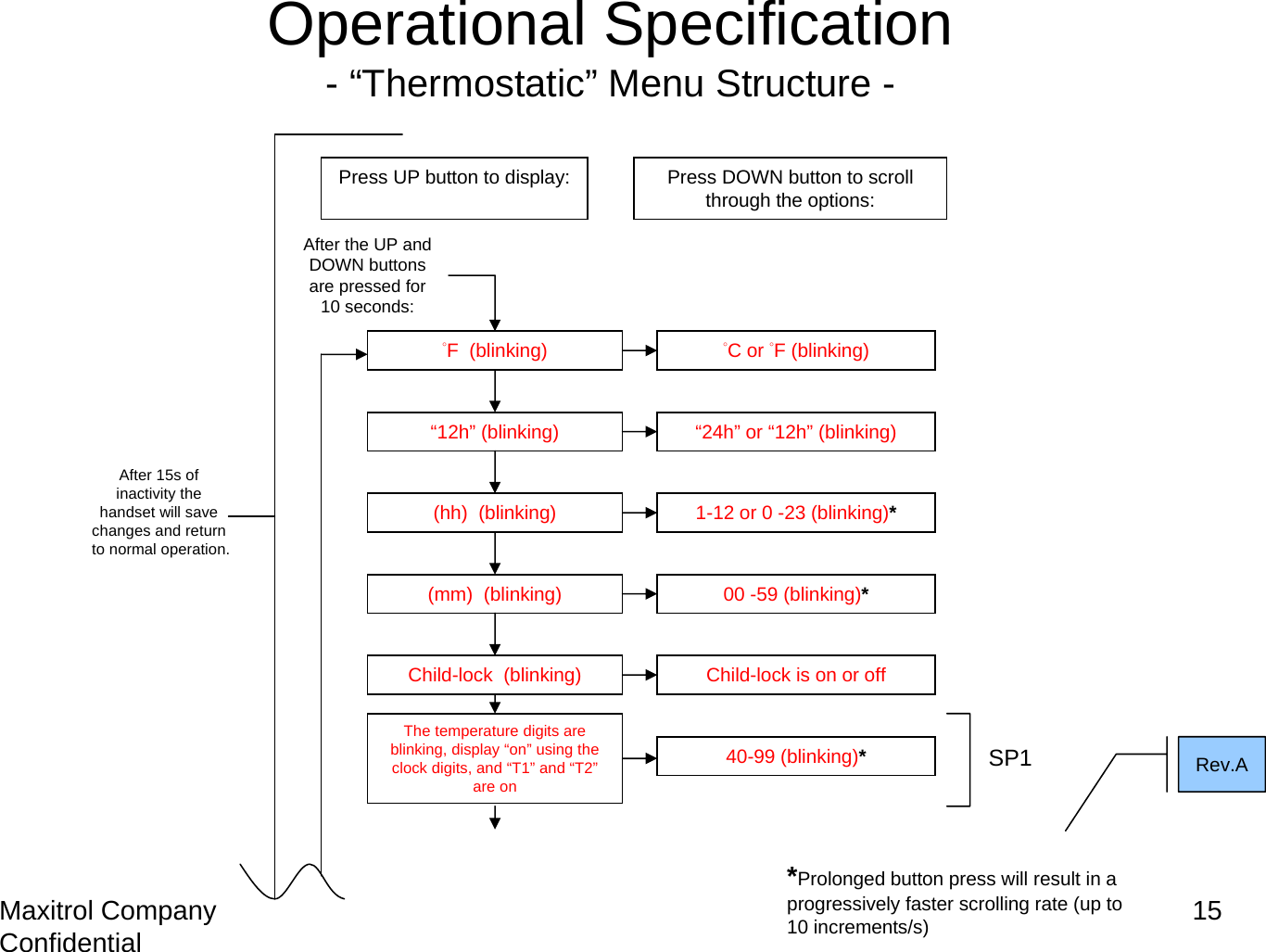

Maxitrol Company Confidential 15Operational Specification- “Thermostatic” Menu Structure -After 15s of inactivity the handset will save changes and return to normal operation.“12h” (blinking)(hh) (blinking)(mm) (blinking)°F (blinking)Press UP button to display: Press DOWN button to scroll through the options:1-12 or 0 -23 (blinking)*00 -59 (blinking)*“24h” or “12h” (blinking)The temperature digits are blinking, display “on” using the clock digits, and “T1” and “T2”are on°C or °F (blinking)Child-lock (blinking) Child-lock is on or offAfter the UP and DOWN buttons are pressed for 10 seconds:40-99 (blinking)*SP1*Prolonged button press will result in a progressively faster scrolling rate (up to 10 increments/s)Rev.A

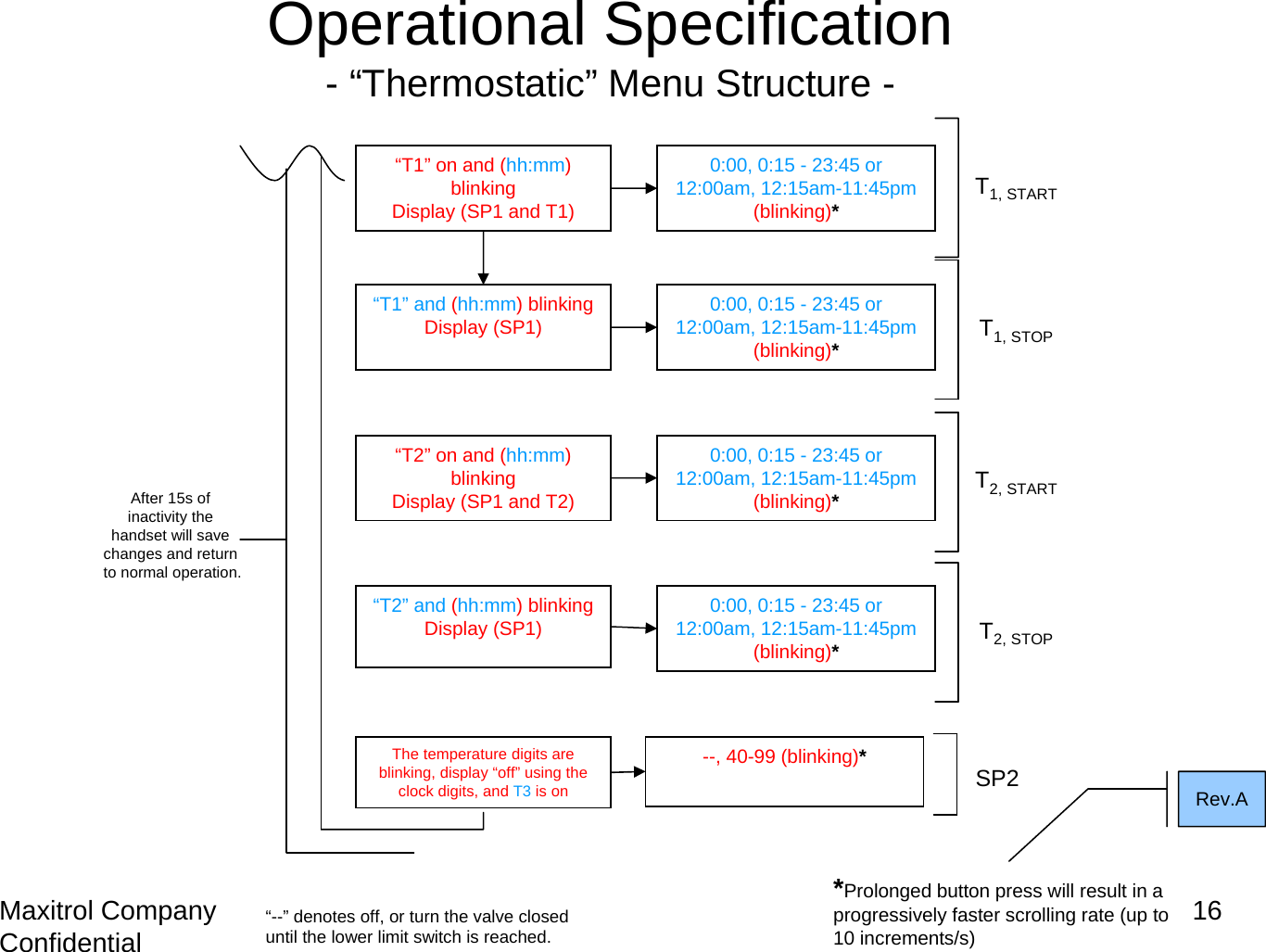

Maxitrol Company Confidential 16Operational Specification- “Thermostatic” Menu Structure -After 15s of inactivity the handset will save changes and return to normal operation.T1, STOPT2, STARTT2, STOP“--” denotes off, or turn the valve closed until the lower limit switch is reached.“T1” on and (hh:mm) blinkingDisplay (SP1 and T1) T1, START0:00, 0:15 - 23:45 or 12:00am, 12:15am-11:45pm(blinking)*The temperature digits are blinking, display “off” using the clock digits, and T3 is on--, 40-99 (blinking)*SP20:00, 0:15 - 23:45 or 12:00am, 12:15am-11:45pm(blinking)*“T1” and (hh:mm) blinkingDisplay (SP1)“T2” on and (hh:mm) blinkingDisplay (SP1 and T2)“T2” and (hh:mm) blinkingDisplay (SP1)0:00, 0:15 - 23:45 or 12:00am, 12:15am-11:45pm(blinking)*0:00, 0:15 - 23:45 or 12:00am, 12:15am-11:45pm(blinking)**Prolonged button press will result in a progressively faster scrolling rate (up to 10 increments/s)Rev.A

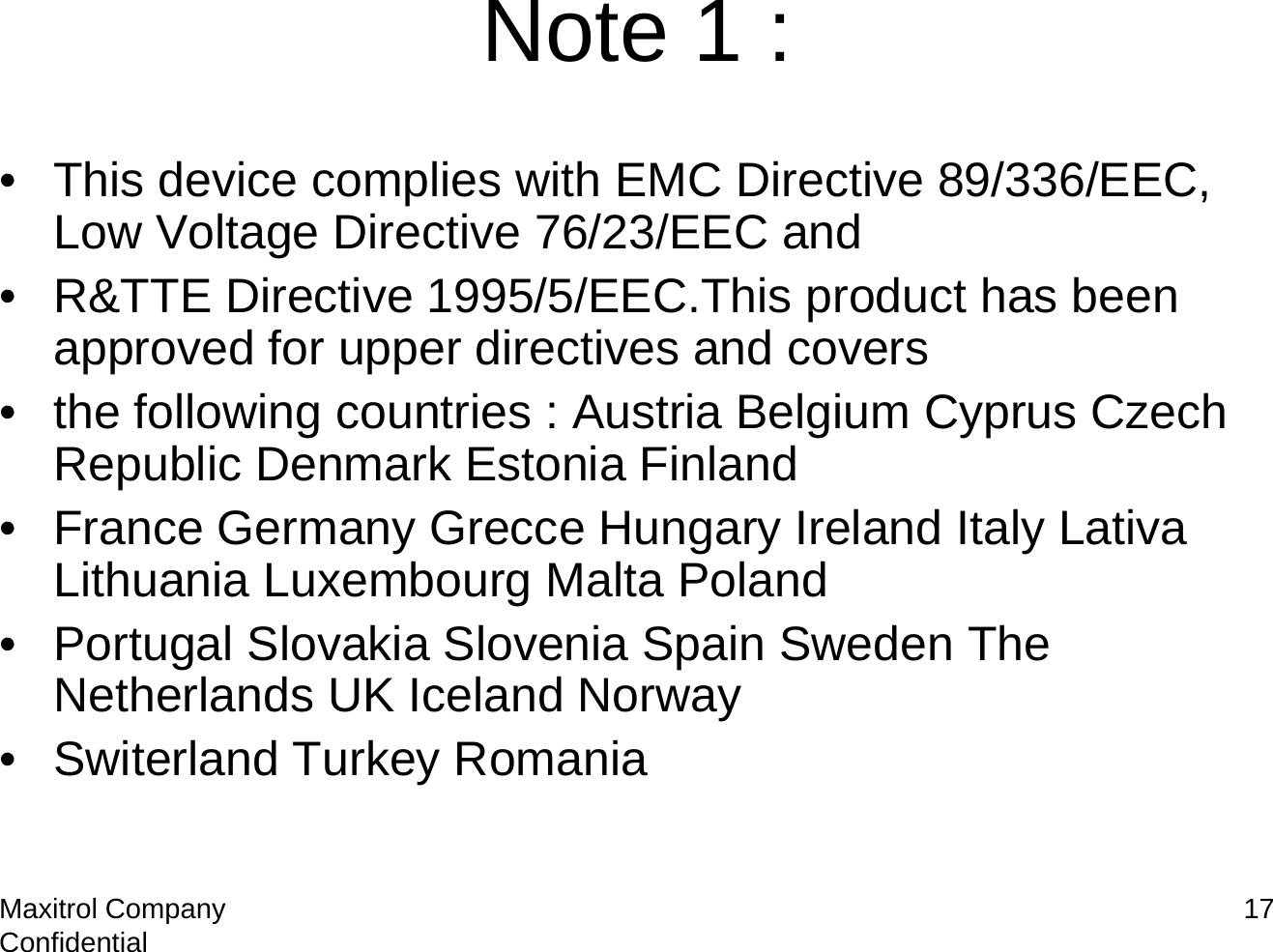

Maxitrol Company Confidential 17Note 1 :• This device complies with EMC Directive 89/336/EEC, Low Voltage Directive 76/23/EEC and• R&TTE Directive 1995/5/EEC.This product has been approved for upper directives and covers• the following countries : Austria Belgium Cyprus Czech Republic Denmark Estonia Finland• France Germany Grecce Hungary Ireland Italy LativaLithuania Luxembourg Malta Poland• Portugal Slovakia Slovenia Spain Sweden The Netherlands UK Iceland Norway• Switerland Turkey Romania

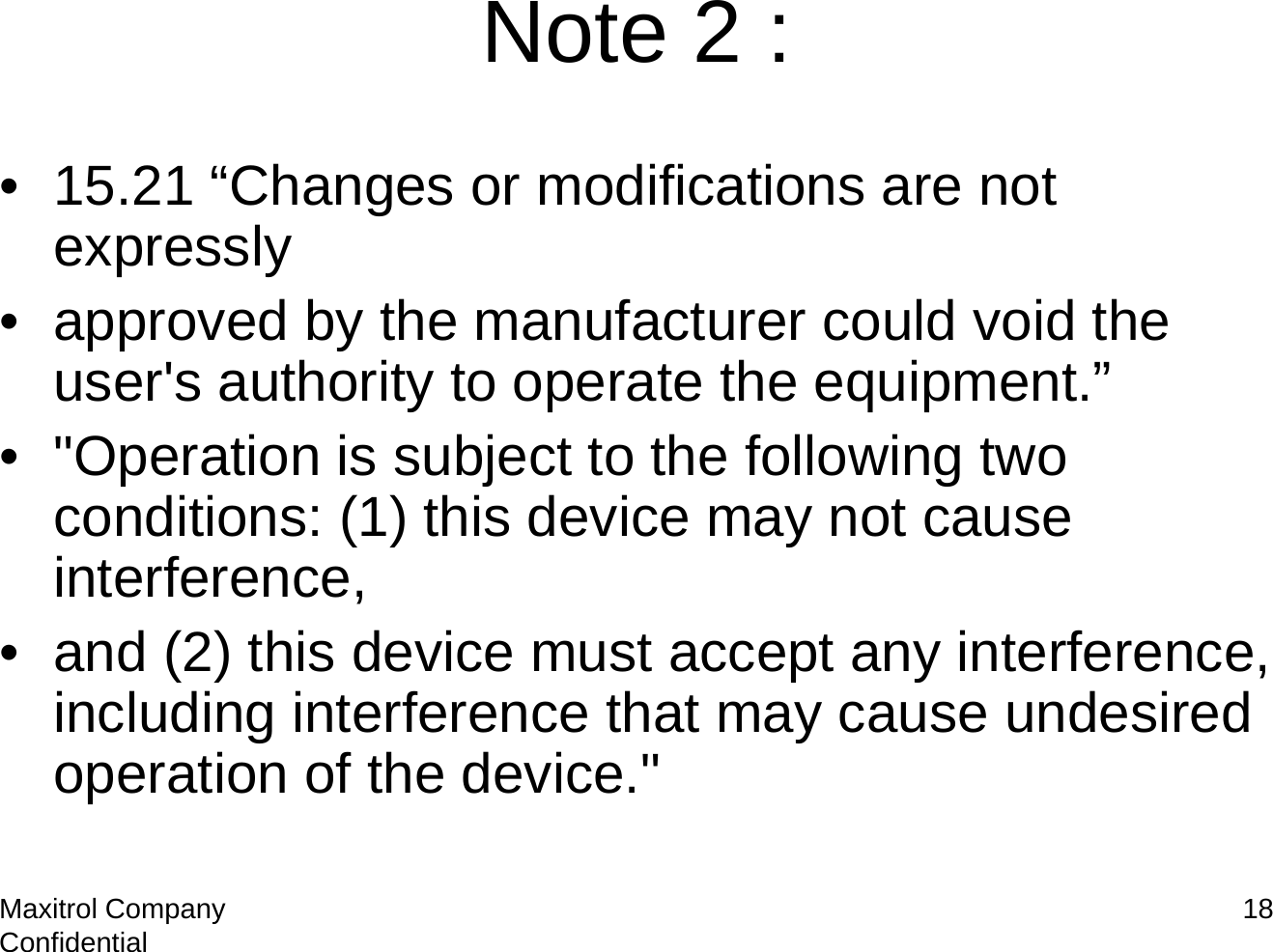

Maxitrol Company Confidential 18Note 2 :• 15.21 “Changes or modifications are not expressly• approved by the manufacturer could void the user's authority to operate the equipment.”• "Operation is subject to the following two conditions: (1) this device may not cause interference,• and (2) this device must accept any interference, including interference that may cause undesired operation of the device."
