Maycom Co MAYCOMMP50 MP3 Player User Manual Manual UMP50M

Maycom Co Ltd MP3 Player Manual UMP50M

users manual

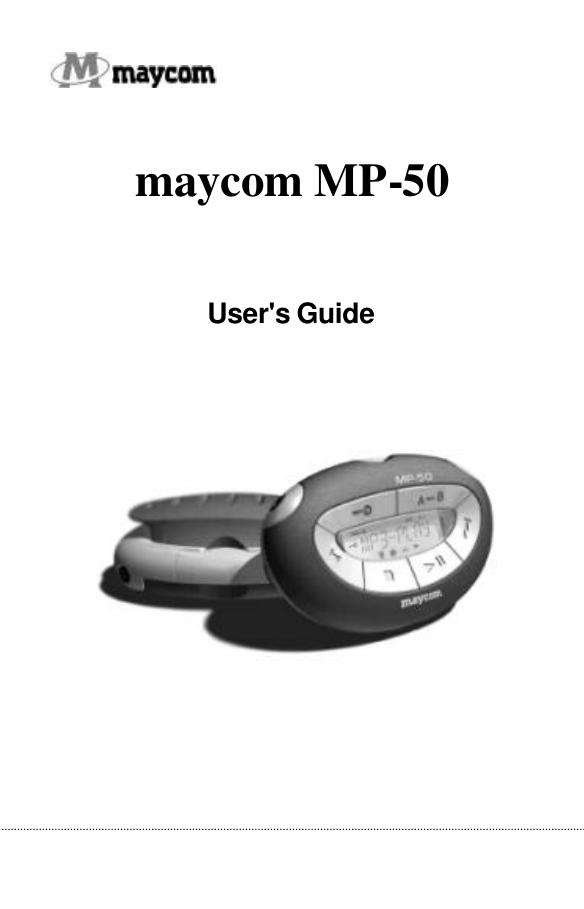

maycom MP-50 User's Guide

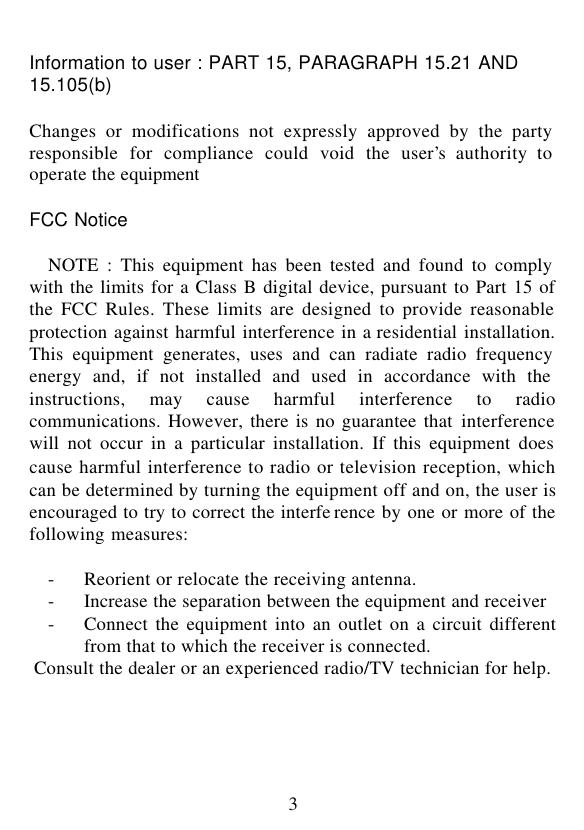

3 Information to user : PART 15, PARAGRAPH 15.21 AND 15.105(b) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment FCC Notice NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfe rence by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

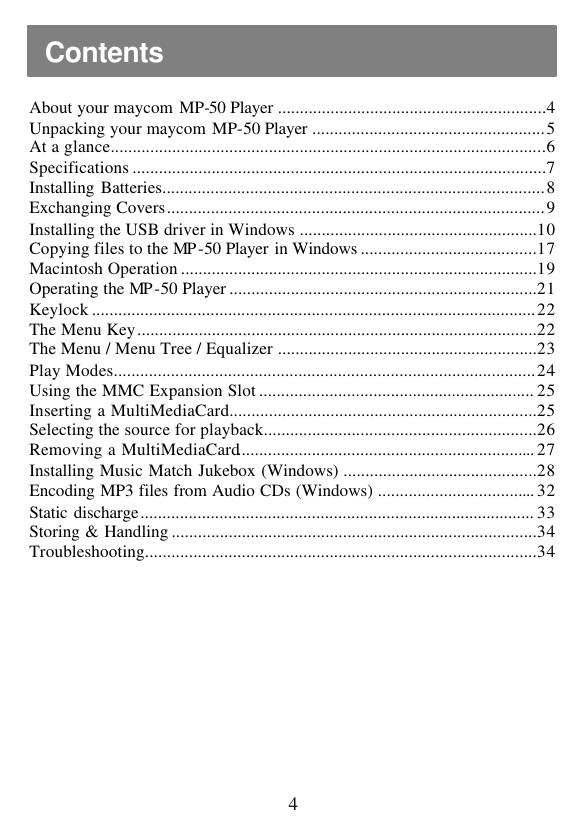

4 About your maycom MP-50 Player .............................................................4 Unpacking your maycom MP-50 Player .....................................................5 At a glance...................................................................................................6 Specifications ..............................................................................................7 Installing Batteries.......................................................................................8 Exchanging Covers......................................................................................9 Installing the USB driver in Windows ......................................................10 Copying files to the MP -50 Player in Windows ........................................17 Macintosh Operation .................................................................................19 Operating the MP -50 Player ......................................................................21 Keylock .....................................................................................................22 The Menu Key...........................................................................................22 The Menu / Menu Tree / Equalizer ...........................................................23 Play Modes................................................................................................24 Using the MMC Expansion Slot ............................................................... 25 Inserting a MultiMediaCard......................................................................25 Selecting the source for playback..............................................................26 Removing a MultiMediaCard.................................................................... 27 Installing Music Match Jukebox (Windows) ............................................28 Encoding MP3 files from Audio CDs (Windows) .................................... 32 Static discharge.......................................................................................... 33 Storing & Handling ...................................................................................34 Troubleshooting.........................................................................................34 Contents

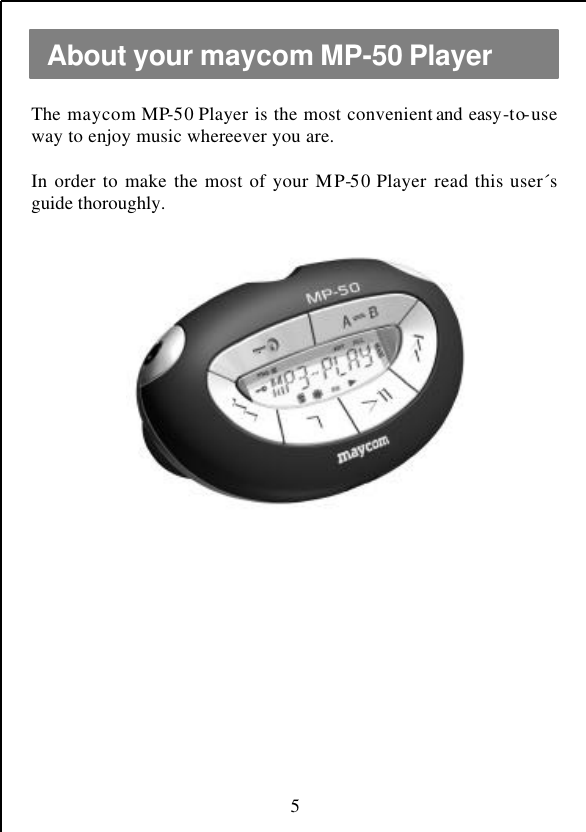

5 The maycom MP-50 Player is the most convenient and easy-to-use way to enjoy music whereever you are. In order to make the most of your MP-50 Player read this user´s guide thoroughly. About your maycom MP-50 Player
6 The following components are in the MP-50 Player box: MP-50 MP3 Player Additional Cover Stereo Headphones ‚ Owner´s Manual CD-Rom USB Cable Carrying case (Optional) Clip (Optional) Note: All pictures are symbol pictures only. The actual look of items may vary. Unpacking your MP-50 Player
7 Front view Back view No Description Key pressed for approx. 2 seconds 1 MMC (MultiMediaCard) Door - 2 Display artist & title (ID3 tags) Activate/Deactivate Keylock 3 Headphones Jack - 4 Previous Track Rewind within track 5 Stop Power On/Off 6 USB Jack - 7 A-B Repeat Format (erase) internal memory 8 Menu Key / Volume up/down - 9 Next Track Fast Forward within track 10 Display Window - 11 Play/Pause Select internal memory/MMC 12 Battery Cover - At a glance

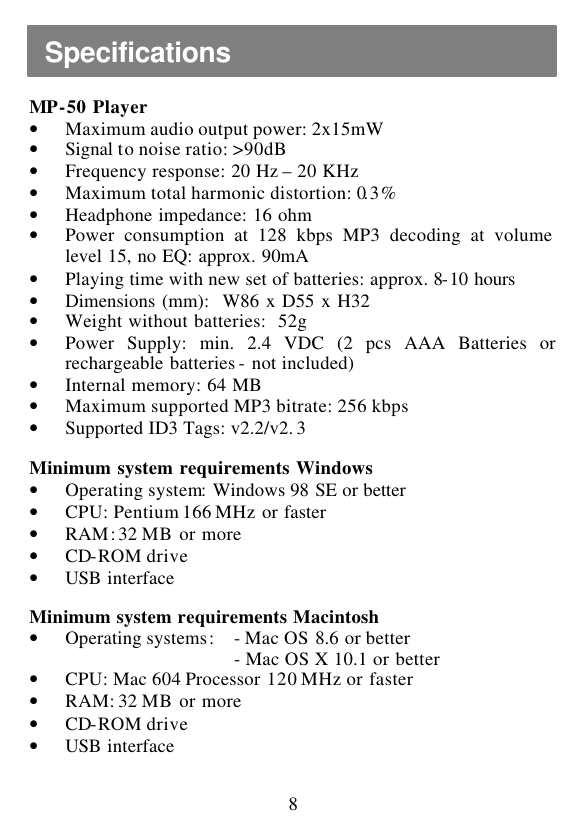

8 MP-50 Player • Maximum audio output power: 2x15mW • Signal to noise ratio: >90dB • Frequency response: 20 Hz – 20 KHz • Maximum total harmonic distortion: 0.3% • Headphone impedance: 16 ohm • Power consumption at 128 kbps MP3 decoding at volume level 15, no EQ: approx. 90mA • Playing time with new set of batteries: approx. 8-10 hours • Dimensions (mm): W86 x D55 x H32 • Weight without batteries: 52g • Power Supply: min. 2.4 VDC (2 pcs AAA Batteries or rechargeable batteries - not included) • Internal memory: 64 MB • Maximum supported MP3 bitrate: 256 kbps • Supported ID3 Tags: v2.2/v2. 3 Minimum system requirements Windows • Operating system: Windows 98 SE or better • CPU: Pentium 166 MHz or faster • RAM: 32 MB or more • CD-ROM drive • USB interface Minimum system requirements Macintosh • Operating systems: - Mac OS 8.6 or better - Mac OS X 10.1 or better • CPU: Mac 604 Processor 120 MHz or faster • RAM: 32 MB or more • CD-ROM drive • USB interface Specifications

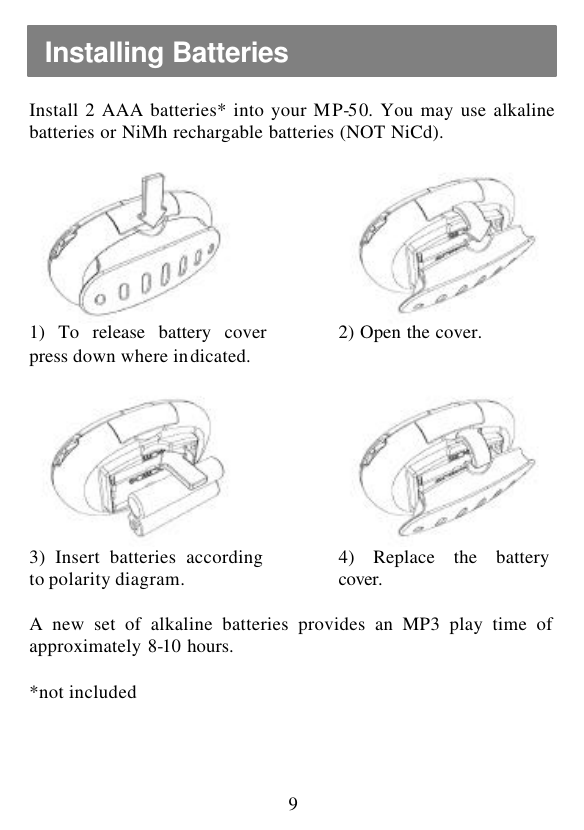

9 Install 2 AAA batteries* into your MP-50. You may use alkaline batteries or NiMh rechargable batteries (NOT NiCd). 1) To release battery cover press down where indicated. 2) Open the cover. 3) Insert batteries according to polarity diagram. 4) Replace the battery cover. A new set of alkaline batteries provides an MP3 play time of approximately 8-10 hours. *not included Installing Batteries

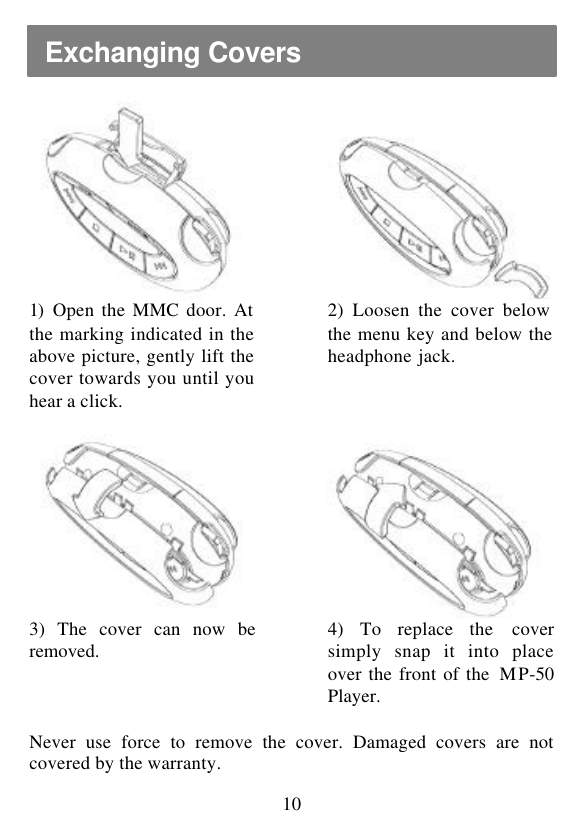

10 1) Open the MMC door. At the marking indicated in the above picture, gently lift the cover towards you until you hear a click. 2) Loosen the cover below the menu key and below the headphone jack. 3) The cover can now be removed. 4) To replace the cover simply snap it into place over the front of the MP-50 Player. Never use force to remove the cover. Damaged covers are not covered by the warranty. Exchanging Covers

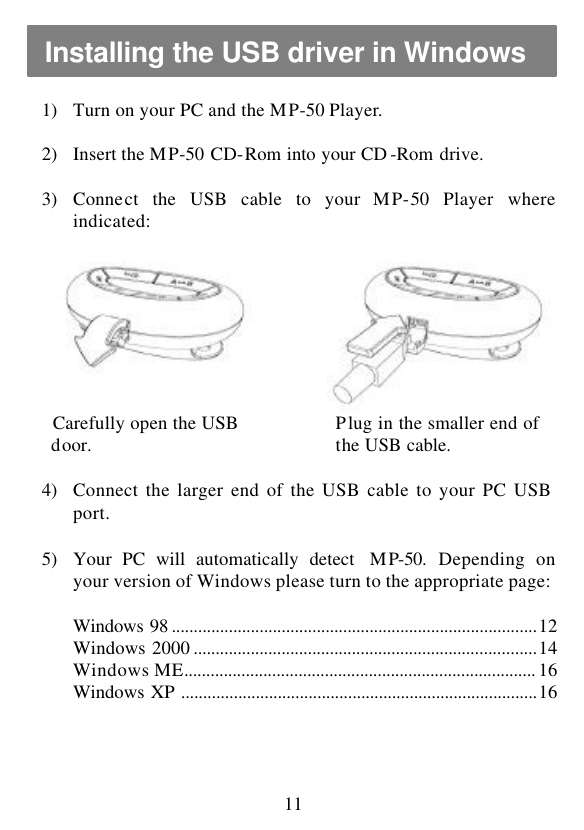

11 1) Turn on your PC and the MP-50 Player. 2) Insert the MP-50 CD-Rom into your CD -Rom drive. 3) Connect the USB cable to your MP-50 Player where indicated: Carefully open the USB door. Plug in the smaller end of the USB cable. 4) Connect the larger end of the USB cable to your PC USB port. 5) Your PC will automatically detect MP-50. Depending on your version of Windows please turn to the appropriate page: Windows 98 ...................................................................................12 Windows 2000 ..............................................................................14 Windows ME................................................................................ 16 Windows XP .................................................................................16 Installing the USB driver in Windows

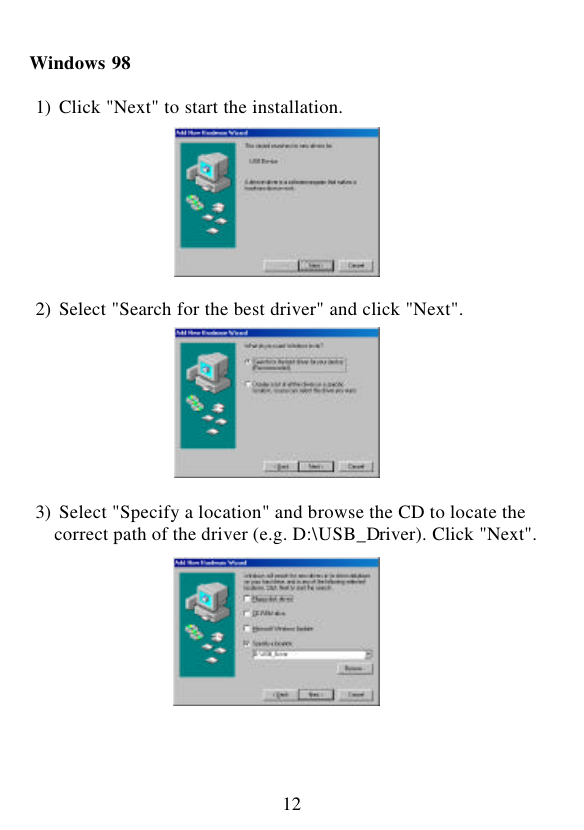

12 Windows 98 1) Click "Next" to start the installation. 2) Select "Search for the best driver" and click "Next". 3) Select "Specify a location" and browse the CD to locate the correct path of the driver (e.g. D:\USB_Driver). Click "Next".

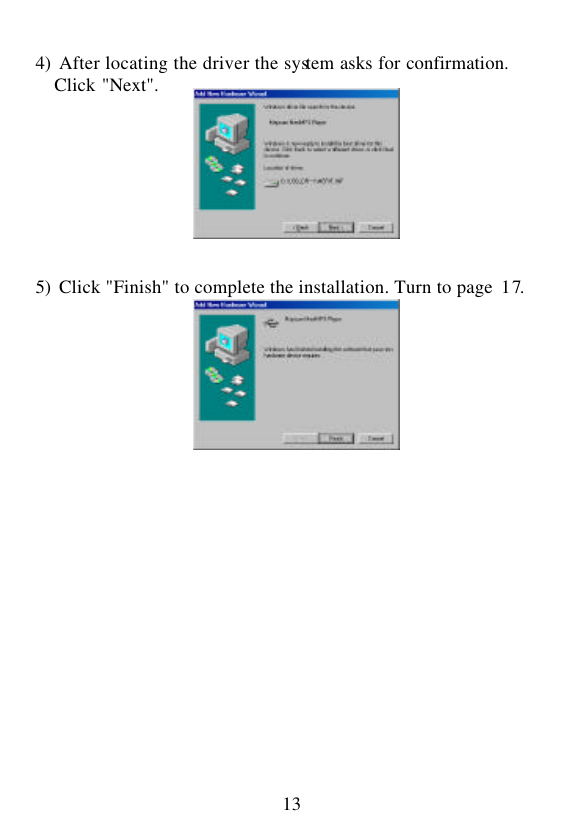

13 4) After locating the driver the system asks for confirmation. Click "Next". 5) Click "Finish" to complete the installation. Turn to page 17.

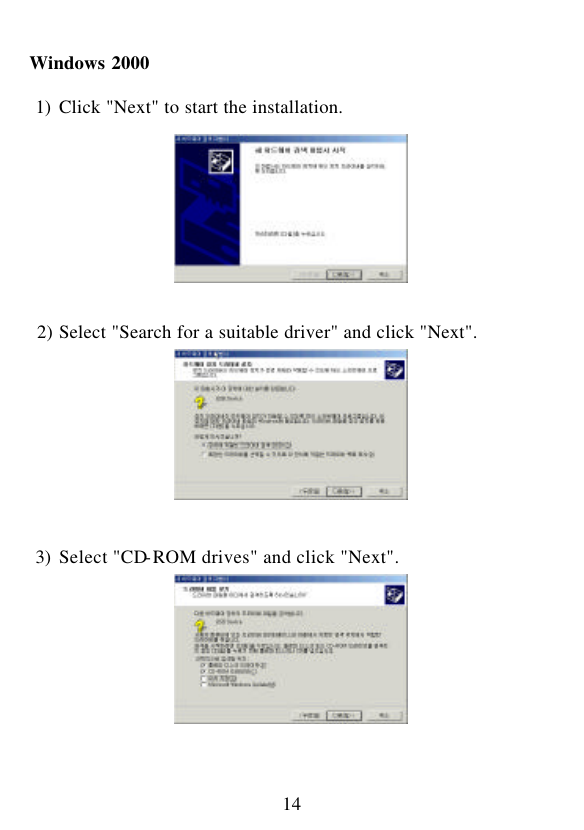

14 Windows 2000 1) Click "Next" to start the installation. 2) Select "Search for a suitable driver" and click "Next". 3) Select "CD-ROM drives" and click "Next".
15 4) After locating the driver the system asks for confirmation. Click "Next". 5) Click "Finish" to complete the installation. Turn to page 17.
16 Windows ME 1) Select "Automatic search" and click "Next". Windows ME will search the CD-ROM drive for the appropriate driver. 2) Click "Finish" to complete the installation. Turn to page 17. Windows XP 1) Select "Install the software automatically" and click "Next".

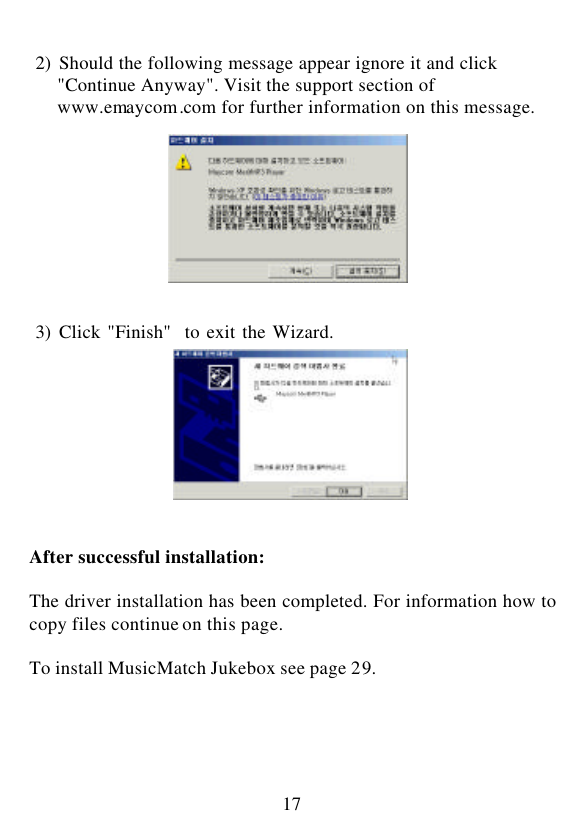

17 2) Should the following message appear ignore it and click "Continue Anyway". Visit the support section of www.emaycom.com for further information on this message. 3) Click "Finish" to exit the Wizard. After successful installation: The driver installation has been completed. For information how to copy files continue on this page. To install MusicMatch Jukebox see page 29.
18 Copying files to the MP-50 Player in Windows 1) Decide whether you want to access the internal memory or an MMC. To access an MMC, insert it into the MP-50 Player (see page 26) and switch to it (see page 27). 2) Connect the MP-50 16 Player to your PC. 3) In Windows Explorer find the drive letter representing the removable disk (Drive E: in our example below). If there is an MMC installed, the icon represents the MMC. If there is no MMC installed, it represents the internal memory. Some versions of Windows are able to display "maycom" as the disk name when the internal memory is being used. Internal Memory MMC installed Windows XP Other versions 4) Use Windows Explorer to copy the MP3 files from your harddisk to the MP-50 Player internal memory or your MMC. If you have encoded MP3 files with MusicMatch Jukebox these can typically be found in C:\My Documents\My Music. Beware: Never insert or remove an MMC before having disconnected the MP-50 Player from the PC. maycom(E:)

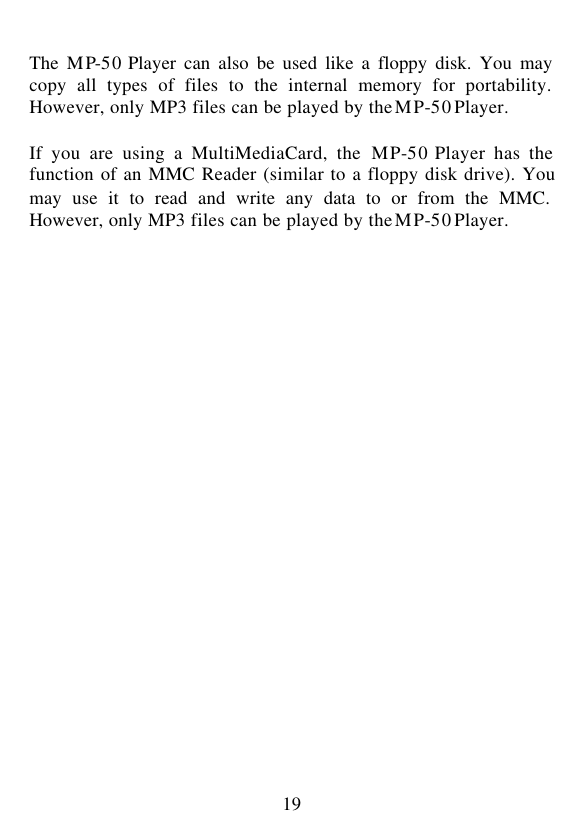

19 The MP-50 Player can also be used like a floppy disk. You may copy all types of files to the internal memory for portability. However, only MP3 files can be played by the MP-50 Player. If you are using a MultiMediaCard, the MP-50 Player has the function of an MMC Reader (similar to a floppy disk drive). You may use it to read and write any data to or from the MMC. However, only MP3 files can be played by the MP-50 Player.

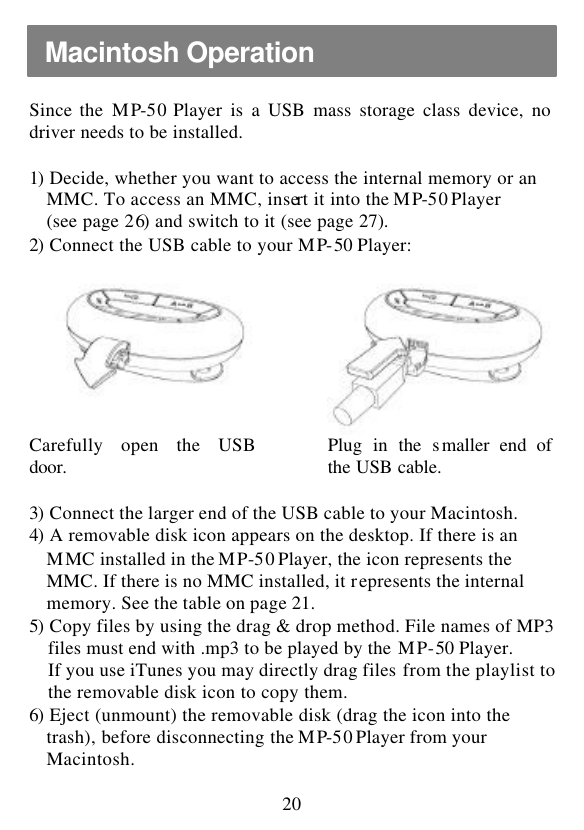

20 Since the MP-50 Player is a USB mass storage class device, no driver needs to be installed. 1) Decide, whether you want to access the internal memory or an MMC. To access an MMC, insert it into the MP-50 Player (see page 26) and switch to it (see page 27). 2) Connect the USB cable to your MP-50 Player: Carefully open the USB door. Plug in the smaller end of the USB cable. 3) Connect the larger end of the USB cable to your Macintosh. 4) A removable disk icon appears on the desktop. If there is an MMC installed in the MP-50 Player, the icon represents the MMC. If there is no MMC installed, it represents the internal memory. See the table on page 21. 5) Copy files by using the drag & drop method. File names of MP3 files must end with .mp3 to be played by the MP-50 Player. If you use iTunes you may directly drag files from the playlist to the removable disk icon to copy them. 6) Eject (unmount) the removable disk (drag the icon into the trash), before disconnecting the MP-50 Player from your Macintosh. Macintosh Operation

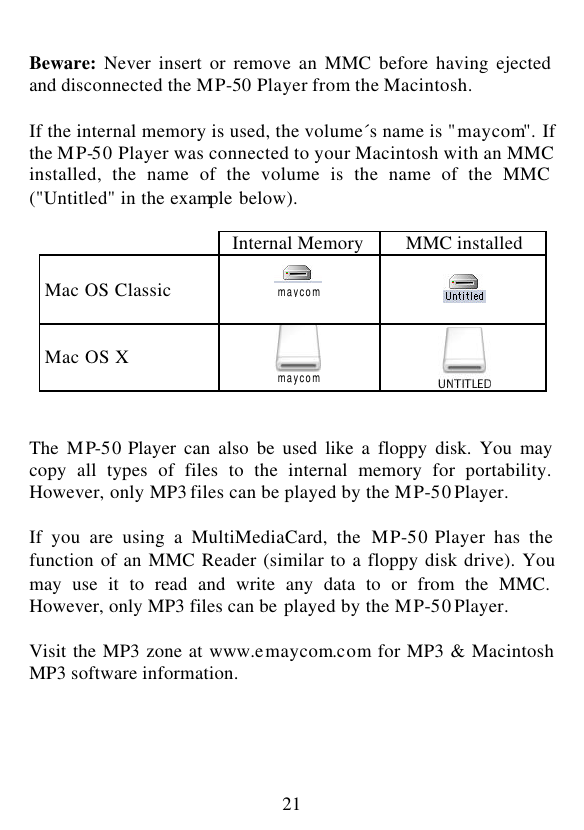

21 Beware: Never insert or remove an MMC before having ejected and disconnected the MP-50 Player from the Macintosh. If the internal memory is used, the volume´s name is "maycom". If the MP-50 Player was connected to your Macintosh with an MMC installed, the name of the volume is the name of the MMC ("Untitled" in the example below). Internal Memory MMC installed Mac OS Classic Mac OS X The MP-50 Player can also be used like a floppy disk. You may copy all types of files to the internal memory for portability. However, only MP3 files can be played by the MP-50 Player. If you are using a MultiMediaCard, the MP-50 Player has the function of an MMC Reader (similar to a floppy disk drive). You may use it to read and write any data to or from the MMC. However, only MP3 files can be played by the MP-50 Player. Visit the MP3 zone at www.emaycom.com for MP3 & Macintosh MP3 software information. maycom maycom

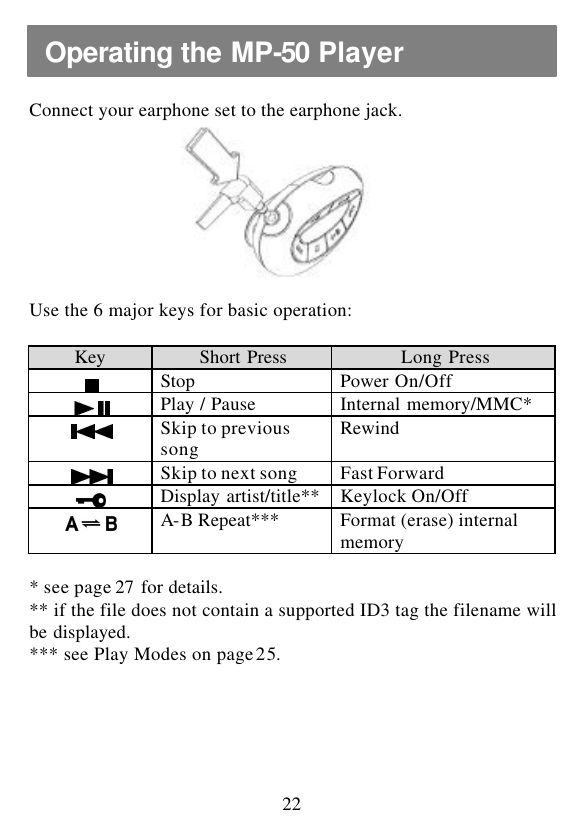

22 Connect your earphone set to the earphone jack. Use the 6 major keys for basic operation: Key Short Press Long Press Stop Power On/Off Play / Pause Internal memory/MMC* Skip to previous song Rewind Skip to next song Fast Forward Display artist/title** Keylock On/Off A-B Repeat*** Format (erase) internal memory * see page 27 for details. ** if the file does not contain a supported ID3 tag the filename will be displayed. *** see Play Modes on page 25. Operating the MP-50 Player

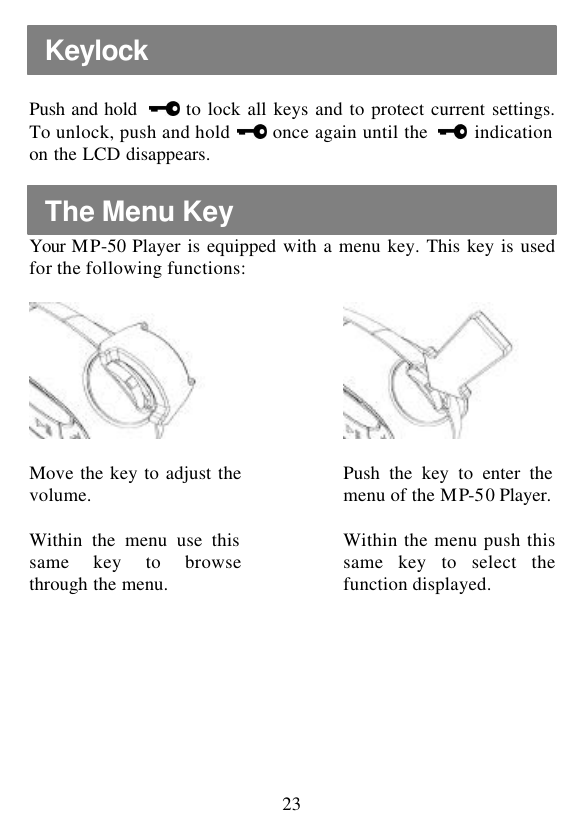

23 Push and hold to lock all keys and to protect current settings. To unlock, push and hold once again until the indication on the LCD disappears. Your MP-50 Player is equipped with a menu key. This key is used for the following functions: Move the key to adjust the volume. Push the key to enter the menu of the MP-50 Player. Within the menu use this same key to browse through the menu. Within the menu push this same key to select the function displayed. The Menu Key Keylock

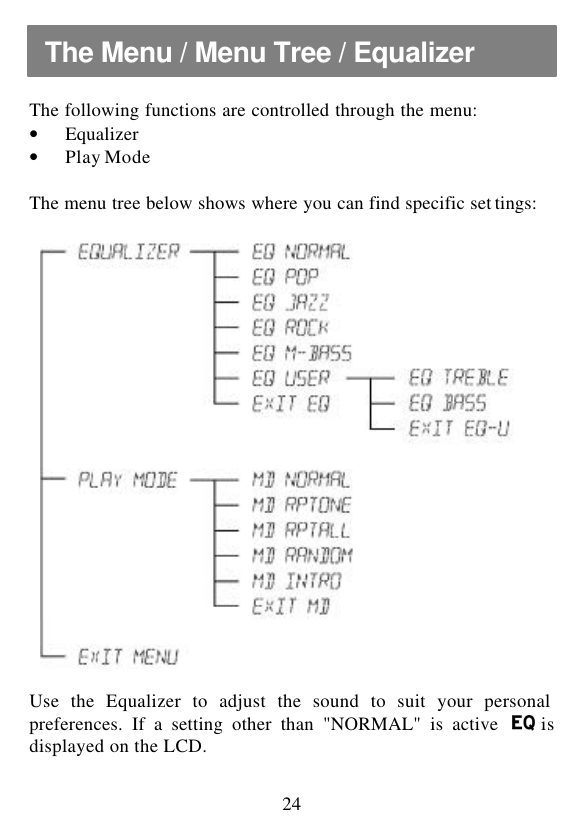

24 The following functions are controlled through the menu: • Equalizer • Play Mode The menu tree below shows where you can find specific set tings: Use the Equalizer to adjust the sound to suit your personal preferences. If a setting other than "NORMAL" is active is displayed on the LCD. The Menu / Menu Tree / Equalizer

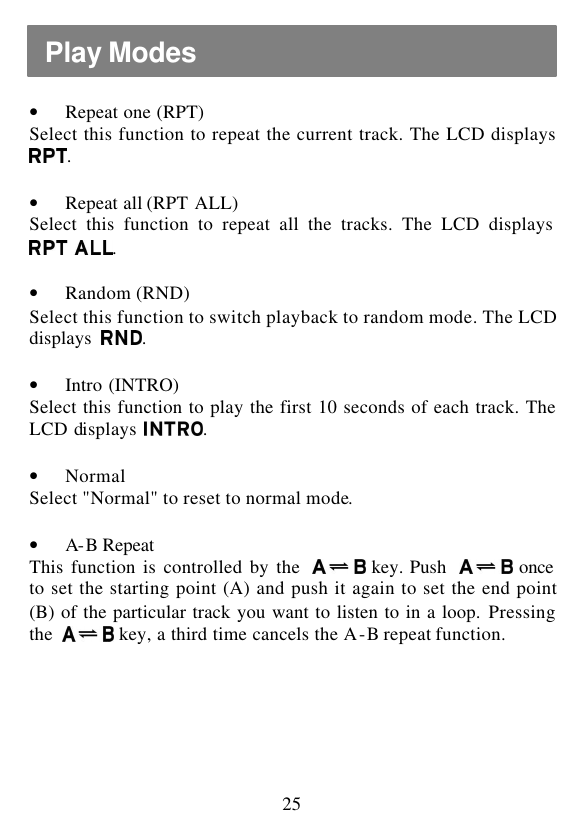

25 • Repeat one (RPT) Select this function to repeat the current track. The LCD displays . • Repeat all (RPT ALL) Select this function to repeat all the tracks. The LCD displays . • Random (RND) Select this function to switch playback to random mode. The LCD displays . • Intro (INTRO) Select this function to play the first 10 seconds of each track. The LCD displays . • Normal Select "Normal" to reset to normal mode. • A-B Repeat This function is controlled by the key. Push once to set the starting point (A) and push it again to set the end point (B) of the particular track you want to listen to in a loop. Pressing the key, a third time cancels the A-B repeat function. Play Modes

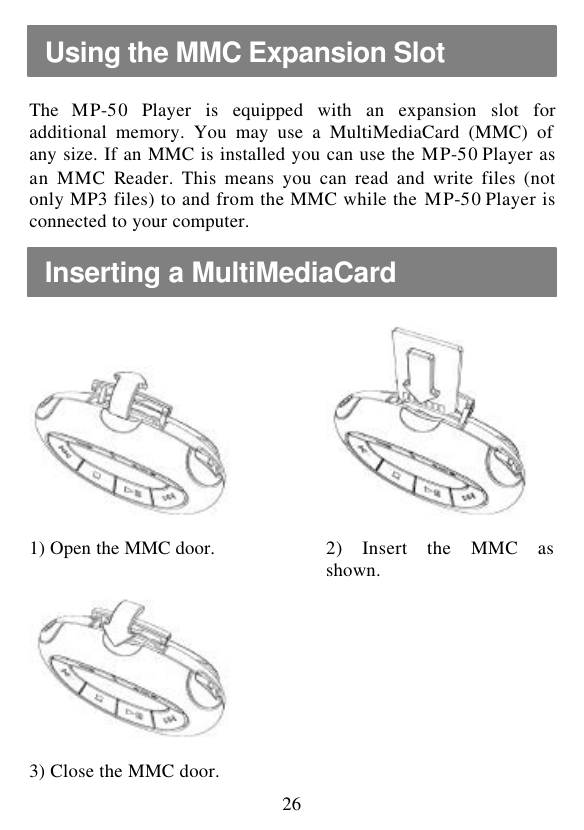

26 The MP-50 Player is equipped with an expansion slot for additional memory. You may use a MultiMediaCard (MMC) of any size. If an MMC is installed you can use the MP-50 Player as an MMC Reader. This means you can read and write files (not only MP3 files) to and from the MMC while the MP-50 Player is connected to your computer. 1) Open the MMC door. 2) Insert the MMC as shown. 3) Close the MMC door. Using the MMC Expansion Slot Inserting a MultiMediaCard

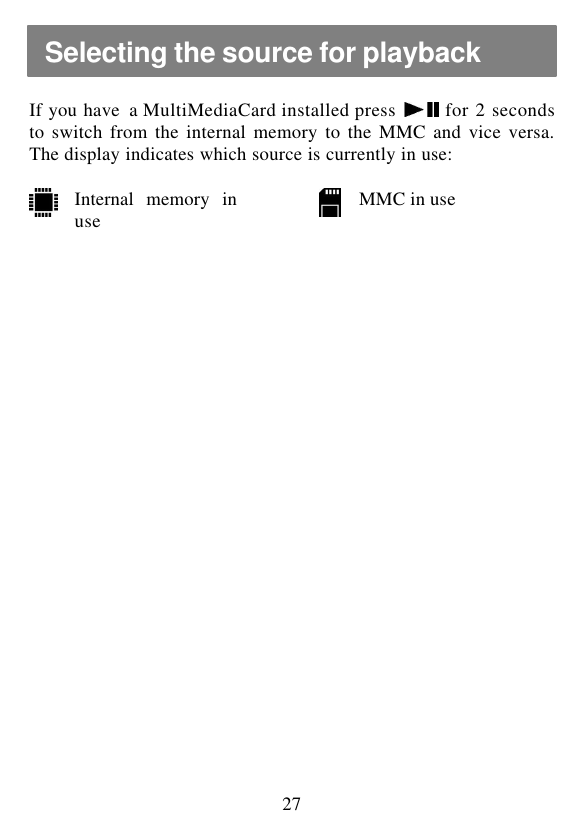

27 If you have a MultiMediaCard installed press for 2 seconds to switch from the internal memory to the MMC and vice versa. The display indicates which source is currently in use: Internal memory in use MMC in use Selecting the source for playback

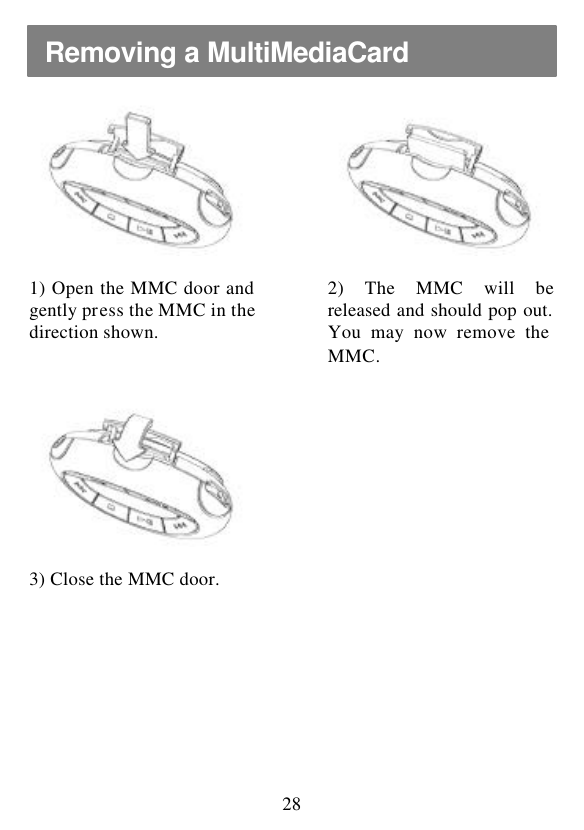

28 1) Open the MMC door and gently press the MMC in the direction shown. 2) The MMC will be released and should pop out. You may now remove the MMC. 3) Close the MMC door. Removing a MultiMediaCard
29 Minimum system requirements Operating system: Windows98 or later CPU: Pentium 166MHz or better RAM: 32MB or more 256 colours or better 4x speed CD-ROM drive USB interface Sound system: 16 bit or better 1) Turn on your PC. 2) Insert the MP-50 CD-Rom into your CD-Rom drive. Access the CD by double-clicking the icon representing the CD-Rom drive. 3) Double-click the "MusicMatch Jukebox" folder. Installing Music Match Jukebox maycom(D:) maycom(D:) maycom drivers

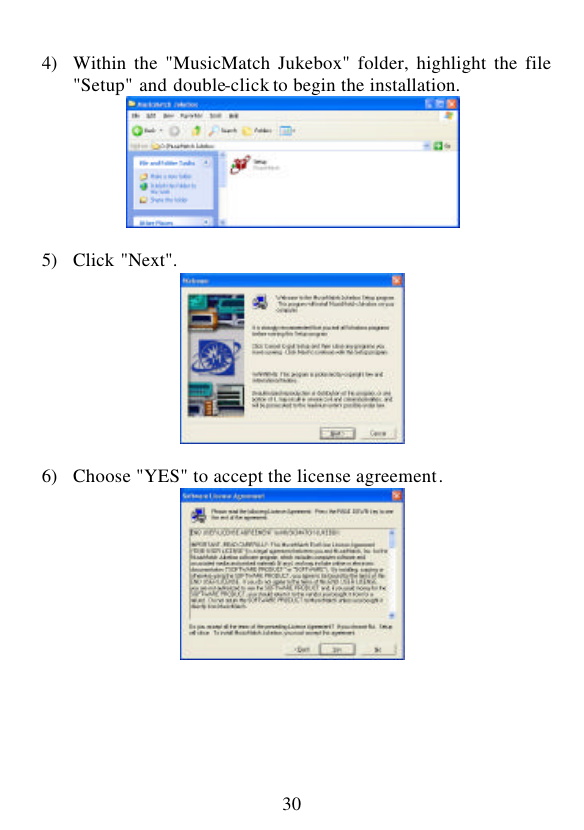

30 4) Within the "MusicMatch Jukebox" folder, highlight the file "Setup" and double-click to begin the installation. 5) Click "Next". 6) Choose "YES" to accept the license agreement.

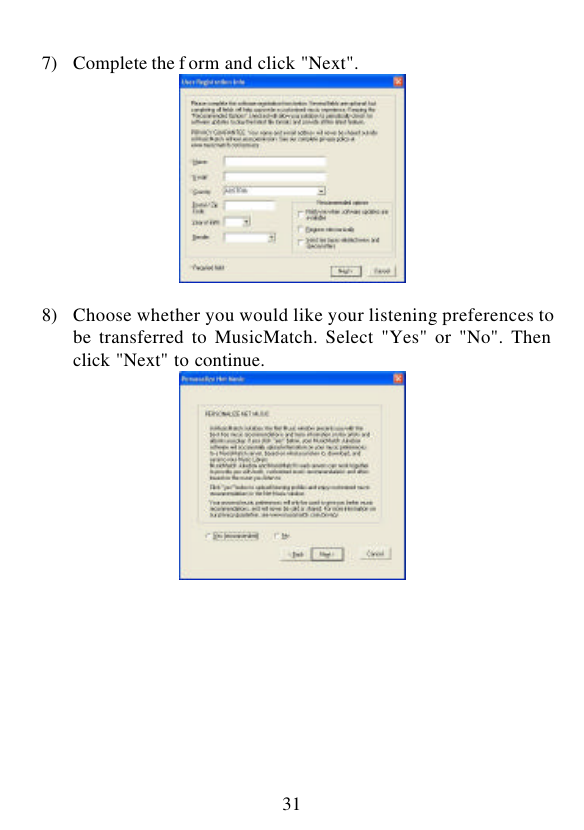

31 7) Complete the f orm and click "Next". 8) Choose whether you would like your listening preferences to be transferred to MusicMatch. Select "Yes" or "No". Then click "Next" to continue.

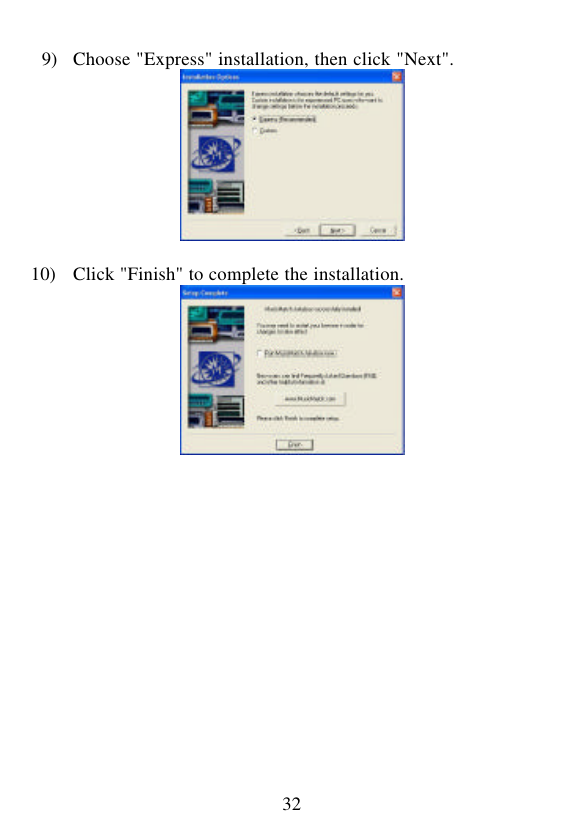

32 9) Choose "Express" installation, then click "Next". 10) Click "Finish" to complete the installation.
33 1) Start Music Match Jukebox. 2) Insert an Audio CD into your CD-Rom drive. 3) Music Match Jukebox should automatically detect the CD. (If not, please ensure that MusicMatch Jukebox is selected as you default CD Player.) 4) Select the tracks in the recording dialog box which you would like to encode into MP3 files and edit the track information for identification. 5) Click "REC" to start encoding. 6) After encoding you will find the encoded files located in the "Music Library" (also in C:\My Documents\My Music). Use Windows Explorer to copy MP3 files to the MP-50 Player. See page 18 for details. We recommend a bitrate of 128 kbps for MP3 encoding (CD quality) in order to keep the file size small. Your maycom MP-50 Player supports variable bit rates of up to 256 kbps. If you experience any problem while using Music Match Jukebox, contact MusicMatch at: http://www.musicmatch.com/common/contact_us.cgi To submit an assistance request, visit http://www.musicmatch.com/form/support/customer/ and send an e-mail describing your problem and including your e-Mail address. Visit the MP3 Zone at www.emaycom.com for more MP3 information. Encoding MP3 files from Audio CDs

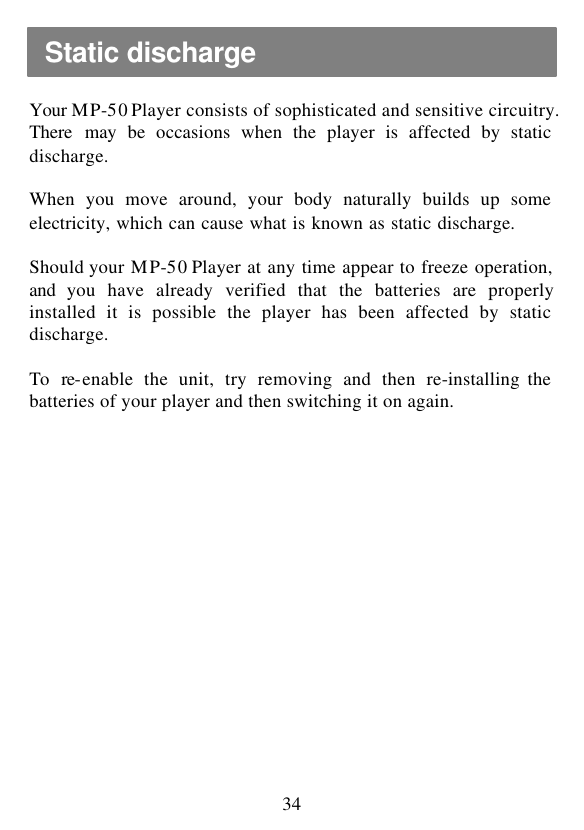

34 Your MP-50 Player consists of sophisticated and sensitive circuitry. There may be occasions when the player is affected by static discharge. When you move around, your body naturally builds up some electricity, which can cause what is known as static discharge. Should your MP-50 Player at any time appear to freeze operation, and you have already verified that the batteries are properly installed it is possible the player has been affected by static discharge. To re-enable the unit, try removing and then re-installing the batteries of your player and then switching it on again. Static discharge

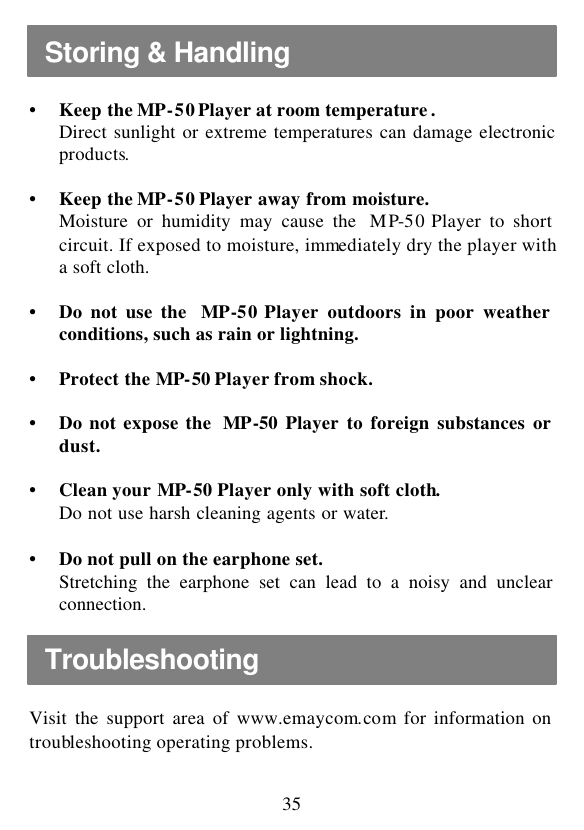

35 • Keep the MP-50 Player at room temperature . Direct sunlight or extreme temperatures can damage electronic products. • Keep the MP-50 Player away from moisture. Moisture or humidity may cause the MP-50 Player to short circuit. If exposed to moisture, immediately dry the player with a soft cloth. • Do not use the MP-50 Player outdoors in poor weather conditions, such as rain or lightning. • Protect the MP-50 Player from shock. • Do not expose the MP-50 Player to foreign substances or dust. • Clean your MP-50 Player only with soft cloth. Do not use harsh cleaning agents or water. • Do not pull on the earphone set. Stretching the earphone set can lead to a noisy and unclear connection. Visit the support area of www.emaycom.com for information on troubleshooting operating problems. Storing & Handling Troubleshooting
36 Maycom B/D, 280-5, Seoksu 2-Dong, Manan-Gu, Anyang-City, Kyongki-Do, Korea Tel : +82 (0)31-470-7700 Fax : +82 (0)31-472-3700 http://www.emaycom.com e-mail : maycom@emaycom.com Printed in Korea
