Merrytek Technology MC609VRCA Lighting Control Switch User Manual

Shenzhen Merrytek Technology CO., LTD Lighting Control Switch

User manual

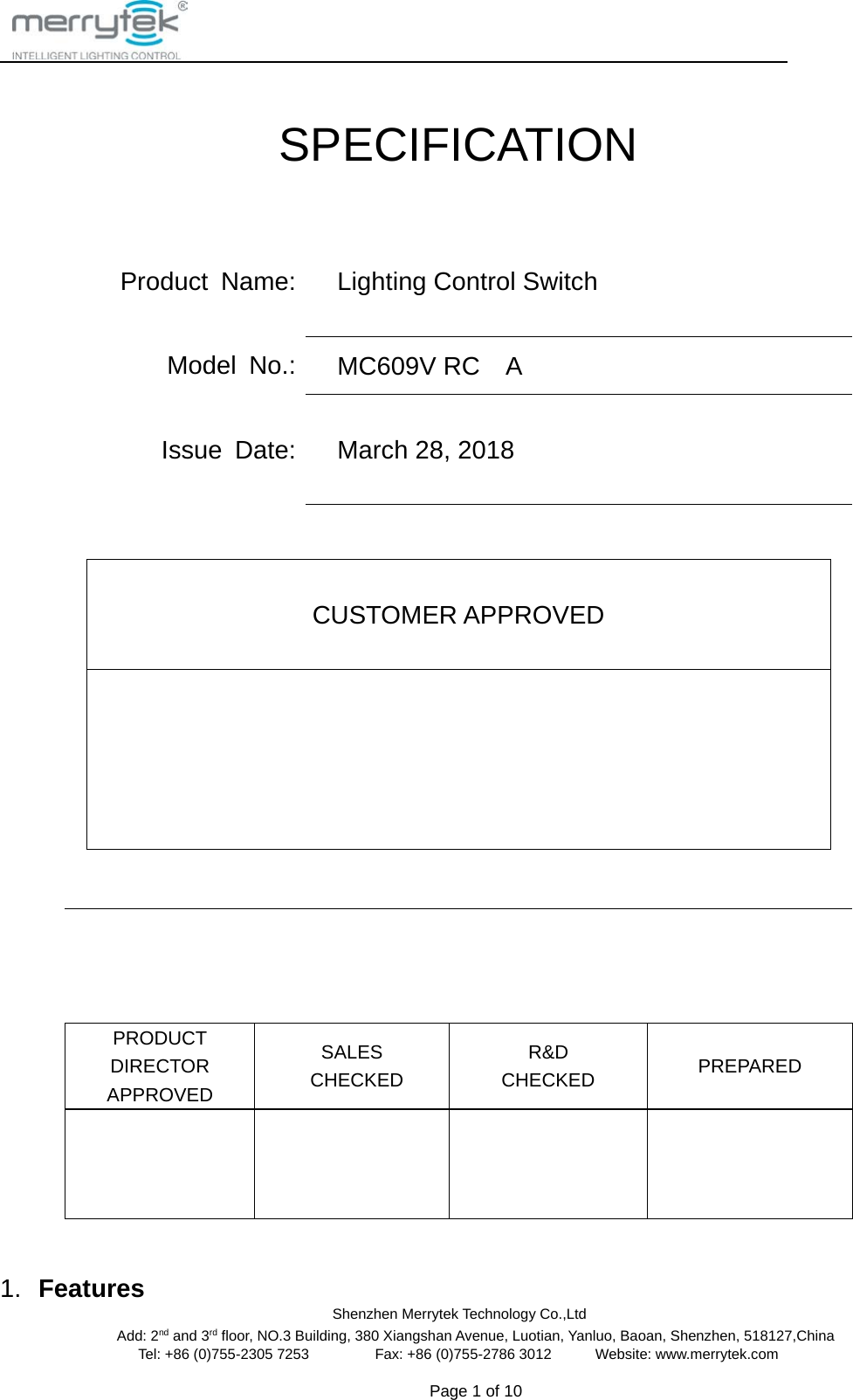

Shenzhen Merrytek Technology Co.,Ltd Add: 2nd and 3rd floor, NO.3 Building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, 518127,China Tel: +86 (0)755-2305 7253 Fax: +86 (0)755-2786 3012 Website: www.merrytek.com Page 1 of 10 1. Features SPECIFICATION Product Name: Lighting Control Switch Model No.: MC609V RC A Issue Date: March 28, 2018 CUSTOMER APPROVED PRODUCT DIRECTOR APPROVED SALES CHECKED R&D CHECKED PREPARED

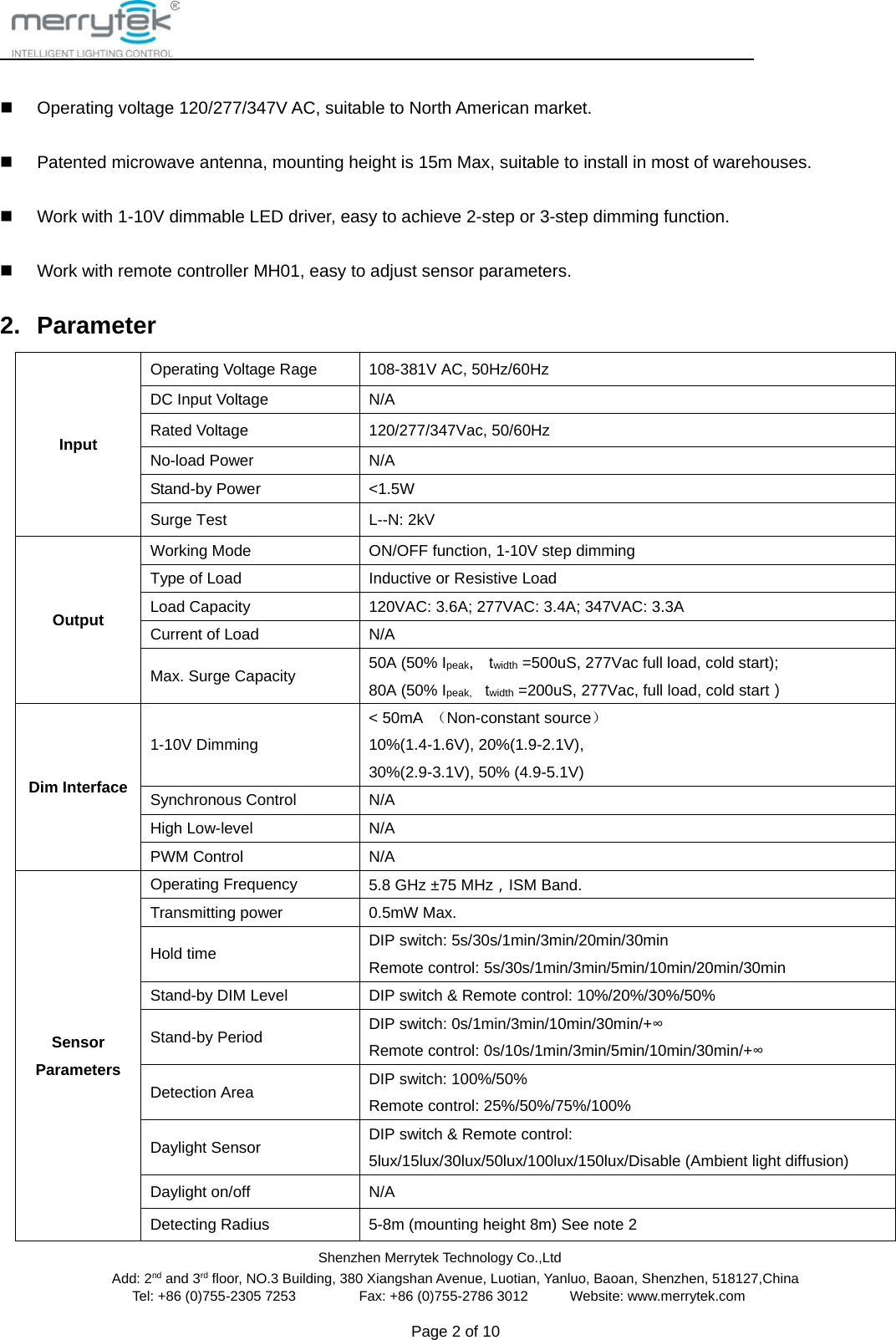

Shenzhen Merrytek Technology Co.,Ltd Add: 2nd and 3rd floor, NO.3 Building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, 518127,China Tel: +86 (0)755-2305 7253 Fax: +86 (0)755-2786 3012 Website: www.merrytek.com Page 2 of 10  Operating voltage 120/277/347V AC, suitable to North American market.  Patented microwave antenna, mounting height is 15m Max, suitable to install in most of warehouses.  Work with 1-10V dimmable LED driver, easy to achieve 2-step or 3-step dimming function.  Work with remote controller MH01, easy to adjust sensor parameters. 2. Parameter Input Operating Voltage Rage 108-381V AC, 50Hz/60Hz DC Input Voltage N/A Rated Voltage 120/277/347Vac, 50/60Hz No-load Power N/A Stand-by Power <1.5W Surge Test L--N: 2kV Output Working Mode ON/OFF function, 1-10V step dimming Type of Load Inductive or Resistive Load Load Capacity 120VAC: 3.6A; 277VAC: 3.4A; 347VAC: 3.3A Current of Load N/A Max. Surge Capacity 50A (50% Ipeak, twidth =500uS, 277Vac full load, cold start); 80A (50% Ipeak, twidth =200uS, 277Vac, full load, cold start） Dim Interface 1-10V Dimming < 50mA （Non-constant source） 10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V), 50% (4.9-5.1V) Synchronous Control N/A High Low-level N/A PWM Control N/A Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz，ISM Band. Transmitting power 0.5mW Max. Hold time DIP switch: 5s/30s/1min/3min/20min/30min Remote control: 5s/30s/1min/3min/5min/10min/20min/30min Stand-by DIM Level DIP switch & Remote control: 10%/20%/30%/50% Stand-by Period DIP switch: 0s/1min/3min/10min/30min/+∞ Remote control: 0s/10s/1min/3min/5min/10min/30min/+∞ Detection Area DIP switch: 100%/50% Remote control: 25%/50%/75%/100% Daylight Sensor DIP switch & Remote control: 5lux/15lux/30lux/50lux/100lux/150lux/Disable (Ambient light diffusion) Daylight on/off N/A Detecting Radius 5-8m (mounting height 8m) See note 2

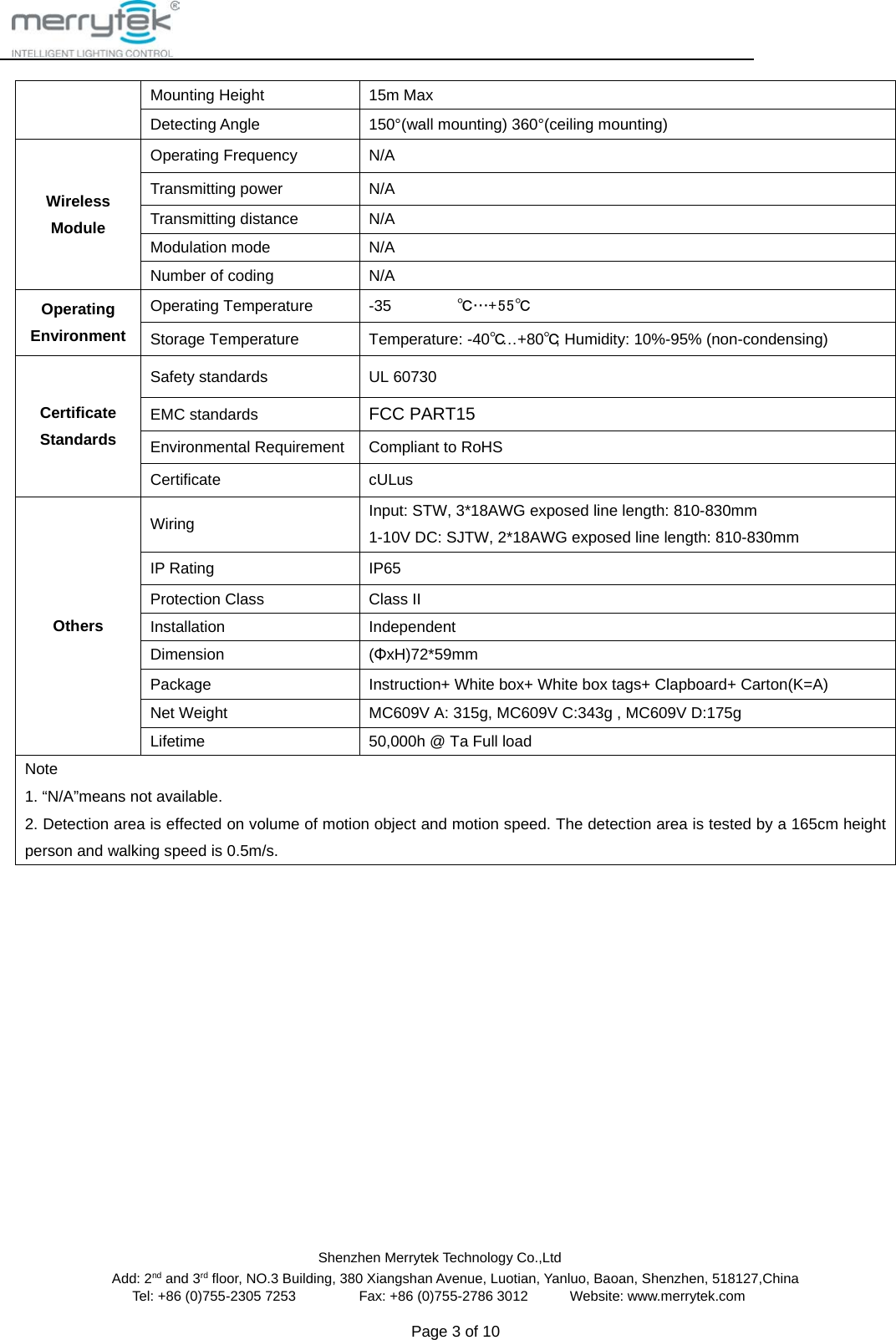

Shenzhen Merrytek Technology Co.,Ltd Add: 2nd and 3rd floor, NO.3 Building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, 518127,China Tel: +86 (0)755-2305 7253 Fax: +86 (0)755-2786 3012 Website: www.merrytek.com Page 3 of 10 Mounting Height 15m Max Detecting Angle 150°(wall mounting) 360°(ceiling mounting) Wireless Module Operating Frequency N/A Transmitting power N/A Transmitting distance N/A Modulation mode N/A Number of coding N/A Operating Environment Operating Temperature -35 ℃…+55℃ Storage Temperature Temperature: -40℃…+80℃; Humidity: 10%-95% (non-condensing) Certificate Standards Safety standards UL 60730 EMC standards FCC PART15 Environmental Requirement Compliant to RoHS Certificate cULus Others Wiring Input: STW, 3*18AWG exposed line length: 810-830mm 1-10V DC: SJTW, 2*18AWG exposed line length: 810-830mm IP Rating IP65 Protection Class Class II Installation Independent Dimension (ΦxH)72*59mm Package Instruction+ White box+ White box tags+ Clapboard+ Carton(K=A) Net Weight MC609V A: 315g, MC609V C:343g , MC609V D:175g Lifetime 50,000h @ Ta Full load Note 1. “N/A”means not available. 2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s.

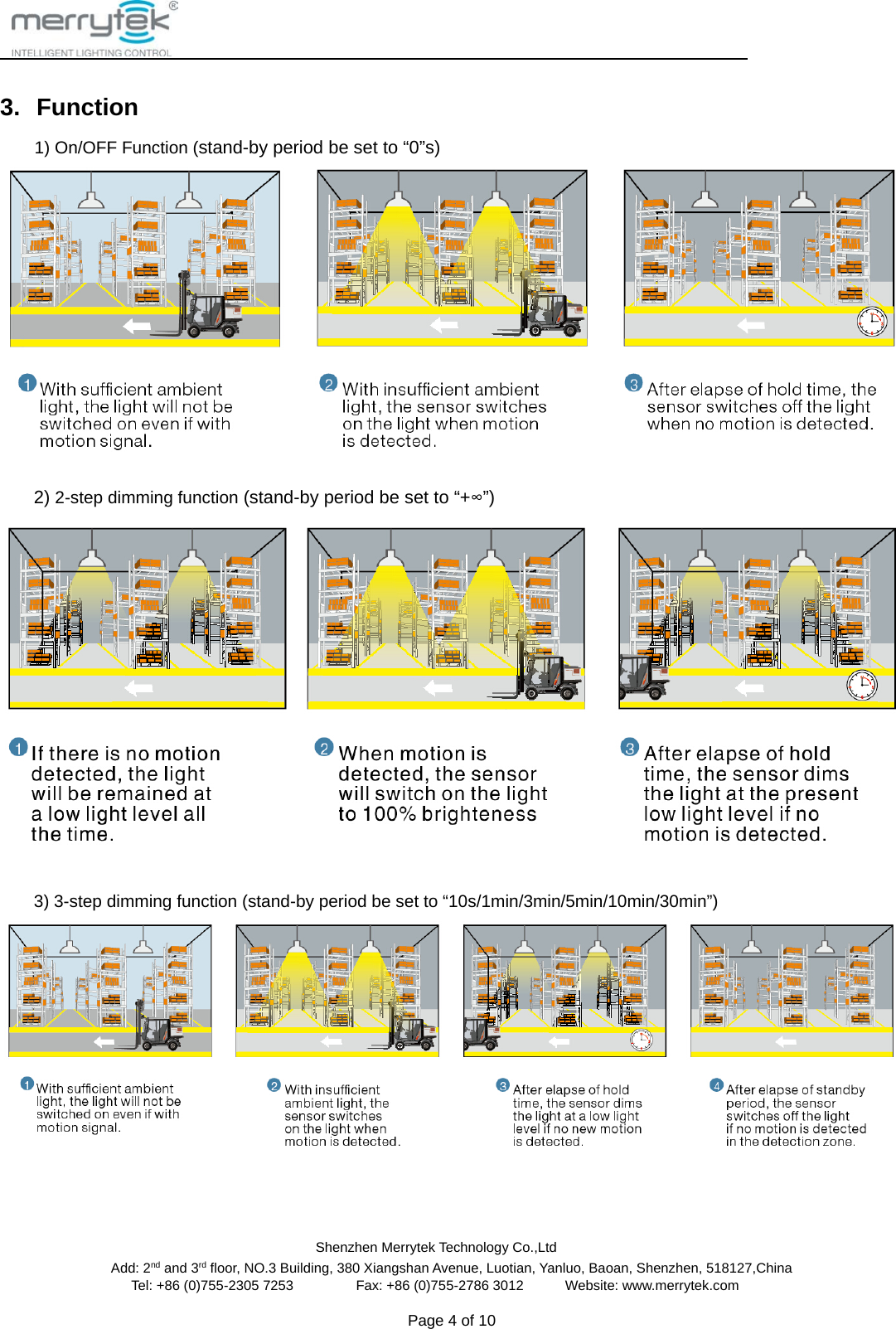

Shenzhen Merrytek Technology Co.,Ltd Add: 2nd and 3rd floor, NO.3 Building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, 518127,China Tel: +86 (0)755-2305 7253 Fax: +86 (0)755-2786 3012 Website: www.merrytek.com Page 4 of 10 3. Function 1) On/OFF Function (stand-by period be set to “0”s) 2) 2-step dimming function (stand-by period be set to “+∞”) 3) 3-step dimming function (stand-by period be set to “10s/1min/3min/5min/10min/30min”)

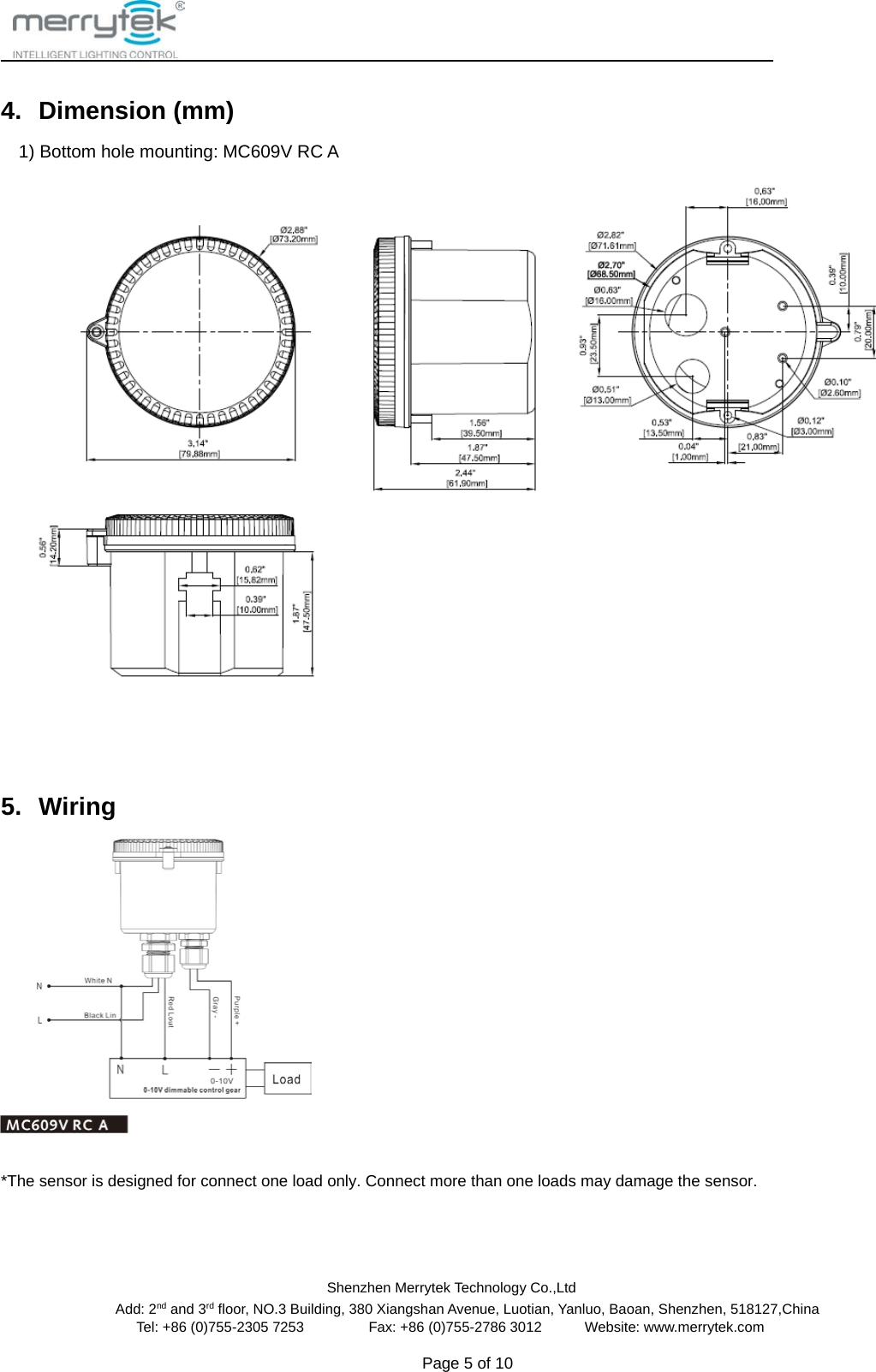

Shenzhen Merrytek Technology Co.,Ltd Add: 2nd and 3rd floor, NO.3 Building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, 518127,China Tel: +86 (0)755-2305 7253 Fax: +86 (0)755-2786 3012 Website: www.merrytek.com Page 5 of 10 4. Dimension (mm) 1) Bottom hole mounting: MC609V RC A 5. Wiring *The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.

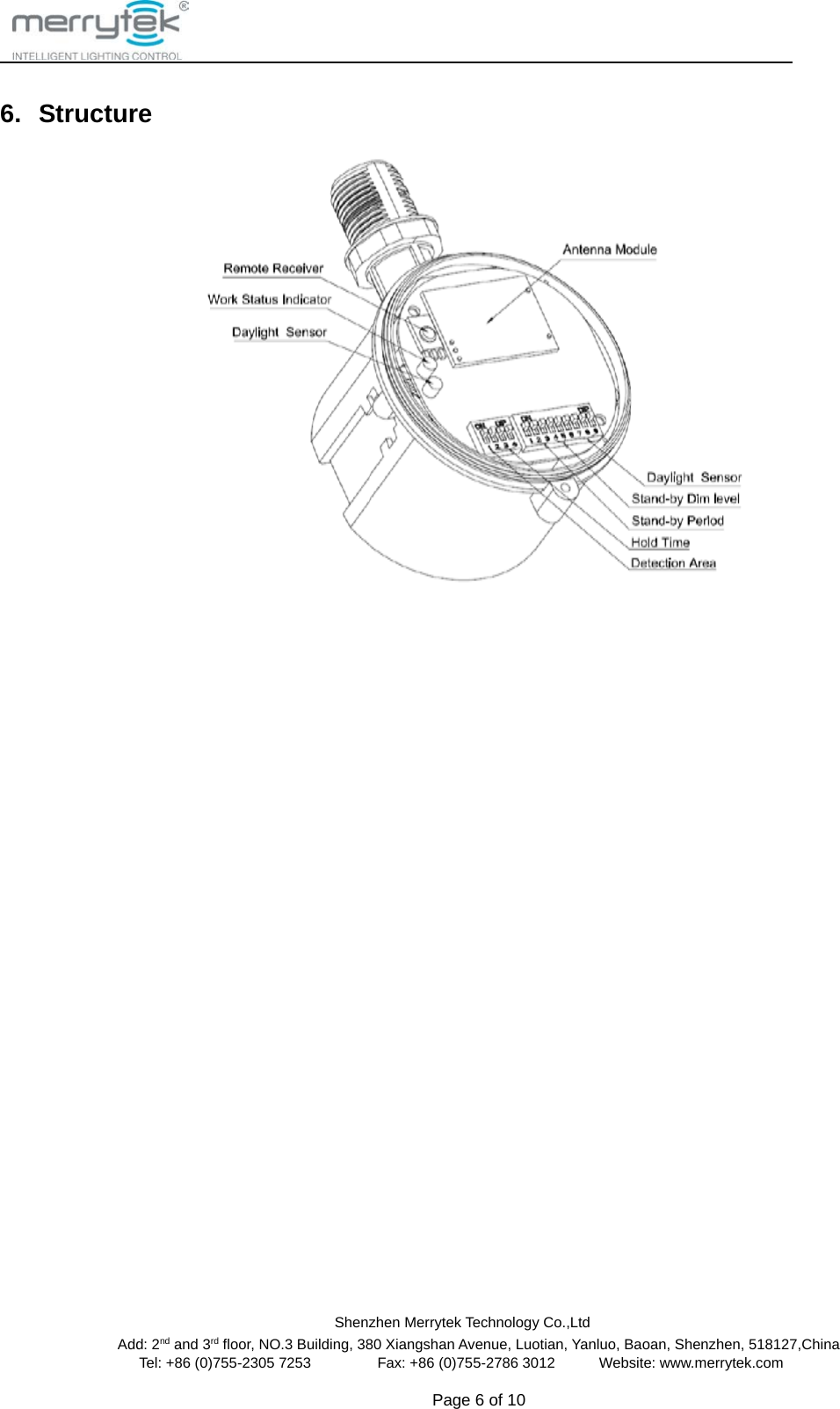

Shenzhen Merrytek Technology Co.,Ltd Add: 2nd and 3rd floor, NO.3 Building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, 518127,China Tel: +86 (0)755-2305 7253 Fax: +86 (0)755-2786 3012 Website: www.merrytek.com Page 6 of 10 6. Structure

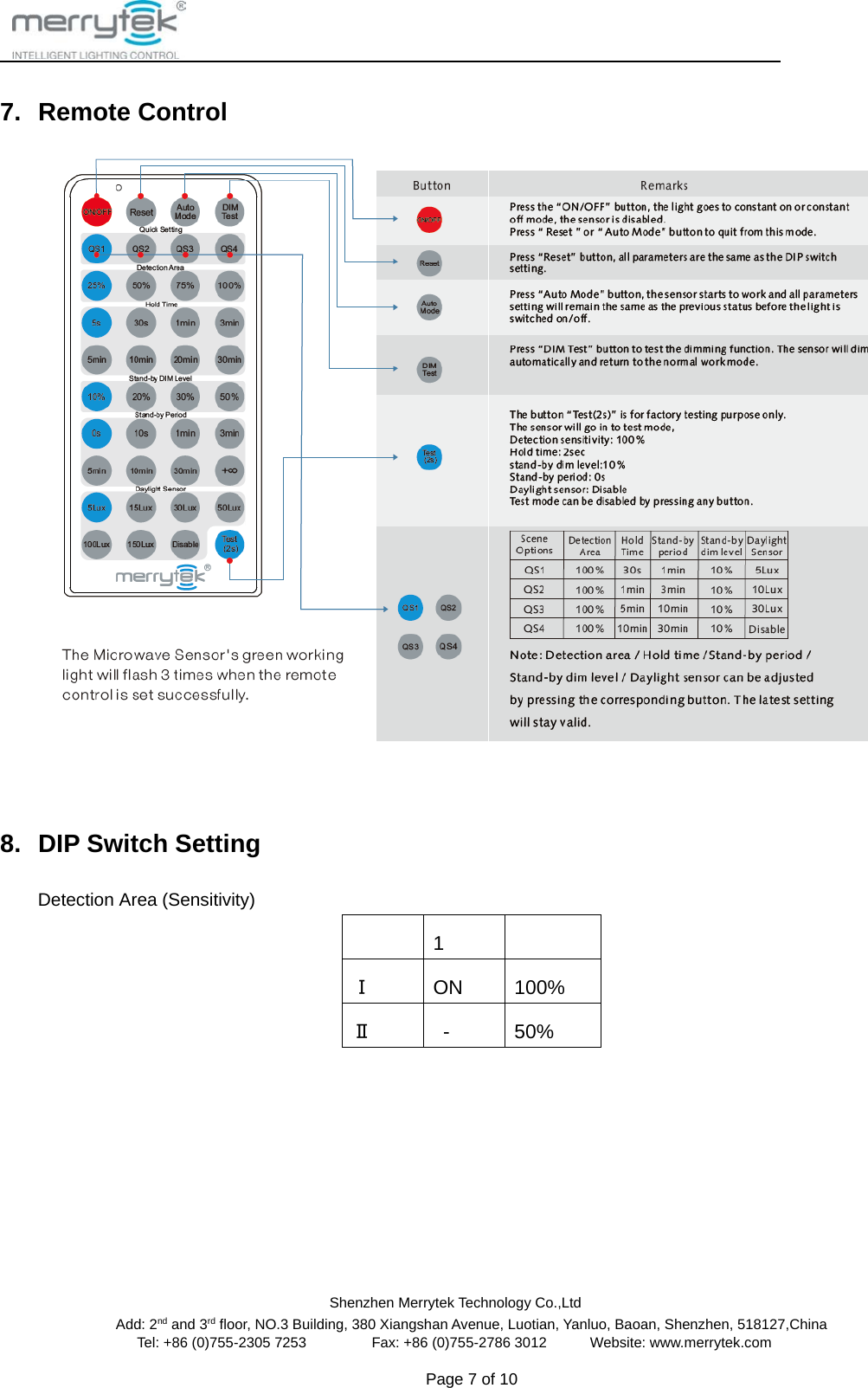

Shenzhen Merrytek Technology Co.,Ltd Add: 2nd and 3rd floor, NO.3 Building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, 518127,China Tel: +86 (0)755-2305 7253 Fax: +86 (0)755-2786 3012 Website: www.merrytek.com Page 7 of 10 7. Remote Control 8. DIP Switch Setting Detection Area (Sensitivity) 1 Ⅰ ON 100% Ⅱ - 50%

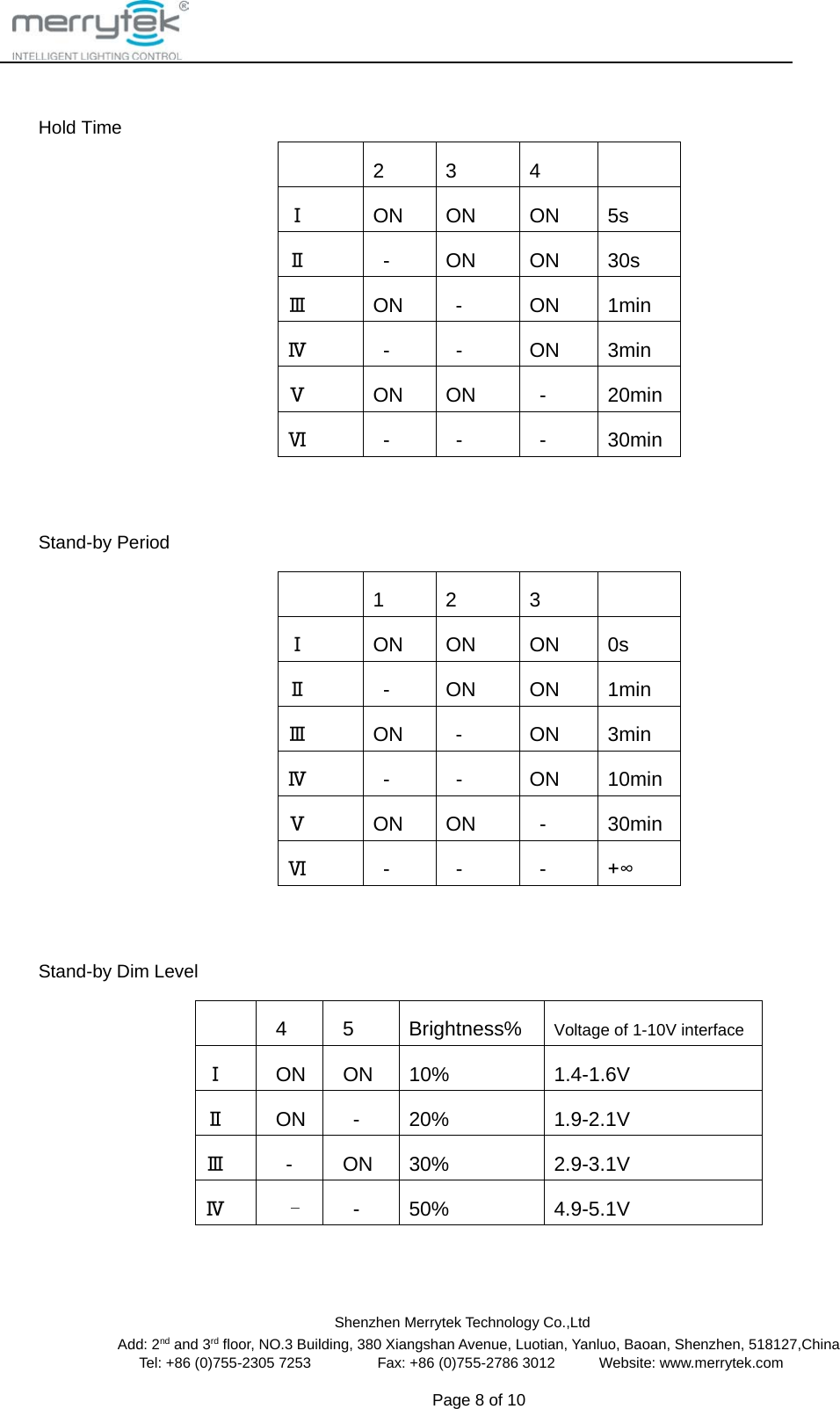

Shenzhen Merrytek Technology Co.,Ltd Add: 2nd and 3rd floor, NO.3 Building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, 518127,China Tel: +86 (0)755-2305 7253 Fax: +86 (0)755-2786 3012 Website: www.merrytek.com Page 8 of 10 Hold Time 2 3 4 Ⅰ ON ON ON 5s Ⅱ - ON ON 30s Ⅲ ON - ON 1min Ⅳ - - ON 3min Ⅴ ON ON - 20min Ⅵ - - - 30min Stand-by Period 1 2 3 Ⅰ ON ON ON 0s Ⅱ - ON ON 1min Ⅲ ON - ON 3min Ⅳ - - ON 10min Ⅴ ON ON - 30min Ⅵ - - - +∞ Stand-by Dim Level 4 5 Brightness% Voltage of 1-10V interface Ⅰ ON ON 10% 1.4-1.6V Ⅱ ON - 20% 1.9-2.1V Ⅲ - ON 30% 2.9-3.1V Ⅳ - - 50% 4.9-5.1V

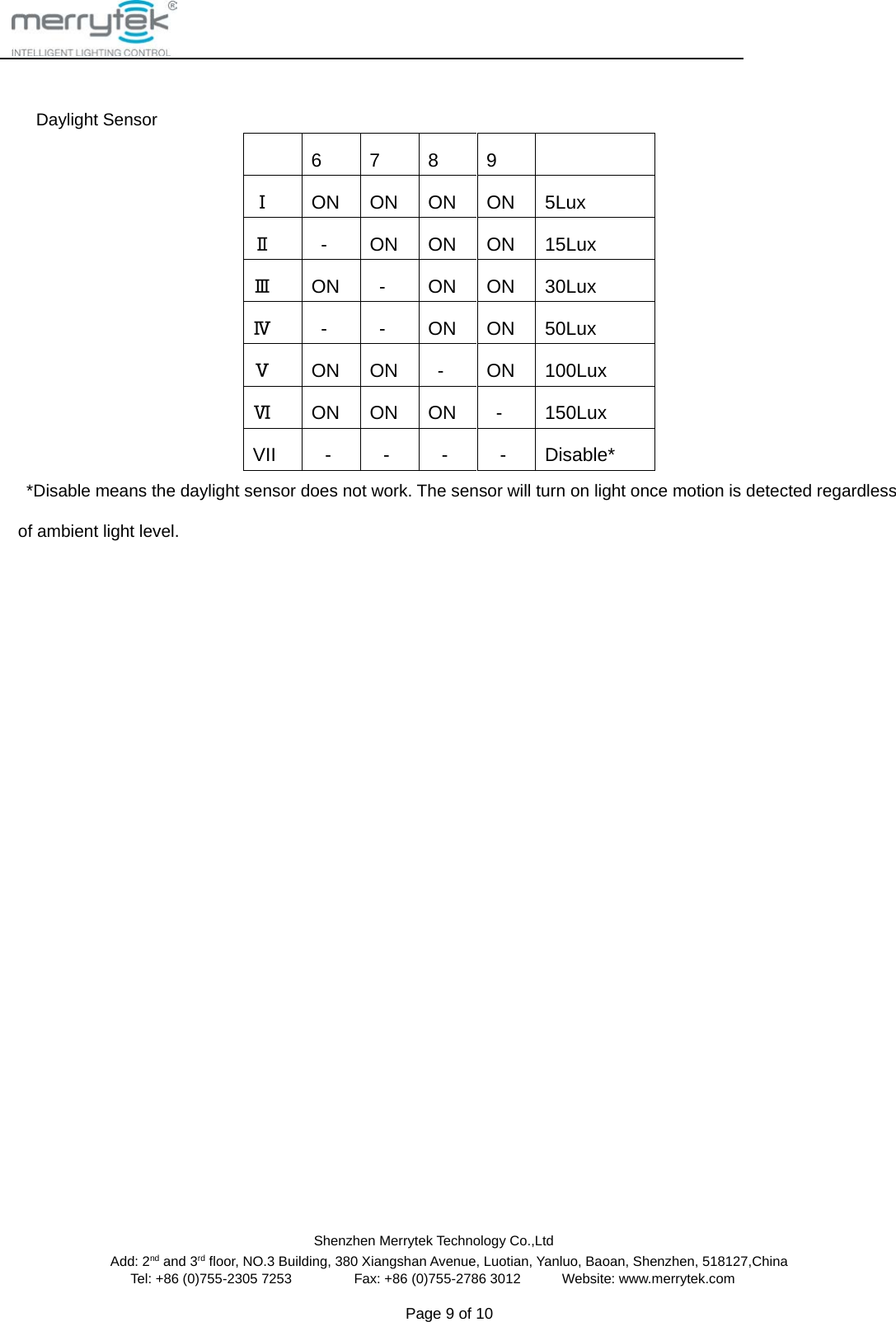

Shenzhen Merrytek Technology Co.,Ltd Add: 2nd and 3rd floor, NO.3 Building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, 518127,China Tel: +86 (0)755-2305 7253 Fax: +86 (0)755-2786 3012 Website: www.merrytek.com Page 9 of 10 Daylight Sensor 6 7 8 9 Ⅰ ON ON ON ON 5Lux Ⅱ - ON ON ON 15Lux Ⅲ ON - ON ON 30Lux Ⅳ - - ON ON 50Lux Ⅴ ON ON - ON 100Lux Ⅵ ON ON ON - 150Lux VII - - - - Disable* *Disable means the daylight sensor does not work. The sensor will turn on light once motion is detected regardless of ambient light level.

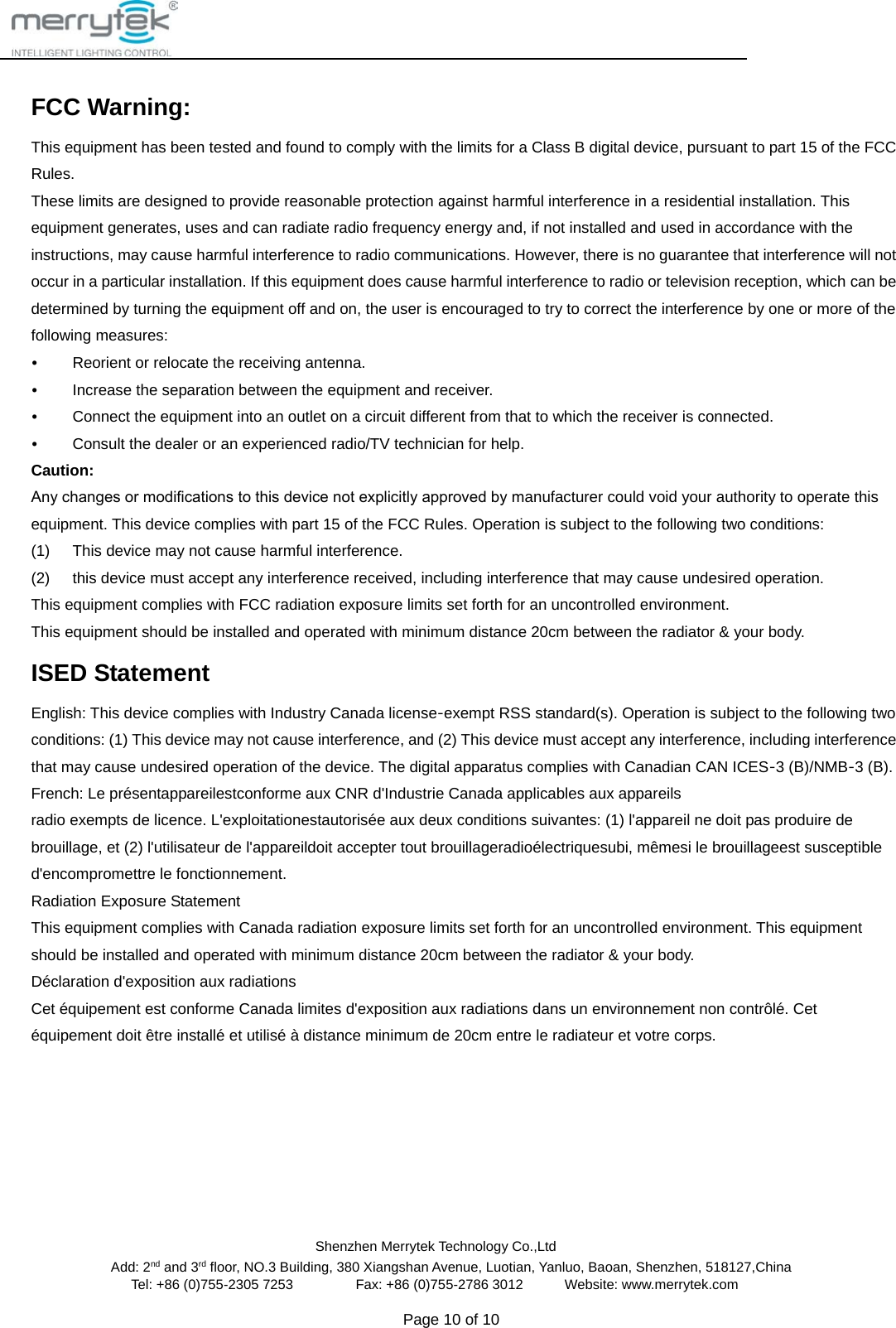

Shenzhen Merrytek Technology Co.,Ltd Add: 2nd and 3rd floor, NO.3 Building, 380 Xiangshan Avenue, Luotian, Yanluo, Baoan, Shenzhen, 518127,China Tel: +86 (0)755-2305 7253 Fax: +86 (0)755-2786 3012 Website: www.merrytek.com Page 10 of 10 FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. ISED Statement English: This device complies with Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3 (B). French: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. Radiation Exposure Statement This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé à distance minimum de 20cm entre le radiateur et votre corps.
