Meta Watch SW12 Meta Watch User Manual SW12 User Guide

Meta Watch, Ltd. Meta Watch SW12 User Guide

SW12_User Guide

Revision 1.0 10-Oct-2012 1 of 19 METAWATCH SMARTWATCH USER GUIDE FOR STRATA AND FRAME Model SW12

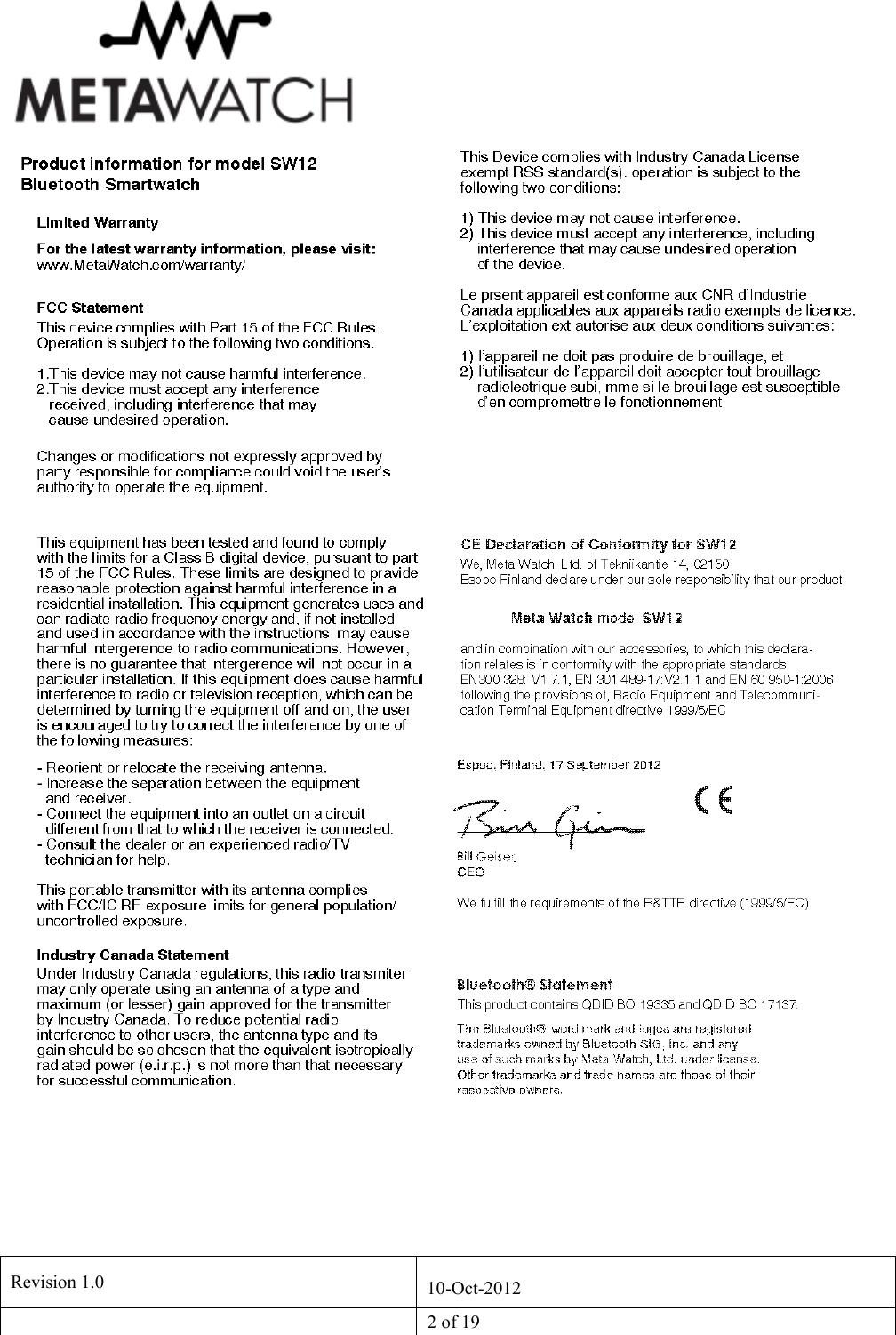

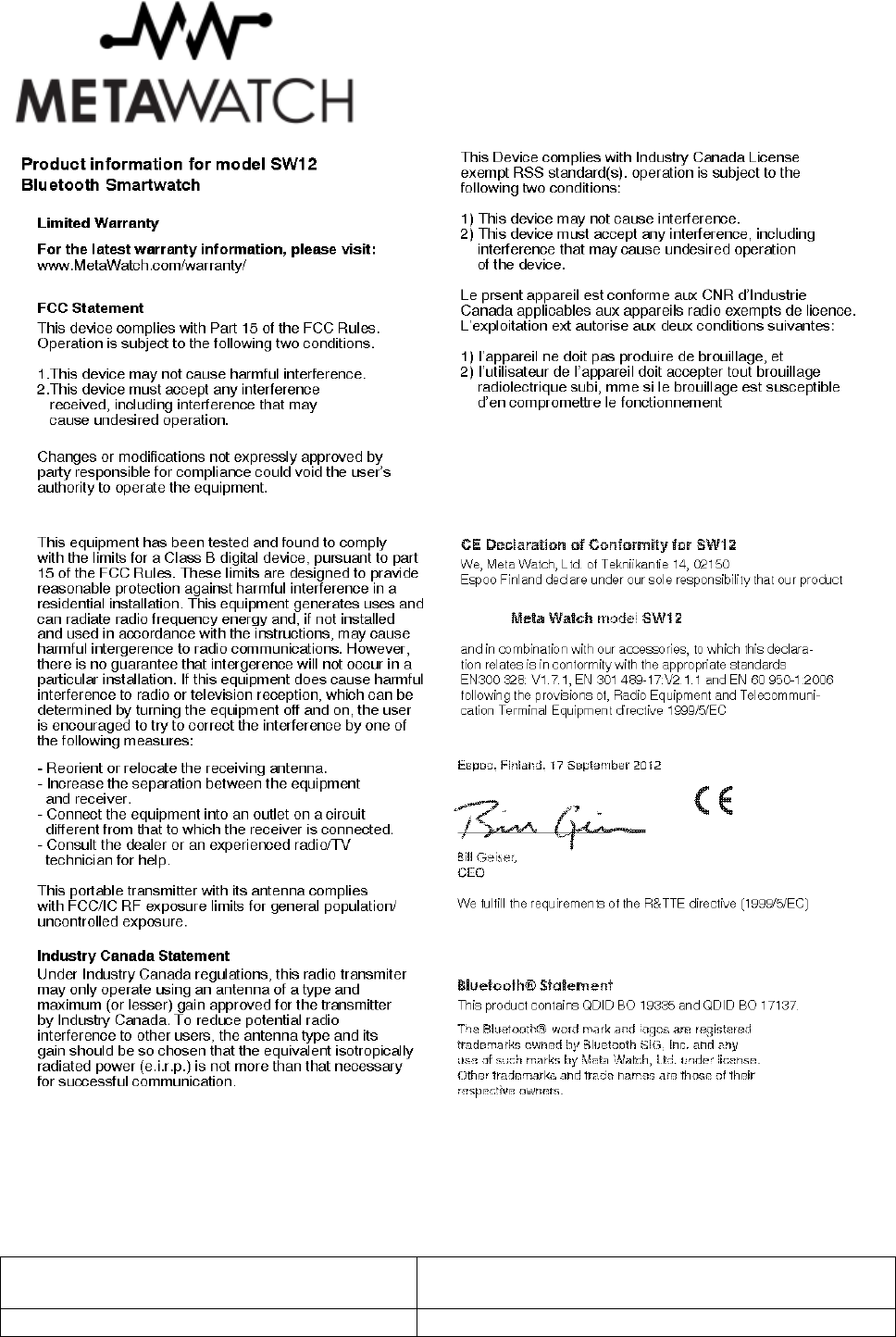

Revision 1.0 10-Oct-2012 2 of 19
Revision 1.0 10-Oct-2012 3 of 19 Contents 1 Introduction........................................................................................................................................................... 4 2 Starting Up ............................................................................................................................................................ 5 2.1 Charging your watch....................................................................................................................................... 5 2.2 Watch Software Version................................................................................................................................. 6 2.3 Watch Button Map.......................................................................................................................................... 6 2.4 Watch First Boot and Setup ............................................................................................................................ 6 3 Pairing and Connecting......................................................................................................................................... 9 3.1 iPhone ............................................................................................................................................................. 9 3.2 Android........................................................................................................................................................... 9 4 Using your watch ................................................................................................................................................ 11 4.1 Widgets......................................................................................................................................................... 11 4.2 Notifications ................................................................................................................................................. 11 4.3 Music ............................................................................................................................................................ 12 4.4 System Alerts................................................................................................................................................ 13 4.5 Staus Display ................................................................................................................................................ 14 5 Menu ................................................................................................................................................................... 15 5.1 Bluetooth ON / OFF (Button A) ................................................................................................................... 15 5.2 Seconds ON / OFF (Button B)...................................................................................................................... 16 5.3 Exit Menu (Button C) ................................................................................................................................... 16 5.4 Link Alarm ON / OFF (Button D) ................................................................................................................ 16 5.5 Invert Display (Button E) ............................................................................................................................. 16 5.6 Turn on Light (Button F) .............................................................................................................................. 16 6 Updating your Firmware..................................................................................................................................... 17 6.1 Install your drivers........................................................................................................................................ 17 6.2 Install your drivers........................................................................................................................................ 17 7 Support................................................................................................................................................................ 18 8 Developers! Participate in the Community ......................................................................................................... 19

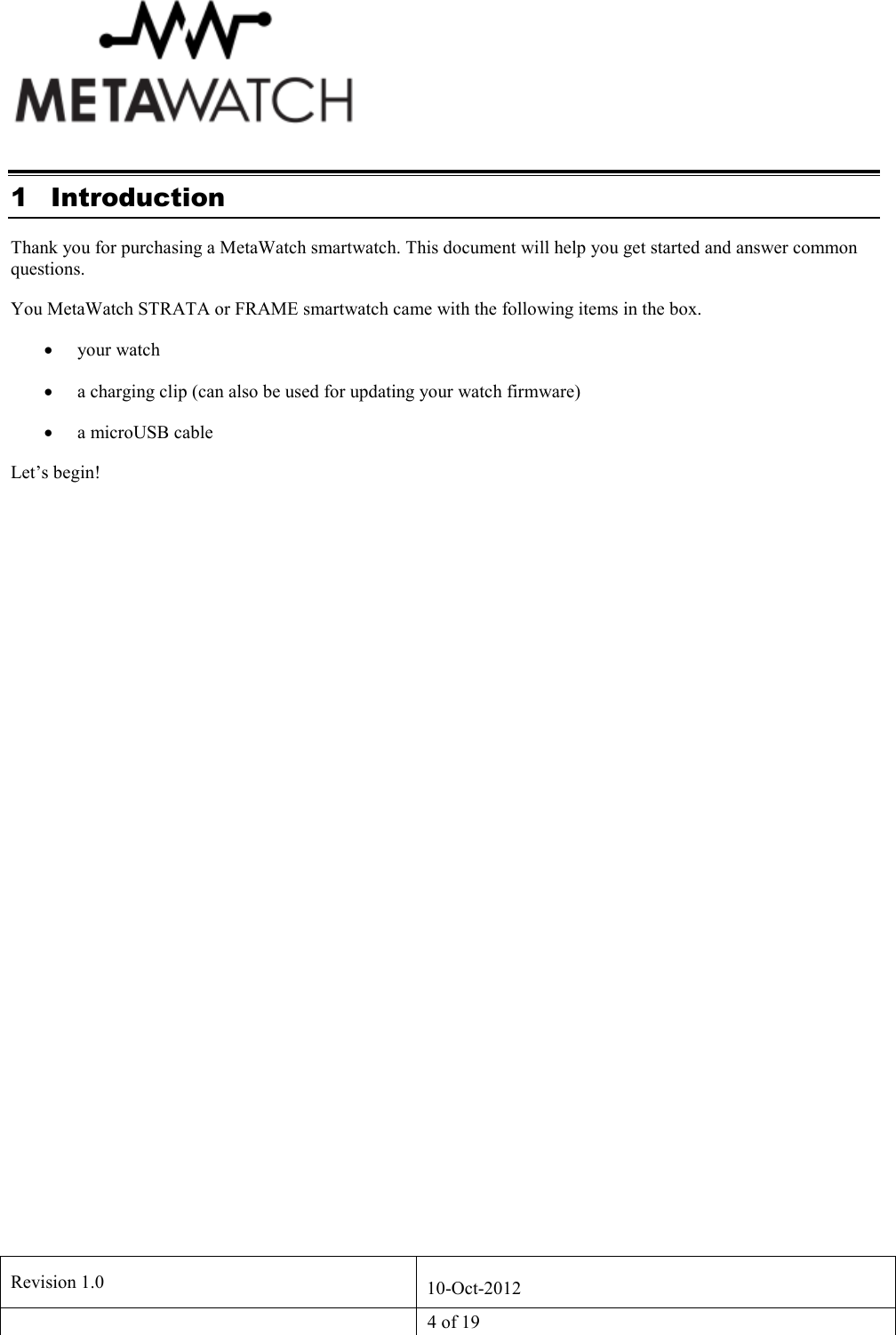

Revision 1.0 10-Oct-2012 4 of 19 1 Introduction Thank you for purchasing a MetaWatch smartwatch. This document will help you get started and answer common questions. You MetaWatch STRATA or FRAME smartwatch came with the following items in the box. • your watch • a charging clip (can also be used for updating your watch firmware) • a microUSB cable Let’s begin!

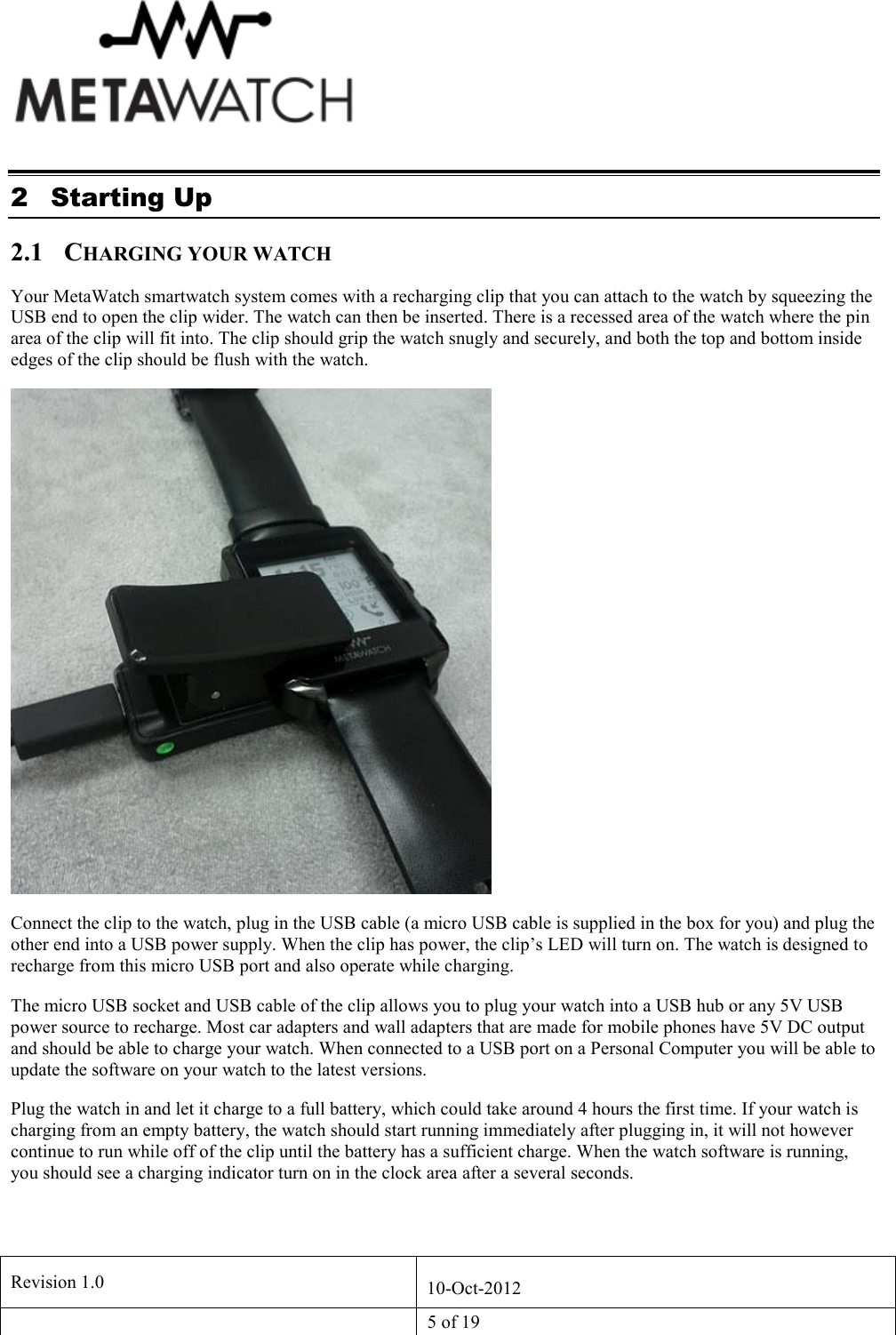

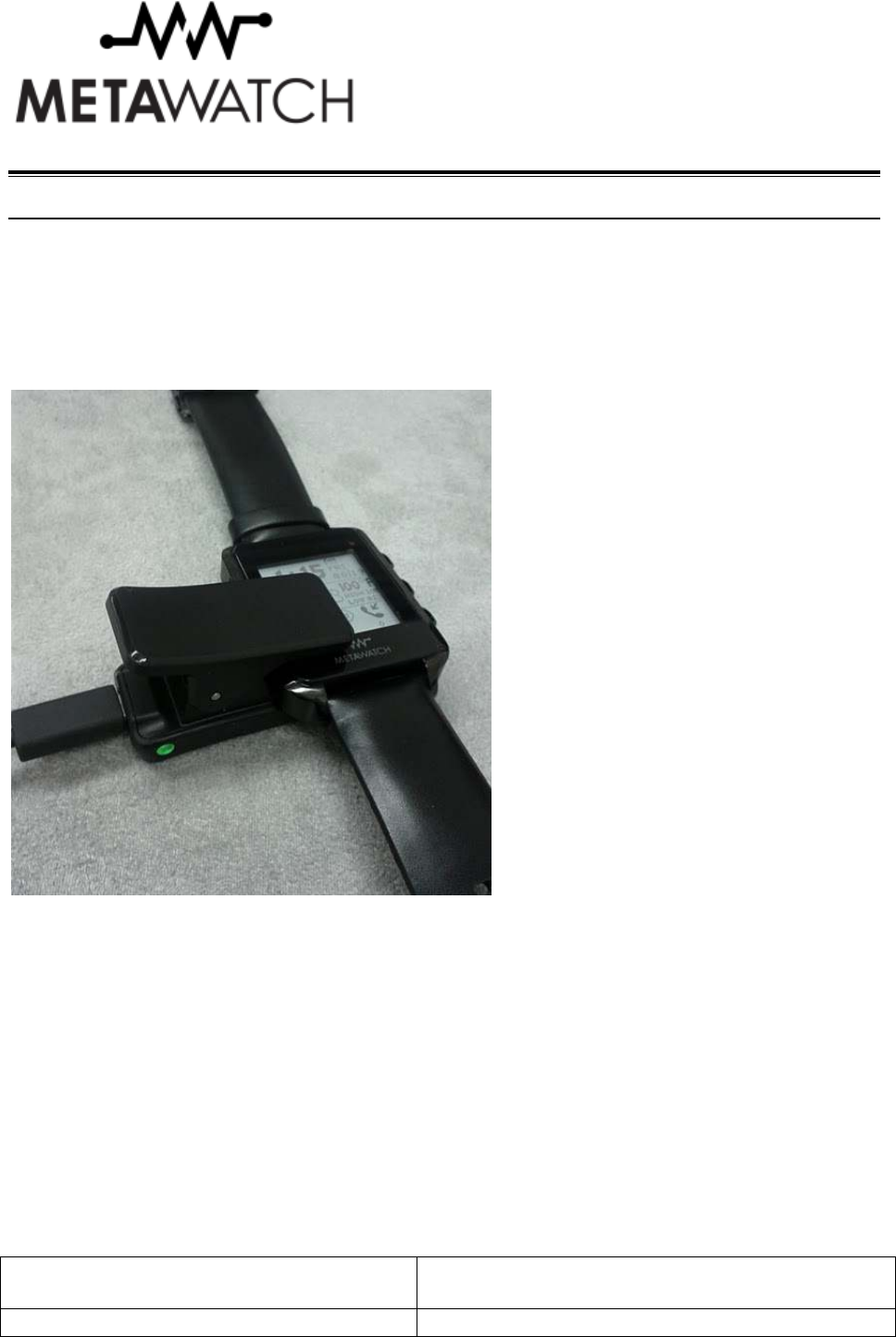

Revision 1.0 10-Oct-2012 5 of 19 2 Starting Up 2.1 CHARGING YOUR WATCH Your MetaWatch smartwatch system comes with a recharging clip that you can attach to the watch by squeezing the USB end to open the clip wider. The watch can then be inserted. There is a recessed area of the watch where the pin area of the clip will fit into. The clip should grip the watch snugly and securely, and both the top and bottom inside edges of the clip should be flush with the watch. Connect the clip to the watch, plug in the USB cable (a micro USB cable is supplied in the box for you) and plug the other end into a USB power supply. When the clip has power, the clip’s LED will turn on. The watch is designed to recharge from this micro USB port and also operate while charging. The micro USB socket and USB cable of the clip allows you to plug your watch into a USB hub or any 5V USB power source to recharge. Most car adapters and wall adapters that are made for mobile phones have 5V DC output and should be able to charge your watch. When connected to a USB port on a Personal Computer you will be able to update the software on your watch to the latest versions. Plug the watch in and let it charge to a full battery, which could take around 4 hours the first time. If your watch is charging from an empty battery, the watch should start running immediately after plugging in, it will not however continue to run while off of the clip until the battery has a sufficient charge. When the watch software is running, you should see a charging indicator turn on in the clock area after a several seconds.

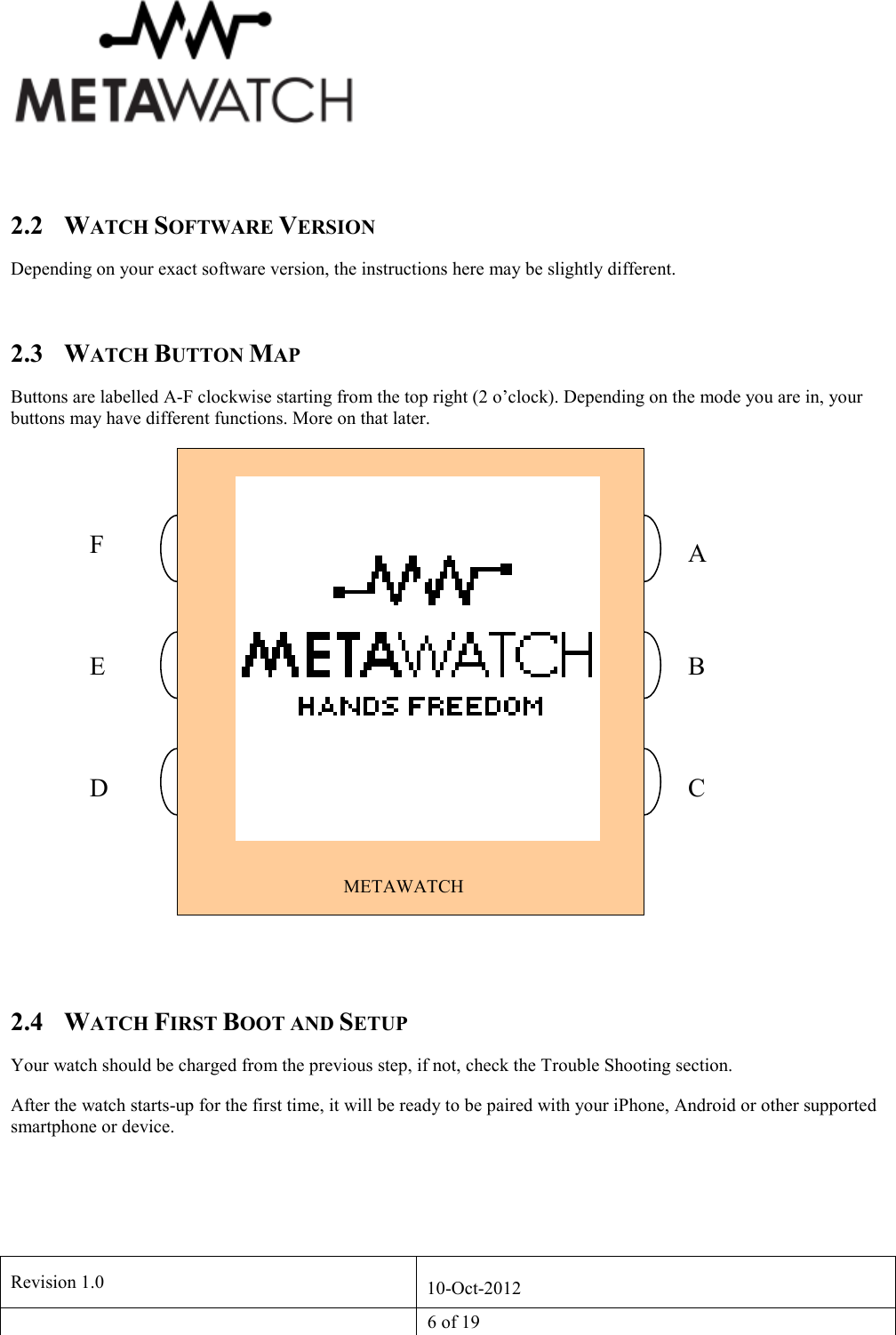

Revision 1.0 10-Oct-2012 6 of 19 2.2 WATCH SOFTWARE VERSION Depending on your exact software version, the instructions here may be slightly different. 2.3 WATCH BUTTON MAP Buttons are labelled A-F clockwise starting from the top right (2 o’clock). Depending on the mode you are in, your buttons may have different functions. More on that later. 2.4 WATCH FIRST BOOT AND SETUP Your watch should be charged from the previous step, if not, check the Trouble Shooting section. After the watch starts-up for the first time, it will be ready to be paired with your iPhone, Android or other supported smartphone or device. METAWATCH A F E D A C F B C

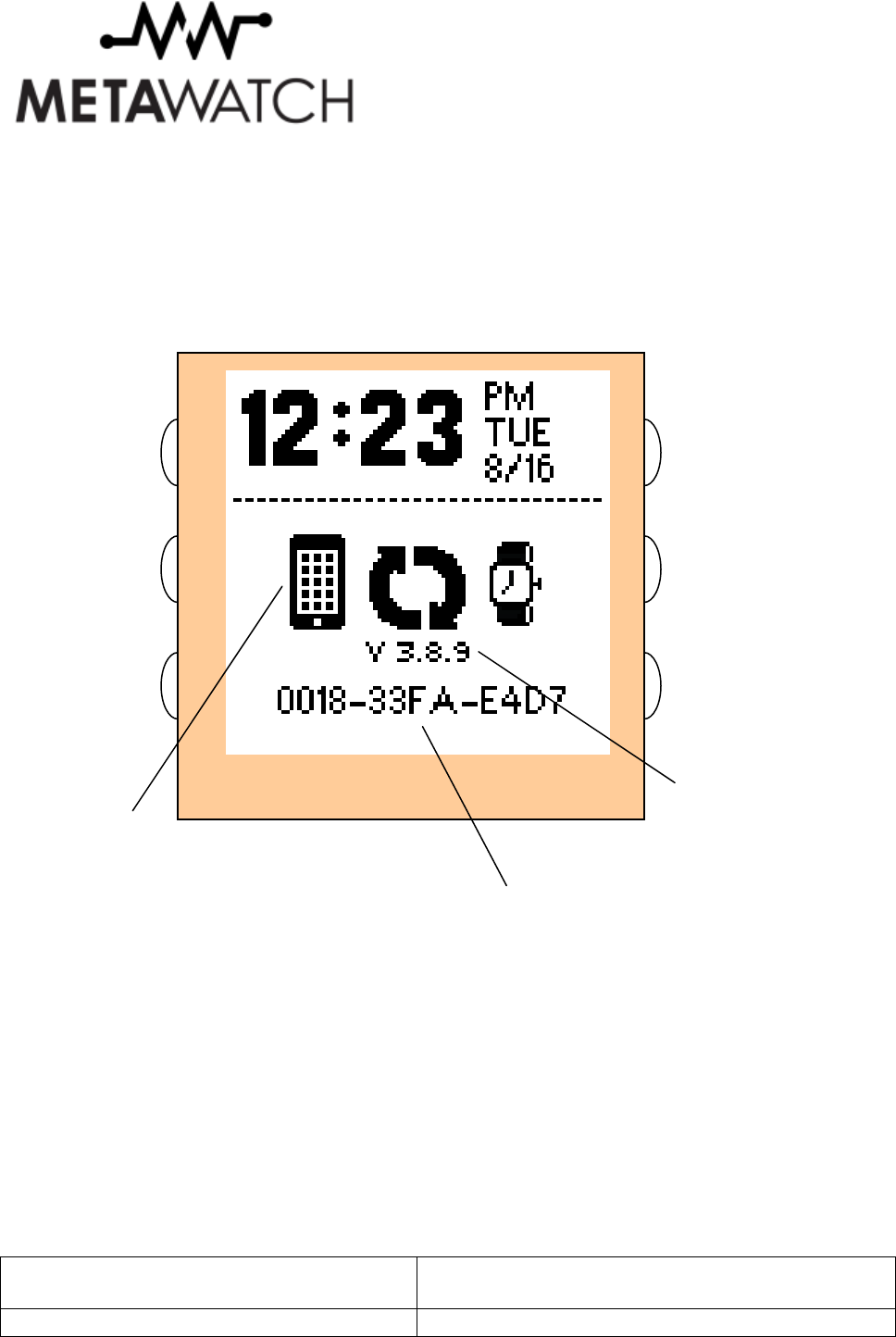

Revision 1.0 10-Oct-2012 7 of 19 Before you pair, you can still use your MetaWatch smartwatch as watch. Use the buttons below to set the time before you have any connection from a phone. The watch will continue to keep time for you. METAWATCH A: Increment Minutes F: Turn on LED Light E: Increment Hours D: Display Status screen A C F B: Increment Day of the Week C: Enter Menu Firmware version Serial number Watch ready for pairing request

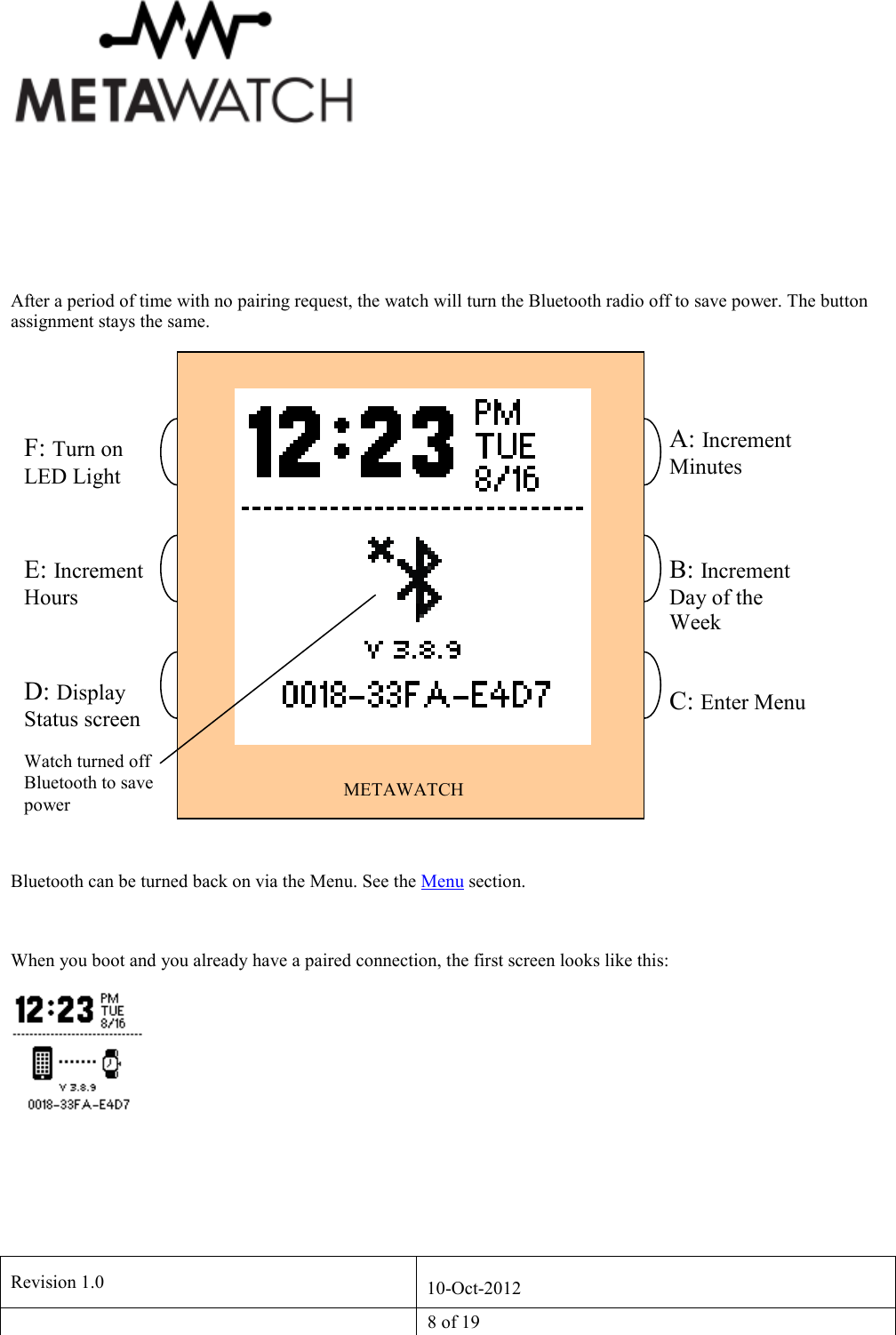

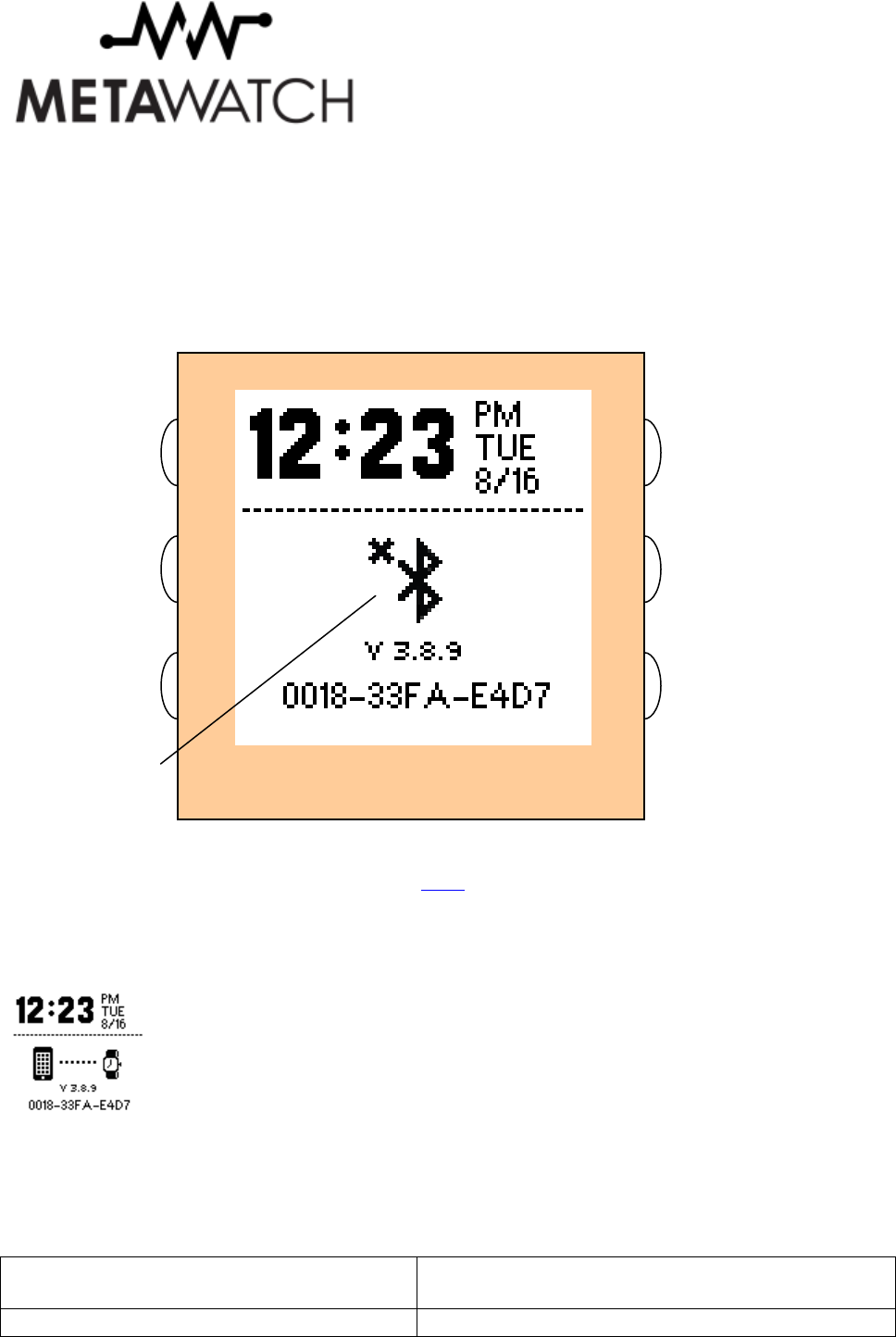

Revision 1.0 10-Oct-2012 8 of 19 After a period of time with no pairing request, the watch will turn the Bluetooth radio off to save power. The button assignment stays the same. Bluetooth can be turned back on via the Menu. See the Menu section. When you boot and you already have a paired connection, the first screen looks like this: METAWATCH A: Increment Minutes F: Turn on LED Light E: Increment Hours D: Display Status screen A C F B: Increment Day of the Week C: Enter Menu Watch turned off Bluetooth to save power

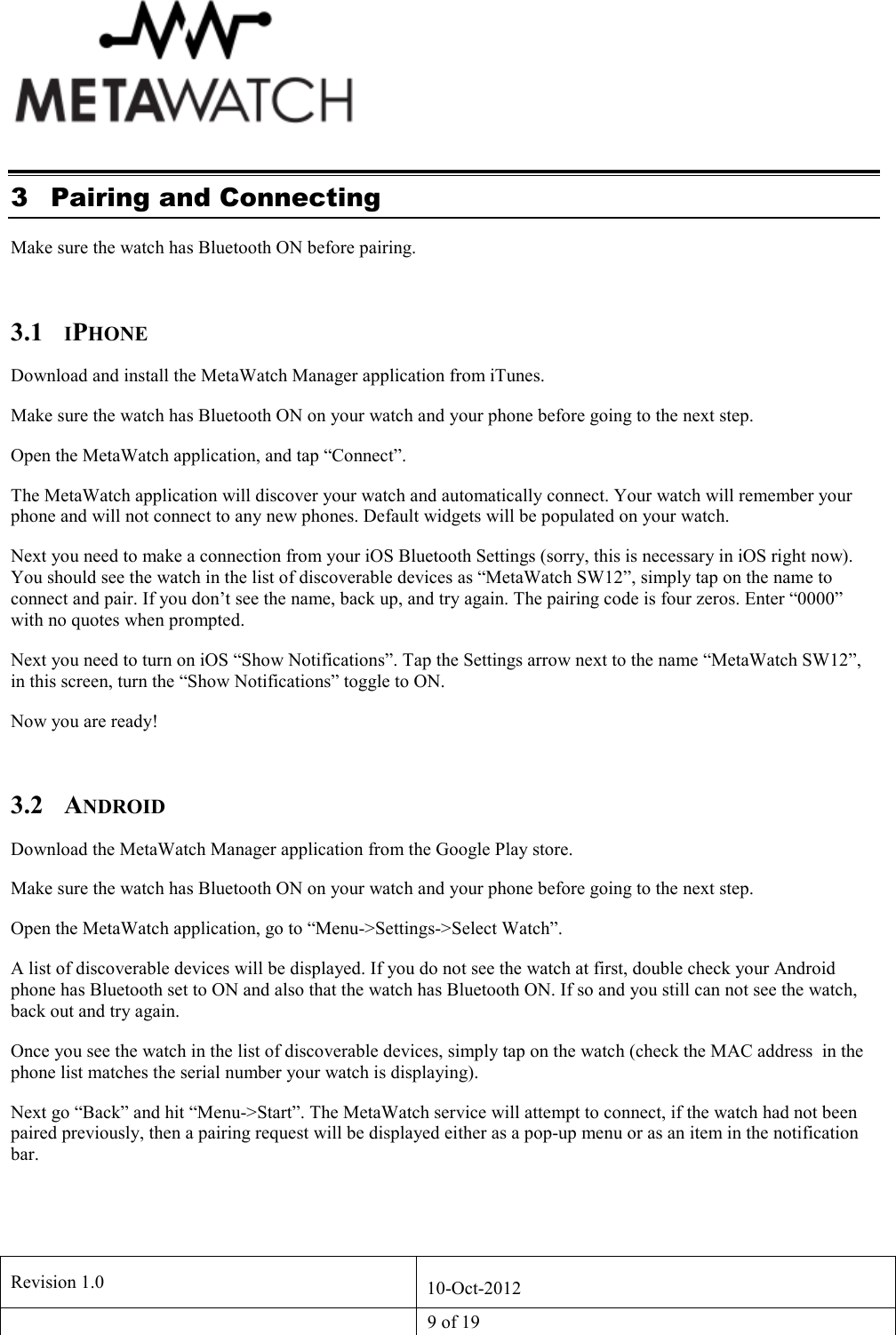

Revision 1.0 10-Oct-2012 9 of 19 3 Pairing and Connecting Make sure the watch has Bluetooth ON before pairing. 3.1 IPHONE Download and install the MetaWatch Manager application from iTunes. Make sure the watch has Bluetooth ON on your watch and your phone before going to the next step. Open the MetaWatch application, and tap “Connect”. The MetaWatch application will discover your watch and automatically connect. Your watch will remember your phone and will not connect to any new phones. Default widgets will be populated on your watch. Next you need to make a connection from your iOS Bluetooth Settings (sorry, this is necessary in iOS right now). You should see the watch in the list of discoverable devices as “MetaWatch SW12”, simply tap on the name to connect and pair. If you don’t see the name, back up, and try again. The pairing code is four zeros. Enter “0000” with no quotes when prompted. Next you need to turn on iOS “Show Notifications”. Tap the Settings arrow next to the name “MetaWatch SW12”, in this screen, turn the “Show Notifications” toggle to ON. Now you are ready! 3.2 ANDROID Download the MetaWatch Manager application from the Google Play store. Make sure the watch has Bluetooth ON on your watch and your phone before going to the next step. Open the MetaWatch application, go to “Menu->Settings->Select Watch”. A list of discoverable devices will be displayed. If you do not see the watch at first, double check your Android phone has Bluetooth set to ON and also that the watch has Bluetooth ON. If so and you still can not see the watch, back out and try again. Once you see the watch in the list of discoverable devices, simply tap on the watch (check the MAC address in the phone list matches the serial number your watch is displaying). Next go “Back” and hit “Menu->Start”. The MetaWatch service will attempt to connect, if the watch had not been paired previously, then a pairing request will be displayed either as a pop-up menu or as an item in the notification bar.

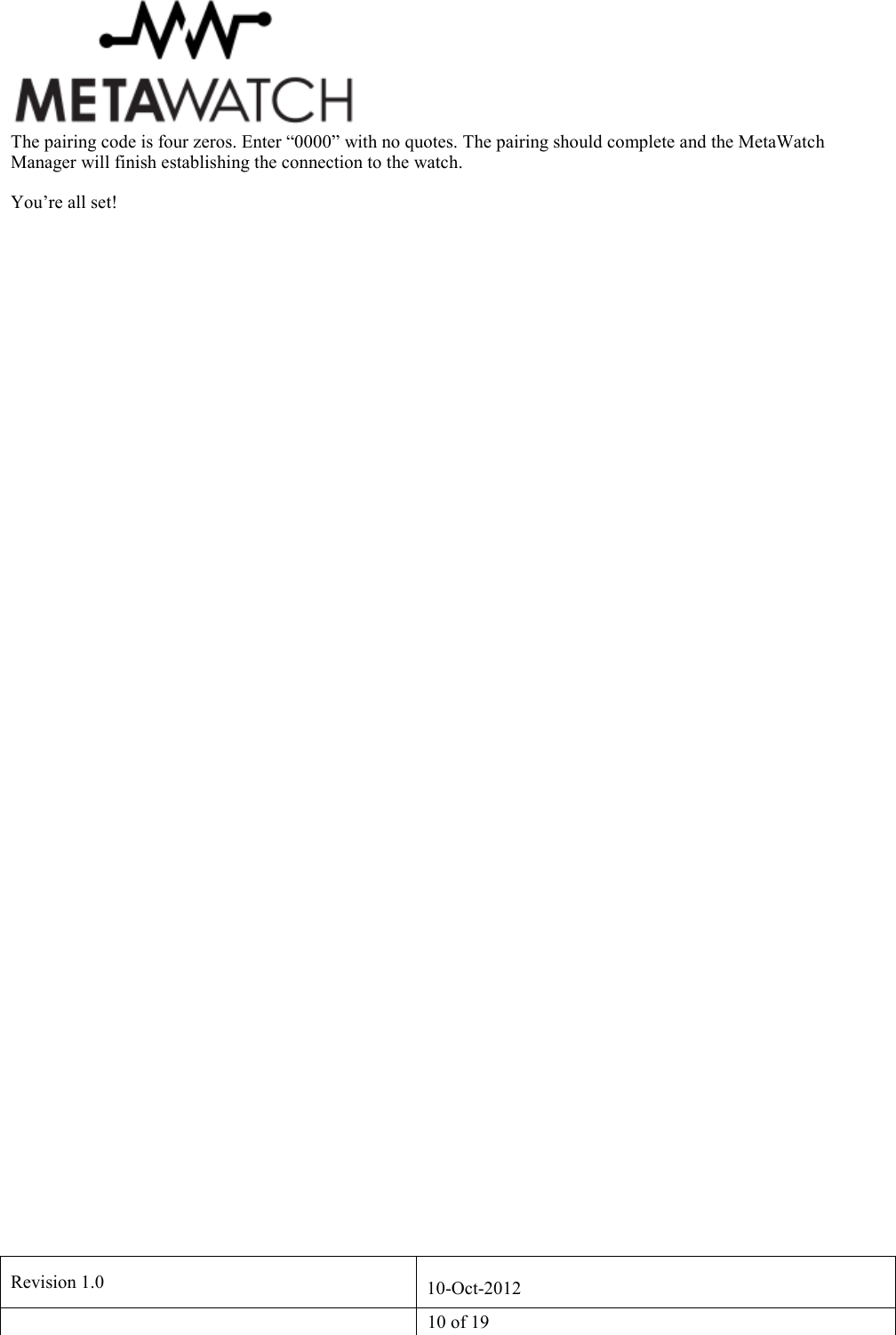

Revision 1.0 10-Oct-2012 10 of 19 The pairing code is four zeros. Enter “0000” with no quotes. The pairing should complete and the MetaWatch Manager will finish establishing the connection to the watch. You’re all set!

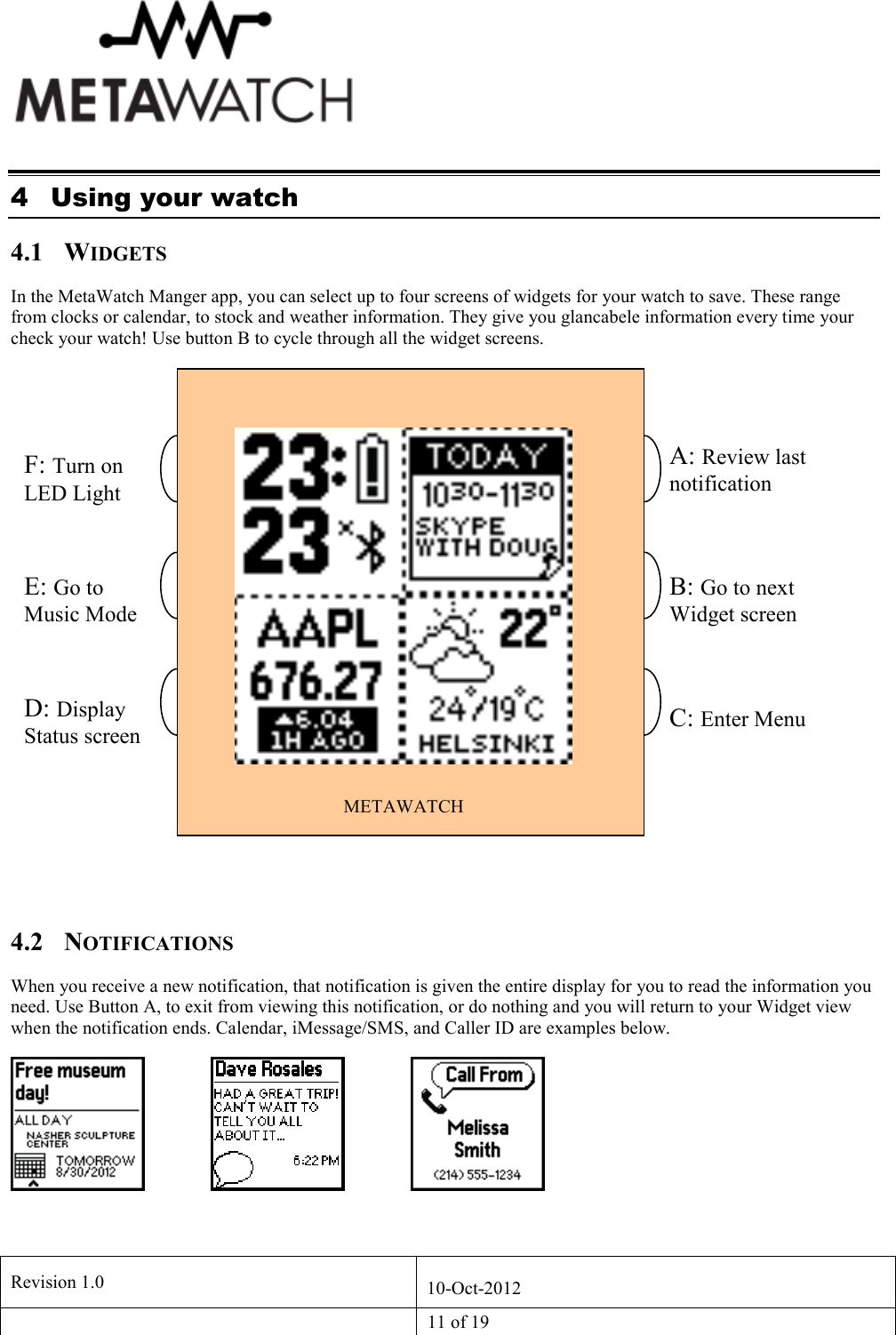

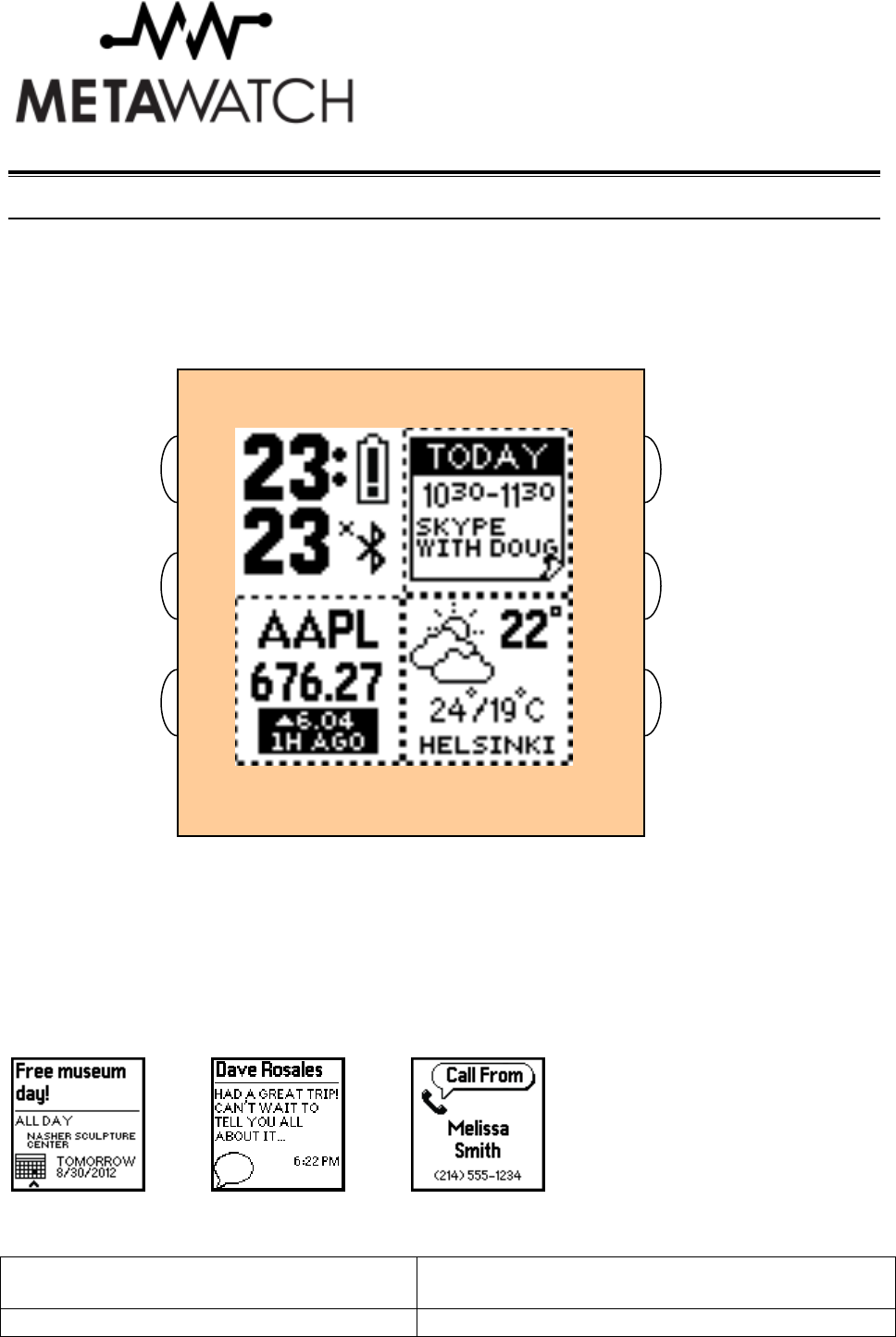

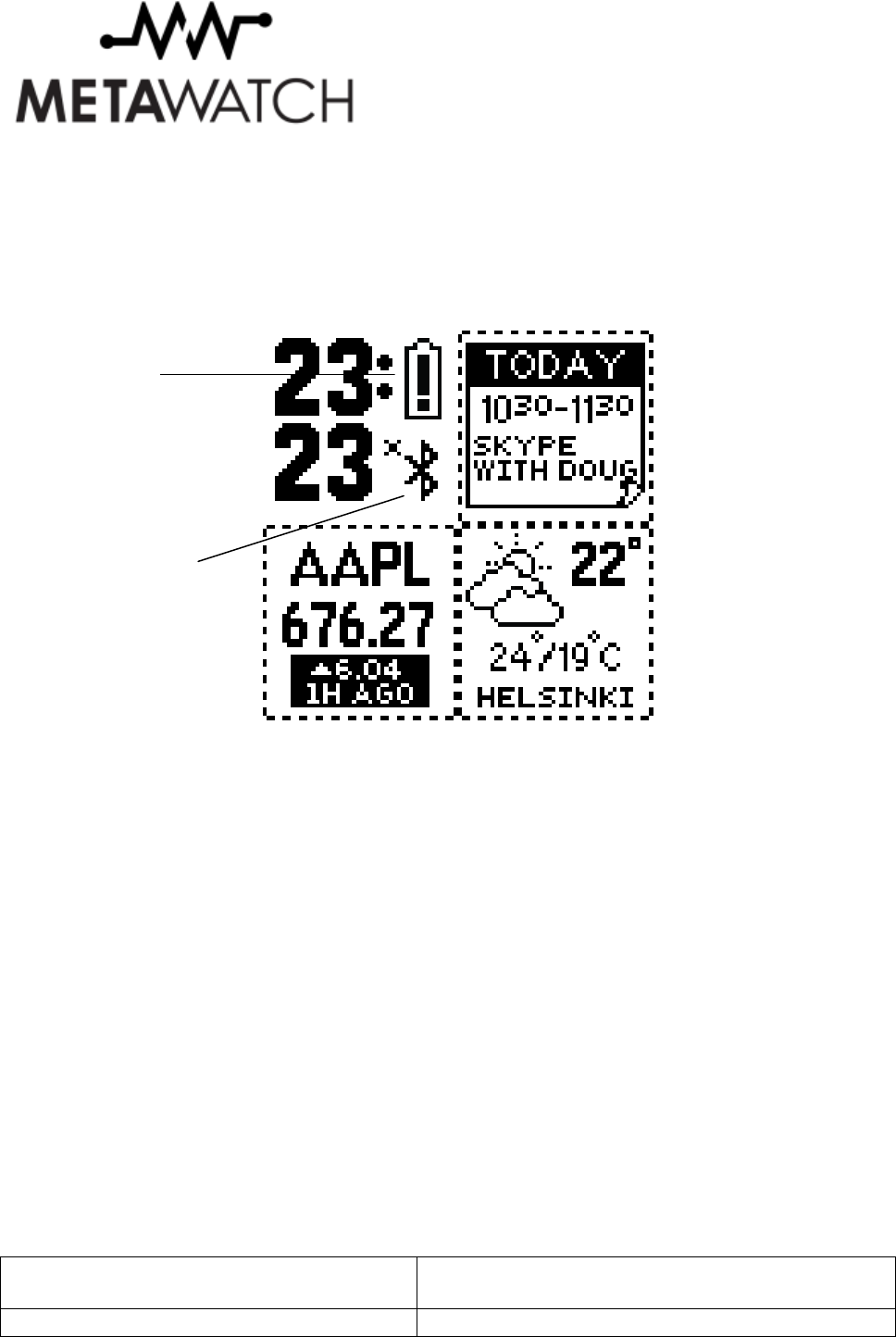

Revision 1.0 10-Oct-2012 11 of 19 4 Using your watch 4.1 WIDGETS In the MetaWatch Manger app, you can select up to four screens of widgets for your watch to save. These range from clocks or calendar, to stock and weather information. They give you glancabele information every time your check your watch! Use button B to cycle through all the widget screens. 4.2 NOTIFICATIONS When you receive a new notification, that notification is given the entire display for you to read the information you need. Use Button A, to exit from viewing this notification, or do nothing and you will return to your Widget view when the notification ends. Calendar, iMessage/SMS, and Caller ID are examples below. METAWATCH A: Review last notification F: Turn on LED Light E: Go to Music Mode D: Display Status screen A C F B: Go to next Widget screen C: Enter Menu

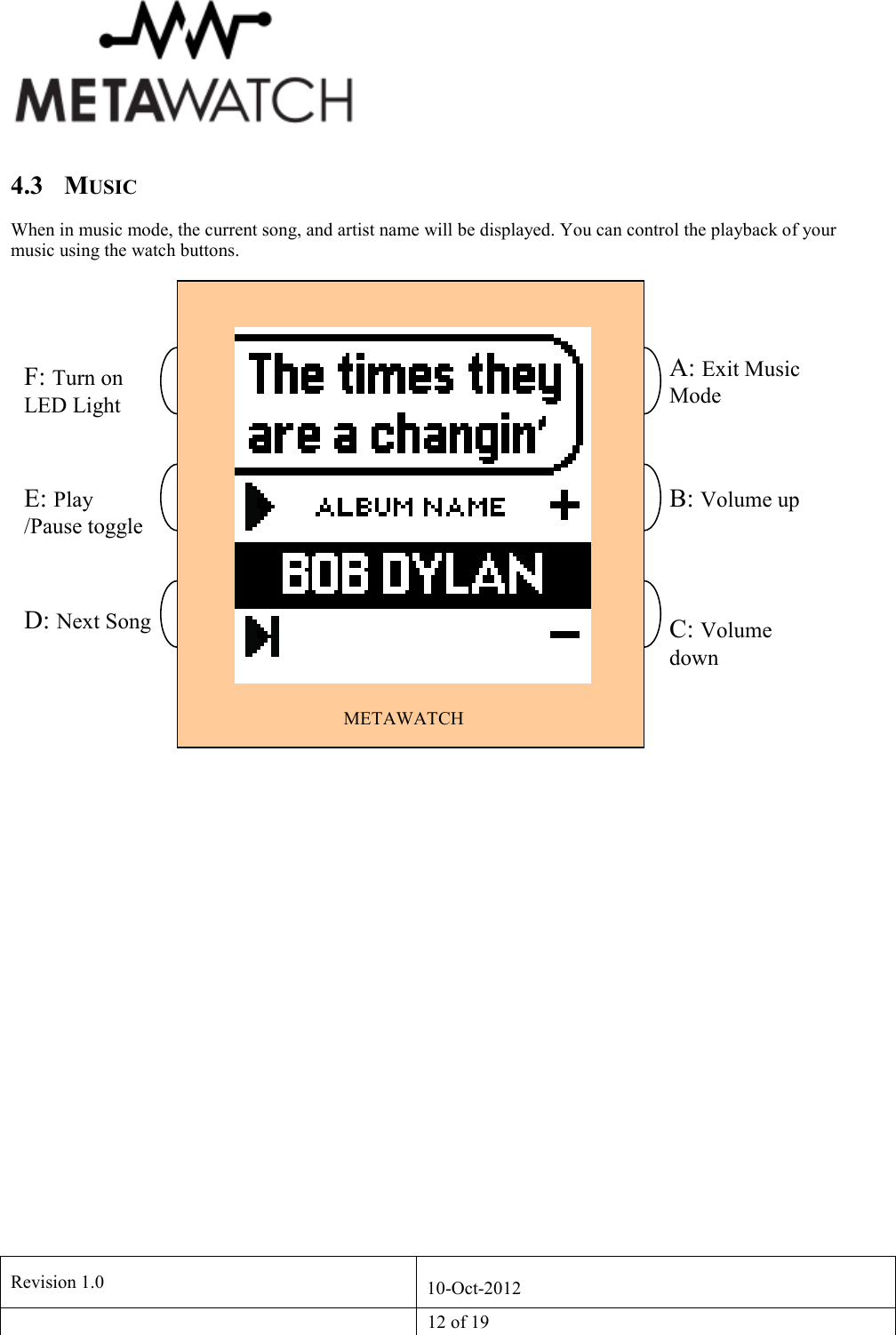

Revision 1.0 10-Oct-2012 12 of 19 4.3 MUSIC When in music mode, the current song, and artist name will be displayed. You can control the playback of your music using the watch buttons. METAWATCH A: Exit Music Mode F: Turn on LED Light E: Play /Pause toggle D: Next Song A C F B: Volume up C: Volume down
Revision 1.0 10-Oct-2012 13 of 19 4.4 SYSTEM ALERTS The clock widgets also can give you information about system alerts. Examples are low battery warnings, Bluetooth off, or phone disconnected events. These serve as constant reminders that there is a warning or alert from the system. Low Battery Warning Bluetooth radio OFF

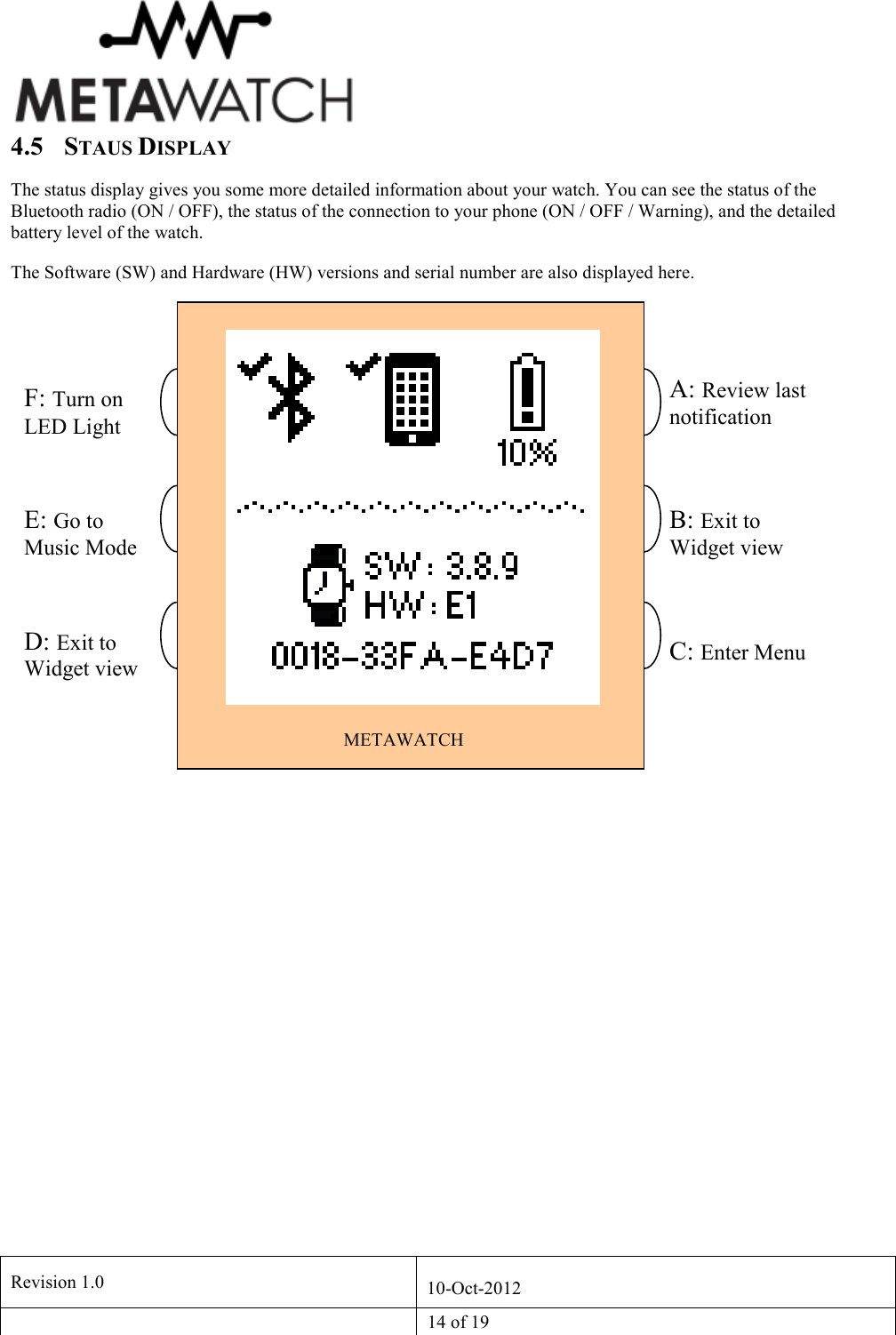

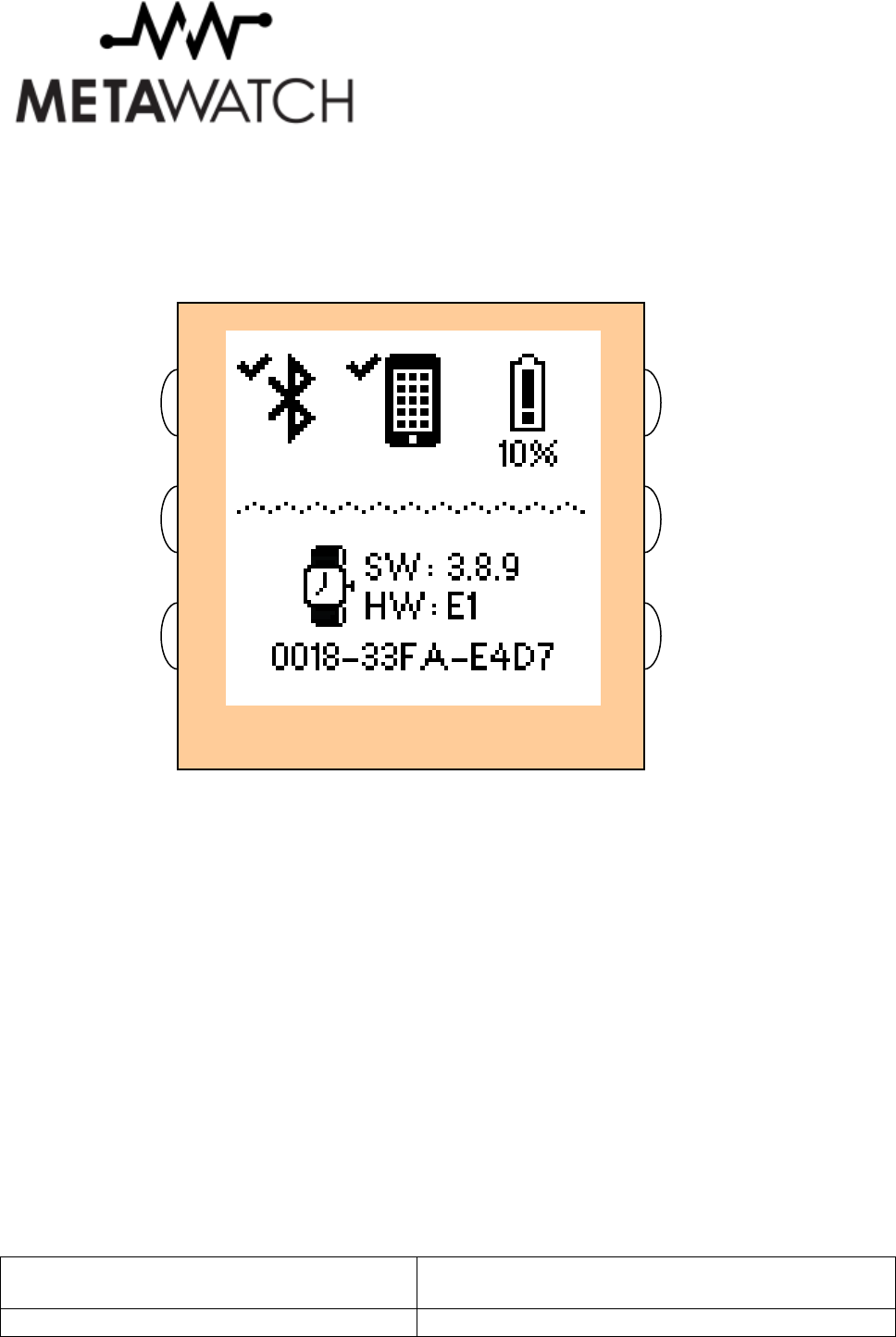

Revision 1.0 10-Oct-2012 14 of 19 4.5 STAUS DISPLAY The status display gives you some more detailed information about your watch. You can see the status of the Bluetooth radio (ON / OFF), the status of the connection to your phone (ON / OFF / Warning), and the detailed battery level of the watch. The Software (SW) and Hardware (HW) versions and serial number are also displayed here. METAWATCH A: Review last notification F: Turn on LED Light E: Go to Music Mode D: Exit to Widget view A C F B: Exit to Widget view C: Enter Menu

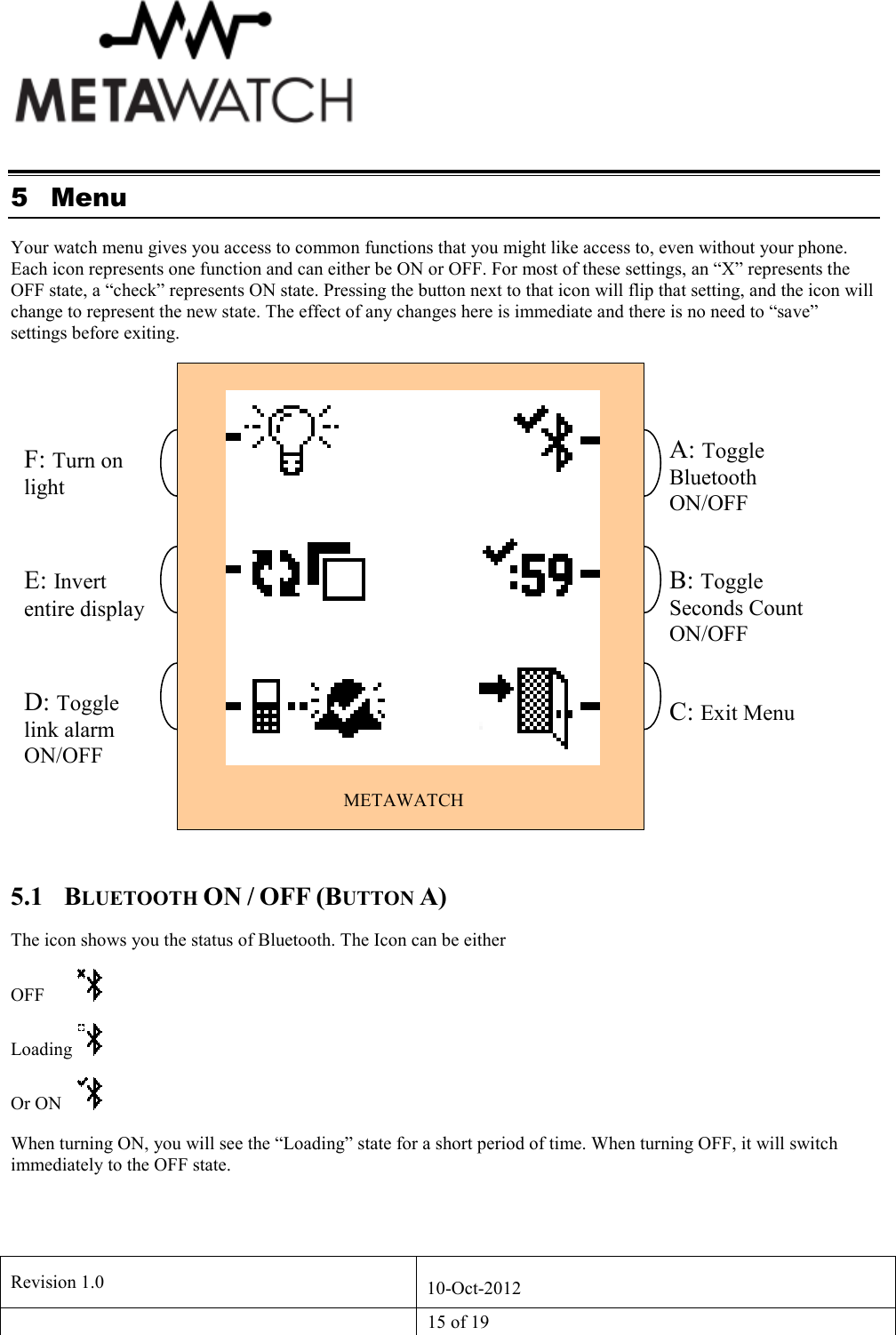

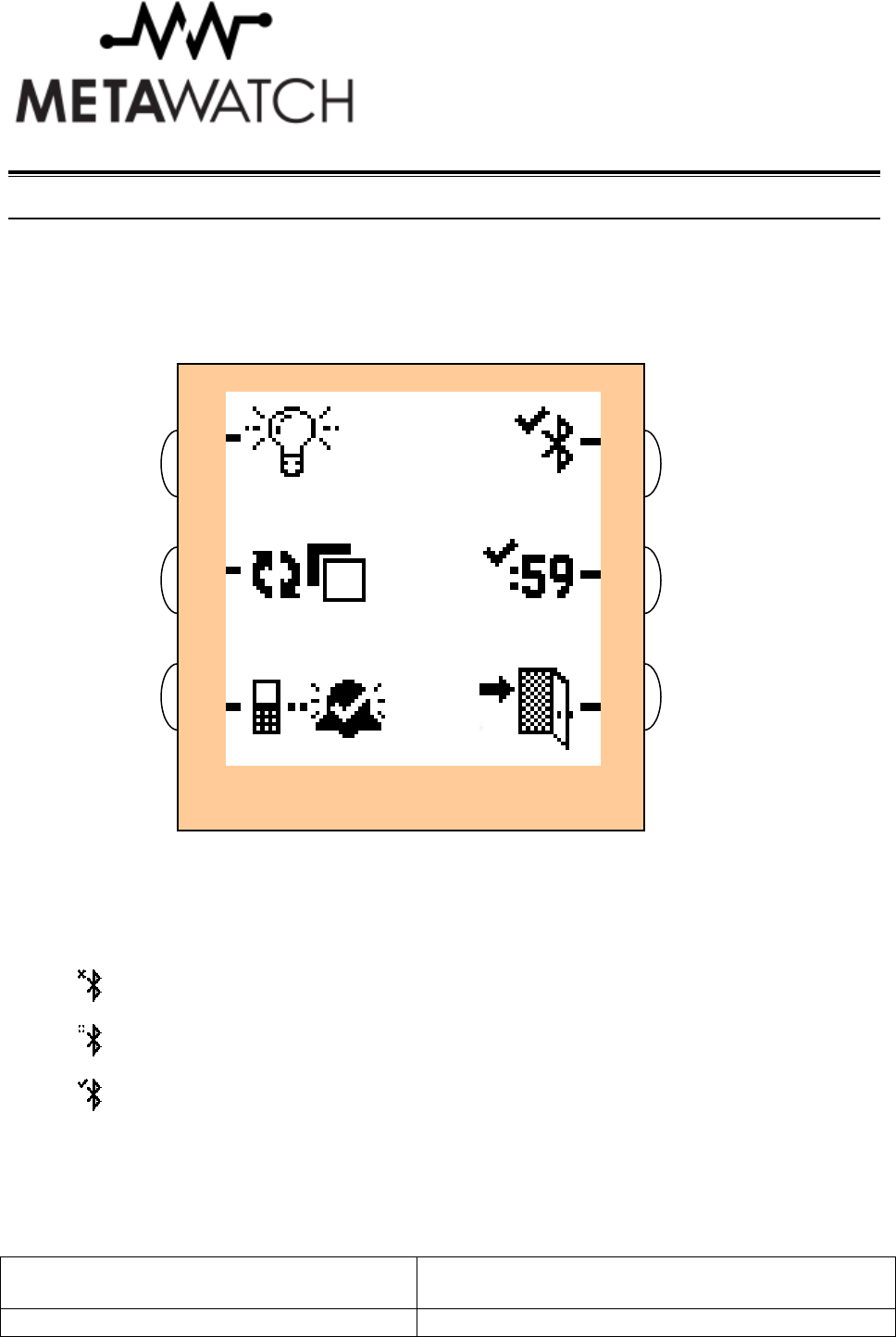

Revision 1.0 10-Oct-2012 15 of 19 5 Menu Your watch menu gives you access to common functions that you might like access to, even without your phone. Each icon represents one function and can either be ON or OFF. For most of these settings, an “X” represents the OFF state, a “check” represents ON state. Pressing the button next to that icon will flip that setting, and the icon will change to represent the new state. The effect of any changes here is immediate and there is no need to “save” settings before exiting. 5.1 BLUETOOTH ON / OFF (BUTTON A) The icon shows you the status of Bluetooth. The Icon can be either OFF Loading Or ON When turning ON, you will see the “Loading” state for a short period of time. When turning OFF, it will switch immediately to the OFF state. METAWATCH A: Toggle Bluetooth ON/OFF F: Turn on light E: Invert entire display D: Toggle link alarm ON/OFF A C F B: Toggle Seconds Count ON/OFF C: Exit Menu

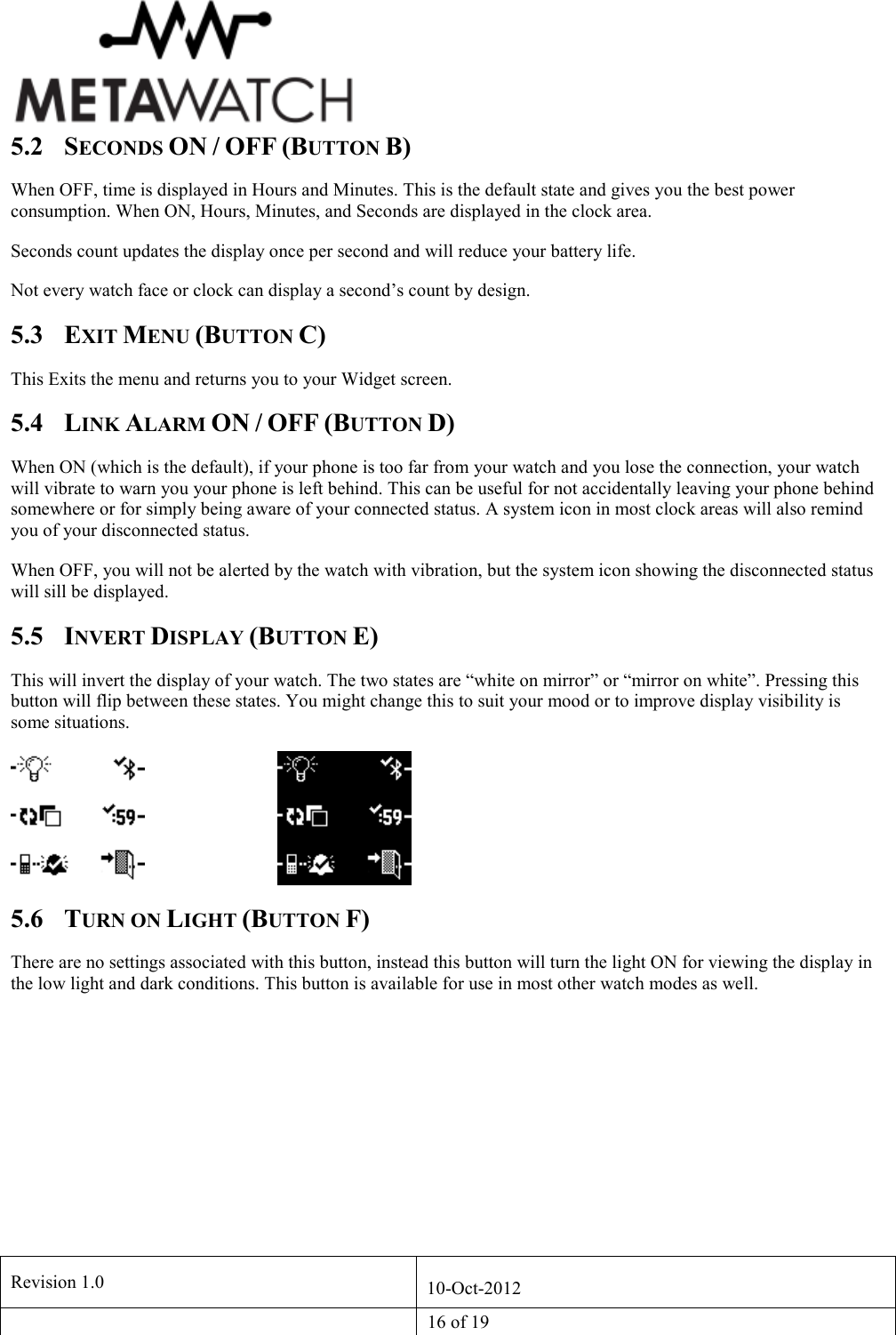

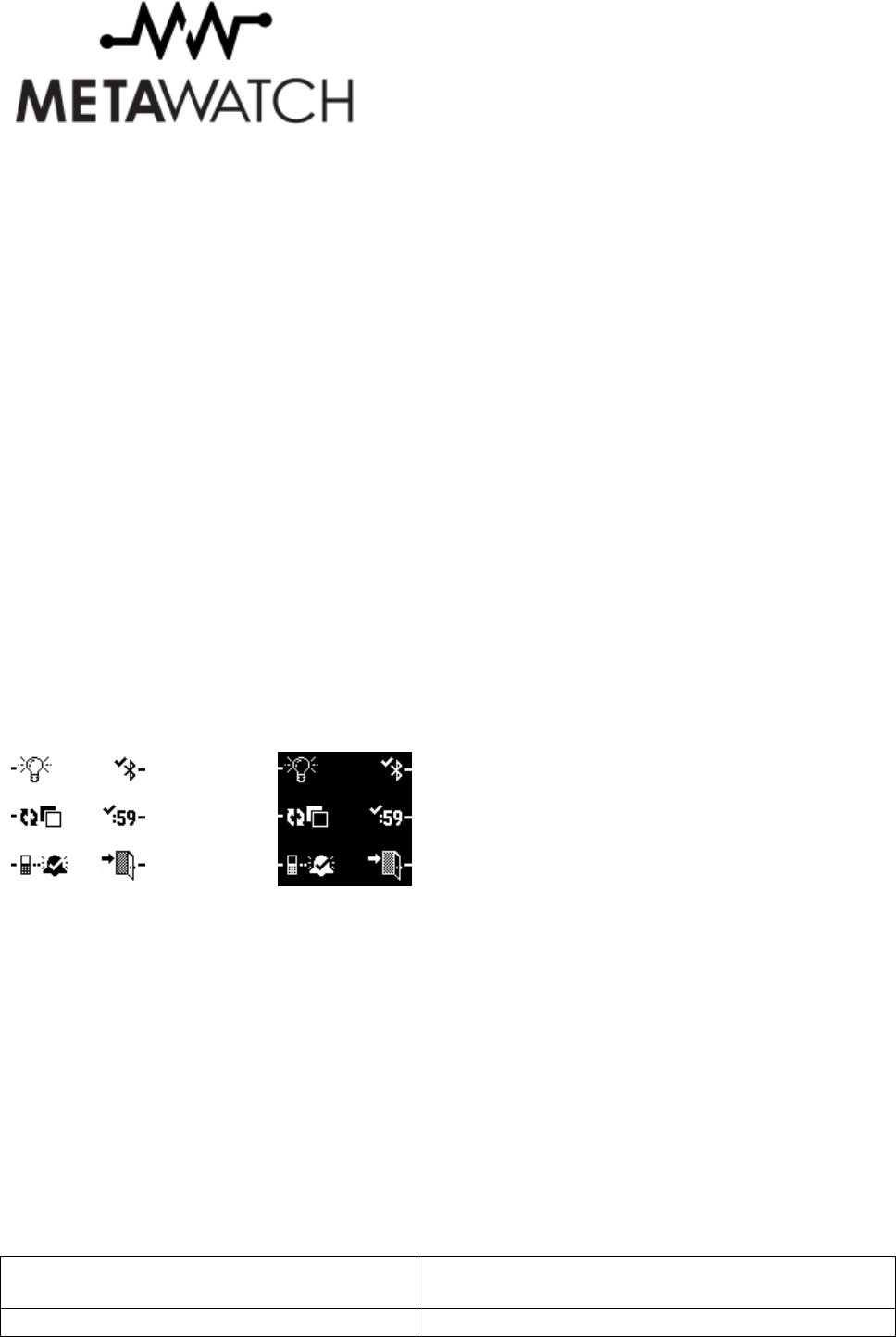

Revision 1.0 10-Oct-2012 16 of 19 5.2 SECONDS ON / OFF (BUTTON B) When OFF, time is displayed in Hours and Minutes. This is the default state and gives you the best power consumption. When ON, Hours, Minutes, and Seconds are displayed in the clock area. Seconds count updates the display once per second and will reduce your battery life. Not every watch face or clock can display a second’s count by design. 5.3 EXIT MENU (BUTTON C) This Exits the menu and returns you to your Widget screen. 5.4 LINK ALARM ON / OFF (BUTTON D) When ON (which is the default), if your phone is too far from your watch and you lose the connection, your watch will vibrate to warn you your phone is left behind. This can be useful for not accidentally leaving your phone behind somewhere or for simply being aware of your connected status. A system icon in most clock areas will also remind you of your disconnected status. When OFF, you will not be alerted by the watch with vibration, but the system icon showing the disconnected status will sill be displayed. 5.5 INVERT DISPLAY (BUTTON E) This will invert the display of your watch. The two states are “white on mirror” or “mirror on white”. Pressing this button will flip between these states. You might change this to suit your mood or to improve display visibility is some situations. 5.6 TURN ON LIGHT (BUTTON F) There are no settings associated with this button, instead this button will turn the light ON for viewing the display in the low light and dark conditions. This button is available for use in most other watch modes as well.

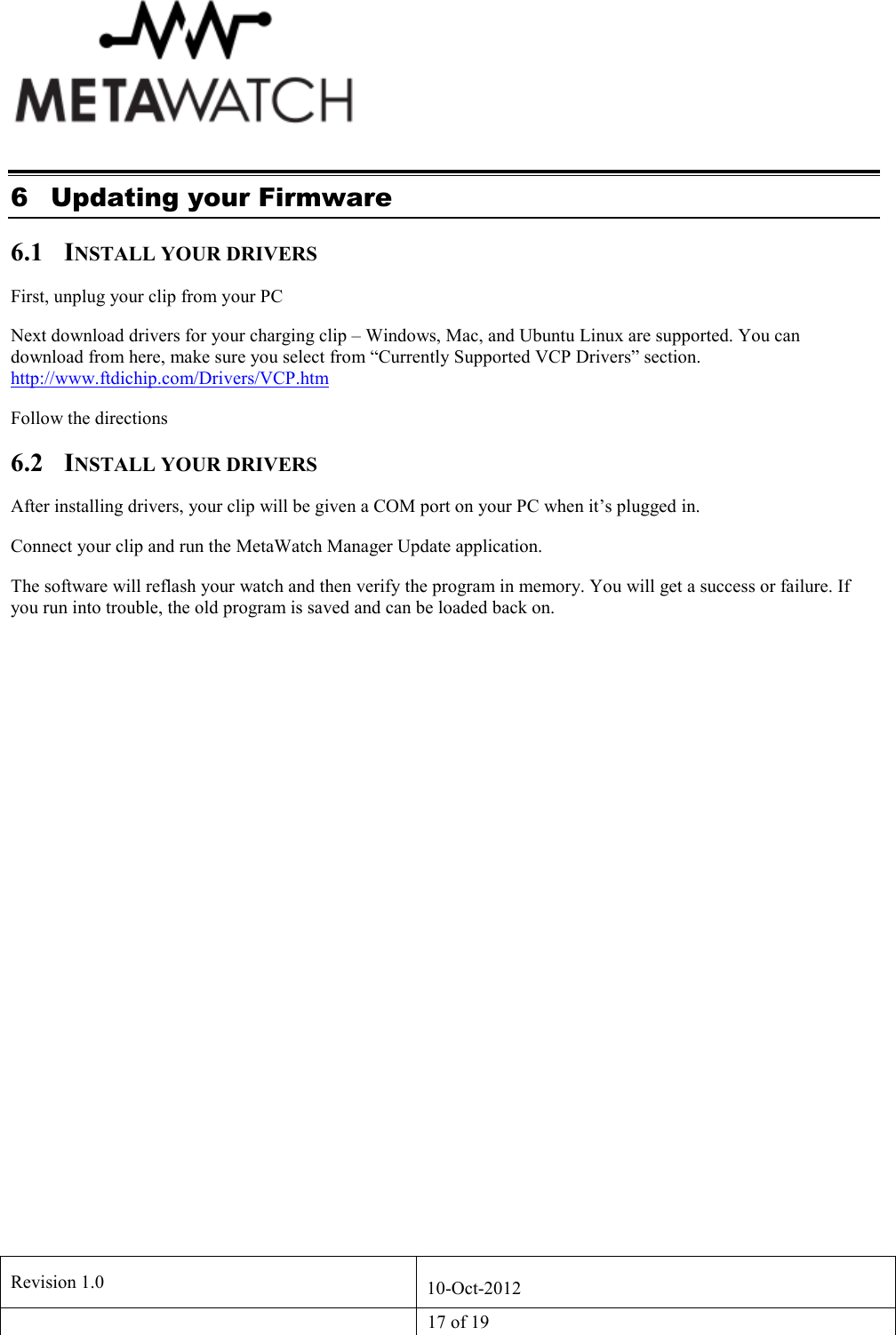

Revision 1.0 10-Oct-2012 17 of 19 6 Updating your Firmware 6.1 INSTALL YOUR DRIVERS First, unplug your clip from your PC Next download drivers for your charging clip – Windows, Mac, and Ubuntu Linux are supported. You can download from here, make sure you select from “Currently Supported VCP Drivers” section. http://www.ftdichip.com/Drivers/VCP.htm Follow the directions 6.2 INSTALL YOUR DRIVERS After installing drivers, your clip will be given a COM port on your PC when it’s plugged in. Connect your clip and run the MetaWatch Manager Update application. The software will reflash your watch and then verify the program in memory. You will get a success or failure. If you run into trouble, the old program is saved and can be loaded back on.
Revision 1.0 10-Oct-2012 18 of 19 7 Support Please visit www.metawatch.com/support to get support information.

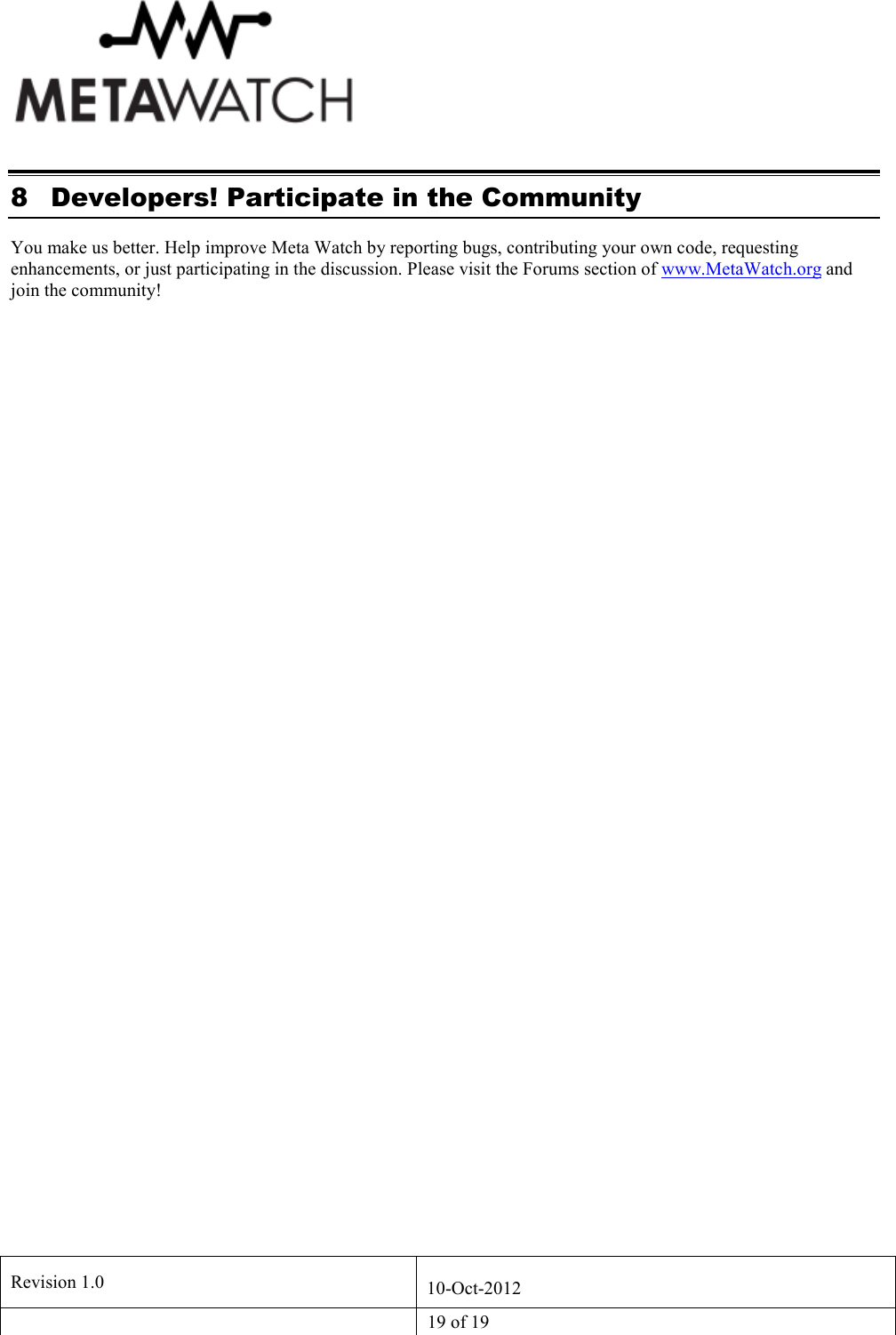

Revision 1.0 10-Oct-2012 19 of 19 8 Developers! Participate in the Community You make us better. Help improve Meta Watch by reporting bugs, contributing your own code, requesting enhancements, or just participating in the discussion. Please visit the Forums section of www.MetaWatch.org and join the community!
