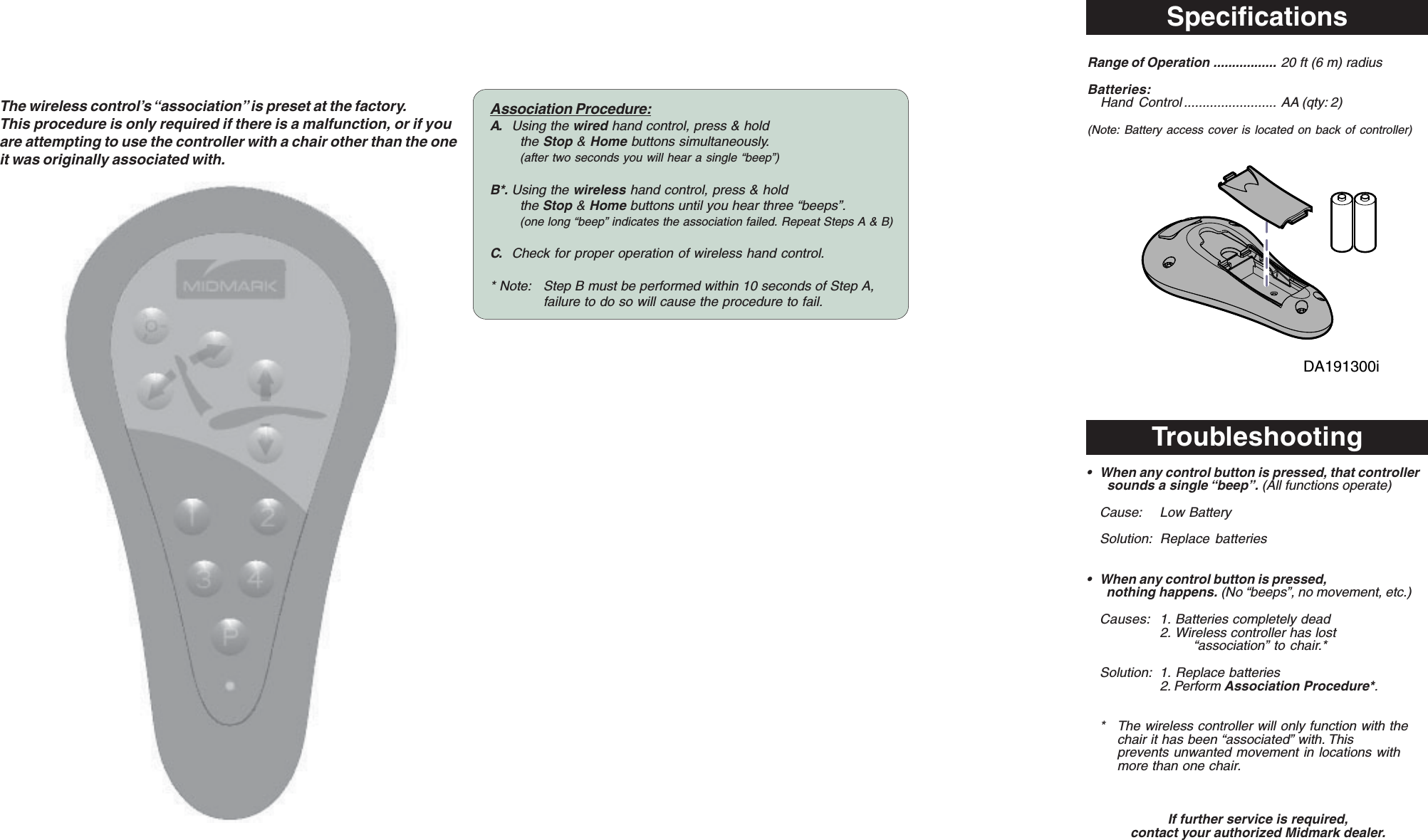

SpecificationsThe wireless control’s “association” is preset at the factory.This procedure is only required if there is a malfunction, or if youare attempting to use the controller with a chair other than the oneit was originally associated with.Troubleshooting• When any control button is pressed, that controller  sounds a single “beep”. (All functions operate)Cause: Low BatterySolution: Replace batteries• When any control button is pressed,  nothing happens. (No “beeps”, no movement, etc.)Causes: 1. Batteries completely dead2. Wireless controller has lost“association” to chair.*Solution: 1. Replace batteries2. Perform Association Procedure*.* The wireless controller will only function with thechair it has been “associated” with. Thisprevents unwanted movement in locations withmore than one chair.If further service is required,contact your authorized Midmark dealer.Association Procedure:A. Using the wired hand control, press & holdthe Stop & Home buttons simultaneously.(after two seconds you will hear a single “beep”)B*. Using the wireless hand control, press & holdthe Stop & Home buttons until you hear three “beeps”.(one long “beep” indicates the association failed. Repeat Steps A & B)C. Check for proper operation of wireless hand control.* Note: Step B must be performed within 10 seconds of Step A,failure to do so will cause the procedure to fail.Range of Operation ................. 20 ft (6 m) radiusBatteries:Hand Control ......................... AA (qty: 2)(Note: Battery access cover is located on back of controller)DA191300i

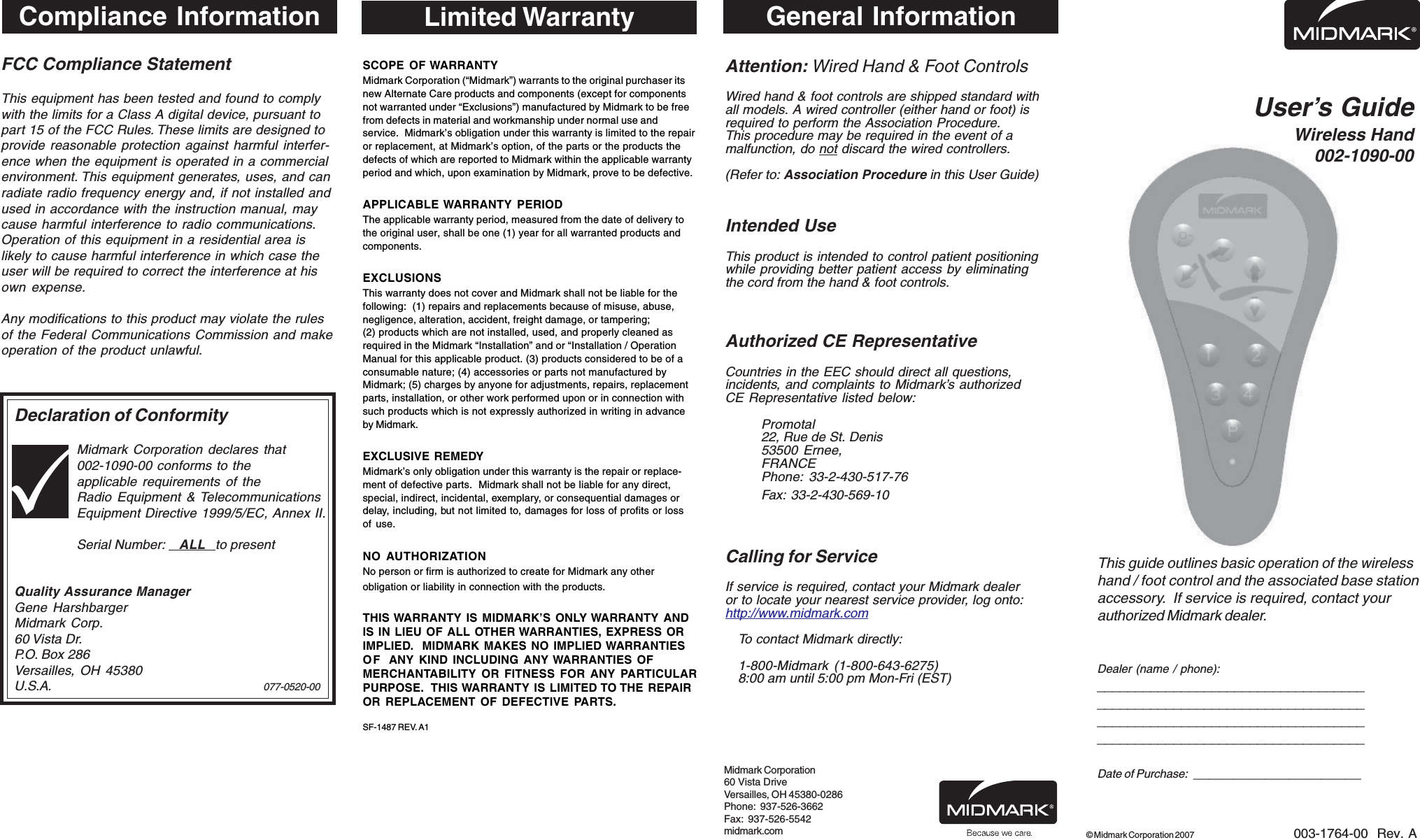

FCC Compliance StatementThis equipment has been tested and found to complywith the limits for a Class A digital device, pursuant topart 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interfer-ence when the equipment is operated in a commercialenvironment. This equipment generates, uses, and canradiate radio frequency energy and, if not installed andused in accordance with the instruction manual, maycause harmful interference to radio communications.Operation of this equipment in a residential area islikely to cause harmful interference in which case theuser will be required to correct the interference at hisown expense.Any modifications to this product may violate the rulesof the Federal Communications Commission and makeoperation of the product unlawful.Declaration of ConformityMidmark Corporation declares that002-1090-00 conforms to theapplicable requirements of theRadio Equipment & TelecommunicationsEquipment Directive 1999/5/EC, Annex II.Serial Number:    ALL   to presentQuality Assurance ManagerGene HarshbargerMidmark Corp.60 Vista Dr.P.O. Box 286Versailles, OH 45380U.S.A. 077-0520-00User’s GuideWireless Hand002-1090-00This guide outlines basic operation of the wirelesshand / foot control and the associated base stationaccessory.  If service is required, contact yourauthorized Midmark dealer.Dealer (name / phone):____________________________________________________________________________________________________________________________________________Date of Purchase:  _____________________003-1764-00  Rev. A© Midmark Corporation 2007General InformationAttention: Wired Hand & Foot ControlsWired hand & foot controls are shipped standard withall models. A wired controller (either hand or foot) isrequired to perform the Association Procedure.This procedure may be required in the event of amalfunction, do not discard the wired controllers.(Refer to: Association Procedure in this User Guide)Intended UseThis product is intended to control patient positioningwhile providing better patient access by eliminatingthe cord from the hand & foot controls.Authorized CE RepresentativeCountries in the EEC should direct all questions,incidents, and complaints to Midmark’s authorizedCE Representative listed below:Promotal22, Rue de St. Denis53500 Ernee,FRANCEPhone: 33-2-430-517-76Fax: 33-2-430-569-10Calling for ServiceIf service is required, contact your Midmark dealeror to locate your nearest service provider, log onto:http://www.midmark.comTo contact Midmark directly:1-800-Midmark (1-800-643-6275)8:00 am until 5:00 pm Mon-Fri (EST)Midmark Corporation60 Vista DriveVersailles, OH 45380-0286Phone:  937-526-3662Fax:  937-526-5542midmark.comLimited WarrantySCOPE OF WARRANTYMidmark Corporation (“Midmark”) warrants to the original purchaser itsnew Alternate Care products and components (except for componentsnot warranted under “Exclusions”) manufactured by Midmark to be freefrom defects in material and workmanship under normal use andservice.  Midmark’s obligation under this warranty is limited to the repairor replacement, at Midmark’s option, of the parts or the products thedefects of which are reported to Midmark within the applicable warrantyperiod and which, upon examination by Midmark, prove to be defective.APPLICABLE WARRANTY PERIODThe applicable warranty period, measured from the date of delivery tothe original user, shall be one (1) year for all warranted products andcomponents.EXCLUSIONSThis warranty does not cover and Midmark shall not be liable for thefollowing:  (1) repairs and replacements because of misuse, abuse,negligence, alteration, accident, freight damage, or tampering;(2) products which are not installed, used, and properly cleaned asrequired in the Midmark “Installation” and or “Installation / OperationManual for this applicable product. (3) products considered to be of aconsumable nature; (4) accessories or parts not manufactured byMidmark; (5) charges by anyone for adjustments, repairs, replacementparts, installation, or other work performed upon or in connection withsuch products which is not expressly authorized in writing in advanceby Midmark.EXCLUSIVE REMEDYMidmark’s only obligation under this warranty is the repair or replace-ment of defective parts.  Midmark shall not be liable for any direct,special, indirect, incidental, exemplary, or consequential damages ordelay, including, but not limited to, damages for loss of profits or lossof use.NO AUTHORIZATIONNo person or firm is authorized to create for Midmark any otherobligation or liability in connection with the products.THIS WARRANTY IS MIDMARK’S ONLY WARRANTY ANDIS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS ORIMPLIED.  MIDMARK MAKES NO IMPLIED WARRANTIESOF ANY KIND INCLUDING ANY WARRANTIES OFMERCHANTABILITY OR FITNESS FOR ANY PARTICULARPURPOSE.  THIS WARRANTY IS LIMITED TO THE REPAIROR REPLACEMENT OF DEFECTIVE PARTS.SF-1487 REV. A1Compliance Information
