Users Manual part 2of2

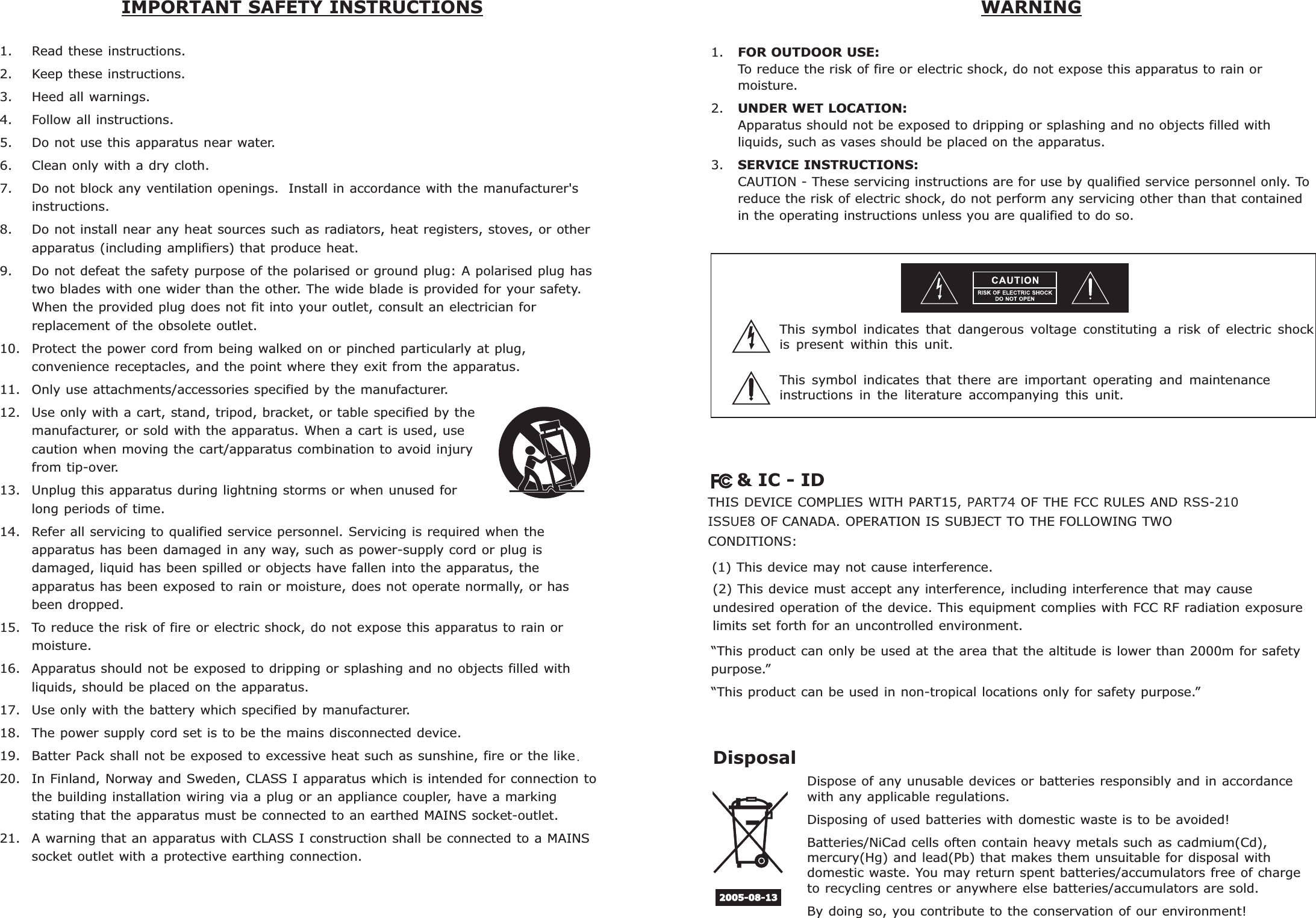

& IC - IDTHIS DEVICE COMPLIES WITH PART15, PART74 OF THE FCC RULES AND RSS-210 ISSUE8 OF CANADA. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) This device may not cause interference.(2) This device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.“This product can only be used at the area that the altitude is lower than 2000m for safety purpose.”“This product can be used in non-tropical locations only for safety purpose.”1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with a dry cloth.7. Do not block any ventilation openings. Install in accordance with the manufacturer'sinstructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or otherapparatus (including amplifiers) that produce heat.9. Do not defeat the safety purpose of the polarised or ground plug: A polarised plug hastwo blades with one wider than the other. The wide blade is provided for your safety.When the provided plug does not fit into your outlet, consult an electrician forreplacement of the obsolete outlet.10. Protect the power cord from being walked on or pinched particularly at plug,convenience receptacles, and the point where they exit from the apparatus.11. Only use attachments/accessories specified by the manufacturer.12. Use only with a cart, stand, tripod, bracket, or table specified by themanufacturer, or sold with the apparatus. When a cart is used, usecaution when moving the cart/apparatus combination to avoid injuryfrom tip-over.13. Unplug this apparatus during lightning storms or when unused forlong periods of time.14. Refer all servicing to qualified service personnel. Servicing is required when theapparatus has been damaged in any way, such as power-supply cord or plug isdamaged, liquid has been spilled or objects have fallen into the apparatus, theapparatus has been exposed to rain or moisture, does not operate normally, or hasbeen dropped.15. To reduce the risk of fire or electric shock, do not expose this apparatus to rain ormoisture.16. Apparatus should not be exposed to dripping or splashing and no objects filled withliquids, should be placed on the apparatus.17. Use only with the battery which specified by manufacturer.18. The power supply cord set is to be the mains disconnected device.19. Batter Pack shall not be exposed to excessive heat such as sunshine fire or the like.20. In Finland, Norway and Sweden, CLASS I apparatus which is intended for connection tothe building installation wiring via a plug or an appliance coupler, have a markingstating that the apparatus must be connected to an earthed MAINS socket-outlet.21. A warning that an apparatus with CLASS I construction shall be connected to a MAINSsocket outlet with a protective earthing connection., IMPORTANT SAFETY INSTRUCTIONS WARNING1. FOR OUTDOOR USE:To reduce the risk of fire or electric shock, do not expose this apparatus to rain ormoisture.2. UNDER WET LOCATION:Apparatus should not be exposed to dripping or splashing and no objects filled withliquids, such as vases should be placed on the apparatus.3. SERVICE INSTRUCTIONS:CAUTION - These servicing instructions are for use by qualified service personnel only. Toreduce the risk of electric shock, do not perform any servicing other than that containedin the operating instructions unless you are qualified to do so.This symbol indicates that dangerous voltage constituting a risk of electric shockis present within this unit.This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.Disposal2005-08-13Dispose of any unusable devices or batteries responsibly and in accordance with any applicable regulations.Disposing of used batteries with domestic waste is to be avoided!Batteries/NiCad cells often contain heavy metals such as cadmium(Cd), mercury(Hg) and lead(Pb) that makes them unsuitable for disposal with domestic waste. You may return spent batteries/accumulators free of charge to recycling centres or anywhere else batteries/accumulators are sold.By doing so, you contribute to the conservation of our environment!

CONTENTS00 01PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEMCONTROLS AND INDICATORS CONTROL PANEL ---PAIRING BLUETOOTH MUSIC RECEIVER - OPERATING INSTRUCTIONS -- CONNECTION FOR EXTERNAL AUDIO SOURCES POWER USAGE INSTRUCTION REPLACING RECHARGEABLE BATTERIES MRM-70B: UHF DIVERSITY RECEIVER MODULE WIRELESS TRANSMITTER MODULE INSTALLATION OF MIPRO CD/MP3 PLAYER HELPFUL OPERATING TIPS TROUBLESHOOTING-PORTABLE PUBLIC ADDRESS 28TROUBLESHOOTING-WIRELESS MICROPHONE SYSTEMS -- 29FAQ - PORTABLE PA 30FAQ - RECHARGEABLE BATTERY -- 31RECHARGEABLE BATTERY GUIDE -------- 32OPTIONAL MA-505 ACCESSORIES 33------------------------------------------------- 02------------------------------------------------------------ 05------------------------------------- 07------------------------------------------------- 09----------------------------- 10------------------------------------------------- 11------------------------------------- 13----------------------------- 14------------------------------------------- 15DIGITAL AUDIO RECORDER MODULE --------------------------------- 16----------------------------------- 26----------------------------------------------------- 27--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------DPM-3 Federal Communication Commission Interference StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:!Reorient or relocate the receiving antenna.!Increase the separation between the equipment and receiver.!Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.!Consult the dealer or an experienced radio/TV technician for help.!FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices).FCC Radiation Exposure StatementThis equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.THIS DEVICE COMPLIES WITH PART 74 AND PART 15 OF THE FCC RULES. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.This device complies with Industry Canada licence-exempt RSS-210 ISSUE 8 standard. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

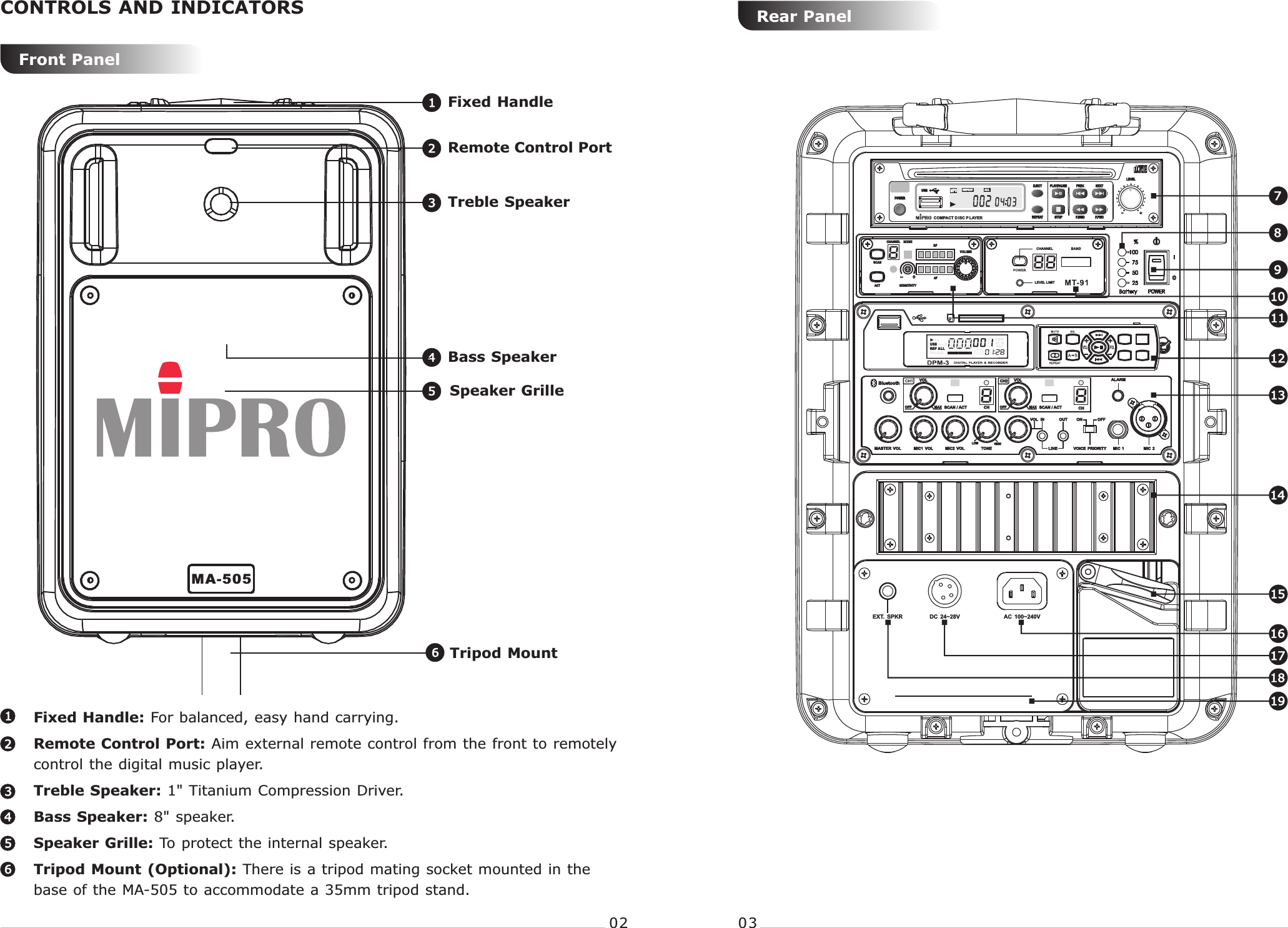

DIG ITALVID EOCOM PACT-+LEVELPOWERUSBCOMPACT DISC P LAYER REPEATEJECTSTOPPLAY/PAUSE NEXTF.FWDF.BWDREP EATALLMP 3PREV.AC 100~240VDC 24~28VEXT. SPKRRANMPROGFOLDERREP A LLUSB A BSDSCANNOISE RF CHANNELSENSITIVITYAFACTVOLUMESCANNOISE RF CHANNELSENSITIVITYAFACTVOLUME+-CHANNELLEVEL LIMITBANDCONTROLS AND INDICATORSFixed Handle: For balanced, easy hand carrying.Remote Control Port: Aim external remote control from the front to remotely control the digital music player.Treble Speaker: 1" Titanium Compression Driver. Bass Speaker: 8" speaker.Speaker Grille: To protect the internal speaker.Tripod Mount (Optional): There is a tripod mating socket mounted in the base of the MA-505 to accommodate a 35mm tripod stand.23415679101118171612131415198Tripod Mount6Fixed Handle2Remote Control Port341Speaker Grille5MA-505Treble SpeakerBass SpeakerFront PanelRear Panel02 03PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEM

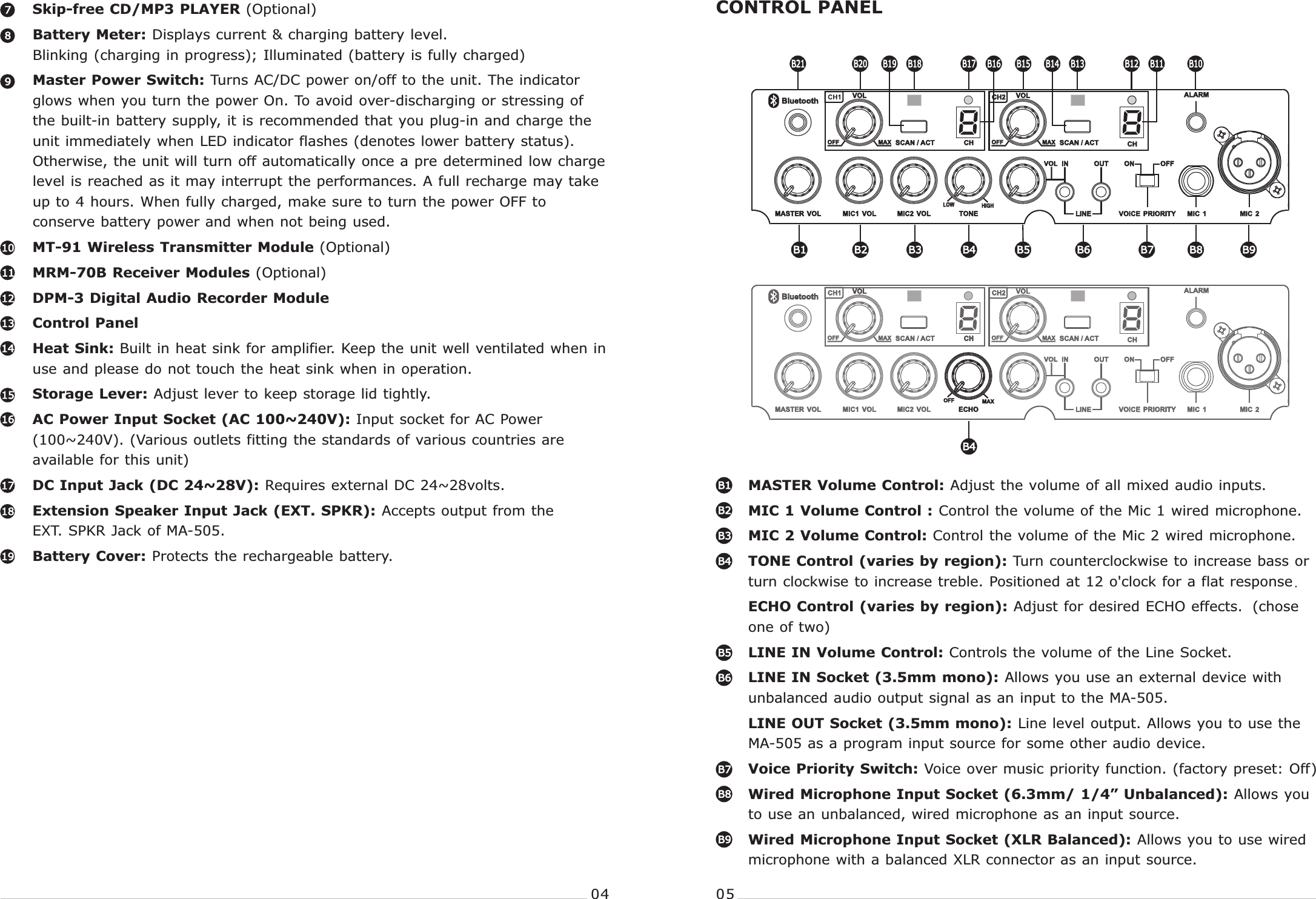

Digital Audio Recorder ModuleCD/MP3 PLAYERBattery Meter: Displays current & charging battery level. Blinking (charging in progress); Illuminated (battery is fully charged)Master Power Switch: Turns AC/DC power on/off to the unit. The indicator glows when you turn the power On. To avoid over-discharging or stressing of the built-in battery supply, it is recommended that you plug-in and charge the unit immediately when LED indicator flashes (denotes lower battery status). Otherwise, the unit will turn off automatically once a pre determined low charge level is reached as it may interrupt the performances. A full recharge may take up to 4 hours. When fully charged, make sure to turn the power OFF to conserve battery power and when not being used.MT-91 Wireless Transmitter Module MRM-70B Control Panel Heat Sink: Built in heat sink for amplifier. Keep the unit well ventilated when in use and please do not touch the heat sink when in operation.Storage Lever: Adjust lever to keep storage lid tightly.AC Power Input Socket (AC 100~240V): Input socket for AC Power (100~240V). (Various outlets fitting the standards of various countries are available for this unit)DC Input Jack (DC 24~28V): Requires external DC 24~28volts.Extension Speaker Input Jack (EXT. SPKR): Accepts output from the EXT. SPKR Jack of MA-505.Battery Cover: Protects the rechargeable battery.Skip-free (Optional)(Optional)Receiver Modules (Optional)DPM-3 10111213149871615191817B1 B2 B3B4B5 B6 B7 B8 B9B11B12B13B14B15B16B17B18B19B21 B10MIC 1 Volume Control : Control the volume of the Mic 1 wired microphone.MIC 2 Volume Control: Control the volume of the Mic 2 wired microphone. TONE Control (varies by region): Turn counterclockwise to increase bass or turn clockwise to increase treble. Positioned at 12 o'clock for a flat response.ECHO Control (varies by region): Adjust for desired ECHO effects. (chose one of two)LINE IN Volume Control: Controls the volume of the Line Socket.LINE IN Socket (3.5mm mono): Allows you use an external device with unbalanced audio output signal as an input to the MA-505.LINE OUT Socket (3.5mm mono): Line level output. Allows you to use the MA-505 as a program input source for some other audio device.Voice Priority Switch: Voice over music priority function. (factory preset: Off)Wired Microphone Input Socket (6.3mm/ 1/4” Unbalanced): Allows you to use an unbalanced, wired microphone as an input source.Wired Microphone Input Socket (XLR Balanced): Allows you to use wired microphone with a balanced XLR connector as an input source.MASTER Volume Control: Adjust the volume of all mixed audio inputs.B1B2B3B4B5B6B7B8B9B20B4CONTROL PANEL04 05PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEM

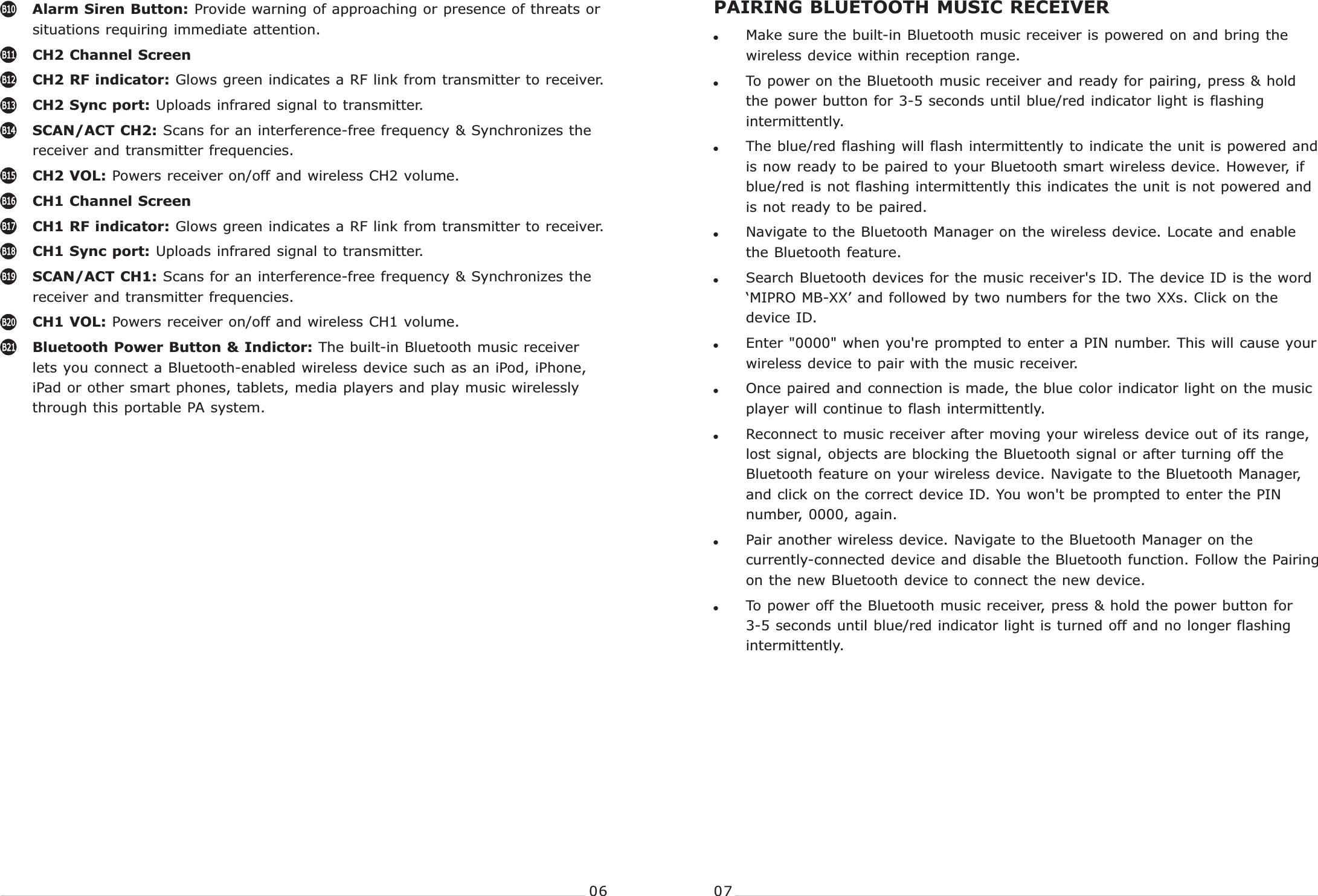

06 07PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEMsituations requiring immediate attention. CH2 Channel Screen CH2 RF indicator: Glows green indicates a RF link from transmitter to receiver.CH2 Sync port: Uploads infrared signal to transmitter. SCAN/ACT CH2: Scans for an interference-free frequency & Synchronizes the receiver and transmitter frequencies. CH2 VOL: Powers receiver on/off and wireless CH2 volume. CH1 Channel Screen CH1 RF indicator: Glows green indicates a RF link from transmitter to receiver.CH1 Sync port: Uploads infrared signal to transmitter. SCAN/ACT CH1: Scans for an interference-free frequency & Synchronizes the receiver and transmitter frequencies. CH1 VOL: Powers receiver on/off and wireless CH1 volume. Bluetooth Power Button & Indictor: The built-in Bluetooth music receiver lets you connect a Bluetooth-enabled wireless device such as an iPod, iPhone, iPad or other smart phones, tablets, media players and play music wirelessly through this portable PA system.Alarm Siren Button: Provide warning of approaching or presence of threats or B10B15B11B16B12B17B13B18B14B19B20B21PAIRING BLUETOOTH MUSIC RECEIVER!Make sure the built-in Bluetooth music receiver is powered on and bring the wireless device within reception range.!To power on the Bluetooth music receiver and ready for pairing, press & hold the power button for 3-5 seconds until blue/red indicator light is flashing intermittently. !The blue/red flashing will flash intermittently to indicate the unit is powered and is now ready to be paired to your Bluetooth smart wireless device. However, if blue/red is not flashing intermittently this indicates the unit is not powered and is not ready to be paired.!Navigate to the Bluetooth Manager on the wireless device. Locate and enable the Bluetooth feature.!Search Bluetooth devices for the music receiver's ID. The device ID is the word ‘MIPRO MB-XX’ and followed by two numbers for the two XXs. Click on the device ID.!Enter "0000" when you're prompted to enter a PIN number. This will cause your wireless device to pair with the music receiver. !Once paired and connection is made, the blue color indicator light on the music player will continue to flash intermittently.!Reconnect to music receiver after moving your wireless device out of its range, lost signal, objects are blocking the Bluetooth signal or after turning off the Bluetooth feature on your wireless device. Navigate to the Bluetooth Manager, and click on the correct device ID. You won't be prompted to enter the PIN number, 0000, again.!Pair another wireless device. Navigate to the Bluetooth Manager on the currently-connected device and disable the Bluetooth function. Follow the Pairing on the new Bluetooth device to connect the new device.!To power off the Bluetooth music receiver, press & hold the power button for 3-5 seconds until blue/red indicator light is turned off and no longer flashing intermittently.

Wireless Mic SystemTurn on master Power switch. Power indicator glows red. Ready for operation.Turn on CH1 VOL or CH2 VOL switch.Turn transmitter power on. Ensure fresh alkaline or lithium batteries (not included) are installed.CH1 RF indicator or CH2 RF indicator glows green after the transmitter is turned on to denote a successful RF link.Adjust CH1 VOL or CH2 VOL to desired volume.Ensure receiver and transmitter have the same matching operating channels. Notes: 1. Same wireless microphone can transmit to multiple MA-505 systems on the same channel for a wider and expanded coverage.2. It is not possible to transmit two wireless microphones on the same channel to MA-505 system. Only one transmitter can be used at a time on that channel. Be sure to turn off one of the two transmitters to avoid interference.!!!!!!OPERATING INSTRUCTIONSTips & WarningAfter pairing, some devices will connect immediately. Others will ask you if you want to connect. If you move the wireless device out of the Music Receiver's range, the connection will be lost and the indicator light will go off. If you move the wireless device back into range, the connection will re-establish itself.The Bluetooth music player can only play music from one device at a time.Clean only with a dry cloth.Do not expose the device to rain, use it near water or in damp or wet conditions, or place containers on it containing liquids which might spill into any openings.!!!!!08 09PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEMPAIRING BLUETOOTH MUSIC RECEIVEROPERATING INSTRUCTIONSWired MicrophonePlug optional MIPRO MM-107 wired dynamic microphone with a 6.3mm (1/4”) connector to MIC IN.Turn on master POWER and adjust to desired volume.Line InputAvailable to connect an external CD, MP3, iPod or cassette player.Connect a 3.5mm(mono)-to-3.5mm(stereo) audio cable (not included) to the LINE-IN jack.Turn on master POWER.Adjust LINE VOL to desired volume.Alarm SirenPress Alarm button for warnings of approaching or presence of threats or situations requiring immediate attention. This is an ascending sound of an alarm.Alarm will sound only when master Power is powered on and one of below function is powered on.1. Wireless transmitter and CH1 or CH2 are powered on.2. Wired microphone is plugged into the Mic input and powered on.3. USB player is powered on & music is playing.!!!!!!!!

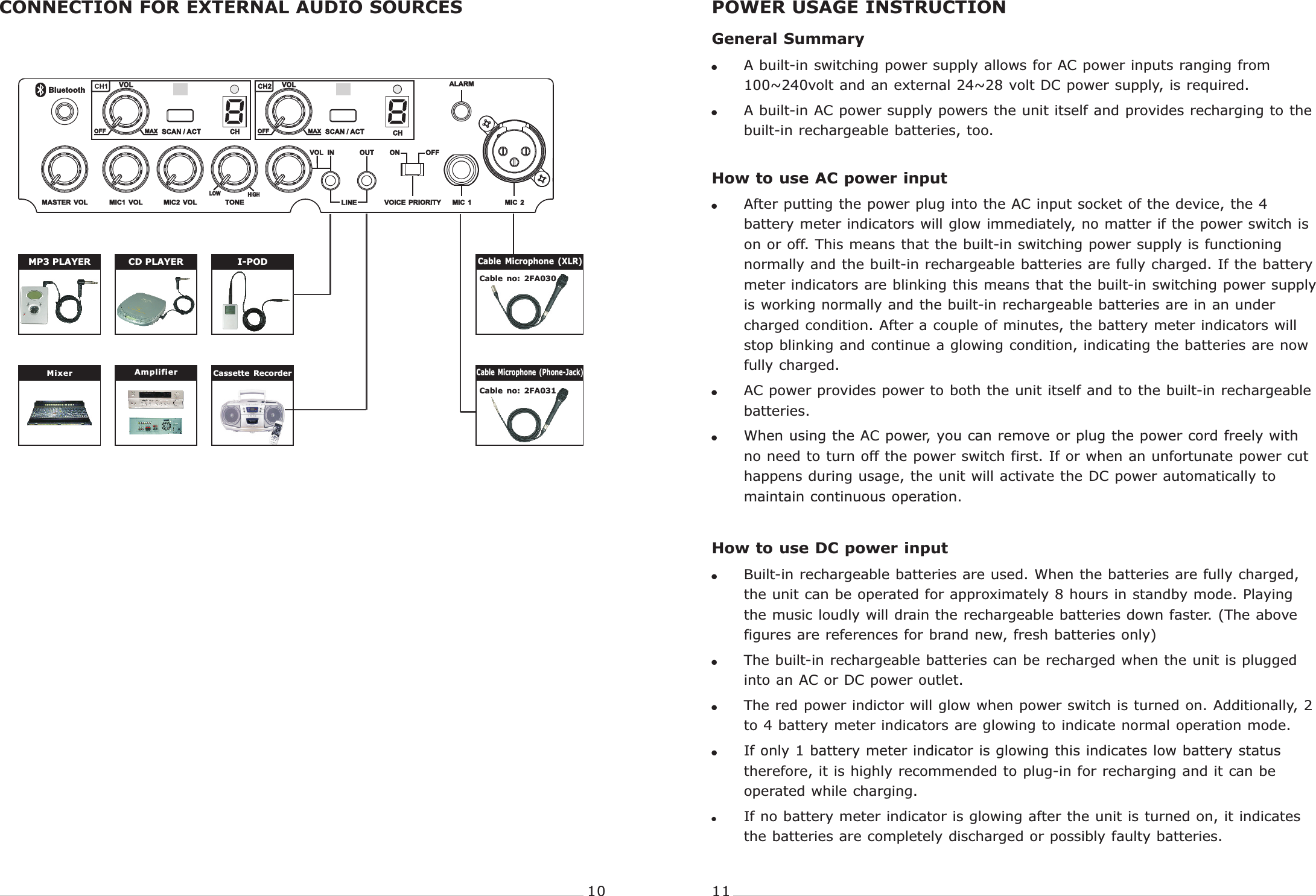

A connector is included which allows users to make DC wiring. See diagram below for illustration:DC JACK Diagram Connector AC power and DC power can not be used at the same time.!Always store the system with the batteries fully charged if needing to store the system for more than 3 months. Leave the system plugged into an AC power outlet when not in use or recharge once at least every 3 months.!The rechargeable batteries will not function properly if not recharged for an extended period of time. It is therefore, recommended to recharge after every use regardless of the usage time to preserve battery life.1432DC V_+DC V: 24~28V/10A1432PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEM!Adjust lever to remove the lid plate (Figure 1-1)!Insert into the storage (Figure 1-2)!Adjust lever to close the lid plate tightly (Figure 1-3)CAUTIONDanger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type.Storing Power Plug & Cable(Figure 1-1) (Figure 1-2) (Figure 1-3)12 13(Figure 2-2) (Figure 2-1)(Figure 2-5)(Figure 2-3)(Figure 2-4)!The batteries must be replaced every 2~3 years depending on usage over time and limited amount of charge cycles.!Ascertain the power switch is turned off and AC cord is unplugged.1. Using a Phillips-head screwdriver (not supplied) remove the screws. (Figure 2-1)2. Remove the battery protection cover panel. (Figure 2-2)3. To remove batteries, gently detach and slide the battery away from the battery housing compartment horizontally. (Figure 2-3)4. Replace batteries “as above” and re-connect the wires to the new batteries horizontally in accordance to the wiring diagram below. (Figure 2-4)5. Replace the battery protection cover panel, tighten up the screws. (Figure 2-5)REPLACING RECHARGEABLE BATTERIES

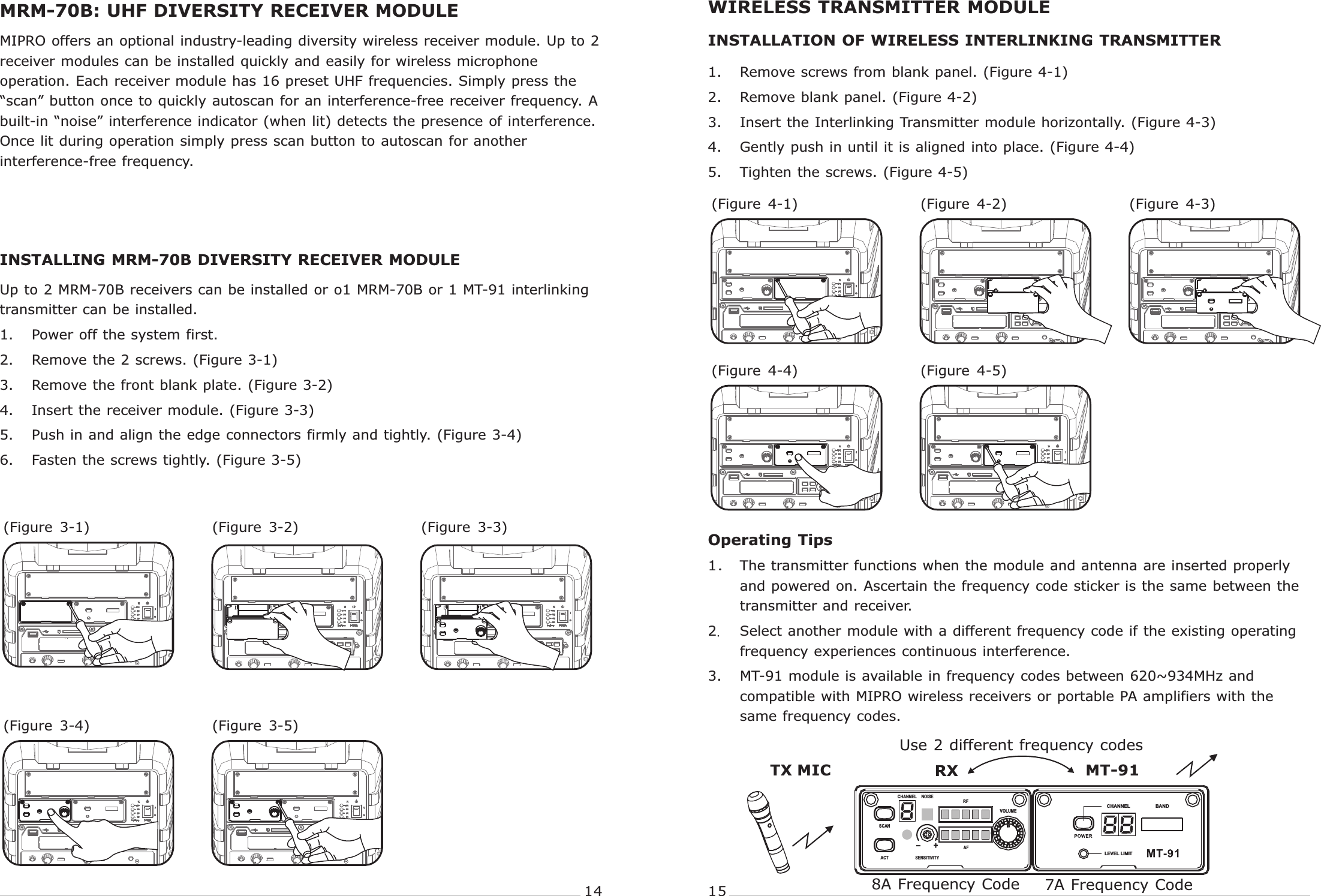

PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEMMRM-70B: UHF DIVERSITY RECEIVER MODULEINSTALLING MRM-70B DIVERSITY RECEIVER MODULE MIPRO offers an optional industry-leading diversity wireless receiver module. Up to 2 receiver modules can be installed quickly and easily for wireless microphone operation. Each receiver module has 16 preset UHF frequencies. Simply press the “scan” button once to quickly autoscan for an interference-free receiver frequency. A built-in “noise” interference indicator (when lit) detects the presence of interference. Once lit during operation simply press scan button to autoscan for another interference-free frequency.Up to 2 MRM-70B receivers can be installed or o1 MRM-70B or 1 MT-91 interlinking transmitter can be installed.1. Power off the system first.2. Remove the 2 screws. ( 3-1)3. Remove the front blank plate. ( 3-2)4. Insert the receiver module. ( 3-3)5. Push in and align the edge connectors firmly and tightly. ( 3-4)6. Fasten the screws tightly. ( 3-5)FigureFigureFigureFigureFigure(Figure 3-4) (Figure 3-5)(Figure 3-2)(Figure 3-1) (Figure 3-3)14 151. Remove screws from blank panel. (Figure 4-1)2. Remove blank panel. (Figure 4-2)3. Insert the Interlinking Transmitter module horizontally. (Figure 4-3)4. Gently push in until it is aligned into place. (Figure 4-4)5. Tighten the screws. (Figure 4-5)(Figure 4-4) (Figure 4-5)(Figure 4-2)(Figure 4-1) (Figure 4-3)INSTALLATION OF WIRELESS INTERLINKING TRANSMITTERWIRELESS TRANSMITTER MODULEOperating Tips1.The transmitter functions when the module and antenna are inserted properly and powered on. Ascertain the frequency code sticker is the same between the transmitter and receiver.2.Select another module with a different frequency code if the existing operating frequency experiences continuous interference.3. MT-91 module is available in frequency codes between 620~934MHz and compatible with MIPRO wireless receivers or portable PA amplifiers with the same frequency codes. RXTX MIC MT-91Use 2 different frequency codes8A Frequency Code 7A Frequency CodeSCANNOISE RF CHANNELSENSITIVITYAFACTVOLUME+-CHANNELLEVEL LIMITBAND

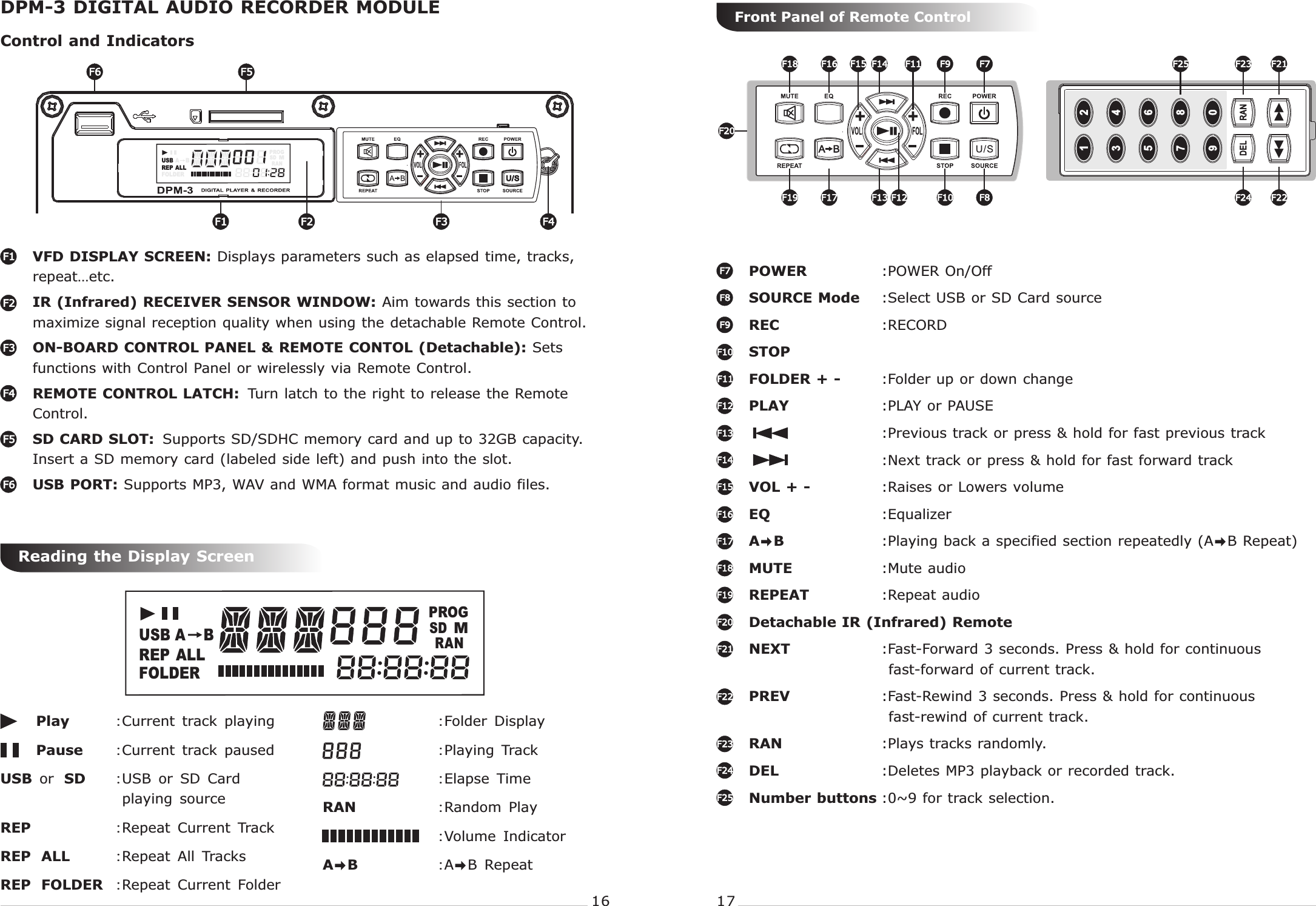

:Folder Display:Playing Track:Elapse TimeRAN :Random Play:Volume IndicatorA B :A B Repeat  PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEM16 17VFD DISPLAY SCREEN: Displays parameters such as elapsed time, tracks, repeat…etc.IR (Infrared) RECEIVER SENSOR WINDOW: Aim towards this section to maximize signal reception quality when using the detachable Remote Control.ON-BOARD CONTROL PANEL & REMOTE CONTOL (Detachable): Sets functions with Control Panel or wirelessly via Remote Control.REMOTE CONTROL LATCH: Turn latch to the right to release the Remote Control.SD CARD SLOT: Supports SD/SDHC memory card and up to 32GB capacity. Insert a SD memory card (labeled side left) and push into the slot. USB PORT: Supports MP3, WAV and WMA format music and audio files. F1F2F3F4F5F6DPM-3 DIGITAL AUDIO RECORDER MODULERANMPROGFOLDERREP ALLUSB A BSDF5F4F6F1 F2 F3 Control and Indicators Play :Current track playingPause :Current track pausedUSB or SD :USB or SD Card playing sourceREP :Repeat Current TrackREP ALL :Repeat All TracksREP FOLDER :Repeat Current FolderRANSDMPROGFOLDERREP ALLUSB A BReading the Display ScreenPOWER :POWER On/OffSOURCE Mode :Select USB or SD Card sourceREC :RECORDSTOPFOLDER + - :Folder up or down changePLAY :PLAY or PAUSE:Previous track or press & hold for fast previous track :Next track or press & hold for fast forward trackVOL + - :Raises or Lowers volumeEQ :EqualizerA B :Playing back a specified section repeatedly (A B Repeat)MUTE :Mute audioREPEAT :Repeat audioDetachable IR (Infrared) RemoteNEXT :Fast-Forward 3 seconds. Press & hold for continuous fast-forward of current track.PREV :Fast-Rewind 3 seconds. Press & hold for continuous fast-rewind of current track.RAN :Plays tracks randomly.DEL :Deletes MP3 playback or recorded track.Number buttons :0~9 for track selection. F7F8F9F10F11F12F13F14F15F16F17F18F19F20F21F22F23F24F25F9F11F14F15F16F18F24F12F13F17F19 F10F25F8F7F22F21F23F20Front Panel of Remote Control

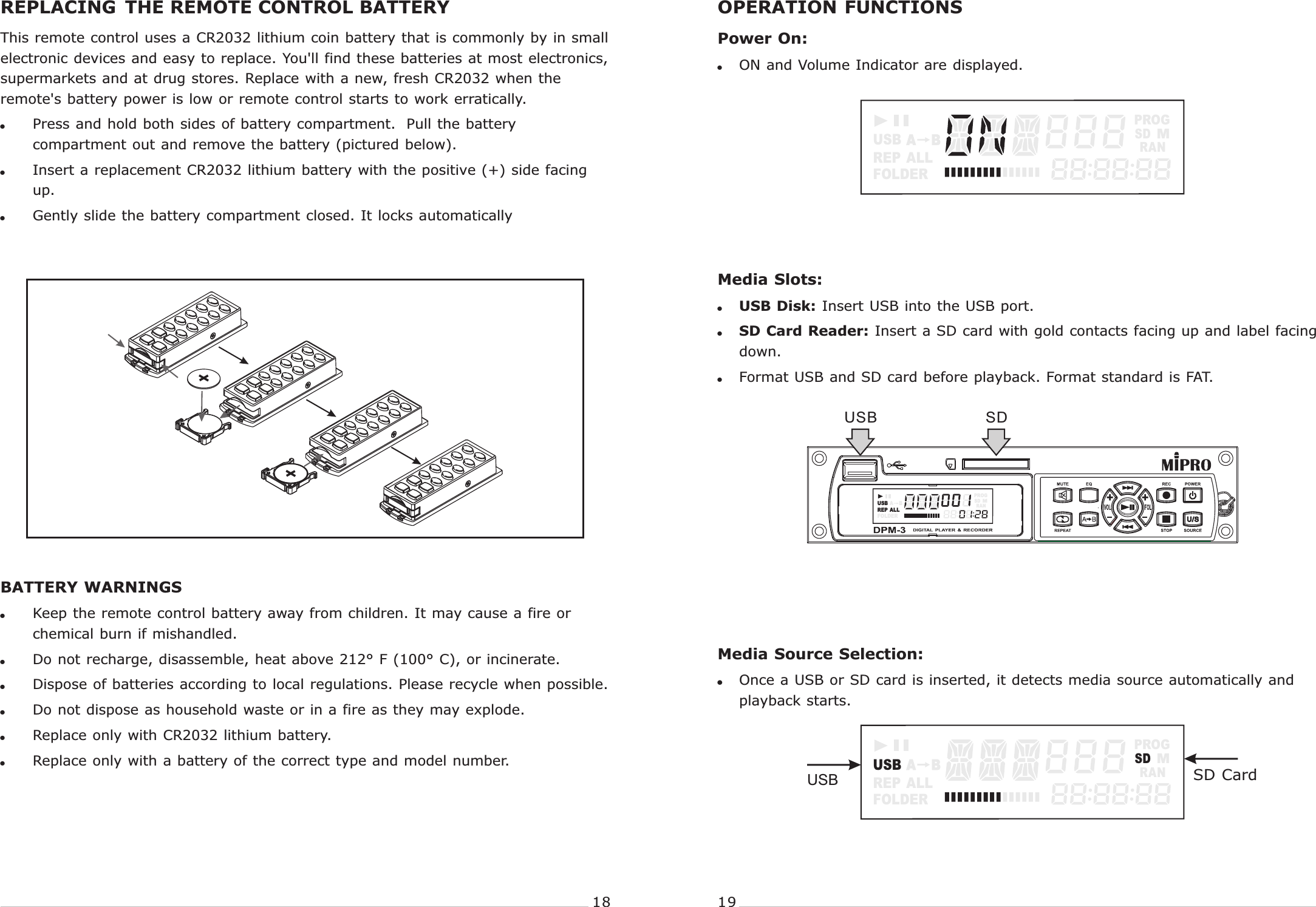

This remote control uses a CR2032 lithium coin battery that is commonly by in small electronic devices and easy to replace. You'll find these batteries at most electronics, supermarkets and at drug stores. Replace with a new, fresh CR2032 when the remote's battery power is low or remote control starts to work erratically.Press and hold both sides of battery compartment. Pull the battery compartment out and remove the battery (pictured below). Insert a replacement CR2032 lithium battery with the positive (+) side facing up. Gently slide the battery compartment closed. It locks automatically!!!BATTERY WARNINGS!Keep the remote control battery away from children. It may cause a fire or chemical burn if mishandled.!Do not recharge, disassemble, heat above 212° F (100° C), or incinerate.!Dispose of batteries according to local regulations. Please recycle when possible.!Do not dispose as household waste or in a fire as they may explode.!Replace only with CR2032 lithium battery.!Replace only with a battery of the correct type and model number.REPLACING THE REMOTE CONTROL BATTERY OPERATION FUNCTIONSPower On: !ON and Volume Indicator are displayed.Media Slots:Media Source Selection:!Once a USB or SD card is inserted, it detects media source automatically and playback starts.!USB Disk: Insert USB into the USB port.!SD Card Reader: Insert a SD card with gold contacts facing up and label facing down.!Format USB and SD card before playback. Format standard is FAT.RANMPROGFOLDERREP ALLUSB A BSDUSB SDSDMFOLDERREP ALLUSB A BRANPROGSDMFOLDERREP ALLUSB A BRANPROGUSB SD CardPORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEM18 19

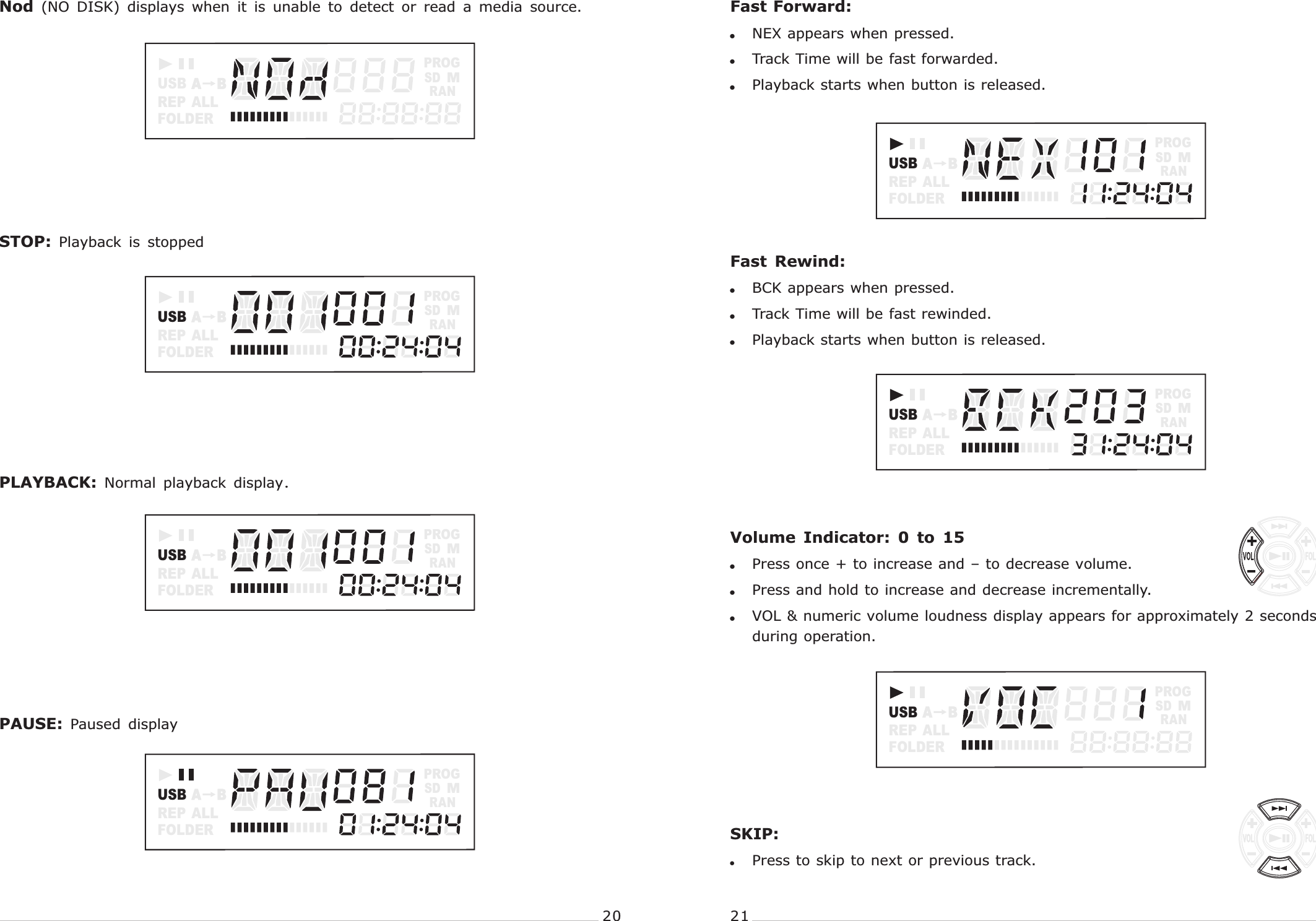

Nod (NO DISK) displays when it is unable to detect or read a media source.STOP: Playback is stoppedPLAYBACK: Normal playback display.PAUSE: Paused displaySDMFOLDERREP ALLUSB A BRANPROGSDMFOLDERREP ALLUSB A BRANPROGSDMFOLDERREP ALLUSB A BRANPROGSDMFOLDERREP ALLUSB A BRANPROGFast Forward:!NEX appears when pressed.!Track Time will be fast forwarded.!Playback starts when button is released.Fast Rewind:!BCK appears when pressed.!Track Time will be fast rewinded.!Playback starts when button is released.Volume Indicator: 0 to 15!Press once + to increase and – to decrease volume.!Press and hold to increase and decrease incrementally.!VOL & numeric volume loudness display appears for approximately 2 seconds during operation.SKIP:!Press to skip to next or previous track.SDMFOLDERREP ALLUSB A BRANPROGSDMFOLDERREP ALLUSB A BRANPROGSDMFOLDERREP ALLUSB A BRANPROGPORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEM20 21

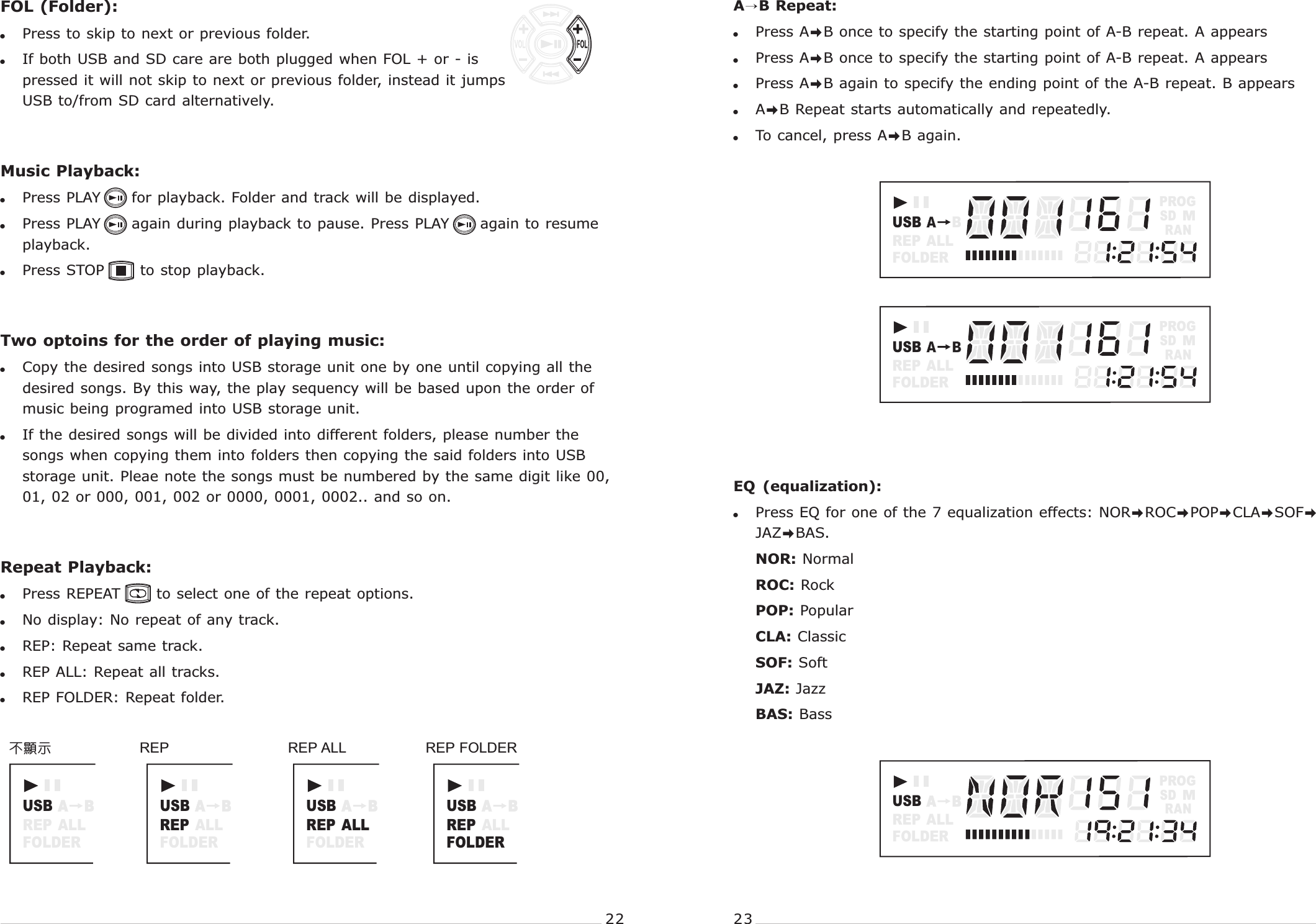

FOL (Folder):!Press to skip to next or previous folder.!If both USB and SD care are both plugged when FOL + or - is pressed it will not skip to next or previous folder, instead it jumps USB to/from SD card alternatively.Music Playback:!Press PLAY for playback. Folder and track will be displayed.!Press PLAY again during playback to pause. Press PLAY again to resume playback.!Press STOP to stop playback. Two optoins for the order of playing music:!Copy the desired songs into USB storage unit one by one until copying all the desired songs. By this way, the play sequency will be based upon the order of music being programed into USB storage unit. !If the desired songs will be divided into different folders, please number the songs when copying them into folders then copying the said folders into USB storage unit. Pleae note the songs must be numbered by the same digit like 00, 01, 02 or 000, 001, 002 or 0000, 0001, 0002.. and so on.Repeat Playback:!Press REPEAT to select one of the repeat options.!No display: No repeat of any track.!REP: Repeat same track.!REP ALL: Repeat all tracks.!REP FOLDER: Repeat folder. 不顯示 REP REP ALL REP FOLDERFOLDER FOLDER FOLDERREP ALL REP ALL REP ALLUSB A BUSB A BUSB A BFOLDERREP ALLUSB A BA→B Repeat:!Press A B once to specify the starting point of A-B repeat. A appears!Press A B once to specify the starting point of A-B repeat. A appears!Press A B again to specify the ending point of the A-B repeat. B appears!A B Repeat starts automatically and repeatedly.!To cancel, press A B again. EQ (equalization):!Press EQ for one of the 7 equalization effects: NOR ROC POP CLA SOFJAZ BAS.NOR: NormalROC: RockPOP: PopularCLA: ClassicSOF: SoftJAZ: JazzBAS: Bass    SDMFOLDERREP ALLUSB A BRANPROGSDMFOLDERREP ALLUSB A BRANPROGSDMFOLDERREP ALLUSB A BRANPROGPORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEM22 23

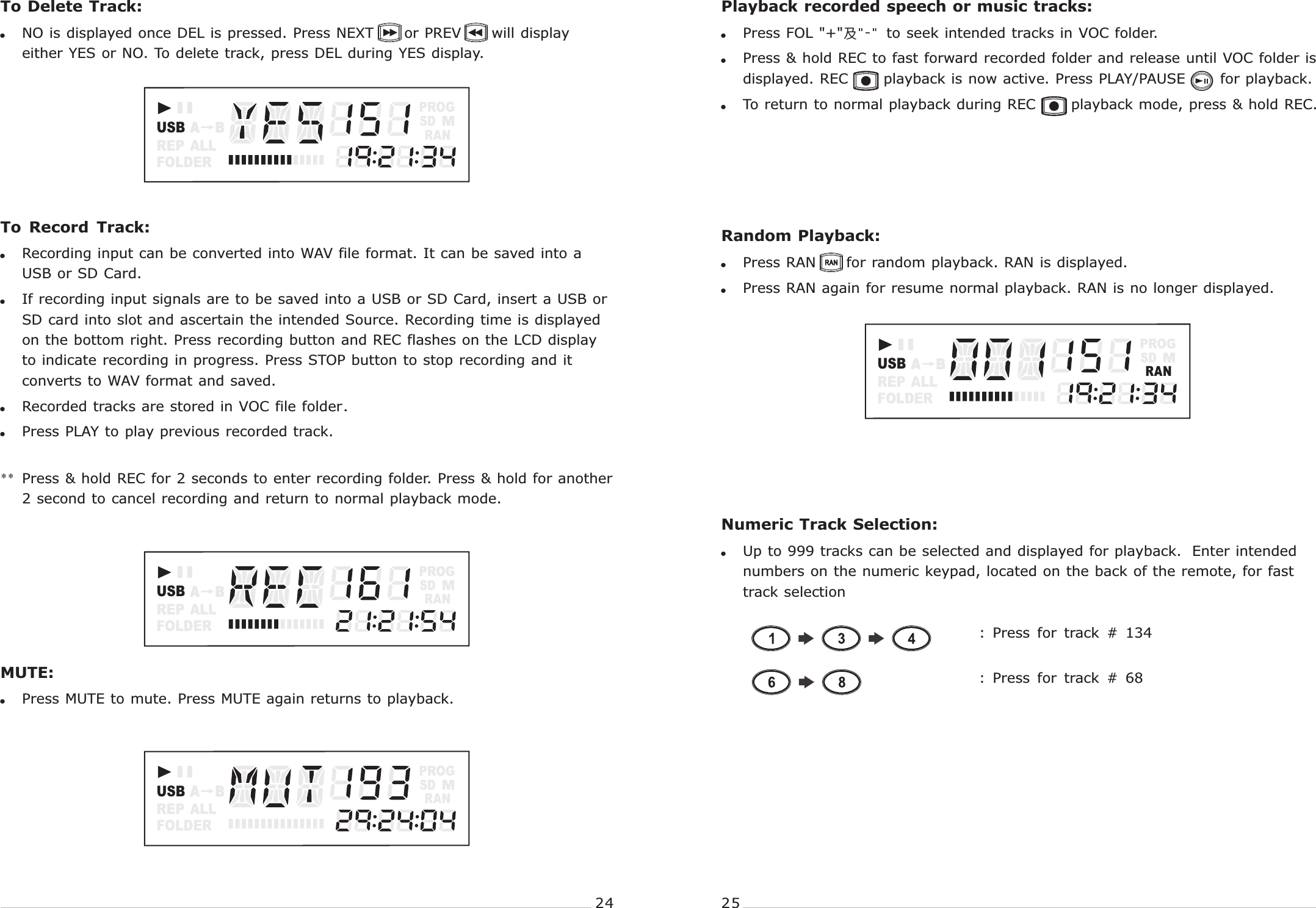

Playback recorded speech or music tracks:!Press FOL "+"及"-" to seek intended tracks in VOC folder.!Press & hold REC to fast forward recorded folder and release until VOC folder is displayed. REC playback is now active. Press PLAY/PAUSE for playback.!To return to normal playback during REC playback mode, press & hold REC.Random Playback:!Press RAN for random playback. RAN is displayed.!Press RAN again for resume normal playback. RAN is no longer displayed.!Up to 999 tracks can be selected and displayed for playback. Enter intended numbers on the numeric keypad, located on the back of the remote, for fast track selectionNumeric Track Selection:To Delete Track:!NO is displayed once DEL is pressed. Press NEXT or PREV will display either YES or NO. To delete track, press DEL during YES display. To Record Track:!Recording input can be converted into WAV file format. It can be saved into a USB or SD Card.!If recording input signals are to be saved into a USB or SD Card, insert a USB or SD card into slot and ascertain the intended Source. Recording time is displayed on the bottom right. Press recording button and REC flashes on the LCD display to indicate recording in progress. Press STOP button to stop recording and it converts to WAV format and saved.!Recorded tracks are stored in VOC file folder.!Press PLAY to play previous recorded track.** Press & hold REC for 2 seconds to enter recording folder. Press & hold for another 2 second to cancel recording and return to normal playback mode.MUTE:!Press MUTE to mute. Press MUTE again returns to playback.SDMFOLDERREP ALLUSB A BRANPROGSDMFOLDERREP ALLUSB A BRANPROGSDMFOLDERREP ALLUSB A BRANPROG: Press for track # 68: Press for track # 134SDMFOLDERREP ALLUSB A BRANPROGPORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEM24 25

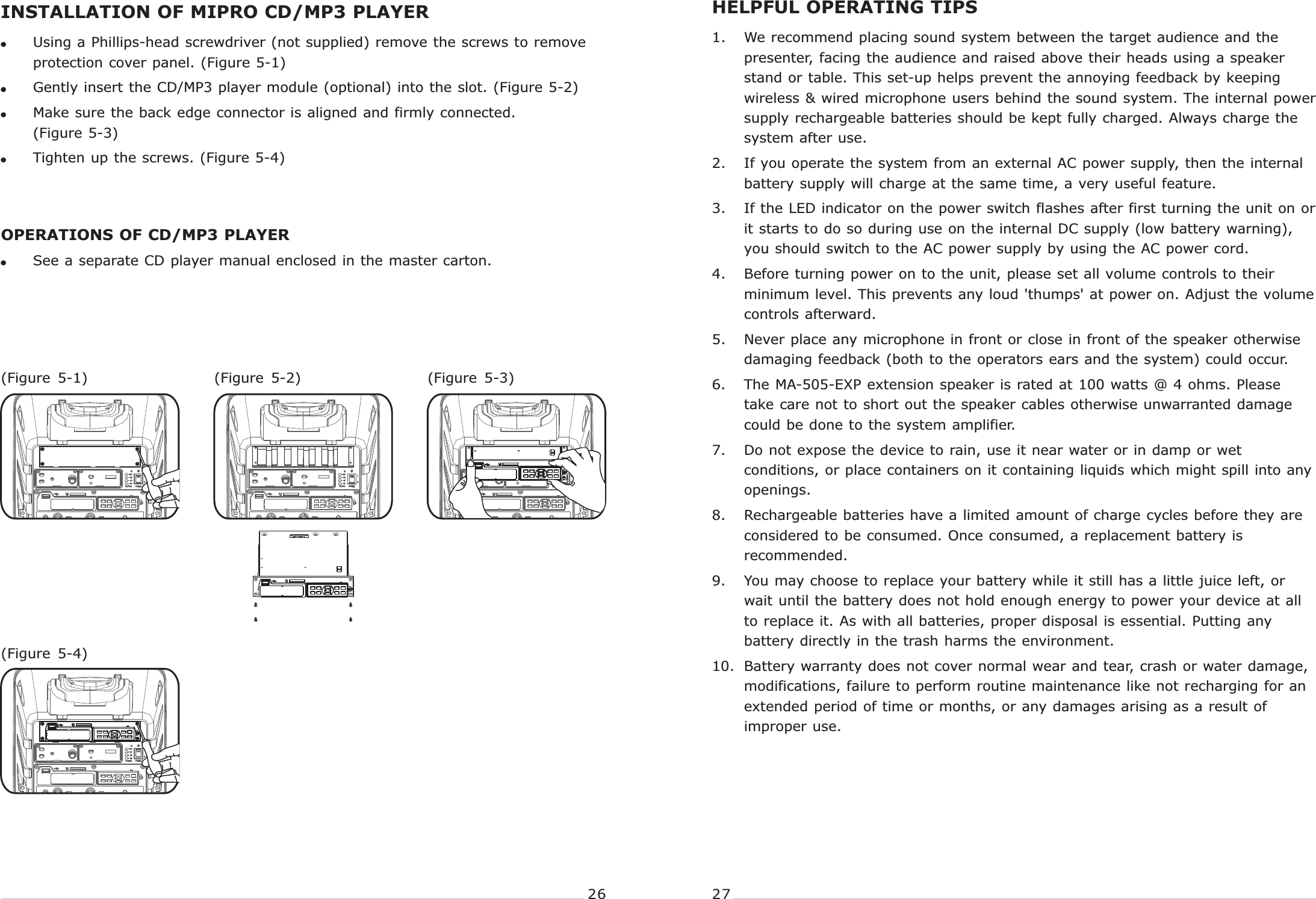

!Using a Phillips-head screwdriver (not supplied) remove the screws to remove protection cover panel. (Figure 5-1)!Gently insert the CD/MP3 player module (optional) into the slot. (Figure 5-2)!Make sure the back edge connector is aligned and firmly connected. (Figure 5-3)!Tighten up the screws. (Figure 5-4)OPERATIONS OF CD/MP3 PLAYER!See a separate CD player manual enclosed in the master carton.PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEMINSTALLATION OF MIPRO CD/MP3 PLAYER(Figure 5-4)(Figure 5-2) (Figure 5-3)(Figure 5-1)1. We recommend placing sound system between the target audience and the presenter, facing the audience and raised above their heads using a speaker stand or table. This set-up helps prevent the annoying feedback by keeping wireless & wired microphone users behind the sound system. The internal power supply rechargeable batteries should be kept fully charged. Always charge the system after use.2. If you operate the system from an external AC power supply, then the internal battery supply will charge at the same time, a very useful feature.3. If the LED indicator on the power switch flashes after first turning the unit on or it starts to do so during use on the internal DC supply (low battery warning), you should switch to the AC power supply by using the AC power cord.4. Before turning power on to the unit, please set all volume controls to their minimum level. This prevents any loud 'thumps' at power on. Adjust the volume controls afterward.5. Never place any microphone in front or close in front of the speaker otherwise damaging feedback (both to the operators ears and the system) could occur.6. The MA-505-EXP extension speaker is rated at 100 watts @ 4 ohms. Please take care not to short out the speaker cables otherwise unwarranted damage could be done to the system amplifier.7. Do not expose the device to rain, use it near water or in damp or wet conditions, or place containers on it containing liquids which might spill into any openings.8. Rechargeable batteries have a limited amount of charge cycles before they are considered to be consumed. Once consumed, a replacement battery is recommended. 9. You may choose to replace your battery while it still has a little juice left, or wait until the battery does not hold enough energy to power your device at all to replace it. As with all batteries, proper disposal is essential. Putting any battery directly in the trash harms the environment.10. Battery warranty does not cover normal wear and tear, crash or water damage, modifications, failure to perform routine maintenance like not recharging for an extended period of time or months, or any damages arising as a result of improper use.HELPFUL OPERATING TIPS 26 27

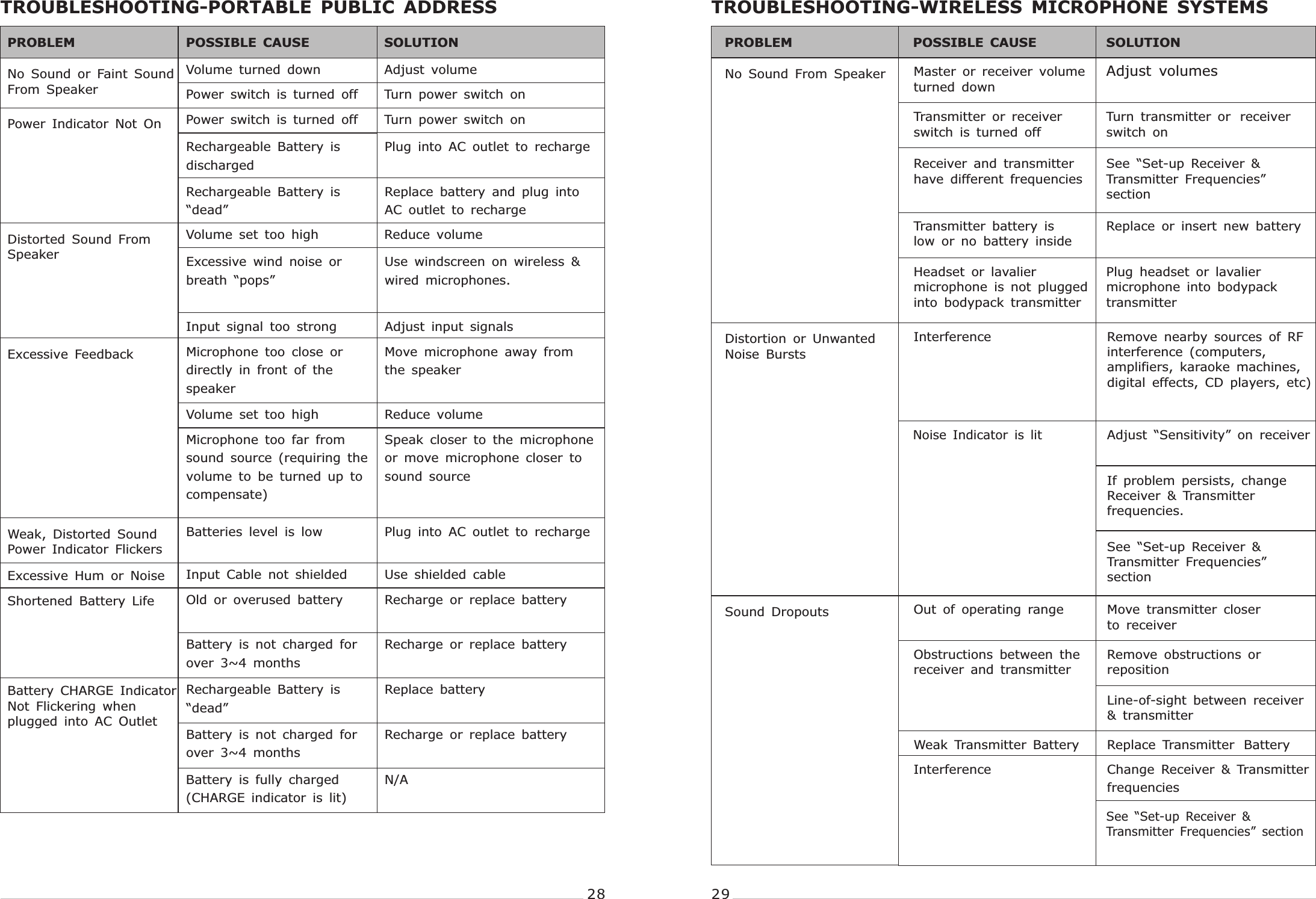

TROUBLESHOOTING-PORTABLE PUBLIC ADDRESSPOSSIBLE CAUSEPower switch is turned offRechargeable Battery is dischargedExcessive wind noise or breath “pops”Rechargeable Battery is“dead”Batteries level is lowMicrophone too close or directly in front of the speakerInput signal too strongVolume set too highMicrophone too far from sound source (requiring the volume to be turned up to compensate) Input Cable not shieldedOld or overused batteryRechargeable Battery is “dead”Battery is not charged for over 3~4 monthsBattery is not charged for over 3~4 monthsBattery is fully charged (CHARGE indicator is lit)Volume turned downPower switch is turned offVolume set too highNo Sound or Faint Sound From SpeakerPower Indicator Not OnDistorted Sound From SpeakerWeak, Distorted Sound Power Indicator FlickersExcessive Hum or NoiseShortened Battery LifeBattery CHARGE Indicator Not Flickering when plugged into AC OutletExcessive FeedbackPROBLEMSpeak closer to the microphoneor move microphone closer to sound sourceAdjust volumeTurn power switch onReduce volumeTurn power switch onSOLUTIONPlug into AC outlet to rechargeUse windscreen on wireless & wired microphones.Replace battery and plug into AC outlet to rechargePlug into AC outlet to rechargeMove microphone away from the speaker Adjust input signalsReduce volumeUse shielded cable Recharge or replace batteryReplace battery Recharge or replace batteryRecharge or replace battery N/APORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEMTROUBLESHOOTING-WIRELESS MICROPHONE SYSTEMSNo Sound From SpeakerDistortion or Unwanted Noise BurstsSound DropoutsMaster or receiver volume turned downTransmitter or receiver switch is turned offHeadset or lavalier microphone is not plugged into bodypack transmitterInterferenceNoise Indicator is litOut of operating rangeObstructions between the receiver and transmitterWeak Transmitter BatteryInterferenceTransmitter battery is low or no battery insideReceiver and transmitter have different frequenciesPOSSIBLE CAUSEPROBLEMTurn transmitter or receiver switch onPlug headset or lavalier microphone into bodypack transmitterRemove nearby sources of RF interference (computers, amplifiers, karaoke machines, digital effects, CD players, etc)Adjust “Sensitivity” on receiver Move transmitter closer to receiverRemove obstructions or repositionReplace Transmitter BatteryChange Receiver & Transmitter frequenciesAdjust volumesReplace or insert new batterySee “Set-up Receiver & Transmitter Frequencies” section Line-of-sight between receiver & transmitterSee “Set-up Receiver & Transmitter Frequencies” section If problem persists, change Receiver & Transmitter frequencies.See “Set-up Receiver & Transmitter Frequencies” section SOLUTION28 29

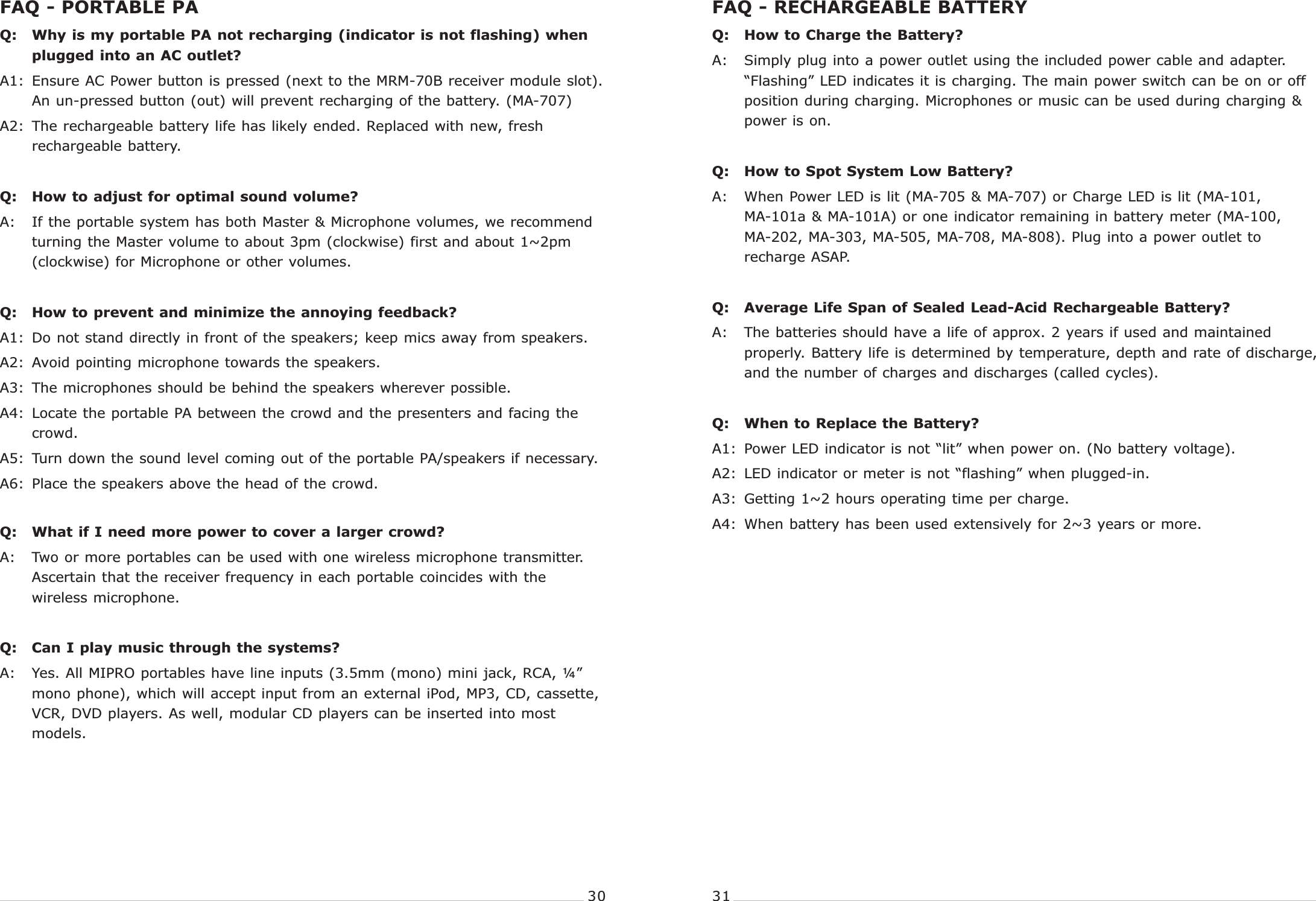

FAQ - PORTABLE PA Q: Why is my portable PA not recharging (indicator is not flashing) when plugged into an AC outlet?A1: Ensure AC Power button is pressed (next to the MRM-70B receiver module slot). An un-pressed button (out) will prevent recharging of the battery. (MA-707)A2: The rechargeable battery life has likely ended. Replaced with new, fresh rechargeable battery.Q: How to adjust for optimal sound volume?A: If the portable system has both Master & Microphone volumes, we recommend turning the Master volume to about 3pm (clockwise) first and about 1~2pm (clockwise) for Microphone or other volumes.Q: How to prevent and minimize the annoying feedback?A1: Do not stand directly in front of the speakers; keep mics away from speakers. A2: Avoid pointing microphone towards the speakers. A3: The microphones should be behind the speakers wherever possible.A4: Locate the portable PA between the crowd and the presenters and facing the crowd. A5: Turn down the sound level coming out of the portable PA/speakers if necessary.A6: Place the speakers above the head of the crowd.Q: What if I need more power to cover a larger crowd?A: Two or more portables can be used with one wireless microphone transmitter. Ascertain that the receiver frequency in each portable coincides with the wireless microphone. Q: Can I play music through the systems?A: Yes. All MIPRO portables have line inputs (3.5mm (mono) mini jack, RCA, ¼” mono phone), which will accept input from an external iPod, MP3, CD, cassette, VCR, DVD players. As well, modular CD players can be inserted into most models. PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEMQ: How to Charge the Battery?A: Simply plug into a power outlet using the included power cable and adapter. “Flashing” LED indicates it is charging. The main power switch can be on or off position during charging. Microphones or music can be used during charging & power is on. Q: How to Spot System Low Battery?A: When Power LED is lit (MA-705 & MA-707) or Charge LED is lit (MA-101, MA-101a & MA-101A) or one indicator remaining in battery meter (MA-100, MA-202, MA-303, MA-505, MA-708, MA-808). Plug into a power outlet to recharge ASAP. Q: Average Life Span of Sealed Lead-Acid Rechargeable Battery? A: The batteries should have a life of approx. 2 years if used and maintained properly. Battery life is determined by temperature, depth and rate of discharge, and the number of charges and discharges (called cycles). Q: When to Replace the Battery? A1: Power LED indicator is not “lit” when power on. (No battery voltage).A2: LED indicator or meter is not “flashing” when plugged-in. A3: Getting 1~2 hours operating time per charge.A4: When battery has been used extensively for 2~3 years or more.FAQ - RECHARGEABLE BATTERY30 31

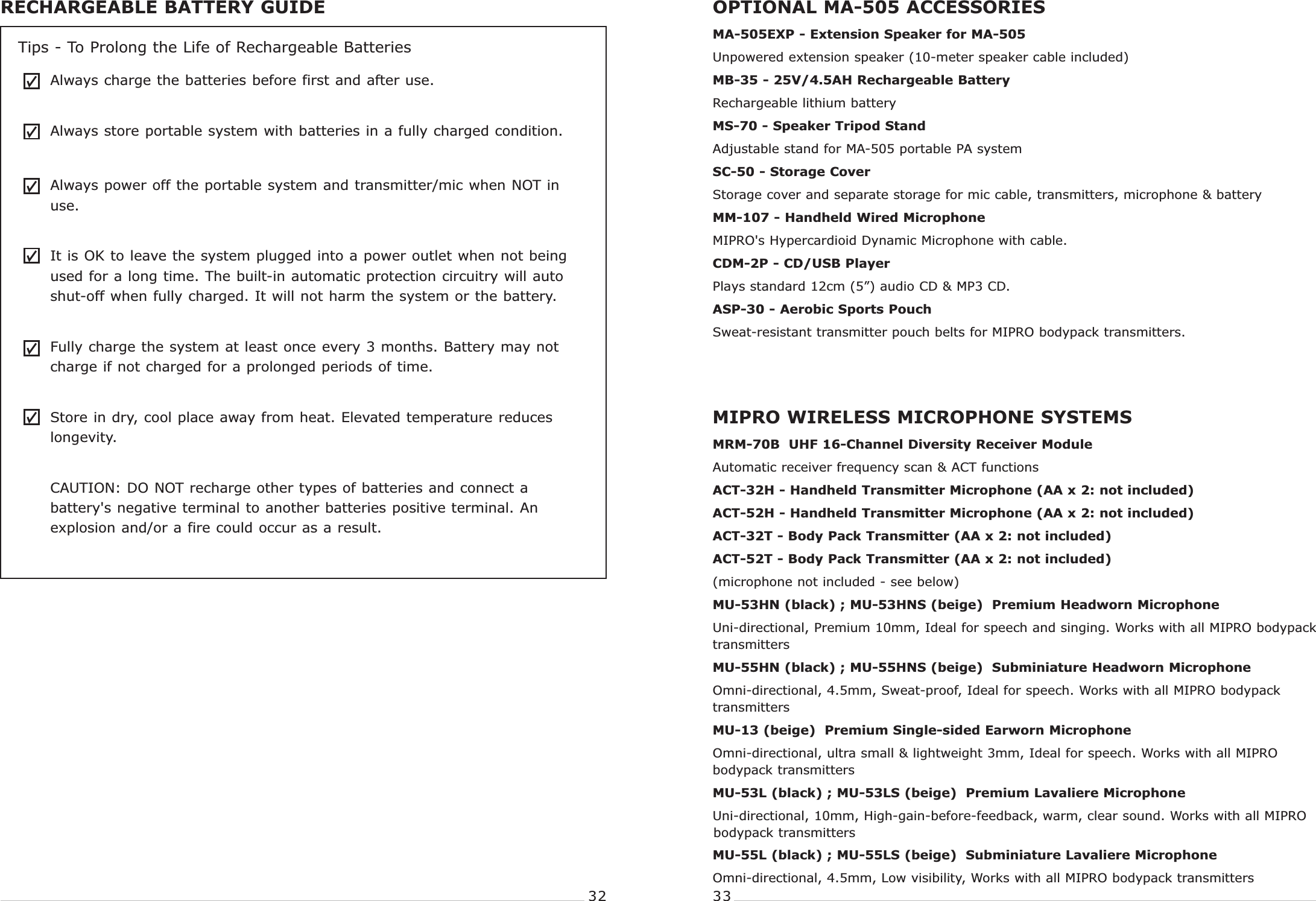

RECHARGEABLE BATTERY GUIDETips - To Prolong the Life of Rechargeable BatteriesAlways charge the batteries before first and after use. Always store portable system with batteries in a fully charged condition.Always power off the portable system and transmitter/mic when NOT in use.It is OK to leave the system plugged into a power outlet when not being used for a long time. The built-in automatic protection circuitry will auto shut-off when fully charged. It will not harm the system or the battery.Fully charge the system at least once every 3 months. Battery may not charge if not charged for a prolonged periods of time. Store in dry, cool place away from heat. Elevated temperature reduces longevity. CAUTION: DO NOT recharge other types of batteries and connect a battery's negative terminal to another batteries positive terminal. An explosion and/or a fire could occur as a result.PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEMOPTIONAL MA-505 ACCESSORIESMA-505EXP - Extension Speaker for MA-505 Unpowered extension speaker (10-meter speaker cable included)MB-35 - 25V/4.5AH Rechargeable Battery Rechargeable lithium batteryMS-70 - Speaker Tripod Stand Adjustable stand for MA-505 portable PA systemSC-50 - Storage CoverStorage cover and separate storage for mic cable, transmitters, microphone & batteryMM-107 - Handheld Wired Microphone MIPRO's Hypercardioid Dynamic Microphone with cable. CDM-2P - CD/USB Player Plays standard 12cm (5”) audio CD & MP3 CD. ASP-30 - Aerobic Sports Pouch Sweat-resistant transmitter pouch belts for MIPRO bodypack transmitters. MRM-70B UHF 16-Channel Diversity Receiver ModuleAutomatic receiver frequency scan & ACT functions ACT-32H - Handheld Transmitter Microphone (AA x 2: not included)ACT-52H - Handheld Transmitter Microphone (AA x 2: not included)ACT-32T - Body Pack Transmitter (AA x 2: not included)ACT-52T - Body Pack Transmitter (AA x 2: not included)(microphone not included - see below)MU-53HN (black) ; MU-53HNS (beige) Premium Headworn MicrophoneUni-directional, Premium 10mm, Ideal for speech and singing. Works with all MIPRO bodypack transmittersMU-55HN (black) ; MU-55HNS (beige) Subminiature Headworn MicrophoneOmni-directional, 4.5mm, Sweat-proof, Ideal for speech. Works with all MIPRO bodypack transmittersMU-13 (beige) Premium Single-sided Earworn MicrophoneOmni-directional, ultra small & lightweight 3mm, Ideal for speech. Works with all MIPRO bodypack transmittersMU-53L (black) ; MU-53LS (beige) Premium Lavaliere MicrophoneUni-directional, 10mm, High-gain-before-feedback, warm, clear sound. Works with all MIPRO bodypack transmittersMU-55L (black) ; MU-55LS (beige) Subminiature Lavaliere MicrophoneOmni-directional, 4.5mm, Low visibility, Works with all MIPRO bodypack transmittersMIPRO WIRELESS MICROPHONE SYSTEMS32 33

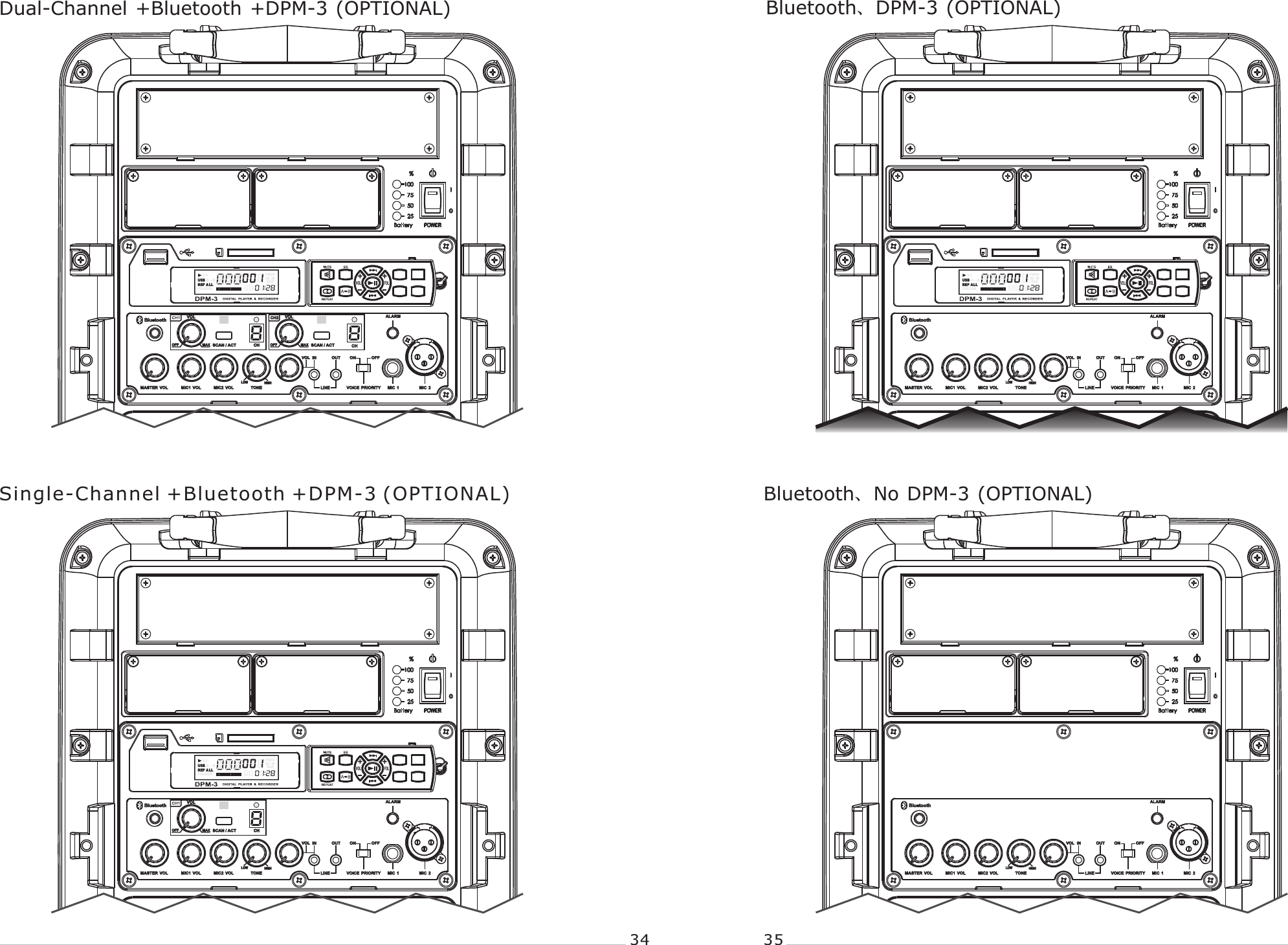

RANMPROGFOLDERREP A LLUSB A BSDRANMPROGFOLDERREP A LLUSB A BSDDual-Channel +Bluetooth +DPM-3 (OPTIONAL)Single-Channel + +Bluetooth DPM-3 (OPTIONAL)Bluetooth、DPM-3 (OPTIONAL)Bluetooth、No DPM-3 (OPTIONAL)RANMPROGFOLDERREP A LLUSB A BSDPORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEM34 35

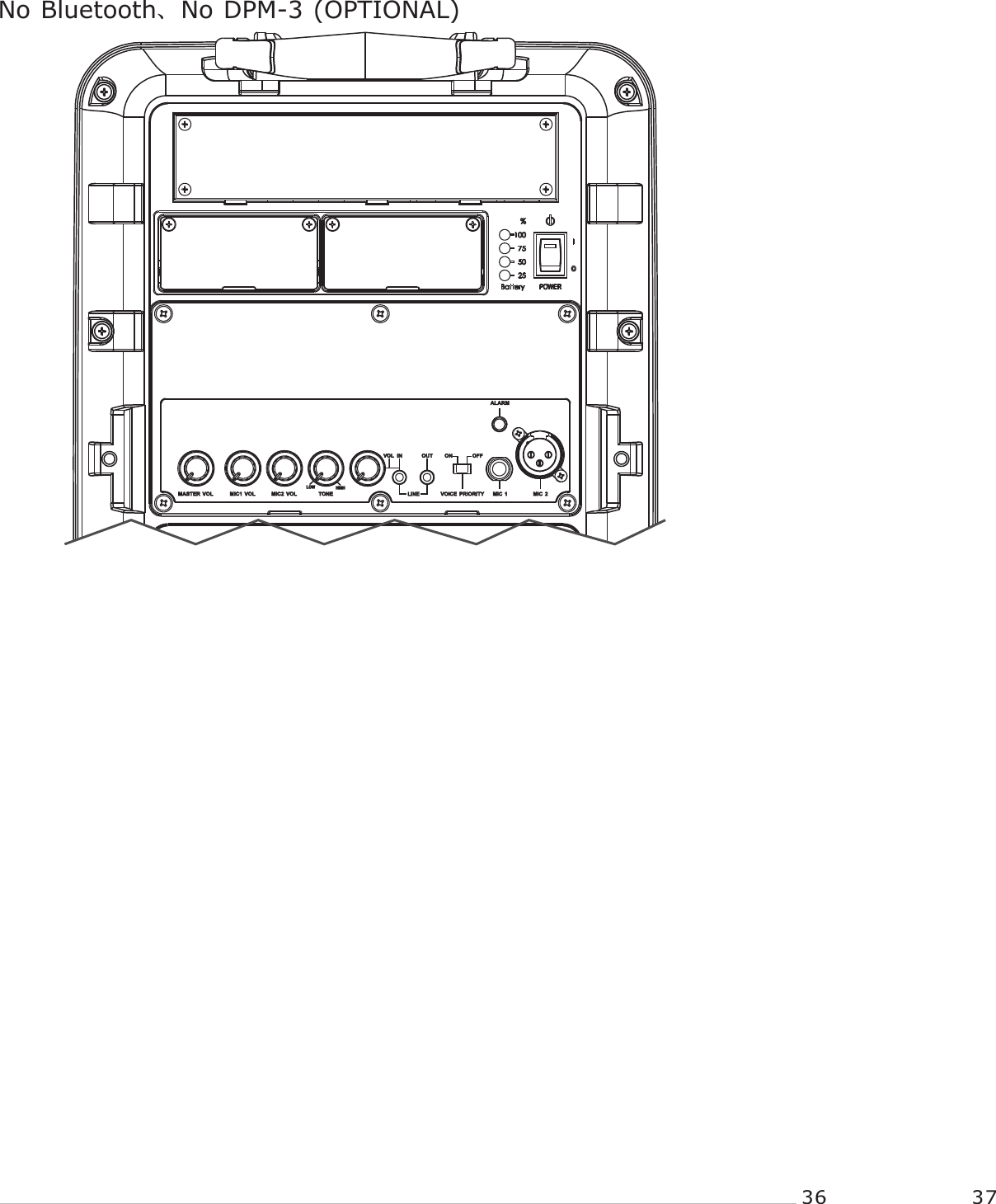

No Bluetooth、No DPM-3 (OPTIONAL)36 37PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEM
