Monnit RFUSB1 MonnitLink USB Wireless Gateway User Manual

Monnit Corporation MonnitLink USB Wireless Gateway

User Manual

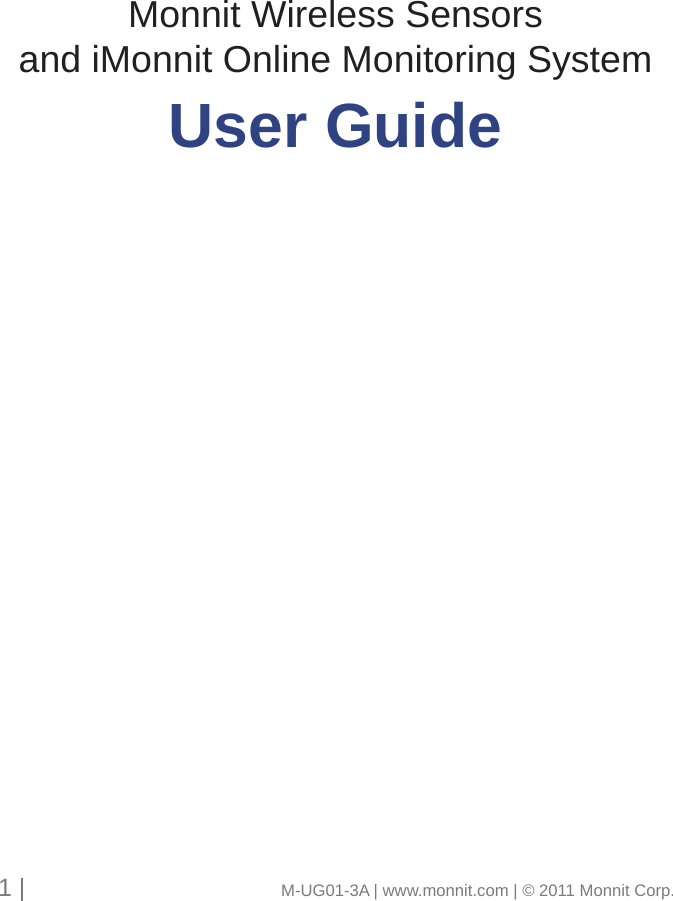

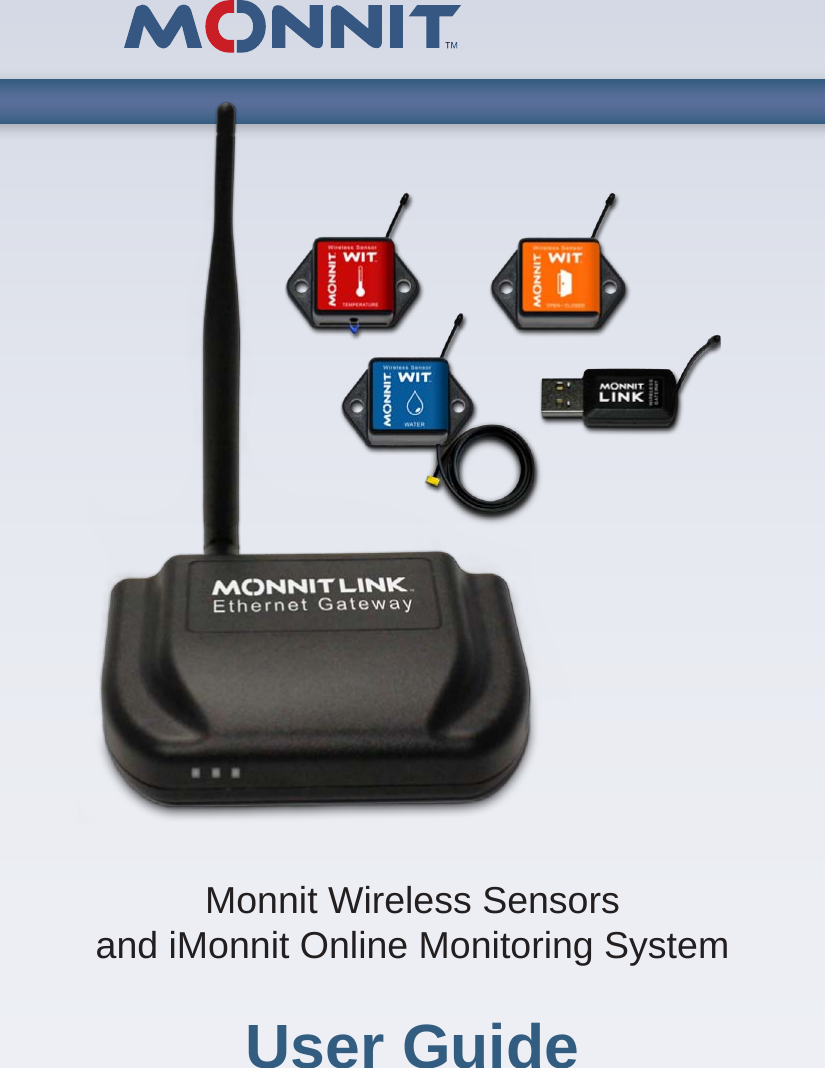

Monnit Wireless Sensorsand iMonnit Online Monitoring SystemUser Guide
Monnit Wireless Sensorsand iMonnit Online Monitoring SystemUser Guide1 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

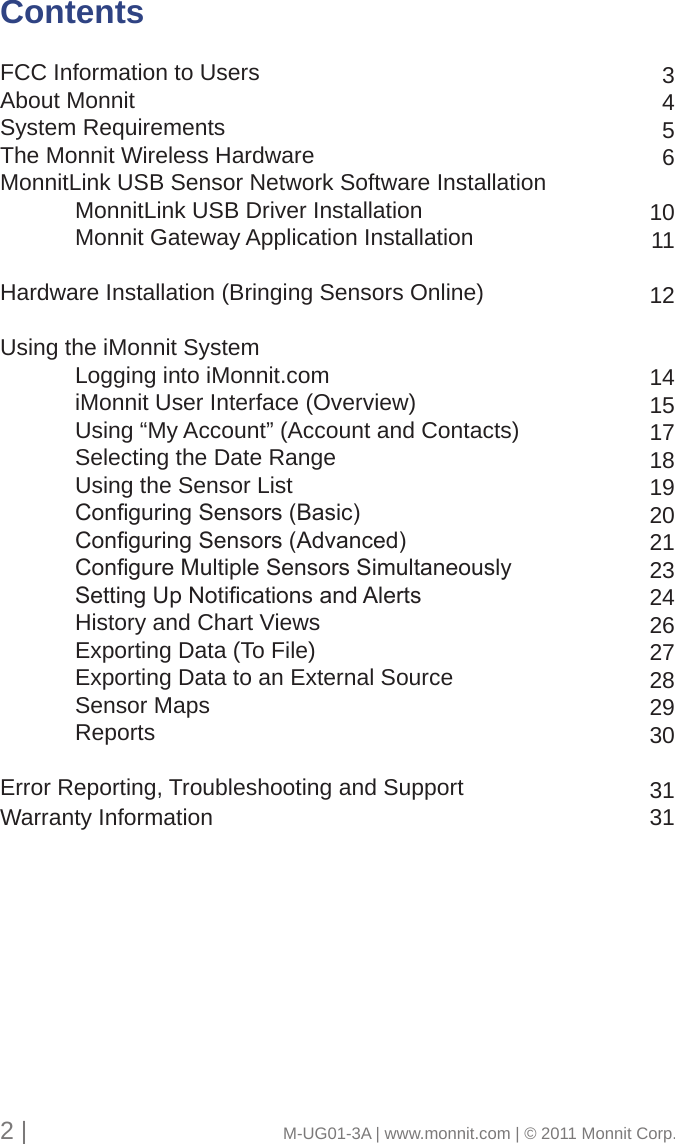

2 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.ContentsFCC Information to UsersAbout Monnit System Requirements The Monnit Wireless HardwareMonnitLink USB Sensor Network Software Installation MonnitLink USB Driver Installation Monnit Gateway Application Installation Hardware Installation (Bringing Sensors Online) Using the iMonnit System Logging into iMonnit.com iMonnit User Interface (Overview) Using “My Account” (Account and Contacts) Selecting the Date Range Using the Sensor List ConguringSensors(Basic) ConguringSensors(Advanced) CongureMultipleSensorsSimultaneously SettingUpNoticationsandAlerts History and Chart Views Exporting Data (To File) Exporting Data to an External Source Sensor Maps ReportsError Reporting, Troubleshooting and Support Warranty Information345610111214151718192021232426272829303131

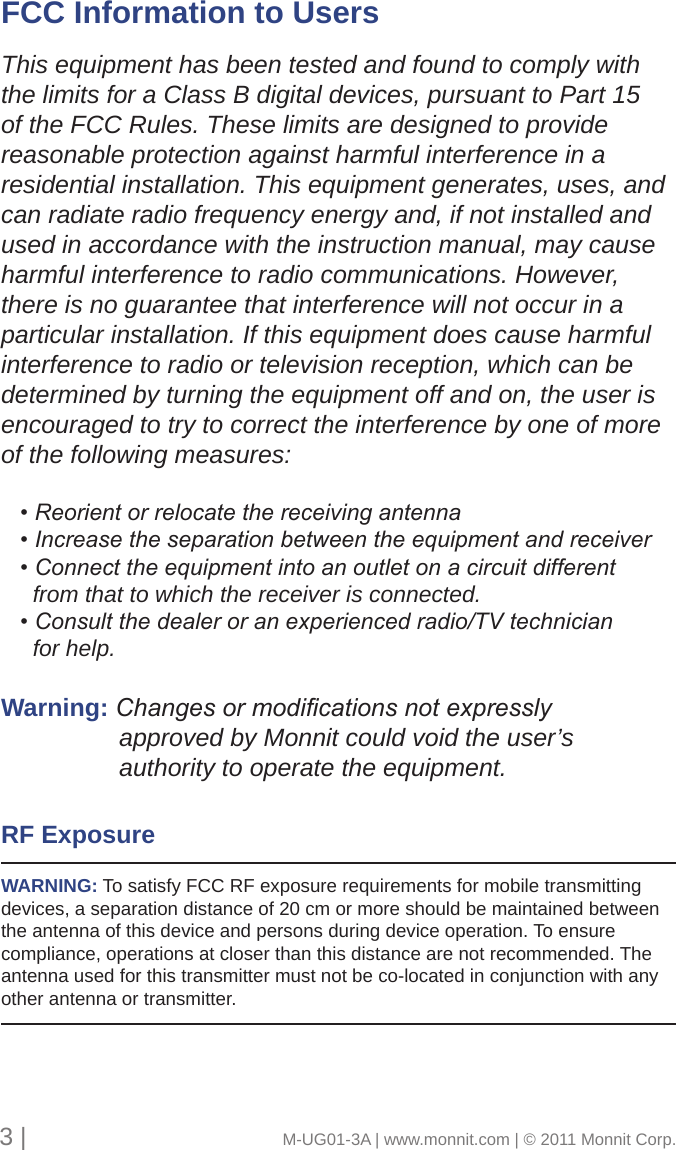

3 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.FCC Information to UsersThis equipment has been tested and found to comply with the limits for a Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modications not expressly approved by Monnit could void the user’s authority to operate the equipment.RF Exposure WARNING: To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance are not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.
About Monnit Corp. Monnit is a leader in the design and manufacture of turnkey, self-installing, low cost wireless sensor solutions targeted at the commercial, industrial and consumer markets. Monnit’s sensing solutions are designed to be easily installed and used by anyone wanting to remotely monitor information and activities, including: access, presence of water, luminosity, temperature, humidity, and vibration in or around structures, machinery, and various environments.4 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.Please Read Before ProceedingTHE WIRELESS SENSORS ARE ACTIVE AND HAVE ALREADY BEEN ASSIGNED TO YOUR CUSTOMER SENSOR NETWORK. YOUR WAR-RANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE ANY OF THESE DEVICES.

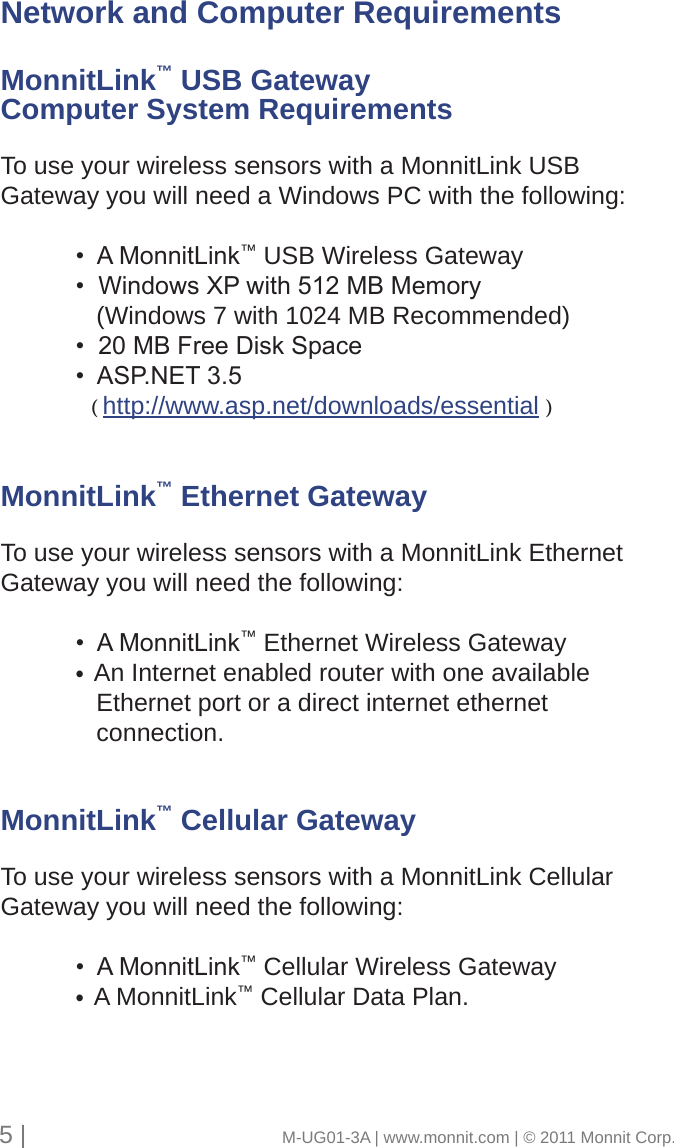

5 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.Network and Computer RequirementsMonnitLink™ USB Gateway Computer System RequirementsTo use your wireless sensors with a MonnitLink USB Gateway you will need a Windows PC with the following: •AMonnitLink™ USB Wireless Gateway  •WindowsXPwith512MBMemory (Windows 7 with 1024 MB Recommended) •20MBFreeDiskSpace •ASP.NET3.5 ( http://www.asp.net/downloads/essential )MonnitLink™ Ethernet GatewayTo use your wireless sensors with a MonnitLink Ethernet Gateway you will need the following: •AMonnitLink™ Ethernet Wireless Gateway  •An Internet enabled router with one available Ethernet port or a direct internet ethernet connection.MonnitLink™ Cellular GatewayTo use your wireless sensors with a MonnitLink Cellular Gateway you will need the following: •AMonnitLink™ Cellular Wireless Gateway  •A MonnitLink™ Cellular Data Plan.

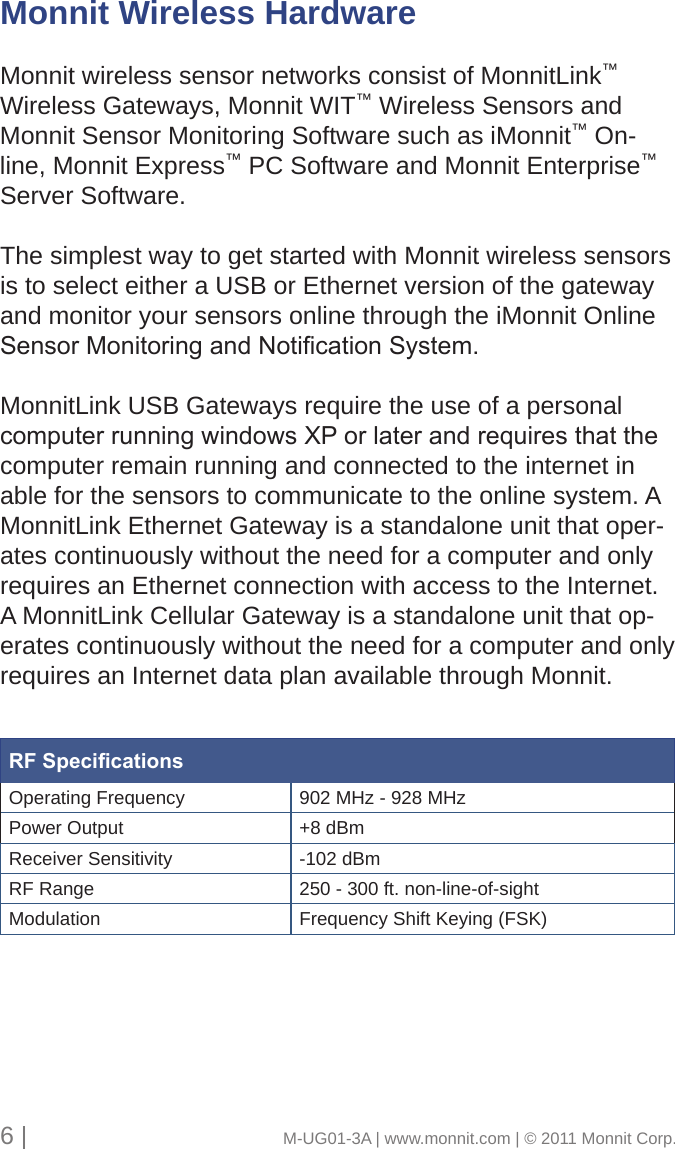

Monnit Wireless HardwareMonnit wireless sensor networks consist of MonnitLink™ Wireless Gateways, Monnit WIT™ Wireless Sensors and Monnit Sensor Monitoring Software such as iMonnit™ On-line, Monnit Express™ PC Software and Monnit Enterprise™ Server Software. The simplest way to get started with Monnit wireless sensors is to select either a USB or Ethernet version of the gateway and monitor your sensors online through the iMonnit Online SensorMonitoringandNoticationSystem.MonnitLink USB Gateways require the use of a personal computerrunningwindowsXPorlaterandrequiresthatthecomputer remain running and connected to the internet in able for the sensors to communicate to the online system. A MonnitLink Ethernet Gateway is a standalone unit that oper-ates continuously without the need for a computer and only requires an Ethernet connection with access to the Internet. A MonnitLink Cellular Gateway is a standalone unit that op-erates continuously without the need for a computer and only requires an Internet data plan available through Monnit.6 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.RF SpecicationsOperating Frequency 902 MHz - 928 MHzPower Output +8 dBmReceiver Sensitivity -102 dBmRF Range 250 - 300 ft. non-line-of-sightModulation Frequency Shift Keying (FSK)

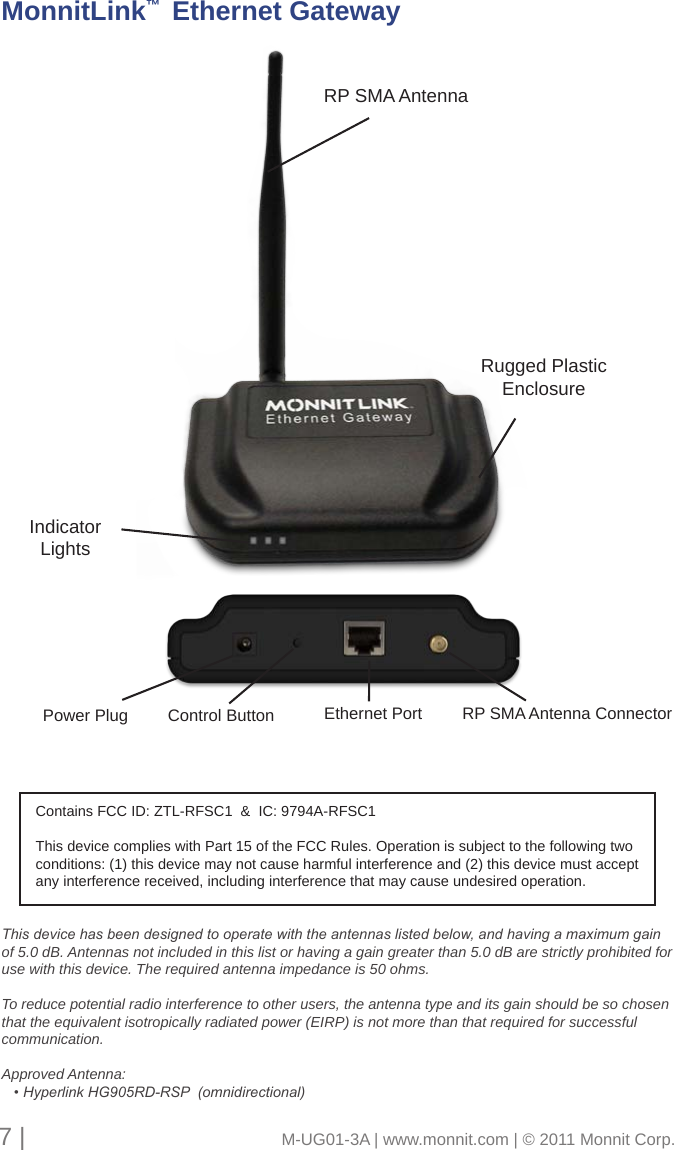

7 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.Rugged Plastic EnclosureRP SMA AntennaPower Plug Control Button RP SMA Antenna ConnectorEthernet PortMonnitLink™ Ethernet GatewayIndicatorLightsThis device has been designed to operate with the antennas listed below, and having a maximum gain of 5.0 dB. Antennas not included in this list or having a gain greater than 5.0 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.Approved Antenna: • Hyperlink HG905RD-RSP (omnidirectional)Contains FCC ID: ZTL-RFSC1 & IC: 9794A-RFSC1This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

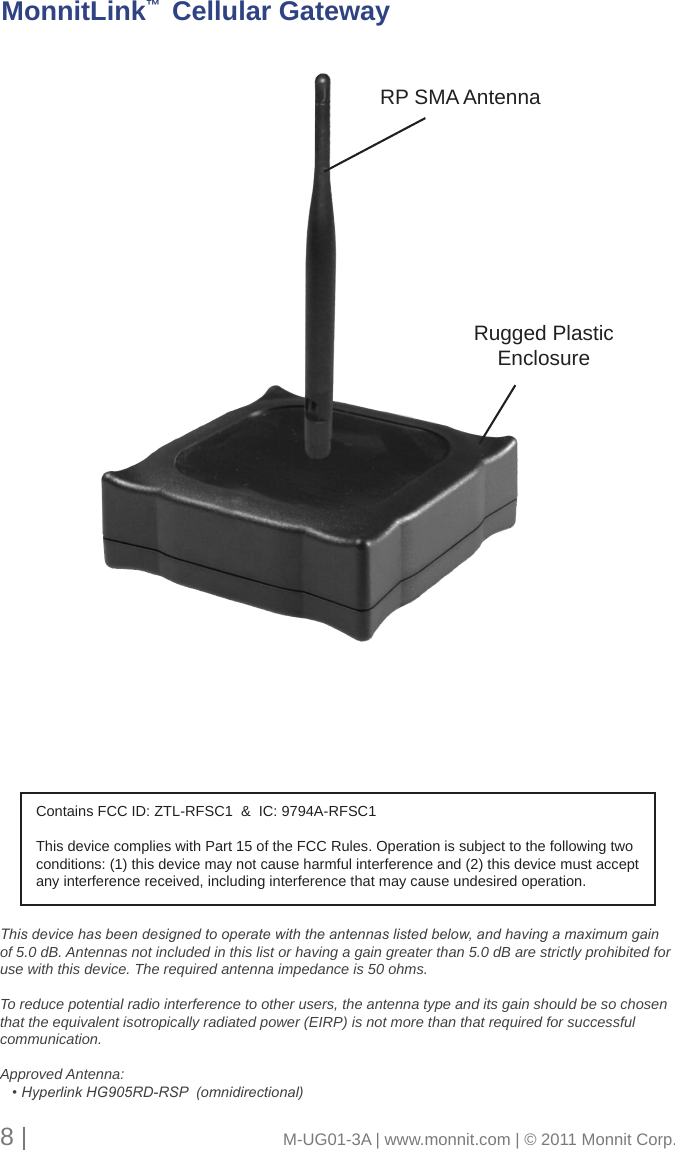

Rugged Plastic EnclosureRP SMA AntennaMonnitLink™ Cellular Gateway8 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.This device has been designed to operate with the antennas listed below, and having a maximum gain of 5.0 dB. Antennas not included in this list or having a gain greater than 5.0 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.Approved Antenna: • Hyperlink HG905RD-RSP (omnidirectional)Contains FCC ID: ZTL-RFSC1 & IC: 9794A-RFSC1This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

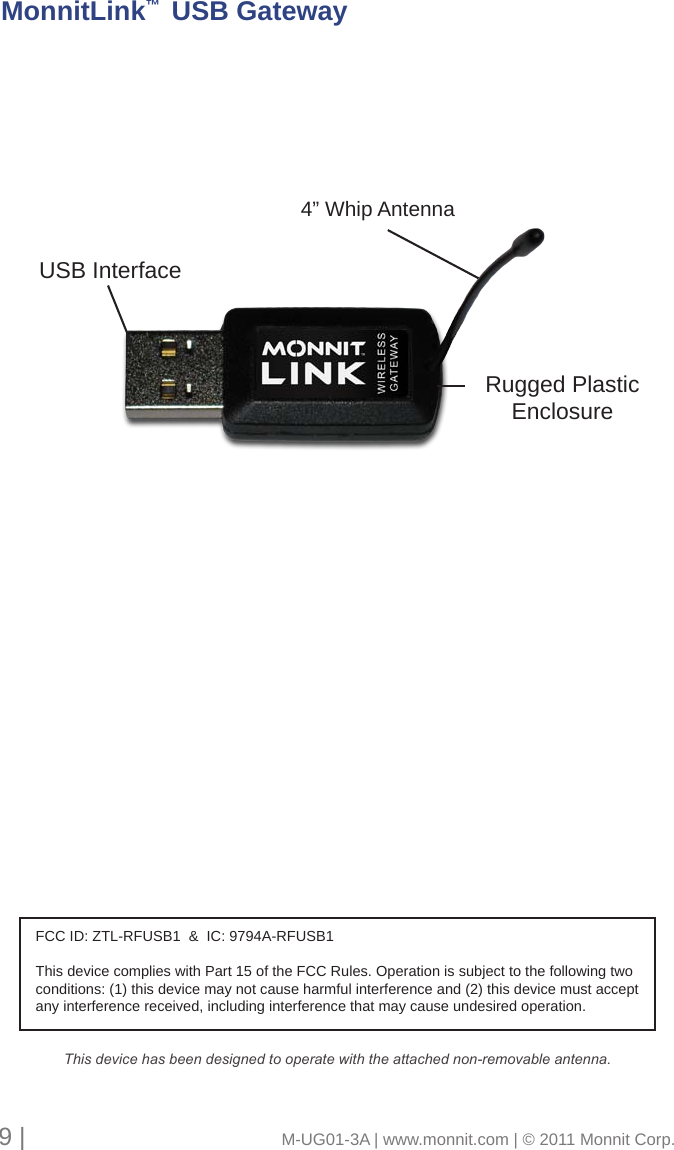

USB InterfaceRugged Plastic Enclosure4” Whip AntennaMonnitLink™ USB Gateway9 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.FCC ID: ZTL-RFUSB1 & IC: 9794A-RFUSB1This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.This device has been designed to operate with the attached non-removable antenna.

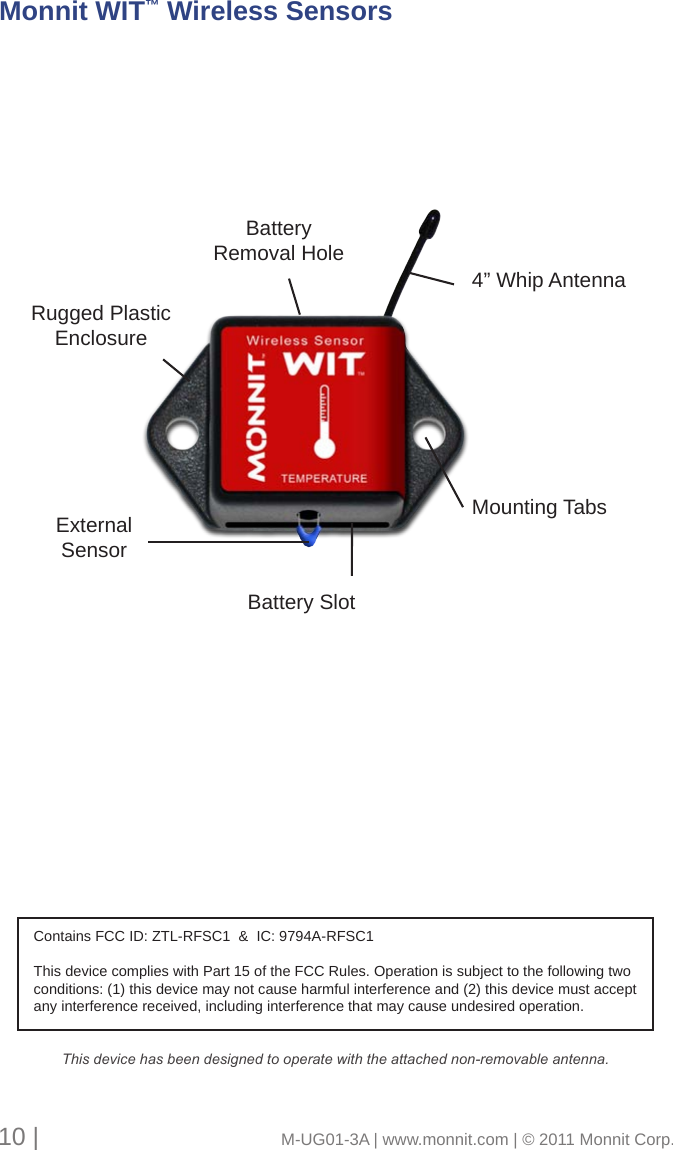

Rugged Plastic EnclosureBattery SlotMounting TabsBattery Removal Hole4” Whip AntennaExternalSensorMonnit WIT™ Wireless Sensors10 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.Contains FCC ID: ZTL-RFSC1 & IC: 9794A-RFSC1This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.This device has been designed to operate with the attached non-removable antenna.

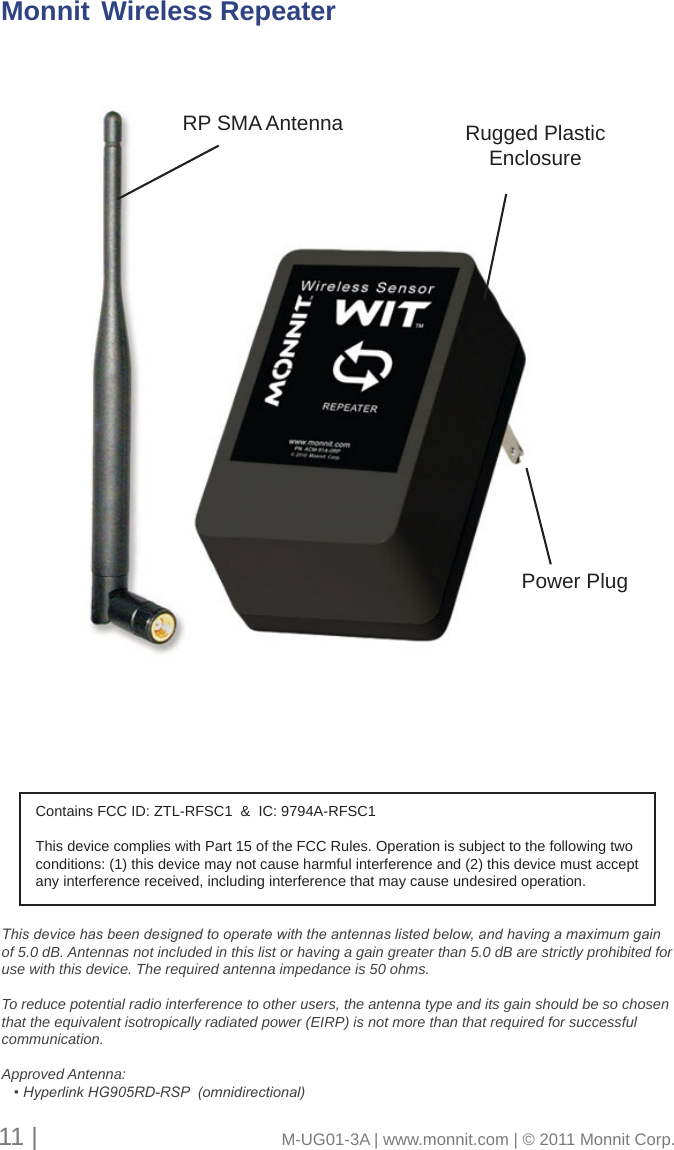

Rugged Plastic EnclosureMonnit Wireless Repeater11 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.This device has been designed to operate with the antennas listed below, and having a maximum gain of 5.0 dB. Antennas not included in this list or having a gain greater than 5.0 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.Approved Antenna: • Hyperlink HG905RD-RSP (omnidirectional)Contains FCC ID: ZTL-RFSC1 & IC: 9794A-RFSC1This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.RP SMA AntennaPower Plug

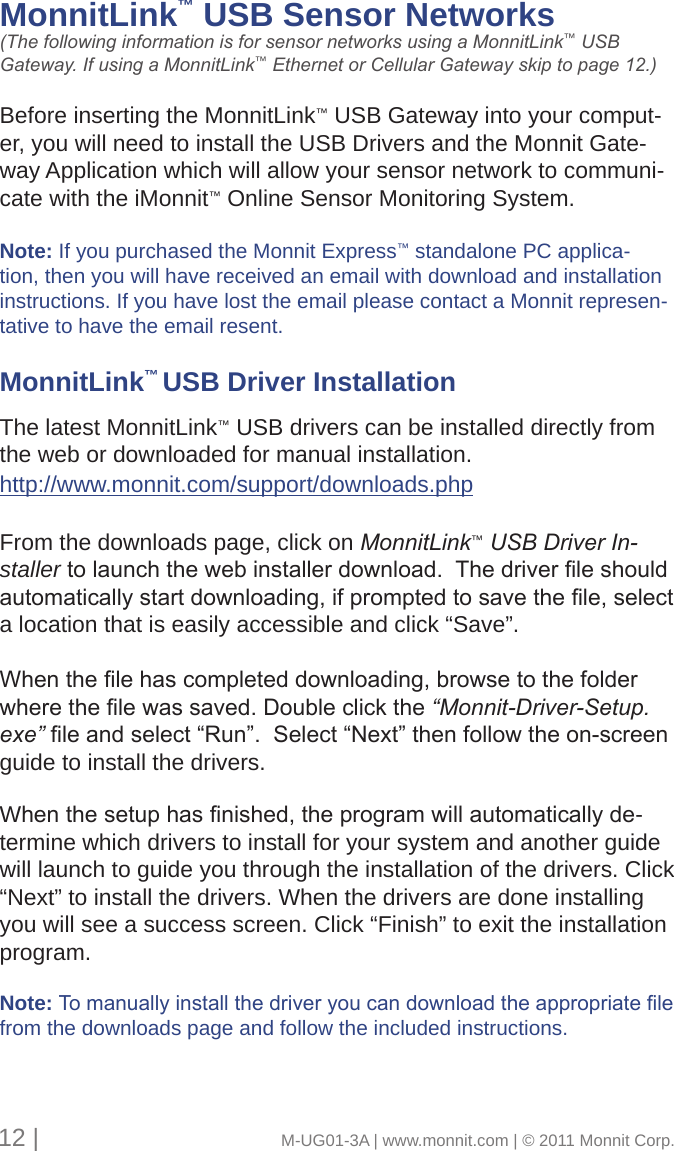

MonnitLink™ USB Sensor Networks (The following information is for sensor networks using a MonnitLink™ USB Gateway. If using a MonnitLink™ Ethernet or Cellular Gateway skip to page 12.)Before inserting the MonnitLink™ USB Gateway into your comput-er, you will need to install the USB Drivers and the Monnit Gate-way Application which will allow your sensor network to communi-cate with the iMonnit™ Online Sensor Monitoring System. Note: If you purchased the Monnit Express™ standalone PC applica-tion, then you will have received an email with download and installation instructions. If you have lost the email please contact a Monnit represen-tative to have the email resent.MonnitLink™ USB Driver Installation The latest MonnitLink™ USB drivers can be installed directly from the web or downloaded for manual installation. http://www.monnit.com/support/downloads.phpFrom the downloads page, click on MonnitLink™ USB Driver In-stallertolaunchthewebinstallerdownload.Thedriverleshouldautomaticallystartdownloading,ifpromptedtosavethele,selecta location that is easily accessible and click “Save”.Whenthelehascompleteddownloading,browsetothefolderwherethelewassaved.Doubleclickthe“Monnit-Driver-Setup.exe”leandselect“Run”.Select“Next”thenfollowtheon-screenguide to install the drivers. Whenthesetuphasnished,theprogramwillautomaticallyde-termine which drivers to install for your system and another guide will launch to guide you through the installation of the drivers. Click “Next” to install the drivers. When the drivers are done installing you will see a success screen. Click “Finish” to exit the installation program.Note: Tomanuallyinstallthedriveryoucandownloadtheappropriatelefrom the downloads page and follow the included instructions.12 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

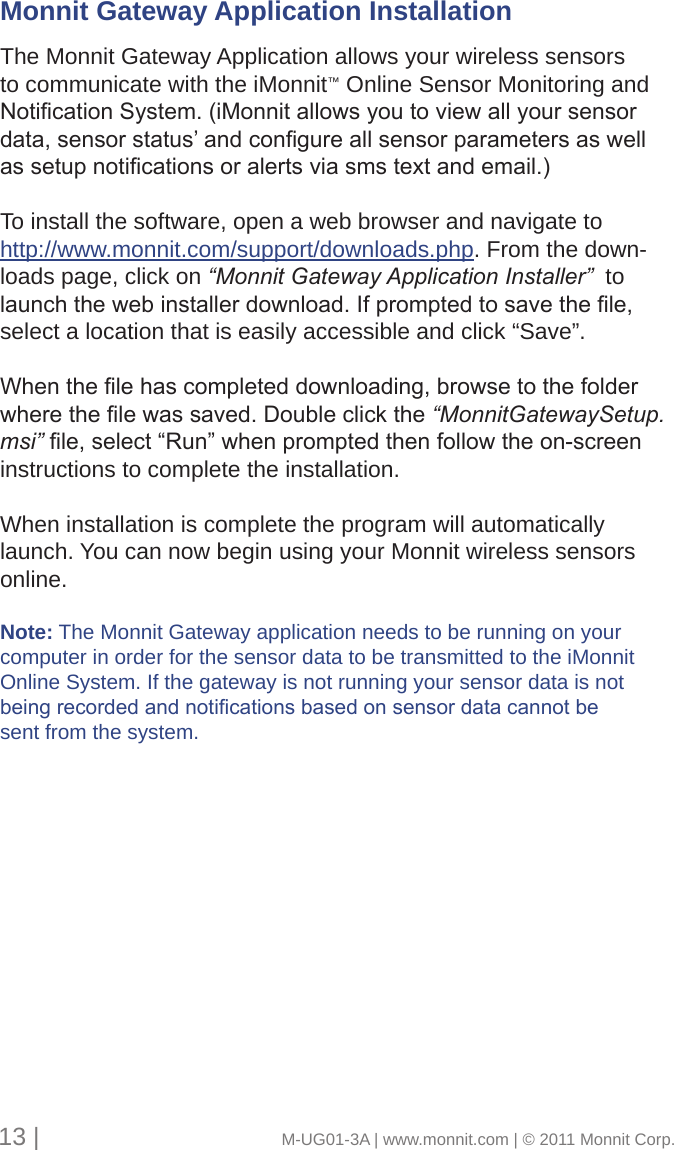

Monnit Gateway Application Installation The Monnit Gateway Application allows your wireless sensors to communicate with the iMonnit™ Online Sensor Monitoring and NoticationSystem.(iMonnitallowsyoutoviewallyoursensordata,sensorstatus’andcongureallsensorparametersaswellassetupnoticationsoralertsviasmstextandemail.)To install the software, open a web browser and navigate to http://www.monnit.com/support/downloads.php. From the down-loads page, click on “Monnit Gateway Application Installer” to launchthewebinstallerdownload.Ifpromptedtosavethele,select a location that is easily accessible and click “Save”.Whenthelehascompleteddownloading,browsetothefolderwherethelewassaved.Doubleclickthe“MonnitGatewaySetup.msi” le,select“Run”whenpromptedthenfollowtheon-screeninstructions to complete the installation. When installation is complete the program will automatically launch. You can now begin using your Monnit wireless sensors online.Note: The Monnit Gateway application needs to be running on your computer in order for the sensor data to be transmitted to the iMonnitOnline System. If the gateway is not running your sensor data is not beingrecordedandnoticationsbasedonsensordatacannotbesent from the system. 13 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

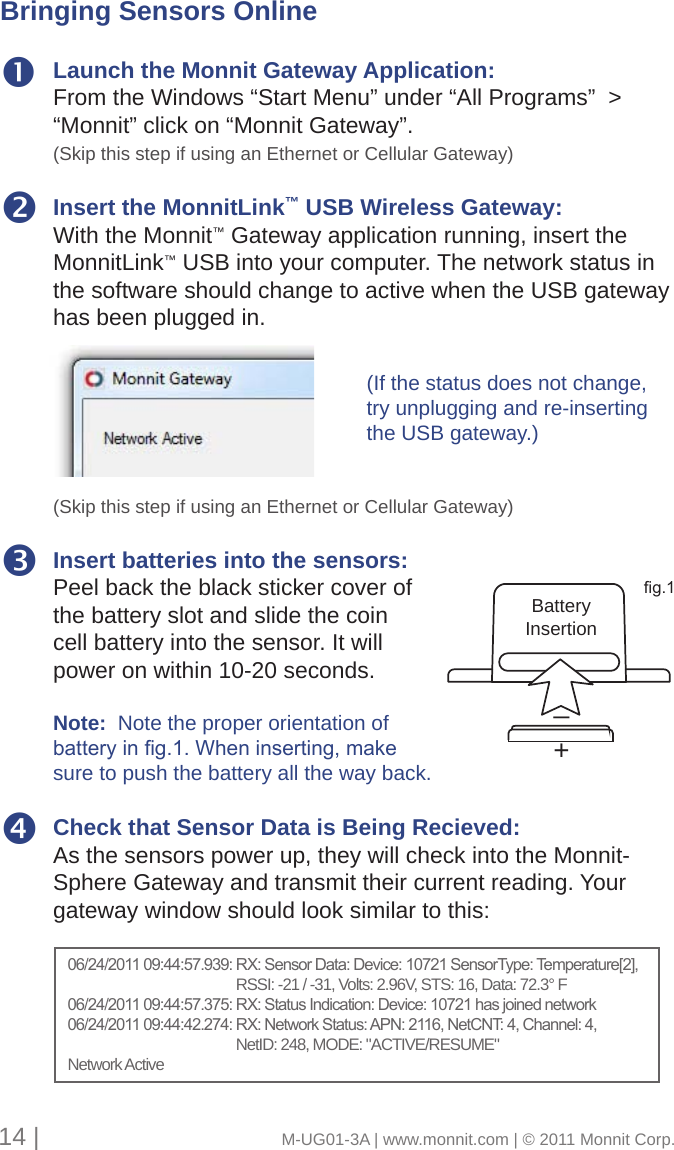

Launch the Monnit Gateway Application:From the Windows “Start Menu” under “All Programs” > “Monnit” click on “Monnit Gateway”. (Skip this step if using an Ethernet or Cellular Gateway)Insert the MonnitLink™ USB Wireless Gateway: With the Monnit™ Gateway application running, insert the MonnitLink™ USB into your computer. The network status in the software should change to active when the USB gateway has been plugged in.(Skip this step if using an Ethernet or Cellular Gateway)Insert batteries into the sensors: Peel back the black sticker cover of the battery slot and slide the coin cell battery into the sensor. It will power on within 10-20 seconds.Note: Note the proper orientation of batterying.1.Wheninserting,makesure to push the battery all the way back.Check that Sensor Data is Being Recieved: As the sensors power up, they will check into the Monnit-Sphere Gateway and transmit their current reading. Your gateway window should look similar to this: +_BatteryInsertiong.1Bringing Sensors Online(If the status does not change, try unplugging and re-inserting the USB gateway.)06/24/201109:44:57.939:RX:SensorData:Device:10721SensorType:Temperature[2], RSSI: -21 / -31, Volts: 2.96V, STS: 16, Data: 72.3° F06/24/201109:44:57.375:RX:StatusIndication:Device:10721hasjoinednetwork06/24/201109:44:42.274:RX:NetworkStatus:APN:2116,NetCNT:4,Channel:4, NetID: 248, MODE: "ACTIVE/RESUME"Network Active14 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

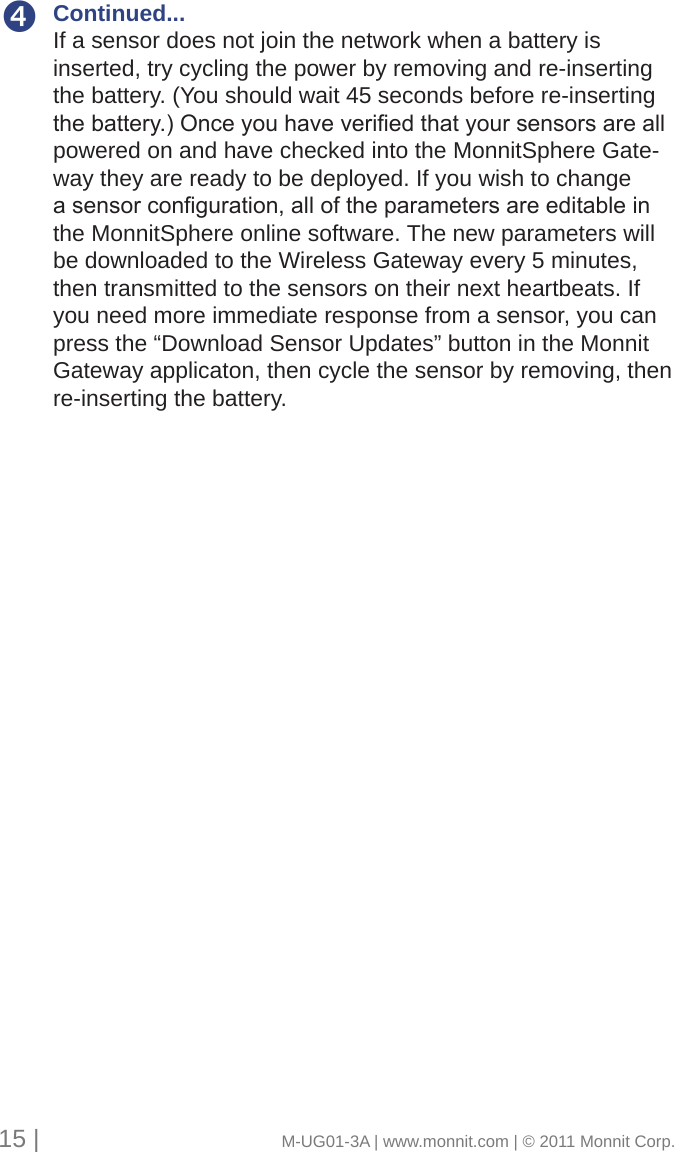

15 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.Continued...If a sensor does not join the network when a battery is inserted, try cycling the power by removing and re-inserting the battery. (You should wait 45 seconds before re-inserting thebattery.)Onceyouhaveveriedthatyoursensorsareallpowered on and have checked into the MonnitSphere Gate-way they are ready to be deployed. If you wish to change asensorconguration,alloftheparametersareeditableinthe MonnitSphere online software. The new parameters will be downloaded to the Wireless Gateway every 5 minutes, then transmitted to the sensors on their next heartbeats. If you need more immediate response from a sensor, you can press the “Download Sensor Updates” button in the Monnit Gateway applicaton, then cycle the sensor by removing, then re-inserting the battery.

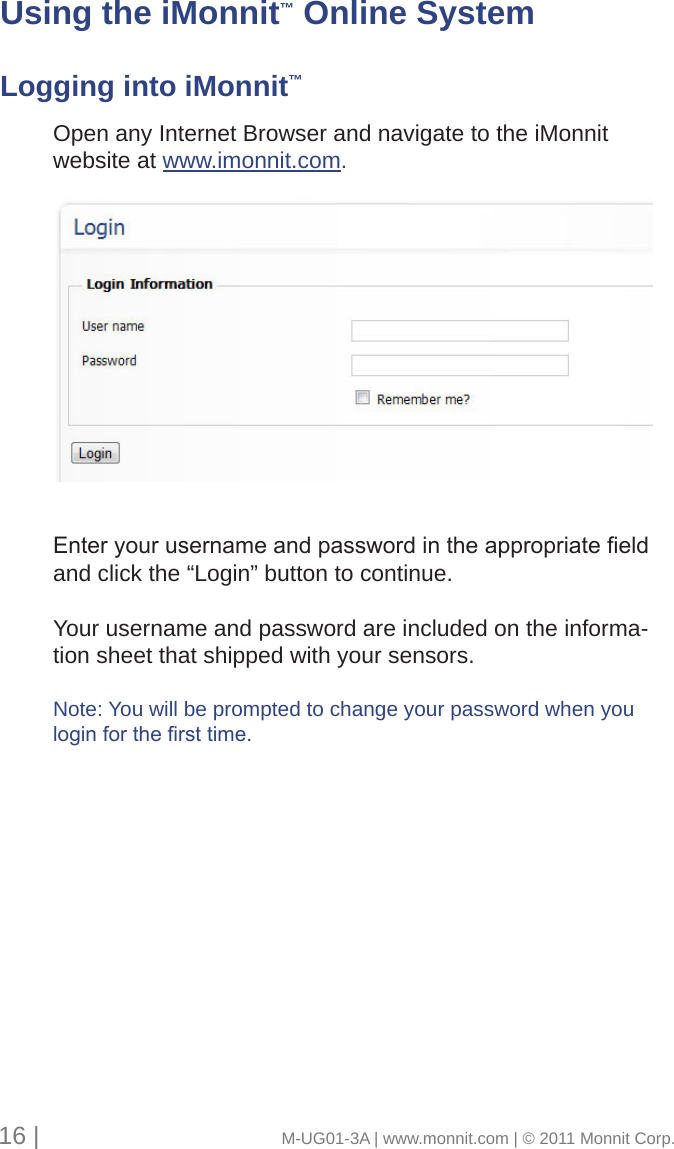

Open any Internet Browser and navigate to the iMonnitwebsite at www.imonnit.com. Enteryourusernameandpasswordintheappropriateeldand click the “Login” button to continue. Your username and password are included on the informa-tion sheet that shipped with your sensors.Note: You will be prompted to change your password when youloginforthersttime.16 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.Using the iMonnit™ Online SystemLogging into iMonnit™

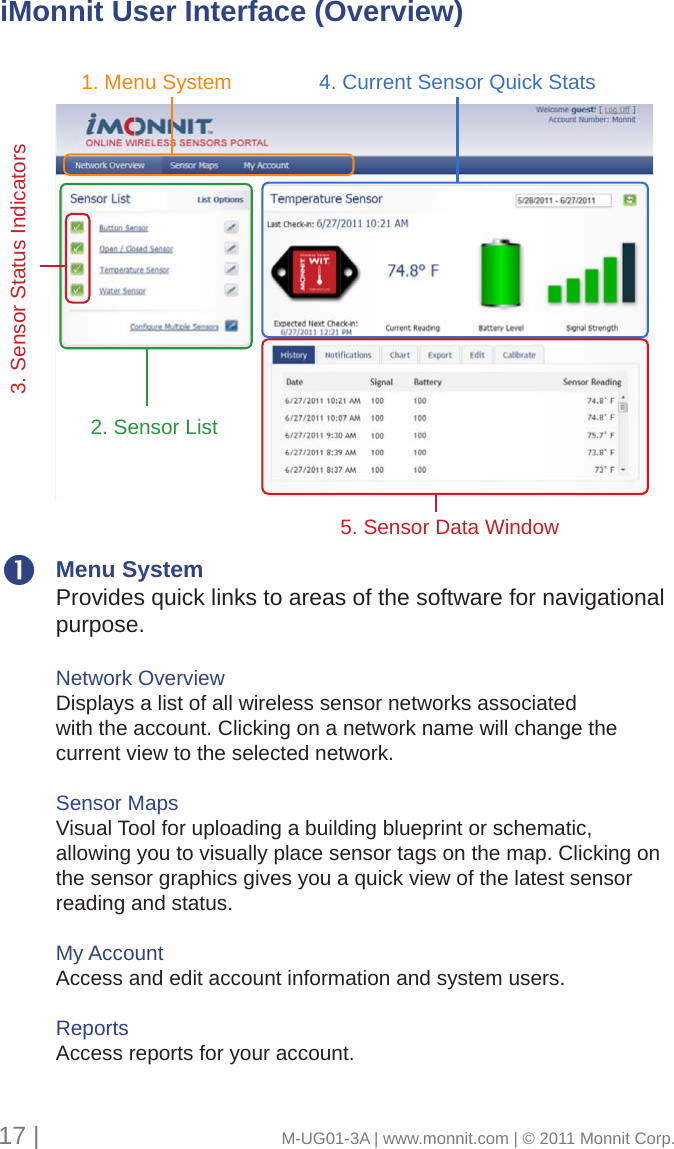

17 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.3. Sensor Status Indicators5. Sensor Data Window1. Menu System 4. Current Sensor Quick Stats2. Sensor ListMenu SystemProvides quick links to areas of the software for navigational purpose. Network OverviewDisplays a list of all wireless sensor networks associated with the account. Clicking on a network name will change the current view to the selected network.Sensor MapsVisual Tool for uploading a building blueprint or schematic, allowing you to visually place sensor tags on the map. Clicking on the sensor graphics gives you a quick view of the latest sensor reading and status.My AccountAccess and edit account information and system users. Reports Access reports for your account. iMonnit User Interface (Overview)

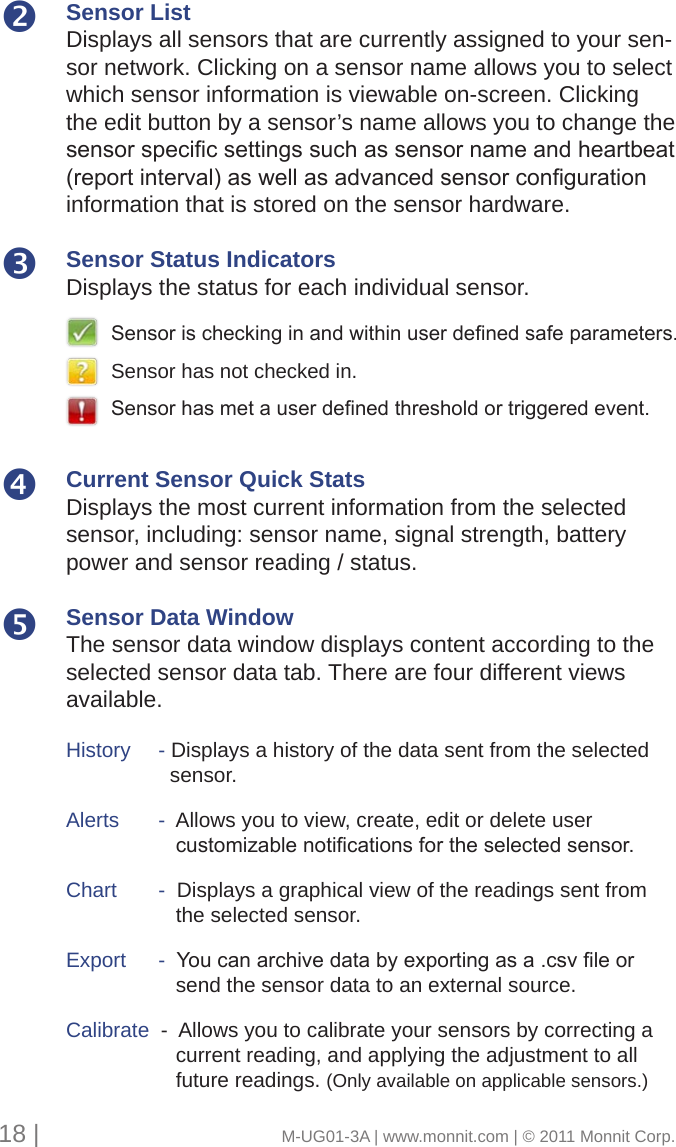

Sensor ListDisplays all sensors that are currently assigned to your sen-sor network. Clicking on a sensor name allows you to select which sensor information is viewable on-screen. Clicking the edit button by a sensor’s name allows you to change the sensorspecicsettingssuchassensornameandheartbeat(reportinterval)aswellasadvancedsensorcongurationinformation that is stored on the sensor hardware.Sensor Status IndicatorsDisplays the status for each individual sensor. Current Sensor Quick StatsDisplays the most current information from the selected sensor, including: sensor name, signal strength, battery power and sensor reading / status. Sensor Data WindowThe sensor data window displays content according to the selected sensor data tab. There are four different views available.History - Displays a history of the data sent from the selected sensor. Alerts - Allows you to view, create, edit or delete user  customizablenoticationsfortheselectedsensor.Chart - Displays a graphical view of the readings sent from the selected sensor. Export -Youcanarchivedatabyexportingasa.csvleor send the sensor data to an external source.Calibrate - Allows you to calibrate your sensors by correcting a current reading, and applying the adjustment to all future readings. (Only available on applicable sensors.)Sensorischeckinginandwithinuserdenedsafeparameters.Sensor has not checked in.Sensorhasmetauserdenedthresholdortriggeredevent.18 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

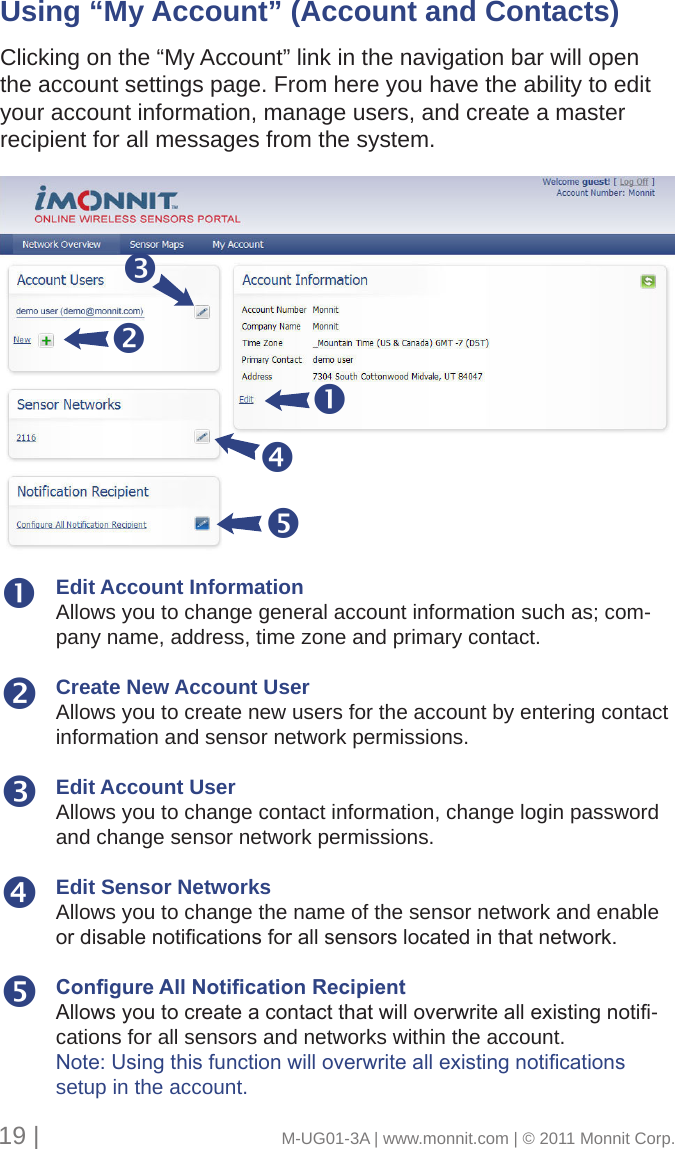

Edit Account InformationAllows you to change general account information such as; com-pany name, address, time zone and primary contact. Create New Account UserAllows you to create new users for the account by entering contact information and sensor network permissions.Edit Account UserAllows you to change contact information, change login password and change sensor network permissions.Edit Sensor Networks Allows you to change the name of the sensor network and enable ordisablenoticationsforallsensorslocatedinthatnetwork.Congure All Notication Recipient Allowsyoutocreateacontactthatwilloverwriteallexistingnoti-cations for all sensors and networks within the account.Note:Usingthisfunctionwilloverwriteallexistingnoticationssetup in the account. Using “My Account” (Account and Contacts) Clicking on the “My Account” link in the navigation bar will open the account settings page. From here you have the ability to edit your account information, manage users, and create a master recipient for all messages from the system. 19 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

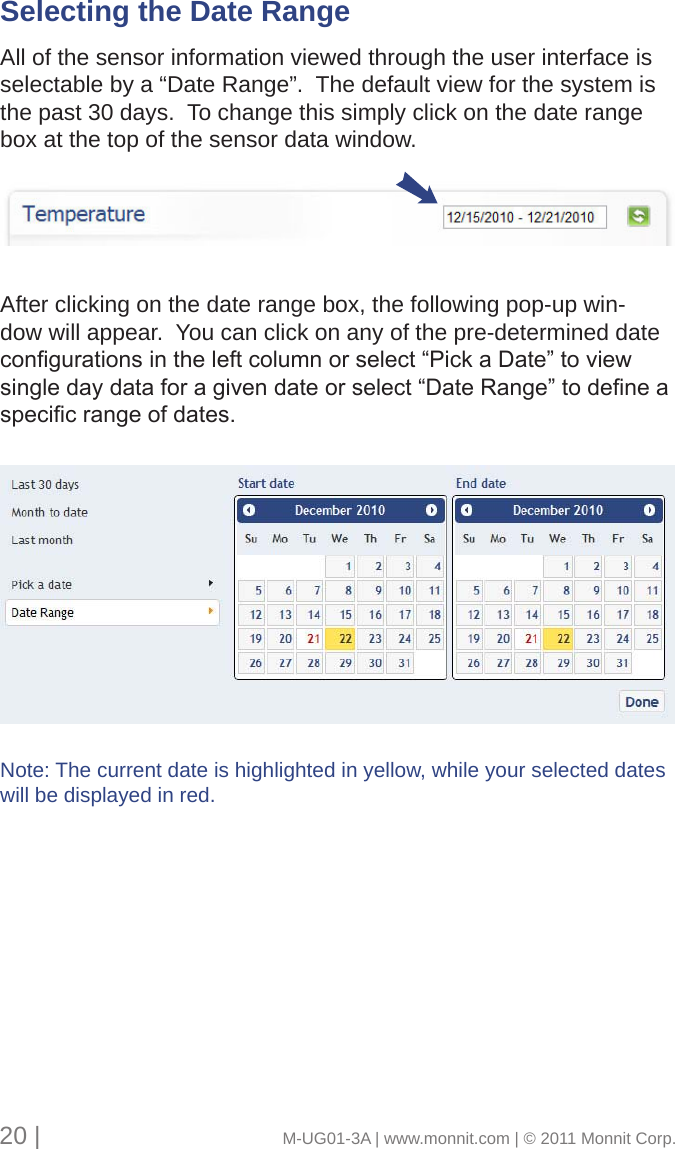

Selecting the Date Range All of the sensor information viewed through the user interface is selectable by a “Date Range”. The default view for the system is the past 30 days. To change this simply click on the date range box at the top of the sensor data window. After clicking on the date range box, the following pop-up win-dow will appear. You can click on any of the pre-determined date congurationsintheleftcolumnorselect“PickaDate”toviewsingledaydataforagivendateorselect“DateRange”todeneaspecicrangeofdates.Note: The current date is highlighted in yellow, while your selected dates will be displayed in red.20 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

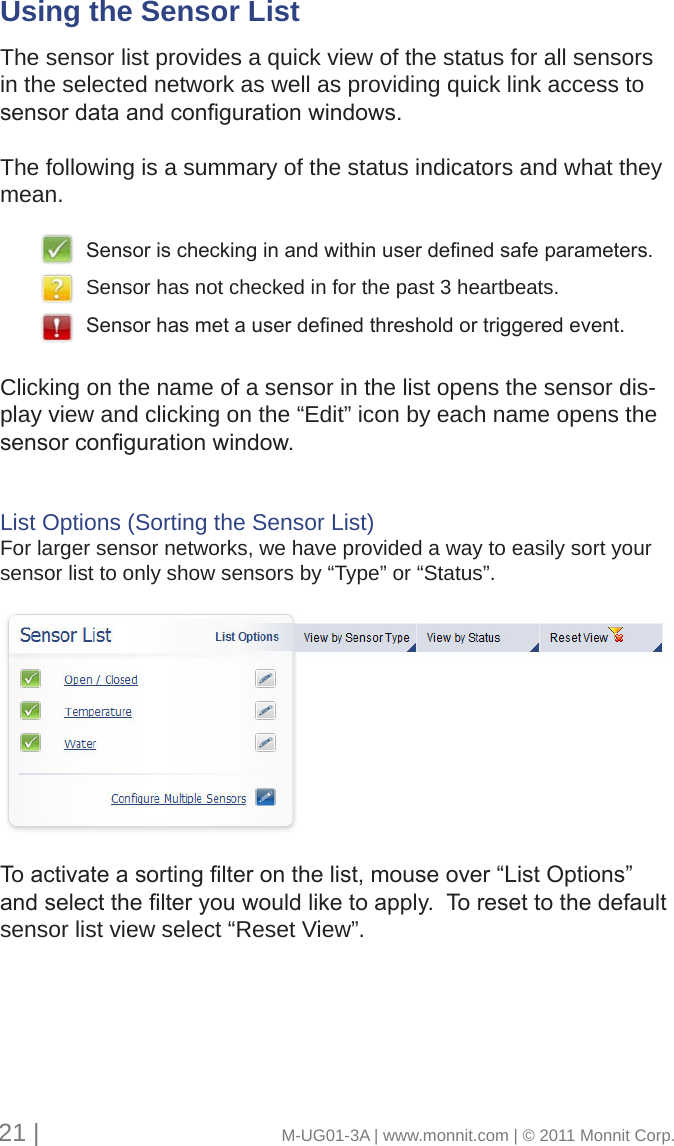

Using the Sensor List The sensor list provides a quick view of the status for all sensors in the selected network as well as providing quick link access to sensordataandcongurationwindows.The following is a summary of the status indicators and what they mean. Clicking on the name of a sensor in the list opens the sensor dis-play view and clicking on the “Edit” icon by each name opens the sensorcongurationwindow.List Options (Sorting the Sensor List)For larger sensor networks, we have provided a way to easily sort your sensor list to only show sensors by “Type” or “Status”.Toactivateasortinglteronthelist,mouseover“ListOptions”andselectthelteryouwouldliketoapply.Toresettothedefaultsensor list view select “Reset View”.Sensorischeckinginandwithinuserdenedsafeparameters.Sensor has not checked in for the past 3 heartbeats.Sensorhasmetauserdenedthresholdortriggeredevent.21 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

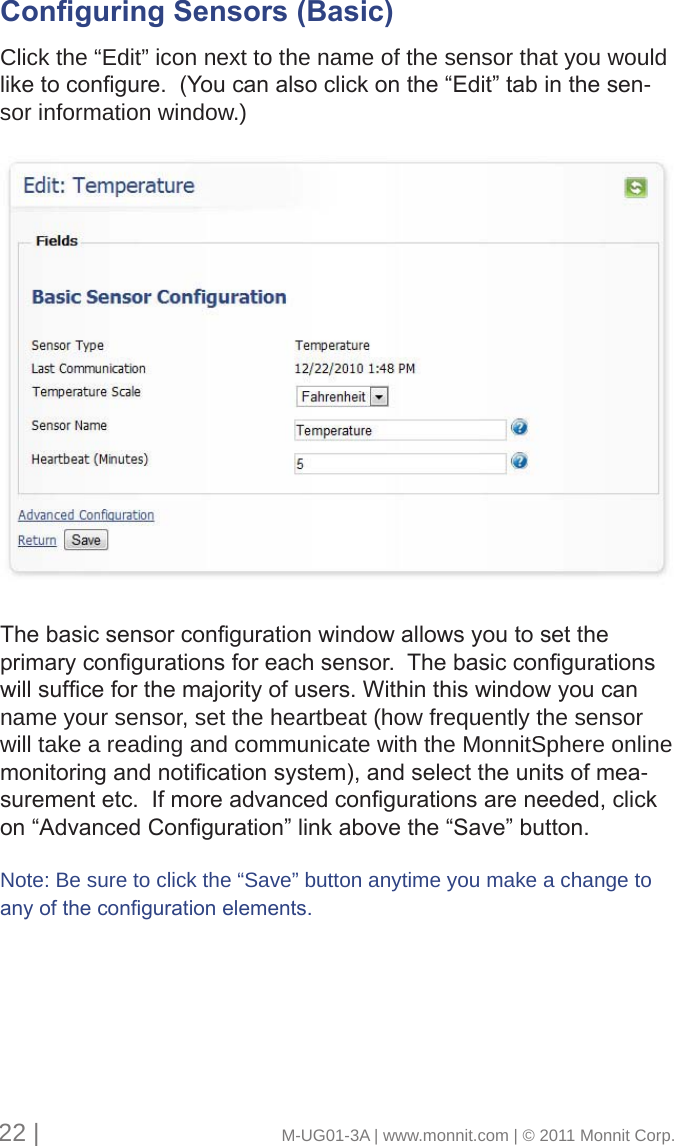

Conguring Sensors (Basic) Click the “Edit” icon next to the name of the sensor that you would liketocongure.(Youcanalsoclickonthe“Edit”tabinthesen-sor information window.)Thebasicsensorcongurationwindowallowsyoutosettheprimarycongurationsforeachsensor.Thebasiccongurationswillsufceforthemajorityofusers.Withinthiswindowyoucanname your sensor, set the heartbeat (how frequently the sensor will take a reading and communicate with the MonnitSphere online monitoringandnoticationsystem),andselecttheunitsofmea-surementetc.Ifmoreadvancedcongurationsareneeded,clickon“AdvancedConguration”linkabovethe“Save”button.Note: Be sure to click the “Save” button anytime you make a change to anyofthecongurationelements.22 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

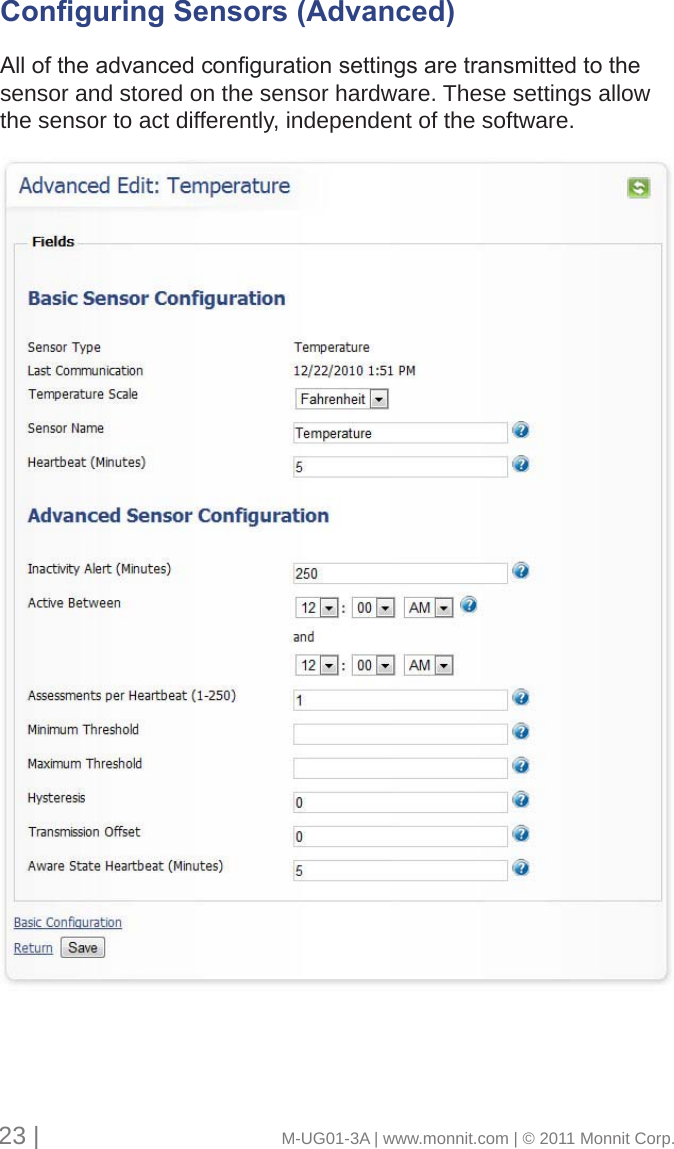

Conguring Sensors (Advanced) Alloftheadvancedcongurationsettingsaretransmittedtothesensor and stored on the sensor hardware. These settings allow the sensor to act differently, independent of the software.23 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

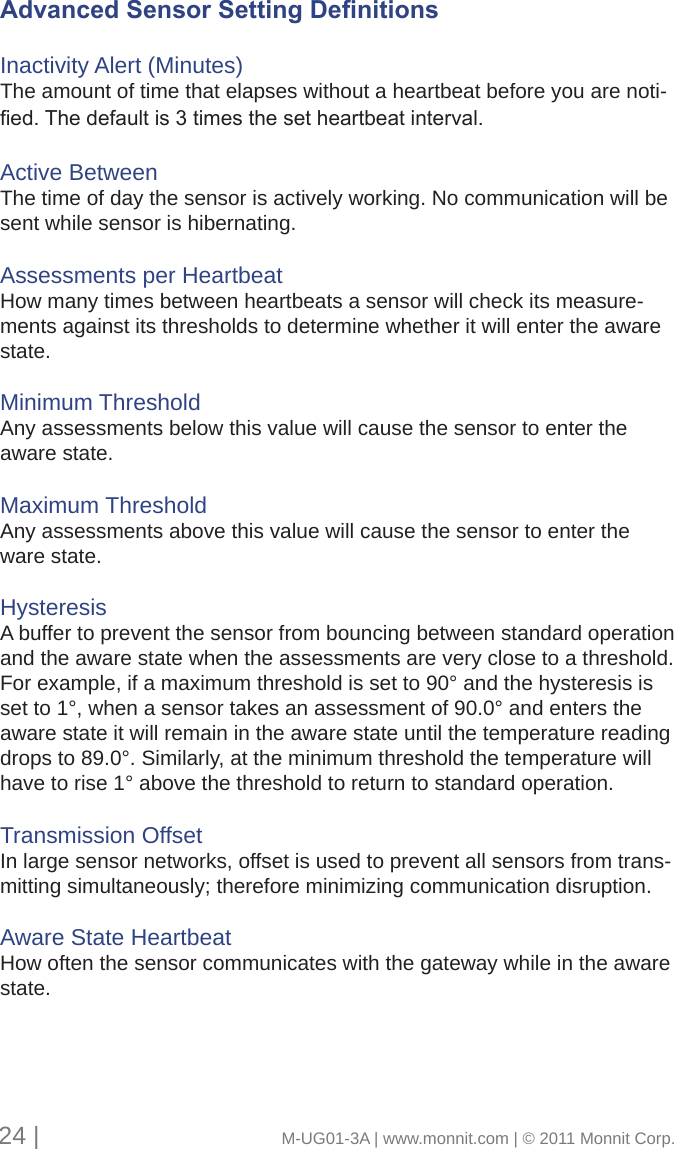

Advanced Sensor Setting DenitionsInactivity Alert (Minutes)The amount of time that elapses without a heartbeat before you are noti-ed.Thedefaultis3timesthesetheartbeatinterval.Active BetweenThe time of day the sensor is actively working. No communication will be sent while sensor is hibernating. Assessments per HeartbeatHow many times between heartbeats a sensor will check its measure-ments against its thresholds to determine whether it will enter the aware state. Minimum ThresholdAny assessments below this value will cause the sensor to enter the aware state. Maximum ThresholdAny assessments above this value will cause the sensor to enter the ware state. HysteresisA buffer to prevent the sensor from bouncing between standard operation and the aware state when the assessments are very close to a threshold. For example, if a maximum threshold is set to 90° and the hysteresis is set to 1°, when a sensor takes an assessment of 90.0° and enters the aware state it will remain in the aware state until the temperature reading drops to 89.0°. Similarly, at the minimum threshold the temperature will have to rise 1° above the threshold to return to standard operation. Transmission Offset In large sensor networks, offset is used to prevent all sensors from trans-mitting simultaneously; therefore minimizing communication disruption. Aware State HeartbeatHow often the sensor communicates with the gateway while in the aware state. 24 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

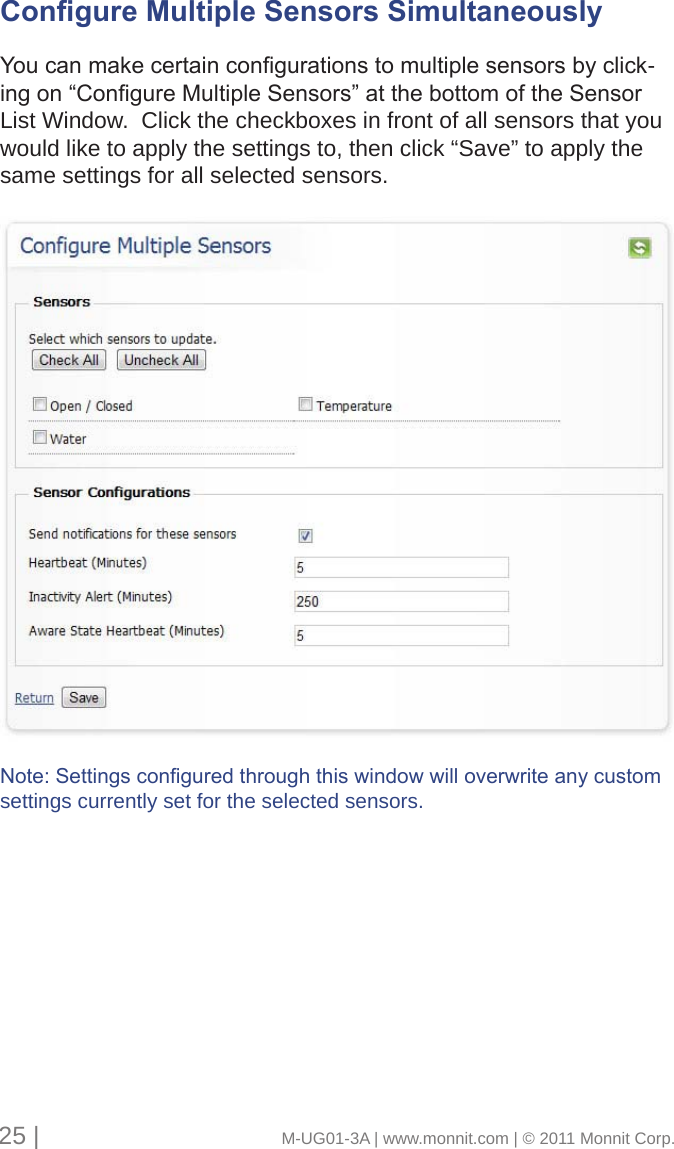

25 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.Congure Multiple Sensors Simultaneously Youcanmakecertaincongurationstomultiplesensorsbyclick-ingon“CongureMultipleSensors”atthebottomoftheSensorList Window. Click the checkboxes in front of all sensors that you would like to apply the settings to, then click “Save” to apply the same settings for all selected sensors. Note:Settingsconguredthroughthiswindowwilloverwriteanycustomsettings currently set for the selected sensors.

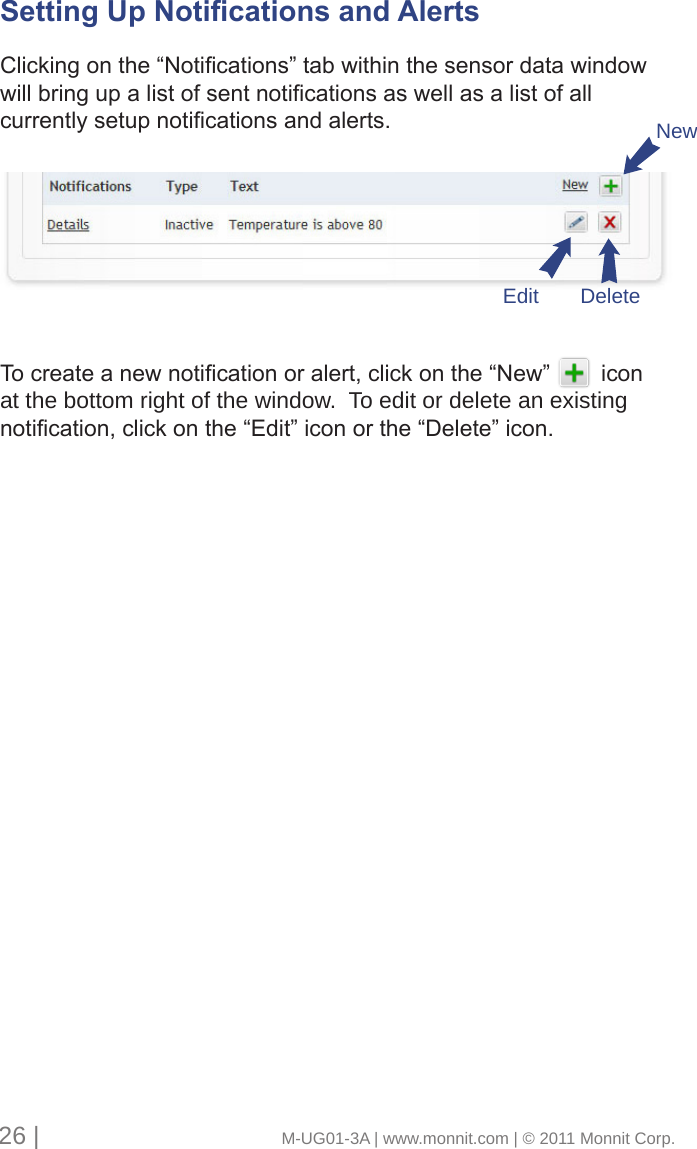

Setting Up Notications and Alerts Clickingonthe“Notications”tabwithinthesensordatawindowwillbringupalistofsentnoticationsaswellasalistofallcurrentlysetupnoticationsandalerts.Tocreateanewnoticationoralert,clickonthe“New”iconat the bottom right of the window. To edit or delete an existing notication,clickonthe“Edit”iconorthe“Delete”icon.26 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.Edit DeleteNew

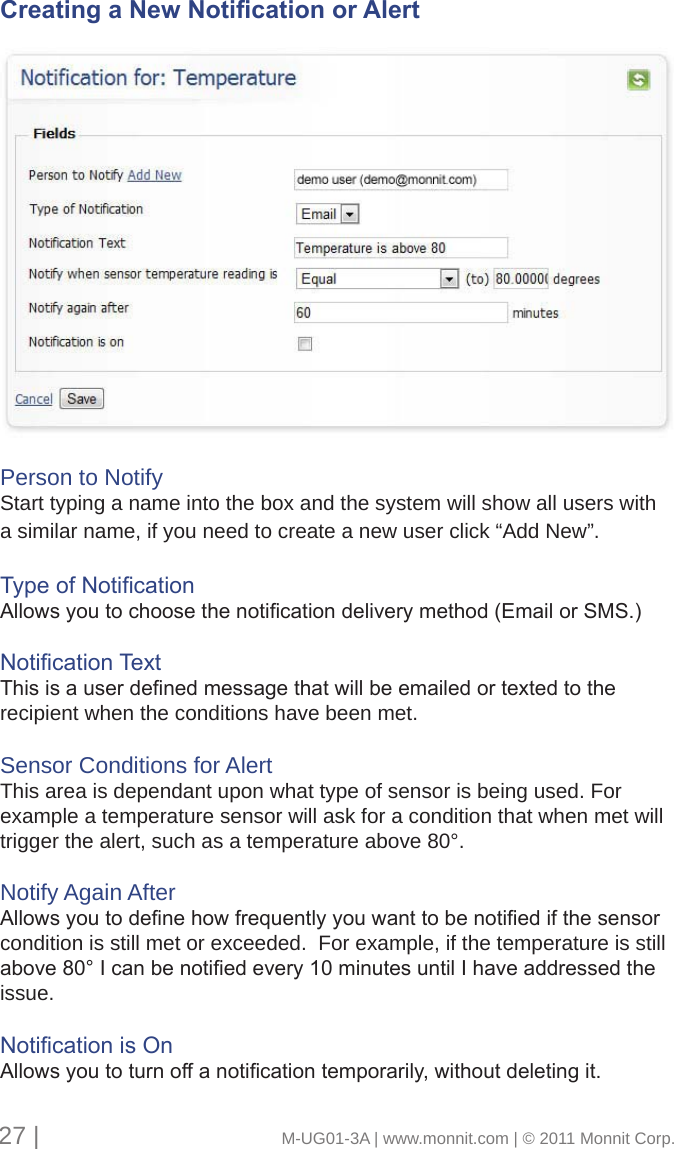

Creating a New Notication or AlertPerson to NotifyStart typing a name into the box and the system will show all users with a similar name, if you need to create a new user click “Add New”.TypeofNoticationAllowsyoutochoosethenoticationdeliverymethod(EmailorSMS.)NoticationTextThisisauserdenedmessagethatwillbeemailedortextedtotherecipient when the conditions have been met. Sensor Conditions for AlertThis area is dependant upon what type of sensor is being used. For example a temperature sensor will ask for a condition that when met will trigger the alert, such as a temperature above 80°. Notify Again AfterAllowsyoutodenehowfrequentlyyouwanttobenotiedifthesensorcondition is still met or exceeded. For example, if the temperature is still above80°Icanbenotiedevery10minutesuntilIhaveaddressedtheissue.NoticationisOnAllowsyoutoturnoffanoticationtemporarily,withoutdeletingit.27 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

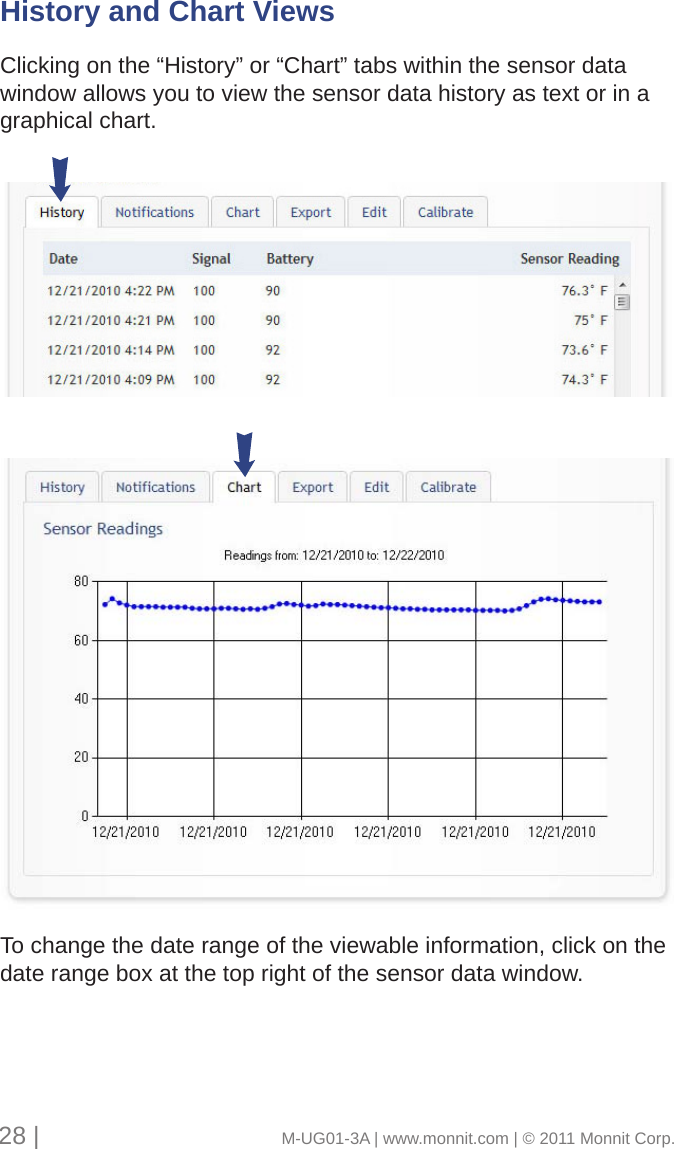

28 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.History and Chart Views Clicking on the “History” or “Chart” tabs within the sensor data window allows you to view the sensor data history as text or in a graphical chart. To change the date range of the viewable information, click on the date range box at the top right of the sensor data window.

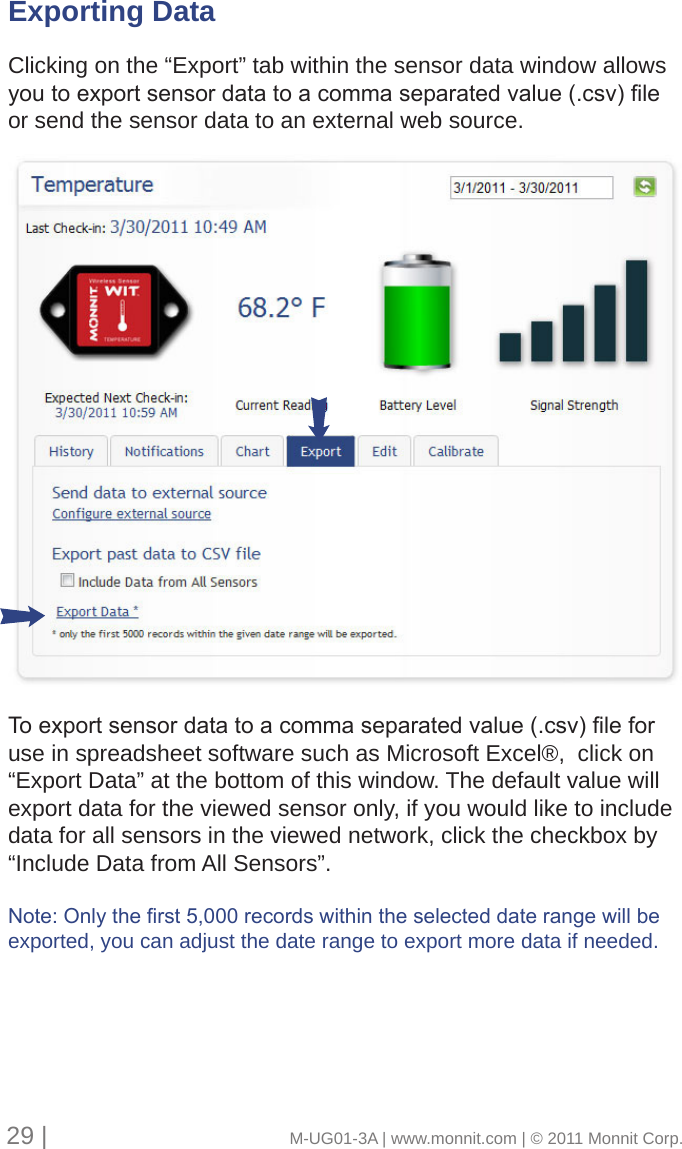

29 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.Exporting Data Clicking on the “Export” tab within the sensor data window allows youtoexportsensordatatoacommaseparatedvalue(.csv)leor send the sensor data to an external web source. Toexportsensordatatoacommaseparatedvalue(.csv)leforuse in spreadsheet software such as Microsoft Excel®, click on “Export Data” at the bottom of this window. The default value will export data for the viewed sensor only, if you would like to include data for all sensors in the viewed network, click the checkbox by “Include Data from All Sensors”.Note:Onlytherst5,000recordswithintheselecteddaterangewillbeexported, you can adjust the date range to export more data if needed.

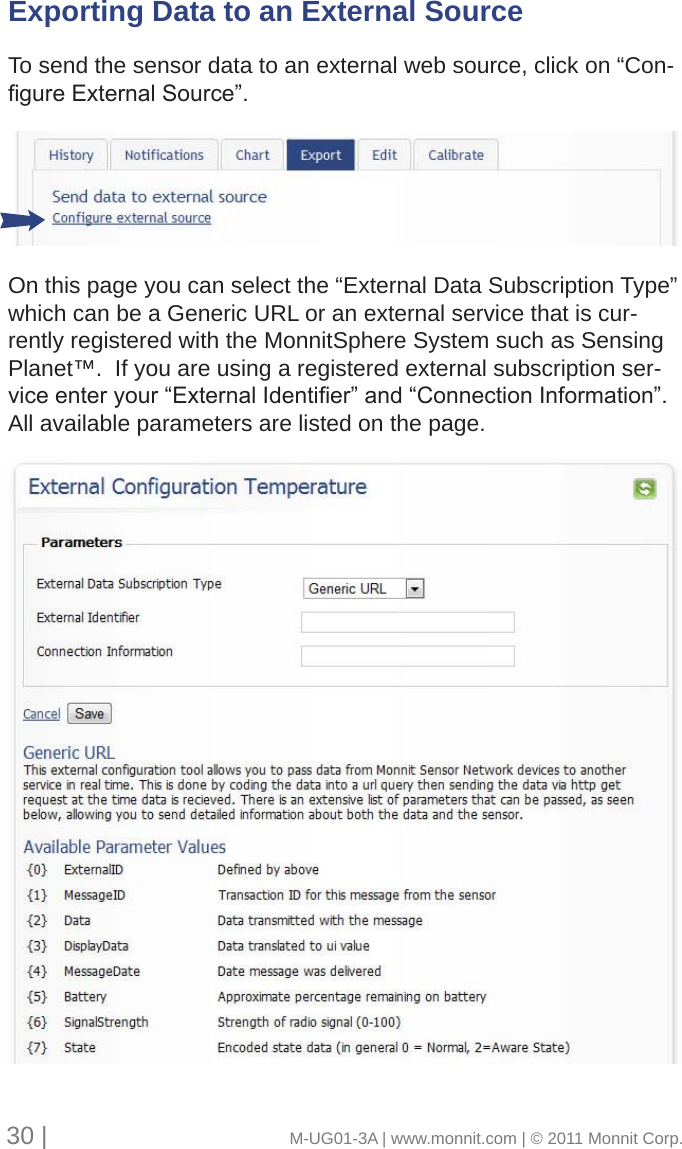

Exporting Data to an External Source To send the sensor data to an external web source, click on “Con-gureExternalSource”.On this page you can select the “External Data Subscription Type” which can be a Generic URL or an external service that is cur-rently registered with the MonnitSphere System such as Sensing Planet™. If you are using a registered external subscription ser-viceenteryour“ExternalIdentier”and“ConnectionInformation”.All available parameters are listed on the page.30 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

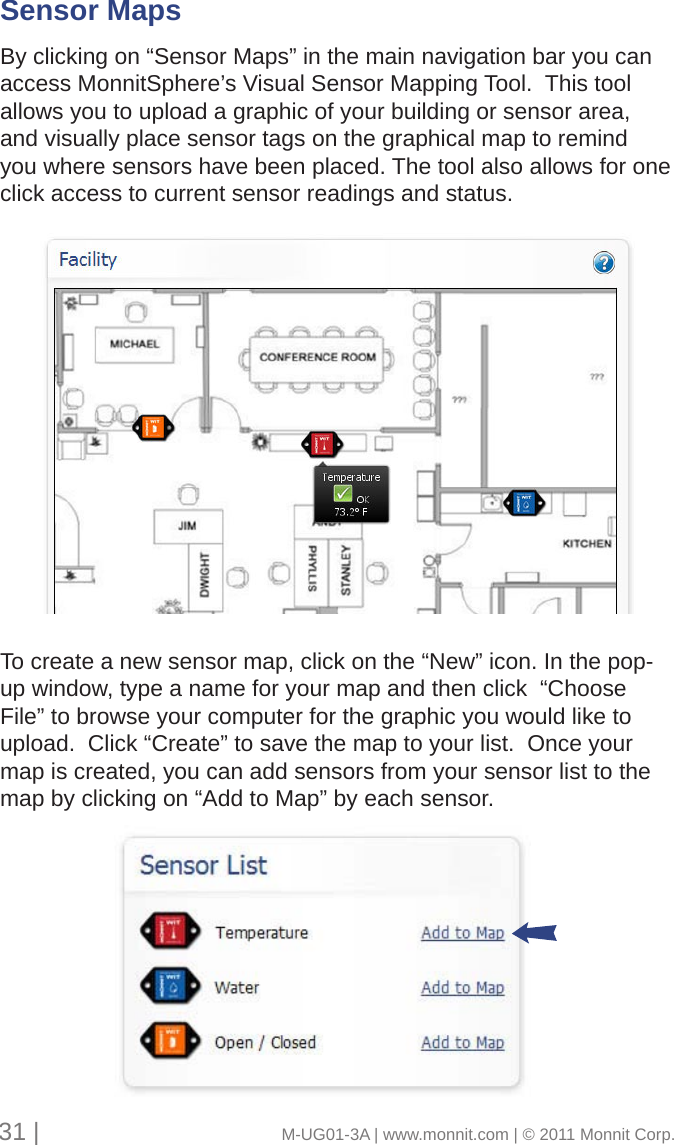

Sensor Maps By clicking on “Sensor Maps” in the main navigation bar you can access MonnitSphere’s Visual Sensor Mapping Tool. This tool allows you to upload a graphic of your building or sensor area, and visually place sensor tags on the graphical map to remind you where sensors have been placed. The tool also allows for one click access to current sensor readings and status.To create a new sensor map, click on the “New” icon. In the pop-up window, type a name for your map and then click “Choose File” to browse your computer for the graphic you would like to upload. Click “Create” to save the map to your list. Once your map is created, you can add sensors from your sensor list to the map by clicking on “Add to Map” by each sensor. 31 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

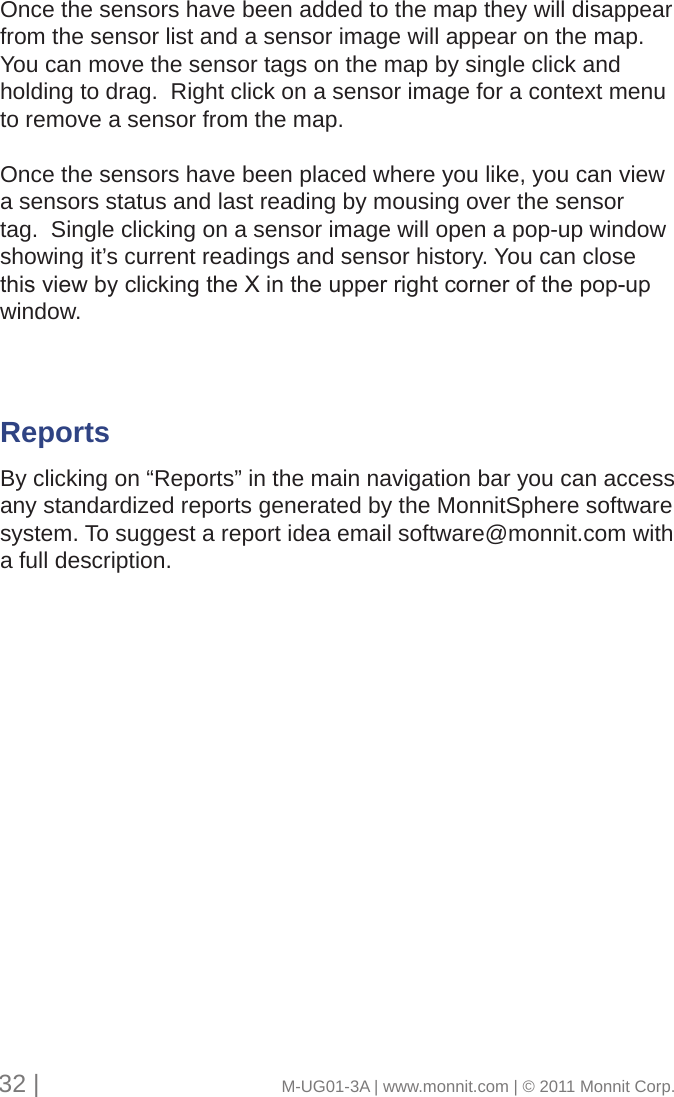

Once the sensors have been added to the map they will disappear from the sensor list and a sensor image will appear on the map. You can move the sensor tags on the map by single click and holding to drag. Right click on a sensor image for a context menu to remove a sensor from the map.Once the sensors have been placed where you like, you can view a sensors status and last reading by mousing over the sensor tag. Single clicking on a sensor image will open a pop-up window showing it’s current readings and sensor history. You can close thisviewbyclickingtheXintheupperrightcornerofthepop-upwindow.Reports By clicking on “Reports” in the main navigation bar you can access any standardized reports generated by the MonnitSphere software system. To suggest a report idea email software@monnit.com with a full description. 32 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

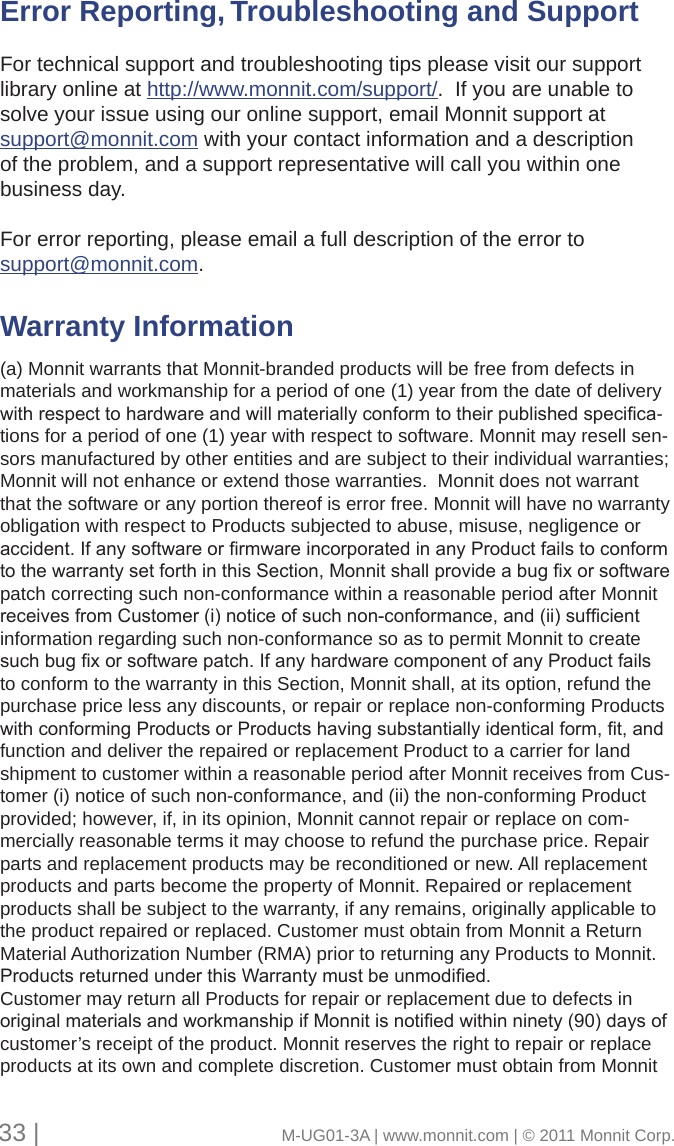

Error Reporting, Troubleshooting and Support For technical support and troubleshooting tips please visit our support library online at http://www.monnit.com/support/. If you are unable to solve your issue using our online support, email Monnit support at support@monnit.com with your contact information and a description of the problem, and a support representative will call you within one business day.For error reporting, please email a full description of the error to support@monnit.com. Warranty Information (a) Monnit warrants that Monnit-branded products will be free from defects in materials and workmanship for a period of one (1) year from the date of delivery withrespecttohardwareandwillmateriallyconformtotheirpublishedspecica-tions for a period of one (1) year with respect to software. Monnit may resell sen-sors manufactured by other entities and are subject to their individual warranties; Monnit will not enhance or extend those warranties. Monnit does not warrant that the software or any portion thereof is error free. Monnit will have no warranty obligation with respect to Products subjected to abuse, misuse, negligence or accident.IfanysoftwareorrmwareincorporatedinanyProductfailstoconformtothewarrantysetforthinthisSection,Monnitshallprovideabugxorsoftwarepatch correcting such non-conformance within a reasonable period after Monnit receivesfromCustomer(i)noticeofsuchnon-conformance,and(ii)sufcientinformation regarding such non-conformance so as to permit Monnit to create suchbugxorsoftwarepatch.IfanyhardwarecomponentofanyProductfailsto conform to the warranty in this Section, Monnit shall, at its option, refund the purchase price less any discounts, or repair or replace non-conforming Products withconformingProductsorProductshavingsubstantiallyidenticalform,t,andfunction and deliver the repaired or replacement Product to a carrier for land shipment to customer within a reasonable period after Monnit receives from Cus-tomer (i) notice of such non-conformance, and (ii) the non-conforming Product provided; however, if, in its opinion, Monnit cannot repair or replace on com-mercially reasonable terms it may choose to refund the purchase price. Repair parts and replacement products may be reconditioned or new. All replacement products and parts become the property of Monnit. Repaired or replacement products shall be subject to the warranty, if any remains, originally applicable to the product repaired or replaced. Customer must obtain from Monnit a Return Material Authorization Number (RMA) prior to returning any Products to Monnit. ProductsreturnedunderthisWarrantymustbeunmodied.Customer may return all Products for repair or replacement due to defects in originalmaterialsandworkmanshipifMonnitisnotiedwithinninety(90)daysofcustomer’s receipt of the product. Monnit reserves the right to repair or replace products at its own and complete discretion. Customer must obtain from Monnit 33 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

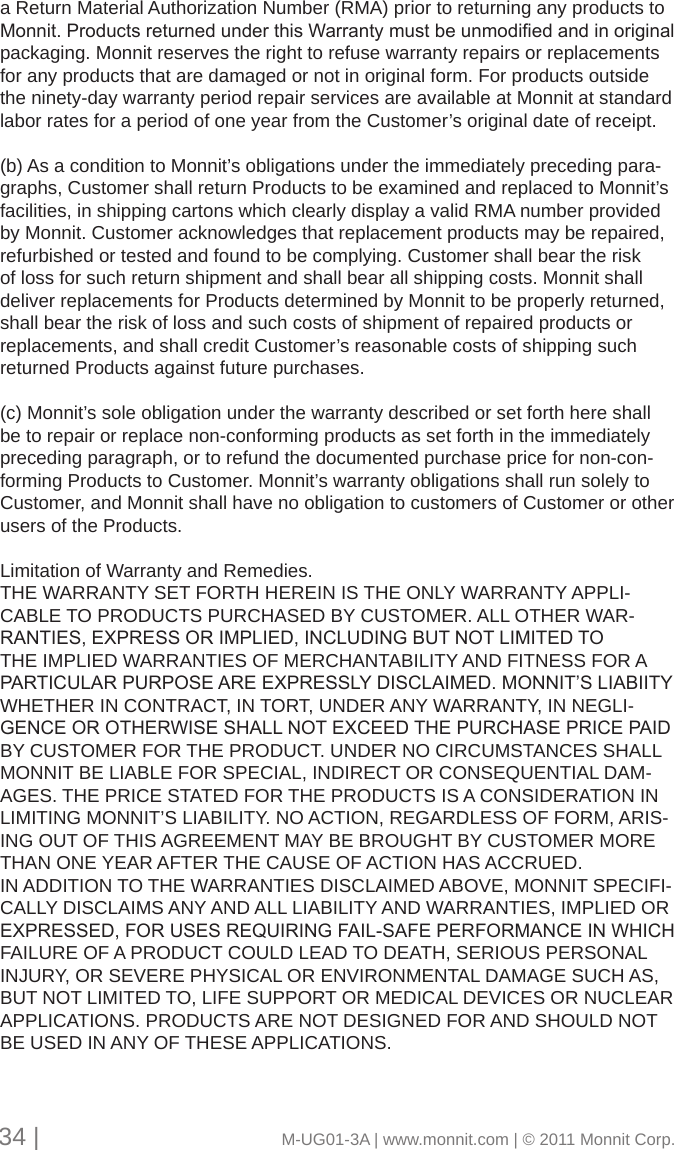

a Return Material Authorization Number (RMA) prior to returning any products to Monnit.ProductsreturnedunderthisWarrantymustbeunmodiedandinoriginalpackaging. Monnit reserves the right to refuse warranty repairs or replacements for any products that are damaged or not in original form. For products outside the ninety-day warranty period repair services are available at Monnit at standard labor rates for a period of one year from the Customer’s original date of receipt.(b) As a condition to Monnit’s obligations under the immediately preceding para-graphs, Customer shall return Products to be examined and replaced to Monnit’s facilities, in shipping cartons which clearly display a valid RMA number provided by Monnit. Customer acknowledges that replacement products may be repaired, refurbished or tested and found to be complying. Customer shall bear the risk of loss for such return shipment and shall bear all shipping costs. Monnit shall deliver replacements for Products determined by Monnit to be properly returned, shall bear the risk of loss and such costs of shipment of repaired products or replacements, and shall credit Customer’s reasonable costs of shipping such returned Products against future purchases.(c) Monnit’s sole obligation under the warranty described or set forth here shall be to repair or replace non-conforming products as set forth in the immediately preceding paragraph, or to refund the documented purchase price for non-con-forming Products to Customer. Monnit’s warranty obligations shall run solely to Customer, and Monnit shall have no obligation to customers of Customer or other users of the Products.Limitation of Warranty and Remedies. THE WARRANTY SET FORTH HEREIN IS THE ONLY WARRANTY APPLI-CABLE TO PRODUCTS PURCHASED BY CUSTOMER. ALL OTHER WAR-RANTIES,EXPRESSORIMPLIED,INCLUDINGBUTNOTLIMITEDTOTHE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULARPURPOSEAREEXPRESSLYDISCLAIMED.MONNIT’SLIABIITYWHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, IN NEGLI-GENCEOROTHERWISESHALLNOTEXCEEDTHEPURCHASEPRICEPAIDBY CUSTOMER FOR THE PRODUCT. UNDER NO CIRCUMSTANCES SHALL MONNIT BE LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL DAM-AGES. THE PRICE STATED FOR THE PRODUCTS IS A CONSIDERATION IN LIMITING MONNIT’S LIABILITY. NO ACTION, REGARDLESS OF FORM, ARIS-ING OUT OF THIS AGREEMENT MAY BE BROUGHT BY CUSTOMER MORE THAN ONE YEAR AFTER THE CAUSE OF ACTION HAS ACCRUED. IN ADDITION TO THE WARRANTIES DISCLAIMED ABOVE, MONNIT SPECIFI-CALLY DISCLAIMS ANY AND ALL LIABILITY AND WARRANTIES, IMPLIED OR EXPRESSED,FORUSESREQUIRINGFAIL-SAFEPERFORMANCEINWHICHFAILURE OF A PRODUCT COULD LEAD TO DEATH, SERIOUS PERSONAL INJURY, OR SEVERE PHYSICAL OR ENVIRONMENTAL DAMAGE SUCH AS, BUT NOT LIMITED TO, LIFE SUPPORT OR MEDICAL DEVICES OR NUCLEAR APPLICATIONS. PRODUCTS ARE NOT DESIGNED FOR AND SHOULD NOT BE USED IN ANY OF THESE APPLICATIONS. 34 | M-UG01-3A | www.monnit.com | © 2011 Monnit Corp.

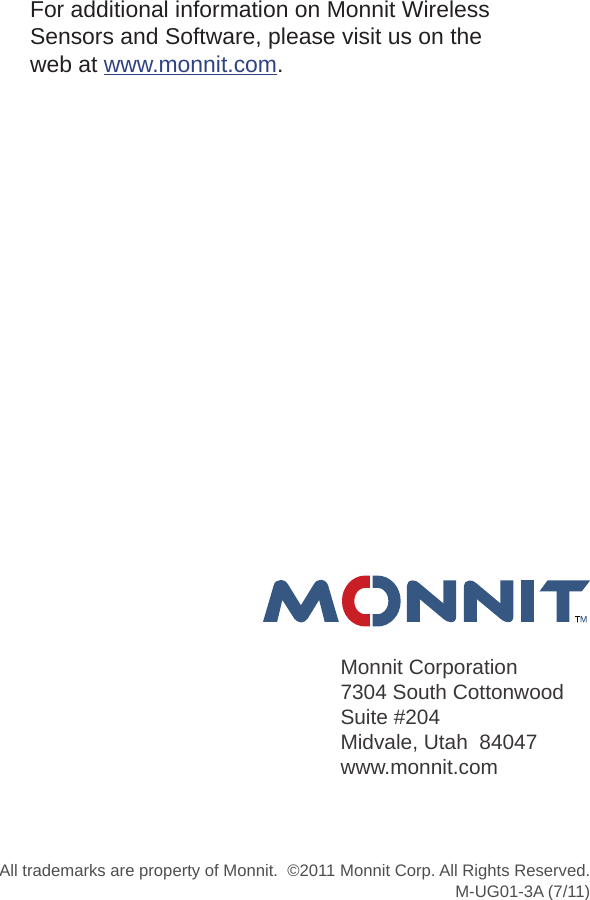

For additional information on Monnit Wireless Sensors and Software, please visit us on the web at www.monnit.com. Monnit Corporation7304 South CottonwoodSuite #204Midvale, Utah 84047www.monnit.comAll trademarks are property of Monnit. ©2011 Monnit Corp. All Rights Reserved.M-UG01-3A (7/11)
