Mueller Systems RFDC RFDC Radio Module User Manual Manual

Mueller Systems, LLC RFDC Radio Module Manual

Contents

Manual

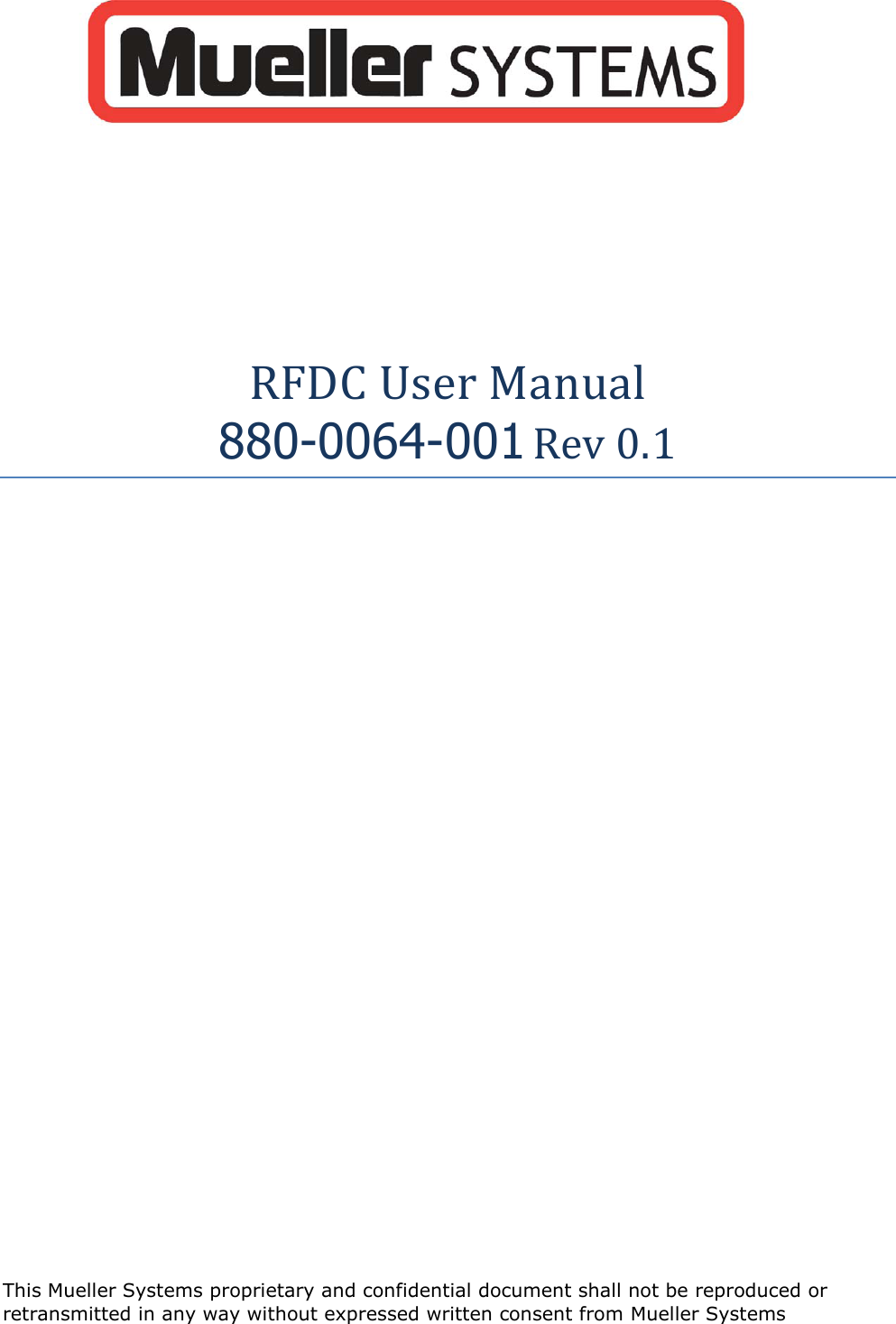

This Mueller Systems proprietary and confidential document shall not be reproduced or retransmitted in any way without expressed written consent from Mueller Systems RFDC User Manual 880-0064-001 Rev 0.1

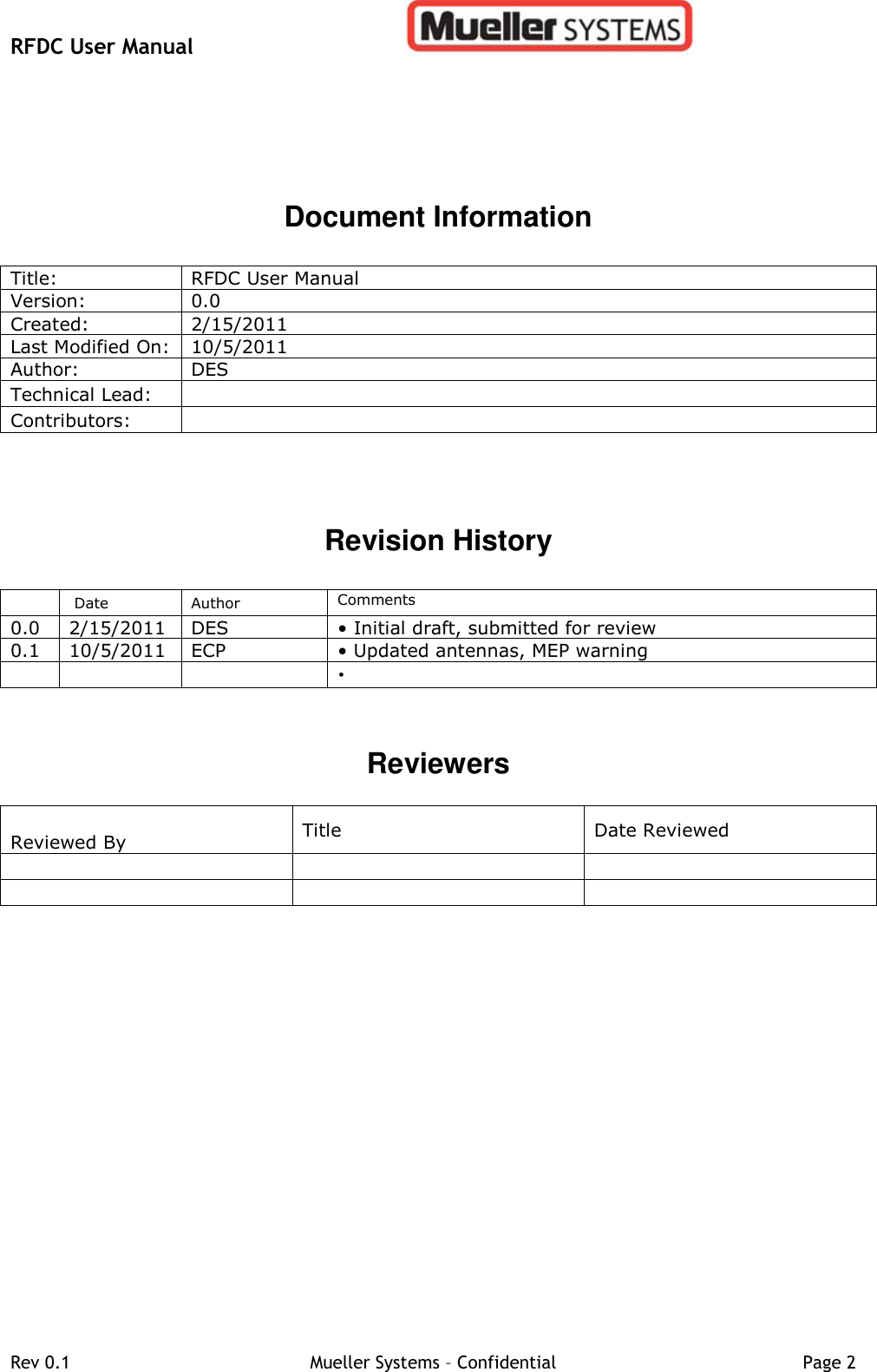

RFDC User Manual Rev 0.1 Mueller Systems – Confidential Page 2 Document Information Title: RFDC User Manual Version: 0.0 Created: 2/15/2011 Last Modified On: 10/5/2011 Author: DES Technical Lead: Contributors: Revision History Date Author Comments 0.0 2/15/2011 DES • Initial draft, submitted for review 0.1 10/5/2011 ECP • Updated antennas, MEP warning • Reviewers Reviewed By Title Date Reviewed

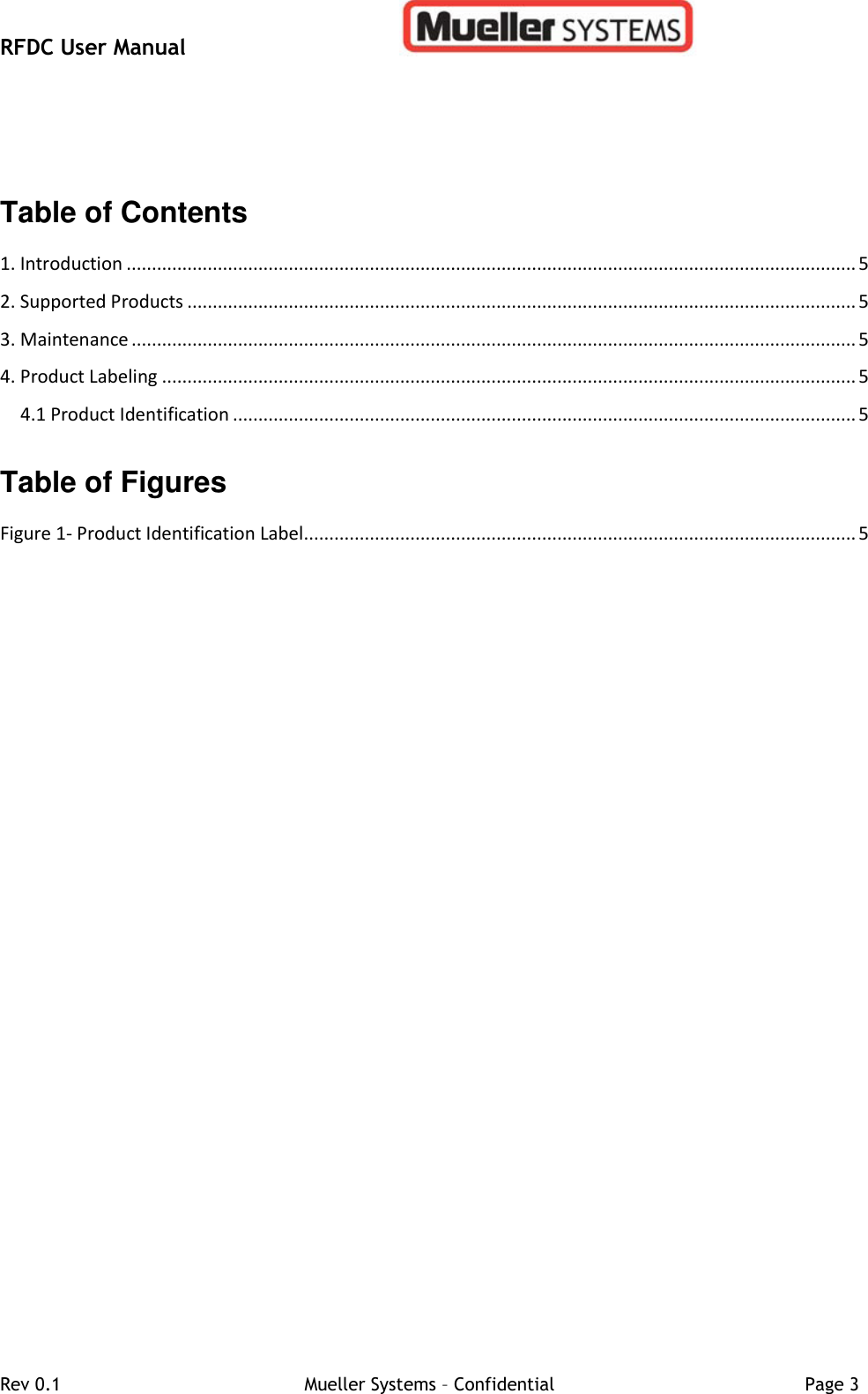

RFDC User Manual Rev 0.1 Mueller Systems – Confidential Page 3 Table of Contents 1. Introduction ................................................................................................................................................ 5 2. Supported Products .................................................................................................................................... 5 3. Maintenance ............................................................................................................................................... 5 4. Product Labeling ......................................................................................................................................... 5 4.1 Product Identification ........................................................................................................................... 5 Table of Figures Figure 1- Product Identification Label ............................................................................................................. 5

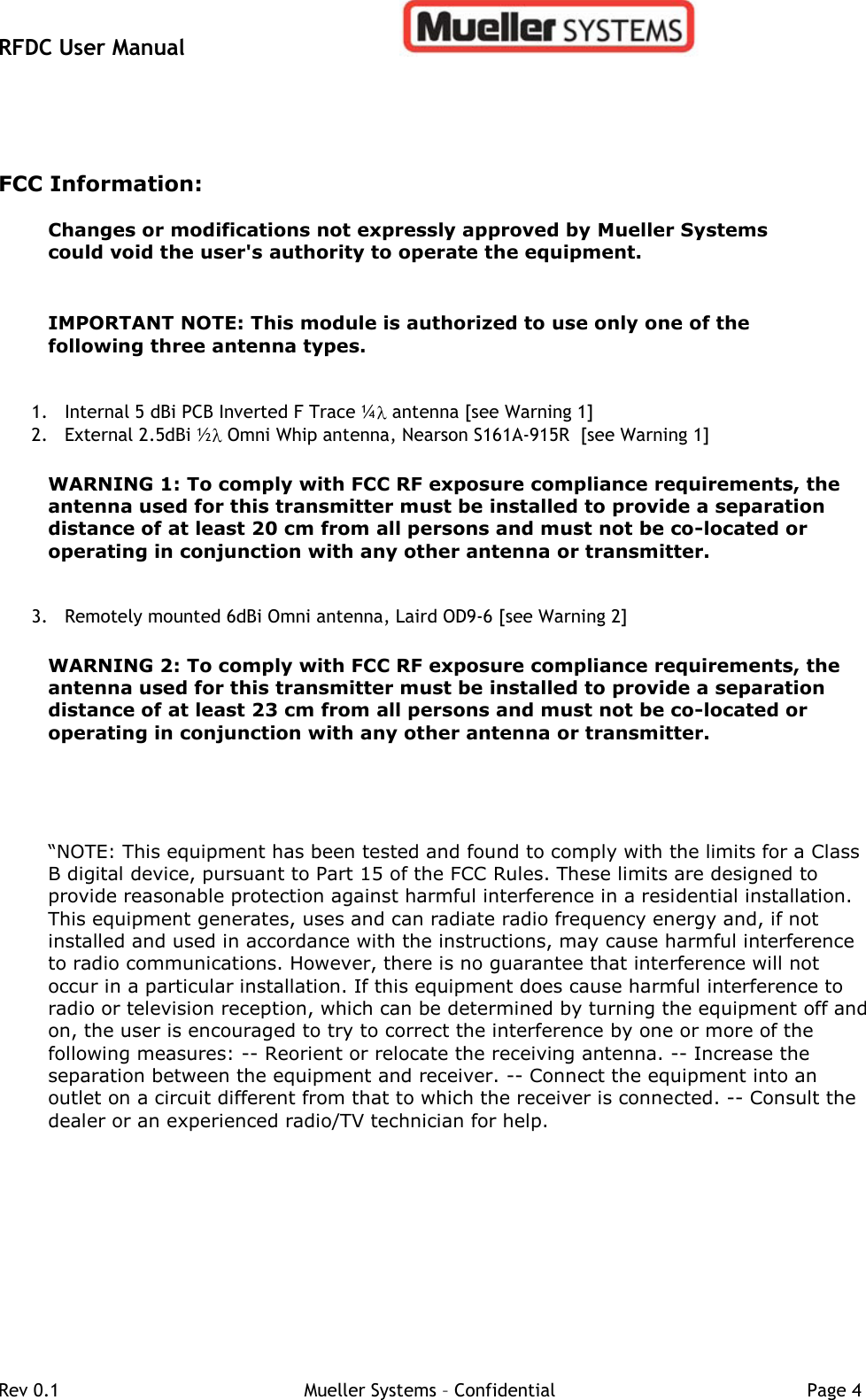

RFDC User Manual Rev 0.1 Mueller Systems – Confidential Page 4 FCC Information: Changes or modifications not expressly approved by Mueller Systems could void the user's authority to operate the equipment. IMPORTANT NOTE: This module is authorized to use only one of the following three antenna types. 1. Internal 5 dBi PCB Inverted F Trace ¼ antenna [see Warning 1] 2. External 2.5dBi ½ Omni Whip antenna, Nearson S161A-915R [see Warning 1] WARNING 1: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. 3. Remotely mounted 6dBi Omni antenna, Laird OD9-6 [see Warning 2] WARNING 2: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. “NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

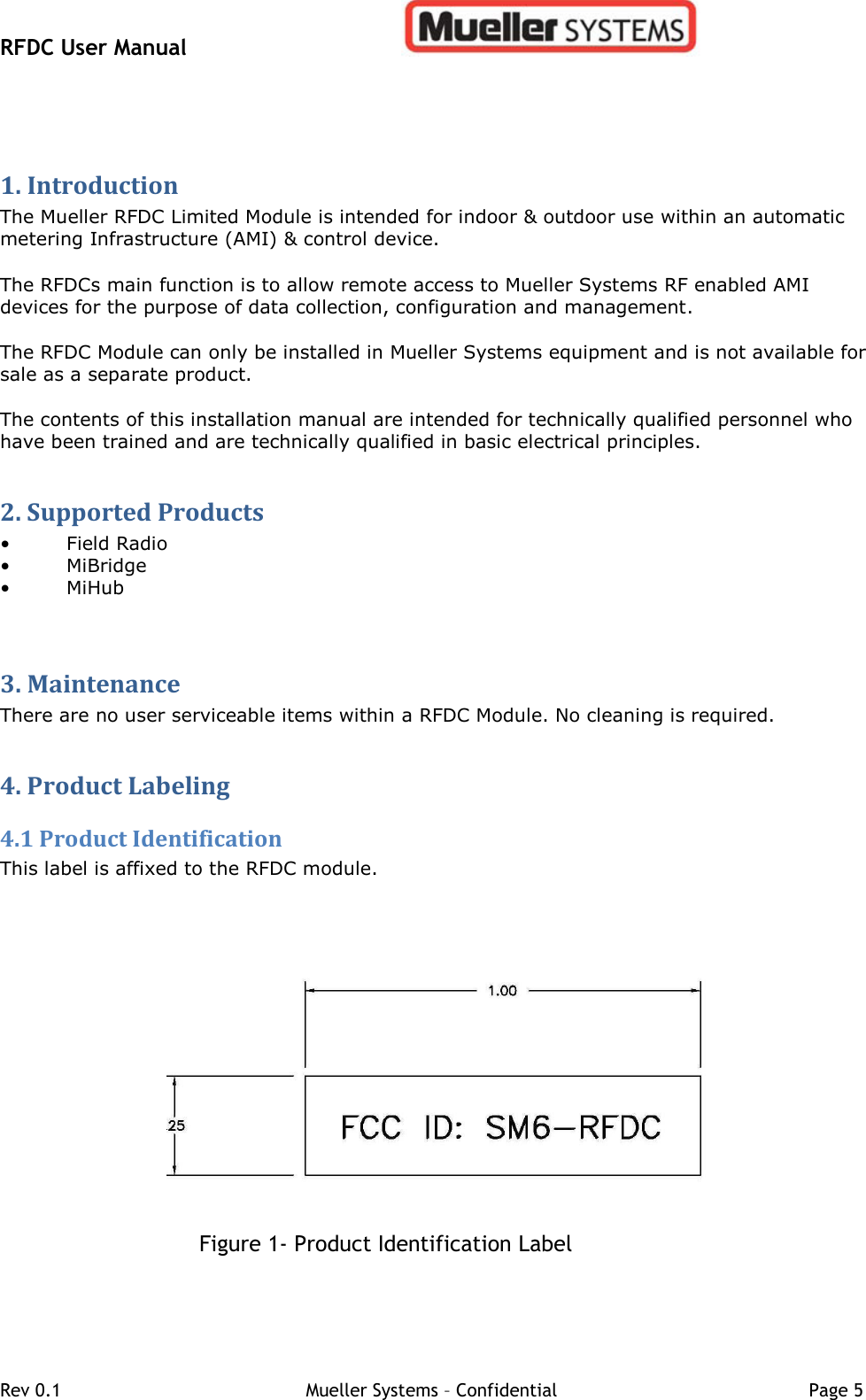

RFDC User Manual Rev 0.1 Mueller Systems – Confidential Page 5 1. Introduction The Mueller RFDC Limited Module is intended for indoor & outdoor use within an automatic metering Infrastructure (AMI) & control device. The RFDCs main function is to allow remote access to Mueller Systems RF enabled AMI devices for the purpose of data collection, configuration and management. The RFDC Module can only be installed in Mueller Systems equipment and is not available for sale as a separate product. The contents of this installation manual are intended for technically qualified personnel who have been trained and are technically qualified in basic electrical principles. 2. Supported Products • Field Radio • MiBridge • MiHub 3. Maintenance There are no user serviceable items within a RFDC Module. No cleaning is required. 4. Product Labeling 4.1 Product Identification This label is affixed to the RFDC module. Figure 1- Product Identification Label
