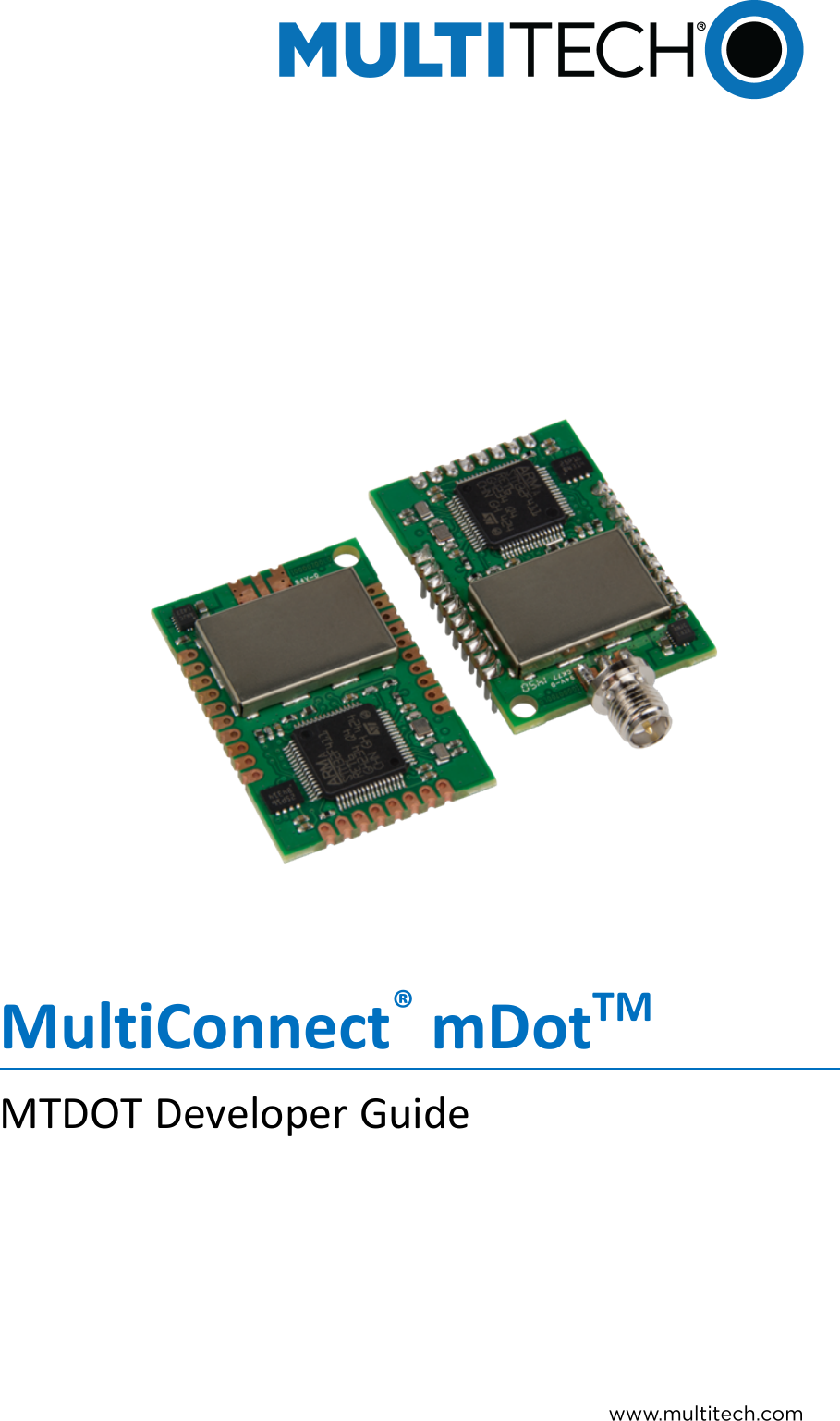

MultiConnect®mDotTMMTDOT Developer Guide

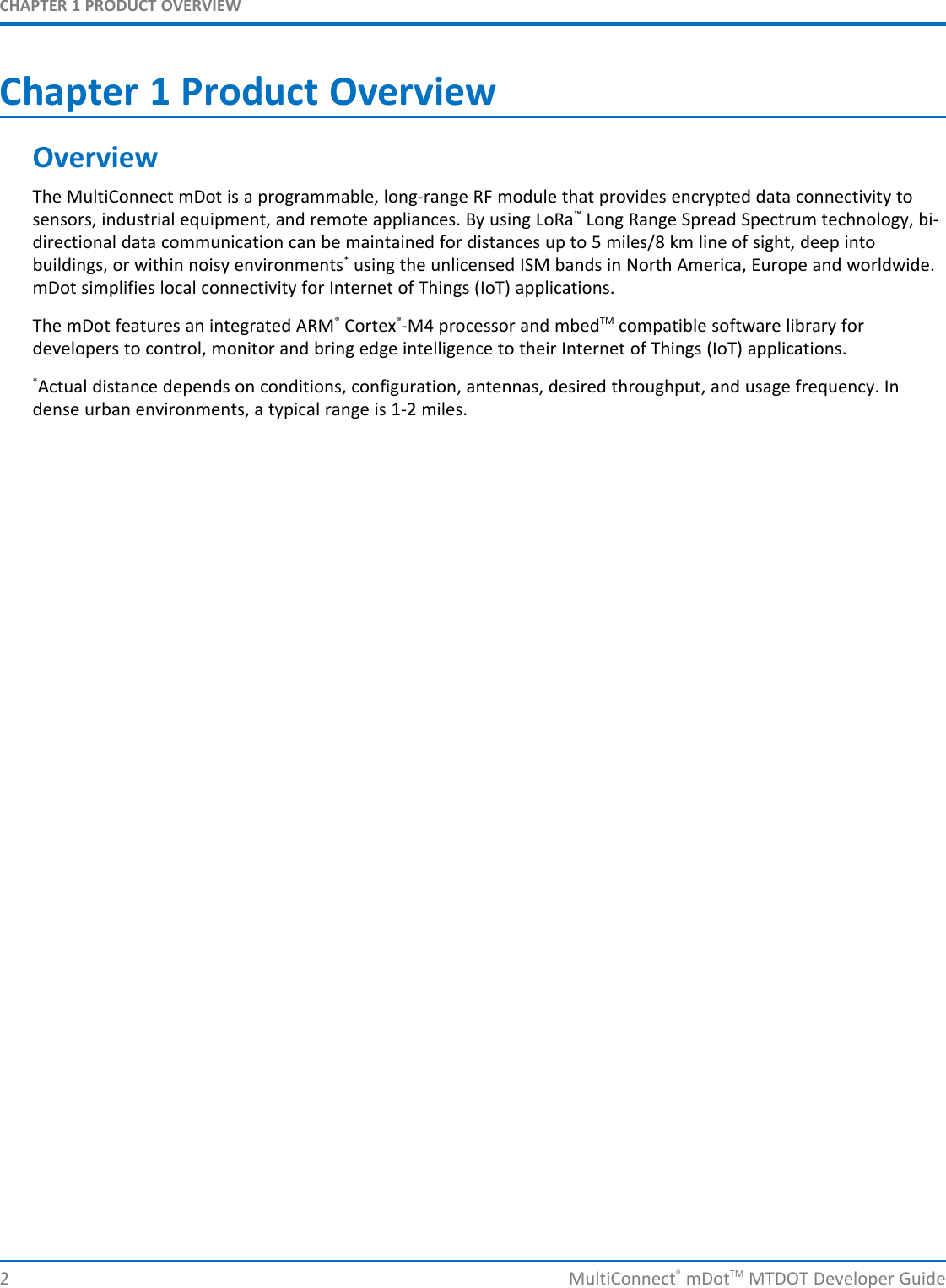

CHAPTER 1 PRODUCT OVERVIEW2 MultiConnect®mDotTM MTDOT Developer GuideChapter 1 Product OverviewOverviewThe MultiConnect mDot is a programmable, long-range RF module that provides encrypted data connectivity tosensors, industrial equipment, and remote appliances. By using LoRa™Long Range Spread Spectrum technology, bi-directional data communication can be maintained for distances up to 5 miles/8 km line of sight, deep intobuildings, or within noisy environments*using the unlicensed ISM bands in North America, Europe and worldwide.mDot simplifies local connectivity for Internet of Things (IoT) applications.The mDot features an integrated ARM®Cortex®-M4 processor and mbedTM compatible software library fordevelopers to control, monitor and bring edge intelligence to their Internet of Things (IoT) applications.*Actual distance depends on conditions, configuration, antennas, desired throughput, and usage frequency. Indense urban environments, a typical range is 1-2 miles.

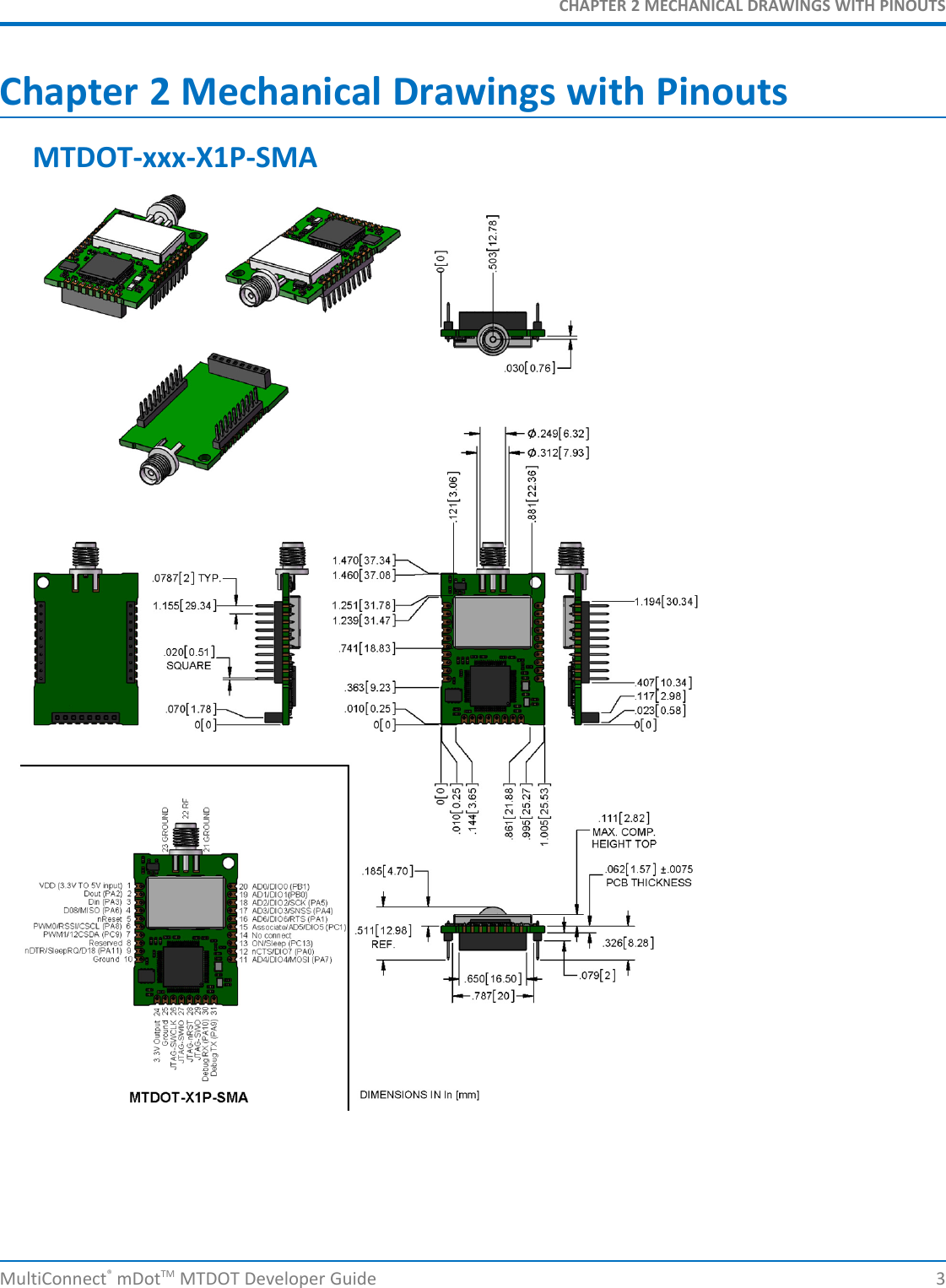

CHAPTER 2 MECHANICAL DRAWINGS WITH PINOUTSMultiConnect®mDotTM MTDOT Developer Guide 3Chapter 2 Mechanical Drawings with PinoutsMTDOT-xxx-X1P-SMA

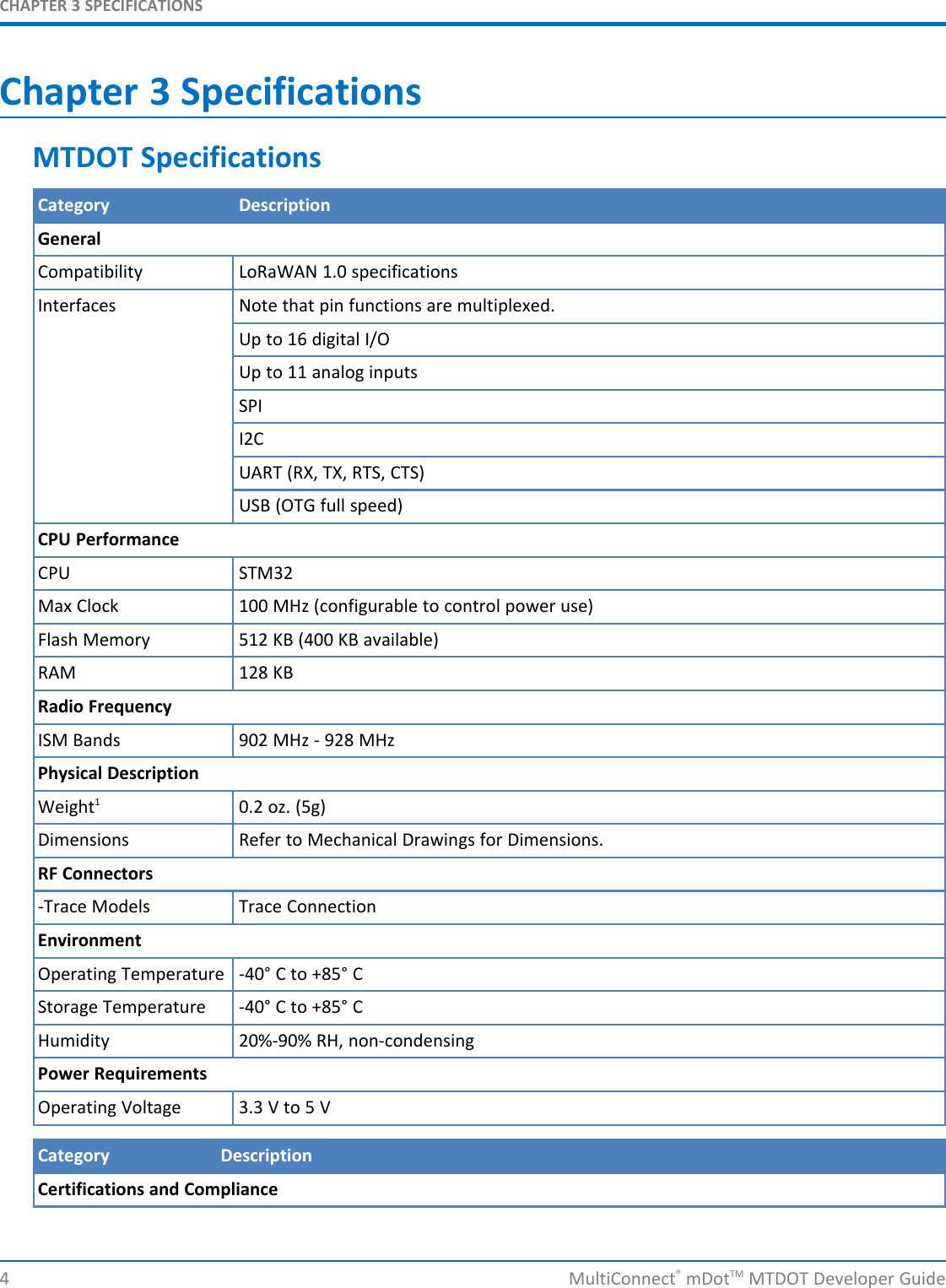

CHAPTER 3 SPECIFICATIONS4 MultiConnect®mDotTM MTDOT Developer GuideChapter 3 SpecificationsMTDOT SpecificationsCategory DescriptionGeneralCompatibility LoRaWAN 1.0 specificationsInterfaces Note that pin functions are multiplexed.Up to 16 digital I/OUp to 11 analog inputsSPII2CUART (RX, TX, RTS, CTS)USB (OTG full speed)CPU PerformanceCPU STM32Max Clock 100 MHz (configurable to control power use)Flash Memory 512 KB (400 KB available)RAM 128 KBRadio FrequencyISM Bands 902 MHz - 928 MHzPhysical DescriptionWeight10.2 oz. (5g)Dimensions Refer to Mechanical Drawings for Dimensions.RF Connectors-Trace Models Trace ConnectionEnvironmentOperating Temperature -40° C to +85° CStorage Temperature -40° C to +85° CHumidity 20%-90% RH, non-condensingPower RequirementsOperating Voltage 3.3 V to 5 VCategory DescriptionCertifications and Compliance
CHAPTER 3 SPECIFICATIONSMultiConnect®mDotTM MTDOT Developer Guide 5Category DescriptionEMC Compliance EN 300 220-2 V2.4.1:2012EN 301 489-03 V1.6.1:2013Radio Compliance FCC 15.247:2015FCC 15.109:2015FCC 15.107:2015RSS 247:2015ICES-003:2012CISPR 22:2008EN 300 220-2 V2.4.1:2012Safety Compliance UL 60950-1 2nd EDcUL 60950-1 2nd EDIEC 60950-1 2nd ED AM1 + AM21Weight is for the MTDOT-xxx-X1P-SMA, which is the heaviest model.Category DescriptionTransmission2North America EMEAMax TransmitterPower Output (TPO)15 dBm 14 dBmMaximum ReceiveSensitivity-137 dBm -137 dBmLink Budget3147 dB Point-to-Point 147 dB Point-to-PointMax EffectiveIsotropic RadiatedPower (EiRP)22 dBm 10 dBmReceive SensitivitySpreading Factor North America Typical Sensitivity4EMEA Typical Sensitivity56 -111 dBm -121 dBm7 -116 dBm -124 dBm8 -119 dBm -127 dBm9 -122 dBm -130 dBm10 -125 dBm -133 dBm11 Not Applicable -135 dBm12 Not Applicable -137 dBm2Using the Pulse Electronics W1063 antenna, described in the Chapter 4, Antennas.

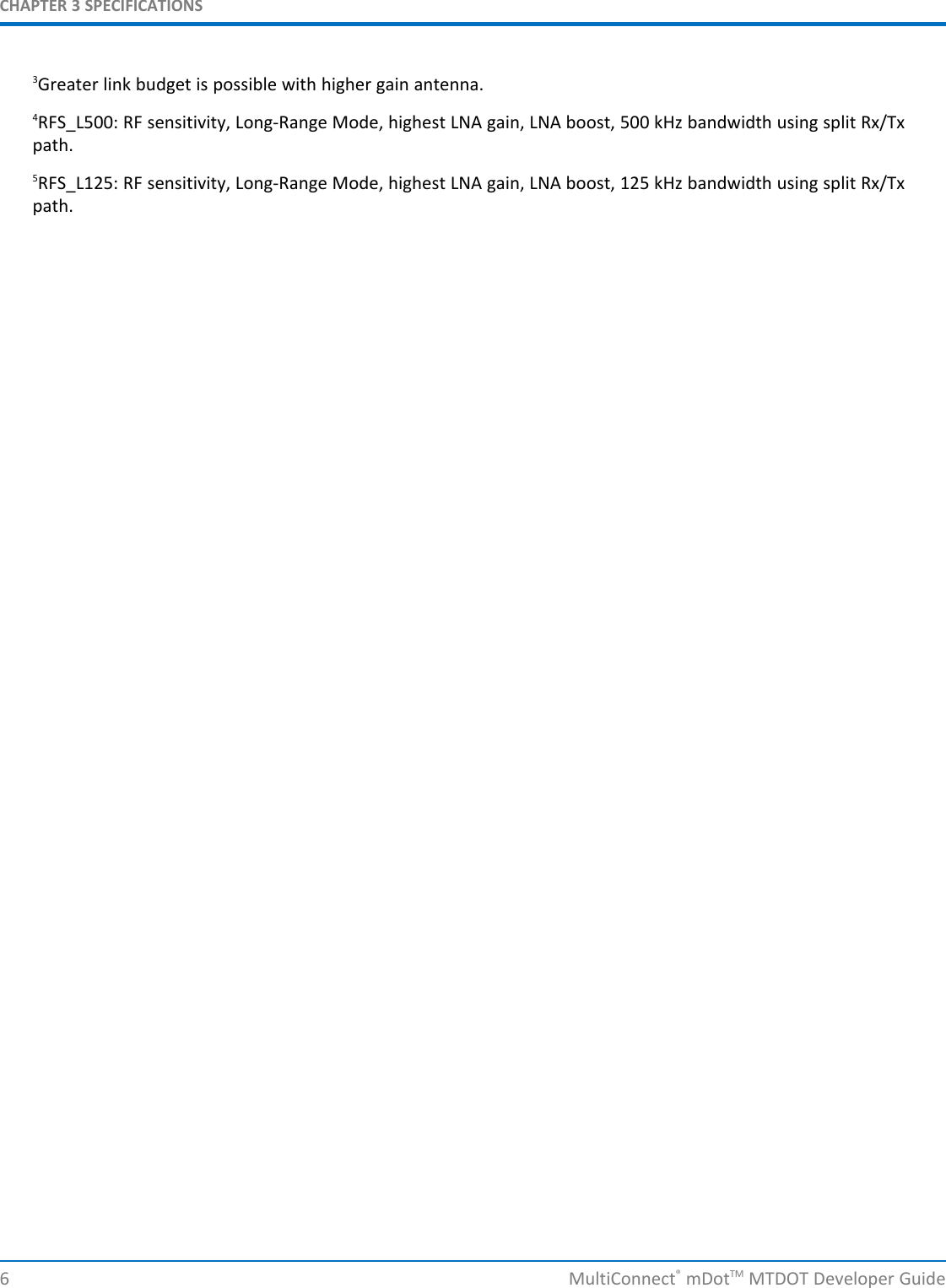

CHAPTER 3 SPECIFICATIONS6 MultiConnect®mDotTM MTDOT Developer Guide3Greater link budget is possible with higher gain antenna.4RFS_L500: RF sensitivity, Long-Range Mode, highest LNA gain, LNA boost, 500 kHz bandwidth using split Rx/Txpath.5RFS_L125: RF sensitivity, Long-Range Mode, highest LNA gain, LNA boost, 125 kHz bandwidth using split Rx/Txpath.

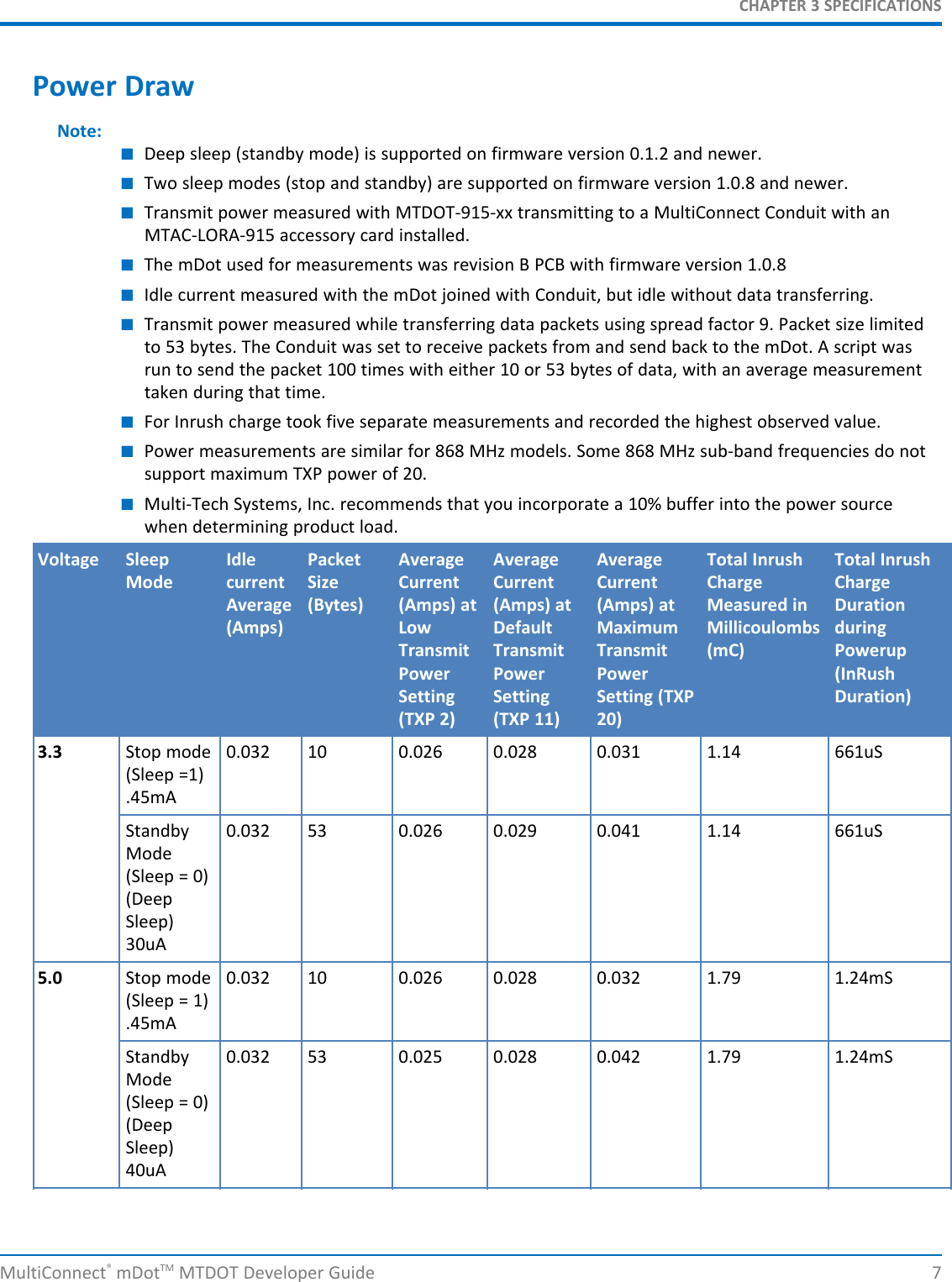

CHAPTER 3 SPECIFICATIONSMultiConnect®mDotTM MTDOT Developer Guide 7Power DrawNote:■Deep sleep (standby mode) is supported on firmware version 0.1.2 and newer.■Two sleep modes (stop and standby) are supported on firmware version 1.0.8 and newer.■Transmit power measured with MTDOT-915-xx transmitting to a MultiConnect Conduit with anMTAC-LORA-915 accessory card installed.■The mDot used for measurements was revision B PCB with firmware version 1.0.8■Idle current measured with the mDot joined with Conduit, but idle without data transferring.■Transmit power measured while transferring data packets using spread factor 9. Packet size limitedto 53 bytes. The Conduit was set to receive packets from and send back to the mDot. A script wasrun to send the packet 100 times with either 10 or 53 bytes of data, with an average measurementtaken during that time.■For Inrush charge took five separate measurements and recorded the highest observed value.■Power measurements are similar for 868 MHz models. Some 868 MHz sub-band frequencies do notsupport maximum TXP power of 20.■Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into the power sourcewhen determining product load.Voltage SleepModeIdlecurrentAverage(Amps)PacketSize(Bytes)AverageCurrent(Amps) atLowTransmitPowerSetting(TXP 2)AverageCurrent(Amps) atDefaultTransmitPowerSetting(TXP 11)AverageCurrent(Amps) atMaximumTransmitPowerSetting (TXP20)Total InrushChargeMeasured inMillicoulombs(mC)Total InrushChargeDurationduringPowerup(InRushDuration)3.3 Stop mode(Sleep =1).45mA0.032 10 0.026 0.028 0.031 1.14 661uSStandbyMode(Sleep = 0)(DeepSleep)30uA0.032 53 0.026 0.029 0.041 1.14 661uS5.0 Stop mode(Sleep = 1).45mA0.032 10 0.026 0.028 0.032 1.79 1.24mSStandbyMode(Sleep = 0)(DeepSleep)40uA0.032 53 0.025 0.028 0.042 1.79 1.24mS

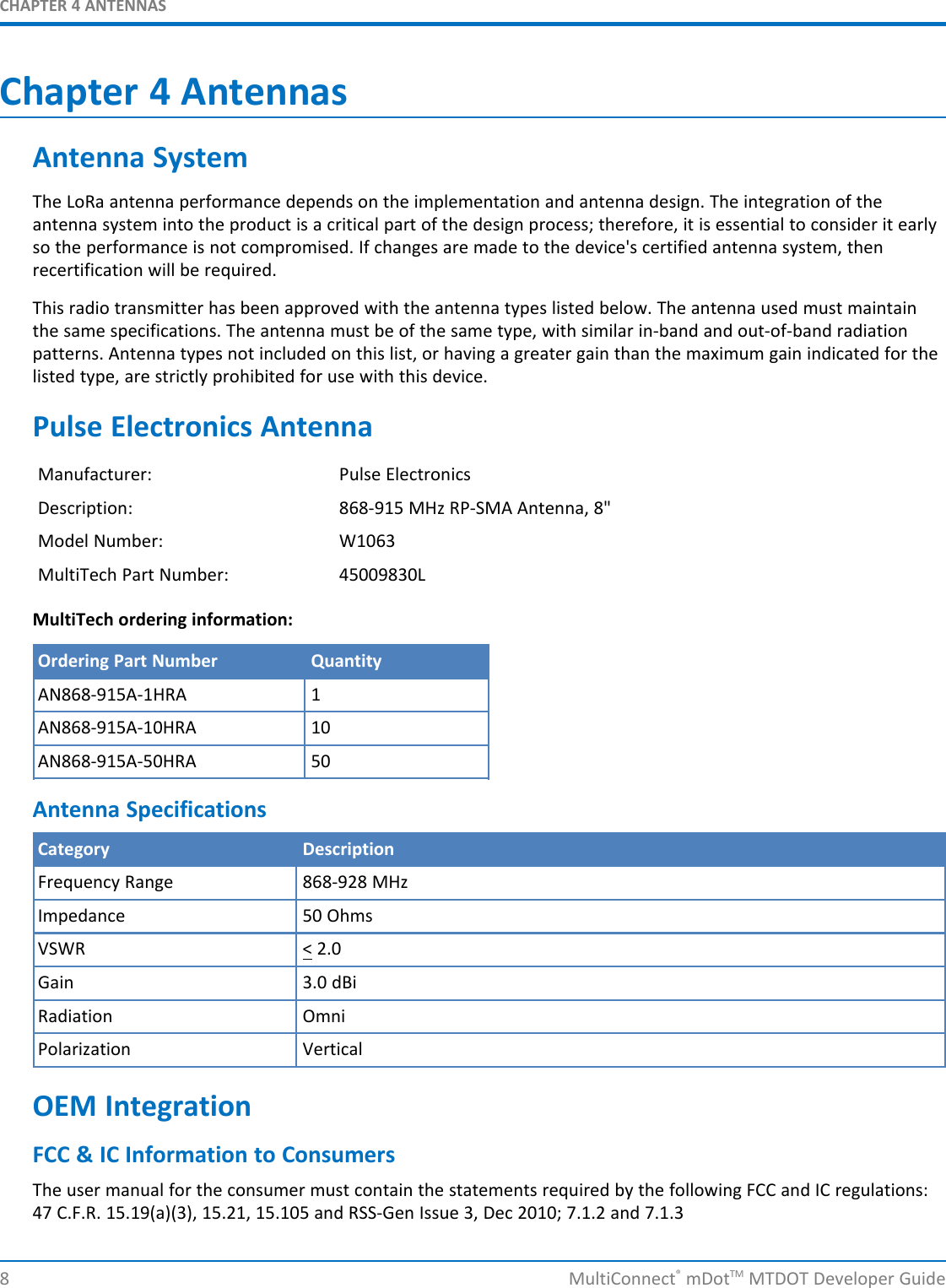

CHAPTER 4 ANTENNAS8 MultiConnect®mDotTM MTDOT Developer GuideChapter 4 AntennasAntenna SystemThe LoRa antenna performance depends on the implementation and antenna design. The integration of theantenna system into the product is a critical part of the design process; therefore, it is essential to consider it earlyso the performance is not compromised. If changes are made to the device's certified antenna system, thenrecertification will be required.This radio transmitter has been approved with the antenna types listed below. The antenna used must maintainthe same specifications. The antenna must be of the same type, with similar in-band and out-of-band radiationpatterns. Antenna types not included on this list, or having a greater gain than the maximum gain indicated for thelisted type, are strictly prohibited for use with this device.Pulse Electronics AntennaManufacturer: Pulse ElectronicsDescription: 868-915 MHz RP-SMA Antenna, 8"Model Number: W1063MultiTech Part Number: 45009830LMultiTech ordering information:Ordering Part Number QuantityAN868-915A-1HRA 1AN868-915A-10HRA 10AN868-915A-50HRA 50Antenna SpecificationsCategory DescriptionFrequency Range 868-928 MHzImpedance 50 OhmsVSWR < 2.0Gain 3.0 dBiRadiation OmniPolarization VerticalOEM IntegrationFCC & IC Information to ConsumersThe user manual for the consumer must contain the statements required by the following FCC and IC regulations:47 C.F.R. 15.19(a)(3), 15.21, 15.105 and RSS-Gen Issue 3, Dec 2010; 7.1.2 and 7.1.3
CHAPTER 4 ANTENNASMultiConnect®mDotTM MTDOT Developer Guide 9FCC Grant NotesThe OEM should follow all the grant notes listed below. Otherwise, further testing and device approvals may benecessary.FCC DefinitionsPortable: (§2.1093) — A portable device is defined as a transmitting device designed to be used so that theradiating structure(s) of the device is/are within 20 centimeters of the body of the user.Mobile: (§2.1091) — A mobile device is defined as a transmitting device designed to be used in other than fixedlocations and to generally be used in such a way that a separation distance of at least 20 centimeters is normallymaintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons.Actual content pending Grant:This device is a mobile device with respect to RF exposure compliance. Theantenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from allpersons, and must not be collocated or operate in conjunction with any other antenna or transmitter except inaccordance with FCC multi-transmitter product guidelines. Installers and end-users must be provided with specificinformation required to satisfy RF exposure compliance for installations and final host devices. (See note underGrant Limitations.) Compliance of this device in all final host configurations is the responsibility of the Grantee.Note: Host design configurations constituting a device for portable use (<20 cm from human body) requireseparate FCC/IC approval.Note: Only use antennas approved respectively as listed for the unlicensed radios (Bluetooth/Wi-Fi)Host LabelingThe following statements are required to be on the host label:This device contains FCC ID: {Add the FCC ID of the specific device}This device contains equipment certified under IC ID: {Add the IC ID of the specific device}For additional labeling requirements, see the product's Labeling Requirements. For the FCC and IC IDs, see specificcertificate information in the Regulatory Statement chapter.

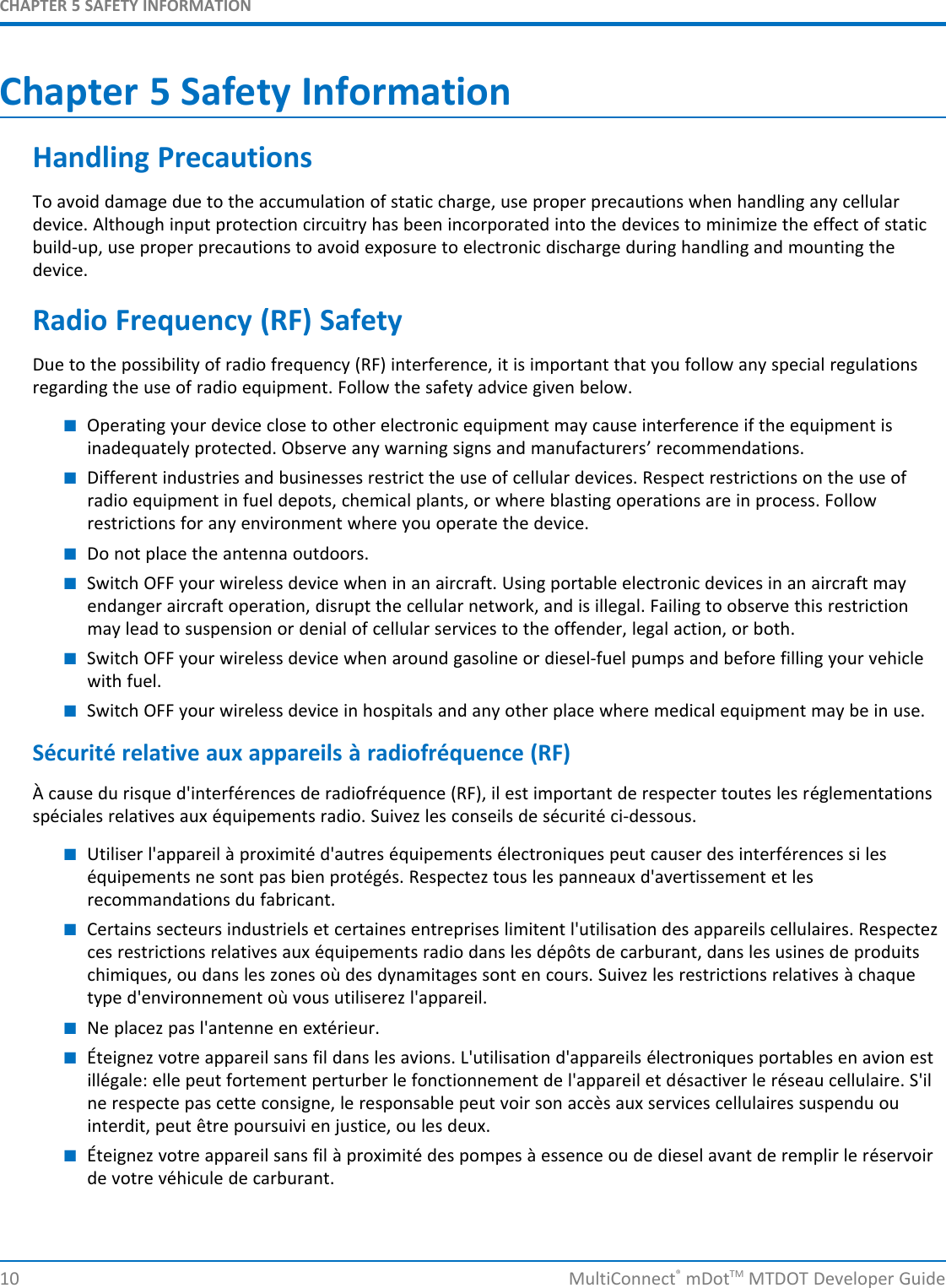

CHAPTER 5 SAFETY INFORMATION10 MultiConnect®mDotTM MTDOT Developer GuideChapter 5 Safety InformationHandling PrecautionsTo avoid damage due to the accumulation of static charge, use proper precautions when handling any cellulardevice. Although input protection circuitry has been incorporated into the devices to minimize the effect of staticbuild-up, use proper precautions to avoid exposure to electronic discharge during handling and mounting thedevice.Radio Frequency (RF) SafetyDue to the possibility of radio frequency (RF) interference, it is important that you follow any special regulationsregarding the use of radio equipment. Follow the safety advice given below.■Operating your device close to other electronic equipment may cause interference if the equipment isinadequately protected. Observe any warning signs and manufacturers’ recommendations.■Different industries and businesses restrict the use of cellular devices. Respect restrictions on the use ofradio equipment in fuel depots, chemical plants, or where blasting operations are in process. Followrestrictions for any environment where you operate the device.■Do not place the antenna outdoors.■Switch OFF your wireless device when in an aircraft. Using portable electronic devices in an aircraft mayendanger aircraft operation, disrupt the cellular network, and is illegal. Failing to observe this restrictionmay lead to suspension or denial of cellular services to the offender, legal action, or both.■Switch OFF your wireless device when around gasoline or diesel-fuel pumps and before filling your vehiclewith fuel.■Switch OFF your wireless device in hospitals and any other place where medical equipment may be in use.Sécurité relative aux appareils à radiofréquence (RF)À cause du risque d'interférences de radiofréquence (RF), il est important de respecter toutes les réglementationsspéciales relatives aux équipements radio. Suivez les conseils de sécurité ci-dessous.■Utiliser l'appareil à proximité d'autres équipements électroniques peut causer des interférences si leséquipements ne sont pas bien protégés. Respectez tous les panneaux d'avertissement et lesrecommandations du fabricant.■Certains secteurs industriels et certaines entreprises limitent l'utilisation des appareils cellulaires. Respectezces restrictions relatives aux équipements radio dans les dépôts de carburant, dans les usines de produitschimiques, ou dans les zones où des dynamitages sont en cours. Suivez les restrictions relatives à chaquetype d'environnement où vous utiliserez l'appareil.■Ne placez pas l'antenne en extérieur.■Éteignez votre appareil sans fil dans les avions. L'utilisation d'appareils électroniques portables en avion estillégale: elle peut fortement perturber le fonctionnement de l'appareil et désactiver le réseau cellulaire. S'ilne respecte pas cette consigne, le responsable peut voir son accès aux services cellulaires suspendu ouinterdit, peut être poursuivi en justice, ou les deux.■Éteignez votre appareil sans fil à proximité des pompes à essence ou de diesel avant de remplir le réservoirde votre véhicule de carburant.
CHAPTER 5 SAFETY INFORMATIONMultiConnect®mDotTM MTDOT Developer Guide 11■Éteignez votre appareil sans fil dans les hôpitaux ou dans toutes les zones où des appareils médicaux sontsusceptibles d'être utilisés.Interference with Pacemakers and Other Medical DevicesPotential interferenceRadio frequency energy (RF) from cellular devices can interact with some electronic devices. This iselectromagnetic interference (EMI). The FDA helped develop a detailed test method to measure EMI of implantedcardiac pacemakers and defibrillators from cellular devices. This test method is part of the Association for theAdvancement of Medical Instrumentation (AAMI) standard. This standard allows manufacturers to ensure thatcardiac pacemakers and defibrillators are safe from cellular device EMI.The FDA continues to monitor cellular devices for interactions with other medical devices. If harmful interferenceoccurs, the FDA will assess the interference and work to resolve the problem.Precautions for pacemaker wearersIf EMI occurs, it could affect a pacemaker in one of three ways:■Stop the pacemaker from delivering the stimulating pulses that regulate the heart's rhythm.■Cause the pacemaker to deliver the pulses irregularly.■Cause the pacemaker to ignore the heart's own rhythm and deliver pulses at a fixed rate.Based on current research, cellular devices do not pose a significant health problem for most pacemaker wearers.However, people with pacemakers may want to take simple precautions to be sure that their device doesn't causea problem.■Keep the device on the opposite the side of the body from the pacemaker to add extra distancebetween the pacemaker and the device.■Avoid placing a turned-on device next to the pacemaker (for example, don’t carry the device in a shirtor jacket pocket directly over the pacemaker).Device MaintenanceWhen maintaining your device:■Do not attempt to disassemble the device. There are no user serviceable parts inside.■Do not expose your device to any extreme environment where the temperature or humidity is high.■Do not expose the device to water, rain, or spilled beverages. It is not waterproof.■Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. Theinformation contained on discs or cards may be affected by the device.■Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant withMultiTech's accessory specifications may invalidate the warranty.If the device is not working properly, contact MultiTech Technical Support.User ResponsibilityRespect all local regulations for operating your wireless device. Use the security features to block unauthorized useand theft.

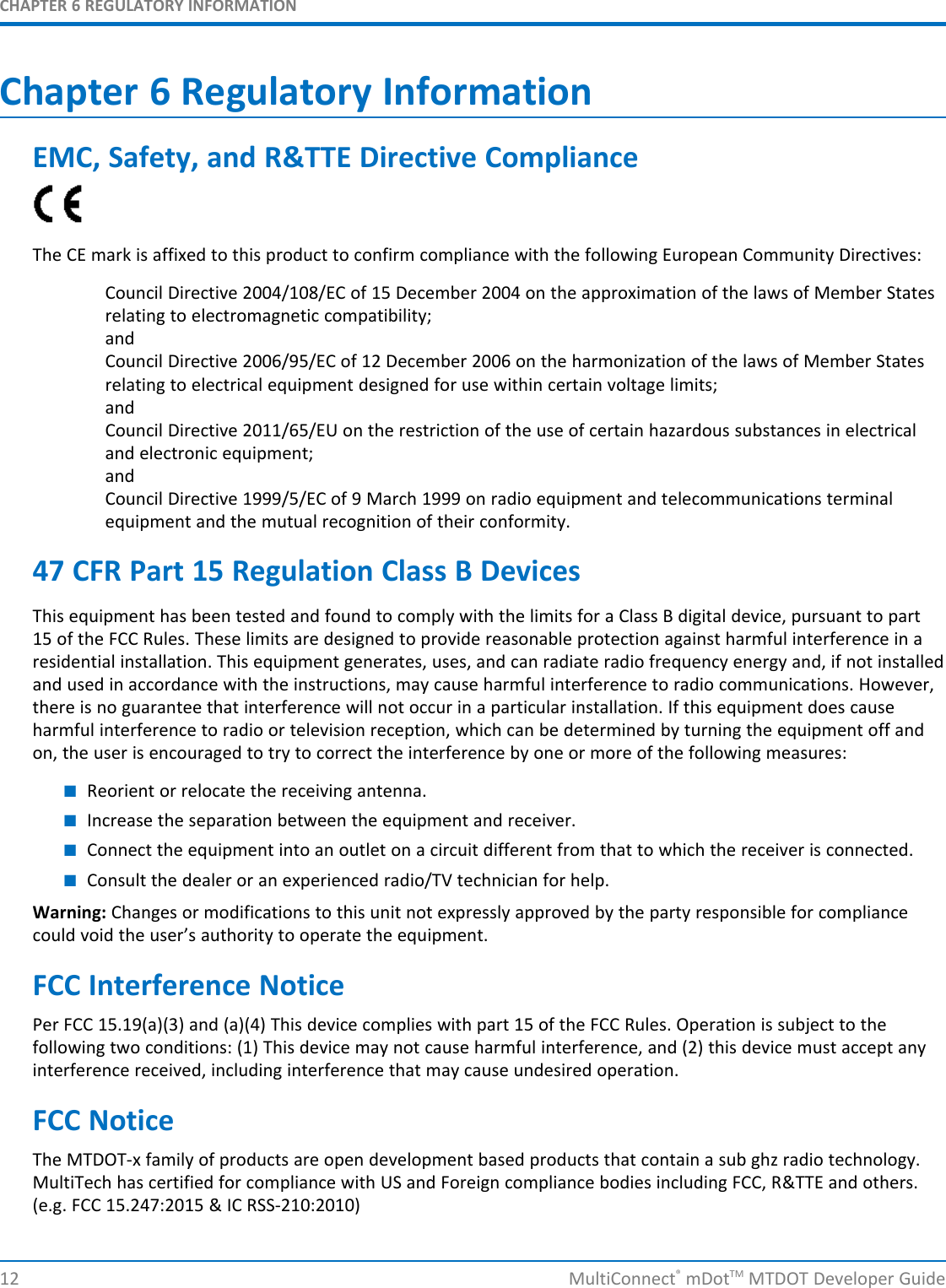

CHAPTER 6 REGULATORY INFORMATION12 MultiConnect®mDotTM MTDOT Developer GuideChapter 6 Regulatory InformationEMC, Safety, and R&TTE Directive ComplianceThe CE mark is affixed to this product to confirm compliance with the following European Community Directives:Council Directive 2004/108/EC of 15 December 2004 on the approximation of the laws of Member Statesrelating to electromagnetic compatibility;andCouncil Directive 2006/95/EC of 12 December 2006 on the harmonization of the laws of Member Statesrelating to electrical equipment designed for use within certain voltage limits;andCouncil Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electricaland electronic equipment;andCouncil Directive 1999/5/EC of 9 March 1999 on radio equipment and telecommunications terminalequipment and the mutual recognition of their conformity.47 CFR Part 15 Regulation Class B DevicesThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by one or more of the following measures:■Reorient or relocate the receiving antenna.■Increase the separation between the equipment and receiver.■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.■Consult the dealer or an experienced radio/TV technician for help.Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliancecould void the user’s authority to operate the equipment.FCC Interference NoticePer FCC 15.19(a)(3) and (a)(4) This device complies with part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept anyinterference received, including interference that may cause undesired operation.FCC NoticeThe MTDOT-x family of products are open development based products that contain a sub ghz radio technology.MultiTech has certified for compliance with US and Foreign compliance bodies including FCC, R&TTE and others.(e.g. FCC 15.247:2015 & IC RSS-210:2010)

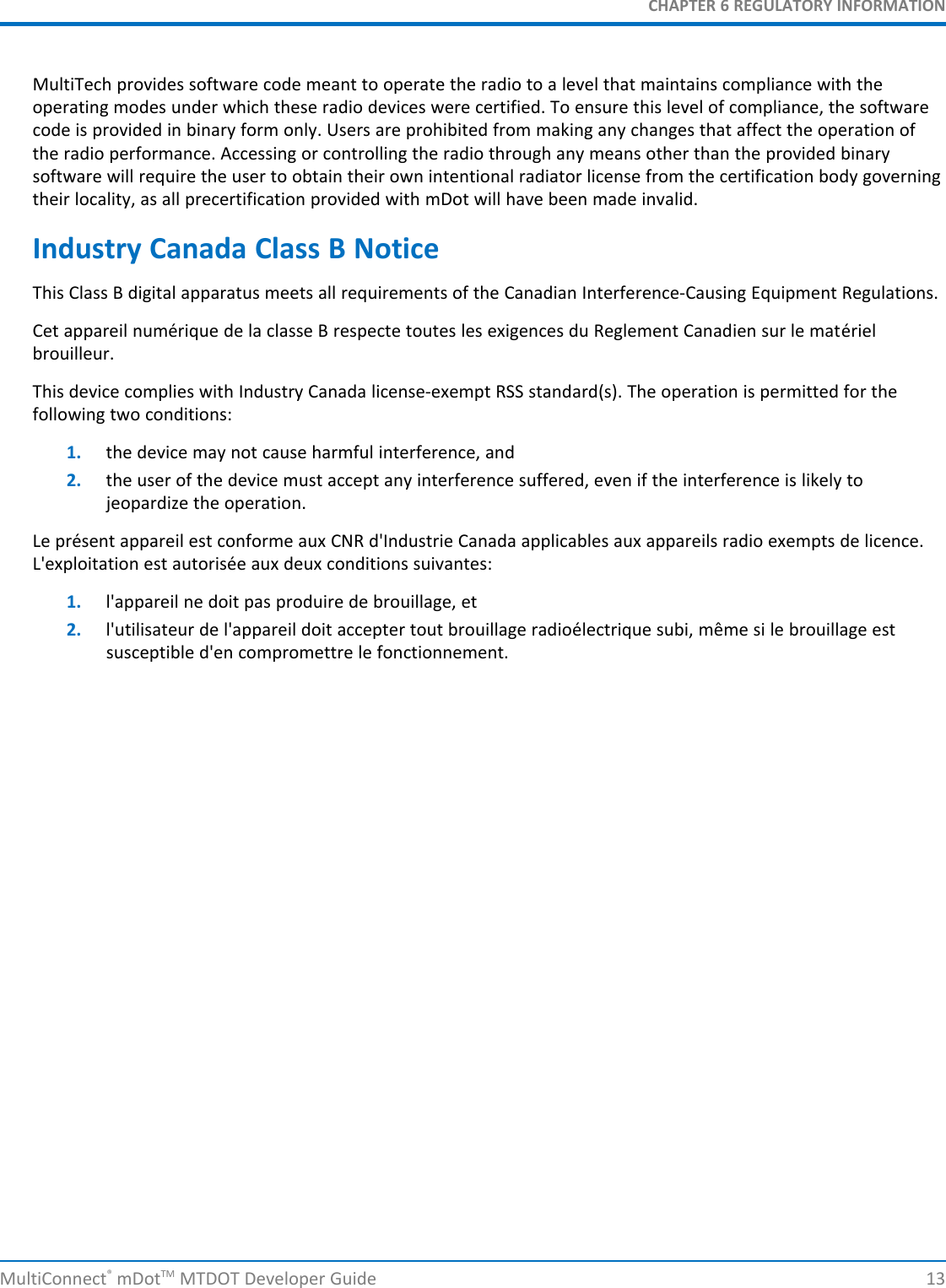

CHAPTER 6 REGULATORY INFORMATIONMultiConnect®mDotTM MTDOT Developer Guide 13MultiTech provides software code meant to operate the radio to a level that maintains compliance with theoperating modes under which these radio devices were certified. To ensure this level of compliance, the softwarecode is provided in binary form only. Users are prohibited from making any changes that affect the operation ofthe radio performance. Accessing or controlling the radio through any means other than the provided binarysoftware will require the user to obtain their own intentional radiator license from the certification body governingtheir locality, as all precertification provided with mDot will have been made invalid.Industry Canada Class B NoticeThis Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.Cet appareil numérique de la classe B respecte toutes les exigences du Reglement Canadien sur le matérielbrouilleur.This device complies with Industry Canada license-exempt RSS standard(s). The operation is permitted for thefollowing two conditions:1. the device may not cause harmful interference, and2. the user of the device must accept any interference suffered, even if the interference is likely tojeopardize the operation.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.L'exploitation est autorisée aux deux conditions suivantes:1. l'appareil ne doit pas produire de brouillage, et2. l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage estsusceptible d'en compromettre le fonctionnement.

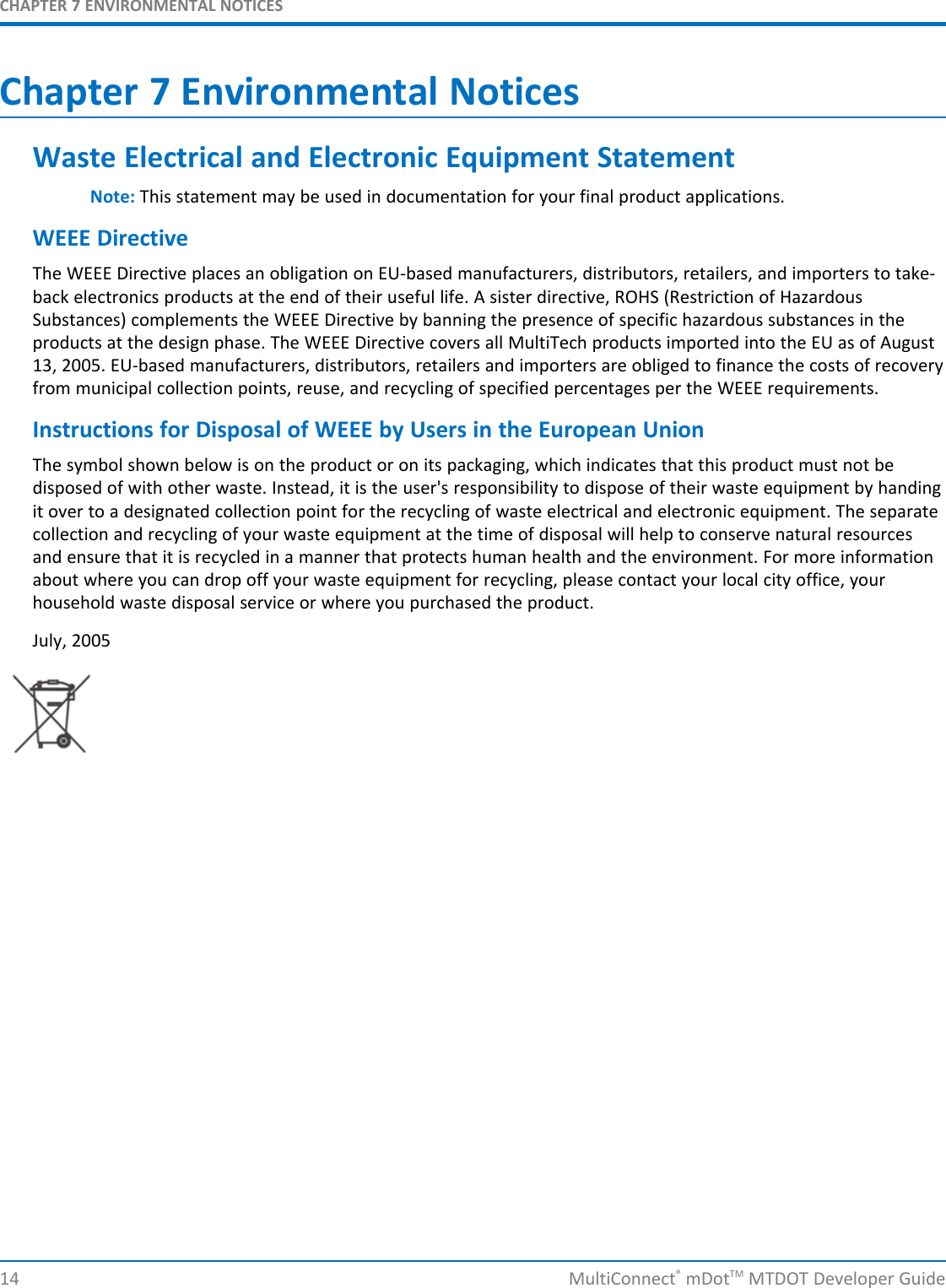

CHAPTER 7 ENVIRONMENTAL NOTICES14 MultiConnect®mDotTM MTDOT Developer GuideChapter 7 Environmental NoticesWaste Electrical and Electronic Equipment StatementNote: This statement may be used in documentation for your final product applications.WEEE DirectiveThe WEEE Directive places an obligation on EU-based manufacturers, distributors, retailers, and importers to take-back electronics products at the end of their useful life. A sister directive, ROHS (Restriction of HazardousSubstances) complements the WEEE Directive by banning the presence of specific hazardous substances in theproducts at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recoveryfrom municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.Instructions for Disposal of WEEE by Users in the European UnionThe symbol shown below is on the product or on its packaging, which indicates that this product must not bedisposed of with other waste. Instead, it is the user's responsibility to dispose of their waste equipment by handingit over to a designated collection point for the recycling of waste electrical and electronic equipment. The separatecollection and recycling of your waste equipment at the time of disposal will help to conserve natural resourcesand ensure that it is recycled in a manner that protects human health and the environment. For more informationabout where you can drop off your waste equipment for recycling, please contact your local city office, yourhousehold waste disposal service or where you purchased the product.July, 2005

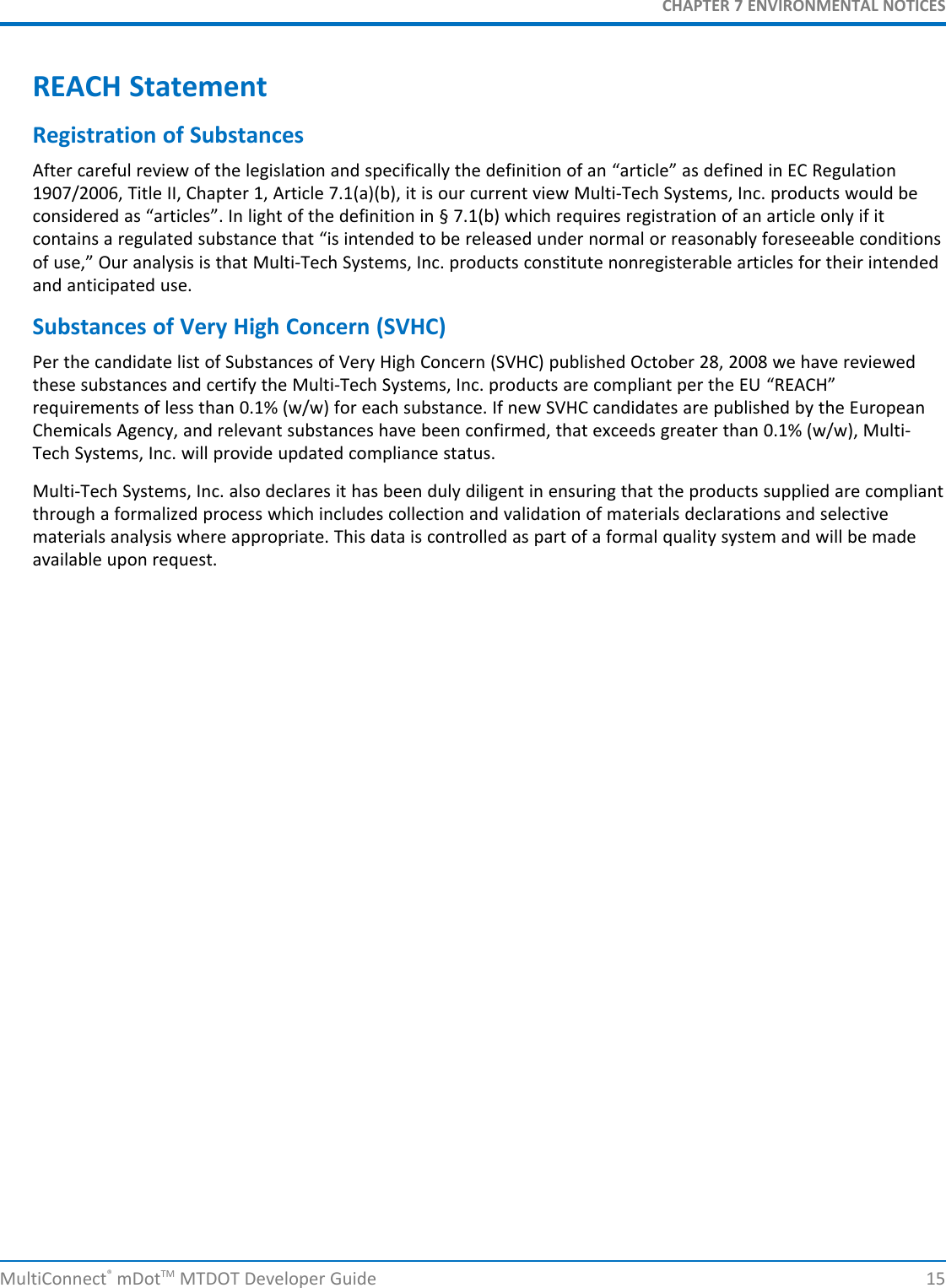

CHAPTER 7 ENVIRONMENTAL NOTICESMultiConnect®mDotTM MTDOT Developer Guide 15REACH StatementRegistration of SubstancesAfter careful review of the legislation and specifically the definition of an “article” as defined in EC Regulation1907/2006, Title II, Chapter 1, Article 7.1(a)(b), it is our current view Multi-Tech Systems, Inc. products would beconsidered as “articles”. In light of the definition in § 7.1(b) which requires registration of an article only if itcontains a regulated substance that “is intended to be released under normal or reasonably foreseeable conditionsof use,” Our analysis is that Multi-Tech Systems, Inc. products constitute nonregisterable articles for their intendedand anticipated use.Substances of Very High Concern (SVHC)Per the candidate list of Substances of Very High Concern (SVHC) published October 28, 2008 we have reviewedthese substances and certify the Multi-Tech Systems, Inc. products are compliant per the EU “REACH”requirements of less than 0.1% (w/w) for each substance. If new SVHC candidates are published by the EuropeanChemicals Agency, and relevant substances have been confirmed, that exceeds greater than 0.1% (w/w), Multi-Tech Systems, Inc. will provide updated compliance status.Multi-Tech Systems, Inc. also declares it has been duly diligent in ensuring that the products supplied are compliantthrough a formalized process which includes collection and validation of materials declarations and selectivematerials analysis where appropriate. This data is controlled as part of a formal quality system and will be madeavailable upon request.

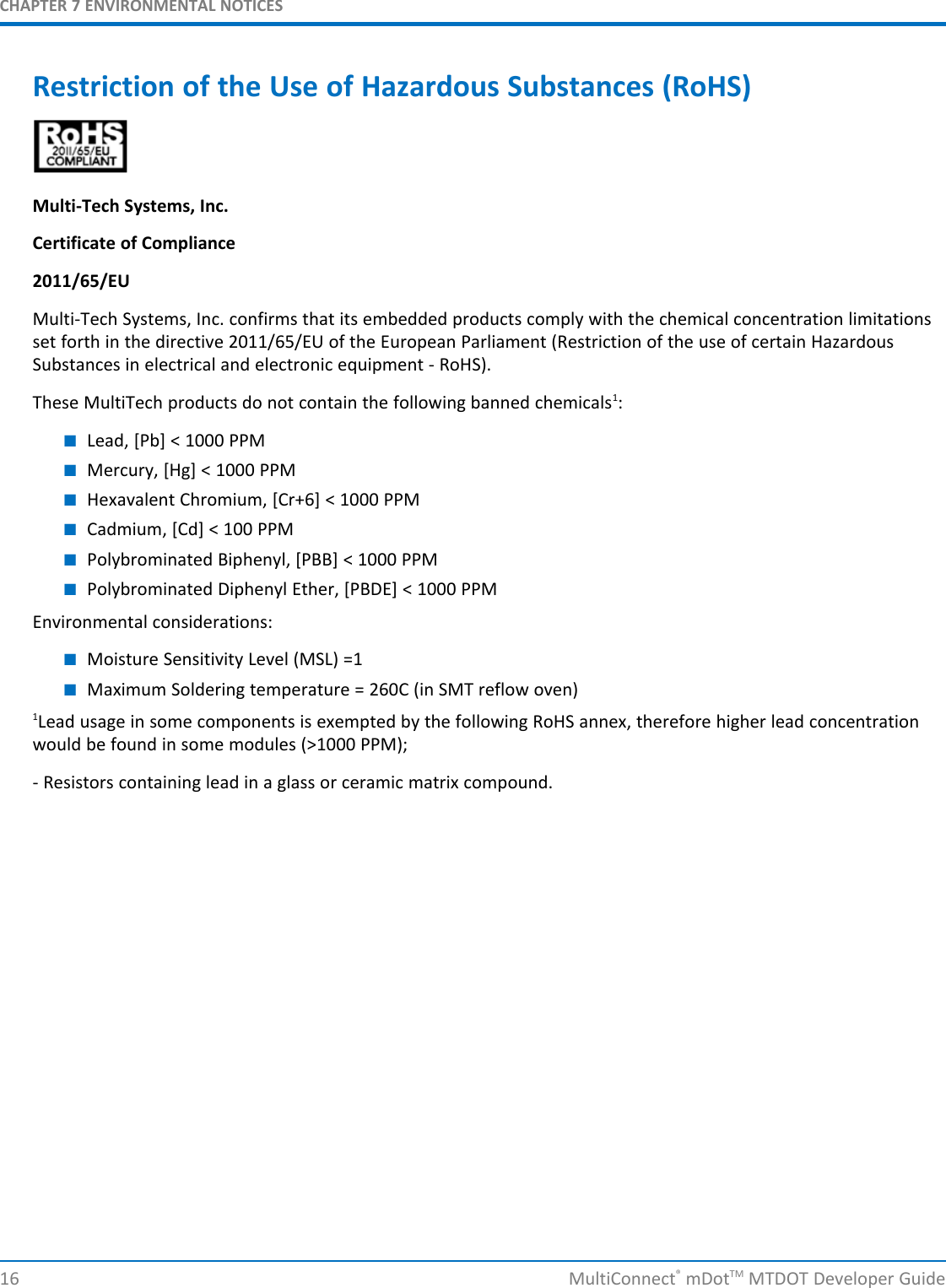

CHAPTER 7 ENVIRONMENTAL NOTICES16 MultiConnect®mDotTM MTDOT Developer GuideRestriction of the Use of Hazardous Substances (RoHS)Multi-Tech Systems, Inc.Certificate of Compliance2011/65/EUMulti-Tech Systems, Inc. confirms that its embedded products comply with the chemical concentration limitationsset forth in the directive 2011/65/EU of the European Parliament (Restriction of the use of certain HazardousSubstances in electrical and electronic equipment - RoHS).These MultiTech products do not contain the following banned chemicals1:■Lead, [Pb] < 1000 PPM■Mercury, [Hg] < 1000 PPM■Hexavalent Chromium, [Cr+6] < 1000 PPM■Cadmium, [Cd] < 100 PPM■Polybrominated Biphenyl, [PBB] < 1000 PPM■Polybrominated Diphenyl Ether, [PBDE] < 1000 PPMEnvironmental considerations:■Moisture Sensitivity Level (MSL) =1■Maximum Soldering temperature = 260C (in SMT reflow oven)1Lead usage in some components is exempted by the following RoHS annex, therefore higher lead concentrationwould be found in some modules (>1000 PPM);- Resistors containing lead in a glass or ceramic matrix compound.
CHAPTER 7 ENVIRONMENTAL NOTICESMultiConnect®mDotTM MTDOT Developer Guide 17Information on HS/TS Substances According to Chinese StandardsIn accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic InformationProducts (EIP) # 39, also known as China RoHS, the following information is provided regarding the names andconcentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-TechSystems Inc. products relative to the EIP standards set by China's Ministry of Information Industry (MII).Hazardous/Toxic Substance/ElementsName of the Component Lead(PB)Mercury(Hg)Cadmium(CD)HexavalentChromium(CR6+)PolybrominatedBiphenyl(PBB)Polybrominated DiphenylEther (PBDE)Printed Circuit Boards O O O O O OResistors X O O O O OCapacitors X O O O O OFerrite Beads O O O O O ORelays/Opticals O O O O O OICs O O O O O ODiodes/ Transistors O O O O O OOscillators and Crystals X O O O O ORegulator O O O O O OVoltage Sensor O O O O O OTransformer O O O O O OSpeaker O O O O O OConnectors O O O O O OLEDs O O O O O OScrews, Nuts, and otherHardwareX O O O O OAC-DC Power Supplies O O O O O OSoftware /Documentation CDs O O O O O OBooklets and Paperwork O O O O O OChassis O O O O O OXRepresents that the concentration of such hazardous/toxic substance in all the units of homogeneousmaterial of such component is higher than the SJ/Txxx-2006 Requirements for Concentration Limits.ORepresents that no such substances are used or that the concentration is within the aforementioned limits.

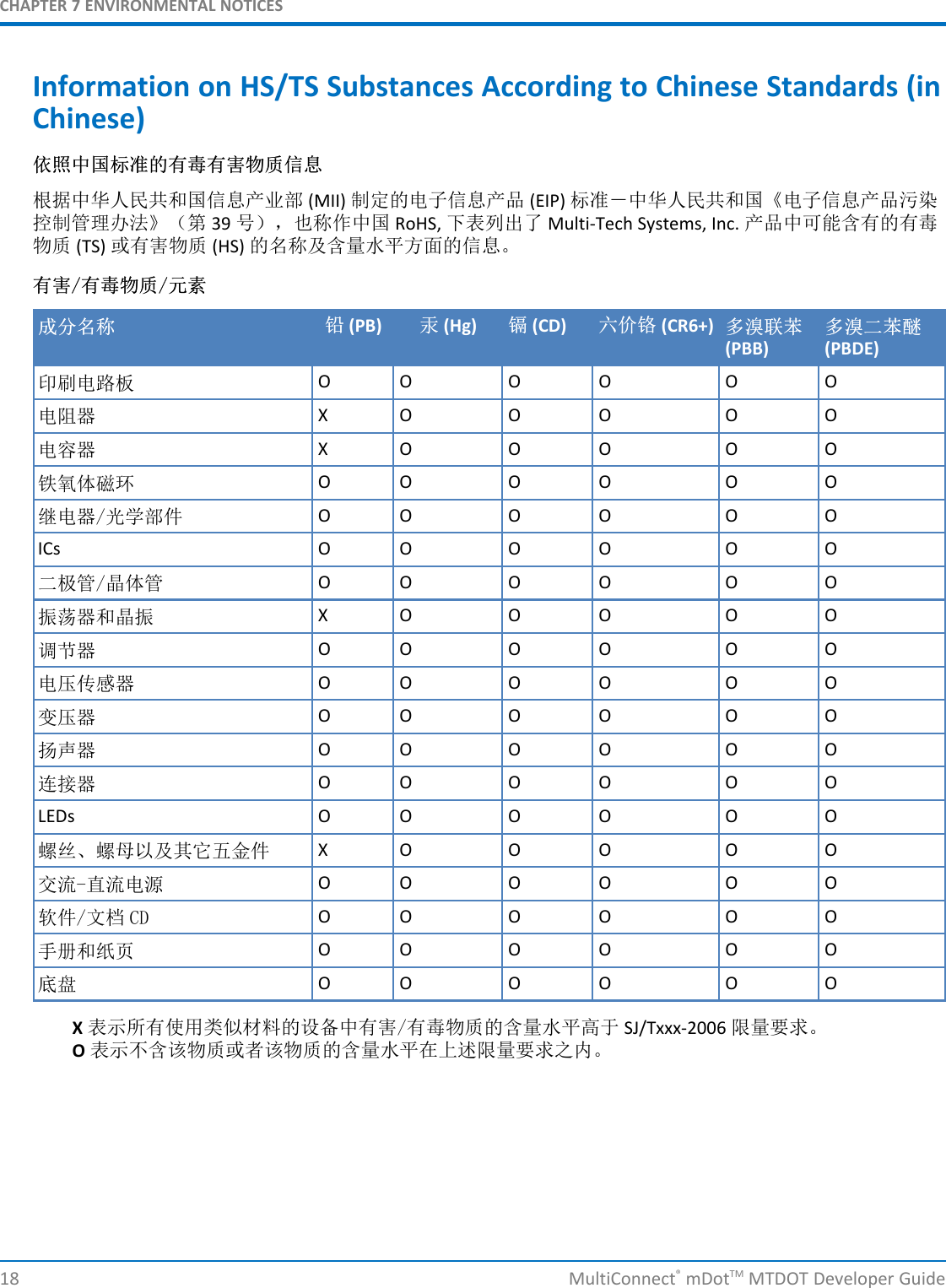

CHAPTER 7 ENVIRONMENTAL NOTICES18 MultiConnect®mDotTM MTDOT Developer GuideInformation on HS/TS Substances According to Chinese Standards (inChinese)依依照照中中国国标标准准的的有有毒毒有有害害物物质质信信息息根据中华人民共和国信息产业部 (MII) 制定的电子信息产品 (EIP) 标准－中华人民共和国《电子信息产品污染控制管理办法》（第 39 号），也称作中国 RoHS, 下表列出了 Multi-Tech Systems, Inc. 产品中可能含有的有毒物质 (TS) 或有害物质 (HS) 的名称及含量水平方面的信息。有有害害//有有毒毒物物质质//元元素素成成分分名名称称 铅铅 (PB) 汞汞 (Hg) 镉镉 (CD) 六六价价铬铬 (CR6+) 多多溴溴联联苯苯(PBB)多多溴溴二二苯苯醚醚(PBDE)印刷电路板 O O O O O O电阻器 X O O O O O电容器 X O O O O O铁氧体磁环 O O O O O O继电器/光学部件 O O O O O OICs O O O O O O二极管/晶体管 O O O O O O振荡器和晶振 X O O O O O调节器 O O O O O O电压传感器 O O O O O O变压器 O O O O O O扬声器 O O O O O O连接器 O O O O O OLEDs O O O O O O螺丝、螺母以及其它五金件 X O O O O O交流-直流电源 O O O O O O软件/文档 CD O O O O O O手册和纸页 O O O O O O底盘 O O O O O OX表示所有使用类似材料的设备中有害/有毒物质的含量水平高于 SJ/Txxx-2006 限量要求。O表示不含该物质或者该物质的含量水平在上述限量要求之内。

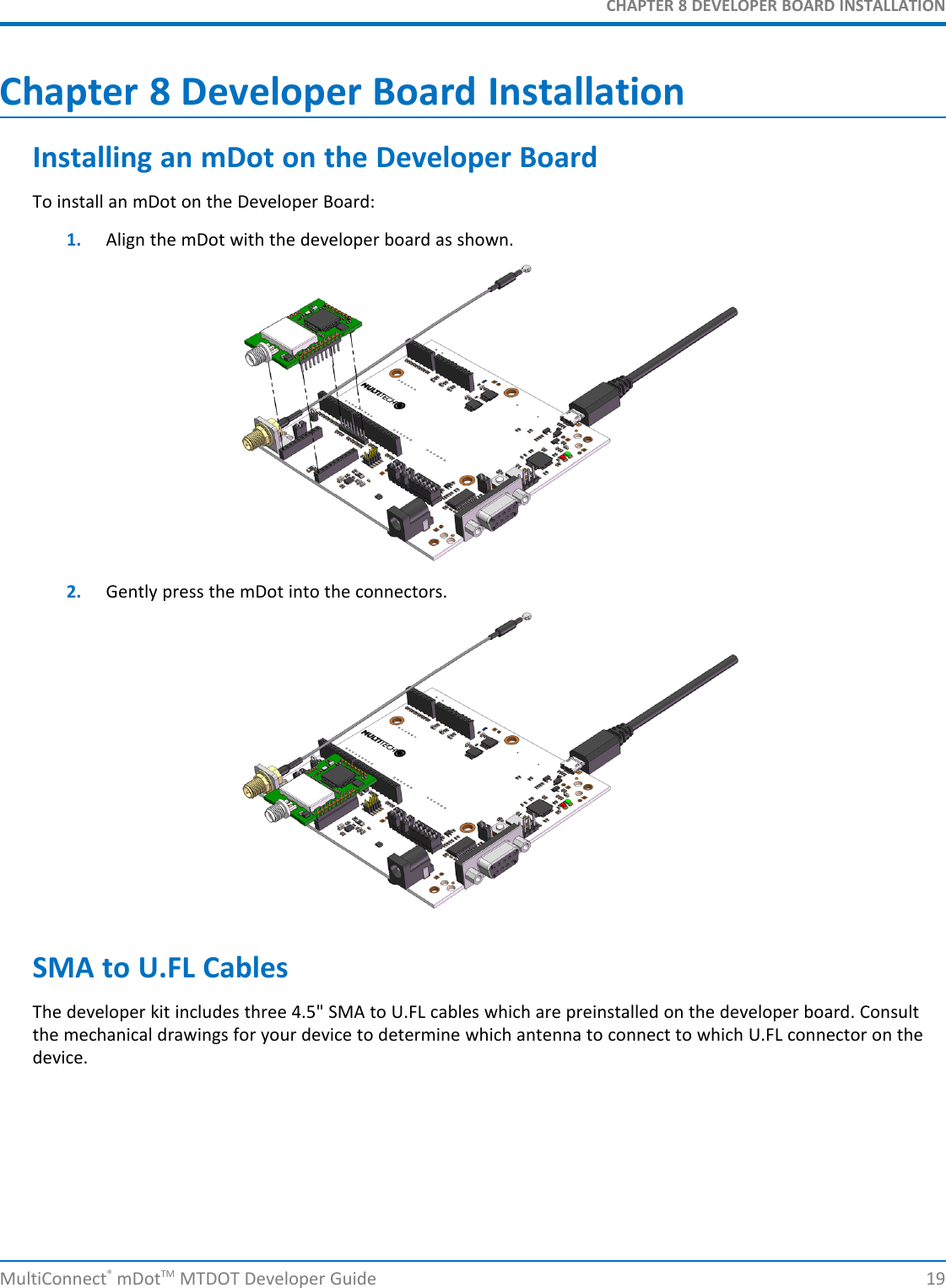

CHAPTER 8 DEVELOPER BOARD INSTALLATIONMultiConnect®mDotTM MTDOT Developer Guide 19Chapter 8 Developer Board InstallationInstalling an mDot on the Developer BoardTo install an mDot on the Developer Board:1. Align the mDot with the developer board as shown.2. Gently press the mDot into the connectors.SMA to U.FL CablesThe developer kit includes three 4.5" SMA to U.FL cables which are preinstalled on the developer board. Consultthe mechanical drawings for your device to determine which antenna to connect to which U.FL connector on thedevice.

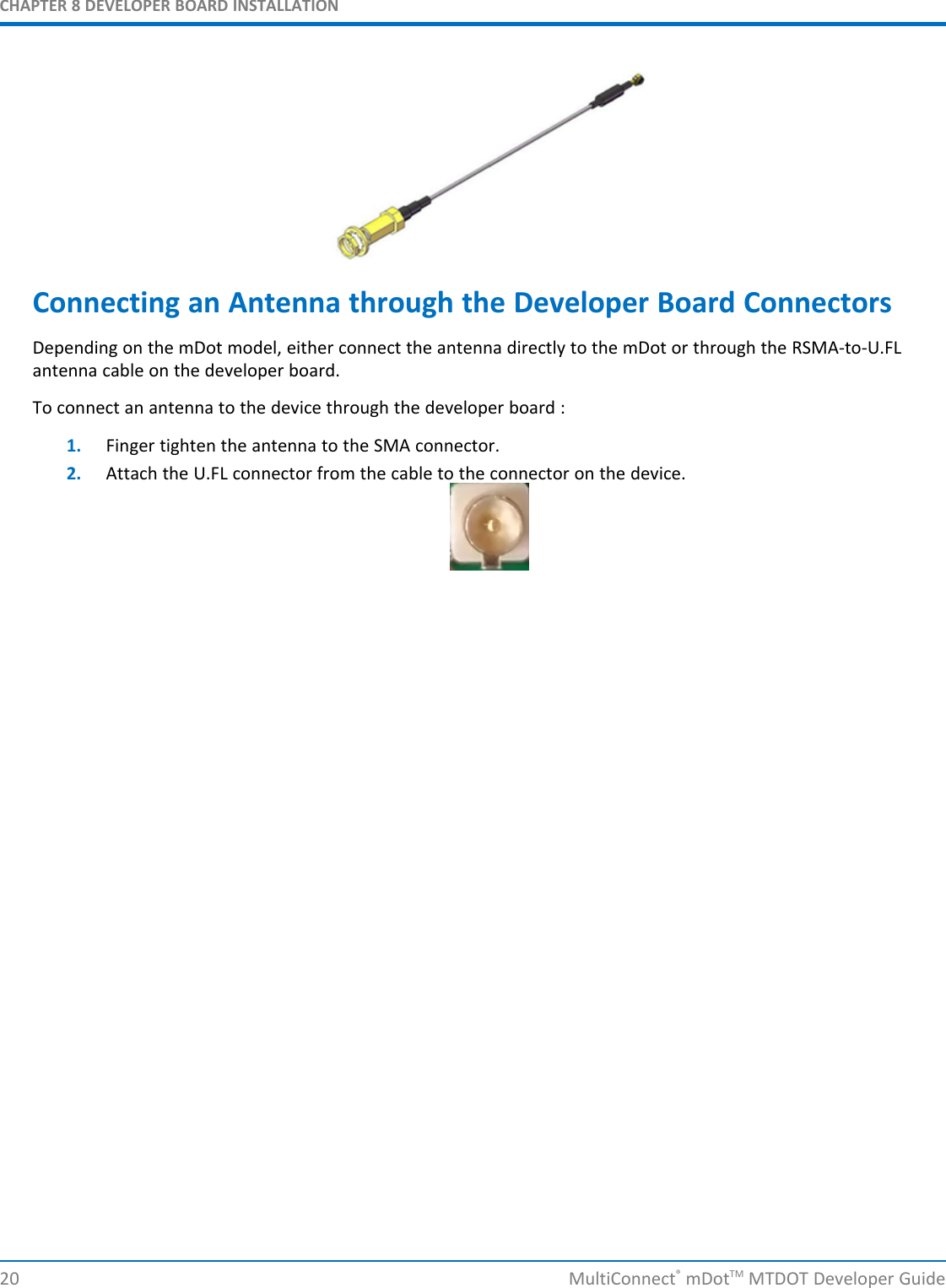

CHAPTER 8 DEVELOPER BOARD INSTALLATION20 MultiConnect®mDotTM MTDOT Developer GuideConnecting an Antenna through the Developer Board ConnectorsDepending on the mDot model, either connect the antenna directly to the mDot or through the RSMA-to-U.FLantenna cable on the developer board.To connect an antenna to the device through the developer board :1. Finger tighten the antenna to the SMA connector.2. Attach the U.FL connector from the cable to the connector on the device.
